International conference on distributed multimedia systems (DMS’ 05), Banff, Canada, September 2005 Assessment of Data Path Implementations for Download and Streaming Pål Halvorsen 1, 2, Tom Anders Dalseng 1 and Carsten Griwodz 1, 2 1 Department of Informatics, University of Oslo, Norway 2 Simula Research Laboratory, Norway

Overview ü Motivation ü Existing mechanisms in Linux ü Possible enhancements ü Summary and Conclusions DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

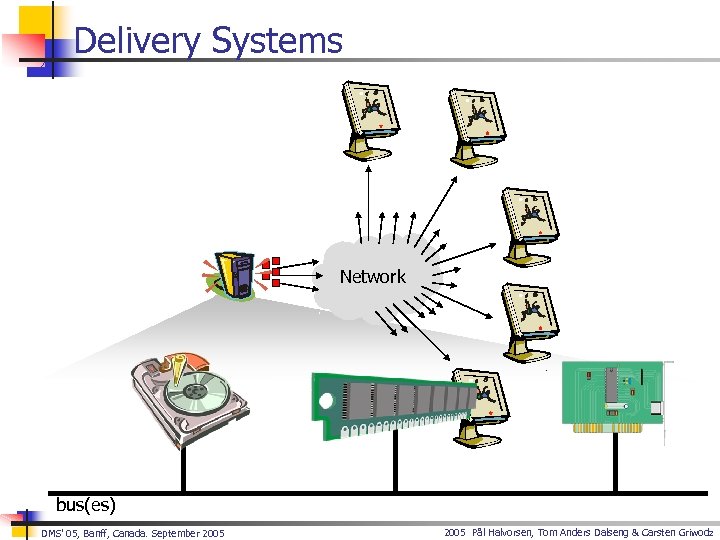

Delivery Systems Network bus(es) DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

Delivery Systems application user space kernel space file system communication system bus(es) DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

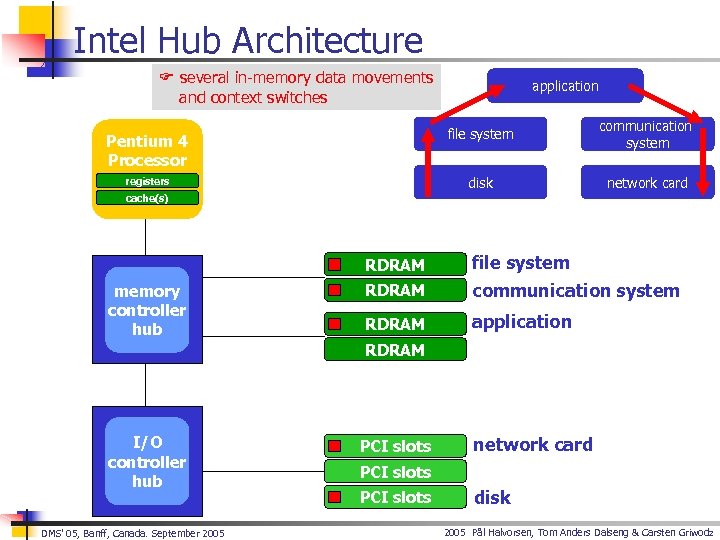

Intel Hub Architecture F several in-memory data movements and context switches application file system disk Pentium 4 Processor registers communication system network card cache(s) RDRAM memory controller hub file system RDRAM communication system RDRAM application RDRAM I/O controller hub DMS’ 05, Banff, Canada. September 2005 PCI slots network card PCI slots disk 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

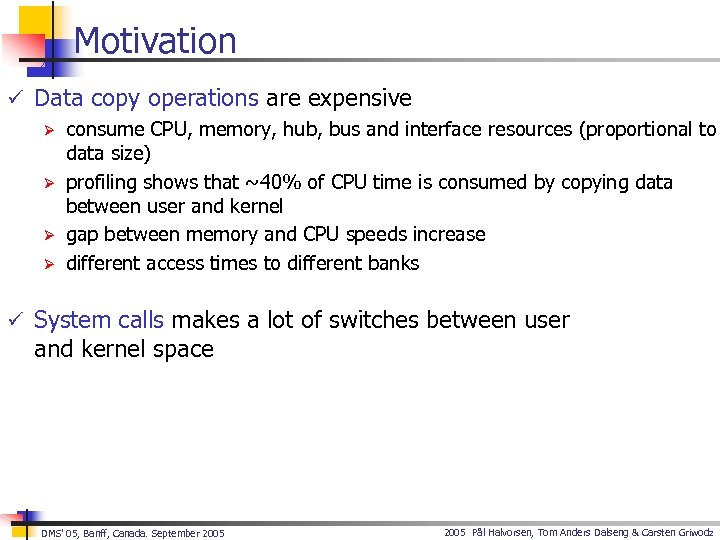

Motivation ü Data copy operations are expensive Ø consume CPU, memory, hub, bus and interface resources (proportional to data size) Ø profiling shows that ~40% of CPU time is consumed by copying data between user and kernel Ø gap between memory and CPU speeds increase Ø different access times to different banks ü System calls makes a lot of switches between user and kernel space DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

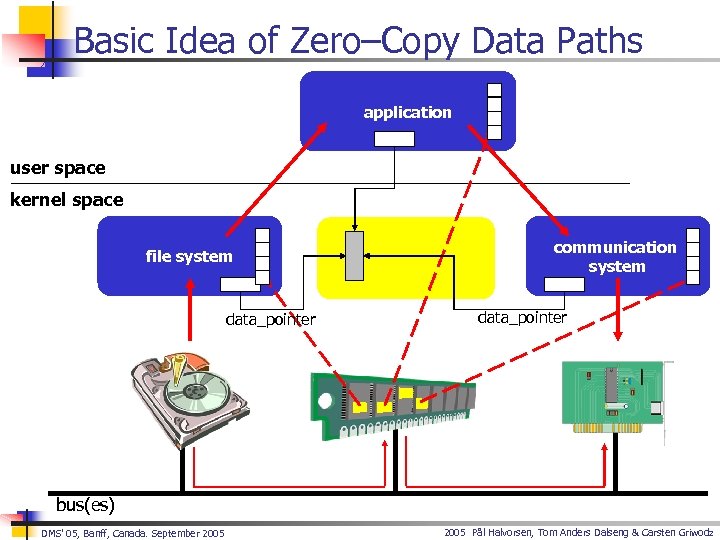

Basic Idea of Zero–Copy Data Paths application user space kernel space file system data_pointer communication system data_pointer bus(es) DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

Motivation ü Data copy operations are expensive Ø consume CPU, memory, hub, bus and interface resources (proportional to data size) Ø profiling shows that ~40% of CPU time is consumed by copying data between user and kernel Ø gap between memory and CPU speeds increase Ø different access times to different banks ü System calls makes a lot of switches between user and kernel space ü A lot of research has been performed in this area!!!! ü BUT, what is the status today of commodity operating systems? DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

Existing Linux Data Paths

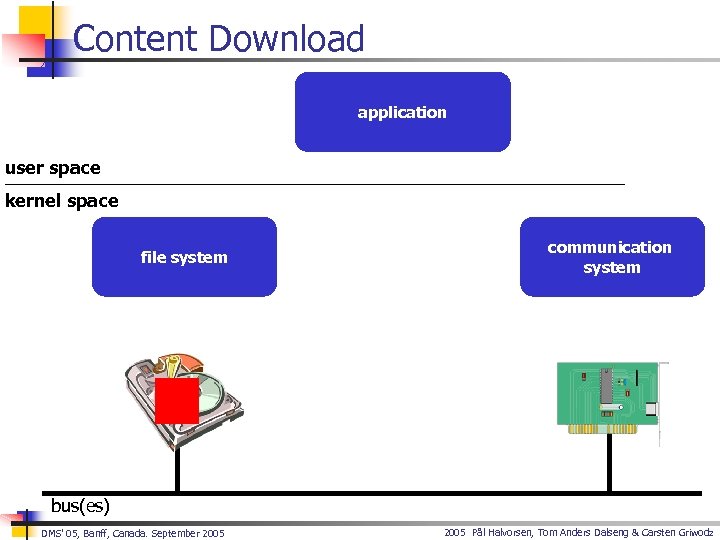

Content Download application user space kernel space file system communication system bus(es) DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

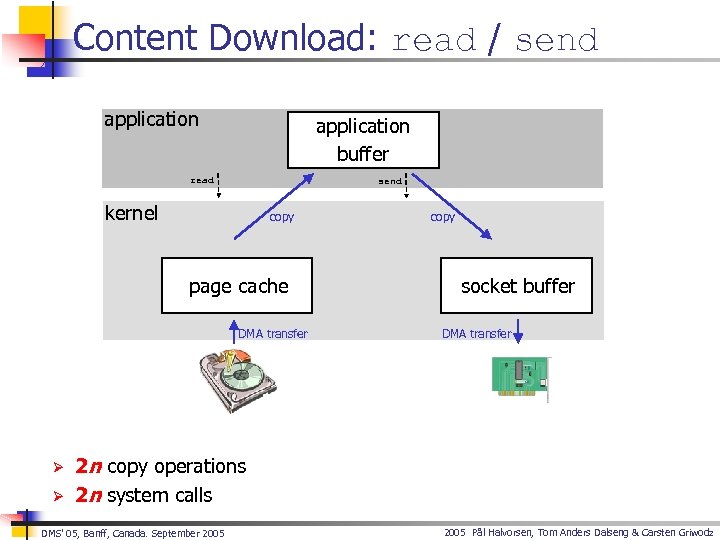

Content Download: read / send application buffer read send kernel copy page cache DMA transfer Ø Ø copy socket buffer DMA transfer 2 n copy operations 2 n system calls DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

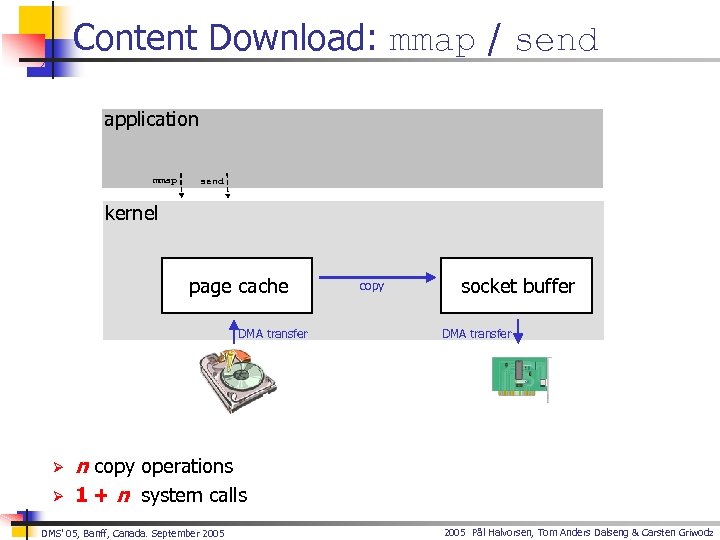

Content Download: mmap / send application mmap send kernel page cache DMA transfer Ø Ø copy socket buffer DMA transfer n copy operations 1 + n system calls DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

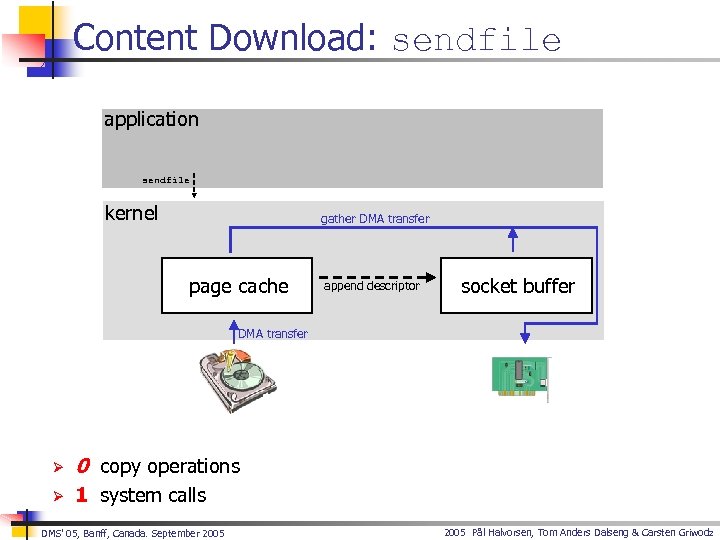

Content Download: sendfile application sendfile kernel gather DMA transfer page cache append descriptor socket buffer DMA transfer Ø 0 copy operations Ø 1 system calls DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

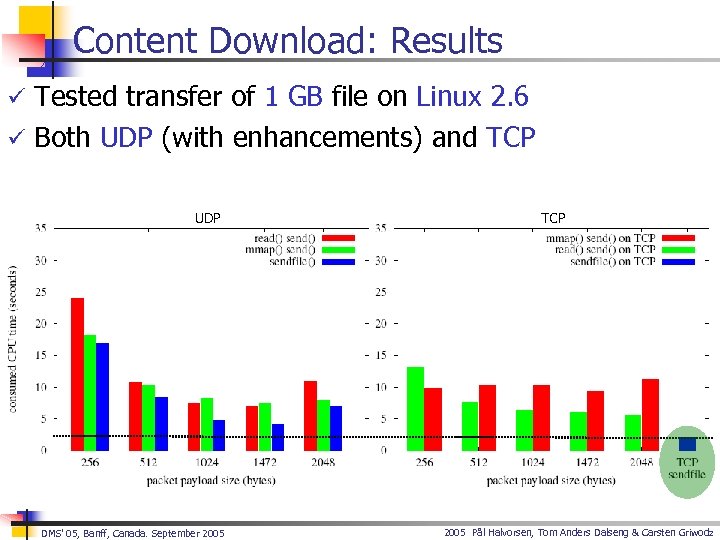

Content Download: Results ü Tested transfer of 1 GB file on Linux 2. 6 ü Both UDP (with enhancements) and TCP UDP DMS’ 05, Banff, Canada. September 2005 TCP 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

Streaming application user space kernel space file system communication system bus(es) DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

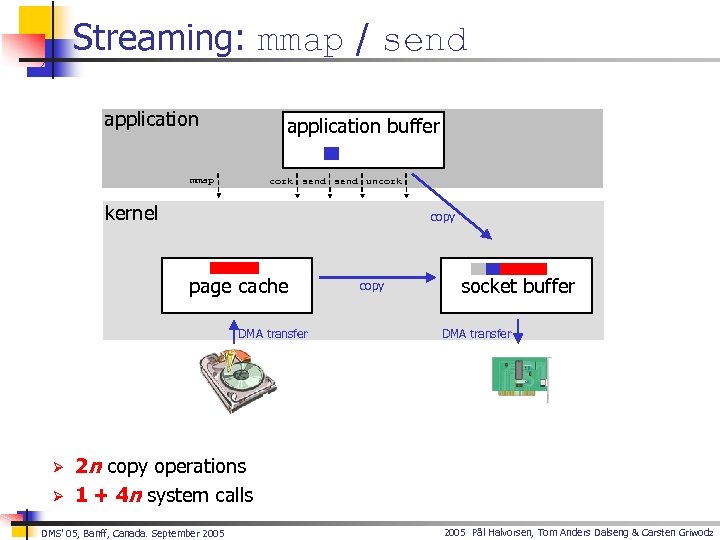

Streaming: mmap / send application buffer mmap cork send uncork kernel copy page cache DMA transfer Ø Ø copy socket buffer DMA transfer 2 n copy operations 1 + 4 n system calls DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

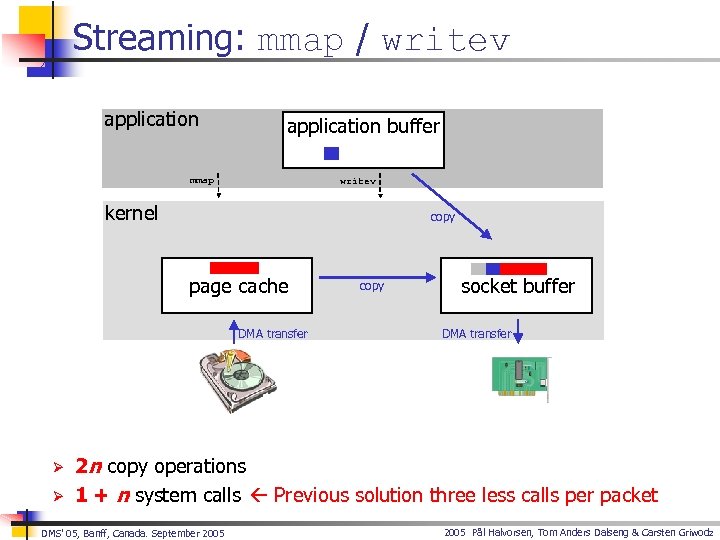

Streaming: mmap / writev application buffer mmap writev kernel copy page cache DMA transfer Ø Ø copy socket buffer DMA transfer 2 n copy operations 1 + n system calls Previous solution three less calls per packet DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

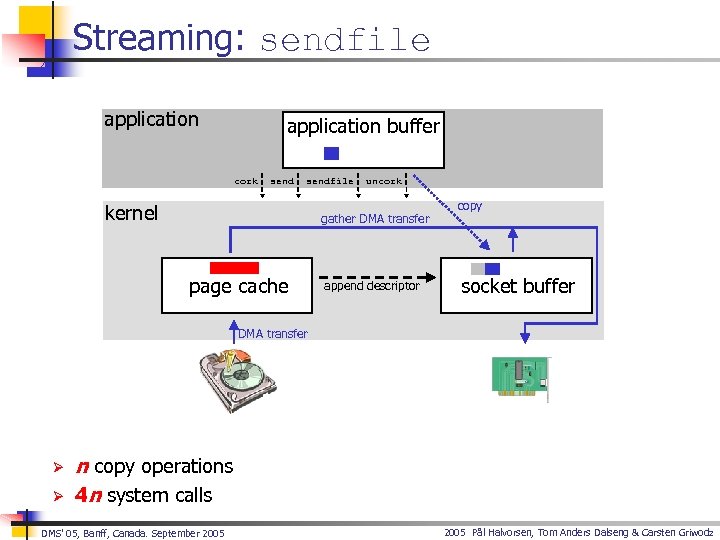

Streaming: sendfile application buffer cork sendfile kernel uncork gather DMA transfer page cache append descriptor copy socket buffer DMA transfer Ø Ø n copy operations 4 n system calls DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

Streaming: Results ü Tested streaming of 1 GB file on Linux 2. 6 ü RTP over UDP Compared to not sending an RTP header over UDP, we get an increase of 29% (additional send call) More copy operations and system calls required potential for improvements TCP sendfile (content download) DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

Enhanced Streaming Data Paths

Enhanced Streaming: mmap / msend application mmap application buffer cork send kernel DMA transfer Ø Ø msend uncork send gather DMA transfer page cache msend allows to send data from an mmap’ed file without copy append descriptor copy socket buffer DMA transfer n copy operations Previous solution one more copy per packet 1 + 4 n system calls DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

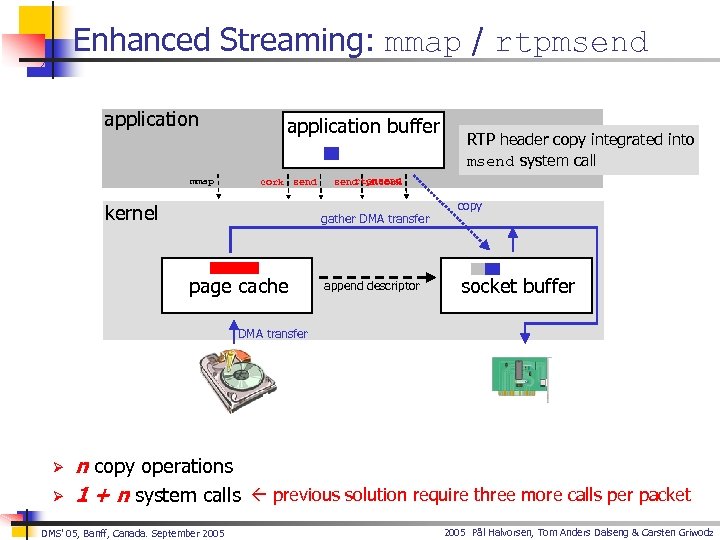

Enhanced Streaming: mmap / rtpmsend application mmap application buffer cork send kernel rtpmsend uncork gather DMA transfer page cache RTP header copy integrated into msend system call append descriptor copy socket buffer DMA transfer Ø Ø n copy operations 1 + n system calls previous solution require three more calls per packet DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

Enhanced Streaming: mmap / krtpmsend application buffer An RTP engine in the kernel adds RTP headers rtpmsend kernel gather DMA transfer copy RTP engine page cache append descriptor socket buffer DMA transfer Ø Ø 0 copy operations previous solution require one more copy per packet 1 system call previous solution require one more call per packet DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

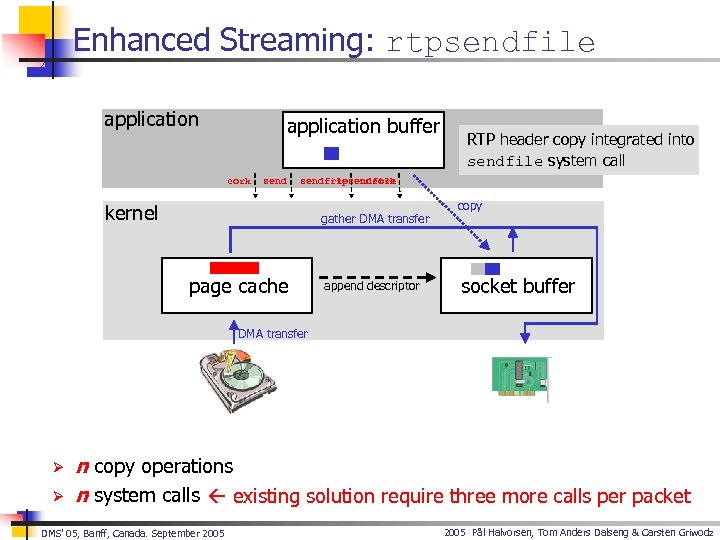

Enhanced Streaming: rtpsendfile application buffer cork send RTP header copy integrated into sendfile system call sendfile uncork rtpsendfile kernel gather DMA transfer page cache append descriptor copy socket buffer DMA transfer Ø Ø n copy operations n system calls existing solution require three more calls per packet DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

Enhanced Streaming: krtpsendfile application buffer An RTP engine in the kernel adds RTP headers rtpsendfile kernel gather DMA transfer copy RTP engine page cache append descriptor socket buffer DMA transfer Ø Ø 0 copy operations previous solution require one more copy per packet 1 system call previous solution require one more call per packet DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

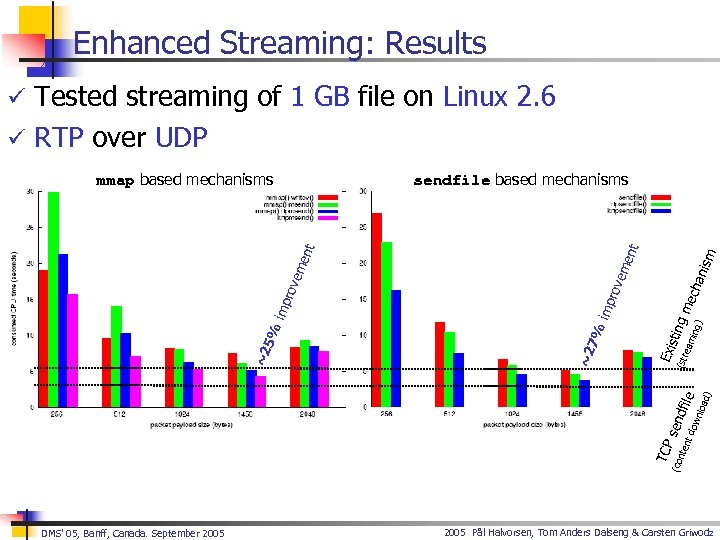

Enhanced Streaming: Results ü Tested streaming of 1 GB file on Linux 2. 6 ü RTP over UDP sendfile based mechanisms sm ani ing ) eam ad) nlo nt d (co nte TCP ow sen d file (str Exi stin gm ech rov imp 7% ~2 ~2 5% imp rov em em ent mmap based mechanisms DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz

Conclusions ü Current commodity operating systems still pay a high price for streaming services ü However, small changes in the system call layer might be sufficient to remove most of the overhead ü Conclusively, commodity operating systems still have potential for improvement with respect to streaming support ü What can we hope to be supported? ü Road ahead: optimize the code, make patch and submit to kernel. org DMS’ 05, Banff, Canada. September 2005 Pål Halvorsen, Tom Anders Dalseng & Carsten Griwodz
