Interactive Digital Addressable Fire Detection and

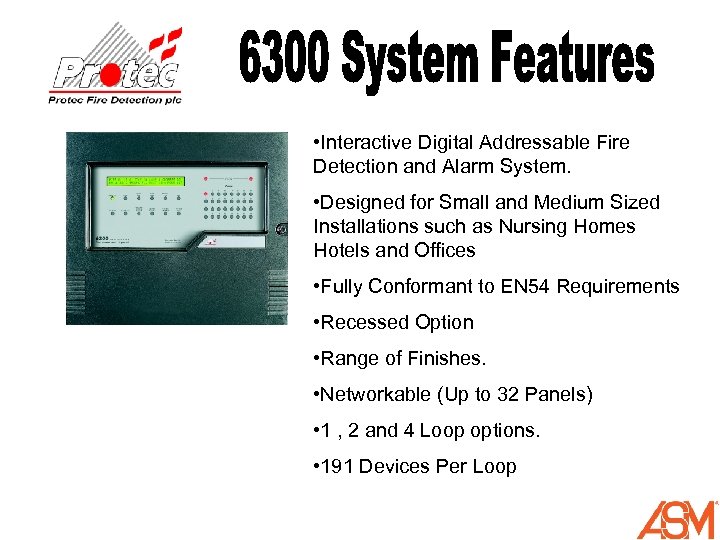

• Interactive Digital Addressable Fire Detection and Alarm System. • Designed for Small and Medium Sized Installations such as Nursing Homes Hotels and Offices • Fully Conformant to EN 54 Requirements • Recessed Option • Range of Finishes. • Networkable (Up to 32 Panels) • 1 , 2 and 4 Loop options. • 191 Devices Per Loop

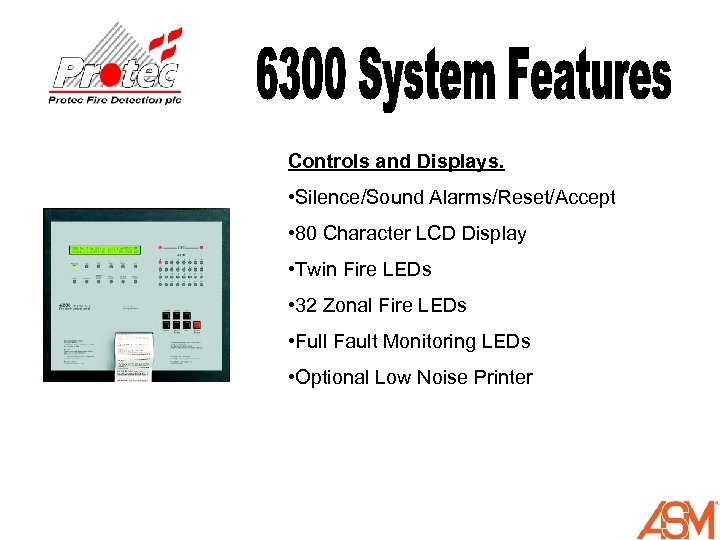

Controls and Displays. • Silence/Sound Alarms/Reset/Accept • 80 Character LCD Display • Twin Fire LEDs • 32 Zonal Fire LEDs • Full Fault Monitoring LEDs • Optional Low Noise Printer

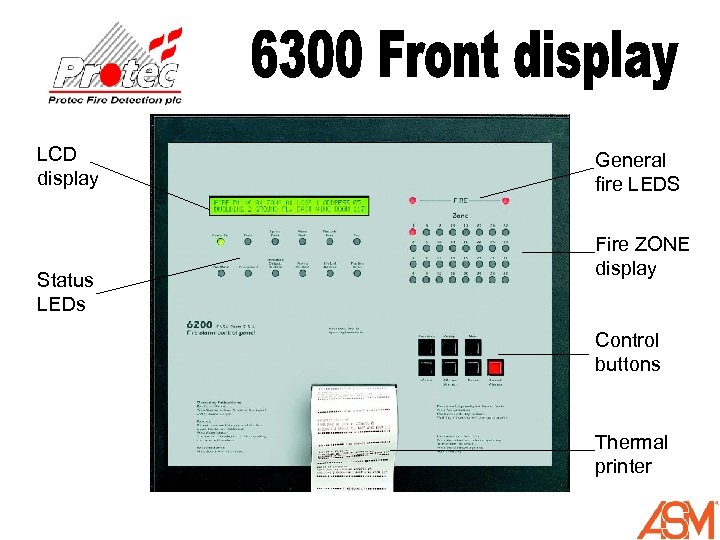

LCD display Status LEDs General fire LEDS Fire ZONE display Control buttons Thermal printer

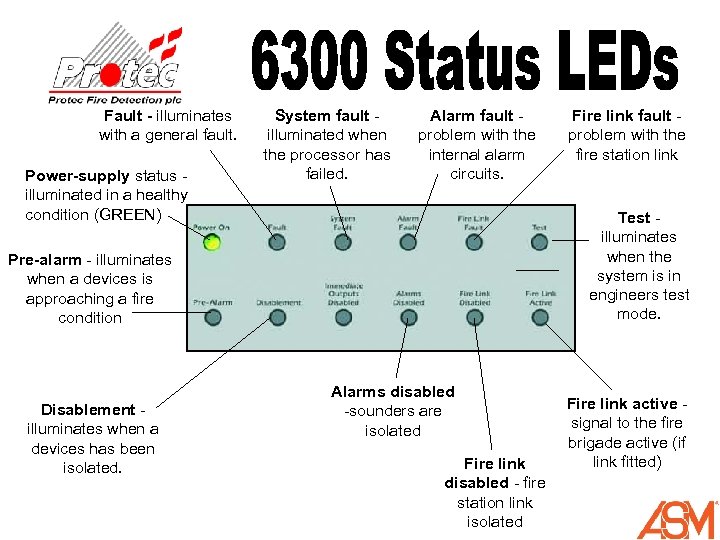

Fault - illuminates with a general fault. Power-supply status illuminated in a healthy condition (GREEN) System fault illuminated when the processor has failed. Alarm fault problem with the internal alarm circuits. Test illuminates when the system is in engineers test mode. Pre-alarm - illuminates when a devices is approaching a fire condition Disablement illuminates when a devices has been isolated. Fire link fault problem with the fire station link Alarms disabled -sounders are isolated Fire link disabled - fire station link isolated Fire link active signal to the fire brigade active (if link fitted)

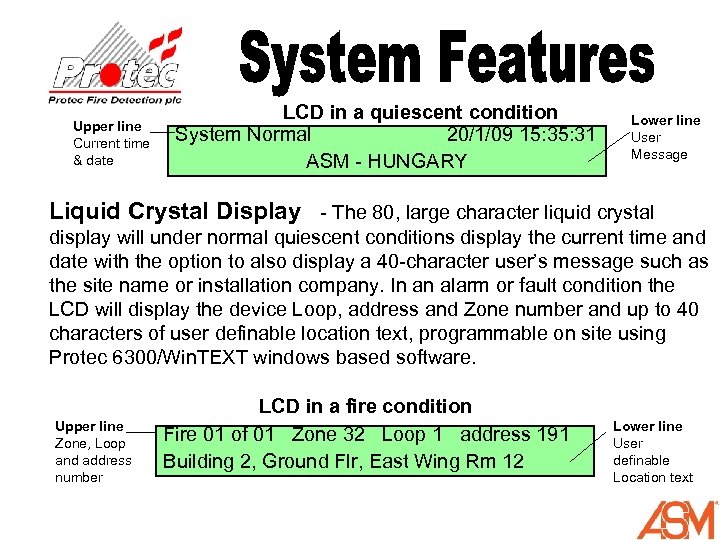

Upper line Current time & date LCD in a quiescent condition System Normal 20/1/09 15: 31 ASM - HUNGARY Lower line User Message Liquid Crystal Display - The 80, large character liquid crystal display will under normal quiescent conditions display the current time and date with the option to also display a 40 -character user’s message such as the site name or installation company. In an alarm or fault condition the LCD will display the device Loop, address and Zone number and up to 40 characters of user definable location text, programmable on site using Protec 6300/Win. TEXT windows based software. Upper line Zone, Loop and address number LCD in a fire condition Fire 01 of 01 Zone 32 Loop 1 address 191 Building 2, Ground Flr, East Wing Rm 12 Lower line User definable Location text

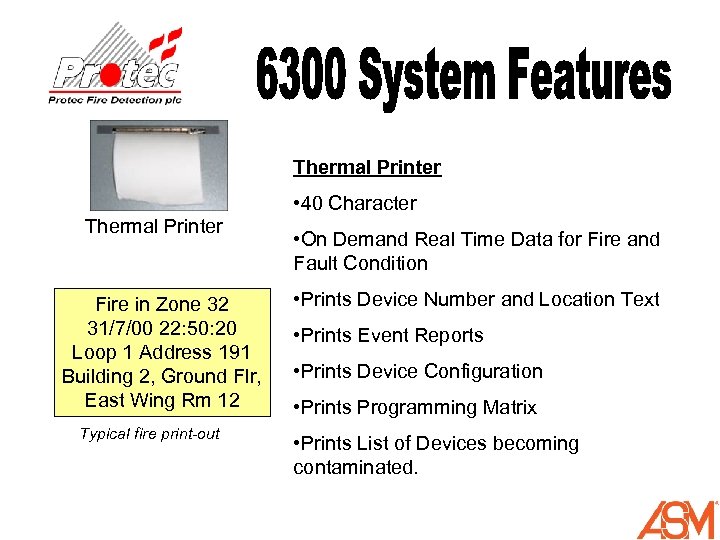

Thermal Printer • 40 Character Thermal Printer Fire in Zone 32 31/7/00 22: 50: 20 Loop 1 Address 191 Building 2, Ground Flr, East Wing Rm 12 Typical fire print-out • On Demand Real Time Data for Fire and Fault Condition • Prints Device Number and Location Text • Prints Event Reports • Prints Device Configuration • Prints Programming Matrix • Prints List of Devices becoming contaminated.

General fire LEDs 32 Fire ZONE LEDs

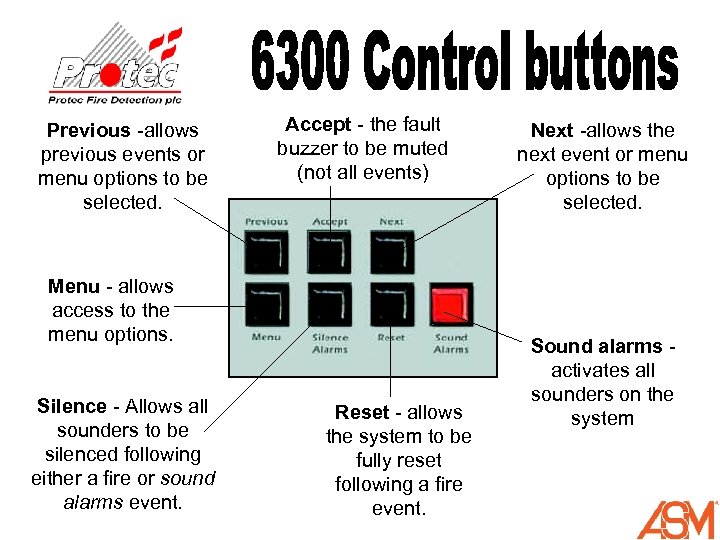

Previous -allows previous events or menu options to be selected. Accept - the fault buzzer to be muted (not all events) Menu - allows access to the menu options. Silence - Allows all sounders to be silenced following either a fire or sound alarms event. Reset - allows the system to be fully reset following a fire event. Next -allows the next event or menu options to be selected. Sound alarms activates all sounders on the system

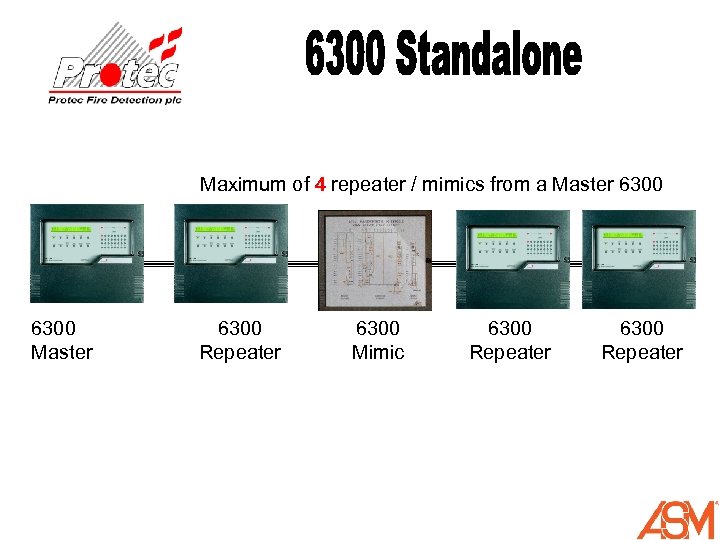

Maximum of 4 repeater / mimics from a Master 6300 Repeater 6300 Mimic 6300 Repeater

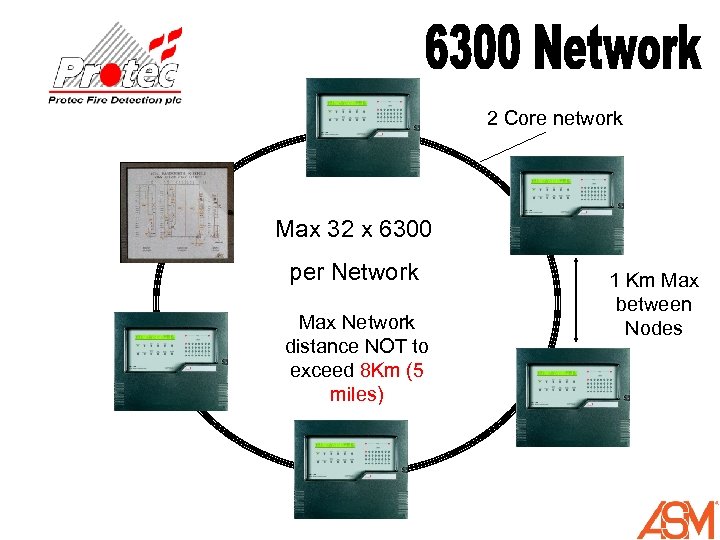

2 Core network Max 32 x 6300 per Network Max Network distance NOT to exceed 8 Km (5 miles) 1 Km Max between Nodes

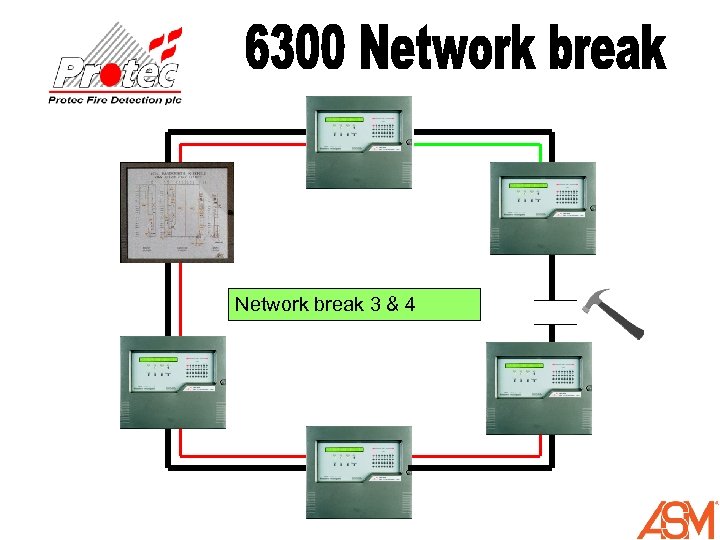

Network break 3 & 4

X 300 WIN TEXT - Free software to allow client to write their own device text files (PC Only). X 300 Engineer - software charged, to allow engineer to write their own program and download to control panel DONGLE PROTECTED.

Device Text can be edited to suit the site layout A print out of the device text is available

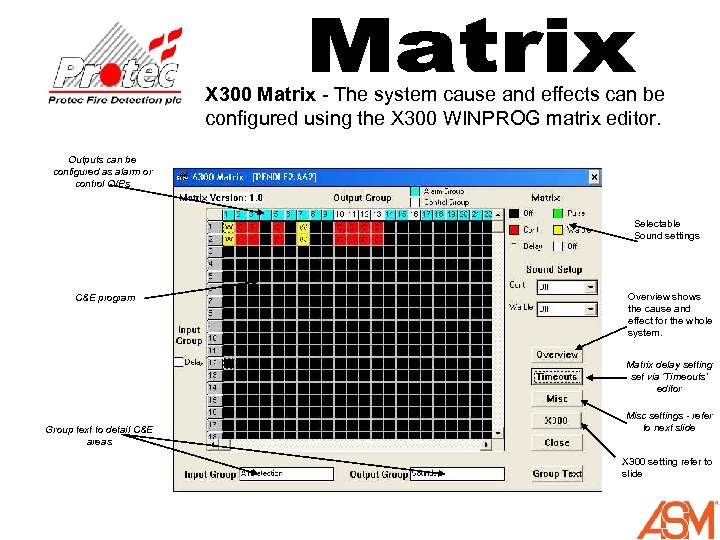

X 300 Matrix - The system cause and effects can be configured using the X 300 WINPROG matrix editor. Outputs can be configured as alarm or control O/Ps Selectable Sound settings C&E program Overview shows the cause and effect for the whole system. Matrix delay setting set via ‘Timeouts’ editor Group text to detail C&E areas Misc settings - refer to next slide X 300 setting refer to slide

24 non Latching Fire Devices and 24 latching non fire devices Pulse times for output groups Miscellaneous Keyswitch Inputs The walk test function allows access in User Menu

Fire Link Delay allows delays on all individual devices or groups of devices The Fire Link output can be programmed for all of the options listed Different languages are supported Check the panel overlay Network Input Filtering allows a panel to display all events from chosen network panels Sensitivity Settings can be changed for individual devices or groups of devices The internal charger is the S 9000 EN 54 but external chargers can be utilised.

Unique Serial Number LOOP No Sensitivity settings are changeable. Address No. Zone – Geographical Representation – up to 32 zones. Input Group - 96 Alt. display shows more options for the device. Output Group 96 Reset Class resets the device to the default setting.

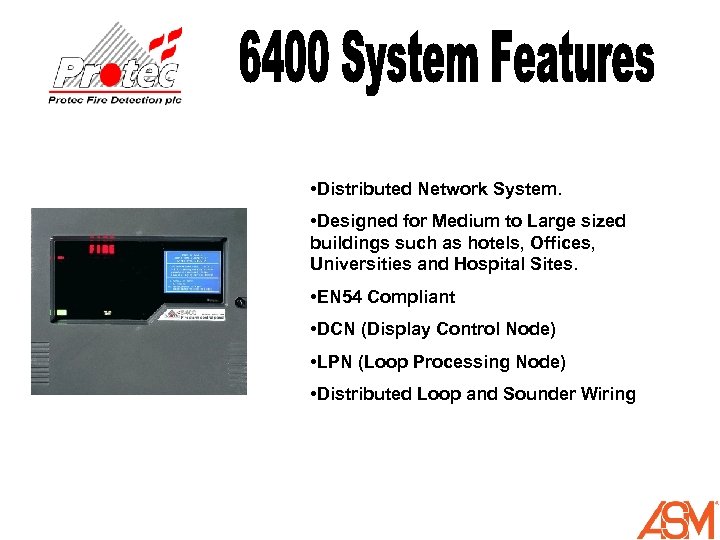

• Distributed Network System. • Designed for Medium to Large sized buildings such as hotels, Offices, Universities and Hospital Sites. • EN 54 Compliant • DCN (Display Control Node) • LPN (Loop Processing Node) • Distributed Loop and Sounder Wiring

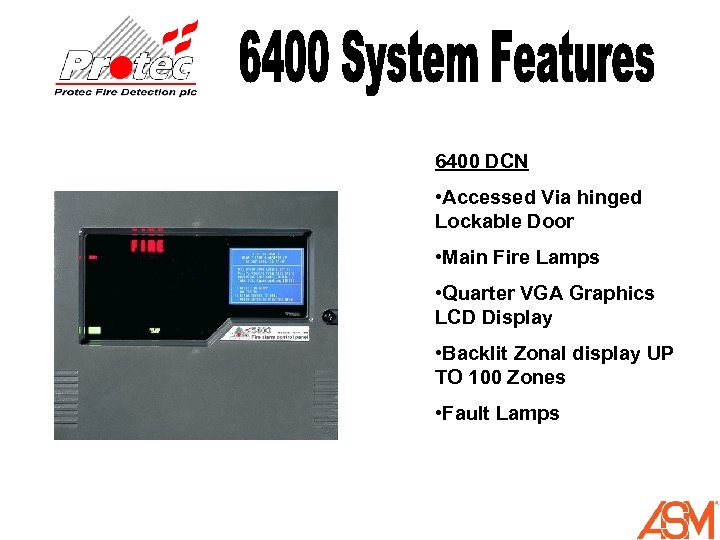

6400 DCN • Accessed Via hinged Lockable Door • Main Fire Lamps • Quarter VGA Graphics LCD Display • Backlit Zonal display UP TO 100 Zones • Fault Lamps

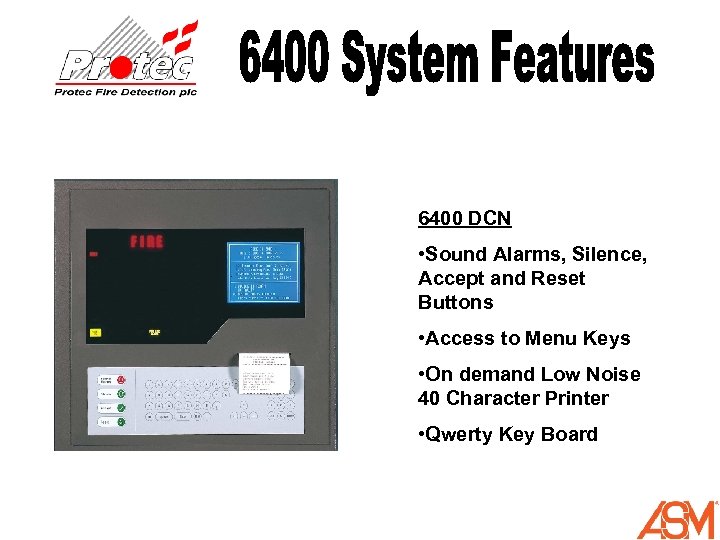

6400 DCN • Sound Alarms, Silence, Accept and Reset Buttons • Access to Menu Keys • On demand Low Noise 40 Character Printer • Qwerty Key Board

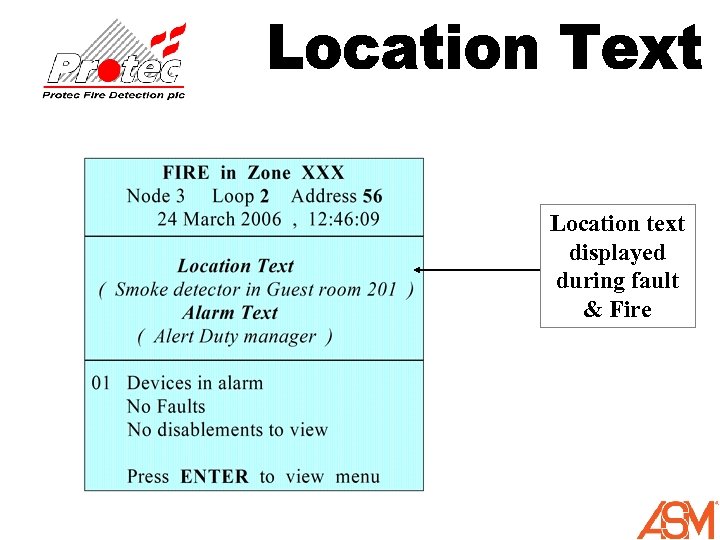

Location text displayed during fault & Fire

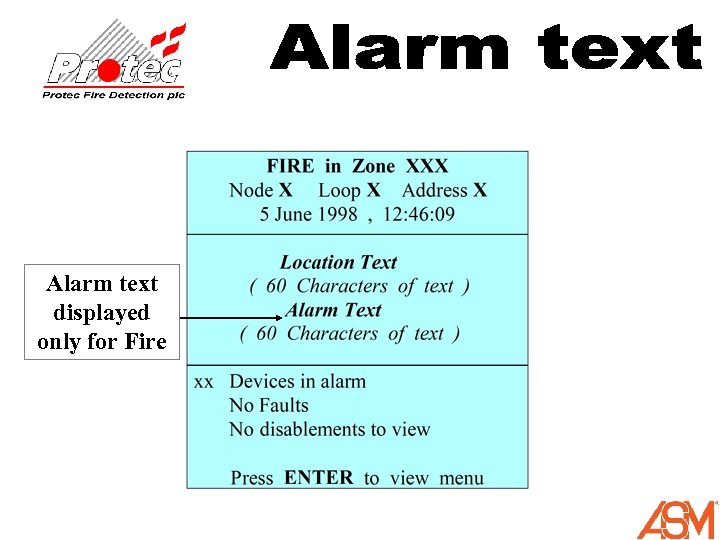

Alarm text displayed only for Fire

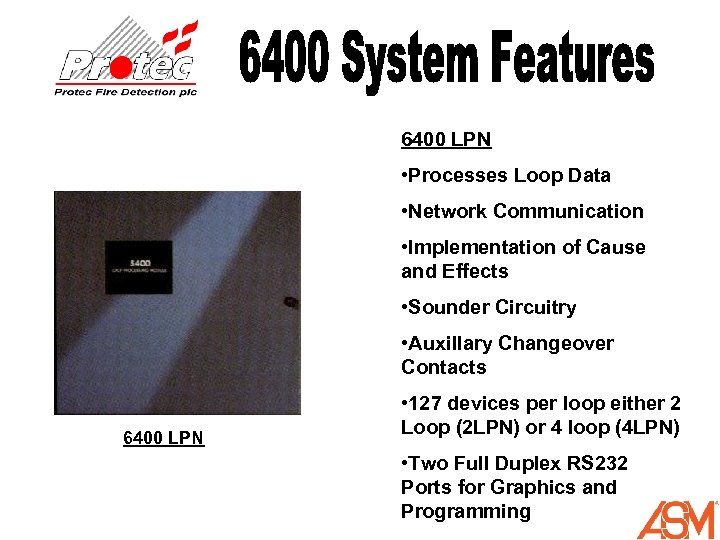

6400 LPN • Processes Loop Data • Network Communication • Implementation of Cause and Effects • Sounder Circuitry • Auxillary Changeover Contacts 6400 LPN • 127 devices per loop either 2 Loop (2 LPN) or 4 loop (4 LPN) • Two Full Duplex RS 232 Ports for Graphics and Programming

5400 LPN 5400 DCN / LPN 6400 DCN/LPN • Combining DCN and LPN in single Point Enclosure. • Combination gives fully functional system functions and controls in a stand alone panel. • DCN/LPN often used as Master Panel for a fully networked system

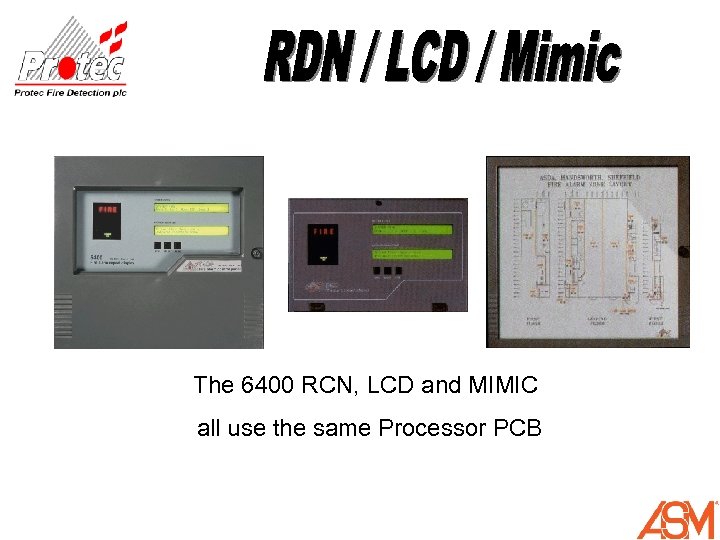

The 6400 RCN, LCD and MIMIC all use the same Processor PCB

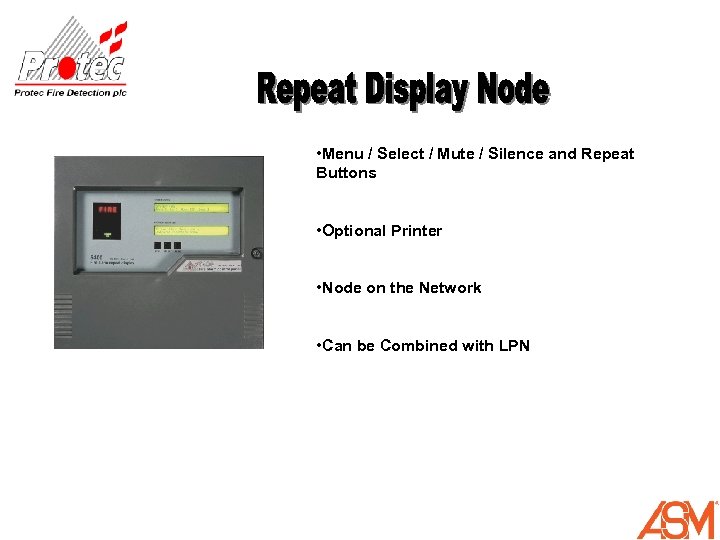

• Menu / Select / Mute / Silence and Repeat Buttons • Optional Printer • Node on the Network • Can be Combined with LPN

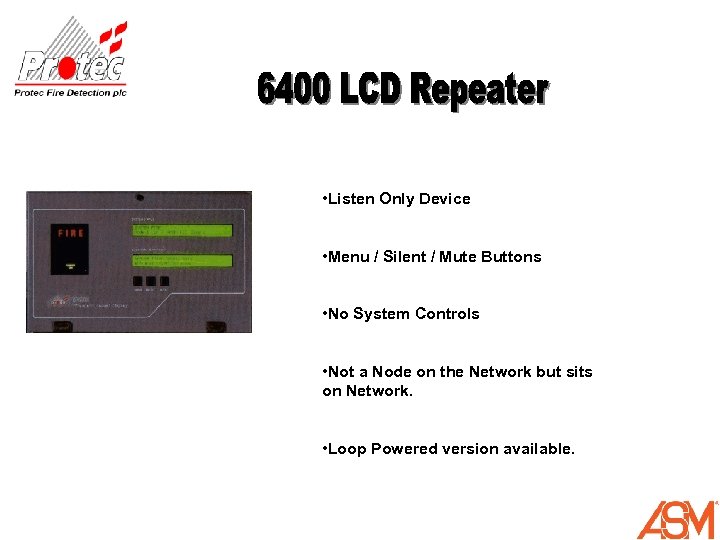

• Listen Only Device • Menu / Silent / Mute Buttons • No System Controls • Not a Node on the Network but sits on Network. • Loop Powered version available.

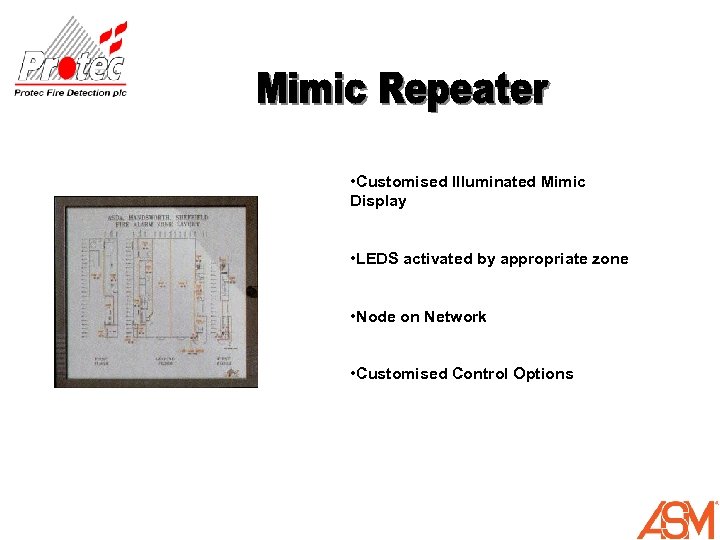

• Customised Illuminated Mimic Display • LEDS activated by appropriate zone • Node on Network • Customised Control Options

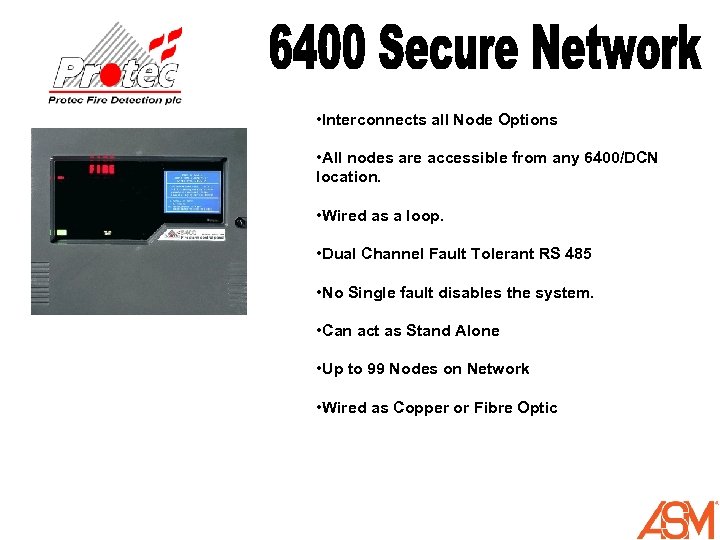

• Interconnects all Node Options • All nodes are accessible from any 6400/DCN location. • Wired as a loop. • Dual Channel Fault Tolerant RS 485 • No Single fault disables the system. • Can act as Stand Alone • Up to 99 Nodes on Network • Wired as Copper or Fibre Optic

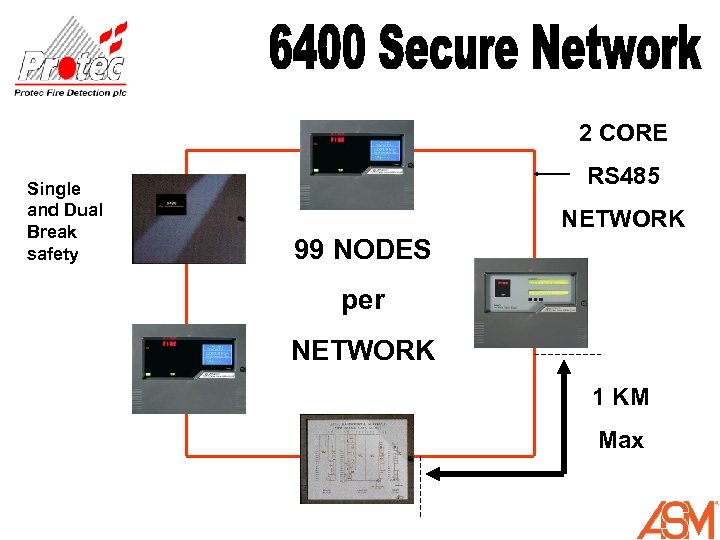

2 CORE Single and Dual Break safety RS 485 NETWORK 99 NODES per NETWORK 1 KM Max

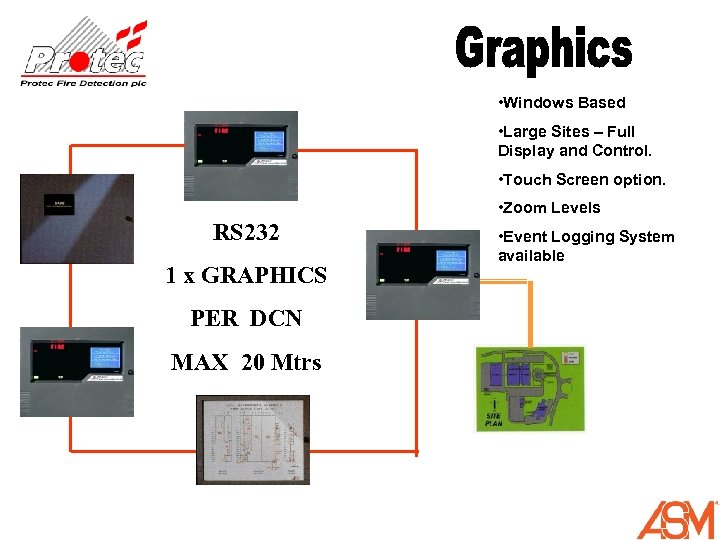

• Windows Based • Large Sites – Full Display and Control. • Touch Screen option. • Zoom Levels RS 232 1 x GRAPHICS PER DCN MAX 20 Mtrs • Event Logging System available

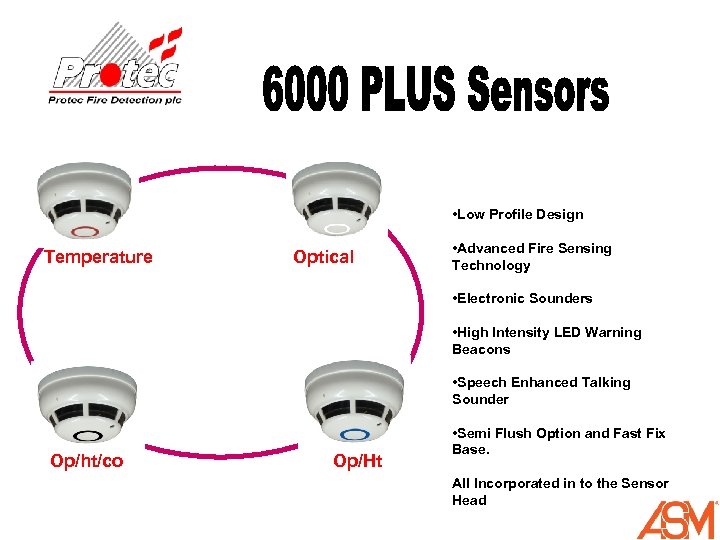

• Low Profile Design Temperature Optical • Advanced Fire Sensing Technology • Electronic Sounders • High Intensity LED Warning Beacons • Speech Enhanced Talking Sounder Op/ht/co Op/Ht • Semi Flush Option and Fast Fix Base. All Incorporated in to the Sensor Head

Base Options Fast Fix Recessed Base. Standard Base

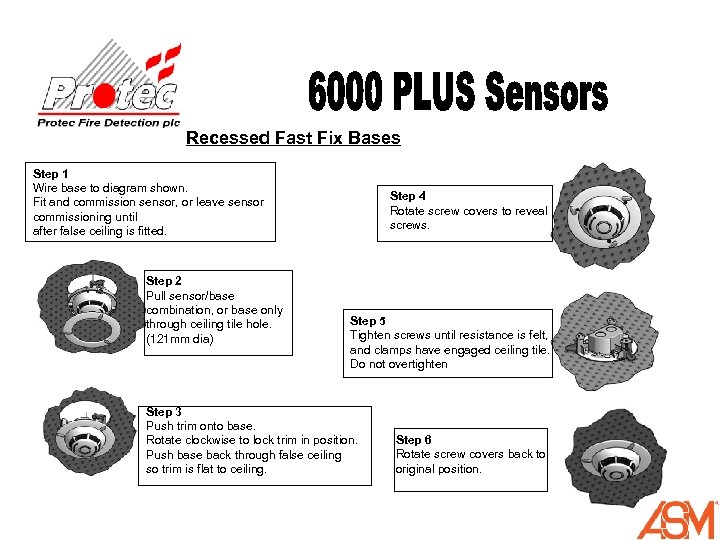

Recessed Fast Fix Bases Step 1 Wire base to diagram shown. Fit and commission sensor, or leave sensor commissioning until after false ceiling is fitted. Step 2 Pull sensor/base combination, or base only through ceiling tile hole. (121 mm dia) Step 4 Rotate screw covers to reveal screws. Step 5 Tighten screws until resistance is felt, and clamps have engaged ceiling tile. Do not overtighten Step 3 Push trim onto base. Rotate clockwise to lock trim in position. Push base back through false ceiling so trim is flat to ceiling. Step 6 Rotate screw covers back to original position.

Algo-Tec evaluates the data of each fire sensor and is able to learn from the information received. This may simply be to recognise that a sensor is becoming contaminated or in a dirty environment and to automatically increase the alarm threshold to compensate for the background levels (Threshold compensation). More complex Algo-Tec functions include the ability to discriminate between certain fire and non-fire conditions, filtering out certain environment stimuli, such as steam from a hotel bathroom, and increasing the sensitivity of a sensor (6000 plus OPHT) when an increase in temperature is detected. The net effect of the interaction between the sensors and the Algo -Tec decision making is enhanced performance, through immunity to false alarm and more responsive fire detection.

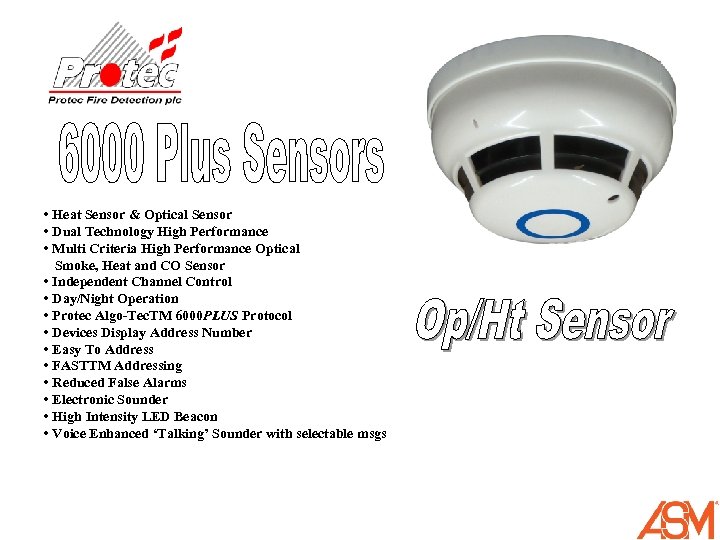

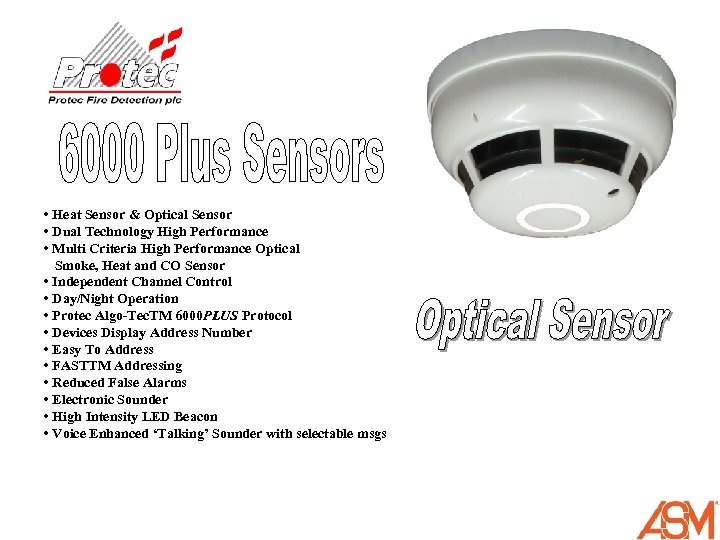

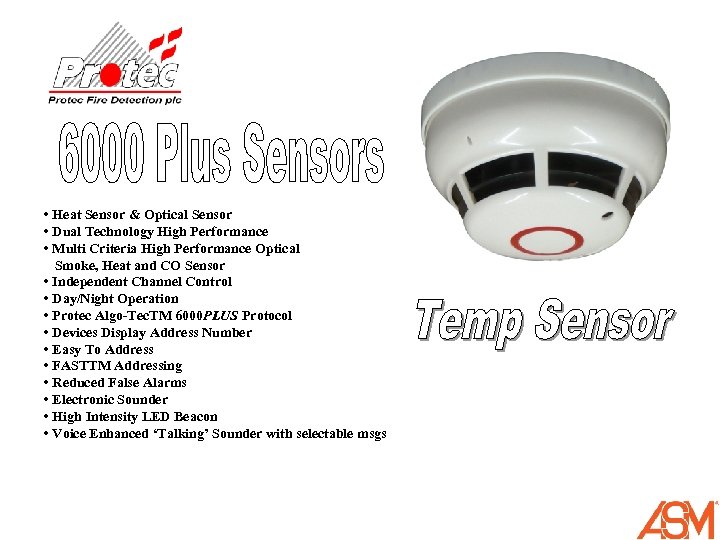

• Heat Sensor & Optical Sensor • Dual Technology High Performance • Multi Criteria High Performance Optical Smoke, Heat and CO Sensor • Independent Channel Control • Day/Night Operation • Protec Algo-Tec. TM 6000 PLUS Protocol • Devices Display Address Number • Easy To Address • FASTTM Addressing • Reduced False Alarms • Electronic Sounder • High Intensity LED Beacon • Voice Enhanced ‘Talking’ Sounder with selectable msgs

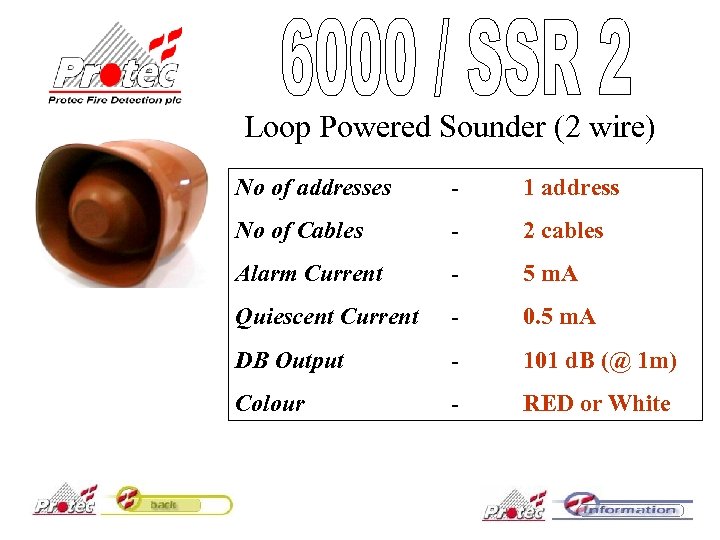

Loop Powered Sounder (2 wire) No of addresses - 1 address No of Cables - 2 cables Alarm Current - 5 m. A Quiescent Current - 0. 5 m. A DB Output - 101 d. B (@ 1 m) Colour - RED or White

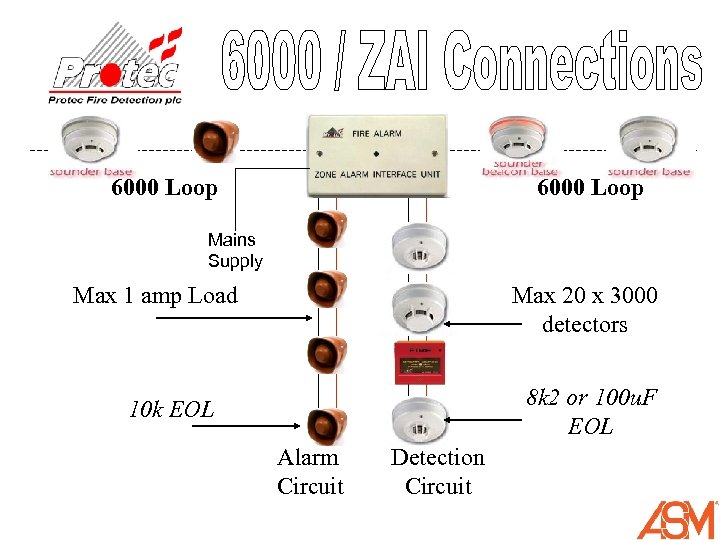

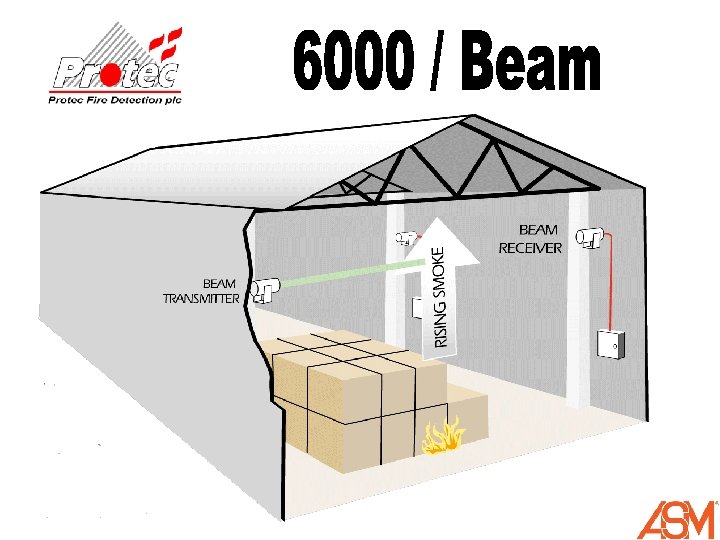

6000 Loop Mains Supply Max 1 amp Load Max 20 x 3000 detectors 8 k 2 or 100 u. F EOL 10 k EOL Alarm Circuit Detection Circuit

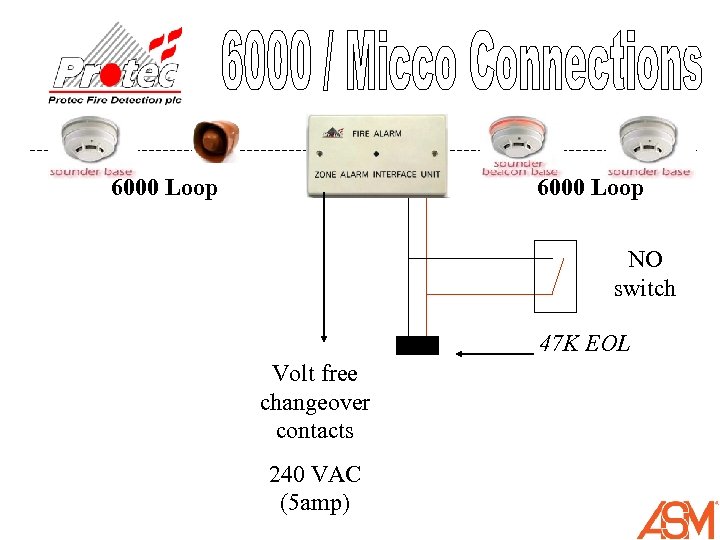

6000 Loop NO switch 47 K EOL Volt free changeover contacts 240 VAC (5 amp)

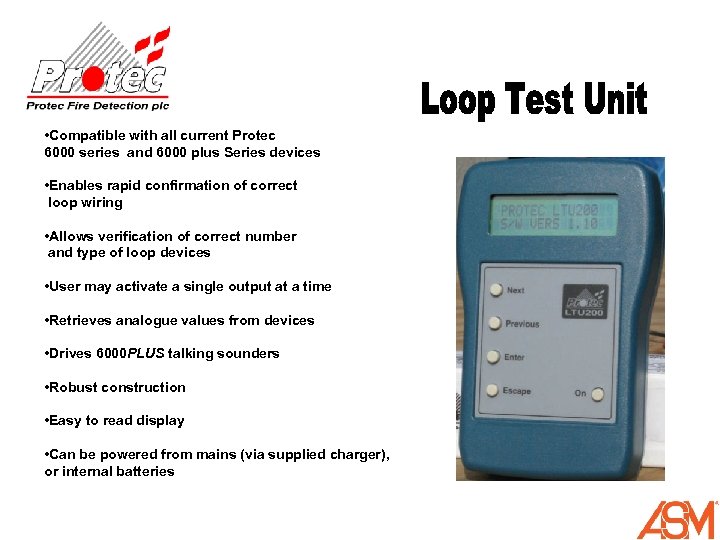

• Compatible with all current Protec 6000 series and 6000 plus Series devices • Enables rapid confirmation of correct loop wiring • Allows verification of correct number and type of loop devices • User may activate a single output at a time • Retrieves analogue values from devices • Drives 6000 PLUS talking sounders • Robust construction • Easy to read display • Can be powered from mains (via supplied charger), or internal batteries

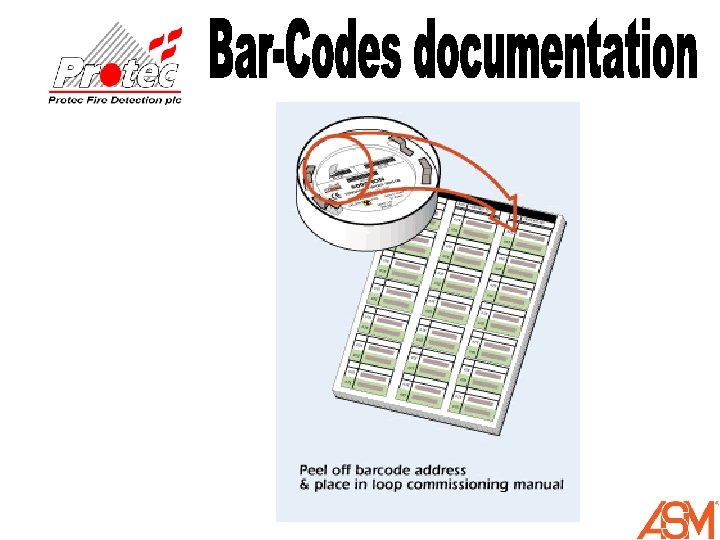

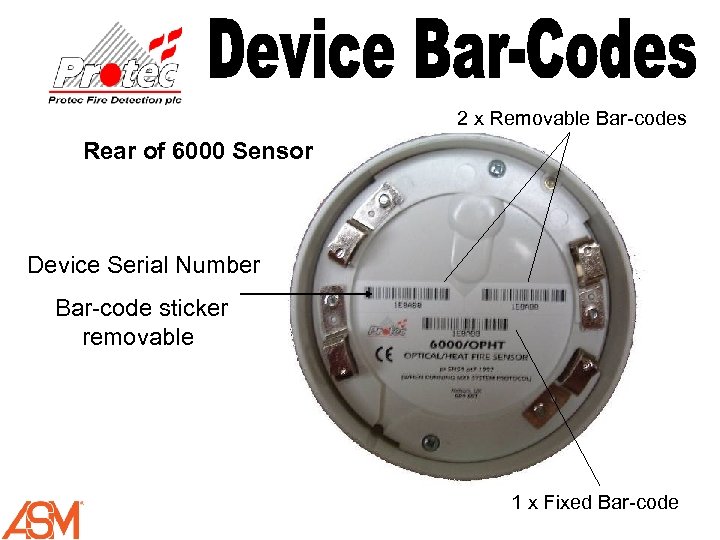

2 x Removable Bar-codes Rear of 6000 Sensor Device Serial Number Bar-code sticker removable 1 x Fixed Bar-code

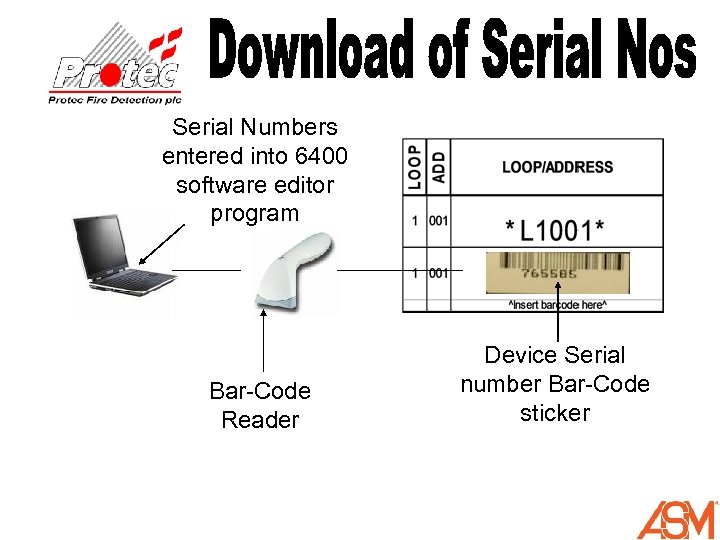

Serial Numbers entered into 6400 software editor program Bar-Code Reader Device Serial number Bar-Code sticker

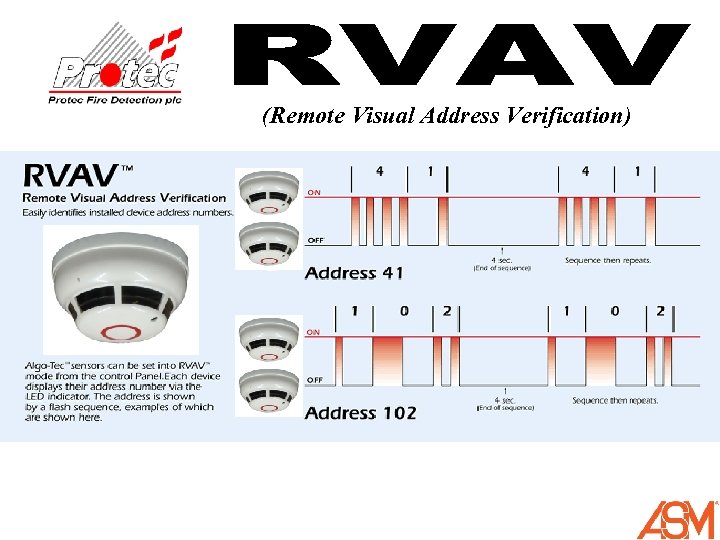

(Remote Visual Address Verification)

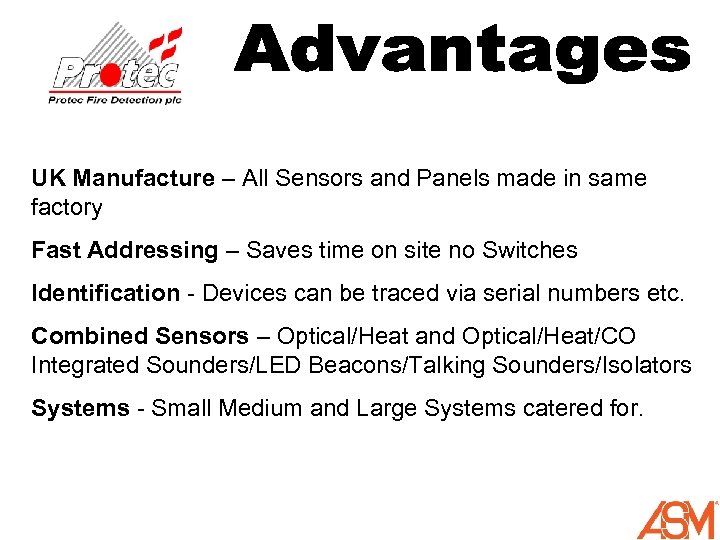

UK Manufacture – All Sensors and Panels made in same factory Fast Addressing – Saves time on site no Switches Identification - Devices can be traced via serial numbers etc. Combined Sensors – Optical/Heat and Optical/Heat/CO Integrated Sounders/LED Beacons/Talking Sounders/Isolators Systems - Small Medium and Large Systems catered for.
