Intelligent Behaviors for Simulated Entities I/ITSEC 2006 Tutorial Presented by: Ryan Houlette Stottler Henke Associates, Inc. houlette@stottlerhenke. com 617 -616 -1293 Jeremy Ludwig Stottler Henke Associates, Inc. ludwig@stottlerhenke. com 541 -302 -0929
Outline Defining “intelligent behavior” Authoring methodology Technologies: • Cognitive architectures • Behavioral approaches • Hybrid approaches Conclusion Questions 2
The Goal Intelligent behavior • a. k. a. entities acting autonomously • generally replacements for humans – when humans are not available • • scheduling issues location shortage of necessary expertise simply not enough people – when humans are too costly Ø Ø Ø Ø Defining Intelligent Behavior Authoring Methodology Technologies: Cognitive Architectures Behavioral Approaches Hybrid Approaches Conclusion 3
“Intelligent Behavior” • Pretty vague! • General human-level AI not yet possible – computationally expensive – knowledge authoring bottleneck • Must pick your battles – what is most important for your application – what resources are available 4
Decision Factors 1 Entity “skill set” Fidelity Autonomy Scalability Authoring 5
Factor: Entity Skill Set What does the entity need to be able to do? – – – follow a path work with a team perceive its environment communicate with humans exhibit emotion/social skills etc. Depends on purpose of simulation, type of scenario, echelon of entity 6
Factor: Fidelity How accurate does the entity’s behavior need to be? – – correct execution of a task correct selection of tasks correct timing variability/predictability Again, depends on purpose of simulation and echelon • training => believability • analysis => correctness 7
Factor: Autonomy How much direction does the entity need? – explicitly scripted – tactical objectives – strategic objectives Behavior reusable across scenarios Dynamic behavior => less brittle 8
Factor: Scalability How many entities are needed? – computational overhead – knowledge/behavior authoring costs Can be mitigated • aggregating entities • distributing entities 9
Factor: Authoring Who is authoring the behaviors? – – programmers knowledge engineers subject matter experts end users / soldiers Training/skills required for authoring Quality of authoring tools Ease of modifying/extending behaviors 10
Choosing an Approach Scalability Ease of Authoring Skill Set Fidelity Autonomy Also ease of integration with simulation. . 11
Agent Technologies Wide range of possible approaches Will discuss the two extremes Cognitive Architectures EPIC, ACT-R, Soar deliberative Behavioral Approaches FSMs scripting reactive 12
Authoring Methodologies Behavior Model Ø Ø Ø Ø Defining Intelligent Behavior Authoring Methodology Technologies: Cognitive Architectures Behavioral Approaches Hybrid Approaches Conclusion Agent Architecture Simulation 13
Basic Authoring Procedure Run simulation Determine desired behavior Build behavior model Evaluate entity behavior DONE! DONE Refine behavior model 14
Iterative Authoring Often useful to start with limited set of behaviors • particularly when learning new architecture • depth-first vs. breadth-first Test early and often Build initial model with revision in mind • good software design principles apply: modularity, encapsulation, loose coupling Determining why model behaved incorrectly can be difficult • some tools can help provide insight 15
The Knowledge Bottleneck Model builder is not subject matter expert Transferring knowledge is labor-intensive • For Tac. Air-Soar, 70 -90% of model dev. time To reduce the bottleneck: • Repurpose existing models • Use SME-friendly modeling tools • Train SMEs in modeling skills => Still an unsolved problem 16
The Simulation Interface Simulation sets bounds of behavior • the primitive actions entities can perform • the information about the world that is available to entities Can be useful to “move interface up” • if simulation interface is too low-level • abstract away simulation details – in wrapper around agent architecture – in “library” within the behavior model itself • enables behavior model to be in terms of meaningful units of behavior 17
Cognitive Architectures Overview EPIC, ACT-R, & Soar Examples of Cognitive Models Strengths / Weakness of Cognitive Architectures Ø Ø Ø Ø Defining Intelligent Behavior Authoring Methodology Technologies: Cognitive Architectures Behavioral Approaches Hybrid Approaches Conclusion 18
Introduction What is a cognitive architecture? • “a broad theory of human cognition based on a wide selection of human experimental data and implemented as a running computer simulation” (Byrne, 2003) Why cognitive architectures? • Advance psychological theories of cognition • Create accurate simulations of human behavior 19

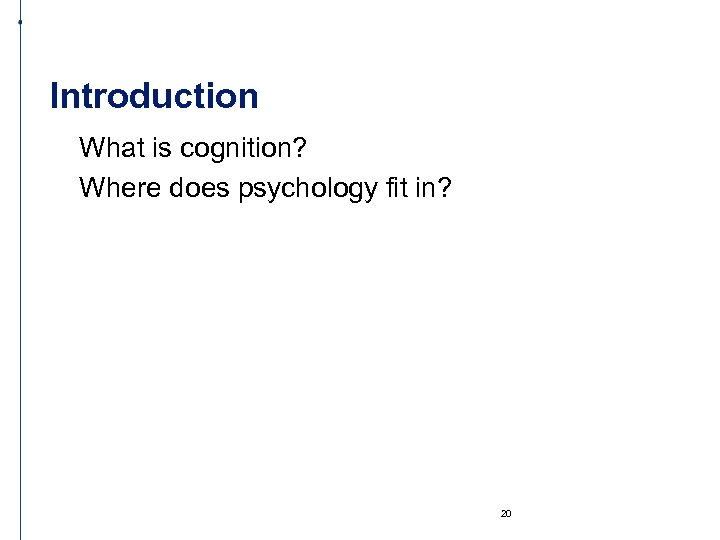

Introduction What is cognition? Where does psychology fit in? 20
Cognitive Architecture Components 21
A Theory – The Model Human Processor Some principles of operation • • • Recognize-act cycle Fitt’s law Power law of practice Rationality principle Problem space principle (from Card, Moran, & Newell, 1983) 22
Architecture Definition • “a broad theory of human cognition based on a wide selection of human experimental data and implemented as a running computer simulation” (Byrne, 2003) Two main components in modeling • Cognitive model programming language • Runtime Interpreter 23
EPIC Architecture Processors • Cognitive • Perceptual • Motor Operators • • Cognitive Perceptual Motor Knowledge Representation (from Kieras, http: //www. eecs. umich. edu/ ~kieras/epic. html) 24
Model Task Description Task Environment Task Strategy Architecture Runtime Architecture Language 25
Task Description There are two points on the screen: A and B. The task is to point to A with the right hand, and press the “Z” key with the left hand when it is reached. Then point from A to B with the right hand press the “Z” key with the left hand. Finally point back to A again, and press the “Z” key again. 26
Task Environment A B 27
Task Strategy – EPIC Production Rules 28
EPIC Production Rule (Top_point_A IF ( (Step Point At. A) (Motor Manual Modality Free) (Motor Ocular Modality Free) (Visual ? object Text My_Point_A) ) THEN ( (Send_to_motor Manual Perform Ply Cursor ? object Right) (Delete (Step Point At. A)) (Add (Step Click At. A)) )) 29
ACT-R and Soar Motivations Features Models 30
Initial Motivations ACT-R • Memory • Problem solving Soar • Learning • Problem solving 31
ACT-R Architecture (from Bidiu, R. , http: //actr. psy. cmu. edu/about/) 32
Some ACT-R Features Declarative memory stored in chunks • Memory activation • Buffer sizes between modules is one chunk One rule per cycle Learning • Memory retrieval, production utilities • New productions, new chunks 33
ACT-R 6. 0 IDE 34
Task Description Simple Addition • 1 + 3 = 4 • 2 + 2 = 4 Goal: mimic the performance of four year olds on simple addition tasks • This is a memory retrieval task, where each number is retreived (e. g. 1 and 3) and then an addition fact is retrieved (1 + 3 = 4) • The task demonstrates partial matching of declarative memory items, and requires tweaking a number of parameters. From the ACT-R tutorial, Unit 6 35
ACT-R 6. 0 Production Rules (p retrieve-first-number =goal> isa problem arg 1 =one state nil ==> =goal> state encoding-one +retrieval> isa number name =one ) (p encode-first-number =goal> isa problem state encoding-one =retrieval> isa number ==> =goal> state retrieve-two arg 1 =retrieval ) 36
Some Relevant ACT-R Models • Best, B. , Lebiere, C. , & Scarpinatto, C. (2002). A model of synthetic opponents in MOUT training simulations using the ACT-R cognitive architecture. In Proceedings of the Eleventh Conference on Computer Generated Forces and Behavior Representation. Orlando, FL. • Craig, K. , Doyal, J. , Brett, B. , Lebiere, C. , Biefeld, E. , & Martin, E. (2002). Development of a hybrid model of tactical fighter pilot behavior using IMPRINT task network model and ACT-R. In Proceedings of the Eleventh Conference on Computer Generated Forces and Behavior Representation. Orlando, FL 37
Soar Architecture Problem Space Based State 1 Attribute 1: Value 1 State 2 Attribute 1: Value 2 State 3 Attribute 1: Value 1 State 4 Attribute 1: Value 3 Attribute 2: true 38
Some Soar Features Problem space based • Attribute/value hierarchy (WM) forms the current state • Productions (LTM) transform the current state to achieve goals by applying operators Cycle • Input • Elaborations fired • All possible operators proposed • One selected • Operator applied • Output Impasses & Learning 39
Soar 8. 6. 2 IDE 40
Task Description Control the behavior of a Tank on the game board. • Each tank has a number of sensors (e. g. radar) to find enemies, missiles to launch at enemies, and limited resources From the Soar Tutorial 41
Propose Moves sp {propose*move (state <s> ^name wander ^io. input-link. blocked. forward no) --> (<s> ^operator <o> +) (<o> ^name move ^actions. move. direction forward)} sp {propose*turn (state <s> ^name wander ^io. input-link. blocked <b>) (<b> ^forward yes ^ { << left right >> <direction> } no) --> (<s> ^operator <o> + =) (<o> ^name turn ^actions <a>) (<a> ^rotate. direction <direction> ^radar. switch on ^radar-power. setting 13) } sp {propose*turn*backward (state <s> ^name wander ^io. input-link. blocked <b>) (<b> ^forward yes ^left yes ^right yes) --> (<s> ^operator <o> +) (<o> ^name turn ^actions. rotate. direction left) } 42
Prefer Moves sp {select*radar-off*move (state <s> ^name wander ^operator <o 1> + ^operator <o 2> +) (<o 1> ^name radar-off) (<o 2> ^name << turn move >>) --> (<s> ^operator <o 1> > <o 2>) } 43
Apply Move sp {apply*move (state <s> ^operator <o> ^io. output-link <out>) (<o> ^direction <direction> ^name move) --> (<out> ^move. direction <direction>) } 44
Elaborations sp {elaborate*state*missiles*low (state <s> ^name tanksoar ^io. input-link. missiles 0) --> (<s> ^missiles-energy low) } sp {elaborate*state*energy*low (state <s> ^name tanksoar ^io. input-link. energy <= 200) --> (<s> ^missiles-energy low) } 45
Some Relevant Soar Models • Wray, R. E. , Laird, J. E. , Nuxoll, A. , Stokes, D. , Kerfoot, A. (2005). Synthetic adversaries for urban combat training. AI Magazine, 26(3): 82 -92. • Jones, R. M. , Laird, J. E. , Nielsen, P. E. , Coulter, K. J. , Kenny, P. , & Koss, F. V. (1999). Automated intelligent pilots for combat flight simulation. AI Magazine, 20(1), 27 -41. 46
Strengths / Weaknesses of Cognitive Architectures Strengths • Supports aspects of intelligent behavior, such as learning, memory, and problem solving, not supported by other types of architectures • Can be used to accurately model human behavior, especially human-computer interaction, at small grain sizes (measured in ms) Weaknesses • Can be difficult to author, modify, and debug complicated sets of production rules – High level modeling languages (e. g. Cog. Tool, Herbal, High Level Symbolic Representation language) – Automated model generation (e. g. Konik & Laird, 2006) • Computational issues when scaling to large number of entities 47
Behavioral Approaches Focus is on externally-observable behavior • no explicit modeling of knowledge/cognition • instead, behavior is explicitly specified: “Go to destination X, then attack enemy. ” Often a natural mapping from doctrine to behavior specifications Ø Ø Ø Ø Defining Intelligent Behavior Authoring Methodology Technologies: Cognitive Architectures Behavioral Approaches Hybrid Approaches Conclusion 48
Hard-coding Behaviors Simplest approach is write behavior in C++/Java: Move. To(location_X); Acquire. Target(target); Fire. At(target); Don’t do this! • Can only be modified by programmers • Hard to update and extend • Behavior models not easily portable 49
Scripting Behaviors Write behaviors in scripting language – Unreal. Script Avoids many problems of hard-coding • not tightly coupled to simulation code • more portable • often simplified to be easier to learn & use Fine for linear sequences of actions, but do not scale well to complex behavior 50
Finite State Machine (FSM) Specifies a sequence of decisions and actions Basic form is essentially a flowchart X? no yes Z? yes 51
An FSM Example A basic Patrol behavior • implemented for bots in Counter-Strike • built in Sim. Bionic visual editor Simulation interface • Primitive actions: – Follow. Path, Turn. To, Shoot, Reload • Sensory inputs: – At. Destination, Hear, See. Enemy, Out. Of. Ammo, Is. Dead 52
An FSM Example (2) 53
An FSM Example (3) 54
An FSM Example (4) 55
FSMs: Advantages Very commonly-used technique Easy to implement Efficient Intuitive visual representation • Accessible to SMEs • Maintainable Variety of tools available 56
FSMs: Disadvantages Have difficulty accurately modeling: • behavior at small grain sizes • human-entity interaction Lack of planning and learning capabilities => brittleness (can’t cope with situations unforeseen by the modeler) Tend to scale ungracefully 57
Hierarchical FSMs An FSM can delegate to another FSM • Search. Building Clear. Room Allows modularization of behavior Reduces complexity Encourages reuse of model components 58
Hierarchical FSMs (2) 59
Hierarchical FSMs (3) 60
Hybrid Architectures Combine cognitive approaches – EASE: Elements of ACT-R, EPIC, & Soar (Chong & Wray, 2005) Combine behavioral and cognitive approaches – Imprint / ACT-R (Craig, et al. , 2002) – Sim. Bionic / Soar Ø Ø Ø Ø Defining Intelligent Behavior Authoring Methodology Technologies: Cognitive Architectures Behavioral Approaches Hybrid Approaches Conclusion 61
Hybrid Architectures Combine cognitive & behavioral approaches Pros: • More scalable • Easier to author • More flexible Cons: • Architecture is more complex goals Cognitive Layer behaviors Behavioral Layer actions Simulation 62
Hybrid Example: HTN Planner + FSMs Hierarchical Task Network (HTN) Planner • Inputs: • goals • library of plan fragments (HTNs) • Outputs: • High-level plan achieving those goals – Each plan step is an FSM in the Behavior Layer • Not really a cognitive architecture, but adds goal-driven capability to system • Plan fragments represent codified sequences of behavior 63
Conclusion Factors affecting choice of architecture: • • • Entity capabilities Behavior fidelity Level of autonomy Number of entities Authoring resources Two main paradigms: • cognitive architectures • behavioral approaches 64
Conclusion (2) Recommend iterative model development • Build • Test • Refine Be aware of the knowledge bottleneck 65
Resources EPIC http: //www. eecs. umich. edu/~kieras/epic. html ACT-R http: //act-r. psy. cmu. edu/ SOAR http: //sitemaker. umich. edu/soar Sim. Bionic http: //www. simbionic. com/ 66
Questions? 67
References Anderson, J. R. , Bothell, D. , Byrne, M. D. , Douglass, S. , Lebiere, C. , & Qin, Y. (2004). An integrated theory of mind. Psychological Review, 111(4), 1036 -1060. Card, S. K. , Moran, T. P. , & Newell, A. (1983). The psychology of human-computer interaction. Hillsdale, N. J. : L. Erlbaum Associates. Chong, R. S. , & Wray, R. E. 2005. Inheriting constraint in hybird cognitive architecutres: Applying the EASE architecture to perforance and learning in a simplified air traffic control task. In K. A. Gluck & R. W. Pew (Eds. ), Modeling Human Behavior with Integrated Cognitive Architectures: Comparison, Evaluation, and Validation (237 -304): Lawrence Erlbaum Associates. Craig, K. , Doyal, J. , Brett, B. , Lebiere, C. , Biefeld, E. , & Martin, E. A. (2002). Development of a hybrid model of tactical fighter pilot behavior using IMPRINT task network modeling and the adaptive control of thought - rational (ACT-R). Paper presented at the 11 th Conference on Computer Generate Forces and Behavior Representation. Douglass. (2003). Modeling of Cognitive Agents. Retrieved May 22, 2005, from http: //actr. psy. cmu. edu/~douglass/Douglass/Agents/15 -396. html). Fu, D. , & Houlette, R. (2003). The ultimate guide to FSMs in games. In S. Rabin (Ed. ), AI Game Programming Wisdom 2. Fu, D. , Houlette, R. , Jensen, R. , & Bascara, O. (2003). A Visual, Object-Oriented Approach to Simulation Behavior Authoring. Paper presented at the Industry/Interservice, Training, Simulation & Education Conference. Gray, W. D. , & Altmann, E. M. (1999). Cognitive modeling and human-computer interaction. In W. Karwowski (Ed. ), International Encyclopedia of Ergonomics and Human Factors (pp. 387 -391). New York: Taylor & Francis, Ltd. Jones, R. M. , Laird, J. E. , Nielsen, P. E. , Coulter, K. J. , Kenny, P. , & Koss, F. V. (1999). Automated intelligent pilots for combat flight simulation. AI Magazine, 20(1), 27 -41. Kieras, D. E. (2003). Model-based evaluation. In J. A. Jacko & A. Sears (Eds. ), The Human-Computer Interaction Handbook: Fundamentals, Evolving Technologies and Emerging Applications (pp. 11391151). Mahway, NJ: Lawrence Erlbaum Associates. Könik, T. , and Laird, J. (2006). Learning Goal Hierarchies from Structured Observations and Expert Annotations. Machine Learning. In Print 68
References (2) Laird, J. E. (2004). The Soar 8 Tutorial. Retrieved August 16, 2004, from http: //sitemaker. umich. edu/soar_software_downloads Laird, J. E. , & Congden, C. B. (2004). The Soar User's Manual Version 8. 5 Edition 1. Retrieved August 16, 2004, from http: //sitemaker. umich. edu/soar_software_downloads Lehman, J. F. , Laird, J. E. , & Rosenbloom, P. S. (1998). A gentle introduction to SOAR: An architecture for human cognition. In D. Scarborough & S. Sternberg (Eds. ), (2 ed. , Vol. 4, pp. 212 -249). Cambridge, MA: MIT Press. Pearson, D. , & Laird, J. E. (2004). Redux: Example-driven diagrammatic tools for rapid knowledge acquisition. Paper presented at the Behavior Representation in Modeling and Simulation, Washington, D. C. Pew, R. W. , & Mavor, A. S. (1998). Modeling human and organizational behavior : application to military simulations. Washington, D. C. : National Academy Press. Unit 7: Production Rule Learning. Retrieved October 31, 2004, from http: //actr. psy. cmu. edu/tutorials/unit 7. htm Ritter, F. E, Haynes, S. R. , Cohen, M. , Howes, A. , John, B. , Best, B. , Lebiere, C. , Lewis, R. L. , St. Amant, R. , Mc. Braide, S. P. Urbas, L. , Leuchter, S. , Vera, A. (2006) High-level behavior representation languages revisited. In Proceedings of ICCM 2006, Seventh International Conference on Cognitive Modeling (Trieste, Italy, April 58, 2006) Wallace, S. A. , & Laird, J. E. (2003). Comparing agents and humans using behavioral bounding. Paper presented at the International Joint Conference on Artificial Intelligence. 1. Wray, R. , van Lent, M. , Beard, J. , & Brobst, P. (2005) “The Design Space of Control Options for AIs in Computer Games. ” Paper presented at the International Joint Conference on Artificial Intelligence. 2. Wray, R. E. , van Lent, M. , Beard, J. , & Brobst, P. 2005. The Design Space of Control Options for AIs in Computer Games. In Proceedings of the International Joint Conference on Artificial Intelligence 2005. 69
