Integration, Diffusion and Merging in Information Management Discipline Vijay Kumar School of Computing and Engineering University of Missouri-Kansas City 5100 Rockhill Road Kansas City, MO 64110, USA kumarv@umkc. edu Vijay Kumar, UMKC, USA

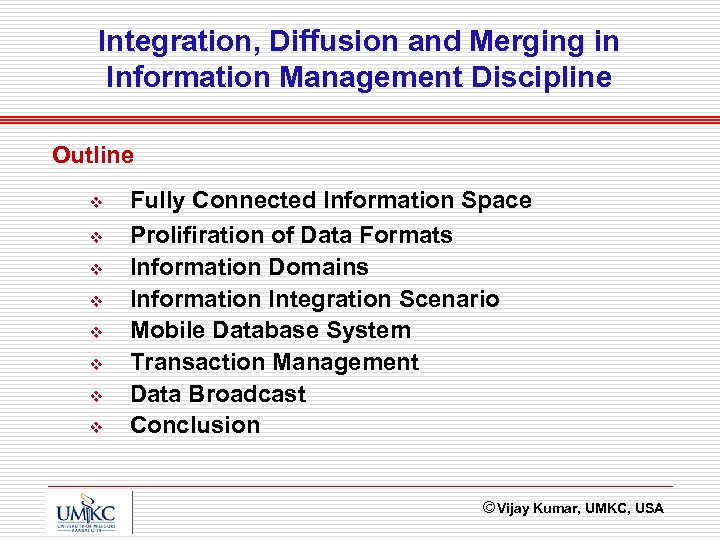

Integration, Diffusion and Merging in Information Management Discipline Outline v v v v Fully Connected Information Space Prolifiration of Data Formats Information Domains Information Integration Scenario Mobile Database System Transaction Management Data Broadcast Conclusion Vijay Kumar, UMKC, USA

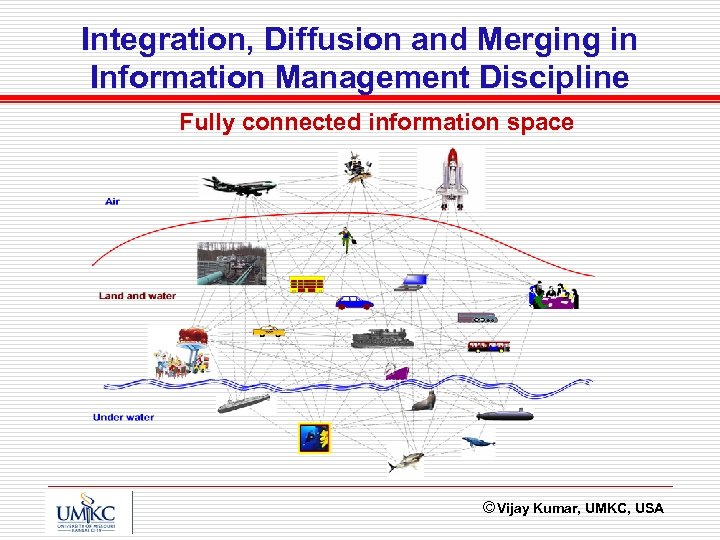

Integration, Diffusion and Merging in Information Management Discipline Fully connected information space Vijay Kumar, UMKC, USA

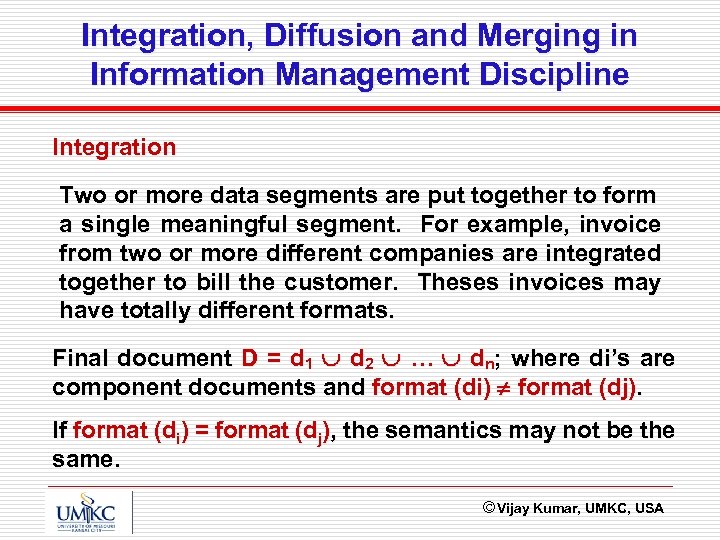

Integration, Diffusion and Merging in Information Management Discipline Integration Two or more data segments are put together to form a single meaningful segment. For example, invoice from two or more different companies are integrated together to bill the customer. Theses invoices may have totally different formats. Final document D = d 1 d 2 … dn; where di’s are component documents and format (di) format (dj). If format (di) = format (dj), the semantics may not be the same. Vijay Kumar, UMKC, USA

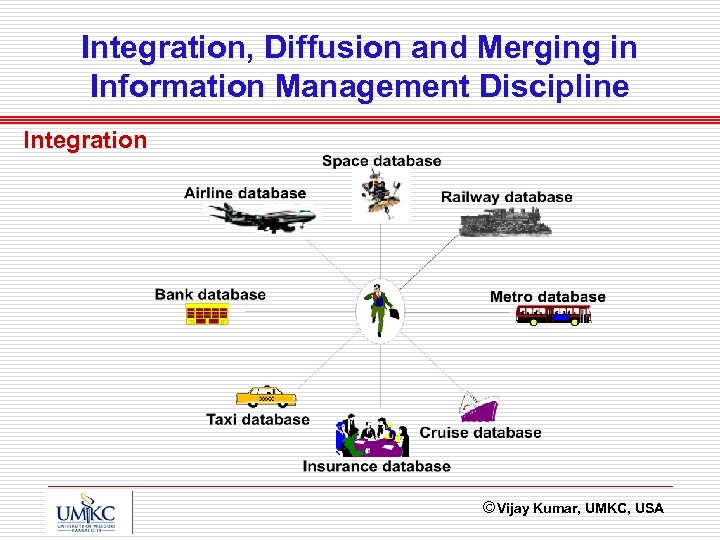

Integration, Diffusion and Merging in Information Management Discipline Integration Vijay Kumar, UMKC, USA

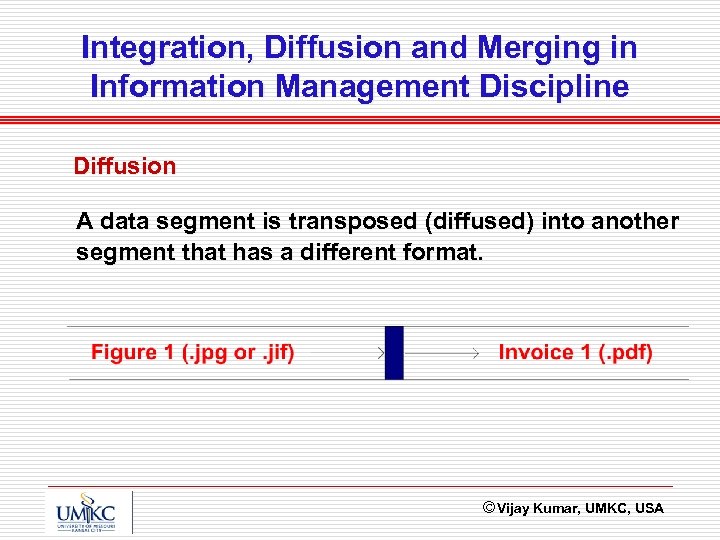

Integration, Diffusion and Merging in Information Management Discipline Diffusion A data segment is transposed (diffused) into another segment that has a different format. Vijay Kumar, UMKC, USA

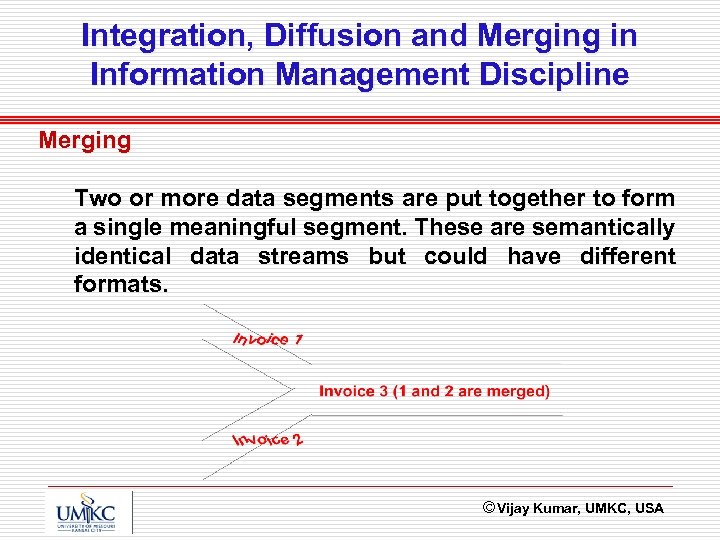

Integration, Diffusion and Merging in Information Management Discipline Merging Two or more data segments are put together to form a single meaningful segment. These are semantically identical data streams but could have different formats. Vijay Kumar, UMKC, USA

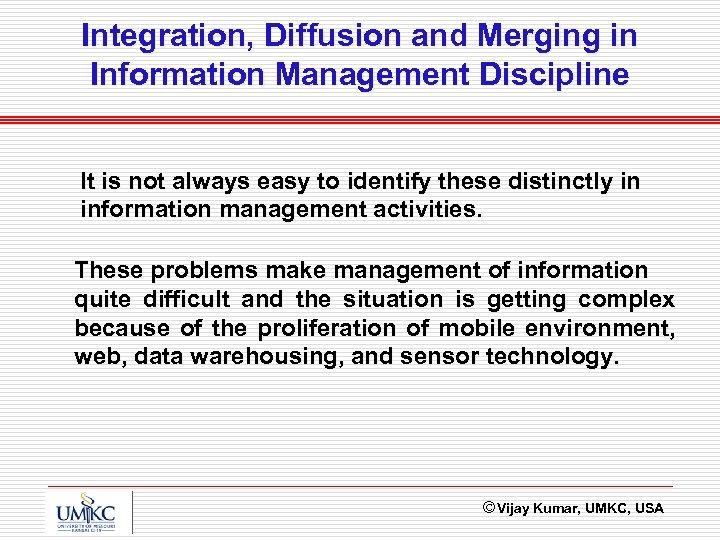

Integration, Diffusion and Merging in Information Management Discipline It is not always easy to identify these distinctly in information management activities. These problems make management of information quite difficult and the situation is getting complex because of the proliferation of mobile environment, web, data warehousing, and sensor technology. Vijay Kumar, UMKC, USA

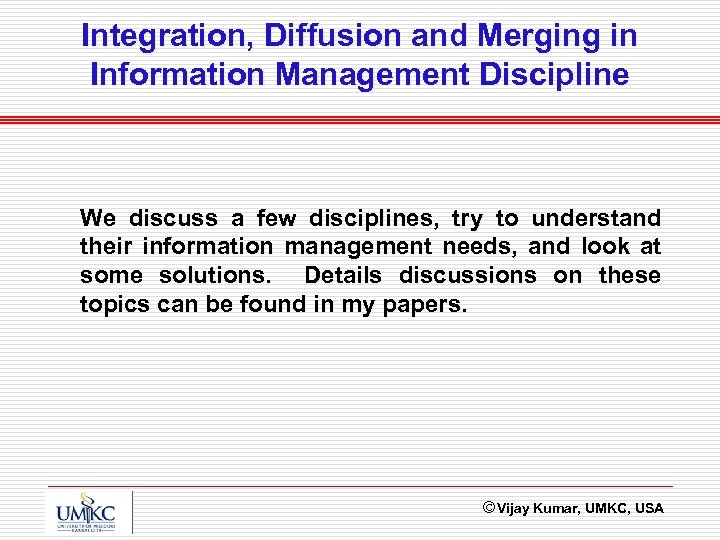

Integration, Diffusion and Merging in Information Management Discipline We discuss a few disciplines, try to understand their information management needs, and look at some solutions. Details discussions on these topics can be found in my papers. Vijay Kumar, UMKC, USA

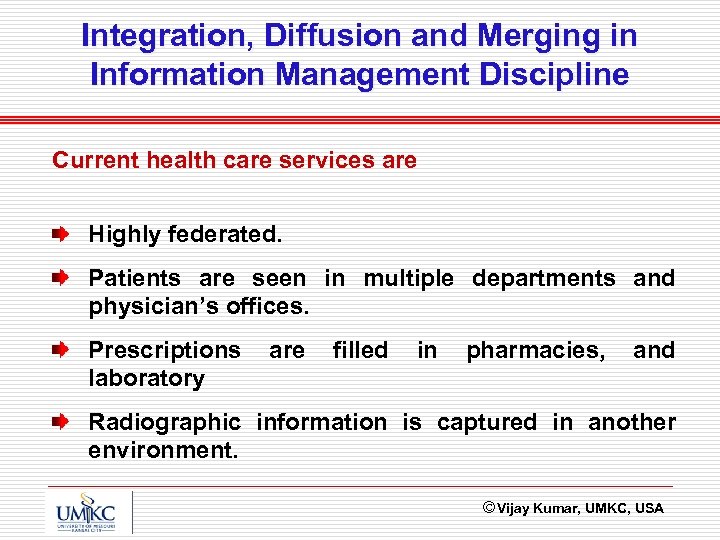

Integration, Diffusion and Merging in Information Management Discipline Current health care services are Highly federated. Patients are seen in multiple departments and physician’s offices. Prescriptions laboratory are filled in pharmacies, and Radiographic information is captured in another environment. Vijay Kumar, UMKC, USA

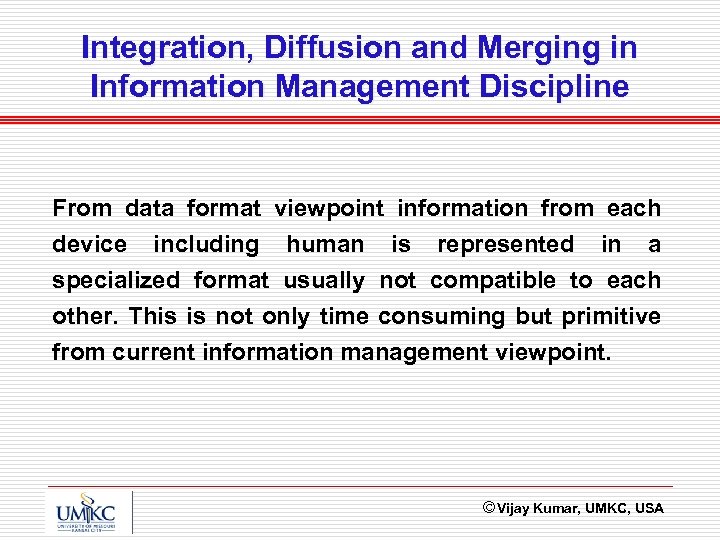

Integration, Diffusion and Merging in Information Management Discipline From data format viewpoint information from each device including human is represented in a specialized format usually not compatible to each other. This is not only time consuming but primitive from current information management viewpoint. Vijay Kumar, UMKC, USA

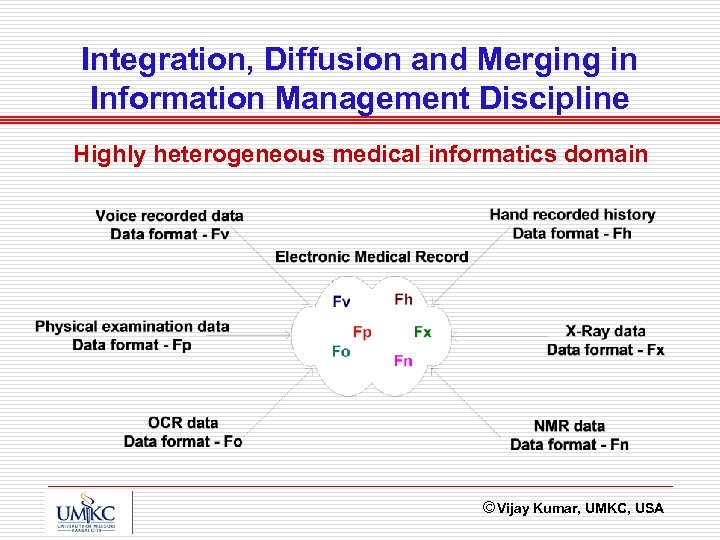

Integration, Diffusion and Merging in Information Management Discipline Highly heterogeneous medical informatics domain Vijay Kumar, UMKC, USA

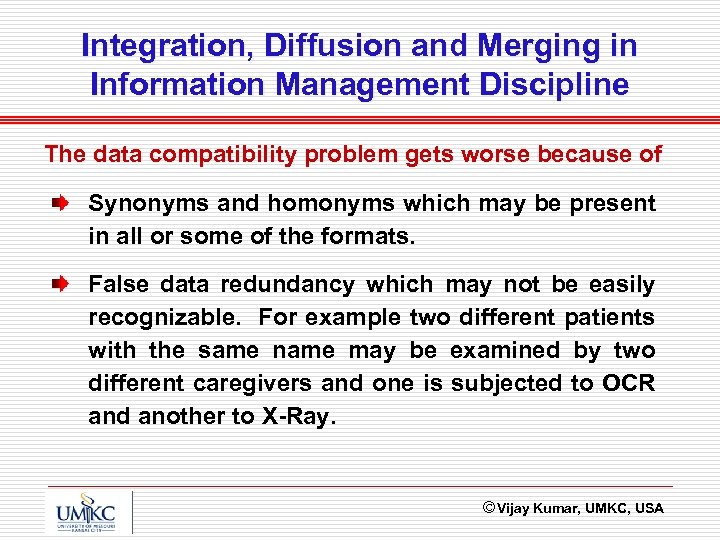

Integration, Diffusion and Merging in Information Management Discipline The data compatibility problem gets worse because of Synonyms and homonyms which may be present in all or some of the formats. False data redundancy which may not be easily recognizable. For example two different patients with the same name may be examined by two different caregivers and one is subjected to OCR and another to X-Ray. Vijay Kumar, UMKC, USA

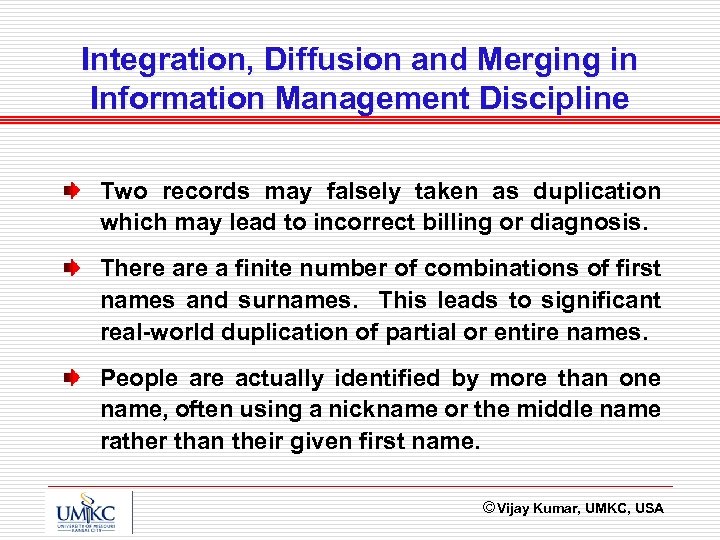

Integration, Diffusion and Merging in Information Management Discipline Two records may falsely taken as duplication which may lead to incorrect billing or diagnosis. There a finite number of combinations of first names and surnames. This leads to significant real-world duplication of partial or entire names. People are actually identified by more than one name, often using a nickname or the middle name rather than their given first name. Vijay Kumar, UMKC, USA

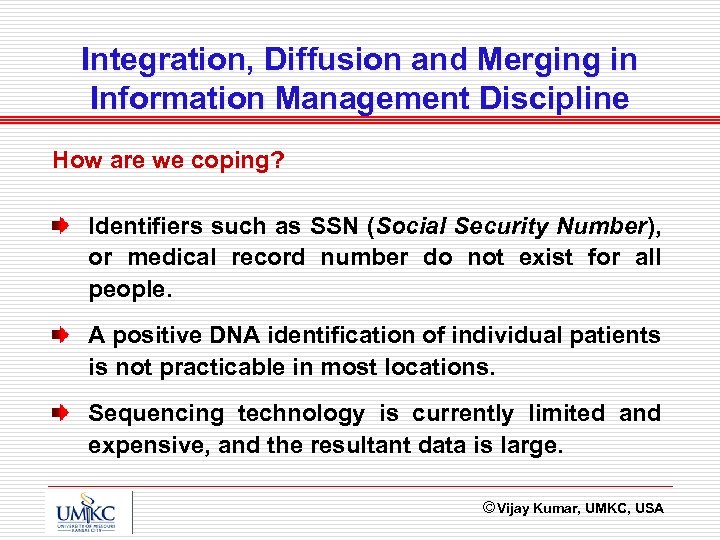

Integration, Diffusion and Merging in Information Management Discipline How are we coping? Identifiers such as SSN (Social Security Number), or medical record number do not exist for all people. A positive DNA identification of individual patients is not practicable in most locations. Sequencing technology is currently limited and expensive, and the resultant data is large. Vijay Kumar, UMKC, USA

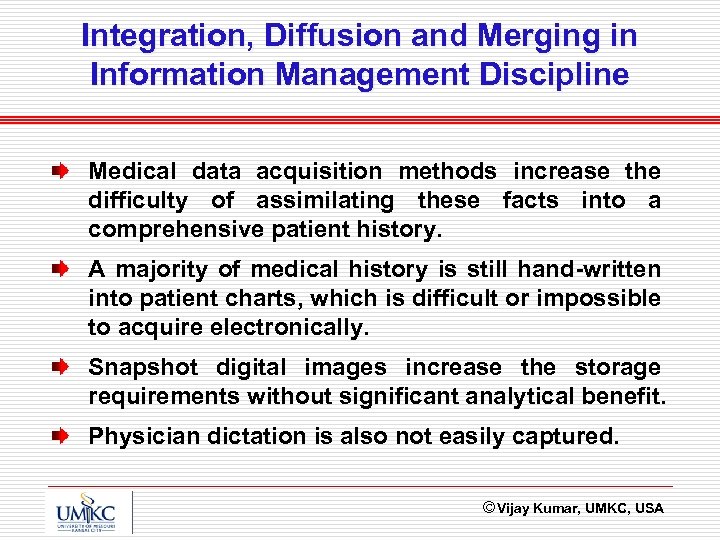

Integration, Diffusion and Merging in Information Management Discipline Medical data acquisition methods increase the difficulty of assimilating these facts into a comprehensive patient history. A majority of medical history is still hand-written into patient charts, which is difficult or impossible to acquire electronically. Snapshot digital images increase the storage requirements without significant analytical benefit. Physician dictation is also not easily captured. Vijay Kumar, UMKC, USA

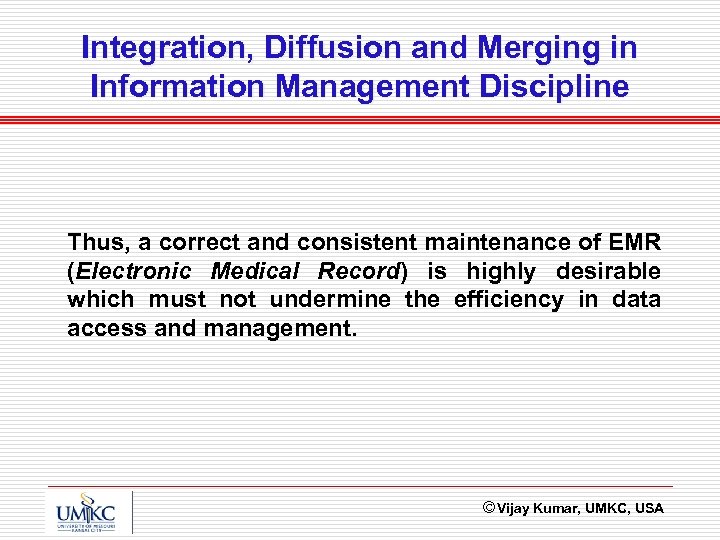

Integration, Diffusion and Merging in Information Management Discipline Thus, a correct and consistent maintenance of EMR (Electronic Medical Record) is highly desirable which must not undermine the efficiency in data access and management. Vijay Kumar, UMKC, USA

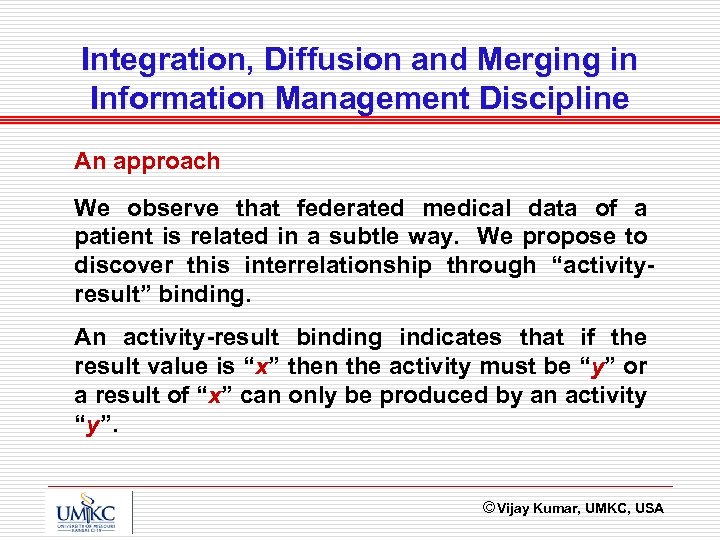

Integration, Diffusion and Merging in Information Management Discipline An approach We observe that federated medical data of a patient is related in a subtle way. We propose to discover this interrelationship through “activityresult” binding. An activity-result binding indicates that if the result value is “x” then the activity must be “y” or a result of “x” can only be produced by an activity “y”. Vijay Kumar, UMKC, USA

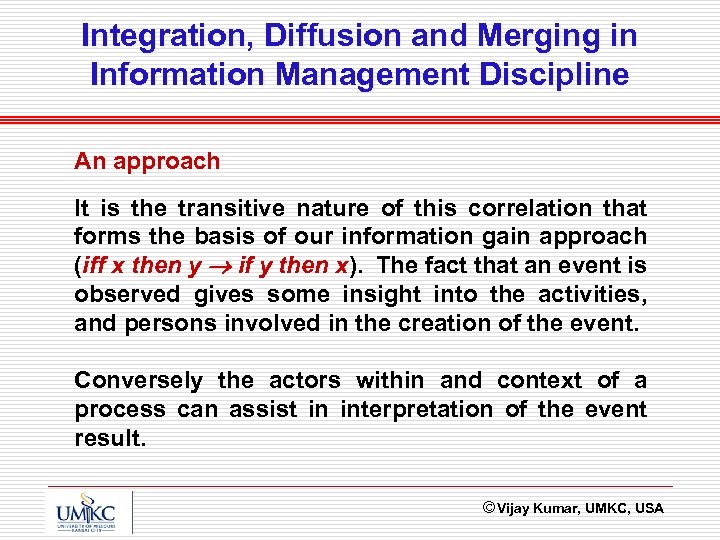

Integration, Diffusion and Merging in Information Management Discipline An approach It is the transitive nature of this correlation that forms the basis of our information gain approach (iff x then y if y then x). The fact that an event is observed gives some insight into the activities, and persons involved in the creation of the event. Conversely the actors within and context of a process can assist in interpretation of the event result. Vijay Kumar, UMKC, USA

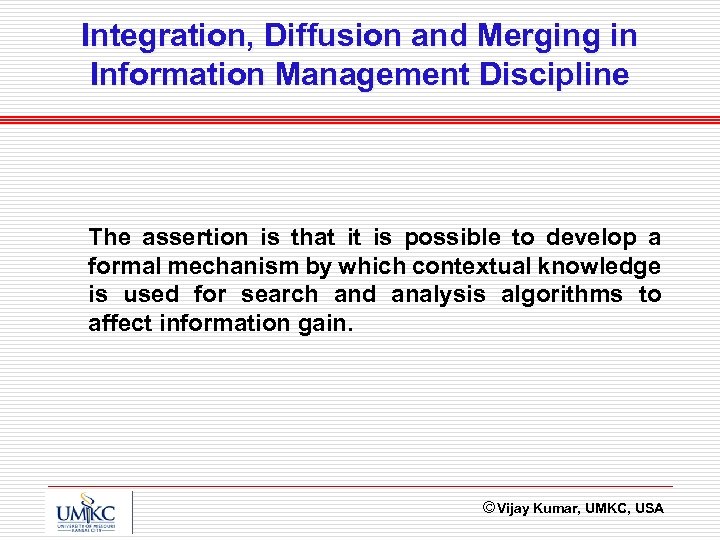

Integration, Diffusion and Merging in Information Management Discipline The assertion is that it is possible to develop a formal mechanism by which contextual knowledge is used for search and analysis algorithms to affect information gain. Vijay Kumar, UMKC, USA

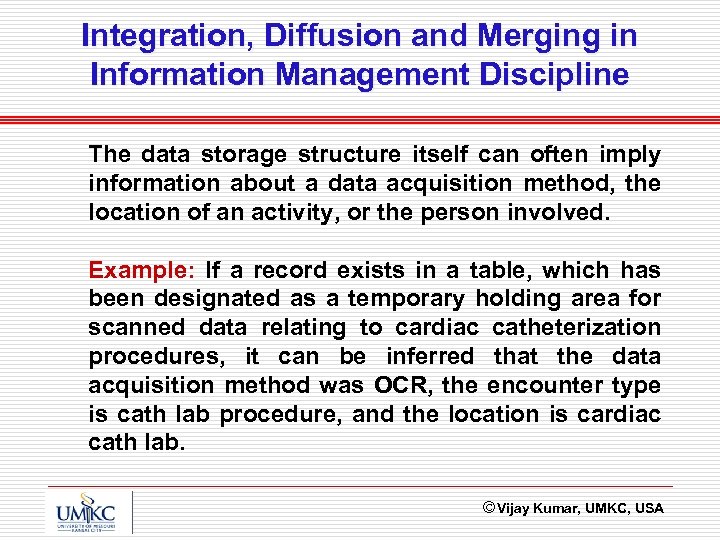

Integration, Diffusion and Merging in Information Management Discipline The data storage structure itself can often imply information about a data acquisition method, the location of an activity, or the person involved. Example: If a record exists in a table, which has been designated as a temporary holding area for scanned data relating to cardiac catheterization procedures, it can be inferred that the data acquisition method was OCR, the encounter type is cath lab procedure, and the location is cardiac cath lab. Vijay Kumar, UMKC, USA

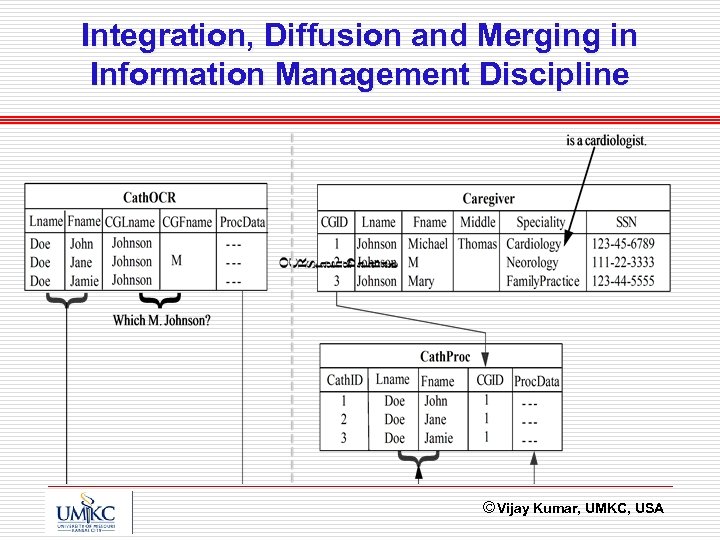

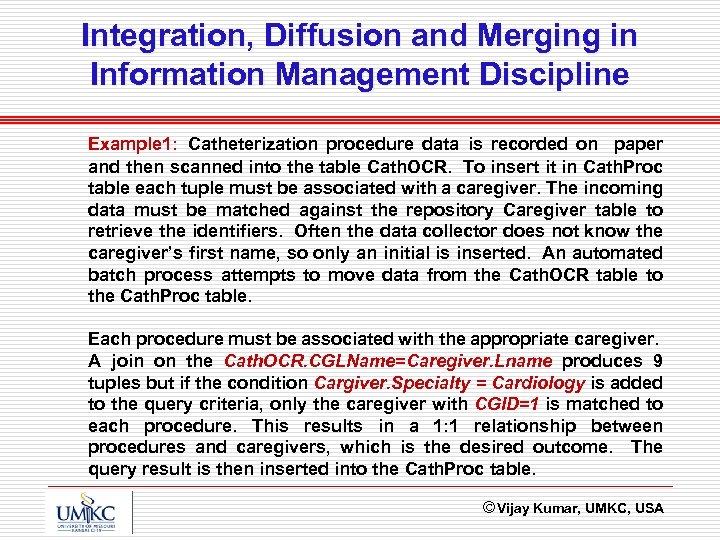

Integration, Diffusion and Merging in Information Management Discipline Example 1: Catheterization procedure data is recorded on paper and then scanned into the table Cath. OCR. To insert it in Cath. Proc table each tuple must be associated with a caregiver. The incoming data must be matched against the repository Caregiver table to retrieve the identifiers. Often the data collector does not know the caregiver’s first name, so only an initial is inserted. An automated batch process attempts to move data from the Cath. OCR table to the Cath. Proc table. Each procedure must be associated with the appropriate caregiver. A join on the Cath. OCR. CGLName=Caregiver. Lname produces 9 tuples but if the condition Cargiver. Specialty = Cardiology is added to the query criteria, only the caregiver with CGID=1 is matched to each procedure. This results in a 1: 1 relationship between procedures and caregivers, which is the desired outcome. The query result is then inserted into the Cath. Proc table. Vijay Kumar, UMKC, USA

Integration, Diffusion and Merging in Information Management Discipline Vijay Kumar, UMKC, USA

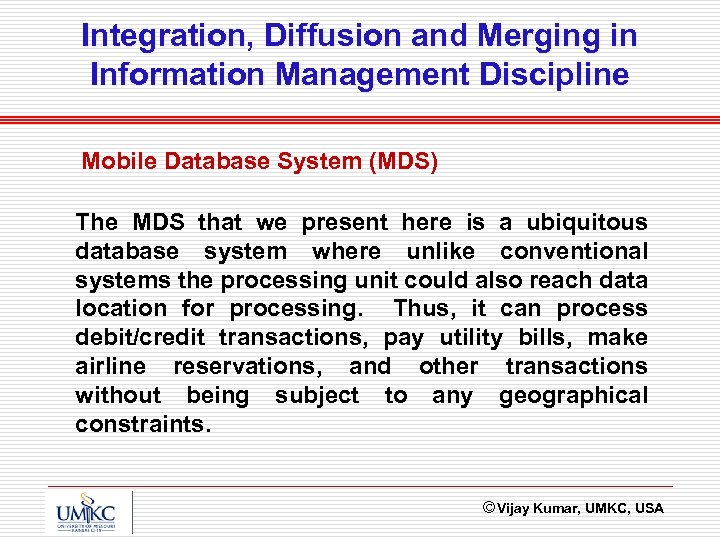

Integration, Diffusion and Merging in Information Management Discipline Mobile Database System (MDS) The MDS that we present here is a ubiquitous database system where unlike conventional systems the processing unit could also reach data location for processing. Thus, it can process debit/credit transactions, pay utility bills, make airline reservations, and other transactions without being subject to any geographical constraints. Vijay Kumar, UMKC, USA

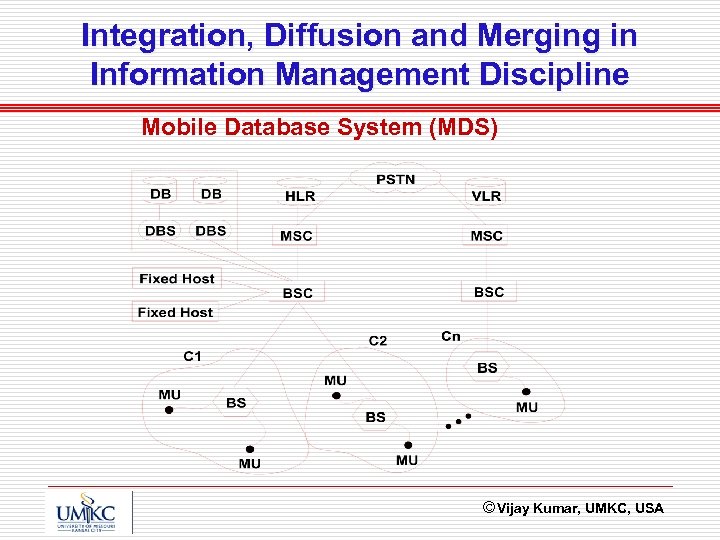

Integration, Diffusion and Merging in Information Management Discipline Mobile Database System (MDS) Vijay Kumar, UMKC, USA

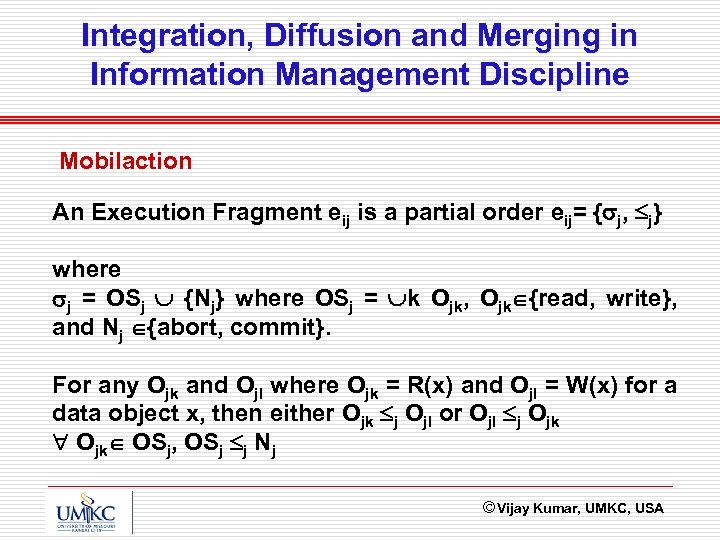

Integration, Diffusion and Merging in Information Management Discipline Mobilaction An Execution Fragment eij is a partial order eij= { j, j} where j = OSj {Nj} where OSj = k Ojk, Ojk {read, write}, and Nj {abort, commit}. For any Ojk and Ojl where Ojk = R(x) and Ojl = W(x) for a data object x, then either Ojk j Ojl or Ojl j Ojk OSj, OSj j Nj Vijay Kumar, UMKC, USA

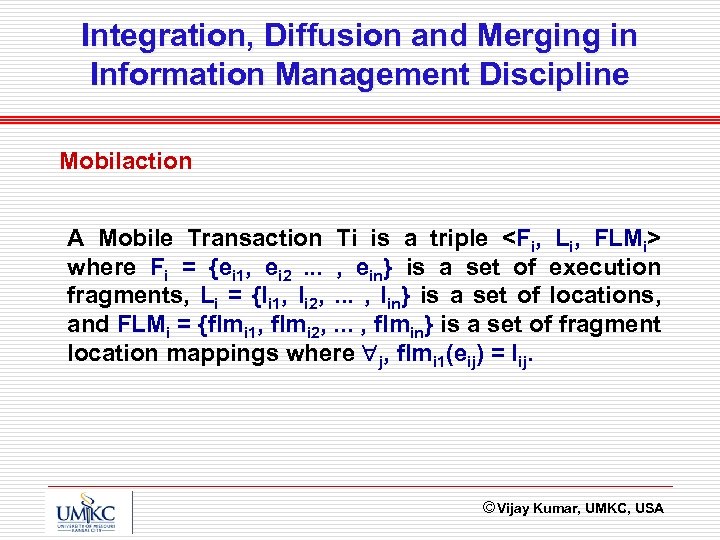

Integration, Diffusion and Merging in Information Management Discipline Mobilaction A Mobile Transaction Ti is a triple where Fi = {ei 1, ei 2. . . , ein} is a set of execution fragments, Li = {li 1, li 2, . . . , lin} is a set of locations, and FLMi = {flmi 1, flmi 2, . . . , flmin} is a set of fragment location mappings where j, flmi 1(eij) = lij. Vijay Kumar, UMKC, USA

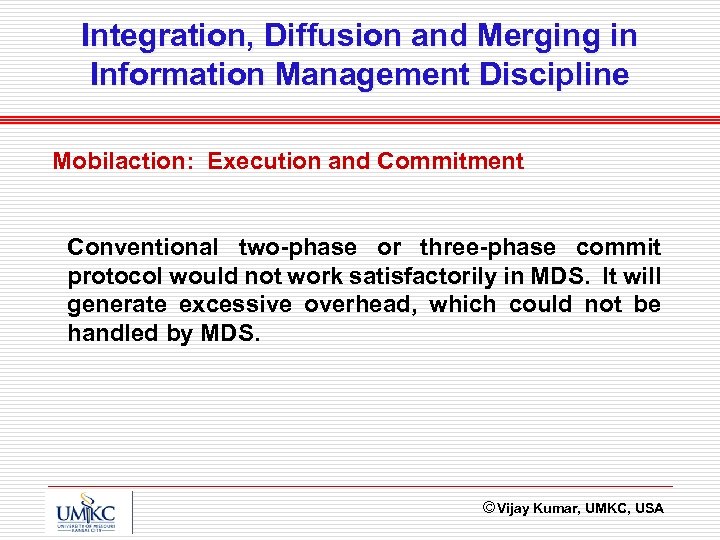

Integration, Diffusion and Merging in Information Management Discipline Mobilaction: Execution and Commitment Conventional two-phase or three-phase commit protocol would not work satisfactorily in MDS. It will generate excessive overhead, which could not be handled by MDS. Vijay Kumar, UMKC, USA

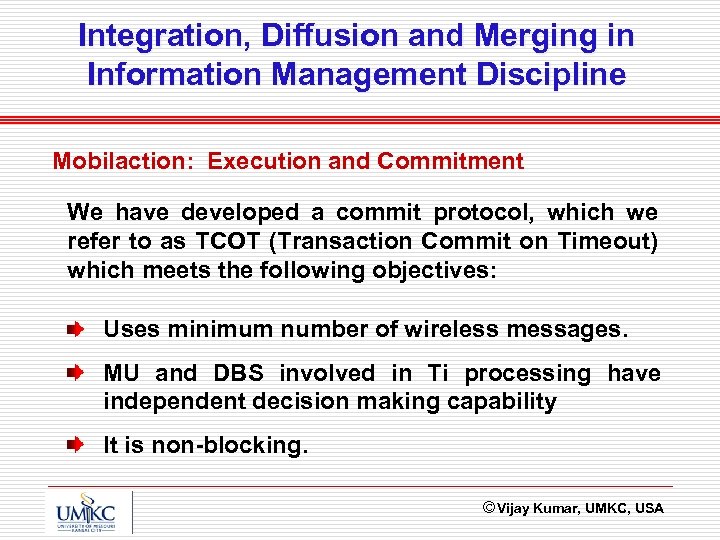

Integration, Diffusion and Merging in Information Management Discipline Mobilaction: Execution and Commitment We have developed a commit protocol, which we refer to as TCOT (Transaction Commit on Timeout) which meets the following objectives: Uses minimum number of wireless messages. MU and DBS involved in Ti processing have independent decision making capability It is non-blocking. Vijay Kumar, UMKC, USA

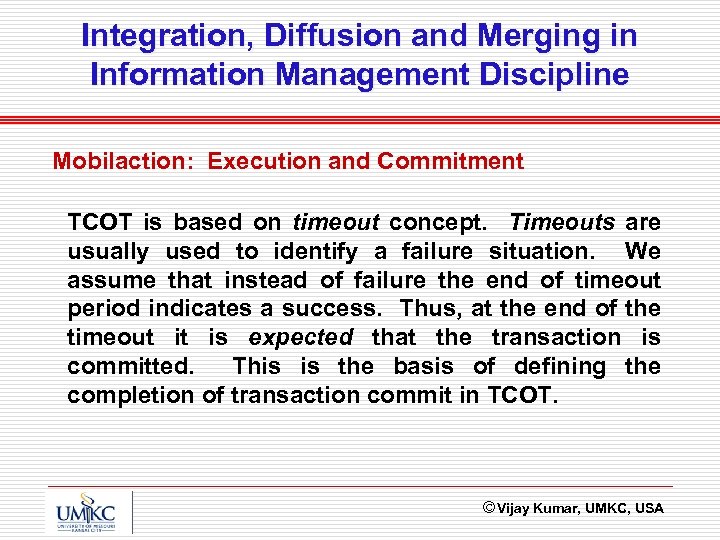

Integration, Diffusion and Merging in Information Management Discipline Mobilaction: Execution and Commitment TCOT is based on timeout concept. Timeouts are usually used to identify a failure situation. We assume that instead of failure the end of timeout period indicates a success. Thus, at the end of the timeout it is expected that the transaction is committed. This is the basis of defining the completion of transaction commit in TCOT. Vijay Kumar, UMKC, USA

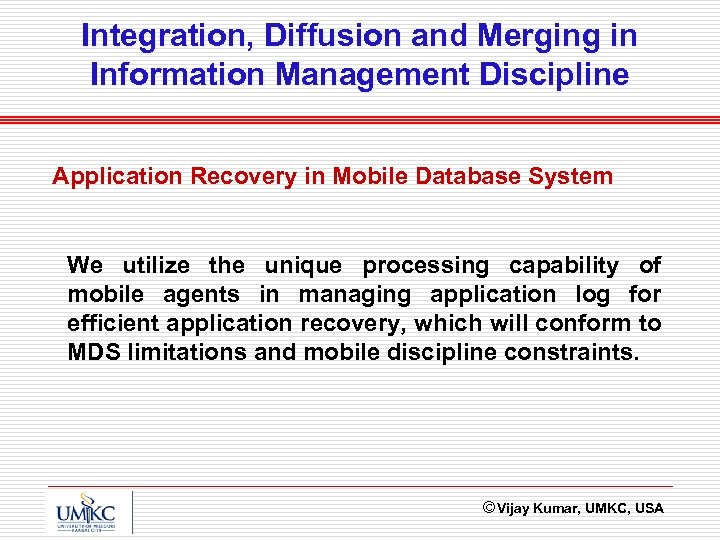

Integration, Diffusion and Merging in Information Management Discipline Application Recovery in Mobile Database System We utilize the unique processing capability of mobile agents in managing application log for efficient application recovery, which will conform to MDS limitations and mobile discipline constraints. Vijay Kumar, UMKC, USA

Integration, Diffusion and Merging in Information Management Discipline Data Dissemination through wireless channels Satellite broadcast system Vijay Kumar, UMKC, USA

Integration, Diffusion and Merging in Information Management Discipline Data Dissemination through wireless channels A sample IC space Vijay Kumar, UMKC, USA

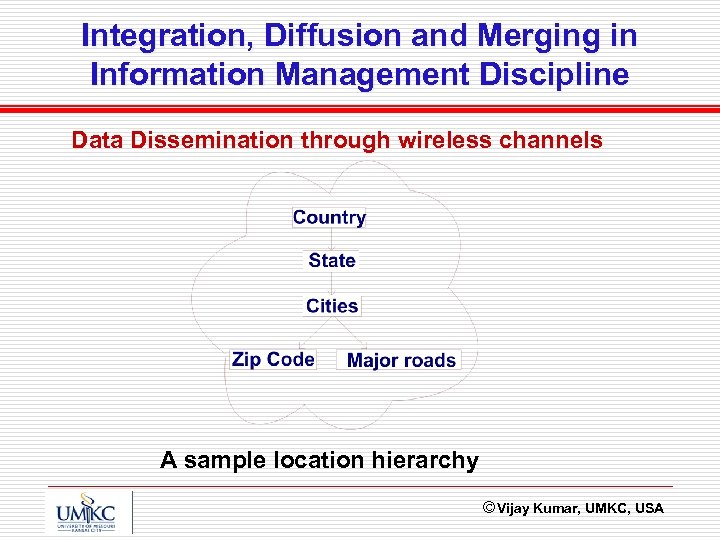

Integration, Diffusion and Merging in Information Management Discipline Data Dissemination through wireless channels A sample location hierarchy Vijay Kumar, UMKC, USA

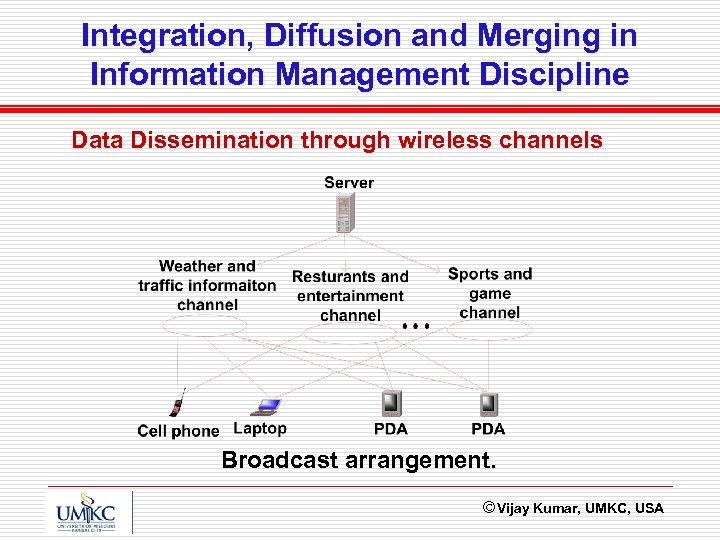

Integration, Diffusion and Merging in Information Management Discipline Data Dissemination through wireless channels Broadcast arrangement. Vijay Kumar, UMKC, USA

Integration, Diffusion and Merging in Information Management Discipline Data Dissemination through wireless channels Broadcast Index Vijay Kumar, UMKC, USA

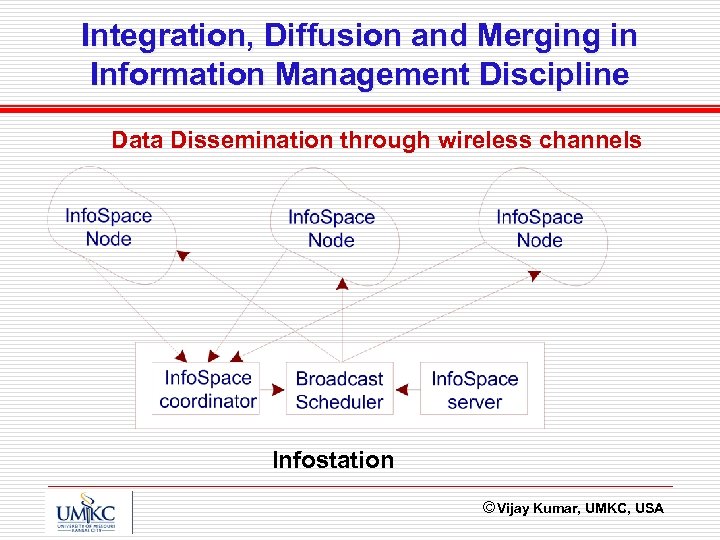

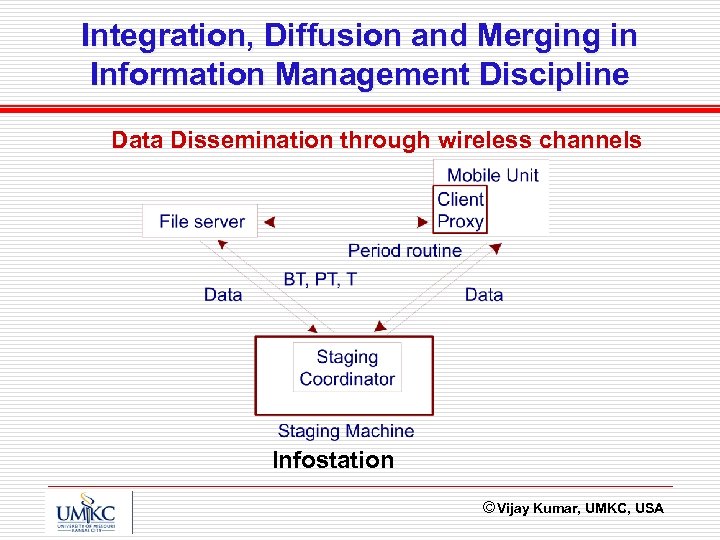

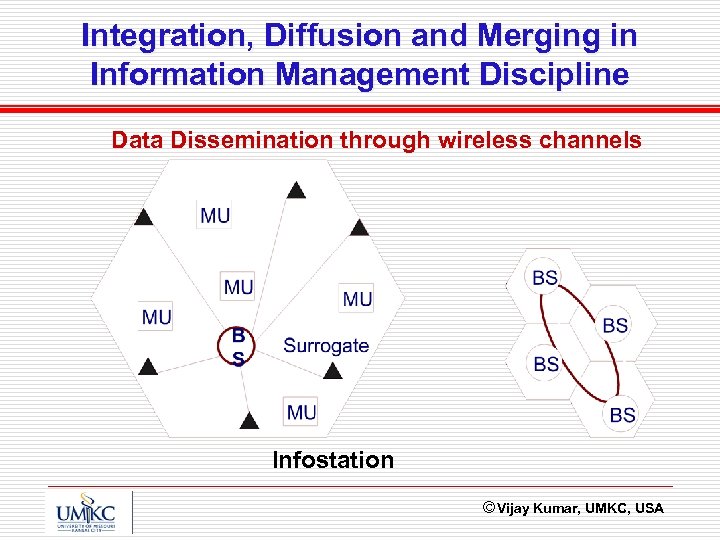

Integration, Diffusion and Merging in Information Management Discipline Data Dissemination through wireless channels Infostation Vijay Kumar, UMKC, USA

Integration, Diffusion and Merging in Information Management Discipline Data Dissemination through wireless channels Infostation Vijay Kumar, UMKC, USA

Integration, Diffusion and Merging in Information Management Discipline Data Dissemination through wireless channels Infostation Vijay Kumar, UMKC, USA

Integration, Diffusion and Merging in Information Management Discipline Push Pull Push In data dissemination either Push or Pull model is used. This is too rigid. We have proposed a dynamic approach where data changes its dissemination mode from Push to Pull to Push. This under this scheme depending upon the popularity factor a data is disseminated using Push or Pull model. Vijay Kumar, UMKC, USA

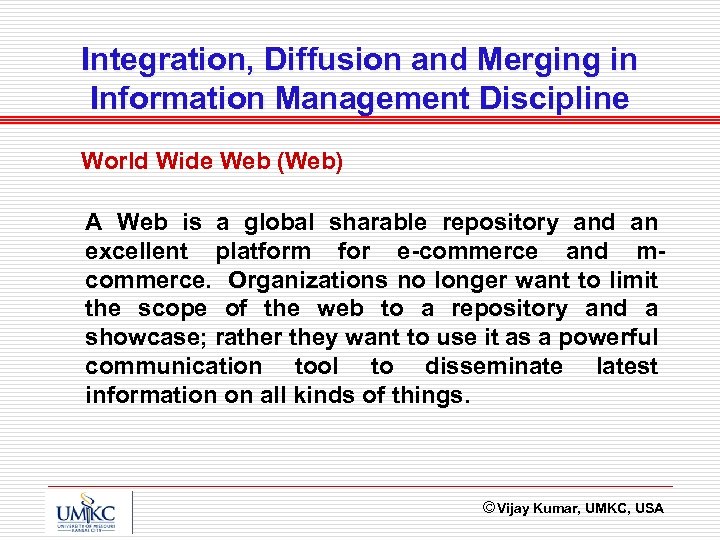

Integration, Diffusion and Merging in Information Management Discipline World Wide Web (Web) A Web is a global sharable repository and an excellent platform for e-commerce and mcommerce. Organizations no longer want to limit the scope of the web to a repository and a showcase; rather they want to use it as a powerful communication tool to disseminate latest information on all kinds of things. Vijay Kumar, UMKC, USA

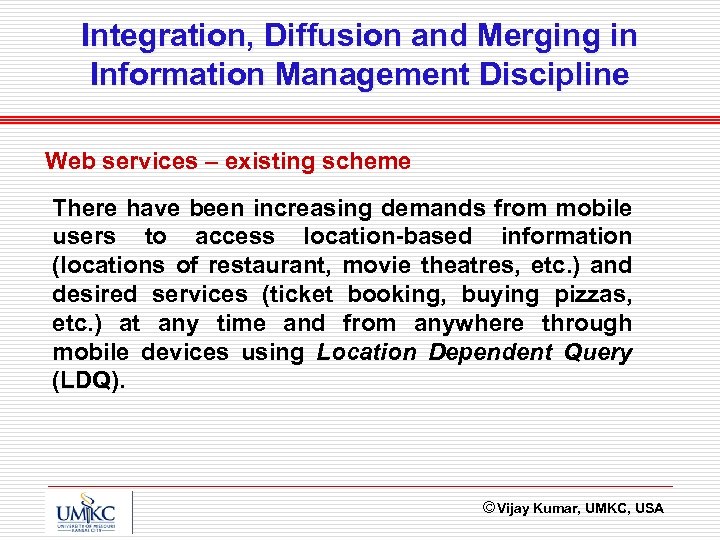

Integration, Diffusion and Merging in Information Management Discipline Web services – existing scheme There have been increasing demands from mobile users to access location-based information (locations of restaurant, movie theatres, etc. ) and desired services (ticket booking, buying pizzas, etc. ) at any time and from anywhere through mobile devices using Location Dependent Query (LDQ). Vijay Kumar, UMKC, USA

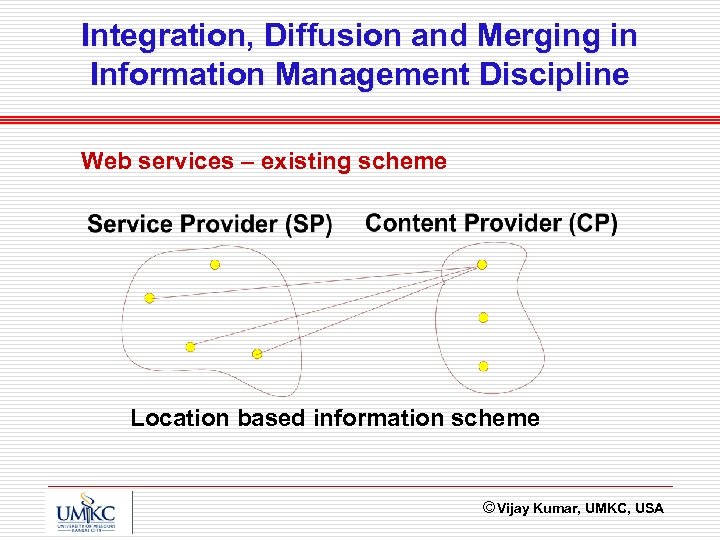

Integration, Diffusion and Merging in Information Management Discipline Web services – existing scheme Location based information scheme Vijay Kumar, UMKC, USA

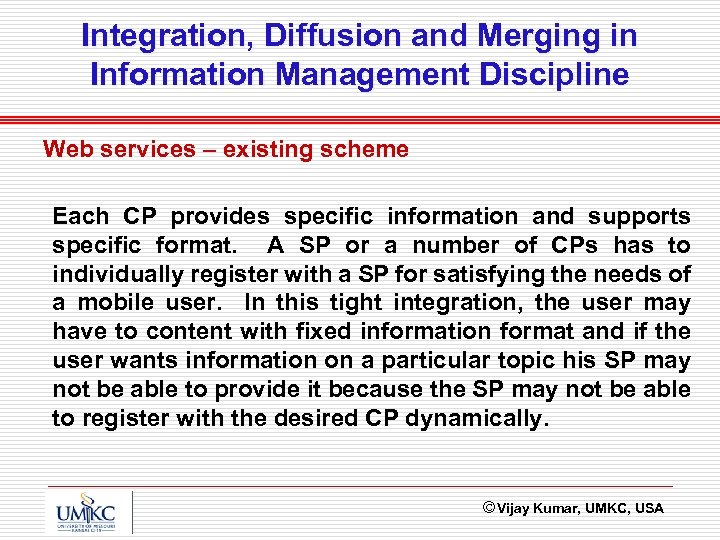

Integration, Diffusion and Merging in Information Management Discipline Web services – existing scheme Each CP provides specific information and supports specific format. A SP or a number of CPs has to individually register with a SP for satisfying the needs of a mobile user. In this tight integration, the user may have to content with fixed information format and if the user wants information on a particular topic his SP may not be able to provide it because the SP may not be able to register with the desired CP dynamically. Vijay Kumar, UMKC, USA

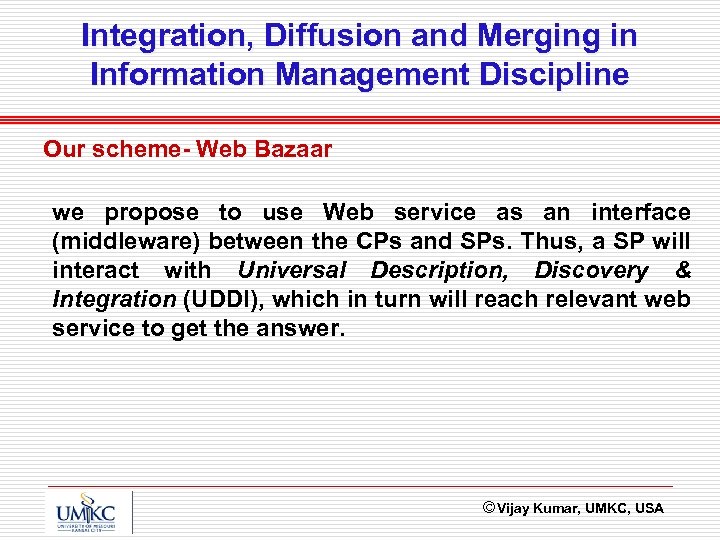

Integration, Diffusion and Merging in Information Management Discipline Our scheme- Web Bazaar we propose to use Web service as an interface (middleware) between the CPs and SPs. Thus, a SP will interact with Universal Description, Discovery & Integration (UDDI), which in turn will reach relevant web service to get the answer. Vijay Kumar, UMKC, USA

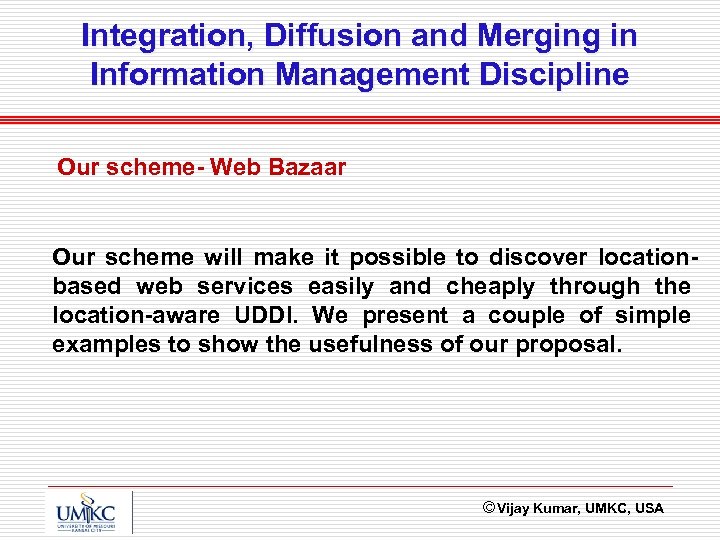

Integration, Diffusion and Merging in Information Management Discipline Our scheme- Web Bazaar Our scheme will make it possible to discover locationbased web services easily and cheaply through the location-aware UDDI. We present a couple of simple examples to show the usefulness of our proposal. Vijay Kumar, UMKC, USA

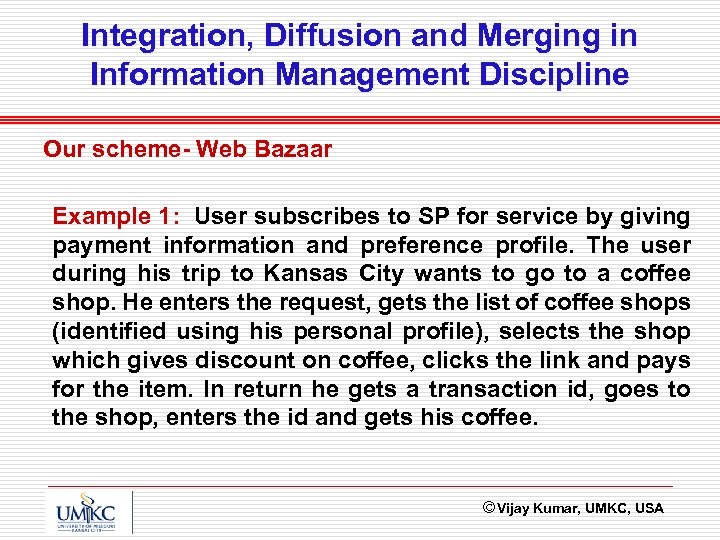

Integration, Diffusion and Merging in Information Management Discipline Our scheme- Web Bazaar Example 1: User subscribes to SP for service by giving payment information and preference profile. The user during his trip to Kansas City wants to go to a coffee shop. He enters the request, gets the list of coffee shops (identified using his personal profile), selects the shop which gives discount on coffee, clicks the link and pays for the item. In return he gets a transaction id, goes to the shop, enters the id and gets his coffee. Vijay Kumar, UMKC, USA

Integration, Diffusion and Merging in Information Management Discipline Our scheme- Web Bazaar Example 2: User wants to eat special pizza. He selects pizza store using mobile device after getting store’s information from Web Bazaar. The service selects the right kinds of pizzas using information from profile. The pizza order is given to the shop and when it is ready the GPS service is used to get user’s location. User location is dispatched to map web service to obtain route for delivery. Vijay Kumar, UMKC, USA

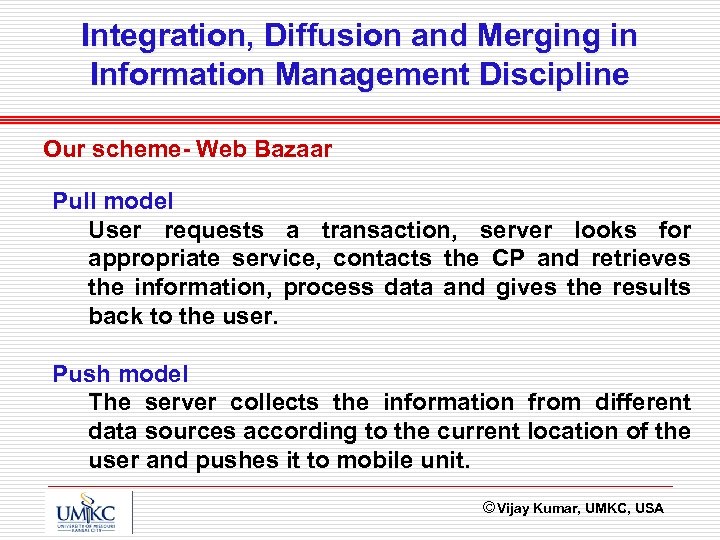

Integration, Diffusion and Merging in Information Management Discipline Our scheme- Web Bazaar Pull model User requests a transaction, server looks for appropriate service, contacts the CP and retrieves the information, process data and gives the results back to the user. Push model The server collects the information from different data sources according to the current location of the user and pushes it to mobile unit. Vijay Kumar, UMKC, USA

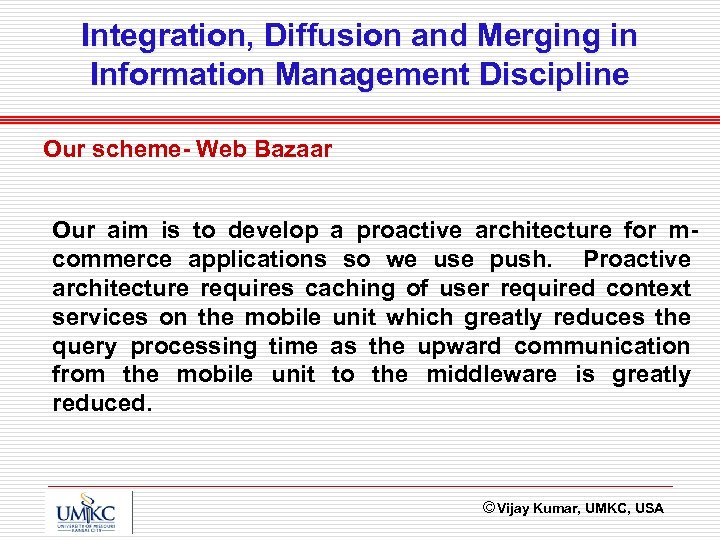

Integration, Diffusion and Merging in Information Management Discipline Our scheme- Web Bazaar Our aim is to develop a proactive architecture for mcommerce applications so we use push. Proactive architecture requires caching of user required context services on the mobile unit which greatly reduces the query processing time as the upward communication from the mobile unit to the middleware is greatly reduced. Vijay Kumar, UMKC, USA

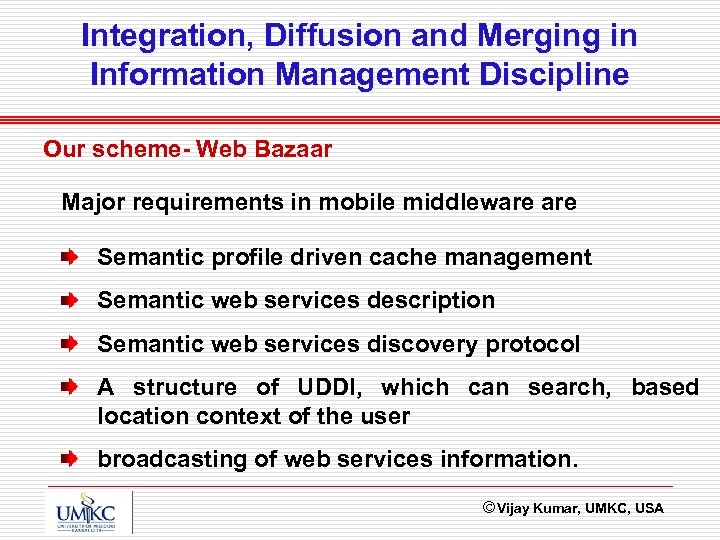

Integration, Diffusion and Merging in Information Management Discipline Our scheme- Web Bazaar Major requirements in mobile middleware Semantic profile driven cache management Semantic web services description Semantic web services discovery protocol A structure of UDDI, which can search, based location context of the user broadcasting of web services information. Vijay Kumar, UMKC, USA

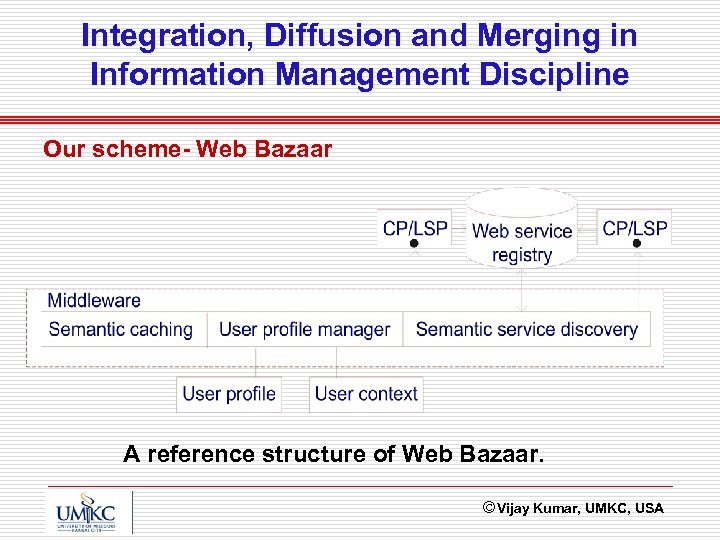

Integration, Diffusion and Merging in Information Management Discipline Our scheme- Web Bazaar A reference structure of Web Bazaar. Vijay Kumar, UMKC, USA

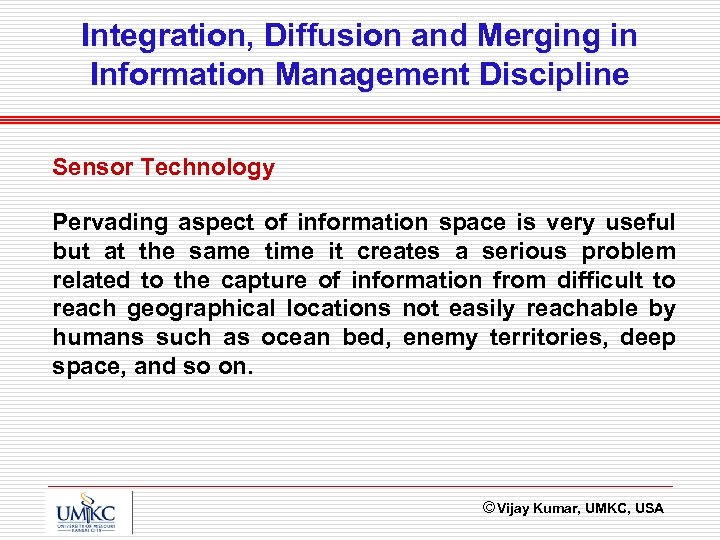

Integration, Diffusion and Merging in Information Management Discipline Sensor Technology Pervading aspect of information space is very useful but at the same time it creates a serious problem related to the capture of information from difficult to reach geographical locations not easily reachable by humans such as ocean bed, enemy territories, deep space, and so on. Vijay Kumar, UMKC, USA

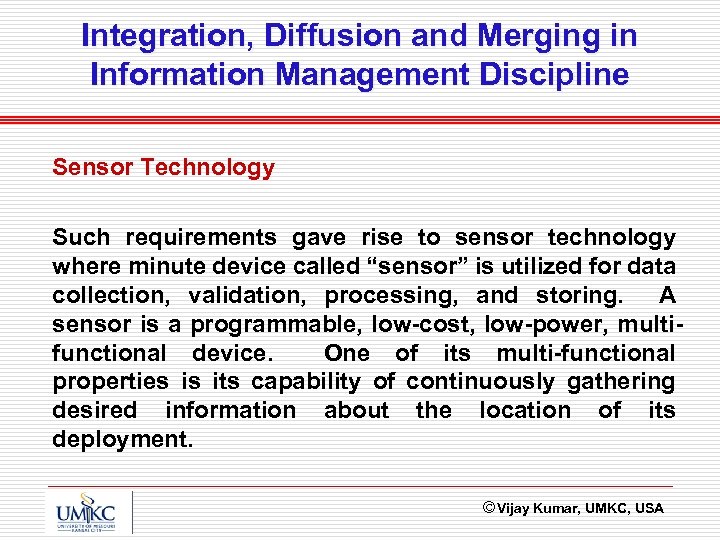

Integration, Diffusion and Merging in Information Management Discipline Sensor Technology Such requirements gave rise to sensor technology where minute device called “sensor” is utilized for data collection, validation, processing, and storing. A sensor is a programmable, low-cost, low-power, multifunctional device. One of its multi-functional properties is its capability of continuously gathering desired information about the location of its deployment. Vijay Kumar, UMKC, USA

Integration, Diffusion and Merging in Information Management Discipline Sensor Technology Vijay Kumar, UMKC, USA

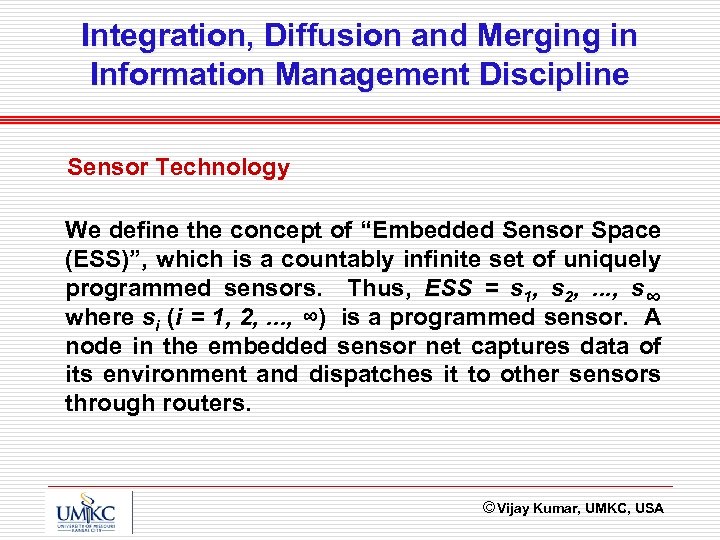

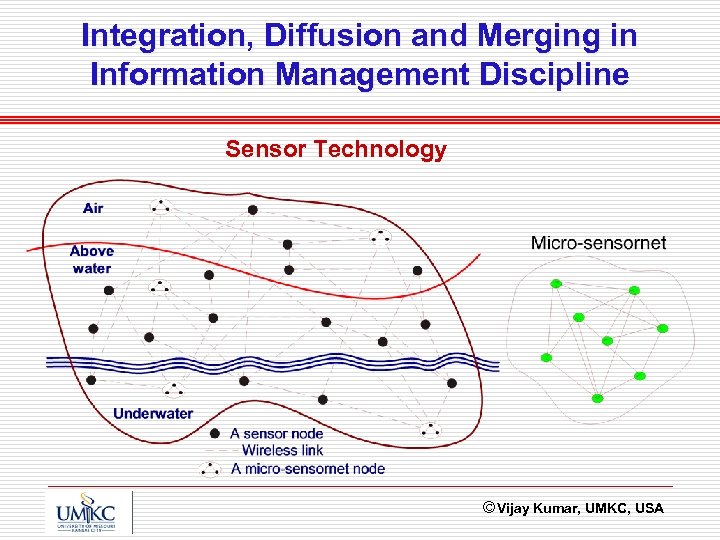

Integration, Diffusion and Merging in Information Management Discipline Sensor Technology We define the concept of “Embedded Sensor Space (ESS)”, which is a countably infinite set of uniquely programmed sensors. Thus, ESS = s 1, s 2, . . . , s∞ where si (i = 1, 2, . . . , ∞) is a programmed sensor. A node in the embedded sensor net captures data of its environment and dispatches it to other sensors through routers. Vijay Kumar, UMKC, USA

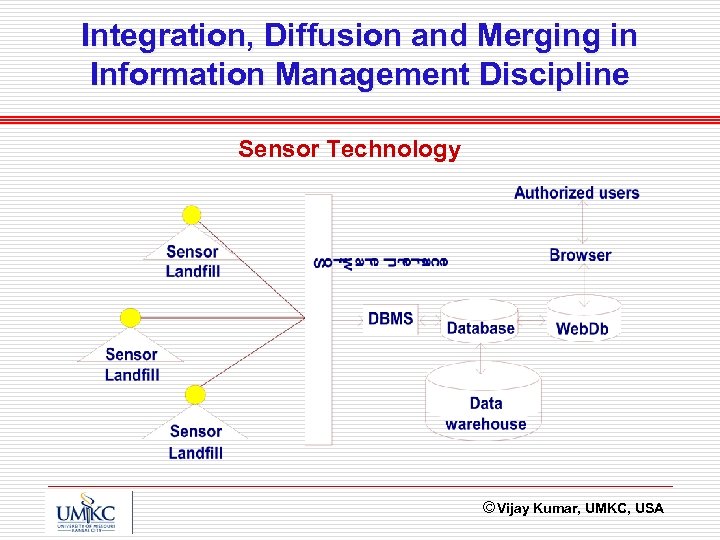

Integration, Diffusion and Merging in Information Management Discipline Sensor Technology Vijay Kumar, UMKC, USA

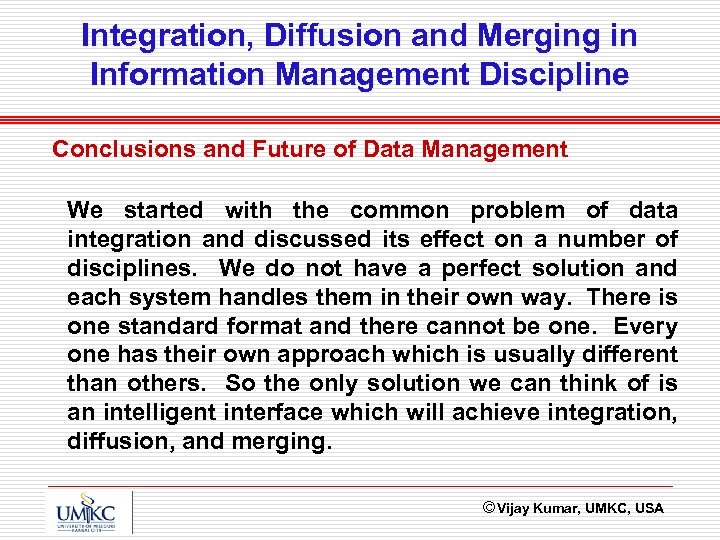

Integration, Diffusion and Merging in Information Management Discipline Conclusions and Future of Data Management We started with the common problem of data integration and discussed its effect on a number of disciplines. We do not have a perfect solution and each system handles them in their own way. There is one standard format and there cannot be one. Every one has their own approach which is usually different than others. So the only solution we can think of is an intelligent interface which will achieve integration, diffusion, and merging. Vijay Kumar, UMKC, USA

Integration, Diffusion and Merging in Information Management Discipline Thank you Vijay Kumar, UMKC, USA
