Integratie NDoc help documentatie in Visual Studio 2003 & 2005 Fons Sonnemans Freelance. NET Expert and Trainer Reflection IT SDN 1 April 2004

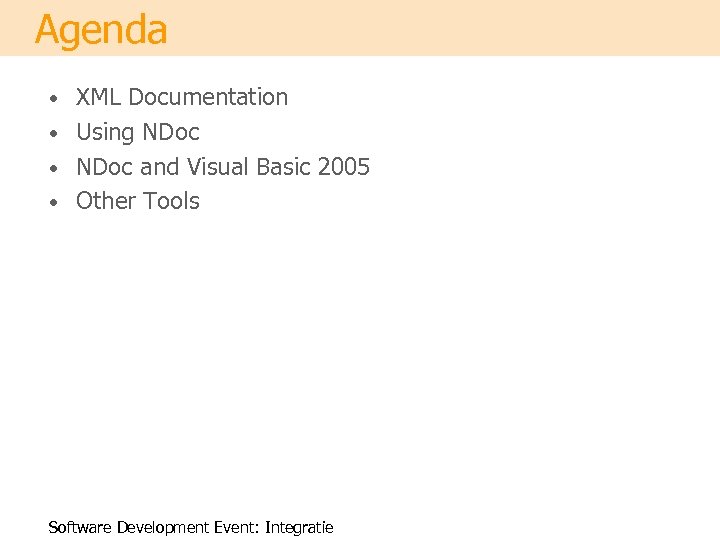

Agenda XML Documentation • Using NDoc • NDoc and Visual Basic 2005 • Other Tools • Software Development Event: Integratie

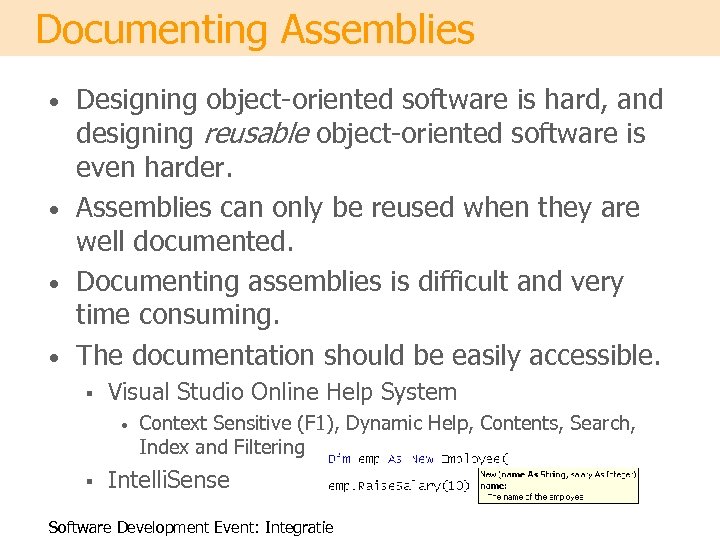

Documenting Assemblies Designing object-oriented software is hard, and designing reusable object-oriented software is even harder. • Assemblies can only be reused when they are well documented. • Documenting assemblies is difficult and very time consuming. • The documentation should be easily accessible. • § Visual Studio Online Help System • § Context Sensitive (F 1), Dynamic Help, Contents, Search, Index and Filtering Intelli. Sense Software Development Event: Integratie

Visual Studio Online Help System Software Development Event: Integratie

Document as you go Reflection IT XML Documentation

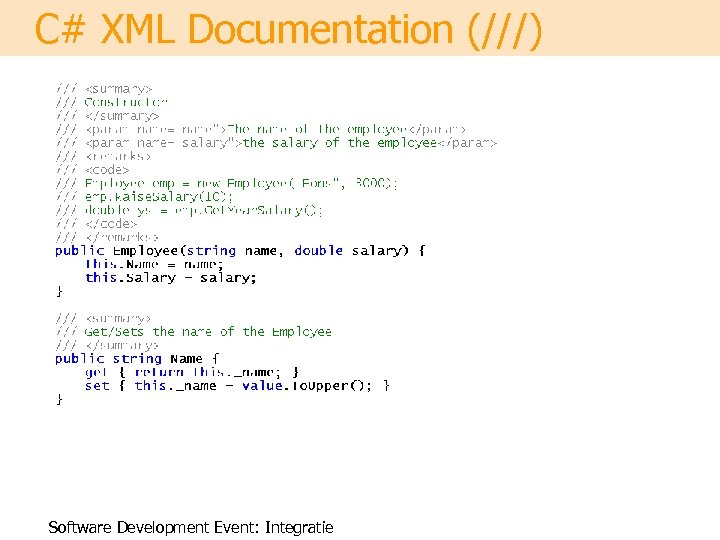

C# XML Documentation (///) Software Development Event: Integratie

Build Comment Web Pages Software Development Event: Integratie

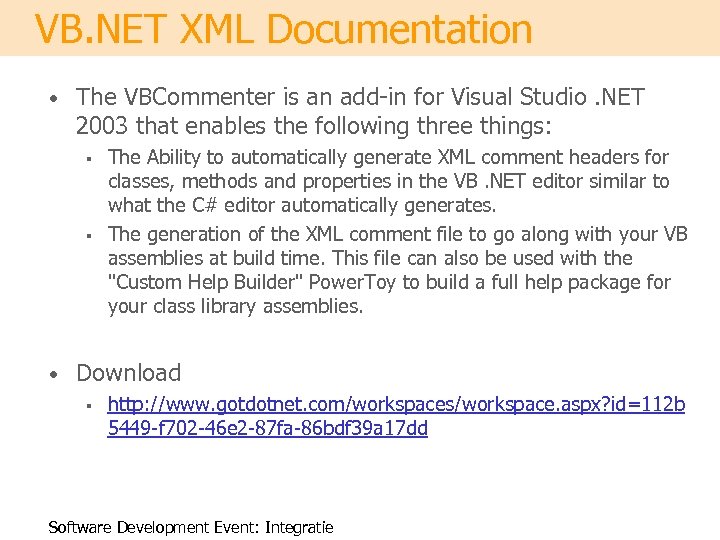

VB. NET XML Documentation • The VBCommenter is an add-in for Visual Studio. NET 2003 that enables the following three things: § § • The Ability to automatically generate XML comment headers for classes, methods and properties in the VB. NET editor similar to what the C# editor automatically generates. The generation of the XML comment file to go along with your VB assemblies at build time. This file can also be used with the "Custom Help Builder" Power. Toy to build a full help package for your class library assemblies. Download § http: //www. gotdotnet. com/workspaces/workspace. aspx? id=112 b 5449 -f 702 -46 e 2 -87 fa-86 bdf 39 a 17 dd Software Development Event: Integratie

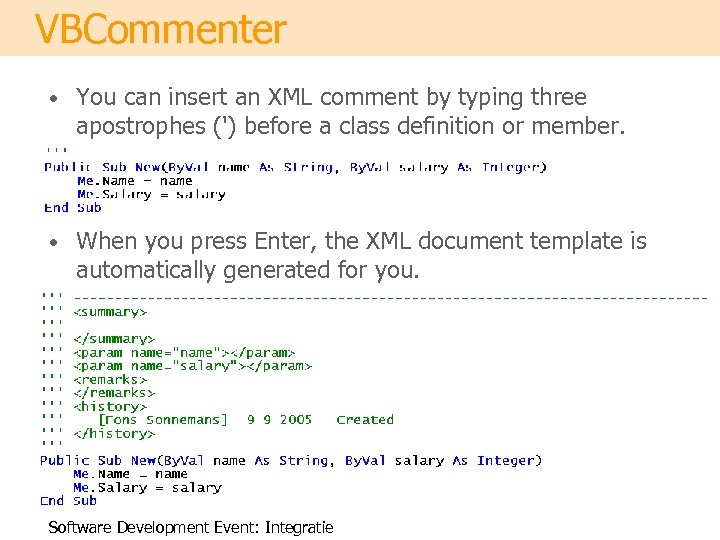

VBCommenter • You can insert an XML comment by typing three apostrophes (') before a class definition or member. • When you press Enter, the XML document template is automatically generated for you. Software Development Event: Integratie

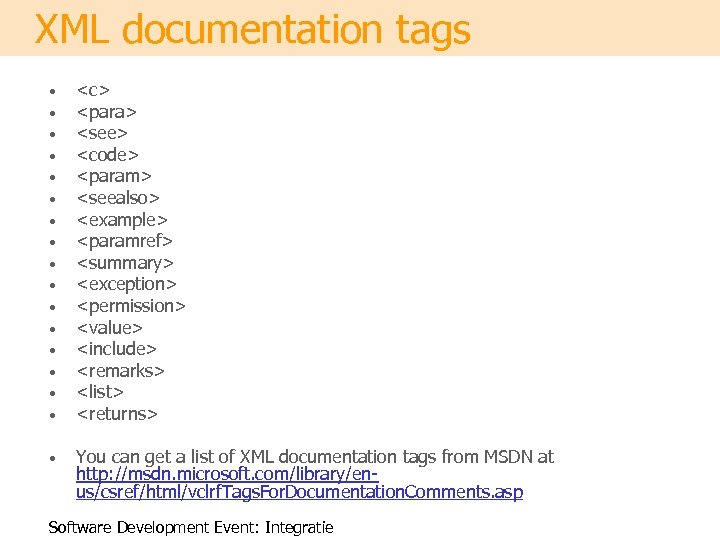

XML documentation tags • • • •

        • You can get a list of XML documentation tags from MSDN at http: //msdn. microsoft. com/library/enus/csref/html/vclrf. Tags. For. Documentation. Comments. asp Software Development Event: Integratie

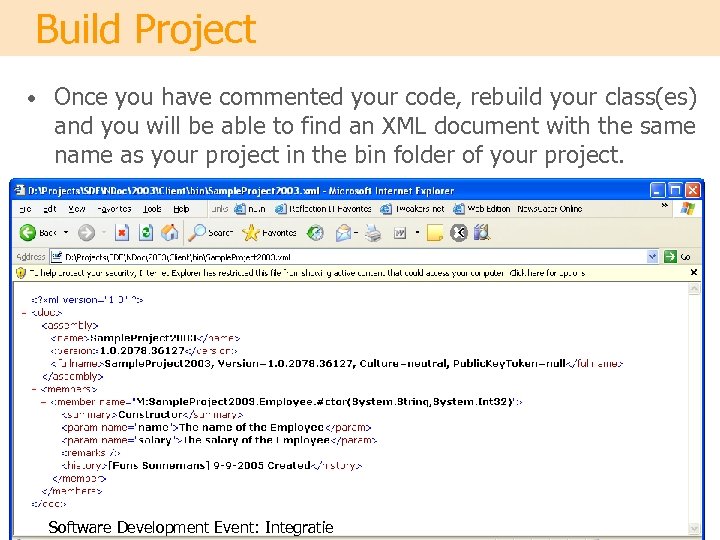

	Build Project • Once you have commented your code, rebuild your class(es) and you will be able to find an XML document with the same name as your project in the bin folder of your project. Software Development Event: Integratie






	Reflection IT Using NDoc






	NDoc generates class library documentation for C# code and VB code (with an add-on tool like VBCommenter). • Open Source • § • http: //ndoc. sourceforge. net/ Input: § § From. NET assemblies (DLL, EXE). And the XML documentation files generated by the C# compiler or add-on. Software Development Event: Integratie

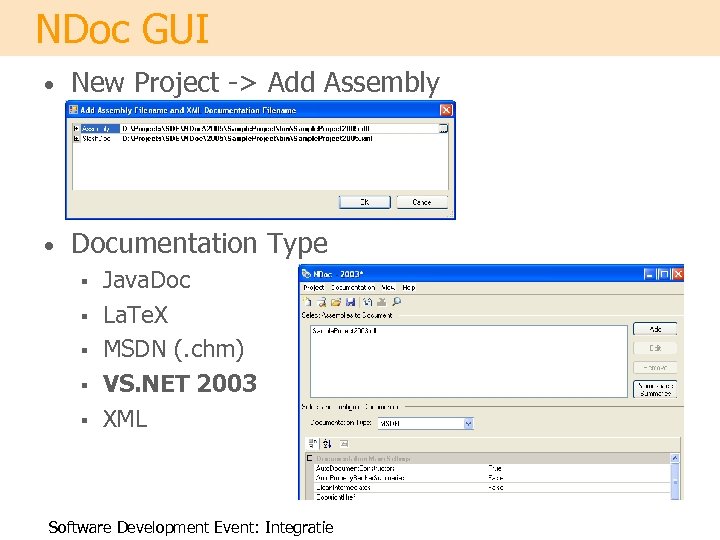

	NDoc GUI • New Project -> Add Assembly • Documentation Type § § § Java. Doc La. Te. X MSDN (. chm) VS. NET 2003 XML Software Development Event: Integratie

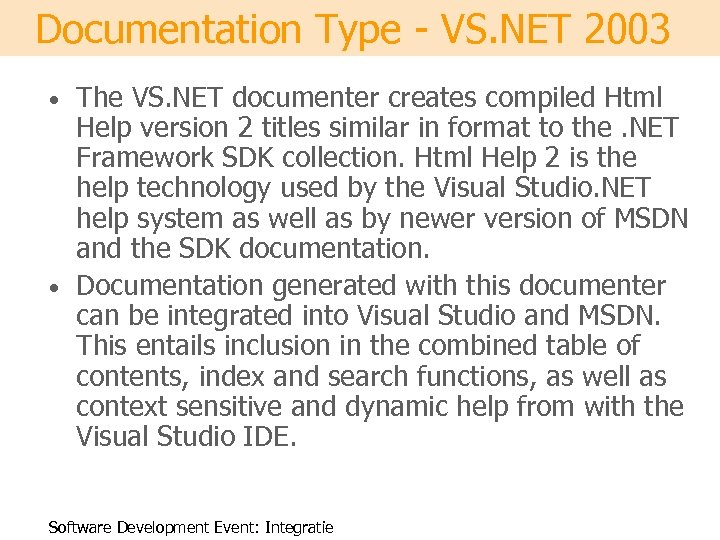

	Documentation Type - VS. NET 2003 The VS. NET documenter creates compiled Html Help version 2 titles similar in format to the. NET Framework SDK collection. Html Help 2 is the help technology used by the Visual Studio. NET help system as well as by newer version of MSDN and the SDK documentation. • Documentation generated with this documenter can be integrated into Visual Studio and MSDN. This entails inclusion in the combined table of contents, index and search functions, as well as context sensitive and dynamic help from with the Visual Studio IDE. • Software Development Event: Integratie

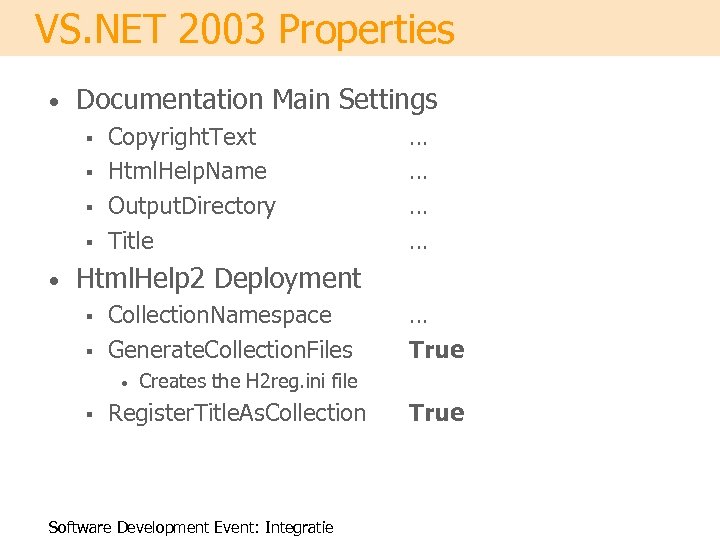

	VS. NET 2003 Properties • Documentation Main Settings § § • Copyright. Text Html. Help. Name Output. Directory Title … … Html. Help 2 Deployment § § Collection. Namespace Generate. Collection. Files • § … True Creates the H 2 reg. ini file Register. Title. As. Collection Software Development Event: Integratie True

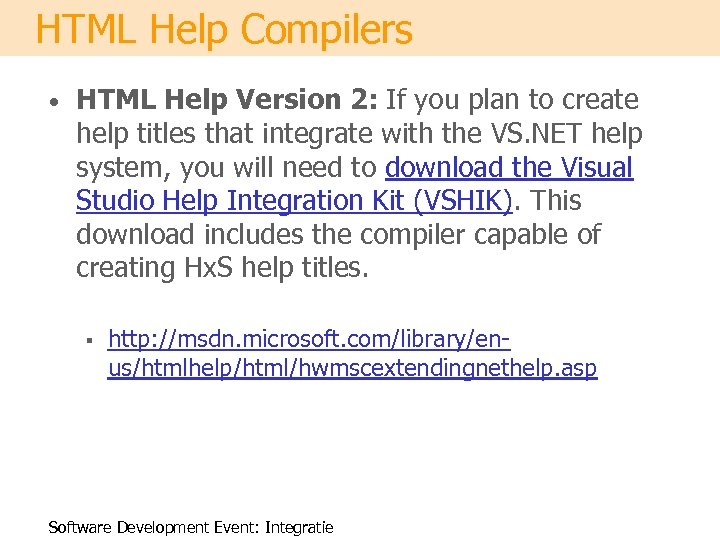

	HTML Help Compilers • HTML Help Version 2: If you plan to create help titles that integrate with the VS. NET help system, you will need to download the Visual Studio Help Integration Kit (VSHIK). This download includes the compiler capable of creating Hx. S help titles. § http: //msdn. microsoft. com/library/enus/htmlhelp/html/hwmscextendingnethelp. asp Software Development Event: Integratie

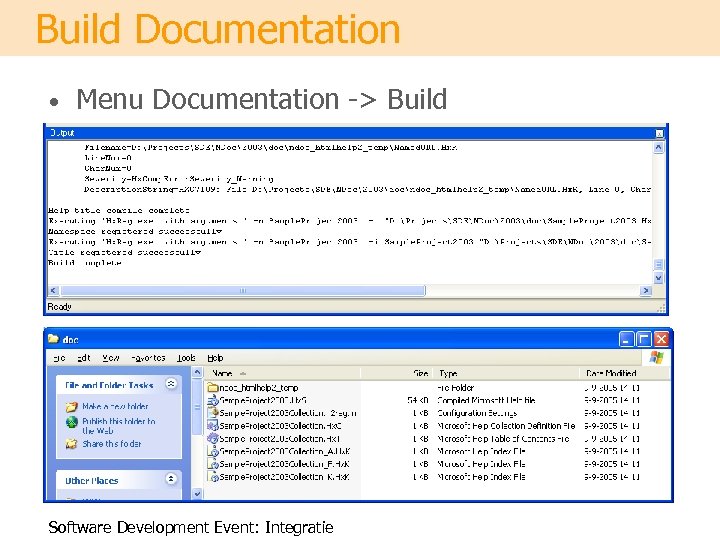

	Build Documentation • Menu Documentation -> Build Software Development Event: Integratie






	H 2 Reg (beta version 1. 4. 3) • H 2 Reg. exe is a small utility (177 K), that allows you to register MS Help 2. x Collections: Namespaces, Titles, Plug-ins, and Filters without using MSI (Microsoft Installer). § • http: //www. helpware. net/mshelp 2/h 2 reg. htm Not freeware § § § H 2 Reg download is a full working version. It will never expire. H 2 Reg is Free for personal use. H 2 Reg must be purchased if included as a part of an installation solution that you will pass on to others. • • $50 when number of shipped products a year < 100 $100 no limit Software Development Event: Integratie







	H 2 Reg. ini ; ; This file is intended for input into the H 2 Reg. exe help registration utility. H 2 Reg. exe is a shareware product from The Helpware Group that can be integrated into installers used for deploying html help 2 titles and collections. H 2 Reg. exe can be downloaded and licensed from http: // www. helpware. net [Reg_Namespace] Sample. Project 2003 Collection|Sample. Project 2003 Collection. Hx. C|Sample. Project 2003 Library [Un. Reg_Namespace] Sample. Project 2003 Collection [Reg_Plugin] ms. vscc+|_DEFAULT|Sample. Project 2003 Collection|_DEFAULT| [Un. Reg_Plugin] ms. vscc+|_DEFAULT|Sample. Project 2003 Collection|_DEFAULT| [Reg_Filter] Sample. Project 2003 Collection|Sample. Project 2003 Library|("Doc. Set"="Sample. Project 2003") [Un. Reg_Filter] Sample. Project 2003 Collection|Sample. Project 2003 Library [Reg_Title] Sample. Project 2003 Collection|Sample. Project 2003|1033|Sample. Project 2003. Hx. S|Sample. Project 20 03. Hx. S|||||| [Un. Reg_Title] Sample. Project 2003 Collection|Sample. Project 2003|1033 Software Development Event: Integratie

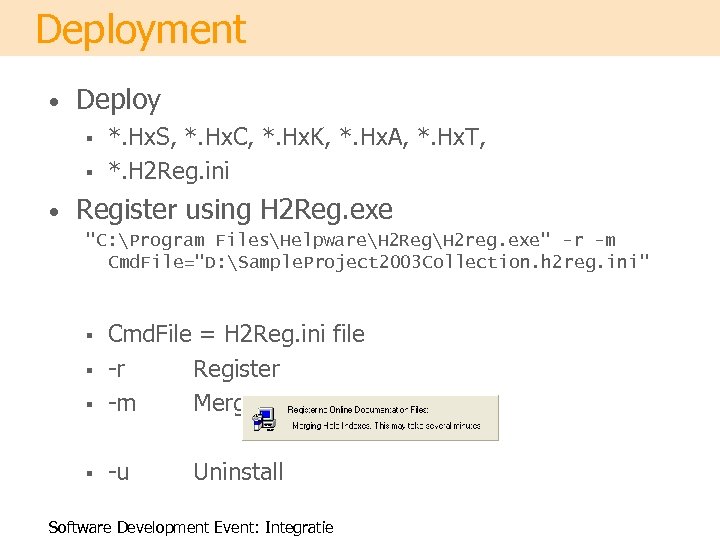

	Deployment • Deploy § § • *. Hx. S, *. Hx. C, *. Hx. K, *. Hx. A, *. Hx. T, *. H 2 Reg. ini Register using H 2 Reg. exe "C: Program FilesHelpwareH 2 RegH 2 reg. exe" -r -m Cmd. File="D: Sample. Project 2003 Collection. h 2 reg. ini" § Cmd. File = H 2 Reg. ini file -r Register -m Merge § -u § § Uninstall Software Development Event: Integratie

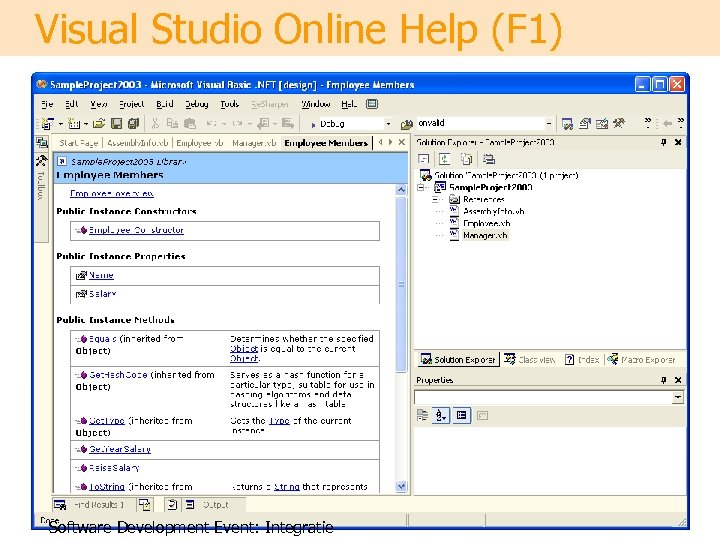

	Visual Studio Online Help (F 1) Software Development Event: Integratie






	NDoc Console Application • The console application (NDoc. Console. exe) exposes the full building capability of the GUI application and is designed to be integrated into automated build processes. Software Development Event: Integratie






	Reflection IT NDoc & Visual Basic 2005

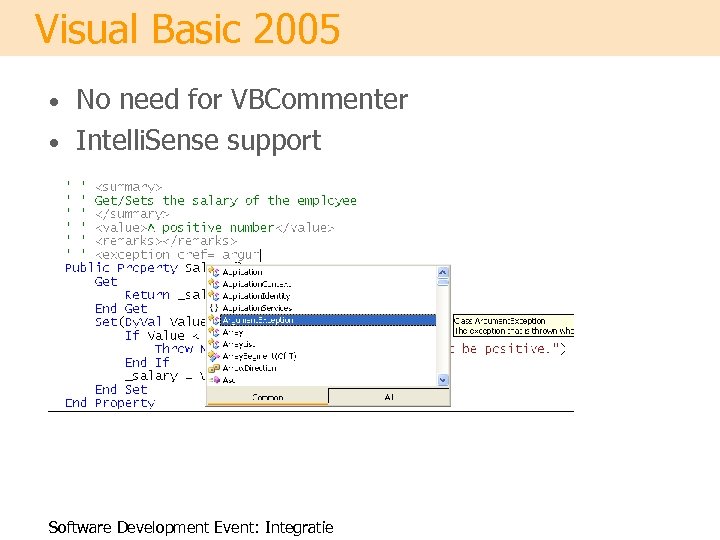

	Visual Basic 2005 No need for VBCommenter • Intelli. Sense support • Software Development Event: Integratie

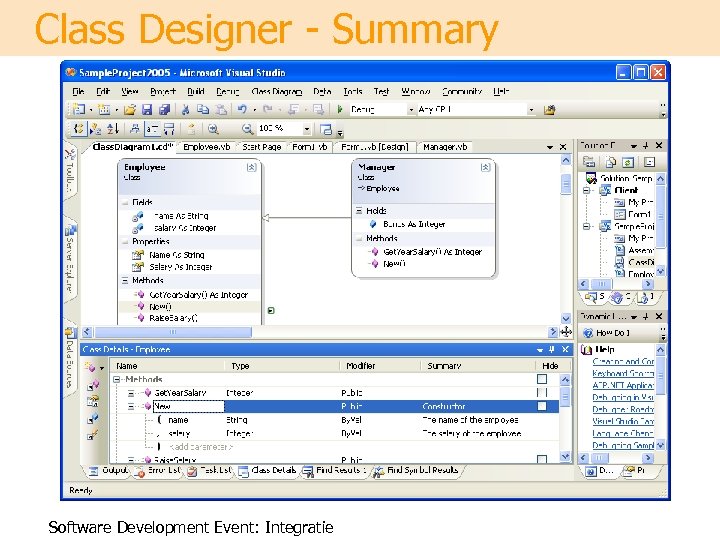

	Class Designer - Summary Software Development Event: Integratie

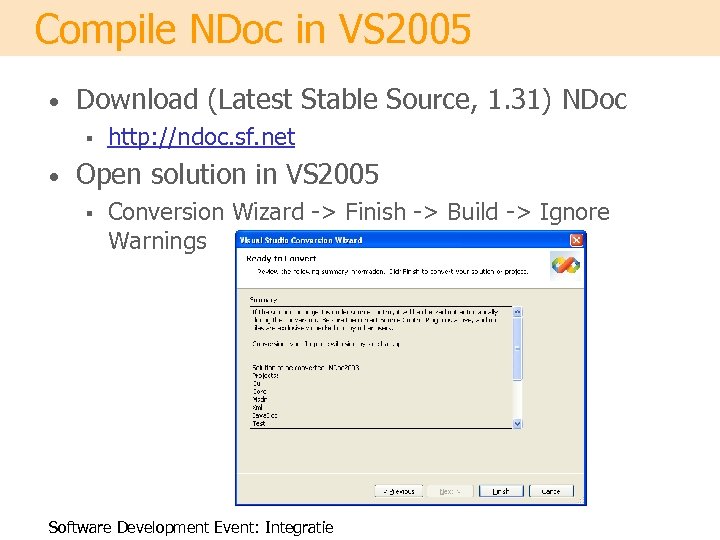

	Compile NDoc in VS 2005 • Download (Latest Stable Source, 1. 31) NDoc § • http: //ndoc. sf. net Open solution in VS 2005 § Conversion Wizard -> Finish -> Build -> Ignore Warnings Software Development Event: Integratie

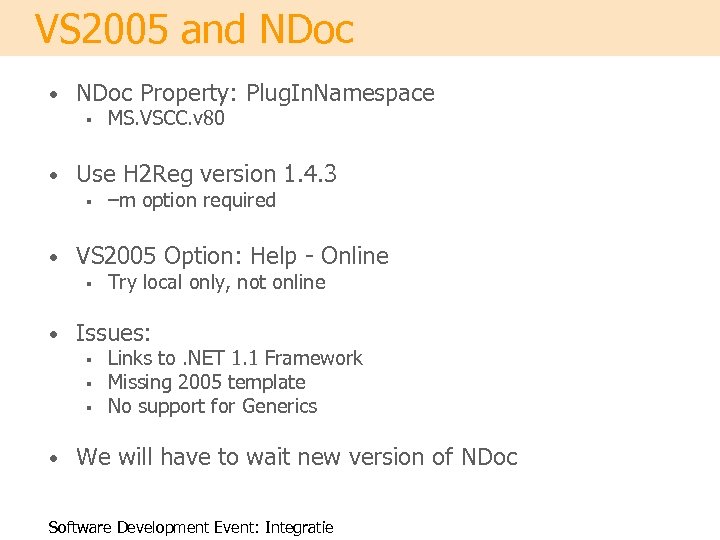

	VS 2005 and NDoc • NDoc Property: Plug. In. Namespace § • Use H 2 Reg version 1. 4. 3 § • Try local only, not online Issues: § § § • –m option required VS 2005 Option: Help - Online § • MS. VSCC. v 80 Links to. NET 1. 1 Framework Missing 2005 template No support for Generics We will have to wait new version of NDoc Software Development Event: Integratie






	Reflection IT Other tools

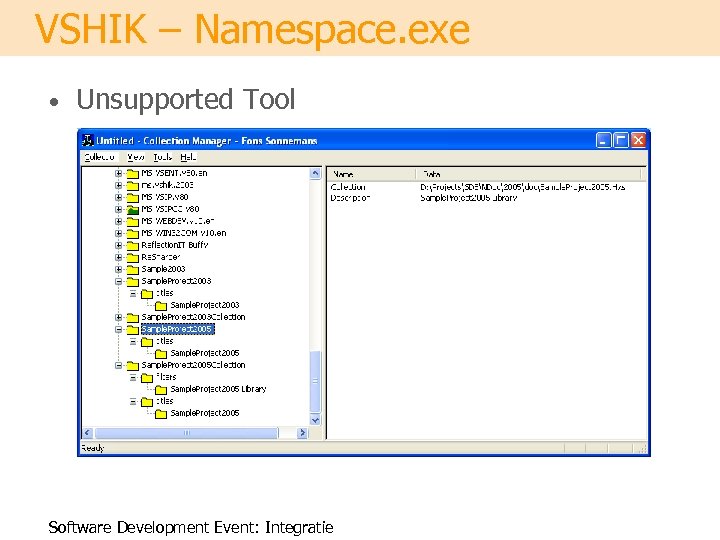

	VSHIK – Namespace. exe • Unsupported Tool Software Development Event: Integratie

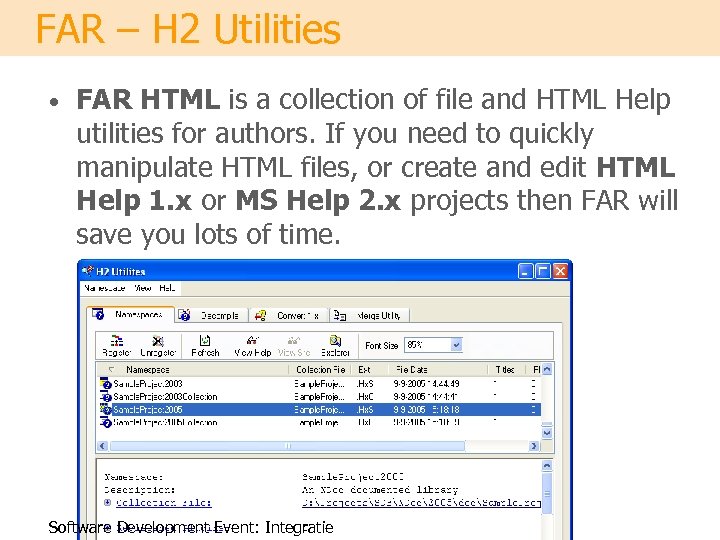

	FAR – H 2 Utilities • FAR HTML is a collection of file and HTML Help utilities for authors. If you need to quickly manipulate HTML files, or create and edit HTML Help 1. x or MS Help 2. x projects then FAR will save you lots of time. Software Development Event: Integratie

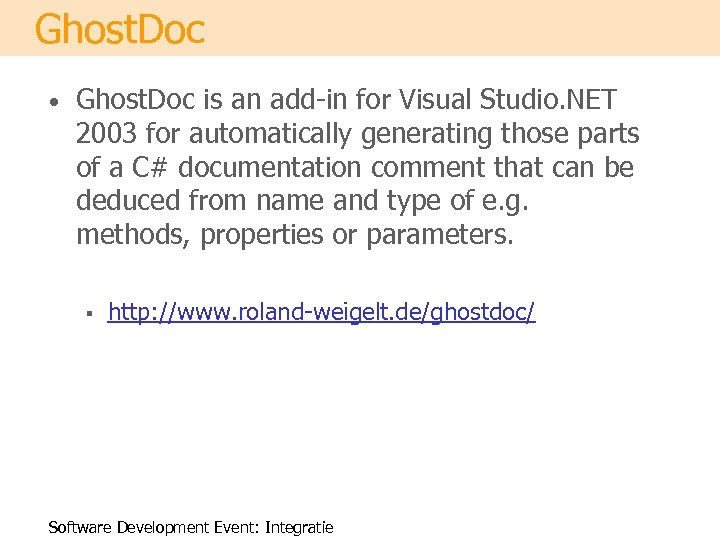

	Ghost. Doc • Ghost. Doc is an add-in for Visual Studio. NET 2003 for automatically generating those parts of a C# documentation comment that can be deduced from name and type of e. g. methods, properties or parameters. § http: //www. roland-weigelt. de/ghostdoc/ Software Development Event: Integratie

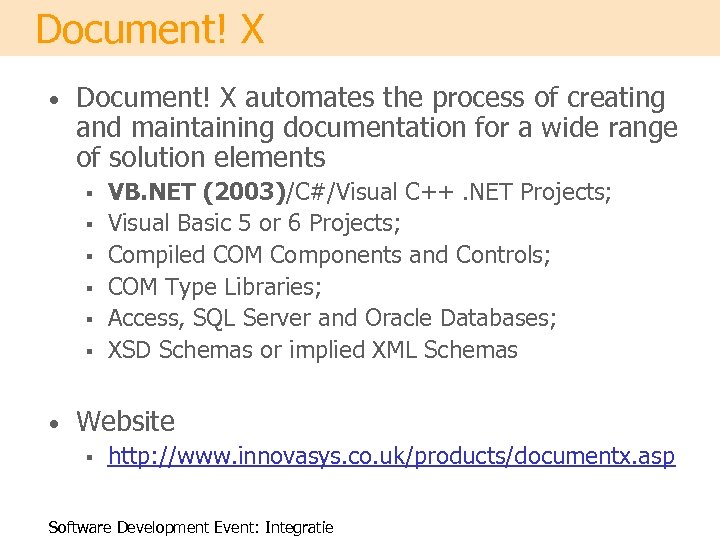

	Document! X • Document! X automates the process of creating and maintaining documentation for a wide range of solution elements § § § • VB. NET (2003)/C#/Visual C++. NET Projects; Visual Basic 5 or 6 Projects; Compiled COM Components and Controls; COM Type Libraries; Access, SQL Server and Oracle Databases; XSD Schemas or implied XML Schemas Website § http: //www. innovasys. co. uk/products/documentx. asp Software Development Event: Integratie






	Document. X - VS. NET Comment Helper WYSIWYG Comment Editor • Replaces NDoc and more… • Software Development Event: Integratie

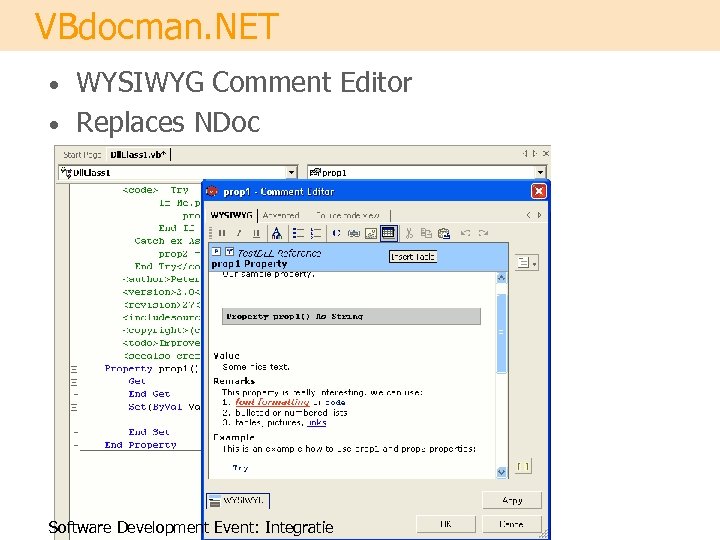

	VBdocman. NET WYSIWYG Comment Editor • Replaces NDoc • Software Development Event: Integratie

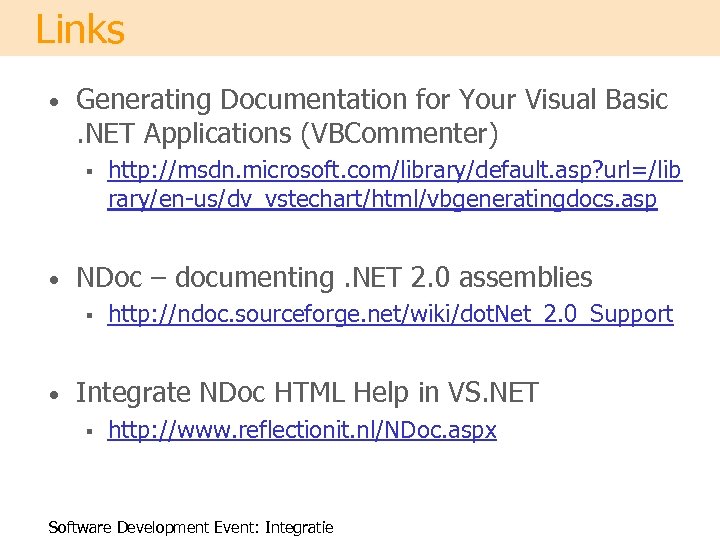

	Links • Generating Documentation for Your Visual Basic. NET Applications (VBCommenter) § • NDoc – documenting. NET 2. 0 assemblies § • http: //msdn. microsoft. com/library/default. asp? url=/lib rary/en-us/dv_vstechart/html/vbgeneratingdocs. asp http: //ndoc. sourceforge. net/wiki/dot. Net_2. 0_Support Integrate NDoc HTML Help in VS. NET § http: //www. reflectionit. nl/NDoc. aspx Software Development Event: Integratie






	Fons Sonnemans fons. sonnemans@reflectionit. nl http: //www. reflectionit. nl Reflection IT Vragen?






	Fons Sonnemans fons. sonnemans@reflectionit. nl http: //www. reflectionit. nl Reflection IT Bedankt voor uw aandacht
