Integral Video Product Line Sales Training Company

Integral Video Product Line Sales Training

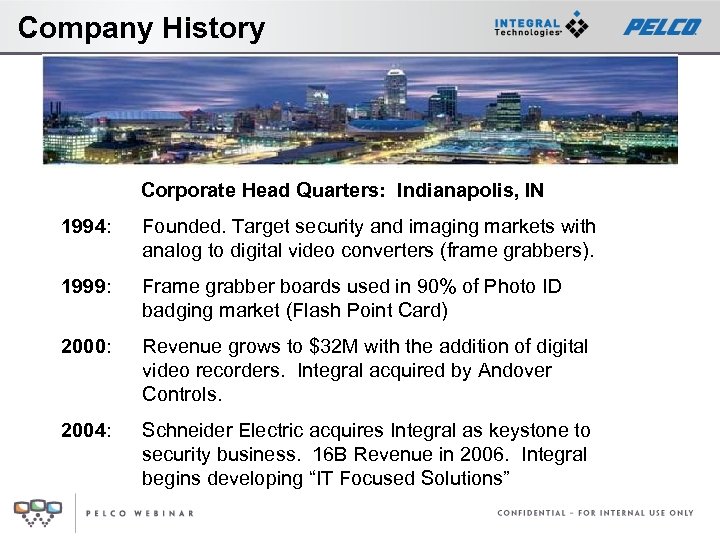

Company History Corporate Head Quarters: Indianapolis, IN 1994: Founded. Target security and imaging markets with analog to digital video converters (frame grabbers). 1999: Frame grabber boards used in 90% of Photo ID badging market (Flash Point Card) 2000: Revenue grows to $32 M with the addition of digital video recorders. Integral acquired by Andover Controls. 2004: Schneider Electric acquires Integral as keystone to security business. 16 B Revenue in 2006. Integral begins developing “IT Focused Solutions”

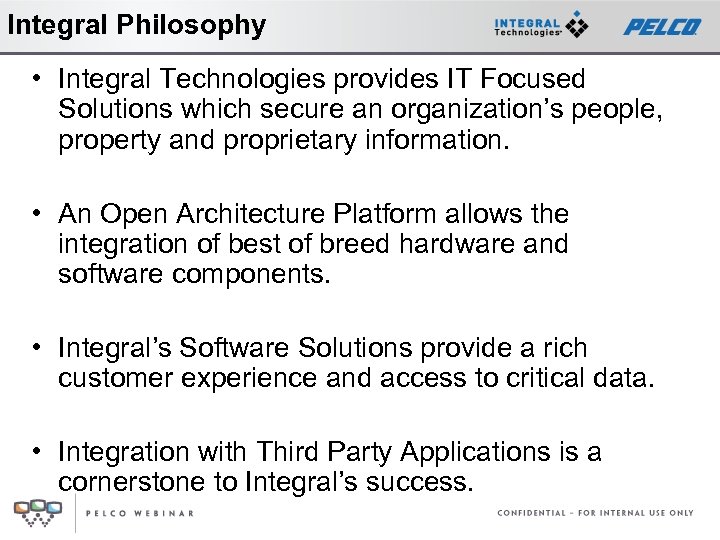

Integral Philosophy • Integral Technologies provides IT Focused Solutions which secure an organization’s people, property and proprietary information. • An Open Architecture Platform allows the integration of best of breed hardware and software components. • Integral’s Software Solutions provide a rich customer experience and access to critical data. • Integration with Third Party Applications is a cornerstone to Integral’s success.

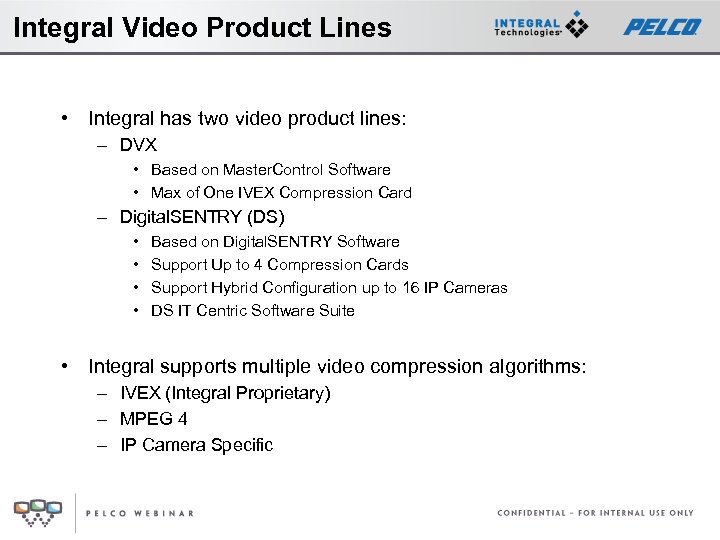

Integral Video Product Lines • Integral has two video product lines: – DVX • Based on Master. Control Software • Max of One IVEX Compression Card – Digital. SENTRY (DS) • • Based on Digital. SENTRY Software Support Up to 4 Compression Cards Support Hybrid Configuration up to 16 IP Cameras DS IT Centric Software Suite • Integral supports multiple video compression algorithms: – IVEX (Integral Proprietary) – MPEG 4 – IP Camera Specific

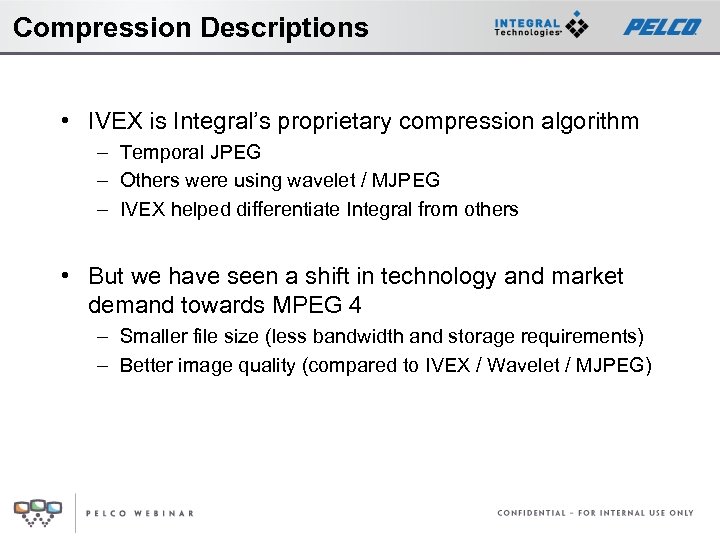

Compression Descriptions • IVEX is Integral’s proprietary compression algorithm – Temporal JPEG – Others were using wavelet / MJPEG – IVEX helped differentiate Integral from others • But we have seen a shift in technology and market demand towards MPEG 4 – Smaller file size (less bandwidth and storage requirements) – Better image quality (compared to IVEX / Wavelet / MJPEG)

IVEX MPEG 4 Camera Specific

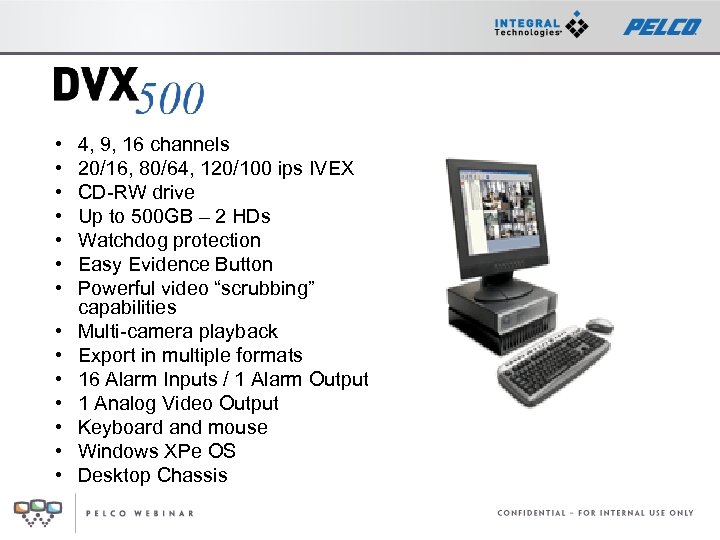

• • • • 4, 9, 16 channels 20/16, 80/64, 120/100 ips IVEX CD-RW drive Up to 500 GB – 2 HDs Watchdog protection Easy Evidence Button Powerful video “scrubbing” capabilities Multi-camera playback Export in multiple formats 16 Alarm Inputs / 1 Alarm Output 1 Analog Video Output Keyboard and mouse Windows XPe OS Desktop Chassis

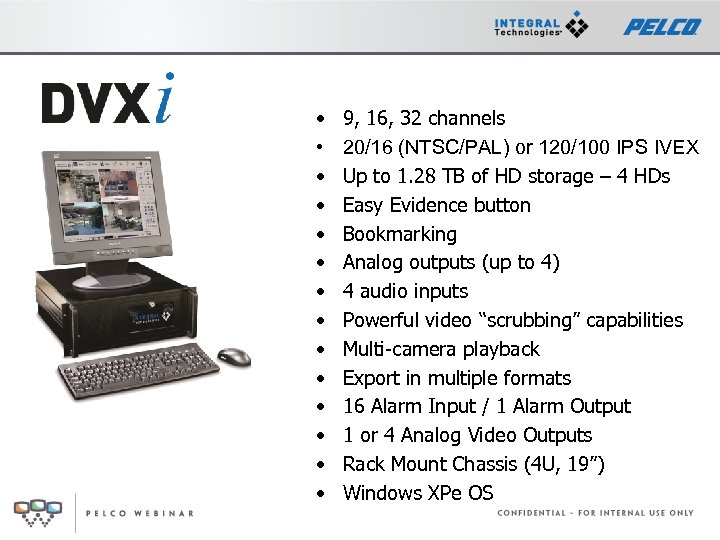

• • • • 9, 16, 32 channels 20/16 (NTSC/PAL) or 120/100 IPS IVEX Up to 1. 28 TB of HD storage – 4 HDs Easy Evidence button Bookmarking Analog outputs (up to 4) 4 audio inputs Powerful video “scrubbing” capabilities Multi-camera playback Export in multiple formats 16 Alarm Input / 1 Alarm Output 1 or 4 Analog Video Outputs Rack Mount Chassis (4 U, 19”) Windows XPe OS

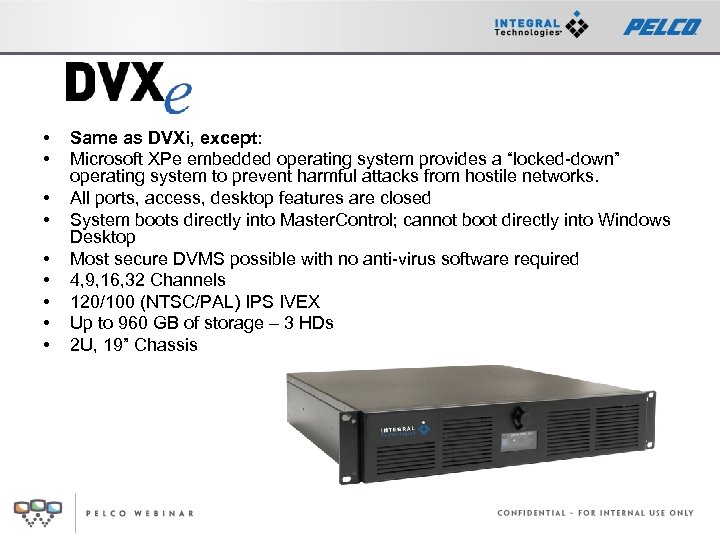

• • • Same as DVXi, except: Microsoft XPe embedded operating system provides a “locked-down” operating system to prevent harmful attacks from hostile networks. All ports, access, desktop features are closed System boots directly into Master. Control; cannot boot directly into Windows Desktop Most secure DVMS possible with no anti-virus software required 4, 9, 16, 32 Channels 120/100 (NTSC/PAL) IPS IVEX Up to 960 GB of storage – 3 HDs 2 U, 19” Chassis

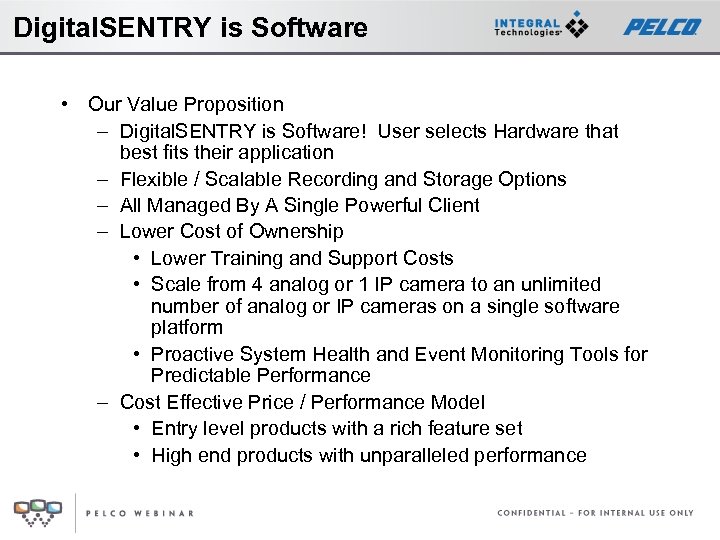

Digital. SENTRY is Software • Our Value Proposition – Digital. SENTRY is Software! User selects Hardware that best fits their application – Flexible / Scalable Recording and Storage Options – All Managed By A Single Powerful Client – Lower Cost of Ownership • Lower Training and Support Costs • Scale from 4 analog or 1 IP camera to an unlimited number of analog or IP cameras on a single software platform • Proactive System Health and Event Monitoring Tools for Predictable Performance – Cost Effective Price / Performance Model • Entry level products with a rich feature set • High end products with unparalleled performance

Digital. SENTRY Is Software Digital. SENTRY software is installed on the hardware platform that meets customer specific needs

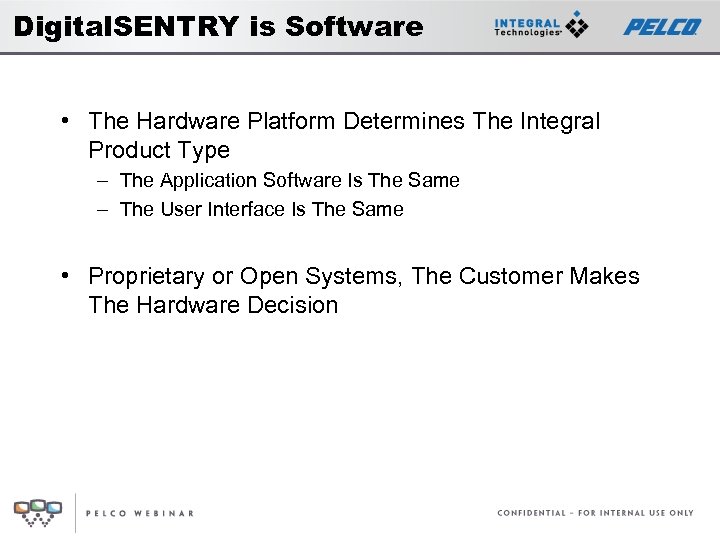

Digital. SENTRY is Software • The Hardware Platform Determines The Integral Product Type – The Application Software Is The Same – The User Interface Is The Same • Proprietary or Open Systems, The Customer Makes The Hardware Decision

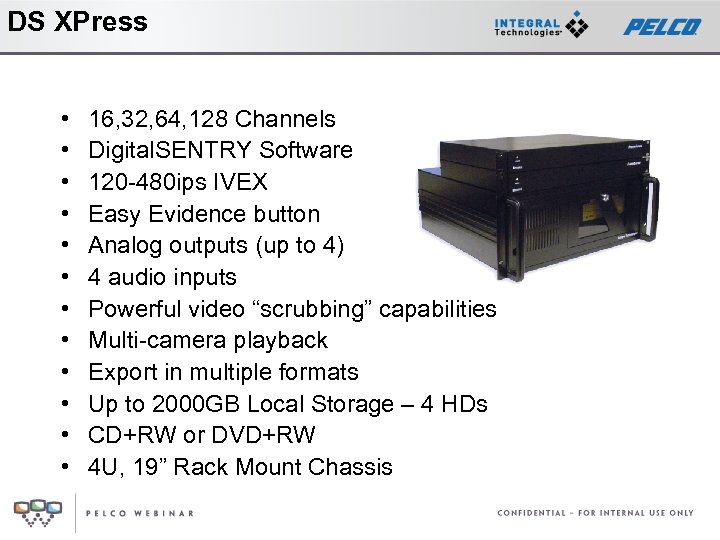

DS XPress • • • 16, 32, 64, 128 Channels Digital. SENTRY Software 120 -480 ips IVEX Easy Evidence button Analog outputs (up to 4) 4 audio inputs Powerful video “scrubbing” capabilities Multi-camera playback Export in multiple formats Up to 2000 GB Local Storage – 4 HDs CD+RW or DVD+RW 4 U, 19” Rack Mount Chassis

• All DS XPress features plus: • • Fully fault tolerant Redundant power supplies Up to 640 cameras per database Unlimited number of databases View cameras from multiple databases in a single “virtual” system Unlimited RAID 5 storage Unlimited Network Storage Archival

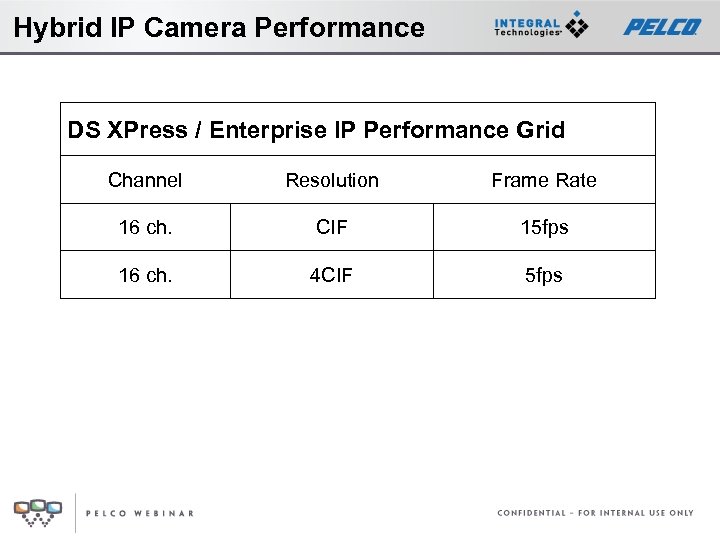

Hybrid IP Camera Performance DS XPress / Enterprise IP Performance Grid Channel Resolution Frame Rate 16 ch. CIF 15 fps 16 ch. 4 CIF 5 fps

DS XPress Desktop • • • 4, 9, 16 Channels Digital. SENTRY Software 20 / 120 ips IVEX Easy Evidence button Analog output 4 audio inputs Powerful video “scrubbing” capabilities Multi-camera playback Export in multiple formats Up to 1000 GB Storage – 2 HDs CD+RW or DVD+RW Desktop Chassis

Hybrid IP Camera Performance DS Real. Vue Desktop / DS Desktop IP Performance Grid Channel Resolution Frame Rate 16 ch CIF 15 fps 16 ch 4 CIF 5 fps

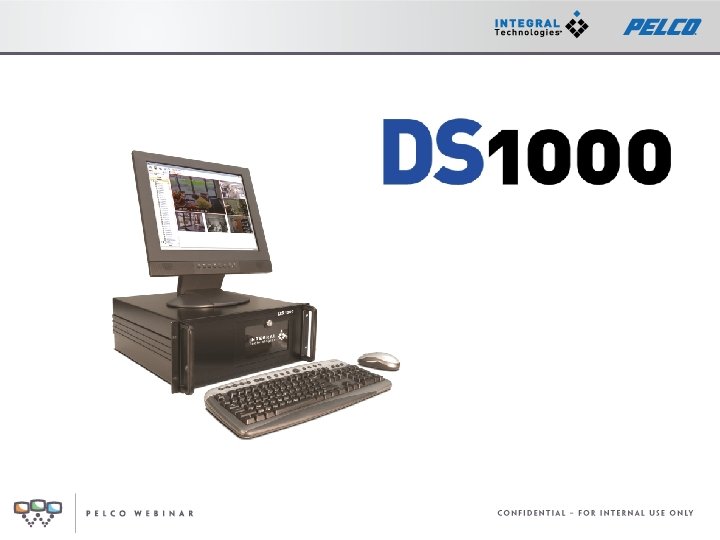

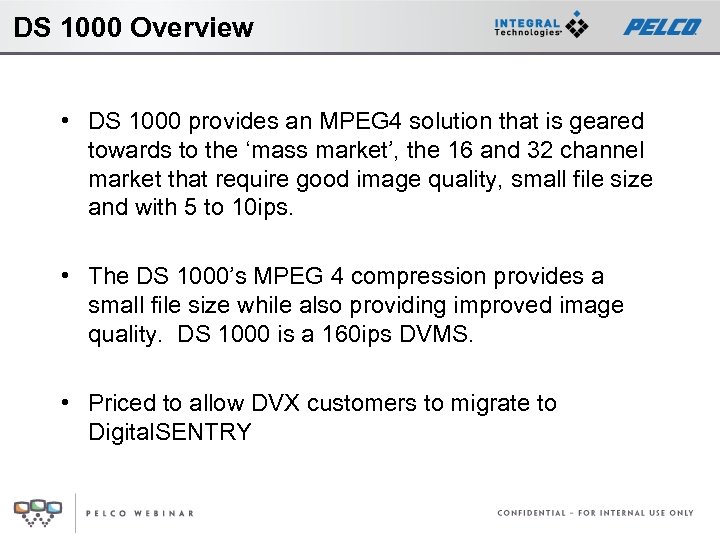

DS 1000 Overview • DS 1000 provides an MPEG 4 solution that is geared towards to the ‘mass market’, the 16 and 32 channel market that require good image quality, small file size and with 5 to 10 ips. • The DS 1000’s MPEG 4 compression provides a small file size while also providing improved image quality. DS 1000 is a 160 ips DVMS. • Priced to allow DVX customers to migrate to Digital. SENTRY

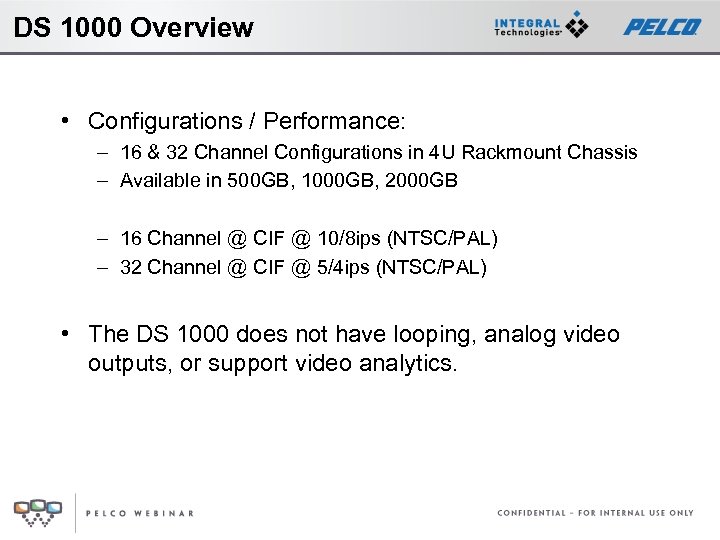

DS 1000 Overview • Configurations / Performance: – 16 & 32 Channel Configurations in 4 U Rackmount Chassis – Available in 500 GB, 1000 GB, 2000 GB – 16 Channel @ CIF @ 10/8 ips (NTSC/PAL) – 32 Channel @ CIF @ 5/4 ips (NTSC/PAL) • The DS 1000 does not have looping, analog video outputs, or support video analytics.

DS 1000 Positioning • This is your “Mass Market” Hybrid solution – 16 channel analog & 16 channel IP – 32 channel analog & 8 channel IP • Supports the DS IT Software Suite – Network Health Monitoring – Archive Utility – Automatic Online Updates (Q 1) • Features: – – – Easy Evidence Hybrid Configuration up to 16 IP Cameras DVD+RW Windows XP PRO OS 15 Alarm Inputs / 1 Alarm Output

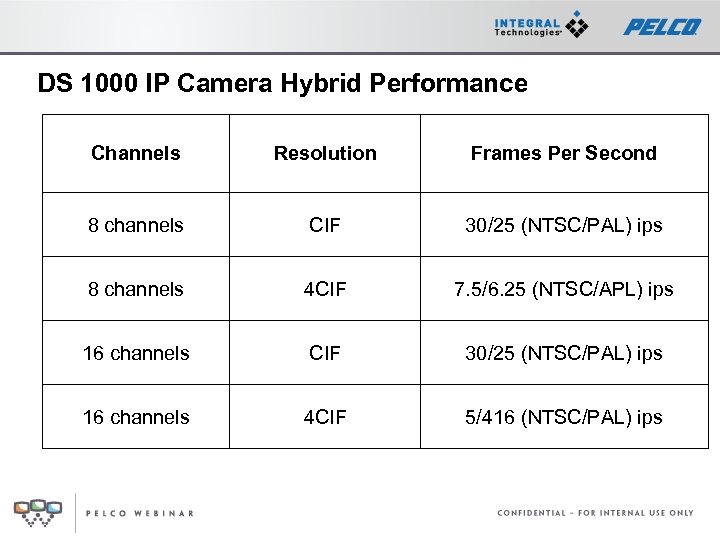

DS 1000 IP Camera Hybrid Performance Channels Resolution Frames Per Second 8 channels CIF 30/25 (NTSC/PAL) ips 8 channels 4 CIF 7. 5/6. 25 (NTSC/APL) ips 16 channels CIF 30/25 (NTSC/PAL) ips 16 channels 4 CIF 5/416 (NTSC/PAL) ips

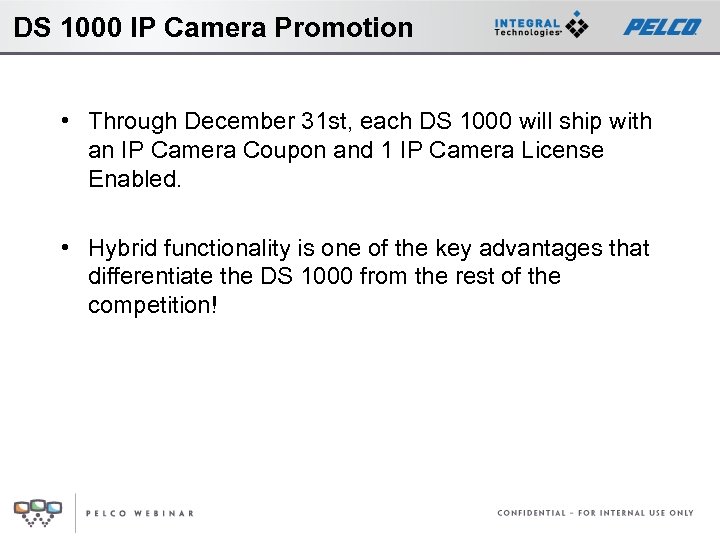

DS 1000 IP Camera Promotion • Through December 31 st, each DS 1000 will ship with an IP Camera Coupon and 1 IP Camera License Enabled. • Hybrid functionality is one of the key advantages that differentiate the DS 1000 from the rest of the competition!

IP Camera Promotion • • Integral and it’s IP technology partners offer you the choice of industry leading products with the purchase of every DS 1000 hybrid security solution. Your choice is made easy by selecting one of the 3 Integral Technologies partner products for your IP experience. Choose your selection of a free camera or apply your $400 instant rebate to any qualifying camera listed below. – Free Camera Models: • PDS-AXIS 210 -4 L (lens included) • PDS-IQ 510 -410 L (lens included) – $400 Instant Rebate Camera Models: • PDS-AXIS 211 -308 L, PDS-AXIS 216 FD-310 L • PDS-IQ 511 -410 L, PDS-IQ 703 -410 L • PDS-AV 1300 -410 L, PDS-AV 2100 -410 L, PDS-AV 3100 -410 L

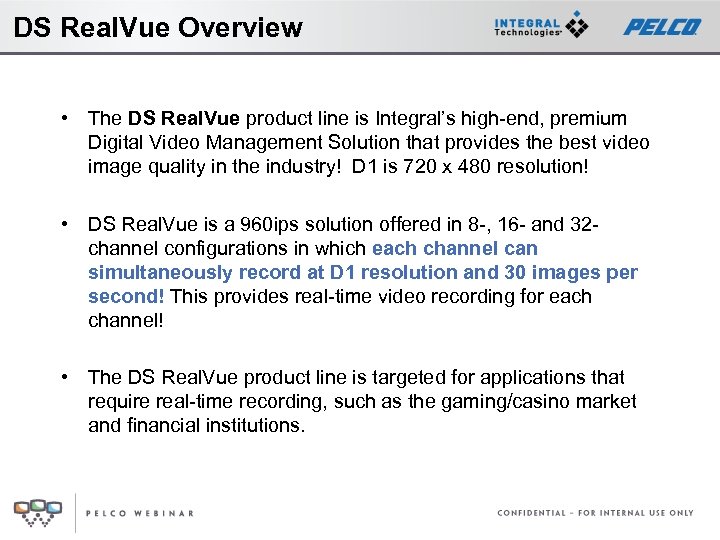

DS Real. Vue Overview • The DS Real. Vue product line is Integral’s high-end, premium Digital Video Management Solution that provides the best video image quality in the industry! D 1 is 720 x 480 resolution! • DS Real. Vue is a 960 ips solution offered in 8 -, 16 - and 32 channel configurations in which each channel can simultaneously record at D 1 resolution and 30 images per second! This provides real-time video recording for each channel! • The DS Real. Vue product line is targeted for applications that require real-time recording, such as the gaming/casino market and financial institutions.

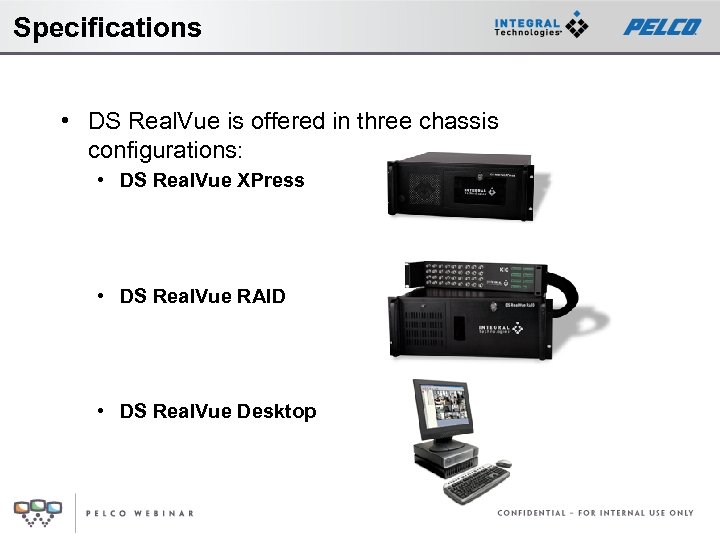

Specifications • DS Real. Vue is offered in three chassis configurations: • DS Real. Vue XPress • DS Real. Vue RAID • DS Real. Vue Desktop

DS Real. Vue XPress: • This 4 U, 19 -inch-wide rack-mount configuration is consistent with traditional DS XPress DVMS. All camera inputs connect to a 32 -channel BNC backplane. 16 Audio. 15 Alarm Inputs / 1 Alarm Output. • DS Real. Vue XPress is available in the following hard drive configurations: • Single 500 GB (500 GB total) • Two 500 GB (1000 GB total) • Four 500 GB (2000 GB total)

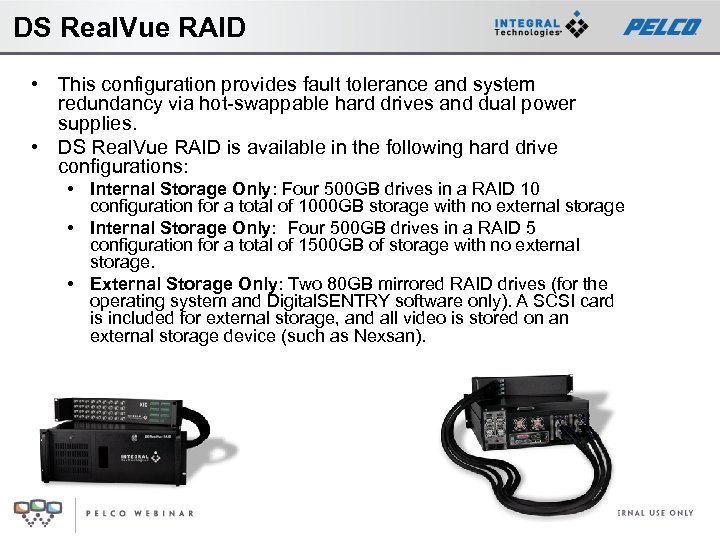

DS Real. Vue RAID • This configuration provides fault tolerance and system redundancy via hot-swappable hard drives and dual power supplies. • DS Real. Vue RAID is available in the following hard drive configurations: • Internal Storage Only: Four 500 GB drives in a RAID 10 configuration for a total of 1000 GB storage with no external storage • Internal Storage Only: Four 500 GB drives in a RAID 5 configuration for a total of 1500 GB of storage with no external storage. • External Storage Only: Two 80 GB mirrored RAID drives (for the operating system and Digital. SENTRY software only). A SCSI card is included for external storage, and all video is stored on an external storage device (such as Nexsan).

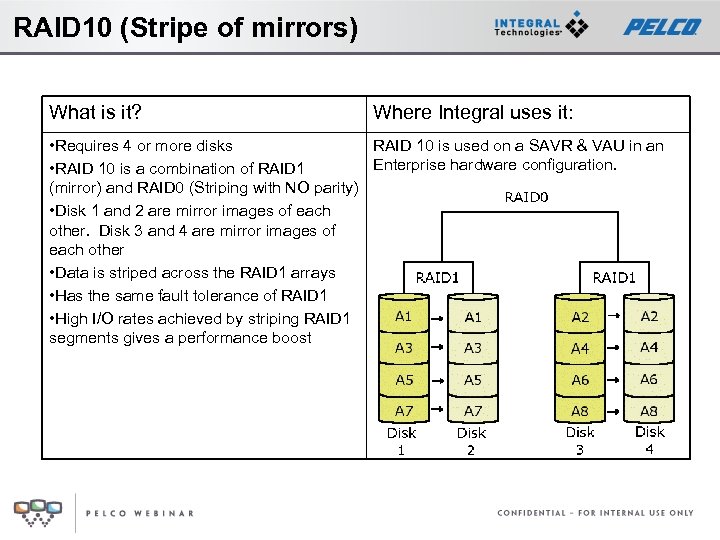

RAID 10 (Stripe of mirrors) What is it? Where Integral uses it: • Requires 4 or more disks RAID 10 is used on a SAVR & VAU in an Enterprise hardware configuration. • RAID 10 is a combination of RAID 1 (mirror) and RAID 0 (Striping with NO parity) • Disk 1 and 2 are mirror images of each other. Disk 3 and 4 are mirror images of each other • Data is striped across the RAID 1 arrays • Has the same fault tolerance of RAID 1 • High I/O rates achieved by striping RAID 1 segments gives a performance boost

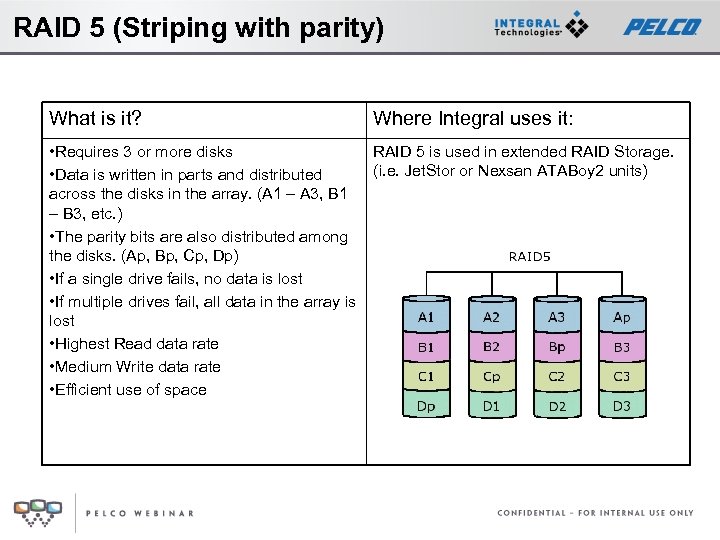

RAID 5 (Striping with parity) What is it? Where Integral uses it: • Requires 3 or more disks RAID 5 is used in extended RAID Storage. (i. e. Jet. Stor or Nexsan ATABoy 2 units) • Data is written in parts and distributed across the disks in the array. (A 1 – A 3, B 1 – B 3, etc. ) • The parity bits are also distributed among the disks. (Ap, Bp, Cp, Dp) • If a single drive fails, no data is lost • If multiple drives fail, all data in the array is lost • Highest Read data rate • Medium Write data rate • Efficient use of space

Hybrid IP Camera Performance DS Real. Vue XPress / RAID IP Performance Grid Channel Resolution Frame Rate 16 ch. CIF 30 fps 16 ch. 4 CIF 5 fps

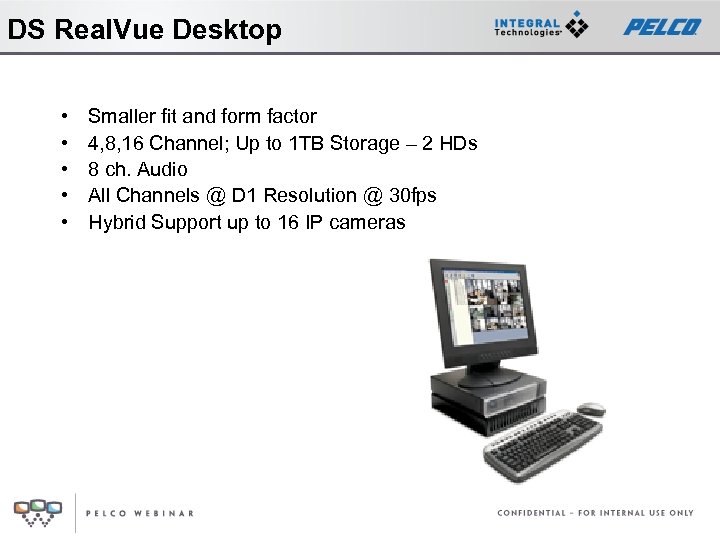

DS Real. Vue Desktop • • • Smaller fit and form factor 4, 8, 16 Channel; Up to 1 TB Storage – 2 HDs 8 ch. Audio All Channels @ D 1 Resolution @ 30 fps Hybrid Support up to 16 IP cameras

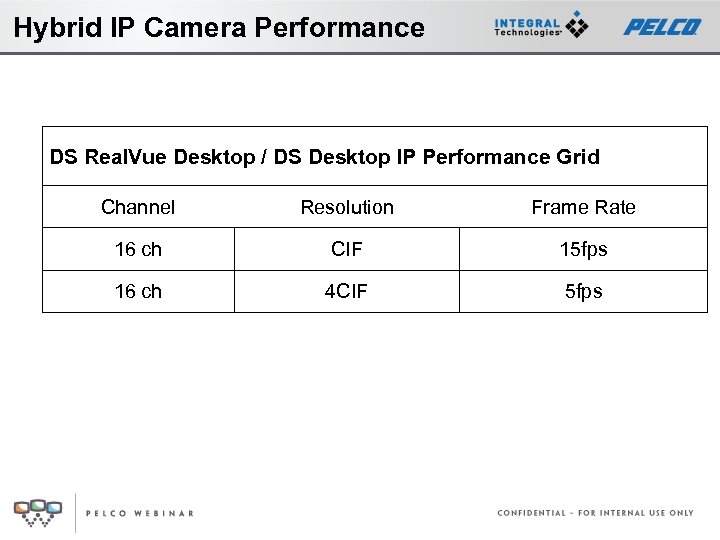

Hybrid IP Camera Performance DS Real. Vue Desktop / DS Desktop IP Performance Grid Channel Resolution Frame Rate 16 ch CIF 15 fps 16 ch 4 CIF 5 fps

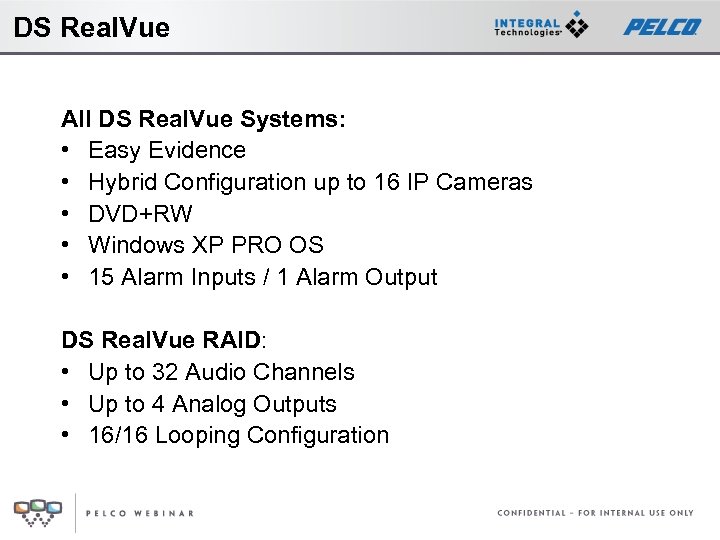

DS Real. Vue All DS Real. Vue Systems: • Easy Evidence • Hybrid Configuration up to 16 IP Cameras • DVD+RW • Windows XP PRO OS • 15 Alarm Inputs / 1 Alarm Output DS Real. Vue RAID: • Up to 32 Audio Channels • Up to 4 Analog Outputs • 16/16 Looping Configuration

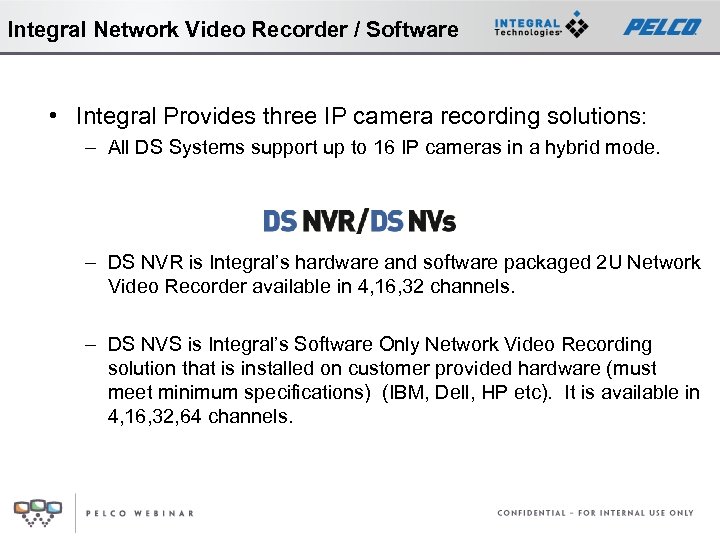

Integral Network Video Recorder / Software • Integral Provides three IP camera recording solutions: – All DS Systems support up to 16 IP cameras in a hybrid mode. – DS NVR is Integral’s hardware and software packaged 2 U Network Video Recorder available in 4, 16, 32 channels. – DS NVS is Integral’s Software Only Network Video Recording solution that is installed on customer provided hardware (must meet minimum specifications) (IBM, Dell, HP etc). It is available in 4, 16, 32, 64 channels.

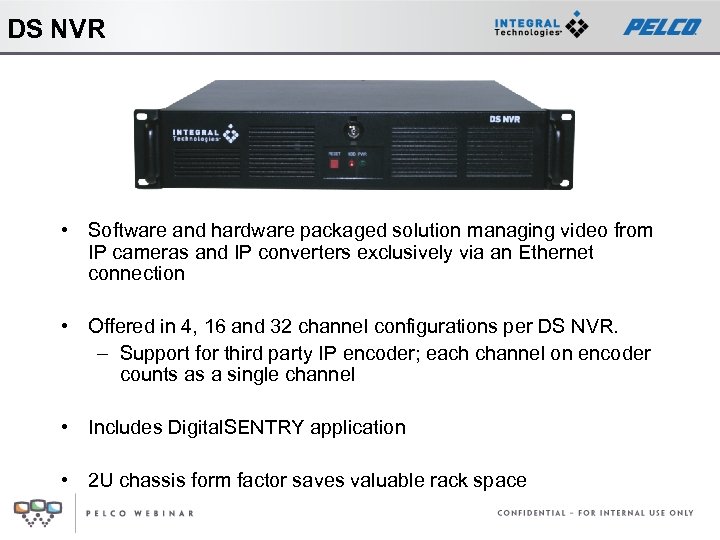

DS NVR • Software and hardware packaged solution managing video from IP cameras and IP converters exclusively via an Ethernet connection • Offered in 4, 16 and 32 channel configurations per DS NVR. – Support for third party IP encoder; each channel on encoder counts as a single channel • Includes Digital. SENTRY application • 2 U chassis form factor saves valuable rack space

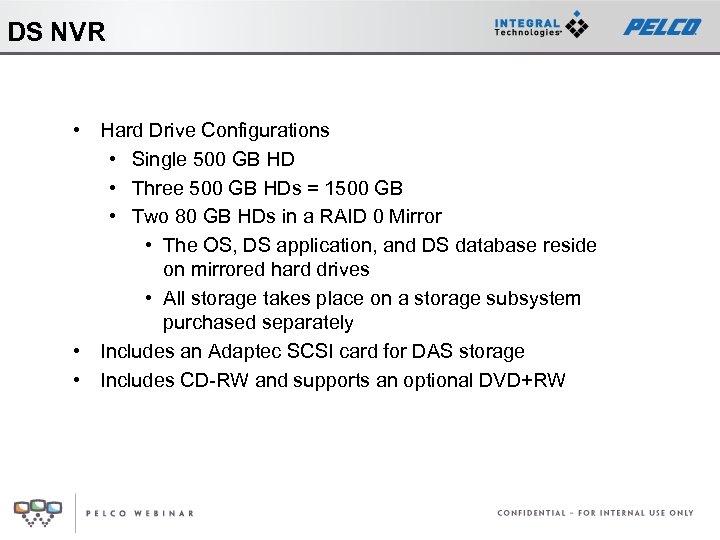

DS NVR • Hard Drive Configurations • Single 500 GB HD • Three 500 GB HDs = 1500 GB • Two 80 GB HDs in a RAID 0 Mirror • The OS, DS application, and DS database reside on mirrored hard drives • All storage takes place on a storage subsystem purchased separately • Includes an Adaptec SCSI card for DAS storage • Includes CD-RW and supports an optional DVD+RW

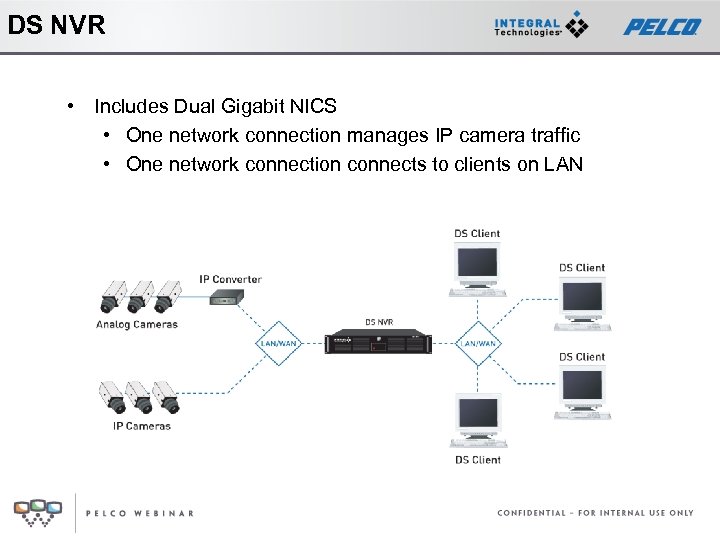

DS NVR • Includes Dual Gigabit NICS • One network connection manages IP camera traffic • One network connection connects to clients on LAN

IP Performance DS NVR IP Performance Grid Channel Resolution Frame Rate 32 ch CIF 30 fps 32 ch 4 CIF 15 fps 16 ch CIF 30 fps 16 ch 4 CIF 30 fps 4 ch 4 CIF 30 fps

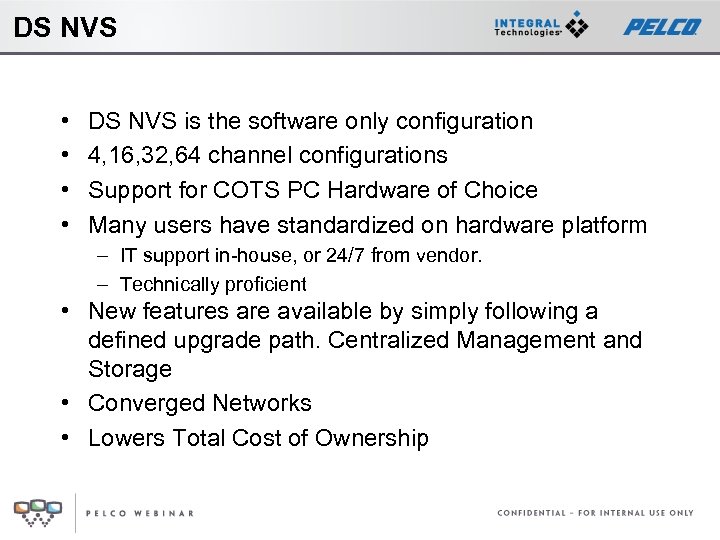

DS NVS • • DS NVS is the software only configuration 4, 16, 32, 64 channel configurations Support for COTS PC Hardware of Choice Many users have standardized on hardware platform – IT support in-house, or 24/7 from vendor. – Technically proficient • New features are available by simply following a defined upgrade path. Centralized Management and Storage • Converged Networks • Lowers Total Cost of Ownership

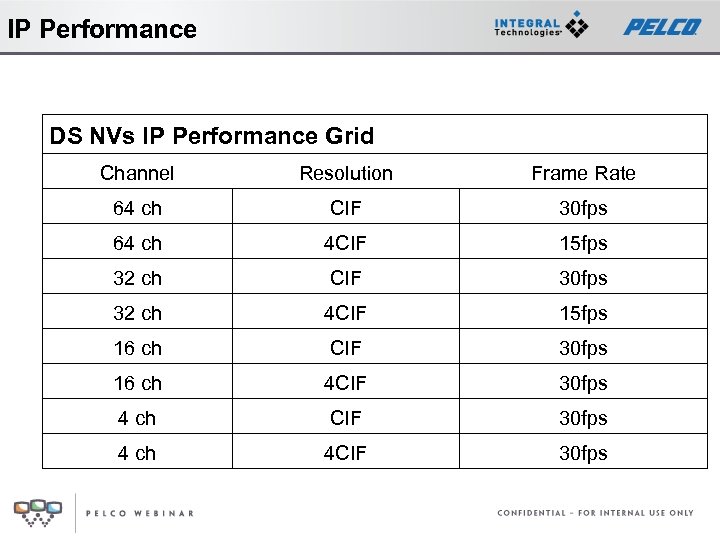

IP Performance DS NVs IP Performance Grid Channel Resolution Frame Rate 64 ch CIF 30 fps 64 ch 4 CIF 15 fps 32 ch CIF 30 fps 32 ch 4 CIF 15 fps 16 ch CIF 30 fps 16 ch 4 CIF 30 fps 4 ch 4 CIF 30 fps

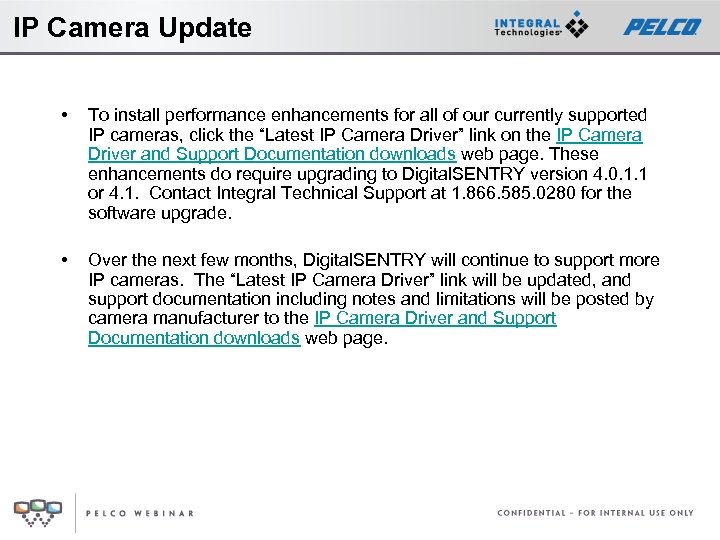

IP Camera Update • To install performance enhancements for all of our currently supported IP cameras, click the “Latest IP Camera Driver” link on the IP Camera Driver and Support Documentation downloads web page. These enhancements do require upgrading to Digital. SENTRY version 4. 0. 1. 1 or 4. 1. Contact Integral Technical Support at 1. 866. 585. 0280 for the software upgrade. • Over the next few months, Digital. SENTRY will continue to support more IP cameras. The “Latest IP Camera Driver” link will be updated, and support documentation including notes and limitations will be posted by camera manufacturer to the IP Camera Driver and Support Documentation downloads web page.

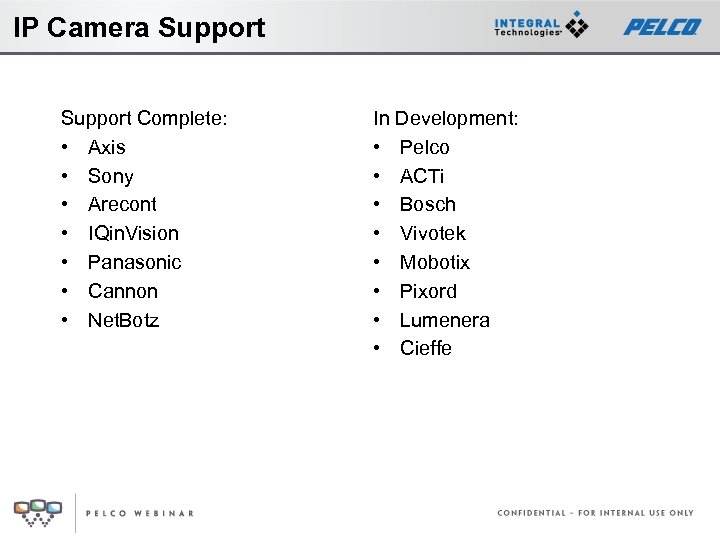

IP Camera Support Complete: • Axis • Sony • Arecont • IQin. Vision • Panasonic • Cannon • Net. Botz In Development: • Pelco • ACTi • Bosch • Vivotek • Mobotix • Pixord • Lumenera • Cieffe

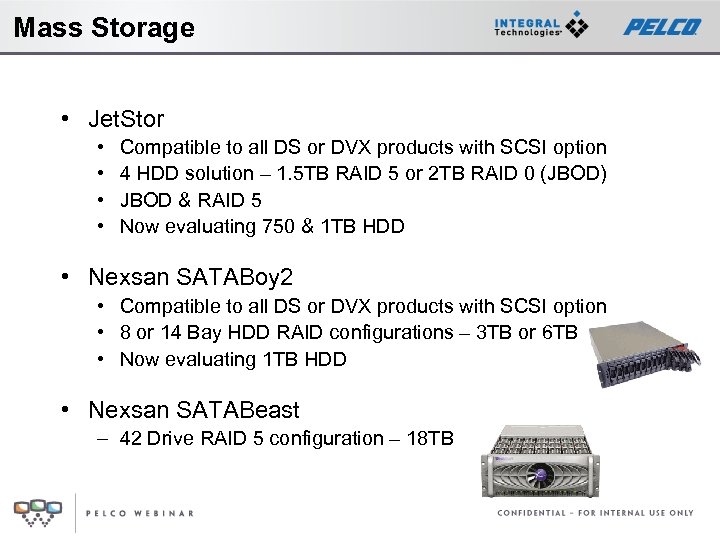

Mass Storage • Jet. Stor • • Compatible to all DS or DVX products with SCSI option 4 HDD solution – 1. 5 TB RAID 5 or 2 TB RAID 0 (JBOD) JBOD & RAID 5 Now evaluating 750 & 1 TB HDD • Nexsan SATABoy 2 • Compatible to all DS or DVX products with SCSI option • 8 or 14 Bay HDD RAID configurations – 3 TB or 6 TB • Now evaluating 1 TB HDD • Nexsan SATABeast – 42 Drive RAID 5 configuration – 18 TB

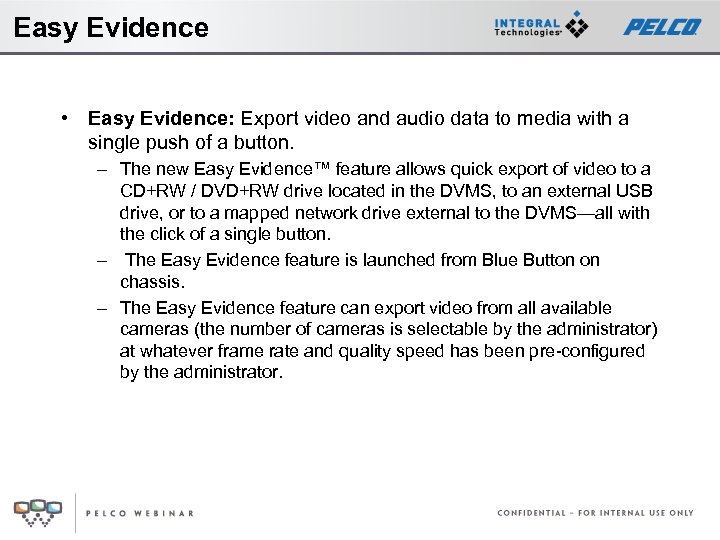

Easy Evidence • Easy Evidence: Export video and audio data to media with a single push of a button. – The new Easy Evidence™ feature allows quick export of video to a CD+RW / DVD+RW drive located in the DVMS, to an external USB drive, or to a mapped network drive external to the DVMS—all with the click of a single button. – The Easy Evidence feature is launched from Blue Button on chassis. – The Easy Evidence feature can export video from all available cameras (the number of cameras is selectable by the administrator) at whatever frame rate and quality speed has been pre-configured by the administrator.

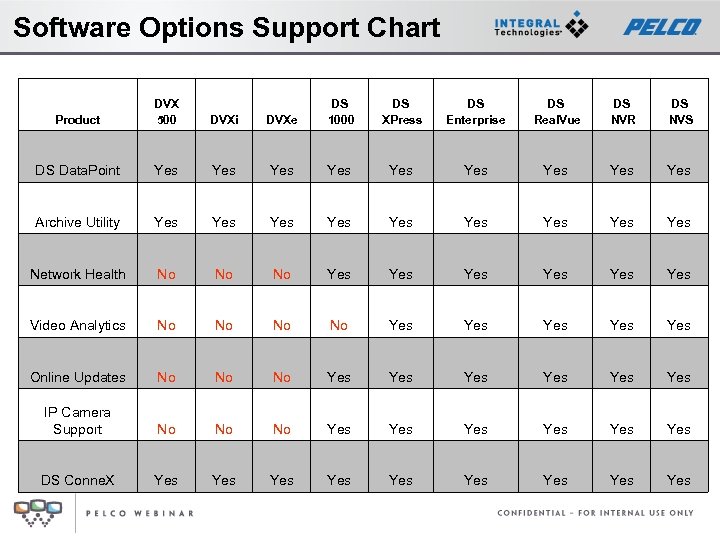

Software Options Support Chart Product DVX 500 DVXe DS 1000 DS XPress DS Enterprise DS Real. Vue DS NVR DS NVS DVXi DS Data. Point Yes Yes Yes Archive Utility Yes Yes Yes Network Health No No No Yes Yes Yes Video Analytics No No Yes Yes Yes Online Updates No No No Yes Yes Yes IP Camera Support No No No Yes Yes Yes DS Conne. X Yes Yes Yes

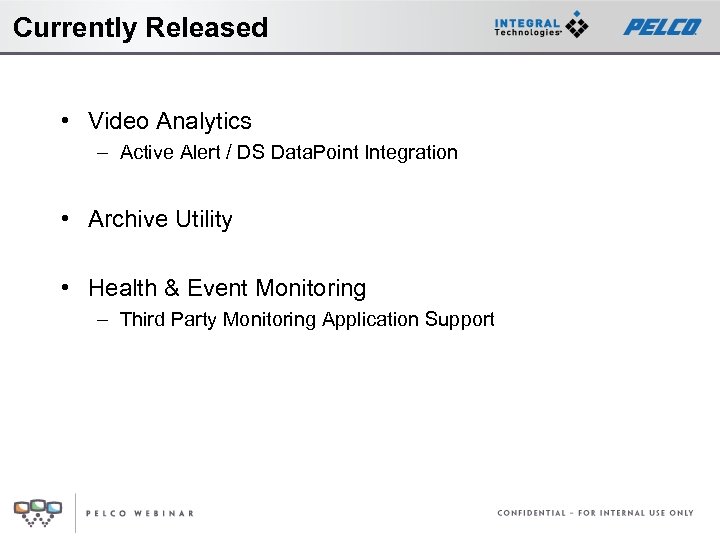

Currently Released • Video Analytics – Active Alert / DS Data. Point Integration • Archive Utility • Health & Event Monitoring – Third Party Monitoring Application Support

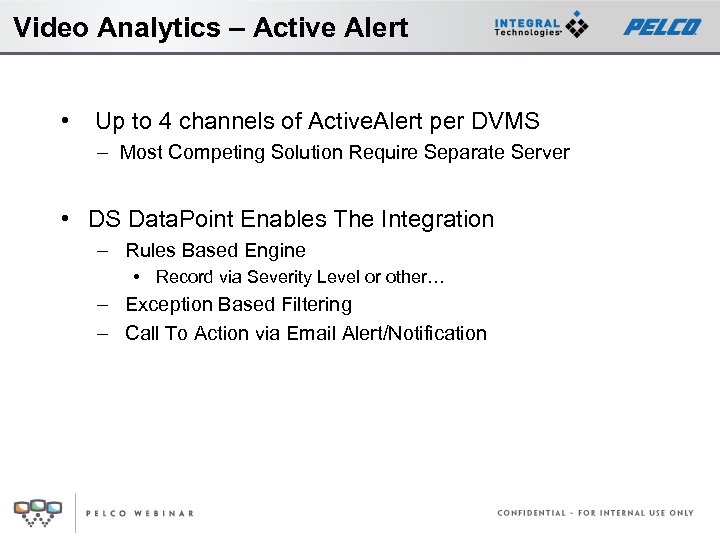

Video Analytics – Active Alert • Up to 4 channels of Active. Alert per DVMS – Most Competing Solution Require Separate Server • DS Data. Point Enables The Integration – Rules Based Engine • Record via Severity Level or other… – Exception Based Filtering – Call To Action via Email Alert/Notification

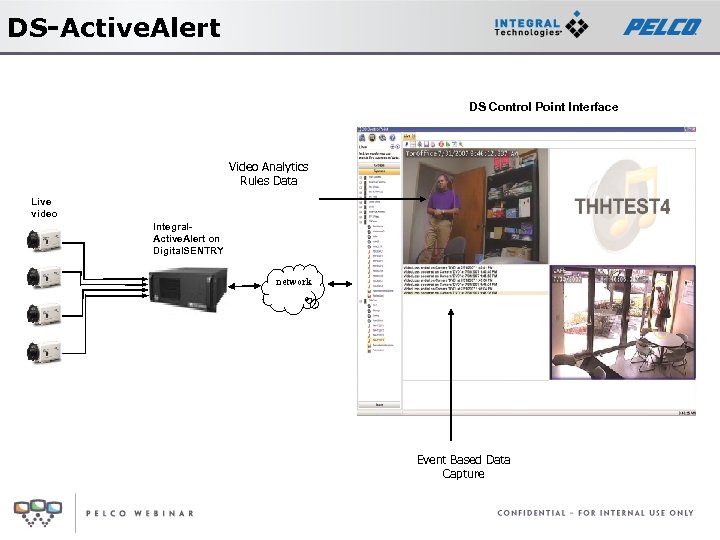

DS-Active. Alert DS Control Point Interface Video Analytics Rules Data Live video Integral. Active. Alert on Digital. SENTRY network Event Based Data Capture

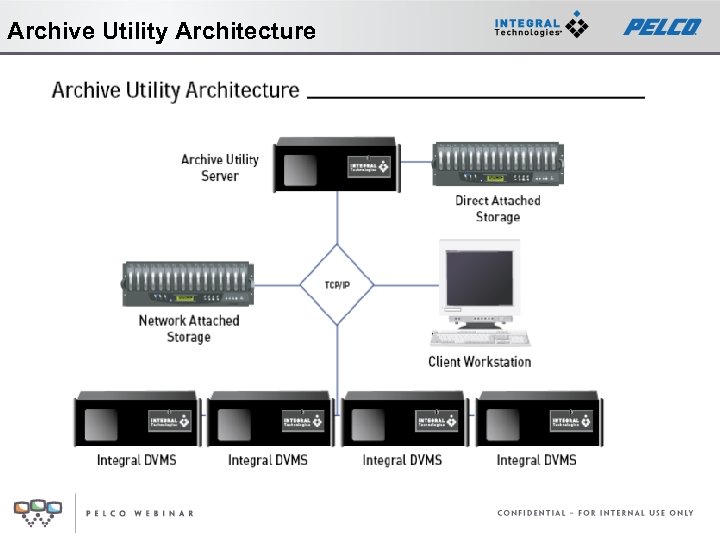

Archive Utility Architecture

DVR Dashboard Diagnostic No configuration required! NVR/NVS or DVR IP Cameras w/ Network & Health Status Analog Cameras w/ Health Status Also monitors HDD & PS data Web Server H&E application built into DVR/NVS with auto configuration via local database

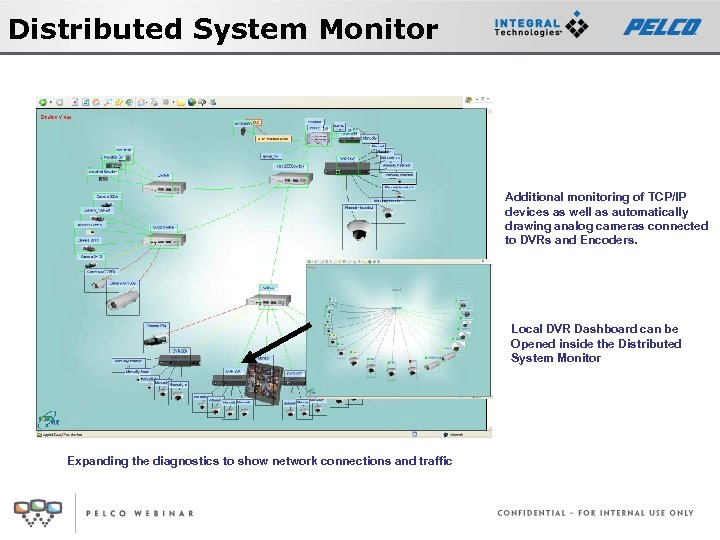

Distributed System Monitor Additional monitoring of TCP/IP devices as well as automatically drawing analog cameras connected to DVRs and Encoders. Local DVR Dashboard can be Opened inside the Distributed System Monitor Expanding the diagnostics to show network connections and traffic

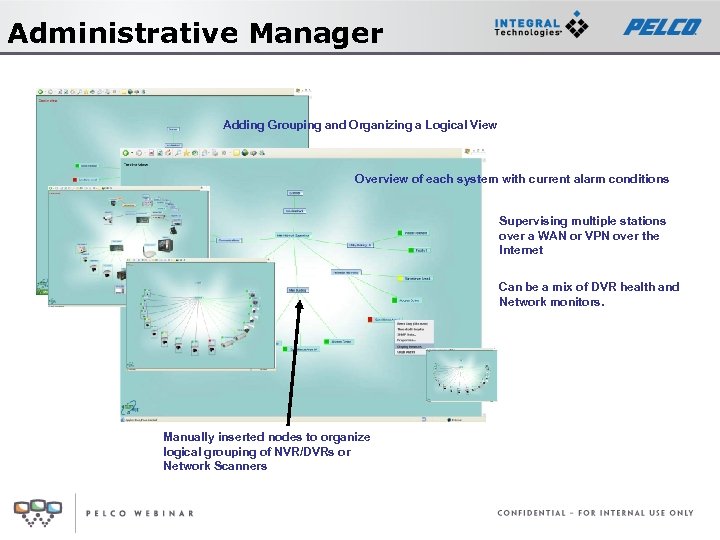

Administrative Manager Adding Grouping and Organizing a Logical View Overview of each system with current alarm conditions Supervising multiple stations over a WAN or VPN over the Internet Can be a mix of DVR health and Network monitors. Manually inserted nodes to organize logical grouping of NVR/DVRs or Network Scanners

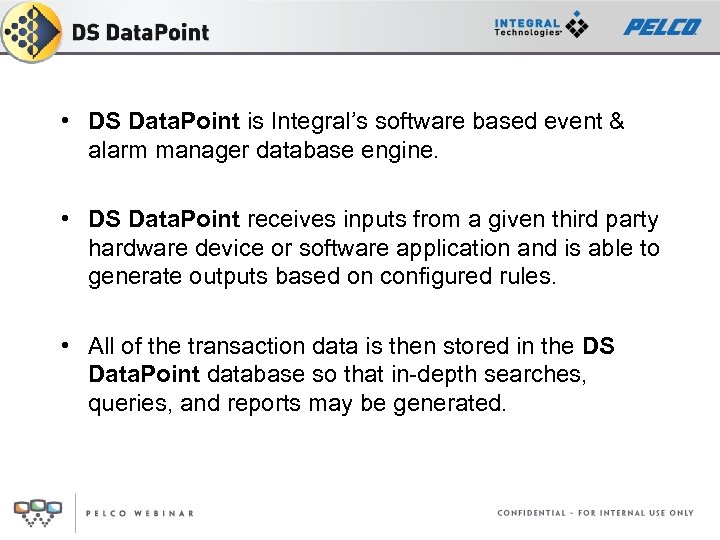

• DS Data. Point is Integral’s software based event & alarm manager database engine. • DS Data. Point receives inputs from a given third party hardware device or software application and is able to generate outputs based on configured rules. • All of the transaction data is then stored in the DS Data. Point database so that in-depth searches, queries, and reports may be generated.

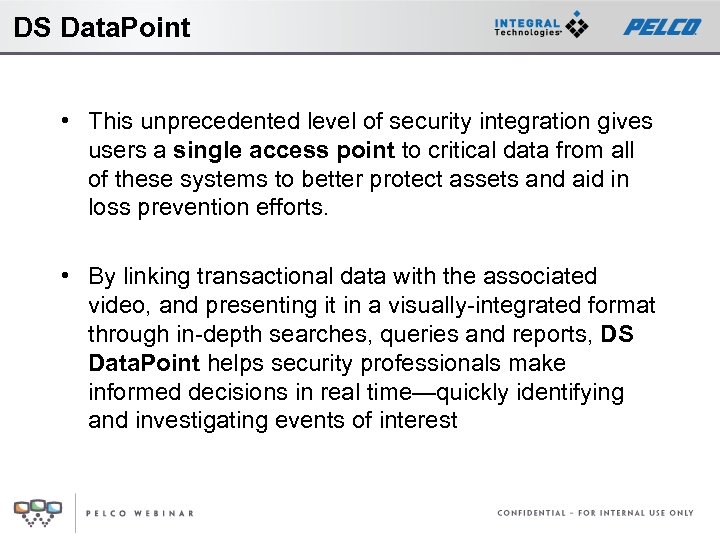

DS Data. Point • This unprecedented level of security integration gives users a single access point to critical data from all of these systems to better protect assets and aid in loss prevention efforts. • By linking transactional data with the associated video, and presenting it in a visually-integrated format through in-depth searches, queries and reports, DS Data. Point helps security professionals make informed decisions in real time—quickly identifying and investigating events of interest

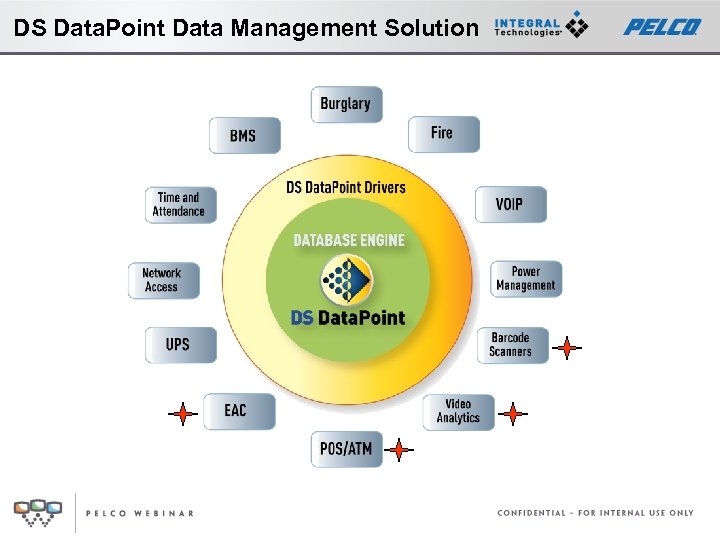

DS Data. Point Data Management Solution

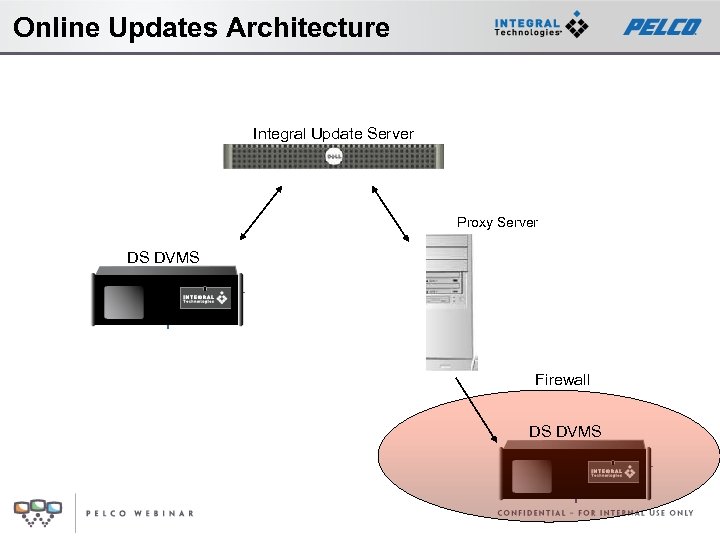

Online Updates Architecture Integral Update Server Proxy Server DS DVMS Firewall DS DVMS
