Insulation helps to stop heat loss Standard conventions

Insulation (helps to stop heat loss) Standard conventions and symbols make it easier for people to interpret and understand technical information. Ceiling joist Wall Plate (made from wood) Window ELEVATION Brick (cavity wall) END ELEVATION Enlarged SECTION XX Floor Concrete (foundation) Ground level

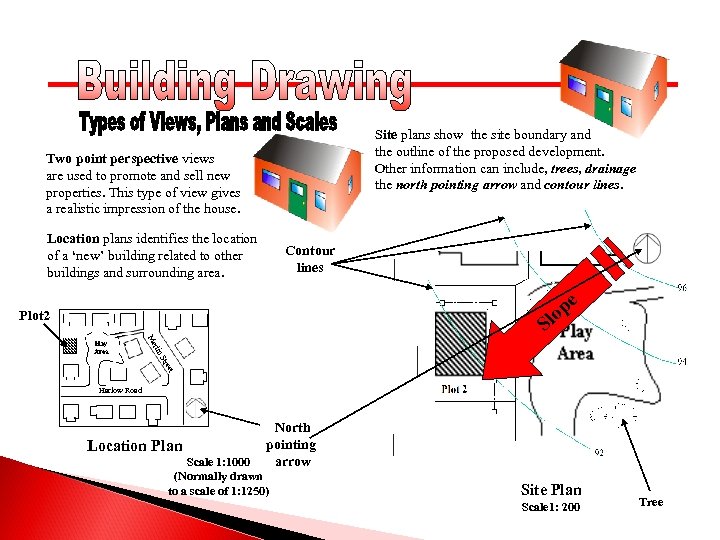

Site plans show the site boundary and the outline of the proposed development. Other information can include, trees, drainage the north pointing arrow and contour lines. Two point perspective views are used to promote and sell new properties. This type of view gives a realistic impression of the house. Location plans identifies the location of a ‘new’ building related to other buildings and surrounding area. Contour lines pe o Sl Plot 2 rlin Me eet Str Harlow Road Location Plan North pointing arrow Scale 1: 1000 (Normally drawn to a scale of 1: 1250) Site Plan Scale 1: 200 Tree

Symbols Socke t Sink R/H Bowl Lam p Switc h Fluorescent Lamp Shower Tray W C Wash Basin Doo r Bat h Floor Plan Scale 1: 50 Windo w

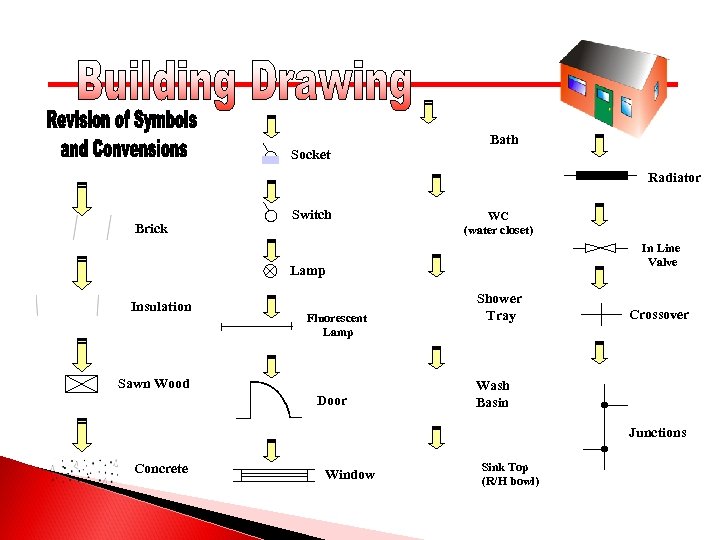

Socket Bath Radiator Brick Switch WC (water closet) In Line Valve Lamp Insulation Fluorescent Lamp Sawn Wood Door Shower Tray Crossover Wash Basin Junctions Concrete Window Sink Top (R/H bowl)

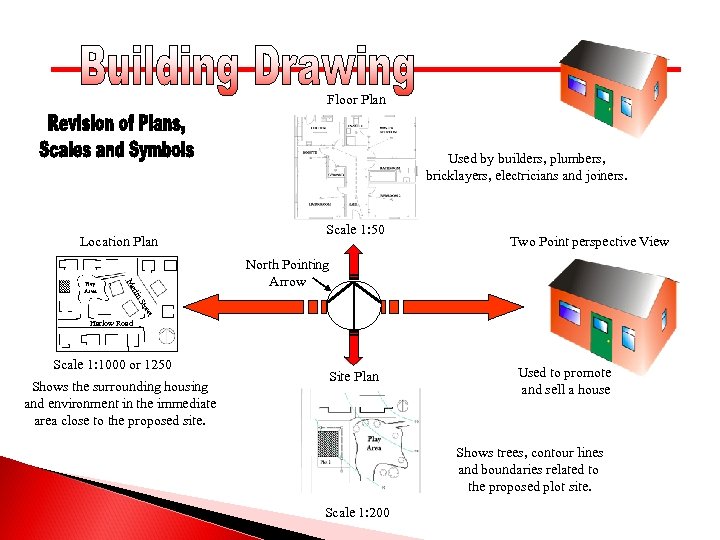

Floor Plan Used by builders, plumbers, bricklayers, electricians and joiners. Location Plan Scale 1: 50 Two Point perspective View rlin Me North Pointing Arrow eet Str Harlow Road Scale 1: 1000 or 1250 Shows the surrounding housing and environment in the immediate area close to the proposed site. Site Plan Used to promote and sell a house Shows trees, contour lines and boundaries related to the proposed plot site. Scale 1: 200
