Instant CAmpus Biking Solution Prof. M. Balakrishnan Prof. PVM Rao Siddharth Eswaran Umang Mittal

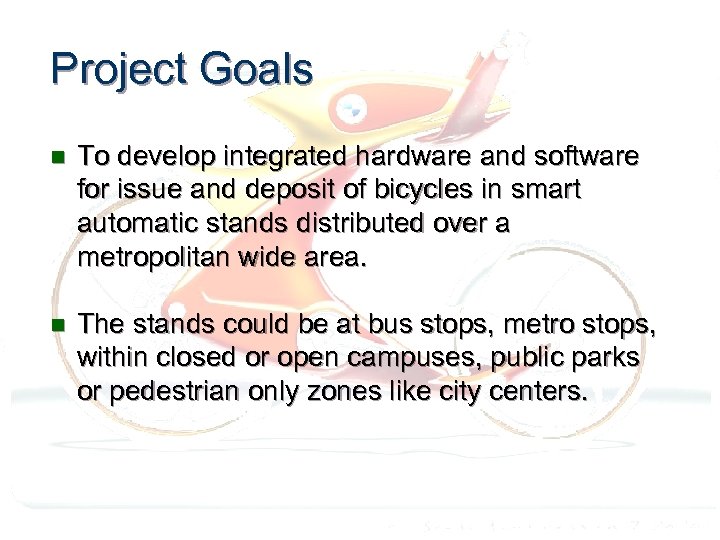

Project Goals n To develop integrated hardware and software for issue and deposit of bicycles in smart automatic stands distributed over a metropolitan wide area. n The stands could be at bus stops, metro stops, within closed or open campuses, public parks or pedestrian only zones like city centers.

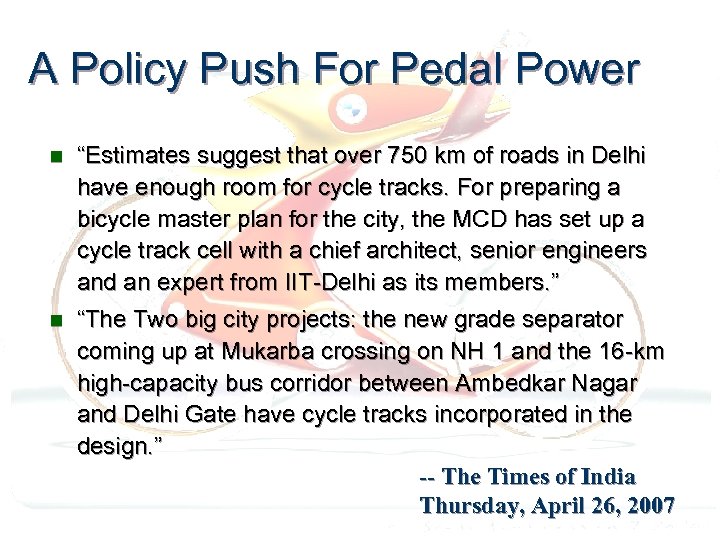

A Policy Push For Pedal Power n “Estimates suggest that over 750 km of roads in Delhi have enough room for cycle tracks. For preparing a bicycle master plan for the city, the MCD has set up a cycle track cell with a chief architect, senior engineers and an expert from IIT-Delhi as its members. ” n “The Two big city projects: the new grade separator coming up at Mukarba crossing on NH 1 and the 16 -km high-capacity bus corridor between Ambedkar Nagar and Delhi Gate have cycle tracks incorporated in the design. ” -- The Times of India Thursday, April 26, 2007
Last Mile Connectivity Problem Destination Click in the marked region to zoom-in Source

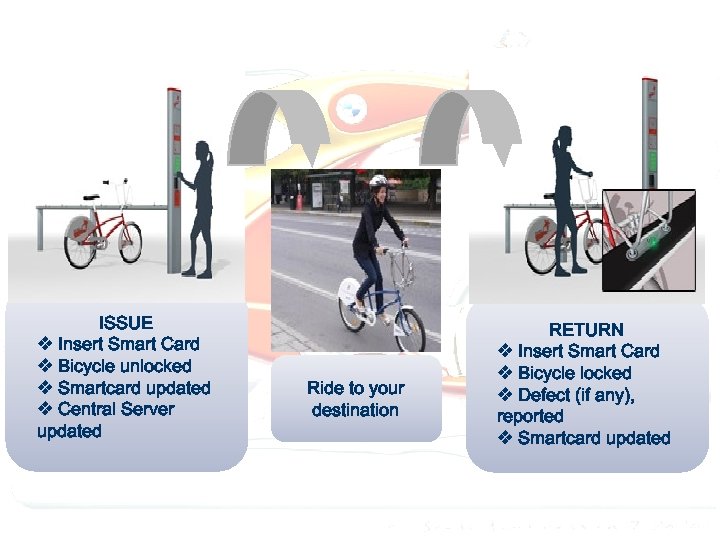

ISSUE v Insert Smart Card v Bicycle unlocked v Smartcard updated v Central Server updated Ride to your destination RETURN v Insert Smart Card v Bicycle locked v Defect (if any), reported v Smartcard updated

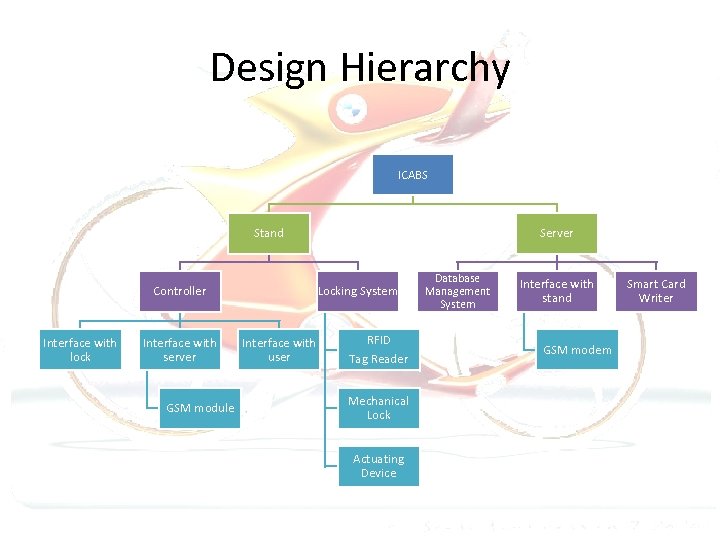

Design Hierarchy ICABS Stand Controller Interface with lock Interface with server GSM module Server Locking System Interface with user RFID Tag Reader Mechanical Lock Actuating Device Database Management System Interface with stand GSM modem Smart Card Writer

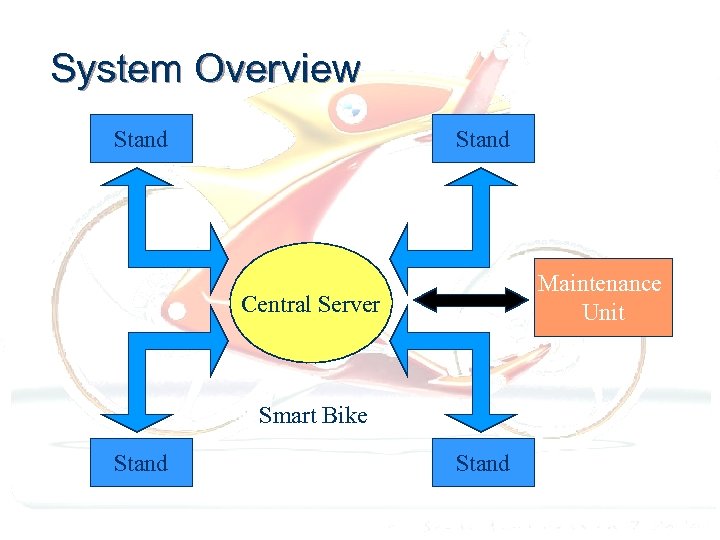

System Overview Stand Maintenance Unit Central Server Smart Bike Stand

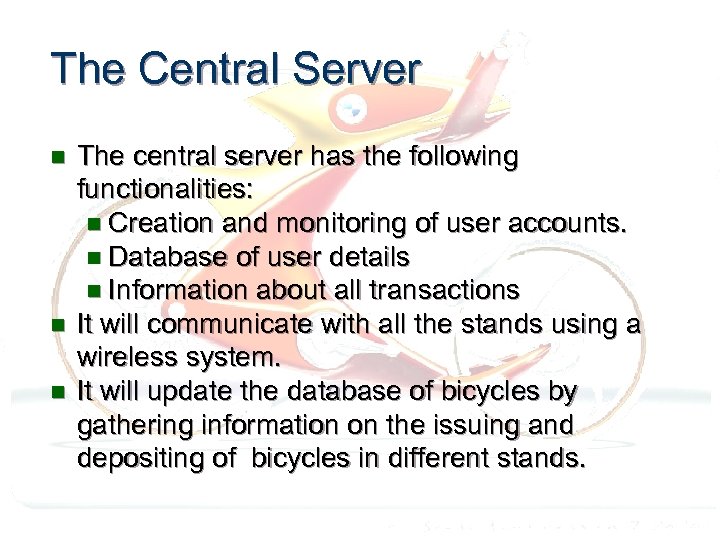

The Central Server n n n The central server has the following functionalities: n Creation and monitoring of user accounts. n Database of user details n Information about all transactions It will communicate with all the stands using a wireless system. It will update the database of bicycles by gathering information on the issuing and depositing of bicycles in different stands.

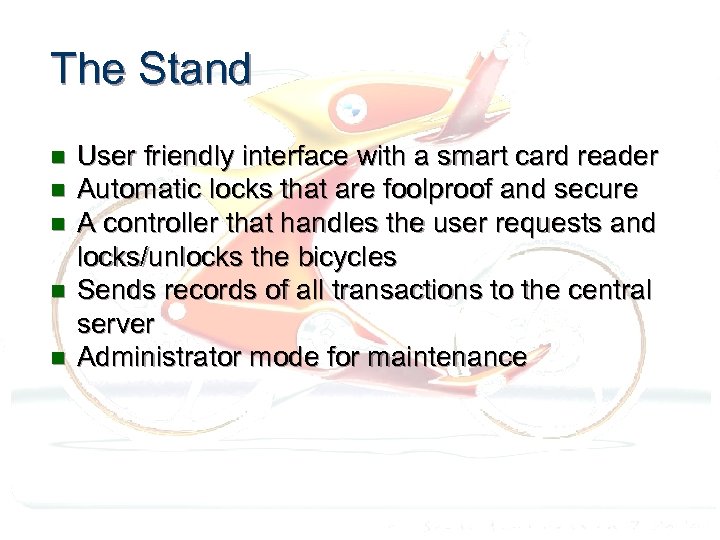

The Stand n n n User friendly interface with a smart card reader Automatic locks that are foolproof and secure A controller that handles the user requests and locks/unlocks the bicycles Sends records of all transactions to the central server Administrator mode for maintenance

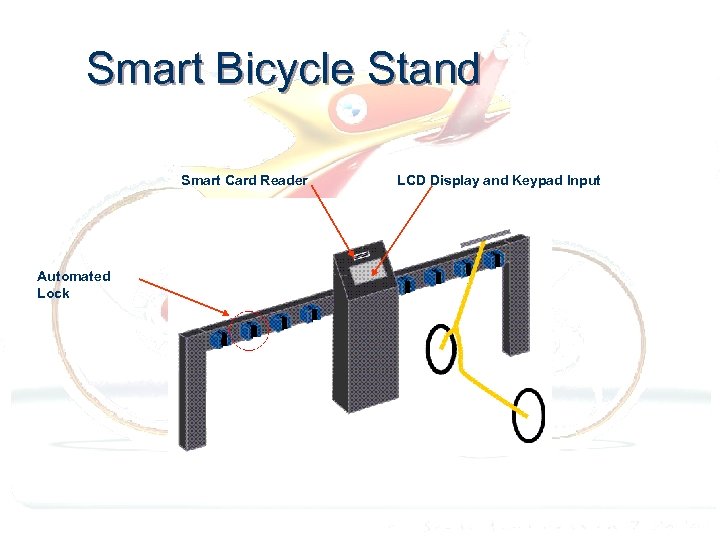

Smart Bicycle Stand Smart Card Reader Automated Lock LCD Display and Keypad Input

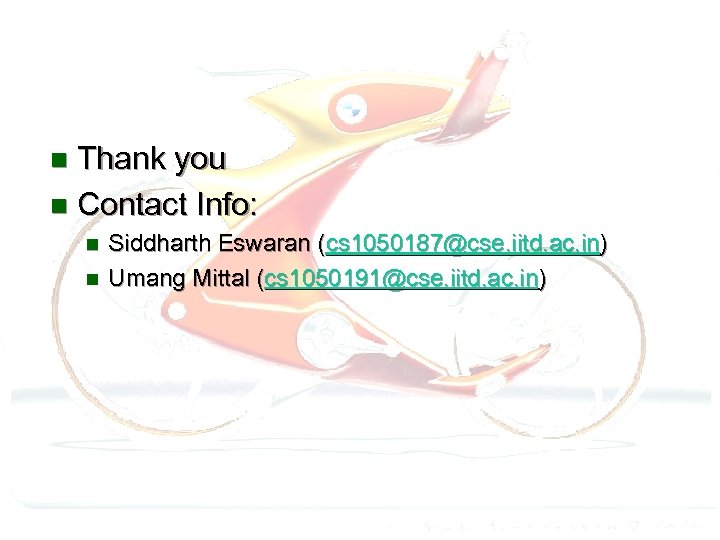

Thank you n Contact Info: n n n Siddharth Eswaran (cs 1050187@cse. iitd. ac. in) Umang Mittal (cs 1050191@cse. iitd. ac. in)

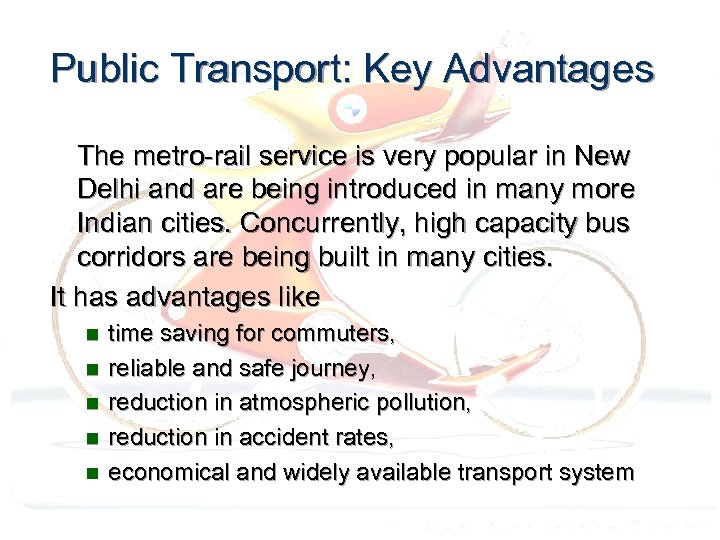

Public Transport: Key Advantages The metro-rail service is very popular in New Delhi and are being introduced in many more Indian cities. Concurrently, high capacity bus corridors are being built in many cities. It has advantages like n n n time saving for commuters, reliable and safe journey, reduction in atmospheric pollution, reduction in accident rates, economical and widely available transport system
