Insert Picture Here Application Migration Application Migration

Application Migration

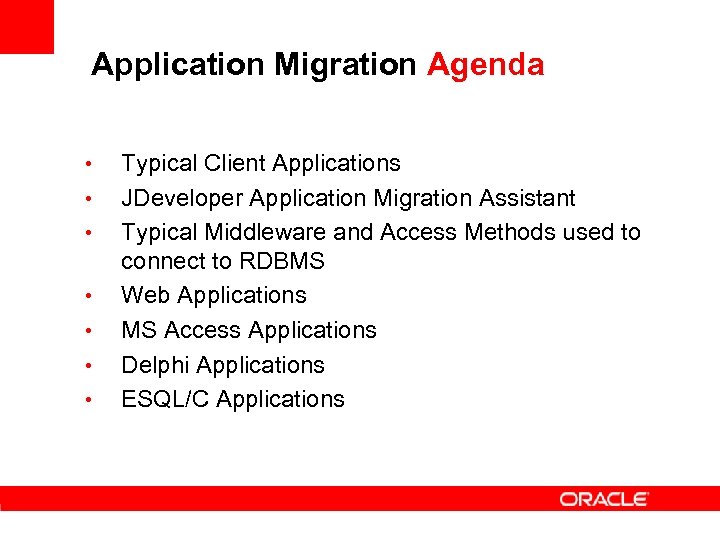

Application Migration Agenda • • Typical Client Applications JDeveloper Application Migration Assistant Typical Middleware and Access Methods used to connect to RDBMS Web Applications MS Access Applications Delphi Applications ESQL/C Applications

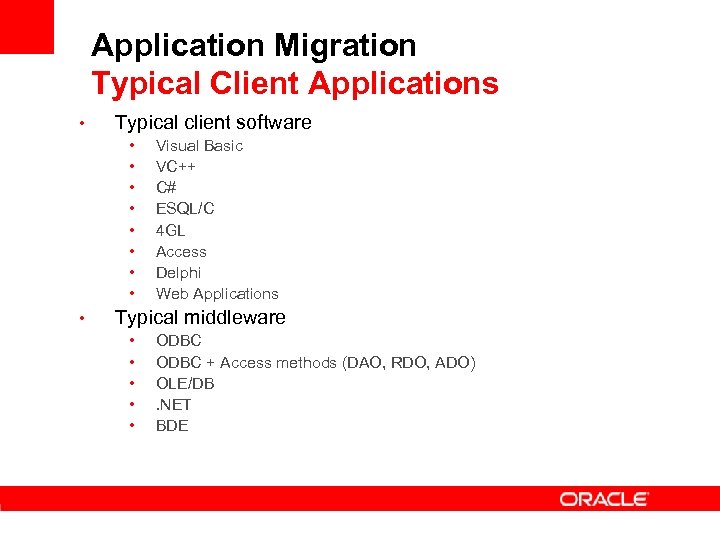

Application Migration Typical Client Applications • Typical client software • • • Visual Basic VC++ C# ESQL/C 4 GL Access Delphi Web Applications Typical middleware • • • ODBC + Access methods (DAO, RDO, ADO) OLE/DB. NET BDE

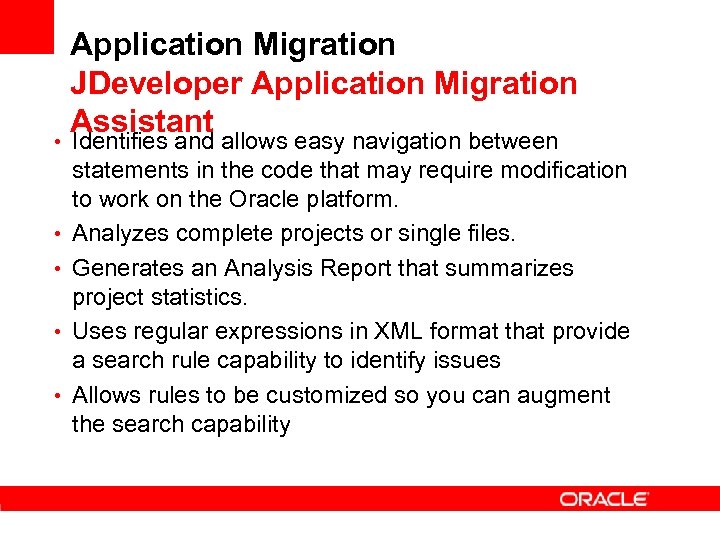

Application Migration JDeveloper Application Migration Assistant • Identifies and allows easy navigation between • • statements in the code that may require modification to work on the Oracle platform. Analyzes complete projects or single files. Generates an Analysis Report that summarizes project statistics. Uses regular expressions in XML format that provide a search rule capability to identify issues Allows rules to be customized so you can augment the search capability

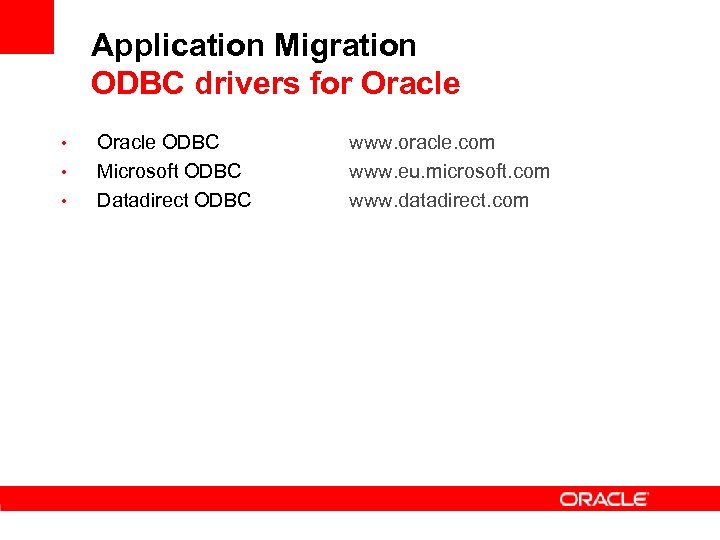

Application Migration ODBC drivers for Oracle • • • Oracle ODBC Microsoft ODBC Datadirect ODBC www. oracle. com www. eu. microsoft. com www. datadirect. com

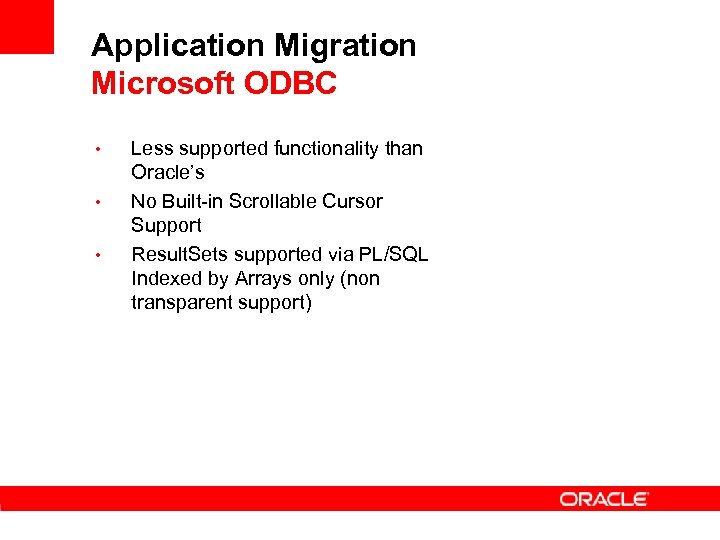

Application Migration Microsoft ODBC • • • Less supported functionality than Oracle’s No Built-in Scrollable Cursor Support Result. Sets supported via PL/SQL Indexed by Arrays only (non transparent support)

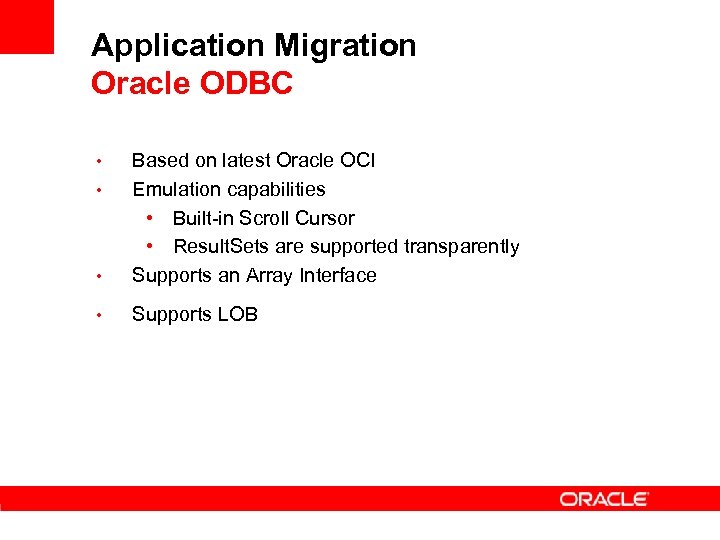

Application Migration Oracle ODBC • Based on latest Oracle OCI Emulation capabilities • Built-in Scroll Cursor • Result. Sets are supported transparently Supports an Array Interface • Supports LOB • •

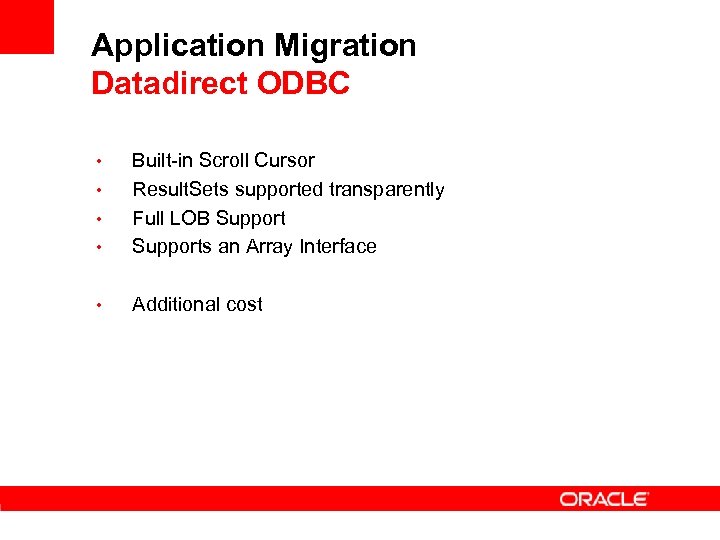

Application Migration Datadirect ODBC • Built-in Scroll Cursor Result. Sets supported transparently Full LOB Supports an Array Interface • Additional cost • • •

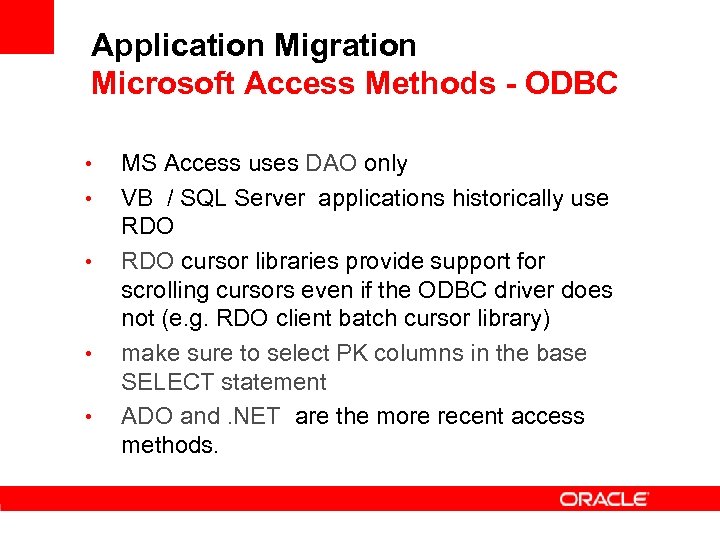

Application Migration Microsoft Access Methods - ODBC • • • MS Access uses DAO only VB / SQL Server applications historically use RDO cursor libraries provide support for scrolling cursors even if the ODBC driver does not (e. g. RDO client batch cursor library) make sure to select PK columns in the base SELECT statement ADO and. NET are the more recent access methods.

Application Migration Microsoft Access Methods – OLE/DB • Oracle provides an OLE/DB provider with the same level of functionality as its ODBC driver • OO 4 O is an OLE server providing full native support for Oracle (written ib OCI) • Available through VB Object and VC++ Class • Proprietary Interface • Do not confuse OO 4 O and OLE/DB

Application Migration Microsoft Access Methods -. NET • Oracle provides a. NET driver the ODP. Net • • XML Support Resultset Support • Minor changes required to SQLHelper class • . NET Developer Center • http: //www. oracle. com/technology/tech/dotnet/index. html • Oracle Developer Tools for Visual Studio. NET

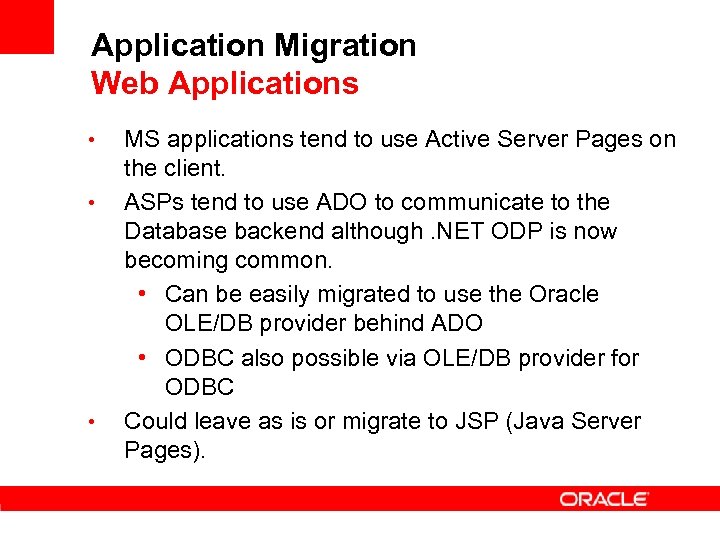

Application Migration Web Applications • • • MS applications tend to use Active Server Pages on the client. ASPs tend to use ADO to communicate to the Database backend although. NET ODP is now becoming common. • Can be easily migrated to use the Oracle OLE/DB provider behind ADO • ODBC also possible via OLE/DB provider for ODBC Could leave as is or migrate to JSP (Java Server Pages).

Application Migration Delphi Applications • Delphi 6 normally uses BDE • Borland Database Engine (BDE) maps quite well to Oracle although performance is not good when run against >8 i. • Native access to Oracle should be used (e. g. Core. Lab’s ODAC (http: //www. crlab. com) (Oracle Data Access) – same as BDE but closer to Oracle (directly in OCI)S

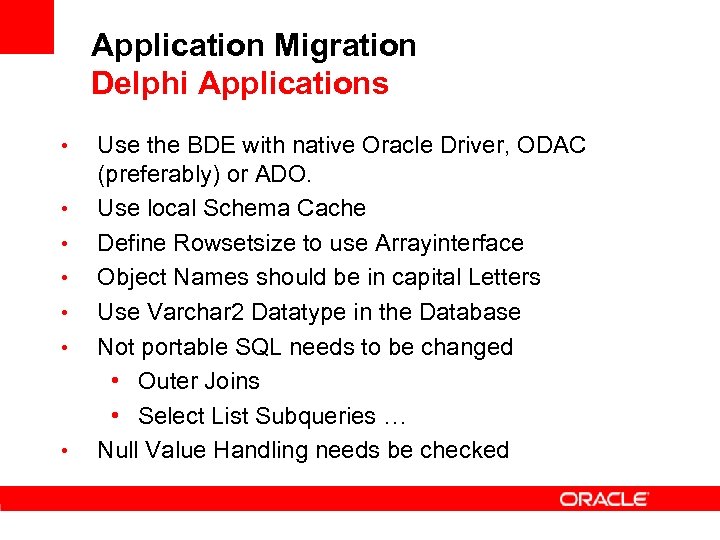

Application Migration Delphi Applications • • Use the BDE with native Oracle Driver, ODAC (preferably) or ADO. Use local Schema Cache Define Rowsetsize to use Arrayinterface Object Names should be in capital Letters Use Varchar 2 Datatype in the Database Not portable SQL needs to be changed • Outer Joins • Select List Subqueries … Null Value Handling needs be checked

Q & A QUESTIONS ANSWERS
