INOX MULLION PERIPHERAL KEYPAD IN VANDAL PROOF HOUSING

INOX MULLION PERIPHERAL KEYPAD IN VANDAL PROOF HOUSING Vandal-proof INOX Slim metal keypad Illuminated metal keys IP 67 host (controller) communicatio n

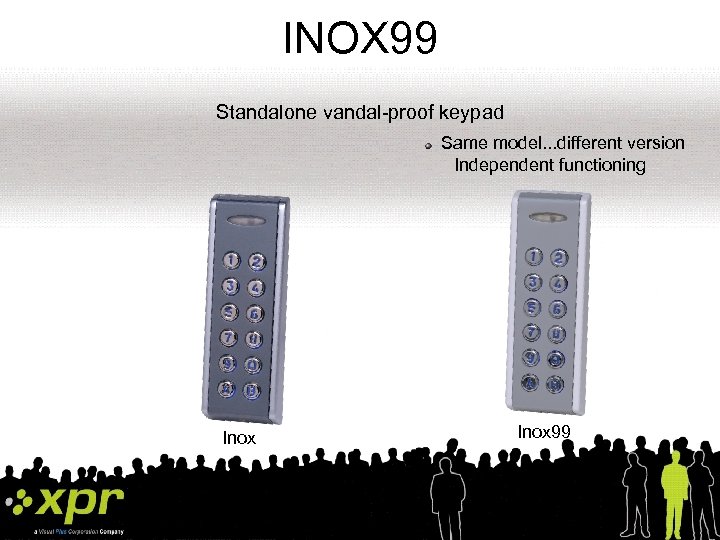

INOX 99 Standalone vandal-proof keypad Same model. . . different version Independent functioning Inox 99

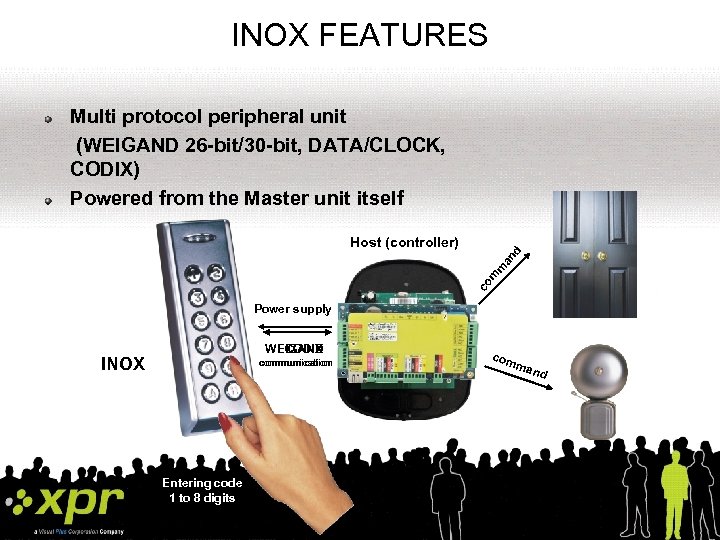

INOX FEATURES Multi protocol peripheral unit (WEIGAND 26 -bit/30 -bit, DATA/CLOCK, CODIX) Powered from the Master unit itself co m m an d Host (controller) Power supply WEIGAND CODIX INOX communication Entering code 1 to 8 digits com man d

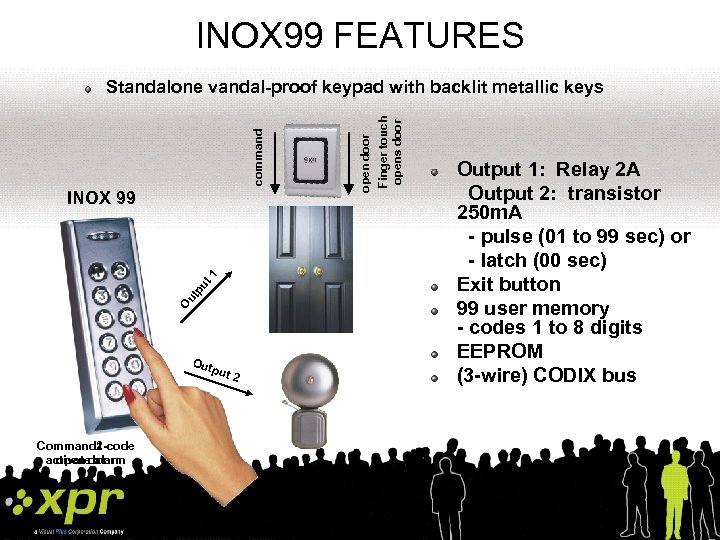

INOX 99 FEATURES O ut pu t 1 INOX 99 Out p ut 2 Command 2 -code Command 1 -code activatedoor open alarm open door Finger touch opens door command Standalone vandal-proof keypad with backlit metallic keys Output 1: Relay 2 A Output 2: transistor 250 m. A - pulse (01 to 99 sec) or - latch (00 sec) Exit button 99 user memory - codes 1 to 8 digits EEPROM (3 -wire) CODIX bus

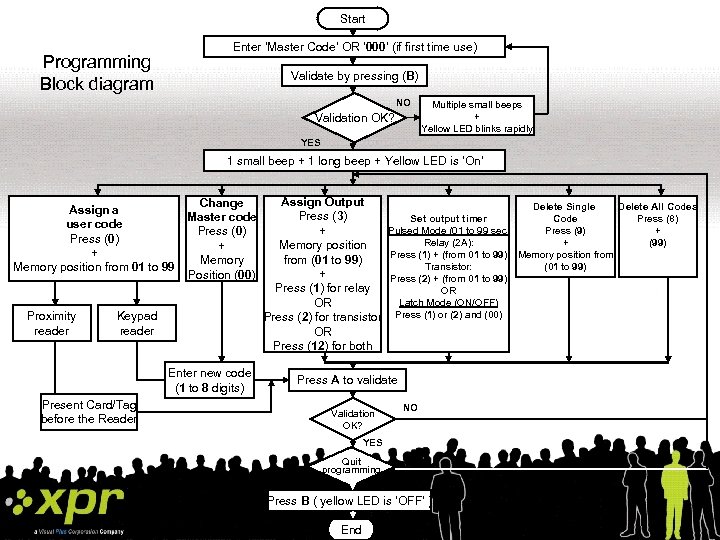

Start Programming Block diagram Enter ‘Master Code’ OR ‘ 000’ (if first time use) Validate by pressing (B) NO Validation OK? Multiple small beeps + Yellow LED blinks rapidly YES 1 small beep + 1 long beep + Yellow LED is ‘On’ Change Assign a Master code user code Press (0) + + Memory position from 01 to 99 Position (00) Proximity reader Keypad reader Enter new code (1 to 8 digits) Present Card/Tag before the Reader Assign Output Delete Single Delete All Codes Press (3) Set output timer Code Press (8) Pulsed Mode (01 to 99 sec) Press (9) + + Relay (2 A): + (99) Memory position Press (1) + (from 01 to 99) Memory position from (01 to 99) Transistor: (01 to 99) + Press (2) + (from 01 to 99) Press (1) for relay OR Latch Mode (ON/OFF) OR Press (2) for transistor Press (1) or (2) and (00) OR Press (12) for both Press A to validate Validation OK? NO YES Quit programming NO YES Press B ( yellow LED is ‘OFF’ ) End

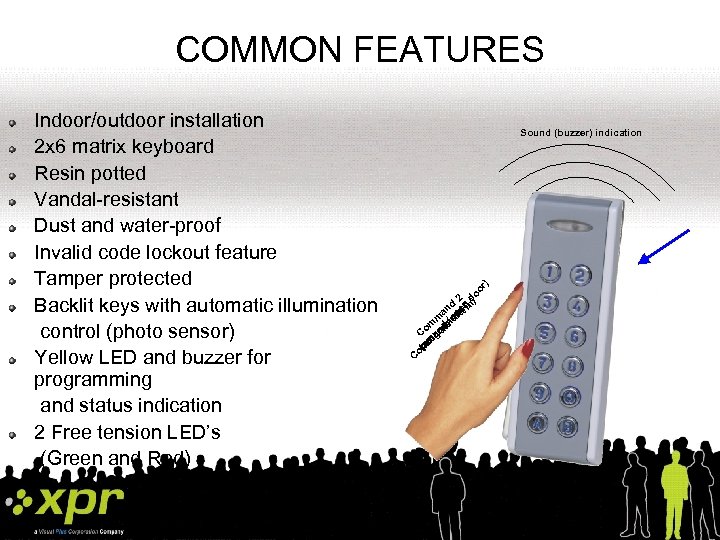

COMMON FEATURES or ) Sound (buzzer) indication om prm og arn ad m( o mp in eg n do 2 d m) an lar m a om ate C tiv c (a C Indoor/outdoor installation 2 x 6 matrix keyboard Resin potted Vandal-resistant Dust and water-proof Invalid code lockout feature Tamper protected Backlit keys with automatic illumination control (photo sensor) Yellow LED and buzzer for programming and status indication 2 Free tension LED’s (Green and Red)

PRODUCT PREFERENCES INOX/INOX 99 available in (colors): INOX-B powder coated white INOX-C gray INOX-G matt chrome INOX-B INOX-C INOX-G

WHERE CAN INOX BE USED? Inox in slim and narrow housing is suitable for doorframe mounting Homes Buildings Various business environments Hospitals Hotels and warehouses Restaurants …
