Infra. Stru. Xure Central сфера применения An IT-ready, scalable monitoring system which collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network ● Data Center ● Consolidate viewing & configuration of monitoring appliances § Campus Network § Manage monitoring appliances across multiple buildings APC by Schneider Electric – Infra. Stru. Xure Central – June 2008 § Remote Offices, Plants, Warehouses § Manage a distributed network of monitoring appliances

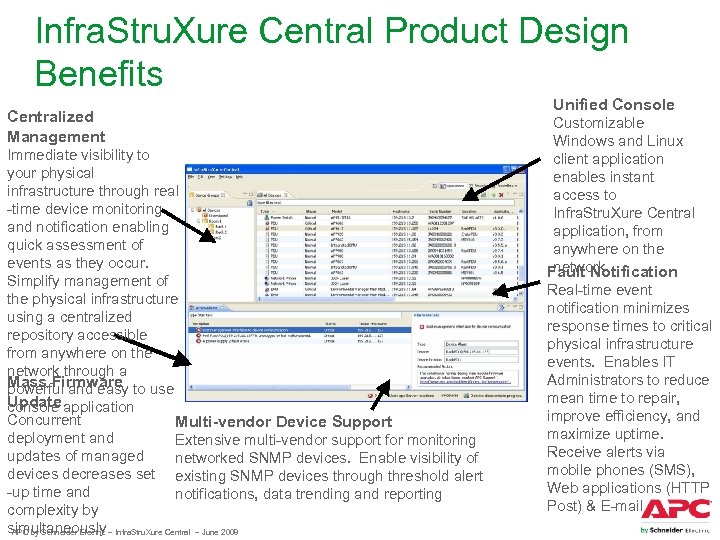

Infra. Stru. Xure Central Product Design Benefits Centralized Management Immediate visibility to your physical infrastructure through real -time device monitoring and notification enabling quick assessment of events as they occur. Simplify management of the physical infrastructure using a centralized repository accessible from anywhere on the network through a Mass Firmware powerful and easy to use Update console application Concurrent Multi-vendor Device Support deployment and Extensive multi-vendor support for monitoring updates of managed networked SNMP devices. Enable visibility of devices decreases set existing SNMP devices through threshold alert -up time and notifications, data trending and reporting complexity by simultaneously – Infra. Stru. Xure Central – June 2008 APC by Schneider Electric Unified Console Customizable Windows and Linux client application enables instant access to Infra. Stru. Xure Central application, from anywhere on the network Fault Notification Real-time event notification minimizes response times to critical physical infrastructure events. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime. Receive alerts via mobile phones (SMS), Web applications (HTTP Post) & E-mail

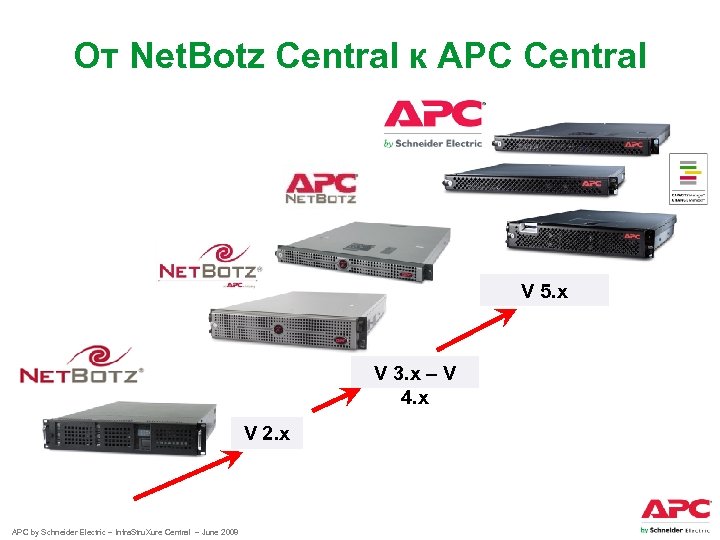

От Net. Botz Central к АРС Central V 5. x V 3. x – V 4. x V 2. x APC by Schneider Electric – Infra. Stru. Xure Central – June 2008

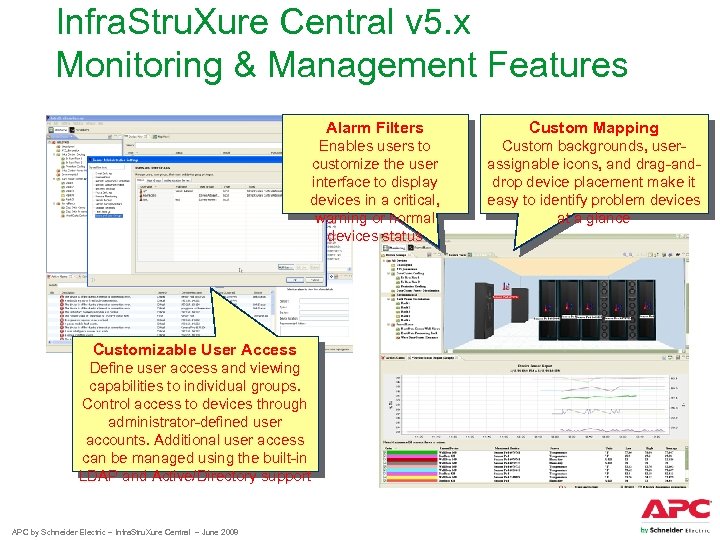

Infra. Stru. Xure Central v 5. x Monitoring & Management Features Alarm Filters Custom Mapping Enables users to customize the user interface to display devices in a critical, warning or normal devices status Custom backgrounds, userassignable icons, and drag-anddrop device placement make it easy to identify problem devices at a glance Customizable User Access Define user access and viewing capabilities to individual groups. Control access to devices through administrator-defined user accounts. Additional user access can be managed using the built-in LDAP and Active/Directory support APC by Schneider Electric – Infra. Stru. Xure Central – June 2008

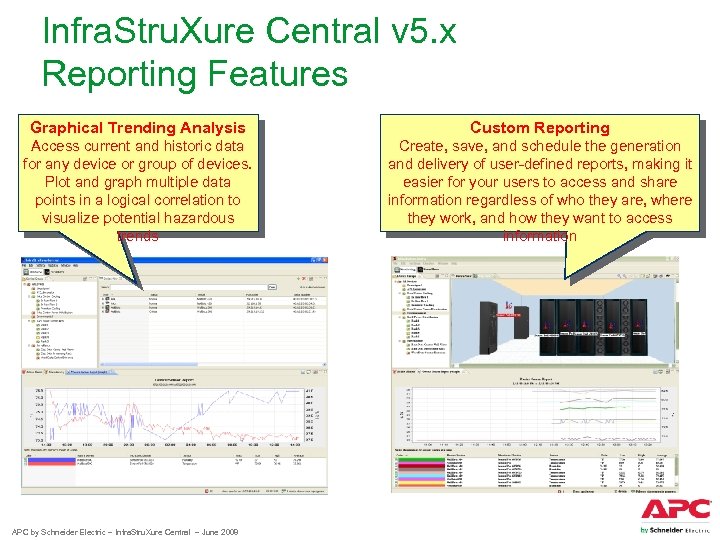

Infra. Stru. Xure Central v 5. x Reporting Features Graphical Trending Analysis Custom Reporting Access current and historic data for any device or group of devices. Plot and graph multiple data points in a logical correlation to visualize potential hazardous trends Create, save, and schedule the generation and delivery of user-defined reports, making it easier for your users to access and share information regardless of who they are, where they work, and how they want to access information APC by Schneider Electric – Infra. Stru. Xure Central – June 2008

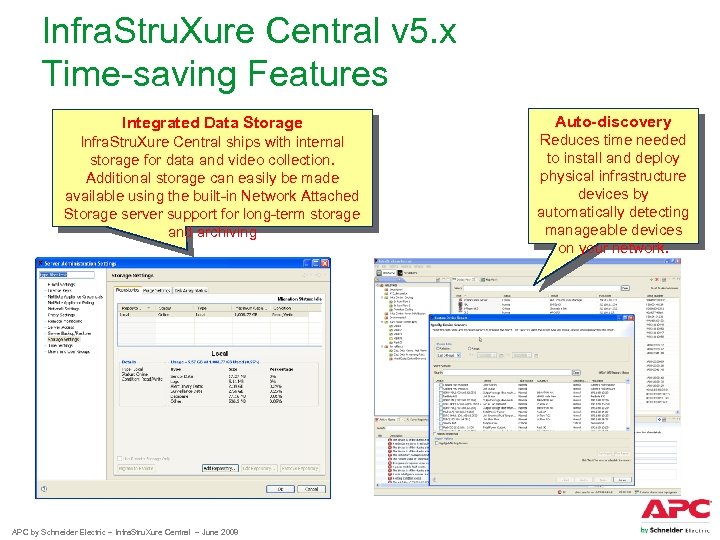

Infra. Stru. Xure Central v 5. x Time-saving Features Integrated Data Storage Auto-discovery Infra. Stru. Xure Central ships with internal storage for data and video collection. Additional storage can easily be made available using the built-in Network Attached Storage server support for long-term storage and archiving Reduces time needed to install and deploy physical infrastructure devices by automatically detecting manageable devices on your network. APC by Schneider Electric – Infra. Stru. Xure Central – June 2008

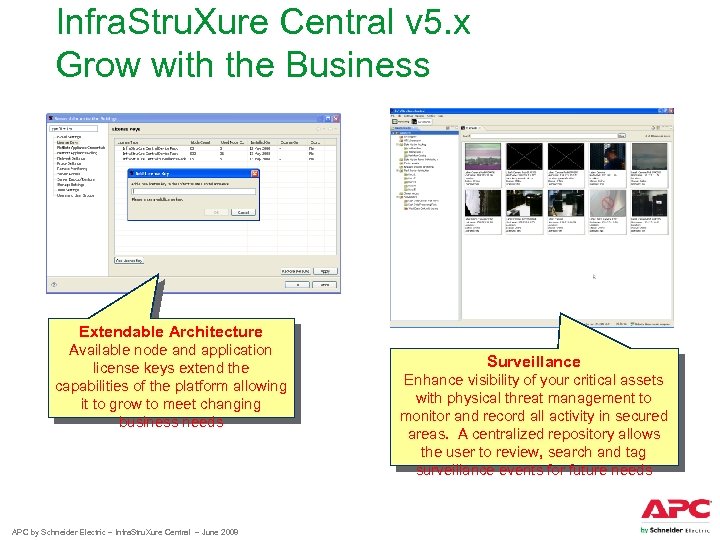

Infra. Stru. Xure Central v 5. x Grow with the Business Extendable Architecture Available node and application license keys extend the capabilities of the platform allowing it to grow to meet changing business needs APC by Schneider Electric – Infra. Stru. Xure Central – June 2008 Surveillance Enhance visibility of your critical assets with physical threat management to monitor and record all activity in secured areas. A centralized repository allows the user to review, search and tag surveillance events for future needs

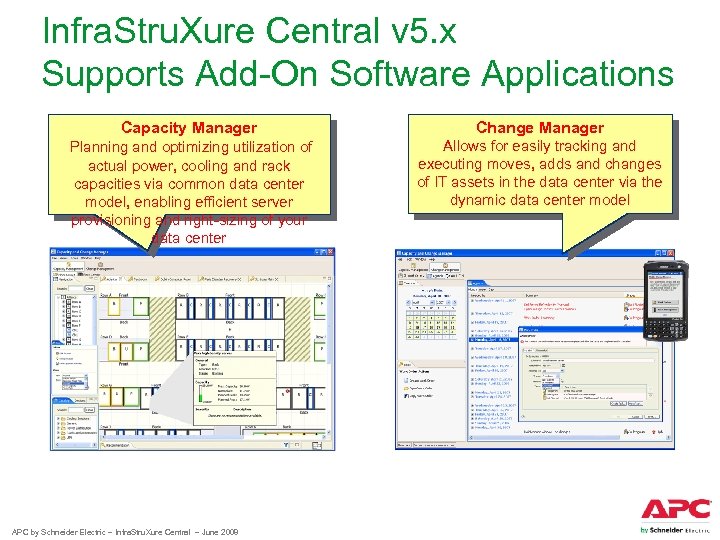

Infra. Stru. Xure Central v 5. x Supports Add-On Software Applications Capacity Manager Change Manager Planning and optimizing utilization of actual power, cooling and rack capacities via common data center model, enabling efficient server provisioning and right-sizing of your data center Allows for easily tracking and executing moves, adds and changes of IT assets in the data center via the dynamic data center model APC by Schneider Electric – Infra. Stru. Xure Central – June 2008

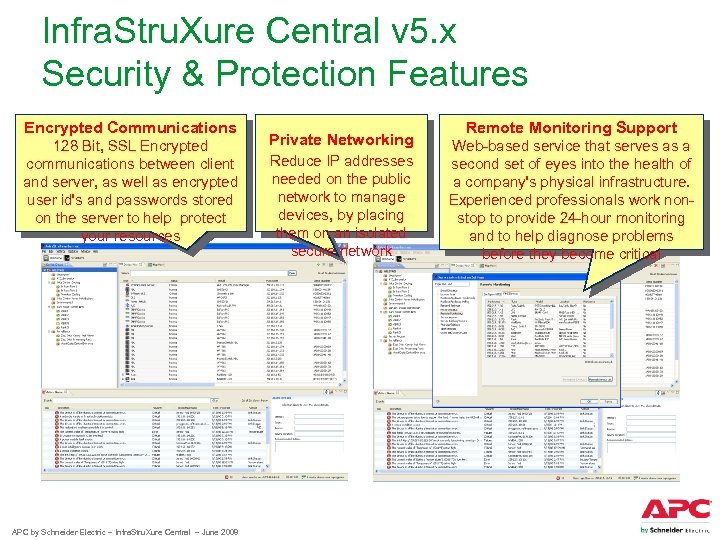

Infra. Stru. Xure Central v 5. x Security & Protection Features Encrypted Communications 128 Bit, SSL Encrypted communications between client and server, as well as encrypted user id's and passwords stored on the server to help protect your resources APC by Schneider Electric – Infra. Stru. Xure Central – June 2008 Private Networking Reduce IP addresses needed on the public network to manage devices, by placing them on an isolated secure network Remote Monitoring Support Web-based service that serves as a second set of eyes into the health of a company's physical infrastructure. Experienced professionals work nonstop to provide 24 -hour monitoring and to help diagnose problems before they become critical

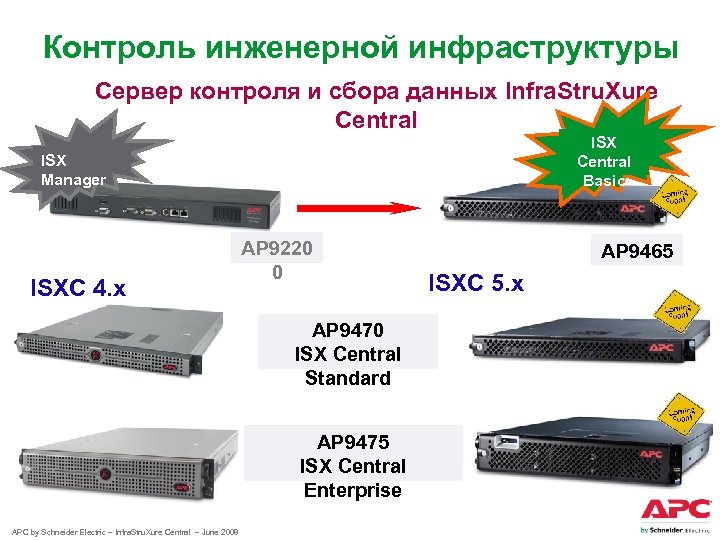

Контроль инженерной инфраструктуры Сервер контроля и сбора данных Infra. Stru. Xure Central ISX Central Basic ISX Manager ISXC 4. x AP 9220 0 AP 9470 ISX Central Standard AP 9475 ISX Central Enterprise APC by Schneider Electric – Infra. Stru. Xure Central – June 2008 AP 9465 ISXC 5. x

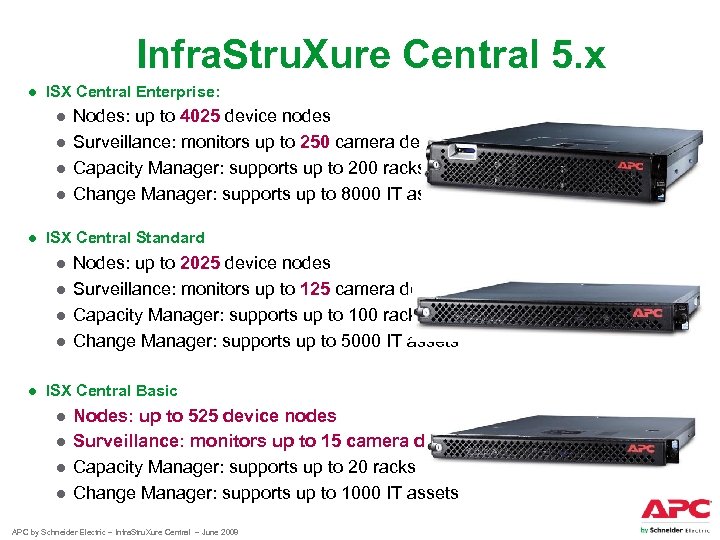

Infra. Stru. Xure Central 5. x ● ISX Central Enterprise: ● ● Nodes: up to 4025 device nodes Surveillance: monitors up to 250 camera devices Capacity Manager: supports up to 200 racks Change Manager: supports up to 8000 IT assets ● ISX Central Standard ● ● Nodes: up to 2025 device nodes Surveillance: monitors up to 125 camera devices Capacity Manager: supports up to 100 racks Change Manager: supports up to 5000 IT assets ● ISX Central Basic ● ● Nodes: up to 525 device nodes Surveillance: monitors up to 15 camera devices Capacity Manager: supports up to 20 racks Change Manager: supports up to 1000 IT assets APC by Schneider Electric – Infra. Stru. Xure Central – June 2008

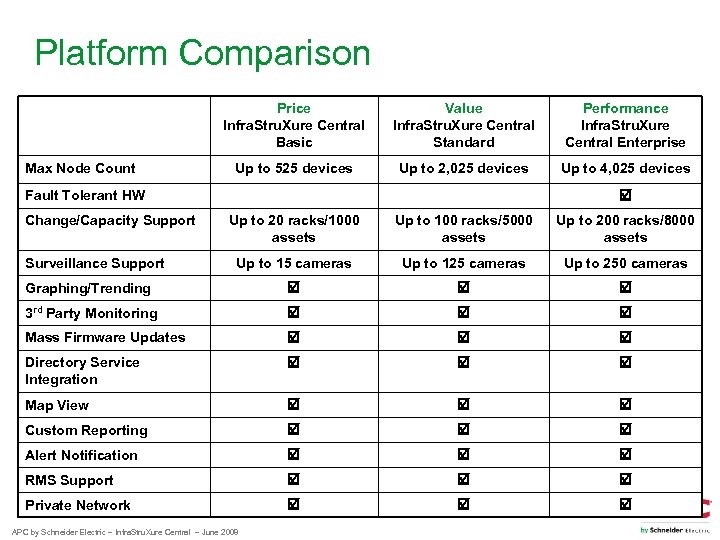

Platform Comparison Price Infra. Stru. Xure Central Basic Max Node Count Value Infra. Stru. Xure Central Standard Performance Infra. Stru. Xure Central Enterprise Up to 525 devices Up to 2, 025 devices Up to 4, 025 devices Fault Tolerant HW Change/Capacity Support Up to 20 racks/1000 assets Up to 100 racks/5000 assets Up to 200 racks/8000 assets Up to 15 cameras Up to 125 cameras Up to 250 cameras Graphing/Trending 3 rd Party Monitoring Mass Firmware Updates Directory Service Integration Map View Custom Reporting Alert Notification RMS Support Private Network Surveillance Support APC by Schneider Electric – Infra. Stru. Xure Central – June 2008

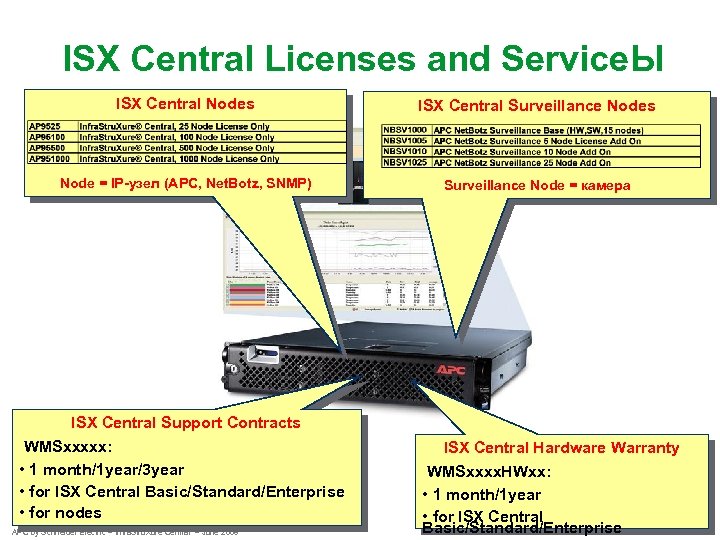

ISX Central Licenses and Service. Ы ISX Central Nodes ISX Central Surveillance Nodes Node = IP-узел (APC, Net. Botz, SNMP) Surveillance Node = камера ISX Central Support Contracts WMSxxxxx: • 1 month/1 year/3 year • for ISX Central Basic/Standard/Enterprise • for nodes APC by Schneider Electric – Infra. Stru. Xure Central – June 2008 ISX Central Hardware Warranty WMSxxxx. HWxx: • 1 month/1 year • for ISX Central Basic/Standard/Enterprise

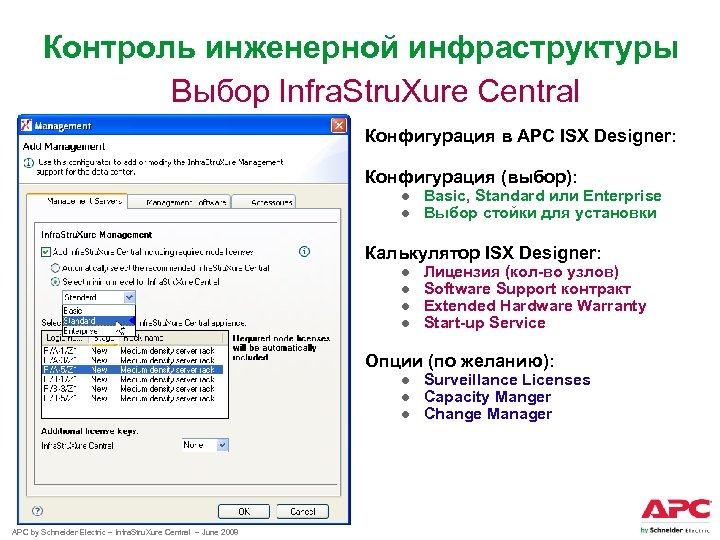

Контроль инженерной инфраструктуры Выбор Infra. Stru. Xure Central Конфигурация в APC ISX Designer: Конфигурация (выбор): ● Basic, Standard или Enterprise ● Выбор стойки для установки Калькулятор ISX Designer: ● ● Лицензия (кол-во узлов) Software Support контракт Extended Hardware Warranty Start-up Service Опции (по желанию): ● Surveillance Licenses ● Capacity Manger ● Change Manager APC by Schneider Electric – Infra. Stru. Xure Central – June 2008

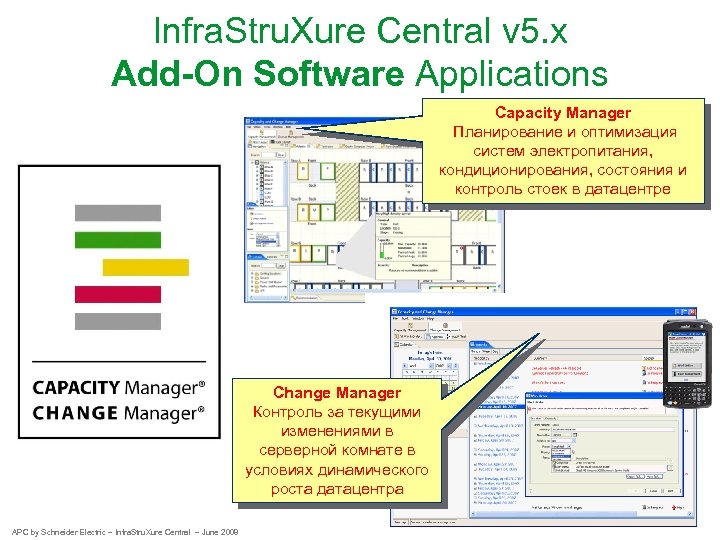

Infra. Stru. Xure Central v 5. x Add-On Software Applications Capacity Manager Планирование и оптимизация систем электропитания, кондиционирования, состояния и контроль стоек в датацентре Change Manager Контроль за текущими изменениями в серверной комнате в условиях динамического роста датацентра APC by Schneider Electric – Infra. Stru. Xure Central – June 2008

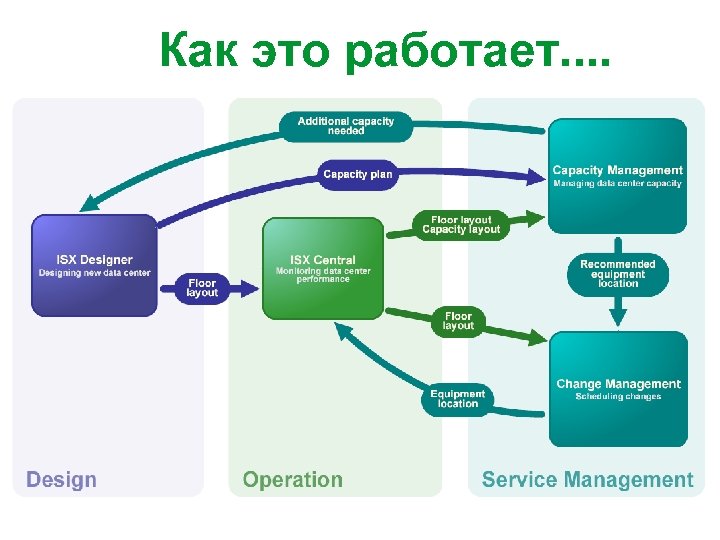

Как это работает. . APC by Schneider Electric – Infra. Stru. Xure Central – June 2008
