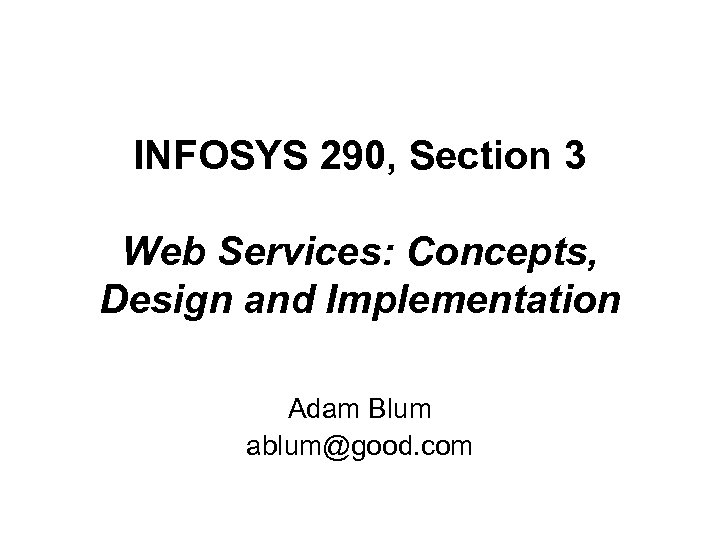

INFOSYS 290, Section 3 Web Services: Concepts, Design and Implementation Adam Blum ablum@good. com

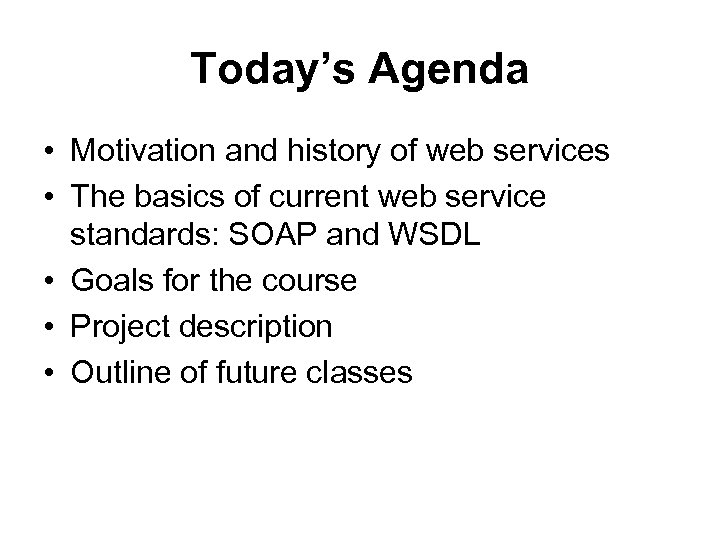

Today’s Agenda • Motivation and history of web services • The basics of current web service standards: SOAP and WSDL • Goals for the course • Project description • Outline of future classes

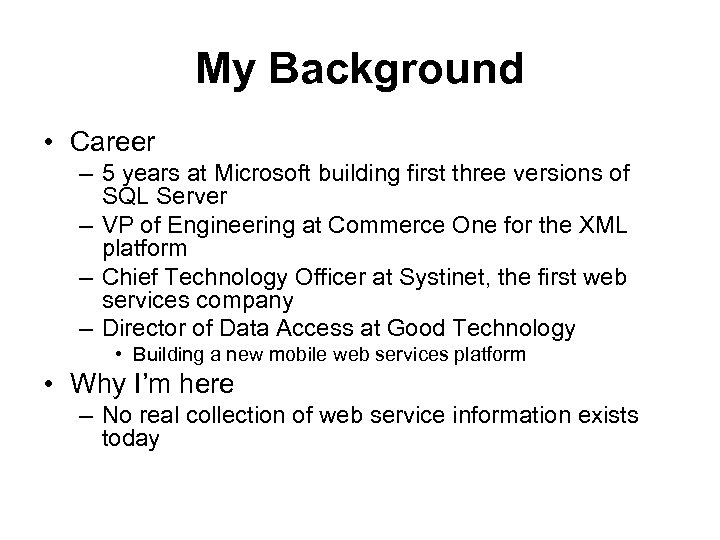

My Background • Career – 5 years at Microsoft building first three versions of SQL Server – VP of Engineering at Commerce One for the XML platform – Chief Technology Officer at Systinet, the first web services company – Director of Data Access at Good Technology • Building a new mobile web services platform • Why I’m here – No real collection of web service information exists today

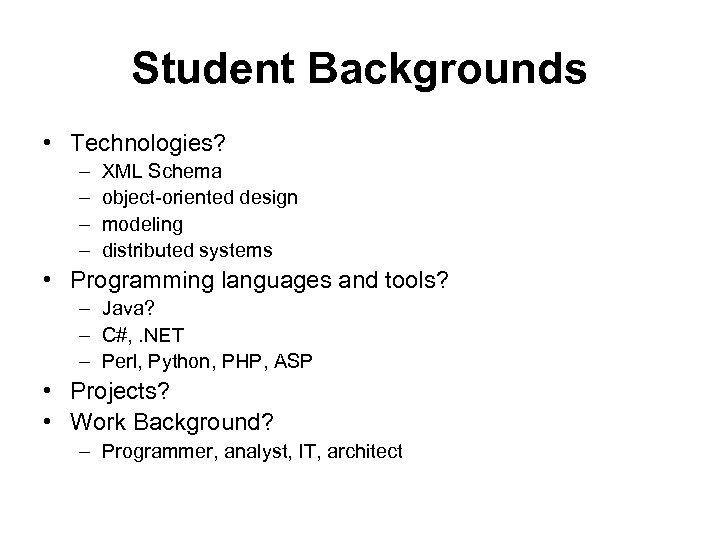

Student Backgrounds • Technologies? – – XML Schema object-oriented design modeling distributed systems • Programming languages and tools? – Java? – C#, . NET – Perl, Python, PHP, ASP • Projects? • Work Background? – Programmer, analyst, IT, architect

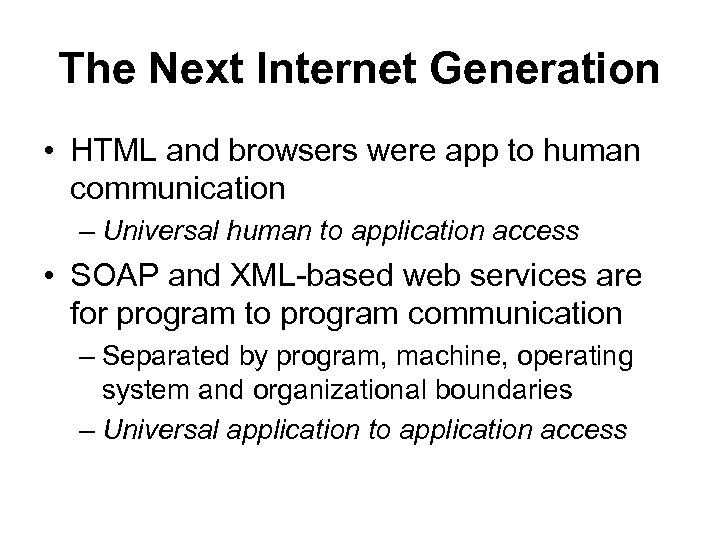

The Next Internet Generation • HTML and browsers were app to human communication – Universal human to application access • SOAP and XML-based web services are for program to program communication – Separated by program, machine, operating system and organizational boundaries – Universal application to application access
What is a Web service? • Application capability, function or operation exposed to other programs via open, interoperable standards • “payloads” defined as XML documents • “transports” over http or other open Internet protocol • Can be accessed from any programming language, hardware platform or operating system

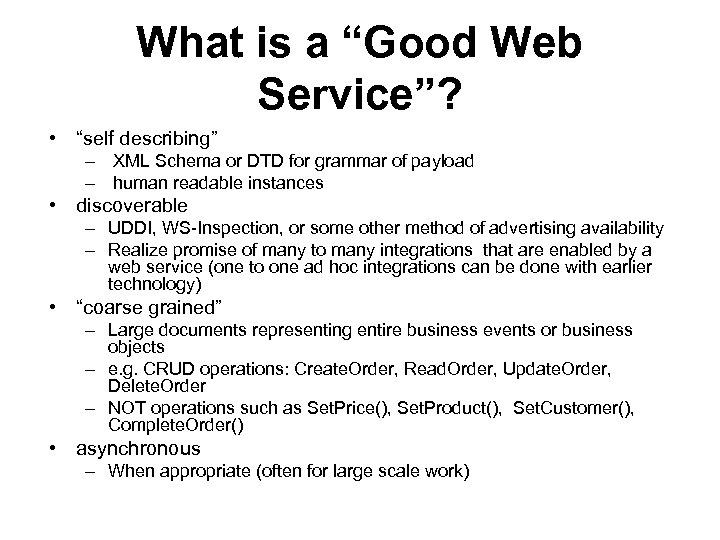

What is a “Good Web Service”? • “self describing” – XML Schema or DTD for grammar of payload – human readable instances • discoverable – UDDI, WS-Inspection, or some other method of advertising availability – Realize promise of many to many integrations that are enabled by a web service (one to one ad hoc integrations can be done with earlier technology) • “coarse grained” – Large documents representing entire business events or business objects – e. g. CRUD operations: Create. Order, Read. Order, Update. Order, Delete. Order – NOT operations such as Set. Price(), Set. Product(), Set. Customer(), Complete. Order() • asynchronous – When appropriate (often for large scale work)

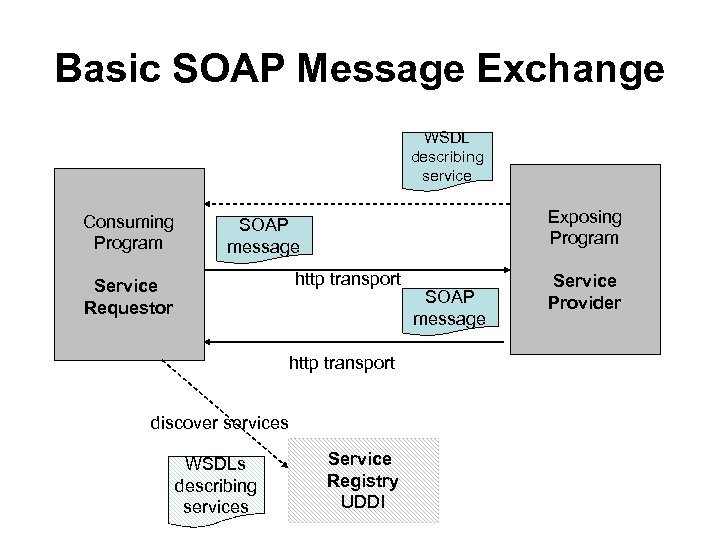

Basic SOAP Message Exchange WSDL describing service Consuming Program Exposing Program SOAP message http transport Service Requestor http transport discover services WSDLs describing services Service Registry UDDI SOAP message Service Provider

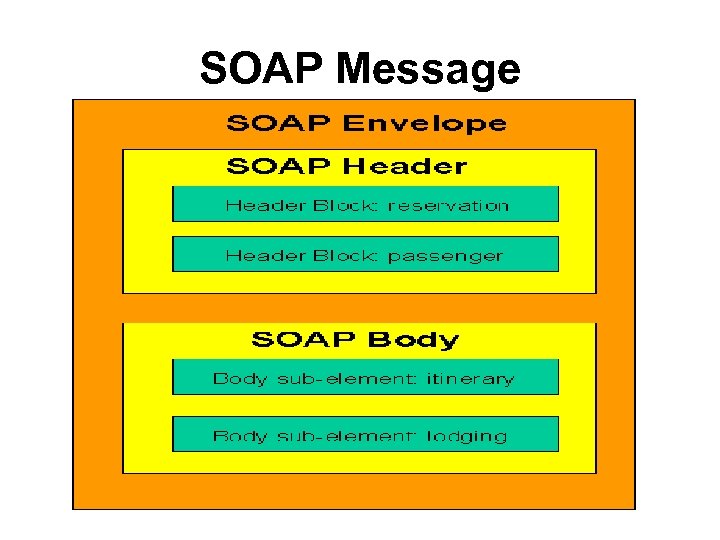

SOAP Message
Sample SOAP Envelope <? xml version='1. 0' ? > <env: Envelope xmlns: env="http: //www. w 3. org/2003/05/soap-envelope"> <env: Header> <m: reservation xmlns: m="http: //travelcompany. example. org/reservation" env: role="http: //www. w 3. org/2003/05/soapenvelope/role/next" env: must. Understand="true"> <m: reference>uuid: 093 a 2 da 1 -q 345 -739 r-ba 5 d-pqff 98 fe 8 j 7 d</m: reference> <m: date. And. Time>2001 -11 -29 T 13: 20: 00. 000 -05: 00</m: date. And. Time> </m: reservation> <n: passenger xmlns: n="http: //mycompany. example. com/employees" env: role="http: //www. w 3. org/2003/05/soap-envelope/role/next" env: must. Understand="true"> <n: name>Åke Jógvan Øyvind</n: name> </n: passenger> </env: Header>

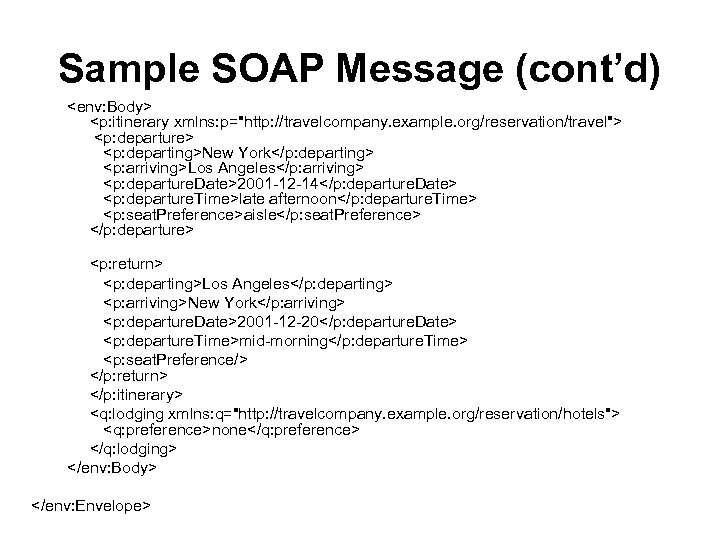

Sample SOAP Message (cont’d) <env: Body> <p: itinerary xmlns: p="http: //travelcompany. example. org/reservation/travel"> <p: departure> <p: departing>New York</p: departing> <p: arriving>Los Angeles</p: arriving> <p: departure. Date>2001 -12 -14</p: departure. Date> <p: departure. Time>late afternoon</p: departure. Time> <p: seat. Preference>aisle</p: seat. Preference> </p: departure> <p: return> <p: departing>Los Angeles</p: departing> <p: arriving>New York</p: arriving> <p: departure. Date>2001 -12 -20</p: departure. Date> <p: departure. Time>mid-morning</p: departure. Time> <p: seat. Preference/> </p: return> </p: itinerary> <q: lodging xmlns: q="http: //travelcompany. example. org/reservation/hotels"> <q: preference>none</q: preference> </q: lodging> </env: Body> </env: Envelope>

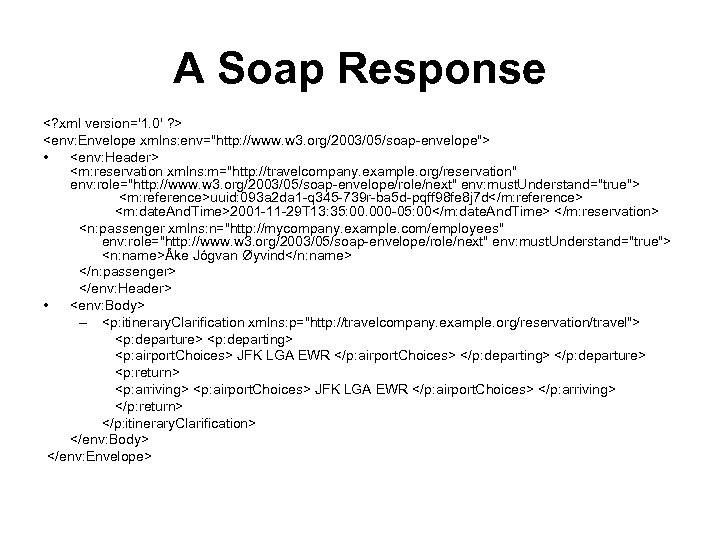

A Soap Response <? xml version='1. 0' ? > <env: Envelope xmlns: env="http: //www. w 3. org/2003/05/soap-envelope"> • <env: Header> <m: reservation xmlns: m="http: //travelcompany. example. org/reservation" env: role="http: //www. w 3. org/2003/05/soap-envelope/role/next" env: must. Understand="true"> <m: reference>uuid: 093 a 2 da 1 -q 345 -739 r-ba 5 d-pqff 98 fe 8 j 7 d</m: reference> <m: date. And. Time>2001 -11 -29 T 13: 35: 00. 000 -05: 00</m: date. And. Time> </m: reservation> <n: passenger xmlns: n="http: //mycompany. example. com/employees" env: role="http: //www. w 3. org/2003/05/soap-envelope/role/next" env: must. Understand="true"> <n: name>Åke Jógvan Øyvind</n: name> </n: passenger> </env: Header> • <env: Body> – <p: itinerary. Clarification xmlns: p="http: //travelcompany. example. org/reservation/travel"> <p: departure> <p: departing> <p: airport. Choices> JFK LGA EWR </p: airport. Choices> </p: departing> </p: departure> <p: return> <p: arriving> <p: airport. Choices> JFK LGA EWR </p: airport. Choices> </p: arriving> </p: return> </p: itinerary. Clarification> </env: Body> </env: Envelope>
Alternatives to SOAP over http • XML documents over HTTP – Less need to do this with commonplace SOAP toolkits – But these are still web services • XML RPC – Simpler than SOAP and longer history – Limitations on objects that can be exposed – With current SOAP toolkit support little reason to use

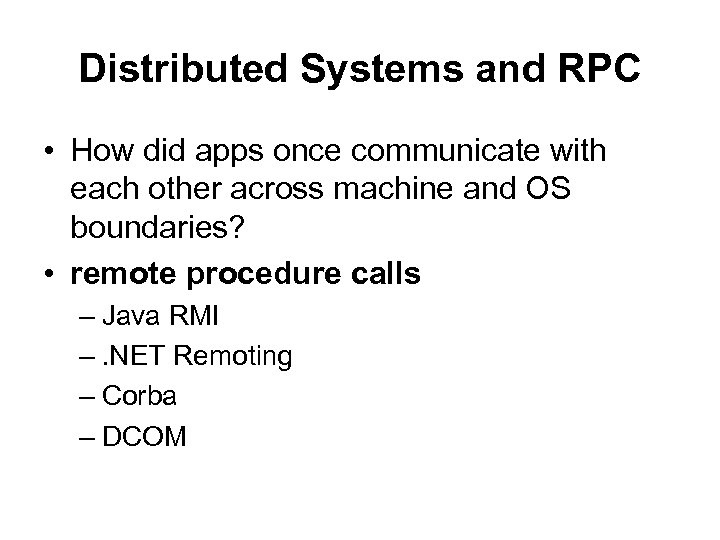

Distributed Systems and RPC • How did apps once communicate with each other across machine and OS boundaries? • remote procedure calls – Java RMI –. NET Remoting – Corba – DCOM

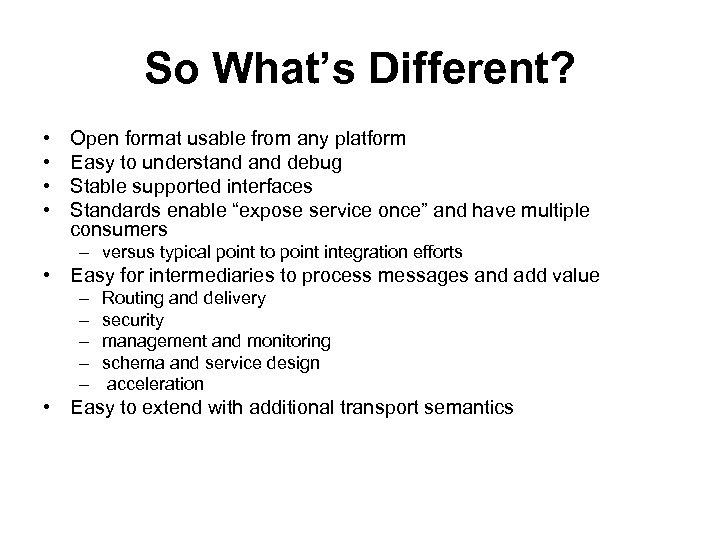

So What’s Different? • • Open format usable from any platform Easy to understand debug Stable supported interfaces Standards enable “expose service once” and have multiple consumers – versus typical point to point integration efforts • Easy for intermediaries to process messages and add value – – – Routing and delivery security management and monitoring schema and service design acceleration • Easy to extend with additional transport semantics

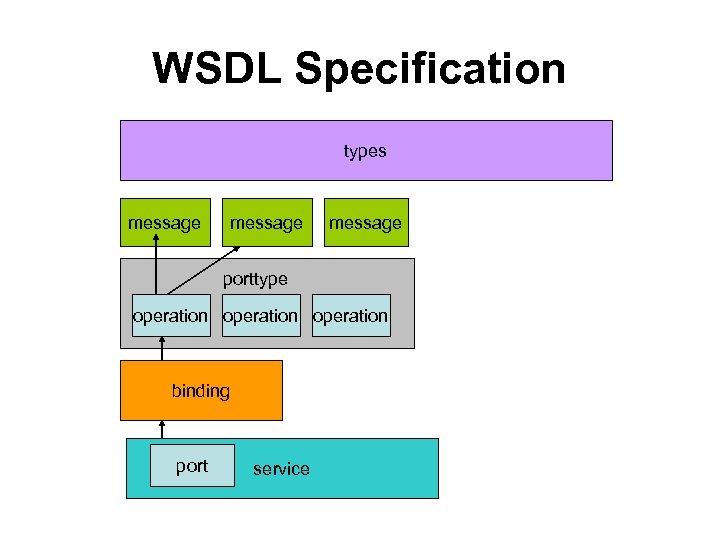

WSDL Specification types message porttype operation binding port service

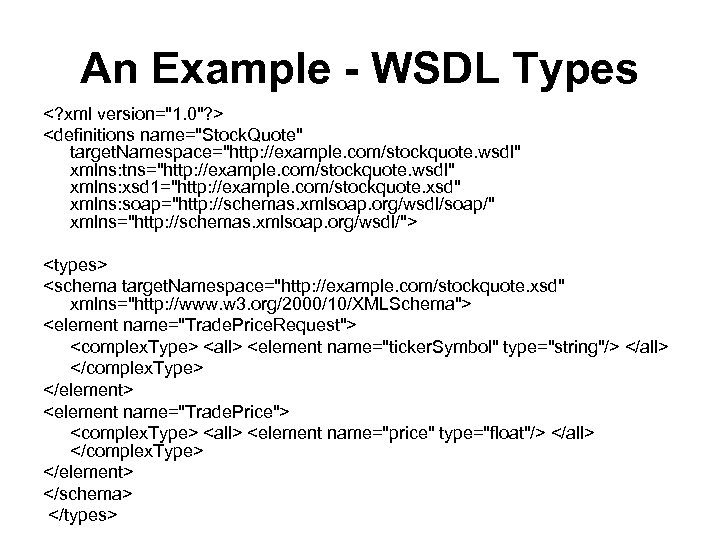

An Example - WSDL Types <? xml version="1. 0"? > <definitions name="Stock. Quote" target. Namespace="http: //example. com/stockquote. wsdl" xmlns: tns="http: //example. com/stockquote. wsdl" xmlns: xsd 1="http: //example. com/stockquote. xsd" xmlns: soap="http: //schemas. xmlsoap. org/wsdl/soap/" xmlns="http: //schemas. xmlsoap. org/wsdl/"> <types> <schema target. Namespace="http: //example. com/stockquote. xsd" xmlns="http: //www. w 3. org/2000/10/XMLSchema"> <element name="Trade. Price. Request"> <complex. Type> <all> <element name="ticker. Symbol" type="string"/> </all> </complex. Type> </element> <element name="Trade. Price"> <complex. Type> <all> <element name="price" type="float"/> </all> </complex. Type> </element> </schema> </types>
WSDL Operations <message name="Get. Last. Trade. Price. Input"> <part name="body" element="xsd 1: Trade. Price. Request"/> </message> <message name="Get. Last. Trade. Price. Output"> <part name="body" element="xsd 1: Trade. Price"/></message> <port. Type name="Stock. Quote. Port. Type"> <operation name="Get. Last. Trade. Price"> <input message="tns: Get. Last. Trade. Price. Input"/> <output message="tns: Get. Last. Trade. Price. Output"/> </operation> </port. Type>

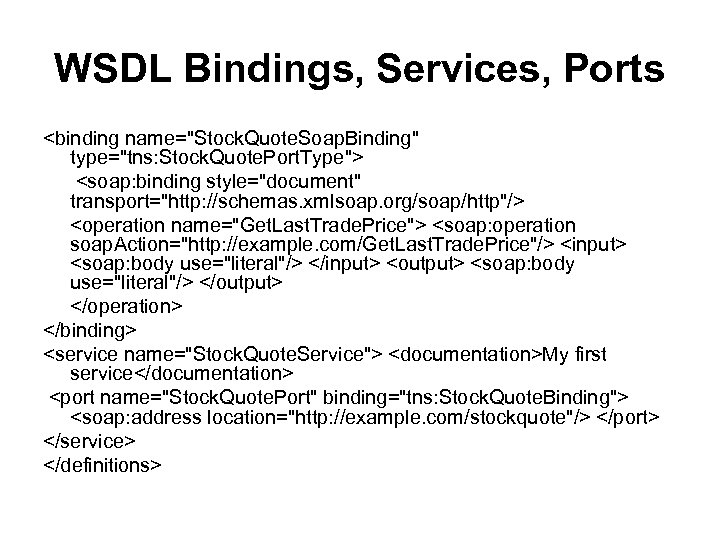

WSDL Bindings, Services, Ports <binding name="Stock. Quote. Soap. Binding" type="tns: Stock. Quote. Port. Type"> <soap: binding style="document" transport="http: //schemas. xmlsoap. org/soap/http"/> <operation name="Get. Last. Trade. Price"> <soap: operation soap. Action="http: //example. com/Get. Last. Trade. Price"/> <input> <soap: body use="literal"/> </input> <output> <soap: body use="literal"/> </output> </operation> </binding> <service name="Stock. Quote. Service"> <documentation>My first service</documentation> <port name="Stock. Quote. Port" binding="tns: Stock. Quote. Binding"> <soap: address location="http: //example. com/stockquote"/> </port> </service> </definitions>

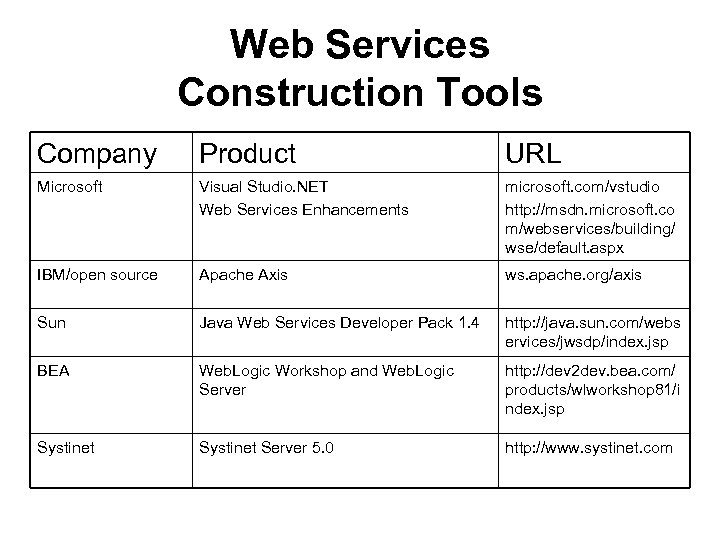

Web Services Construction Tools Company Product URL Microsoft Visual Studio. NET Web Services Enhancements microsoft. com/vstudio http: //msdn. microsoft. co m/webservices/building/ wse/default. aspx IBM/open source Apache Axis ws. apache. org/axis Sun Java Web Services Developer Pack 1. 4 http: //java. sun. com/webs ervices/jwsdp/index. jsp BEA Web. Logic Workshop and Web. Logic Server http: //dev 2 dev. bea. com/ products/wlworkshop 81/i ndex. jsp Systinet Server 5. 0 http: //www. systinet. com

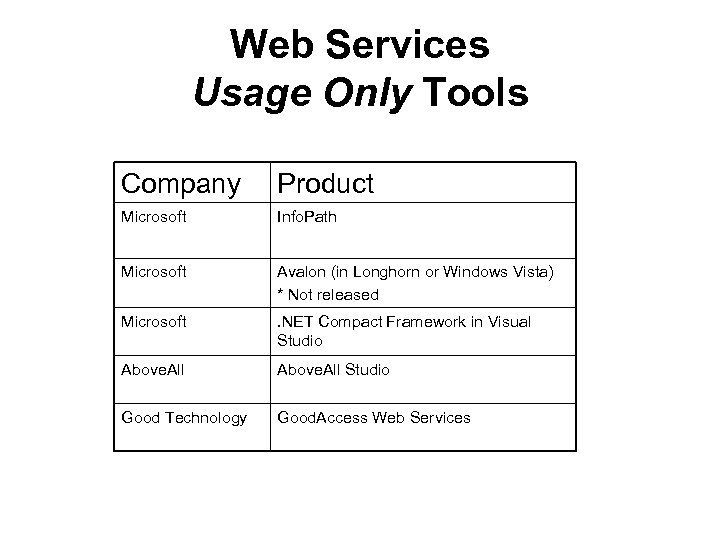

Web Services Usage Only Tools Company Product Microsoft Info. Path Microsoft Avalon (in Longhorn or Windows Vista) * Not released Microsoft . NET Compact Framework in Visual Studio Above. All Studio Good Technology Good. Access Web Services

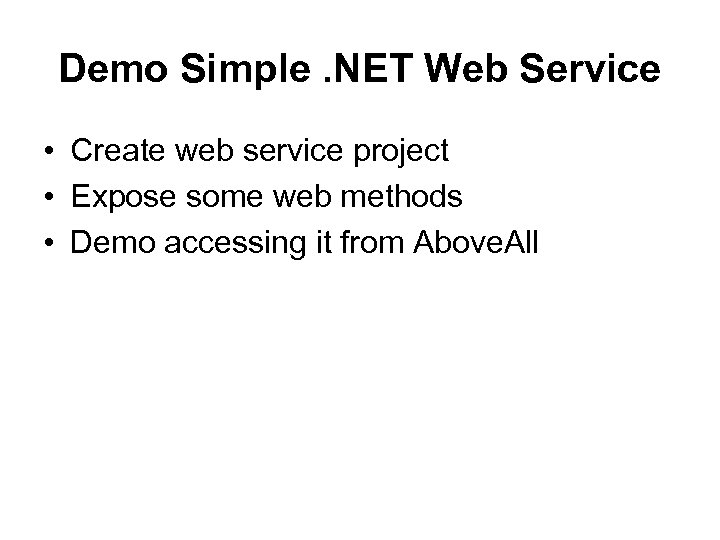

Demo Simple. NET Web Service • Create web service project • Expose some web methods • Demo accessing it from Above. All
Some Applications • Services a web application might need – – Credit card verification Package shipping Currency conversion Stock quotes • Internal architecture of multiple server applications – User authorization web service – Remote procedure calls • Heavy computational tasks – Optimizers – Routing • Factor out business logic to expose to many application front ends – E. g. Common Order web service with web page frontend, desktop frontend, cellphone frontend, PDA frontend
Existing Web Services • Consumer – Google (search, cache, spelling) http: //www. google. com/apis/download. html – Amazon AWS 4. 0 • Product search via REST and SOAP • Enterprise application ISVs – – Sales. Force, www. sforce. com Siebel SAP Microsoft • Miscellaneous Utilities – Xmethods. com • Thousands of internal IT applications at many companies – Wells. Fargo – Motorola

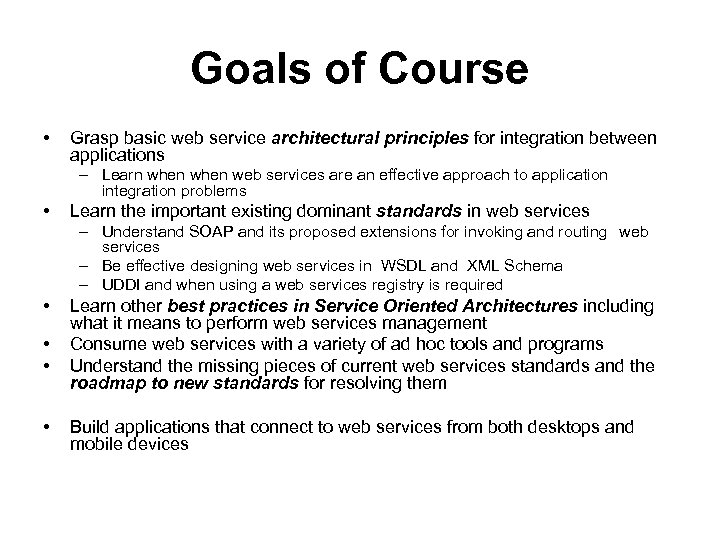

Goals of Course • Grasp basic web service architectural principles for integration between applications – Learn when web services are an effective approach to application integration problems • Learn the important existing dominant standards in web services – Understand SOAP and its proposed extensions for invoking and routing web services – Be effective designing web services in WSDL and XML Schema – UDDI and when using a web services registry is required • • Learn other best practices in Service Oriented Architectures including what it means to perform web services management Consume web services with a variety of ad hoc tools and programs Understand the missing pieces of current web services standards and the roadmap to new standards for resolving them Build applications that connect to web services from both desktops and mobile devices

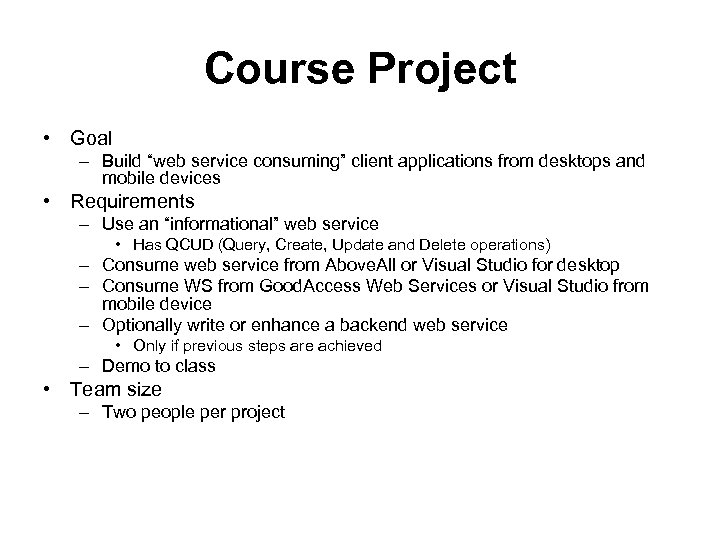

Course Project • Goal – Build “web service consuming” client applications from desktops and mobile devices • Requirements – Use an “informational” web service • Has QCUD (Query, Create, Update and Delete operations) – Consume web service from Above. All or Visual Studio for desktop – Consume WS from Good. Access Web Services or Visual Studio from mobile device – Optionally write or enhance a backend web service • Only if previous steps are achieved – Demo to class • Team size – Two people per project
Possible “Informational Web Services” for Your Projects • • • • Stock/company/financial information Sales account information Cal course schedule Books that match search criteria (using Amazon’s WS) Documents that match search criteria (using google’s WS) Course assignments Calendar appointments Project bugs Bank account records BART schedules Directions to multiple sites Local sites of interest Blogs (via Atom-wrapping web service) News (via an RSS-wrapping web service)

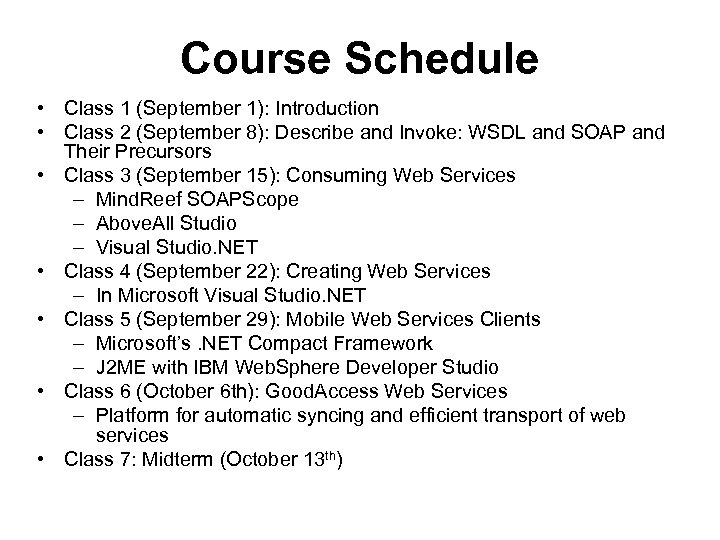

Course Schedule • Class 1 (September 1): Introduction • Class 2 (September 8): Describe and Invoke: WSDL and SOAP and Their Precursors • Class 3 (September 15): Consuming Web Services – Mind. Reef SOAPScope – Above. All Studio – Visual Studio. NET • Class 4 (September 22): Creating Web Services – In Microsoft Visual Studio. NET • Class 5 (September 29): Mobile Web Services Clients – Microsoft’s. NET Compact Framework – J 2 ME with IBM Web. Sphere Developer Studio • Class 6 (October 6 th): Good. Access Web Services – Platform for automatic syncing and efficient transport of web services • Class 7: Midterm (October 13 th)

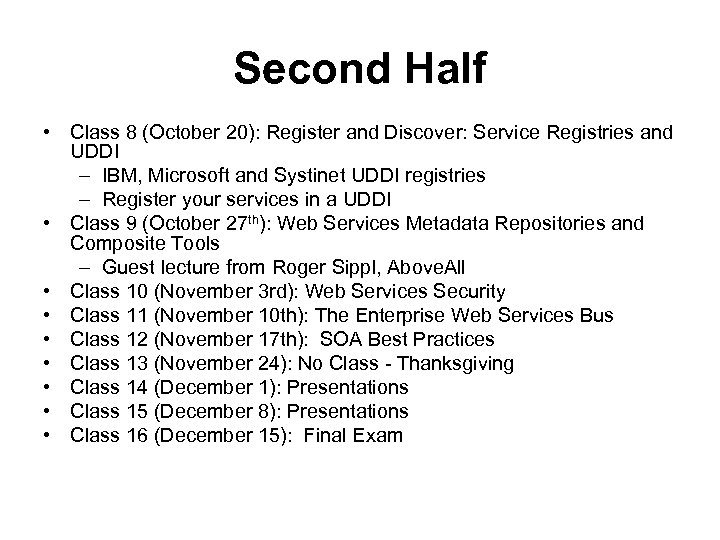

Second Half • Class 8 (October 20): Register and Discover: Service Registries and UDDI – IBM, Microsoft and Systinet UDDI registries – Register your services in a UDDI • Class 9 (October 27 th): Web Services Metadata Repositories and Composite Tools – Guest lecture from Roger Sippl, Above. All • Class 10 (November 3 rd): Web Services Security • Class 11 (November 10 th): The Enterprise Web Services Bus • Class 12 (November 17 th): SOA Best Practices • Class 13 (November 24): No Class - Thanksgiving • Class 14 (December 1): Presentations • Class 15 (December 8): Presentations • Class 16 (December 15): Final Exam

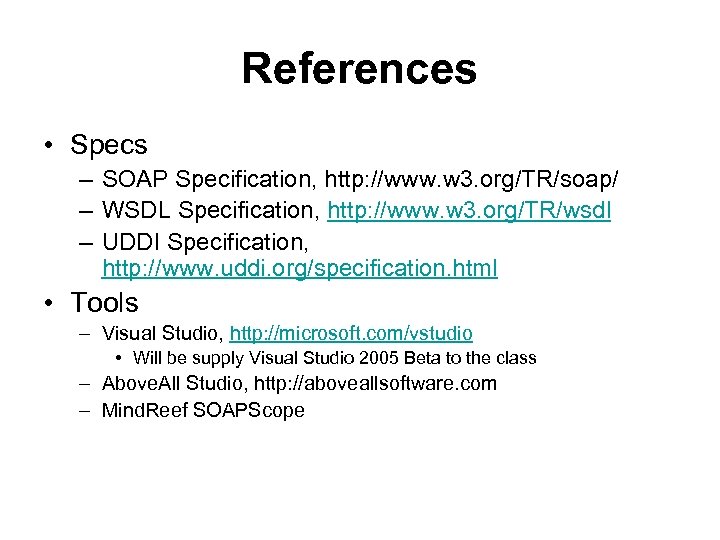

References • Specs – SOAP Specification, http: //www. w 3. org/TR/soap/ – WSDL Specification, http: //www. w 3. org/TR/wsdl – UDDI Specification, http: //www. uddi. org/specification. html • Tools – Visual Studio, http: //microsoft. com/vstudio • Will be supply Visual Studio 2005 Beta to the class – Above. All Studio, http: //aboveallsoftware. com – Mind. Reef SOAPScope

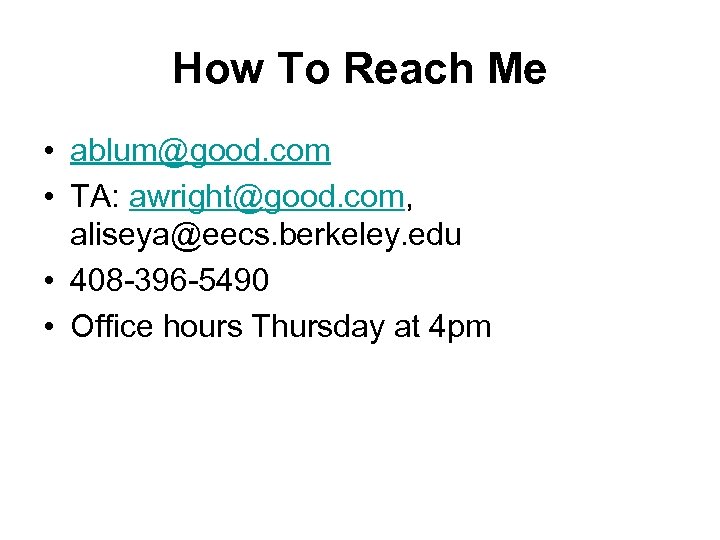

How To Reach Me • ablum@good. com • TA: awright@good. com, aliseya@eecs. berkeley. edu • 408 -396 -5490 • Office hours Thursday at 4 pm
