INFINEON Home Gateway - The Subscriber‘s Choice Matthias Kindler 2002 -01 -27 Page 1 14. March 2002 ITU Workshop on IP Cablecom/ Mediacom 2004/ Interactivity in Multimedia Matthias Kindler Business Development Manager Communication Business Group Never stop thinking.

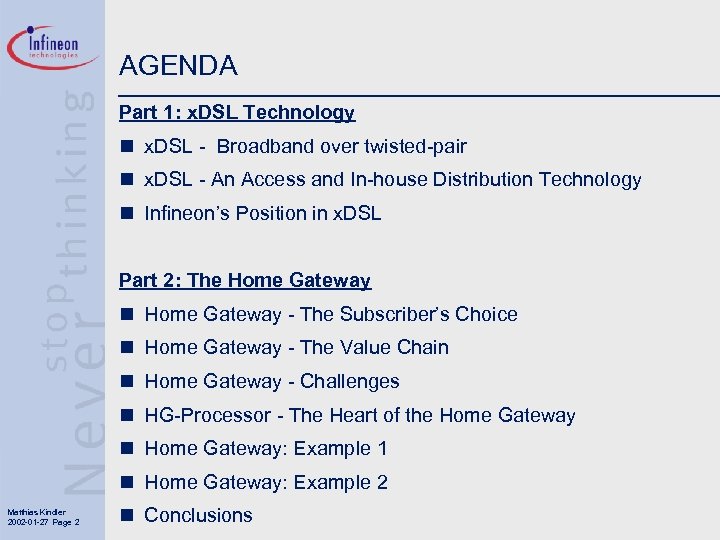

AGENDA Part 1: x. DSL Technology n x. DSL - Broadband over twisted-pair n x. DSL - An Access and In-house Distribution Technology n Infineon’s Position in x. DSL Part 2: The Home Gateway n Home Gateway - The Subscriber’s Choice n Home Gateway - The Value Chain n Home Gateway - Challenges n HG-Processor - The Heart of the Home Gateway n Home Gateway: Example 1 n Home Gateway: Example 2 Matthias Kindler 2002 -01 -27 Page 2 n Conclusions

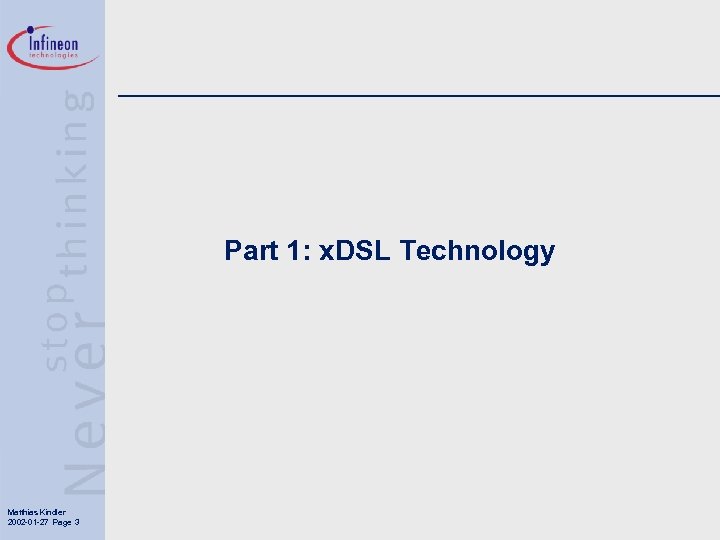

Part 1: x. DSL Technology Matthias Kindler 2002 -01 -27 Page 3
x. DSL - Increases The Capacity of Copper Networks VDSL ADSL SHDSL Modem 56 kbps ISDN 160 kbps 2 - 26 Mbps 1. 5 - 8 Mbps 2 - 26 Mbps 0. 3 / 2 Mbps 3 - 4000 feet 12 - 12000 feet > 15000 feet Matthias Kindler 2002 -01 -27 Page 4

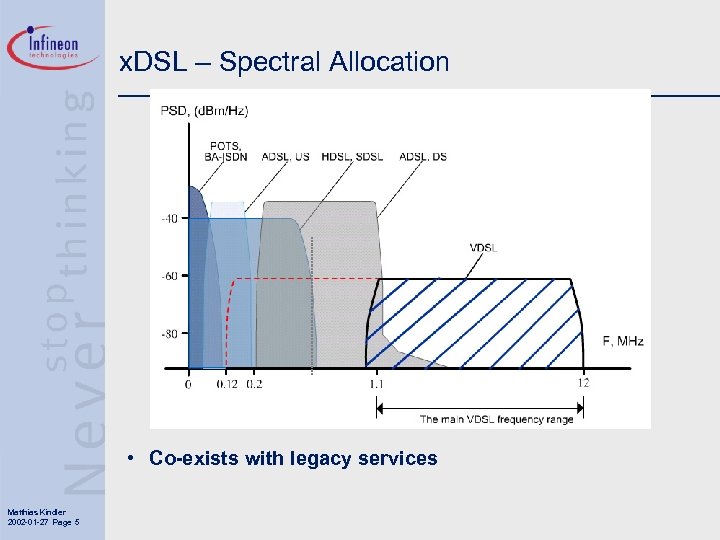

x. DSL – Spectral Allocation • Co-exists with legacy services Matthias Kindler 2002 -01 -27 Page 5

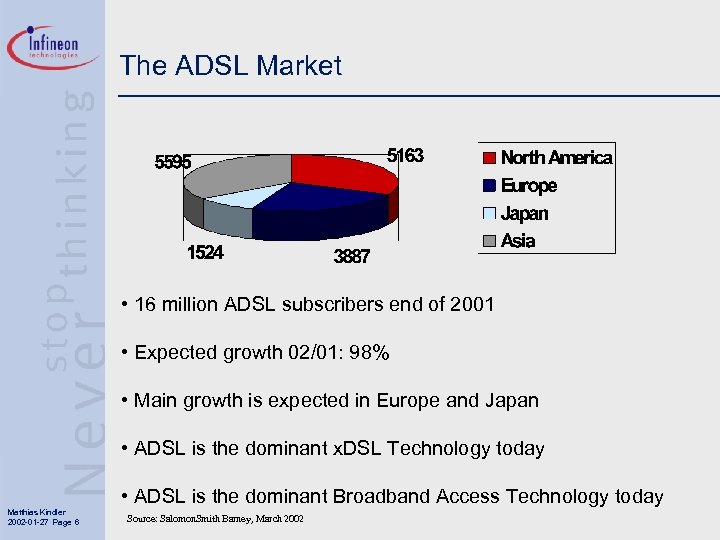

The ADSL Market • 16 million ADSL subscribers end of 2001 • Expected growth 02/01: 98% • Main growth is expected in Europe and Japan • ADSL is the dominant x. DSL Technology today • ADSL is the dominant Broadband Access Technology today Matthias Kindler 2002 -01 -27 Page 6 Source: Salomon. Smith Barney, March 2002

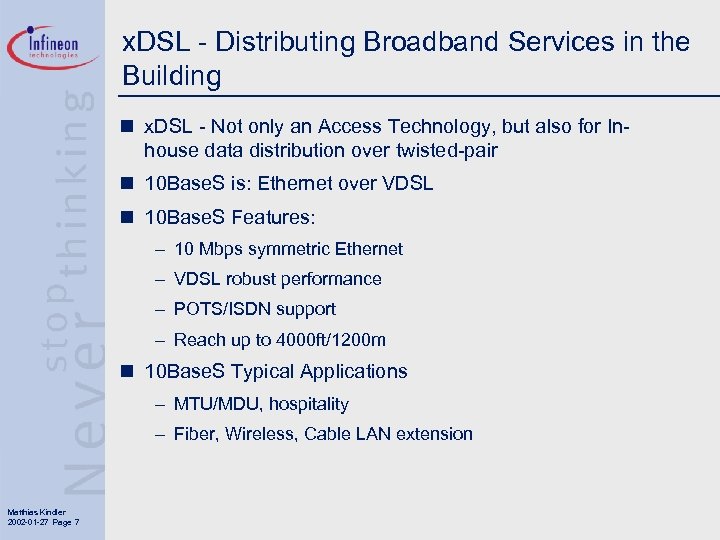

x. DSL - Distributing Broadband Services in the Building n x. DSL - Not only an Access Technology, but also for Inhouse data distribution over twisted-pair n 10 Base. S is: Ethernet over VDSL n 10 Base. S Features: – 10 Mbps symmetric Ethernet – VDSL robust performance – POTS/ISDN support – Reach up to 4000 ft/1200 m n 10 Base. S Typical Applications – MTU/MDU, hospitality – Fiber, Wireless, Cable LAN extension Matthias Kindler 2002 -01 -27 Page 7

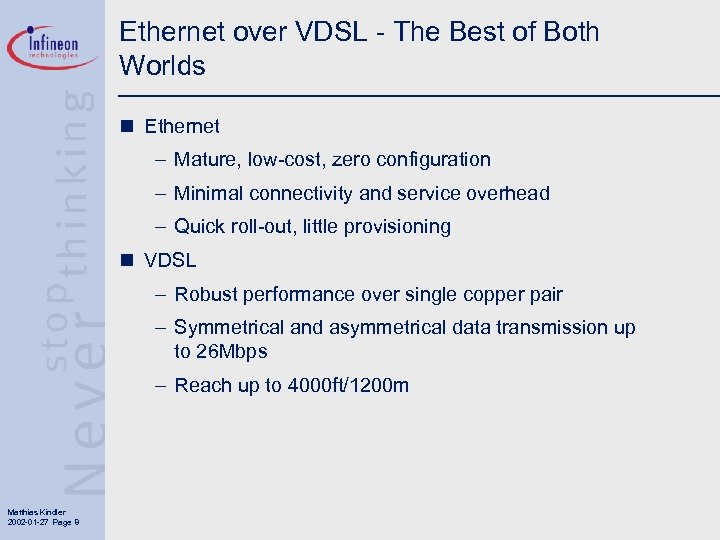

Ethernet over VDSL - The Best of Both Worlds n Ethernet – Mature, low-cost, zero configuration – Minimal connectivity and service overhead – Quick roll-out, little provisioning n VDSL – Robust performance over single copper pair – Symmetrical and asymmetrical data transmission up to 26 Mbps – Reach up to 4000 ft/1200 m Matthias Kindler 2002 -01 -27 Page 8

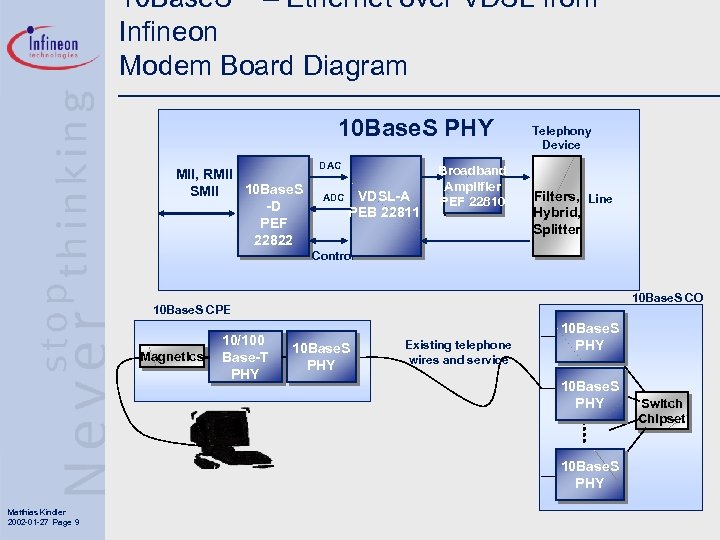

10 Base. S – Ethernet over VDSL from Infineon Modem Board Diagram 10 Base. S PHY MII, RMII 10 Base. S SMII -D PEF 22822 DAC ADC VDSL-A PEB 22811 Broadband Amplifier PEF 22810 Telephony Device Filters, Line Hybrid, Splitter Control 10 Base. S CO 10 Base. S CPE Magnetics 10/100 Base-T PHY 10 Base. S PHY Existing telephone wires and service 10 Base. S PHY Matthias Kindler 2002 -01 -27 Page 9 Switch Chipset
Part 2: The Home Gateway Matthias Kindler 2002 -01 -27 Page 10
Home Gateway - The Subscriber‘s Choice Data x. DSL - Access VDSL, SHDSL, ADSL Fiber - Access APON, EPON Cable - Access DOCSIS 1. 1 Wireless - Access MMDS, LMDS, Satellite Matthias Kindler 2002 -01 -27 Page 11 Data + Voice + Video Wireline Home- Networks Ethernet Twisted Pair 10 Base. S 1394 USB Coax Wireless Home Networks 802. 11 x HIPERLAN Home. RF DECT Bluetooth
Home Gateway - Value Chain Standard Groups Specific Challenges for Standard Groups Matthias Kindler 2002 -01 -27 Page 12 IC Supplier Specific Challenges for IC Supplier System House Specific Challenges for System Houses Service Provider Specific Challenges for Service Providers Customer’s Choice • The Customer’s choice leads to specific challenges and requirements for all parts of the value chain.

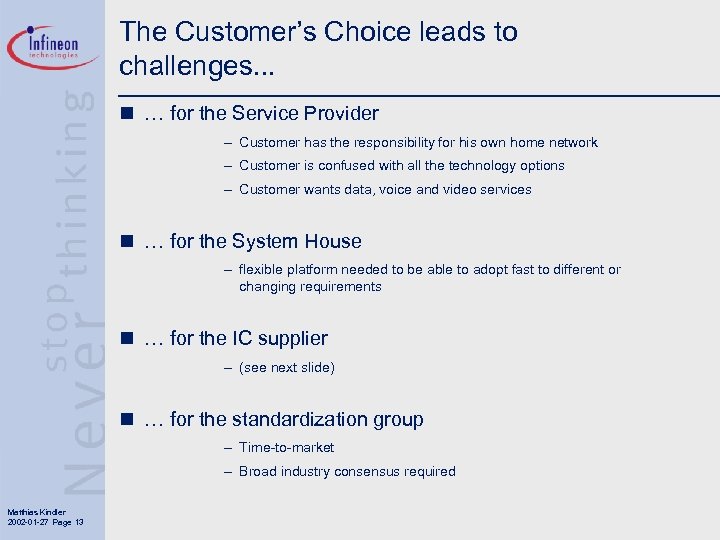

The Customer’s Choice leads to challenges. . . n … for the Service Provider – Customer has the responsibility for his own home network – Customer is confused with all the technology options – Customer wants data, voice and video services n … for the System House – flexible platform needed to be able to adopt fast to different or changing requirements n … for the IC supplier – (see next slide) n … for the standardization group – Time-to-market – Broad industry consensus required Matthias Kindler 2002 -01 -27 Page 13

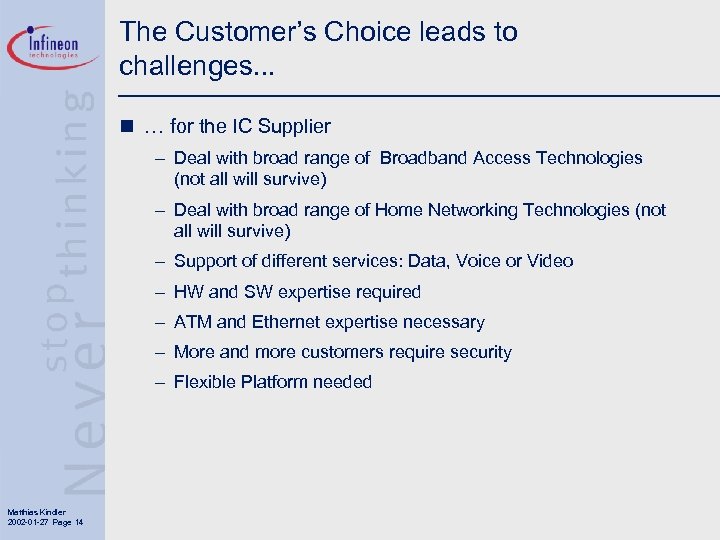

The Customer’s Choice leads to challenges. . . n … for the IC Supplier – Deal with broad range of Broadband Access Technologies (not all will survive) – Deal with broad range of Home Networking Technologies (not all will survive) – Support of different services: Data, Voice or Video – HW and SW expertise required – ATM and Ethernet expertise necessary – More and more customers require security – Flexible Platform needed Matthias Kindler 2002 -01 -27 Page 14

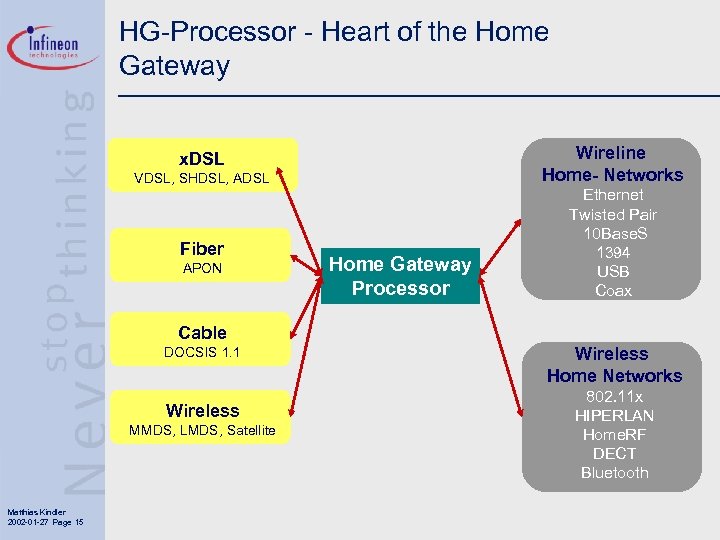

HG-Processor - Heart of the Home Gateway Wireline Home- Networks x. DSL VDSL, SHDSL, ADSL Fiber APON Home Gateway Processor Ethernet Twisted Pair 10 Base. S 1394 USB Coax Cable DOCSIS 1. 1 Wireless MMDS, LMDS, Satellite Matthias Kindler 2002 -01 -27 Page 15 Wireless Home Networks 802. 11 x HIPERLAN Home. RF DECT Bluetooth
Challenges translated into Target Spec (1) Matthias Kindler 2002 -01 -27 Page 16

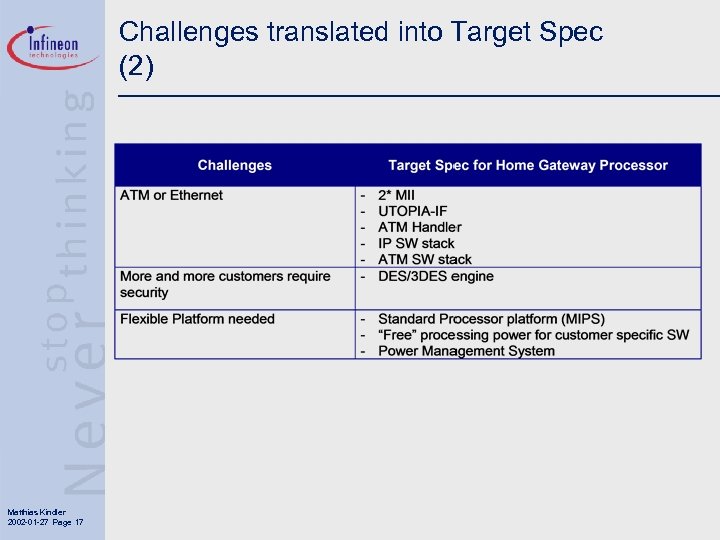

Challenges translated into Target Spec (2) Matthias Kindler 2002 -01 -27 Page 17
Easy. Port - The Heart of the Home Gateway Flash SRAM Peripherals APON x. DSL Matthias Kindler 2002 -01 -27 Page 18 Peripherals External Bus Unit SSC/SPI/2 UART Timer Unit…. Voice Engine 32 -bit RISC coprocessor 2 PCM/IOM-2 units HDLC Cell Engine Utopia/Serial ATM traffic management AAL 2/AAL 5 Home. PNA Ethernet USB V. 35 ISDN SDRAM CPU Subsystem 64 -bit RISC MIPS 5 kc 64 + 64 k. Byte Caches SDRAM Controller Packet Engine 32 -bit RISC coprocessor 2 Ethernet 10/100 (one PHY integrated) HDLC, USB DES/3 DES

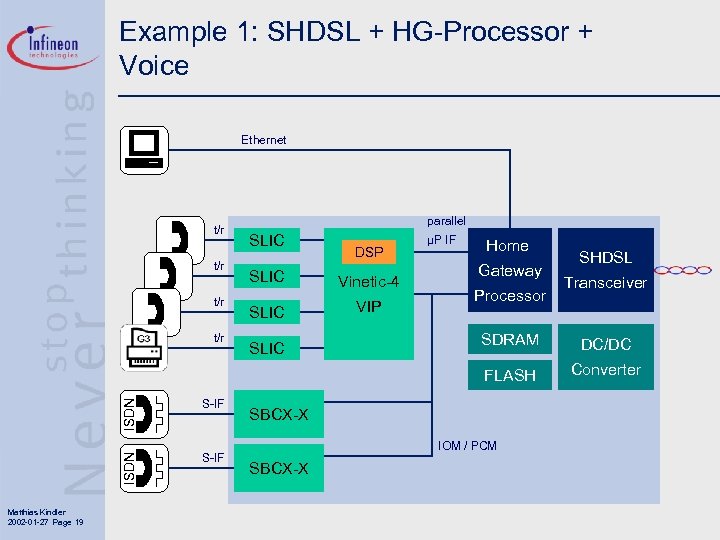

Example 1: SHDSL + HG-Processor + Voice Ethernet t/r t/r parallel SLIC DSP Vinetic-4 VIP µP IF Home Gateway Processor SHDSL Transceiver ISDN Matthias Kindler 2002 -01 -27 Page 19 S-IF SLIC SDRAM DC/DC FLASH t/r Converter SBCX-X IOM / PCM SBCX-X
Example 2: APON + HG-Processor + 10 Base. S Local Router VDSL NTU LAN Connection To the CO APON ONU with VDSL support Copper UTP Fiber APON Matthias Kindler 2002 -01 -27 Page 20 HG 10 Base. S Transceiver Processor 10 Base. S PHY Switch 10 Base. S PHY

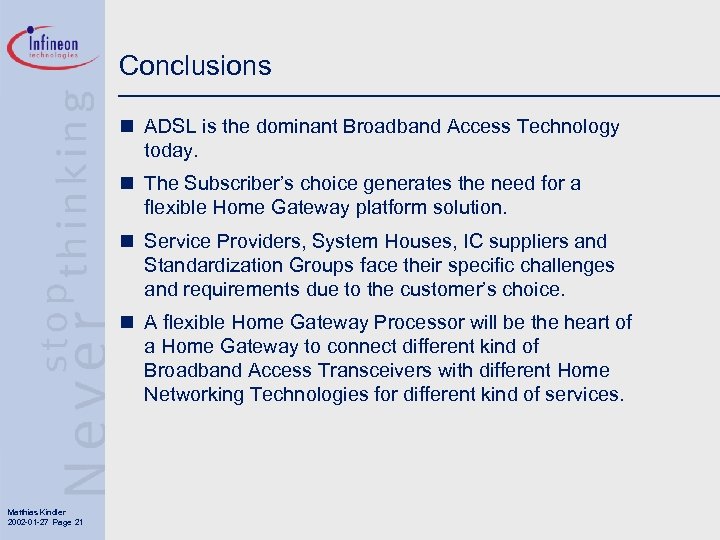

Conclusions n ADSL is the dominant Broadband Access Technology today. n The Subscriber’s choice generates the need for a flexible Home Gateway platform solution. n Service Providers, System Houses, IC suppliers and Standardization Groups face their specific challenges and requirements due to the customer’s choice. n A flexible Home Gateway Processor will be the heart of a Home Gateway to connect different kind of Broadband Access Transceivers with different Home Networking Technologies for different kind of services. Matthias Kindler 2002 -01 -27 Page 21
Thank you! And don‘t forget: Matthias Kindler 2002 -01 -27 Page 22 „Never stop Thinking“
