The Best Industrial Dryers Made. Ø Most Industrial Sizes Offered by ANY Dryer Manufacturer Ø Industrial Strength, Throughout – Same High-end Components and Material Thicknesses Used from the Smallest to the Largest Capacity Model Ø Wide Array of Features and Options Ø Tumble Green™ Design, Improves on Efficiency, NOx & Sound Emissions and Ease of Use Ø Flexible Design Allows for Several Structural Variations to Meet the Needs of Each Installation Ø Tremendous Resources v On-Line Savings Calculator (R. O. I. ) and Build-Your-Own CLM (Quote Request) v Group Resources from other Allied Laundry Lines Distributors v Experienced CLM Staff Providing Superior Distributor and Customer Support

Dryer Models Six Industrial Sizes “GP” = Gas Pass-Through “TG” = Tumble Green “SP” = Steam Pass-Through 105 GP dia. Basket 250 lb. Gas 2 -Door, 1 -Way Tilt 105 cu ft / 65” 105 TG dia. Basket 250 lb. Gas 2 -Door, 1 -Way Tilt 105 cu ft / 65” 105 SP dia. Basket 250 lb. Steam 2 -Door, 1 -Way Tilt 105 cu ft / 65” 140 350 lb. 140 cu ft / 65” dia. Basket 165 450 lb. 165 cu ft / 70” dia. Basket 194 600 lb. 194 cu ft / 80” dia. Basket 264 800 lb. 264 cu ft / 80” dia. Basket 321 1200 lb. Standard Pass-Though Configuration 321 cu ft / 92” dia. Basket

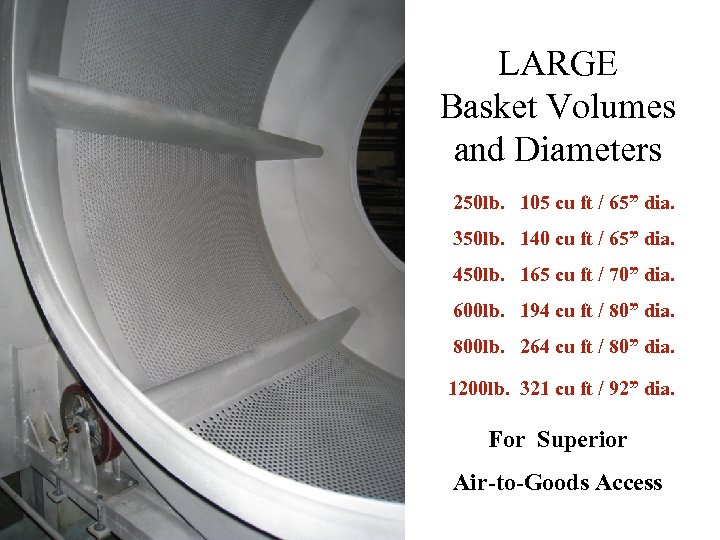

LARGE Basket Volumes and Diameters 250 lb. 105 cu ft / 65” dia. 350 lb. 140 cu ft / 65” dia. 450 lb. 165 cu ft / 70” dia. 600 lb. 194 cu ft / 80” dia. 800 lb. 264 cu ft / 80” dia. 1200 lb. 321 cu ft / 92” dia. For Superior Air-to-Goods Access

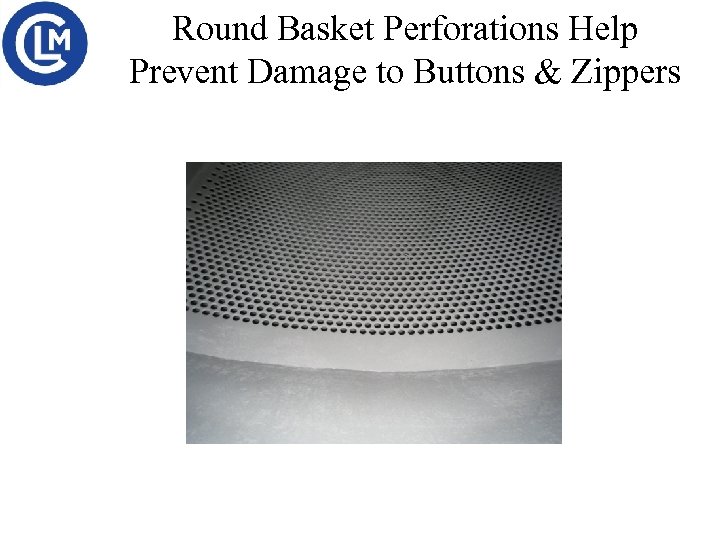

Round Basket Perforations Help Prevent Damage to Buttons & Zippers

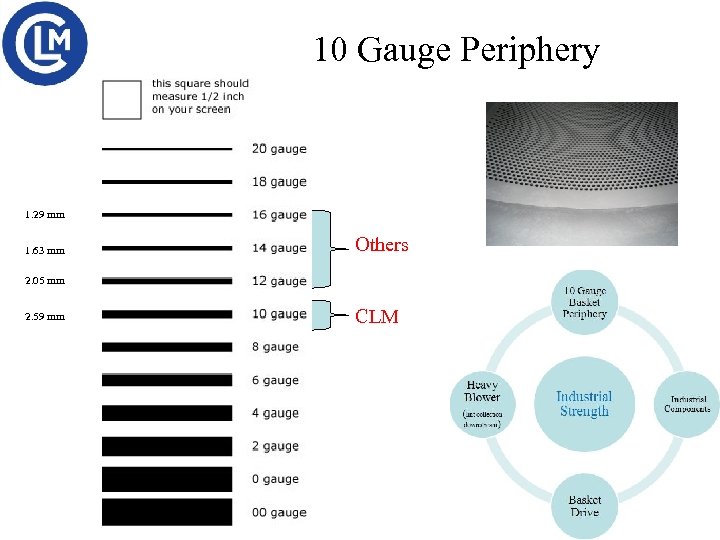

10 Gauge Periphery 1. 29 mm 1. 63 mm Others 2. 05 mm 2. 59 mm CLM

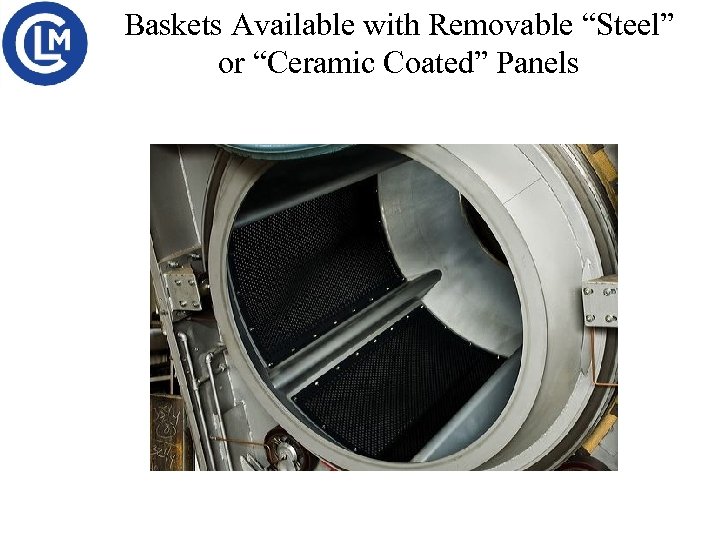

Baskets Available with Removable “Steel” or “Ceramic Coated” Panels

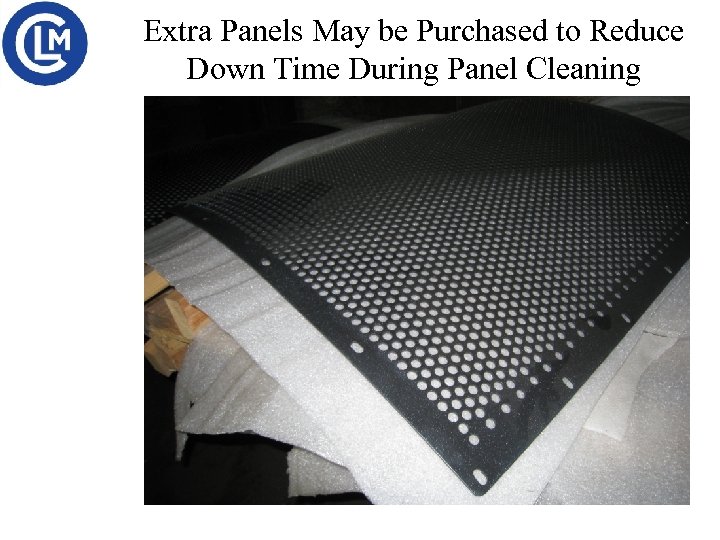

Extra Panels May be Purchased to Reduce Down Time During Panel Cleaning

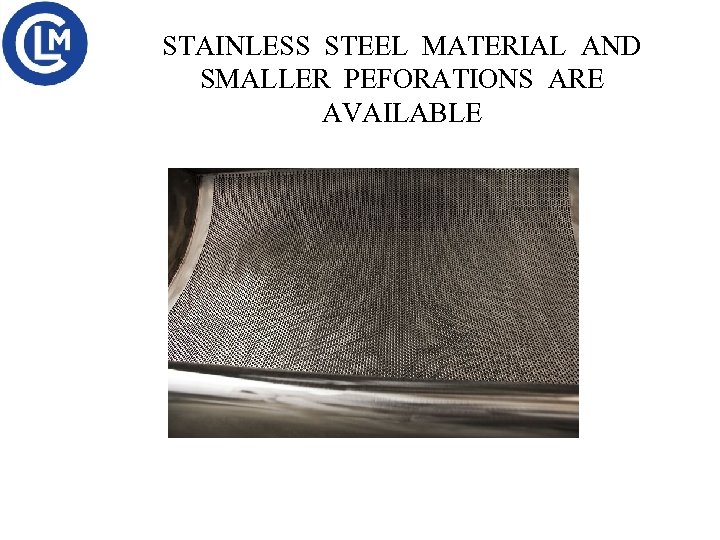

STAINLESS STEEL MATERIAL AND SMALLER PEFORATIONS ARE AVAILABLE

Revolving Door SAFE, QUIET, SMOOTH… A TIME-TESTED CLM ADVANTAGE

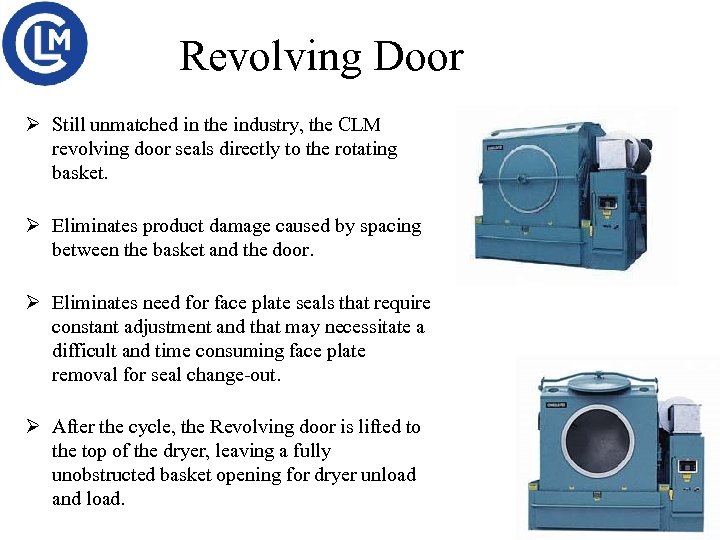

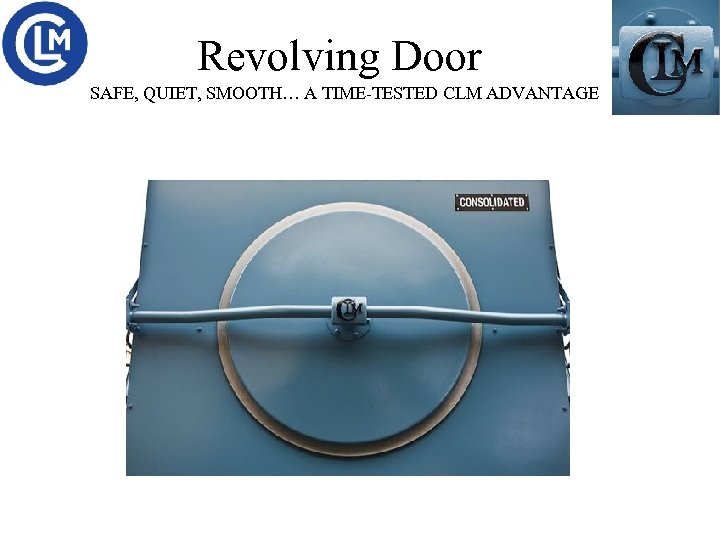

Revolving Door Ø Still unmatched in the industry, the CLM revolving door seals directly to the rotating basket. Ø Eliminates product damage caused by spacing between the basket and the door. Ø Eliminates need for face plate seals that require constant adjustment and that may necessitate a difficult and time consuming face plate removal for seal change-out. Ø After the cycle, the Revolving door is lifted to the top of the dryer, leaving a fully unobstructed basket opening for dryer unload and load.

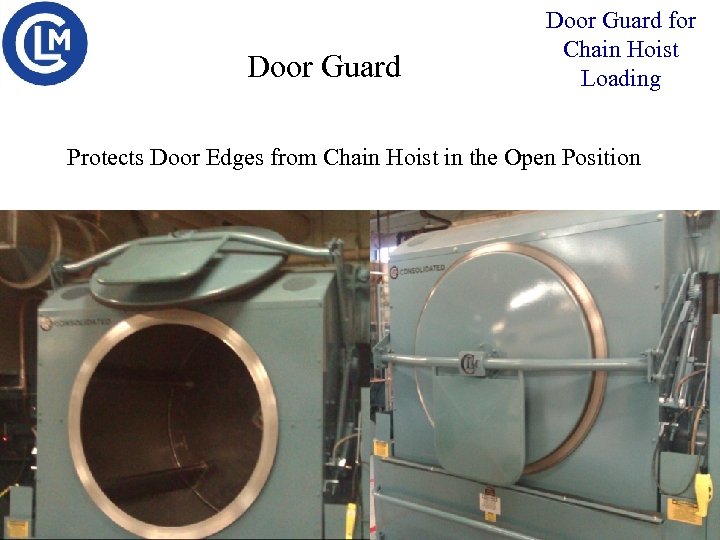

Door Guard for Chain Hoist Loading Protects Door Edges from Chain Hoist in the Open Position

Standard Features Coming Soon Blower Access FULL ACCESS BLOWER Ø Entire Structure Around Burner is Hinged Ø Gives Full Access for Cleaning or Maintenance Ø Permits Cleaning of Lower Plenum

Heat Reduction Radiant Heat Reduction Paint Applied to Combustion Chamber Holds Heat In / Significantly Reducing Ambient Heat Less Ambient Heat Means Greater Efficiency Helps to Preserve a Cool Work Environment

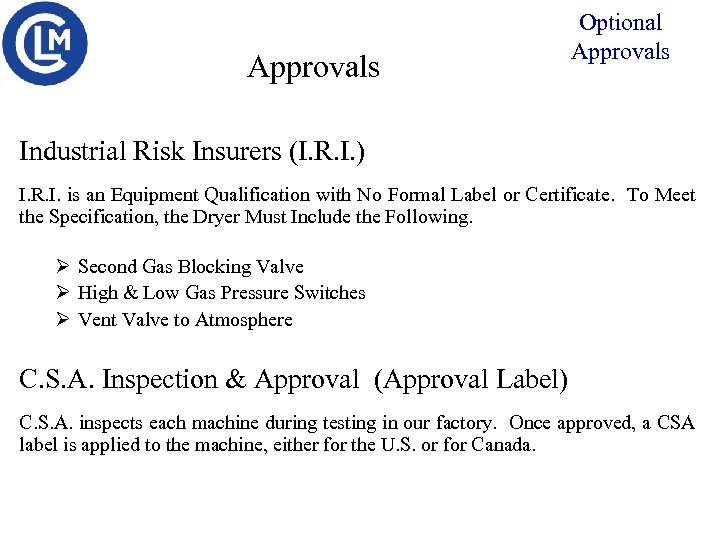

Approvals Optional Approvals Industrial Risk Insurers (I. R. I. ) I. R. I. is an Equipment Qualification with No Formal Label or Certificate. To Meet the Specification, the Dryer Must Include the Following. Ø Second Gas Blocking Valve Ø High & Low Gas Pressure Switches Ø Vent Valve to Atmosphere C. S. A. Inspection & Approval (Approval Label) C. S. A. inspects each machine during testing in our factory. Once approved, a CSA label is applied to the machine, either for the U. S. or for Canada.

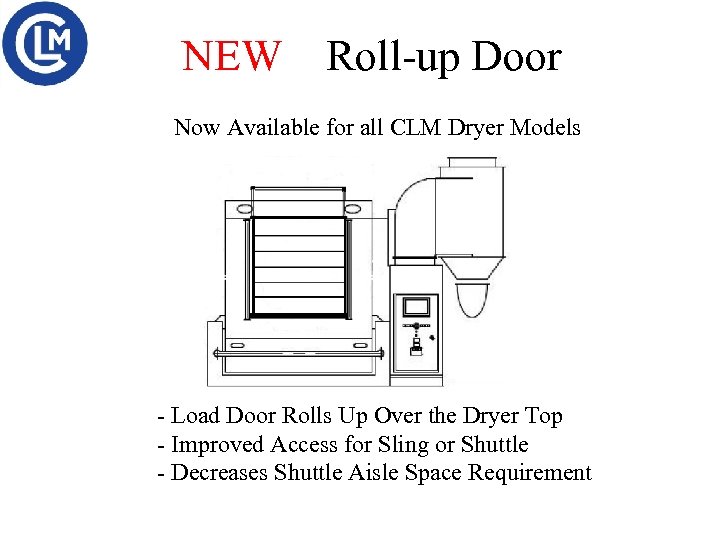

NEW Roll-up Door Now Available for all CLM Dryer Models - Load Door Rolls Up Over the Dryer Top - Improved Access for Sling or Shuttle - Decreases Shuttle Aisle Space Requirement

Basket Drive

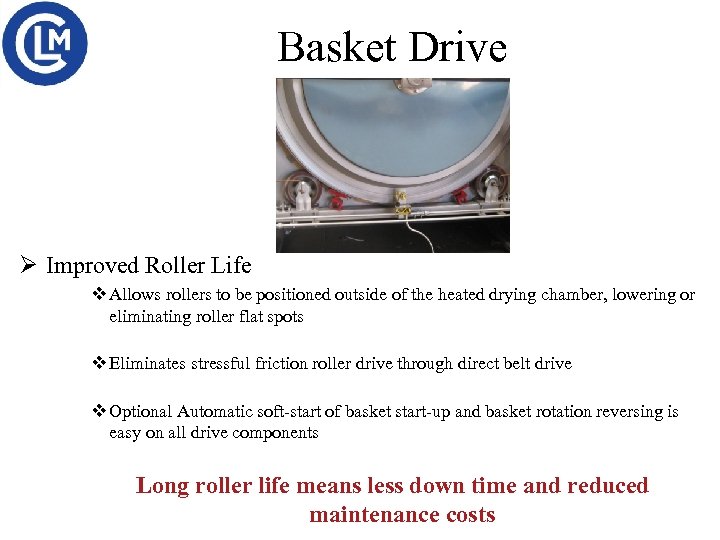

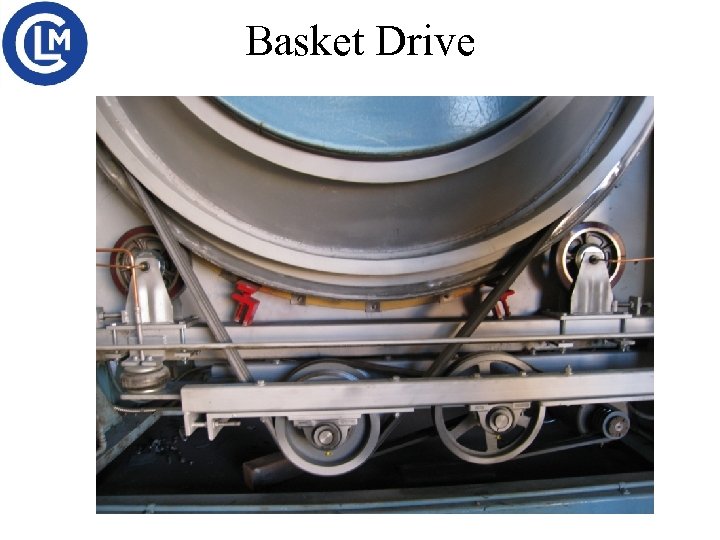

Basket Drive Ø Improved Roller Life v Allows rollers to be positioned outside of the heated drying chamber, lowering or eliminating roller flat spots v Eliminates stressful friction roller drive through direct belt drive v Optional Automatic soft-start of basket start-up and basket rotation reversing is easy on all drive components Long roller life means less down time and reduced maintenance costs

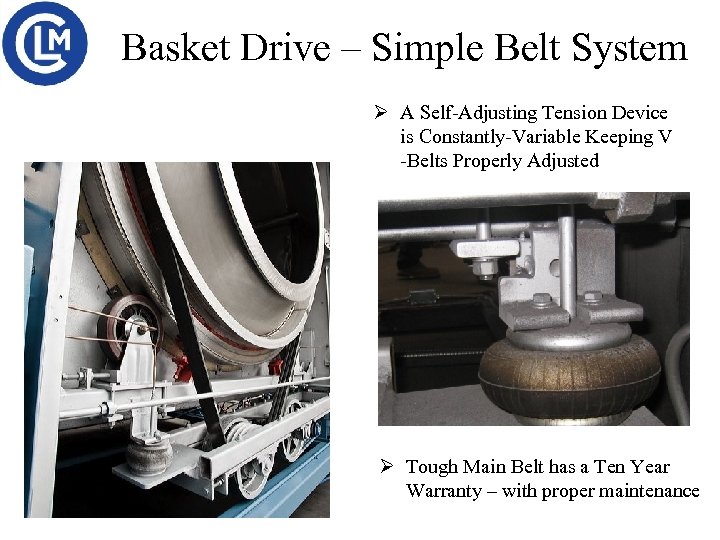

Basket Drive – Simple Belt System Ø A Self-Adjusting Tension Device is Constantly-Variable Keeping V -Belts Properly Adjusted Ø Tough Main Belt has a Ten Year Warranty – with proper maintenance

CONTROLS

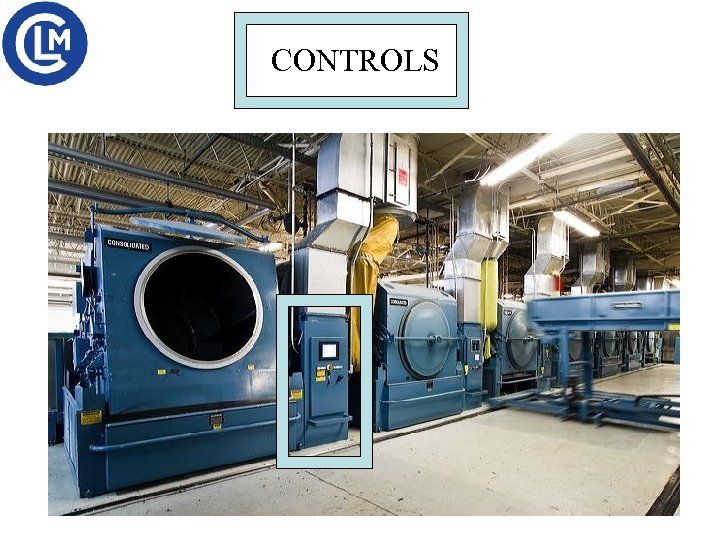

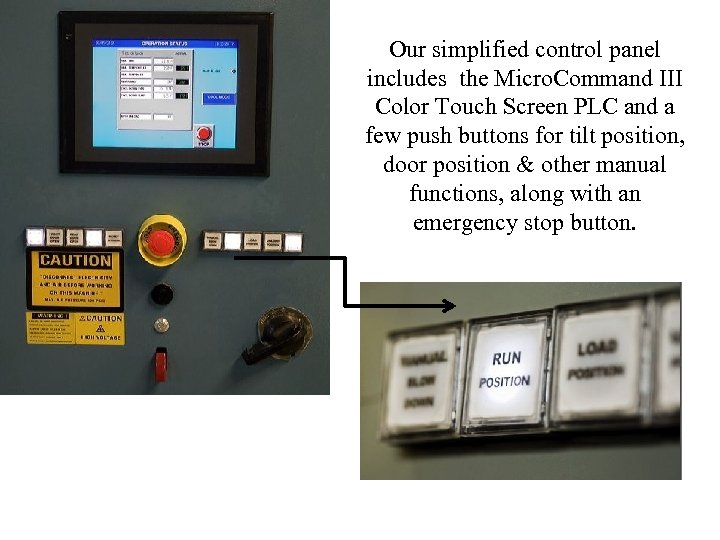

Our simplified control panel includes the Micro. Command III Color Touch Screen PLC and a few push buttons for tilt position, door position & other manual functions, along with an emergency stop button.

Command III Dryer Control Ø Sophisticated Color Touch -Screen Display Ø Simple Operation Ø Select “Choose Dryer Program” then Select the Program #. Ø It couldn’t be any easier.

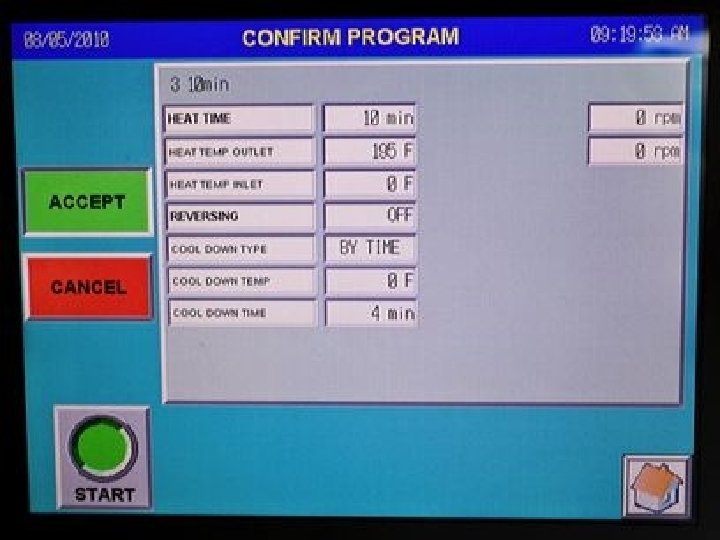

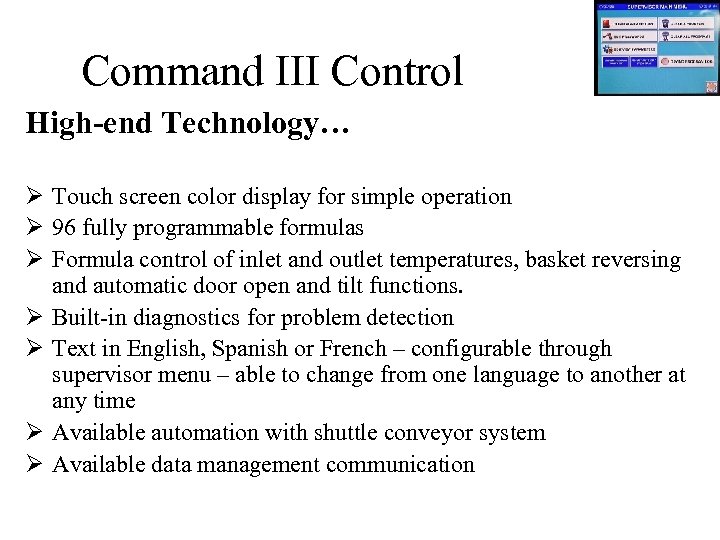

Command III Control High-end Technology… Ø Touch screen color display for simple operation Ø 96 fully programmable formulas Ø Formula control of inlet and outlet temperatures, basket reversing and automatic door open and tilt functions. Ø Built-in diagnostics for problem detection Ø Text in English, Spanish or French – configurable through supervisor menu – able to change from one language to another at any time Ø Available automation with shuttle conveyor system Ø Available data management communication

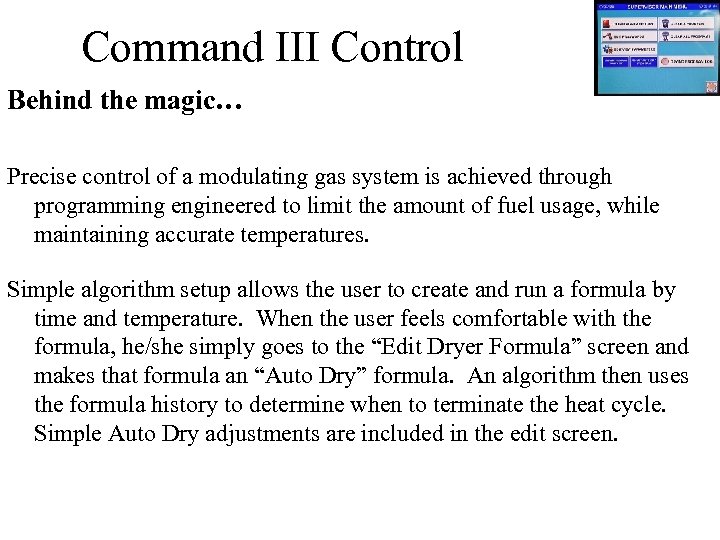

Command III Control Behind the magic… Precise control of a modulating gas system is achieved through programming engineered to limit the amount of fuel usage, while maintaining accurate temperatures. Simple algorithm setup allows the user to create and run a formula by time and temperature. When the user feels comfortable with the formula, he/she simply goes to the “Edit Dryer Formula” screen and makes that formula an “Auto Dry” formula. An algorithm then uses the formula history to determine when to terminate the heat cycle. Simple Auto Dry adjustments are included in the edit screen.

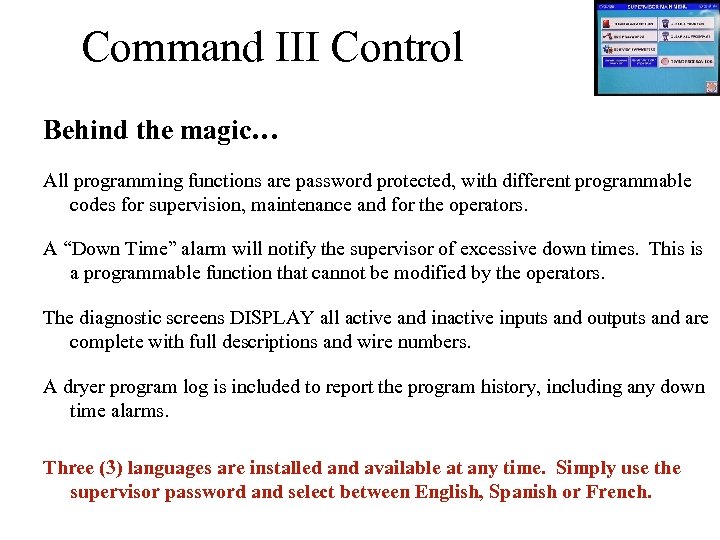

Command III Control Behind the magic… All programming functions are password protected, with different programmable codes for supervision, maintenance and for the operators. A “Down Time” alarm will notify the supervisor of excessive down times. This is a programmable function that cannot be modified by the operators. The diagnostic screens DISPLAY all active and inactive inputs and outputs and are complete with full descriptions and wire numbers. A dryer program log is included to report the program history, including any down time alarms. Three (3) languages are installed and available at any time. Simply use the supervisor password and select between English, Spanish or French.

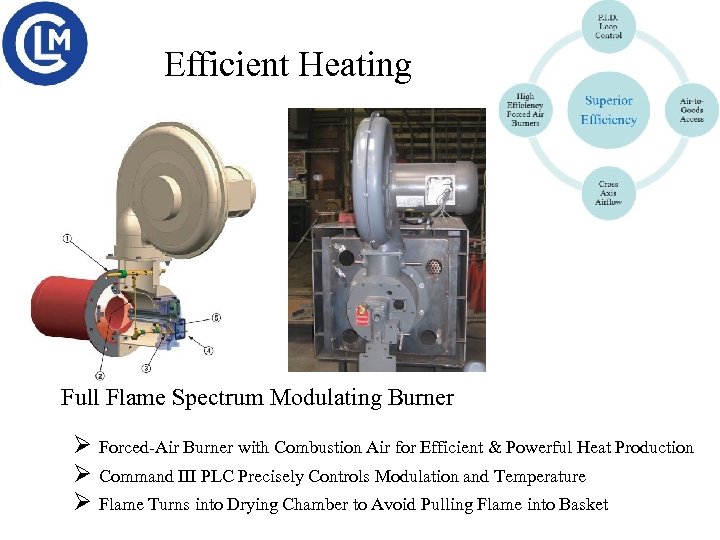

Efficient Heating Full Flame Spectrum Modulating Burner Ø Forced-Air Burner with Combustion Air for Efficient & Powerful Heat Production Ø Command III PLC Precisely Controls Modulation and Temperature Ø Flame Turns into Drying Chamber to Avoid Pulling Flame into Basket

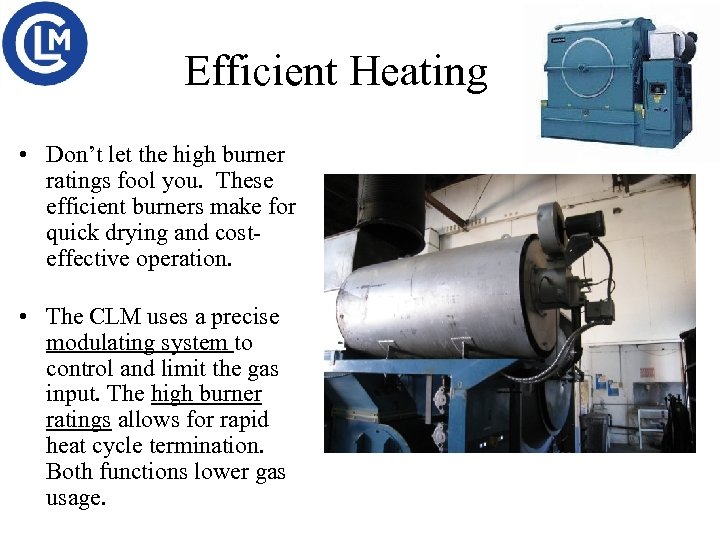

Efficient Heating • Don’t let the high burner ratings fool you. These efficient burners make for quick drying and costeffective operation. • The CLM uses a precise modulating system to control and limit the gas input. The high burner ratings allows for rapid heat cycle termination. Both functions lower gas usage.

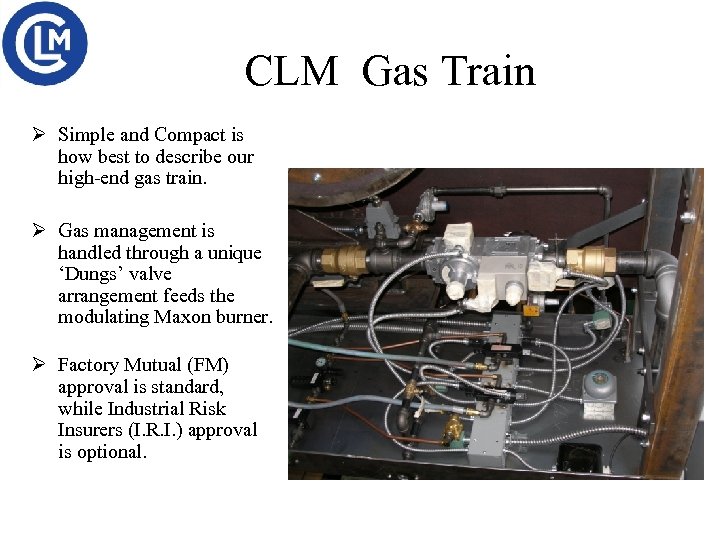

CLM Gas Train Ø Simple and Compact is how best to describe our high-end gas train. Ø Gas management is handled through a unique ‘Dungs’ valve arrangement feeds the modulating Maxon burner. Ø Factory Mutual (FM) approval is standard, while Industrial Risk Insurers (I. R. I. ) approval is optional.

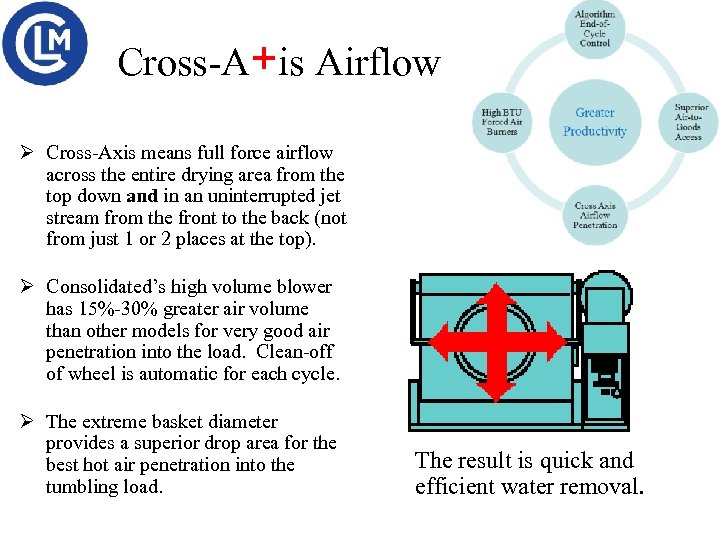

Cross-A+is Airflow Ø Cross-Axis means full force airflow across the entire drying area from the top down and in an uninterrupted jet stream from the front to the back (not from just 1 or 2 places at the top). Ø Consolidated’s high volume blower has 15%-30% greater air volume than other models for very good air penetration into the load. Clean-off of wheel is automatic for each cycle. Ø The extreme basket diameter provides a superior drop area for the best hot air penetration into the tumbling load. The result is quick and efficient water removal.

Some competitive dryers use an airflow design called “Axial Airflow” that brings hot air into the open ends of the basket. With only 2 -points of entry, the flow of air is like a “V” shape into the bottom of the basket. Air by-pass around the load is prevalent with this design due to required gaps in the faceplate seals and the elimination of basket wiper seals. The need for seals around the four support rollers is also an added maintenance issue.

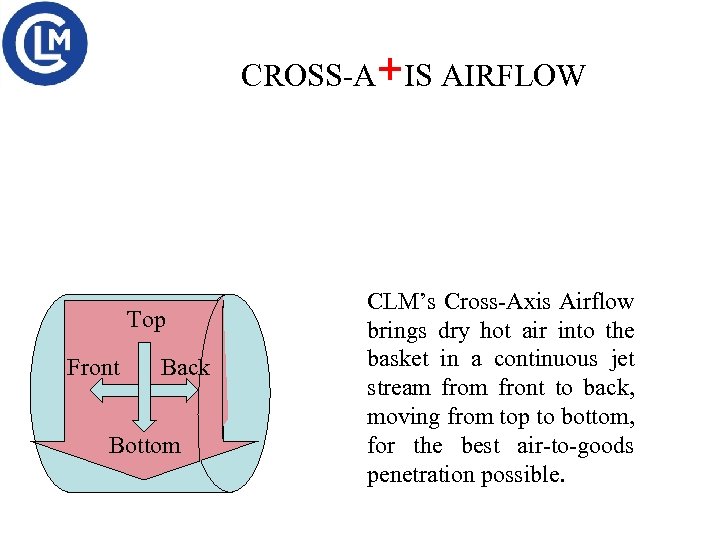

CROSS-A+IS AIRFLOW Top Front Back Bottom CLM’s Cross-Axis Airflow brings dry hot air into the basket in a continuous jet stream front to back, moving from top to bottom, for the best air-to-goods penetration possible.

Optional Dryer Features Ø One Door, Two-Way Tilt Ø Two Door (Pass Through), Two-Way Tilt Ø Automatic Plastic Release Ø 48” Dia. Door on 250 -lb. & 350 -lb. Ø 60” Dia. Door on 600 -lb. & 800 -lb. Ø I. R. I. Gas Train Ø Low NOx Burner Ø Sound Reduction Package Ø Soft-Start Basket Drive Ø Stainless Steel Lint Collector

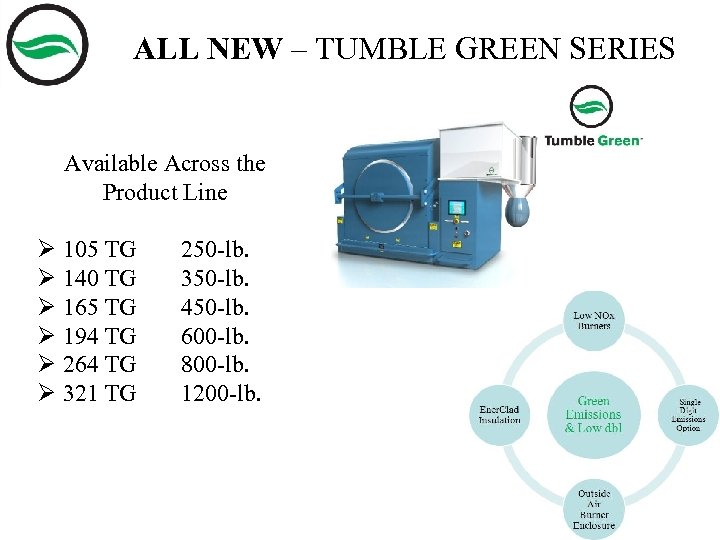

ALL NEW – TUMBLE GREEN SERIES Available Across the Product Line Ø 105 TG Ø 140 TG Ø 165 TG Ø 194 TG Ø 264 TG Ø 321 TG 250 -lb. 350 -lb. 450 -lb. 600 -lb. 800 -lb. 1200 -lb.

ALL NEW – TUMBLE GREEN SERIES TG Features Include… Ø High Efficiency Lox NOx Burner with 35% reduction in emissions and 25% higher turn-down ratio Ø 2 -Stage Variable Speed Basket Drive with 3 -Port Inspection Door Ø Soft-Start Basket Start-up and Reversing Ø High Angle Tilt (20 degrees) Ø Outside Air Makeup Ducting Ø “Ener. Clad” Sound and Ambient Heat Reducing Insulation Package Low NOx Emissions and Other Beneficial Features

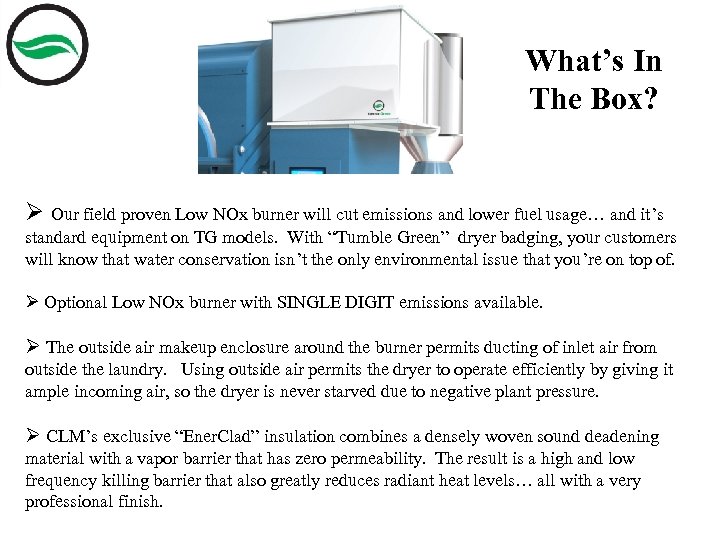

What’s In The Box? Ø Our field proven Low NOx burner will cut emissions and lower fuel usage… and it’s standard equipment on TG models. With “Tumble Green” dryer badging, your customers will know that water conservation isn’t the only environmental issue that you’re on top of. Ø Optional Low NOx burner with SINGLE DIGIT emissions available. Ø The outside air makeup enclosure around the burner permits ducting of inlet air from outside the laundry. Using outside air permits the dryer to operate efficiently by giving it ample incoming air, so the dryer is never starved due to negative plant pressure. Ø CLM’s exclusive “Ener. Clad” insulation combines a densely woven sound deadening material with a vapor barrier that has zero permeability. The result is a high and low frequency killing barrier that also greatly reduces radiant heat levels… all with a very professional finish.

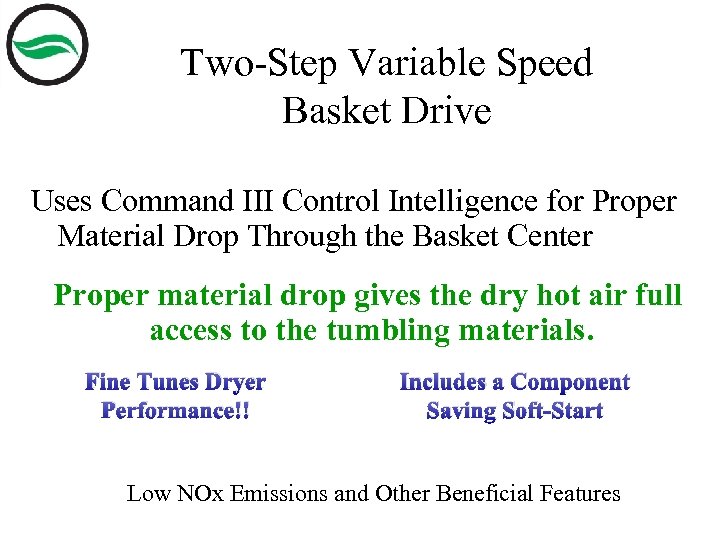

Two-Step Variable Speed Basket Drive Uses Command III Control Intelligence for Proper Material Drop Through the Basket Center Proper material drop gives the dry hot air full access to the tumbling materials. Fine Tunes Dryer Performance!! Includes a Component Saving Soft-Start Low NOx Emissions and Other Beneficial Features

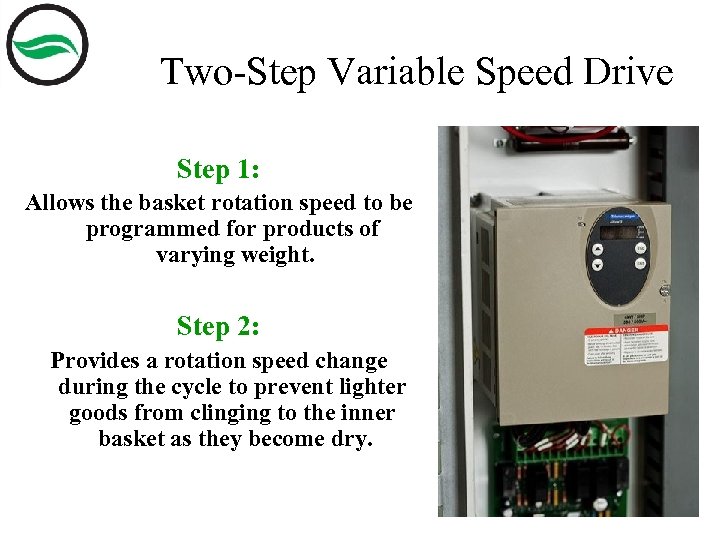

Two-Step Variable Speed Drive Step 1: Allows the basket rotation speed to be programmed for products of varying weight. Step 2: Provides a rotation speed change during the cycle to prevent lighter goods from clinging to the inner basket as they become dry.

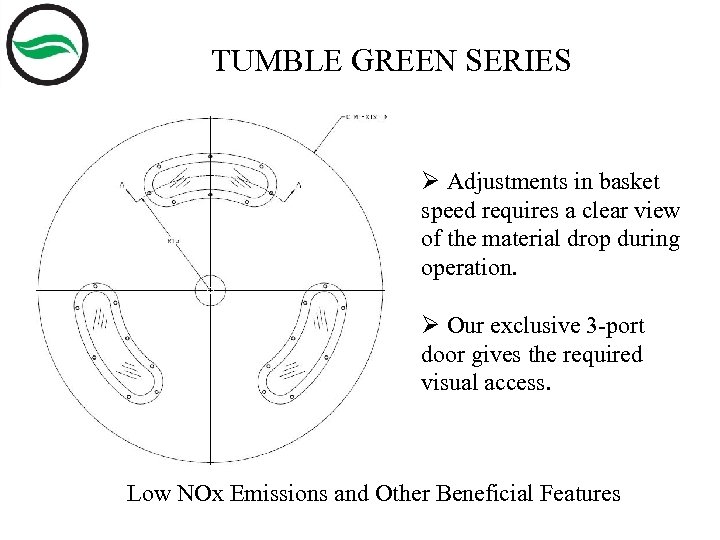

TUMBLE GREEN SERIES Ø Adjustments in basket speed requires a clear view of the material drop during operation. Ø Our exclusive 3 -port door gives the required visual access. Low NOx Emissions and Other Beneficial Features

CLM 165 TG 450 -lb. GAS DRYER Low NOx Emissions and Other Beneficial Features

TUMBLE GREEN SERIES Ø Higher tilt angles help with the load & unload process. Ø Large door diameters further enhances ease of material handling. Low NOx Emissions and Other Beneficial Features

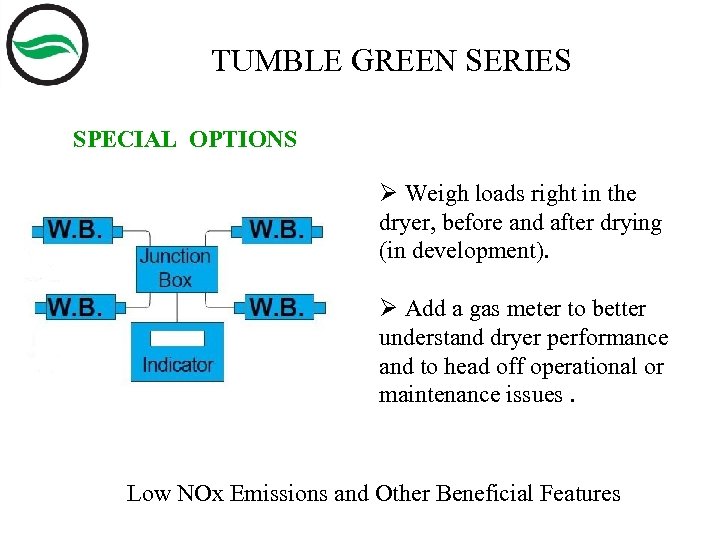

TUMBLE GREEN SERIES SPECIAL OPTIONS Ø Weigh loads right in the dryer, before and after drying (in development). Ø Add a gas meter to better understand dryer performance and to head off operational or maintenance issues. Low NOx Emissions and Other Beneficial Features

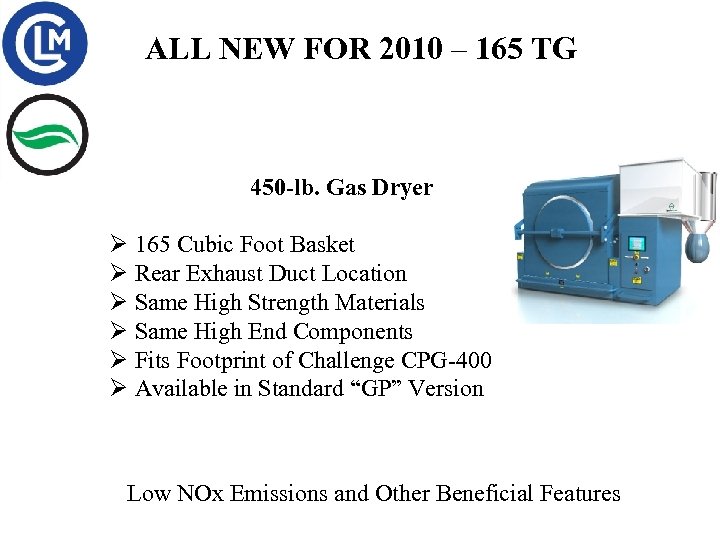

ALL NEW FOR 2010 – 165 TG 450 -lb. Gas Dryer Ø 165 Cubic Foot Basket Ø Rear Exhaust Duct Location Ø Same High Strength Materials Ø Same High End Components Ø Fits Footprint of Challenge CPG-400 Ø Available in Standard “GP” Version Low NOx Emissions and Other Beneficial Features

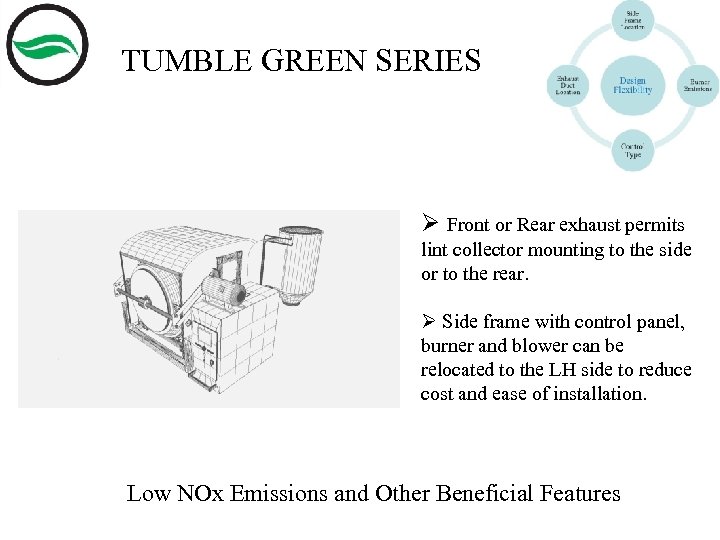

TUMBLE GREEN SERIES Ø Front or Rear exhaust permits lint collector mounting to the side or to the rear. Ø Side frame with control panel, burner and blower can be relocated to the LH side to reduce cost and ease of installation. Low NOx Emissions and Other Beneficial Features

Flexibility of Design One or Two Doors Exhaust Front or Rear Side Frame Left or Right Micro. Command III or Softrol Variable Lint Collector Positions

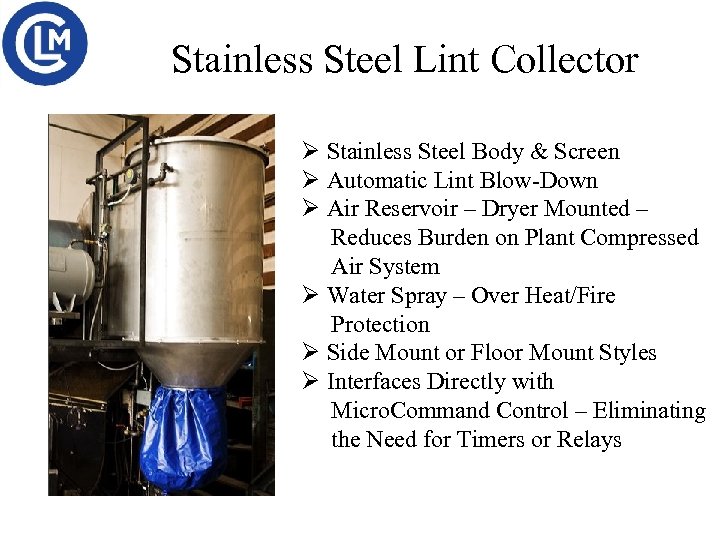

Stainless Steel Lint Collector Ø Stainless Steel Body & Screen Ø Automatic Lint Blow-Down Ø Air Reservoir – Dryer Mounted – Reduces Burden on Plant Compressed Air System Ø Water Spray – Over Heat/Fire Protection Ø Side Mount or Floor Mount Styles Ø Interfaces Directly with Micro. Command Control – Eliminating the Need for Timers or Relays

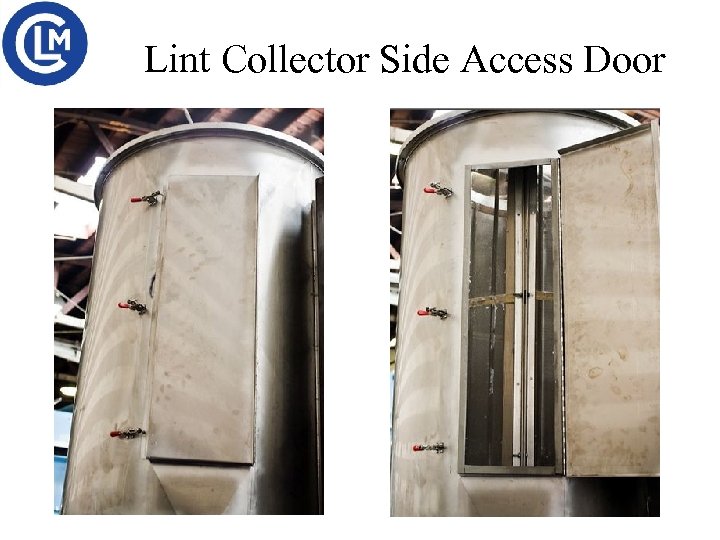

Lint Collector Side Access Door

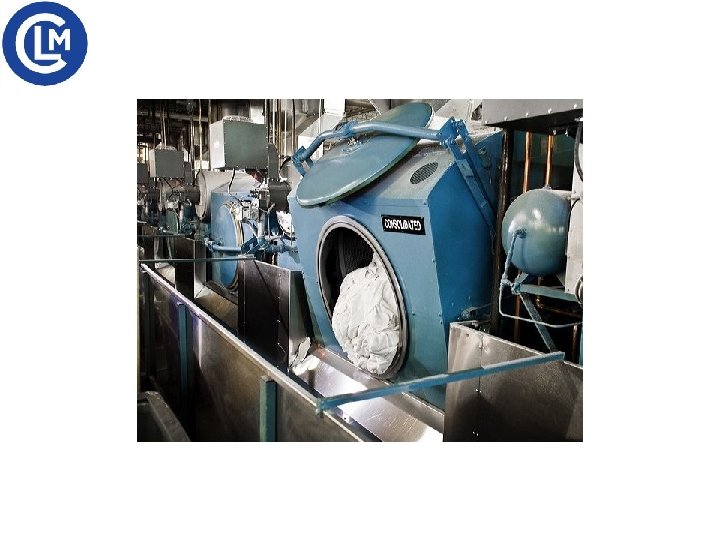

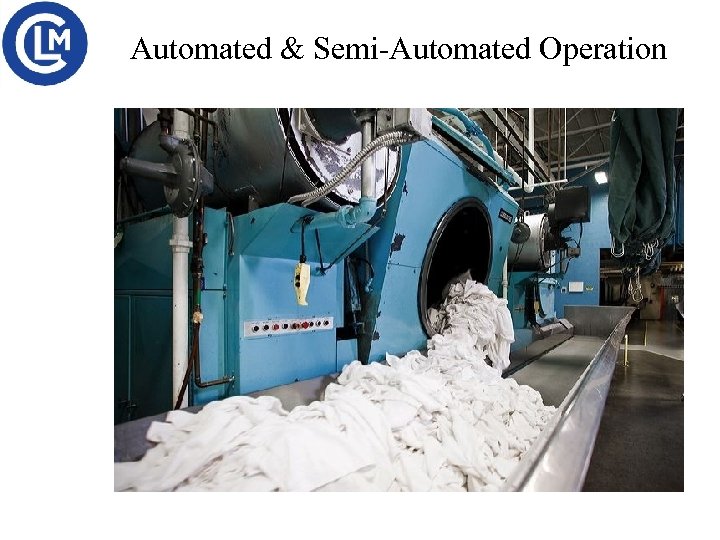

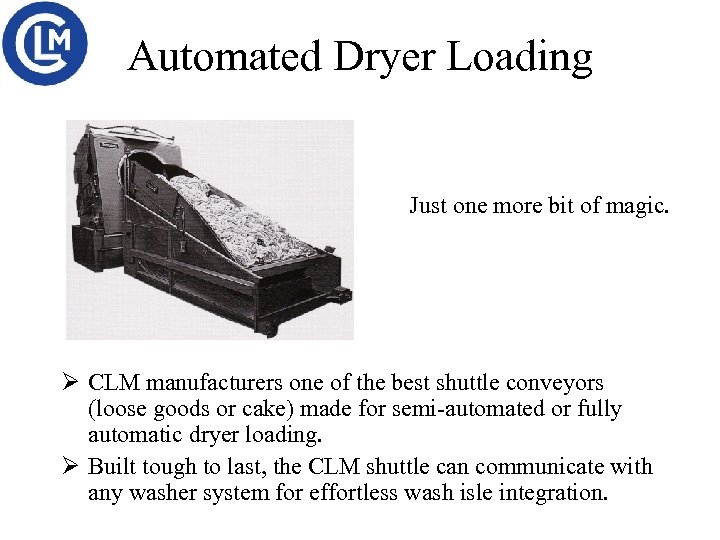

Automated Dryer Loading Just one more bit of magic. Ø CLM manufacturers one of the best shuttle conveyors (loose goods or cake) made for semi-automated or fully automatic dryer loading. Ø Built tough to last, the CLM shuttle can communicate with any washer system for effortless wash isle integration.
