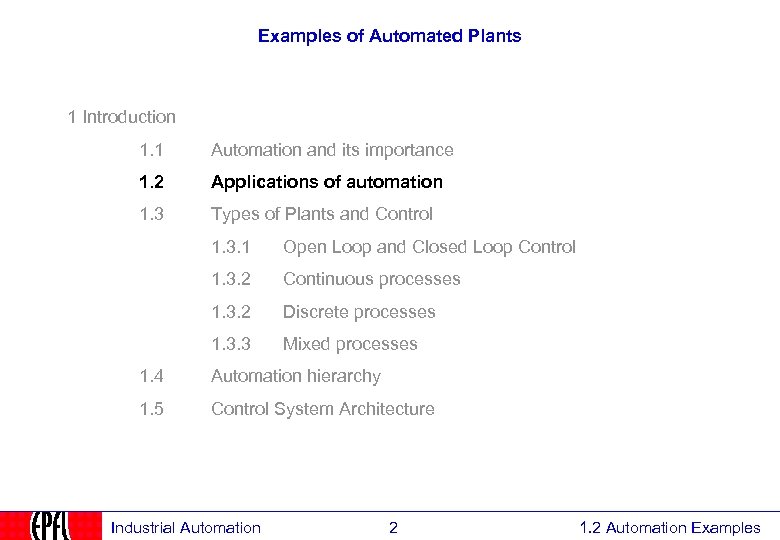

Examples of Automated Plants 1 Introduction 1. 1 1. 2 Automation and its importance Applications of automation 1. 3 Types of Plants and Control 1. 3. 1 Open Loop and Closed Loop Control 1. 3. 2 Continuous processes 1. 3. 2 Discrete processes 1. 3. 3 Mixed processes 1. 4 Automation hierarchy 1. 5 Control System Architecture Industrial Automation 2 1. 2 Automation Examples

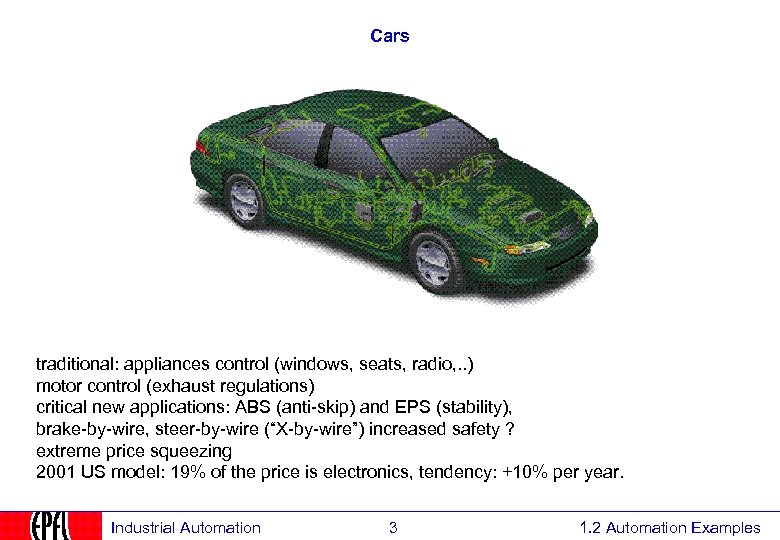

Cars traditional: appliances control (windows, seats, radio, . . ) motor control (exhaust regulations) critical new applications: ABS (anti-skip) and EPS (stability), brake-by-wire, steer-by-wire (“X-by-wire”) increased safety ? extreme price squeezing 2001 US model: 19% of the price is electronics, tendency: +10% per year. Industrial Automation 3 1. 2 Automation Examples

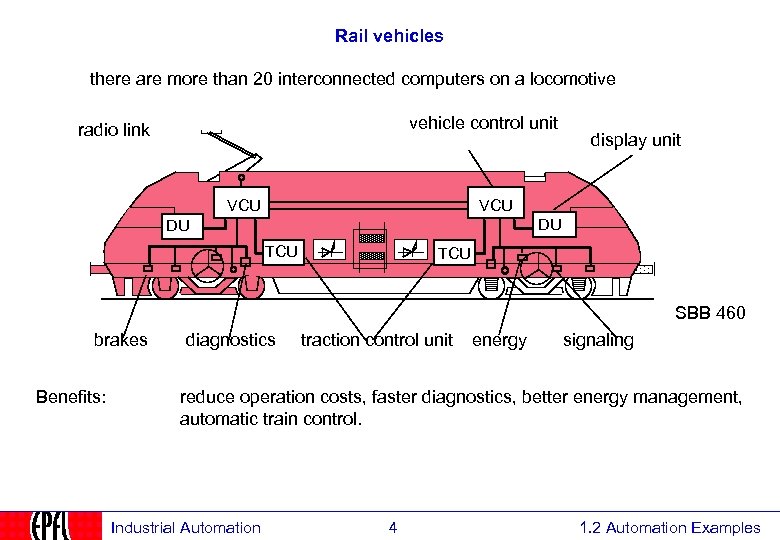

Rail vehicles there are more than 20 interconnected computers on a locomotive vehicle control unit radio link VCU display unit VCU DU TCU SBB 460 brakes Benefits: diagnostics traction control unit energy signaling reduce operation costs, faster diagnostics, better energy management, automatic train control. Industrial Automation 4 1. 2 Automation Examples

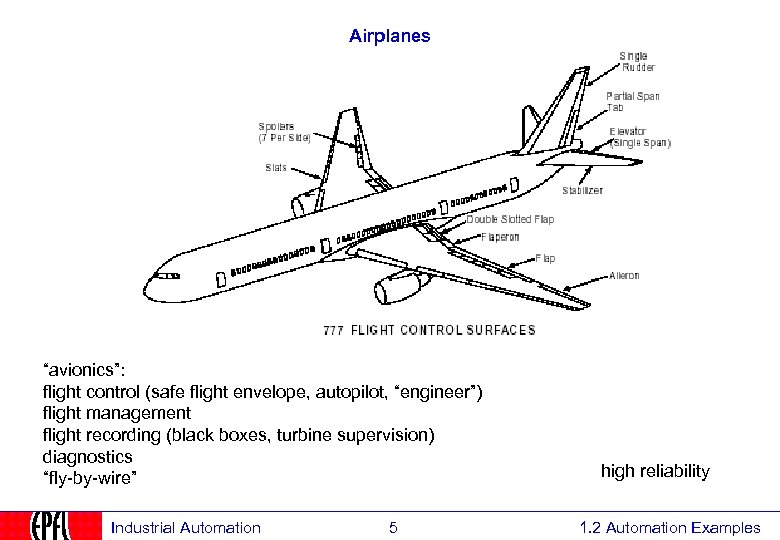

Airplanes “avionics”: flight control (safe flight envelope, autopilot, “engineer”) flight management flight recording (black boxes, turbine supervision) diagnostics “fly-by-wire” Industrial Automation 5 high reliability 1. 2 Automation Examples

Launch vehicles GPC 1 CPU 1 IOP 1 GPC 2 CPU 2 IOP 2 GPC 3 CPU 3 IOP 3 GPC 4 CPU 4 IOP 4 GPC 5 CPU 5 IOP 5 Control Panels Intercomputer (5) Mass memory (2) serial data buses ( 23 shared, 5 dedicated ) Display system (4) Payload operation (2) Launch function (2) Flight instrument (5; 1 dedicated per GPC) Flight - critical sensor and control (8) Industrial Automation 6 1. 2 Automation Examples

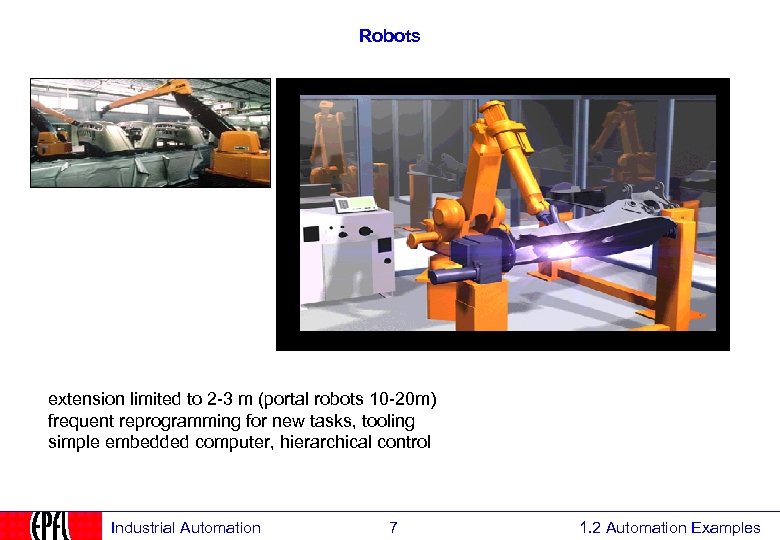

Robots extension limited to 2 -3 m (portal robots 10 -20 m) frequent reprogramming for new tasks, tooling simple embedded computer, hierarchical control Industrial Automation 7 1. 2 Automation Examples

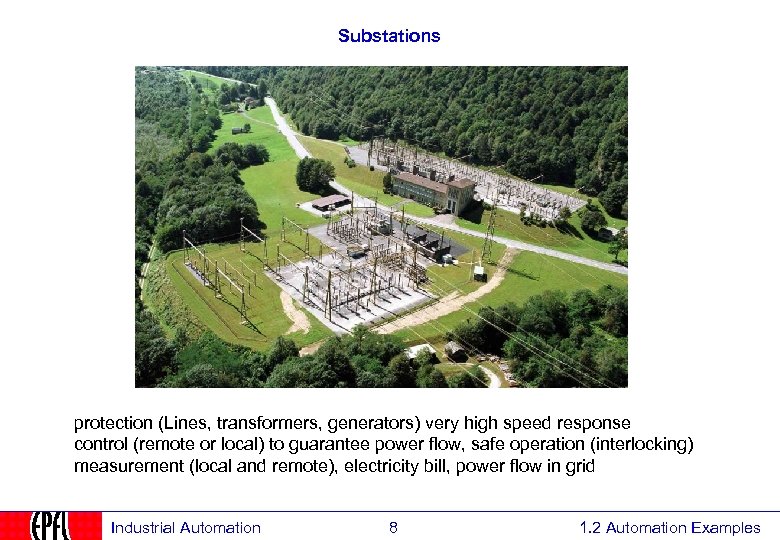

Substations protection (Lines, transformers, generators) very high speed response control (remote or local) to guarantee power flow, safe operation (interlocking) measurement (local and remote), electricity bill, power flow in grid Industrial Automation 8 1. 2 Automation Examples

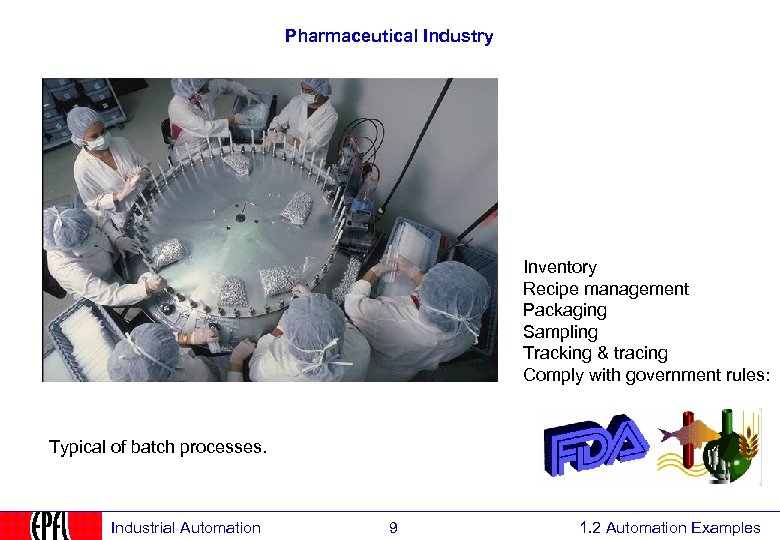

Pharmaceutical Industry Inventory Recipe management Packaging Sampling Tracking & tracing Comply with government rules: Typical of batch processes. Industrial Automation 9 1. 2 Automation Examples

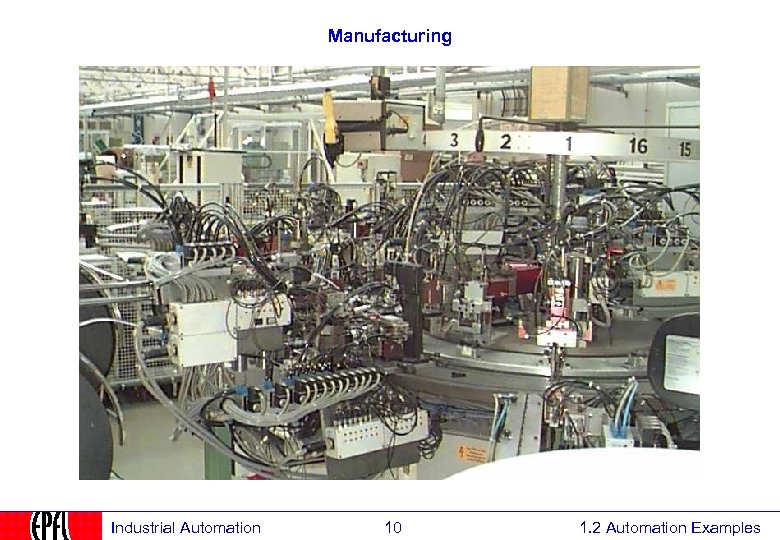

Manufacturing Industrial Automation 10 1. 2 Automation Examples

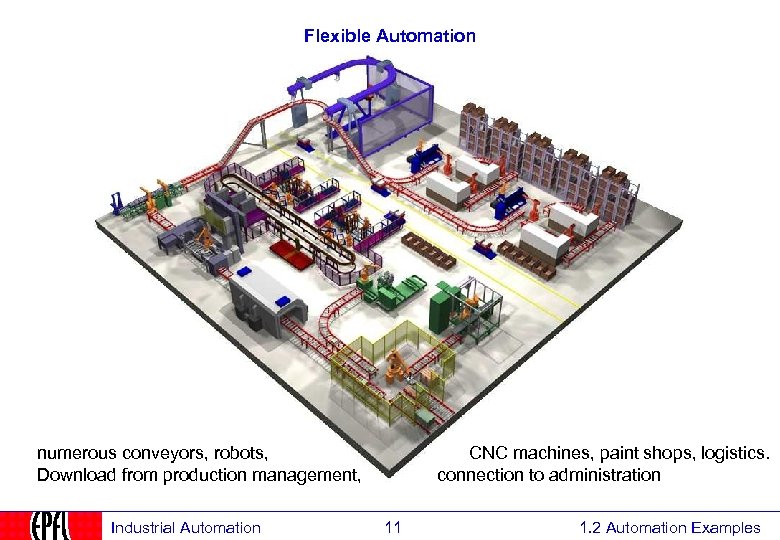

Flexible Automation numerous conveyors, robots, CNC machines, paint shops, logistics. Download from production management, connection to administration Industrial Automation 11 1. 2 Automation Examples

Warehouses extreme dependency on the availability of the control system Connection to * supply chain management, * order fulfilment * customer relationship and * commercial accounting (SAP) Industrial Automation 12 1. 2 Automation Examples

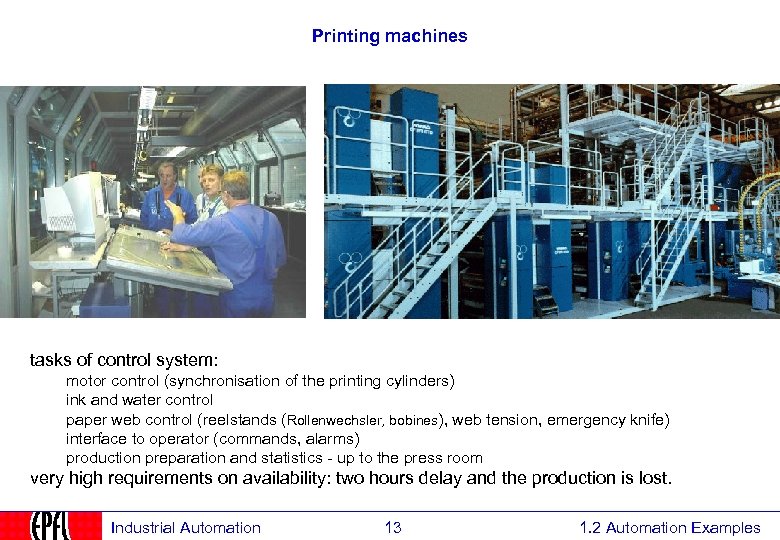

Printing machines tasks of control system: motor control (synchronisation of the printing cylinders) ink and water control paper web control (reelstands (Rollenwechsler, bobines), web tension, emergency knife) interface to operator (commands, alarms) production preparation and statistics - up to the press room very high requirements on availability: two hours delay and the production is lost. Industrial Automation 13 1. 2 Automation Examples

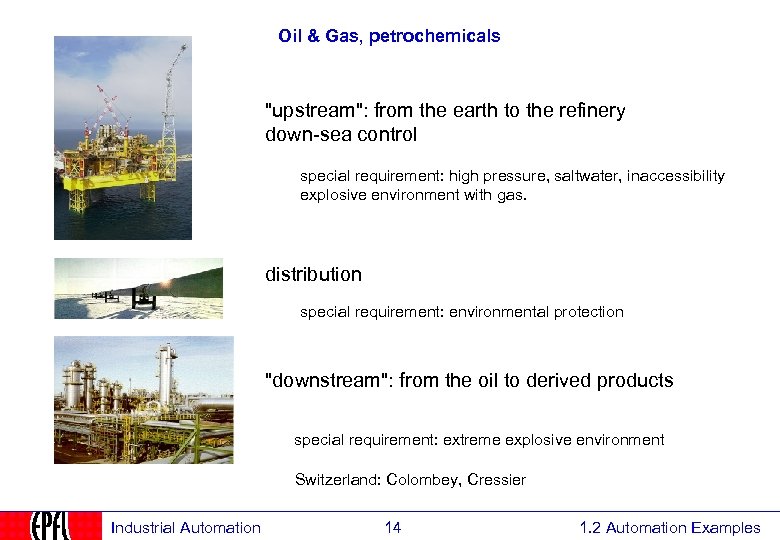

Oil & Gas, petrochemicals "upstream": from the earth to the refinery down-sea control special requirement: high pressure, saltwater, inaccessibility explosive environment with gas. distribution special requirement: environmental protection "downstream": from the oil to derived products special requirement: extreme explosive environment Switzerland: Colombey, Cressier Industrial Automation 14 1. 2 Automation Examples

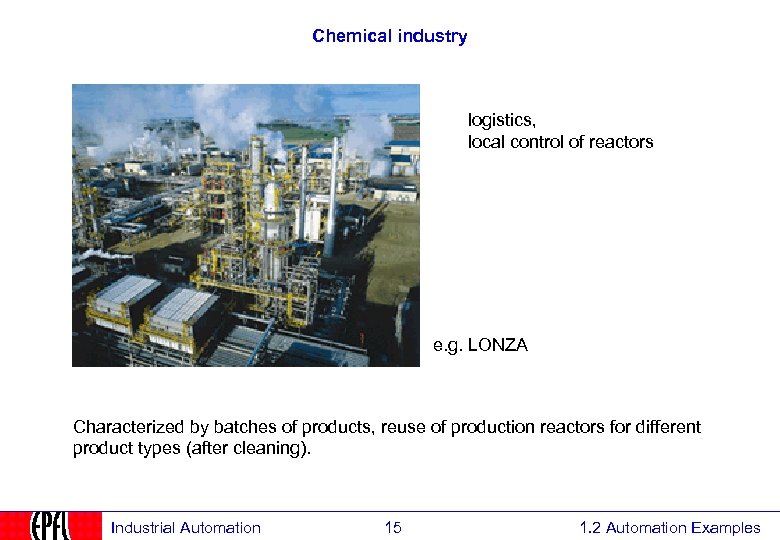

Chemical industry logistics, local control of reactors e. g. LONZA Characterized by batches of products, reuse of production reactors for different product types (after cleaning). Industrial Automation 15 1. 2 Automation Examples

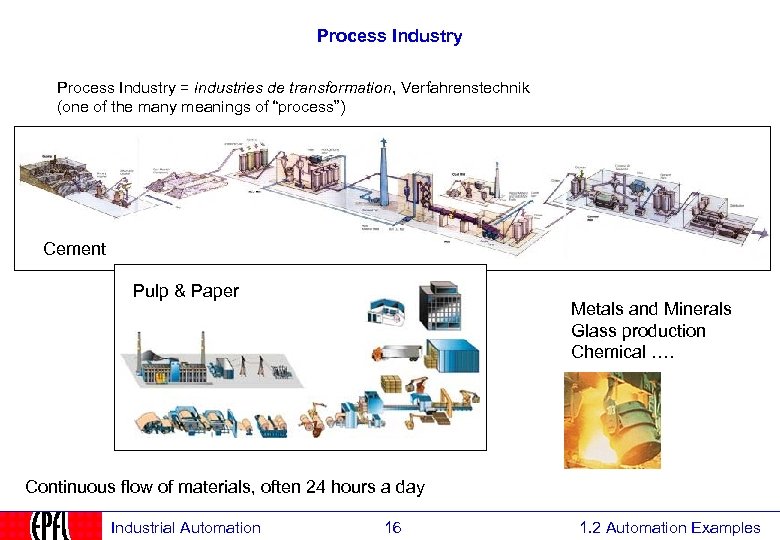

Process Industry = industries de transformation, Verfahrenstechnik (one of the many meanings of “process”) Cement Pulp & Paper Metals and Minerals Glass production Chemical …. Continuous flow of materials, often 24 hours a day Industrial Automation 16 1. 2 Automation Examples

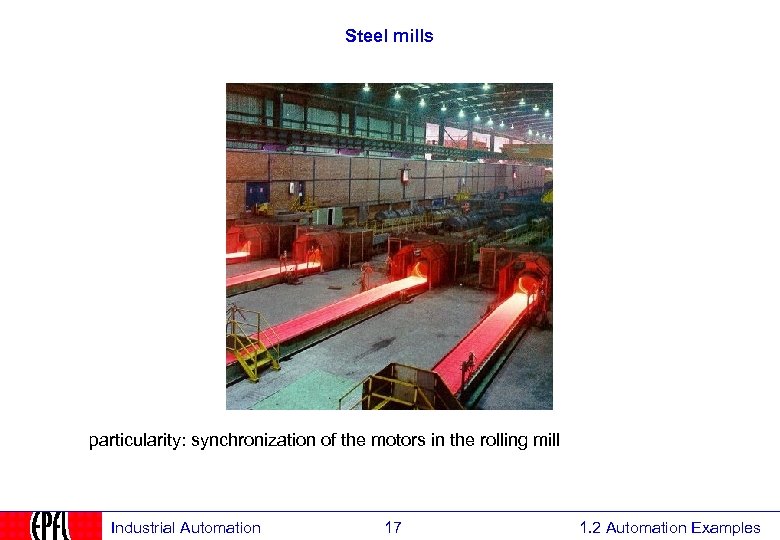

Steel mills particularity: synchronization of the motors in the rolling mill Industrial Automation 17 1. 2 Automation Examples

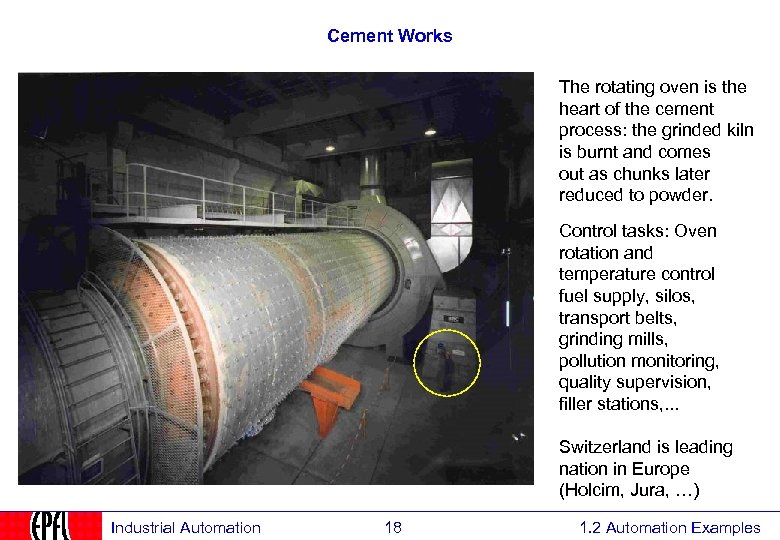

Cement Works The rotating oven is the heart of the cement process: the grinded kiln is burnt and comes out as chunks later reduced to powder. Control tasks: Oven rotation and temperature control fuel supply, silos, transport belts, grinding mills, pollution monitoring, quality supervision, filler stations, . . . Switzerland is leading nation in Europe (Holcim, Jura, …) Industrial Automation 18 1. 2 Automation Examples

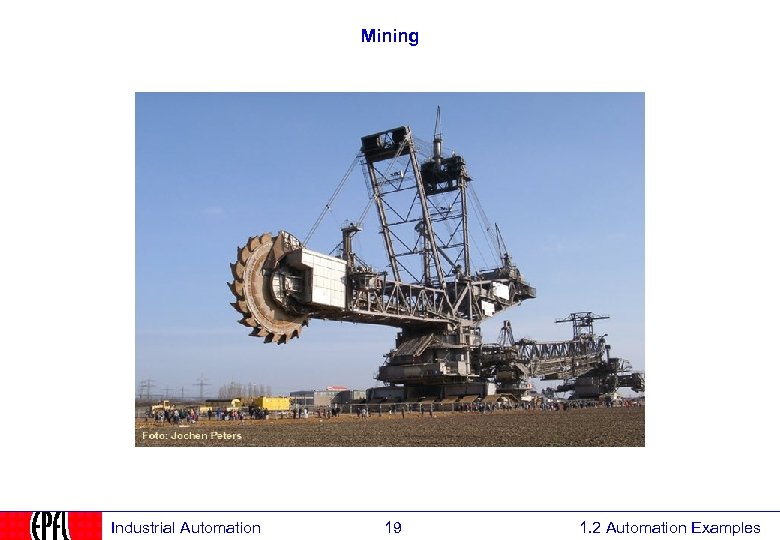

Mining Industrial Automation 19 1. 2 Automation Examples

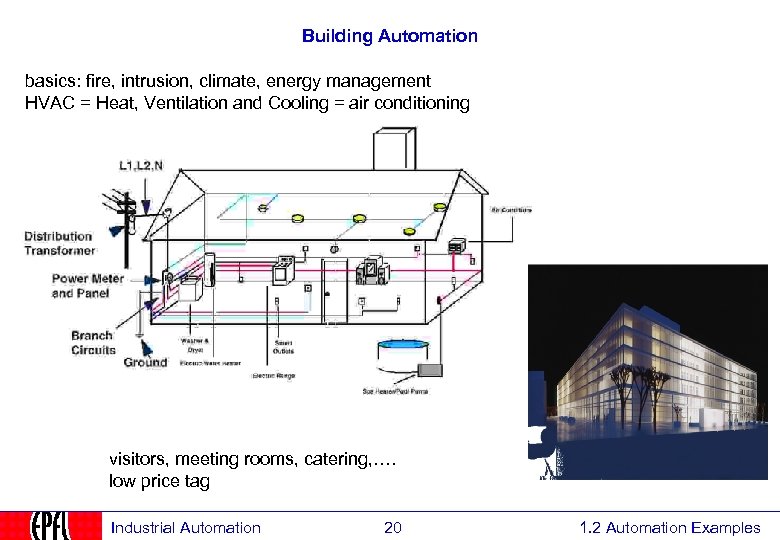

Building Automation basics: fire, intrusion, climate, energy management HVAC = Heat, Ventilation and Cooling = air conditioning visitors, meeting rooms, catering, …. low price tag Industrial Automation 20 1. 2 Automation Examples

Automation of Building Groups EPFL Industrial Automation 21 1. 2 Automation Examples

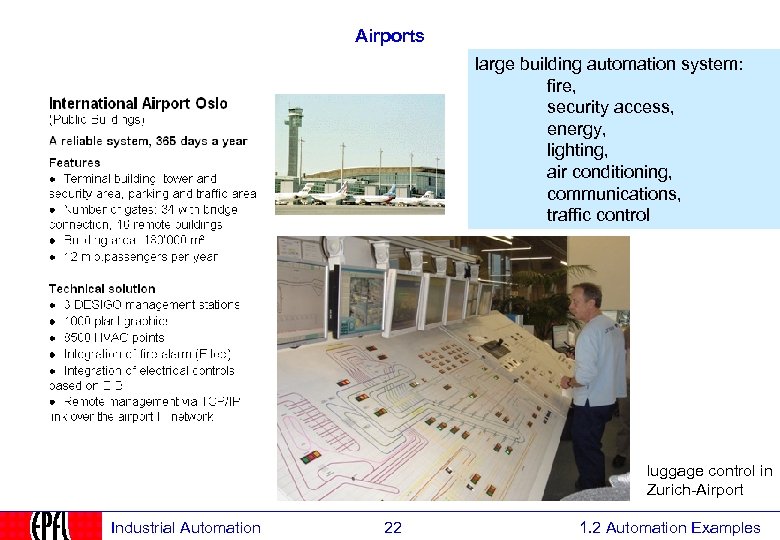

Airports large building automation system: fire, security access, energy, lighting, air conditioning, communications, traffic control luggage control in Zurich-Airport Industrial Automation 22 1. 2 Automation Examples

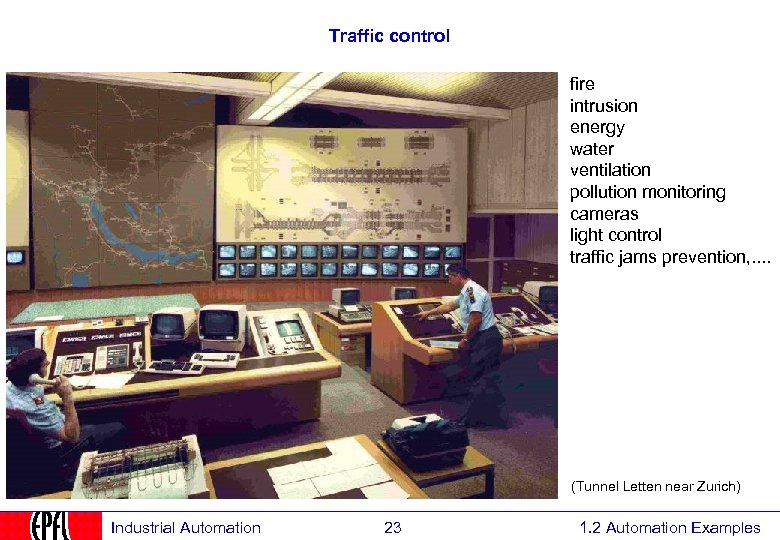

Traffic control fire intrusion energy water ventilation pollution monitoring cameras light control traffic jams prevention, . . (Tunnel Letten near Zurich) Industrial Automation 23 1. 2 Automation Examples

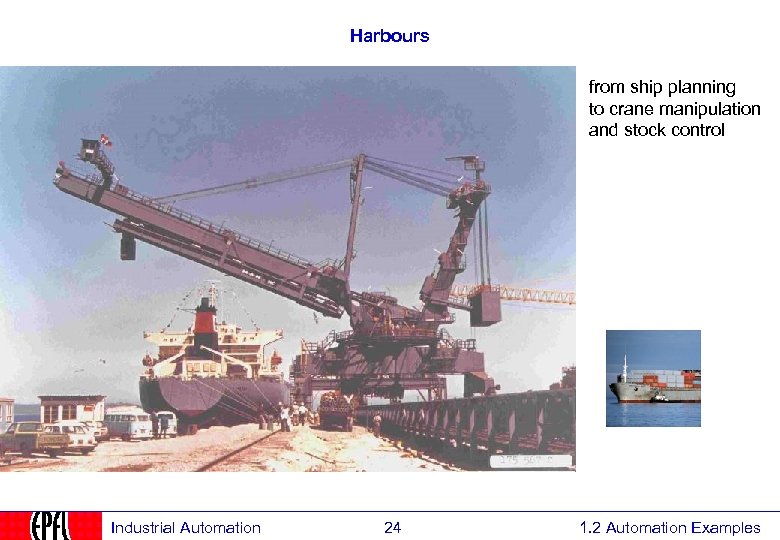

Harbours from ship planning to crane manipulation and stock control Industrial Automation 24 1. 2 Automation Examples

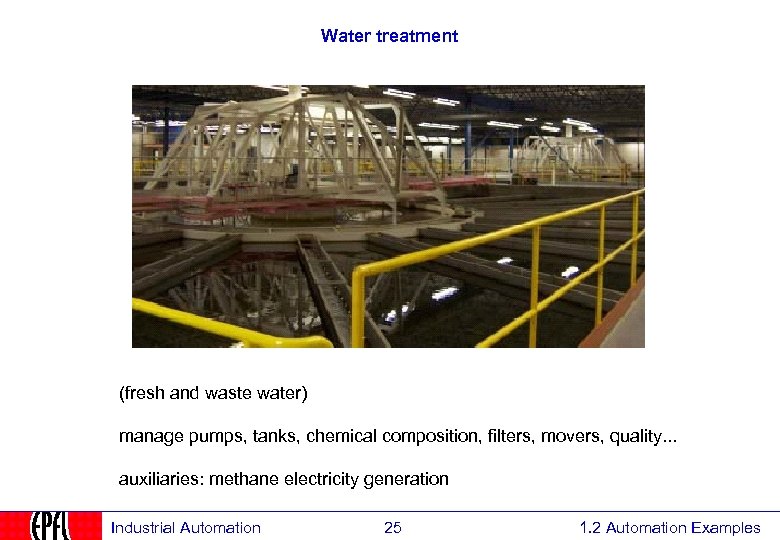

Water treatment (fresh and waste water) manage pumps, tanks, chemical composition, filters, movers, quality. . . auxiliaries: methane electricity generation Industrial Automation 25 1. 2 Automation Examples

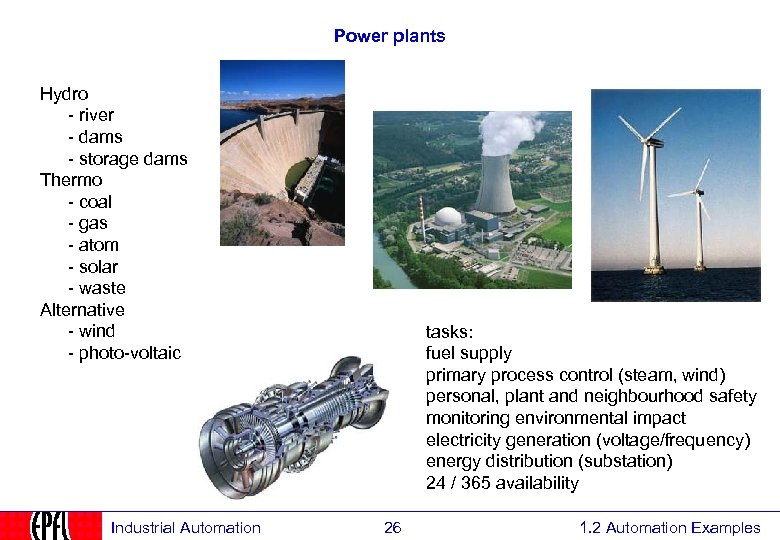

Power plants Hydro - river - dams - storage dams Thermo - coal - gas - atom - solar - waste Alternative - wind - photo-voltaic Industrial Automation tasks: fuel supply primary process control (steam, wind) personal, plant and neighbourhood safety monitoring environmental impact electricity generation (voltage/frequency) energy distribution (substation) 24 / 365 availability 26 1. 2 Automation Examples

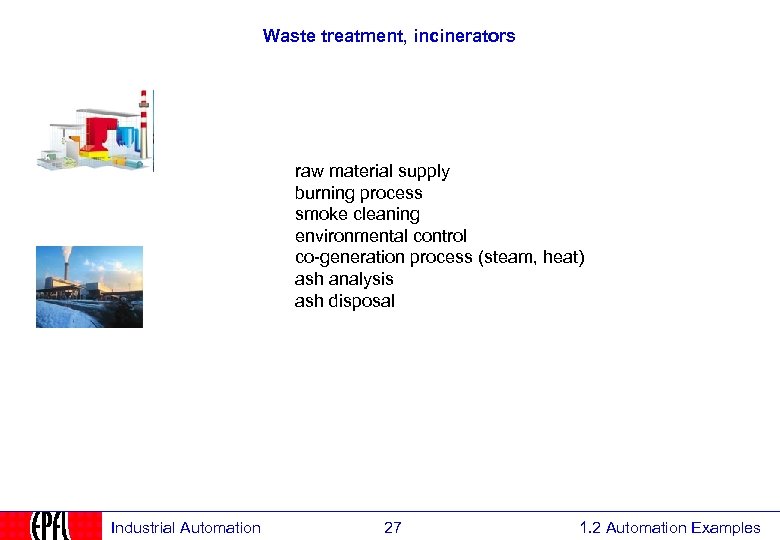

Waste treatment, incinerators raw material supply burning process smoke cleaning environmental control co-generation process (steam, heat) ash analysis ash disposal Industrial Automation 27 1. 2 Automation Examples

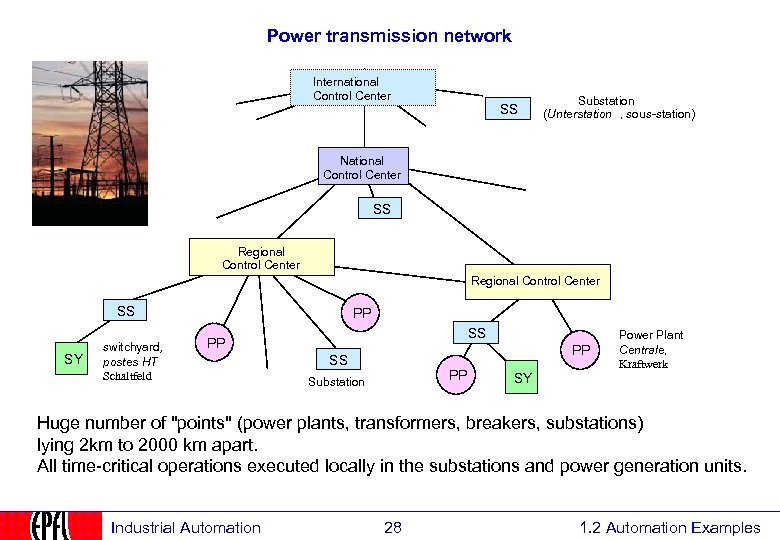

Power transmission network International Control Center SS Substation (Unterstation , sous-station) National Control Center SS Regional Control Center SS SY switchyard, postes HT Schaltfeld PP SS PP Substation SY Power Plant Centrale, Kraftwerk Huge number of "points" (power plants, transformers, breakers, substations) lying 2 km to 2000 km apart. All time-critical operations executed locally in the substations and power generation units. Industrial Automation 28 1. 2 Automation Examples

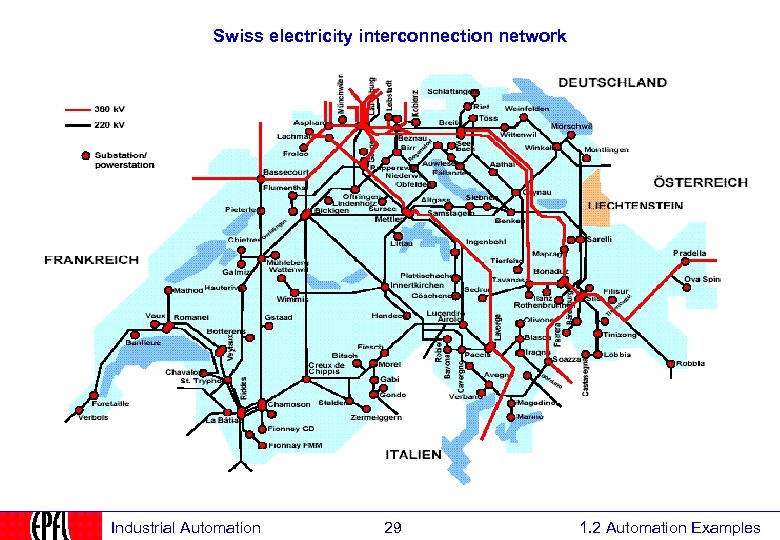

Swiss electricity interconnection network Industrial Automation 29 1. 2 Automation Examples

Pipelines particularities: long-range communication system, safety, explosive environment Industrial Automation 30 1. 2 Automation Examples

Assessment Name the applications you remember and indicate at least one task for the control system What could be the order behind the plant types that were presented ? Industrial Automation 31 1. 2 Automation Examples
