Industrial Automation INDUSTRIAL AUTOMATION Alpha Wire s Value

Industrial Automation

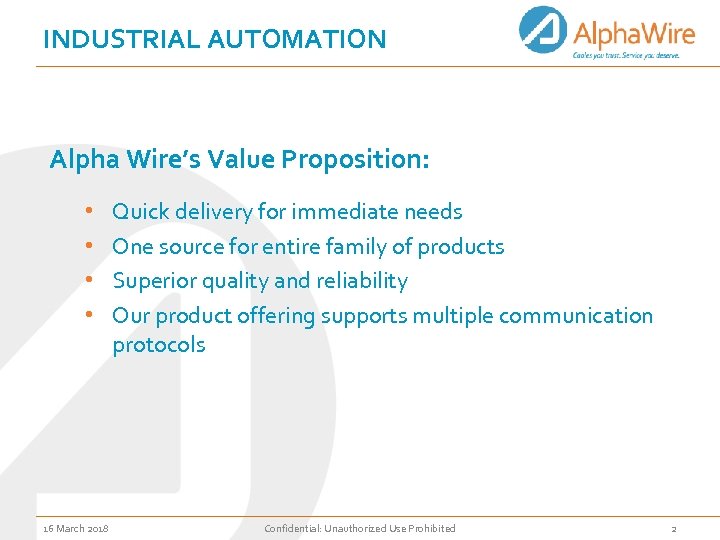

INDUSTRIAL AUTOMATION Alpha Wire’s Value Proposition: • • 16 March 2018 Quick delivery for immediate needs One source for entire family of products Superior quality and reliability Our product offering supports multiple communication protocols Confidential: Unauthorized Use Prohibited 2

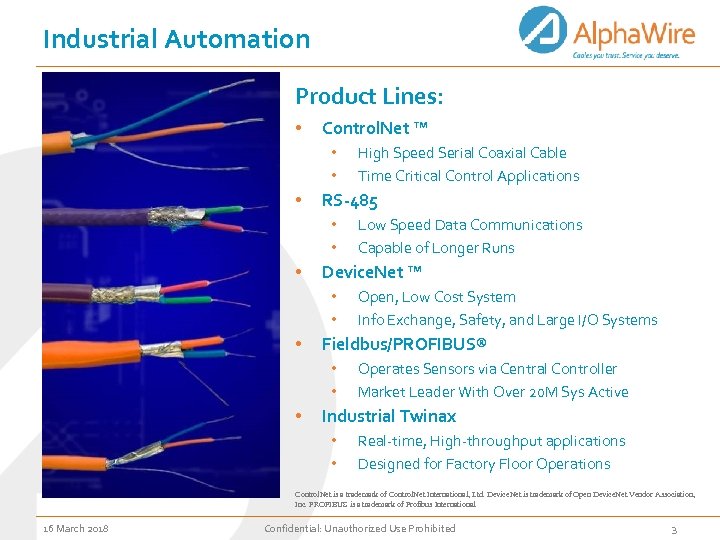

Industrial Automation Product Lines: • Control. Net ™ • • • RS-485 • • • Open, Low Cost System Info Exchange, Safety, and Large I/O Systems Fieldbus/PROFIBUS® • • • Low Speed Data Communications Capable of Longer Runs Device. Net ™ • • • High Speed Serial Coaxial Cable Time Critical Control Applications Operates Sensors via Central Controller Market Leader With Over 20 M Sys Active Industrial Twinax • • Real-time, High-throughput applications Designed for Factory Floor Operations Control. Net is a trademark of Control. Net International, Ltd. Device. Net is trademark of Open Device. Net Vendor Association, Inc. PROFIBUS is a trademark of Profibus International. 16 March 2018 Confidential: Unauthorized Use Prohibited 3

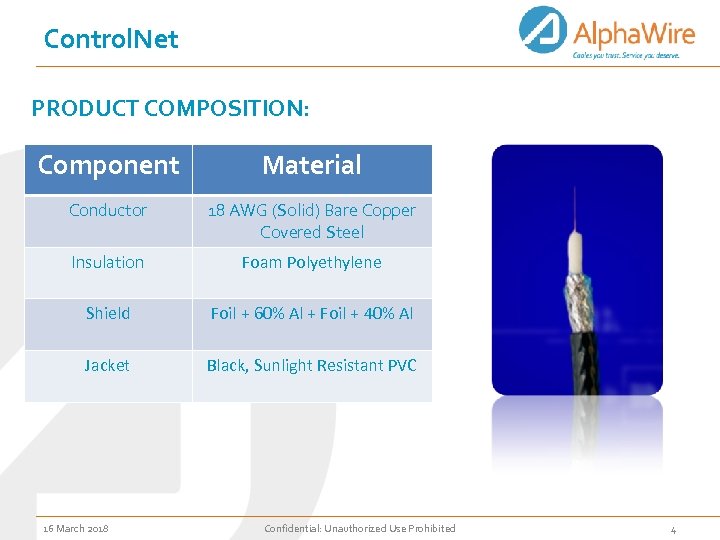

Control. Net PRODUCT COMPOSITION: Component Material Conductor 18 AWG (Solid) Bare Copper Covered Steel Insulation Foam Polyethylene Shield Foil + 60% Al + Foil + 40% Al Jacket Black, Sunlight Resistant PVC 16 March 2018 Confidential: Unauthorized Use Prohibited 4

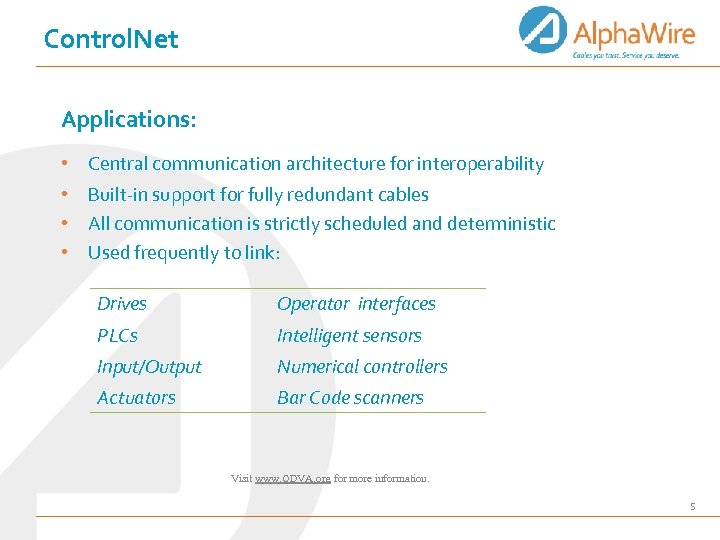

Control. Net Applications: • Central communication architecture for interoperability • Built-in support for fully redundant cables • All communication is strictly scheduled and deterministic • Used frequently to link: Drives Operator interfaces PLCs Intelligent sensors Input/Output Numerical controllers Actuators Bar Code scanners Visit www. ODVA. org for more information. 5

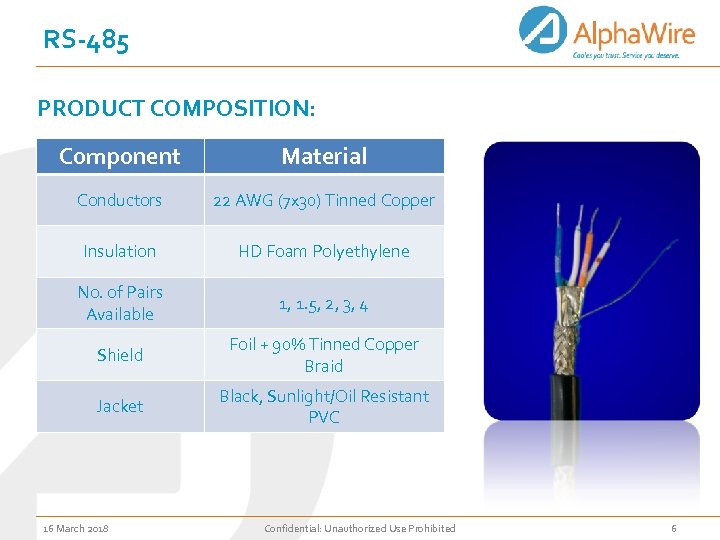

RS-485 PRODUCT COMPOSITION: Component Material Conductors 22 AWG (7 x 30) Tinned Copper Insulation HD Foam Polyethylene No. of Pairs Available 1, 1. 5, 2, 3, 4 Shield Foil + 90% Tinned Copper Braid Jacket Black, Sunlight/Oil Resistant PVC 16 March 2018 Confidential: Unauthorized Use Prohibited 6

RS-485 Applications: • Least “high tech” protocol • • Connects point-to-point serial nodes in a network (PC to PC) 5 different pair options for versatility Great for longer connections (low level device) No built-in diagnostics Visit www. tiaonline. org for more information. 7

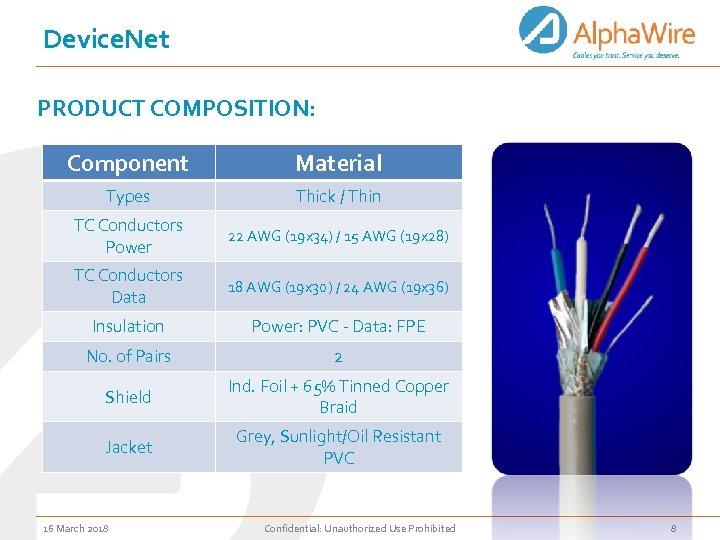

Device. Net PRODUCT COMPOSITION: Component Material Types Thick / Thin TC Conductors Power 22 AWG (19 x 34) / 15 AWG (19 x 28) TC Conductors Data 18 AWG (19 x 30) / 24 AWG (19 x 36) Insulation Power: PVC - Data: FPE No. of Pairs 2 Shield Ind. Foil + 65% Tinned Copper Braid Jacket Grey, Sunlight/Oil Resistant PVC 16 March 2018 Confidential: Unauthorized Use Prohibited 8

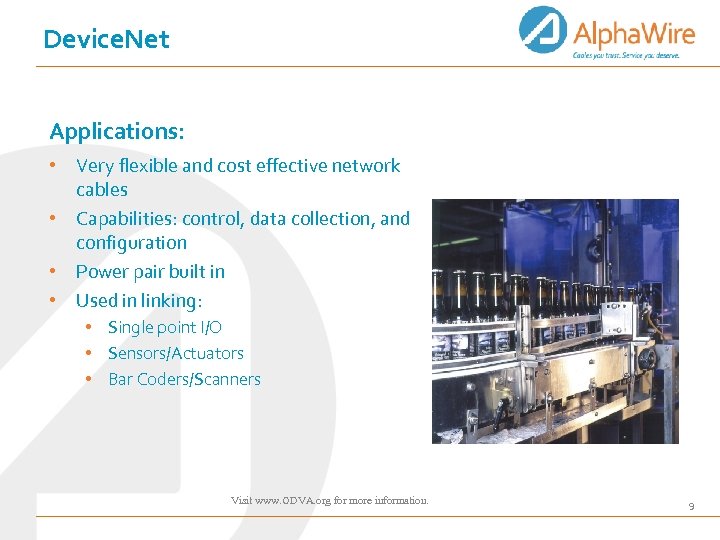

Device. Net Applications: • Very flexible and cost effective network cables • Capabilities: control, data collection, and configuration • Power pair built in • Used in linking: • Single point I/O • Sensors/Actuators • Bar Coders/Scanners Visit www. ODVA. org for more information. 9

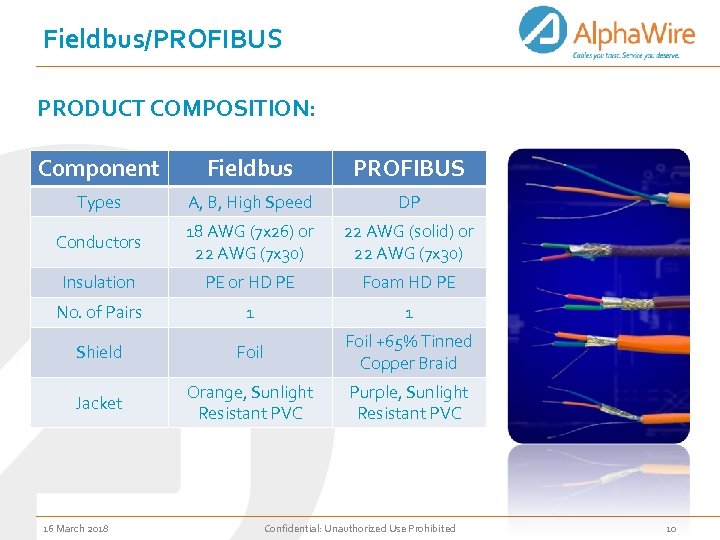

Fieldbus/PROFIBUS PRODUCT COMPOSITION: Component Fieldbus PROFIBUS Types A, B, High Speed DP Conductors 18 AWG (7 x 26) or 22 AWG (7 x 30) 22 AWG (solid) or 22 AWG (7 x 30) Insulation PE or HD PE Foam HD PE No. of Pairs 1 1 Shield Foil +65% Tinned Copper Braid Jacket Orange, Sunlight Resistant PVC Purple, Sunlight Resistant PVC 16 March 2018 Confidential: Unauthorized Use Prohibited 10

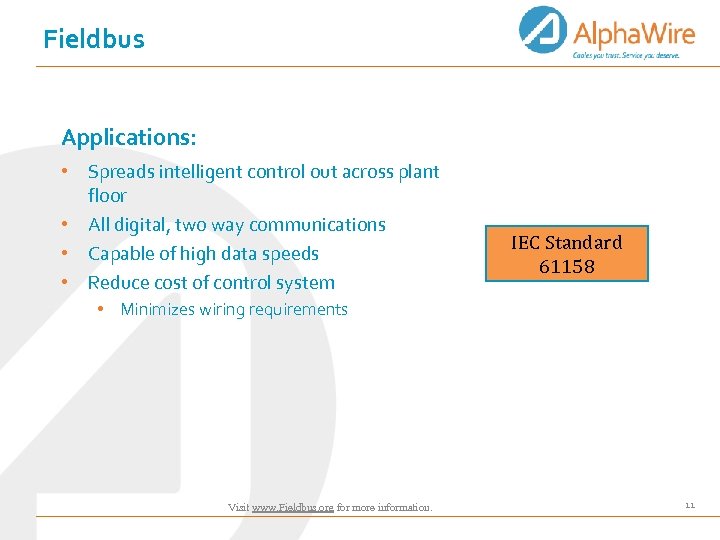

Fieldbus Applications: • Spreads intelligent control out across plant floor • All digital, two way communications • Capable of high data speeds • Reduce cost of control system IEC Standard 61158 • Minimizes wiring requirements Visit www. Fieldbus. org for more information. 11

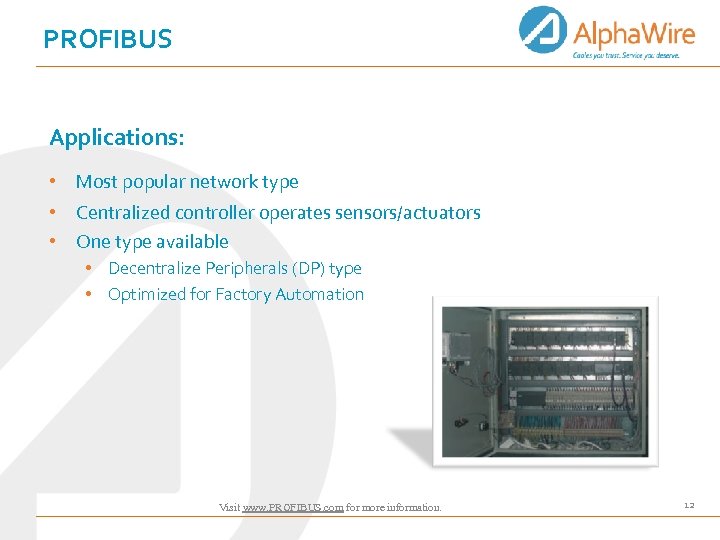

PROFIBUS Applications: • Most popular network type • Centralized controller operates sensors/actuators • One type available • Decentralize Peripherals (DP) type • Optimized for Factory Automation Visit www. PROFIBUS. com for more information. 12

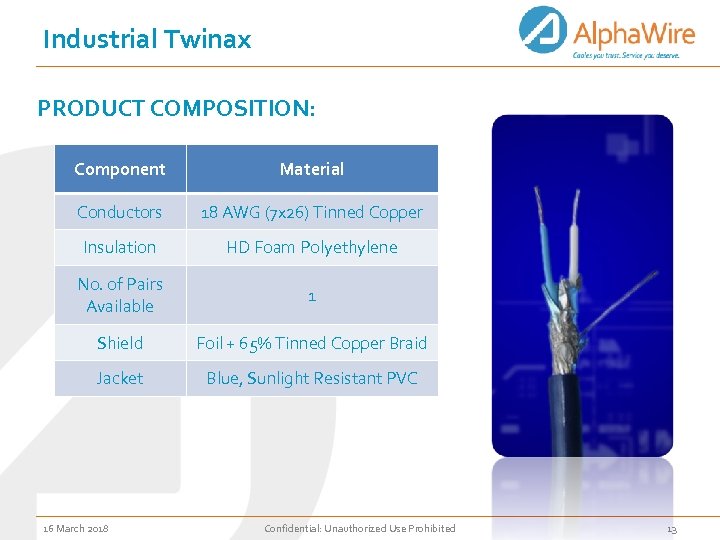

Industrial Twinax PRODUCT COMPOSITION: Component Material Conductors 18 AWG (7 x 26) Tinned Copper Insulation HD Foam Polyethylene No. of Pairs Available 1 Shield Foil + 65% Tinned Copper Braid Jacket Blue, Sunlight Resistant PVC 16 March 2018 Confidential: Unauthorized Use Prohibited 13

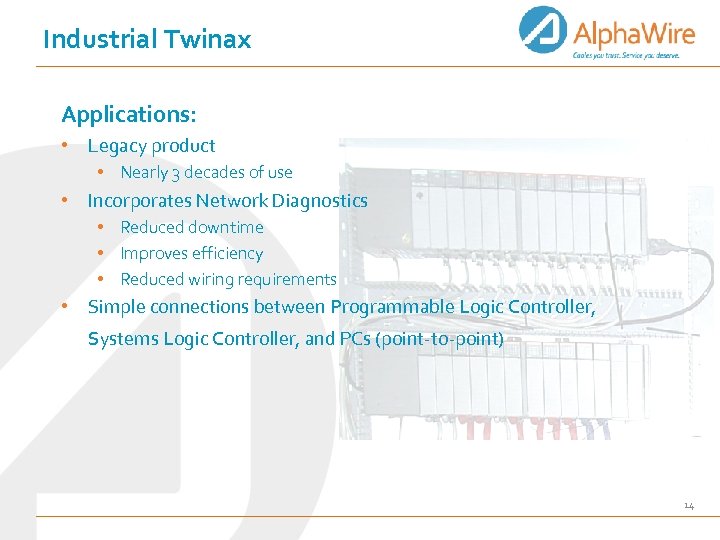

Industrial Twinax Applications: • Legacy product • Nearly 3 decades of use • Incorporates Network Diagnostics • Reduced downtime • Improves efficiency • Reduced wiring requirements • Simple connections between Programmable Logic Controller, Systems Logic Controller, and PCs (point-to-point) 14

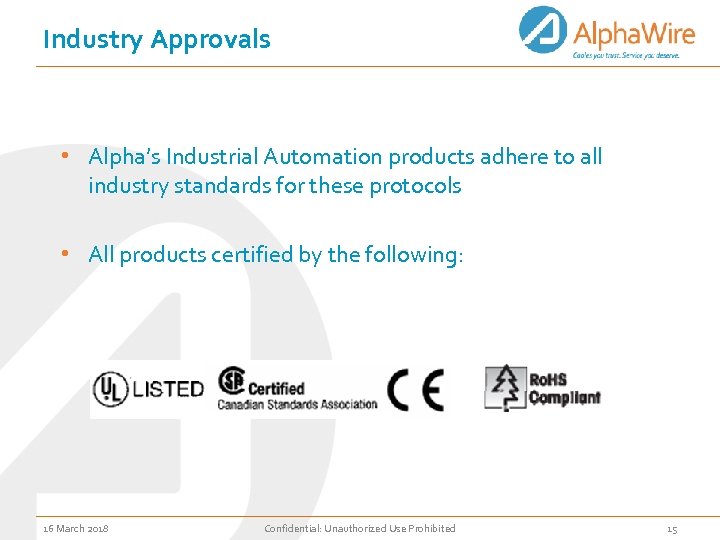

Industry Approvals • Alpha’s Industrial Automation products adhere to all industry standards for these protocols • All products certified by the following: 16 March 2018 Confidential: Unauthorized Use Prohibited 15

Special Order Options Please request quotations for: • • • 16 March 2018 Armor shielding Plenum rated Special configurations High temperature High flex Confidential: Unauthorized Use Prohibited 16

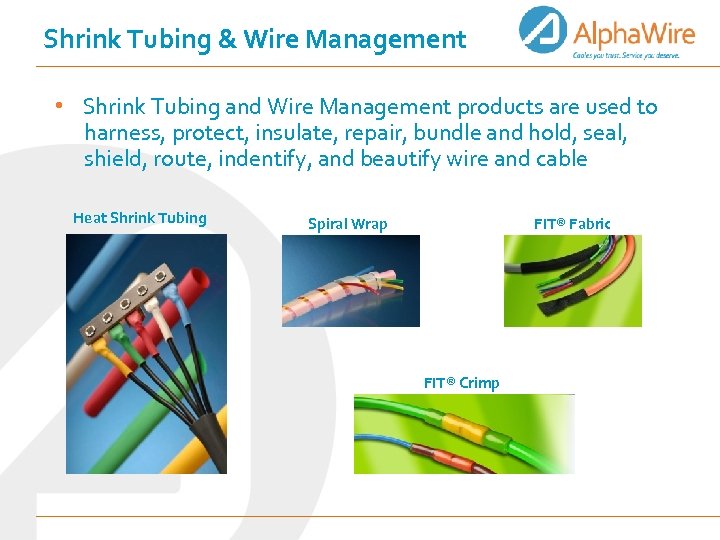

Shrink Tubing & Wire Management • Shrink Tubing and Wire Management products are used to harness, protect, insulate, repair, bundle and hold, seal, shield, route, indentify, and beautify wire and cable Heat Shrink Tubing Spiral Wrap FIT® Fabric FIT® Crimp

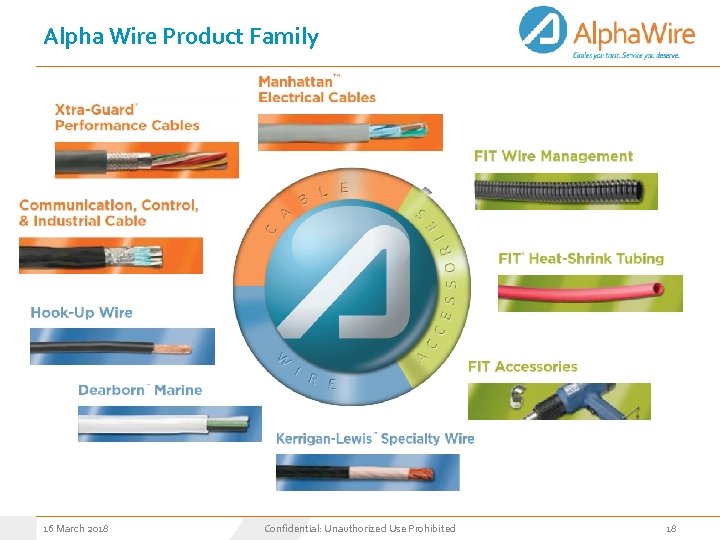

Alpha Wire Product Family 16 March 2018 Confidential: Unauthorized Use Prohibited 18
