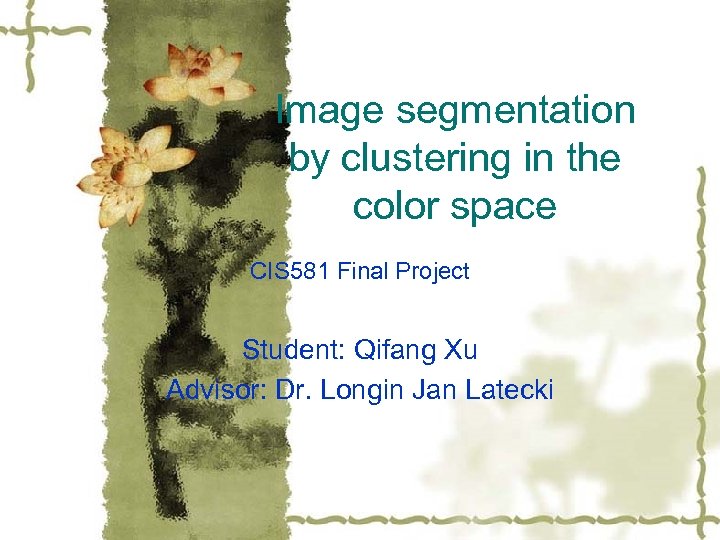

Image segmentation by clustering in the color space CIS 581 Final Project Student: Qifang Image segmentation by clustering in the color space CIS 581 Final Project Student: Qifang Xu Advisor: Dr. Longin Jan Latecki

Content v Introduction v Project Algorithm v Project program v Experiments v Conclusion and Content v Introduction v Project Algorithm v Project program v Experiments v Conclusion and results

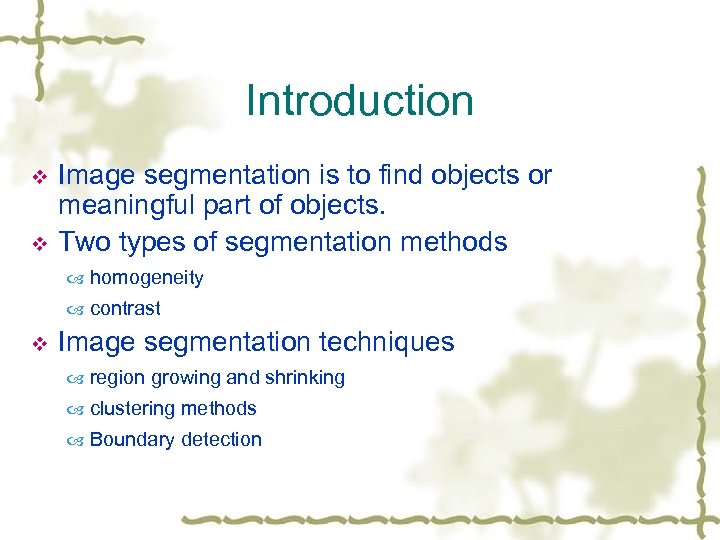

Introduction v v Image segmentation is to find objects or meaningful part of objects. Introduction v v Image segmentation is to find objects or meaningful part of objects. Two types of segmentation methods homogeneity contrast v Image segmentation techniques region growing and shrinking clustering methods Boundary detection

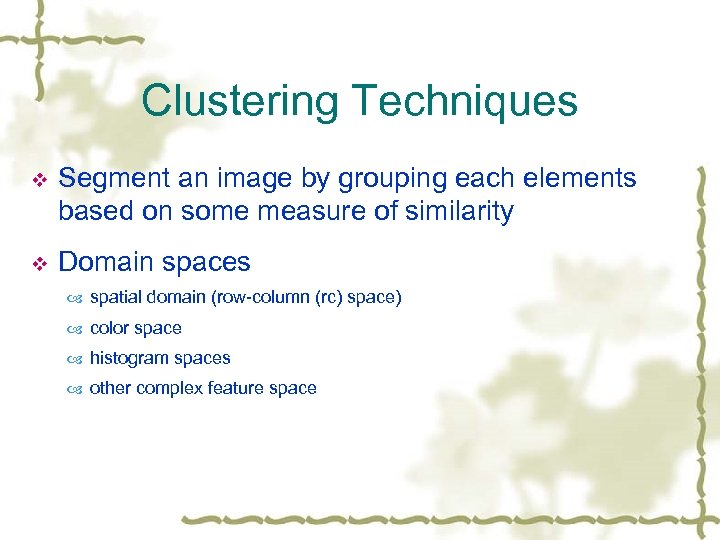

Clustering Techniques v Segment an image by grouping each elements based on some measure Clustering Techniques v Segment an image by grouping each elements based on some measure of similarity v Domain spaces spatial domain (row-column (rc) space) color space histogram spaces other complex feature space

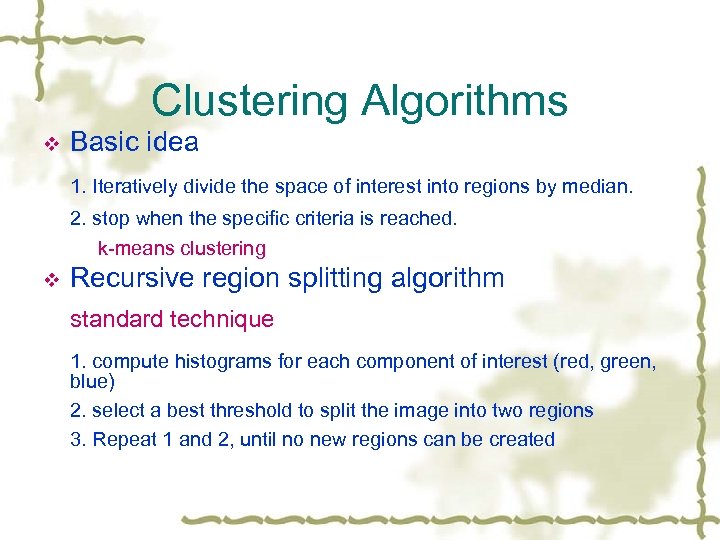

Clustering Algorithms v Basic idea 1. Iteratively divide the space of interest into regions Clustering Algorithms v Basic idea 1. Iteratively divide the space of interest into regions by median. 2. stop when the specific criteria is reached. k-means clustering v Recursive region splitting algorithm standard technique 1. compute histograms for each component of interest (red, green, blue) 2. select a best threshold to split the image into two regions 3. Repeat 1 and 2, until no new regions can be created

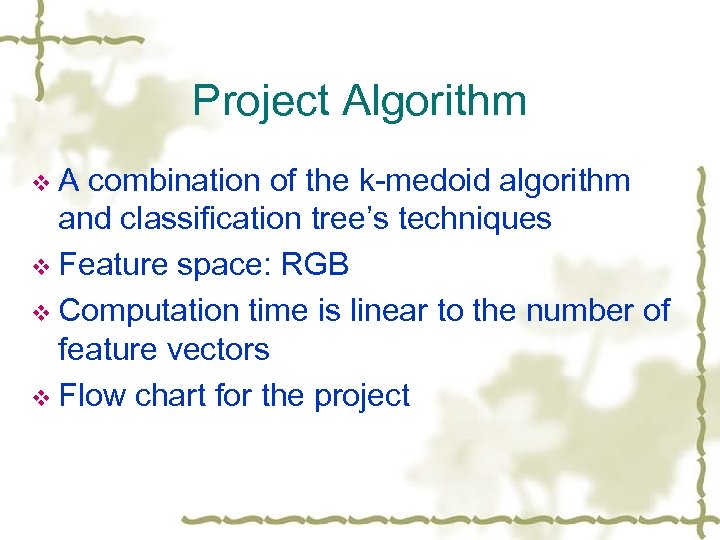

Project Algorithm v. A combination of the k-medoid algorithm and classification tree’s techniques v Project Algorithm v. A combination of the k-medoid algorithm and classification tree’s techniques v Feature space: RGB v Computation time is linear to the number of feature vectors v Flow chart for the project

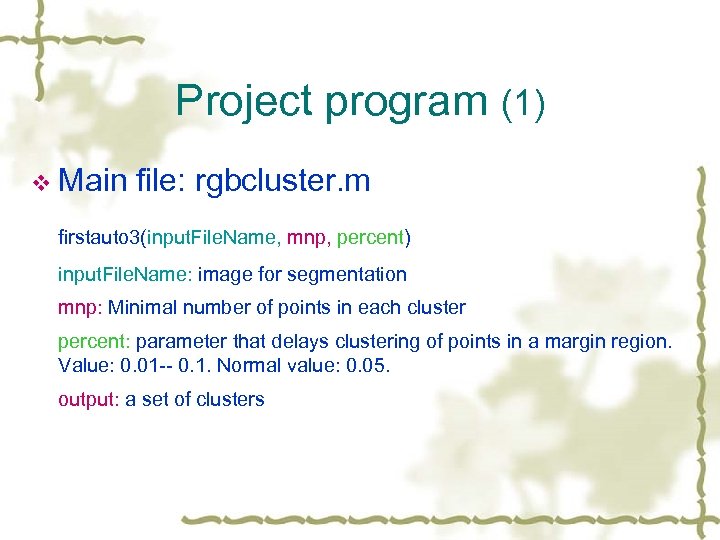

Project program (1) v Main file: rgbcluster. m firstauto 3(input. File. Name, mnp, percent) Project program (1) v Main file: rgbcluster. m firstauto 3(input. File. Name, mnp, percent) input. File. Name: image for segmentation mnp: Minimal number of points in each cluster percent: parameter that delays clustering of points in a margin region. Value: 0. 01 -- 0. 1. Normal value: 0. 05. output: a set of clusters

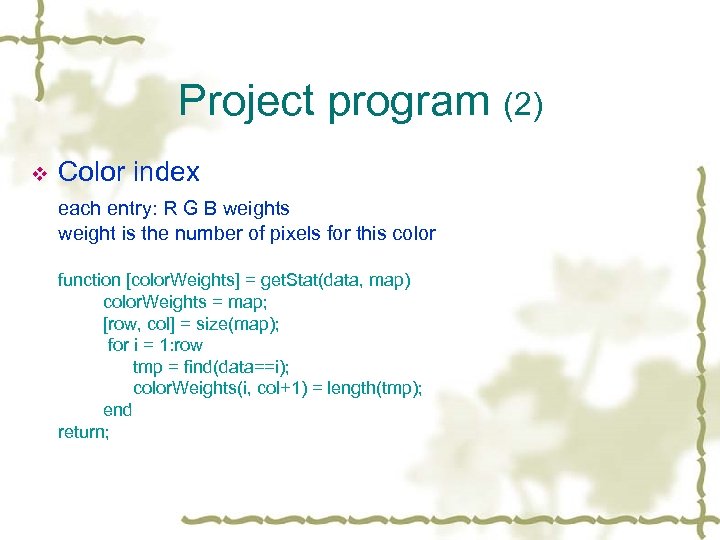

Project program (2) v Color index each entry: R G B weights weight is Project program (2) v Color index each entry: R G B weights weight is the number of pixels for this color function [color. Weights] = get. Stat(data, map) color. Weights = map; [row, col] = size(map); for i = 1: row tmp = find(data==i); color. Weights(i, col+1) = length(tmp); end return;

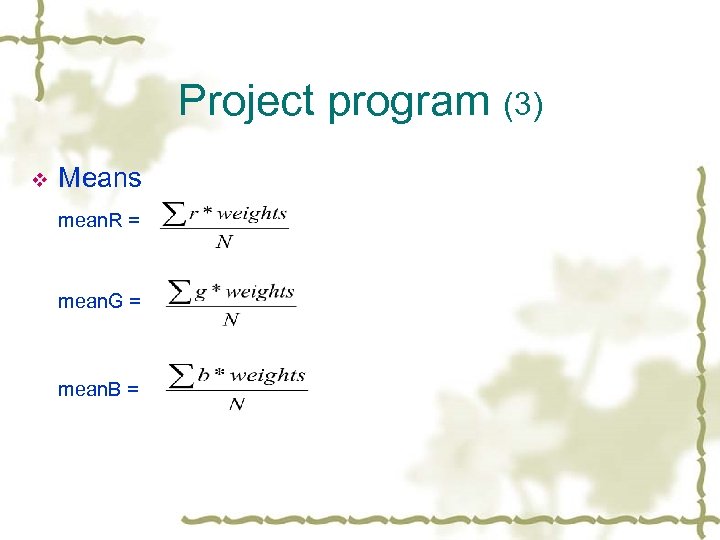

Project program (3) v Means mean. R = mean. G = mean. B = Project program (3) v Means mean. R = mean. G = mean. B =

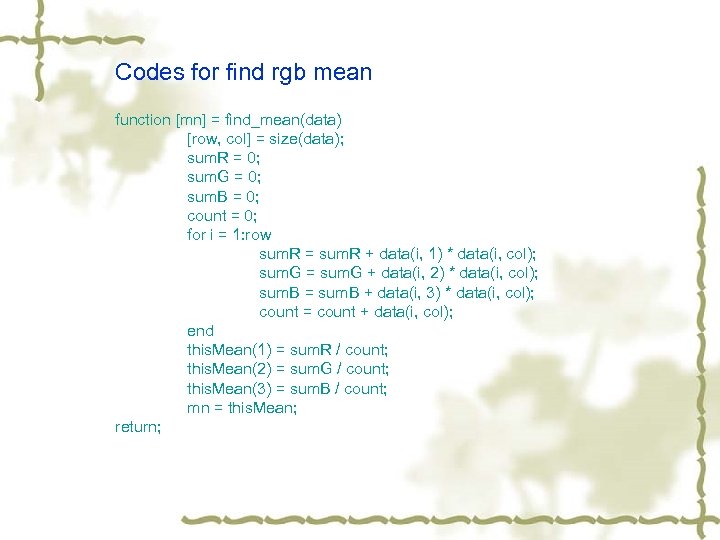

Codes for find rgb mean function [mn] = find_mean(data) [row, col] = size(data); sum. Codes for find rgb mean function [mn] = find_mean(data) [row, col] = size(data); sum. R = 0; sum. G = 0; sum. B = 0; count = 0; for i = 1: row sum. R = sum. R + data(i, 1) * data(i, col); sum. G = sum. G + data(i, 2) * data(i, col); sum. B = sum. B + data(i, 3) * data(i, col); count = count + data(i, col); end this. Mean(1) = sum. R / count; this. Mean(2) = sum. G / count; this. Mean(3) = sum. B / count; mn = this. Mean; return;

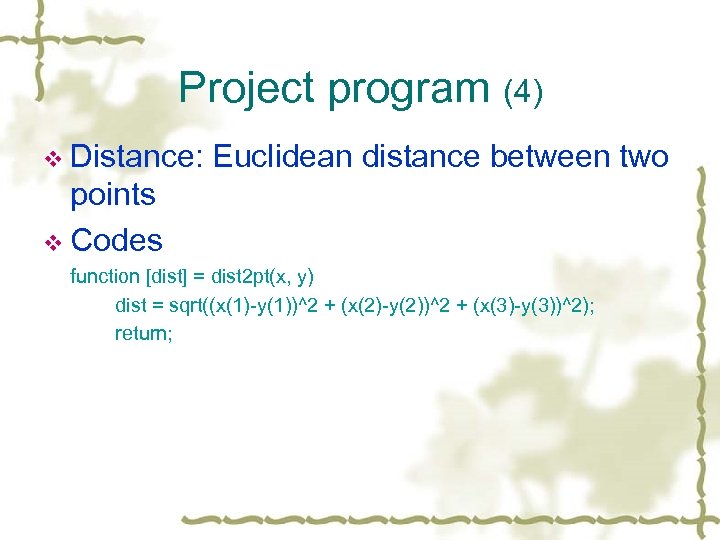

Project program (4) v Distance: Euclidean distance between two points v Codes function [dist] Project program (4) v Distance: Euclidean distance between two points v Codes function [dist] = dist 2 pt(x, y) dist = sqrt((x(1)-y(1))^2 + (x(2)-y(2))^2 + (x(3)-y(3))^2); return;

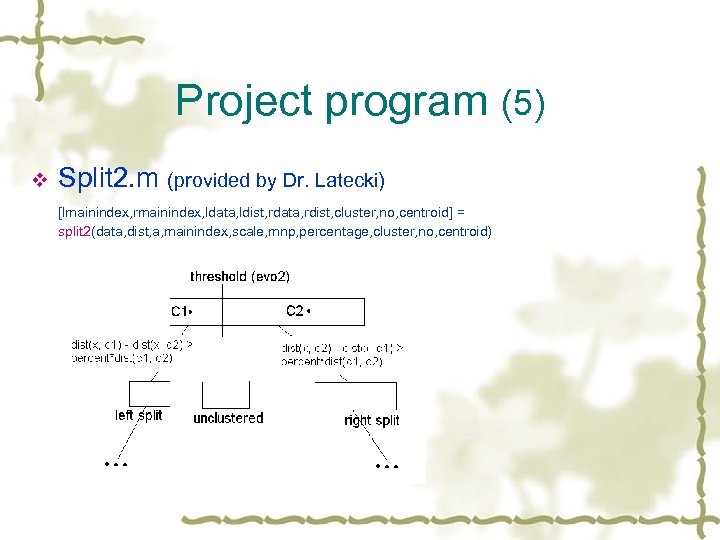

Project program (5) v Split 2. m (provided by Dr. Latecki) [lmainindex, rmainindex, ldata, Project program (5) v Split 2. m (provided by Dr. Latecki) [lmainindex, rmainindex, ldata, ldist, rdata, rdist, cluster, no, centroid] = split 2(data, dist, a, mainindex, scale, mnp, percentage, cluster, no, centroid)

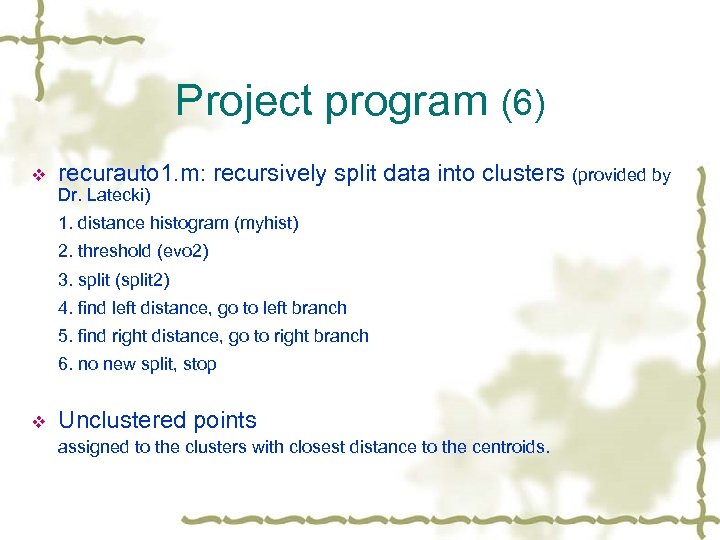

Project program (6) v recurauto 1. m: recursively split data into clusters (provided by Project program (6) v recurauto 1. m: recursively split data into clusters (provided by Dr. Latecki) 1. distance histogram (myhist) 2. threshold (evo 2) 3. split (split 2) 4. find left distance, go to left branch 5. find right distance, go to right branch 6. no new split, stop v Unclustered points assigned to the clusters with closest distance to the centroids.

Experiments and results v Rgb pictures Cherry flowers House tiger airplane car people Experiments and results v Rgb pictures Cherry flowers House tiger airplane car people

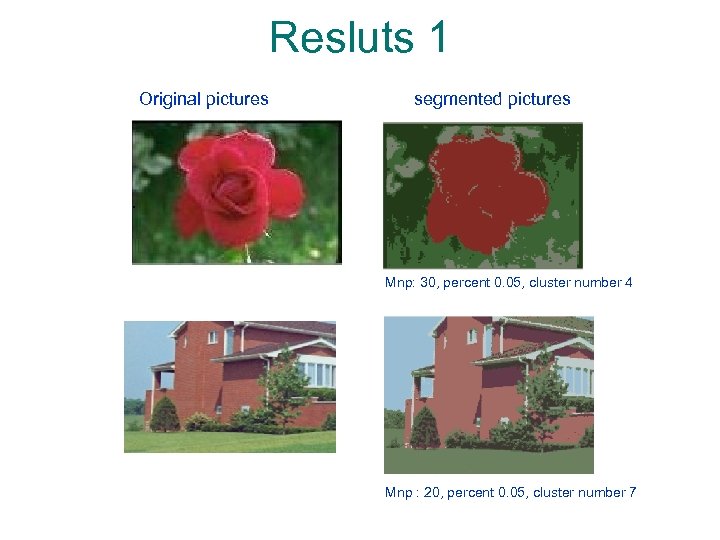

Resluts 1 Original pictures segmented pictures Mnp: 30, percent 0. 05, cluster number 4 Resluts 1 Original pictures segmented pictures Mnp: 30, percent 0. 05, cluster number 4 Mnp : 20, percent 0. 05, cluster number 7

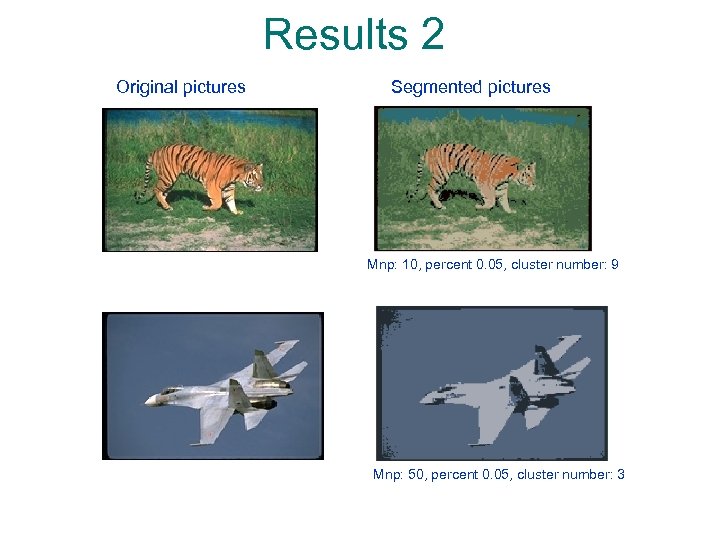

Results 2 Original pictures Segmented pictures Mnp: 10, percent 0. 05, cluster number: 9 Results 2 Original pictures Segmented pictures Mnp: 10, percent 0. 05, cluster number: 9 Mnp: 50, percent 0. 05, cluster number: 3

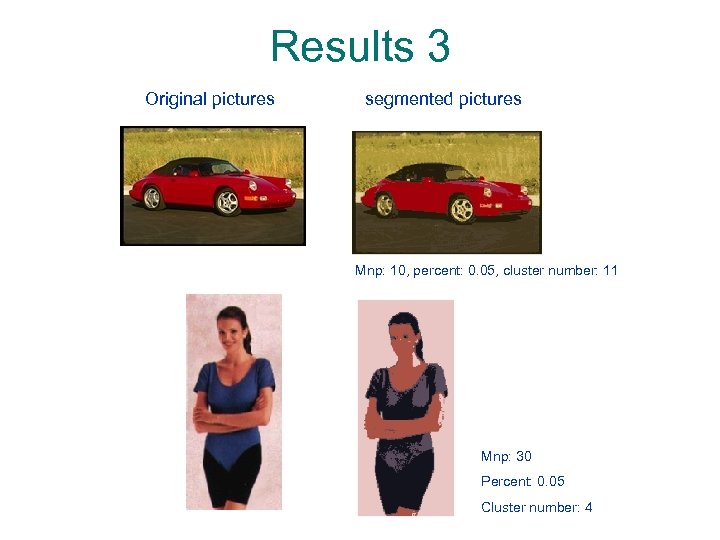

Results 3 Original pictures segmented pictures Mnp: 10, percent: 0. 05, cluster number: 11 Results 3 Original pictures segmented pictures Mnp: 10, percent: 0. 05, cluster number: 11 Mnp: 30 Percent: 0. 05 Cluster number: 4

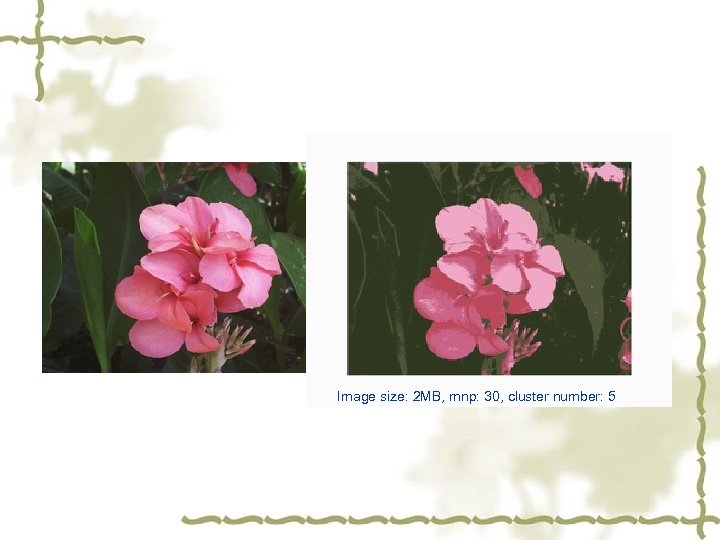

Image size: 2 MB, mnp: 30, cluster number: 5 Image size: 2 MB, mnp: 30, cluster number: 5

Original picture Mnp: 30, Cluster number: 4 Mnp: 10, cluster number: 15 Original picture Mnp: 30, Cluster number: 4 Mnp: 10, cluster number: 15

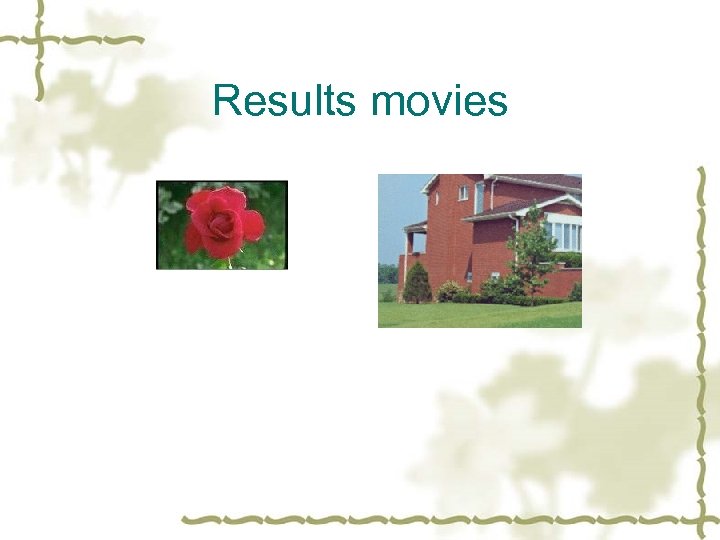

Results movies Results movies

Conclusion v Advantages no predefined cluster number user interactive computation time v Disadvantages spatial Conclusion v Advantages no predefined cluster number user interactive computation time v Disadvantages spatial information lost Cannot deal with noise or outliers
