Image Processing and Computer Vision Lecture 4 Multimedia

Image Processing and Computer Vision Lecture 4, Multimedia E-Commerce Course November 5, 2002 Mike Christel (significant input by Henry Schneiderman, http: //www. cs. cmu. edu/~hws) © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann Carnegie Mellon

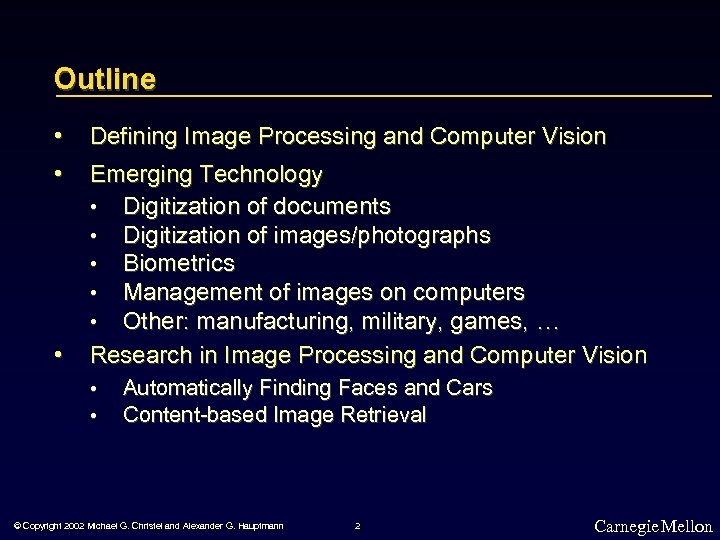

Outline • • • Defining Image Processing and Computer Vision Emerging Technology • Digitization of documents • Digitization of images/photographs • Biometrics • Management of images on computers • Other: manufacturing, military, games, … Research in Image Processing and Computer Vision • • Automatically Finding Faces and Cars Content-based Image Retrieval © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 2 Carnegie Mellon

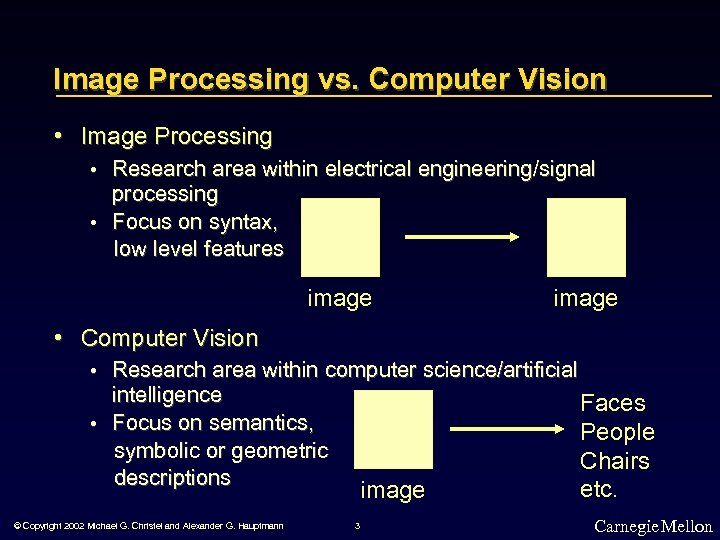

Image Processing vs. Computer Vision • Image Processing • Research area within electrical engineering/signal processing • Focus on syntax, low level features image • Computer Vision • Research area within computer science/artificial intelligence • Focus on semantics, symbolic or geometric descriptions © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann image 3 Faces People Chairs etc. Carnegie Mellon

Optical Character Recognition (OCR) • First patent in OCR in 19 th century • First applications in post-office and banks • Documents easier to distribute, search, organize, and edit in digital form • • Typewriter has been replaced by word processor Lots of legacy materials (the world’s libraries of books) available only in print • State of the art not perfect, but 99% accurate on cleanly printed pages • Examples of errors. . . © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 4 Carnegie Mellon

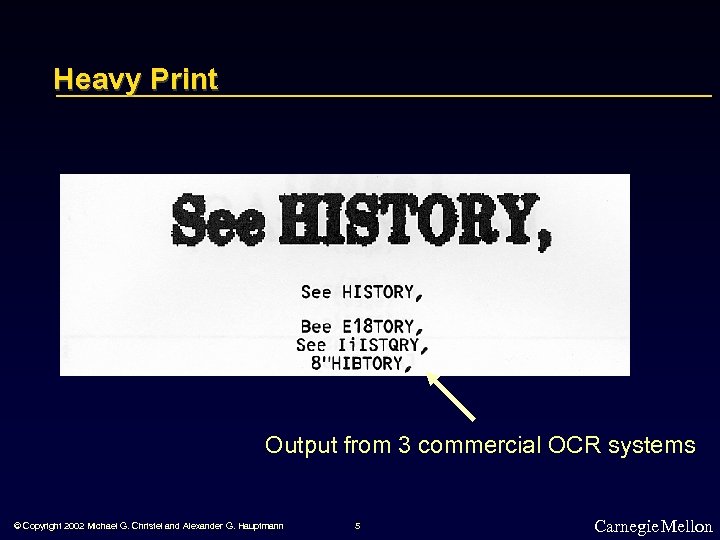

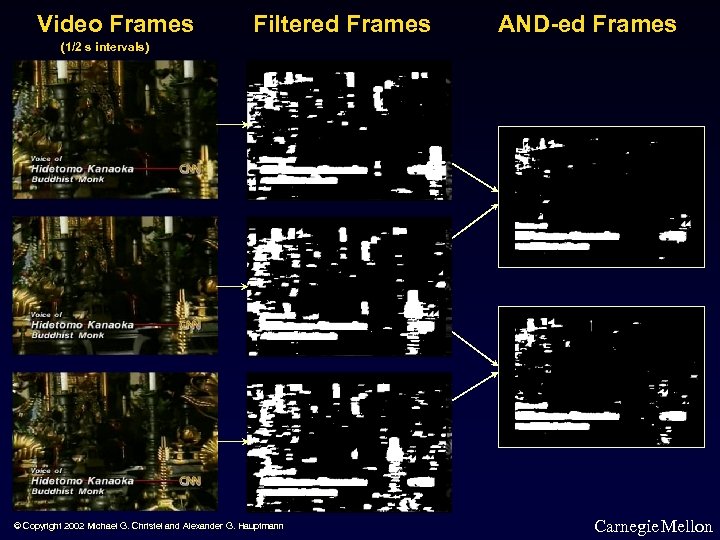

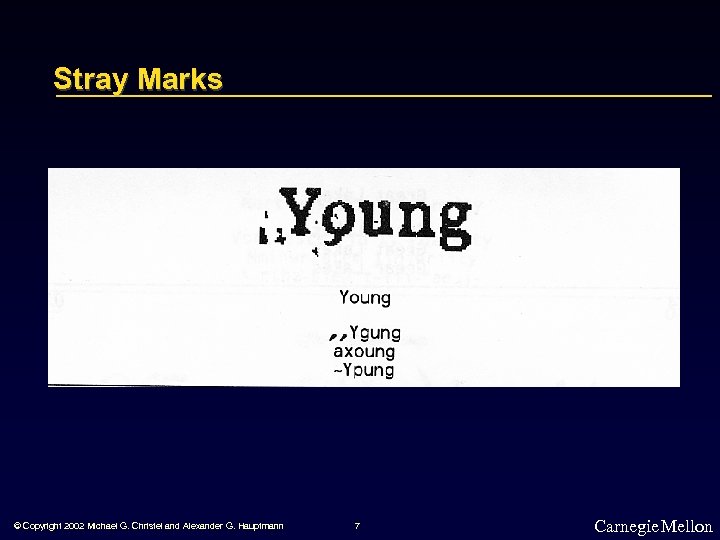

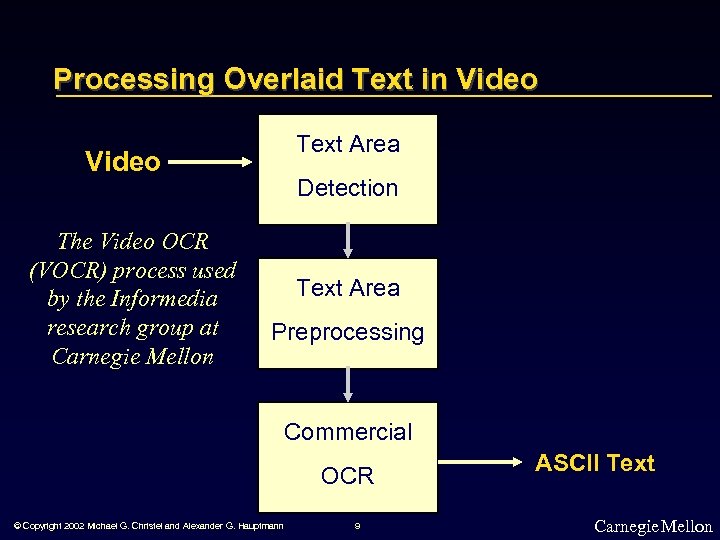

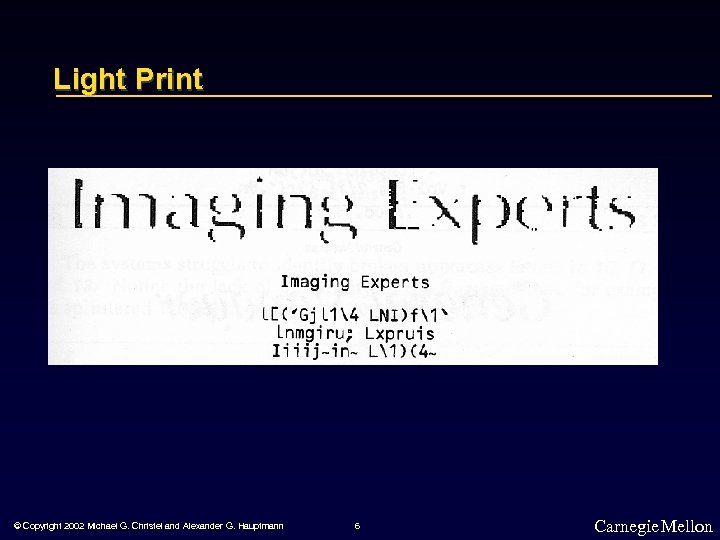

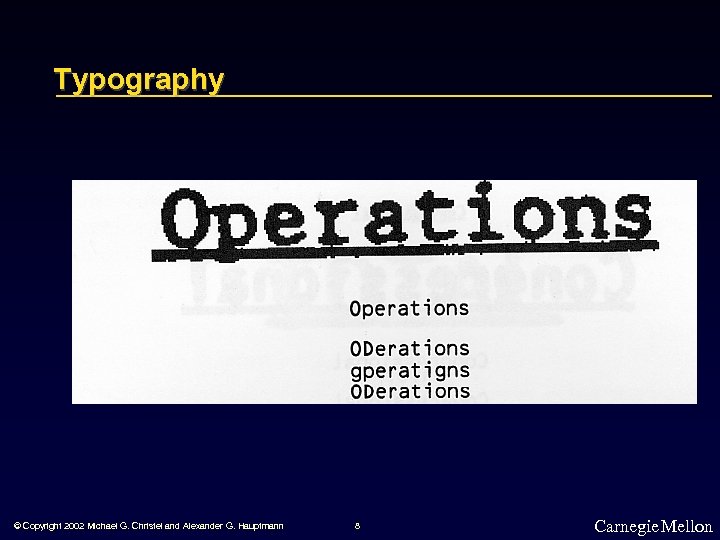

Processing Overlaid Text in Video Text Area Video The Video OCR (VOCR) process used by the Informedia research group at Carnegie Mellon Detection Text Area Preprocessing Commercial OCR © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 9 ASCII Text Carnegie Mellon

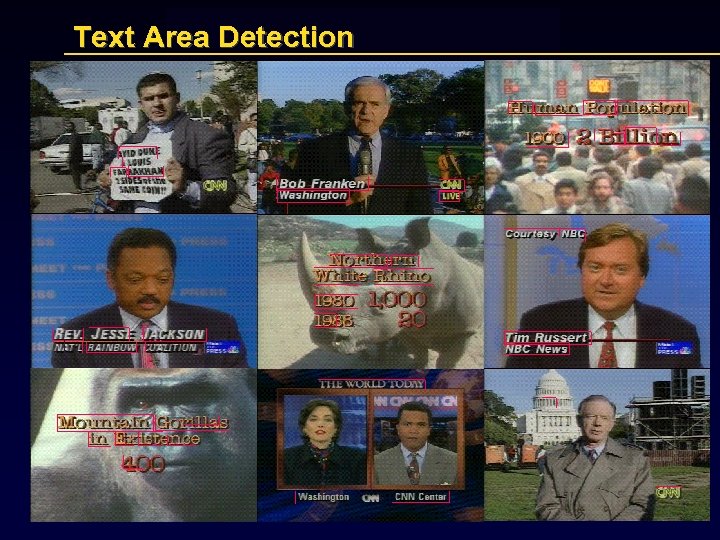

Text Area Detection

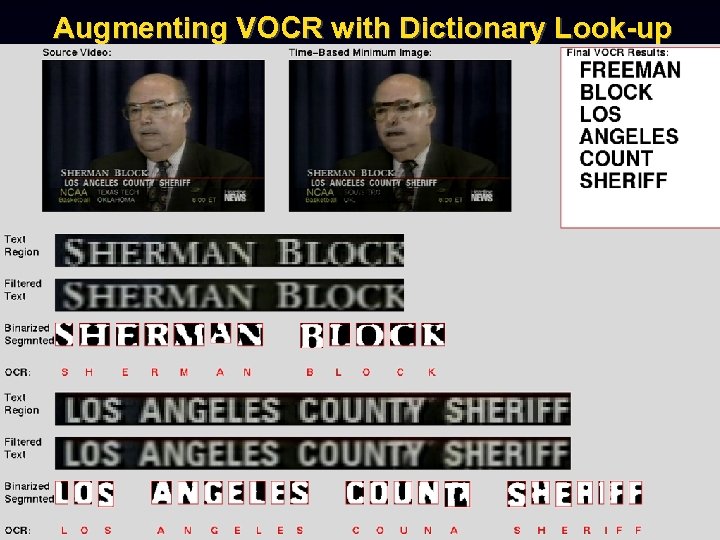

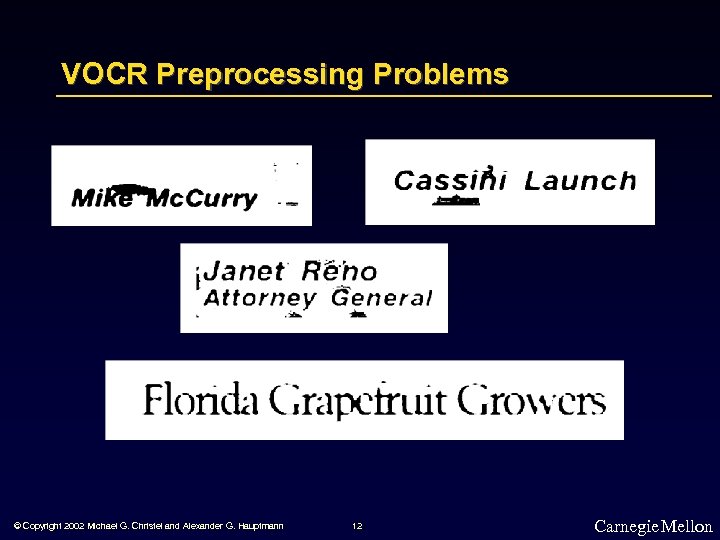

Augmenting VOCR with Dictionary Look-up

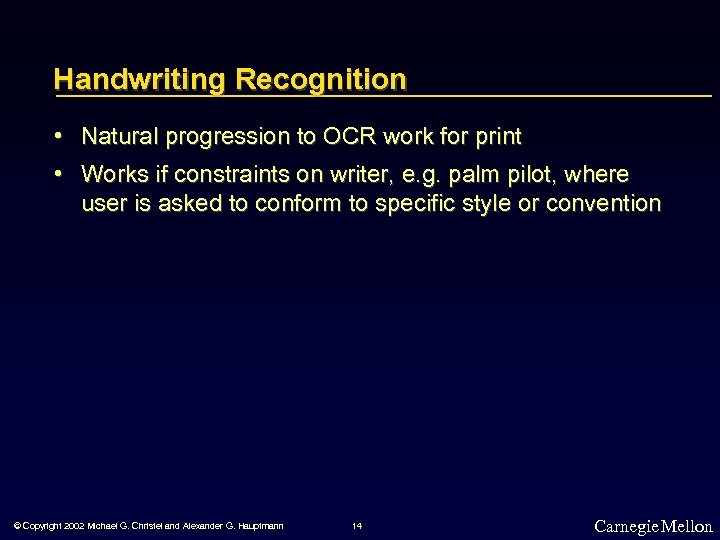

Handwriting Recognition • Natural progression to OCR work for print • Works if constraints on writer, e. g. palm pilot, where user is asked to conform to specific style or convention © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 14 Carnegie Mellon

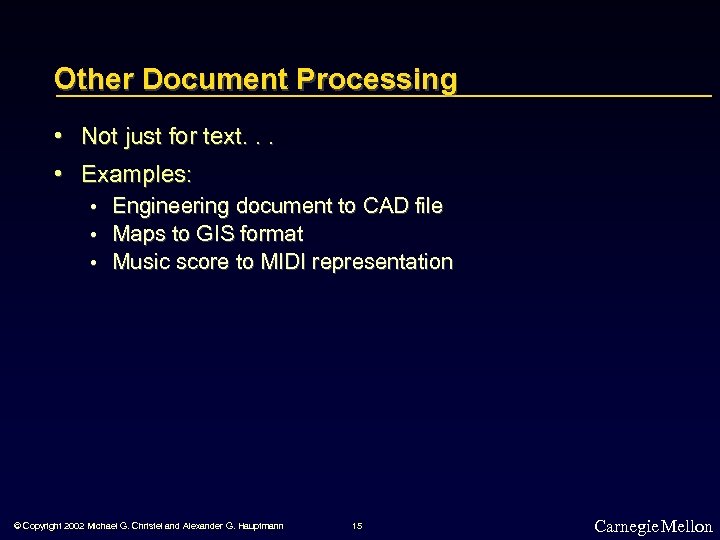

Other Document Processing • Not just for text. . . • Examples: • Engineering document to CAD file • Maps to GIS format • Music score to MIDI representation © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 15 Carnegie Mellon

Outline • • • Defining Image Processing and Computer Vision Emerging Technology • Digitization of documents • Digitization of images/photographs • Biometrics • Management of images on computers • Other: manufacturing, military, games, … Research in Image Processing and Computer Vision • • Automatically Finding Faces and Cars Content-based Image Retrieval © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 16 Carnegie Mellon

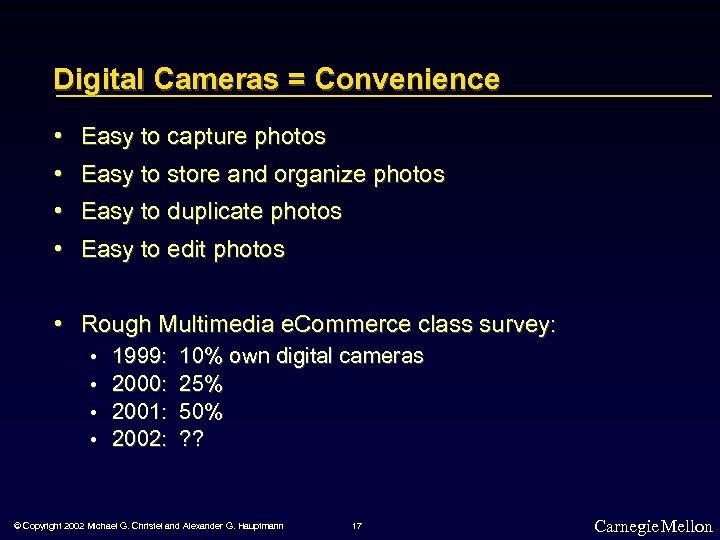

Digital Cameras = Convenience • Easy to capture photos • Easy to store and organize photos • Easy to duplicate photos • Easy to edit photos • Rough Multimedia e. Commerce class survey: • • 1999: 2000: 2001: 2002: 10% own digital cameras 25% 50% ? ? © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 17 Carnegie Mellon

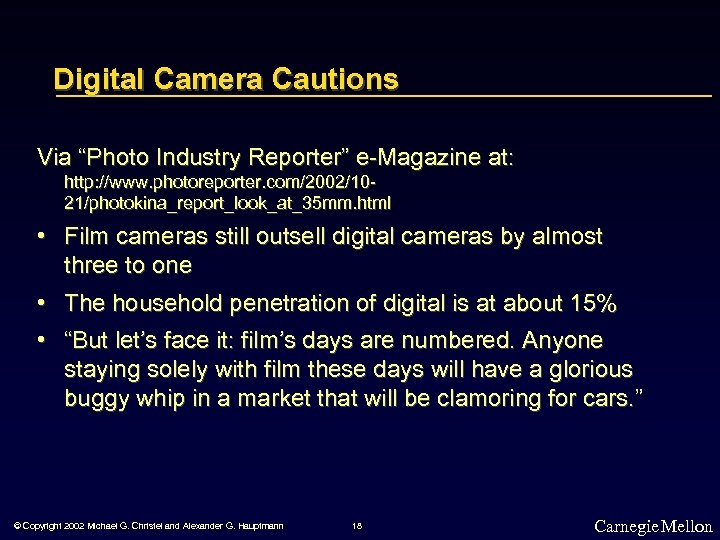

Digital Camera Cautions Via “Photo Industry Reporter” e-Magazine at: http: //www. photoreporter. com/2002/1021/photokina_report_look_at_35 mm. html • Film cameras still outsell digital cameras by almost three to one • The household penetration of digital is at about 15% • “But let’s face it: film’s days are numbered. Anyone staying solely with film these days will have a glorious buggy whip in a market that will be clamoring for cars. ” © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 18 Carnegie Mellon

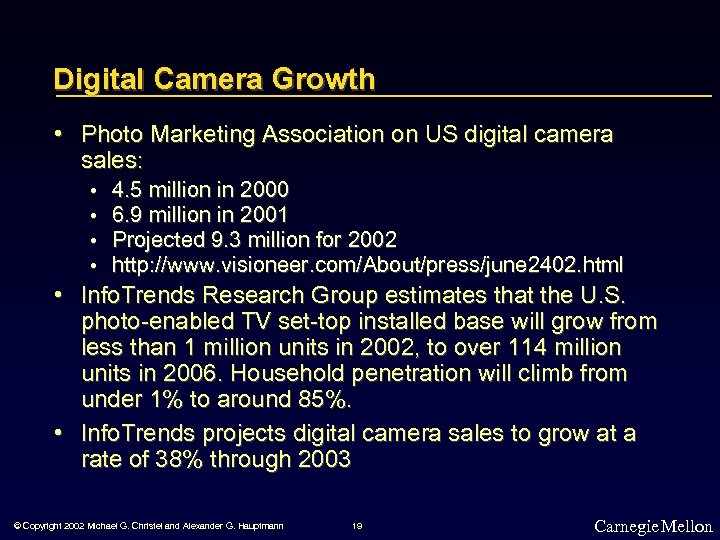

Digital Camera Growth • Photo Marketing Association on US digital camera sales: • • 4. 5 million in 2000 6. 9 million in 2001 Projected 9. 3 million for 2002 http: //www. visioneer. com/About/press/june 2402. html • Info. Trends Research Group estimates that the U. S. photo-enabled TV set-top installed base will grow from less than 1 million units in 2002, to over 114 million units in 2006. Household penetration will climb from under 1% to around 85%. • Info. Trends projects digital camera sales to grow at a rate of 38% through 2003 © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 19 Carnegie Mellon

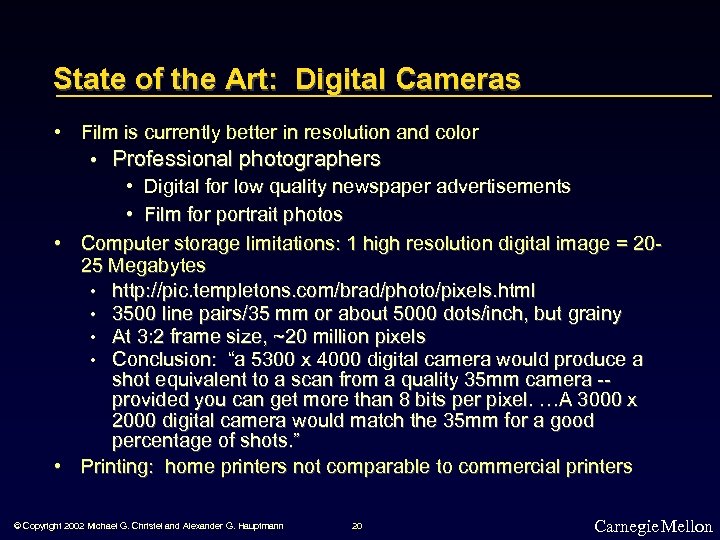

State of the Art: Digital Cameras • Film is currently better in resolution and color • Professional photographers • Digital for low quality newspaper advertisements • Film for portrait photos • Computer storage limitations: 1 high resolution digital image = 2025 Megabytes • http: //pic. templetons. com/brad/photo/pixels. html • 3500 line pairs/35 mm or about 5000 dots/inch, but grainy • At 3: 2 frame size, ~20 million pixels • Conclusion: “a 5300 x 4000 digital camera would produce a shot equivalent to a scan from a quality 35 mm camera -provided you can get more than 8 bits per pixel. …A 3000 x 2000 digital camera would match the 35 mm for a good percentage of shots. ” • Printing: home printers not comparable to commercial printers © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 20 Carnegie Mellon

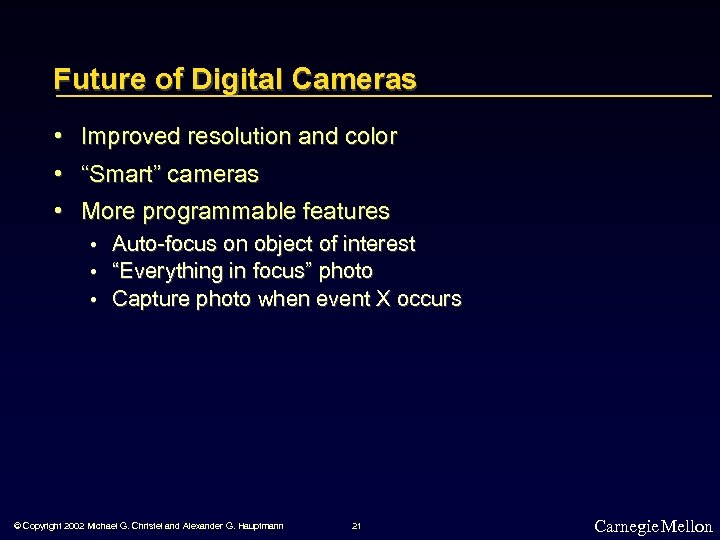

Future of Digital Cameras • Improved resolution and color • “Smart” cameras • More programmable features • Auto-focus on object of interest • “Everything in focus” photo • Capture photo when event X occurs © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 21 Carnegie Mellon

Outline • • • Defining Image Processing and Computer Vision Emerging Technology • Digitization of documents • Digitization of images/photographs • Biometrics • Management of images on computers • Other: manufacturing, military, games, … Research in Image Processing and Computer Vision • • Automatically Finding Faces and Cars Content-based Image Retrieval © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 22 Carnegie Mellon

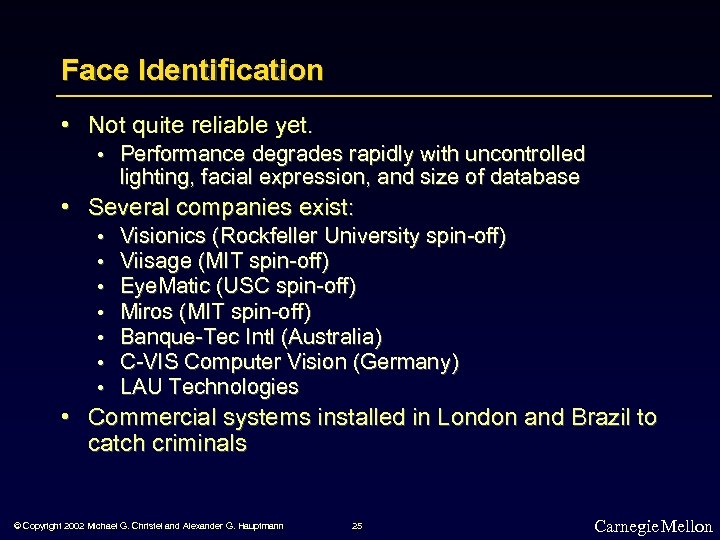

Face Identification • Not quite reliable yet. • Performance degrades rapidly with uncontrolled lighting, facial expression, and size of database • Several companies exist: • • Visionics (Rockfeller University spin-off) Viisage (MIT spin-off) Eye. Matic (USC spin-off) Miros (MIT spin-off) Banque-Tec Intl (Australia) C-VIS Computer Vision (Germany) LAU Technologies • Commercial systems installed in London and Brazil to catch criminals © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 25 Carnegie Mellon

Outline • • • Defining Image Processing and Computer Vision Emerging Technology • Digitization of documents • Digitization of images/photographs • Biometrics • Management of images on computers • Other: manufacturing, military, games, … Research in Image Processing and Computer Vision • • Automatically Finding Faces and Cars Content-based Image Retrieval © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 27 Carnegie Mellon

Management of images on computers • Compression – reducing storage size needed for images • Watermarking – Protecting copyright • Microsoft, Bell Labs, NEC, etc. Visible watermark © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 28 Carnegie Mellon

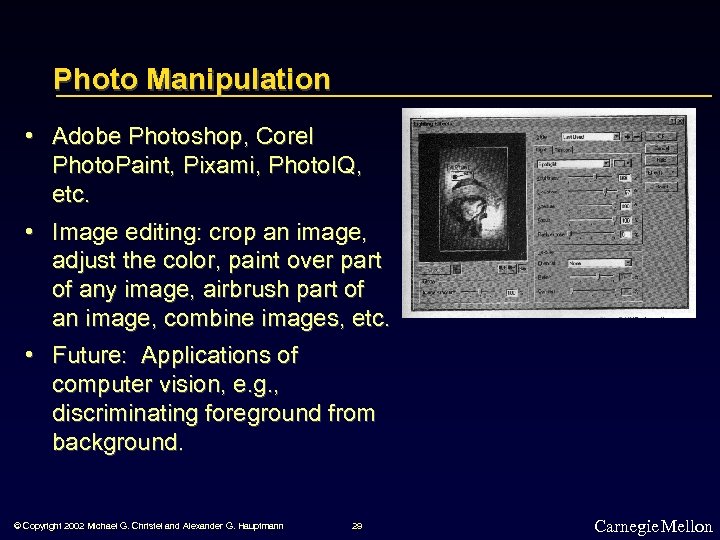

Photo Manipulation • Adobe Photoshop, Corel Photo. Paint, Pixami, Photo. IQ, etc. • Image editing: crop an image, adjust the color, paint over part of any image, airbrush part of an image, combine images, etc. • Future: Applications of computer vision, e. g. , discriminating foreground from background. © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 29 Carnegie Mellon

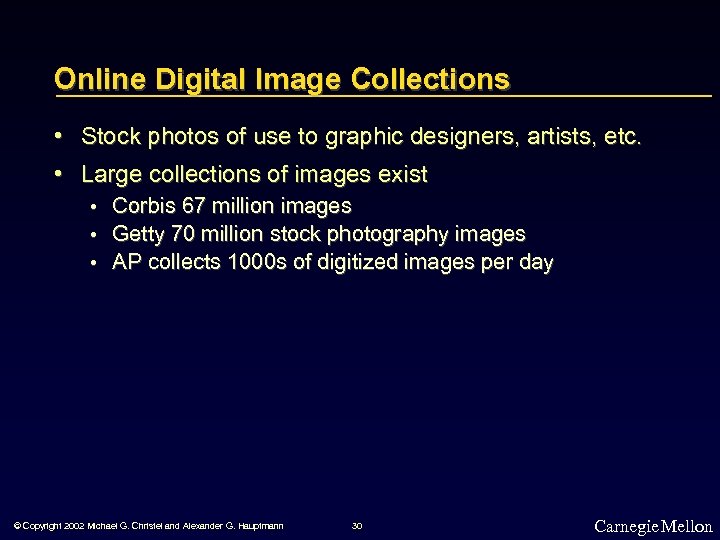

Online Digital Image Collections • Stock photos of use to graphic designers, artists, etc. • Large collections of images exist • Corbis 67 million images • Getty 70 million stock photography images • AP collects 1000 s of digitized images per day © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 30 Carnegie Mellon

Outline • • • Defining Image Processing and Computer Vision Emerging Technology • Digitization of documents • Digitization of images/photographs • Biometrics • Management of images on computers • Other: manufacturing, military, games, … Research in Image Processing and Computer Vision • • Automatically Finding Faces and Cars Content-based Image Retrieval © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 31 Carnegie Mellon

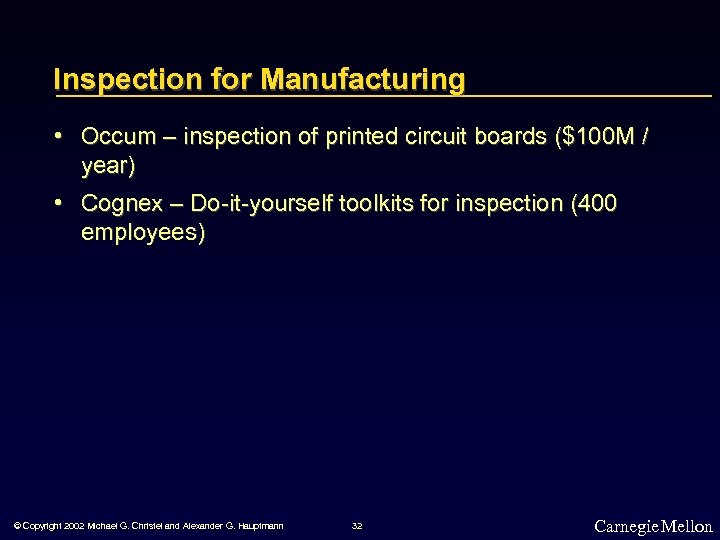

Inspection for Manufacturing • Occum – inspection of printed circuit boards ($100 M / year) • Cognex – Do-it-yourself toolkits for inspection (400 employees) © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 32 Carnegie Mellon

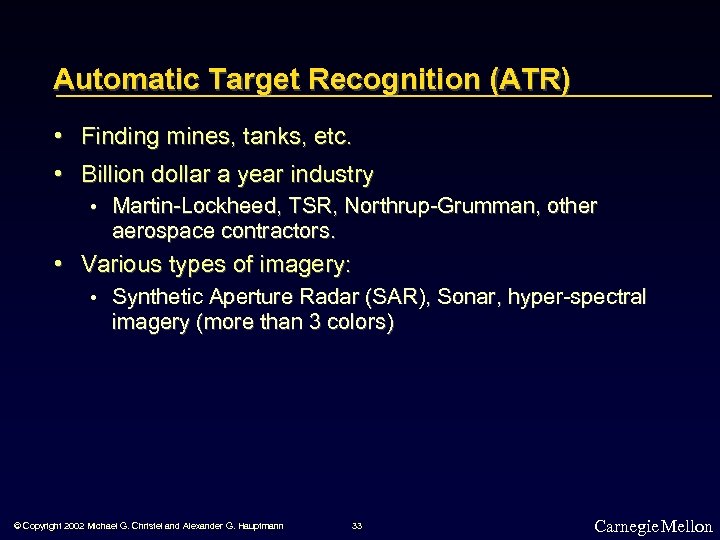

Automatic Target Recognition (ATR) • Finding mines, tanks, etc. • Billion dollar a year industry • Martin-Lockheed, TSR, Northrup-Grumman, other aerospace contractors. • Various types of imagery: • Synthetic Aperture Radar (SAR), Sonar, hyper-spectral imagery (more than 3 colors) © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 33 Carnegie Mellon

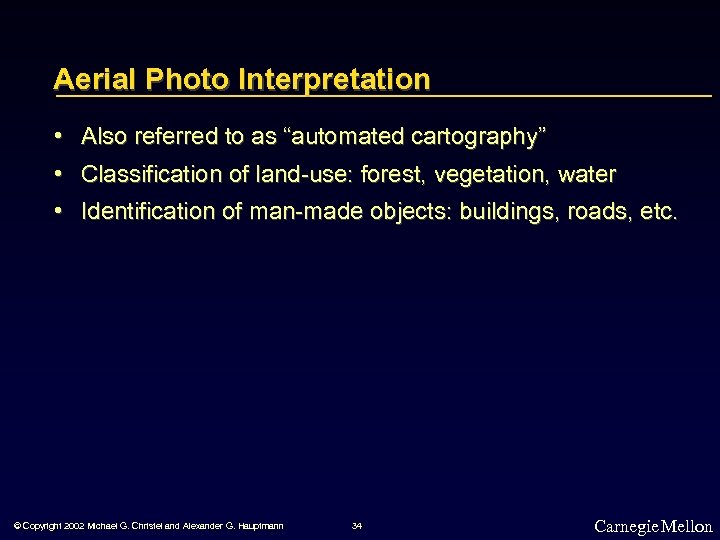

Aerial Photo Interpretation • Also referred to as “automated cartography” • Classification of land-use: forest, vegetation, water • Identification of man-made objects: buildings, roads, etc. © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 34 Carnegie Mellon

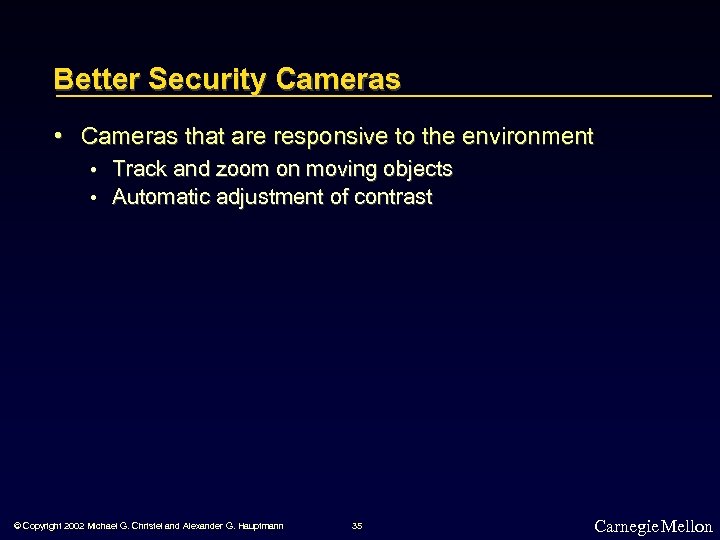

Better Security Cameras • Cameras that are responsive to the environment • • Track and zoom on moving objects Automatic adjustment of contrast © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 35 Carnegie Mellon

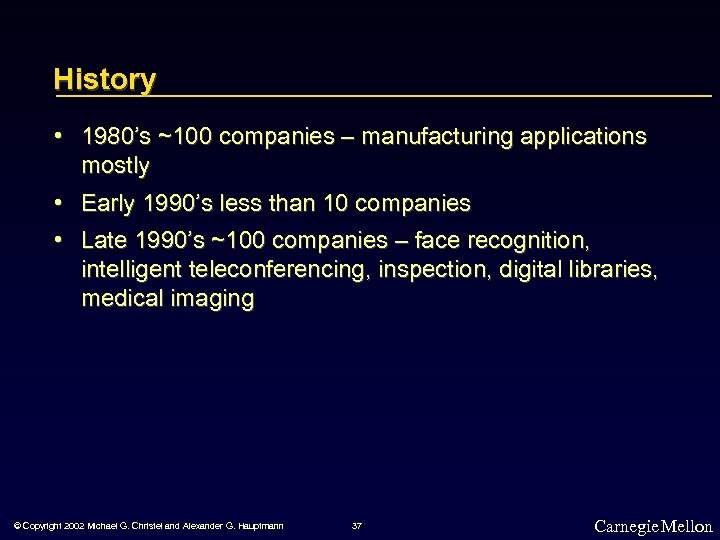

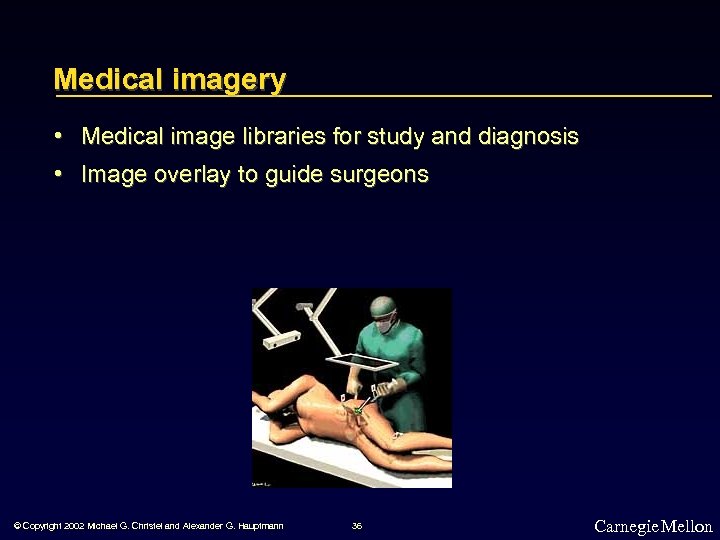

History • 1980’s ~100 companies – manufacturing applications mostly • Early 1990’s less than 10 companies • Late 1990’s ~100 companies – face recognition, intelligent teleconferencing, inspection, digital libraries, medical imaging © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 37 Carnegie Mellon

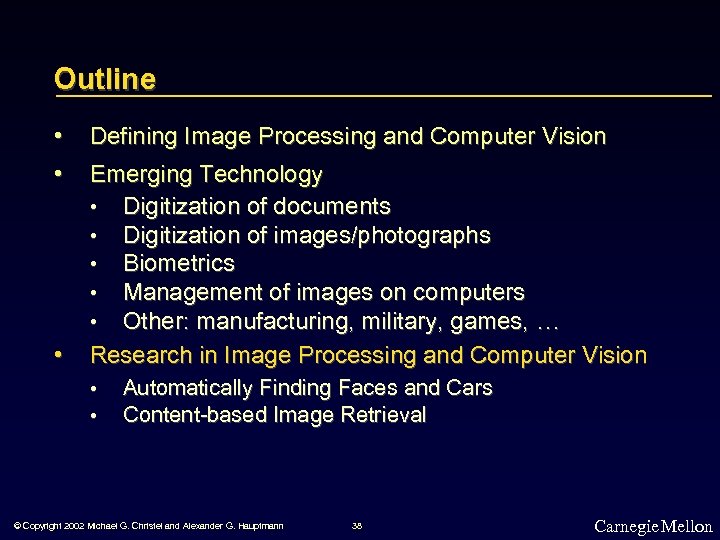

Outline • • • Defining Image Processing and Computer Vision Emerging Technology • Digitization of documents • Digitization of images/photographs • Biometrics • Management of images on computers • Other: manufacturing, military, games, … Research in Image Processing and Computer Vision • • Automatically Finding Faces and Cars Content-based Image Retrieval © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 38 Carnegie Mellon

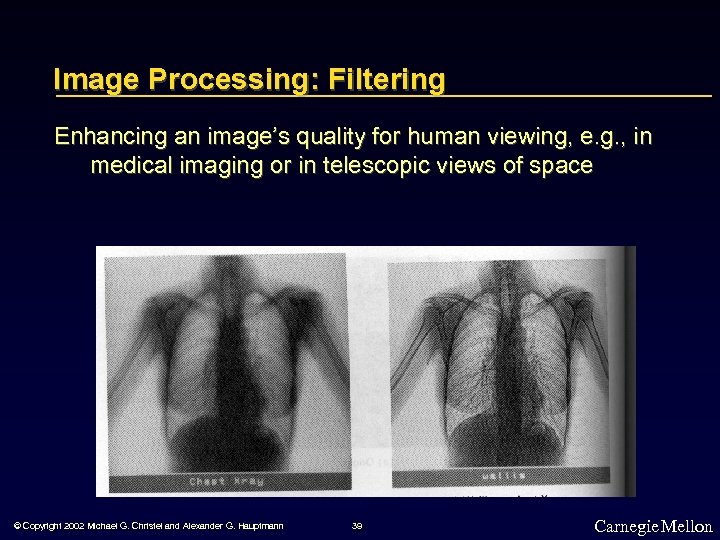

Image Processing: Filtering Enhancing an image’s quality for human viewing, e. g. , in medical imaging or in telescopic views of space © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 39 Carnegie Mellon

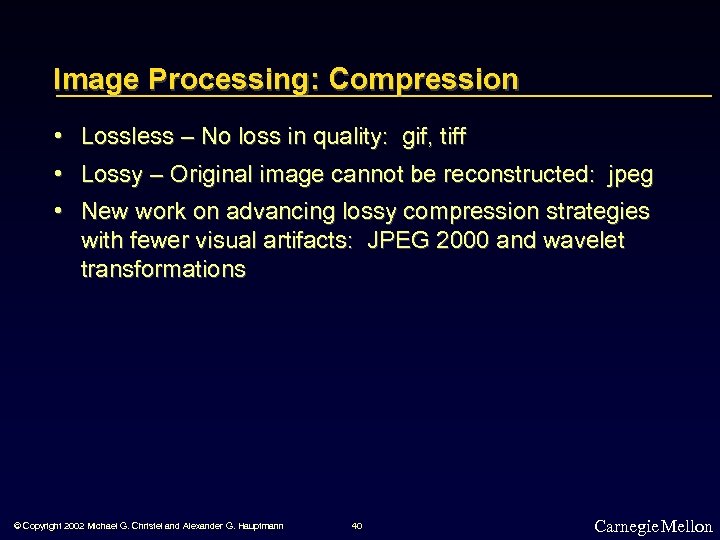

Image Processing: Compression • Lossless – No loss in quality: gif, tiff • Lossy – Original image cannot be reconstructed: jpeg • New work on advancing lossy compression strategies with fewer visual artifacts: JPEG 2000 and wavelet transformations © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 40 Carnegie Mellon

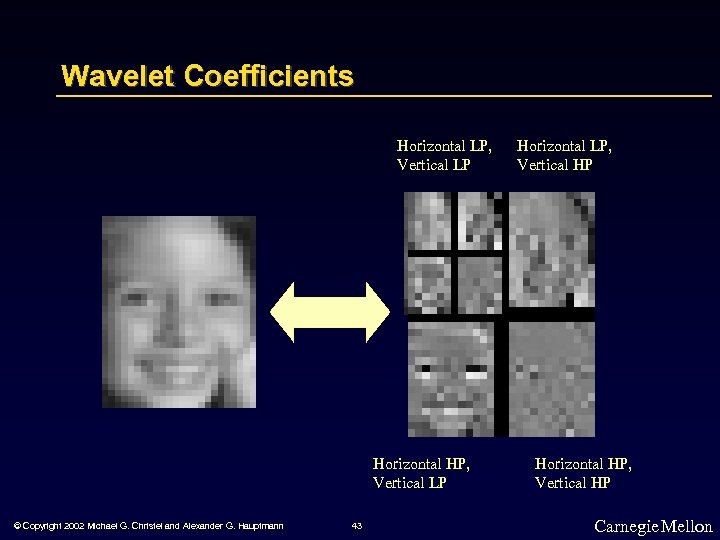

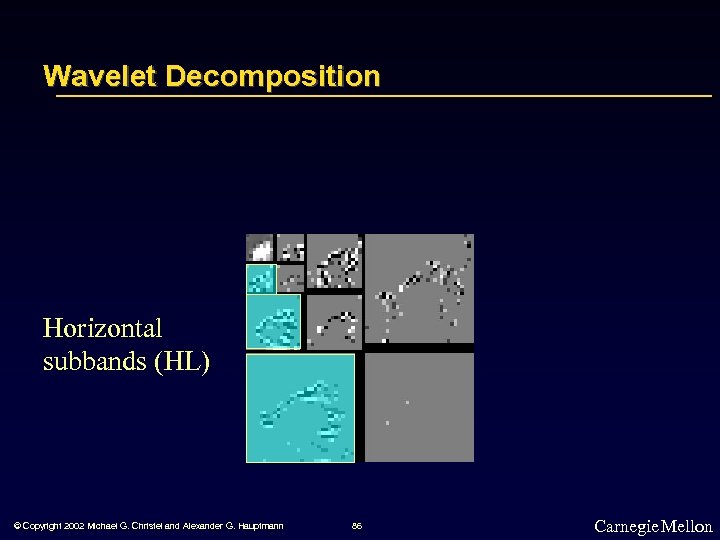

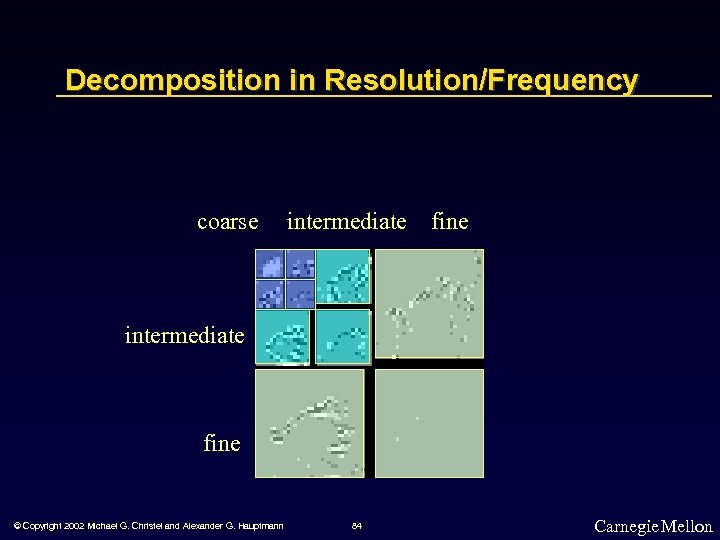

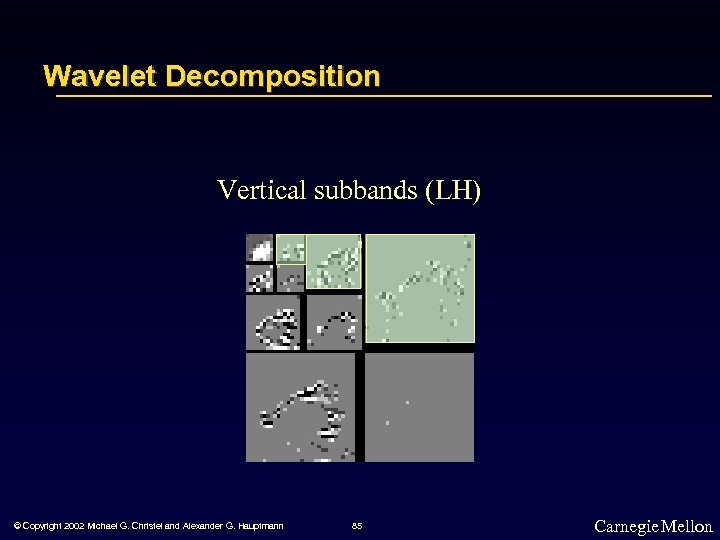

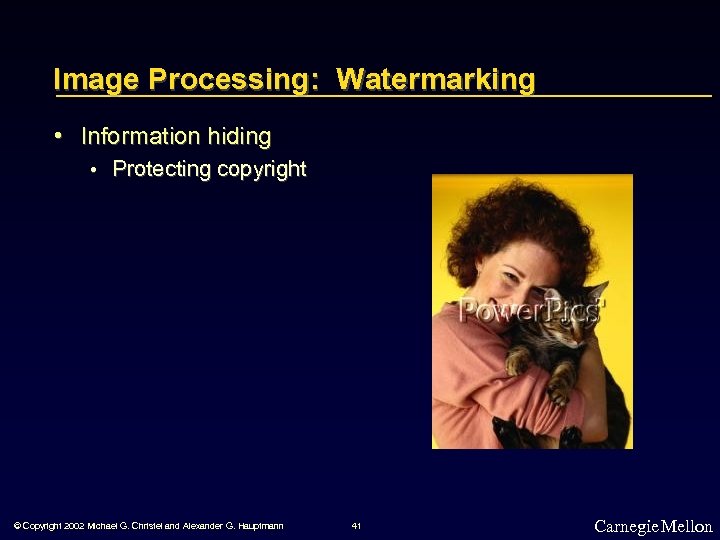

Wavelet Coefficients Horizontal LP, Vertical LP Horizontal HP, Vertical LP © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 43 Horizontal LP, Vertical HP Horizontal HP, Vertical HP Carnegie Mellon

5/3 Linear Phase Wavelets Linear phase 5/3: c[n] = {-1, 2, 6, 2, -1}, d[n]={1, -2, 1} g[n] = {1, 2, -6, 2, 1}, f[n]={1, 2, 1} © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 44 Carnegie Mellon

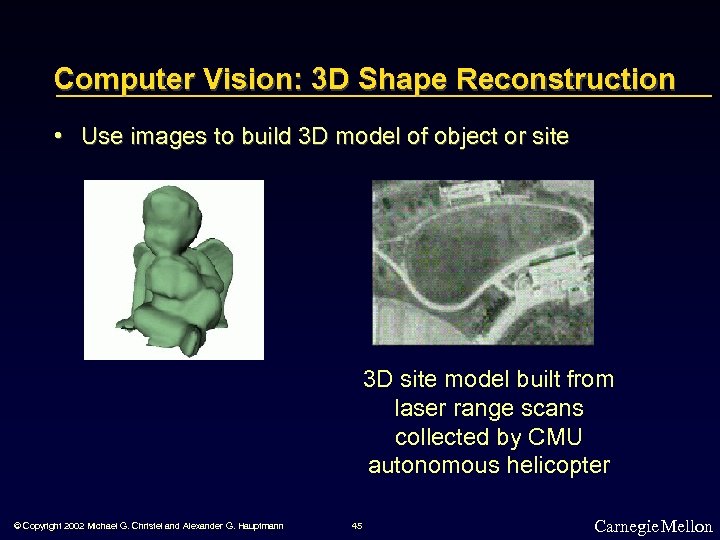

Computer Vision: 3 D Shape Reconstruction • Use images to build 3 D model of object or site 3 D site model built from laser range scans collected by CMU autonomous helicopter © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 45 Carnegie Mellon

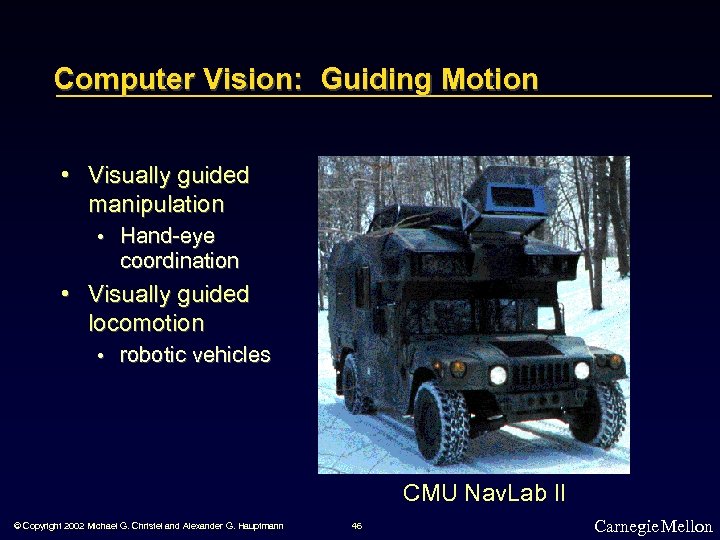

Computer Vision: Guiding Motion • Visually guided manipulation • Hand-eye coordination • Visually guided locomotion • robotic vehicles CMU Nav. Lab II © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 46 Carnegie Mellon

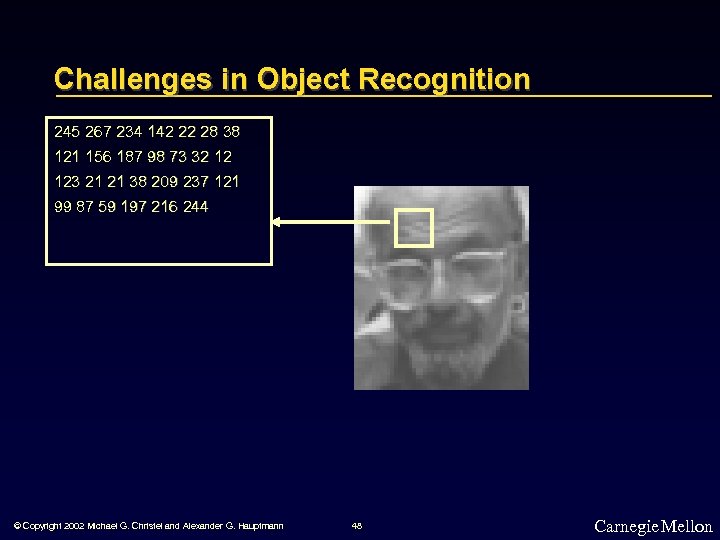

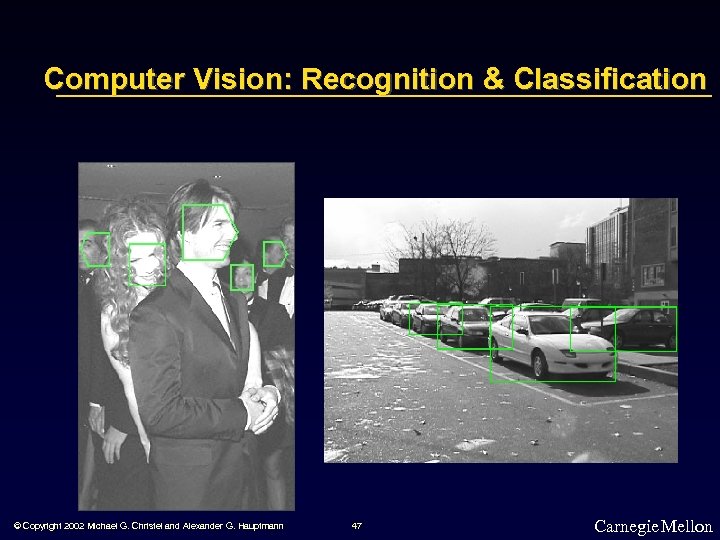

Challenges in Object Recognition 245 267 234 142 22 28 38 121 156 187 98 73 32 12 123 21 21 38 209 237 121 99 87 59 197 216 244 © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 48 Carnegie Mellon

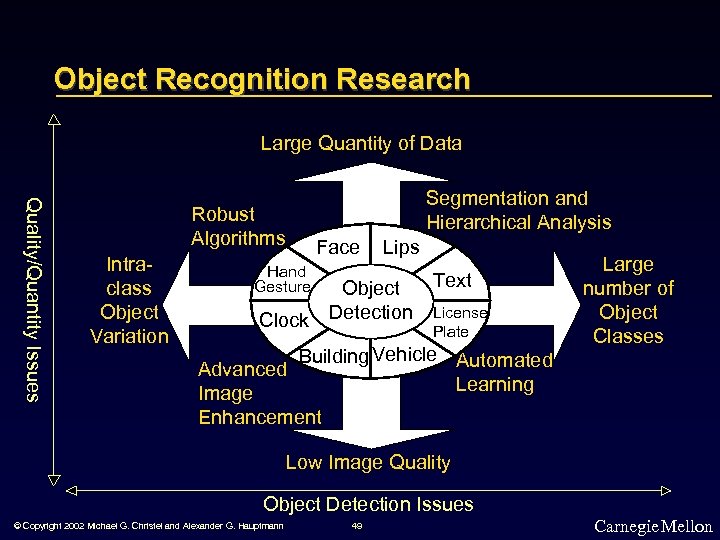

Object Recognition Research Large Quantity of Data Quality/Quantity Issues Segmentation and Hierarchical Analysis Robust Algorithms Intraclass Object Variation Face Lips Hand Gesture Text Object Clock Detection License Plate Building Vehicle Automated Advanced Learning Image Enhancement Large number of Object Classes Low Image Quality Object Detection Issues © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 49 Carnegie Mellon

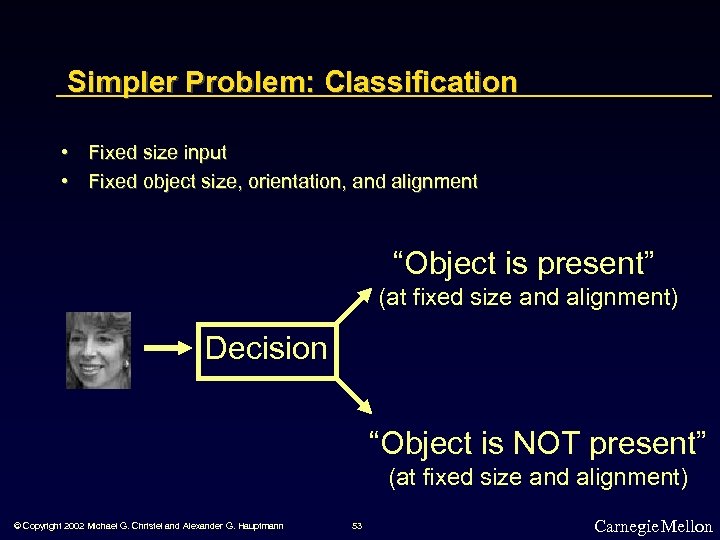

Simpler Problem: Classification • Fixed size input • Fixed object size, orientation, and alignment “Object is present” (at fixed size and alignment) Decision “Object is NOT present” (at fixed size and alignment) © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 53 Carnegie Mellon

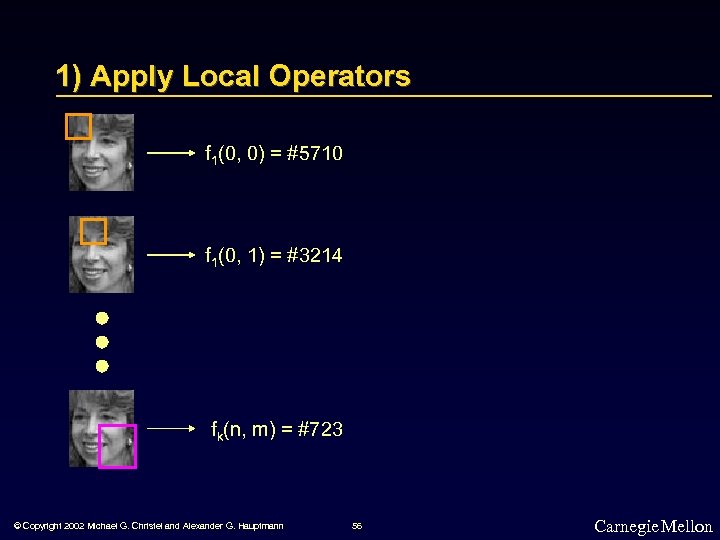

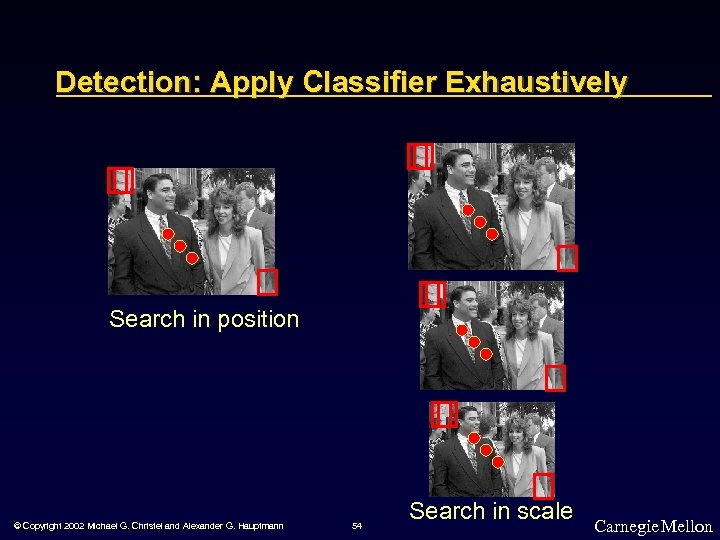

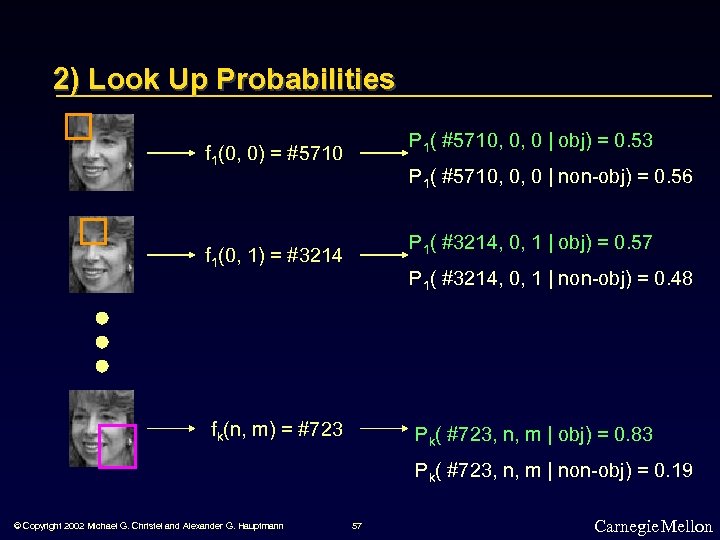

2) Look Up Probabilities P 1( #5710, 0, 0 | obj) = 0. 53 f 1(0, 0) = #5710 P 1( #5710, 0, 0 | non-obj) = 0. 56 P 1( #3214, 0, 1 | obj) = 0. 57 f 1(0, 1) = #3214 P 1( #3214, 0, 1 | non-obj) = 0. 48 fk(n, m) = #723 Pk( #723, n, m | obj) = 0. 83 Pk( #723, n, m | non-obj) = 0. 19 © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 57 Carnegie Mellon

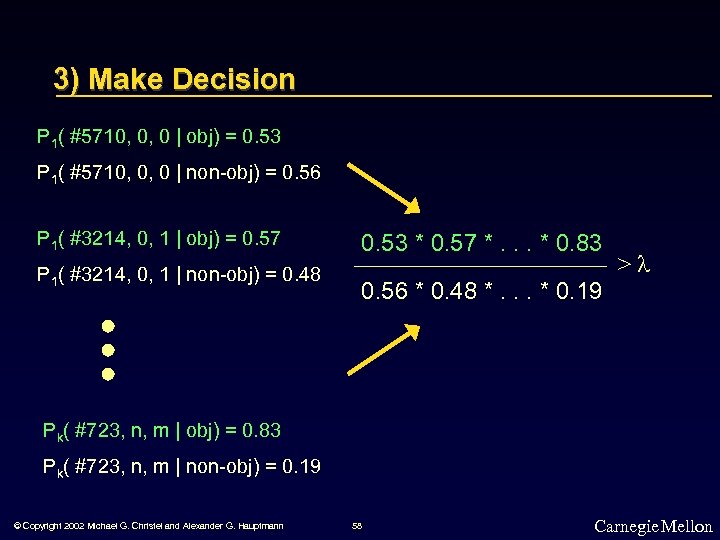

3) Make Decision P 1( #5710, 0, 0 | obj) = 0. 53 P 1( #5710, 0, 0 | non-obj) = 0. 56 P 1( #3214, 0, 1 | obj) = 0. 57 P 1( #3214, 0, 1 | non-obj) = 0. 48 0. 53 * 0. 57 *. . . * 0. 83 >l 0. 56 * 0. 48 *. . . * 0. 19 Pk( #723, n, m | obj) = 0. 83 Pk( #723, n, m | non-obj) = 0. 19 © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 58 Carnegie Mellon

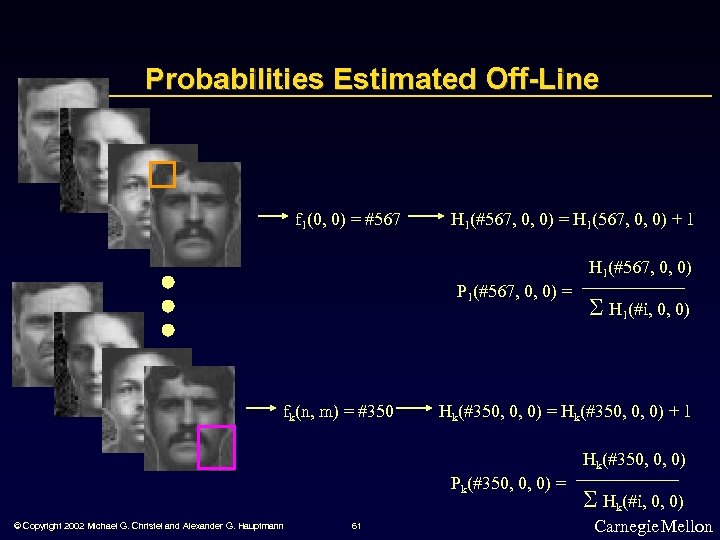

Probabilities Estimated Off-Line f 1(0, 0) = #567 H 1(#567, 0, 0) = H 1(567, 0, 0) + 1 H 1(#567, 0, 0) P 1(#567, 0, 0) = fk(n, m) = #350 S H 1(#i, 0, 0) Hk(#350, 0, 0) = Hk(#350, 0, 0) + 1 Hk(#350, 0, 0) Pk(#350, 0, 0) = © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 61 S Hk(#i, 0, 0) Carnegie Mellon

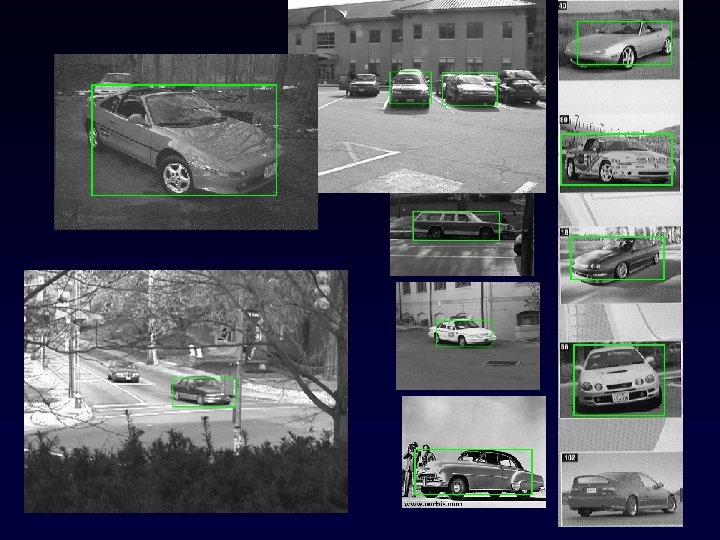

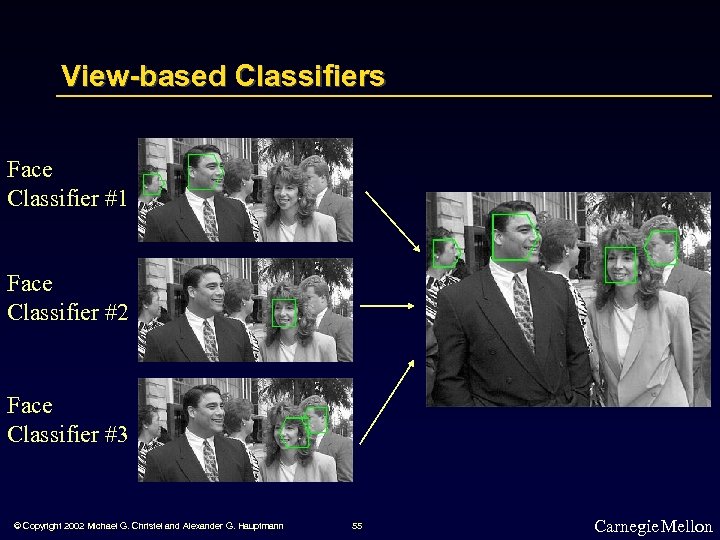

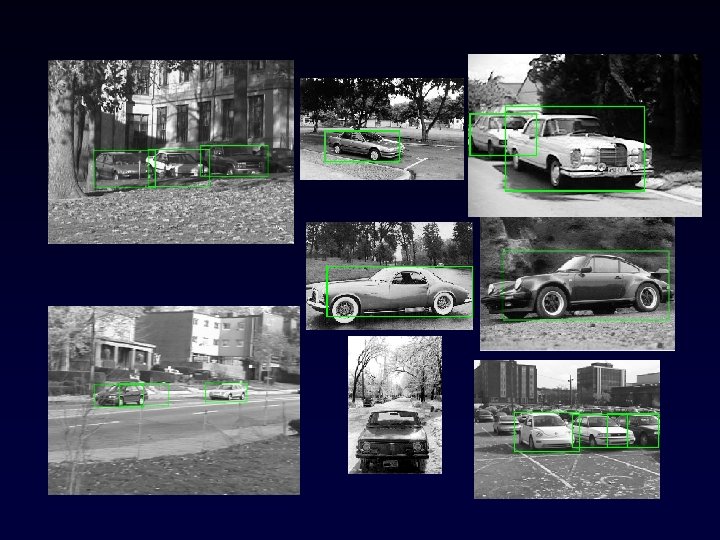

Training Classifiers • Cars: 300 -500 images per viewpoint • Faces: 2, 000 images per viewpoint • ~1, 000 synthetic variations of each original image • background scenery, orientation, position, frequency • 2000 non-object images • Samples selected by bootstrapping • Minimization of classification error on training set • Ada. Boost algorithm (Freund & Shapire ‘ 97, Shapire & Singer ‘ 99) • Iterative method • Determines weights for samples © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 62 Carnegie Mellon

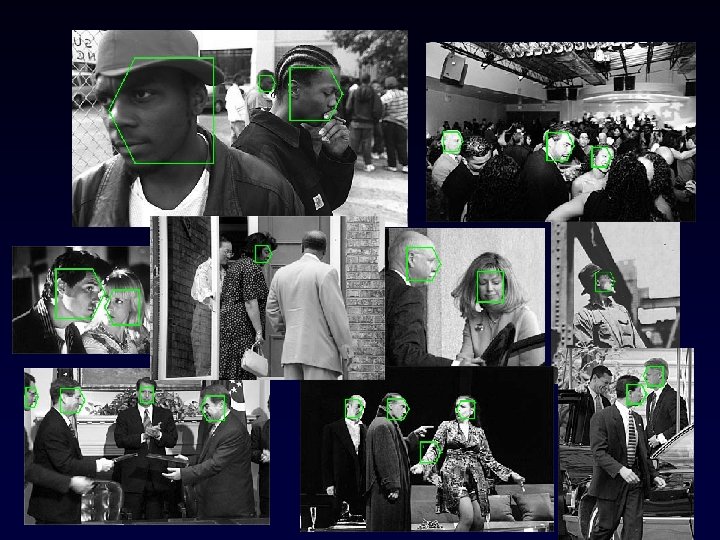

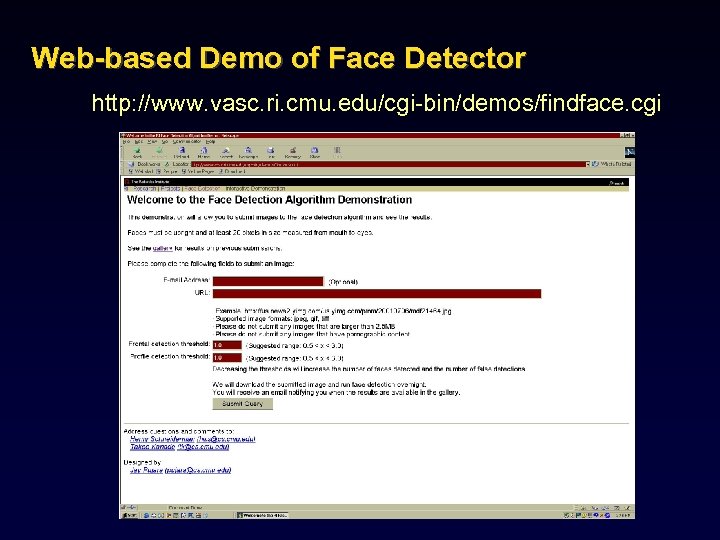

Web-based Demo of Face Detector http: //www. vasc. ri. cmu. edu/cgi-bin/demos/findface. cgi

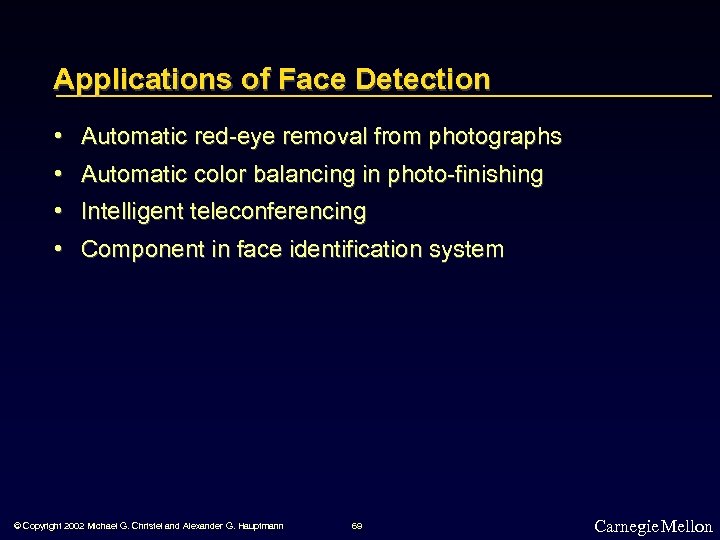

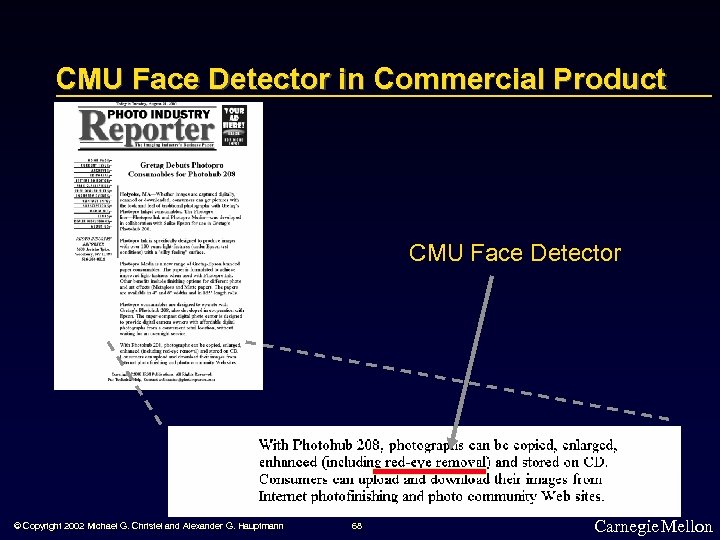

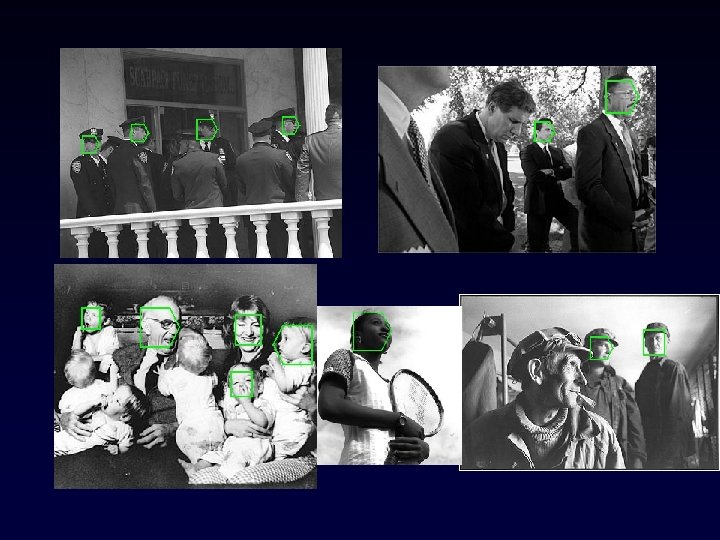

Applications of Face Detection • Automatic red-eye removal from photographs • Automatic color balancing in photo-finishing • Intelligent teleconferencing • Component in face identification system © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 69 Carnegie Mellon

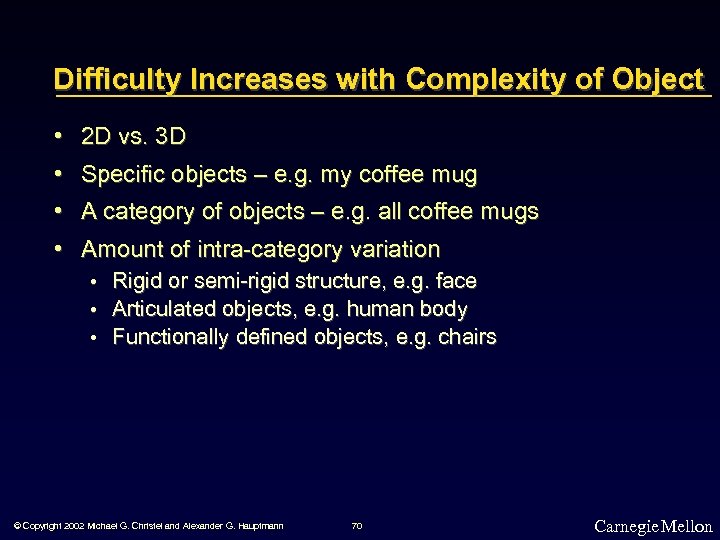

Difficulty Increases with Complexity of Object • 2 D vs. 3 D • Specific objects – e. g. my coffee mug • A category of objects – e. g. all coffee mugs • Amount of intra-category variation • • • Rigid or semi-rigid structure, e. g. face Articulated objects, e. g. human body Functionally defined objects, e. g. chairs © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 70 Carnegie Mellon

Outline • • • Defining Image Processing and Computer Vision Emerging Technology • Digitization of documents • Digitization of images/photographs • Biometrics • Management of images on computers • Other: manufacturing, military, games, … Research in Image Processing and Computer Vision • • Automatically Finding Faces and Cars Content-based Image Retrieval © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 71 Carnegie Mellon

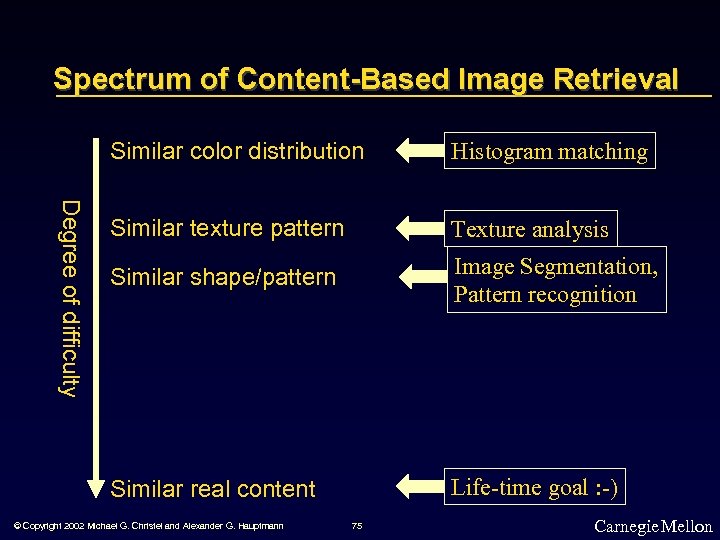

Spectrum of Content-Based Image Retrieval Histogram matching Similar texture pattern Texture analysis Similar shape/pattern Image Segmentation, Pattern recognition Similar real content Degree of difficulty Similar color distribution Life-time goal : -) © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 75 Carnegie Mellon

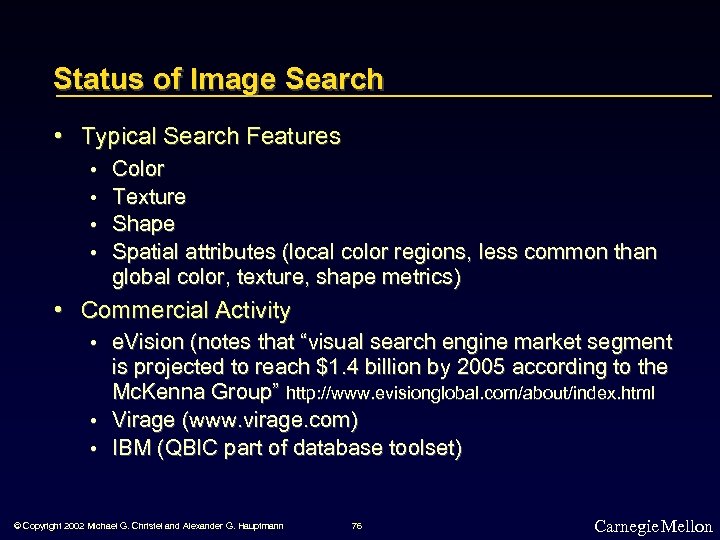

Status of Image Search • Typical Search Features • • Color Texture Shape Spatial attributes (local color regions, less common than global color, texture, shape metrics) • Commercial Activity • e. Vision (notes that “visual search engine market segment is projected to reach $1. 4 billion by 2005 according to the Mc. Kenna Group” http: //www. evisionglobal. com/about/index. html • Virage (www. virage. com) • IBM (QBIC part of database toolset) © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 76 Carnegie Mellon

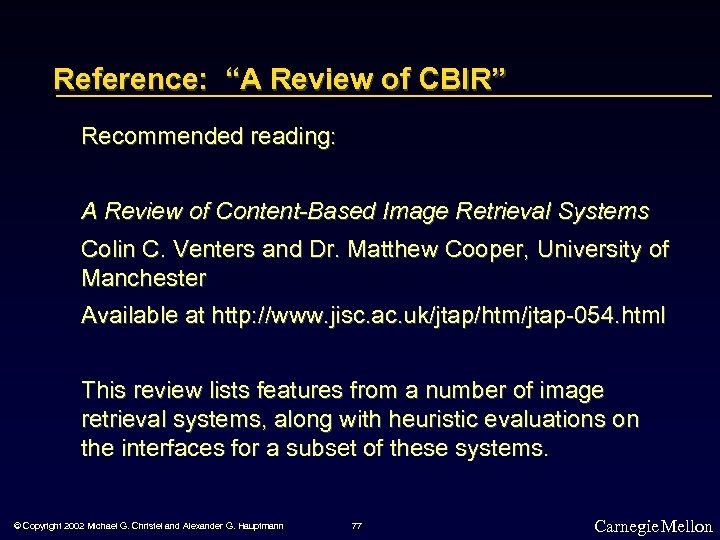

Reference: “A Review of CBIR” Recommended reading: A Review of Content-Based Image Retrieval Systems Colin C. Venters and Dr. Matthew Cooper, University of Manchester Available at http: //www. jisc. ac. uk/jtap/htm/jtap-054. html This review lists features from a number of image retrieval systems, along with heuristic evaluations on the interfaces for a subset of these systems. © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 77 Carnegie Mellon

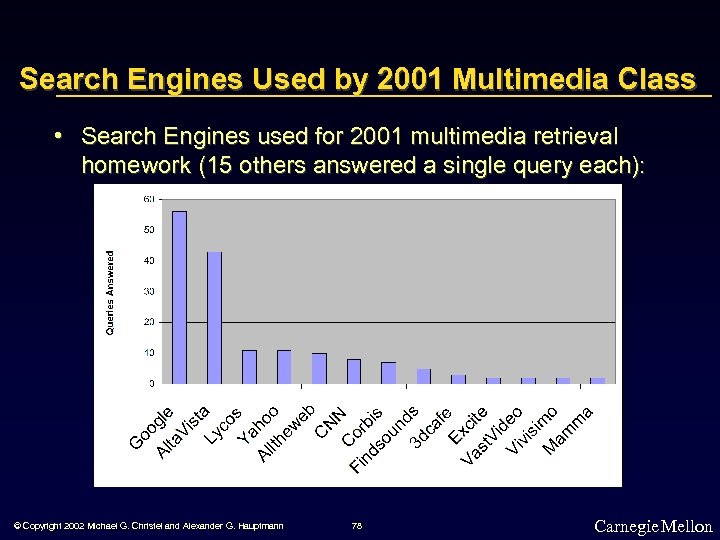

Search Engines Used by 2001 Multimedia Class • Search Engines used for 2001 multimedia retrieval homework (15 others answered a single query each): © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 78 Carnegie Mellon

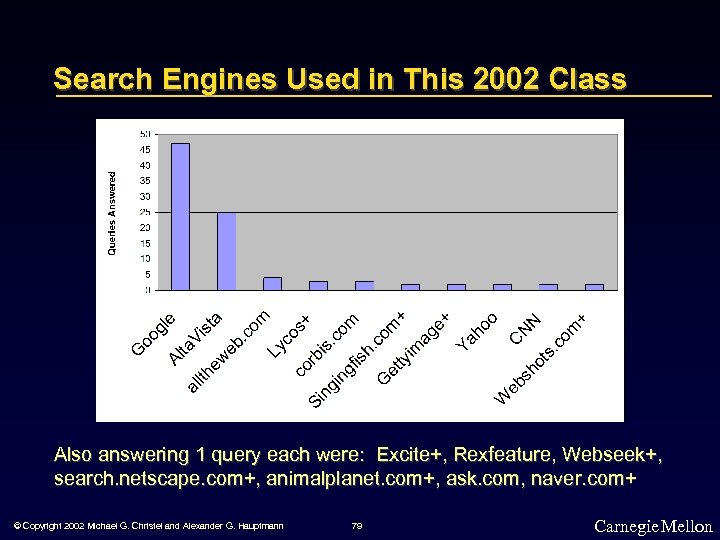

Search Engines Used in This 2002 Class Also answering 1 query each were: Excite+, Rexfeature, Webseek+, search. netscape. com+, animalplanet. com+, ask. com, naver. com+ © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 79 Carnegie Mellon

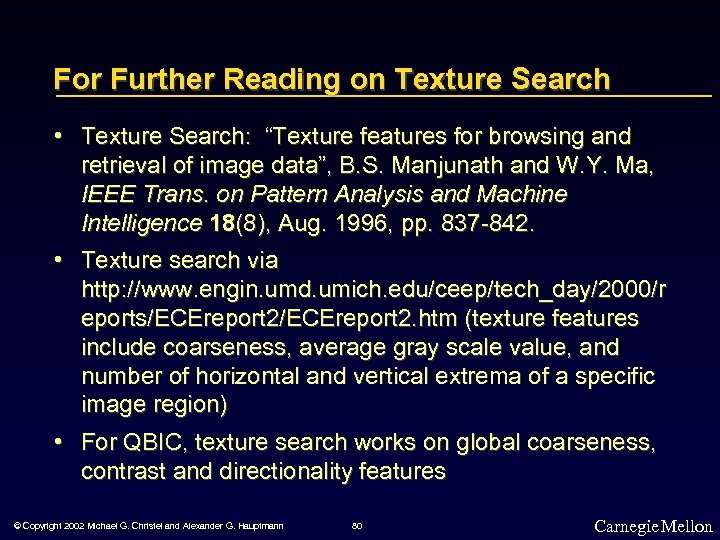

For Further Reading on Texture Search • Texture Search: “Texture features for browsing and retrieval of image data”, B. S. Manjunath and W. Y. Ma, IEEE Trans. on Pattern Analysis and Machine Intelligence 18(8), Aug. 1996, pp. 837 -842. • Texture search via http: //www. engin. umd. umich. edu/ceep/tech_day/2000/r eports/ECEreport 2. htm (texture features include coarseness, average gray scale value, and number of horizontal and vertical extrema of a specific image region) • For QBIC, texture search works on global coarseness, contrast and directionality features © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 80 Carnegie Mellon

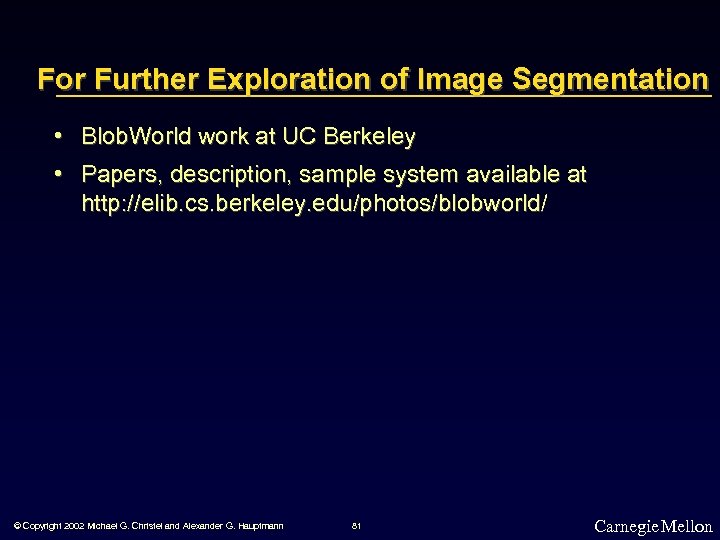

For Further Exploration of Image Segmentation • Blob. World work at UC Berkeley • Papers, description, sample system available at http: //elib. cs. berkeley. edu/photos/blobworld/ © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 81 Carnegie Mellon

Further Reading on Wavelet Compression and JPEG 2000 • http: //www. gvsu. edu/math/wavelets/student_work/EF/howworks. html • http: //www-ise. stanford. edu/class/psych 221/00/shuoyen/ • Henry Schneiderman Ph. D. Thesis “A Statistical Approach to 3 D Object Detection Applied to Faces and Cars”, http: //www. ri. cmu. edu/pub_files/pub 2/schneiderman_henry _2000_2/schneiderman_henry_2000_2. pdf • http: //www. jpeg. org/JPEG 2000. html © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 82 Carnegie Mellon

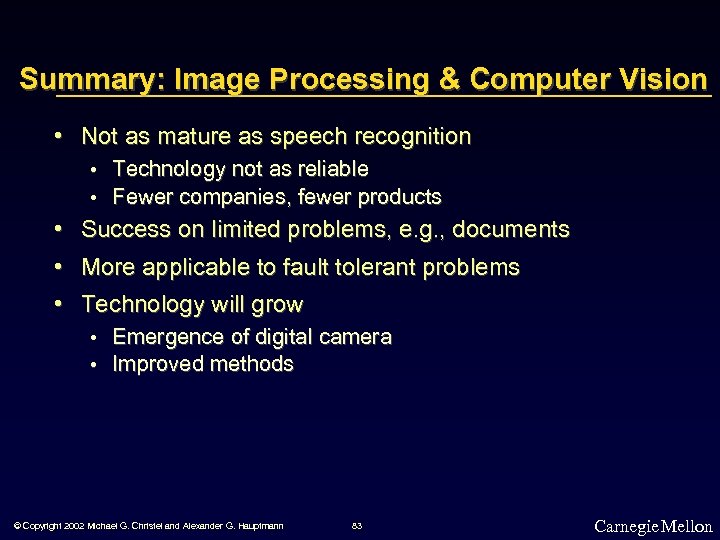

Summary: Image Processing & Computer Vision • Not as mature as speech recognition • • Technology not as reliable Fewer companies, fewer products • Success on limited problems, e. g. , documents • More applicable to fault tolerant problems • Technology will grow • • Emergence of digital camera Improved methods © Copyright 2002 Michael G. Christel and Alexander G. Hauptmann 83 Carnegie Mellon
