Image Correction Processor ICP Vision Days 2005 Georg

Image Correction Processor (ICP) Vision Days 2005 Georg P. Israel

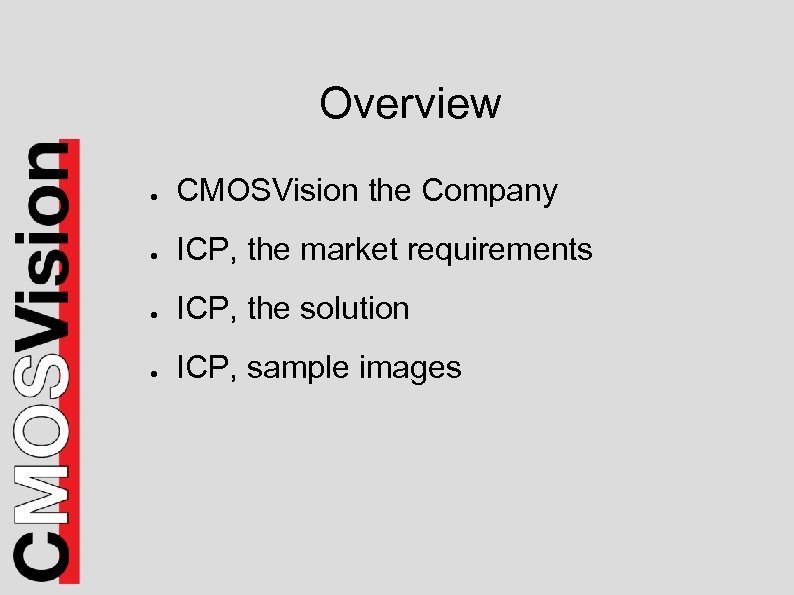

Overview ● CMOSVision the Company ● ICP, the market requirements ● ICP, the solution ● ICP, sample images

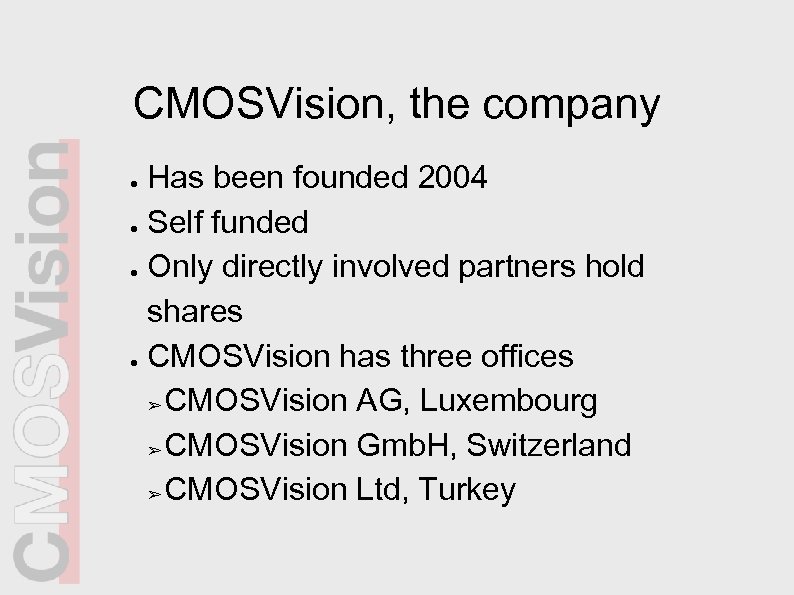

CMOSVision, the company Has been founded 2004 ● Self funded ● Only directly involved partners hold shares ● CMOSVision has three offices ➢ CMOSVision AG, Luxembourg ➢ CMOSVision Gmb. H, Switzerland ➢ CMOSVision Ltd, Turkey ●

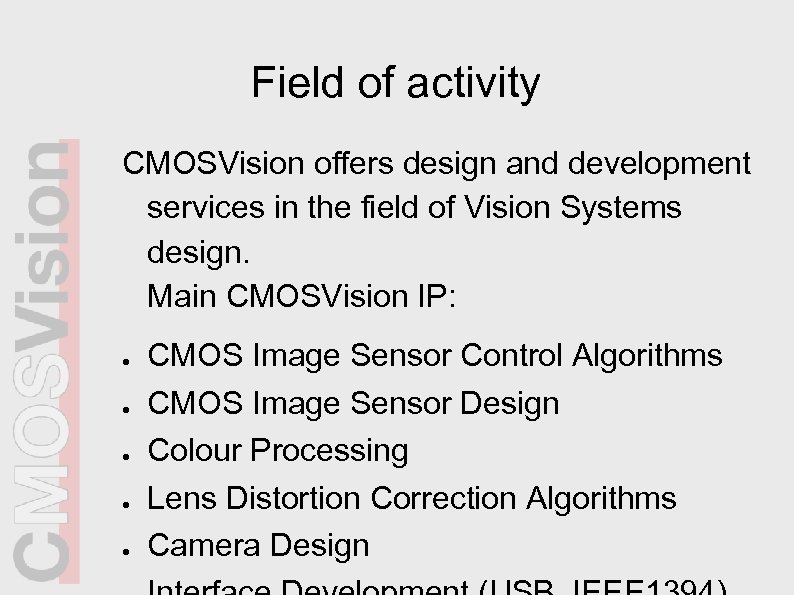

Field of activity CMOSVision offers design and development services in the field of Vision Systems design. Main CMOSVision IP: ● ● ● CMOS Image Sensor Control Algorithms CMOS Image Sensor Design Colour Processing Lens Distortion Correction Algorithms Camera Design

Automotive camera application ● Wide angle optics ● Difficult lighting conditions ● Low systems delay ● Special processing requirements – Lens Distortion Correction – Perspective Distortion Correction – Overlay

Image Correction Processor

ICP Architecture

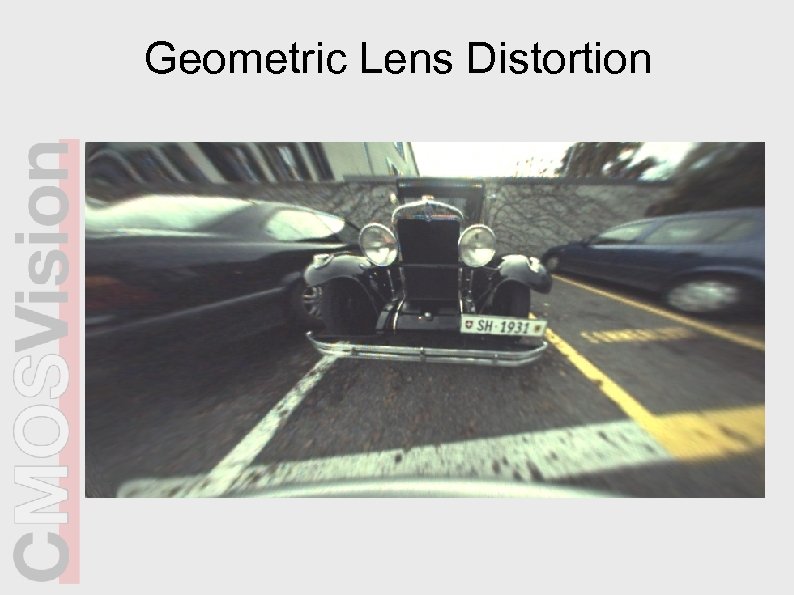

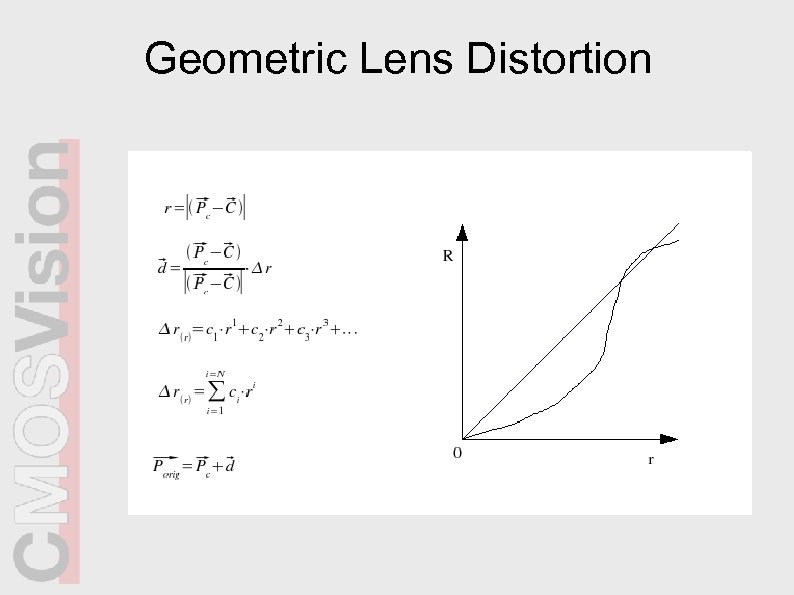

Geometric Lens Distortion

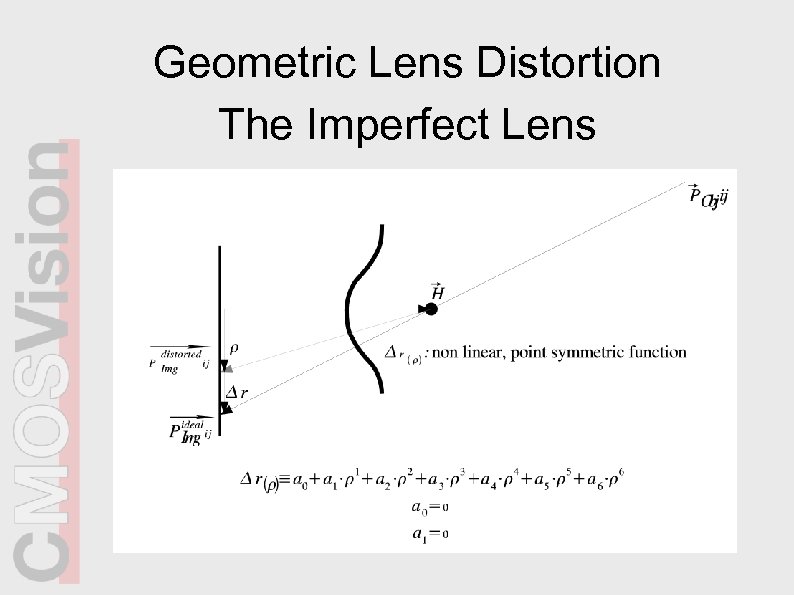

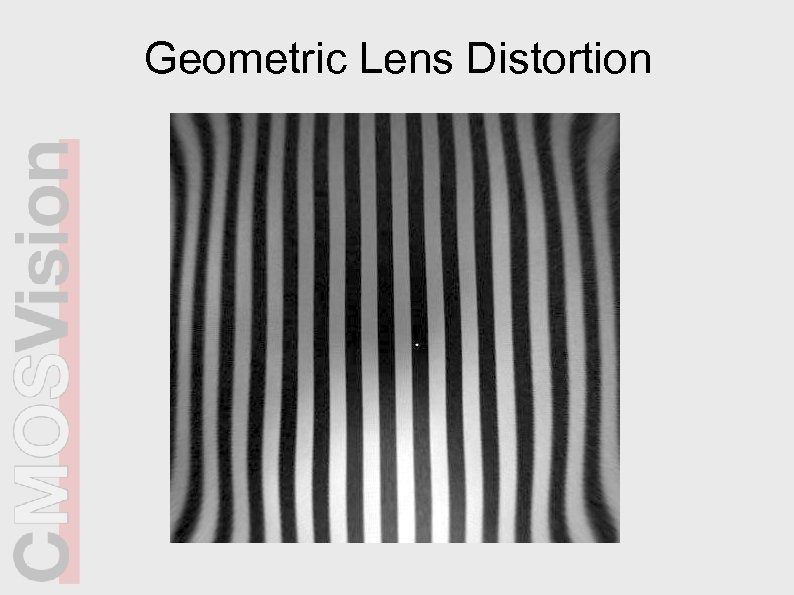

Geometric Lens Distortion The Imperfect Lens

Geometric Lens Distortion

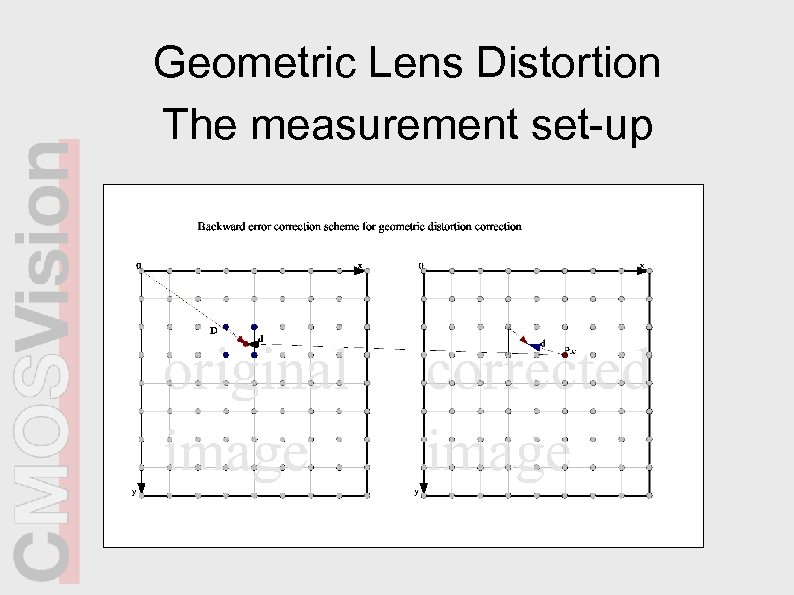

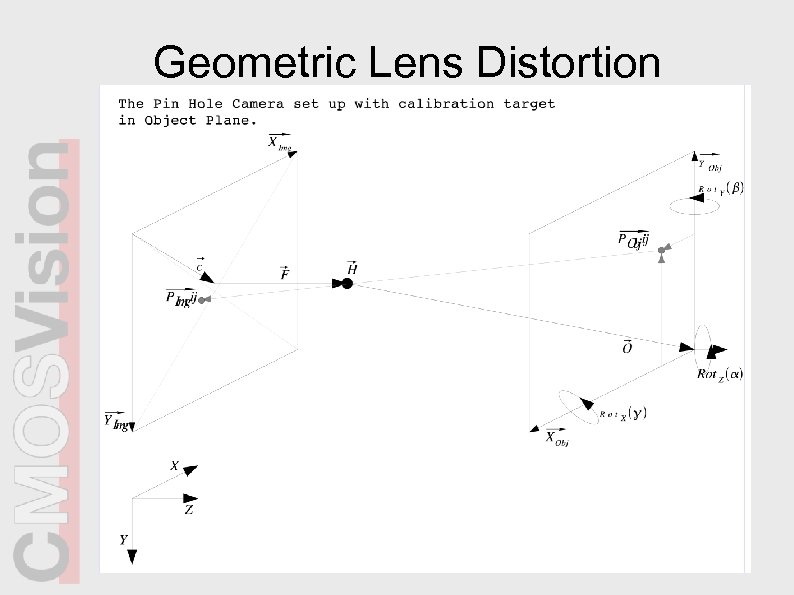

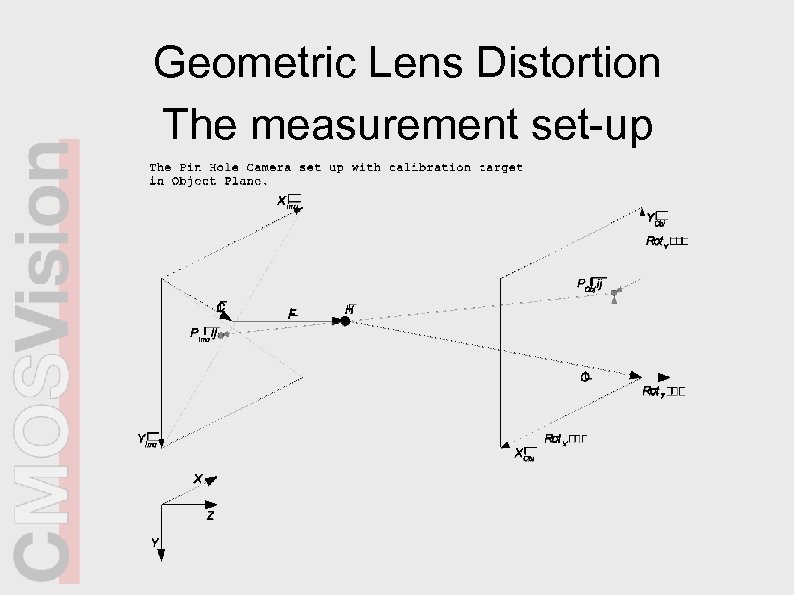

Geometric Lens Distortion The measurement set-up

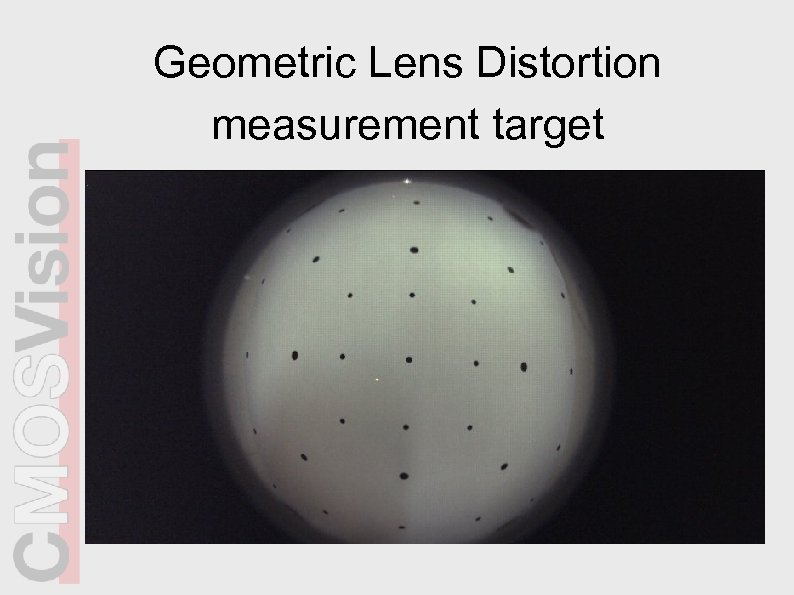

Geometric Lens Distortion measurement target

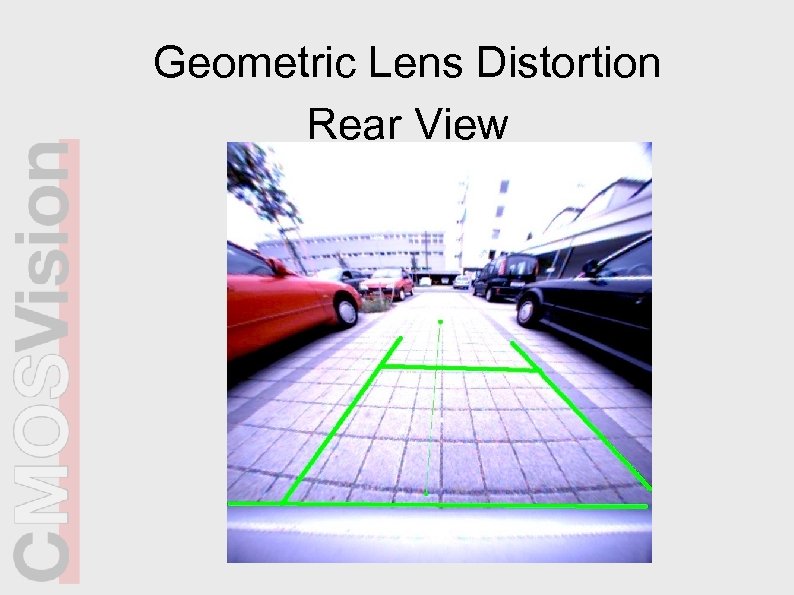

Geometric Lens Distortion Rear View

www. CMOSVision. com Thank you for your attention
