ILC Accelerator R&D at Fermilab Robert Kephart ILC Program Director Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting

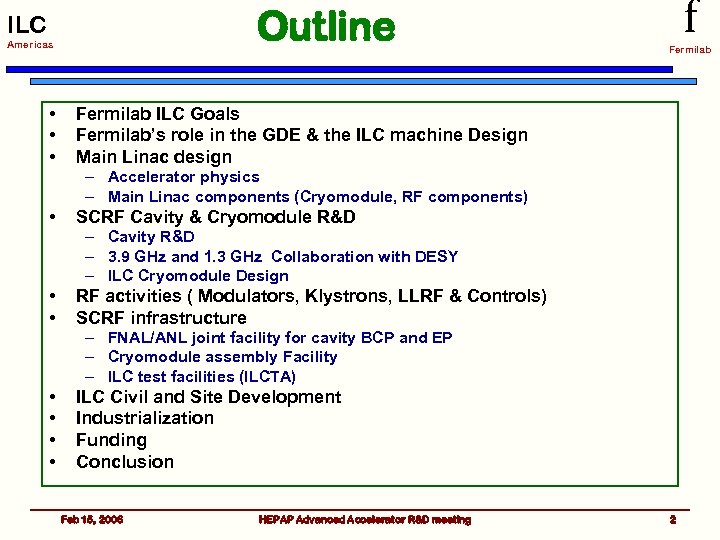

Outline ILC Americas • • • f Fermilab ILC Goals Fermilab’s role in the GDE & the ILC machine Design Main Linac design – Accelerator physics – Main Linac components (Cryomodule, RF components) • SCRF Cavity & Cryomodule R&D – Cavity R&D – 3. 9 GHz and 1. 3 GHz Collaboration with DESY – ILC Cryomodule Design • • RF activities ( Modulators, Klystrons, LLRF & Controls) SCRF infrastructure – FNAL/ANL joint facility for cavity BCP and EP – Cryomodule assembly Facility – ILC test facilities (ILCTA) • • ILC Civil and Site Development Industrialization Funding Conclusion Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 2

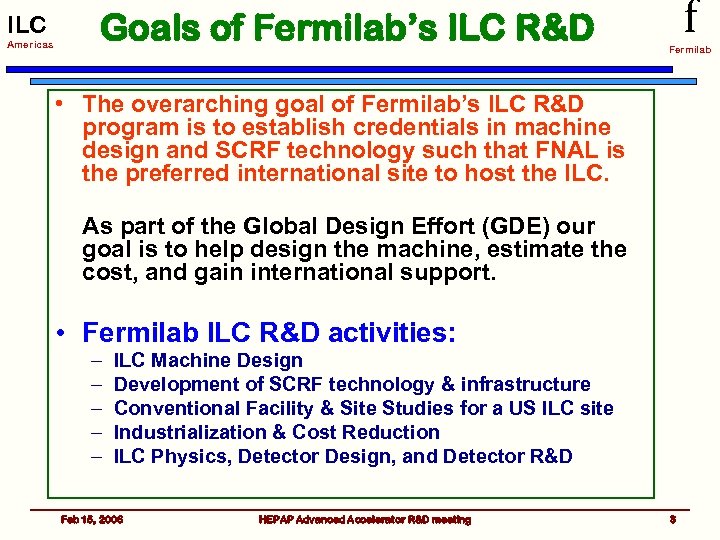

ILC Americas Goals of Fermilab’s ILC R&D f Fermilab • The overarching goal of Fermilab’s ILC R&D program is to establish credentials in machine design and SCRF technology such that FNAL is the preferred international site to host the ILC. As part of the Global Design Effort (GDE) our goal is to help design the machine, estimate the cost, and gain international support. • Fermilab ILC R&D activities: – – – ILC Machine Design Development of SCRF technology & infrastructure Conventional Facility & Site Studies for a US ILC site Industrialization & Cost Reduction ILC Physics, Detector Design, and Detector R&D Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 3

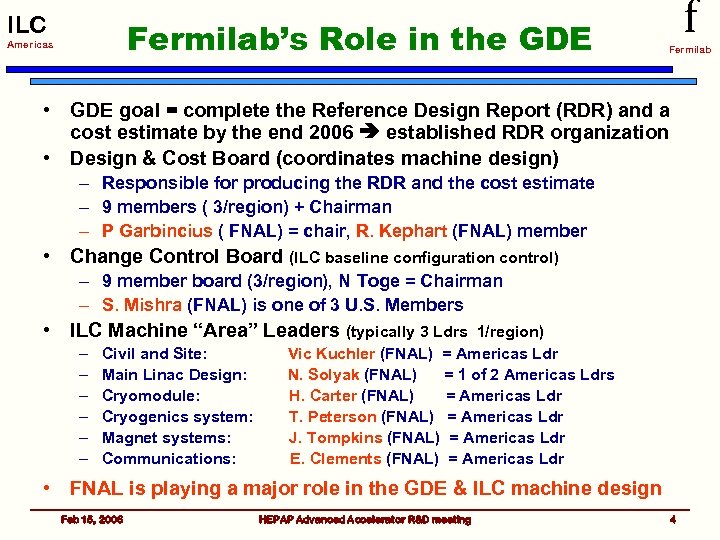

ILC Fermilab’s Role in the GDE Americas f Fermilab • GDE goal = complete the Reference Design Report (RDR) and a cost estimate by the end 2006 established RDR organization • Design & Cost Board (coordinates machine design) – Responsible for producing the RDR and the cost estimate – 9 members ( 3/region) + Chairman – P Garbincius ( FNAL) = chair, R. Kephart (FNAL) member • Change Control Board (ILC baseline configuration control) – 9 member board (3/region), N Toge = Chairman – S. Mishra (FNAL) is one of 3 U. S. Members • ILC Machine “Area” Leaders (typically 3 Ldrs – – – Civil and Site: Main Linac Design: Cryomodule: Cryogenics system: Magnet systems: Communications: 1/region) Vic Kuchler (FNAL) = Americas Ldr N. Solyak (FNAL) = 1 of 2 Americas Ldrs H. Carter (FNAL) = Americas Ldr T. Peterson (FNAL) = Americas Ldr J. Tompkins (FNAL) = Americas Ldr E. Clements (FNAL) = Americas Ldr • FNAL is playing a major role in the GDE & ILC machine design Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 4
ILC Machine Design ILC Americas f Fermilab • Fermilab has focused its R&D efforts on the ILC Main Linacs. • Main Linac activities: – – – Accelerator physics design Demonstrate feasibility of all Main Linac technical components Engineering design of ML technical systems Estimates of the ML cost & methods for cost reduction U. S. Industrialization of high volume ML components • Other R&D ( smaller efforts) – Design studies of the ILC Damping Rings – Working on the Machine-Detector Interface – Physics studies & Detector R&D • Civil and Site Development activities: – Civil engineering of machine enclosures – With the GDE, develop a matrix for comparing possible ILC sites – Study U. S. sites on or near the Fermilab site Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 5
ILC Main Linac Design Americas f Fermilab • Accelerator physics: – – Main Linac optics studies End-to-end simulation of the machine Study emittance preservation and vibration issues RF timing and control issues • Engineering Design of Main Linac components – Fermilab has been asked to supply lots of engineering in FY 06 in support of the Main Linac design for the RDR – Cryomodule Development (incl. high gradient cavities!) – Cryogenic & RF system Design – LLRF & control systems design – Design of linac auxilary systems • Cooling water, cable trays, safety interlocks, etc. Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 6

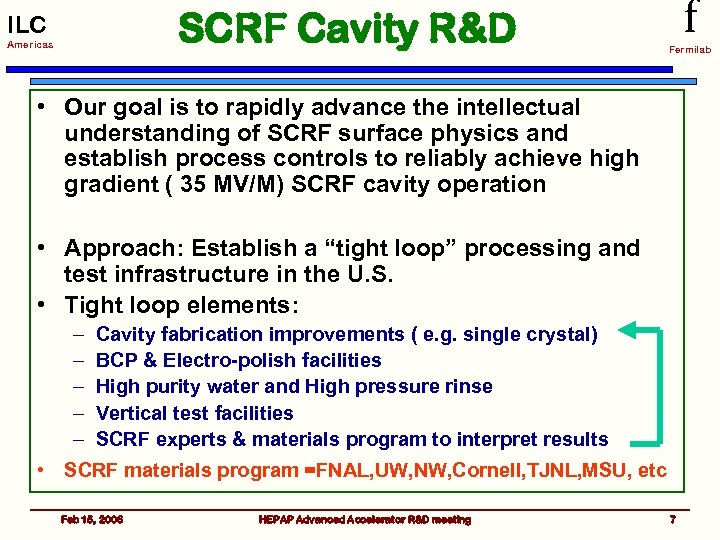

SCRF Cavity R&D ILC Americas f Fermilab • Our goal is to rapidly advance the intellectual understanding of SCRF surface physics and establish process controls to reliably achieve high gradient ( 35 MV/M) SCRF cavity operation • Approach: Establish a “tight loop” processing and test infrastructure in the U. S. • Tight loop elements: – – – Cavity fabrication improvements ( e. g. single crystal) BCP & Electro-polish facilities High purity water and High pressure rinse Vertical test facilities SCRF experts & materials program to interpret results • SCRF materials program =FNAL, UW, NW, Cornell, TJNL, MSU, etc Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 7

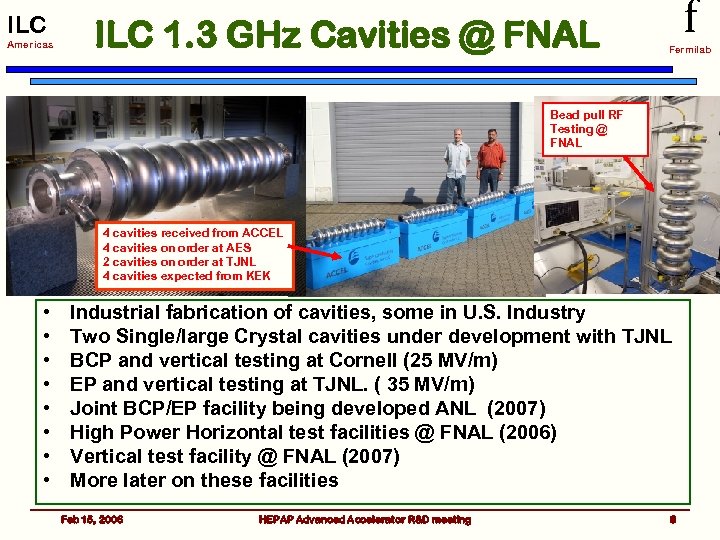

ILC Americas ILC 1. 3 GHz Cavities @ FNAL f Fermilab Bead pull RF Testing @ FNAL 4 cavities received from ACCEL 4 cavities on order at AES 2 cavities on order at TJNL 4 cavities expected from KEK • • Industrial fabrication of cavities, some in U. S. Industry Two Single/large Crystal cavities under development with TJNL BCP and vertical testing at Cornell (25 MV/m) EP and vertical testing at TJNL. ( 35 MV/m) Joint BCP/EP facility being developed ANL (2007) High Power Horizontal test facilities @ FNAL (2006) Vertical test facility @ FNAL (2007) More later on these facilities Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 8

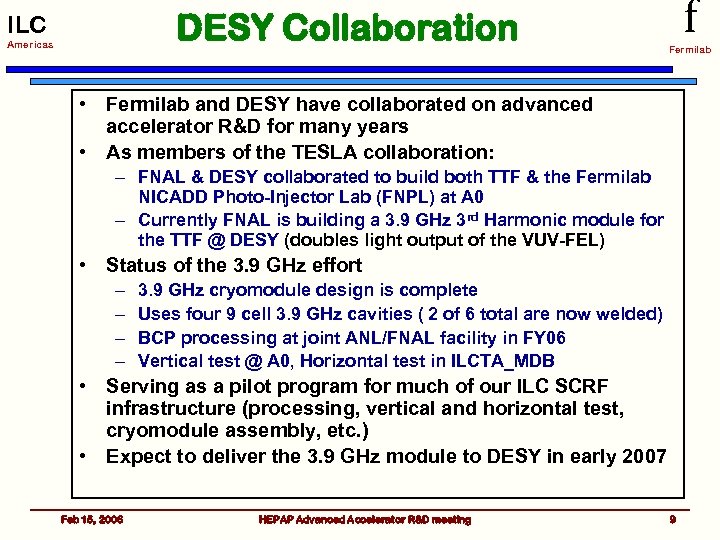

DESY Collaboration ILC Americas f Fermilab • Fermilab and DESY have collaborated on advanced accelerator R&D for many years • As members of the TESLA collaboration: – FNAL & DESY collaborated to build both TTF & the Fermilab NICADD Photo-Injector Lab (FNPL) at A 0 – Currently FNAL is building a 3. 9 GHz 3 rd Harmonic module for the TTF @ DESY (doubles light output of the VUV-FEL) • Status of the 3. 9 GHz effort – – 3. 9 GHz cryomodule design is complete Uses four 9 cell 3. 9 GHz cavities ( 2 of 6 total are now welded) BCP processing at joint ANL/FNAL facility in FY 06 Vertical test @ A 0, Horizontal test in ILCTA_MDB • Serving as a pilot program for much of our ILC SCRF infrastructure (processing, vertical and horizontal test, cryomodule assembly, etc. ) • Expect to deliver the 3. 9 GHz module to DESY in early 2007 Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 9
DESY Collaboration ILC Americas f Fermilab 3. 9 GHz 9 cell 3. 9 GHz cavity Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 10

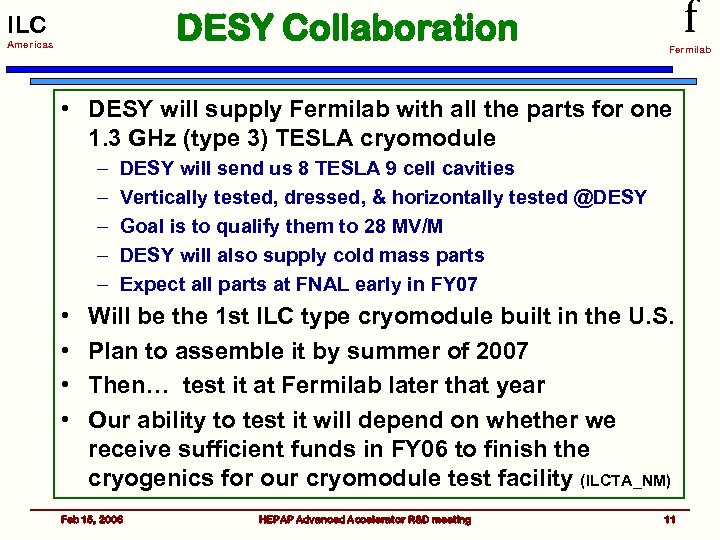

DESY Collaboration ILC Americas f Fermilab • DESY will supply Fermilab with all the parts for one 1. 3 GHz (type 3) TESLA cryomodule – – – • • DESY will send us 8 TESLA 9 cell cavities Vertically tested, dressed, & horizontally tested @DESY Goal is to qualify them to 28 MV/M DESY will also supply cold mass parts Expect all parts at FNAL early in FY 07 Will be the 1 st ILC type cryomodule built in the U. S. Plan to assemble it by summer of 2007 Then… test it at Fermilab later that year Our ability to test it will depend on whether we receive sufficient funds in FY 06 to finish the cryogenics for our cryomodule test facility (ILCTA_NM) Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 11

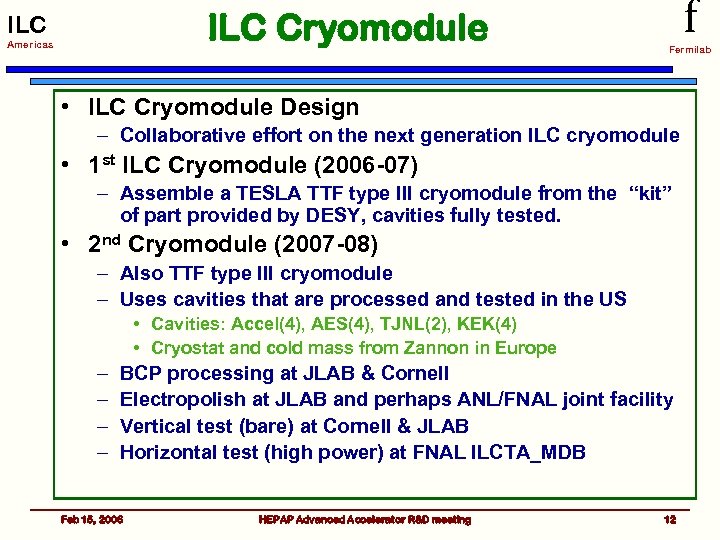

ILC Cryomodule ILC Americas f Fermilab • ILC Cryomodule Design – Collaborative effort on the next generation ILC cryomodule • 1 st ILC Cryomodule (2006 -07) – Assemble a TESLA TTF type III cryomodule from the “kit” of part provided by DESY, cavities fully tested. • 2 nd Cryomodule (2007 -08) – Also TTF type III cryomodule – Uses cavities that are processed and tested in the US • Cavities: Accel(4), AES(4), TJNL(2), KEK(4) • Cryostat and cold mass from Zannon in Europe – – BCP processing at JLAB & Cornell Electropolish at JLAB and perhaps ANL/FNAL joint facility Vertical test (bare) at Cornell & JLAB Horizontal test (high power) at FNAL ILCTA_MDB Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 12

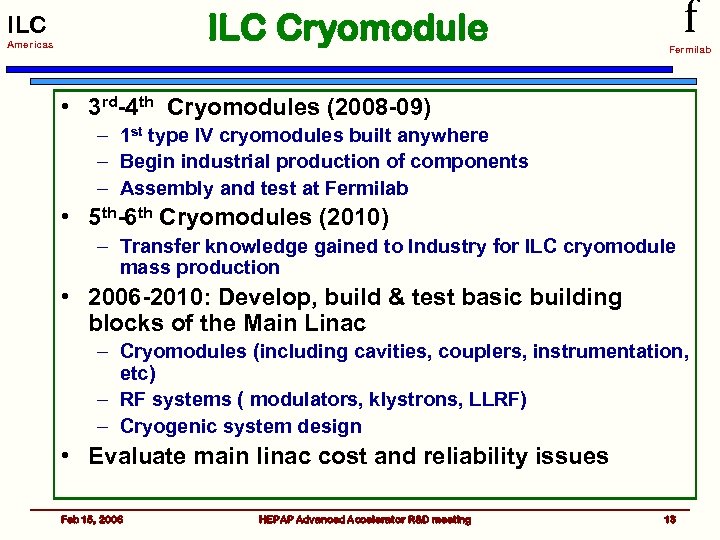

ILC Cryomodule ILC Americas f Fermilab • 3 rd-4 th Cryomodules (2008 -09) – 1 st type IV cryomodules built anywhere – Begin industrial production of components – Assembly and test at Fermilab • 5 th-6 th Cryomodules (2010) – Transfer knowledge gained to Industry for ILC cryomodule mass production • 2006 -2010: Develop, build & test basic building blocks of the Main Linac – Cryomodules (including cavities, couplers, instrumentation, etc) – RF systems ( modulators, klystrons, LLRF) – Cryogenic system design • Evaluate main linac cost and reliability issues Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 13

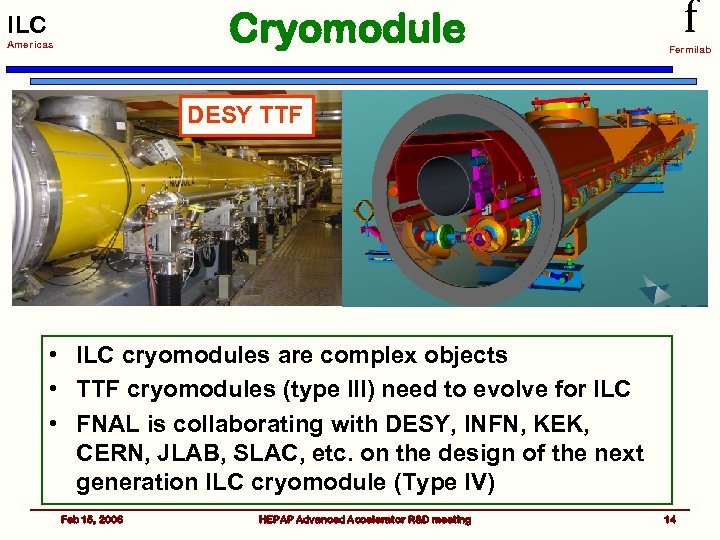

f Cryomodule ILC Americas Fermilab DESY TTF ILC cryomodule • ILC cryomodules are complex objects • TTF cryomodules (type III) need to evolve for ILC • FNAL is collaborating with DESY, INFN, KEK, CERN, JLAB, SLAC, etc. on the design of the next generation ILC cryomodule (Type IV) Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 14

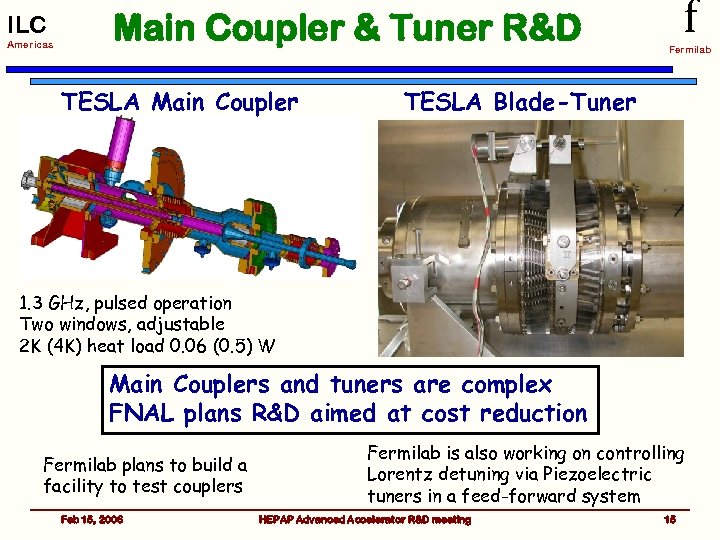

ILC Americas Main Coupler & Tuner R&D TESLA Main Coupler f Fermilab TESLA Blade-Tuner 1. 3 GHz, pulsed operation Two windows, adjustable 2 K (4 K) heat load 0. 06 (0. 5) W Main Couplers and tuners are complex FNAL plans R&D aimed at cost reduction Fermilab plans to build a facility to test couplers Feb 15, 2006 Fermilab is also working on controlling Lorentz detuning via Piezoelectric tuners in a feed-forward system HEPAP Advanced Accelerator R&D meeting 15

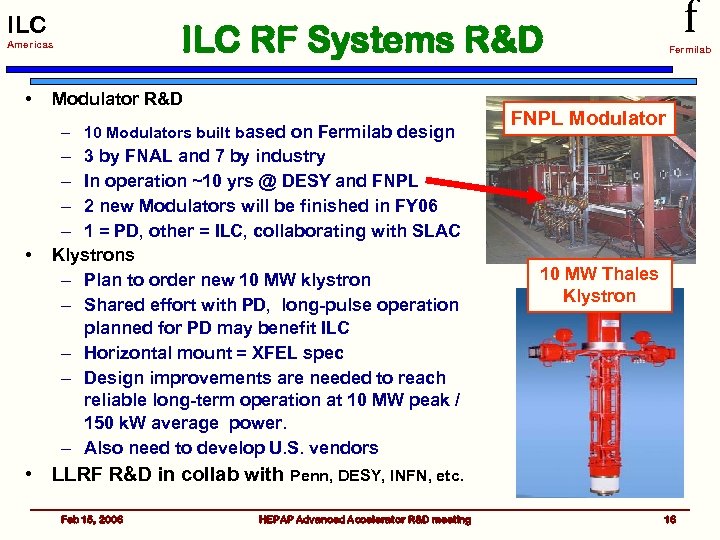

ILC RF Systems R&D Americas • Modulator R&D – 10 Modulators built based on Fermilab design • f – 3 by FNAL and 7 by industry – In operation ~10 yrs @ DESY and FNPL – 2 new Modulators will be finished in FY 06 – 1 = PD, other = ILC, collaborating with SLAC Klystrons – Plan to order new 10 MW klystron – Shared effort with PD, long-pulse operation planned for PD may benefit ILC – Horizontal mount = XFEL spec – Design improvements are needed to reach reliable long-term operation at 10 MW peak / 150 k. W average power. – Also need to develop U. S. vendors Fermilab FNPL Modulator 10 MW Thales Klystron • LLRF R&D in collab with Penn, DESY, INFN, etc. Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 16

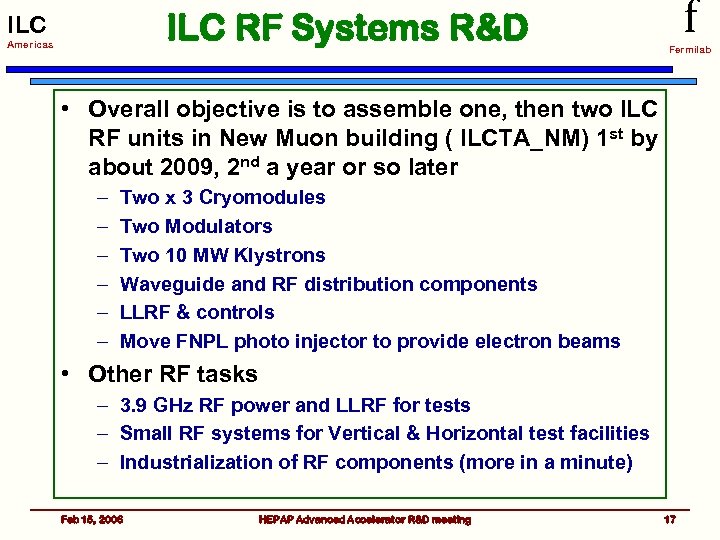

ILC RF Systems R&D ILC Americas f Fermilab • Overall objective is to assemble one, then two ILC RF units in New Muon building ( ILCTA_NM) 1 st by about 2009, 2 nd a year or so later – – – Two x 3 Cryomodules Two Modulators Two 10 MW Klystrons Waveguide and RF distribution components LLRF & controls Move FNPL photo injector to provide electron beams • Other RF tasks – 3. 9 GHz RF power and LLRF for tests – Small RF systems for Vertical & Horizontal test facilities – Industrialization of RF components (more in a minute) Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 17

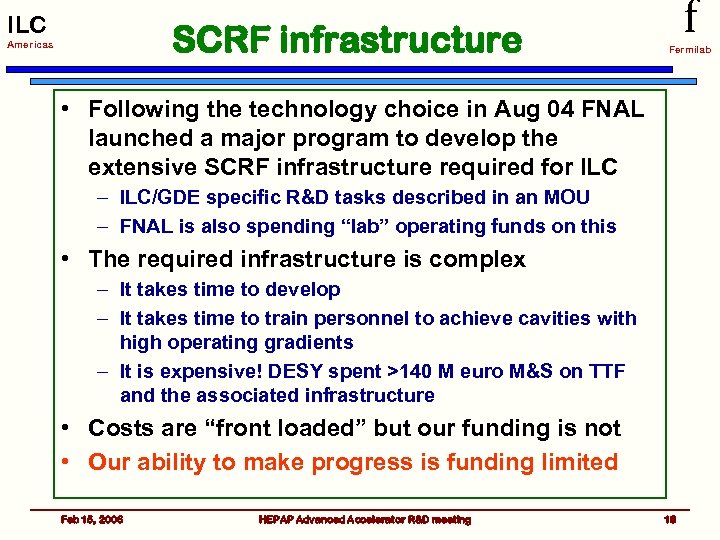

ILC SCRF infrastructure Americas f Fermilab • Following the technology choice in Aug 04 FNAL launched a major program to develop the extensive SCRF infrastructure required for ILC – ILC/GDE specific R&D tasks described in an MOU – FNAL is also spending “lab” operating funds on this • The required infrastructure is complex – It takes time to develop – It takes time to train personnel to achieve cavities with high operating gradients – It is expensive! DESY spent >140 M euro M&S on TTF and the associated infrastructure • Costs are “front loaded” but our funding is not • Our ability to make progress is funding limited Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 18
SCRF Infrastructure ILC Americas f Fermilab • High gradient cavities require extensive infrastructure • Bare cavities – – – Fabrication facilities ( e. g. Electron beam welders) Buffered Chemical Polish facilities (BCP) Electro-polish facilities (EP) Ultra clean H 20 & High Pressure Rinse systems Vertical Test facilities ( Cryogenics + low power RF) • Cavity Dressing Facilities ( cryostat, tuner, coupler) – Class 100 clean room – Horizontal cavity & Coupler test facility ( RF pulsed power) • String Assembly Facilities – Large class 100 clean rooms, Large fixtures – Class 10 enclosures for cavity inner connects • Cryo-module test facilities – Cryogenics, pulsed RF power, LLRF, controls, shielding, etc. – Beam tests electron source (e. g. FNPL Photo-injector) • FNAL and U. S. collaborators are building this $$$$$ Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 19

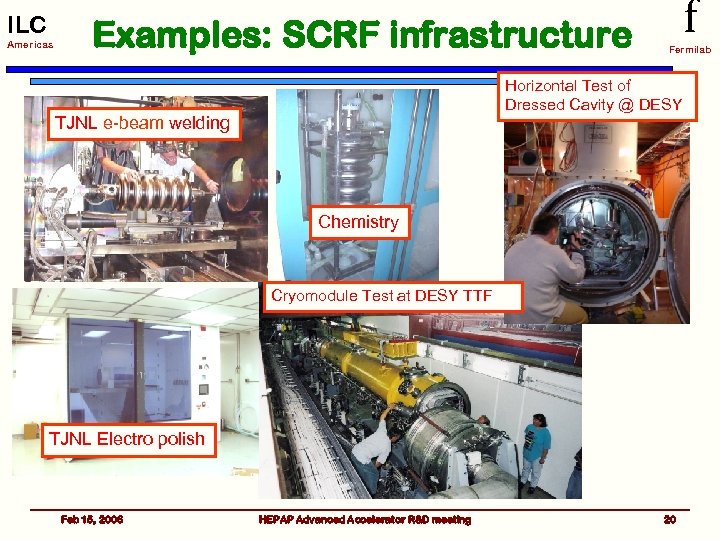

ILC Americas Examples: SCRF infrastructure f Fermilab Horizontal Test of Dressed Cavity @ DESY TJNL e-beam welding Chemistry Cryomodule Test at DESY TTF TJNL Electro polish Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 20

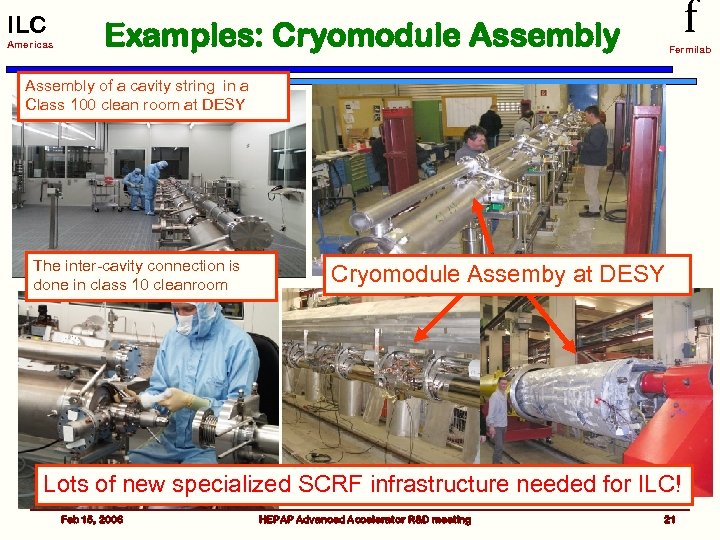

ILC Americas Examples: Cryomodule Assembly f Fermilab Assembly of a cavity string in a Class 100 clean room at DESY The inter-cavity connection is done in class 10 cleanroom Cryomodule Assemby at DESY Lots of new specialized SCRF infrastructure needed for ILC! Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 21
ILC Americas Building U. S. SCRF infrastructure f Fermilab • Existing U. S. facilities at Cornell, TJNL, and ANL are being upgraded to process the 1. 3 GHz ILC cavities but not sufficient • A new FNAL/ANL BCP facility built at ANL (operational ~March) • An Electro-polishing facility is being designed by the ILC Collaboration • A prototype will be built at ANL/Fermilab Cavity Processing Facility at ANL. Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 22
ILC FNAL SCRF Infrastructure Americas f Fermilab • A Cryomodule Assembly Facility (CAF) is being built in (MP 9) • Vertically tested cavities will be dressed (He vessel, coupler, etc) in smaller clean rooms prior to horizontal test • Horizontally tested cavities assembled into a string in large clean room before final Cryo-module assembly takes place CAF-MP 9 Class 10 and 100 clean rooms ordered, operational by Summer 06 Parts for new Cryomodule Assembly fixture in IB 4 Plan = expand CAF into Industrial Center Bldg after LHC quads Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 23

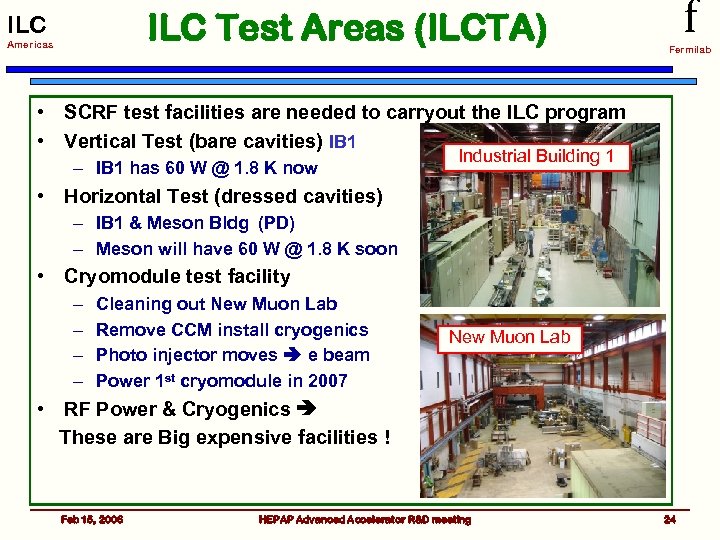

ILC Test Areas (ILCTA) ILC Americas f Fermilab • SCRF test facilities are needed to carryout the ILC program • Vertical Test (bare cavities) IB 1 – IB 1 has 60 W @ 1. 8 K now Industrial Building 1 • Horizontal Test (dressed cavities) – IB 1 & Meson Bldg (PD) – Meson will have 60 W @ 1. 8 K soon • Cryomodule test facility – – Cleaning out New Muon Lab Remove CCM install cryogenics Photo injector moves e beam Power 1 st cryomodule in 2007 New Muon Lab • RF Power & Cryogenics These are Big expensive facilities ! Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 24

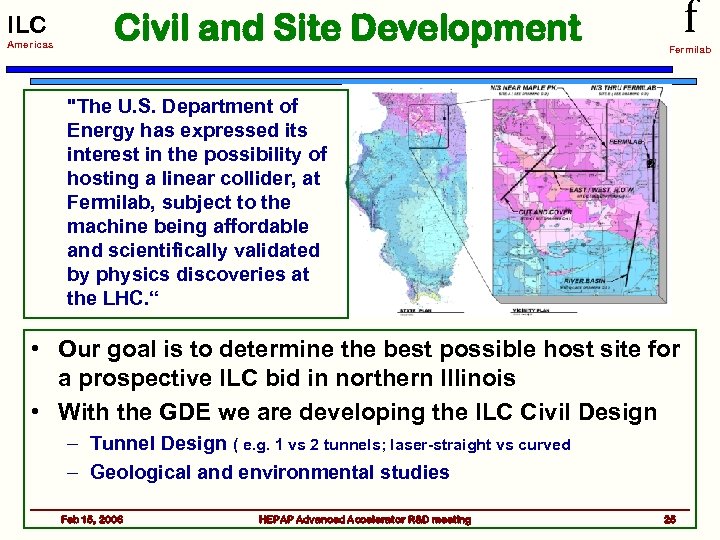

ILC Americas Civil and Site Development f Fermilab "The U. S. Department of Energy has expressed its interest in the possibility of hosting a linear collider, at Fermilab, subject to the machine being affordable and scientifically validated by physics discoveries at the LHC. “ • Our goal is to determine the best possible host site for a prospective ILC bid in northern Illinois • With the GDE we are developing the ILC Civil Design – Tunnel Design ( e. g. 1 vs 2 tunnels; laser-straight vs curved – Geological and environmental studies Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 25

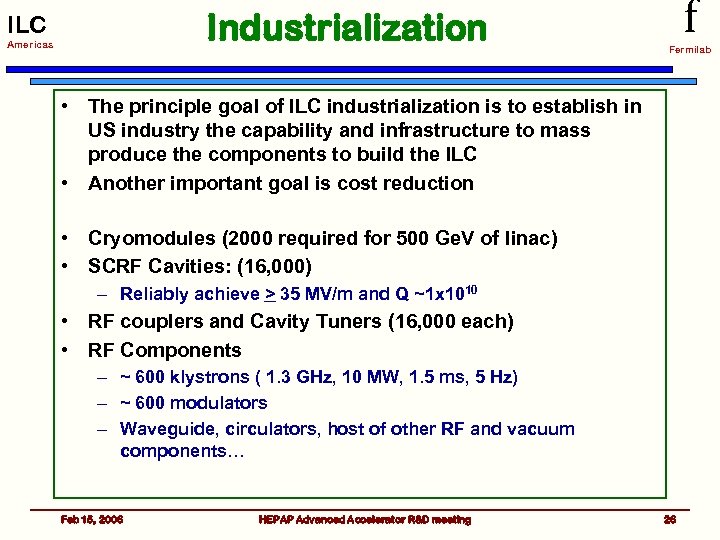

Industrialization ILC Americas f Fermilab • The principle goal of ILC industrialization is to establish in US industry the capability and infrastructure to mass produce the components to build the ILC • Another important goal is cost reduction • Cryomodules (2000 required for 500 Ge. V of linac) • SCRF Cavities: (16, 000) – Reliably achieve > 35 MV/m and Q ~1 x 1010 • RF couplers and Cavity Tuners (16, 000 each) • RF Components – ~ 600 klystrons ( 1. 3 GHz, 10 MW, 1. 5 ms, 5 Hz) – ~ 600 modulators – Waveguide, circulators, host of other RF and vacuum components… Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 26

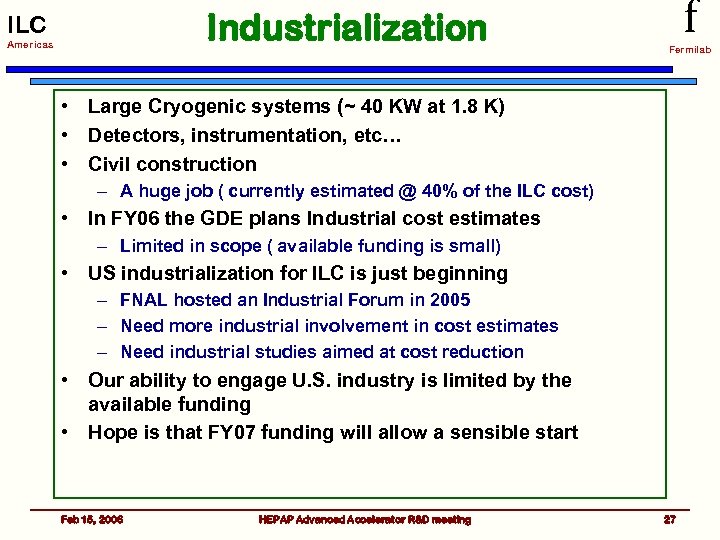

Industrialization ILC Americas f Fermilab • Large Cryogenic systems (~ 40 KW at 1. 8 K) • Detectors, instrumentation, etc… • Civil construction – A huge job ( currently estimated @ 40% of the ILC cost) • In FY 06 the GDE plans Industrial cost estimates – Limited in scope ( available funding is small) • US industrialization for ILC is just beginning – FNAL hosted an Industrial Forum in 2005 – Need more industrial involvement in cost estimates – Need industrial studies aimed at cost reduction • Our ability to engage U. S. industry is limited by the available funding • Hope is that FY 07 funding will allow a sensible start Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 27

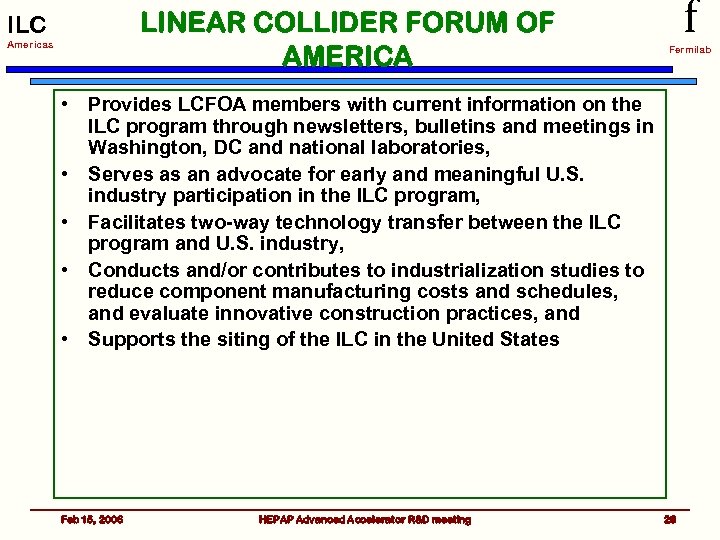

LINEAR COLLIDER FORUM OF AMERICA ILC Americas f Fermilab • Provides LCFOA members with current information on the ILC program through newsletters, bulletins and meetings in Washington, DC and national laboratories, • Serves as an advocate for early and meaningful U. S. industry participation in the ILC program, • Facilitates two-way technology transfer between the ILC program and U. S. industry, • Conducts and/or contributes to industrialization studies to reduce component manufacturing costs and schedules, and evaluate innovative construction practices, and • Supports the siting of the ILC in the United States Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 28

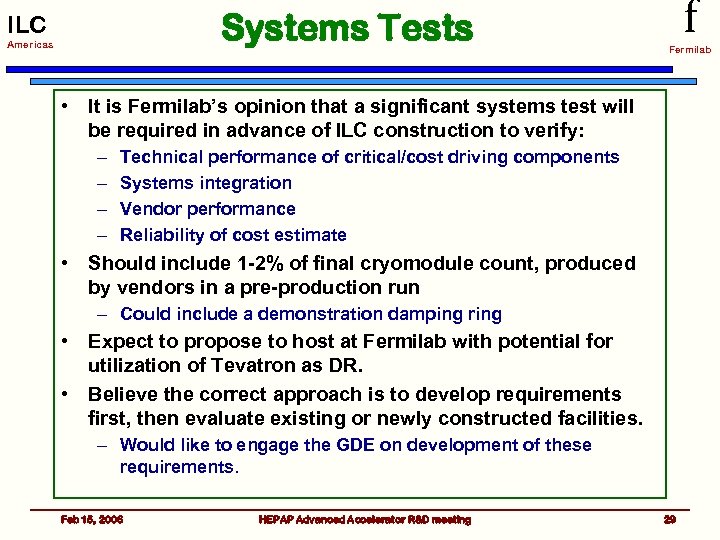

Systems Tests ILC Americas f Fermilab • It is Fermilab’s opinion that a significant systems test will be required in advance of ILC construction to verify: – – Technical performance of critical/cost driving components Systems integration Vendor performance Reliability of cost estimate • Should include 1 -2% of final cryomodule count, produced by vendors in a pre-production run – Could include a demonstration damping ring • Expect to propose to host at Fermilab with potential for utilization of Tevatron as DR. • Believe the correct approach is to develop requirements first, then evaluate existing or newly constructed facilities. – Would like to engage the GDE on development of these requirements. Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 29

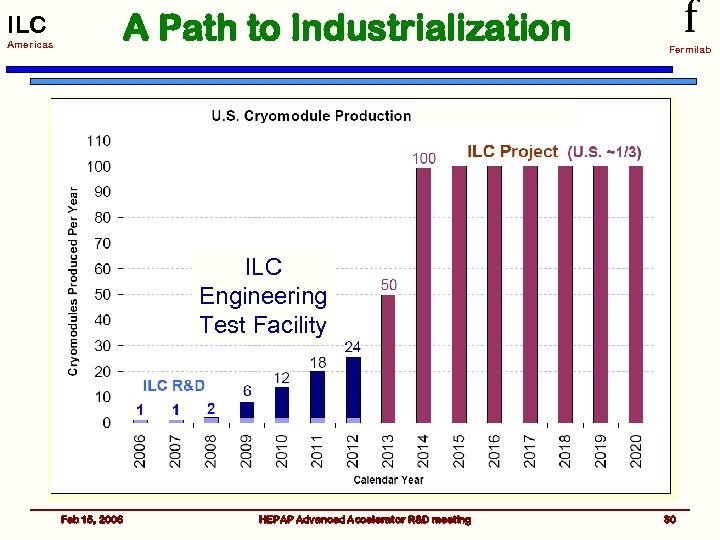

A Path to Industrialization ILC Americas f Fermilab ILC Engineering Test Facility Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 30

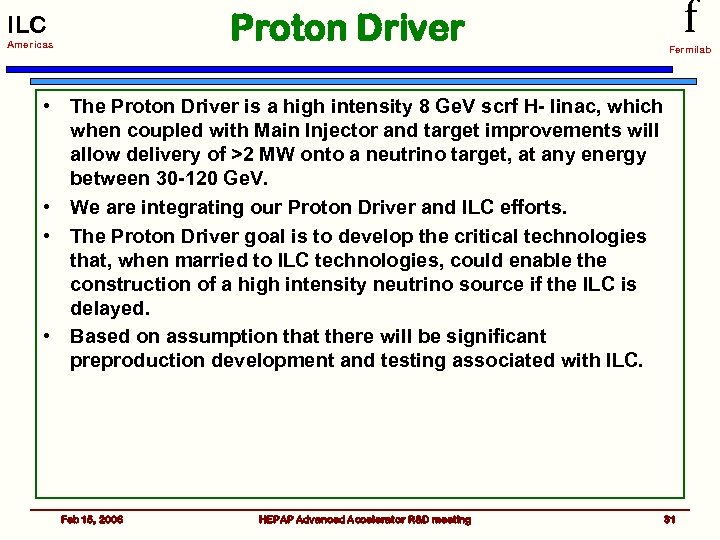

Proton Driver ILC Americas f Fermilab • The Proton Driver is a high intensity 8 Ge. V scrf H- linac, which when coupled with Main Injector and target improvements will allow delivery of >2 MW onto a neutrino target, at any energy between 30 -120 Ge. V. • We are integrating our Proton Driver and ILC efforts. • The Proton Driver goal is to develop the critical technologies that, when married to ILC technologies, could enable the construction of a high intensity neutrino source if the ILC is delayed. • Based on assumption that there will be significant preproduction development and testing associated with ILC. Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 31

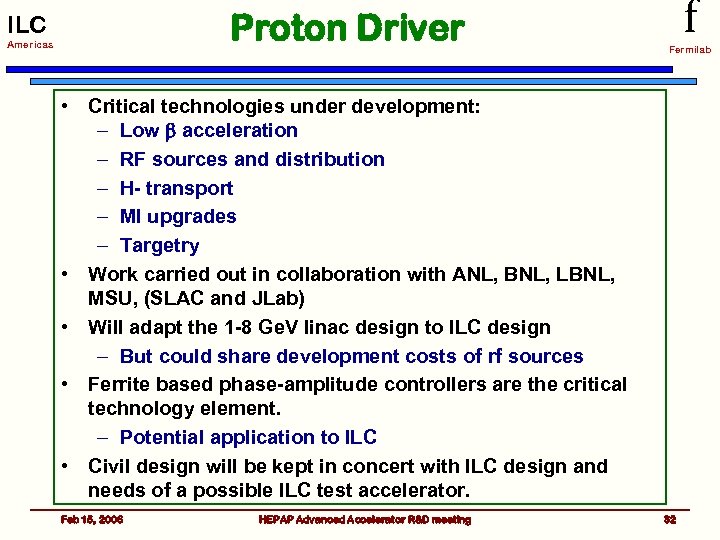

Proton Driver ILC Americas f Fermilab • Critical technologies under development: – Low b acceleration – RF sources and distribution – H- transport – MI upgrades – Targetry • Work carried out in collaboration with ANL, BNL, LBNL, MSU, (SLAC and JLab) • Will adapt the 1 -8 Ge. V linac design to ILC design – But could share development costs of rf sources • Ferrite based phase-amplitude controllers are the critical technology element. – Potential application to ILC • Civil design will be kept in concert with ILC design and needs of a possible ILC test accelerator. Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 32

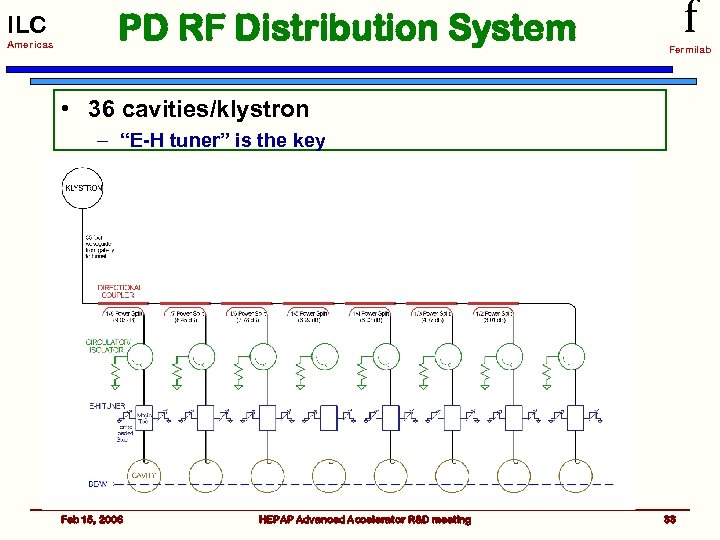

ILC Americas PD RF Distribution System f Fermilab • 36 cavities/klystron – “E-H tuner” is the key Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 33

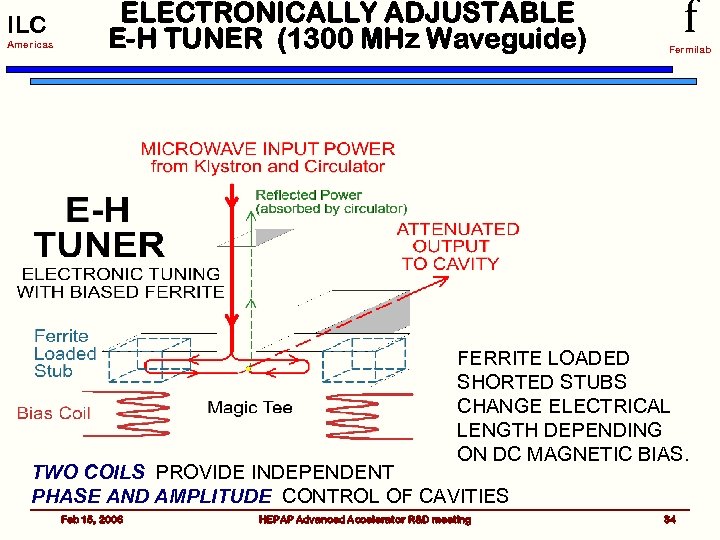

ILC Americas ELECTRONICALLY ADJUSTABLE E-H TUNER (1300 MHz Waveguide) f Fermilab FERRITE LOADED SHORTED STUBS CHANGE ELECTRICAL LENGTH DEPENDING ON DC MAGNETIC BIAS. TWO COILS PROVIDE INDEPENDENT PHASE AND AMPLITUDE CONTROL OF CAVITIES Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 34

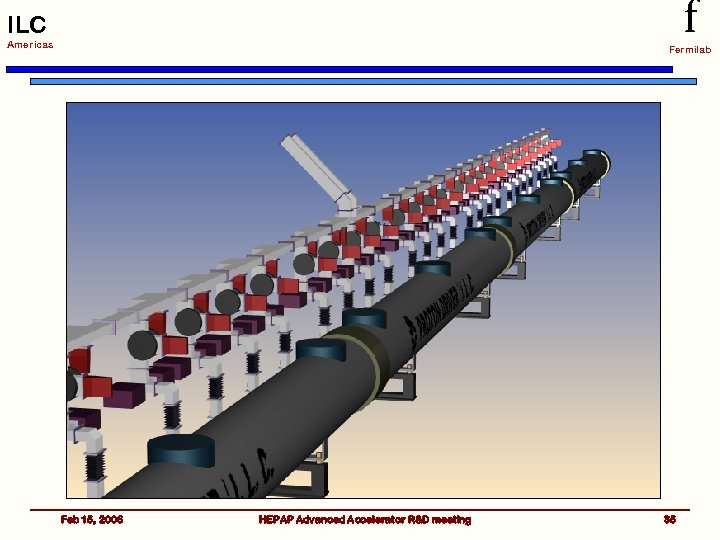

f ILC Americas Fermilab Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 35

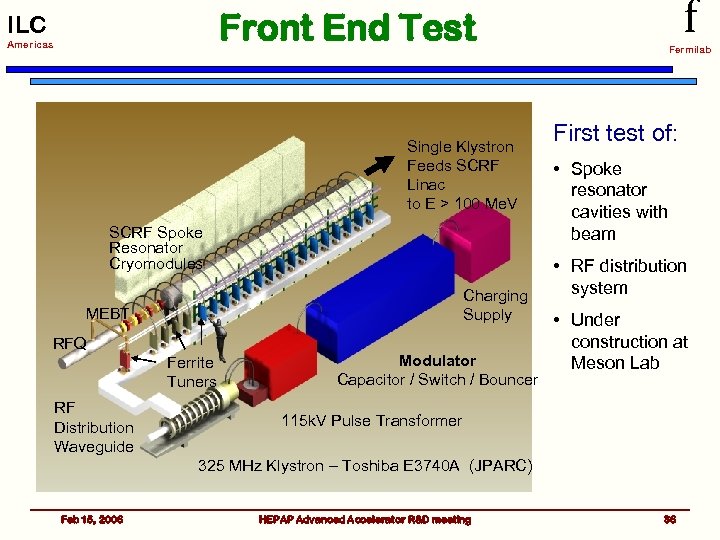

f Front End Test ILC Americas Single Klystron Feeds SCRF Linac to E > 100 Me. V SCRF Spoke Resonator Cryomodules Charging Supply MEBT RFQ Ferrite Tuners RF Distribution Waveguide Modulator Capacitor / Switch / Bouncer Fermilab First test of: • Spoke resonator cavities with beam • RF distribution system • Under construction at Meson Lab 115 k. V Pulse Transformer 325 MHz Klystron – Toshiba E 3740 A (JPARC) Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 36

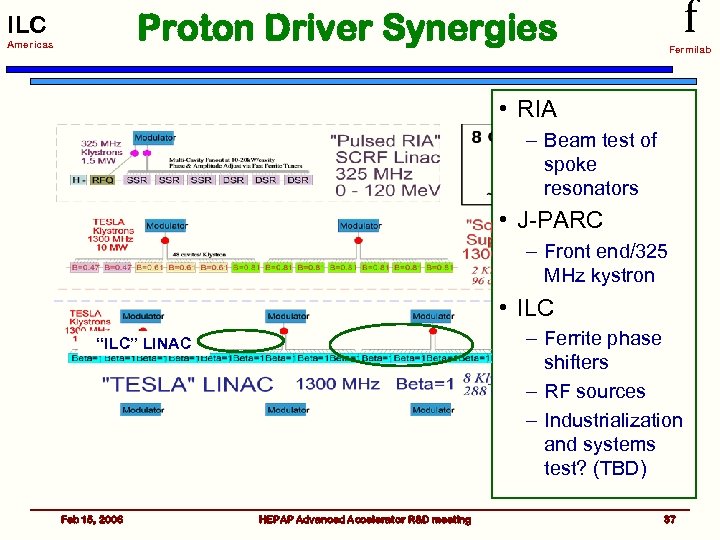

Proton Driver Synergies ILC Americas f Fermilab • RIA – Beam test of spoke resonators • J-PARC – Front end/325 MHz kystron • ILC – Ferrite phase shifters – RF sources – Industrialization and systems test? (TBD) “ILC” LINAC Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 37

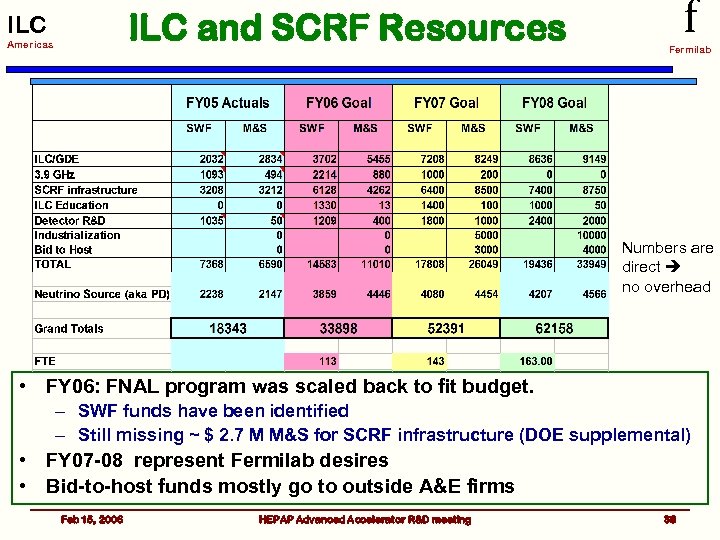

ILC and SCRF Resources ILC Americas f Fermilab Numbers are direct no overhead • FY 06: FNAL program was scaled back to fit budget. – SWF funds have been identified – Still missing ~ $ 2. 7 M M&S for SCRF infrastructure (DOE supplemental) • FY 07 -08 represent Fermilab desires • Bid-to-host funds mostly go to outside A&E firms Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 38

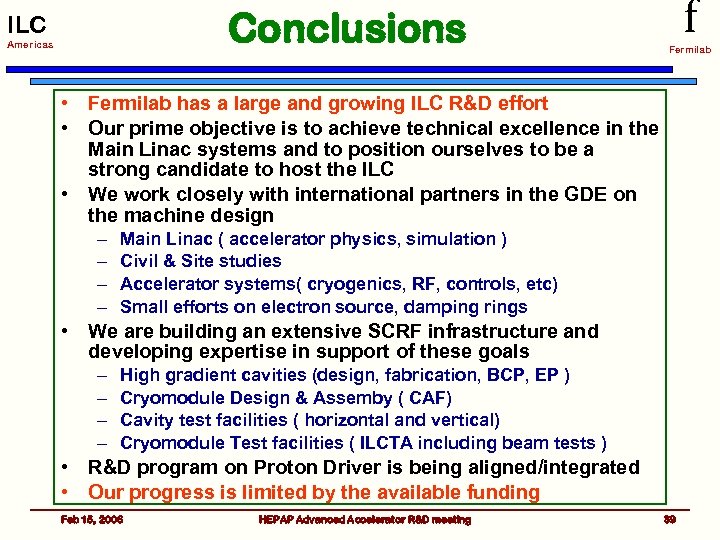

Conclusions ILC Americas f Fermilab • Fermilab has a large and growing ILC R&D effort • Our prime objective is to achieve technical excellence in the Main Linac systems and to position ourselves to be a strong candidate to host the ILC • We work closely with international partners in the GDE on the machine design – – Main Linac ( accelerator physics, simulation ) Civil & Site studies Accelerator systems( cryogenics, RF, controls, etc) Small efforts on electron source, damping rings • We are building an extensive SCRF infrastructure and developing expertise in support of these goals – – High gradient cavities (design, fabrication, BCP, EP ) Cryomodule Design & Assemby ( CAF) Cavity test facilities ( horizontal and vertical) Cryomodule Test facilities ( ILCTA including beam tests ) • R&D program on Proton Driver is being aligned/integrated • Our progress is limited by the available funding Feb 15, 2006 HEPAP Advanced Accelerator R&D meeting 39
