IHDTV DV Meeting Workshop To further the development and

IHDTV/DV Meeting Workshop To further the development and use of “extreme quality Internet video”.

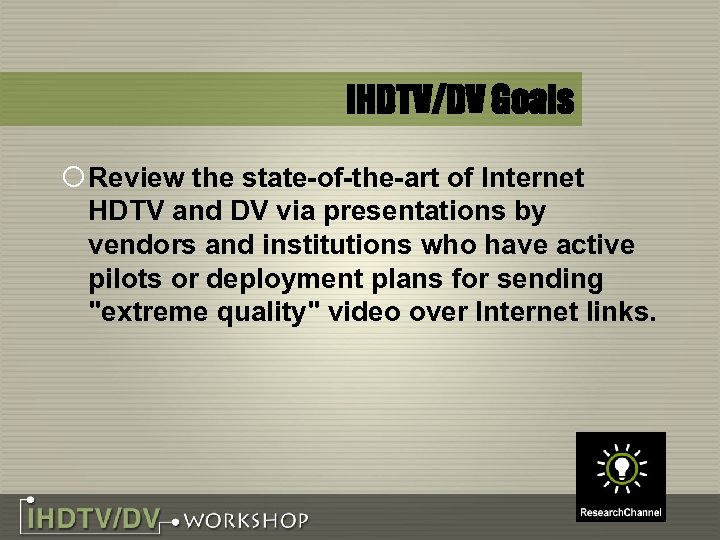

IHDTV/DV Goals ¡ Review the state-of-the-art of Internet HDTV and DV via presentations by vendors and institutions who have active pilots or deployment plans for sending "extreme quality" video over Internet links.

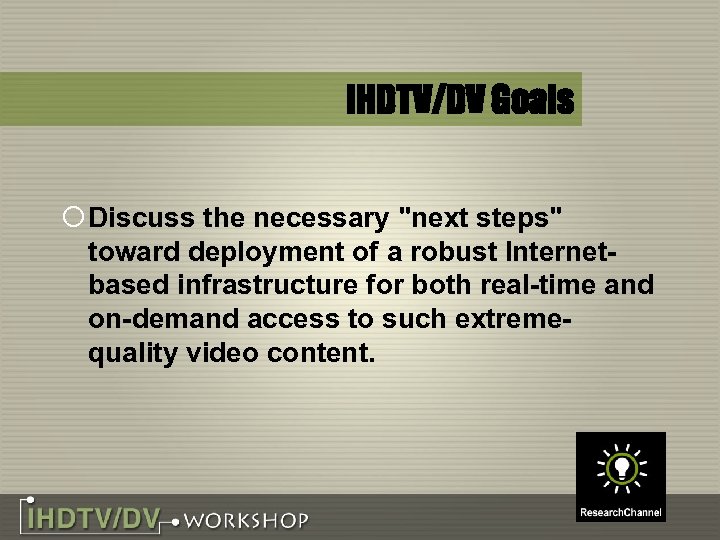

IHDTV/DV Goals ¡ Discuss the necessary "next steps" toward deployment of a robust Internetbased infrastructure for both real-time and on-demand access to such extremequality video content.

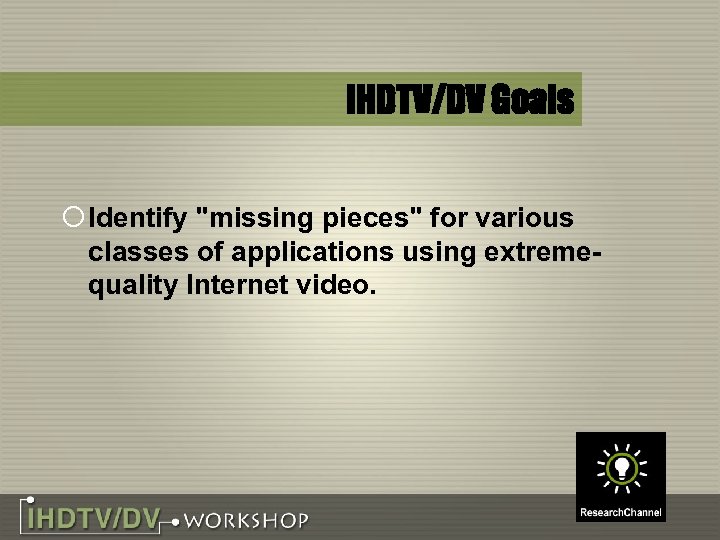

IHDTV/DV Goals ¡ Identify "missing pieces" for various classes of applications using extremequality Internet video.

Technologies for the Next Generation Internet Mari Maeda Program Manager Information Technology Office DARPA mmaeda@darpa. mil

Cine. Wave

What is CinéWave? • Complete system for uncompressed Standard Definition (SD) and High Definition (HD) content creation and editing. • Macintosh only product, based around a Power. Mac G 4. • • 100% Quick. Time Compliant Editing, compositing, painting, tracking, rotoscoping, chromakey, and 3 D DVE • Base System Includes: – – TARGA Ciné Engine PCI Card Final Cut Pro Commotion Pro Hollywood FX Silver

“To Store” and “To Deliver” Dr. Igor S. Alexandrov

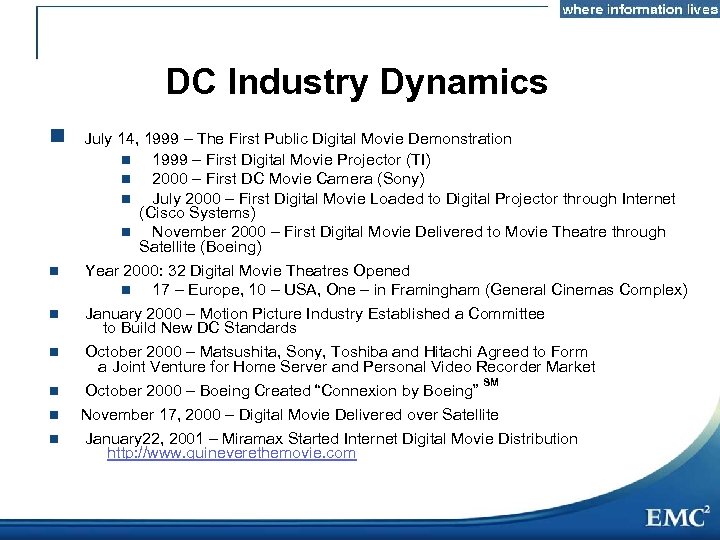

DC Industry Dynamics n July 14, 1999 – The First Public Digital Movie Demonstration n 1999 – First Digital Movie Projector (TI) n 2000 – First DC Movie Camera (Sony) n July 2000 – First Digital Movie Loaded to Digital Projector through Internet (Cisco Systems) n November 2000 – First Digital Movie Delivered to Movie Theatre through Satellite (Boeing) n Year 2000: 32 Digital Movie Theatres Opened n 17 – Europe, 10 – USA, One – in Framingham (General Cinemas Complex) n January 2000 – Motion Picture Industry Established a Committee to Build New DC Standards n n October 2000 – Matsushita, Sony, Toshiba and Hitachi Agreed to Form a Joint Venture for Home Server and Personal Video Recorder Market SM October 2000 – Boeing Created “Connexion by Boeing” November 17, 2000 – Digital Movie Delivered over Satellite January 22, 2001 – Miramax Started Internet Digital Movie Distribution http: //www. guineverethemovie. com

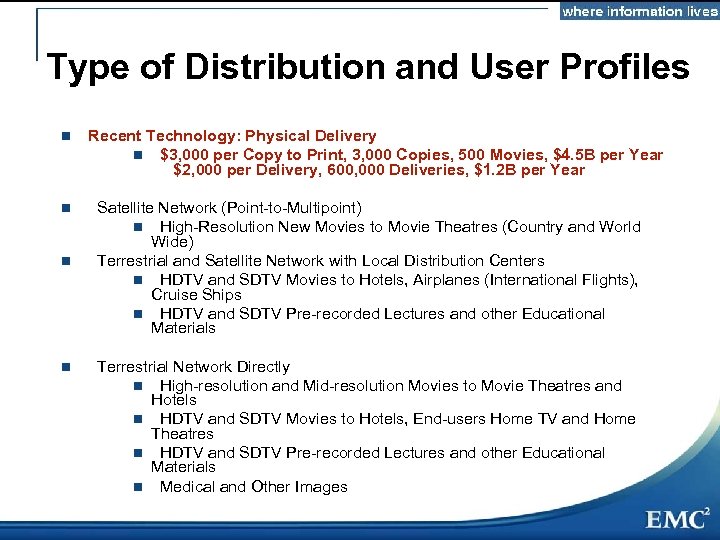

Type of Distribution and User Profiles n n Recent Technology: Physical Delivery n $3, 000 per Copy to Print, 3, 000 Copies, 500 Movies, $4. 5 B per Year $2, 000 per Delivery, 600, 000 Deliveries, $1. 2 B per Year Satellite Network (Point-to-Multipoint) n High-Resolution New Movies to Movie Theatres (Country and World Wide) Terrestrial and Satellite Network with Local Distribution Centers n HDTV and SDTV Movies to Hotels, Airplanes (International Flights), Cruise Ships n HDTV and SDTV Pre-recorded Lectures and other Educational Materials Terrestrial Network Directly n High-resolution and Mid-resolution Movies to Movie Theatres and Hotels n HDTV and SDTV Movies to Hotels, End-users Home TV and Home Theatres n HDTV and SDTV Pre-recorded Lectures and other Educational Materials n Medical and Other Images

Security Infrastructure and i. HDTV Categories of Applications Publishing Issues Collaboration Issues Access Management Protocol Support Internet 2 Middleware Program • Security Infrastructure and i. HDTV • First i. HDTV Workshop, January 2001 • RL "Bob" Morgan, rlmorgan@ washington. edu

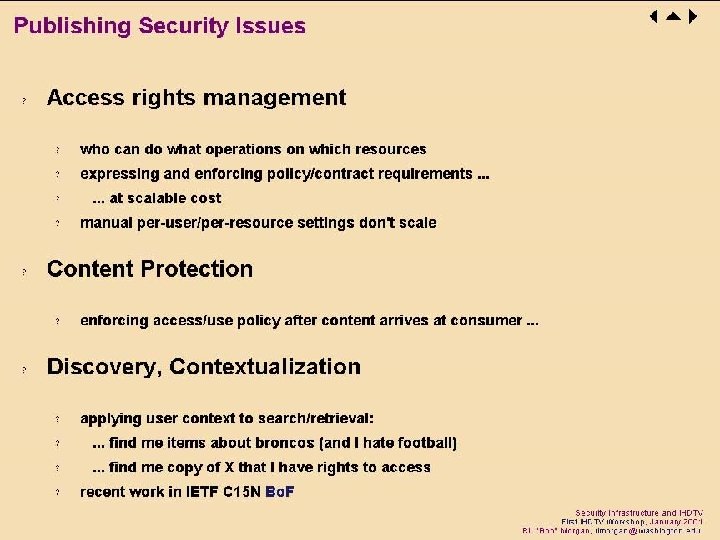

Publishing Security Issues • • • Access rights management who can do what operations on which resources expressing and enforcing policy/contract requirements. . . at scalable cost manual per-user/per-resource settings don't scale Content Protection enforcing access/use policy after content arrives at consumer. . . Discovery, Contextualization applying user context to search/retrieval: . . . find me items about broncos (and I hate football). . . find me copy of X that I have rights to access recent work in IETF C 15 N Bo. F

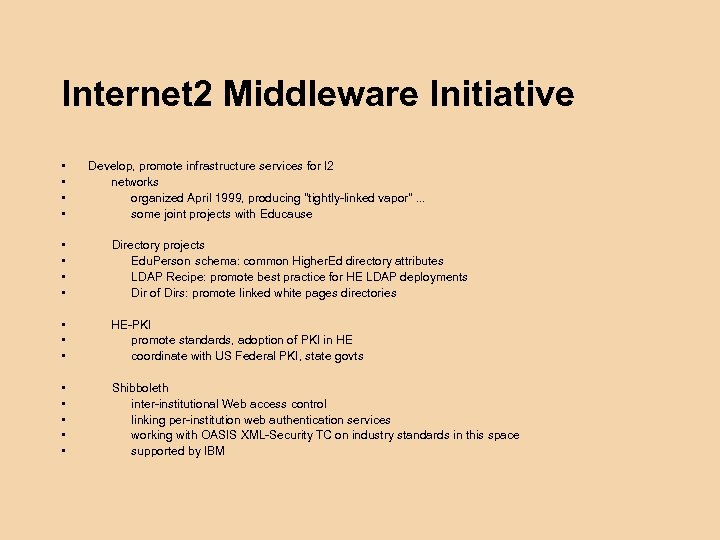

Internet 2 Middleware Initiative • • Develop, promote infrastructure services for I 2 networks organized April 1999, producing "tightly-linked vapor". . . some joint projects with Educause • • Directory projects Edu. Person schema: common Higher. Ed directory attributes LDAP Recipe: promote best practice for HE LDAP deployments Dir of Dirs: promote linked white pages directories • • • HE-PKI promote standards, adoption of PKI in HE coordinate with US Federal PKI, state govts • • • Shibboleth inter-institutional Web access control linking per-institution web authentication services working with OASIS XML-Security TC on industry standards in this space supported by IBM

Internet HDTV – “DELIVERING REALISM” David Richardson Michael Wellings University of Washington www. washington. edu/hdtv

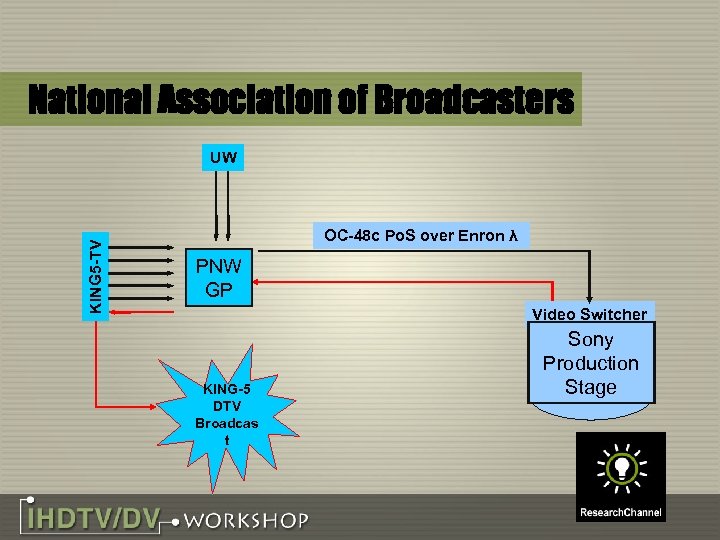

National Association of Broadcasters KING 5 -TV UW OC-48 c Po. S over Enron λ PNW GP Video Switcher KING-5 DTV Broadcas t Sony Production Stage

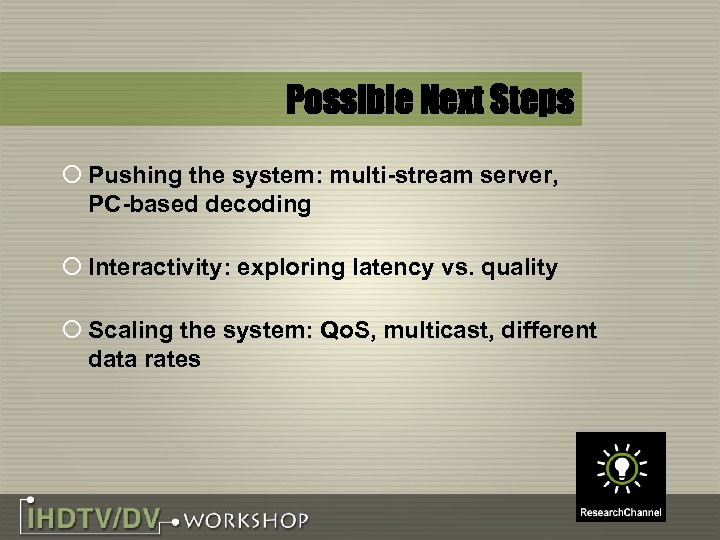

Possible Next Steps ¡ Pushing the system: multi-stream server, PC-based decoding ¡ Interactivity: exploring latency vs. quality ¡ Scaling the system: Qo. S, multicast, different data rates

Uncompressed HDTV over IP Colin Perkins, Ladan Gharai USC Information Sciences Institute Gary Goncher Tektronix

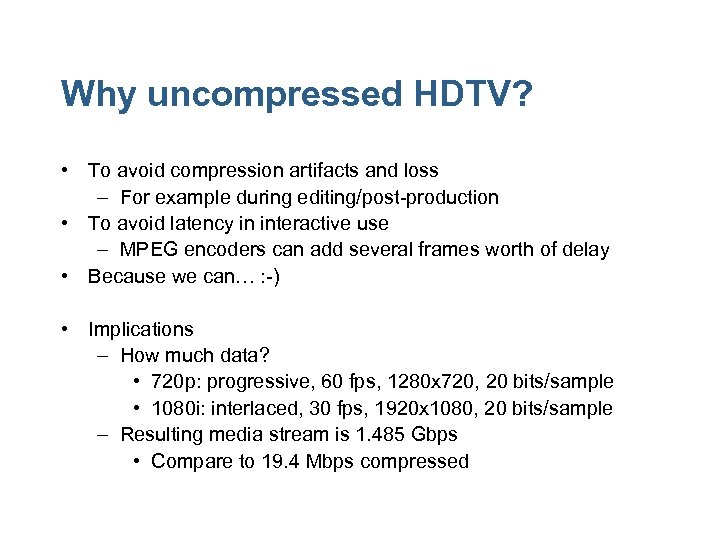

Why uncompressed HDTV? • To avoid compression artifacts and loss – For example during editing/post-production • To avoid latency in interactive use – MPEG encoders can add several frames worth of delay • Because we can… : -) • Implications – How much data? • 720 p: progressive, 60 fps, 1280 x 720, 20 bits/sample • 1080 i: interlaced, 30 fps, 1920 x 1080, 20 bits/sample – Resulting media stream is 1. 485 Gbps • Compare to 19. 4 Mbps compressed

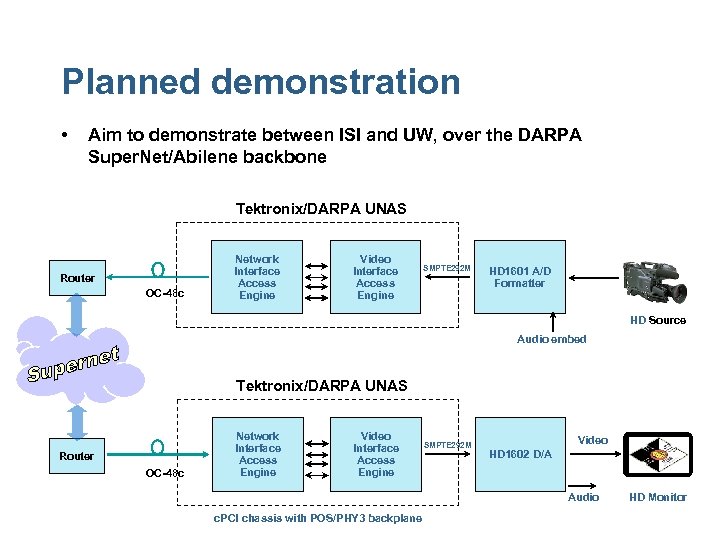

Planned demonstration • Aim to demonstrate between ISI and UW, over the DARPA Super. Net/Abilene backbone Tektronix/DARPA UNAS Router OC-48 c Network Interface Access Engine Video Interface Access Engine SMPTE 292 M HD 1601 A/D Formatter HD Source Audio embed Tektronix/DARPA UNAS Router OC-48 c Network Interface Access Engine Video Interface Access Engine SMPTE 292 M Video HD 1602 D/A Audio c. PCI chassis with POS/PHY 3 backplane HD Monitor

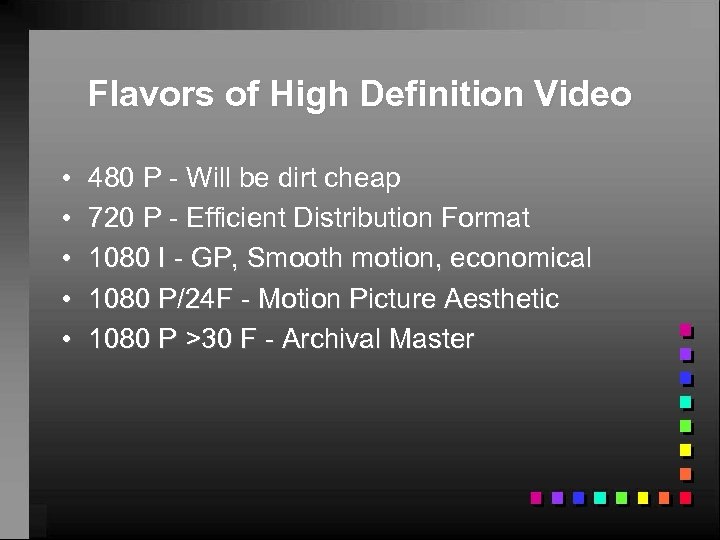

Flavors of High Definition Video • • • 480 P - Will be dirt cheap 720 P - Efficient Distribution Format 1080 I - GP, Smooth motion, economical 1080 P/24 F - Motion Picture Aesthetic 1080 P >30 F - Archival Master

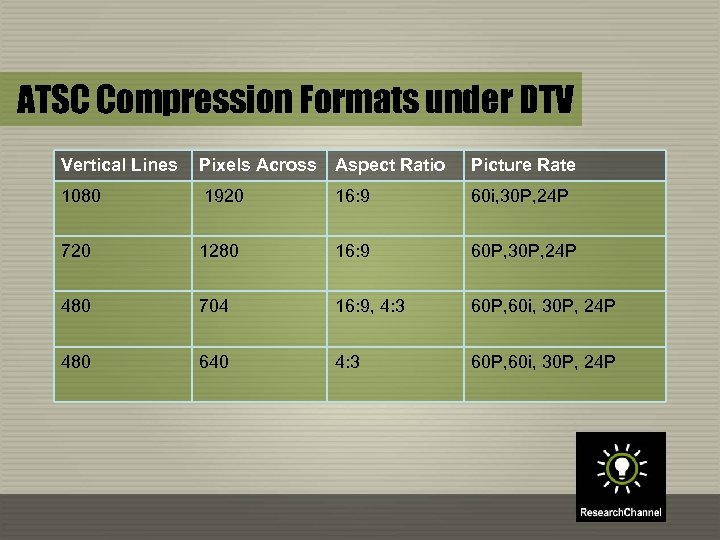

ATSC Compression Formats under DTV Vertical Lines Pixels Across Aspect Ratio Picture Rate 1080 1920 16: 9 60 i, 30 P, 24 P 720 1280 16: 9 60 P, 30 P, 24 P 480 704 16: 9, 4: 3 60 P, 60 i, 30 P, 24 P 480 640 4: 3 60 P, 60 i, 30 P, 24 P

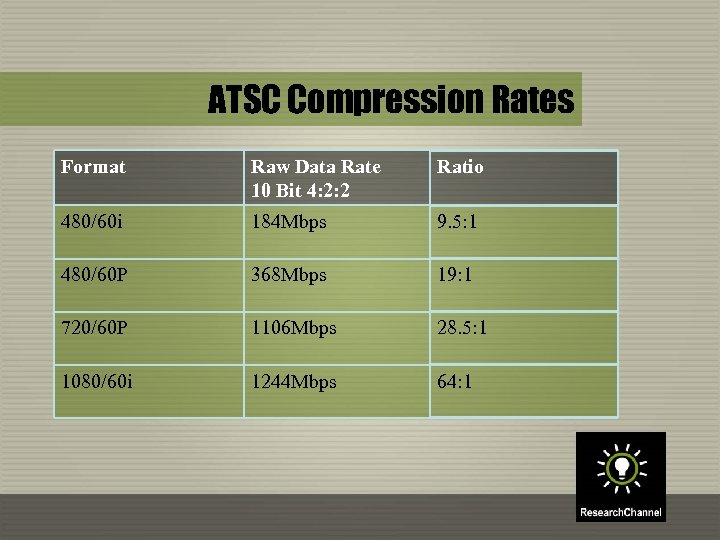

ATSC Compression Rates Format Raw Data Rate 10 Bit 4: 2: 2 Ratio 480/60 i 184 Mbps 9. 5: 1 480/60 P 368 Mbps 19: 1 720/60 P 1106 Mbps 28. 5: 1 1080/60 i 1244 Mbps 64: 1

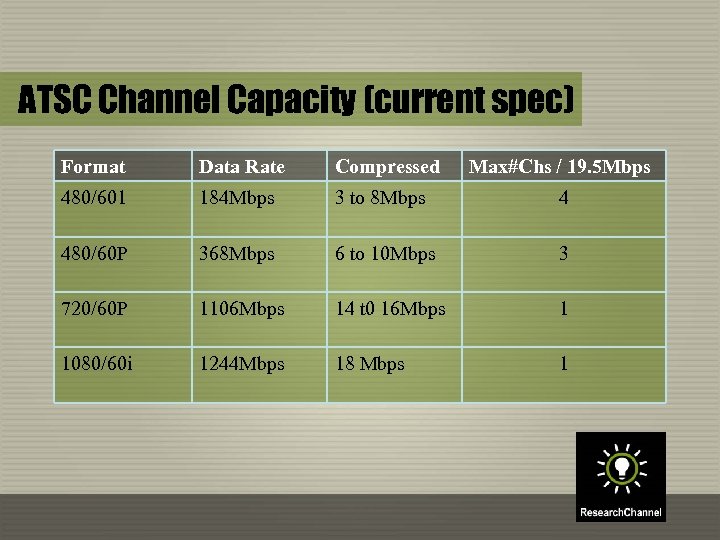

ATSC Channel Capacity (current spec) Format Data Rate Compressed Max#Chs / 19. 5 Mbps 480/601 184 Mbps 3 to 8 Mbps 4 480/60 P 368 Mbps 6 to 10 Mbps 3 720/60 P 1106 Mbps 14 t 0 16 Mbps 1 1080/60 i 1244 Mbps 18 Mbps 1

IHDTV/DV Meeting Workshop www. hdtv. org

IHDTV/DV Meeting Workshop Amy Philipson amy@washington. edu
