IDRaman mini Handheld Raman System Identify Authenticate

IDRaman mini Handheld Raman System

Identify. Authenticate. Verify. • Smallest, most-powerful handheld Raman instrument available today • Designed to make rapid and accurate measurements that identify, authenticate and verify samples • Ideal for: – Authentication analysis – Counterfeit detection – Rapid material identification – Verification of incoming materials – Harsh and demanding environments – In-line or at-line testing Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 2

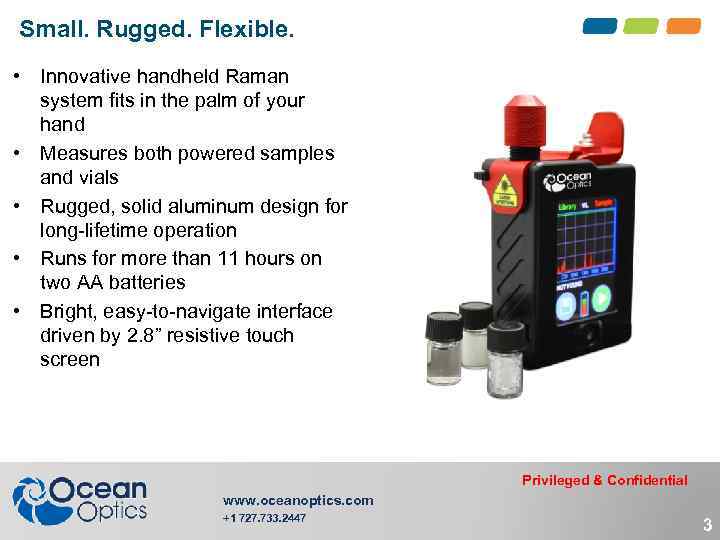

Small. Rugged. Flexible. • Innovative handheld Raman system fits in the palm of your hand • Measures both powered samples and vials • Rugged, solid aluminum design for long-lifetime operation • Runs for more than 11 hours on two AA batteries • Bright, easy-to-navigate interface driven by 2. 8” resistive touch screen Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 3

Fast, accurate results • Uses an internal calibration routine to ensure the most accurate Raman shift data is acquired • Measuring most samples in less than 9 seconds • Provides visual confirmation of results and displays both the sample and library spectrum with a confidence factor • Uses a proprietary fluorescence rejection algorithm to minimize both false positive and false negative results • Store a library of thousands of compounds onboard Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 4

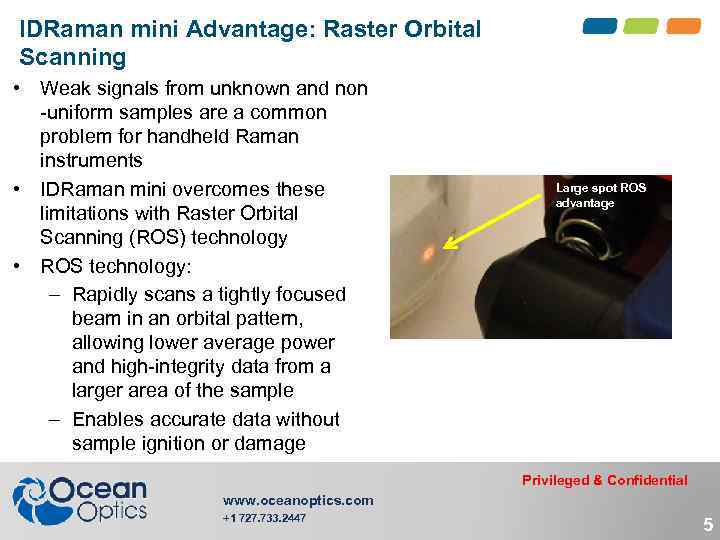

IDRaman mini Advantage: Raster Orbital Scanning • Weak signals from unknown and non -uniform samples are a common problem for handheld Raman instruments • IDRaman mini overcomes these limitations with Raster Orbital Scanning (ROS) technology • ROS technology: – Rapidly scans a tightly focused beam in an orbital pattern, allowing lower average power and high-integrity data from a larger area of the sample – Enables accurate data without sample ignition or damage Large spot ROS advantage Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 5

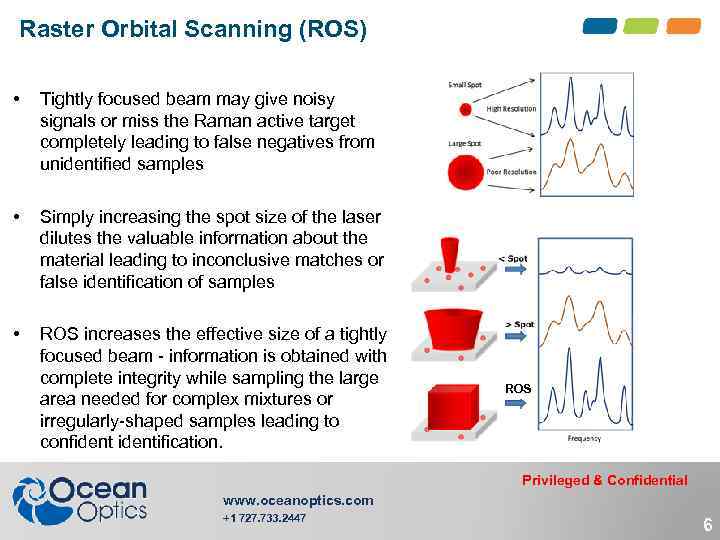

Raster Orbital Scanning (ROS) • Tightly focused beam may give noisy signals or miss the Raman active target completely leading to false negatives from unidentified samples • Simply increasing the spot size of the laser dilutes the valuable information about the material leading to inconclusive matches or false identification of samples • ROS increases the effective size of a tightly focused beam - information is obtained with complete integrity while sampling the large area needed for complex mixtures or irregularly-shaped samples leading to confidentification. ROS Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 6

IDRaman mini Advantage: Rapid Acquisition • Has an internal calibration for maximum confidence • Performs rapid measurements in < 9 seconds • Provides a visual confirmation between library and sample and provides a confidence level • Uses complex proprietary algorithms to minimize False Positive and False Negatives Internal calibration Rapid Acquisition Confident Identification Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447

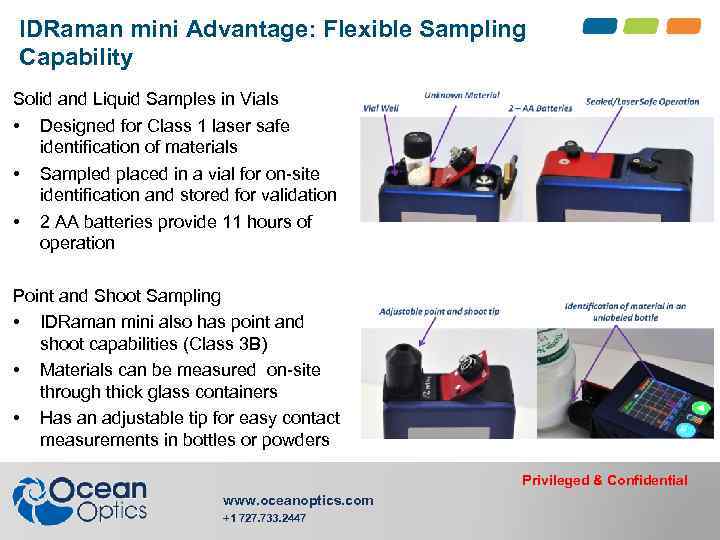

IDRaman mini Advantage: Flexible Sampling Capability Solid and Liquid Samples in Vials • Designed for Class 1 laser safe identification of materials • Sampled placed in a vial for on-site identification and stored for validation • 2 AA batteries provide 11 hours of operation Point and Shoot Sampling • IDRaman mini also has point and shoot capabilities (Class 3 B) • Materials can be measured on-site through thick glass containers • Has an adjustable tip for easy contact measurements in bottles or powders Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447

IDRaman mini Product Detail IDR-MINI • Handheld Raman spectrometer • Vial sampling only • 785 nm excitation • 400 - 2300 cm-1 with 15 cm-1 resolution • Basic component library • Box of 2 m. L vials (144 qty) • Micro USB cable and library building software IDR-MINI-ACCY • Accessory pack for IDR-MINI • Point-and-shoot solid sampling accessory • Laser safety glasses • Storage case IDR-MINI-KIT • IDR-MINI handheld Raman spectrometer • IDR-MINI-ACCY accessory pack Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 9

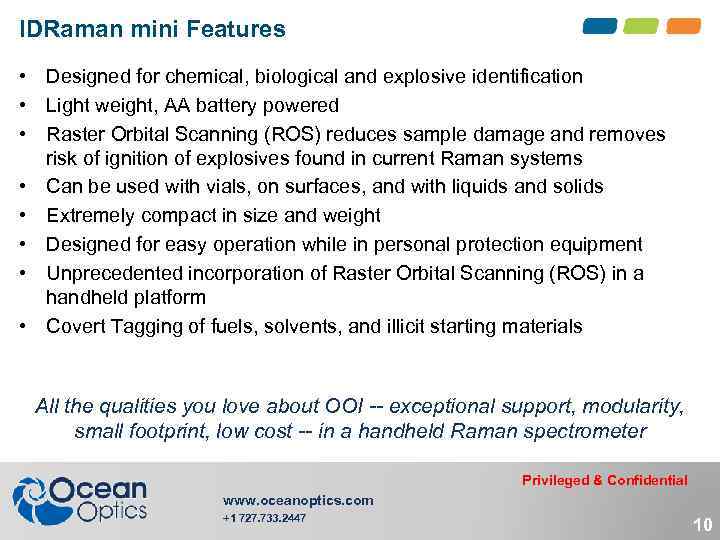

IDRaman mini Features • Designed for chemical, biological and explosive identification • Light weight, AA battery powered • Raster Orbital Scanning (ROS) reduces sample damage and removes risk of ignition of explosives found in current Raman systems • Can be used with vials, on surfaces, and with liquids and solids • Extremely compact in size and weight • Designed for easy operation while in personal protection equipment • Unprecedented incorporation of Raster Orbital Scanning (ROS) in a handheld platform • Covert Tagging of fuels, solvents, and illicit starting materials All the qualities you love about OOI -- exceptional support, modularity, small footprint, low cost -- in a handheld Raman spectrometer Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 10

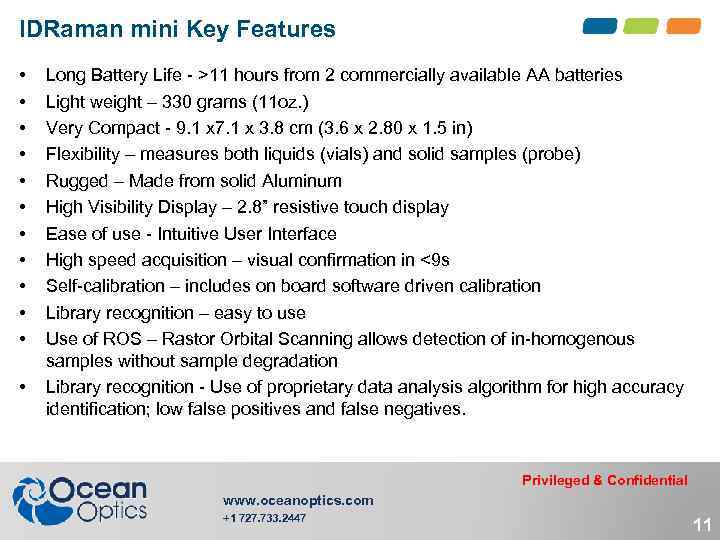

IDRaman mini Key Features • • • Long Battery Life - >11 hours from 2 commercially available AA batteries Light weight – 330 grams (11 oz. ) Very Compact - 9. 1 x 7. 1 x 3. 8 cm (3. 6 x 2. 80 x 1. 5 in) Flexibility – measures both liquids (vials) and solid samples (probe) Rugged – Made from solid Aluminum High Visibility Display – 2. 8” resistive touch display Ease of use - Intuitive User Interface High speed acquisition – visual confirmation in <9 s Self-calibration – includes on board software driven calibration Library recognition – easy to use Use of ROS – Rastor Orbital Scanning allows detection of in-homogenous samples without sample degradation Library recognition - Use of proprietary data analysis algorithm for high accuracy identification; low false positives and false negatives. Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 11

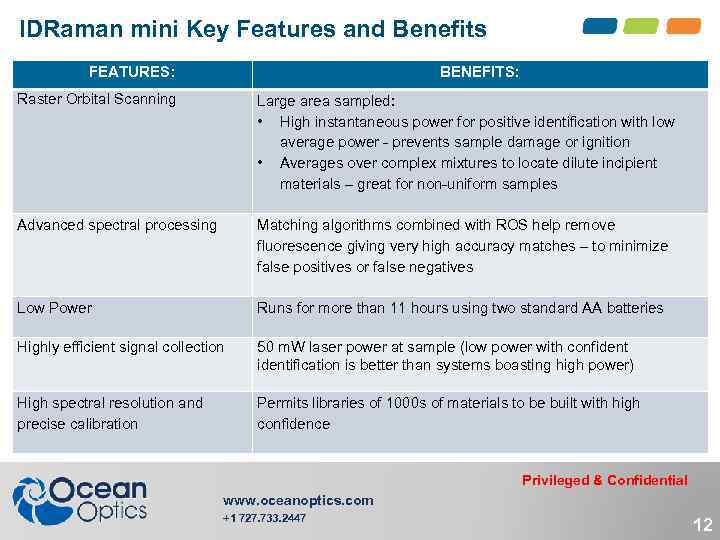

IDRaman mini Key Features and Benefits FEATURES: BENEFITS: Raster Orbital Scanning Large area sampled: • High instantaneous power for positive identification with low average power - prevents sample damage or ignition • Averages over complex mixtures to locate dilute incipient materials – great for non-uniform samples Advanced spectral processing Matching algorithms combined with ROS help remove fluorescence giving very high accuracy matches – to minimize false positives or false negatives Low Power Runs for more than 11 hours using two standard AA batteries Highly efficient signal collection 50 m. W laser power at sample (low power with confidentification is better than systems boasting high power) High spectral resolution and precise calibration Permits libraries of 1000 s of materials to be built with high confidence Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 12

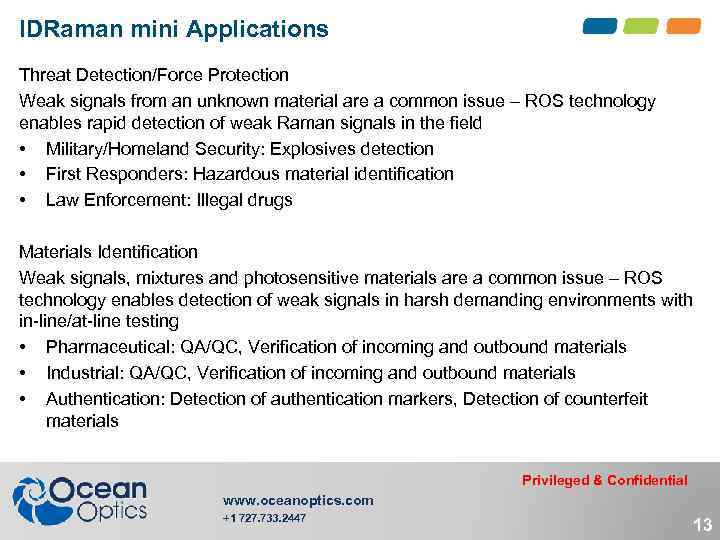

IDRaman mini Applications Threat Detection/Force Protection Weak signals from an unknown material are a common issue – ROS technology enables rapid detection of weak Raman signals in the field • Military/Homeland Security: Explosives detection • First Responders: Hazardous material identification • Law Enforcement: Illegal drugs Materials Identification Weak signals, mixtures and photosensitive materials are a common issue – ROS technology enables detection of weak signals in harsh demanding environments with in-line/at-line testing • Pharmaceutical: QA/QC, Verification of incoming and outbound materials • Industrial: QA/QC, Verification of incoming and outbound materials • Authentication: Detection of authentication markers, Detection of counterfeit materials Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 13

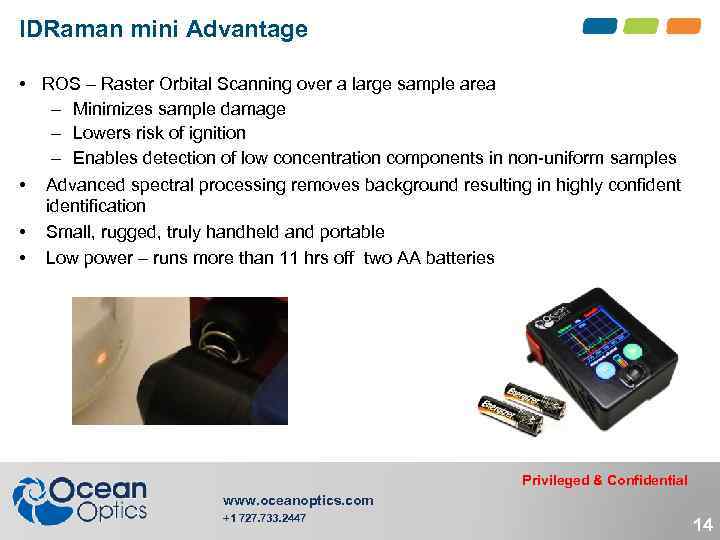

IDRaman mini Advantage • ROS – Raster Orbital Scanning over a large sample area – Minimizes sample damage – Lowers risk of ignition – Enables detection of low concentration components in non-uniform samples • Advanced spectral processing removes background resulting in highly confidentification • Small, rugged, truly handheld and portable • Low power – runs more than 11 hrs off two AA batteries Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 14

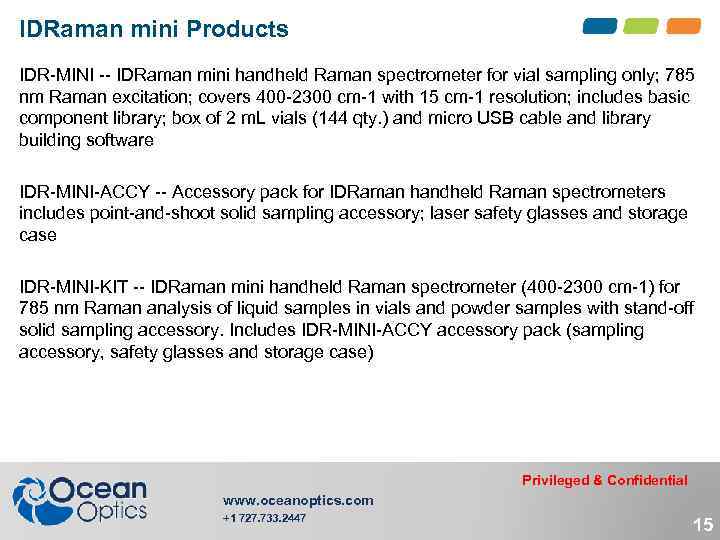

IDRaman mini Products IDR-MINI -- IDRaman mini handheld Raman spectrometer for vial sampling only; 785 nm Raman excitation; covers 400 -2300 cm-1 with 15 cm-1 resolution; includes basic component library; box of 2 m. L vials (144 qty. ) and micro USB cable and library building software IDR-MINI-ACCY -- Accessory pack for IDRaman handheld Raman spectrometers includes point-and-shoot solid sampling accessory; laser safety glasses and storage case IDR-MINI-KIT -- IDRaman mini handheld Raman spectrometer (400 -2300 cm-1) for 785 nm Raman analysis of liquid samples in vials and powder samples with stand-off solid sampling accessory. Includes IDR-MINI-ACCY accessory pack (sampling accessory, safety glasses and storage case) Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 15

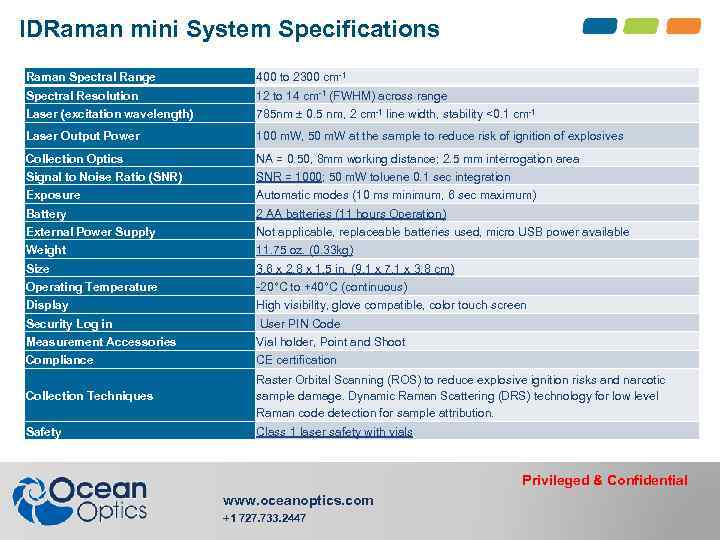

IDRaman mini System Specifications Raman Spectral Range 400 to 2300 cm-1 Spectral Resolution 12 to 14 cm-1 (FWHM) across range Laser (excitation wavelength) 785 nm ± 0. 5 nm, 2 cm-1 line width, stability <0. 1 cm-1 Laser Output Power 100 m. W, 50 m. W at the sample to reduce risk of ignition of explosives Collection Optics NA = 0. 50, 8 mm working distance; 2. 5 mm interrogation area Signal to Noise Ratio (SNR) SNR = 1000; 50 m. W toluene 0. 1 sec integration Exposure Automatic modes (10 ms minimum, 6 sec maximum) Battery 2 AA batteries (11 hours Operation) External Power Supply Not applicable, replaceable batteries used, micro USB power available Weight 11. 75 oz. (0. 33 kg) Size 3. 6 x 2. 8 x 1. 5 in. (9. 1 x 7. 1 x 3. 8 cm) Operating Temperature -20°C to +40°C (continuous) Display High visibility, glove compatible, color touch screen Security Log in User PIN Code Measurement Accessories Vial holder, Point and Shoot Compliance CE certification Collection Techniques Raster Orbital Scanning (ROS) to reduce explosive ignition risks and narcotic sample damage. Dynamic Raman Scattering (DRS) technology for low level Raman code detection for sample attribution. Safety Class 1 laser safety with vials Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447

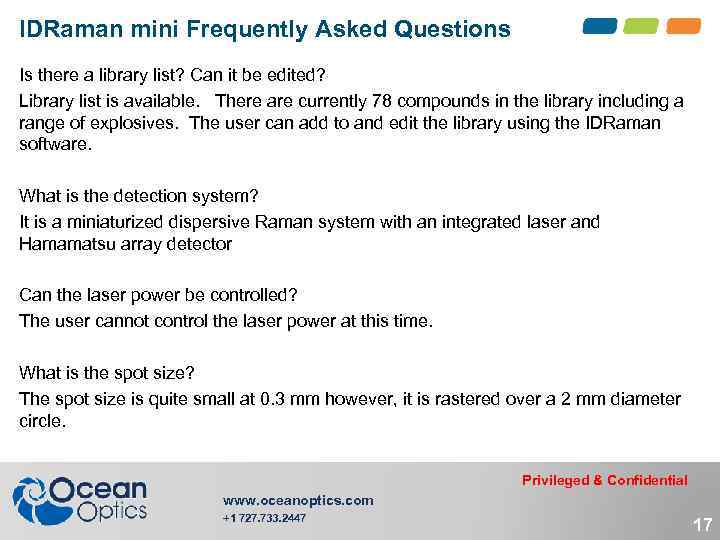

IDRaman mini Frequently Asked Questions Is there a library list? Can it be edited? Library list is available. There are currently 78 compounds in the library including a range of explosives. The user can add to and edit the library using the IDRaman software. What is the detection system? It is a miniaturized dispersive Raman system with an integrated laser and Hamamatsu array detector Can the laser power be controlled? The user cannot control the laser power at this time. What is the spot size? The spot size is quite small at 0. 3 mm however, it is rastered over a 2 mm diameter circle. Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 17

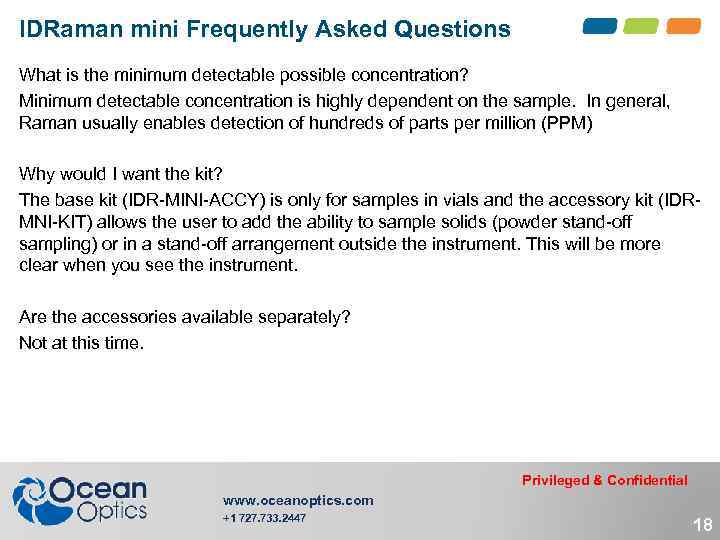

IDRaman mini Frequently Asked Questions What is the minimum detectable possible concentration? Minimum detectable concentration is highly dependent on the sample. In general, Raman usually enables detection of hundreds of parts per million (PPM) Why would I want the kit? The base kit (IDR-MINI-ACCY) is only for samples in vials and the accessory kit (IDRMNI-KIT) allows the user to add the ability to sample solids (powder stand-off sampling) or in a stand-off arrangement outside the instrument. This will be more clear when you see the instrument. Are the accessories available separately? Not at this time. Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 18

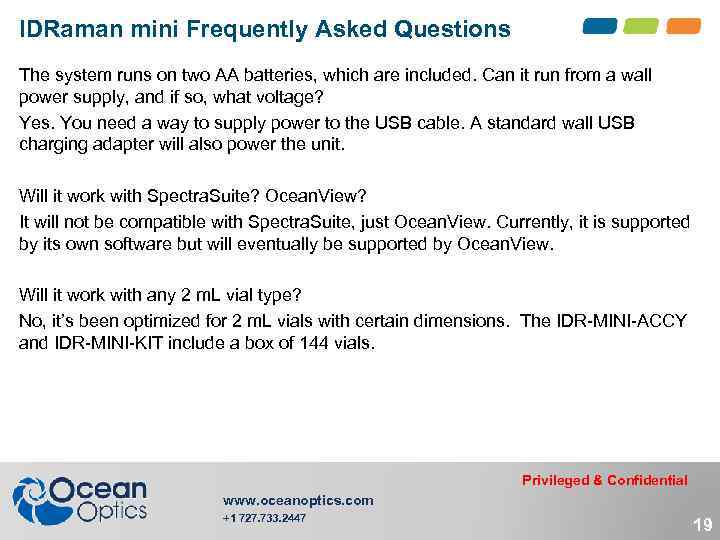

IDRaman mini Frequently Asked Questions The system runs on two AA batteries, which are included. Can it run from a wall power supply, and if so, what voltage? Yes. You need a way to supply power to the USB cable. A standard wall USB charging adapter will also power the unit. Will it work with Spectra. Suite? Ocean. View? It will not be compatible with Spectra. Suite, just Ocean. View. Currently, it is supported by its own software but will eventually be supported by Ocean. View. Will it work with any 2 m. L vial type? No, it’s been optimized for 2 m. L vials with certain dimensions. The IDR-MINI-ACCY and IDR-MINI-KIT include a box of 144 vials. Privileged & Confidential www. oceanoptics. com +1 727. 733. 2447 19
