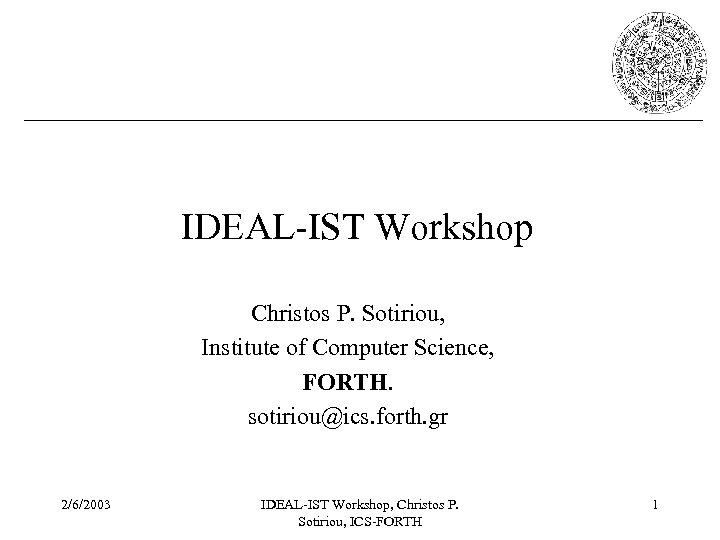

IDEAL-IST Workshop Christos P. Sotiriou, Institute of Computer Science, FORTH. sotiriou@ics. forth. gr 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 1

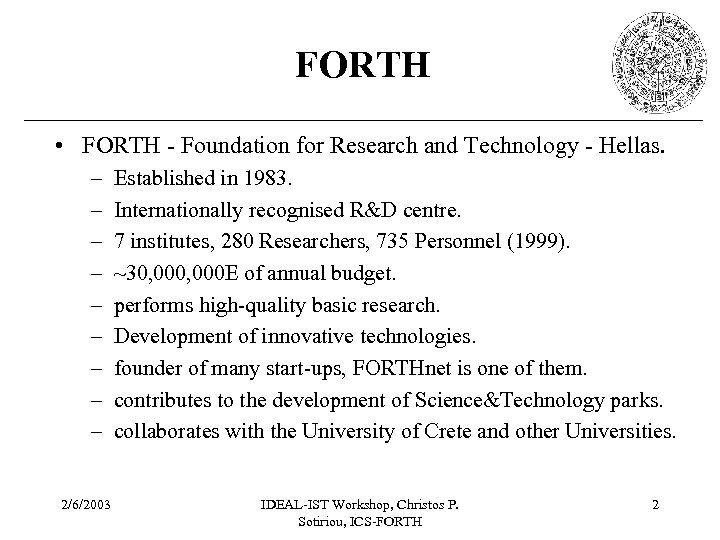

FORTH • FORTH - Foundation for Research and Technology - Hellas. – – – – – 2/6/2003 Established in 1983. Internationally recognised R&D centre. 7 institutes, 280 Researchers, 735 Personnel (1999). ~30, 000 E of annual budget. performs high-quality basic research. Development of innovative technologies. founder of many start-ups, FORTHnet is one of them. contributes to the development of Science&Technology parks. collaborates with the University of Crete and other Universities. IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 2

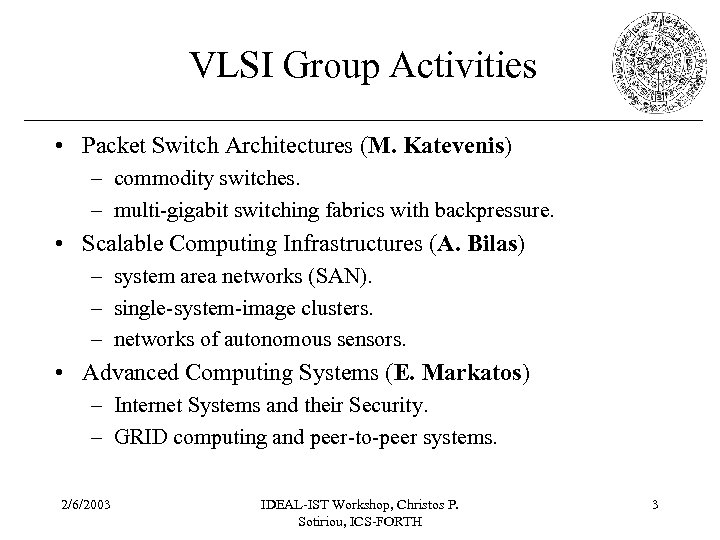

VLSI Group Activities • Packet Switch Architectures (M. Katevenis) – commodity switches. – multi-gigabit switching fabrics with backpressure. • Scalable Computing Infrastructures (A. Bilas) – system area networks (SAN). – single-system-image clusters. – networks of autonomous sensors. • Advanced Computing Systems (E. Markatos) – Internet Systems and their Security. – GRID computing and peer-to-peer systems. 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 3

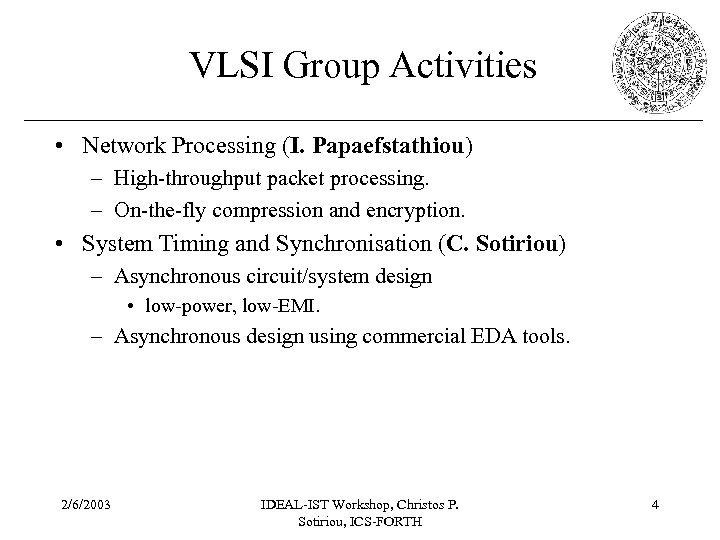

VLSI Group Activities • Network Processing (I. Papaefstathiou) – High-throughput packet processing. – On-the-fly compression and encryption. • System Timing and Synchronisation (C. Sotiriou) – Asynchronous circuit/system design • low-power, low-EMI. – Asynchronous design using commercial EDA tools. 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 4

System Timing Activities • Coordinators of IST Project ASPIDA (IST-2002 -37796). – ASPIDA. • (ASynchronous open-source Processor Ip of the Dlx Architecture). • with Politecnico di Torino and Manchester University. – Aim: to develop an open-source, low-power, low-EMI, flexibleinterface processor for embedded applications. • • fully-asynchronous CPU (DLX architecture). may be migrated to any fabrication technology. industrial quality testability (>95%). 2 processor bus interfaces: – WISHBONE: synchronous Open on-chip bus (Open. Cores). – CHAIN: novel asynchronous on-chip bus. 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 5

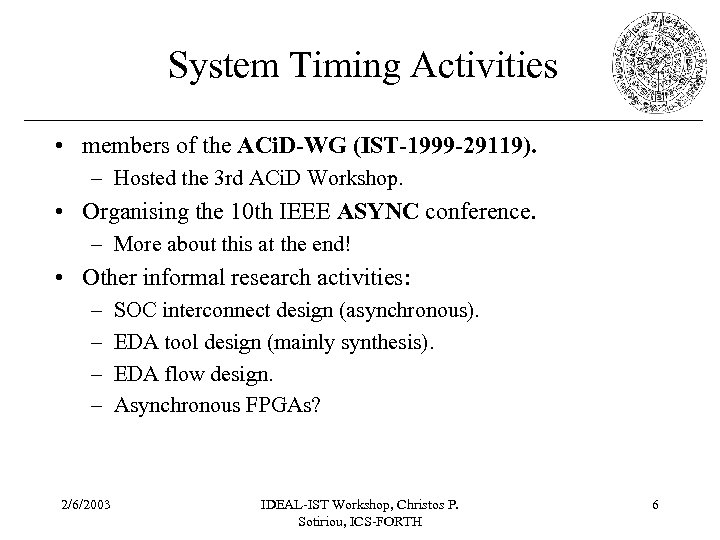

System Timing Activities • members of the ACi. D-WG (IST-1999 -29119). – Hosted the 3 rd ACi. D Workshop. • Organising the 10 th IEEE ASYNC conference. – More about this at the end! • Other informal research activities: – – 2/6/2003 SOC interconnect design (asynchronous). EDA tool design (mainly synthesis). EDA flow design. Asynchronous FPGAs? IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 6

Asynchronous Technology? • EMI Comparison (ARM 9 vs. AMULET 3) 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 7

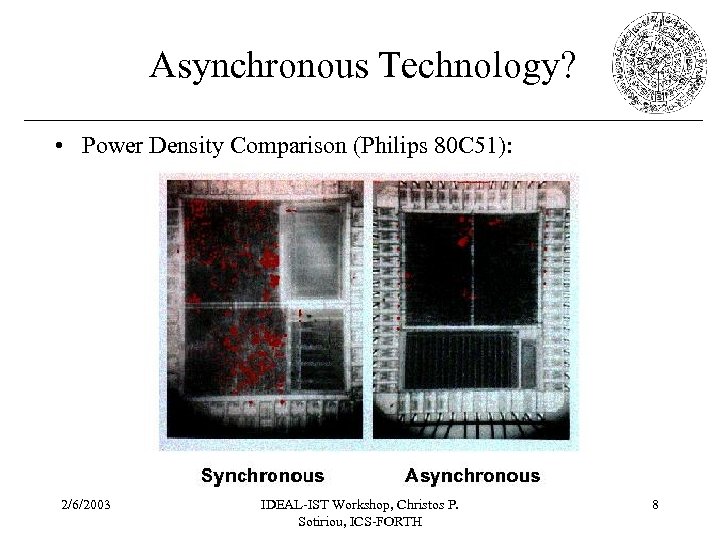

Asynchronous Technology? • Power Density Comparison (Philips 80 C 51): 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 8

Asynchronous Technology? • Deep Sub. Micron clocked designs: – clock distribution issues • • clock tree depth clock tree power consumption high Electro. Magnetic Interference (EMI) clock skew; timing closure problems – constant reduction of area reachable in 1 clock cycle – continuous power consumption – Example Designs • DEC Alpha 21264: 30 -40% power to clock tree • ARM 9 TDMI , 220 MHz, 32% power to clock tree • Pentium 4 : 20 pipeline stages, 42 M trans, 66 Watts 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 9

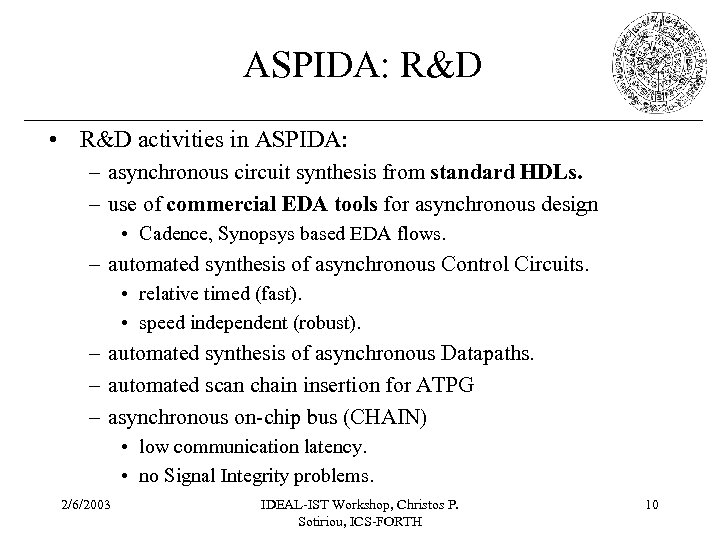

ASPIDA: R&D • R&D activities in ASPIDA: – asynchronous circuit synthesis from standard HDLs. – use of commercial EDA tools for asynchronous design • Cadence, Synopsys based EDA flows. – automated synthesis of asynchronous Control Circuits. • relative timed (fast). • speed independent (robust). – automated synthesis of asynchronous Datapaths. – automated scan chain insertion for ATPG – asynchronous on-chip bus (CHAIN) • low communication latency. • no Signal Integrity problems. 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 10

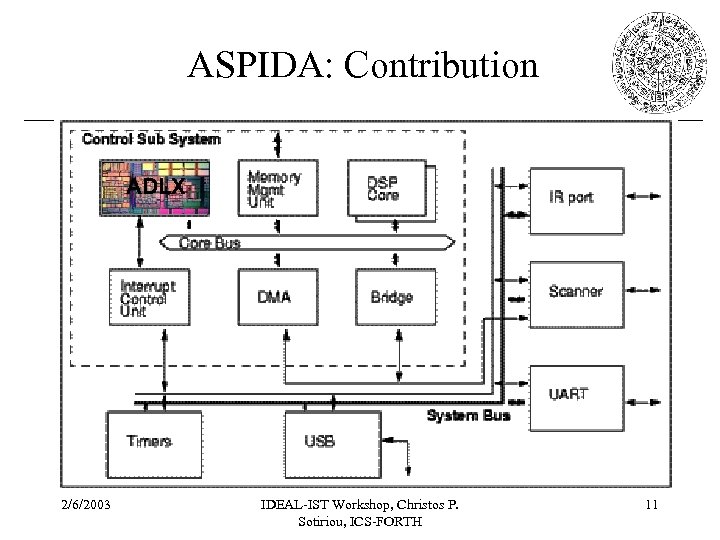

ASPIDA: Contribution ΑDLX ADLX HARD IP SOFT IP HDL+ flow Typical SOC 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 11

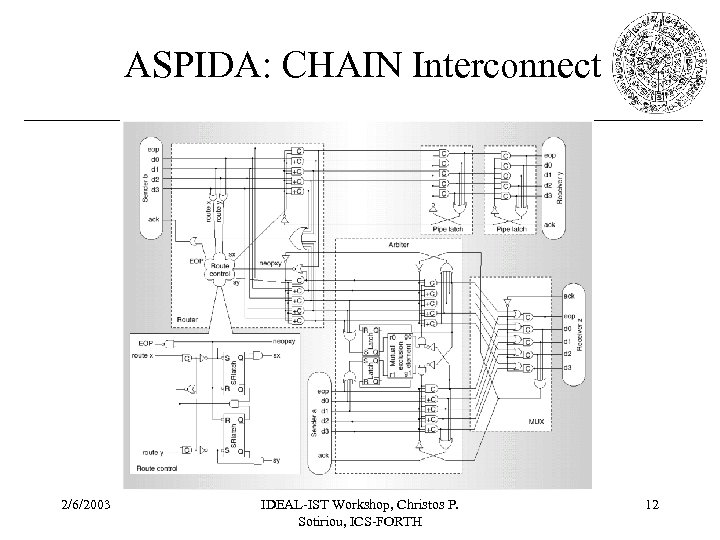

ASPIDA: CHAIN Interconnect 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 12

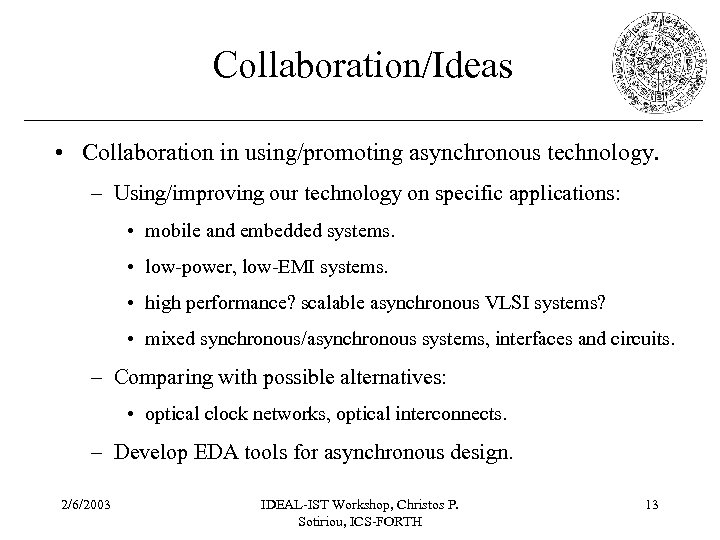

Collaboration/Ideas • Collaboration in using/promoting asynchronous technology. – Using/improving our technology on specific applications: • mobile and embedded systems. • low-power, low-EMI systems. • high performance? scalable asynchronous VLSI systems? • mixed synchronous/asynchronous systems, interfaces and circuits. – Comparing with possible alternatives: • optical clock networks, optical interconnects. – Develop EDA tools for asynchronous design. 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 13

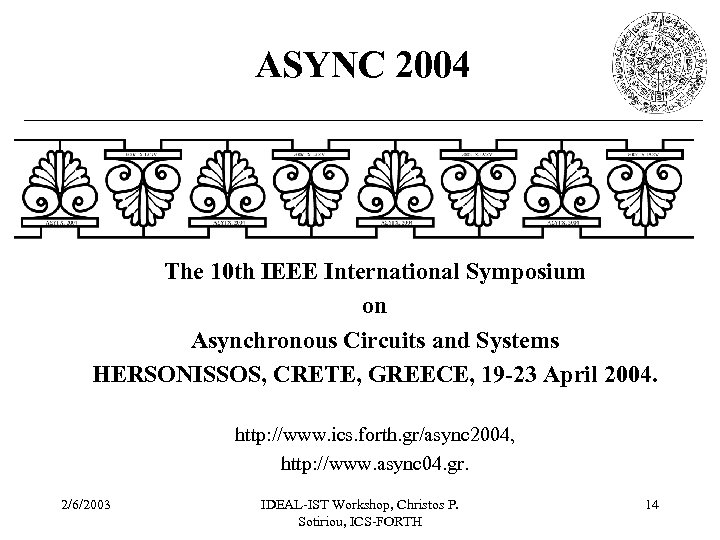

ASYNC 2004 The 10 th IEEE International Symposium on Asynchronous Circuits and Systems HERSONISSOS, CRETE, GREECE, 19 -23 April 2004. http: //www. ics. forth. gr/async 2004, http: //www. async 04. gr. 2/6/2003 IDEAL-IST Workshop, Christos P. Sotiriou, ICS-FORTH 14
