ICRAT 2004 URBAN ENVIRONMENT MONITORING AND CONTROL MODEL

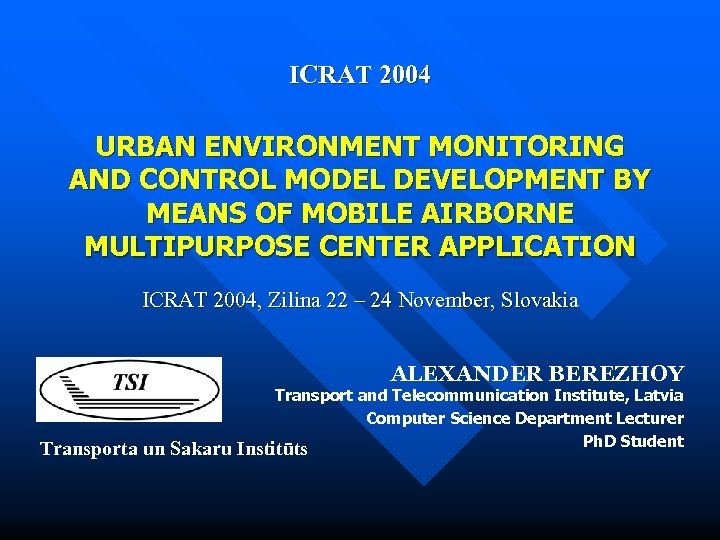

ICRAT 2004 URBAN ENVIRONMENT MONITORING AND CONTROL MODEL DEVELOPMENT BY MEANS OF MOBILE AIRBORNE MULTIPURPOSE CENTER APPLICATION ICRAT 2004, Zilina 22 – 24 November, Slovakia ALEXANDER BEREZHOY Transport and Telecommunication Institute, Latvia Computer Science Department Lecturer Ph. D Student Transporta un Sakaru Institūts

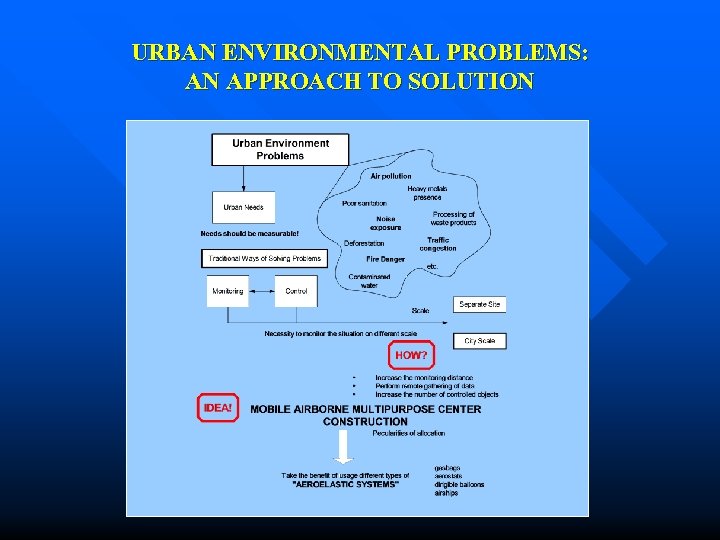

URBAN ENVIRONMENTAL PROBLEMS: AN APPROACH TO SOLUTION

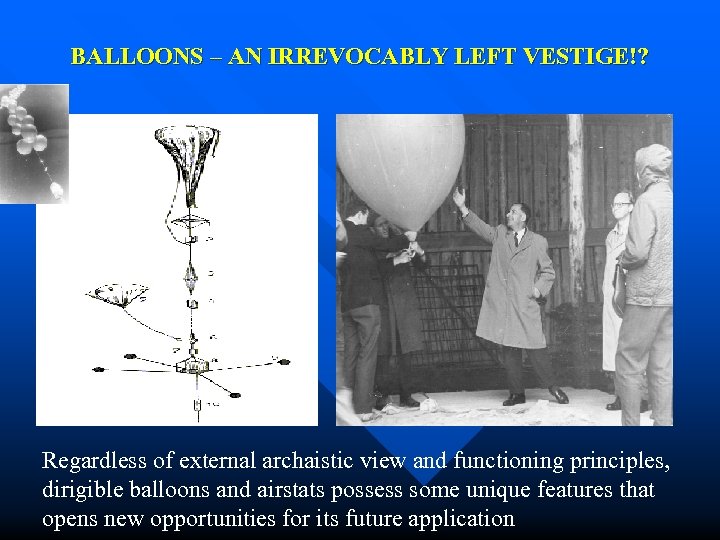

BALLOONS – AN IRREVOCABLY LEFT VESTIGE!? Regardless of external archaistic view and functioning principles, dirigible balloons and airstats possess some unique features that opens new opportunities for its future application

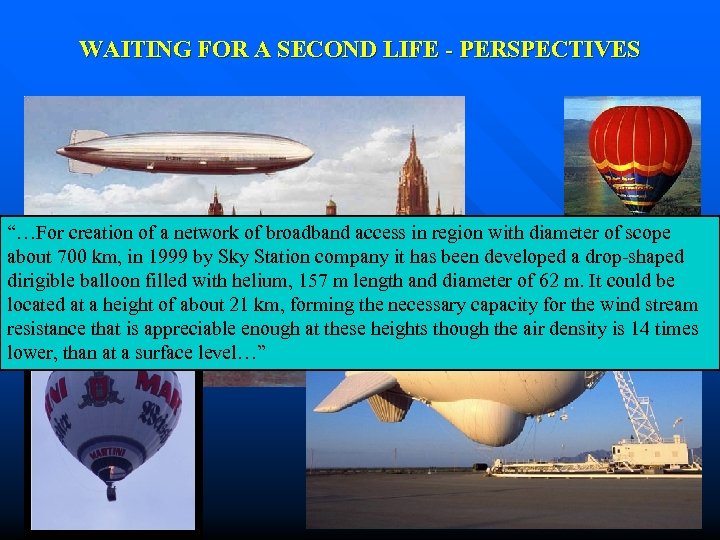

WAITING FOR A SECOND LIFE - PERSPECTIVES “…For creation of a network of broadband access in region with diameter of scope about 700 km, in 1999 by Sky Station company it has been developed a drop-shaped dirigible balloon filled with helium, 157 m length and diameter of 62 m. It could be located at a height of about 21 km, forming the necessary capacity for the wind stream resistance that is appreciable enough at these heights though the air density is 14 times lower, than at a surface level…”

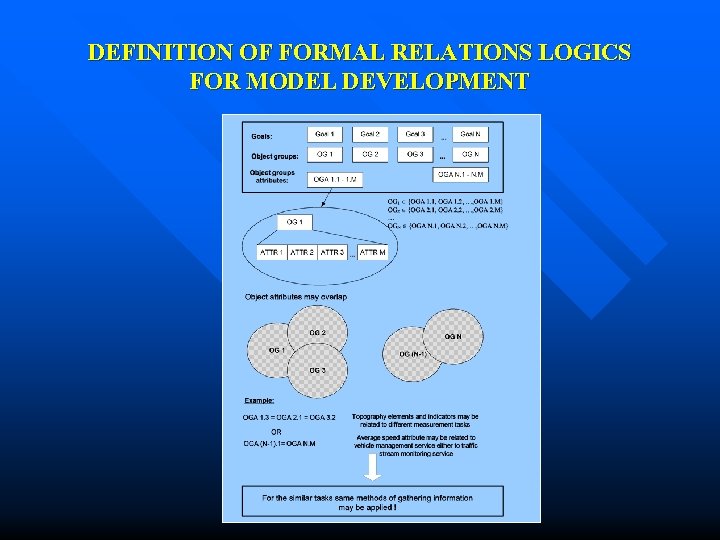

DEFINITION OF FORMAL RELATIONS LOGICS FOR MODEL DEVELOPMENT

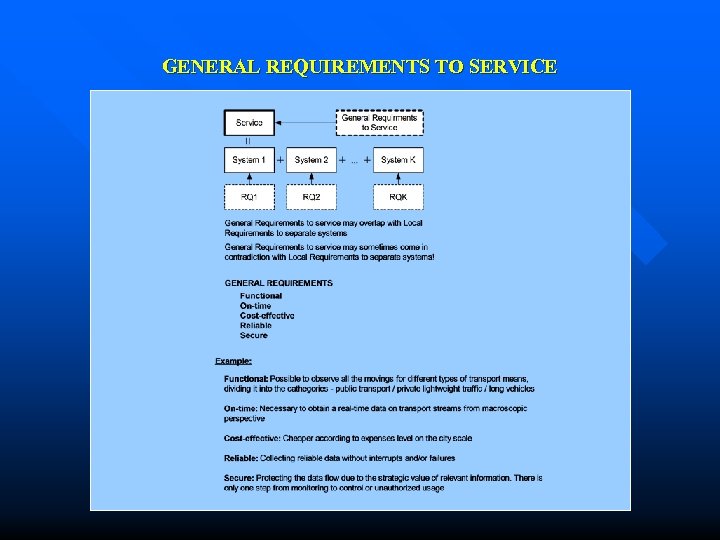

GENERAL REQUIREMENTS TO SERVICE

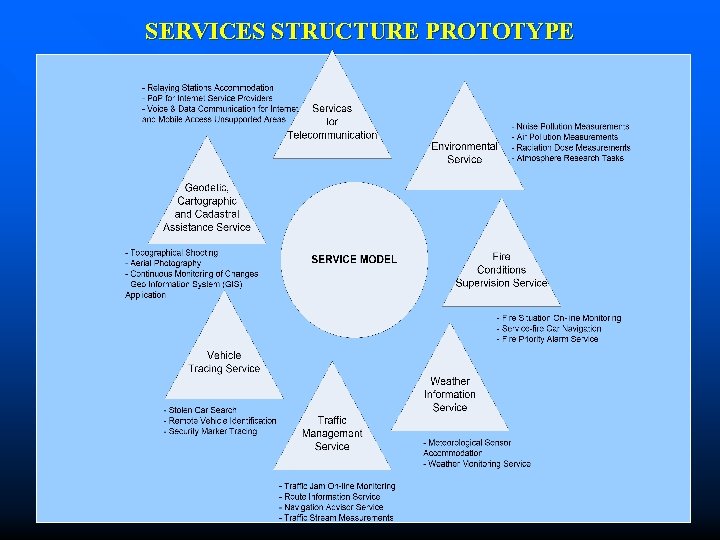

SERVICES STRUCTURE PROTOTYPE

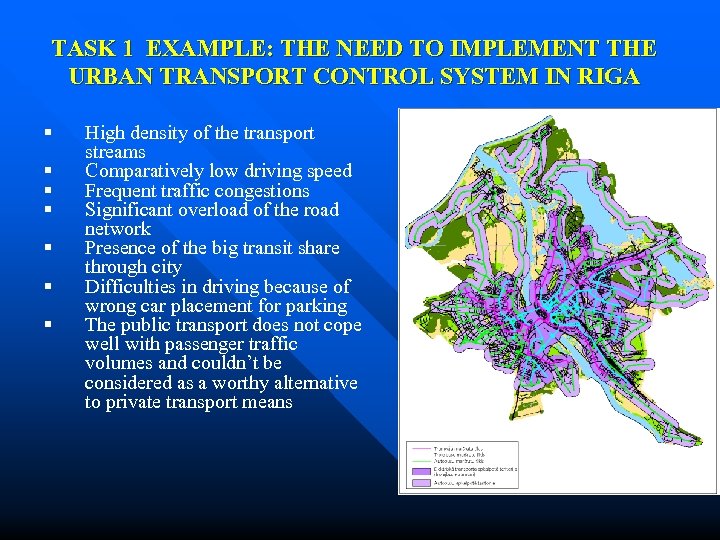

TASK 1 EXAMPLE: THE NEED TO IMPLEMENT THE URBAN TRANSPORT CONTROL SYSTEM IN RIGA § § § § High density of the transport streams Comparatively low driving speed Frequent traffic congestions Significant overload of the road network Presence of the big transit share through city Difficulties in driving because of wrong car placement for parking The public transport does not cope well with passenger traffic volumes and couldn’t be considered as a worthy alternative to private transport means

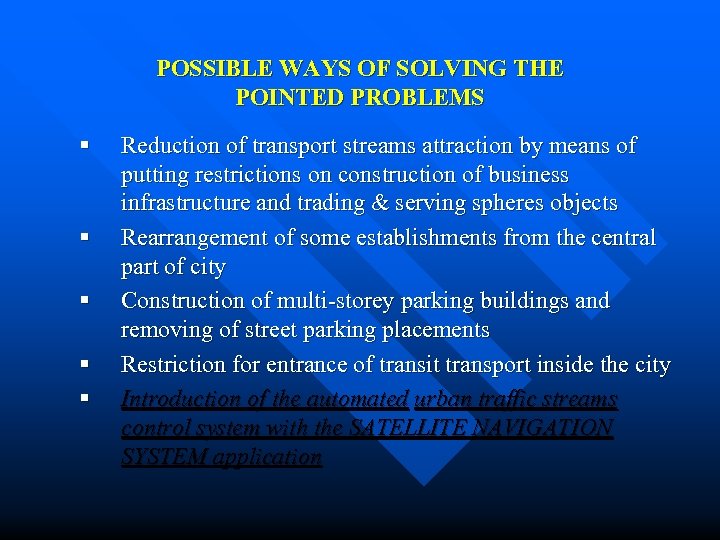

POSSIBLE WAYS OF SOLVING THE POINTED PROBLEMS § § § Reduction of transport streams attraction by means of putting restrictions on construction of business infrastructure and trading & serving spheres objects Rearrangement of some establishments from the central part of city Construction of multi-storey parking buildings and removing of street parking placements Restriction for entrance of transit transport inside the city Introduction of the automated urban traffic streams control system with the SATELLITE NAVIGATION SYSTEM application

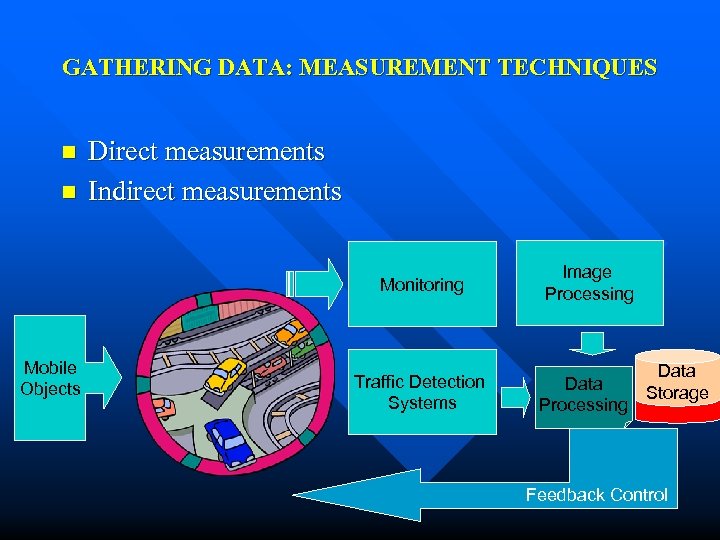

GATHERING DATA: MEASUREMENT TECHNIQUES n n Direct measurements Indirect measurements Monitoring Mobile Objects Gauges Traffic Detection Systems Image Processing Data Storage Processing Feedback Control

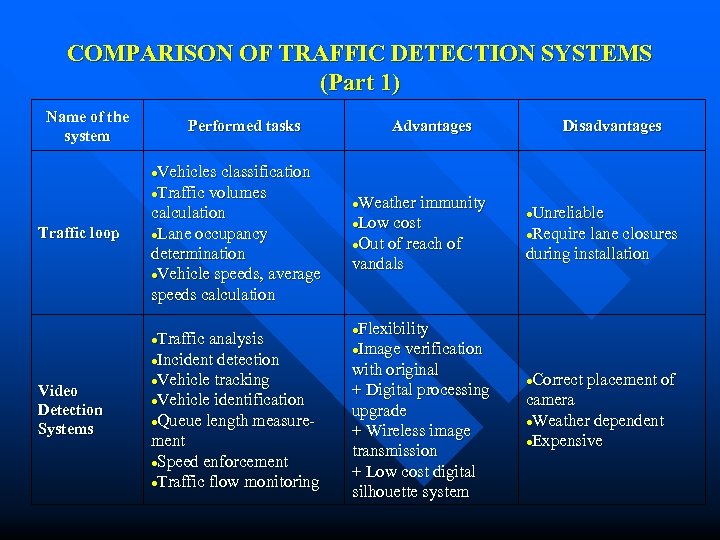

COMPARISON OF TRAFFIC DETECTION SYSTEMS (Part 1) Name of the system Performed tasks Vehicles classification Traffic volumes Traffic loop calculation Lane occupancy determination Vehicle speeds, average speeds calculation Traffic analysis Incident detection Video Detection Systems Vehicle tracking Vehicle identification Queue length measure- ment Speed enforcement Traffic flow monitoring Advantages Weather immunity Low cost Out of reach of vandals Disadvantages Unreliable Require lane closures during installation Flexibility Image verification with original + Digital processing upgrade + Wireless image transmission + Low cost digital silhouette system Correct placement of camera Weather dependent Expensive

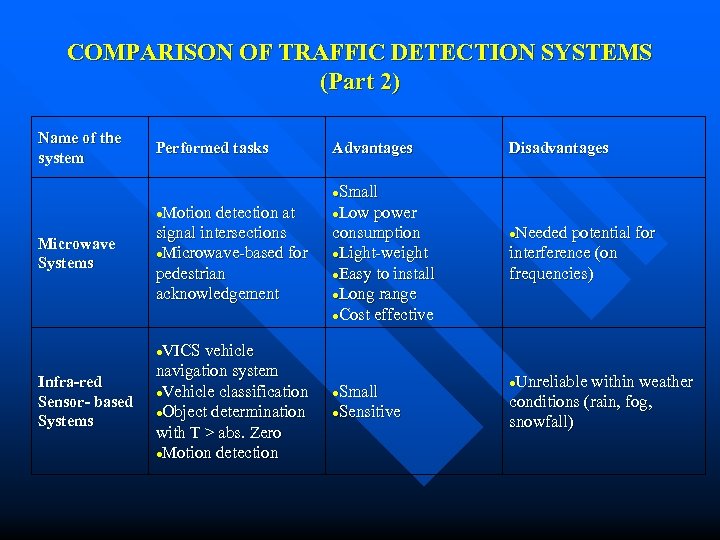

COMPARISON OF TRAFFIC DETECTION SYSTEMS (Part 2) Name of the system Advantages Motion detection at Microwave Systems Performed tasks Small Low power signal intersections Microwave-based for pedestrian acknowledgement consumption Light-weight Easy to install Long range Cost effective Disadvantages Needed potential for interference (on frequencies) VICS vehicle Infra-red Sensor- based Systems navigation system Vehicle classification Object determination with T > abs. Zero Motion detection Small Sensitive Unreliable within weather conditions (rain, fog, snowfall)

COMPARISON OF TRAFFIC DETECTION SYSTEMS (Part 3) Name of the system Laserbased Systems Radar Systems Performed tasks Vehicle detection Vehicle classification Enforcement application (speed, acceleration) Advantages Operation speed Precision Extremely high effectiveness Compatibility with Video detection systems Speed enforcement Vehicle classification Vehicle presence Traffic volume Lane occupancy Disadvantages Detection quality Expensive

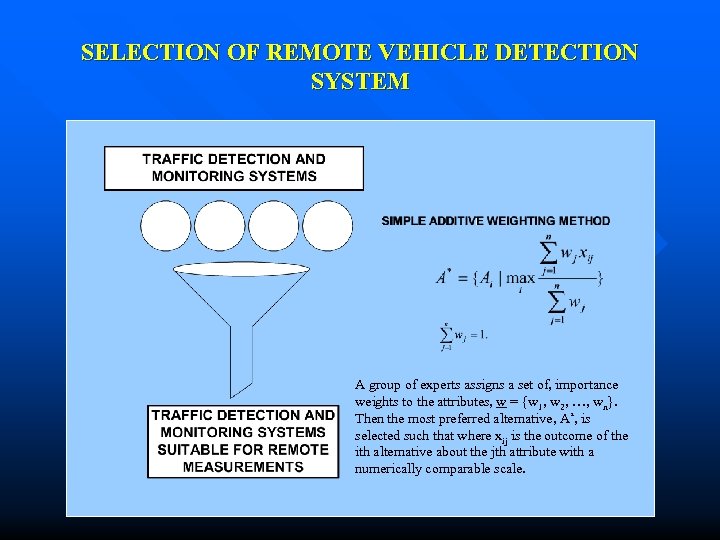

SELECTION OF REMOTE VEHICLE DETECTION SYSTEM A group of experts assigns a set of, importance weights to the attributes, w = {w 1, w 2, …, wn}. Then the most preferred alternative, A*, is selected such that where xij is the outcome of the ith alternative about the jth attribute with a numerically comparable scale.

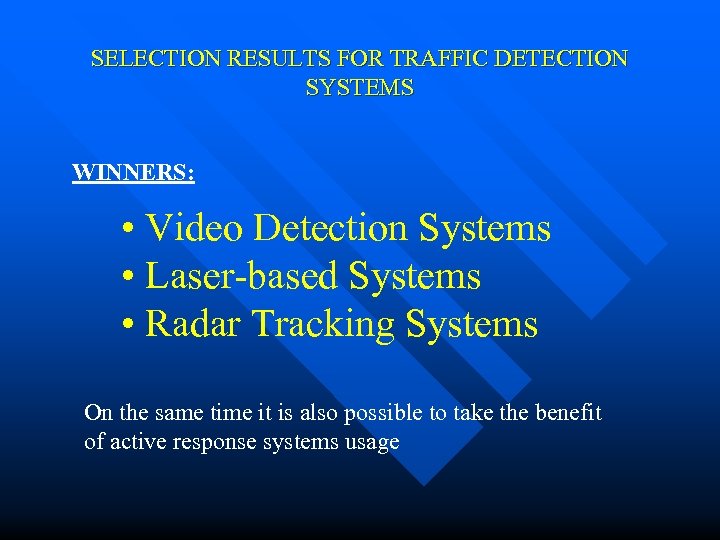

SELECTION RESULTS FOR TRAFFIC DETECTION SYSTEMS WINNERS: • Video Detection Systems • Laser-based Systems • Radar Tracking Systems On the same time it is also possible to take the benefit of active response systems usage

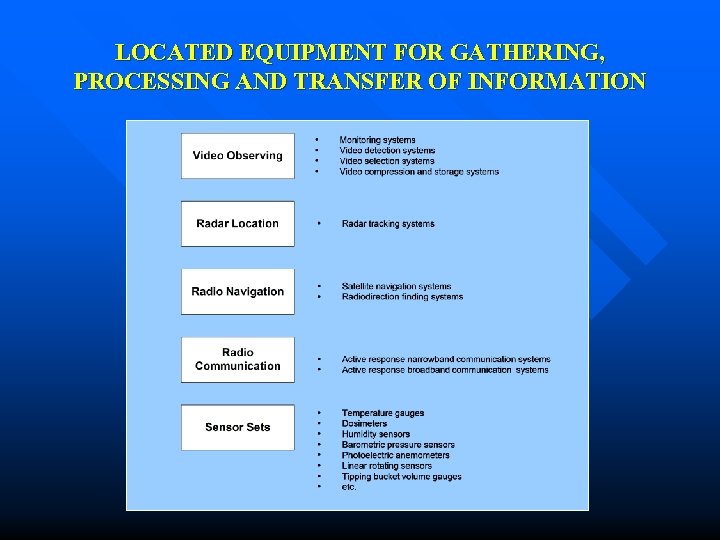

LOCATED EQUIPMENT FOR GATHERING, PROCESSING AND TRANSFER OF INFORMATION

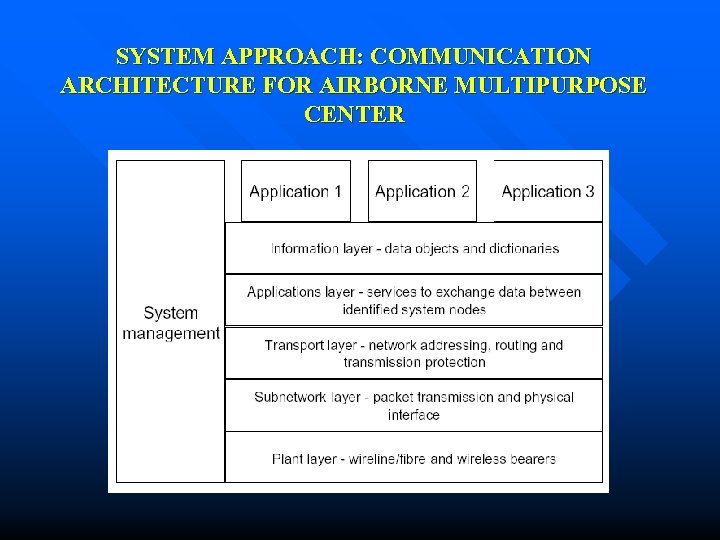

SYSTEM APPROACH: COMMUNICATION ARCHITECTURE FOR AIRBORNE MULTIPURPOSE CENTER

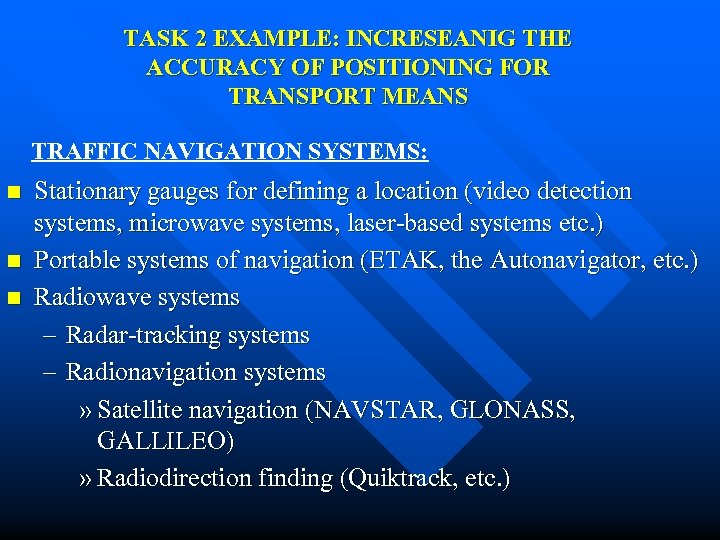

TASK 2 EXAMPLE: INCRESEANIG THE ACCURACY OF POSITIONING FOR TRANSPORT MEANS TRAFFIC NAVIGATION SYSTEMS: n n n Stationary gauges for defining a location (video detection systems, microwave systems, laser-based systems etc. ) Portable systems of navigation (ETAK, the Autonavigator, etc. ) Radiowave systems – Radar-tracking systems – Radionavigation systems » Satellite navigation (NAVSTAR, GLONASS, GALLILEO) » Radiodirection finding (Quiktrack, etc. )

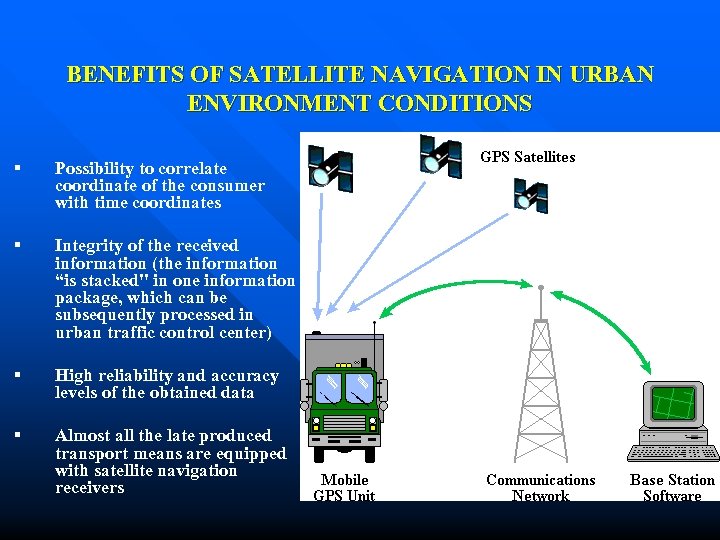

BENEFITS OF SATELLITE NAVIGATION IN URBAN ENVIRONMENT CONDITIONS § Possibility to correlate coordinate of the consumer with time coordinates § Integrity of the received information (the information “is stacked" in one information package, which can be subsequently processed in urban traffic control center) § High reliability and accuracy levels of the obtained data § Almost all the late produced transport means are equipped with satellite navigation receivers

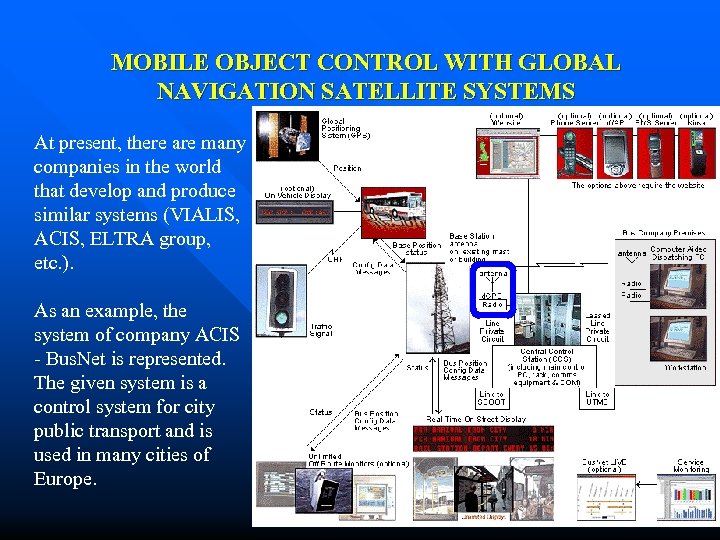

MOBILE OBJECT CONTROL WITH GLOBAL NAVIGATION SATELLITE SYSTEMS At present, there are many companies in the world that develop and produce similar systems (VIALIS, ACIS, ELTRA group, etc. ). As an example, the system of company ACIS - Bus. Net is represented. The given system is a control system for city public transport and is used in many cities of Europe.

2 MAJOR TYPES OF SATELLITE POSITIONING ERRORS IN A CITY BOUNDRIES 1. MULTIPATH ERROR Refractions from buildings, constructions, causes an error ~0. 6 -1. 2 m The given type of mistakes cannot be avoided, since GPS receiver perceives refracted signal as a true.

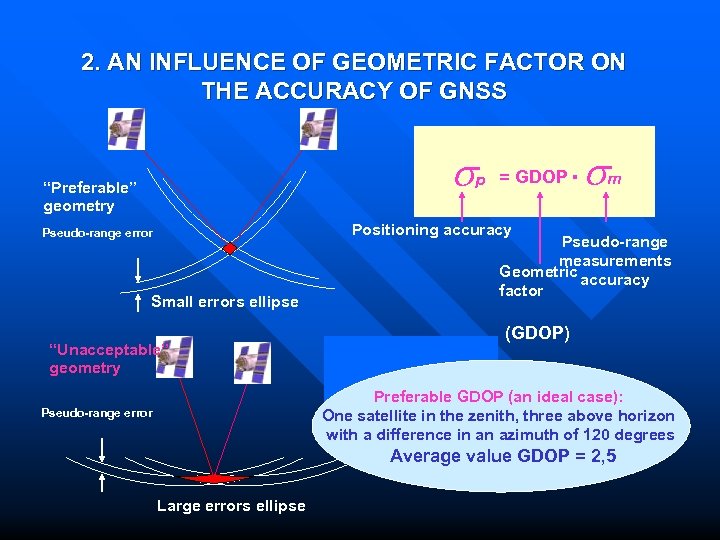

2. AN INFLUENCE OF GEOMETRIC FACTOR ON THE ACCURACY OF GNSS s “Preferable” geometry p = GDOP . sm Positioning accuracy Pseudo-range error Small errors ellipse “Unacceptable” geometry Pseudo-range measurements Geometric accuracy factor (GDOP) Preferable GDOP (an ideal case): One satellite in the zenith, three above horizon with a difference in an azimuth of 120 degrees Pseudo-range error Average value GDOP = 2, 5 Large errors ellipse

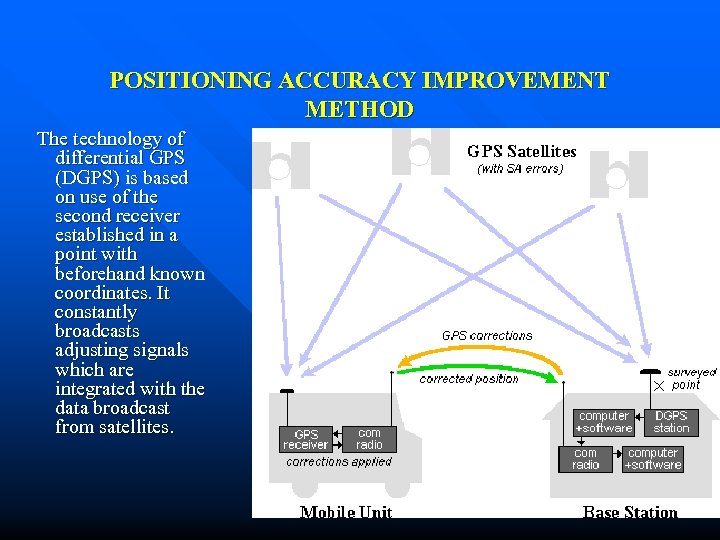

POSITIONING ACCURACY IMPROVEMENT METHOD The technology of differential GPS (DGPS) is based on use of the second receiver established in a point with beforehand known coordinates. It constantly broadcasts adjusting signals which are integrated with the data broadcast from satellites.

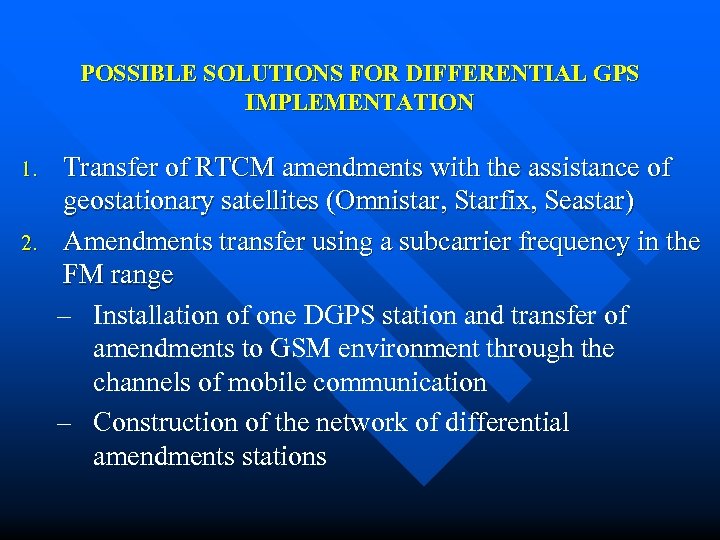

POSSIBLE SOLUTIONS FOR DIFFERENTIAL GPS IMPLEMENTATION 1. 2. Transfer of RTCM amendments with the assistance of geostationary satellites (Omnistar, Starfix, Seastar) Amendments transfer using a subcarrier frequency in the FM range – Installation of one DGPS station and transfer of amendments to GSM environment through the channels of mobile communication – Construction of the network of differential amendments stations

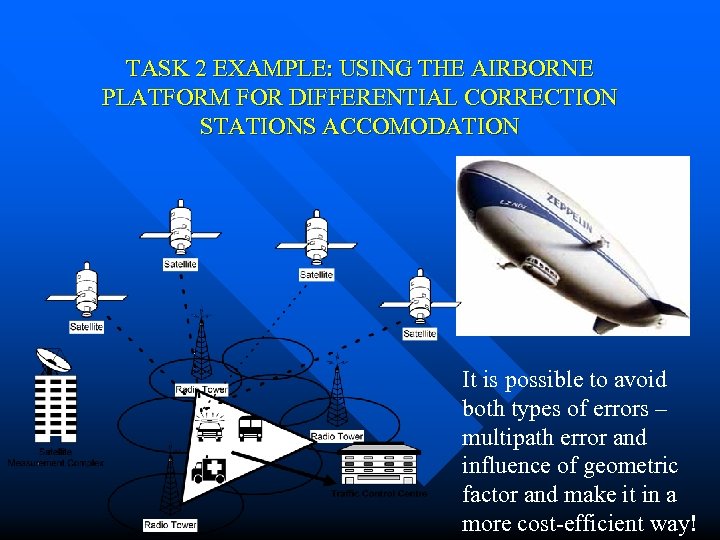

TASK 2 EXAMPLE: USING THE AIRBORNE PLATFORM FOR DIFFERENTIAL CORRECTION STATIONS ACCOMODATION It is possible to avoid both types of errors – multipath error and influence of geometric factor and make it in a more cost-efficient way!

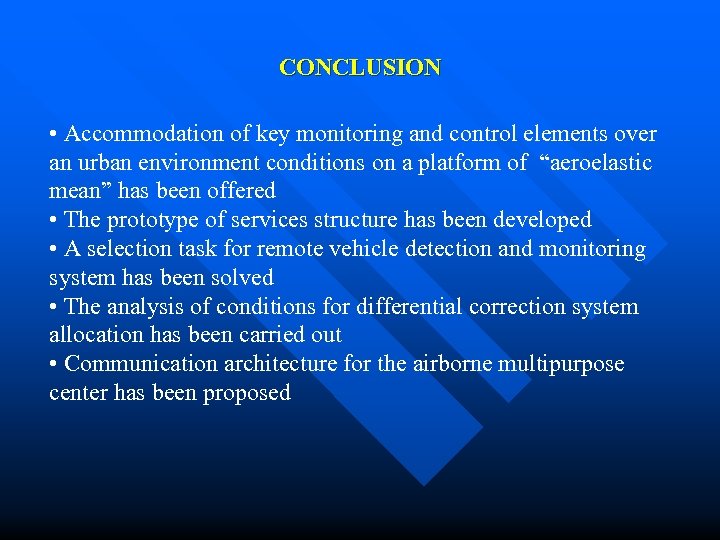

CONCLUSION • Accommodation of key monitoring and control elements over an urban environment conditions on a platform of “aeroelastic mean” has been offered • The prototype of services structure has been developed • A selection task for remote vehicle detection and monitoring system has been solved • The analysis of conditions for differential correction system allocation has been carried out • Communication architecture for the airborne multipurpose center has been proposed

THANK YOU FOR ATTENTION! ALEXANDER V. BEREZHOY Ph. : +371 9110030 Fax: +371 7100535 E-mail: avb@tsi. lv
