ICA-210 Pan Tilt IP Camera Deluxe 2006

ICA-210 Pan / Tilt IP Camera Deluxe 2006. 4. 17

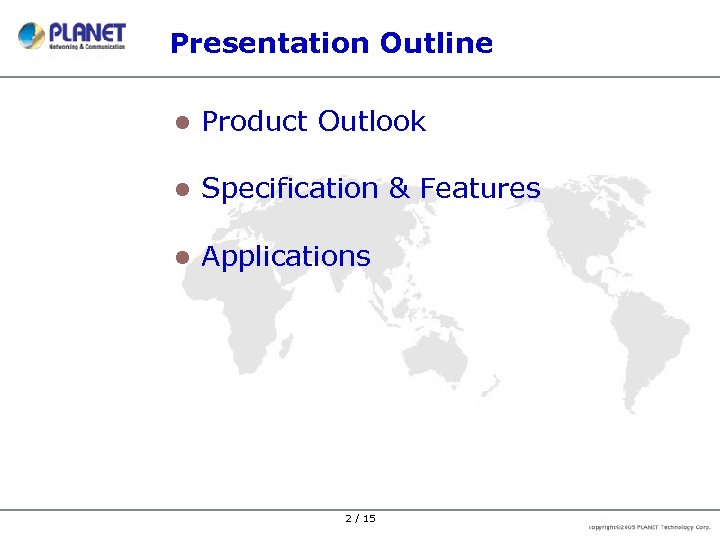

Presentation Outline l Product Outlook l Specification & Features l Applications 2 / 15

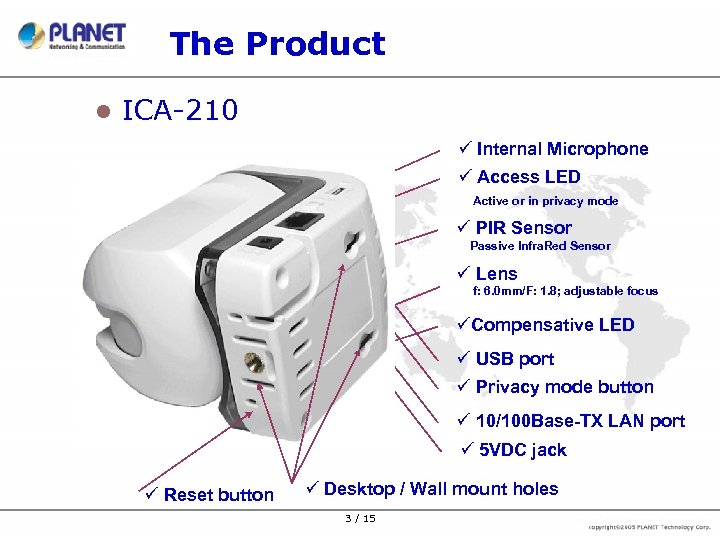

The Product l ICA-210 ü Internal Microphone ü Access LED Active or in privacy mode ü PIR Sensor Passive Infra. Red Sensor ü Lens f: 6. 0 mm/F: 1. 8; adjustable focus üCompensative LED ü USB port ü Privacy mode button ü 10/100 Base-TX LAN port ü 5 VDC jack ü Reset button ü Desktop / Wall mount holes 3 / 15

Specification l Hardware l Image Sensor l l l Video Compression l l l X/Y: +/-15˚; 5 -meter max. Compensative LED l l Built-in microphone, PCM compression PIR l l M-Jpeg; 30 fps @ CIF/QCIF, 20 fps@VGA 1 x / 2 x / 4 x Digital Zoom Audio l l Color CMOS, VGA resolution, f 6. 0/F 1. 8 Focus adjustable White light LED USB l USB 1. 1/2. 0 4 / 15

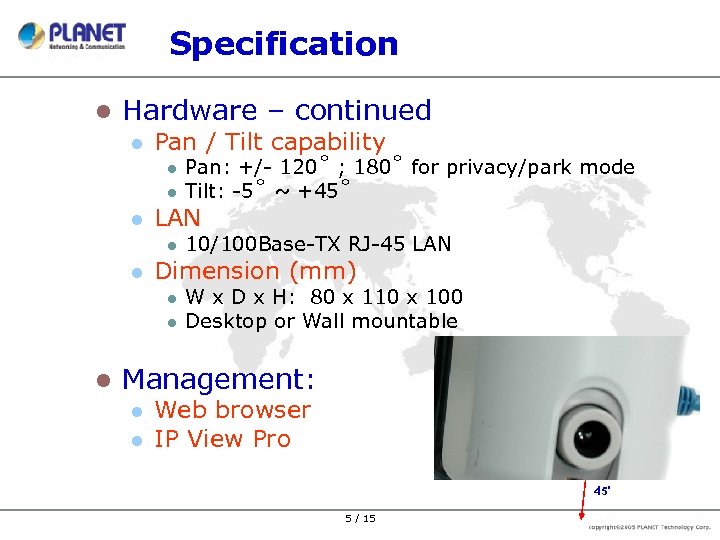

Specification l Hardware – continued l Pan / Tilt capability l l l LAN l l 10/100 Base-TX RJ-45 LAN Dimension (mm) l l l Pan: +/- 120˚ ; 180˚ for privacy/park mode Tilt: -5˚ ~ +45˚ W x D x H: 80 x 110 x 100 Desktop or Wall mountable Management: l l 5˚ Web browser IP View Pro 120˚ 45˚ 5 / 15

Features & Benefits l Easy Install l Desktop or Wall mount l l l 10/100 Base-TX LAN port l l l Desk Stand for easy placement right on the desktop Wall mount holes for wall installation any where Can direct wire to PC or LAN switches Live image and audio receiving through LAN Easy Management l Web Brower support l Use any at hand Internet Explorer 5. 0 or above Built-in view integration, up to 4 cam viewed in one browser screen Web recording support l Up to 16 Cam viewed, record and managed l l l IP View Pro support 6 / 15

Features & Benefits l Live voice & video l l l Built-in mic and adjustable lens On-line recording Multiple view support l l Max. 4 ICA-210 can be viewed at one browser screen Can be used for object observation at different angel at one time 7 / 15

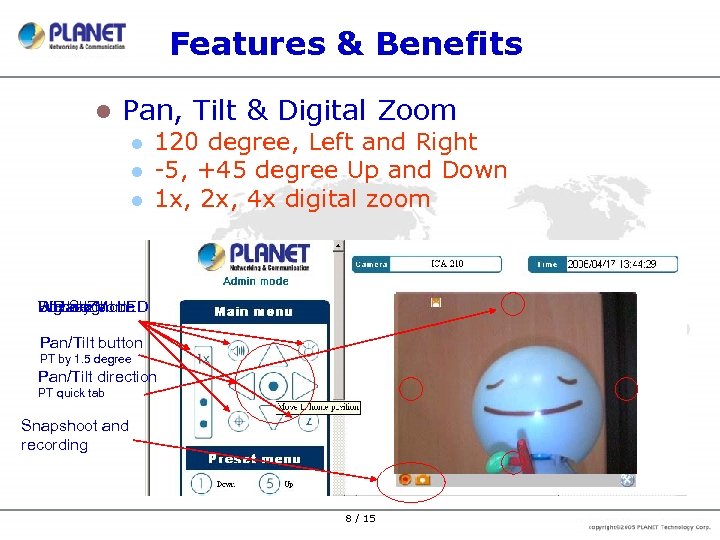

Features & Benefits l Pan, Tilt & Digital Zoom l l l 120 degree, Left and Right -5, +45 degree Up and Down 1 x, 2 x, 4 x digital zoom PIR Sensor Privacy White Mode Buzzer. Zoom Digital light LED Pan/Tilt button PT by 1. 5 degree Pan/Tilt direction PT quick tab Snapshoot and recording 8 / 15

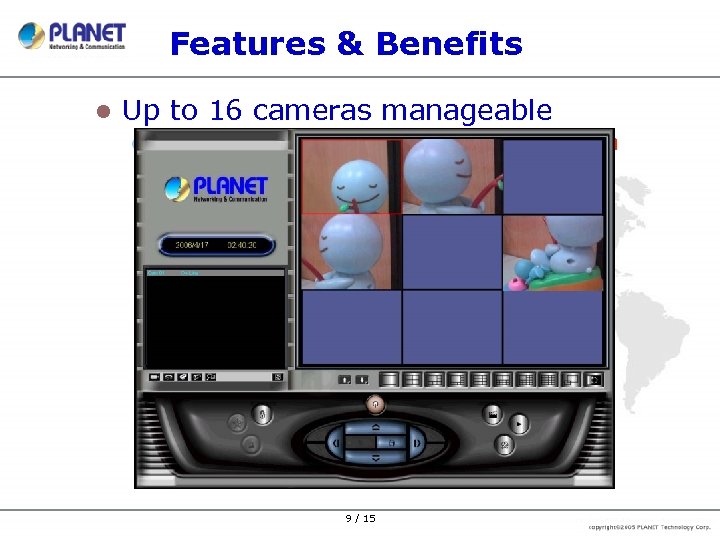

Features & Benefits l Up to 16 cameras manageable l Through IP View Pro, up to 16 Camera can be viewed, recorded 9 / 15

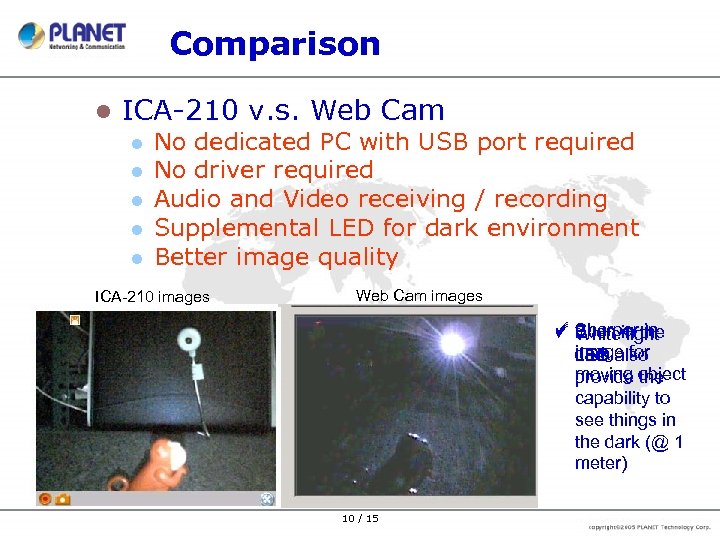

Comparison l ICA-210 v. s. Web Cam l l l No dedicated PC with USB port required No driver required Audio and Video receiving / recording Supplemental LED for dark environment Better image quality ICA-210 images Web Cam images ü Sharper the Even in in White light image for dark also LED moving object provide the capability to see things in the dark (@ 1 meter) 10 / 15

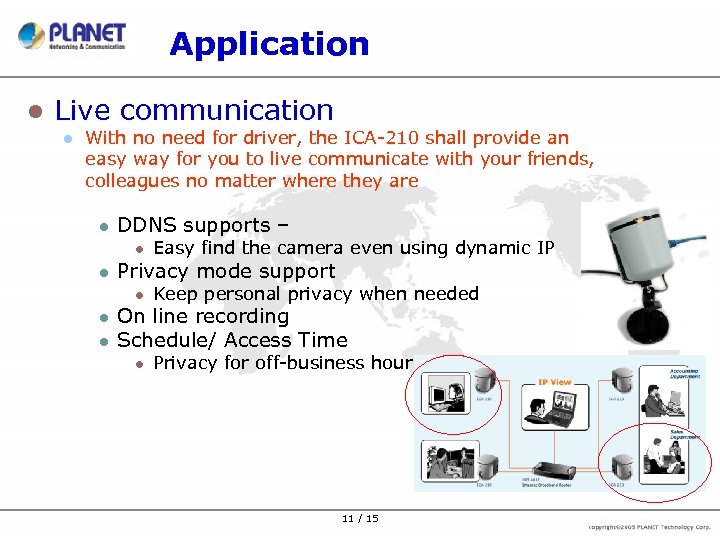

Application l Live communication l With no need for driver, the ICA-210 shall provide an easy way for you to live communicate with your friends, colleagues no matter where they are l DDNS supports – l l Privacy mode support l l l Easy find the camera even using dynamic IP Keep personal privacy when needed On line recording Schedule/ Access Time l Privacy for off-business hour 11 / 15

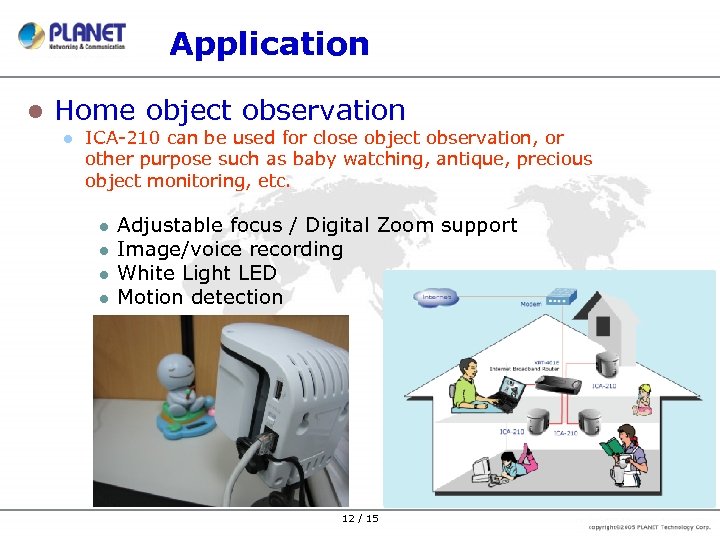

Application l Home object observation l ICA-210 can be used for close object observation, or other purpose such as baby watching, antique, precious object monitoring, etc. l l Adjustable focus / Digital Zoom support Image/voice recording White Light LED Motion detection 12 / 15

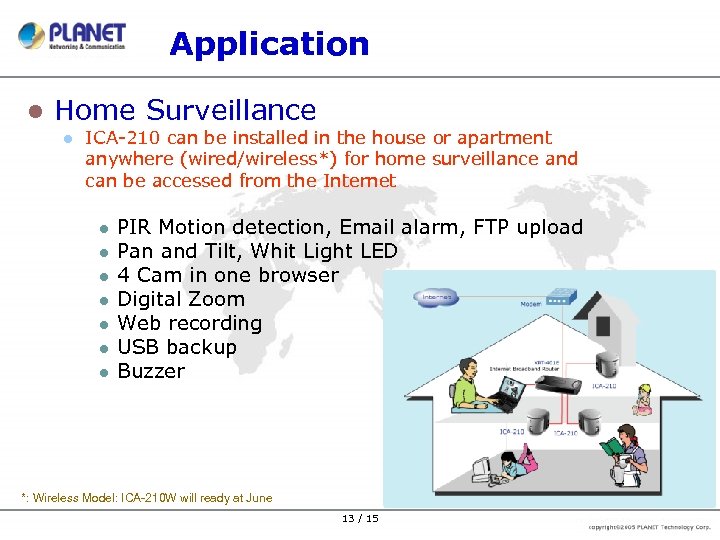

Application l Home Surveillance l ICA-210 can be installed in the house or apartment anywhere (wired/wireless*) for home surveillance and can be accessed from the Internet l l l l PIR Motion detection, Email alarm, FTP upload Pan and Tilt, Whit Light LED 4 Cam in one browser Digital Zoom Web recording USB backup Buzzer *: Wireless Model: ICA-210 W will ready at June 13 / 15

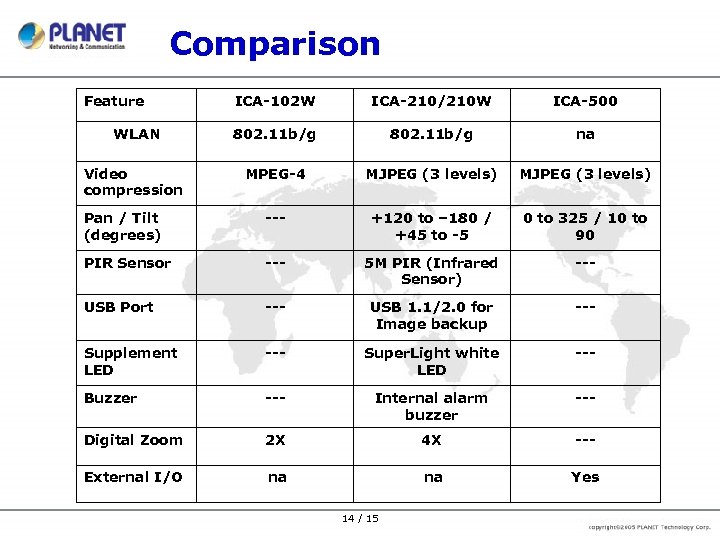

Comparison Feature ICA-102 W ICA-210/210 W ICA-500 WLAN 802. 11 b/g na Video compression MPEG-4 MJPEG (3 levels) Pan / Tilt (degrees) --- +120 to – 180 / +45 to -5 0 to 325 / 10 to 90 PIR Sensor --- 5 M PIR (Infrared Sensor) --- USB Port --- USB 1. 1/2. 0 for Image backup --- Supplement LED --- Super. Light white LED --- Buzzer --- Internal alarm buzzer --- Digital Zoom 2 X 4 X --- External I/O na na Yes 14 / 15
