IBM Total Storage Business Continuity and Disaster Recovery

IBM Total. Storage® Business Continuity is a design, not just technology Technology Hardware and software capabilities 40% Process Definition/design, compliance and continuous improvement 60% People Roles & responsibilities, management, skills development & discipline 2 IBM Total. Storage | The power to break through © 2007 IBM Corporation

IBM Total. Storage® Business Continuity Some basic terminology § Recovery Time Objective (RTO) – How long after a failure can your business stand for an application to be offline? § Recovery Point Objective (RPO) – When the application comes back online, how current does the data need to be? § Cost – How much are you willing to spend on this insurance policy? 3 IBM Total. Storage | The power to break through © 2007 IBM Corporation

IBM Total. Storage® With an On Demand Storage Environment… Recoverability is ensured SAN Mid-range Enterprise class Automated Mid-range Low-cost Enterprise class SAN Automated Enterprise class Disk Mirroring with automated server / storage failover Disk Mirroring Point-in-time Copy with Application Integration Point-in-time Copy Disk-to-disk backup with electronic vaulting Tape backup 4 IBM Total. Storage | The power to break through © 2007 IBM Corporation

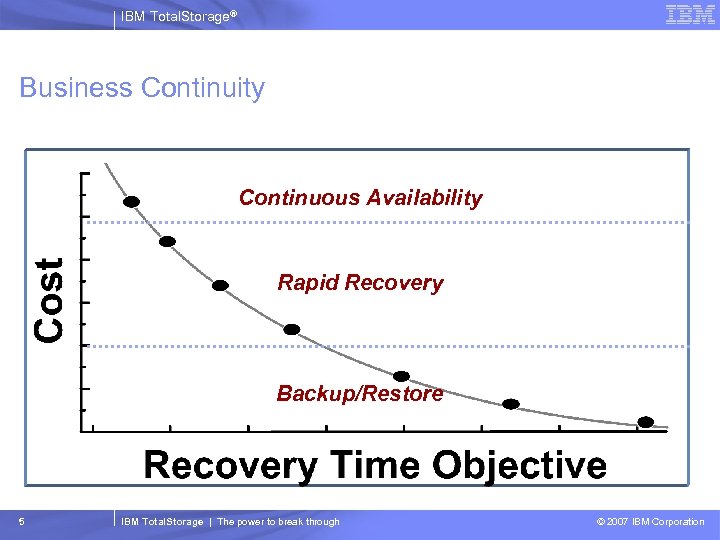

IBM Total. Storage® Business Continuity Continuous Availability Rapid Recovery Backup/Restore 5 IBM Total. Storage

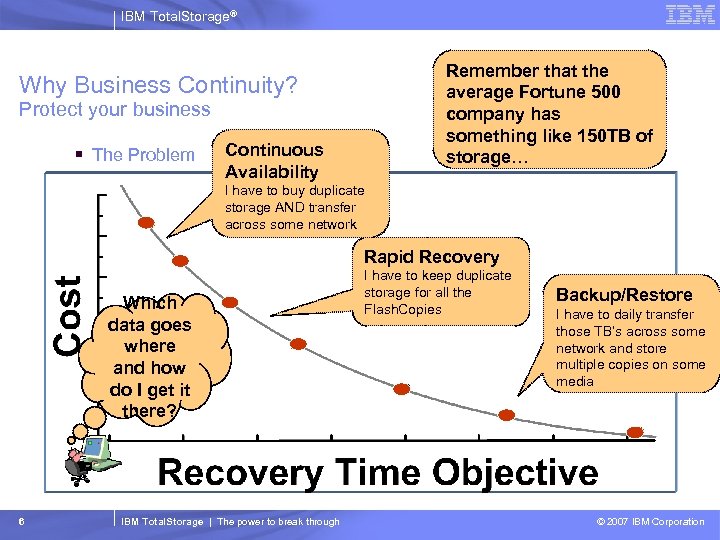

IBM Total. Storage® Remember that the average Fortune 500 company has something like 150 TB of storage… Why Business Continuity? Protect your business § The Problem Continuous Availability I have to buy duplicate storage AND transfer across some network Rapid Recovery Which data goes where and how do I get it there? 6 IBM Total. Storage | The power to break through I have to keep duplicate storage for all the Flash. Copies Backup/Restore I have to daily transfer those TB’s across some network and store multiple copies on some media © 2007 IBM Corporation

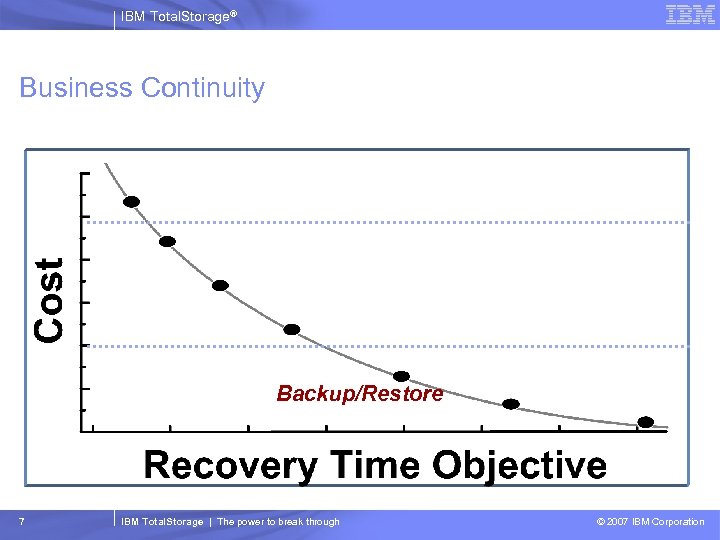

IBM Total. Storage® Business Continuity Backup/Restore 7 IBM Total. Storage | The power to

IBM Total. Storage® IBM Tivoli Storage Manager Backup/Restore § Select what you want to protect – – File systems Databases Mail systems Applications § Determine what “hierarchy” you want the SAN system to use § Schedule when you want backup to run and let the system take care of the rest Backup client Low-cost disk Compressed files 8 Tape IBM Total. Storage | The power to break through © 2007 IBM Corporation

IBM Total. Storage® IBM Tivoli Storage Manager Disaster Recovery Manager Source TSM Server Target TSM Server Copies DB DB DB Recovery Plan File § Automatically generated disaster recovery plan § Detailed tracking of off-site volumes 9 IBM Total. Storage | The power to break through © 2007 IBM Corporation

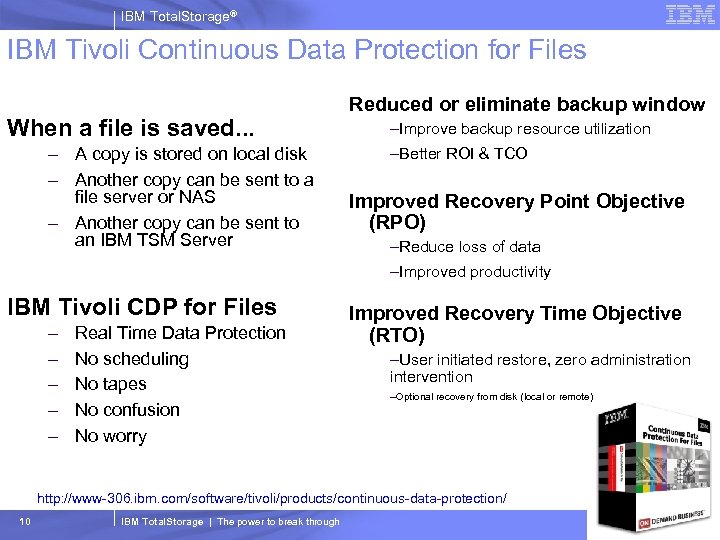

IBM Total. Storage® IBM Tivoli Continuous Data Protection for Files When a file is saved. . . – A copy is stored on local disk – Another copy can be sent to a file server or NAS – Another copy can be sent to an IBM TSM Server Reduced or eliminate backup window –Improve backup resource utilization –Better ROI & TCO Improved Recovery Point Objective (RPO) –Reduce loss of data –Improved productivity IBM Tivoli CDP for Files – – – Real Time Data Protection No scheduling No tapes No confusion No worry Improved Recovery Time Objective (RTO) –User initiated restore, zero administration intervention –Optional recovery from disk (local or remote) http: //www-306. ibm. com/software/tivoli/products/continuous-data-protection/ 10 IBM Total. Storage | The power to break through © 2007 IBM Corporation

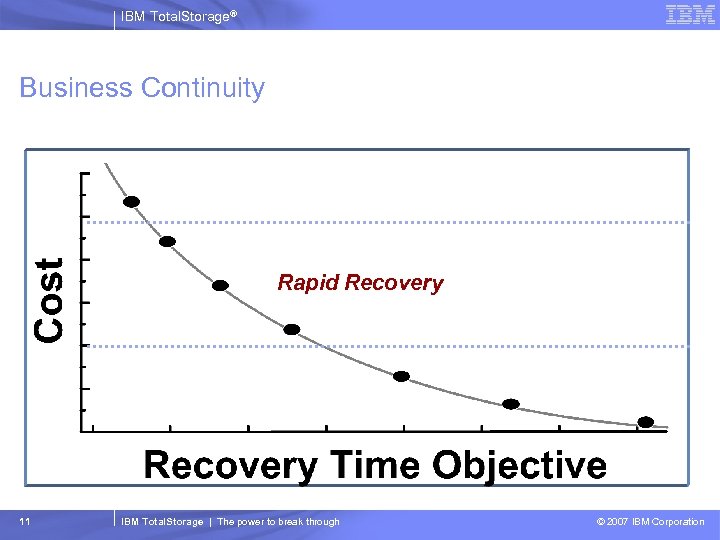

IBM Total. Storage® Business Continuity Rapid Recovery 11 IBM Total. Storage | The power

IBM Total. Storage® Reduced Cost and Improved Flexibility for Replication Services Traditional Storage Hardware § Replication targets must be the same enterprise-class disk as the source § Cost of deployment can be prohibitive for many clients § Lower-cost disks offer primitive, or no replication services DS 4000 § Common replication API § Replication targets can be on lower-cost DS 4000 disks, reducing the overall cost of exploiting replication services SAN IBM 12 IBM EMC Sym SAN EMC Sym IBM Total. Storage | The power to break through IBM IBM © 2007 IBM Corporation

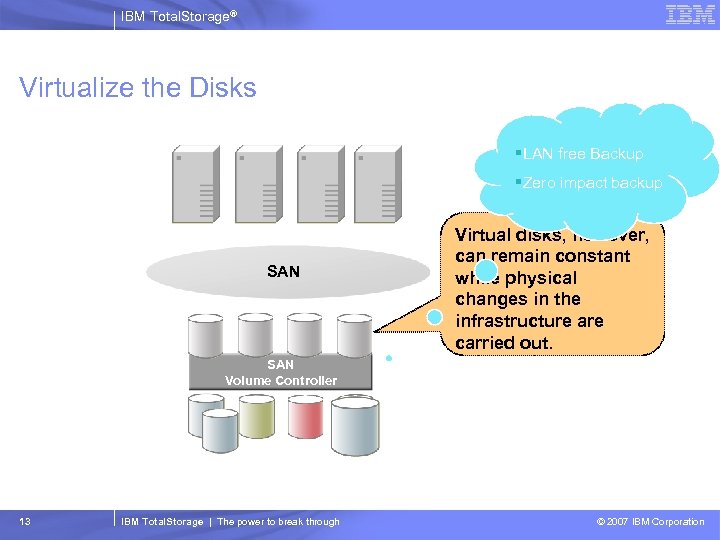

IBM Total. Storage® Virtualize the Disks §LAN free Backup §Zero impact backup SAN Virtual disks, however, can remain constant while physical changes in the infrastructure are carried out. SAN Volume Controller 13 IBM Total. Storage | The power to break through © 2007 IBM Corporation

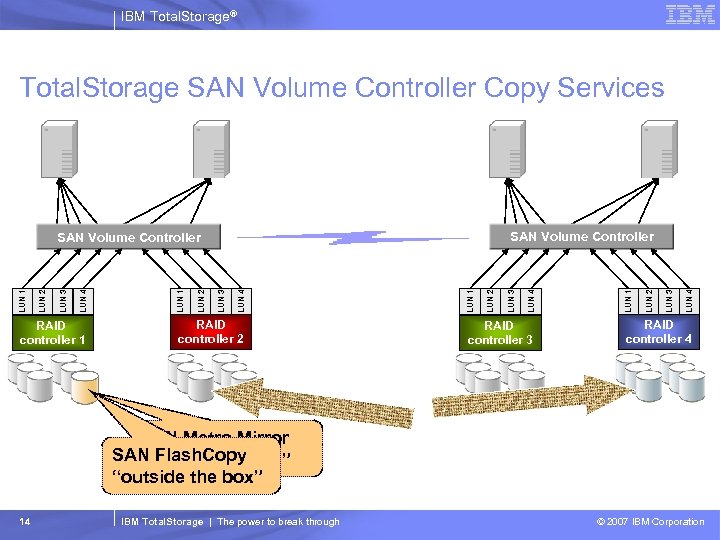

IBM Total. Storage® Total. Storage SAN Volume Controller Copy Services RAID controller 2 RAID controller 3 LUN 4 LUN 3 LUN 2 LUN 1 LUN 4 LUN 3 LUN 2 LUN 1 RAID controller 1 LUN 3 SAN Volume Controller RAID controller 4 SAN Metro Mirror SAN Flash. Copy box” “outside the box” 14 IBM Total. Storage | The power to break through © 2007 IBM Corporation

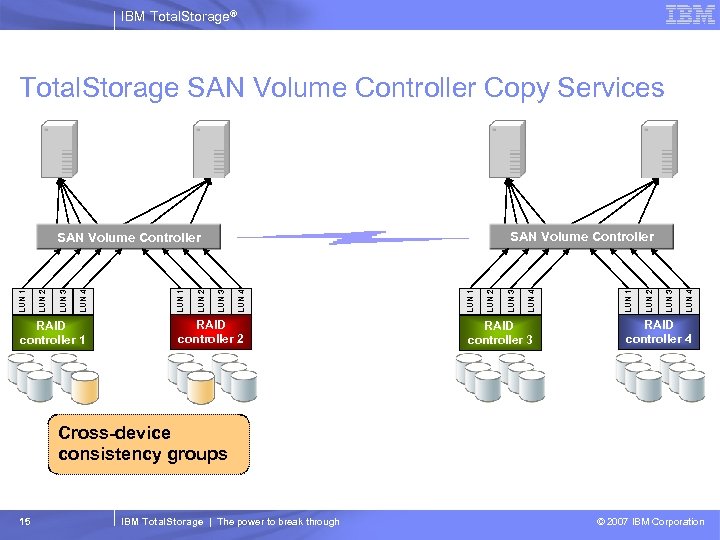

IBM Total. Storage® Total. Storage SAN Volume Controller Copy Services RAID controller 2 RAID controller 3 LUN 4 LUN 3 LUN 2 LUN 1 LUN 4 LUN 3 LUN 2 LUN 1 RAID controller 1 LUN 3 SAN Volume Controller RAID controller 4 Cross-device consistency groups 15 IBM Total. Storage | The power to break through © 2007 IBM Corporation

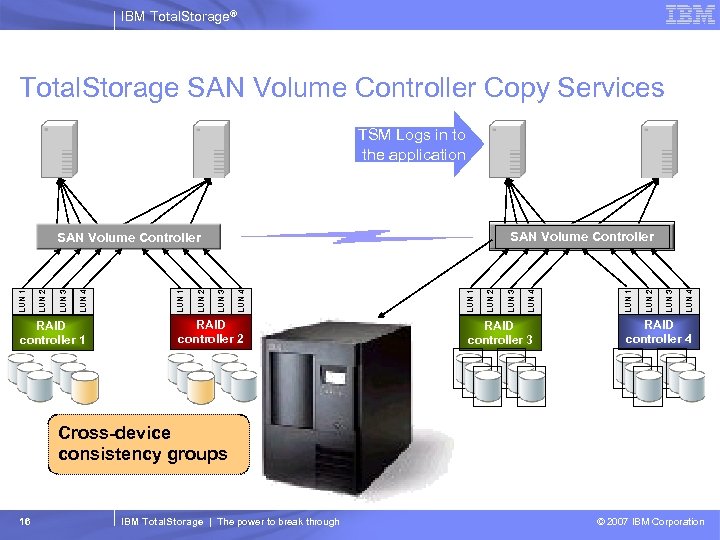

IBM Total. Storage® Total. Storage SAN Volume Controller Copy Services TSM Logs in to the application RAID controller 2 RAID controller 3 LUN 4 LUN 3 LUN 2 LUN 1 LUN 4 LUN 3 LUN 2 LUN 1 RAID controller 1 LUN 3 SAN Volume Controller RAID controller 4 Cross-device consistency groups 16 IBM Total. Storage | The power to break through © 2007 IBM Corporation

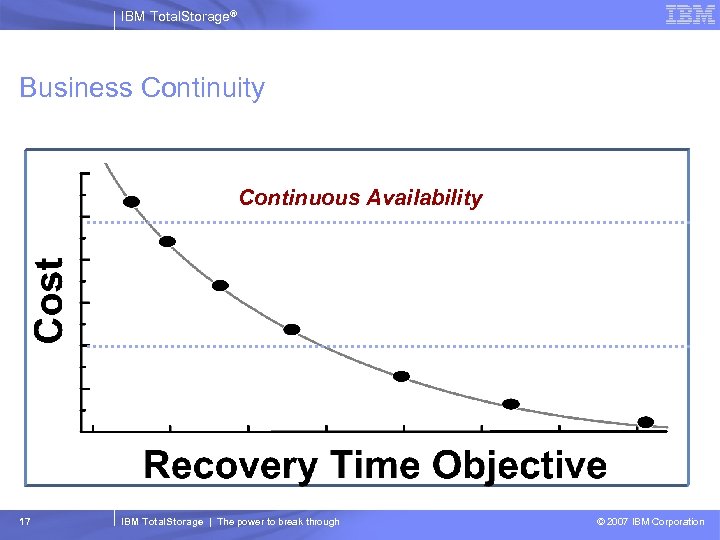

IBM Total. Storage® Business Continuity Continuous Availability 17 IBM Total. Storage | The power

IBM Total. Storage® Global Mirror What is Global Mirror? – Designed to provide a continuous, asynchronous mirror of a set of data to a remote location. – Performed at a volume level. Source Target What is Global Mirror typically used for? – For recovery sites at very long geographic distances, Global Mirror provides data integrity at a tight Recovery Point Objective. 18 IBM Total. Storage | The power to break through © 2007 IBM Corporation

IBM Total. Storage® We can’t make the problems go away… But we can make them much easier Why Business Continuity? Protect your business § The Solution Continuous Availability DS 4000 • Efficient use of bandwidth • Lower cost storage for copy targets Rapid Recovery Which data goes where and how do I get it there? SVC / DS 4000 • Lower cost storage for copy targets Backup/Restore Tivoli Storage Manger • More efficient use of bandwidth and storage media than anyone in the industry • Disk-to-disk backup using S-ATA for faster file restore and reduced tape handling Backup/Restore SAN File System • Space efficient Flash. Copy 19 IBM Total. Storage | The power to break through © 2007 IBM Corporation

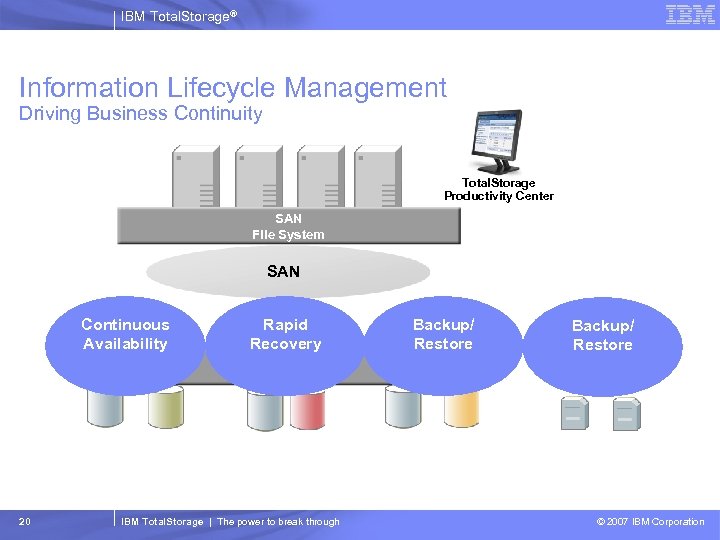

IBM Total. Storage® Information Lifecycle Management Driving Business Continuity Total. Storage Productivity Center SDD SANSDD File System SDD SAN Continuous Availability 20 Rapid Recovery SAN Volume Controller IBM Total. Storage | The power to break through Backup/ Restore © 2007 IBM Corporation

IBM Total. Storage® Call to action Any Customer that has DATA is a fit for Business Continuity. –They need TSM and the add-ons. –They need to protect their data –If they have 1 GB or 1 TB or 1 PB TSM fits and works as a BEST of breed application –We support all of the most popular OS’s and applications – For more information, visit the Tivoli Knowledge Center: http: //www 306. ibm. com/software/tivoli/pa rtners/index. jsp 21 IBM Total. Storage | The power to break through © 2007 IBM Corporation
