IBM Storwize Family [Speaker Name] January, 2013 © 2013 IBM Corporation
CEOs believe technology will be at the forefront of driving change through 2015* “ 71% of CEOs identify technology change as the most important external force impacting their organizations”* 78% CFOs report that pressure remains high to control costs and increase efficiency Is your storage infrastructure optimized for the greatest efficiency of all your applications and resources? Does your storage infrastructure enable you to provide rich, actionable insight? * IBM, Leading Through Connections: Insights from the Global Chief Executive Officer Study May 2012. , 2 © 2013 IBM Corporation
The real question Will your infrastructure block or enable change? Only 1 in 5 clients have highly efficient IT infrastructures allocating 50% more of their IT budget to new projects 1 1 IBM, 3 Data center operational efficiency best practices , April 2012. © 2013 IBM Corporation
IBM Storwize Family Everything you need from your storage… and less Buy Less Storage Award winning simplicity Deploy Quickly & Flexibly Embedded Analytics Improve What You Have Flash Optimized IBM & non-IBM Start Small & Scale-up 4
IBM Storwize Family Field proven, highly efficient and super reliable • Over 28, 000 systems purchased • Over 46, 000 total enclosures deployed • Over 625 PB of capacity • Award winning reliability – Delivering 99. 999% availability Enabling clients to do more with less 5 x more data in the same space 3 x performance with only 5% SSD 47% less management effort 30% lower storage growth 5 * SOD for Storwize V 3700 Packages § IBM SAN Volume Controller (Virtualization System; No Storage) § IBM Storwize V 3700 (Entry) § IBM Storwize V 7000 (Midrange) System Functions § Thin provisioning § IBM Real-time Compression § IBM Storwize V 7000 Unified (File) § IBM Smart. Cloud Storage Access (Cloud) § Remote replication (synchronous and asynchronous) § Storage Virtualization (IBM and non-IBM) Integrated Options § IBM Flex System V 7000 © 2013 IBM Corporation
Key Virtualization Features Thin Provisioning ü Satisfy provisioning requests but allocate storage only when data is written Dynamic growth Without thin provisioning, pre-allocated space is reserved whether the application uses it or not With thin provisioning, applications can grow dynamically, but only consume space they are actually using Real-time Compression ü Improve capacity utilization across the infrastructure ü Value: Purchase only the storage you need when you need it ü Buy and maintain less storage ü Compress active data up to 80% without application performance degradation ü For example, VMware ~75%, Database ~80%, Exchange ~50% ü Value: Store more data with less disk IBM Easy Tier SSD Management ü Busiest data automatically moved to highest performing Solid-state Drives ü Up to a 3 x performance improvement with as little as 5% SSD ü Value: Optimized performance at lower overall cost 6 © 2013 IBM Corporation

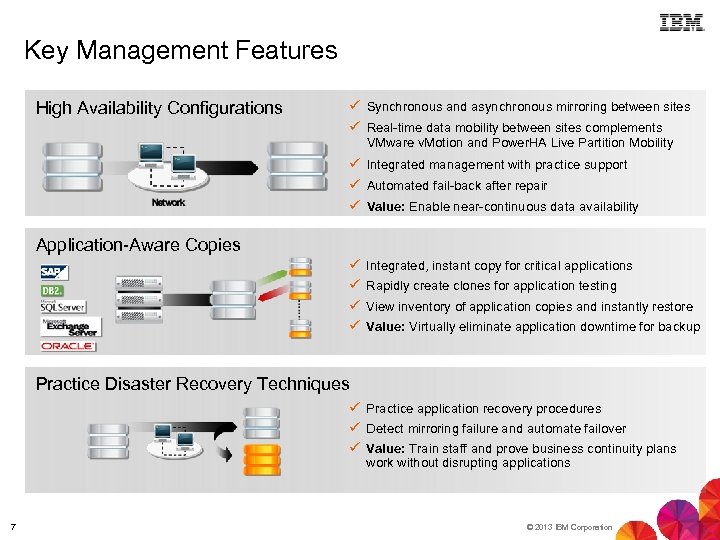

Key Management Features High Availability Configurations ü Synchronous and asynchronous mirroring between sites ü Real-time data mobility between sites complements VMware v. Motion and Power. HA Live Partition Mobility ü Integrated management with practice support ü Automated fail-back after repair ü Value: Enable near-continuous data availability Application-Aware Copies ü ü Integrated, instant copy for critical applications Rapidly create clones for application testing View inventory of application copies and instantly restore Value: Virtually eliminate application downtime for backup Practice Disaster Recovery Techniques ü Practice application recovery procedures ü Detect mirroring failure and automate failover ü Value: Train staff and prove business continuity plans work without disrupting applications 7 © 2013 IBM Corporation

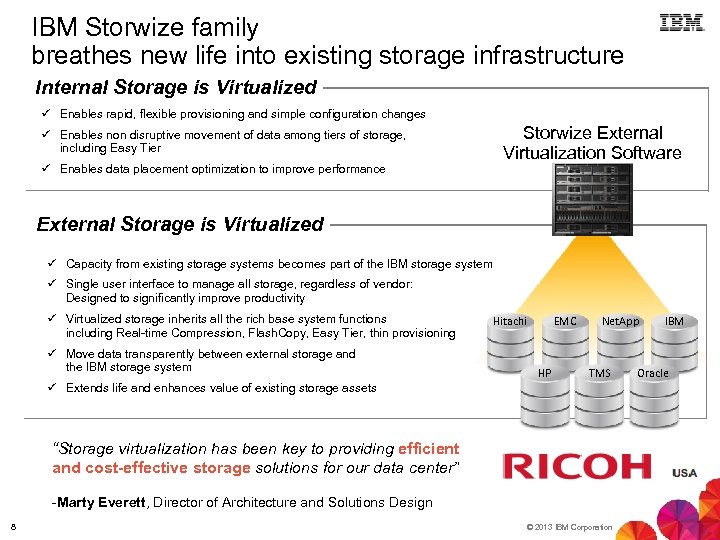

IBM Storwize family breathes new life into existing storage infrastructure Internal Storage is Virtualized ü Enables rapid, flexible provisioning and simple configuration changes ü Enables non disruptive movement of data among tiers of storage, including Easy Tier ü Enables data placement optimization to improve performance Storwize External Virtualization Software External Storage is Virtualized ü Capacity from existing storage systems becomes part of the IBM storage system ü Single user interface to manage all storage, regardless of vendor: Designed to significantly improve productivity ü Virtualized storage inherits all the rich base system functions including Real-time Compression, Flash. Copy, Easy Tier, thin provisioning ü Move data transparently between external storage and the IBM storage system Hitachi EMC HP Net. App TMS ü Extends life and enhances value of existing storage assets “Storage virtualization has been key to providing efficient and cost-effective storage solutions for our data center” -Marty Everett, Director of Architecture and Solutions Design 8 © 2013 IBM Corporation IBM Oracle

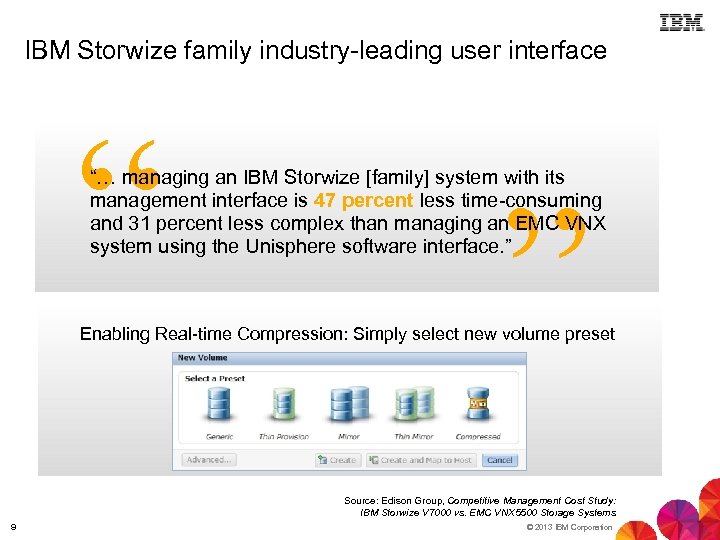

IBM Storwize family industry-leading user interface “ ” “… managing an IBM Storwize [family] system with its management interface is 47 percent less time-consuming and 31 percent less complex than managing an EMC VNX system using the Unisphere software interface. ” Enabling Real-time Compression: Simply select new volume preset Source: Edison Group, Competitive Management Cost Study: IBM Storwize V 7000 vs. EMC VNX 5500 Storage Systems 9 © 2013 IBM Corporation

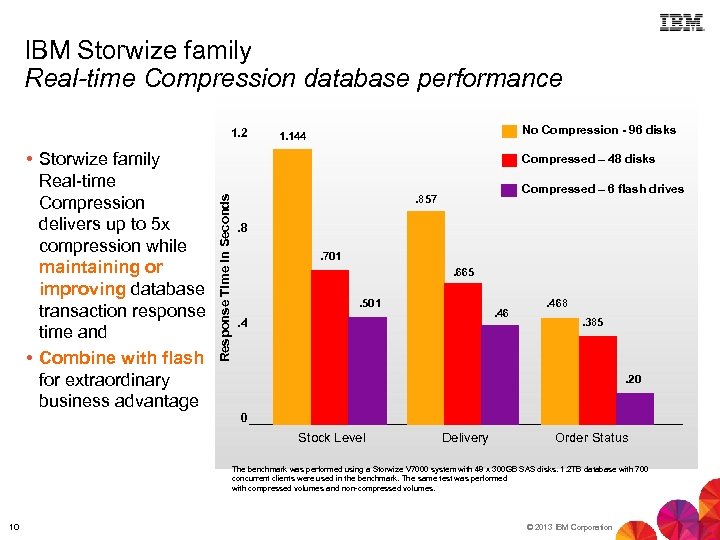

IBM Storwize family Real-time Compression database performance 1. 2 Compressed – 48 disks Response Time in Seconds • Storwize family Real-time Compression delivers up to 5 x compression while maintaining or improving database transaction response time and • Combine with flash for extraordinary business advantage No Compression - 96 disks 1. 144 Compressed – 6 flash drives . 857 . 8. 701. 665. 501 . 468. 385 . 20 0 Stock Level Delivery Order Status The benchmark was performed using a Storwize V 7000 system with 48 x 300 GB SAS disks. 1. 2 TB database with 700 concurrent clients were used in the benchmark. The same test was performed with compressed volumes and non-compressed volumes. 10 © 2013 IBM Corporation

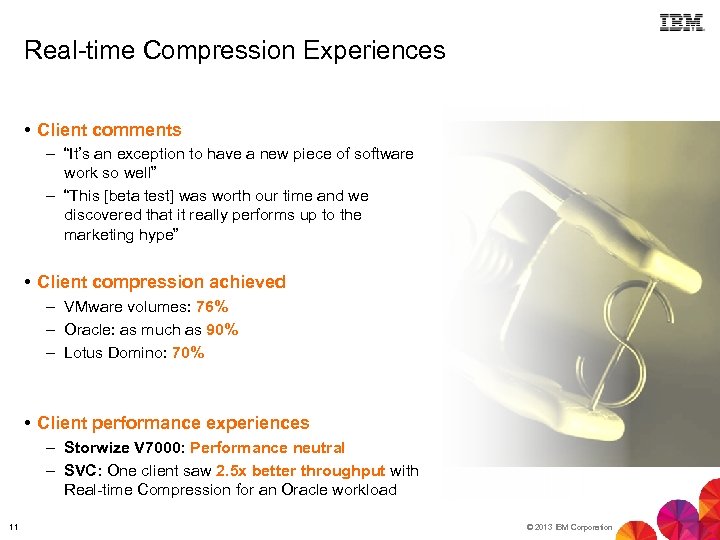

Real-time Compression Experiences • Client comments – “It’s an exception to have a new piece of software work so well” – “This [beta test] was worth our time and we discovered that it really performs up to the marketing hype” • Client compression achieved – VMware volumes: 76% – Oracle: as much as 90% – Lotus Domino: 70% • Client performance experiences – Storwize V 7000: Performance neutral – SVC: One client saw 2. 5 x better throughput with Real-time Compression for an Oracle workload 11 © 2013 IBM Corporation

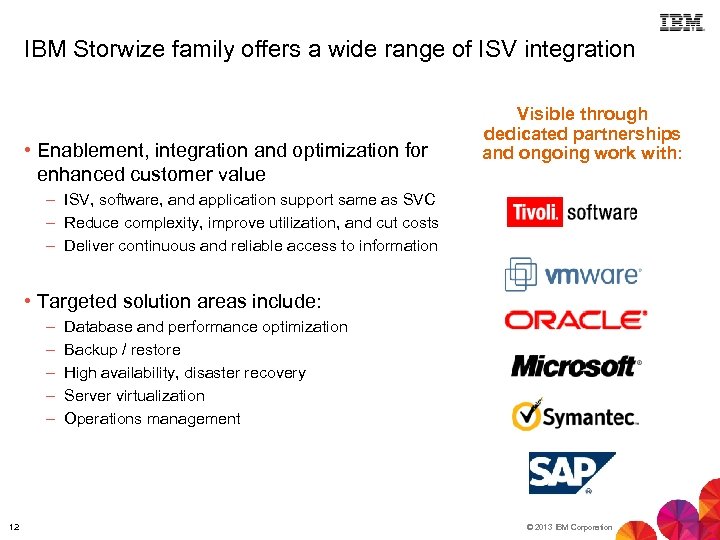

IBM Storwize family offers a wide range of ISV integration • Enablement, integration and optimization for enhanced customer value Visible through dedicated partnerships and ongoing work with: – ISV, software, and application support same as SVC – Reduce complexity, improve utilization, and cut costs – Deliver continuous and reliable access to information • Targeted solution areas include: – – – 12 Database and performance optimization Backup / restore High availability, disaster recovery Server virtualization Operations management © 2013 IBM Corporation
IBM Storwize family delivers five 9 s availability • SVC and Storwize V 7000 offer five 9 s (99. 999%) availability – Average annual downtime less than 5 minutes • Storwize family is ideal for any organization’s disaster recovery plan – Data mirrored between production and disaster recovery sites in almost real time 13 © 2013 IBM Corporation

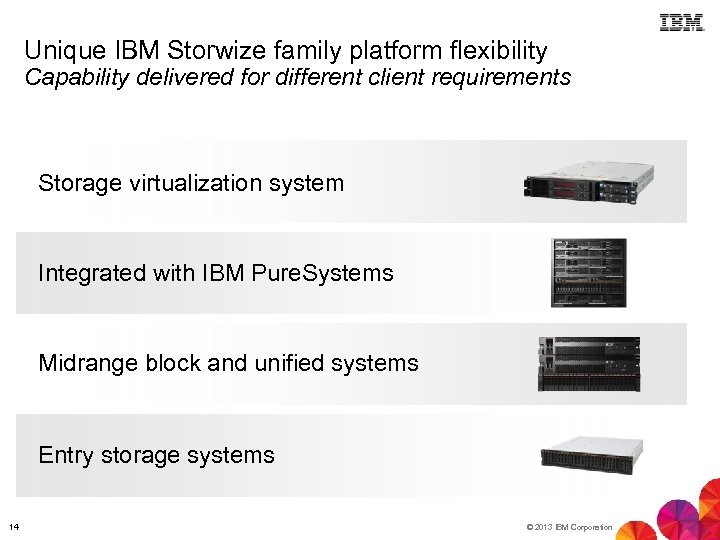

Unique IBM Storwize family platform flexibility Capability delivered for different client requirements Storage virtualization system Integrated with IBM Pure. Systems Midrange block and unified systems Entry storage systems 14 © 2013 IBM Corporation
IBM Storwize Family 5 x more data in the same space § Efficient by design 3 x performance with only 5% SSD § Self-optimizing 47% less management effort § Cloud agile 30% lower storage growth 15 © 2013 IBM Corporation 15
Back up slides 16 © 2013 IBM Corporation

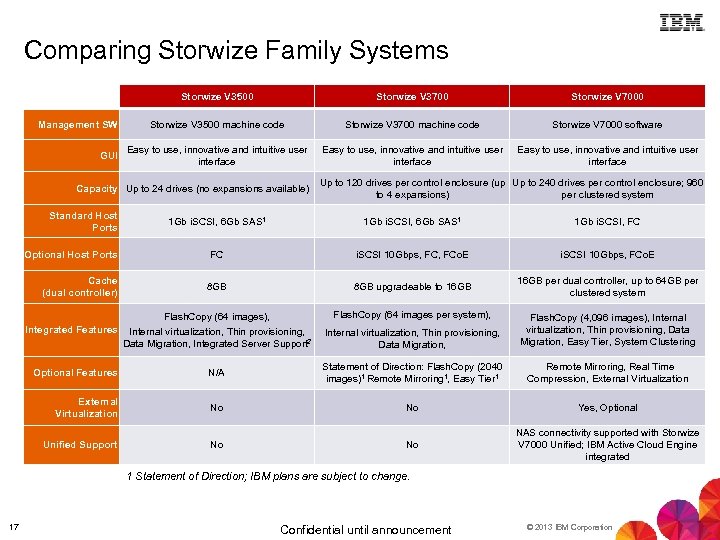

Comparing Storwize Family Systems Storwize V 3500 Management SW GUI Storwize V 3700 Storwize V 7000 Storwize V 3500 machine code Storwize V 3700 machine code Storwize V 7000 software Easy to use, innovative and intuitive user interface Capacity Up to 24 drives (no expansions available) Standard Host Ports Optional Host Ports Cache (dual controller) Up to 120 drives per control enclosure (up Up to 240 drives per control enclosure; 960 to 4 expansions) per clustered system 1 Gb i. SCSI, 6 Gb SAS 1 1 Gb i. SCSI, FC FC i. SCSI 10 Gbps, FCo. E 8 GB upgradeable to 16 GB per dual controller, up to 64 GB per clustered system Flash. Copy (64 images), Integrated Features Internal virtualization, Thin provisioning, Data Migration, Integrated Server Support 2 Flash. Copy (64 images per system), Internal virtualization, Thin provisioning, Data Migration, Flash. Copy (4, 096 images), Internal virtualization, Thin provisioning, Data Migration, Easy Tier, System Clustering Optional Features N/A Statement of Direction: Flash. Copy (2040 images)1 Remote Mirroring 1, Easy Tier 1 Remote Mirroring, Real Time Compression, External Virtualization No No Yes, Optional Unified Support No No NAS connectivity supported with Storwize V 7000 Unified; IBM Active Cloud Engine integrated 1 Statement of Direction; IBM plans are subject to change. 17 Confidential until announcement © 2013 IBM Corporation

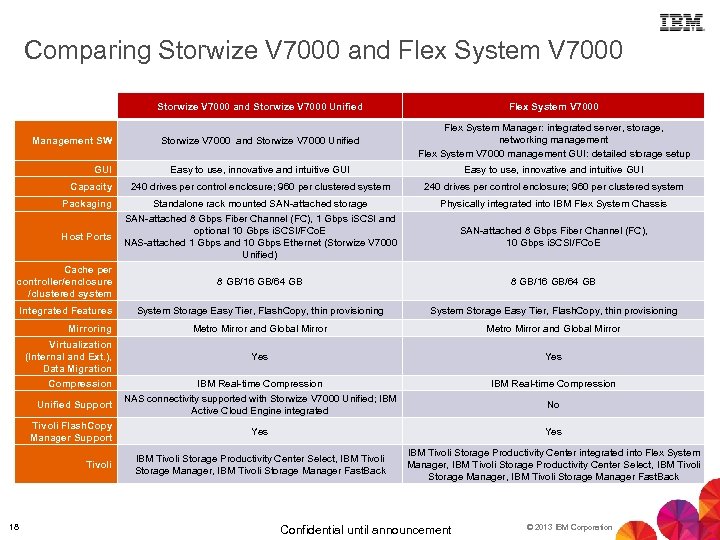

Comparing Storwize V 7000 and Flex System V 7000 Storwize V 7000 and Storwize V 7000 Unified Flex System Manager: integrated server, storage, networking management Flex System V 7000 management GUI: detailed storage setup Easy to use, innovative and intuitive GUI 240 drives per control enclosure; 960 per clustered system Standalone rack mounted SAN-attached storage SAN-attached 8 Gbps Fiber Channel (FC), 1 Gbps i. SCSI and optional 10 Gbps i. SCSI/FCo. E NAS-attached 1 Gbps and 10 Gbps Ethernet (Storwize V 7000 Unified) Physically integrated into IBM Flex System Chassis Cache per controller/enclosure /clustered system 8 GB/16 GB/64 GB Integrated Features System Storage Easy Tier, Flash. Copy, thin provisioning Metro Mirror and Global Mirror Yes IBM Real-time Compression NAS connectivity supported with Storwize V 7000 Unified; IBM Active Cloud Engine integrated No Yes IBM Tivoli Storage Productivity Center Select, IBM Tivoli Storage Manager Fast. Back IBM Tivoli Storage Productivity Center integrated into Flex System Manager, IBM Tivoli Storage Productivity Center Select, IBM Tivoli Storage Manager Fast. Back Management SW GUI Capacity Packaging Host Ports Mirroring Virtualization (Internal and Ext. ), Data Migration Compression Unified Support Tivoli Flash. Copy Manager Support Tivoli 18 SAN-attached 8 Gbps Fiber Channel (FC), 10 Gbps i. SCSI/FCo. E Confidential until announcement © 2013 IBM Corporation
IBM Storwize family* leverages Active Cloud Engine for global file management • IBM Active Cloud Engine – Policy-driven engine that helps improve storage efficiency by automatically – High-performance: can scan large numbers of files very rapidly • Client Value – Moves data to users. Users do not chase data. – Lowers storage cost by moving files transparently to the most appropriate tier of storage – Controls storage growth by moving older files to tape and deleting unwanted or expired files – Enhances administrator productivity by automating file management – Improves data protection by identifying files for backup or disaster recovery * Available on Storwize V 7000 Unified. See speaker notes for SOD. 19 © 2013 IBM Corporation
Storage technology is vital in providing companies with essential technologies to become efficient Storage Technology IBM Storwize Family Business Benefit § Maximum ROI on Cap. Ex § Data Compression § Storwize software (for external virtualization) § Real-time Compression § VMware and other ISV Integration § Automated tiering § High Availability § VMware and other ISV Integration § Easy Tier § Five 9 s availability § Support mission critical applications § Intuitive and consistent User Interface § Intuitive User Interface § Free up staff time to tackle strategic projects § Global file management § Active Cloud Engine § Global collaboration § External Virtualization IBM Storwize family integrates all of these capabilities 20 © 2013 IBM Corporation
IBM Storwize family Real-time Compression • Shrinks active data up to 80% without degrading application performance • Supports active data, unlike other storage compression solutions – More data = more benefit • Unique technology with over 35 patents 21 © 2013 IBM Corporation

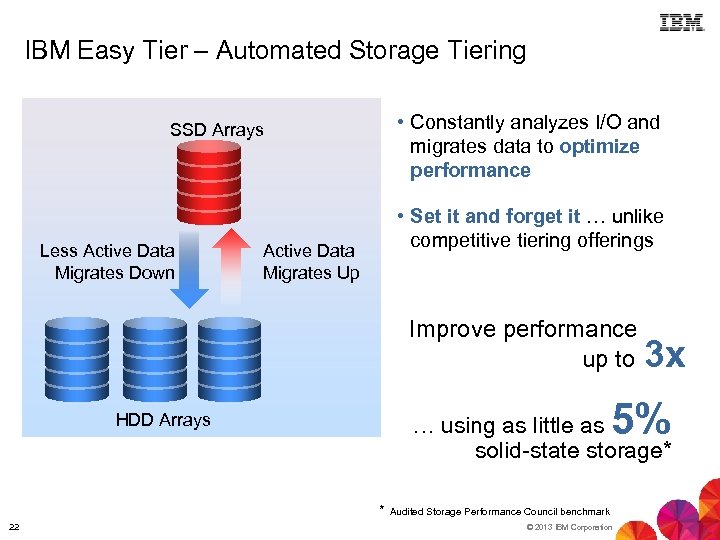

IBM Easy Tier – Automated Storage Tiering • Constantly analyzes I/O and SSD Arrays migrates data to optimize performance • Set it and forget it … unlike Less Active Data Migrates Down competitive tiering offerings Active Data Migrates Up Improve performance up to 3 x 5% HDD Arrays … using as little as solid-state storage* * 22 Audited Storage Performance Council benchmark © 2013 IBM Corporation
