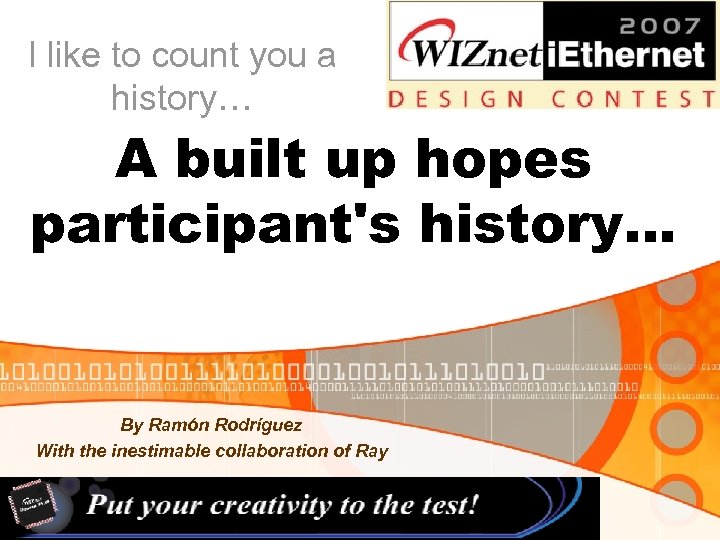

I like to count you a history… A built up hopes participant's history… By Ramón Rodríguez With the inestimable collaboration of Ray

Introduction I 1. 2. 3. 4. 5. 6. What? Who to? Where? When? Why? How to? The Design Contest, what is it? It is a contest for design a electronic device with a eligible part from a sponsor. 2

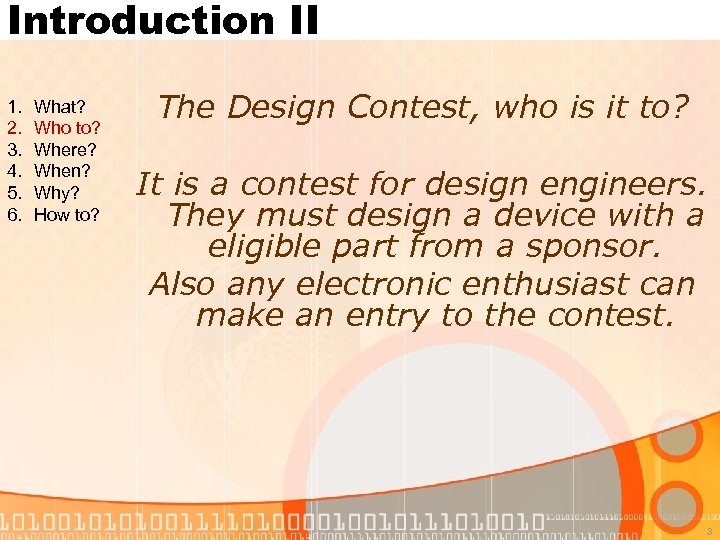

Introduction II 1. 2. 3. 4. 5. 6. What? Who to? Where? When? Why? How to? The Design Contest, who is it to? It is a contest for design engineers. They must design a device with a eligible part from a sponsor. Also any electronic enthusiast can make an entry to the contest. 3

Introduction III 1. 2. 3. 4. 5. 6. What? Who to? Where? When? Why? How to? The Design Contest, where is it from? It is organized by Circuit Cellar Magazine. It is a magazine made by engineers to engineers. The magazine is based in Vernon, Connecticut (EEUU). 4

Introduction IV 1. 2. 3. 4. 5. 6. What? Who to? Where? When? Why? How to? When can you participate? Submission deadline: 1: 00 PM EST, Jan. 31, 2008 Just when the European classrooms course arrives the end. 5

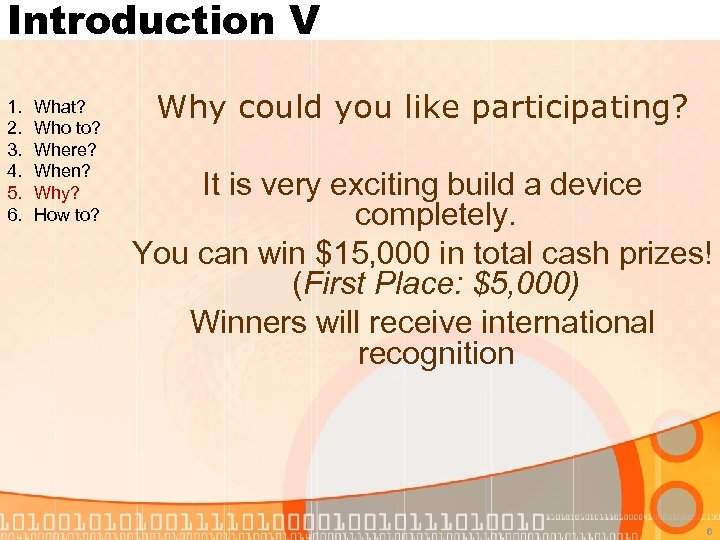

Introduction V 1. 2. 3. 4. 5. 6. What? Who to? Where? When? Why? How to? Why could you like participating? It is very exciting build a device completely. You can win $15, 000 in total cash prizes! (First Place: $5, 000) Winners will receive international recognition 6

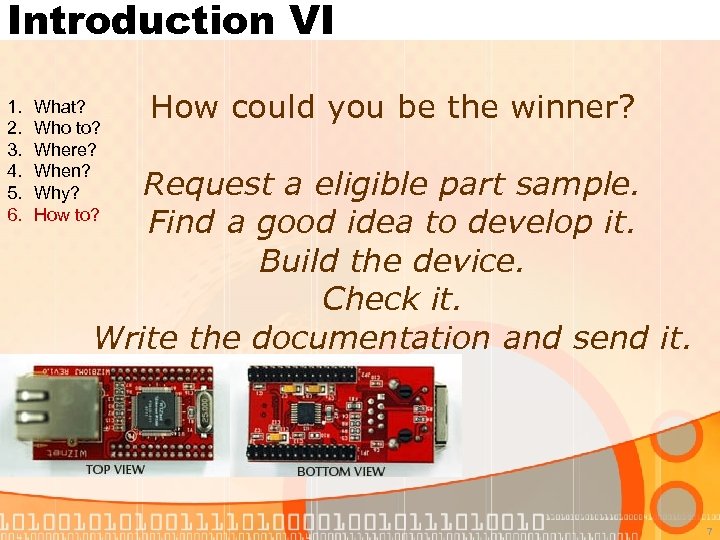

Introduction VI 1. 2. 3. 4. 5. 6. What? Who to? Where? When? Why? How to? How could you be the winner? Request a eligible part sample. Find a good idea to develop it. Build the device. Check it. Write the documentation and send it. 7

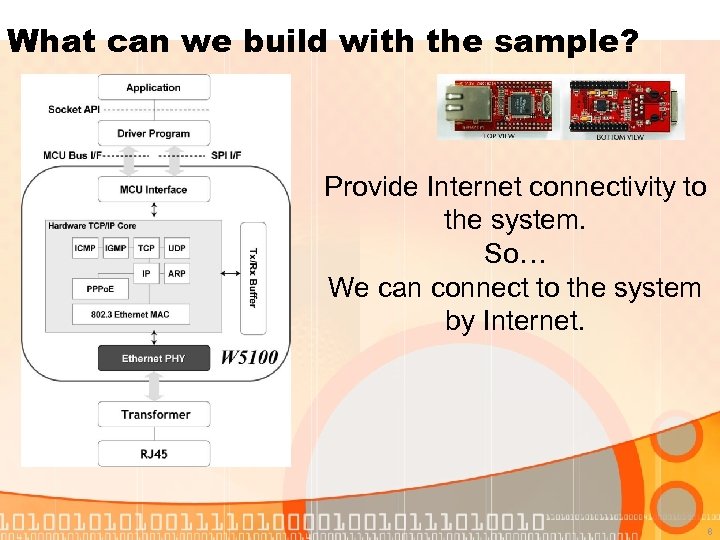

What can we build with the sample? Provide Internet connectivity to the system. So… We can connect to the system by Internet. 8

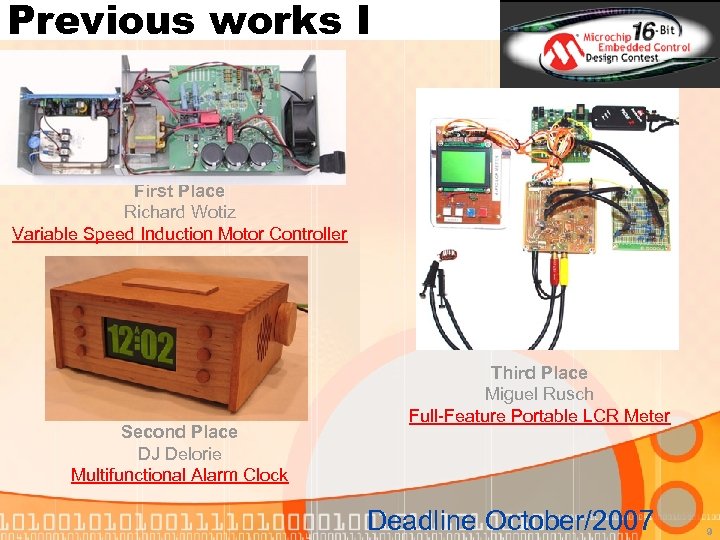

Previous works I First Place Richard Wotiz Variable Speed Induction Motor Controller Second Place DJ Delorie Multifunctional Alarm Clock Third Place Miguel Rusch Full-Feature Portable LCR Meter Deadline October/2007 9

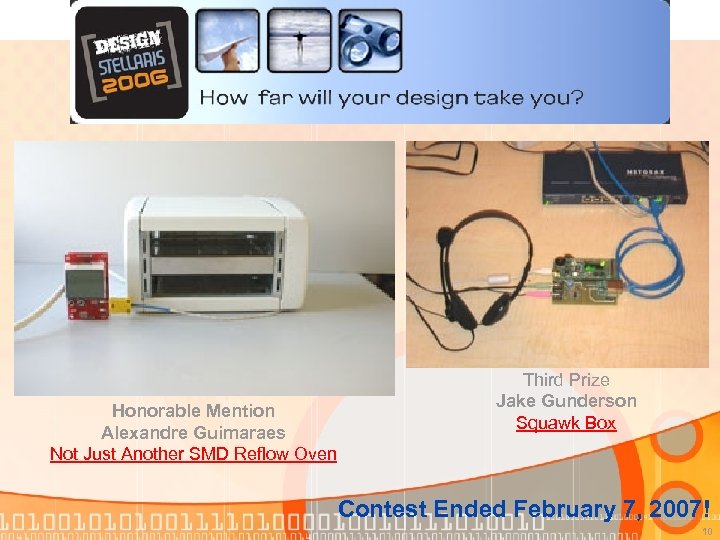

Honorable Mention Alexandre Guimaraes Not Just Another SMD Reflow Oven Third Prize Jake Gunderson Squawk Box Contest Ended February 7, 2007! 10

Previous works II Grand Prize Alberto Ricci Bitti WITNESSCAM First Prize Steven Savage ATir AVR IR Keyboard Interface Third Prize Naubert Aparicio m. Oti. On: A Video Based Motion Sensor Contest Ended: August 16, 2006 11

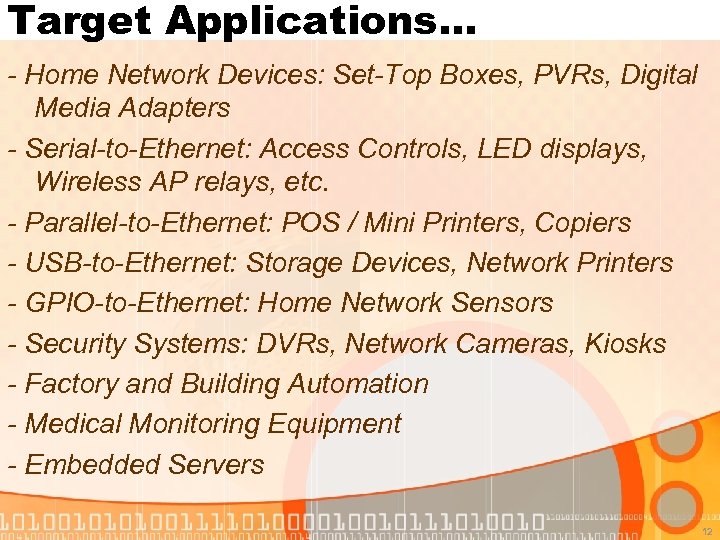

Target Applications… - Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters - Serial-to-Ethernet: Access Controls, LED displays, Wireless AP relays, etc. - Parallel-to-Ethernet: POS / Mini Printers, Copiers - USB-to-Ethernet: Storage Devices, Network Printers - GPIO-to-Ethernet: Home Network Sensors - Security Systems: DVRs, Network Cameras, Kiosks - Factory and Building Automation - Medical Monitoring Equipment - Embedded Servers 12

What device can be the winner? I has a heating system in my house. I like to set a comfortable ambient temperature. I like to program it easily. My heating system has a boiler. I want to switch on/off the boiler from everywhere… Eureka… 13

Problems to solve… • • • If I still at work too late… I want to switch off the boiler. If I go home too soon… I want to switch on the boiler. If I forgot switch off the boiler because I was in a hurry this morning… • I want to switch off the boiler from the work. • If I don’t like work … • I want manage the boiler. 14

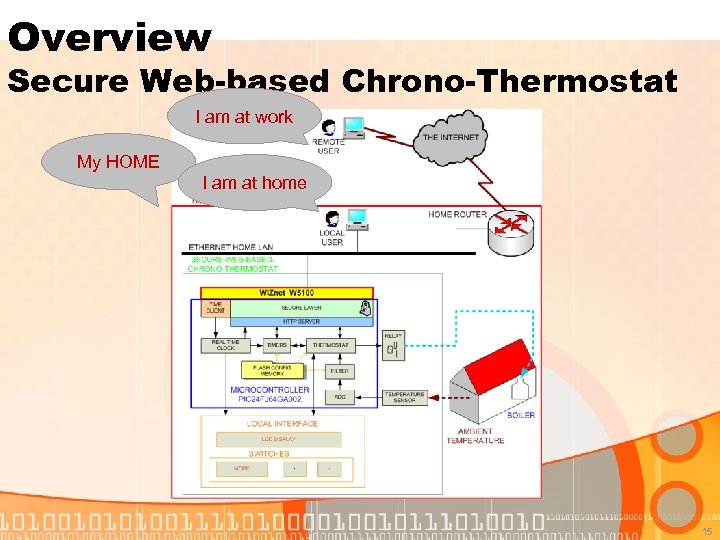

Overview Secure Web-based Chrono-Thermostat I am at work My HOME I am at home 15

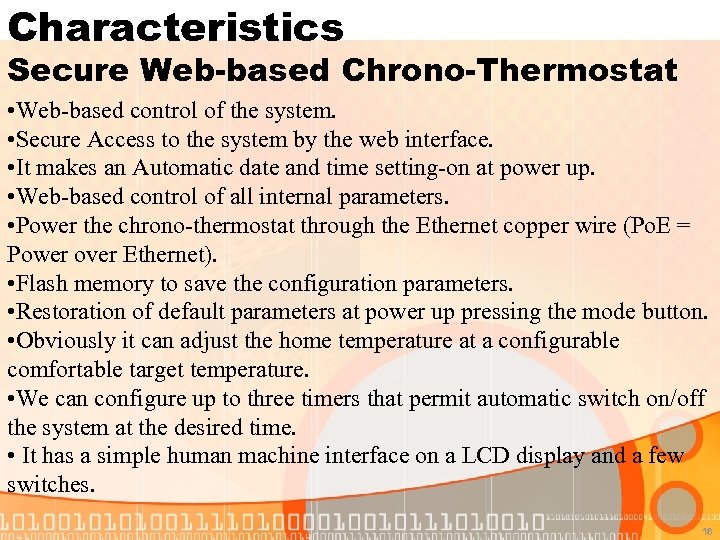

Characteristics Secure Web-based Chrono-Thermostat • Web-based control of the system. • Secure Access to the system by the web interface. • It makes an Automatic date and time setting-on at power up. • Web-based control of all internal parameters. • Power the chrono-thermostat through the Ethernet copper wire (Po. E = Power over Ethernet). • Flash memory to save the configuration parameters. • Restoration of default parameters at power up pressing the mode button. • Obviously it can adjust the home temperature at a configurable comfortable target temperature. • We can configure up to three timers that permit automatic switch on/off the system at the desired time. • It has a simple human machine interface on a LCD display and a few switches. 16

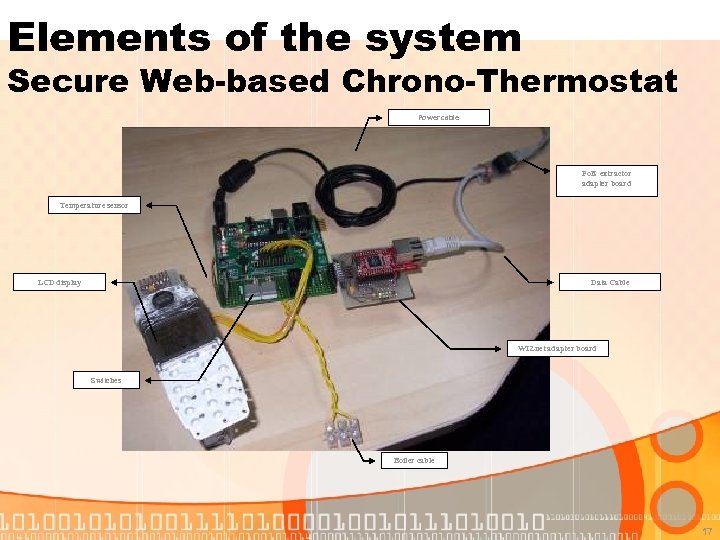

Elements of the system Secure Web-based Chrono-Thermostat Power cable Po. E extractor adapter board Temperature sensor LCD display Data Cable WIZnet adapter board Switches Boiler cable 17

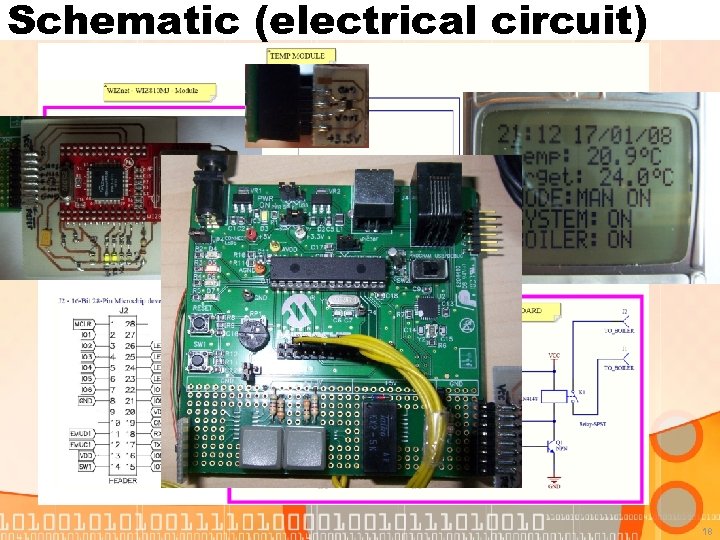

Schematic (electrical circuit) 18

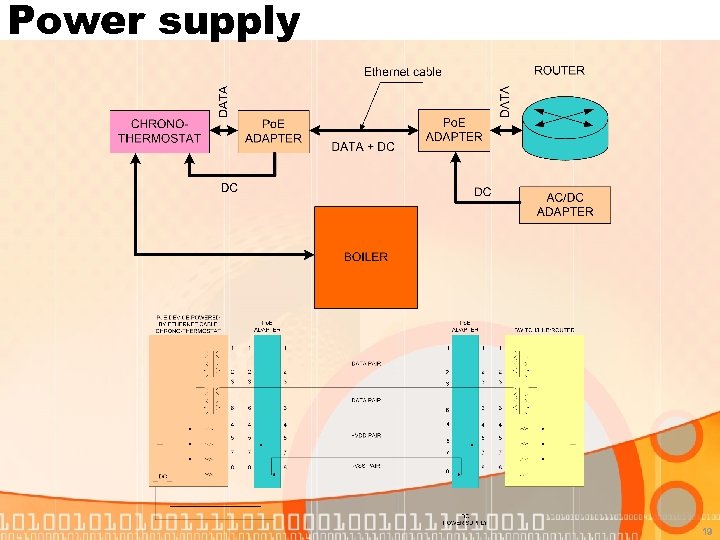

Power supply 19

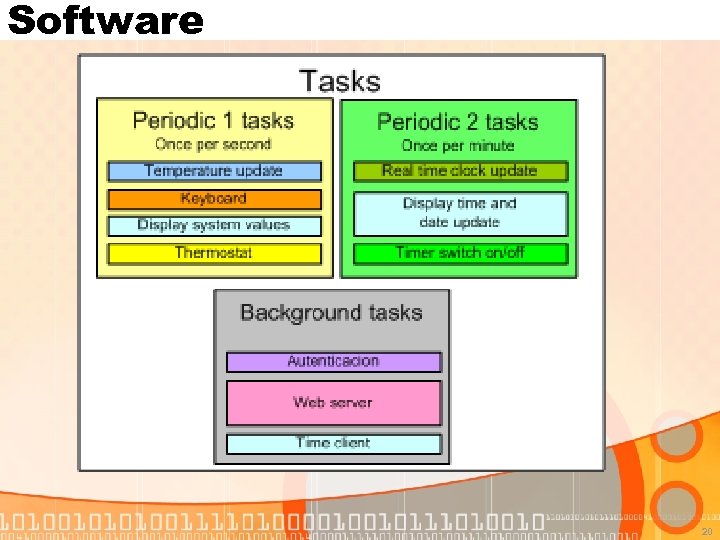

Software 20

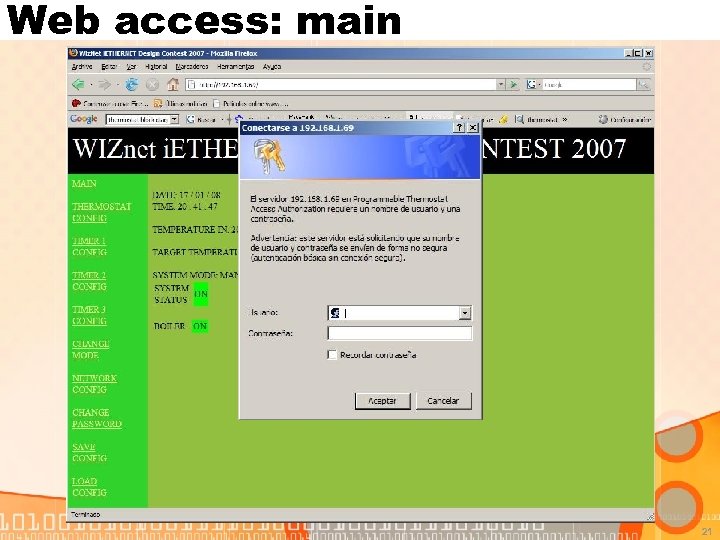

Web access: main 21

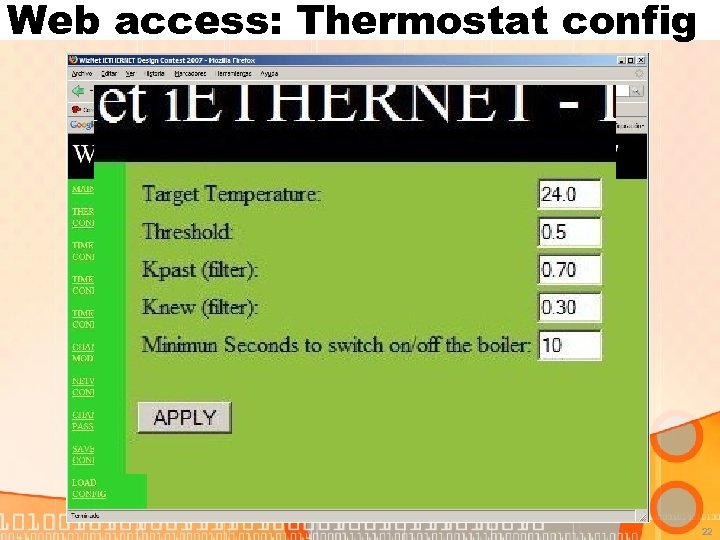

Web access: Thermostat config 22

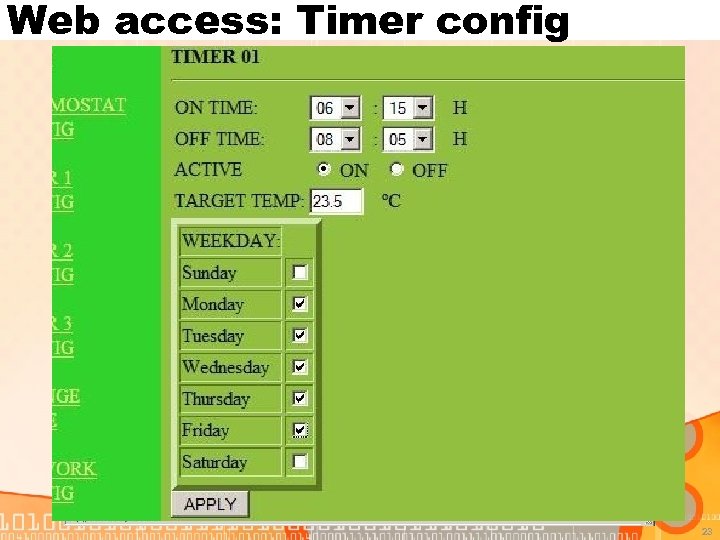

Web access: Timer config 23

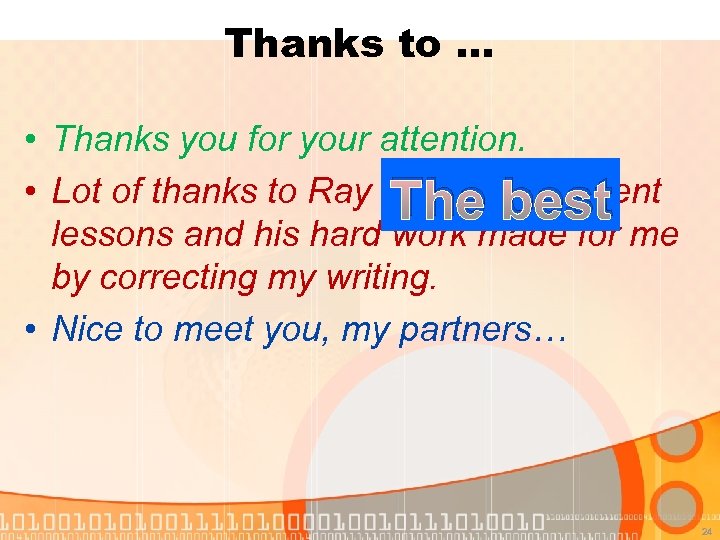

Thanks to … • Thanks you for your attention. • Lot of thanks to Ray from hisbest excellent The lessons and his hard work made for me by correcting my writing. • Nice to meet you, my partners… 24
