i 2 CAT HD projects Jesus Alcober i 2 CAT Foundation jesus. alcober@i 2 i 2 CAT HD projects Jesus Alcober i 2 CAT Foundation jesus. [email protected] 2 cat. net THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005

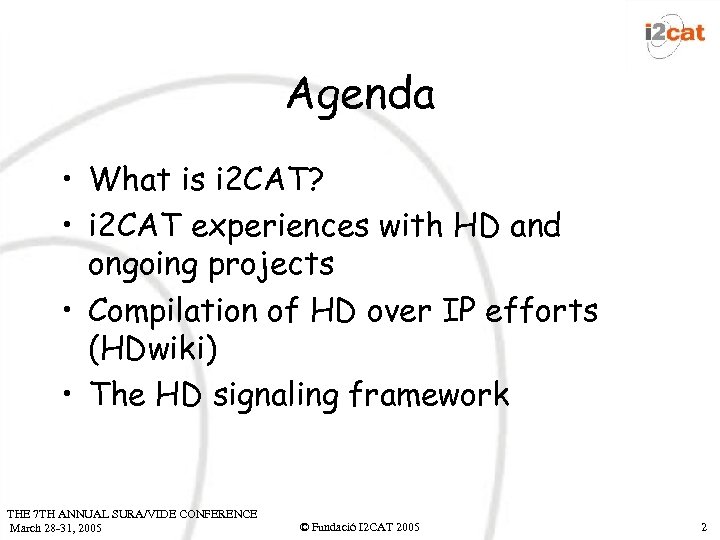

Agenda • What is i 2 CAT? • i 2 CAT experiences with HD Agenda • What is i 2 CAT? • i 2 CAT experiences with HD and ongoing projects • Compilation of HD over IP efforts (HDwiki) • The HD signaling framework THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 2

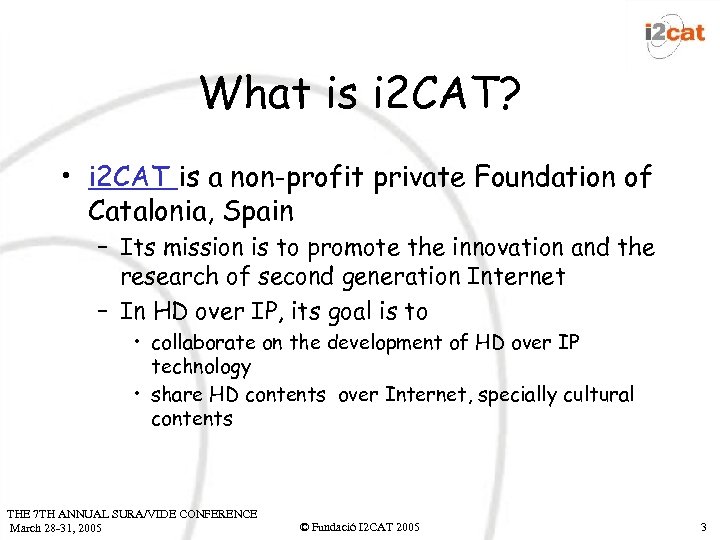

What is i 2 CAT? • i 2 CAT is a non-profit private Foundation What is i 2 CAT? • i 2 CAT is a non-profit private Foundation of Catalonia, Spain – Its mission is to promote the innovation and the research of second generation Internet – In HD over IP, its goal is to • collaborate on the development of HD over IP technology • share HD contents over Internet, specially cultural contents THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 3

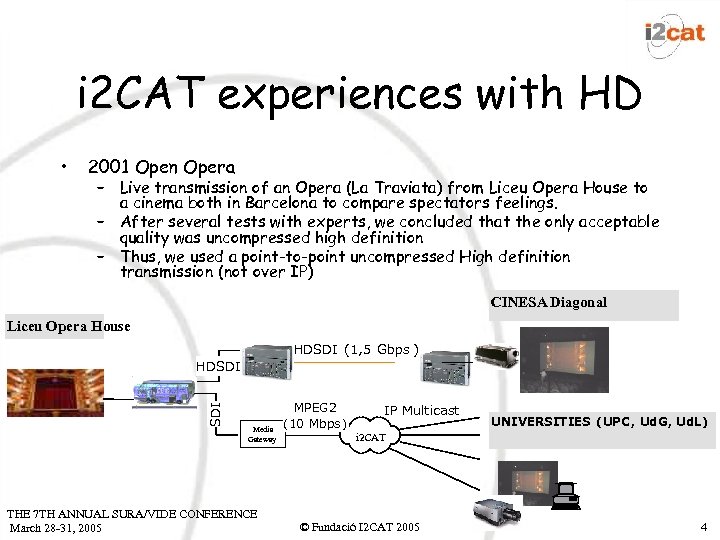

i 2 CAT experiences with HD • 2001 Open Opera – Live transmission of i 2 CAT experiences with HD • 2001 Open Opera – Live transmission of an Opera (La Traviata) from Liceu Opera House to a cinema both in Barcelona to compare spectators feelings. – After several tests with experts, we concluded that the only acceptable quality was uncompressed high definition – Thus, we used a point-to-point uncompressed High definition transmission (not over IP) CINESA Diagonal Liceu Opera House HDSDI (1, 5 Gbps ) SDI HDSDI Media Gateway THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 MPEG 2 (10 Mbps ) IP Multicast UNIVERSITIES (UPC, Ud. G, Ud. L) i 2 CAT © Fundació I 2 CAT 2005 4

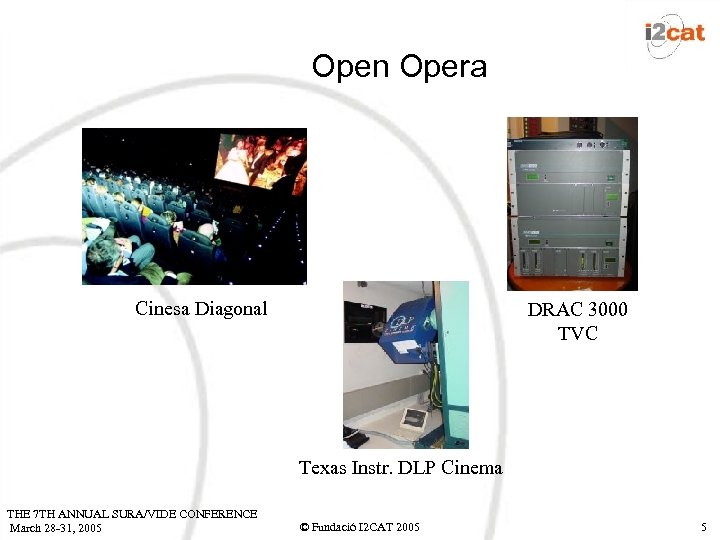

Open Opera Cinesa Diagonal DRAC 3000 TVC Texas Instr. DLP Cinema THE 7 TH Open Opera Cinesa Diagonal DRAC 3000 TVC Texas Instr. DLP Cinema THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 5

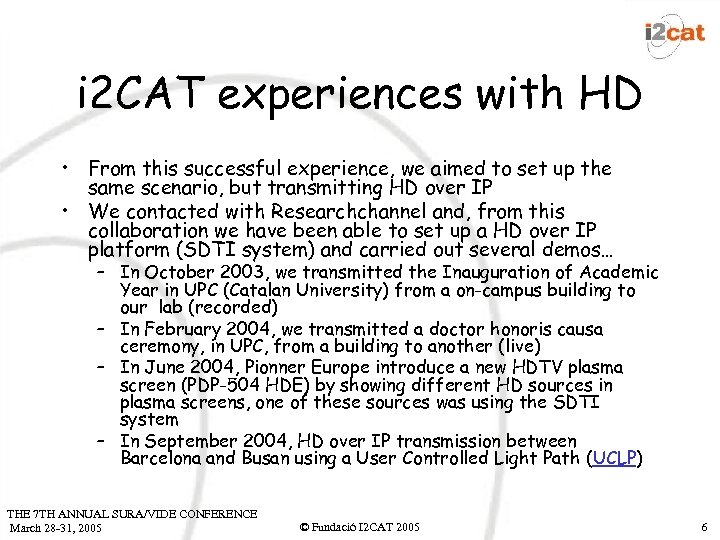

i 2 CAT experiences with HD • From this successful experience, we aimed to i 2 CAT experiences with HD • From this successful experience, we aimed to set up the same scenario, but transmitting HD over IP • We contacted with Researchchannel and, from this collaboration we have been able to set up a HD over IP platform (SDTI system) and carried out several demos… – In October 2003, we transmitted the Inauguration of Academic Year in UPC (Catalan University) from a on-campus building to our lab (recorded) – In February 2004, we transmitted a doctor honoris causa ceremony, in UPC, from a building to another (live) – In June 2004, Pionner Europe introduce a new HDTV plasma screen (PDP-504 HDE) by showing different HD sources in plasma screens, one of these sources was using the SDTI system – In September 2004, HD over IP transmission between Barcelona and Busan using a User Controlled Light Path (UCLP) THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 6

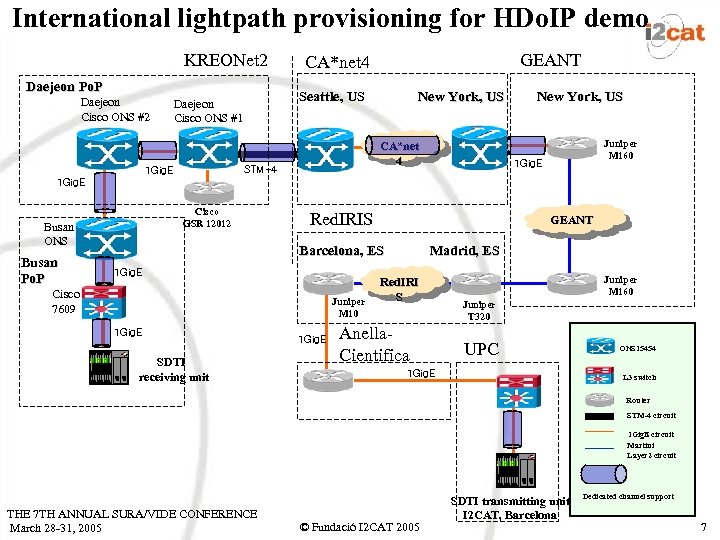

International lightpath provisioning for HDo. IP demo KREONet 2 Daejeon Po. P Daejeon Cisco International lightpath provisioning for HDo. IP demo KREONet 2 Daejeon Po. P Daejeon Cisco ONS #2 Seattle, US Daejeon Cisco ONS #1 New York, US CA*net 4 STM-4 1 Gig. E GEANT CA*net 4 New York, US Juniper M 160 1 Gig. E Cisco GSR 12012 Busan ONS Busan Po. P Red. IRIS GEANT Barcelona, ES 1 Gig. E Cisco 7609 Juniper M 10 1 Gig. E SDTI receiving unit 1 Gig. E Madrid, ES Red. IRI S Anella. Cientifica Juniper M 160 Juniper T 320 UPC 1 Gig. E ONS 15454 L 3 switch Router STM-4 circuit 1 Gig. E circuit Martini Layer 2 circuit THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 SDTI transmitting unit I 2 CAT, Barcelona Dedicated channel support 7

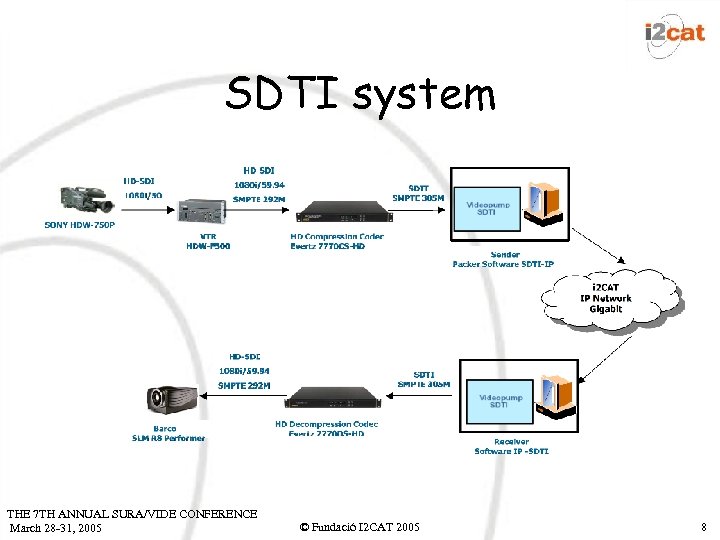

SDTI system THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació SDTI system THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 8

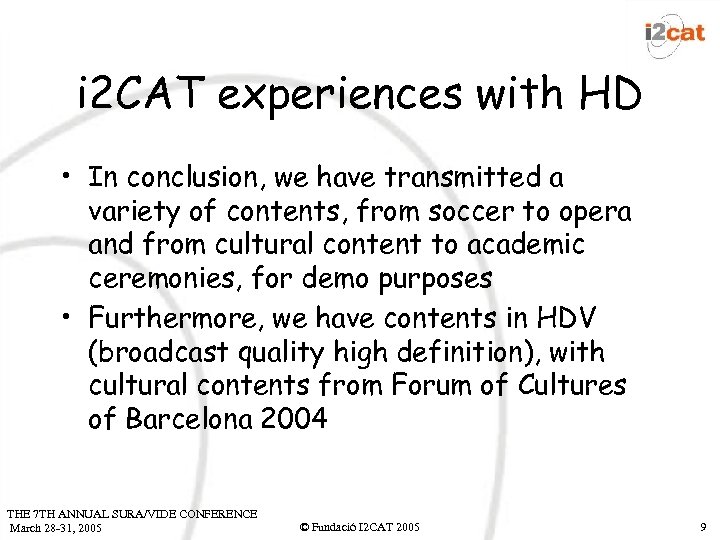

i 2 CAT experiences with HD • In conclusion, we have transmitted a variety i 2 CAT experiences with HD • In conclusion, we have transmitted a variety of contents, from soccer to opera and from cultural content to academic ceremonies, for demo purposes • Furthermore, we have contents in HDV (broadcast quality high definition), with cultural contents from Forum of Cultures of Barcelona 2004 THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 9

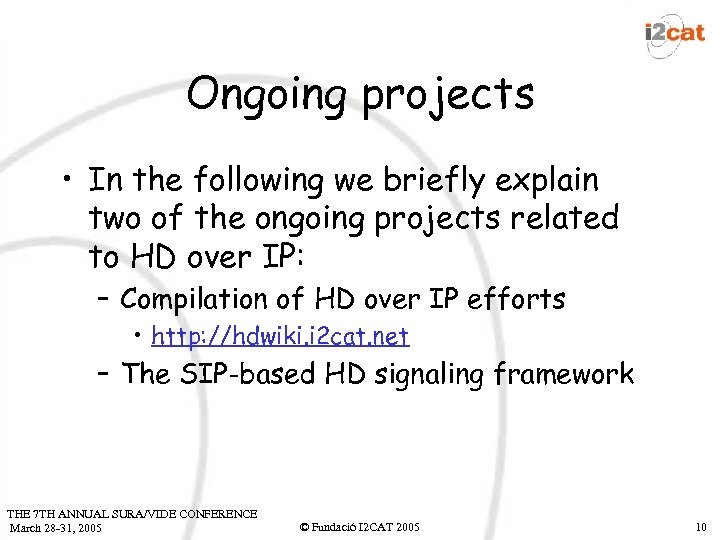

Ongoing projects • In the following we briefly explain two of the ongoing projects Ongoing projects • In the following we briefly explain two of the ongoing projects related to HD over IP: – Compilation of HD over IP efforts • http: //hdwiki. i 2 cat. net – The SIP-based HD signaling framework THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 10

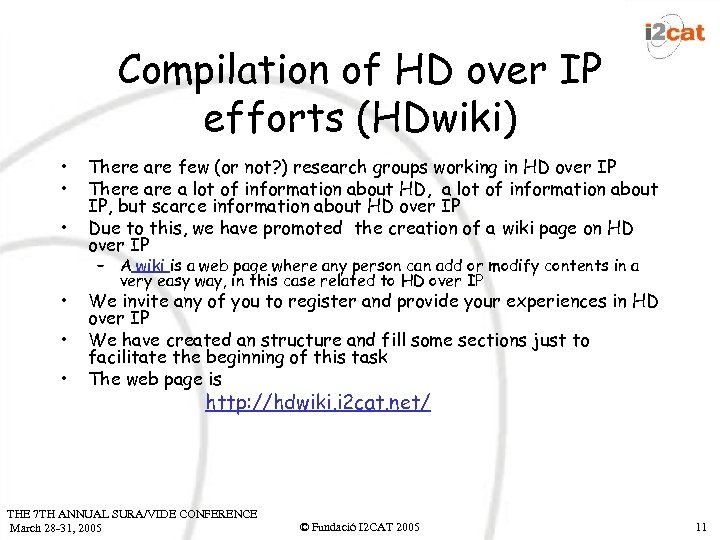

Compilation of HD over IP efforts (HDwiki) • • • There are few (or Compilation of HD over IP efforts (HDwiki) • • • There are few (or not? ) research groups working in HD over IP There a lot of information about HD, a lot of information about IP, but scarce information about HD over IP Due to this, we have promoted the creation of a wiki page on HD over IP – A wiki is a web page where any person can add or modify contents in a very easy way, in this case related to HD over IP We invite any of you to register and provide your experiences in HD over IP We have created an structure and fill some sections just to facilitate the beginning of this task The web page is http: //hdwiki. i 2 cat. net/ THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 11

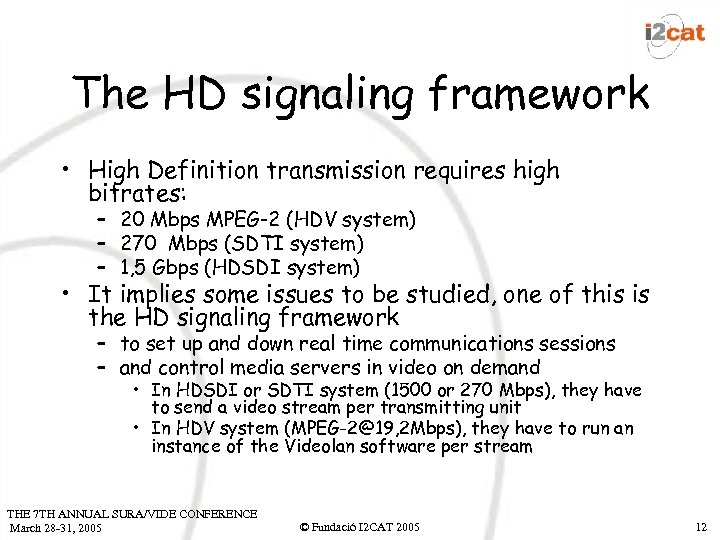

The HD signaling framework • High Definition transmission requires high bitrates: – 20 Mbps The HD signaling framework • High Definition transmission requires high bitrates: – 20 Mbps MPEG-2 (HDV system) – 270 Mbps (SDTI system) – 1, 5 Gbps (HDSDI system) • It implies some issues to be studied, one of this is the HD signaling framework – to set up and down real time communications sessions – and control media servers in video on demand • In HDSDI or SDTI system (1500 or 270 Mbps), they have to send a video stream per transmitting unit • In HDV system ([email protected], 2 Mbps), they have to run an instance of the Videolan software per stream THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 12

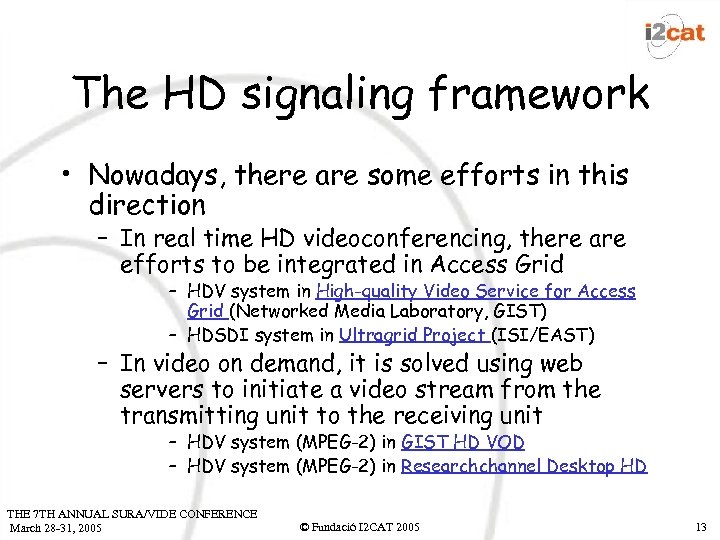

The HD signaling framework • Nowadays, there are some efforts in this direction – The HD signaling framework • Nowadays, there are some efforts in this direction – In real time HD videoconferencing, there are efforts to be integrated in Access Grid – HDV system in High-quality Video Service for Access Grid (Networked Media Laboratory, GIST) – HDSDI system in Ultragrid Project (ISI/EAST) – In video on demand, it is solved using web servers to initiate a video stream from the transmitting unit to the receiving unit – HDV system (MPEG-2) in GIST HD VOD – HDV system (MPEG-2) in Researchchannel Desktop HD THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 13

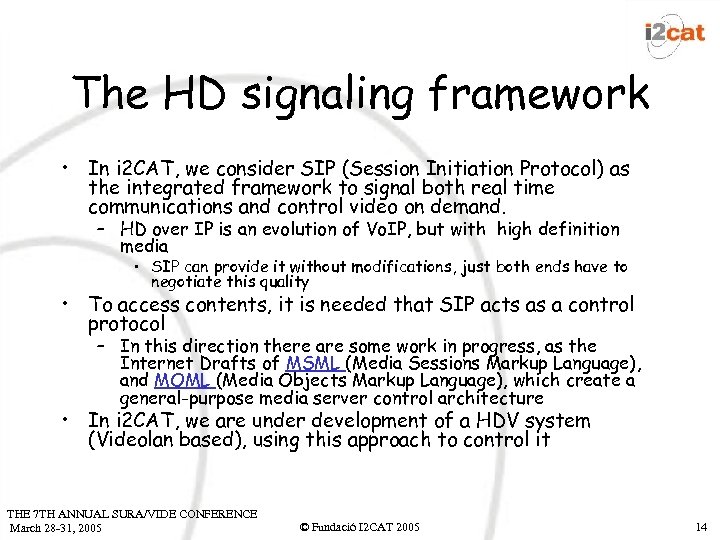

The HD signaling framework • In i 2 CAT, we consider SIP (Session Initiation The HD signaling framework • In i 2 CAT, we consider SIP (Session Initiation Protocol) as the integrated framework to signal both real time communications and control video on demand. – HD over IP is an evolution of Vo. IP, but with high definition media • SIP can provide it without modifications, just both ends have to negotiate this quality • To access contents, it is needed that SIP acts as a control protocol – In this direction there are some work in progress, as the Internet Drafts of MSML (Media Sessions Markup Language), and MOML (Media Objects Markup Language), which create a general-purpose media server control architecture • In i 2 CAT, we are under development of a HDV system (Videolan based), using this approach to control it THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 14

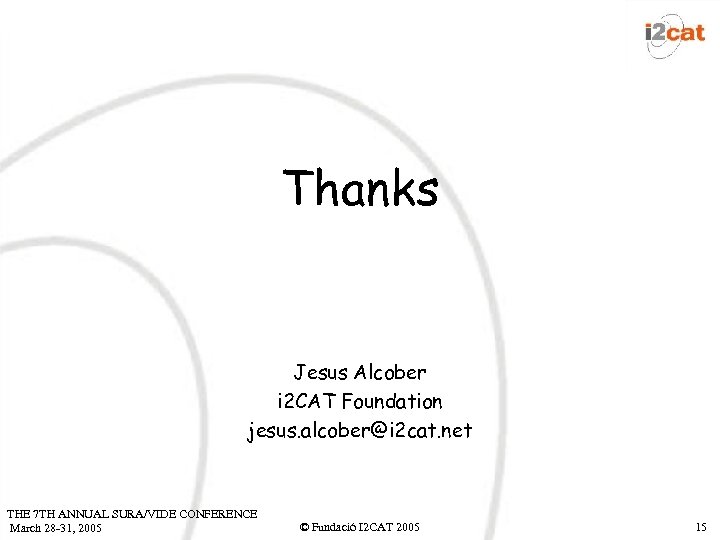

Thanks Jesus Alcober i 2 CAT Foundation jesus. alcober@i 2 cat. net THE 7 Thanks Jesus Alcober i 2 CAT Foundation jesus. [email protected] 2 cat. net THE 7 TH ANNUAL SURA/VIDE CONFERENCE March 28 -31, 2005 © Fundació I 2 CAT 2005 15
