Hybrid systems methods for biochemical networks Adam Halasz

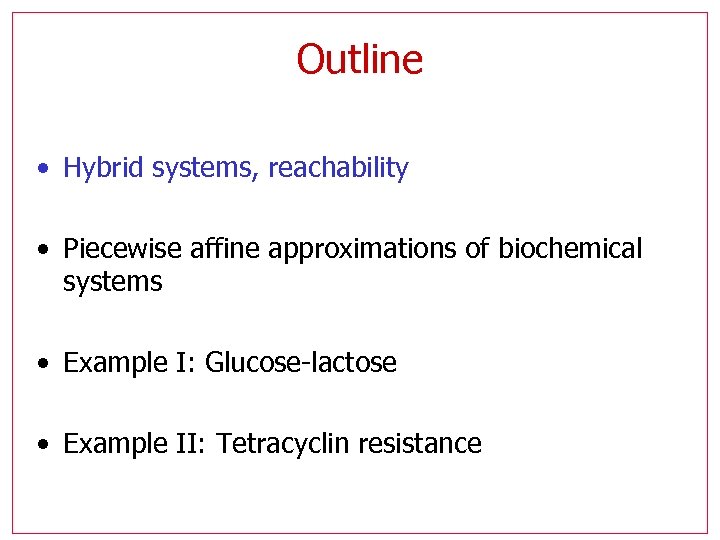

Outline • Hybrid systems, reachability • Piecewise affine approximations of biochemical systems • Example I: Glucose-lactose • Example II: Tetracyclin resistance

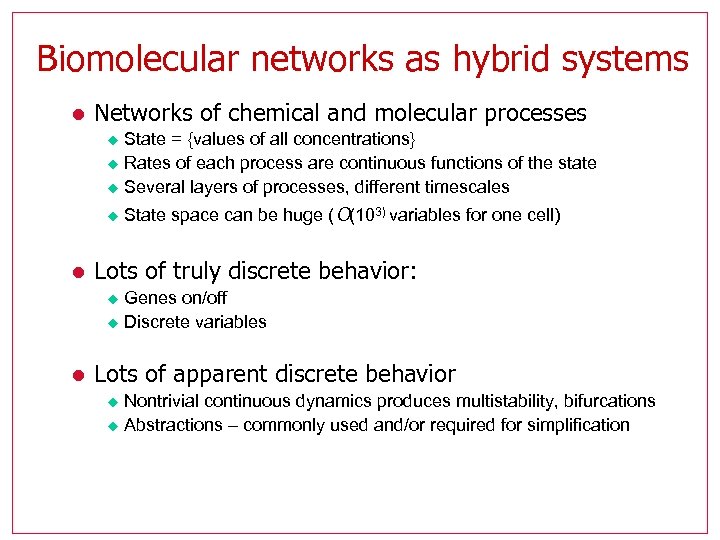

Biomolecular networks as hybrid systems l Networks of chemical and molecular processes u State = {values of all concentrations} Rates of each process are continuous functions of the state Several layers of processes, different timescales u State space can be huge (O(103) variables for one cell) u u l Lots of truly discrete behavior: u u l Genes on/off Discrete variables Lots of apparent discrete behavior u u Nontrivial continuous dynamics produces multistability, bifurcations Abstractions – commonly used and/or required for simplification

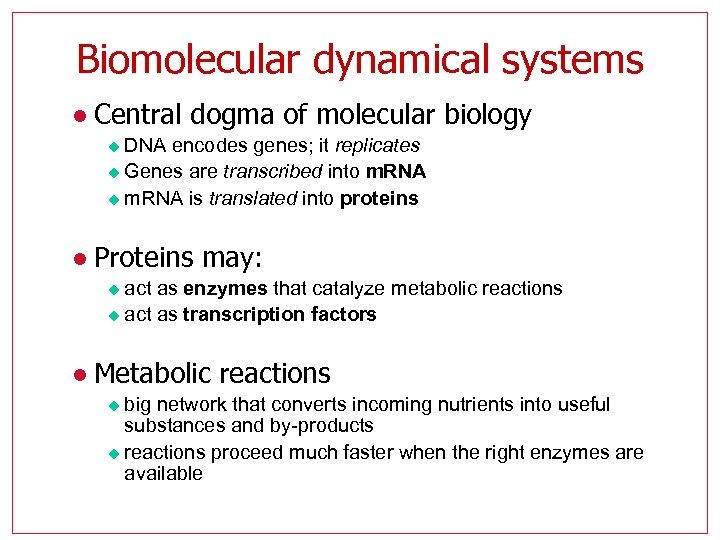

Biomolecular dynamical systems l Central dogma of molecular biology DNA encodes genes; it replicates u Genes are transcribed into m. RNA u m. RNA is translated into proteins u l Proteins may: act as enzymes that catalyze metabolic reactions u act as transcription factors u l Metabolic reactions big network that converts incoming nutrients into useful substances and by-products u reactions proceed much faster when the right enzymes are available u

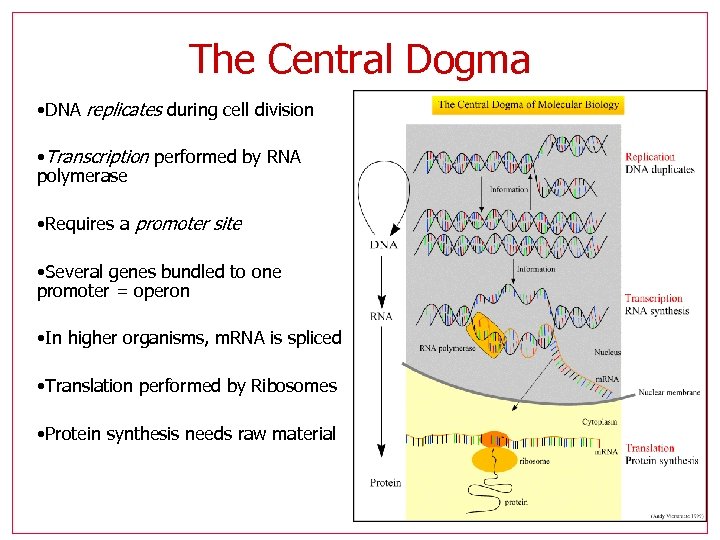

The Central Dogma • DNA replicates during cell division • Transcription performed by RNA polymerase • Requires a promoter site • Several genes bundled to one promoter = operon • In higher organisms, m. RNA is spliced • Translation performed by Ribosomes • Protein synthesis needs raw material

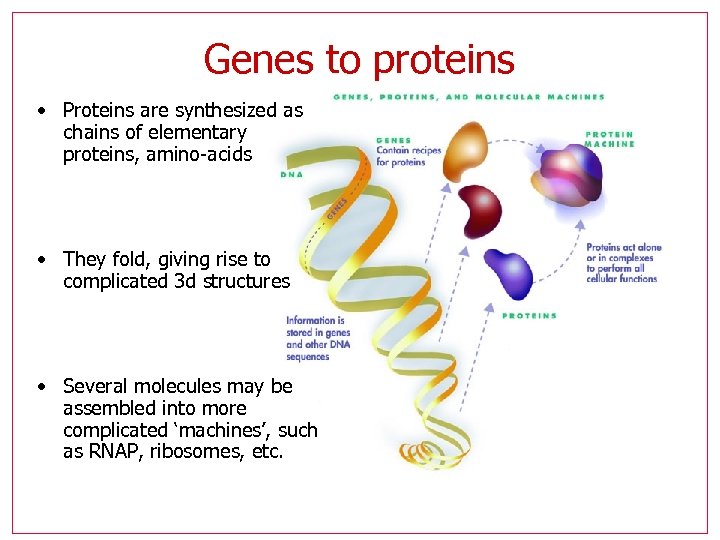

Genes to proteins • Proteins are synthesized as chains of elementary proteins, amino-acids • They fold, giving rise to complicated 3 d structures • Several molecules may be assembled into more complicated ‘machines’, such as RNAP, ribosomes, etc.

Metabolic network • Very complex • Structured • Stoichiometry is more easily identified than rate laws • Many networks available in databases, e. g. Kegg • Reactions linked to individual genes • Lots of feedback

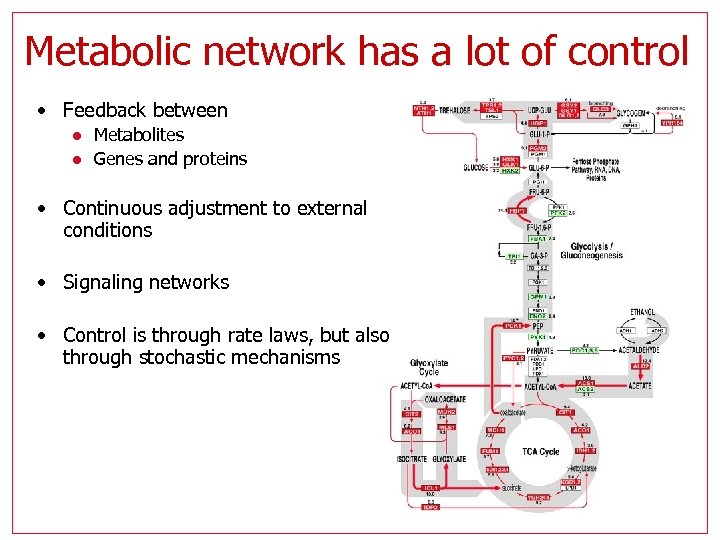

Metabolic network has a lot of control • Feedback between l l Metabolites Genes and proteins • Continuous adjustment to external conditions • Signaling networks • Control is through rate laws, but also through stochastic mechanisms

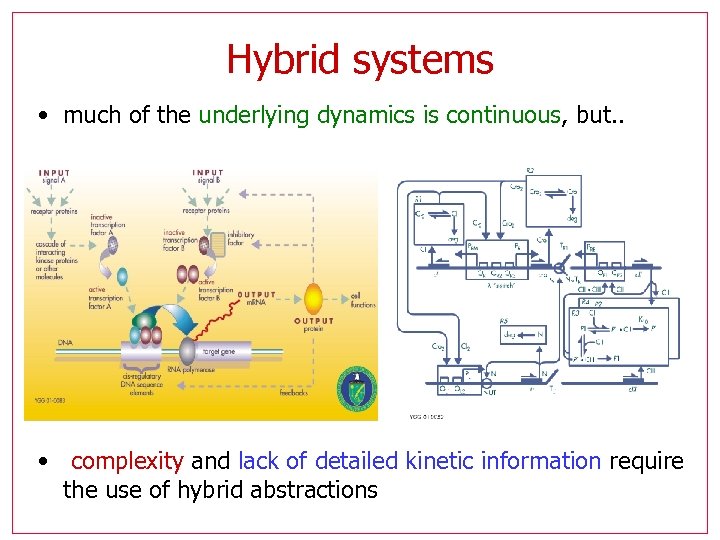

Hybrid systems • much of the underlying dynamics is continuous, but. . • complexity and lack of detailed kinetic information require the use of hybrid abstractions

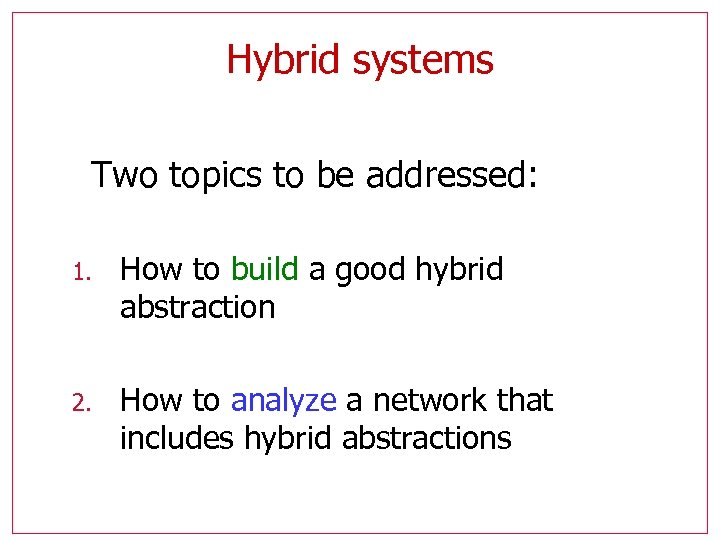

Hybrid systems Two topics to be addressed: 1. How to build a good hybrid abstraction 2. How to analyze a network that includes hybrid abstractions

Using hybrid systems abstractions to build hybrid systems abstractions • The lac operon is a bistable genetic switch l l l Multiple positive feedback bistable Input: external lactose State: x={M, B, A, L, P} m. RNA perm β-gal repressor Allo. Lactose External Lactose

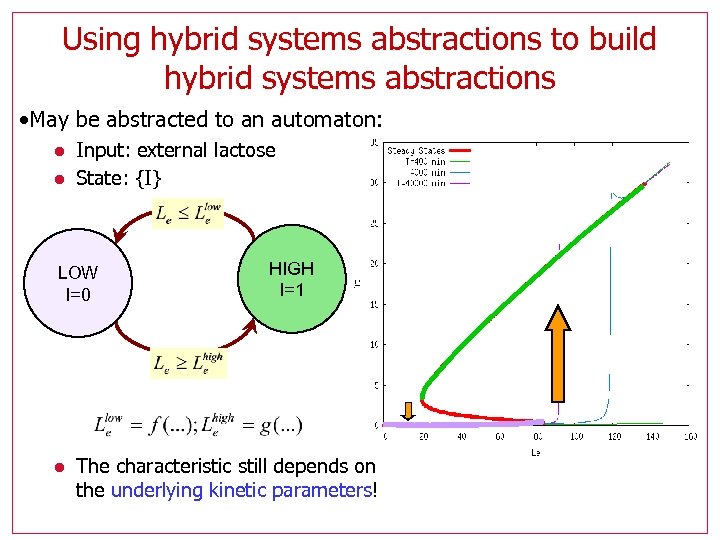

Using hybrid systems abstractions to build hybrid systems abstractions • May be abstracted to an automaton: l l Input: external lactose State: {I} LOW I=0 l HIGH I=1 The characteristic still depends on the underlying kinetic parameters!

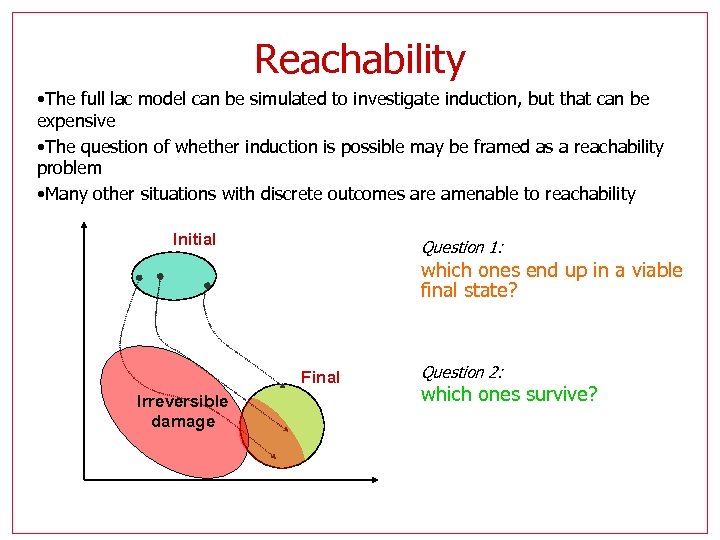

Reachability • The full lac model can be simulated to investigate induction, but that can be expensive • The question of whether induction is possible may be framed as a reachability problem • Many other situations with discrete outcomes are amenable to reachability Initial Question 1: which ones end up in a viable final state? Final Irreversible damage Question 2: which ones survive?

Kinetics 1 Dynamic models have a special structure! Example More generally,

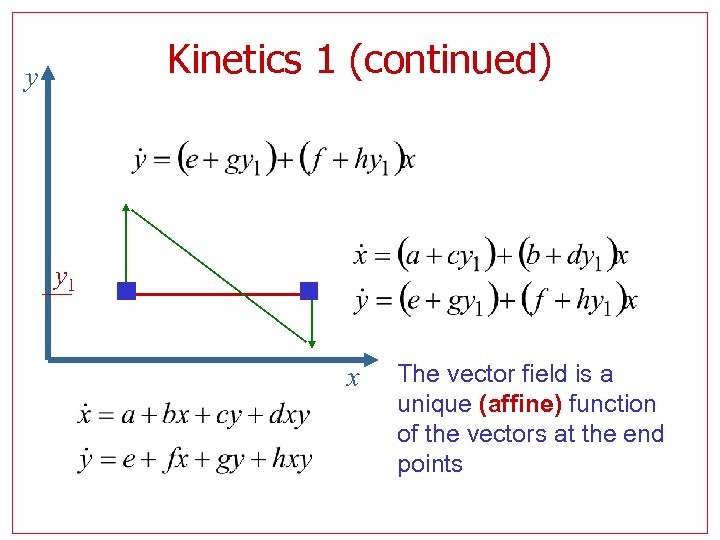

Kinetics 1 (continued) y y 1 x The vector field is a unique (affine) function of the vectors at the end points

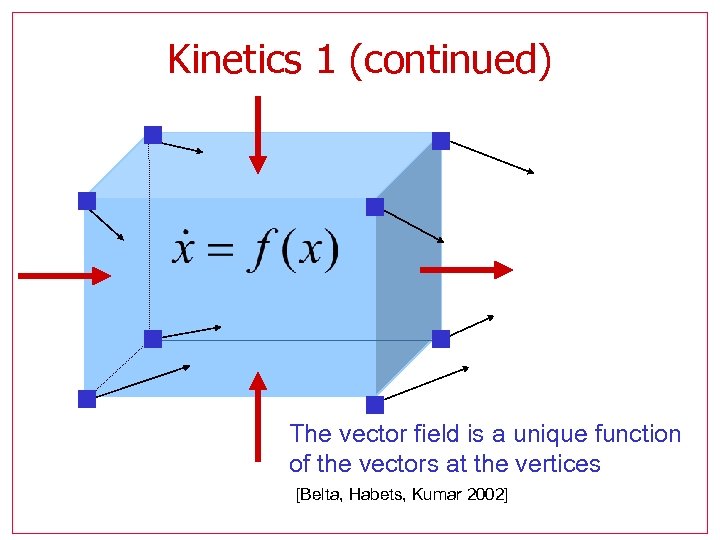

Kinetics 1 (continued) The vector field is a unique function of the vectors at the vertices [Belta, Habets, Kumar 2002]

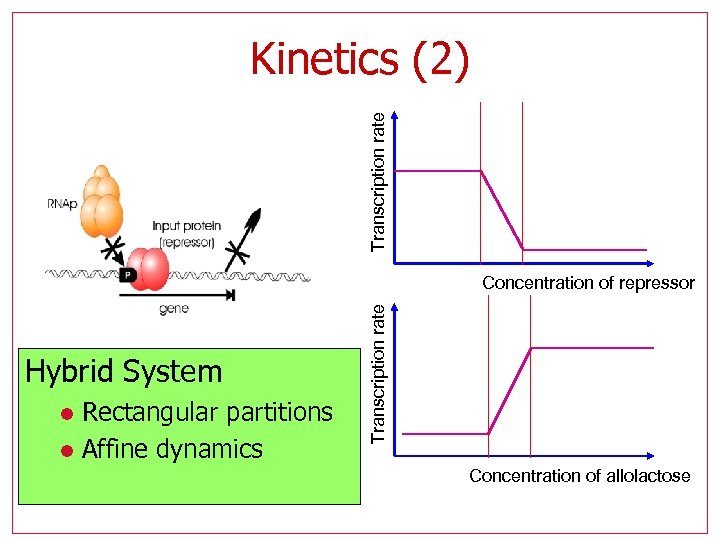

Transcription rate Kinetics (2) Hybrid System Rectangular partitions l Affine dynamics l Transcription rate Concentration of repressor Concentration of allolactose

Piecewise affine approximation Simplest approximation with two affine pieces Can use any number, to achieve any desired precision

Piecewise is hybrid Piecewise approximation has different equations in each interval Transitions occur as the variable switches intervals

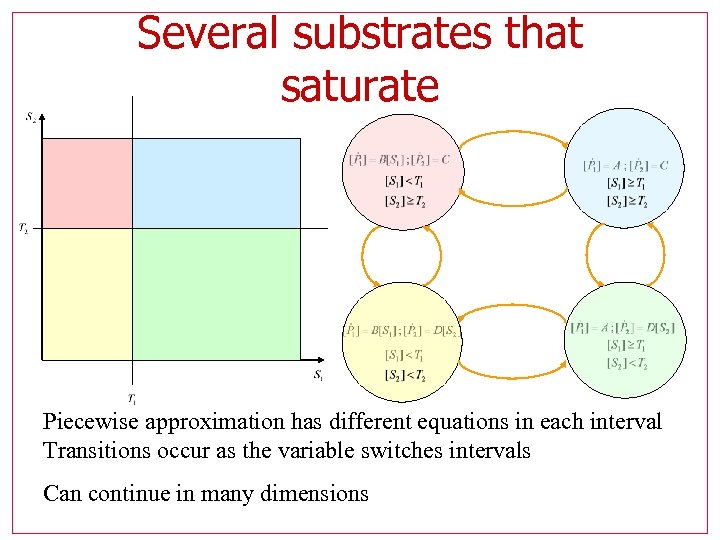

Several substrates that saturate Piecewise approximation has different equations in each interval Transitions occur as the variable switches intervals Can continue in many dimensions

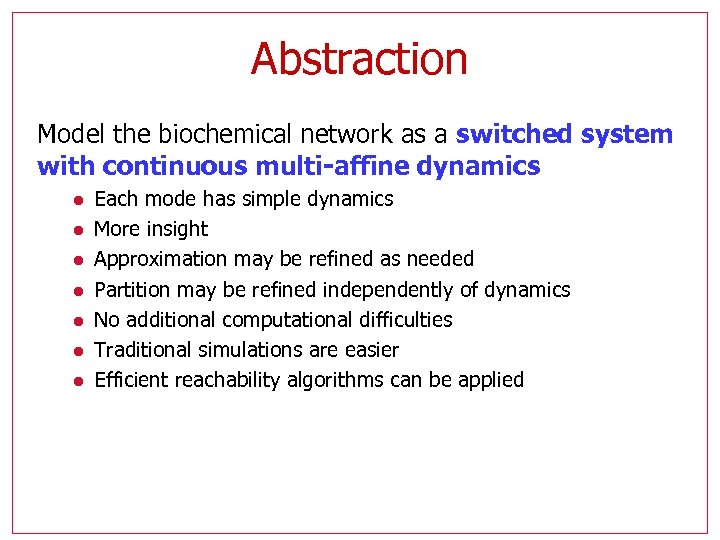

Abstraction Model the biochemical network as a switched system with continuous multi-affine dynamics l l l l Each mode has simple dynamics More insight Approximation may be refined as needed Partition may be refined independently of dynamics No additional computational difficulties Traditional simulations are easier Efficient reachability algorithms can be applied

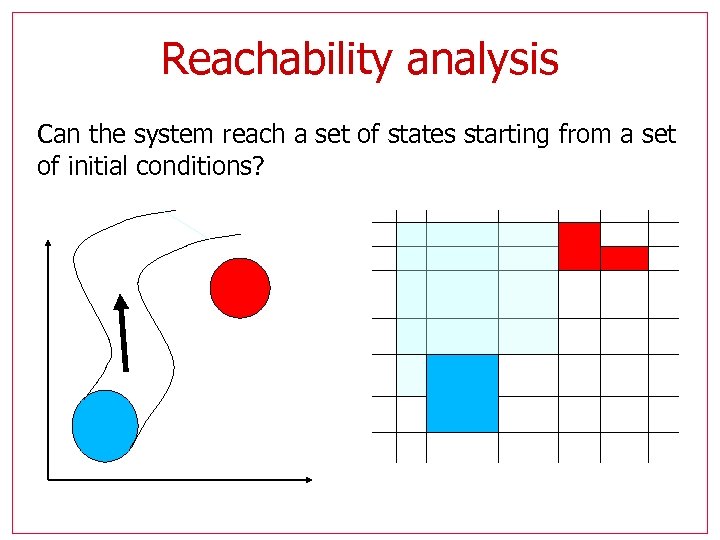

Reachability analysis Can the system reach a set of states starting from a set of initial conditions?

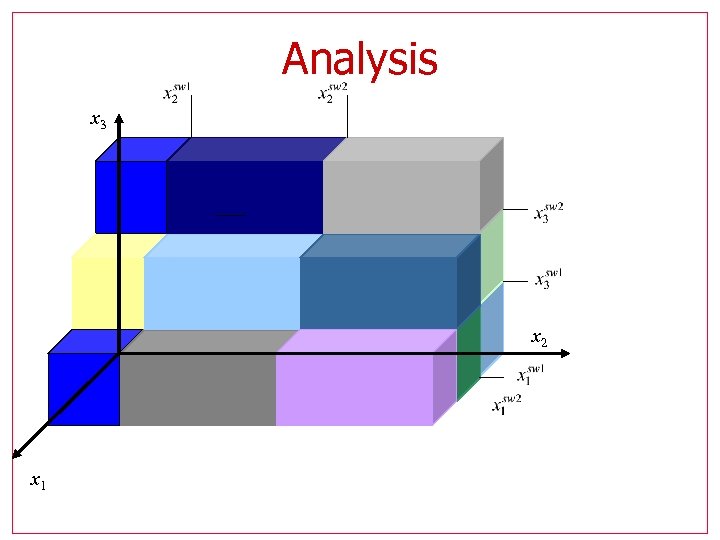

Analysis x 3 x 2 x 1

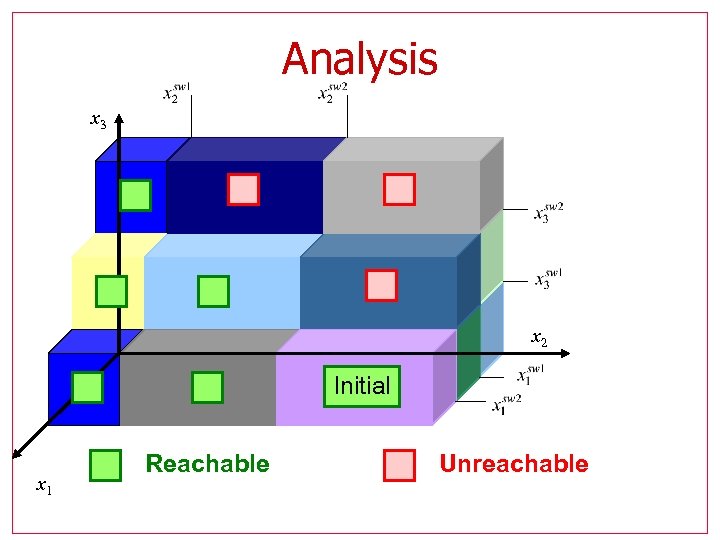

Analysis x 3 x 2 Initial x 1 Reachable Unreachable

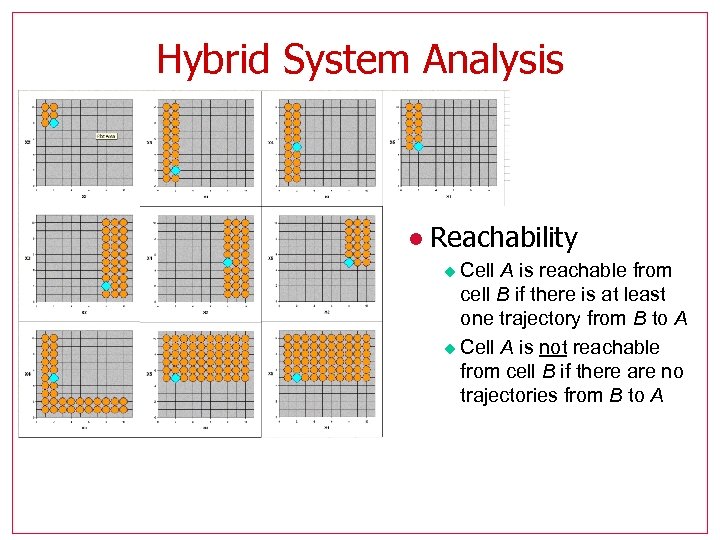

Hybrid System Analysis l Reachability Cell A is reachable from cell B if there is at least one trajectory from B to A u Cell A is not reachable from cell B if there are no trajectories from B to A u

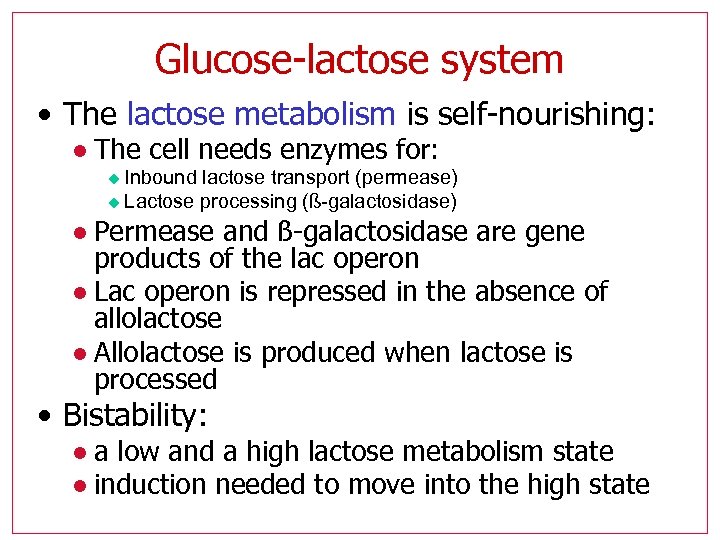

Glucose-lactose system • The lactose metabolism is self-nourishing: l The cell needs enzymes for: Inbound lactose transport (permease) u Lactose processing (ß-galactosidase) u l Permease and ß-galactosidase are gene products of the lac operon l Lac operon is repressed in the absence of allolactose l Allolactose is produced when lactose is processed • Bistability: la low and a high lactose metabolism state l induction needed to move into the high state

Lac system in E. coli m. RNA β-gal repressor Allo. Lactose perm Lactose External Lactose

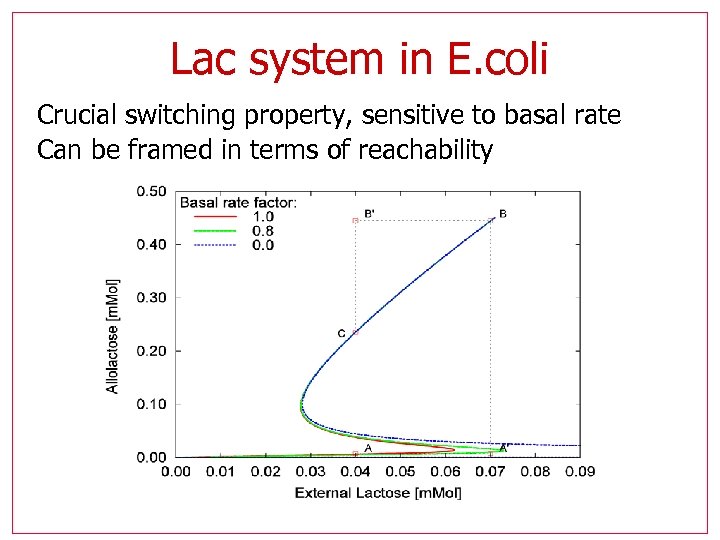

Lac system in E. coli Crucial switching property, sensitive to basal rate Can be framed in terms of reachability

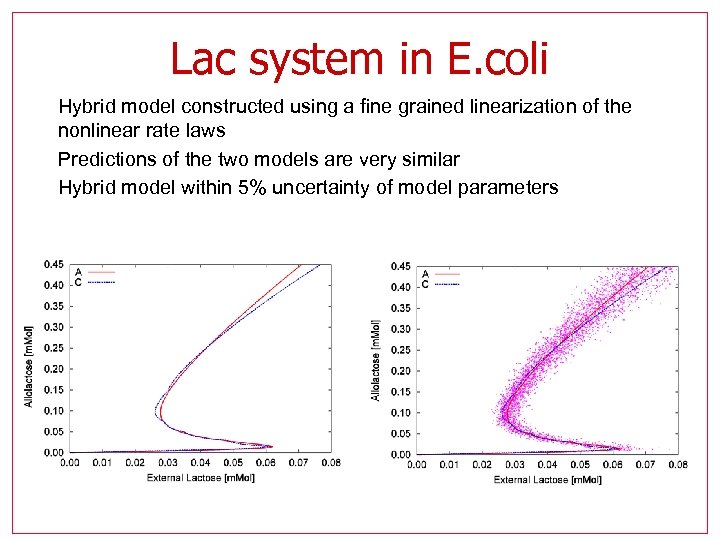

Lac system in E. coli • Hybrid model constructed using a fine grained linearization of the nonlinear rate laws • Predictions of the two models are very similar • Hybrid model within 5% uncertainty of model parameters

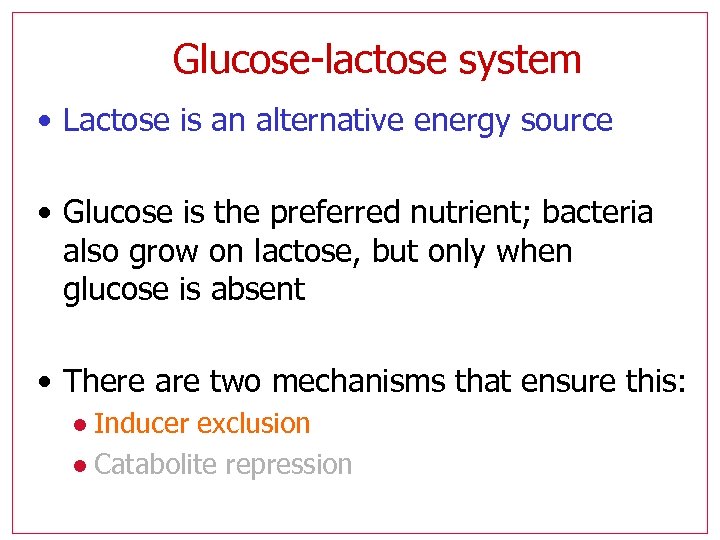

Glucose-lactose system • Lactose is an alternative energy source • Glucose is the preferred nutrient; bacteria also grow on lactose, but only when glucose is absent • There are two mechanisms that ensure this: l Inducer exclusion l Catabolite repression

m. RNA Lac repressor perm b-gal Allo. Lactose External Lactose CAP c. AMP CAP competes with lac repressor, enhancing transcription External Glucose c. AMP is produced when glucose is absent Glucose inhibits the influx of lactose

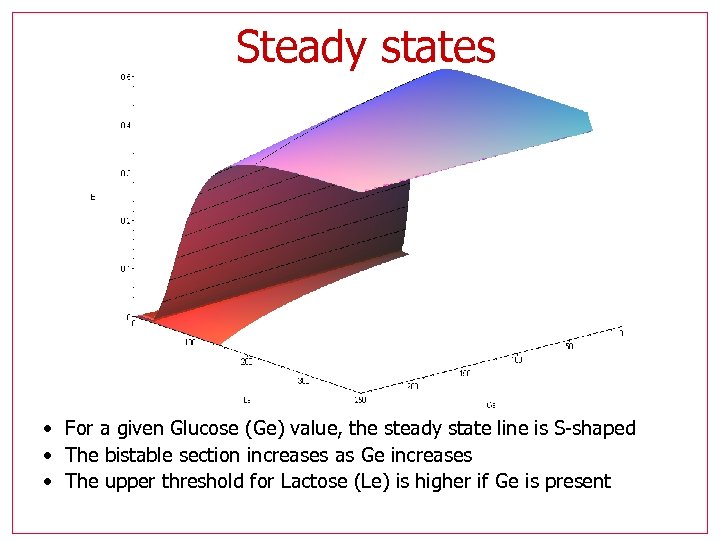

Steady states • For a given Glucose (Ge) value, the steady state line is S-shaped • The bistable section increases as Ge increases • The upper threshold for Lactose (Le) is higher if Ge is present

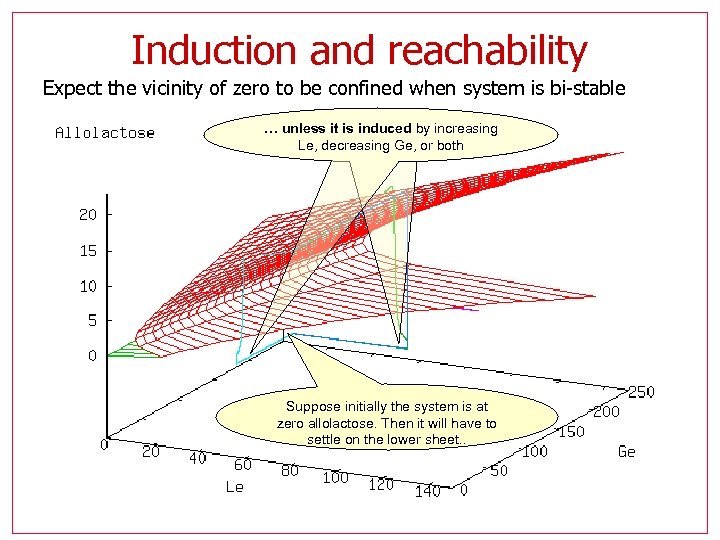

Induction and reachability Expect the vicinity of zero to be confined when system is bi-stable … unless it is induced by increasing Le, decreasing Ge, or both Suppose initially the system is at zero allolactose. Then it will have to settle on the lower sheet. .

Induction and reachability Up-switching possible if (Le, Ge) outside the bistable region for some time Upward switching trajectories Final, induced state Initial state, close to zero

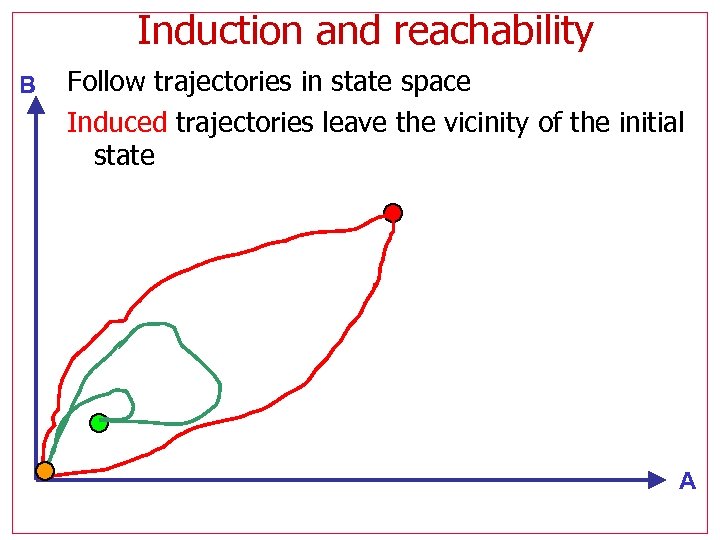

Induction and reachability B Follow trajectories in state space Induced trajectories leave the vicinity of the initial state A

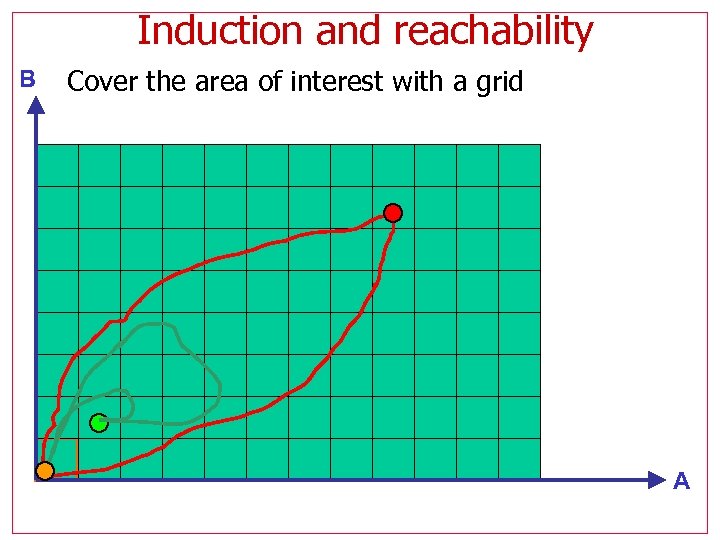

Induction and reachability B Cover the area of interest with a grid A

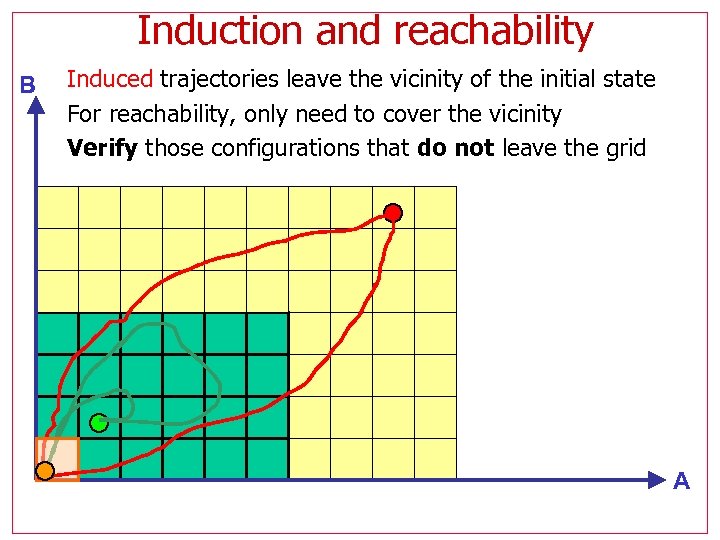

Induction and reachability B Induced trajectories leave the vicinity of the initial state For reachability, only need to cover the vicinity Verify those configurations that do not leave the grid A

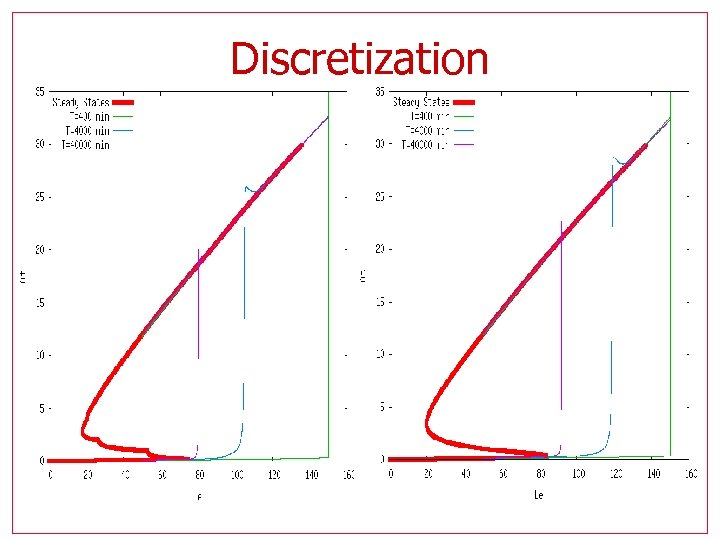

Discretization

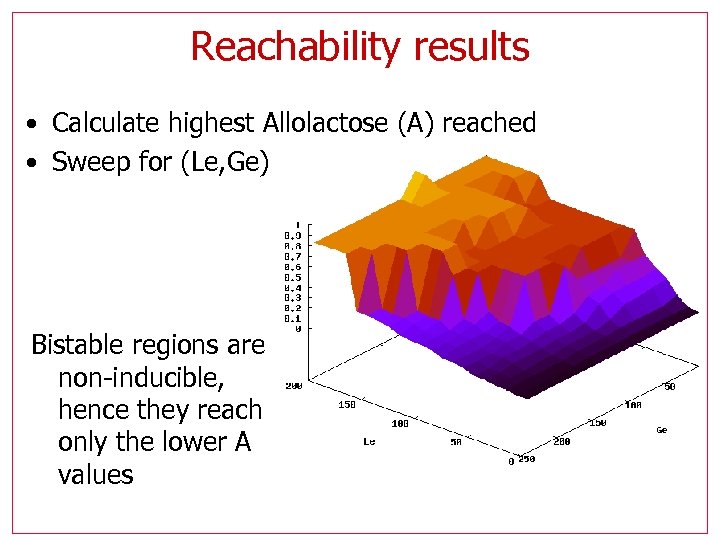

Reachability results • Calculate highest Allolactose (A) reached • Sweep for (Le, Ge) Bistable regions are non-inducible, hence they reach only the lower A values

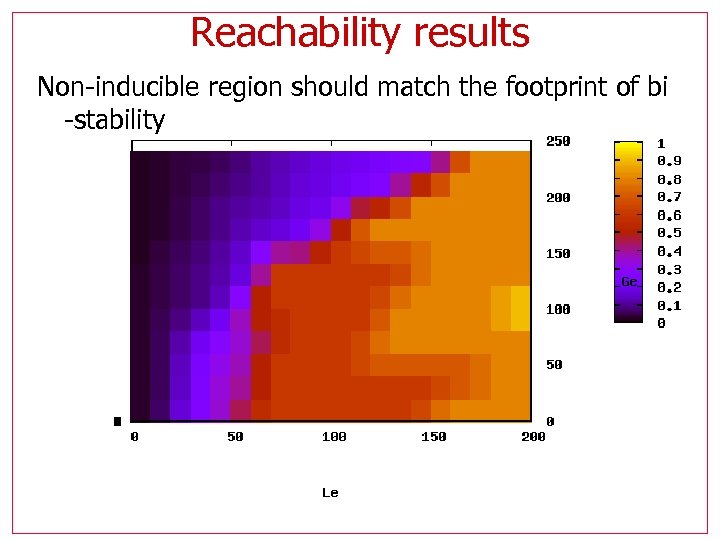

Reachability results Non-inducible region should match the footprint of bi -stability

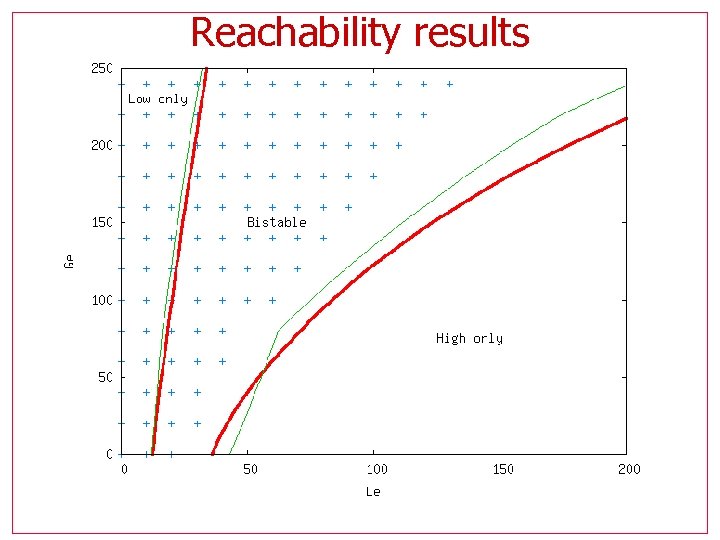

Reachability results

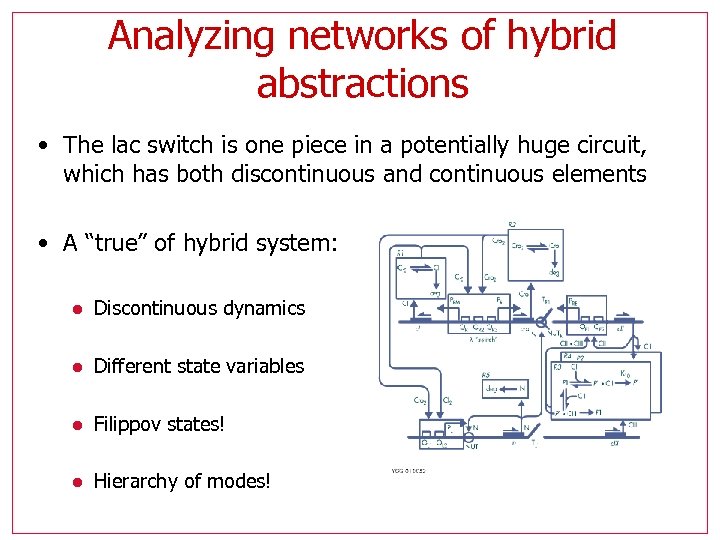

Analyzing networks of hybrid abstractions • The lac switch is one piece in a potentially huge circuit, which has both discontinuous and continuous elements • A “true” of hybrid system: l Discontinuous dynamics l Different state variables l Filippov states! l Hierarchy of modes!

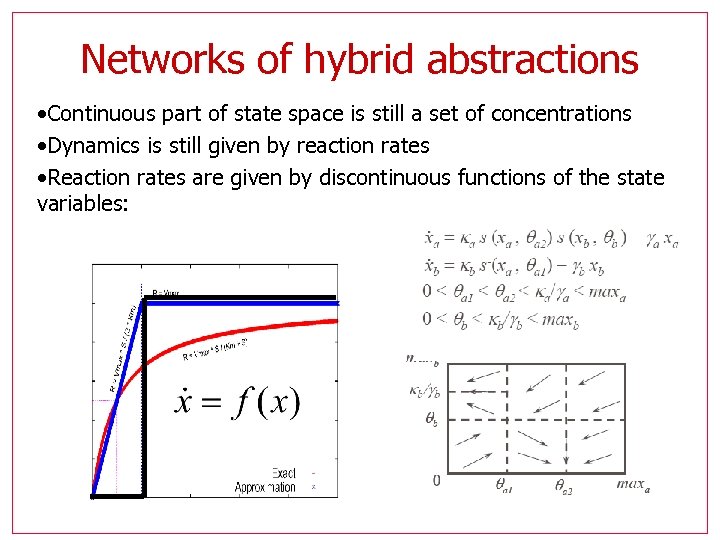

Networks of hybrid abstractions • Continuous part of state space is still a set of concentrations • Dynamics is still given by reaction rates • Reaction rates are given by discontinuous functions of the state variables:

Networks of hybrid abstractions • Partition of continuous part of state space along threshold values • Boundaries treated as separate modes • Discrete transition system • Model checking

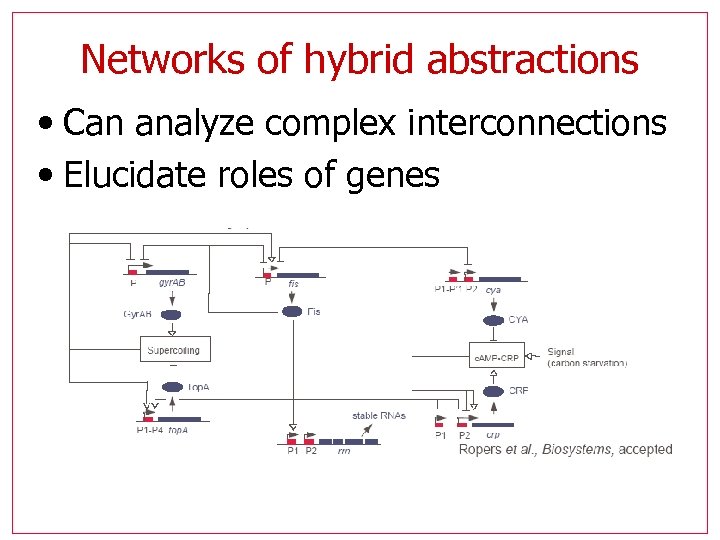

Networks of hybrid abstractions • Can analyze complex interconnections • Elucidate roles of genes

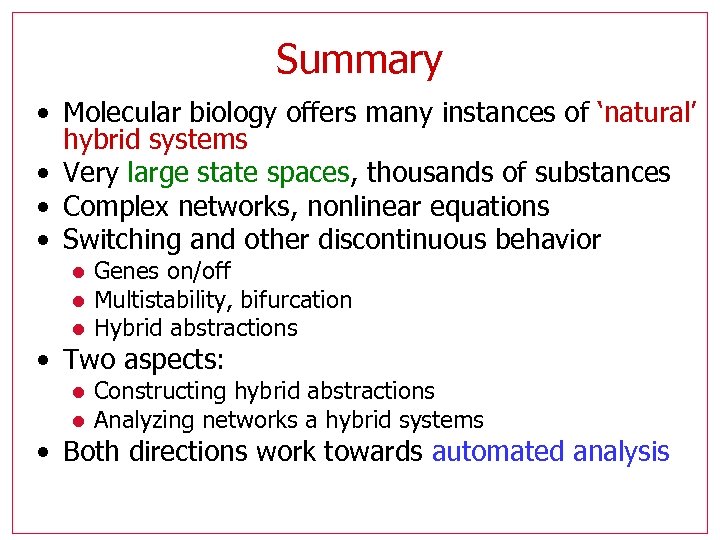

Summary • Molecular biology offers many instances of ‘natural’ hybrid systems • Very large state spaces, thousands of substances • Complex networks, nonlinear equations • Switching and other discontinuous behavior l l l Genes on/off Multistability, bifurcation Hybrid abstractions • Two aspects: l l Constructing hybrid abstractions Analyzing networks a hybrid systems • Both directions work towards automated analysis

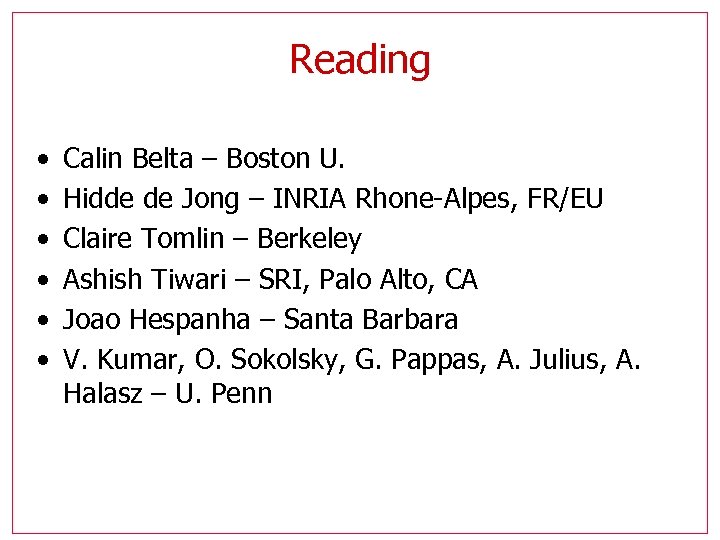

Reading • • • Calin Belta – Boston U. Hidde de Jong – INRIA Rhone-Alpes, FR/EU Claire Tomlin – Berkeley Ashish Tiwari – SRI, Palo Alto, CA Joao Hespanha – Santa Barbara V. Kumar, O. Sokolsky, G. Pappas, A. Julius, A. Halasz – U. Penn

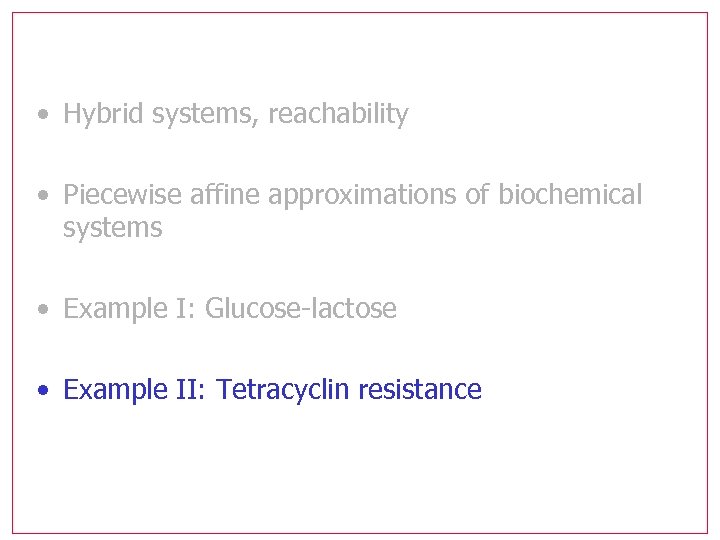

• Hybrid systems, reachability • Piecewise affine approximations of biochemical systems • Example I: Glucose-lactose • Example II: Tetracyclin resistance

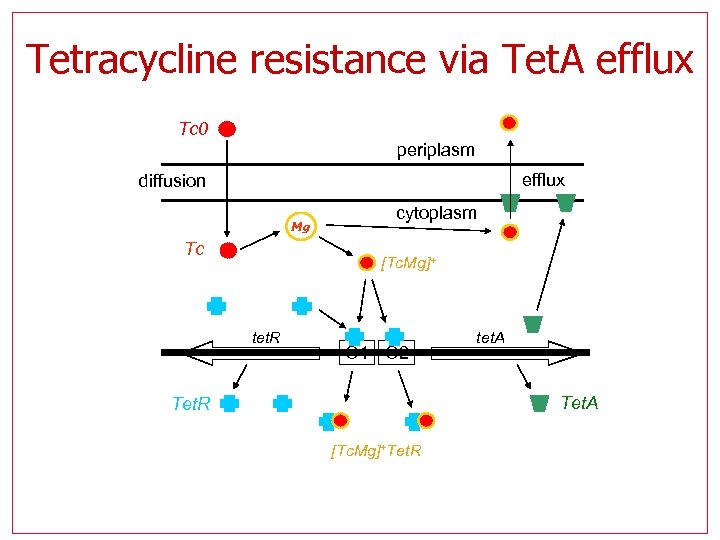

Tetracycline resistance via Tet. A efflux Tc 0 periplasm efflux diffusion Mg Tc cytoplasm [Tc. Mg]+ tet. R O 1 O 2 tet. A Tet. R [Tc. Mg]+Tet. R

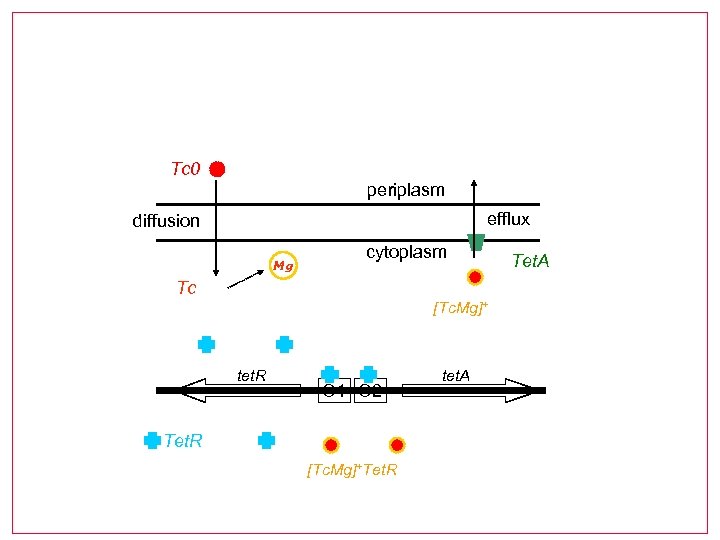

Tc 0 periplasm efflux diffusion Mg cytoplasm Tc [Tc. Mg]+ tet. R O 1 O 2 Tet. R [Tc. Mg]+Tet. R tet. A Tet. A

Tet Model Analysis • Model describes a bacterial defense mechanism against attack with an antibiotic (tetracycline, Tc) • Tc destroys the cell’s ribosomes, inflicting potentially irreversible damage to the transcription-translation apparatus. • Objective is to avoid accumulation of Tc inside the cell. • Our objective: to disrupt the defense mechanism. For this we first have to: 1. 2. Assess the actual model parameters Identify parameter modifications that disrupt the mechanism

Tet Model Building • Model parameters not fully known l Use existing information on known reactions l Use consistency checks and qualitative arguments l Determine parameters indirectly by comparing model predictions to experimental results • Perform experiments to verify model

Tet Model Analysis Measures of the defense mechanism’s effectiveness: • Irreversible damage to transcription-translation apparatus: l l Direct investigation would require a greatly expanded model Use proxies instead • Final Tc concentration l May not tell the whole story • Maximum transient Tc concentration l May cause irreversible damage

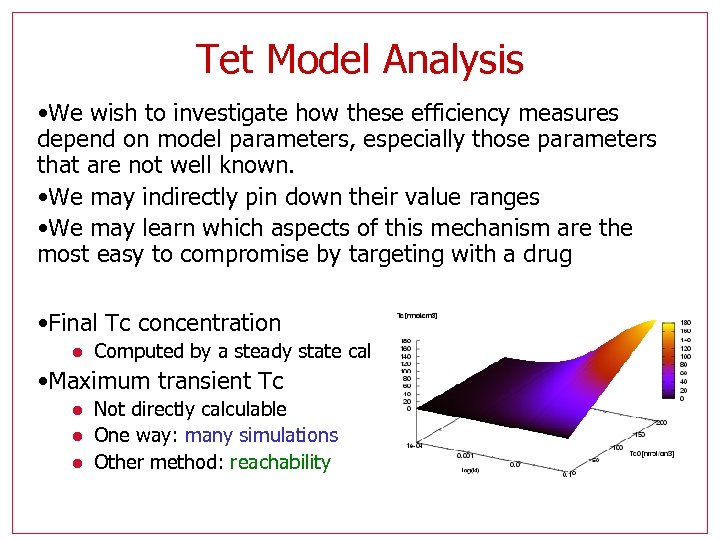

Tet Model Analysis • We wish to investigate how these efficiency measures depend on model parameters, especially those parameters that are not well known. • We may indirectly pin down their value ranges • We may learn which aspects of this mechanism are the most easy to compromise by targeting with a drug • Final Tc concentration l Computed by a steady state calculation • Maximum transient Tc l l l Not directly calculable One way: many simulations Other method: reachability

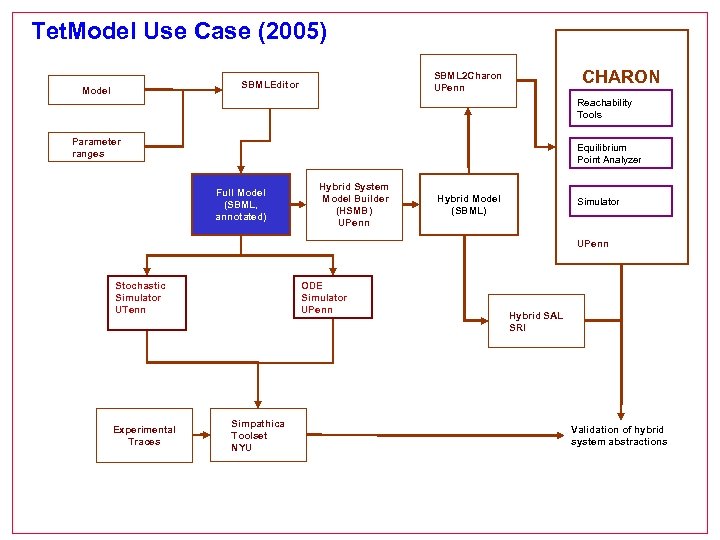

Tet. Model Use Case (2005) Model CHARON SBML 2 Charon UPenn SBMLEditor Reachability Tools Parameter ranges Equilibrium Point Analyzer Full Model (SBML, annotated) Hybrid System Model Builder (HSMB) UPenn Hybrid Model (SBML) Simulator UPenn Stochastic Simulator UTenn Experimental Traces ODE Simulator UPenn Simpathica Toolset NYU Hybrid SAL SRI Validation of hybrid system abstractions

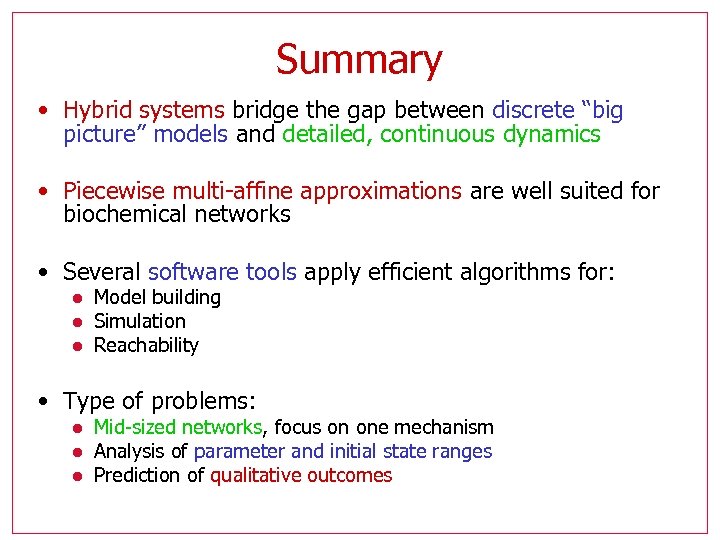

Summary • Hybrid systems bridge the gap between discrete “big picture” models and detailed, continuous dynamics • Piecewise multi-affine approximations are well suited for biochemical networks • Several software tools apply efficient algorithms for: l l l Model building Simulation Reachability • Type of problems: l l l Mid-sized networks, focus on one mechanism Analysis of parameter and initial state ranges Prediction of qualitative outcomes

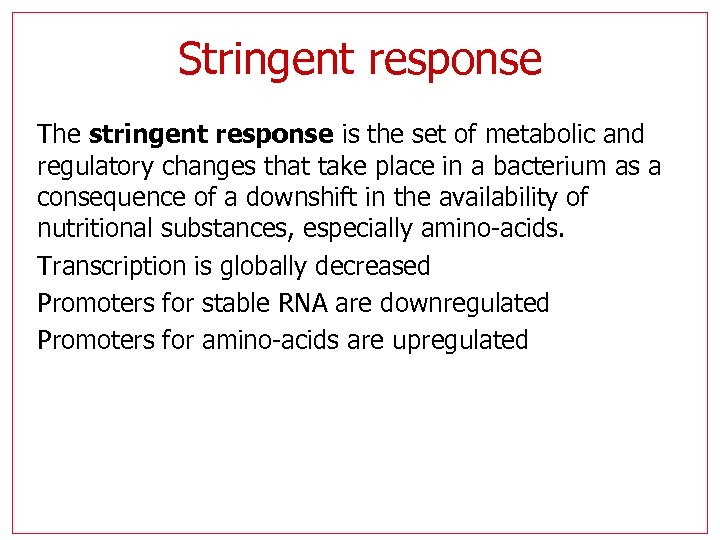

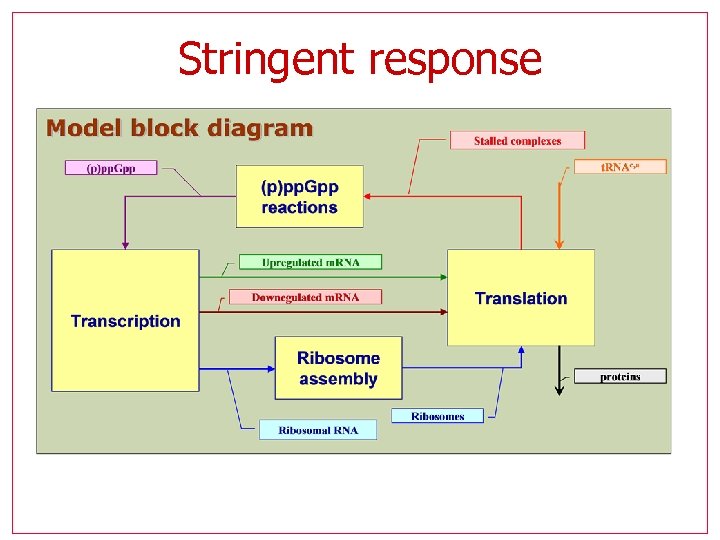

Stringent response The stringent response is the set of metabolic and regulatory changes that take place in a bacterium as a consequence of a downshift in the availability of nutritional substances, especially amino-acids. Transcription is globally decreased Promoters for stable RNA are downregulated Promoters for amino-acids are upregulated

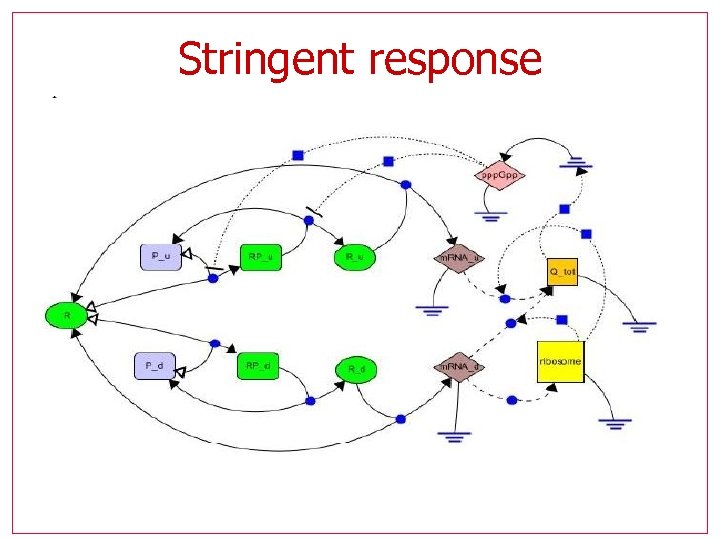

Stringent response

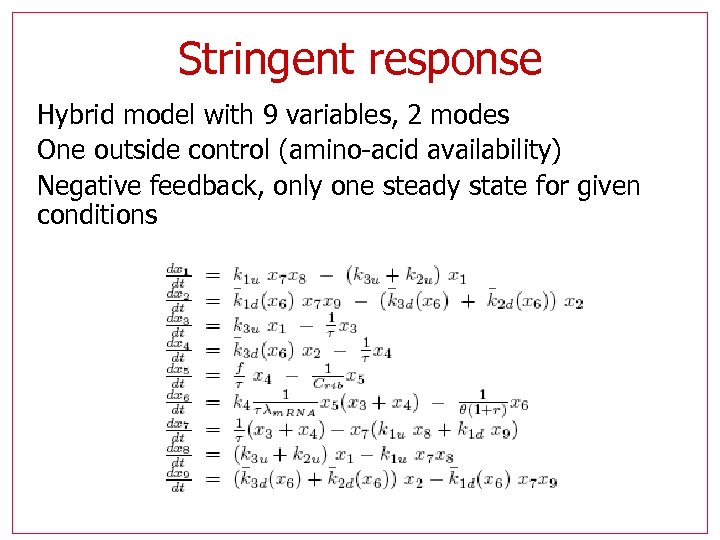

Stringent response Hybrid model with 9 variables, 2 modes One outside control (amino-acid availability) Negative feedback, only one steady state for given conditions

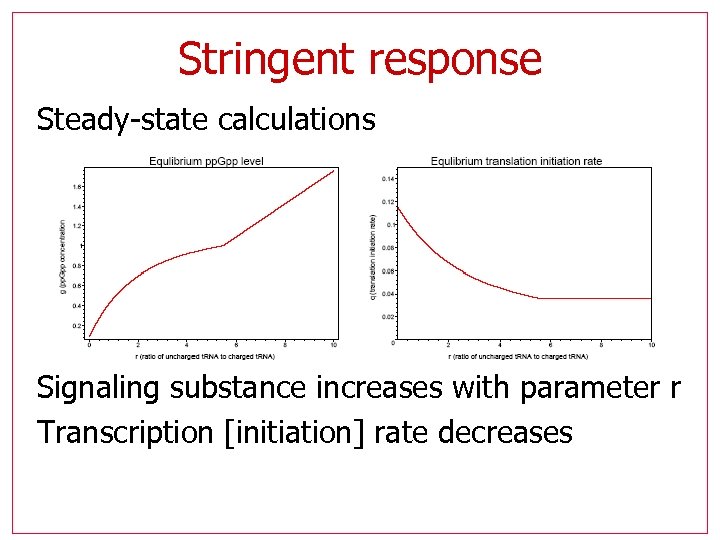

Stringent response Steady-state calculations Signaling substance increases with parameter r Transcription [initiation] rate decreases

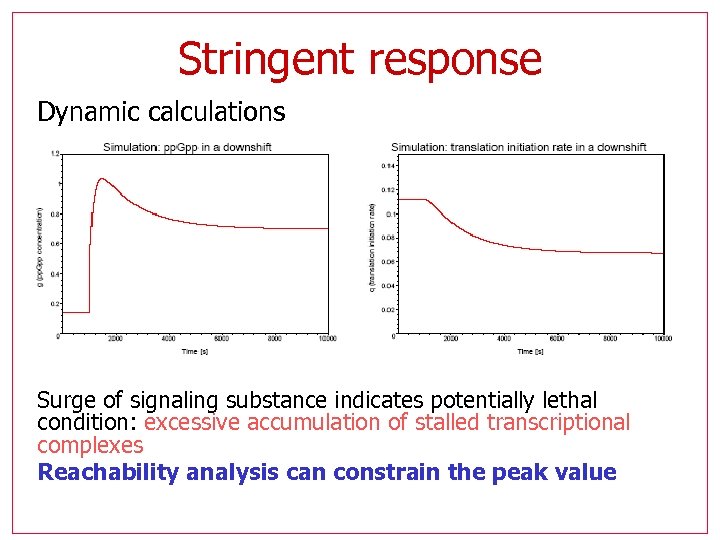

Stringent response Dynamic calculations Surge of signaling substance indicates potentially lethal condition: excessive accumulation of stalled transcriptional complexes Reachability analysis can constrain the peak value
