Hybrid Policies CS 691 – Chapter 7 of Matt Bishop cs 691 1 chow

Chinese Wall Model n n n It describes policies that prevent conflict of interest. Examples l in British Law, provide defense against criminal charges. l Stock Exchange and Investment house. Prevent traders represents clients with conflict interest. Definition 7 -1. The objects of the database are items of information related to a company. Definition 7 2. A company dataset (CD) contains objects related to a single company. Definition 7 -3. A conflict of interest (COI) class contains the datasets of companies in competition. Let COI(O) represent the COI class that contains object 0, and let CD(O) be the company dataset that contains object 0. The model assumes that each object belongs to exactly one COI class. cs 691 2 chow

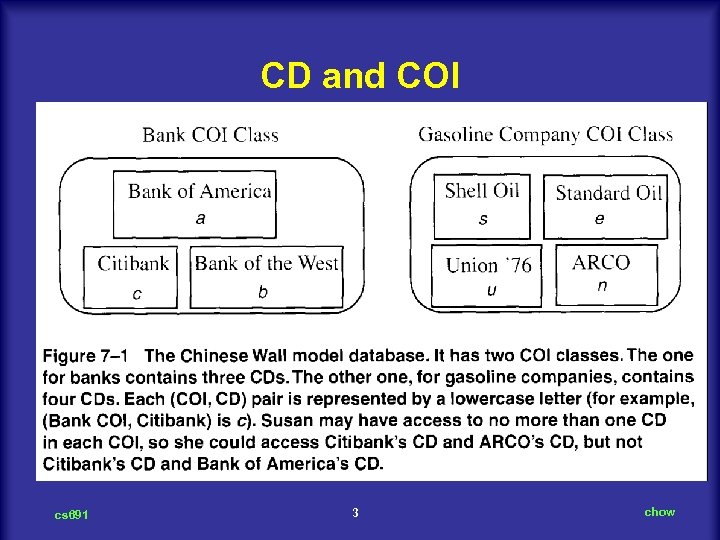

CD and COI cs 691 3 chow

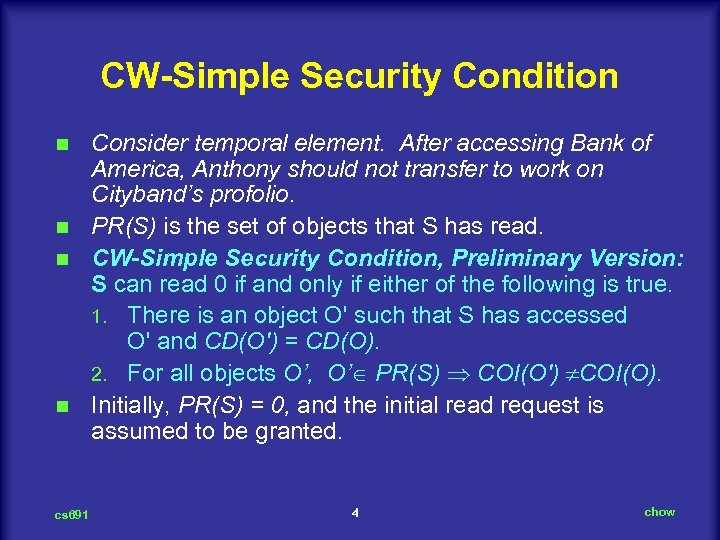

CW-Simple Security Condition Consider temporal element. After accessing Bank of America, Anthony should not transfer to work on Cityband’s profolio. n PR(S) is the set of objects that S has read. n CW-Simple Security Condition, Preliminary Version: S can read 0 if and only if either of the following is true. 1. There is an object O' such that S has accessed O' and CD(O') = CD(O). 2. For all objects O’, O’ PR(S) COI(O') COI(O). n Initially, PR(S) = 0, and the initial read request is assumed to be granted. n cs 691 4 chow

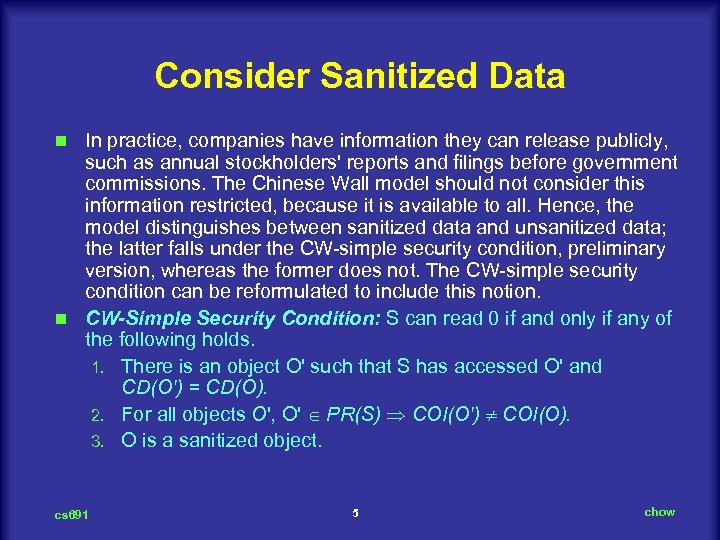

Consider Sanitized Data In practice, companies have information they can release publicly, such as annual stockholders' reports and filings before government commissions. The Chinese Wall model should not consider this information restricted, because it is available to all. Hence, the model distinguishes between sanitized data and unsanitized data; the latter falls under the CW simple security condition, preliminary version, whereas the former does not. The CW simple security condition can be reformulated to include this notion. n CW-Simple Security Condition: S can read 0 if and only if any of the following holds. 1. There is an object O' such that S has accessed O' and CD(O') = CD(O). 2. For all objects O', O' PR(S) COI(O') COI(O). 3. O is a sanitized object. n cs 691 5 chow

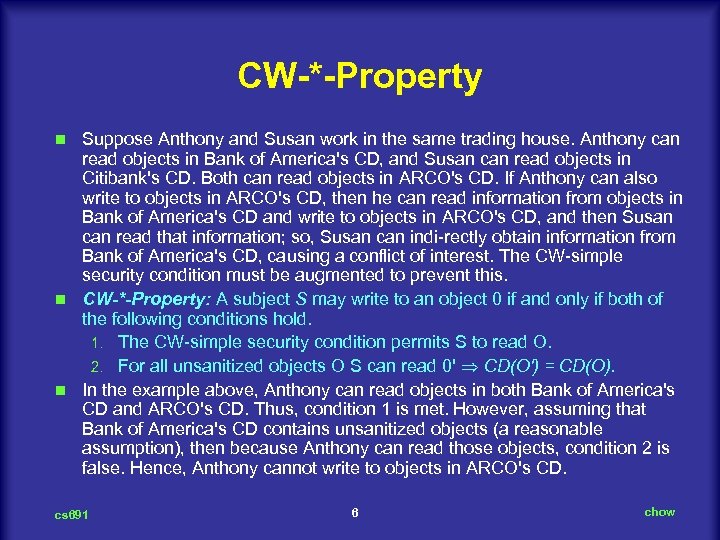

CW-*-Property Suppose Anthony and Susan work in the same trading house. Anthony can read objects in Bank of America's CD, and Susan can read objects in Citibank's CD. Both can read objects in ARCO's CD. If Anthony can also write to objects in ARCO's CD, then he can read information from objects in Bank of America's CD and write to objects in ARCO's CD, and then Susan can read that information; so, Susan can indi rectly obtain information from Bank of America's CD, causing a conflict of interest. The CW simple security condition must be augmented to prevent this. n CW-*-Property: A subject S may write to an object 0 if and only if both of the following conditions hold. 1. The CW simple security condition permits S to read O. 2. For all unsanitized objects O S can read 0' CD(O') = CD(O). n In the example above, Anthony can read objects in both Bank of America's CD and ARCO's CD. Thus, condition 1 is met. However, assuming that Bank of America's CD contains unsanitized objects (a reasonable assumption), then because Anthony can read those objects, condition 2 is false. Hence, Anthony cannot write to objects in ARCO's CD. n cs 691 6 chow
