Hybrid Networking What’s in GLIF for you? APAN 24 th Meeting, Xi’an, China – Hybrid Networking What’s in GLIF for you? APAN 24 th Meeting, Xi’an, China – August 28, 2007 Erik-Jan Bos, SURFnet, The Netherlands

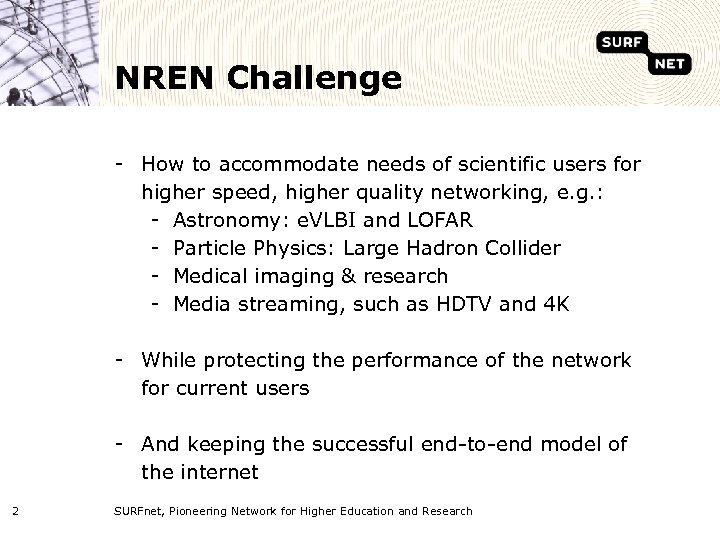

NREN Challenge - How to accommodate needs of scientific users for higher speed, higher NREN Challenge - How to accommodate needs of scientific users for higher speed, higher quality networking, e. g. : - Astronomy: e. VLBI and LOFAR - Particle Physics: Large Hadron Collider - Medical imaging & research - Media streaming, such as HDTV and 4 K - While protecting the performance of the network for current users - And keeping the successful end-to-end model of the internet 2 SURFnet, Pioneering Network for Higher Education and Research

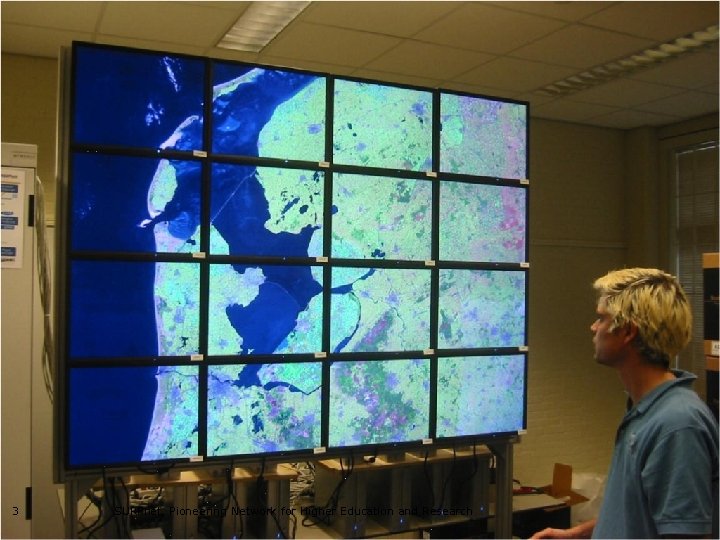

Photo section 3 SURFnet, Pioneering Network for Higher Education and Research Photo section 3 SURFnet, Pioneering Network for Higher Education and Research

LHC high-level network architecture 4 SURFnet, Pioneering Network for Higher Education and Research LHC high-level network architecture 4 SURFnet, Pioneering Network for Higher Education and Research

We realized that… - Counting on bigger routers and fatter pipes was no longer We realized that… - Counting on bigger routers and fatter pipes was no longer a realistic option. - And introducing Qo. S was not a viable alternative of course. - Next Generation Research Networks would not be a simple extrapolation of the current Internet evolution anymore. 5 SURFnet, Pioneering Network for Higher Education and Research

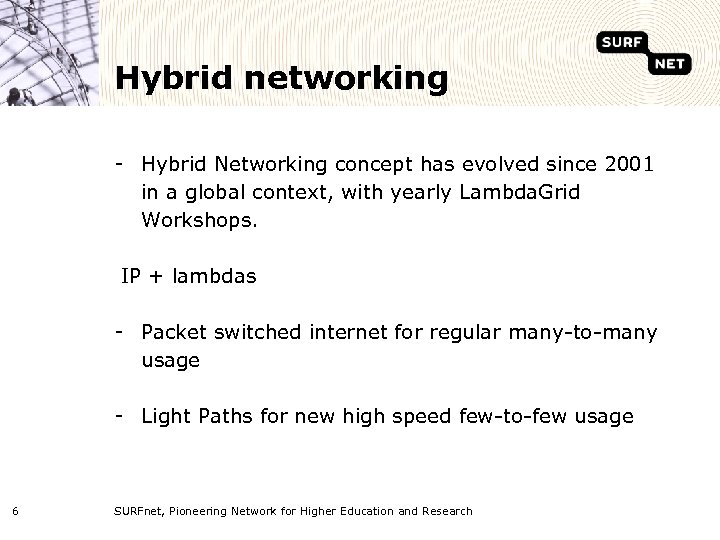

Hybrid networking - Hybrid Networking concept has evolved since 2001 in a global context, Hybrid networking - Hybrid Networking concept has evolved since 2001 in a global context, with yearly Lambda. Grid Workshops. IP + lambdas - Packet switched internet for regular many-to-many usage - Light Paths for new high speed few-to-few usage 6 SURFnet, Pioneering Network for Higher Education and Research

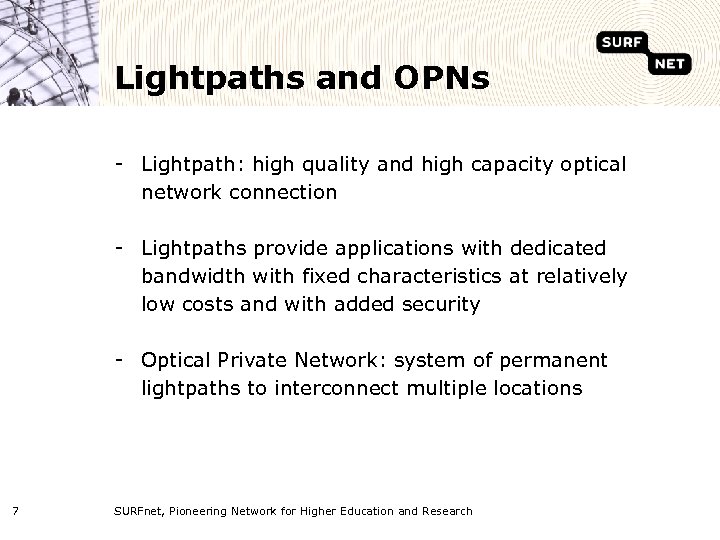

Lightpaths and OPNs - Lightpath: high quality and high capacity optical network connection - Lightpaths and OPNs - Lightpath: high quality and high capacity optical network connection - Lightpaths provide applications with dedicated bandwidth with fixed characteristics at relatively low costs and with added security - Optical Private Network: system of permanent lightpaths to interconnect multiple locations 7 SURFnet, Pioneering Network for Higher Education and Research

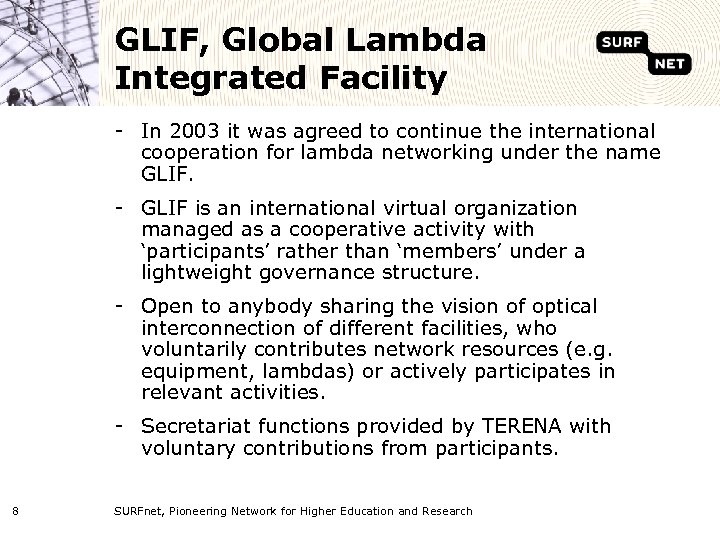

GLIF, Global Lambda Integrated Facility - In 2003 it was agreed to continue the GLIF, Global Lambda Integrated Facility - In 2003 it was agreed to continue the international cooperation for lambda networking under the name GLIF. - GLIF is an international virtual organization managed as a cooperative activity with ‘participants’ rather than ‘members’ under a lightweight governance structure. - Open to anybody sharing the vision of optical interconnection of different facilities, who voluntarily contributes network resources (e. g. equipment, lambdas) or actively participates in relevant activities. - Secretariat functions provided by TERENA with voluntary contributions from participants. 8 SURFnet, Pioneering Network for Higher Education and Research

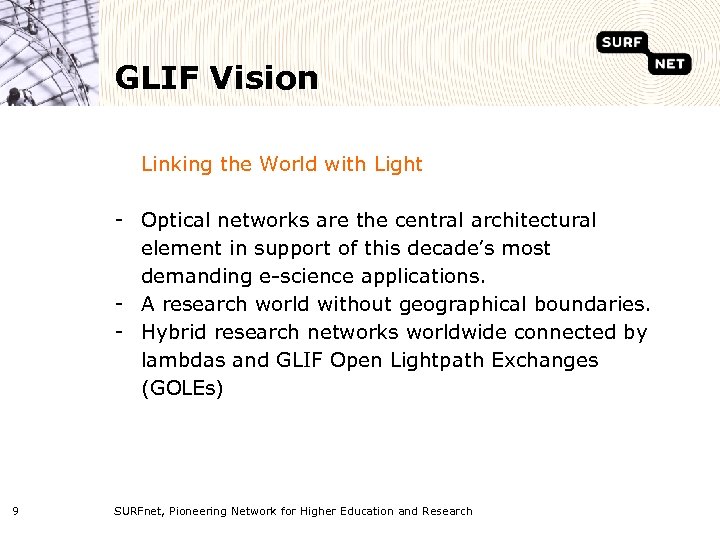

GLIF Vision Linking the World with Light - Optical networks are the central architectural GLIF Vision Linking the World with Light - Optical networks are the central architectural element in support of this decade’s most demanding e-science applications. - A research world without geographical boundaries. - Hybrid research networks worldwide connected by lambdas and GLIF Open Lightpath Exchanges (GOLEs) 9 SURFnet, Pioneering Network for Higher Education and Research

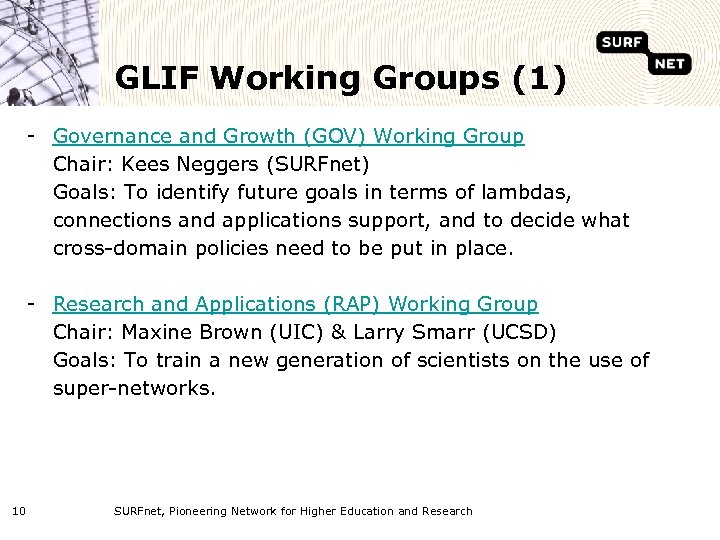

GLIF Working Groups (1) - Governance and Growth (GOV) Working Group Chair: Kees Neggers GLIF Working Groups (1) - Governance and Growth (GOV) Working Group Chair: Kees Neggers (SURFnet) Goals: To identify future goals in terms of lambdas, connections and applications support, and to decide what cross-domain policies need to be put in place. - Research and Applications (RAP) Working Group Chair: Maxine Brown (UIC) & Larry Smarr (UCSD) Goals: To train a new generation of scientists on the use of super-networks. 10 SURFnet, Pioneering Network for Higher Education and Research

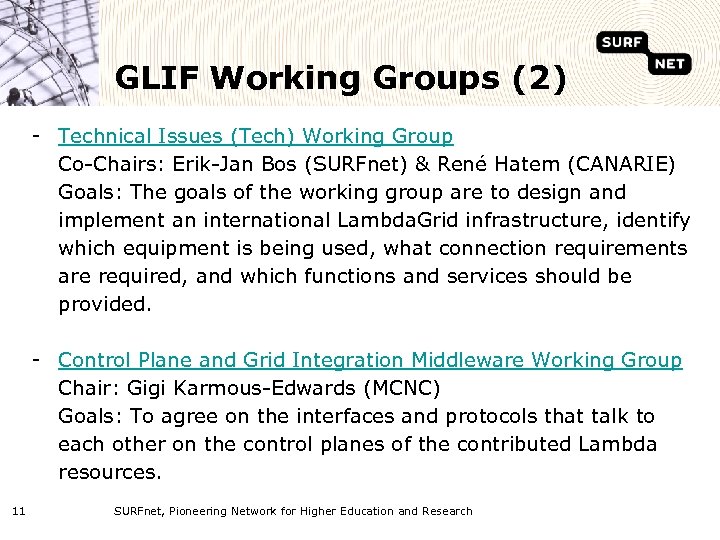

GLIF Working Groups (2) - Technical Issues (Tech) Working Group Co-Chairs: Erik-Jan Bos (SURFnet) GLIF Working Groups (2) - Technical Issues (Tech) Working Group Co-Chairs: Erik-Jan Bos (SURFnet) & René Hatem (CANARIE) Goals: The goals of the working group are to design and implement an international Lambda. Grid infrastructure, identify which equipment is being used, what connection requirements are required, and which functions and services should be provided. - Control Plane and Grid Integration Middleware Working Group Chair: Gigi Karmous-Edwards (MCNC) Goals: To agree on the interfaces and protocols that talk to each other on the control planes of the contributed Lambda resources. 11 SURFnet, Pioneering Network for Higher Education and Research

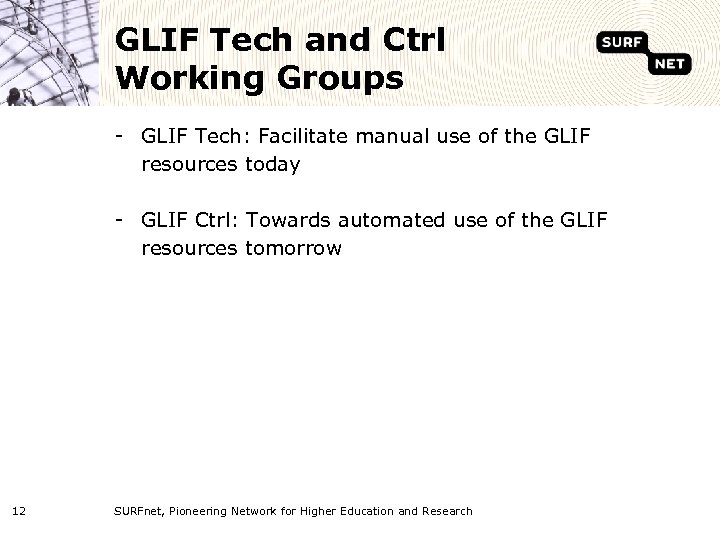

GLIF Tech and Ctrl Working Groups - GLIF Tech: Facilitate manual use of the GLIF Tech and Ctrl Working Groups - GLIF Tech: Facilitate manual use of the GLIF resources today - GLIF Ctrl: Towards automated use of the GLIF resources tomorrow 12 SURFnet, Pioneering Network for Higher Education and Research

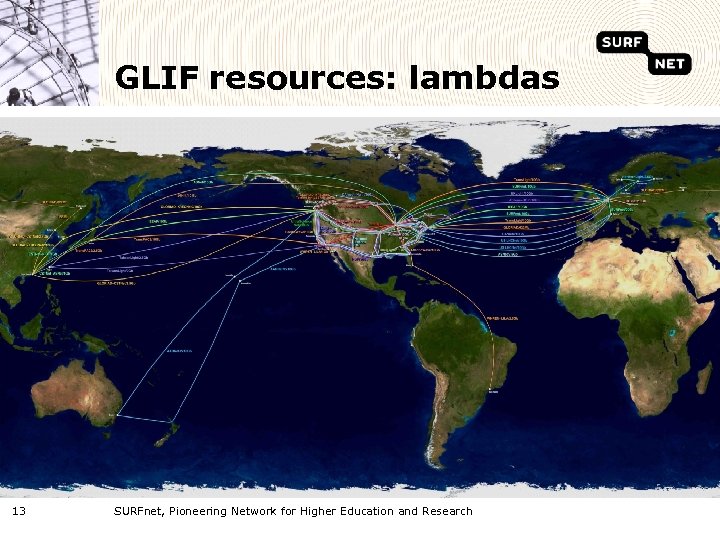

GLIF resources: lambdas 13 SURFnet, Pioneering Network for Higher Education and Research GLIF resources: lambdas 13 SURFnet, Pioneering Network for Higher Education and Research

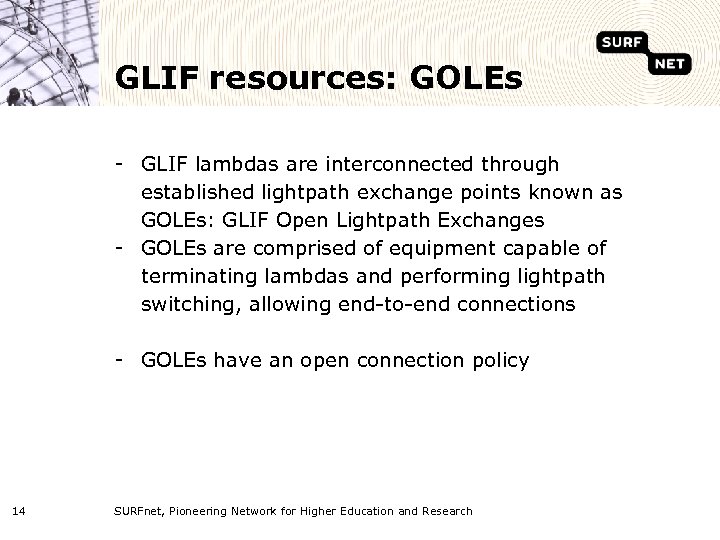

GLIF resources: GOLEs - GLIF lambdas are interconnected through established lightpath exchange points known GLIF resources: GOLEs - GLIF lambdas are interconnected through established lightpath exchange points known as GOLEs: GLIF Open Lightpath Exchanges - GOLEs are comprised of equipment capable of terminating lambdas and performing lightpath switching, allowing end-to-end connections - GOLEs have an open connection policy 14 SURFnet, Pioneering Network for Higher Education and Research

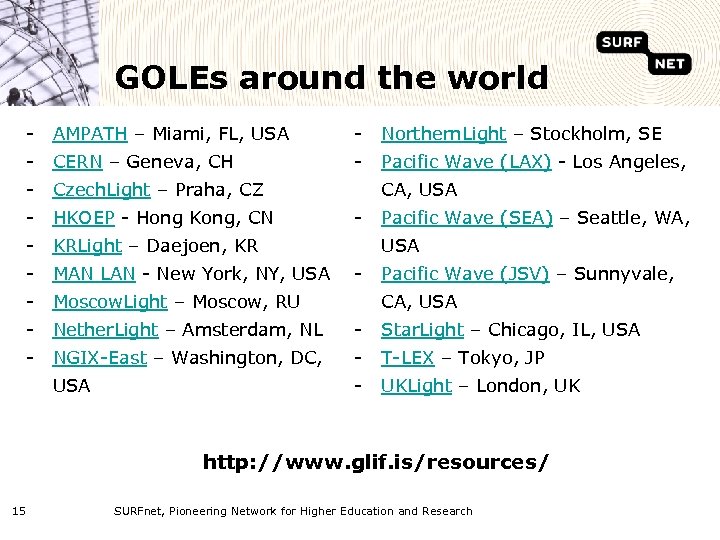

GOLEs around the world - AMPATH – Miami, FL, USA - Northern. Light – GOLEs around the world - AMPATH – Miami, FL, USA - Northern. Light – Stockholm, SE - CERN – Geneva, CH - Pacific Wave (LAX) - Los Angeles, - Czech. Light – Praha, CZ - HKOEP - Hong Kong, CN - KRLight – Daejoen, KR - MAN LAN - New York, NY, USA - Moscow. Light – Moscow, RU - Nether. Light – Amsterdam, NL - Star. Light – Chicago, IL, USA - NGIX-East – Washington, DC, - T-LEX – Tokyo, JP USA - UKLight – London, UK CA, USA - Pacific Wave (SEA) – Seattle, WA, USA - Pacific Wave (JSV) – Sunnyvale, CA, USA http: //www. glif. is/resources/ 15 SURFnet, Pioneering Network for Higher Education and Research

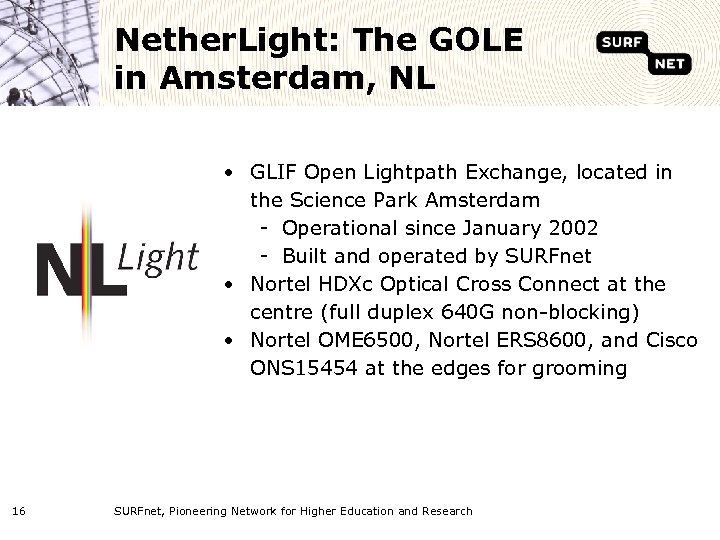

Nether. Light: The GOLE in Amsterdam, NL • GLIF Open Lightpath Exchange, located in Nether. Light: The GOLE in Amsterdam, NL • GLIF Open Lightpath Exchange, located in the Science Park Amsterdam - Operational since January 2002 - Built and operated by SURFnet • Nortel HDXc Optical Cross Connect at the centre (full duplex 640 G non-blocking) • Nortel OME 6500, Nortel ERS 8600, and Cisco ONS 15454 at the edges for grooming 16 SURFnet, Pioneering Network for Higher Education and Research

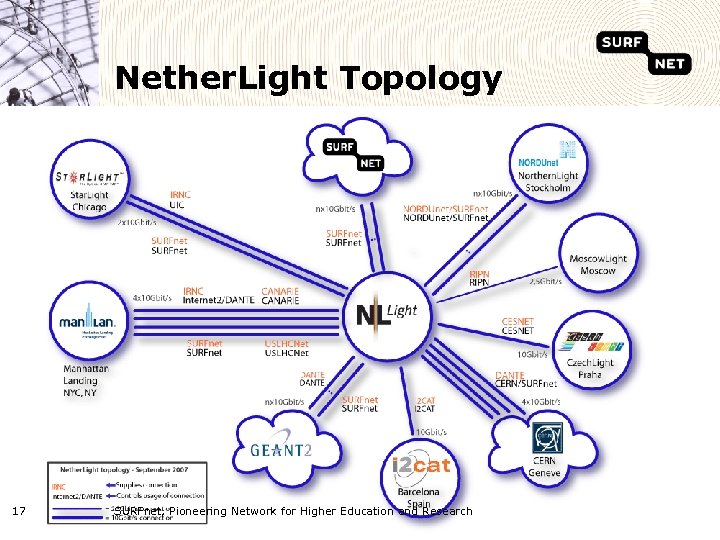

Nether. Light Topology 17 SURFnet, Pioneering Network for Higher Education and Research Nether. Light Topology 17 SURFnet, Pioneering Network for Higher Education and Research

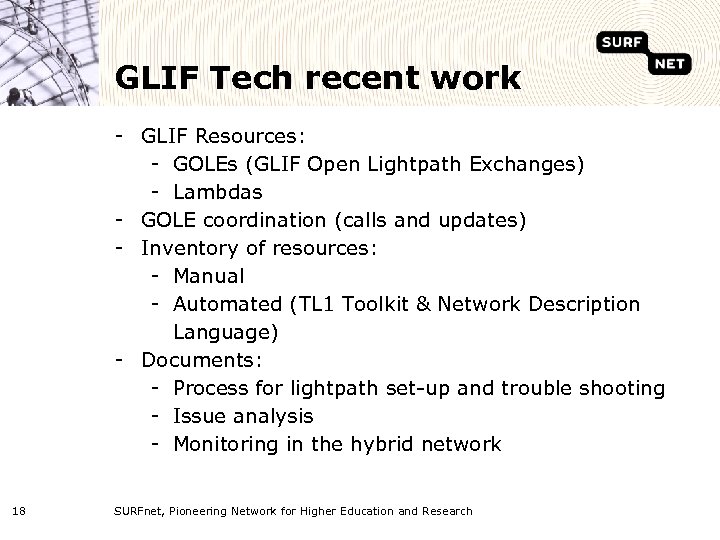

GLIF Tech recent work - GLIF Resources: - GOLEs (GLIF Open Lightpath Exchanges) - GLIF Tech recent work - GLIF Resources: - GOLEs (GLIF Open Lightpath Exchanges) - Lambdas - GOLE coordination (calls and updates) - Inventory of resources: - Manual - Automated (TL 1 Toolkit & Network Description Language) - Documents: - Process for lightpath set-up and trouble shooting - Issue analysis - Monitoring in the hybrid network 18 SURFnet, Pioneering Network for Higher Education and Research

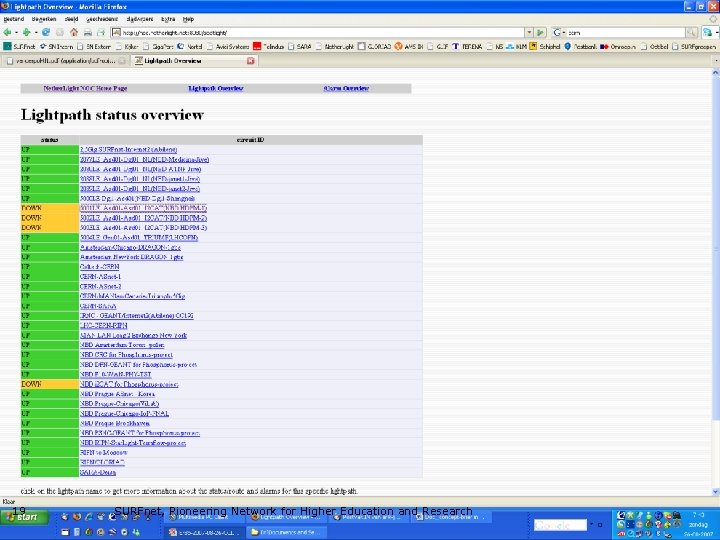

19 SURFnet, Pioneering Network for Higher Education and Research 19 SURFnet, Pioneering Network for Higher Education and Research

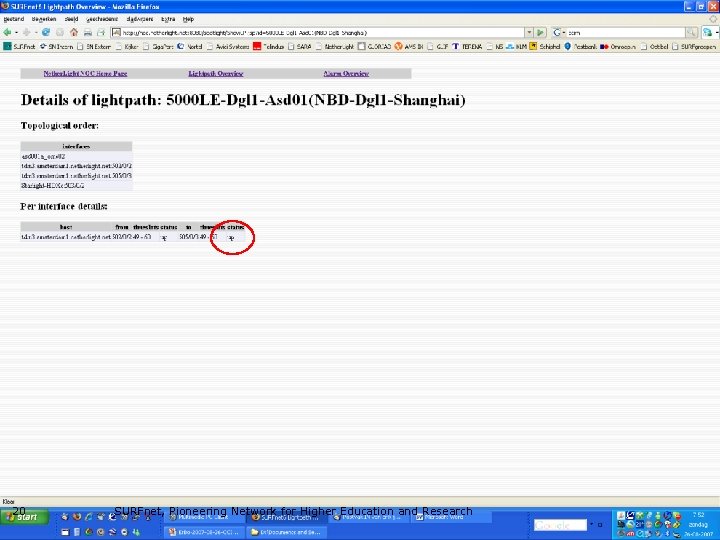

20 SURFnet, Pioneering Network for Higher Education and Research 20 SURFnet, Pioneering Network for Higher Education and Research

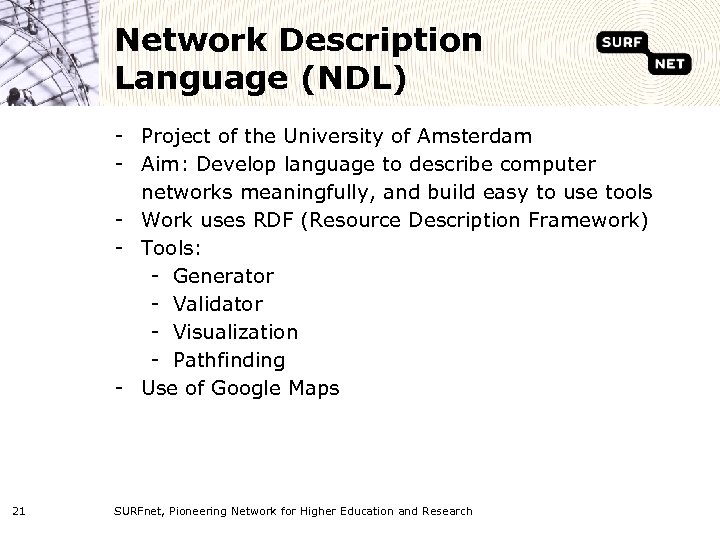

Network Description Language (NDL) - Project of the University of Amsterdam - Aim: Develop Network Description Language (NDL) - Project of the University of Amsterdam - Aim: Develop language to describe computer networks meaningfully, and build easy to use tools - Work uses RDF (Resource Description Framework) - Tools: - Generator - Validator - Visualization - Pathfinding - Use of Google Maps 21 SURFnet, Pioneering Network for Higher Education and Research

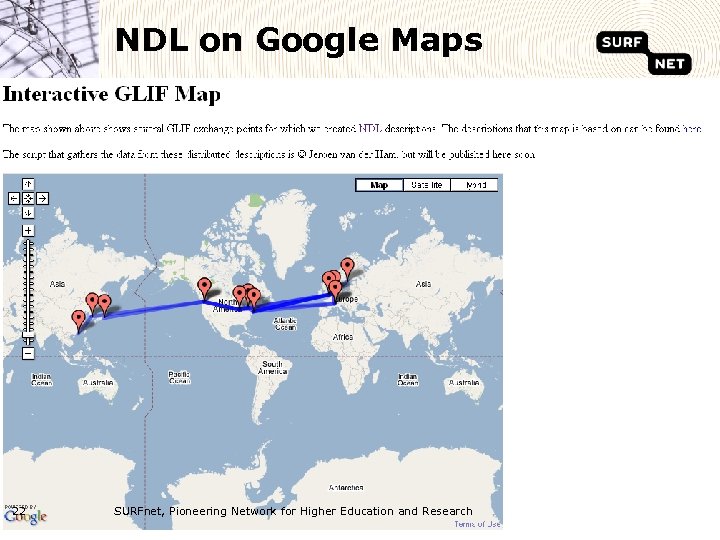

NDL on Google Maps 22 SURFnet, Pioneering Network for Higher Education and Research NDL on Google Maps 22 SURFnet, Pioneering Network for Higher Education and Research

Important topics for next GLIF Tech & Ctrl - 23 Control plane interworking Advances Important topics for next GLIF Tech & Ctrl - 23 Control plane interworking Advances in the TL 1 Toolkit tools and NDL Technical challenges in VLAN-based “lightpaths” Enlighten your research (SURFnet) experiences SURFnet, Pioneering Network for Higher Education and Research

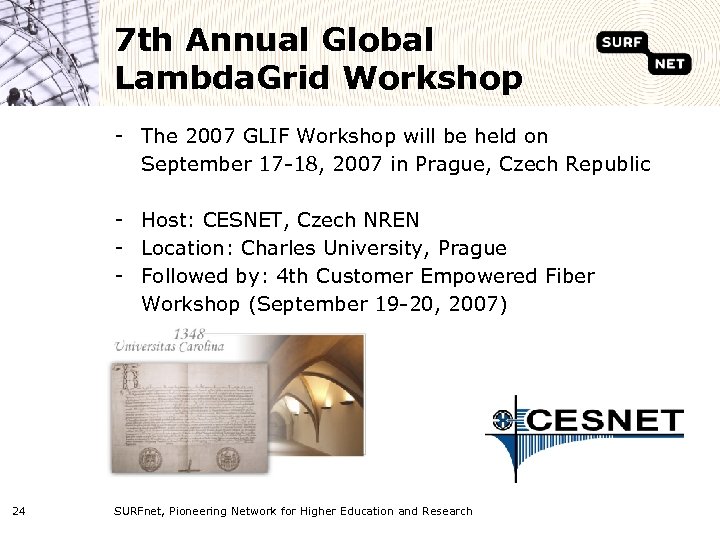

7 th Annual Global Lambda. Grid Workshop - The 2007 GLIF Workshop will be 7 th Annual Global Lambda. Grid Workshop - The 2007 GLIF Workshop will be held on September 17 -18, 2007 in Prague, Czech Republic - Host: CESNET, Czech NREN - Location: Charles University, Prague - Followed by: 4 th Customer Empowered Fiber Workshop (September 19 -20, 2007) 24 SURFnet, Pioneering Network for Higher Education and Research

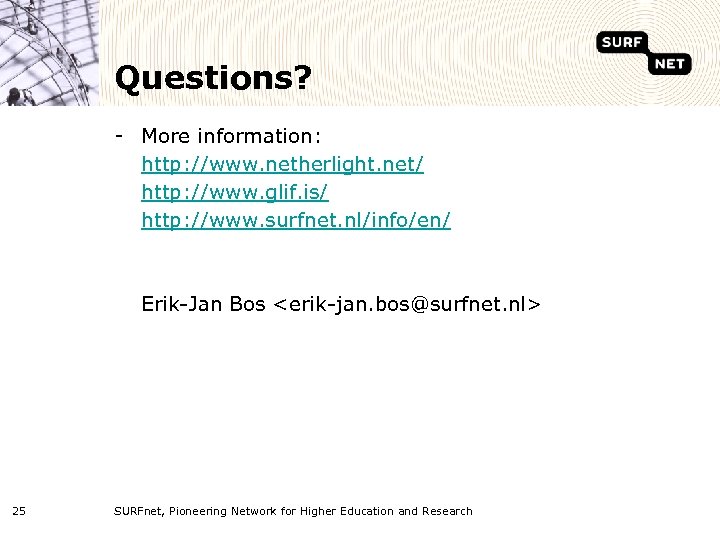

Questions? - More information: http: //www. netherlight. net/ http: //www. glif. is/ http: //www. Questions? - More information: http: //www. netherlight. net/ http: //www. glif. is/ http: //www. surfnet. nl/info/en/ Erik-Jan Bos 25 SURFnet, Pioneering Network for Higher Education and Research

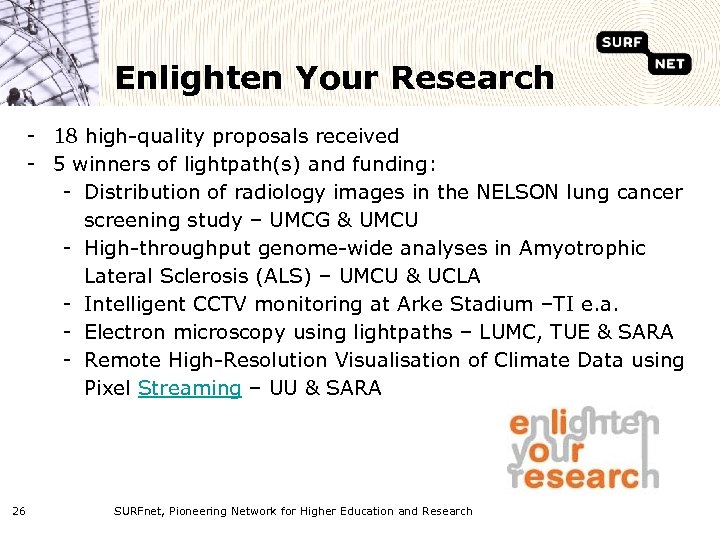

Enlighten Your Research - 18 high-quality proposals received - 5 winners of lightpath(s) and Enlighten Your Research - 18 high-quality proposals received - 5 winners of lightpath(s) and funding: - Distribution of radiology images in the NELSON lung cancer screening study – UMCG & UMCU - High-throughput genome-wide analyses in Amyotrophic Lateral Sclerosis (ALS) – UMCU & UCLA - Intelligent CCTV monitoring at Arke Stadium –TI e. a. - Electron microscopy using lightpaths – LUMC, TUE & SARA - Remote High-Resolution Visualisation of Climate Data using Pixel Streaming – UU & SARA 26 SURFnet, Pioneering Network for Higher Education and Research

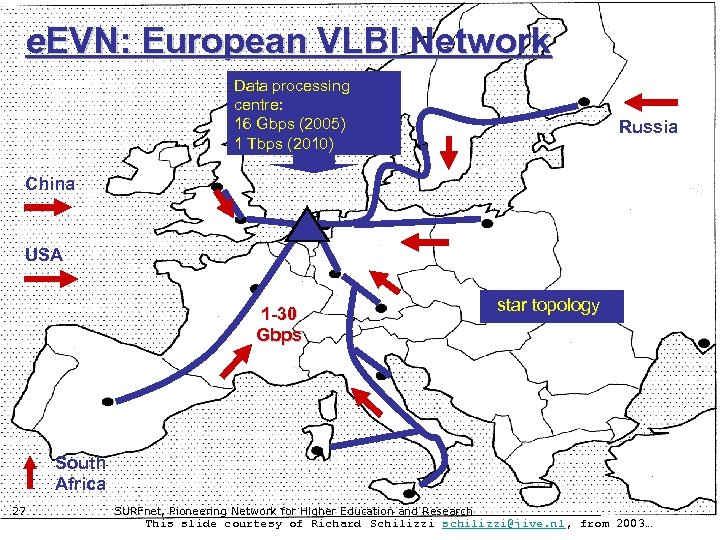

e. EVN: European VLBI Network Data processing centre: 16 Gbps (2005) 1 Tbps (2010) e. EVN: European VLBI Network Data processing centre: 16 Gbps (2005) 1 Tbps (2010) Russia China USA 1 -30 Gbps asymmetric star topology South Africa 27 SURFnet, Pioneering Network for Higher Education and Research This slide courtesy of Richard Schilizzi [email protected] nl, from 2003…
