HW/SW Interface Management thru Automated Register Specification Anupam Bakshi Engineering Director Agnisys Technology Pvt. HW/SW Interface Management thru Automated Register Specification Anupam Bakshi Engineering Director Agnisys Technology Pvt. Ltd. [email protected] us Embedded Systems Conference Noida, India. 2008 www. agnisys. us 1

Agenda n Introduction n HW design process n The Problem n Possible Solutions n Agenda n Introduction n HW design process n The Problem n Possible Solutions n Q&A www. agnisys. us 2

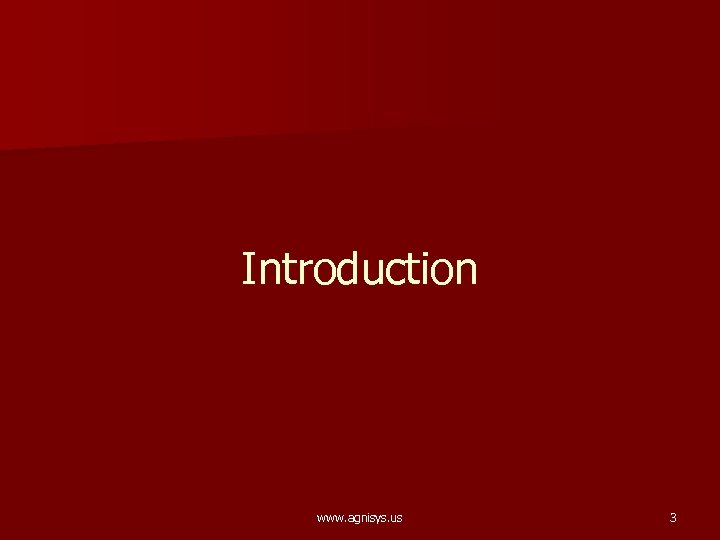

Introduction www. agnisys. us 3 Introduction www. agnisys. us 3

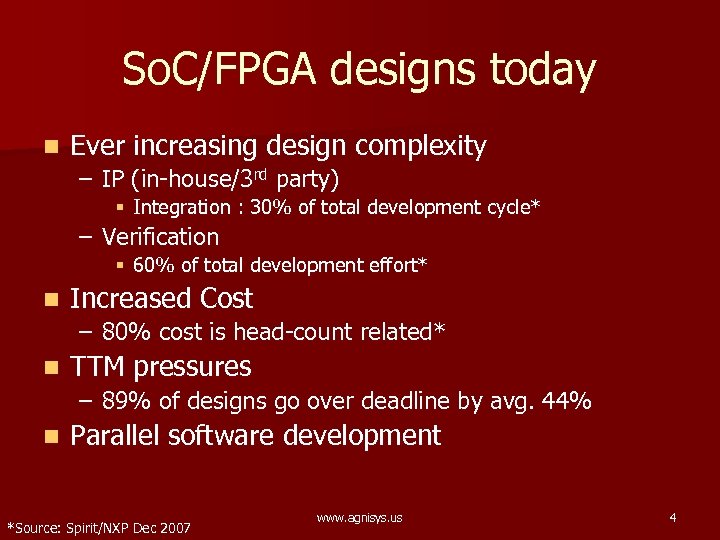

So. C/FPGA designs today n Ever increasing design complexity – IP (in-house/3 rd party) So. C/FPGA designs today n Ever increasing design complexity – IP (in-house/3 rd party) § Integration : 30% of total development cycle* – Verification § 60% of total development effort* n Increased Cost – 80% cost is head-count related* n TTM pressures – 89% of designs go over deadline by avg. 44% n Parallel software development *Source: Spirit/NXP Dec 2007 www. agnisys. us 4

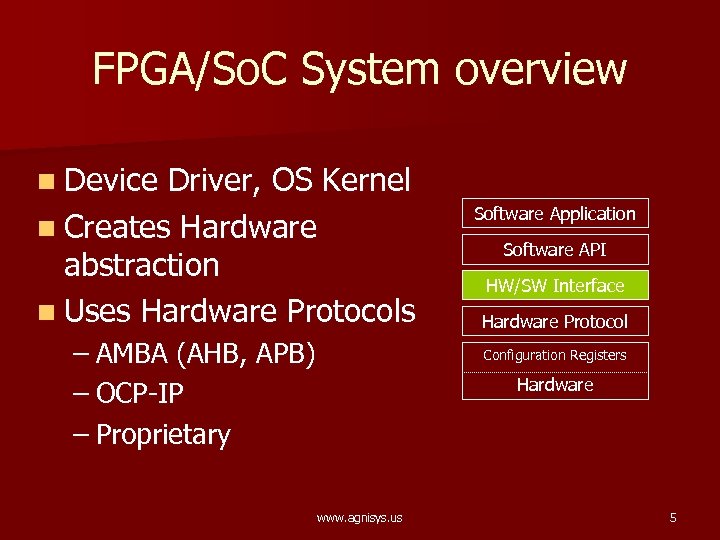

FPGA/So. C System overview n Device Driver, OS Kernel n Creates Hardware abstraction n FPGA/So. C System overview n Device Driver, OS Kernel n Creates Hardware abstraction n Uses Hardware Protocols – AMBA (AHB, APB) – OCP-IP – Proprietary Software Application Software API HW/SW Interface Hardware Protocol Configuration Registers Hardware www. agnisys. us 5

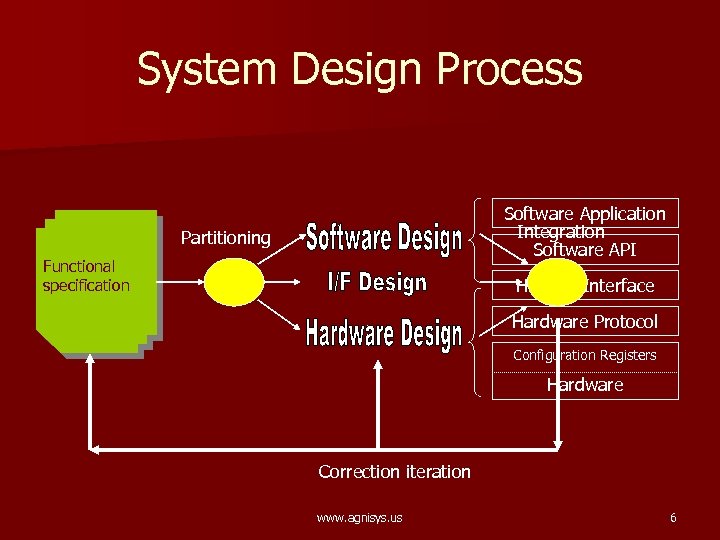

System Design Process Software Application Integration Software API Partitioning Functional specification HW/SW Interface Hardware System Design Process Software Application Integration Software API Partitioning Functional specification HW/SW Interface Hardware Protocol Configuration Registers Hardware Correction iteration www. agnisys. us 6

System Design Process Spec Hardware Design VHDL Programming guide or MS excel file Hardware System Design Process Spec Hardware Design VHDL Programming guide or MS excel file Hardware Verification System Diagnostics/Firmware C/C++ Header Application Software www. agnisys. us 7

Canonical Hardware System www. agnisys. us 8 Canonical Hardware System www. agnisys. us 8

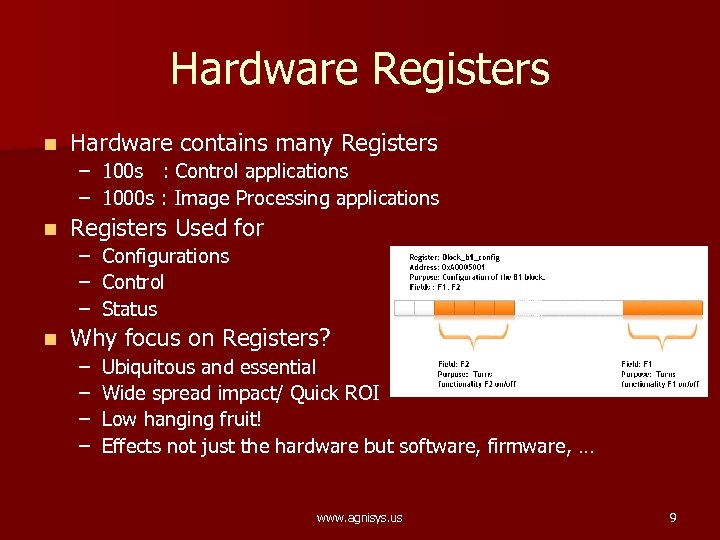

Hardware Registers n Hardware contains many Registers – 100 s : Control applications – Hardware Registers n Hardware contains many Registers – 100 s : Control applications – 1000 s : Image Processing applications n Registers Used for – – – n Configurations Control Status Why focus on Registers? – – Ubiquitous and essential Wide spread impact/ Quick ROI Low hanging fruit! Effects not just the hardware but software, firmware, … www. agnisys. us 9

The Problem www. agnisys. us 10 The Problem www. agnisys. us 10

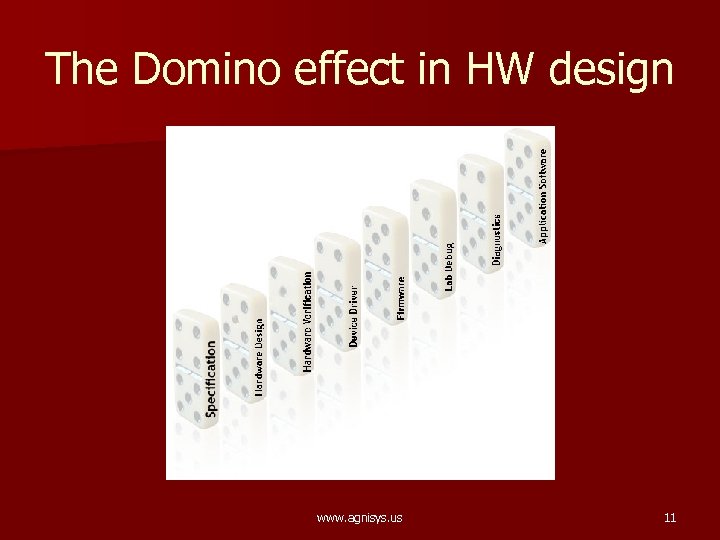

The Domino effect in HW design www. agnisys. us 11 The Domino effect in HW design www. agnisys. us 11

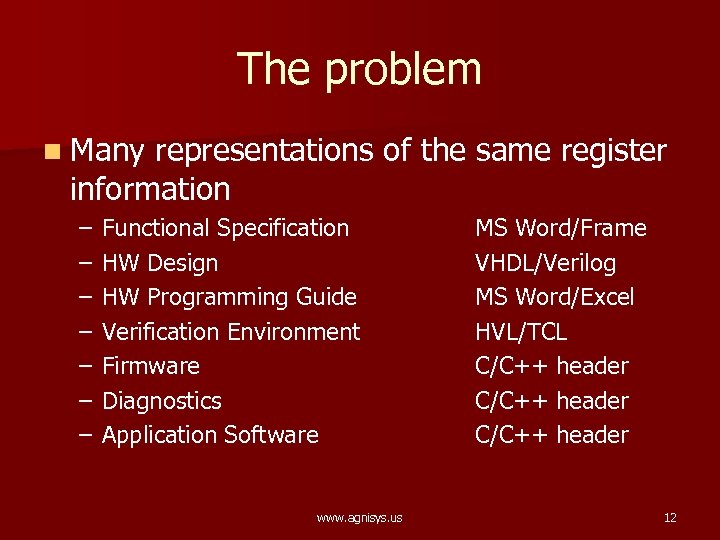

The problem n Many representations of the same register information – – – – The problem n Many representations of the same register information – – – – Functional Specification HW Design HW Programming Guide Verification Environment Firmware Diagnostics Application Software www. agnisys. us MS Word/Frame VHDL/Verilog MS Word/Excel HVL/TCL C/C++ header 12

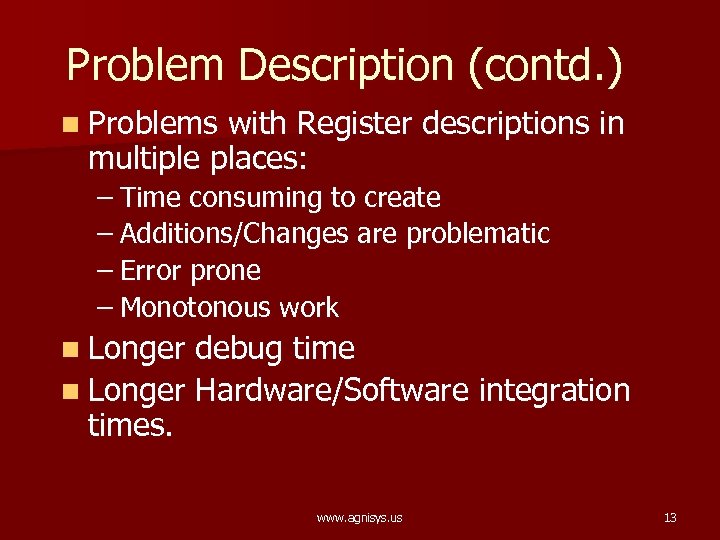

Problem Description (contd. ) n Problems with Register descriptions in multiple places: – Time Problem Description (contd. ) n Problems with Register descriptions in multiple places: – Time consuming to create – Additions/Changes are problematic – Error prone – Monotonous work n Longer debug time n Longer Hardware/Software integration times. www. agnisys. us 13

Problem Description (contd. ) Number of register is large 2. Changes are inevitable during Problem Description (contd. ) Number of register is large 2. Changes are inevitable during design process 1. – – – Add/remove registers Register definition/bit fields Register location Register type (r, r/w, w 1 c, …) Register implementation www. agnisys. us 14

Possible Solutions www. agnisys. us 15 Possible Solutions www. agnisys. us 15

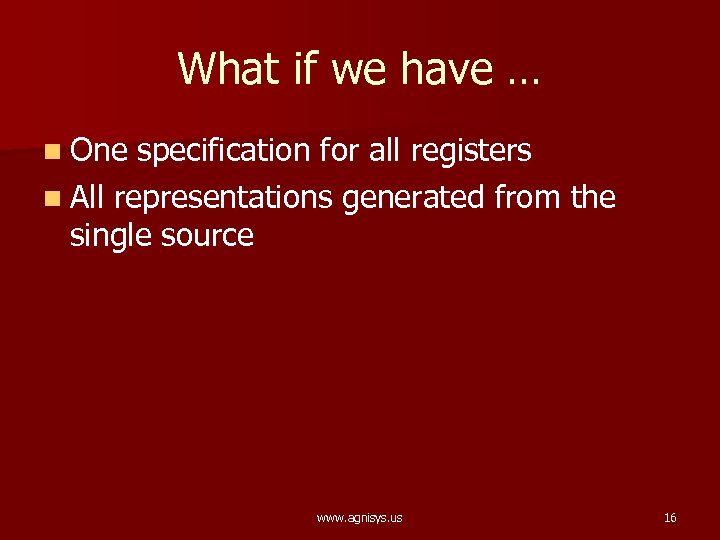

What if we have … n One specification for all registers n All representations What if we have … n One specification for all registers n All representations generated from the single source www. agnisys. us 16

Possible solutions n Single description for all registers – SPIRIT – System. RDL n Possible solutions n Single description for all registers – SPIRIT – System. RDL n Implementation – GUI based tools – Eclipse based tools – Editor based tools www. agnisys. us 17

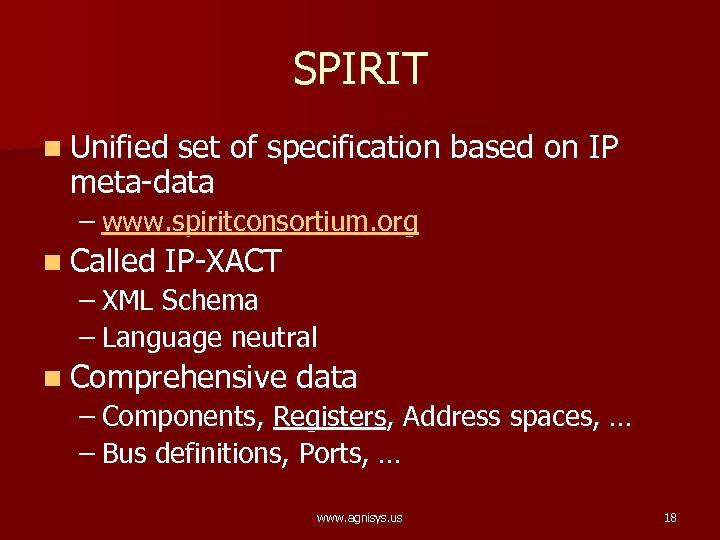

SPIRIT n Unified set of specification based on IP meta-data – www. spiritconsortium. org SPIRIT n Unified set of specification based on IP meta-data – www. spiritconsortium. org n Called IP-XACT – XML Schema – Language neutral n Comprehensive data – Components, Registers, Address spaces, … – Bus definitions, Ports, … www. agnisys. us 18

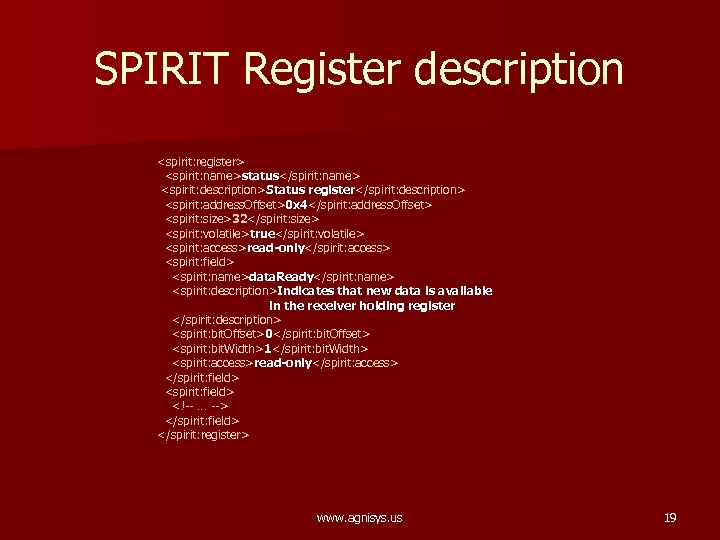

SPIRIT Register description <spirit: register> <spirit: name>status</spirit: name> <spirit: description>Status register</spirit: description> <spirit: address. SPIRIT Register description status Status register 0 x 4 32 true read-only data. Ready Indicates that new data is available in the receiver holding register 0 1 read-only www. agnisys. us 19

System. RDL n Open specification – www. denali. com n Textual n non-XML based System. RDL n Open specification – www. denali. com n Textual n non-XML based n New language n Donated to Spirit Reg chip 1 { name = “some reg”; desc = “some desc”; field { hw = w; sw = r} f 1[7: 0] = 8’d 5; field { hw = r; sw = w} f 2[15: 8] = 8’d 10; … } Addresmap blk 1_admap { name = “blk 1 address map in chip 1”; chip 1_reg @0 x 0000; } www. agnisys. us 20

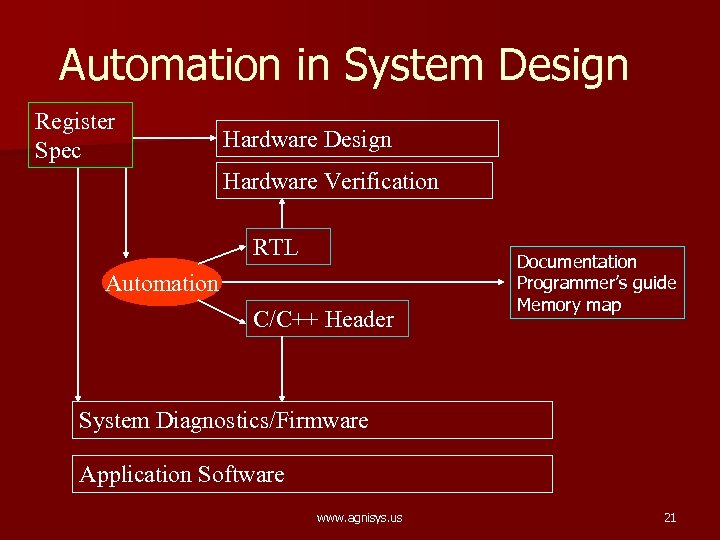

Automation in System Design Register Spec Hardware Design Hardware Verification RTL Automation C/C++ Header Automation in System Design Register Spec Hardware Design Hardware Verification RTL Automation C/C++ Header Documentation Programmer’s guide Memory map System Diagnostics/Firmware Application Software www. agnisys. us 21

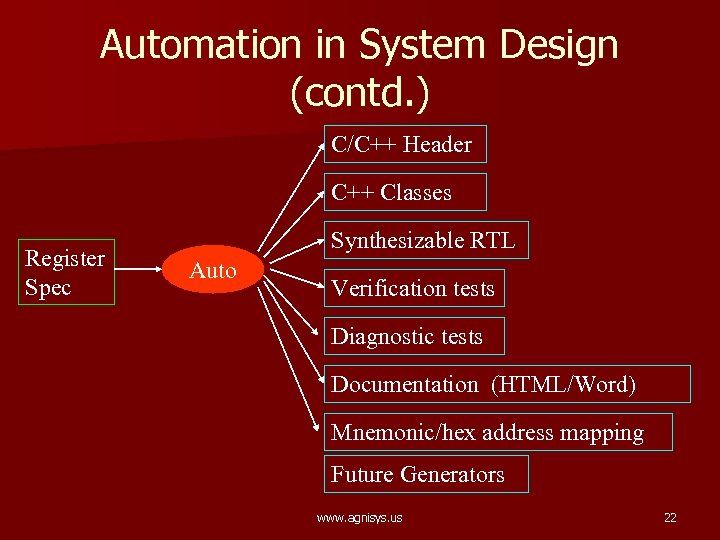

Automation in System Design (contd. ) C/C++ Header C++ Classes Register Spec Synthesizable RTL Automation in System Design (contd. ) C/C++ Header C++ Classes Register Spec Synthesizable RTL Auto Verification tests Diagnostic tests Documentation (HTML/Word) Mnemonic/hex address mapping Future Generators www. agnisys. us 22

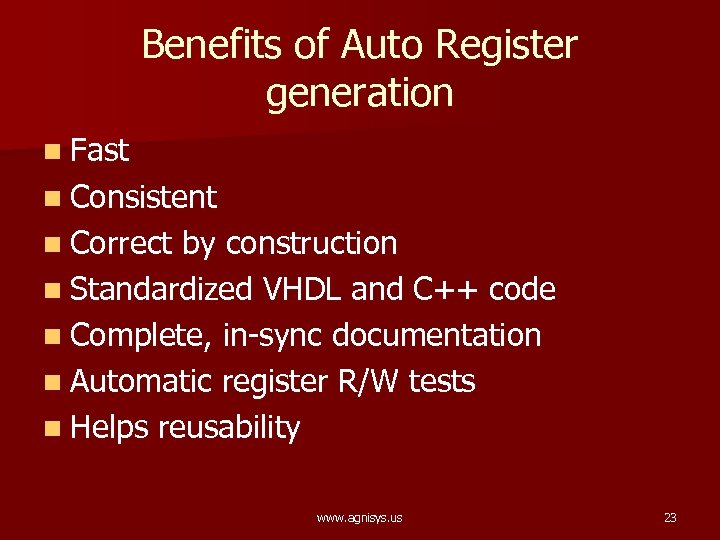

Benefits of Auto Register generation n Fast n Consistent n Correct by construction n Benefits of Auto Register generation n Fast n Consistent n Correct by construction n Standardized VHDL and C++ code n Complete, in-sync documentation n Automatic register R/W tests n Helps reusability www. agnisys. us 23

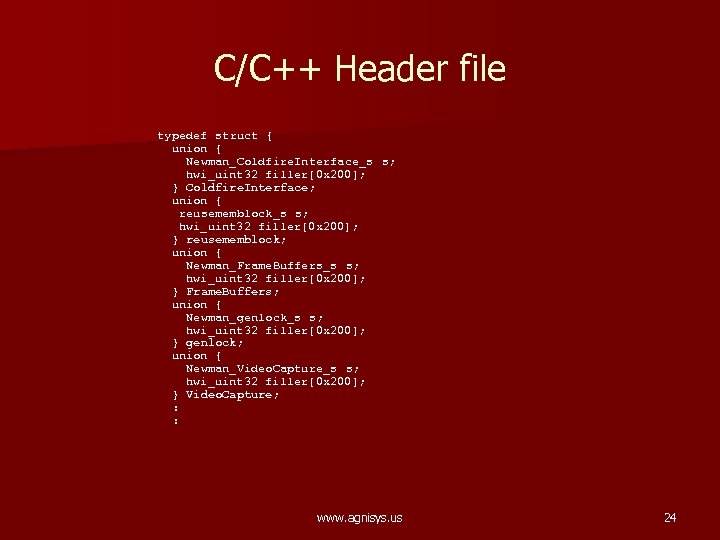

C/C++ Header file typedef struct { union { Newman_Coldfire. Interface_s s; hwi_uint 32 filler[0 C/C++ Header file typedef struct { union { Newman_Coldfire. Interface_s s; hwi_uint 32 filler[0 x 200]; } Coldfire. Interface ; union { reusememblock_s s; hwi_uint 32 filler[0 x 200]; } reusememblock; union { Newman_Frame. Buffers_s s; hwi_uint 32 filler[0 x 200]; } Frame. Buffers; union { Newman_genlock_s s; hwi_uint 32 filler[0 x 200]; } genlock; union { Newman_Video. Capture_s s; hwi_uint 32 filler[0 x 200]; } Video. Capture; : : www. agnisys. us 24

HTML output www. agnisys. us 25 HTML output www. agnisys. us 25

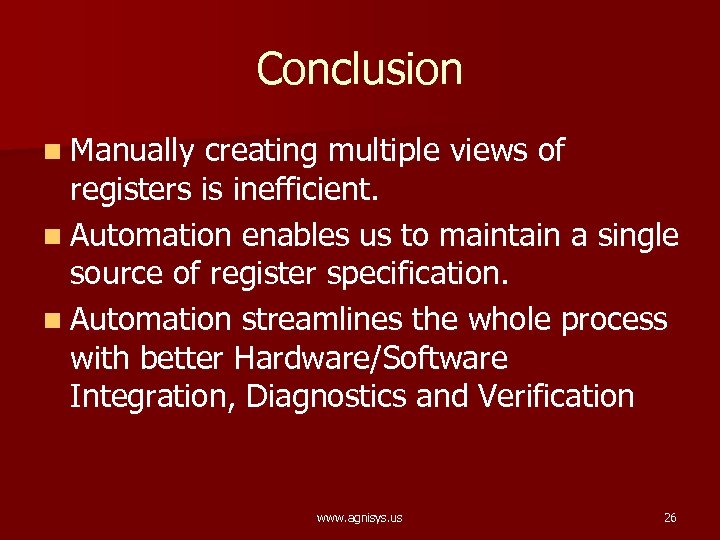

Conclusion n Manually creating multiple views of registers is inefficient. n Automation enables us Conclusion n Manually creating multiple views of registers is inefficient. n Automation enables us to maintain a single source of register specification. n Automation streamlines the whole process with better Hardware/Software Integration, Diagnostics and Verification www. agnisys. us 26

Q/A www. agnisys. us 27 Q/A www. agnisys. us 27
