All in One, One for All AN@CO Curb Building Customer Premise Floor POTS / BRA / PRA / TDM G. SHDSL MSAN Residential ADSL 2+ / VDSL 2 / SHDSL / ATM Business DSLAM ONT FTTH MA 5600 T MDU--MA 5616 OLT GPON CBU--MA 5612 MDU MA 5603 T P 2 P(FE/GE) MA 5603 T VDSL 2 ADSL 2+ POTS FE E 1 Residential FTTB Router FTTC Business FTTO BTS/Femto Cell AGG Node FTTM FTTO POTS GE MSAN--MA 5603 T x. DSL Residential l Unified platform for multiple scenarios: FTTC / FTTB / FTTH / FTTM / FTTO l Supporting full services for multiple customers: Resident / Business / Mobile backhaul l Unified platform with multiple technologies: GPON / P 2 P / VDSL 2 / ADSL 2+ / G. SHDSL / POTS

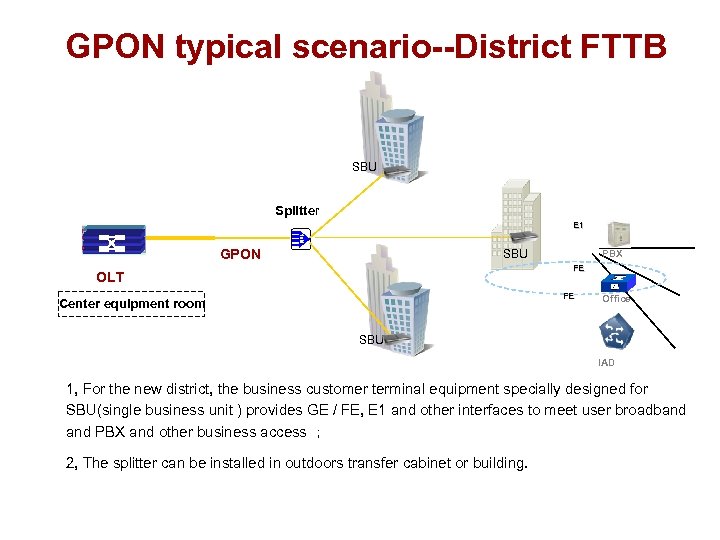

GPON typical scenario--District FTTB SBU Splitter E 1 GPON SBU PBX FE OLT FE Center equipment room Office SBU IAD 1, For the new district, the business customer terminal equipment specially designed for SBU(single business unit ) provides GE / FE, E 1 and other interfaces to meet user broadband PBX and other business access ； 2, The splitter can be installed in outdoors transfer cabinet or building.

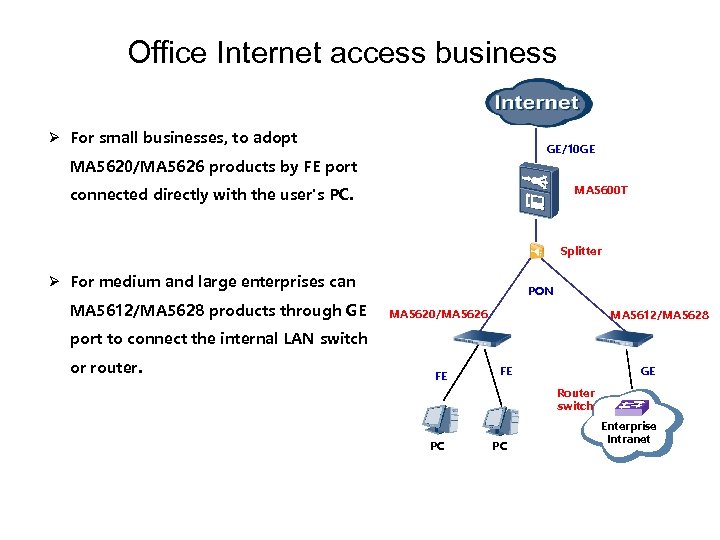

Office Internet access business Ø For small businesses, to adopt GE/10 GE MA 5620/MA 5626 products by FE port MA 5600 T connected directly with the user's PC. Splitter Ø For medium and large enterprises can MA 5612/MA 5628 products through GE PON MA 5620/MA 5626 MA 5612/MA 5628 port to connect the internal LAN switch or router. FE FE GE Router switch PC PC Enterprise Intranet

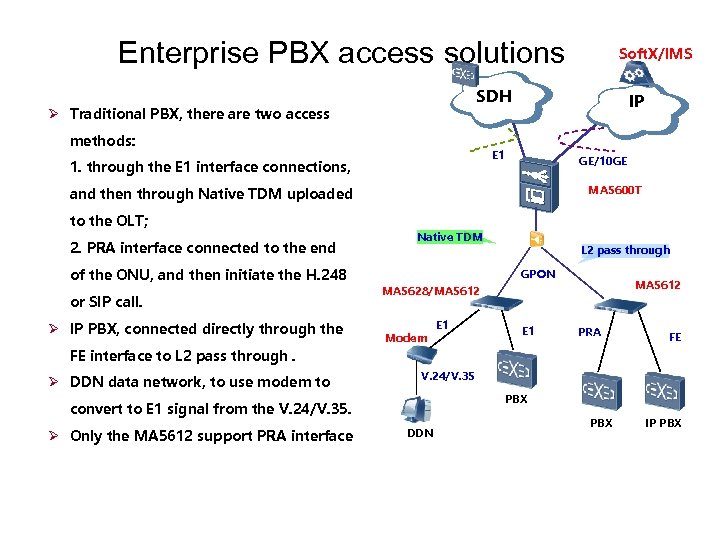

Enterprise PBX access solutions SDH Ø Traditional PBX, there are two access methods: IP E 1 1. through the E 1 interface connections, GE/10 GE MA 5600 T and then through Native TDM uploaded to the OLT; 2. PRA interface connected to the end of the ONU, and then initiate the H. 248 or SIP call. Ø IP PBX, connected directly through the Soft. X/IMS Native TDM L 2 pass through GPON MA 5612 MA 5628/MA 5612 Modem E 1 PRA FE FE interface to L 2 pass through. Ø DDN data network, to use modem to V. 24/V. 35 PBX convert to E 1 signal from the V. 24/V. 35. Ø Only the MA 5612 support PRA interface DDN PBX IP PBX

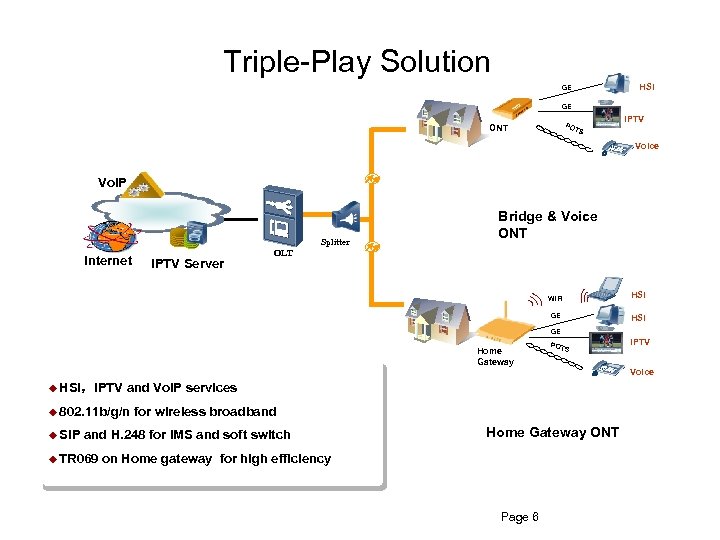

Triple-Play Solution HSI GE GE IPTV PO ONT TS Voice Vo. IP Splitter Internet IPTV Server Bridge & Voice ONT OLT Wi. Fi HSI GE Home Gateway u HSI，IPTV broadband H. 248 for IMS and soft switch u TR 069 S and Vo. IP services u 802. 11 b/g/n for wireless Distribution Network u SIP POT Home Gateway ONT on Home gateway for high efficiency Page 6 IPTV Voice

Easy O&M CATV + GPON Solution IPTV GE CATV Signal POTS Vo. IP GE RF ONT Internet Multicast Server u RF OLT Combiner. Splitter port remote control and querying u Long distance coaxial cable connecting, more than 50 meters u Multi POTS TV on one RF interface Page 7 PC CATV

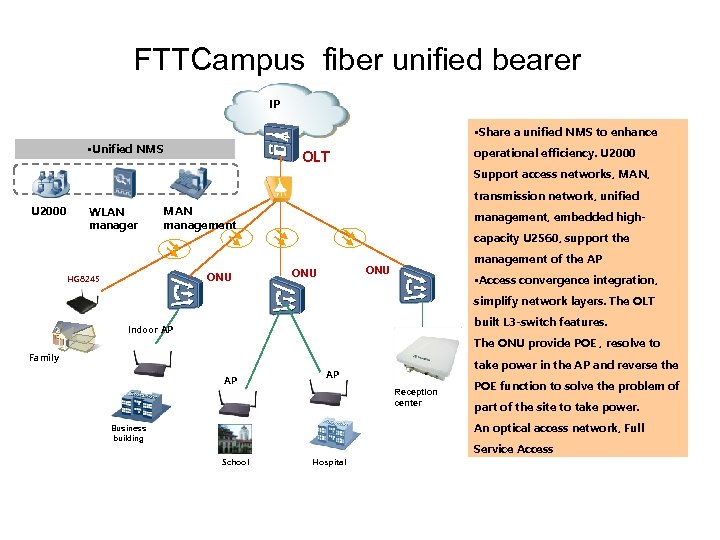

FTTCampus fiber unified bearer IP • Share a unified NMS to enhance • Unified NMS operational efficiency. U 2000 OLT Support access networks, MAN, transmission network, unified U 2000 WLAN manager MAN management ONU HG 8245 management, embedded highcapacity U 2560, support the management of the AP ONU • Access convergence integration, simplify network layers. The OLT Indoor AP AP Family AP built L 3 -switch features. The ONU provide POE , resolve to take power in the AP and reverse the AP Reception center POE function to solve the problem of part of the site to take power. An optical access network, Full Business building Service Access School Hospital

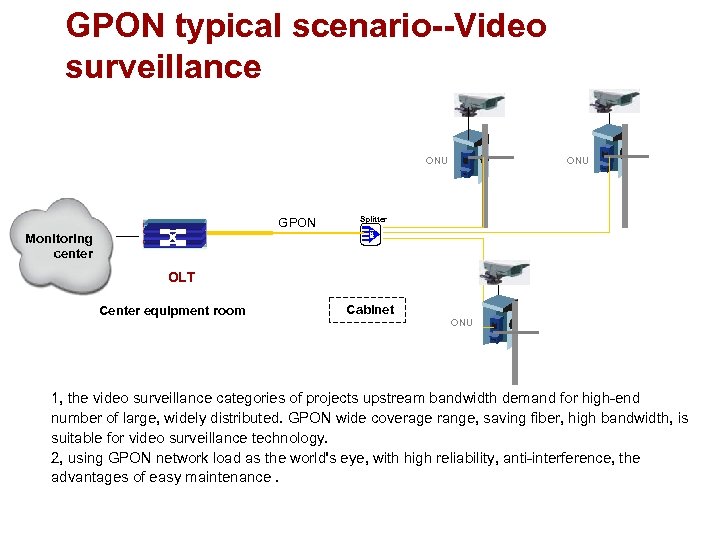

GPON typical scenario--Video surveillance ONU GPON ONU Splitter Monitoring center OLT Center equipment room Cabinet ONU 1, the video surveillance categories of projects upstream bandwidth demand for high-end number of large, widely distributed. GPON wide coverage range, saving fiber, high bandwidth, is suitable for video surveillance technology. 2, using GPON network load as the world's eye, with high reliability, anti-interference, the advantages of easy maintenance.

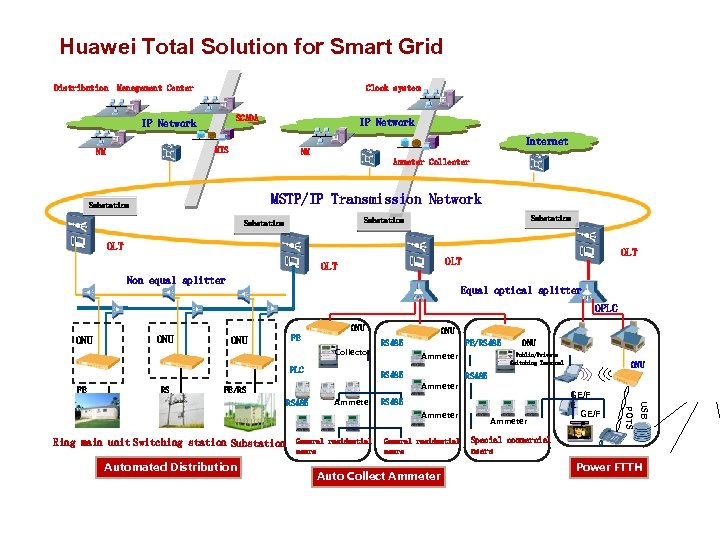

Huawei Total Solution for Smart Grid Distribution Management Center Clock system SCADA IP Network Internet MIS NM NM Ammeter Collecter MSTP/IP Transmission Network Substation OLT OLT Non equal splitter Equal optical splitter OPLC ONU ONU FE Collector PLC FE RS ONU RS 485 FE/RS 485 Ammeter FE/RS RS 485 Ammeter Ring main unit Switching station Substation Automated Distribution General residential users Auto Collect Ammeter GE/F E USB Ammeter ONU RS 485 POTS RS 485 ONU Public/Private Switching Terminal Special commercial users Power FTTH

Huawei's Eo. C Solutions U 2000 Genera Television IP core l front program sources end RF Mixer Branch front end Optical node FTTB/FT TC User home OLT MA 5680 T RF MA 5631 HG 7022 l. GPON and EPON share the same platform, and the evolution tendency is 10 G PON. l. The access and aggregation integrated OLTs have been used by top telecom carriers worldwide. The intelligent ODN solution is a leading vertical cable deployment solution in the industry, and it has been successfully used by top telecom carriers worldwide. Optical transmitter Optical receiver l. Devices are all managed by the U 2000 network management system (NMS). l. Mature EPON deployment and maintenance solutions for telecom services are transplanted to opti. Cable solutions. RF HG 7042 ØUses Homeplug AV and supports IEEE P 1901. ØSupports one to four RF signal sending channels, modular configuration, and hot swap operation. ØSupports flexible networking and automatic adaptation to GPON/EPON on the uplink port. ØHigh reliability: Supports dual uplinks and ring networks. ØHigh bandwidth: Supports 300 Mbit/s service rate and 2. 5 Gbit/s backplane bus rate. l. Simple appearance l. One TV input port and one TV output port l. Key authentication Page 11
