The Bandera Perspective
Goals of the Project
In This Talk…
Goals

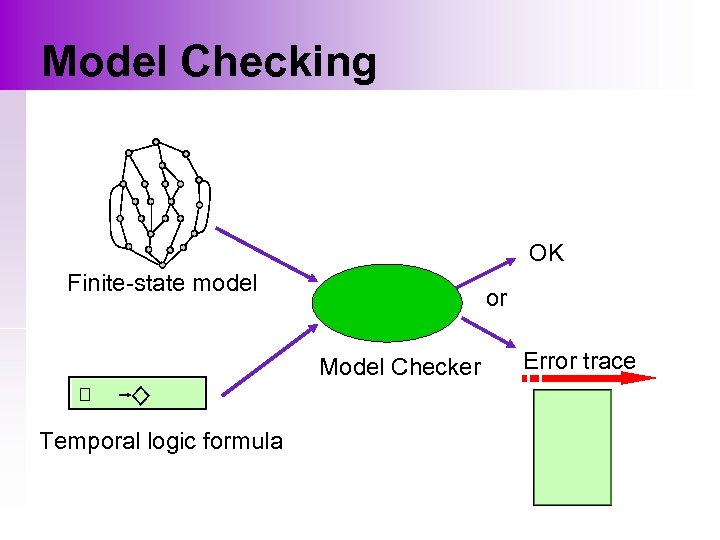

Model Checking OK Finite-state model or Model Checker Temporal logic formula Error trace

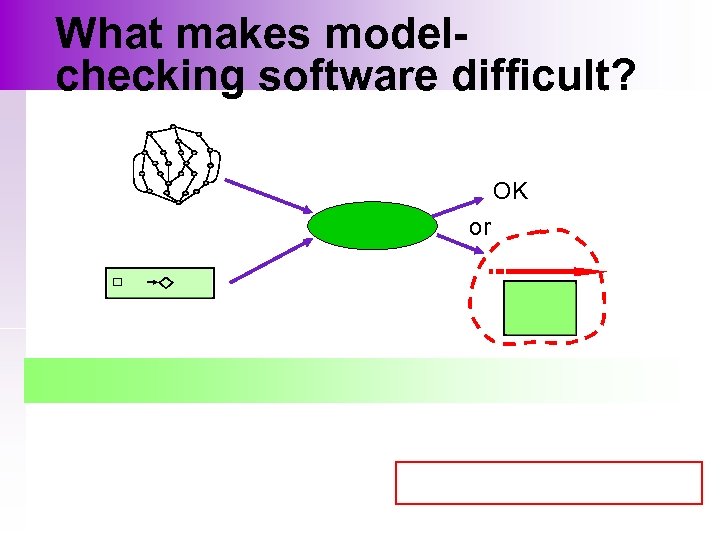

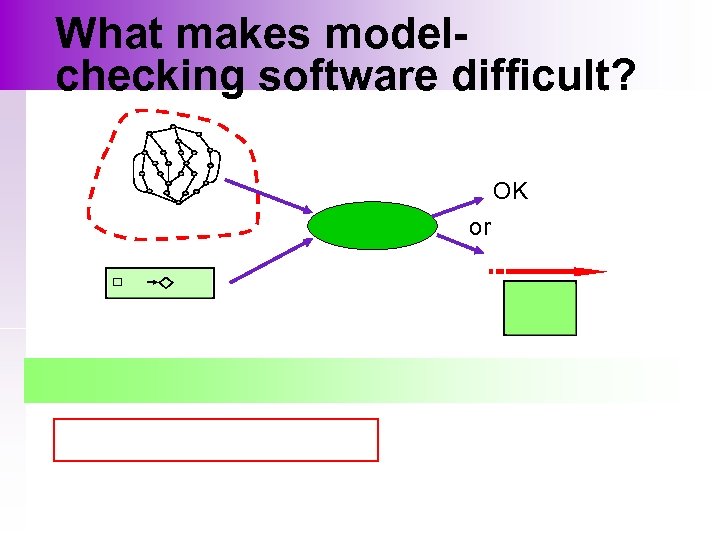

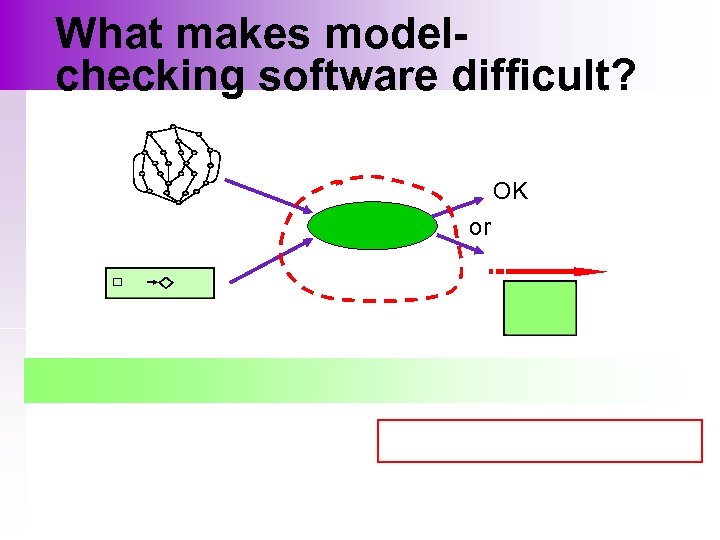

What makes modelchecking software difficult? OK or

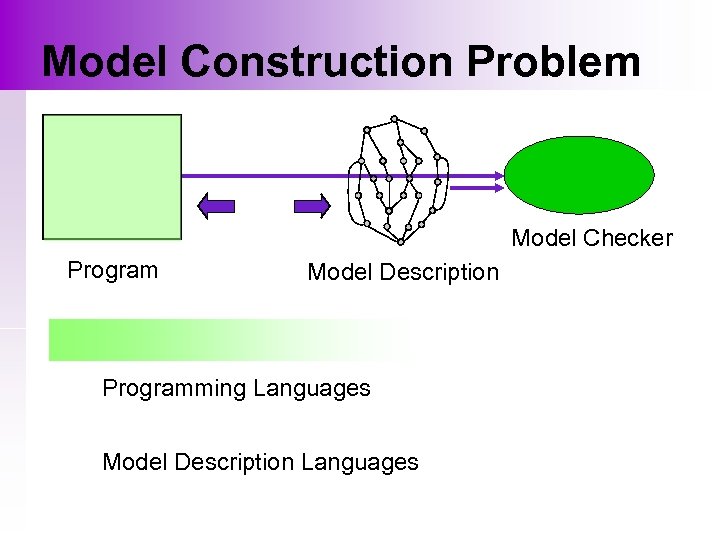

Model Construction Problem Model Checker Program Model Description Programming Languages Model Description Languages

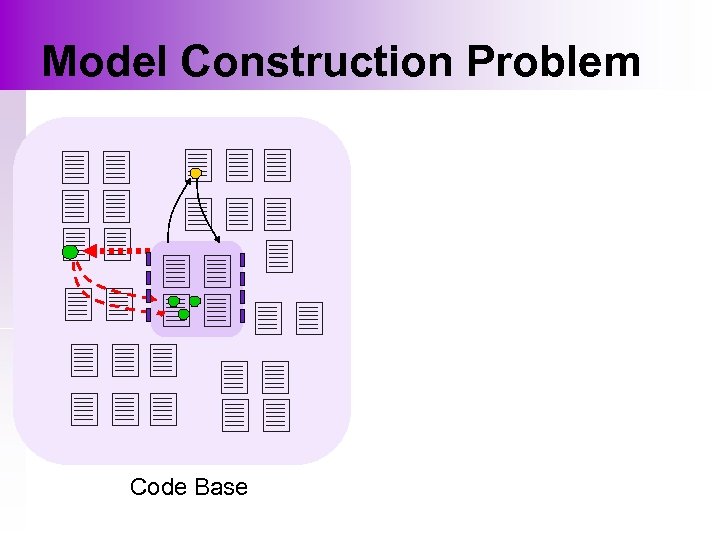

Model Construction Problem Code Base
What makes modelchecking software difficult? OK or

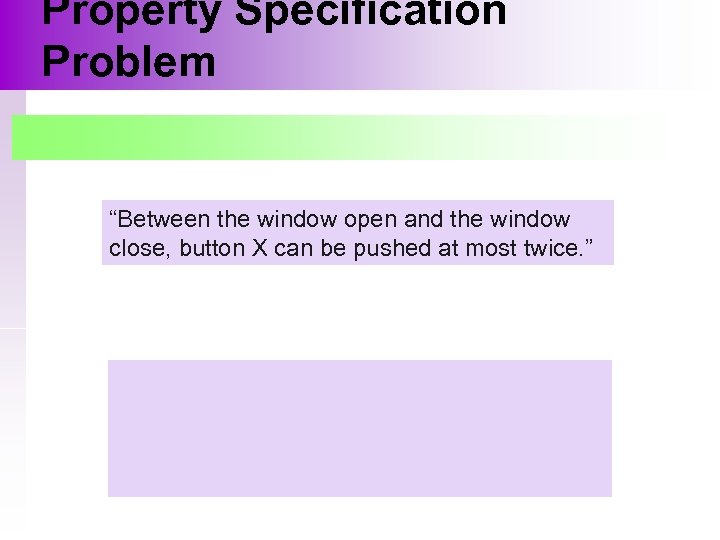

Property Specification Problem “Between the window open and the window close, button X can be pushed at most twice. ”
Property Specification Problem

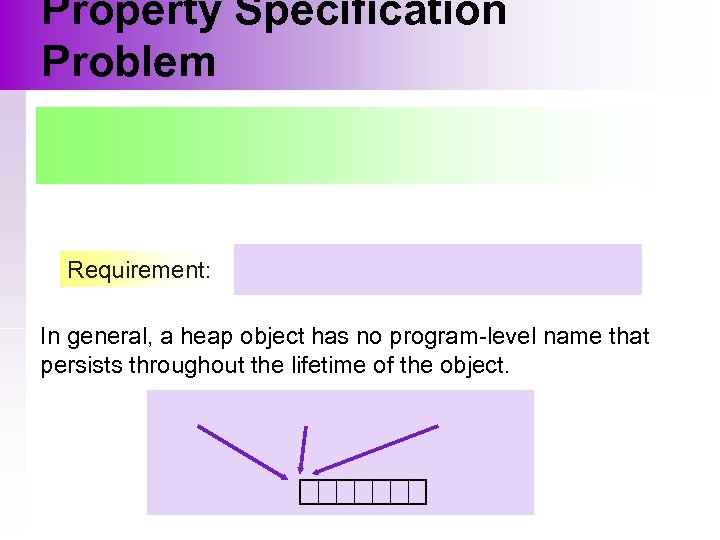

Property Specification Problem Requirement: In general, a heap object has no program-level name that persists throughout the lifetime of the object.
What makes modelchecking software difficult? OK or
State Explosion Problem
What makes modelchecking software difficult? OK or

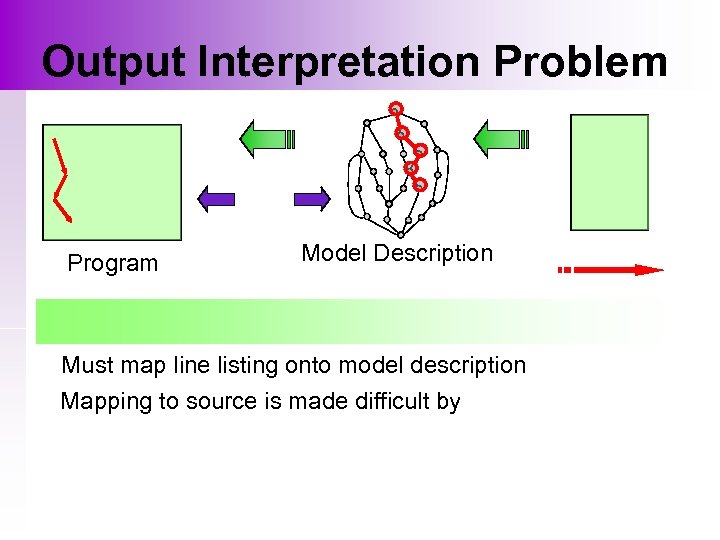

Output Interpretation Problem Program Model Description Must map line listing onto model description Mapping to source is made difficult by

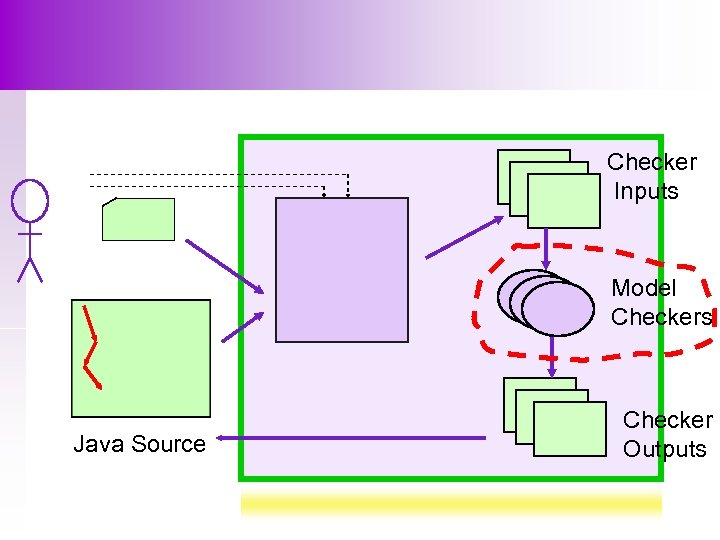

Checker Inputs Model Checkers Java Source Checker Outputs

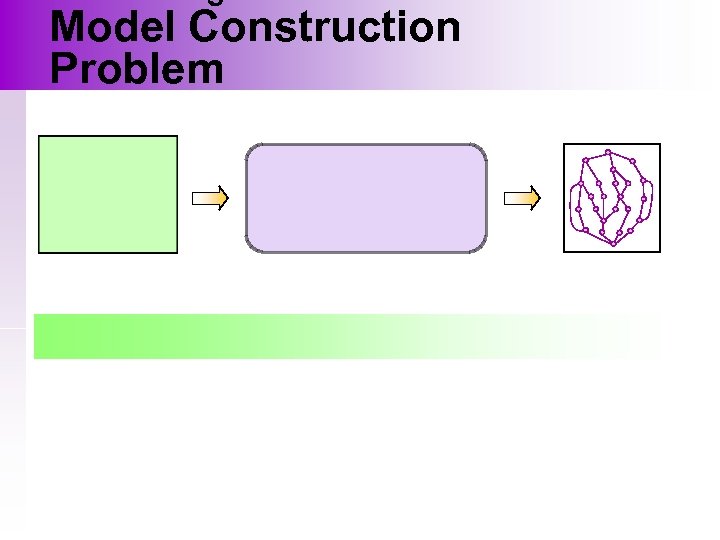

Model Construction Problem

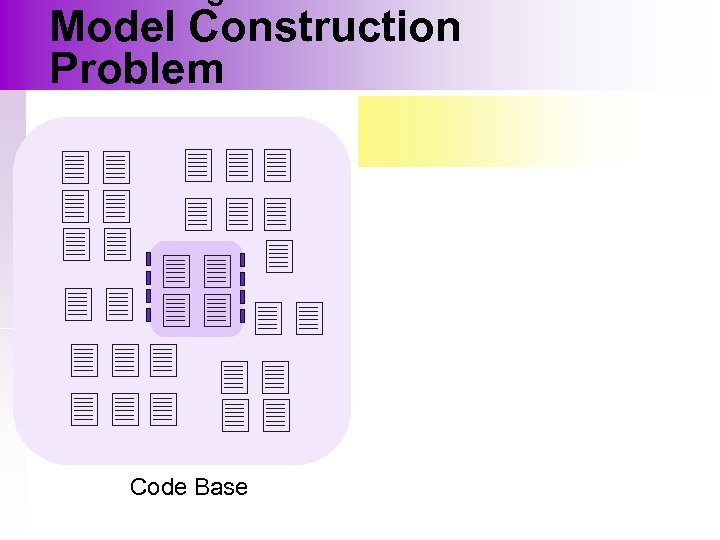

Model Construction Problem Code Base

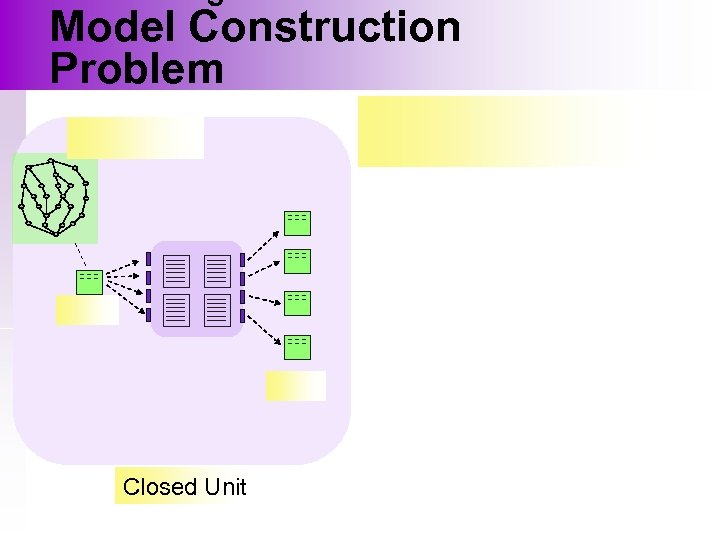

Model Construction Problem Closed. Base Code Unit
Property Specification Problem Between {open} and {close} {push. X} exists at. Most {2} times;
Addressing the State Explosion Problem

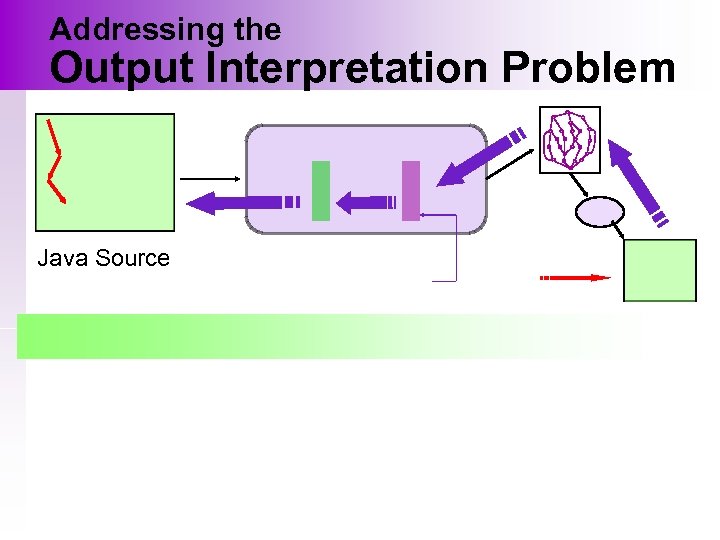

Addressing the Output Interpretation Problem Java Source
Bandera Architecture Property Tool Abstraction Analyses Engine BIRC Java Translators BIR Jimple Parser Slicer Error Trace Display Simulator

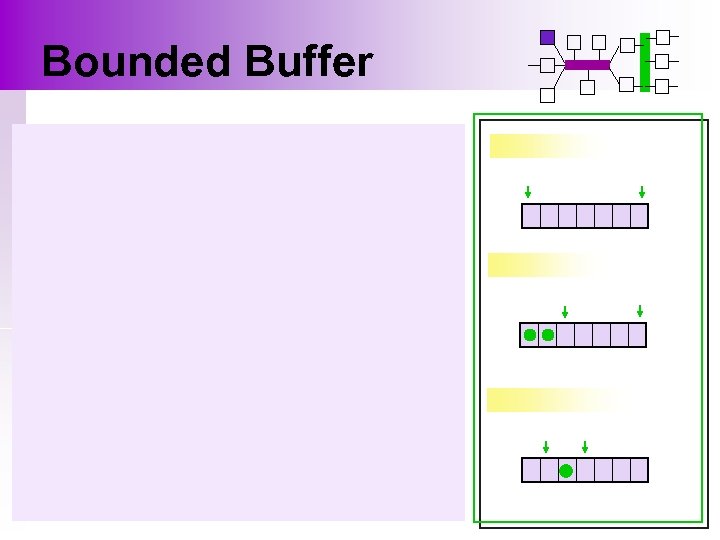

Bounded Buffer
Property Specification Requirement: Bandera Specification:
Property Specification Requirement: Bandera Specification:
Quantification
Quantification (Cont’d) Original Model Augmented Model
Quantification (Cont’d) Original Model Augmented Model
Quantification (Cont’d) Bandera compiles to…
Front End

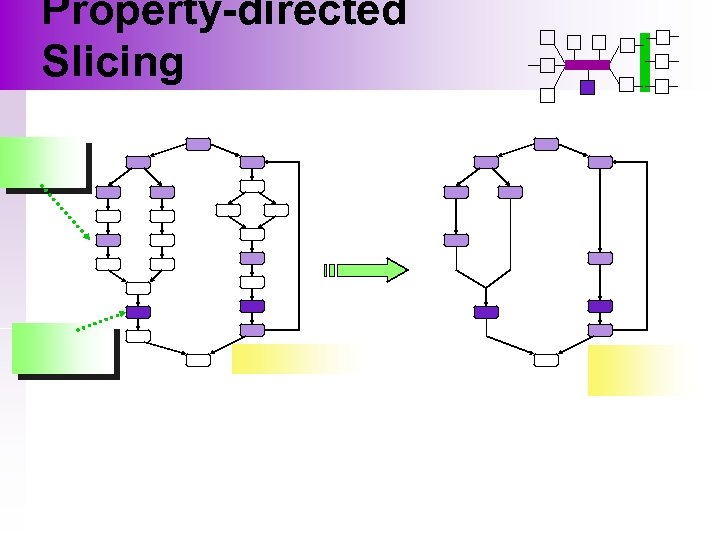

Property-directed Slicing
Property-directed Slicing

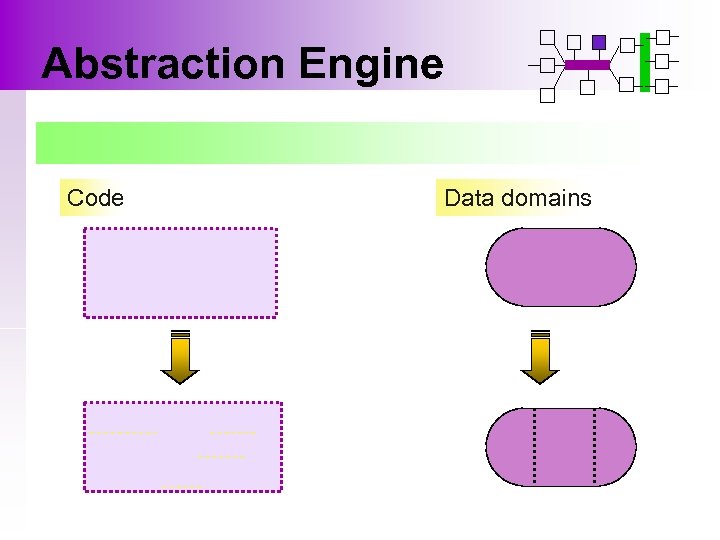

Abstraction Engine Code Data domains
Compiling In Abstractions
Compiling In Abstractions
Comparing Traces

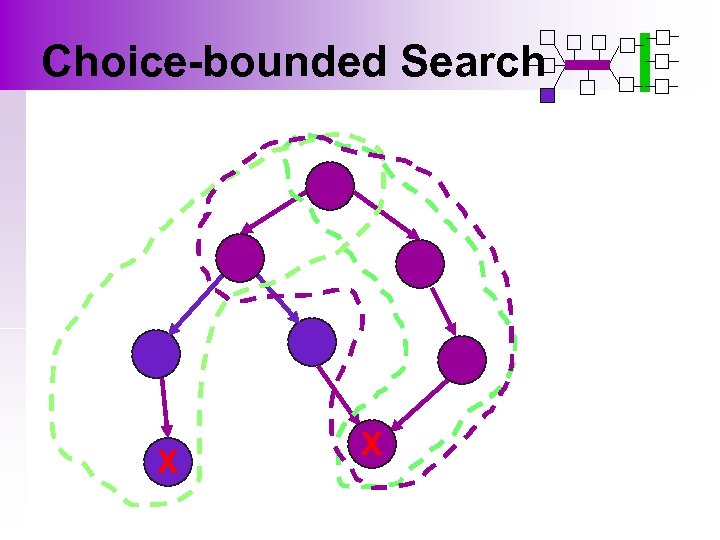

Choice-bounded Search X X

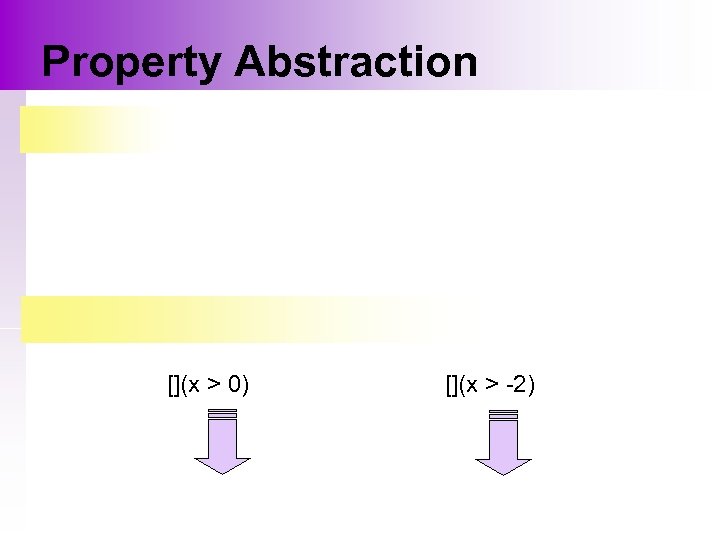

Property Abstraction Property System Model
 [](x > -2)](https://present5.com/presentation/0ac0058d364d757b17afcc59efecae22/image-44.jpg "Property Abstraction [](x > 0) [](x > -2)")
Property Abstraction [](x > 0) [](x > -2)

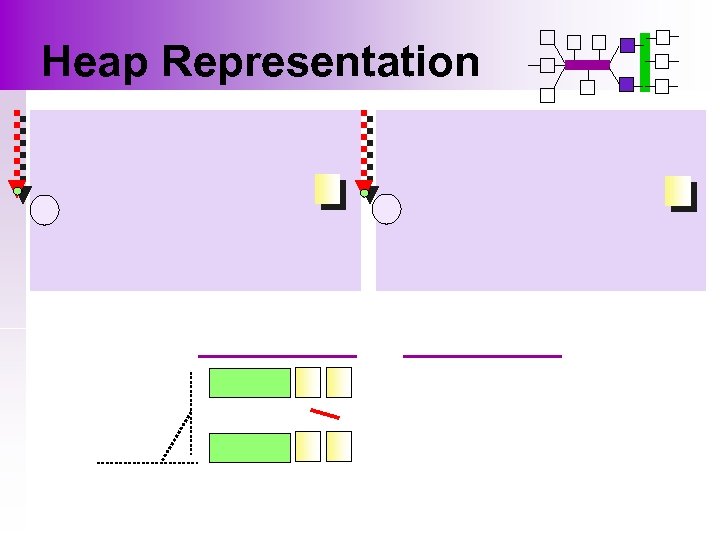

Heap Representation
Heap Representation

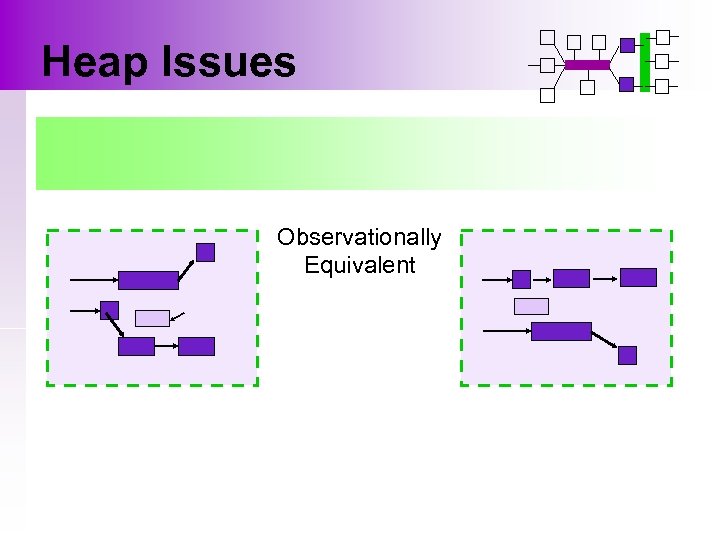

Heap Issues Observationally Equivalent

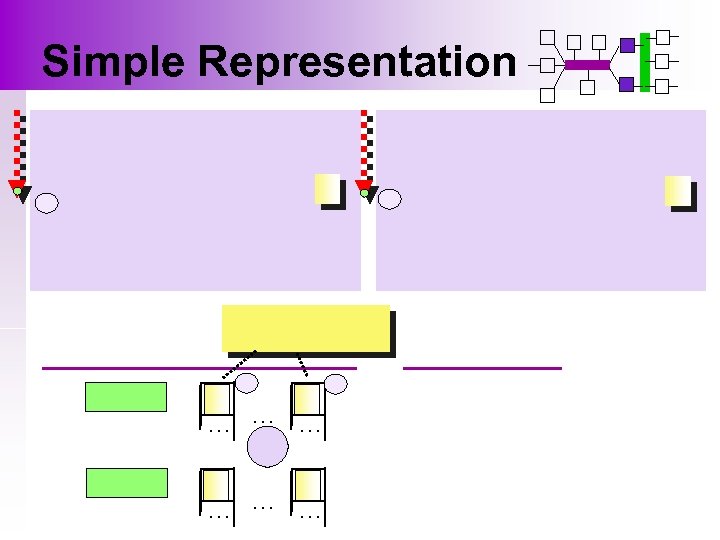

Simple Representation … … …
Bounded Buffer BIR
Bounded Buffer BIR

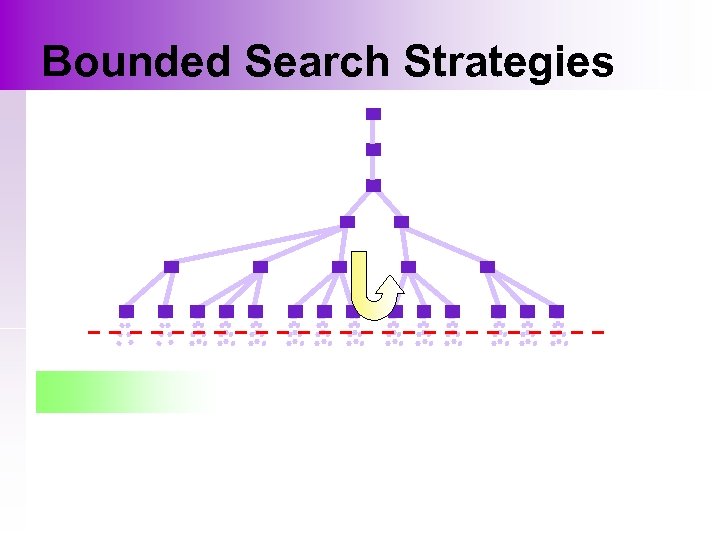

Bounded Search Strategies

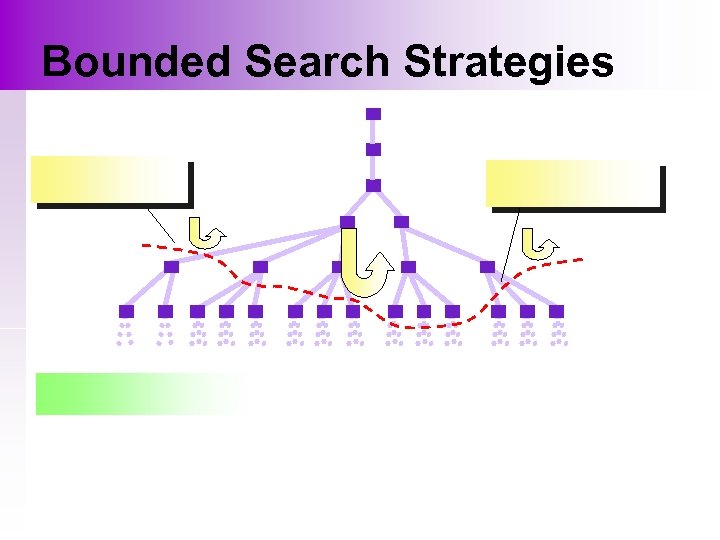

Bounded Search Strategies
Bounded Buffer Promela

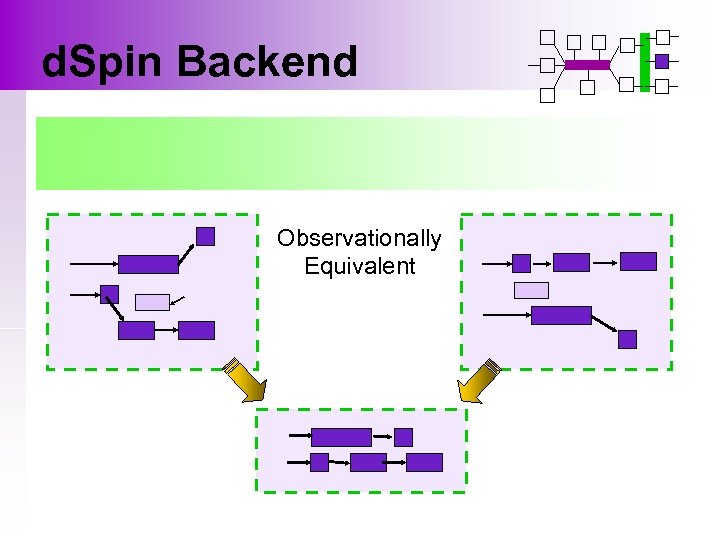

d. Spin Backend Observationally Equivalent

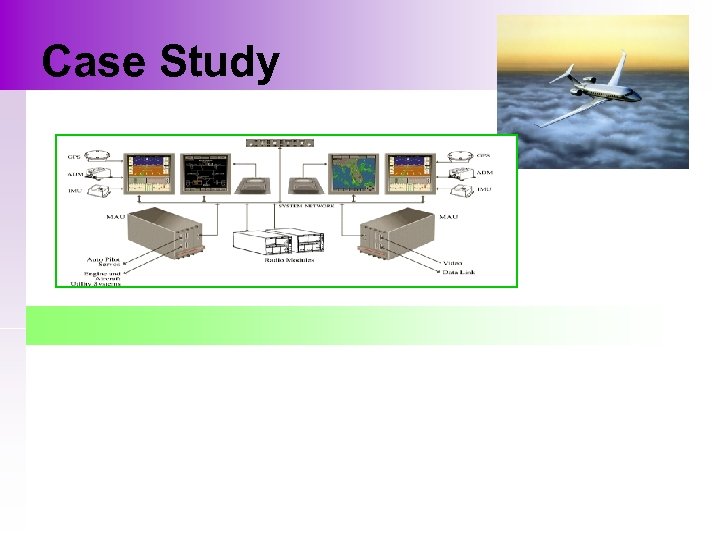

Case Study
Verification of Abstracted DEOS
Summary Bandera is an open platform for experimentation
Challenging Open Problems
Challenging Open Problems
Strategies for Moving Forward
