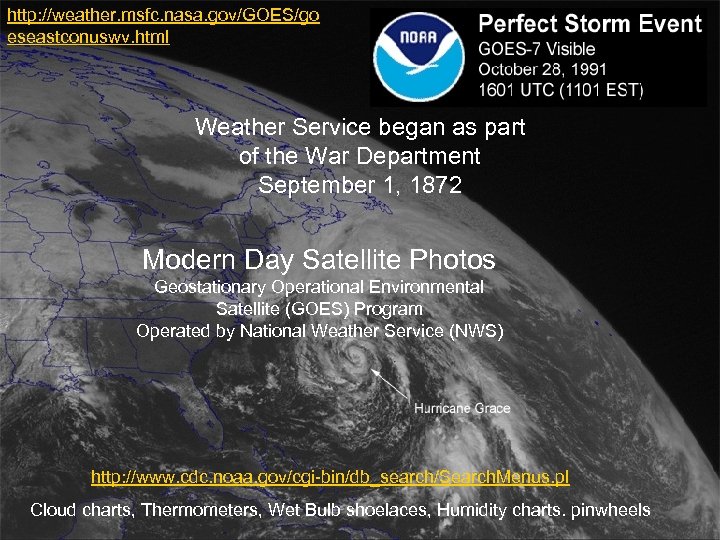

http: //weather. msfc. nasa. gov/GOES/go eseastconuswv. html Weather Service began as part of the War Department September 1, 1872 Modern Day Satellite Photos Geostationary Operational Environmental Satellite (GOES) Program Operated by National Weather Service (NWS) http: //www. cdc. noaa. gov/cgi-bin/db_search/Search. Menus. pl Cloud charts, Thermometers, Wet Bulb shoelaces, Humidity charts. pinwheels

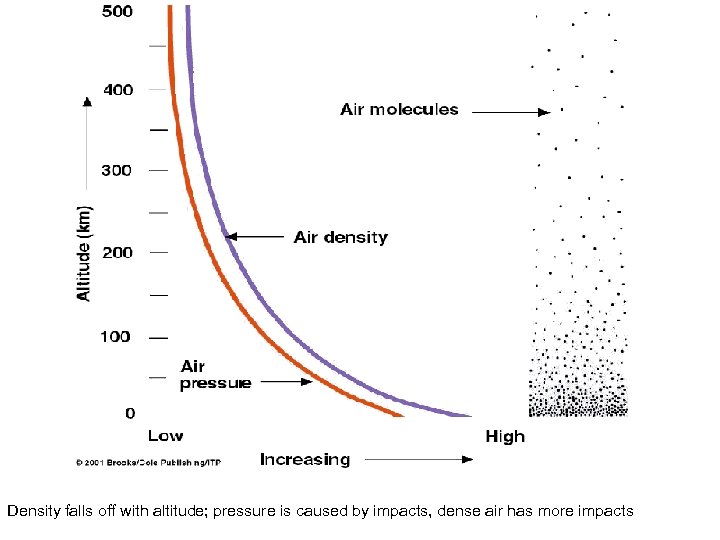

Density falls off with altitude; pressure is caused by impacts, dense air has more impacts

Buoyancy Lifting Start Local Heat Atoms close together (dense, high pressure) “fall into” the empty (low pressure) area Air Expands Dense Air Jiggles (heated atoms Underneath speed up paddle board forces warm analogy) air up

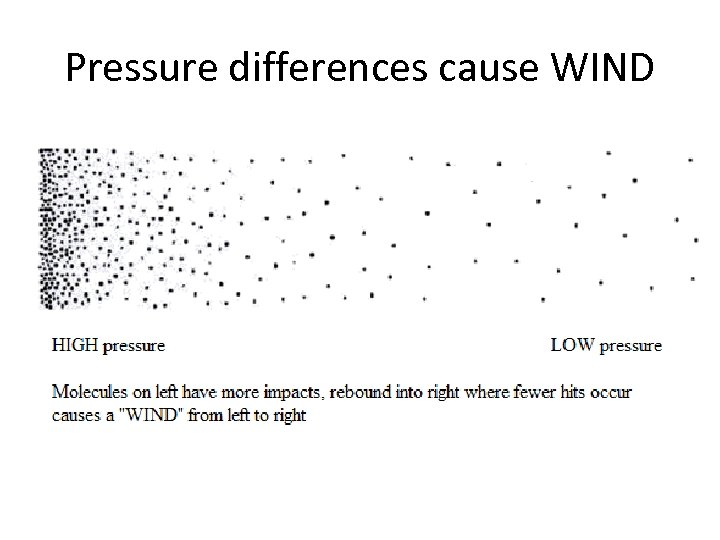

Pressure differences cause WIND

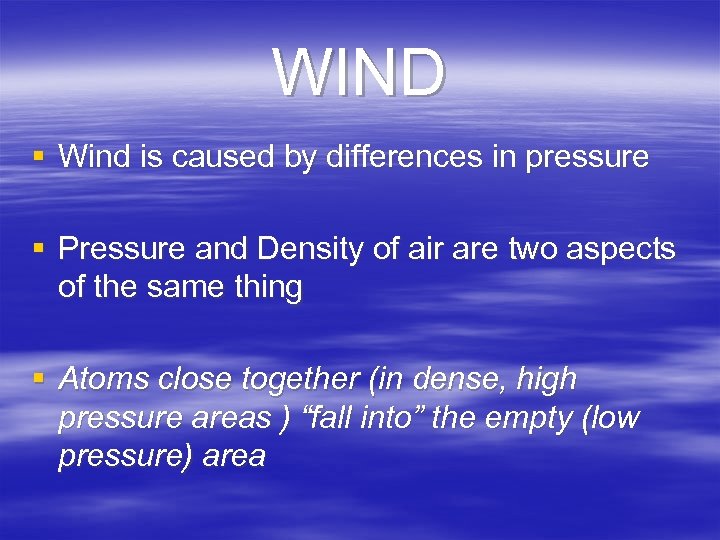

WIND § Wind is caused by differences in pressure § Pressure and Density of air are two aspects of the same thing § Atoms close together (in dense, high pressure areas ) “fall into” the empty (low pressure) area

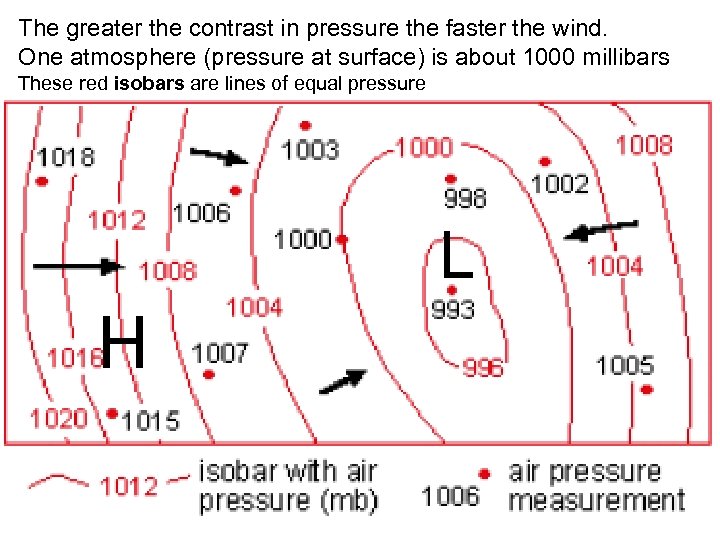

The greater the contrast in pressure the faster the wind. One atmosphere (pressure at surface) is about 1000 millibars These red isobars are lines of equal pressure L H

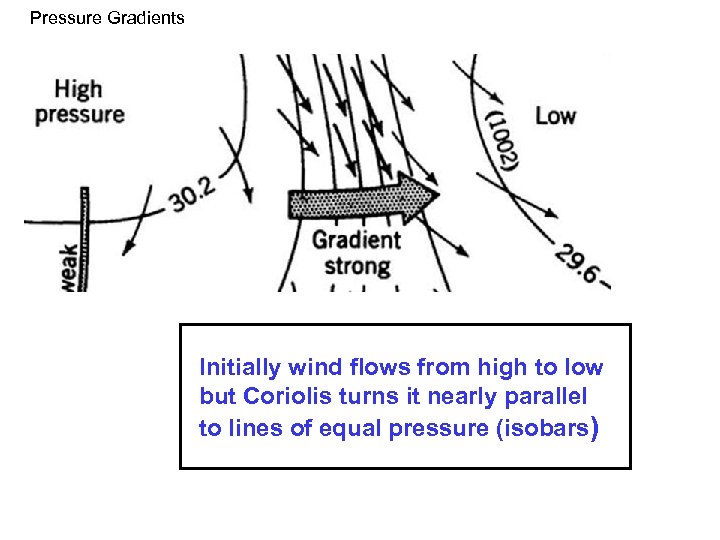

Pressure Gradients Coriolis turning Initially wind flows from high to low but Coriolis turns it nearly parallel to lines of equal pressure (isobars)

Winds blowing parallel to isobars are called geostrophic winds This occurs well above the surface where there is no friction Notice pressure gradient force always from high to low pressure, but Coriolis perpendicular to actual flow direction

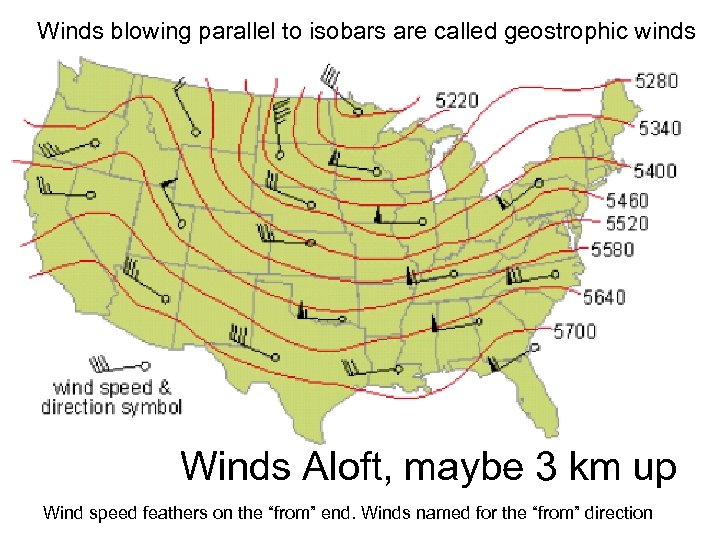

Winds blowing parallel to isobars are called geostrophic winds Winds Aloft, maybe 3 km up Wind speed feathers on the “from” end. Winds named for the “from” direction

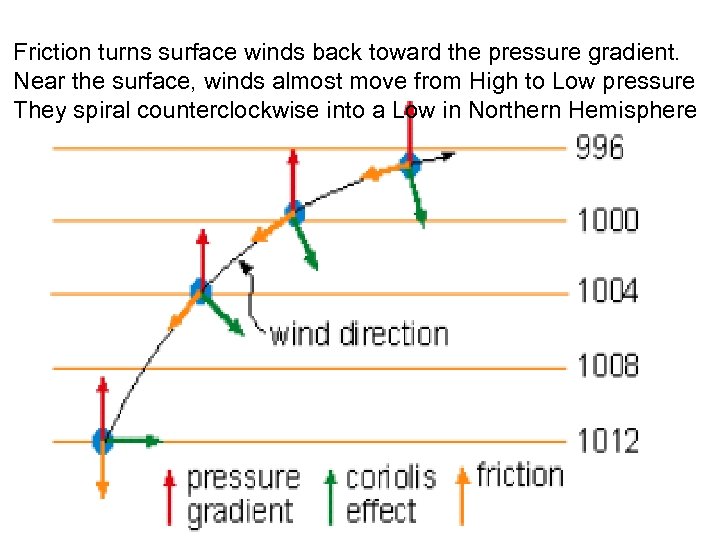

Friction turns surface winds back toward the pressure gradient. Near the surface, winds almost move from High to Low pressure They spiral counterclockwise into a Low in Northern Hemisphere

Near the surface, winds almost move from High to Low pressure They spiral counterclockwise into a Low in Northern Hemisphere L lowest local pressure Blue arrows PGF Red arrows Coriolis Black arrows wind path L

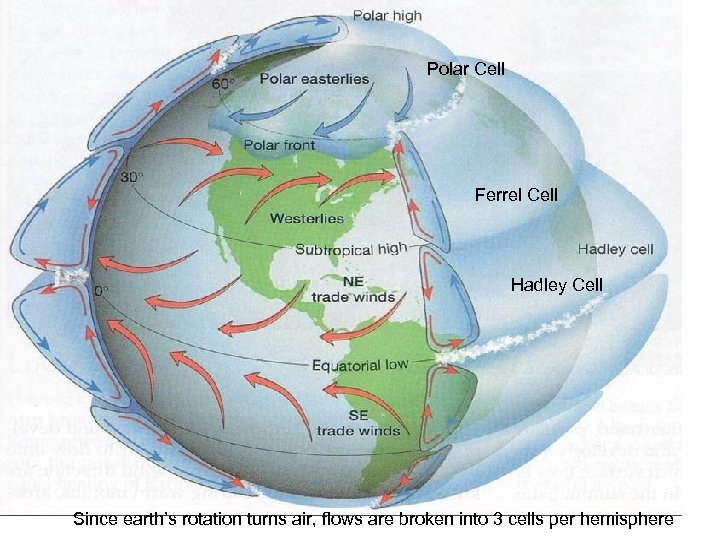

Polar Cell Ferrel Cell Hadley Cell Since earth’s rotation turns air, flows are broken into 3 cells per hemisphere

Horizontal temperature differences Temperature effects density and pressure: P = r R’ T so T = P /r R’ If you heat something it expands and gets less dense A 500 millibar pressure level is much higher in hot air. Hotter air has lower density and greater volume 500 mb 700 mb 850 mb Warm 1000 mb Cold Psurface

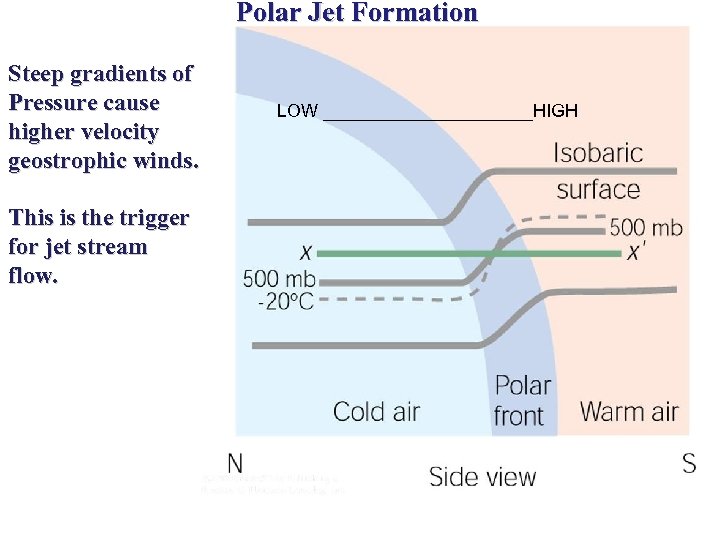

Polar Jet Formation Steep gradients of Pressure cause higher velocity geostrophic winds. This is the trigger for jet stream flow. LOW ___________HIGH

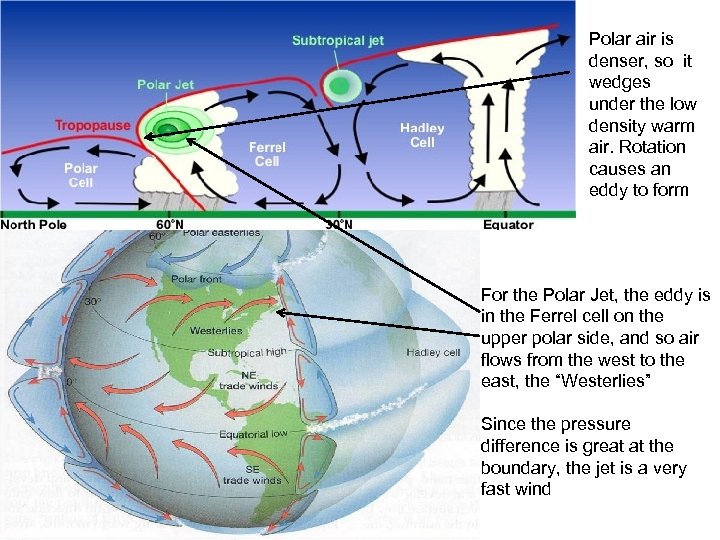

Polar air is denser, so it wedges under the low density warm air. Rotation causes an eddy to form For the Polar Jet, the eddy is in the Ferrel cell on the upper polar side, and so air flows from the west to the east, the “Westerlies” Since the pressure difference is great at the boundary, the jet is a very fast wind

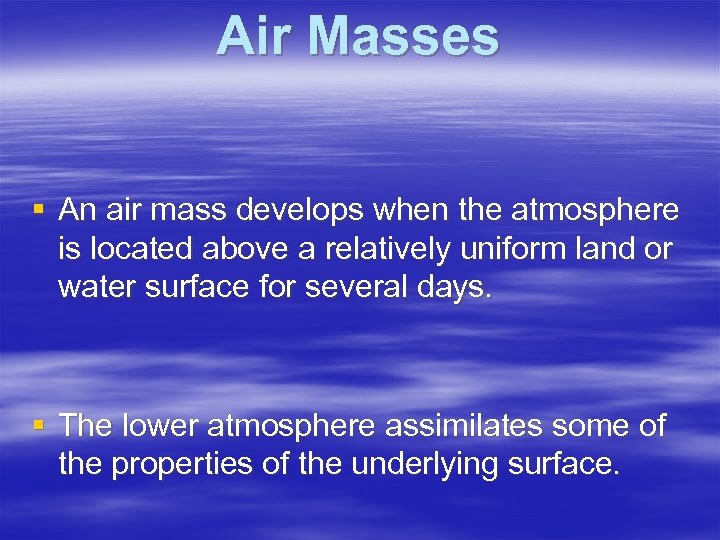

Air Masses § An air mass develops when the atmosphere is located above a relatively uniform land or water surface for several days. § The lower atmosphere assimilates some of the properties of the underlying surface.

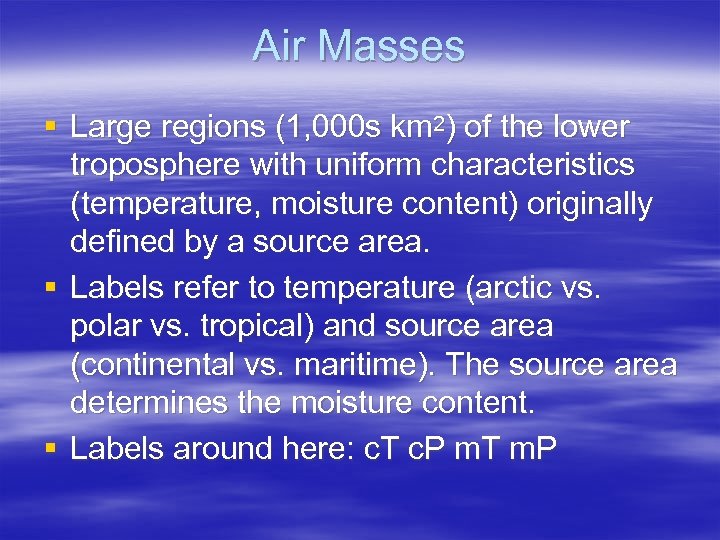

Air Masses § Large regions (1, 000 s km 2) of the lower troposphere with uniform characteristics (temperature, moisture content) originally defined by a source area. § Labels refer to temperature (arctic vs. polar vs. tropical) and source area (continental vs. maritime). The source area determines the moisture content. § Labels around here: c. T c. P m. T m. P

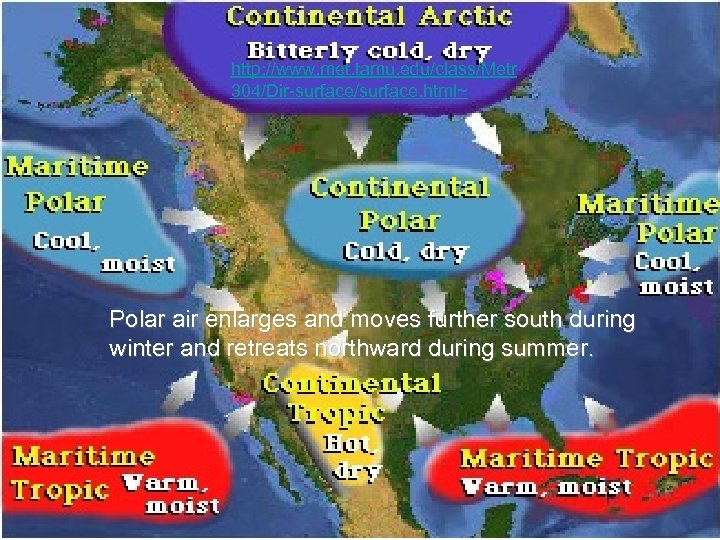

http: //www. met. tamu. edu/class/Metr 304/Dir-surface/surface. html~ Polar air enlarges and moves further south during winter and retreats northward during summer.

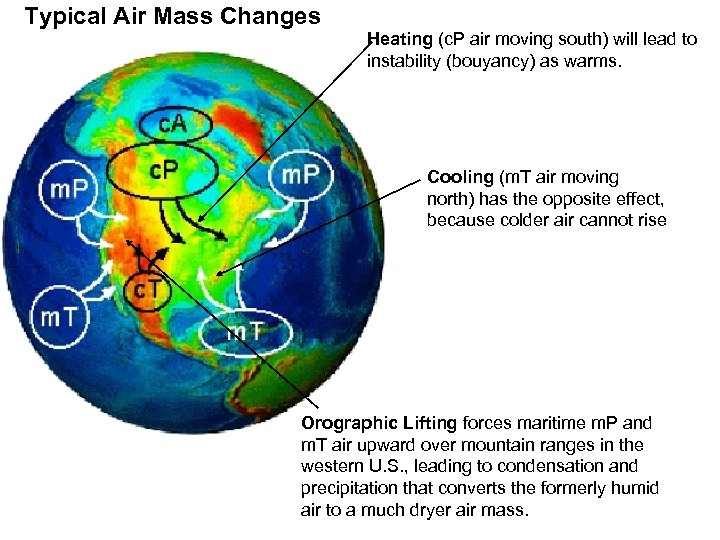

Typical Air Mass Changes Heating (c. P air moving south) will lead to instability (bouyancy) as warms. Cooling (m. T air moving north) has the opposite effect, because colder air cannot rise Orographic Lifting forces maritime m. P and m. T air upward over mountain ranges in the western U. S. , leading to condensation and precipitation that converts the formerly humid air to a much dryer air mass.

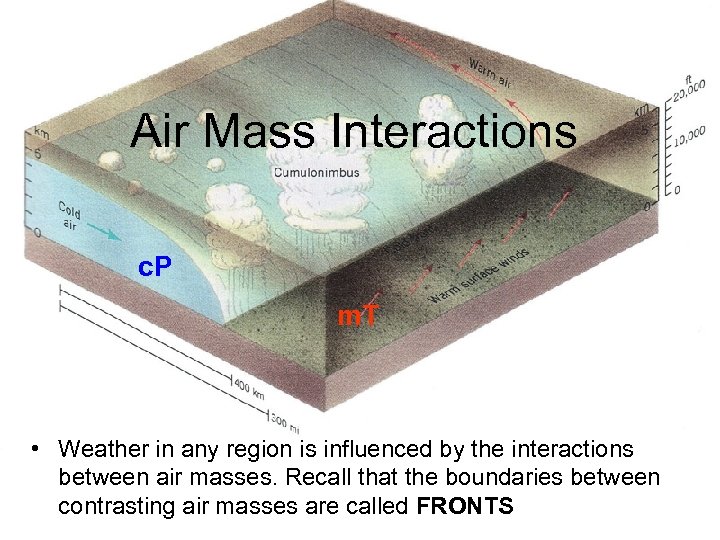

Air Mass Interactions c. P m. T • Weather in any region is influenced by the interactions between air masses. Recall that the boundaries between contrasting air masses are called FRONTS

c. P m. T Heavy rains can result from the interaction between the continental polar c. P air mass and the maritime tropical m. T air mass

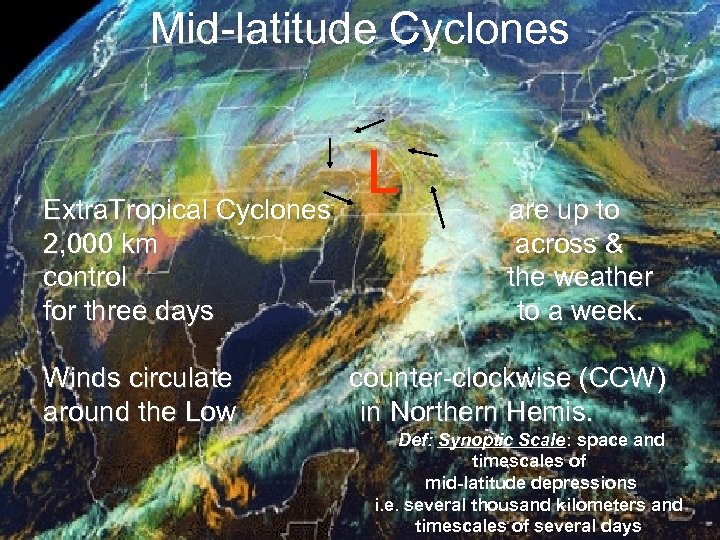

Mid-latitude Cyclones Extra. Tropical Cyclones 2, 000 km control for three days Winds circulate around the Low L are up to across & the weather to a week. counter-clockwise (CCW) in Northern Hemis. Def: Synoptic Scale: space and timescales of mid-latitude depressions i. e. several thousand kilometers and timescales of several days

8. Cold air sinks HIGH LOW Polar Cell 7. Mid-Latitude Cyclones are dominant where Ferrel meets Polar HIGH 5. 6. Gyre 3. LOW to E 4. Ferrel Cell Mid-Latitude Cyclones north Dry south 2. 0. Maximum heat from Sun 1. ITCZ

Dishpan Experiment Why are the boundaries between cold and hot not straight? Camera rotates with dish Cold Center hot edge Large scale waves and eddies form They flow CW & CCW Rossby Waves Cold mass is denser and forces its way under the warmer mass

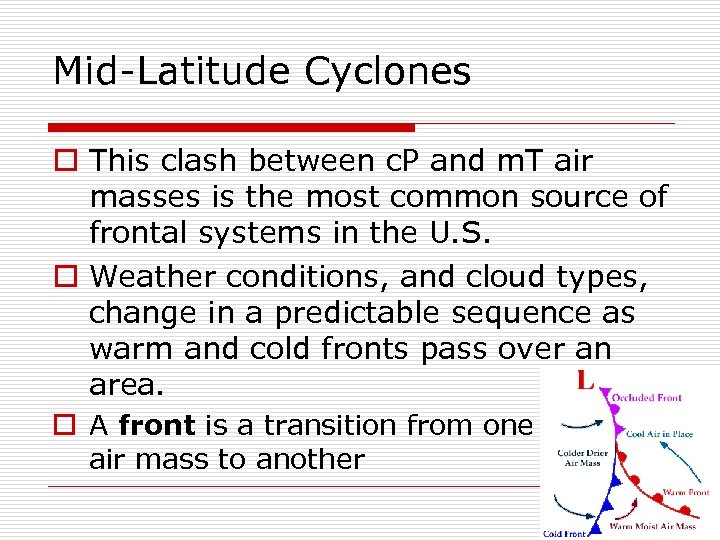

Mid-Latitude Cyclones o This clash between c. P and m. T air masses is the most common source of frontal systems in the U. S. o Weather conditions, and cloud types, change in a predictable sequence as warm and cold fronts pass over an area. o A front is a transition from one air mass to another

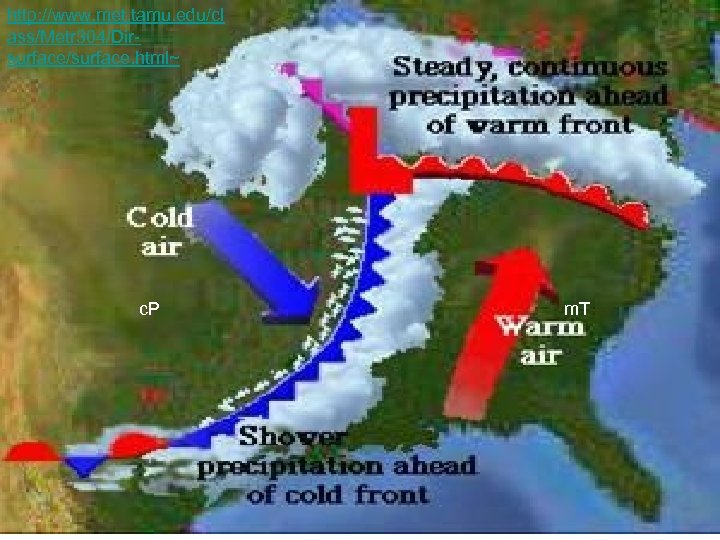

http: //www. met. tamu. edu/cl ass/Metr 304/Dirsurface/surface. html~ c. P m. T

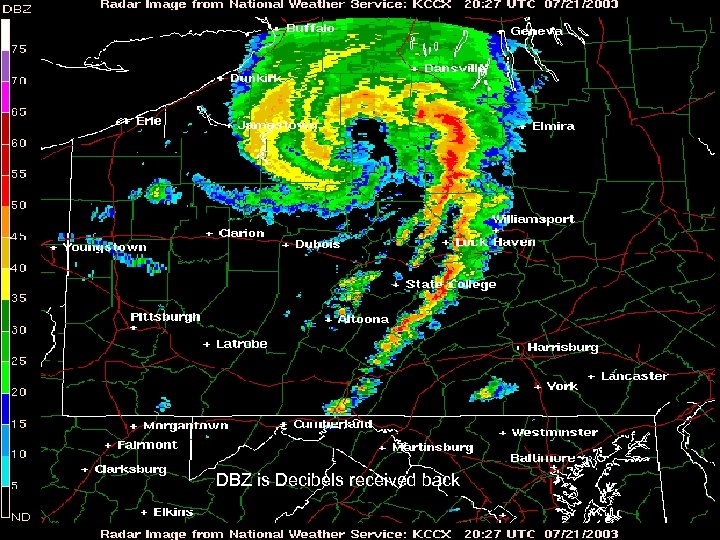

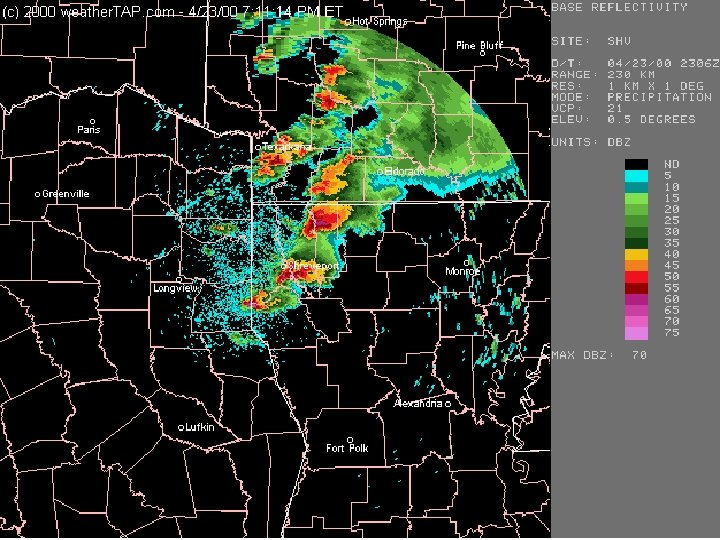

DBZ is Decibels received back

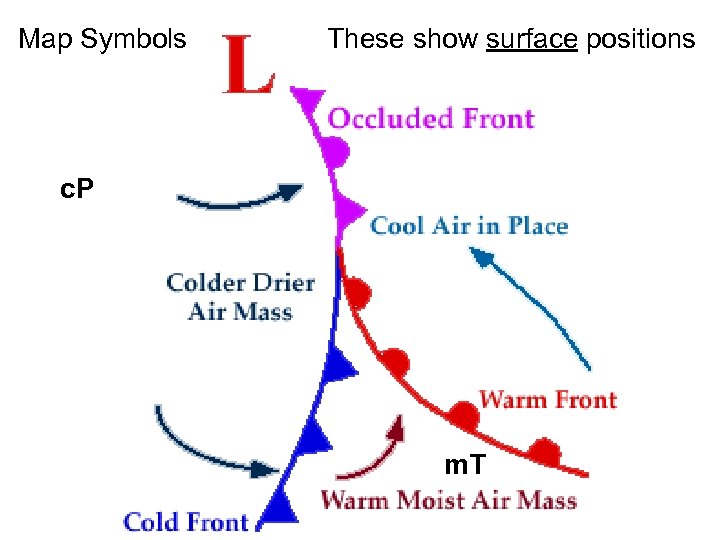

Map Symbols These show surface positions c. P m. T

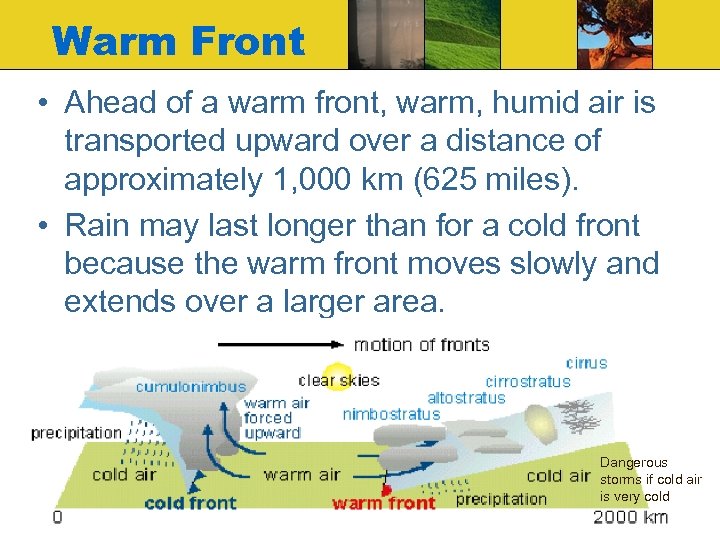

Warm Front • Ahead of a warm front, warm, humid air is transported upward over a distance of approximately 1, 000 km (625 miles). • Rain may last longer than for a cold front because the warm front moves slowly and extends over a larger area. Dangerous storms if cold air is very cold

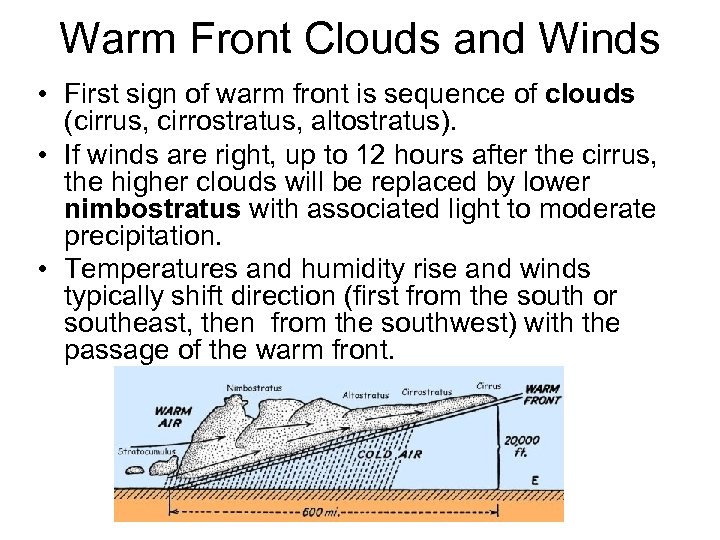

Warm Front Clouds and Winds • First sign of warm front is sequence of clouds (cirrus, cirrostratus, altostratus). • If winds are right, up to 12 hours after the cirrus, the higher clouds will be replaced by lower nimbostratus with associated light to moderate precipitation. • Temperatures and humidity rise and winds typically shift direction (first from the south or southeast, then from the southwest) with the passage of the warm front.

Warm Front Changes Expect increasing Temperature and Humidity as the warm front passes

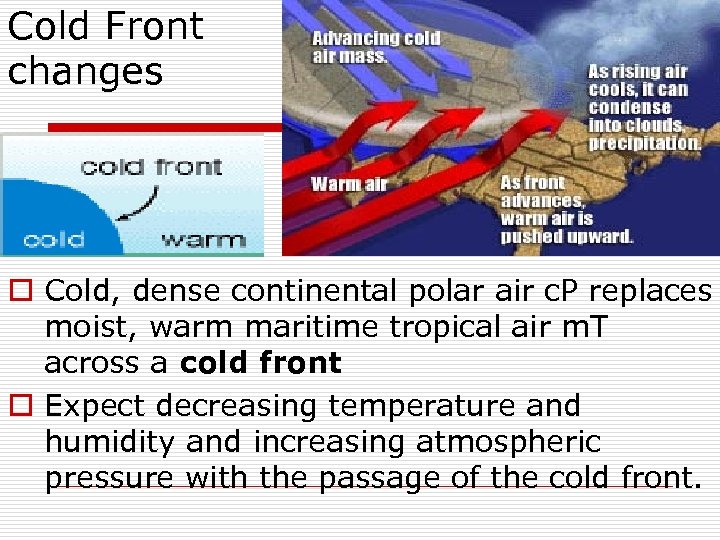

Cold Front changes o Cold, dense continental polar air c. P replaces moist, warm maritime tropical air m. T across a cold front o Expect decreasing temperature and humidity and increasing atmospheric pressure with the passage of the cold front.

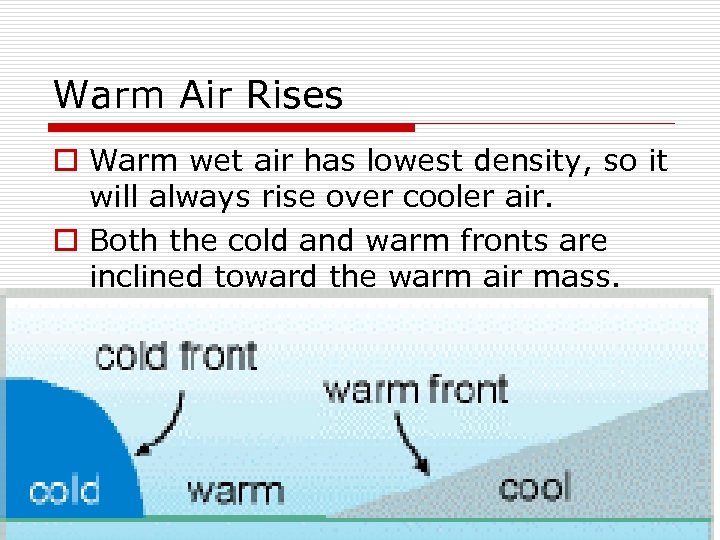

Warm Air Rises o Warm wet air has lowest density, so it will always rise over cooler air. o Both the cold and warm fronts are inclined toward the warm air mass.

Approaching Cold Front is behind Thunderstorms Warm air is pushed up and over the advancing cold front, causing relatively rapid cooling and condensation that results in the development of tall cumulonimbus clouds. They host heavy but relatively short-lived precipitation

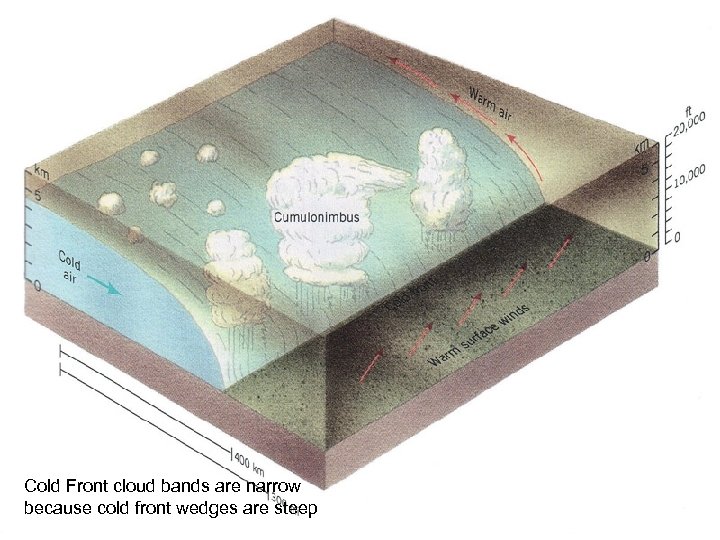

Cold Front cloud bands are narrow because cold front wedges are steep

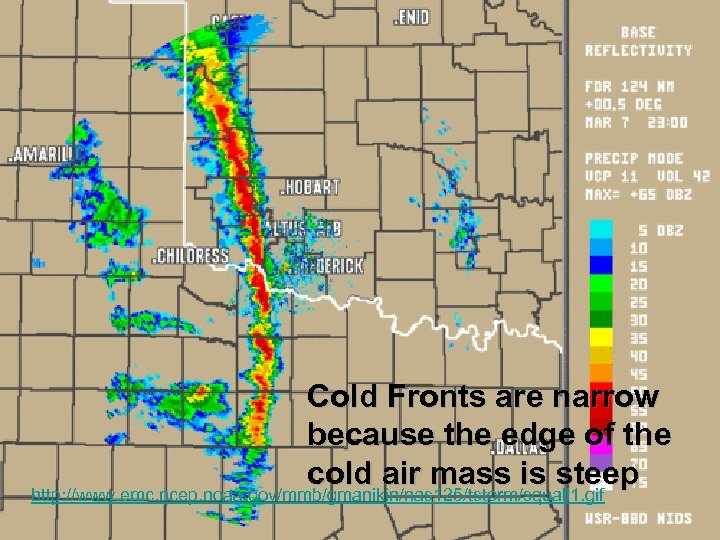

Cold Fronts are narrow because the edge of the cold air mass is steep http: //www. emc. ncep. noaa. gov/mmb/gmanikin/nas 125/tstorm/squall 1. gif

A Cold Front Squall Line Rapidly advancing cold fronts may be marked by the growth of a squall line of thunderclouds

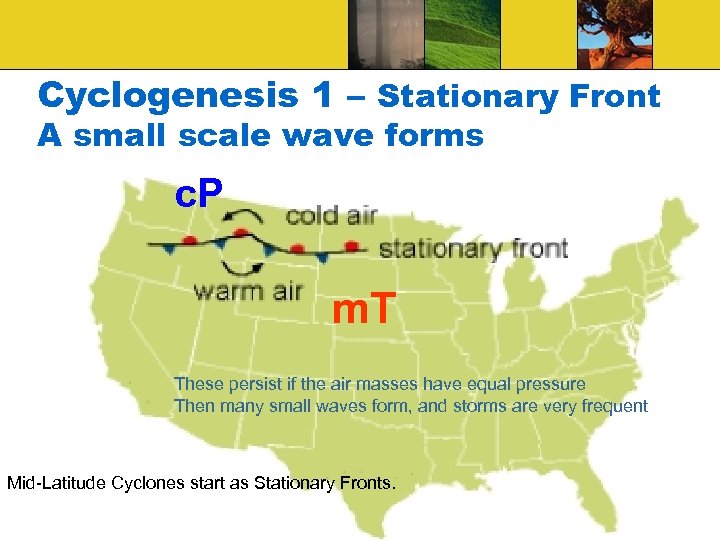

Cyclogenesis 1 – Stationary Front A small scale wave forms c. P m. T These persist if the air masses have equal pressure Then many small waves form, and storms are very frequent Mid-Latitude Cyclones start as Stationary Fronts.

Cyclogenesis 2 – Warm and Cold Fronts c. P m. T In the Ferrell cell, winds have a strong westerly component, and storms move East. As they mature and move, Warm Fronts pass over, followed by Cold Fronts.

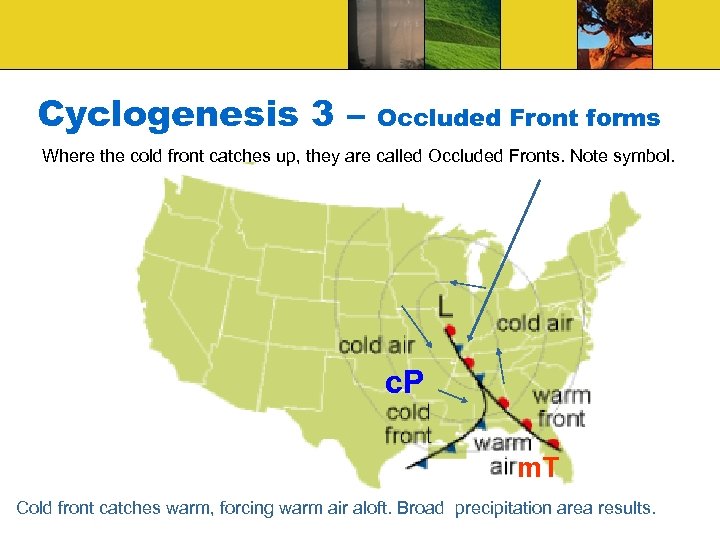

Cyclogenesis 3 – Occluded Front forms Where the cold front catches up, they are called Occluded Fronts. Note symbol. c. P m. T Cold front catches warm, forcing warm air aloft. Broad precipitation area results.

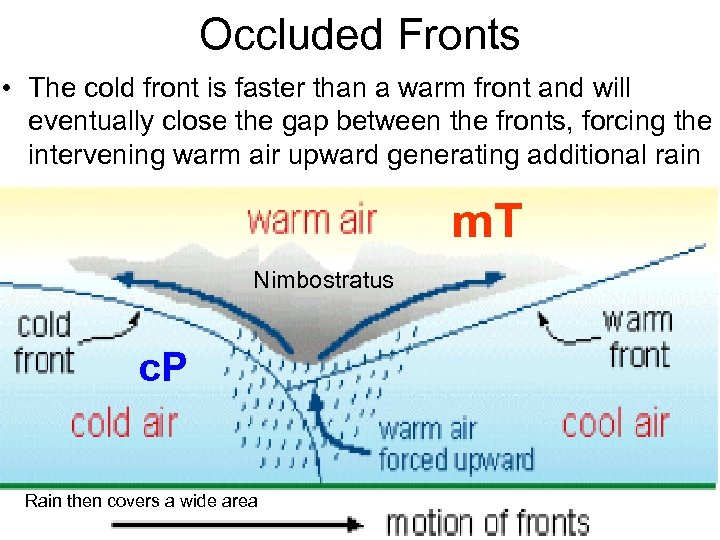

Occluded Fronts • The cold front is faster than a warm front and will eventually close the gap between the fronts, forcing the intervening warm air upward generating additional rain m. T Nimbostratus c. P Rain then covers a wide area

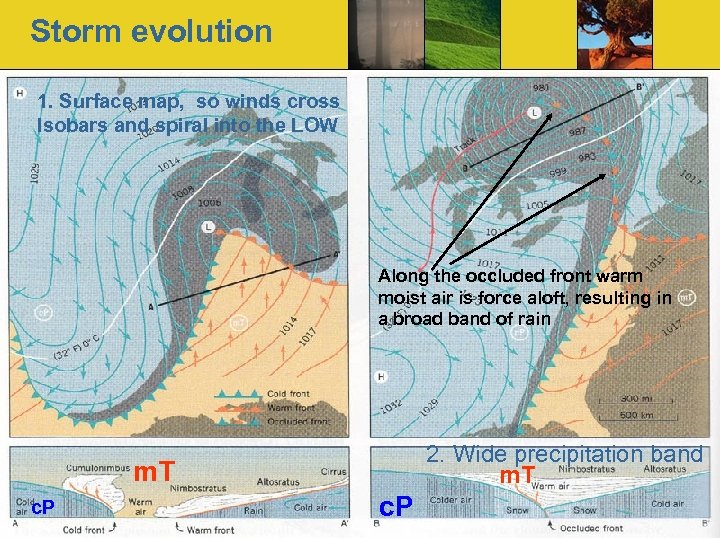

Storm evolution 1. Surface map, so winds cross Isobars and spiral into the LOW Along the occluded front warm moist air is force aloft, resulting in a broad band of rain 2. Wide precipitation band m. T c. P

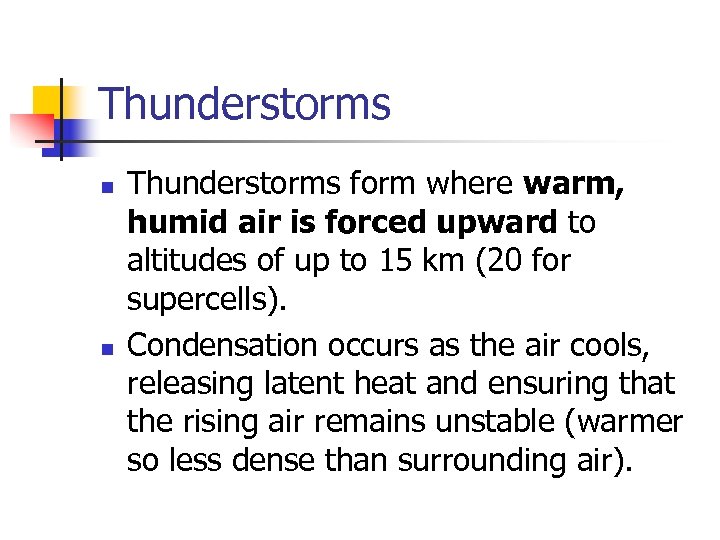

Thunderstorms n n Thunderstorms form where warm, humid air is forced upward to altitudes of up to 15 km (20 for supercells). Condensation occurs as the air cools, releasing latent heat and ensuring that the rising air remains unstable (warmer so less dense than surrounding air).

Rising Warm air overshoots into stratosphere Prevailing Wind Aloft Freezing Line Condensation Line Surface

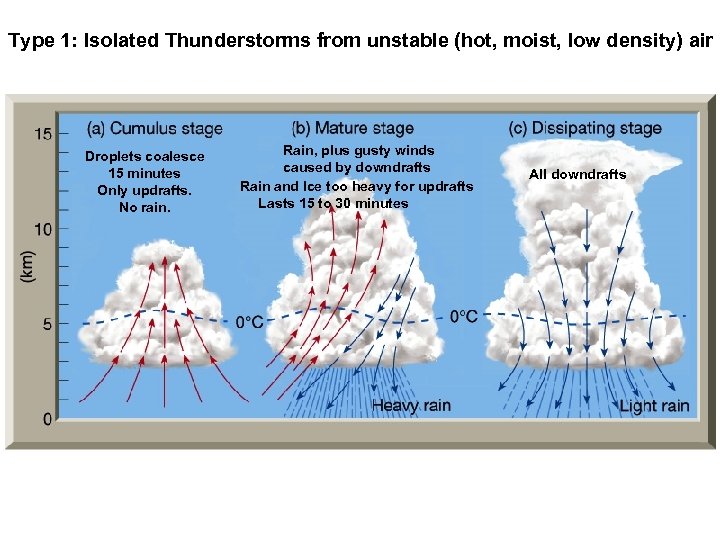

Type 1: Isolated Thunderstorms from unstable (hot, moist, low density) air Droplets coalesce 15 minutes Only updrafts. No rain. Rain, plus gusty winds caused by downdrafts Rain and Ice too heavy for updrafts Lasts 15 to 30 minutes All downdrafts

Lightning http: //www. nssl. noaa. gov • Most dangerous frequently encountered weather hazard that people commonly experience each year. • Second most frequent weather killer in the United States with nearly 100 deaths and 500 injuries each year, after floods and flash floods

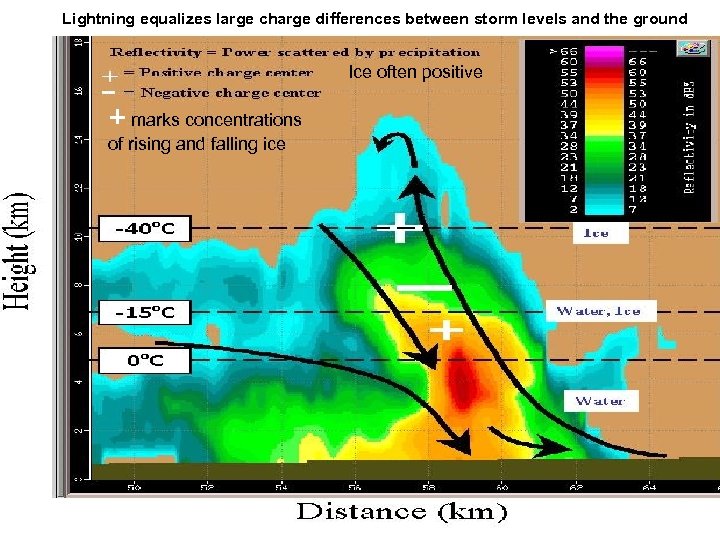

Lightning equalizes large charge differences between storm levels and the ground Ice often positive + marks concentrations of rising and falling ice

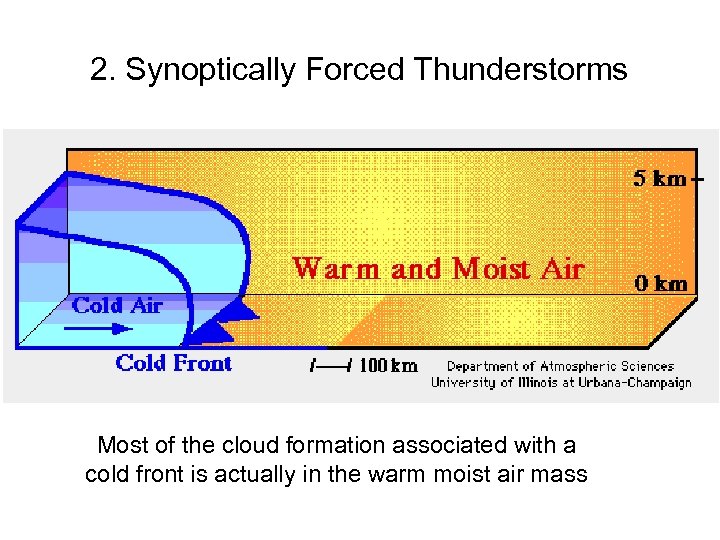

2. Synoptically Forced Thunderstorms Most of the cloud formation associated with a cold front is actually in the warm moist air mass

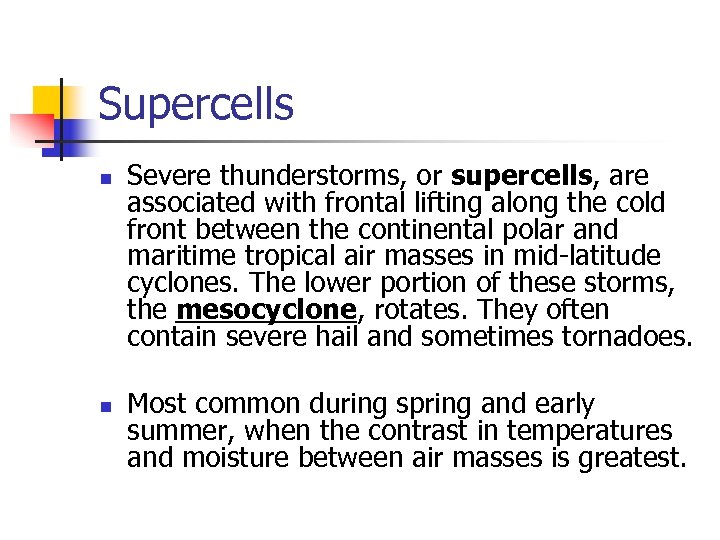

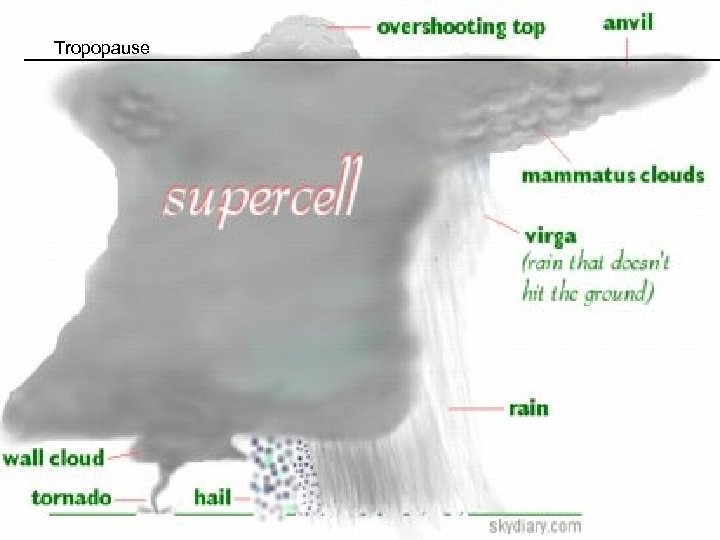

Supercells n n Severe thunderstorms, or supercells, are associated with frontal lifting along the cold front between the continental polar and maritime tropical air masses in mid-latitude cyclones. The lower portion of these storms, the mesocyclone, rotates. They often contain severe hail and sometimes tornadoes. Most common during spring and early summer, when the contrast in temperatures and moisture between air masses is greatest.

Tropopause

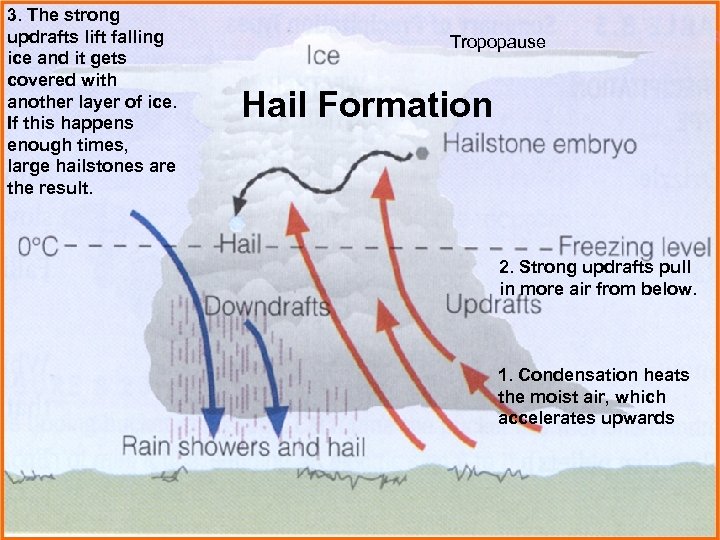

3. The strong updrafts lift falling ice and it gets covered with another layer of ice. If this happens enough times, large hailstones are the result. Tropopause Hail Formation 2. Strong updrafts pull in more air from below. 1. Condensation heats the moist air, which accelerates upwards

Supercell Hail

Tornadoes n n Funnel clouds that rotate at speeds of up to 500 km/hr beneath supercells. Ranked from F 0 (weakest) to F 5 (strongest) using the Fujita Intensity scale. Most move to the east or northeast at an average speed of approximately 50 km/hr. Develop in association with mesocyclones

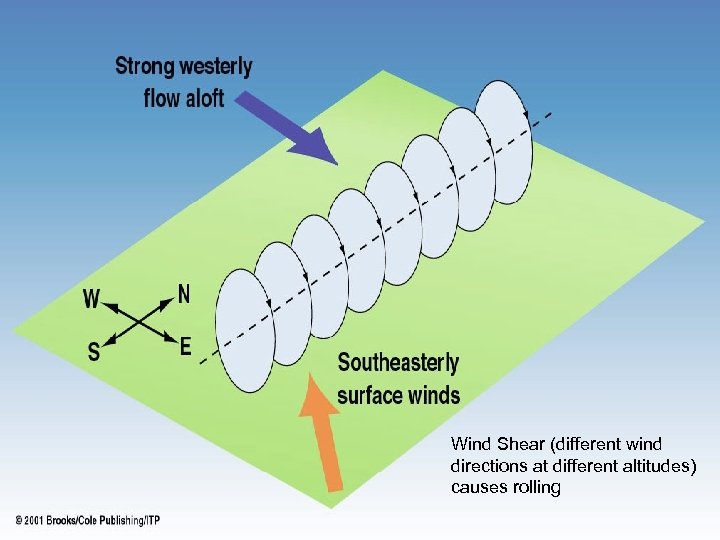

Wind Shear (different wind directions at different altitudes) causes rolling

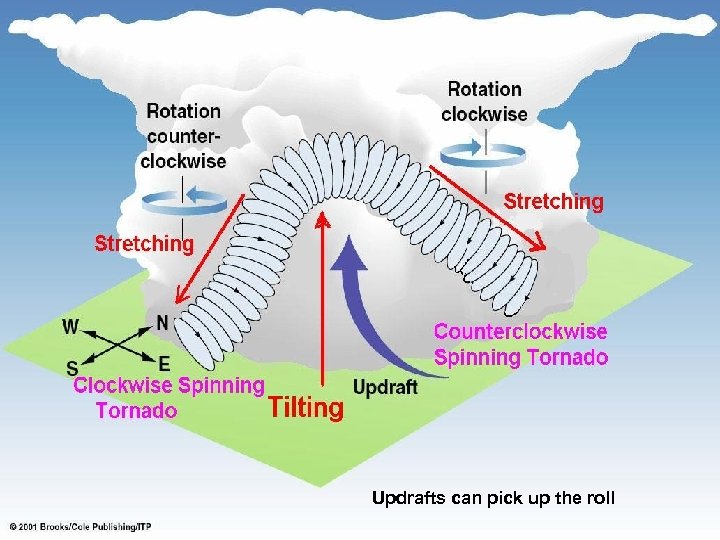

Updrafts can pick up the roll

Jet Stream winds result from large pressure gradients at the boundary between m. T and c. P air, where a large difference in Tropopause height exists. The Jet Stream N The jet stream and tornadoes: pressure differences in the extreme

Tornados are narrow areas of extremely fast updrafts A strong tornado often is associated with rapid removal of updraft air by the Jet Stream aloft

Jet Stream Aloft c. P m. T c. T Potential for wind shear with hot dry unstable c. T Similar temp but different density than m. T which is moist and therefore “light” Dry, so dense The Dry Line Tornado Conditions

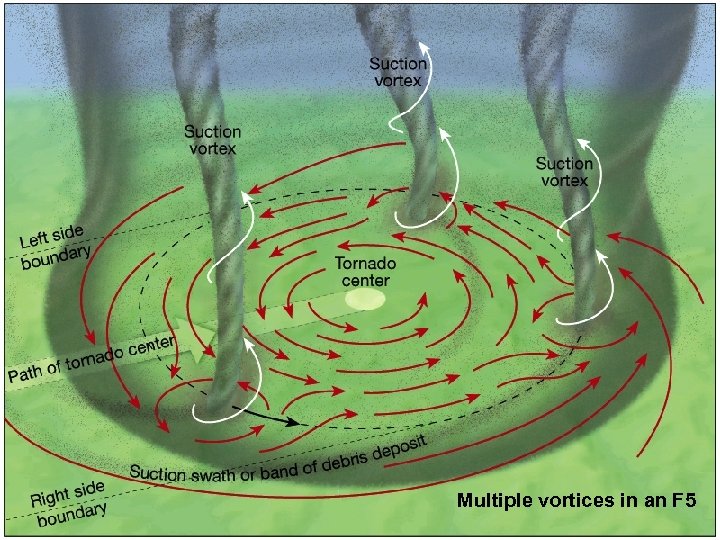

Multiple vortices in an F 5

May 3, 1999

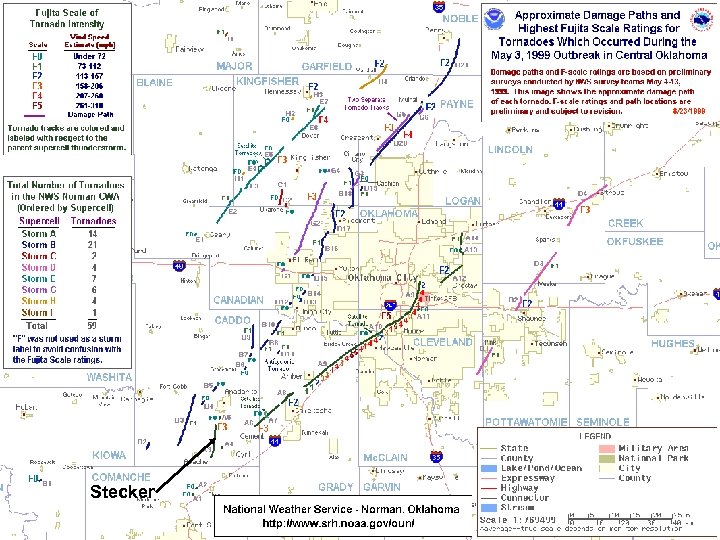

Stecker

Supercell tops overshoot into stratosphere

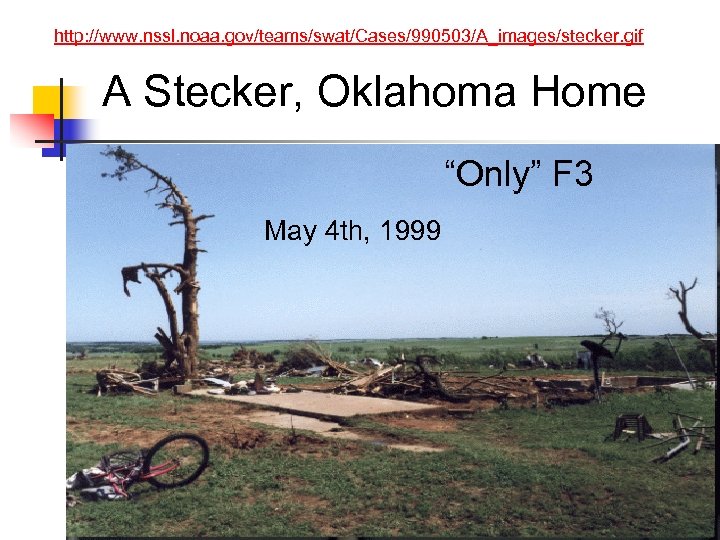

http: //www. nssl. noaa. gov/teams/swat/Cases/990503/A_images/stecker. gif A Stecker, Oklahoma Home “Only” F 3 May 4 th, 1999

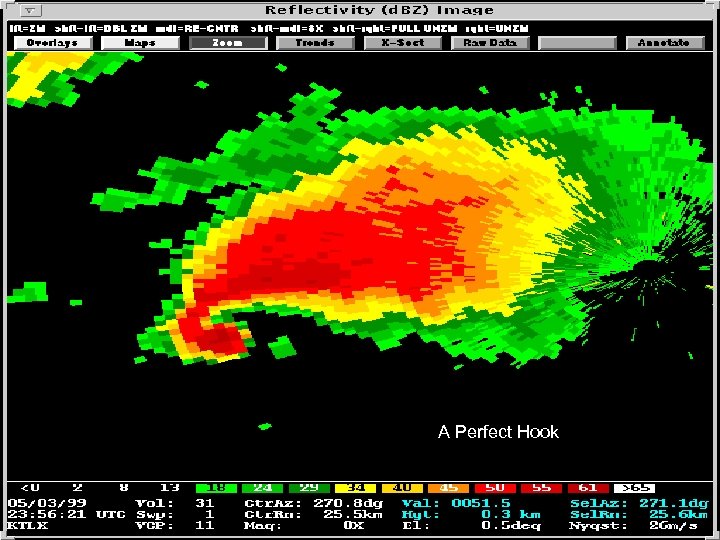

A Perfect Hook

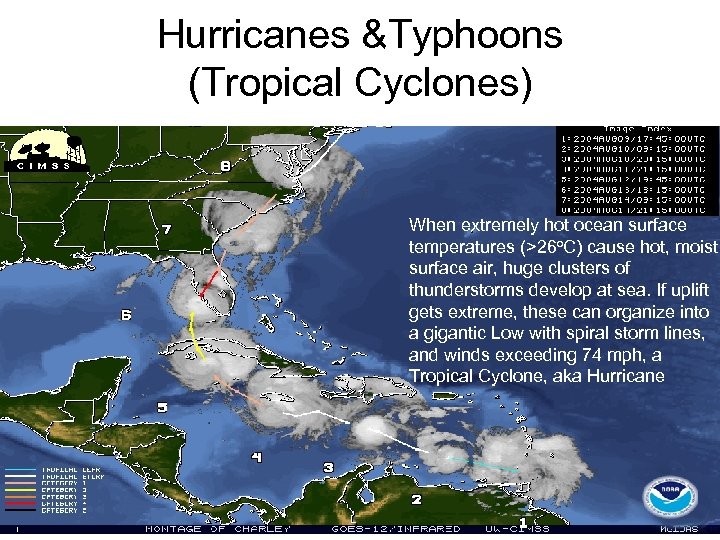

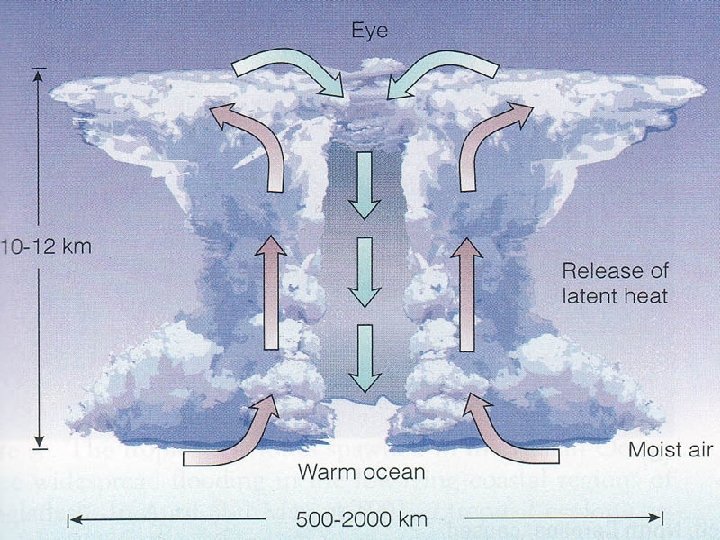

Hurricanes &Typhoons (Tropical Cyclones) When extremely hot ocean surface temperatures (>26 o. C) cause hot, moist surface air, huge clusters of thunderstorms develop at sea. If uplift gets extreme, these can organize into a gigantic Low with spiral storm lines, and winds exceeding 74 mph, a Tropical Cyclone, aka Hurricane

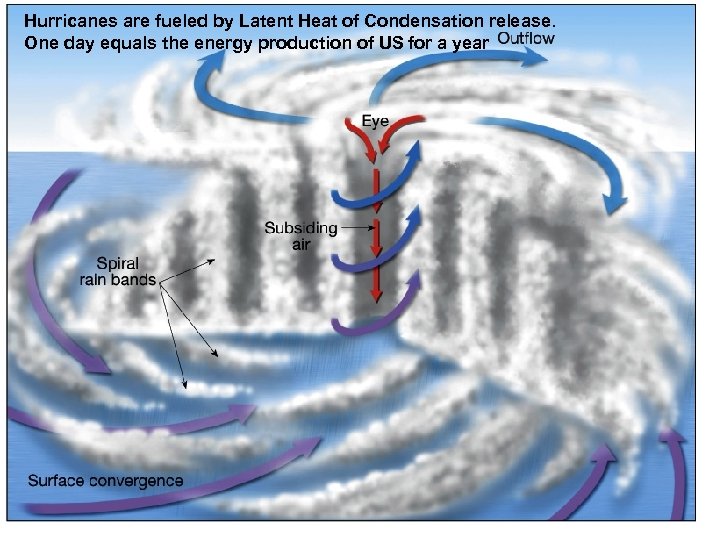

Hurricanes are fueled by Latent Heat of Condensation release. One day equals the energy production of US for a year

Jeanne Hurricanes need hot moist air as fuel. This is why they weaken over land

Katrina

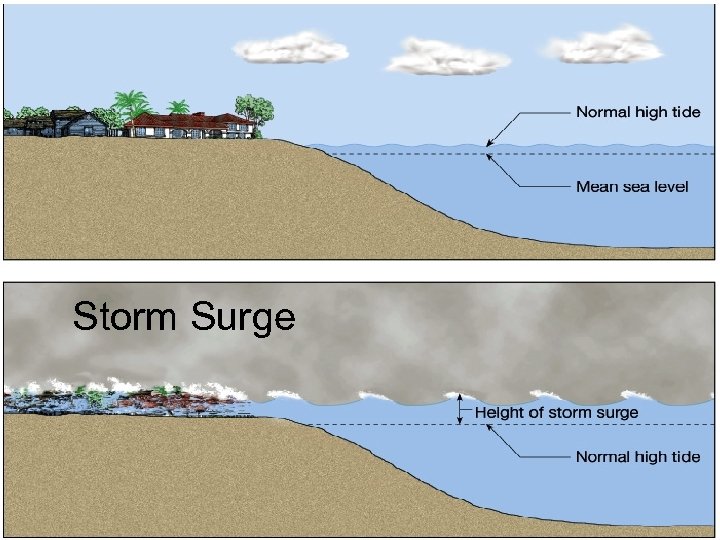

Trapped in House, swept away Storm Surge

Storm Surge

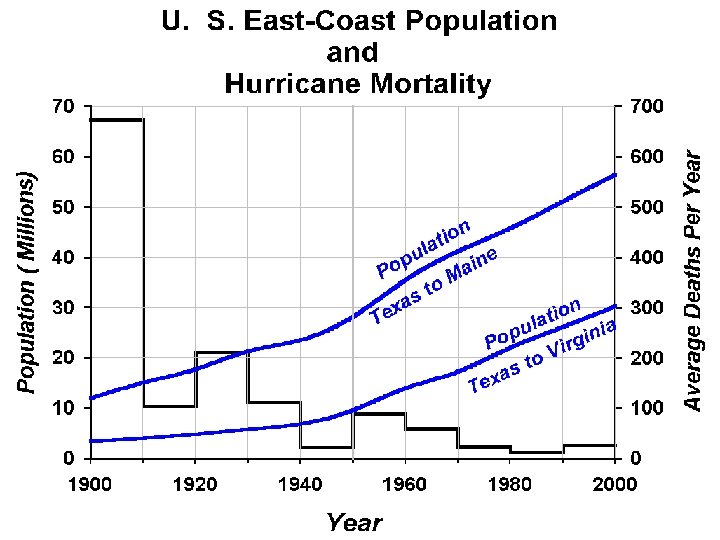

Freshwater (rain) floods cause most fatalities
