HP Open. View Data Extraction and Reporting Bill Emmett Software Design Engineer HP Open. View Integration Lab Hewlett-Packard Company
The Reporting Challenge Measure the success of delivering more IT services Corporate while using less resources Management Reports to help make informed infrastructure design decisions for future needs Planning Department Business Management • More bandwidth • New IT Services • Redesign infrastructure Reports measuring quality and volume of IT services

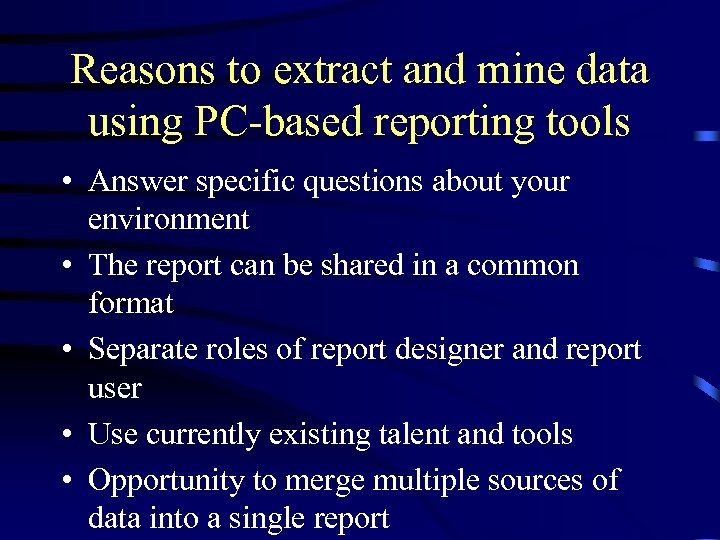

Reasons to extract and mine data using PC-based reporting tools • Answer specific questions about your environment • The report can be shared in a common format • Separate roles of report designer and report user • Use currently existing talent and tools • Opportunity to merge multiple sources of data into a single report

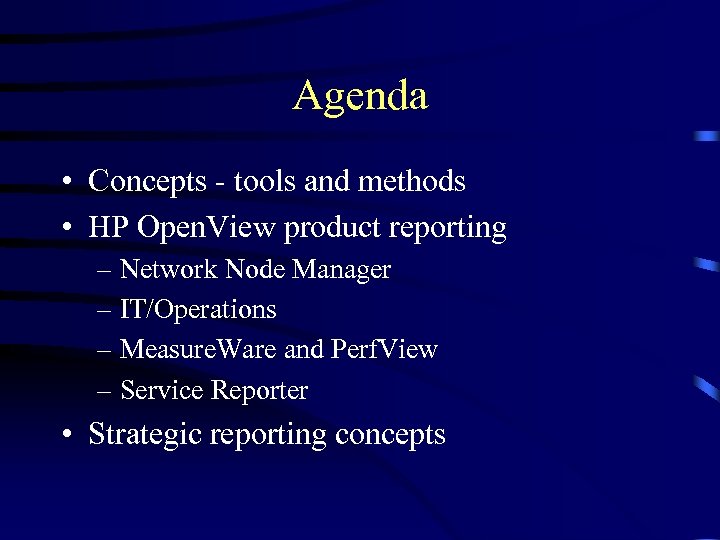

Agenda • Concepts - tools and methods • HP Open. View product reporting – Network Node Manager – IT/Operations – Measure. Ware and Perf. View – Service Reporter • Strategic reporting concepts

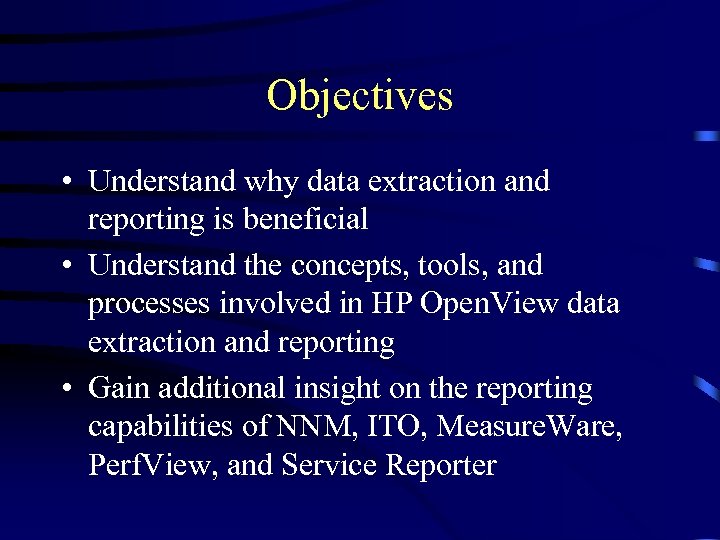

Objectives • Understand why data extraction and reporting is beneficial • Understand the concepts, tools, and processes involved in HP Open. View data extraction and reporting • Gain additional insight on the reporting capabilities of NNM, ITO, Measure. Ware, Perf. View, and Service Reporter

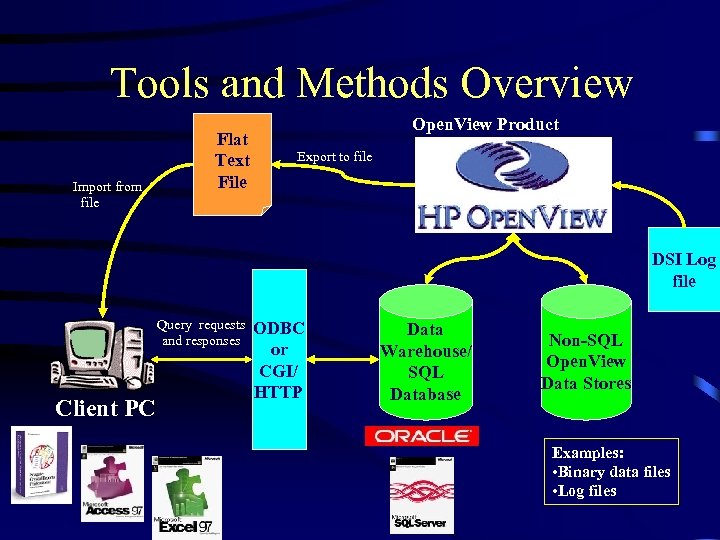

Tools and Methods Overview Import from file Flat Text File Open. View Product Export to file DSI Log file Query requests and responses Client PC ODBC or CGI/ HTTP Data Warehouse/ SQL Database Non-SQL Open. View Data Stores Examples: • Binary data files • Log files
PC Clients

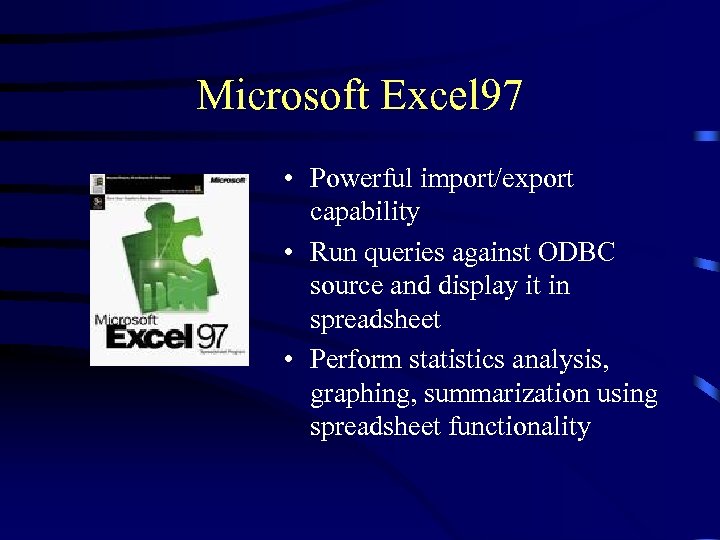

Microsoft Excel 97 • Powerful import/export capability • Run queries against ODBC source and display it in spreadsheet • Perform statistics analysis, graphing, summarization using spreadsheet functionality

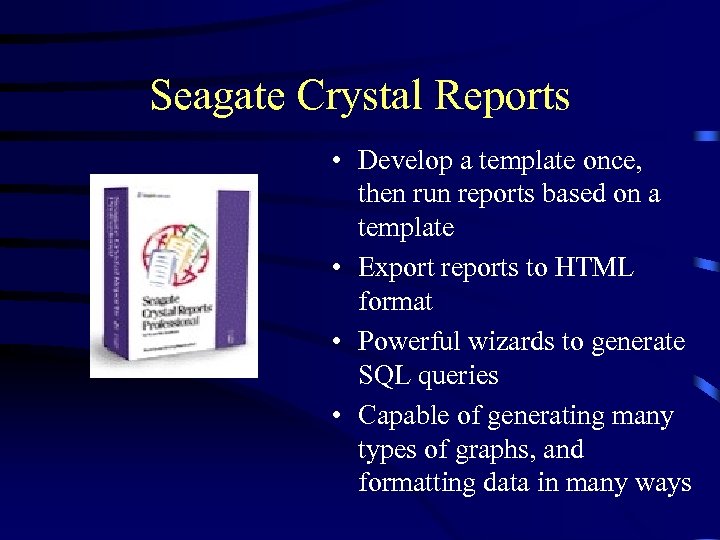

Seagate Crystal Reports • Develop a template once, then run reports based on a template • Export reports to HTML format • Powerful wizards to generate SQL queries • Capable of generating many types of graphs, and formatting data in many ways

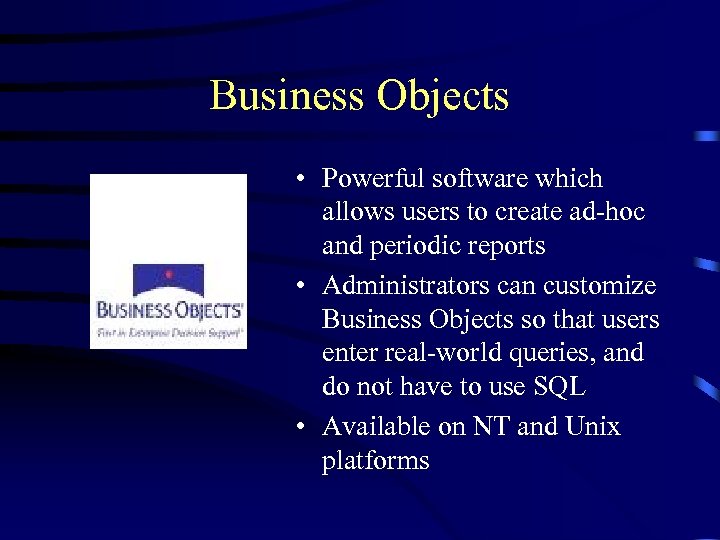

Business Objects • Powerful software which allows users to create ad-hoc and periodic reports • Administrators can customize Business Objects so that users enter real-world queries, and do not have to use SQL • Available on NT and Unix platforms

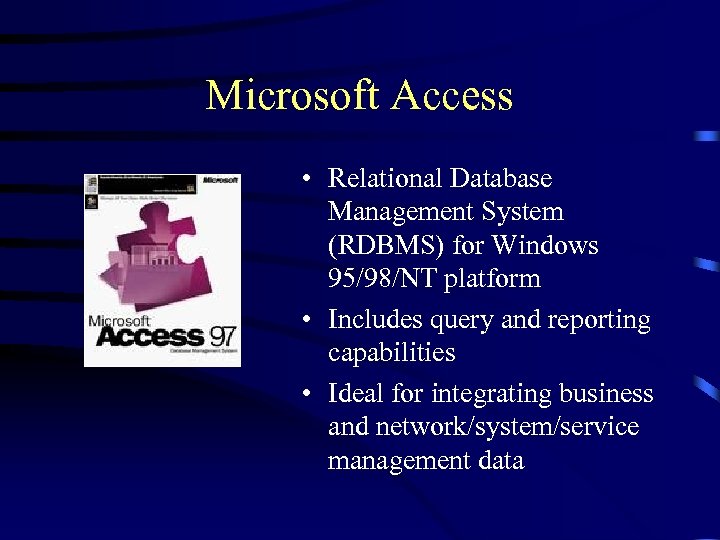

Microsoft Access • Relational Database Management System (RDBMS) for Windows 95/98/NT platform • Includes query and reporting capabilities • Ideal for integrating business and network/system/service management data

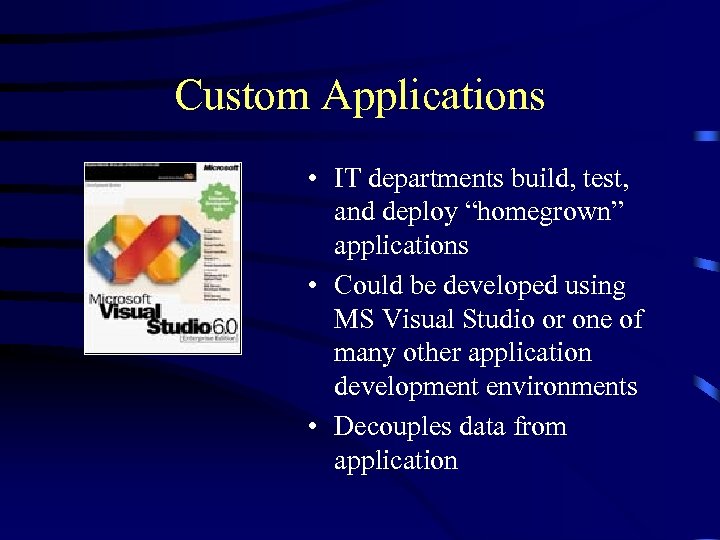

Custom Applications • IT departments build, test, and deploy “homegrown” applications • Could be developed using MS Visual Studio or one of many other application development environments • Decouples data from application

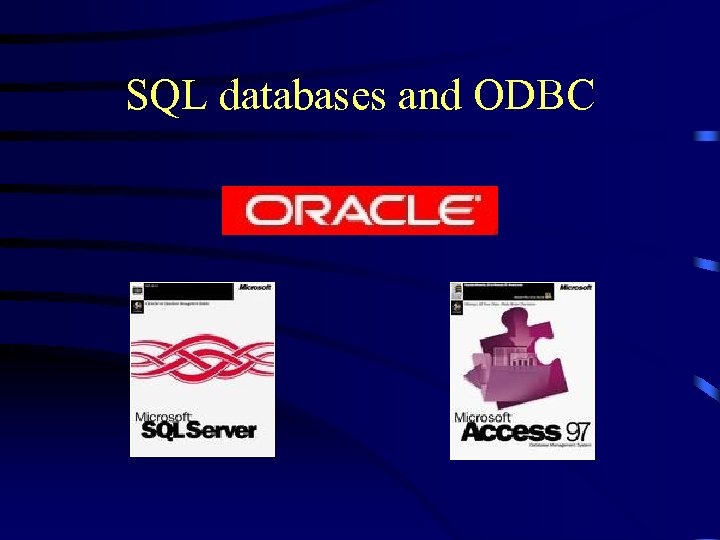

SQL databases and ODBC

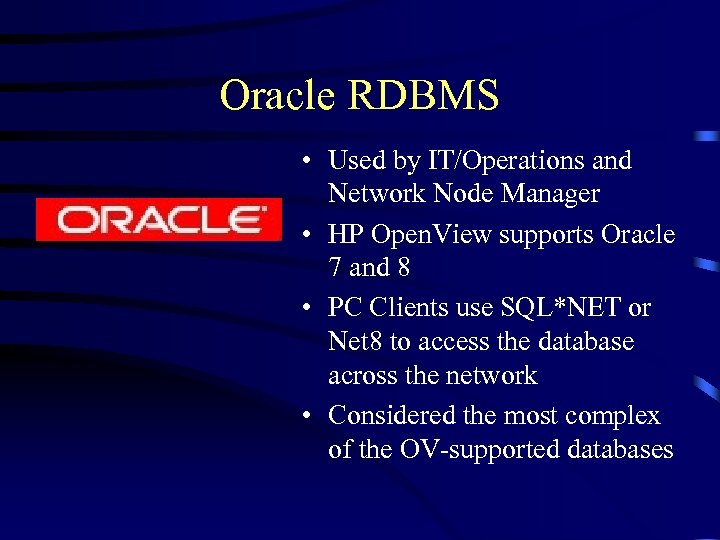

Oracle RDBMS • Used by IT/Operations and Network Node Manager • HP Open. View supports Oracle 7 and 8 • PC Clients use SQL*NET or Net 8 to access the database across the network • Considered the most complex of the OV-supported databases

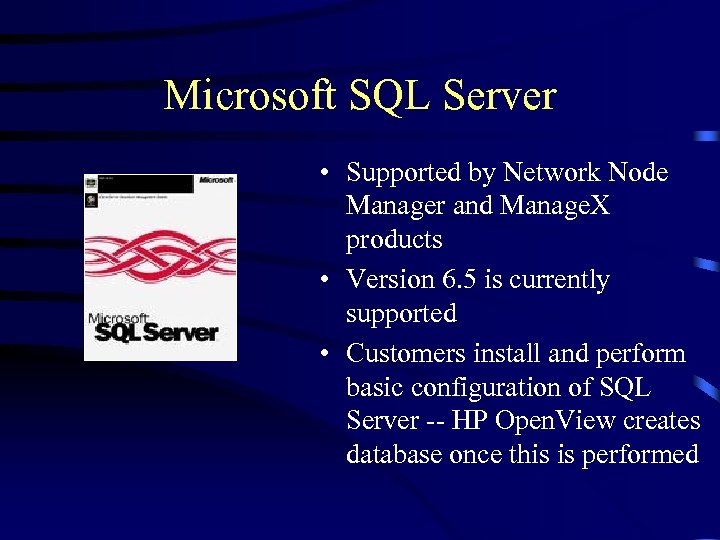

Microsoft SQL Server • Supported by Network Node Manager and Manage. X products • Version 6. 5 is currently supported • Customers install and perform basic configuration of SQL Server -- HP Open. View creates database once this is performed

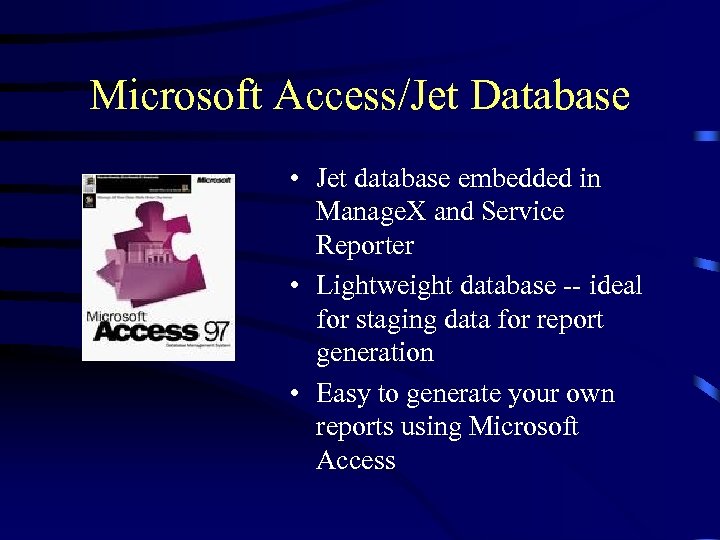

Microsoft Access/Jet Database • Jet database embedded in Manage. X and Service Reporter • Lightweight database -- ideal for staging data for report generation • Easy to generate your own reports using Microsoft Access

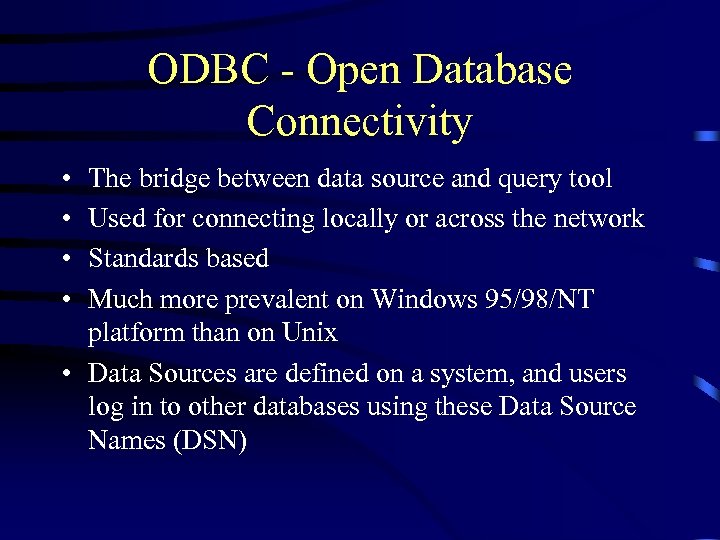

ODBC - Open Database Connectivity • • The bridge between data source and query tool Used for connecting locally or across the network Standards based Much more prevalent on Windows 95/98/NT platform than on Unix • Data Sources are defined on a system, and users log in to other databases using these Data Source Names (DSN)
ODBC Issues • • ODBC driver version conflicts Using ODBC across the network Application behavior and consistency Performance, and less “rich” data

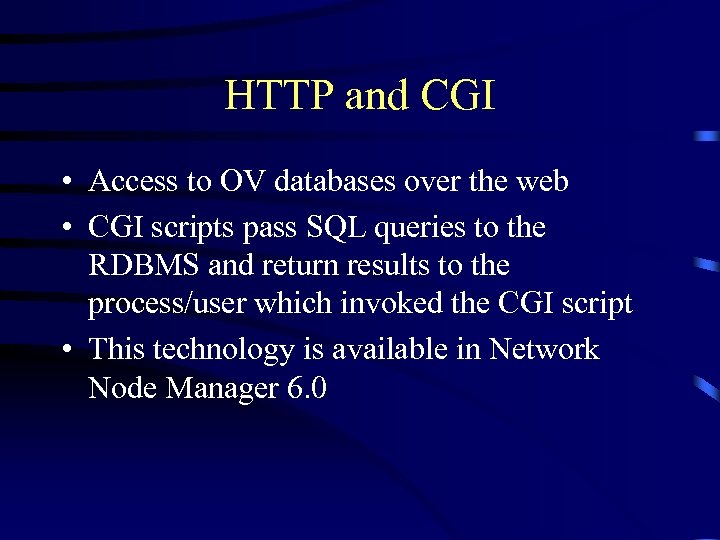

HTTP and CGI • Access to OV databases over the web • CGI scripts pass SQL queries to the RDBMS and return results to the process/user which invoked the CGI script • This technology is available in Network Node Manager 6. 0

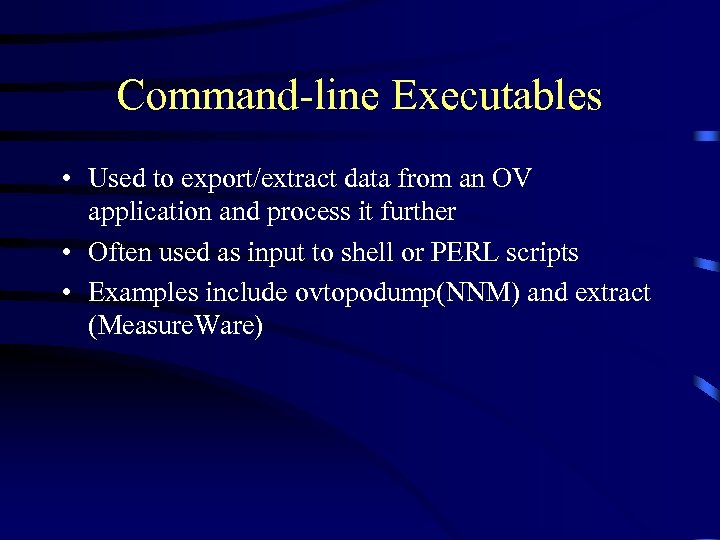

Command-line Executables • Used to export/extract data from an OV application and process it further • Often used as input to shell or PERL scripts • Examples include ovtopodump(NNM) and extract (Measure. Ware)
HP Open. View Database Documentation • Entity-Relationship diagrams identify and relate tables to each other • Data dictionaries describe the contents of each table • Between these two sources, IT departments should be able to make their own reports

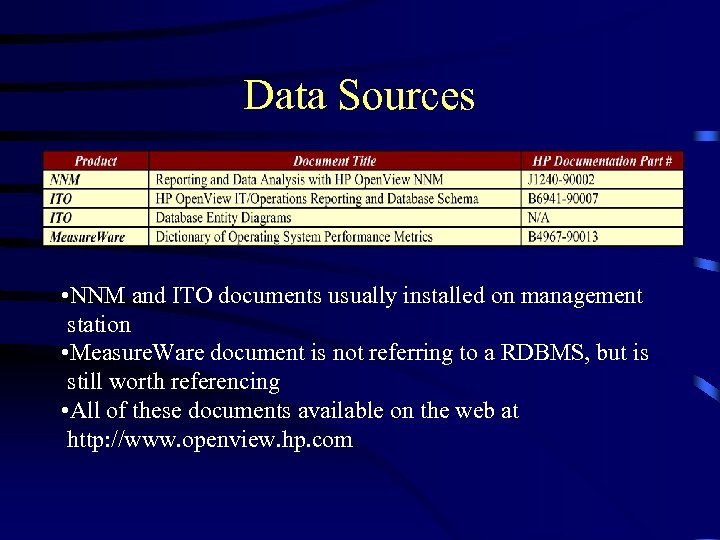

Data Sources • NNM and ITO documents usually installed on management station • Measure. Ware document is not referring to a RDBMS, but is still worth referencing • All of these documents available on the web at http: //www. openview. hp. com

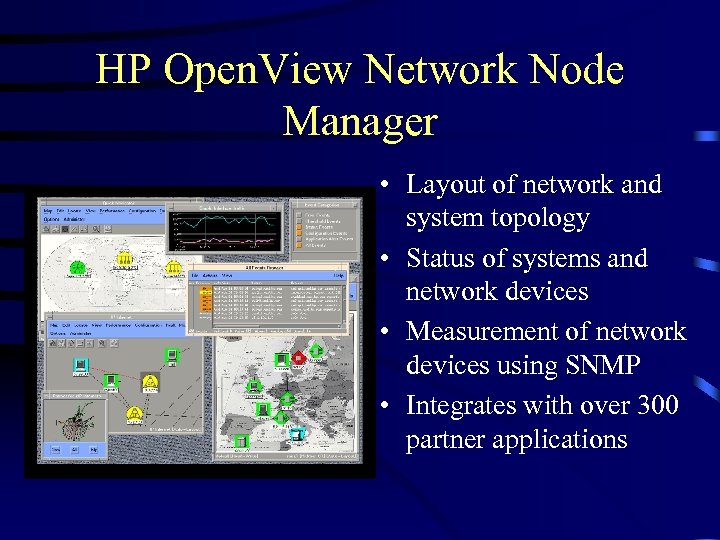

HP Open. View Network Node Manager • Layout of network and system topology • Status of systems and network devices • Measurement of network devices using SNMP • Integrates with over 300 partner applications

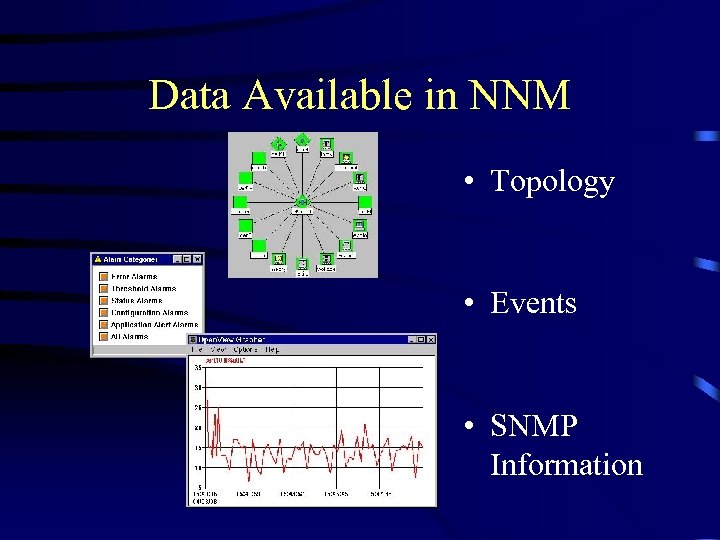

Data Available in NNM • Topology • Events • SNMP Information

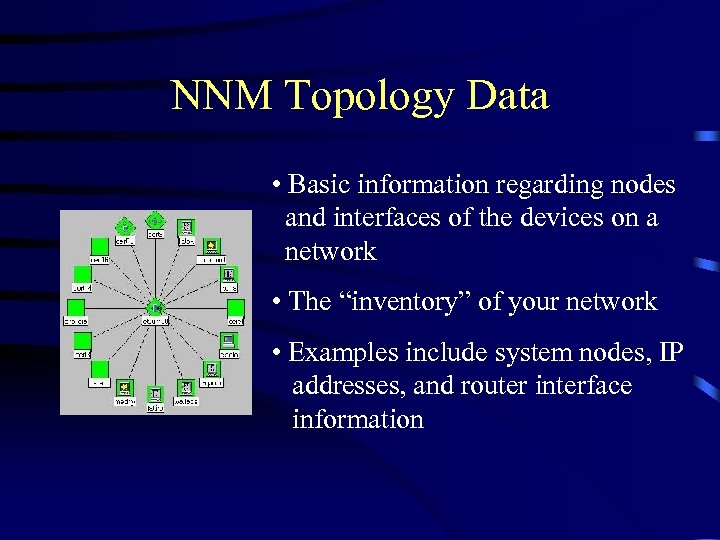

NNM Topology Data • Basic information regarding nodes and interfaces of the devices on a network • The “inventory” of your network • Examples include system nodes, IP addresses, and router interface information

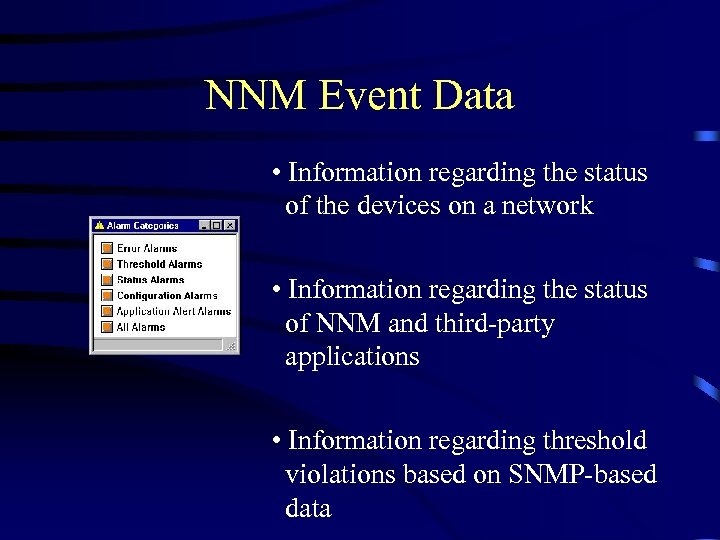

NNM Event Data • Information regarding the status of the devices on a network • Information regarding the status of NNM and third-party applications • Information regarding threshold violations based on SNMP-based data

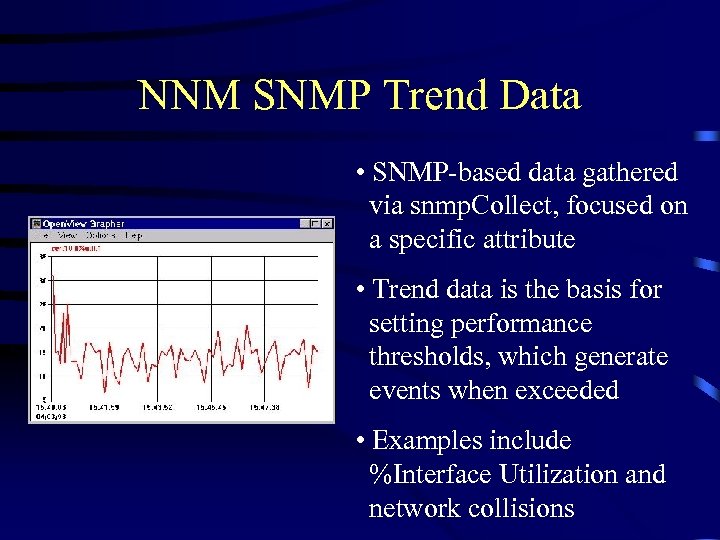

NNM SNMP Trend Data • SNMP-based data gathered via snmp. Collect, focused on a specific attribute • Trend data is the basis for setting performance thresholds, which generate events when exceeded • Examples include %Interface Utilization and network collisions

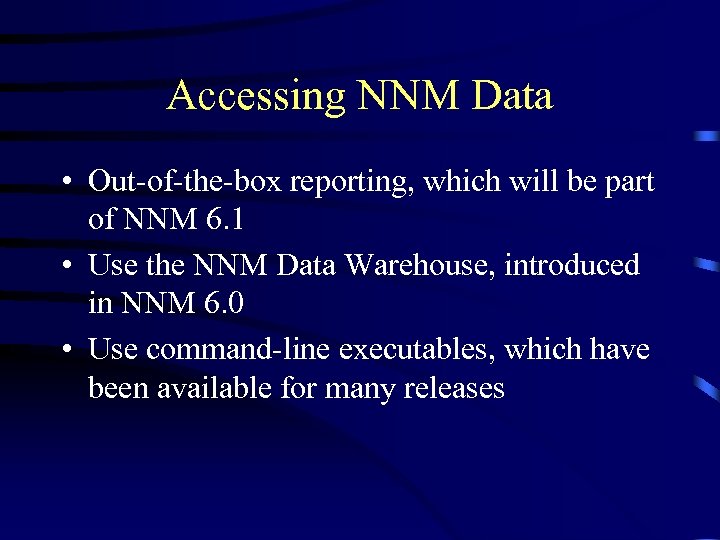

Accessing NNM Data • Out-of-the-box reporting, which will be part of NNM 6. 1 • Use the NNM Data Warehouse, introduced in NNM 6. 0 • Use command-line executables, which have been available for many releases

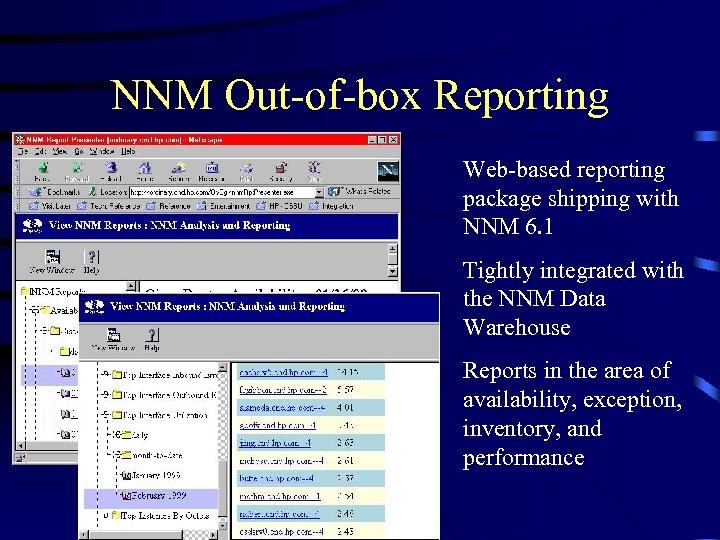

NNM Out-of-box Reporting Web-based reporting package shipping with NNM 6. 1 Tightly integrated with the NNM Data Warehouse Reports in the area of availability, exception, inventory, and performance

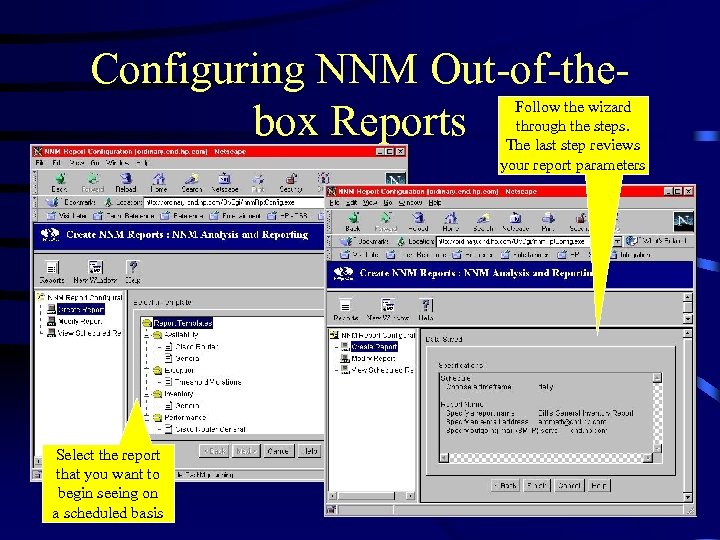

Configuring NNM Out-of-thebox Reports Follow the wizard through the steps. The last step reviews your report parameters Select the report that you want to begin seeing on a scheduled basis

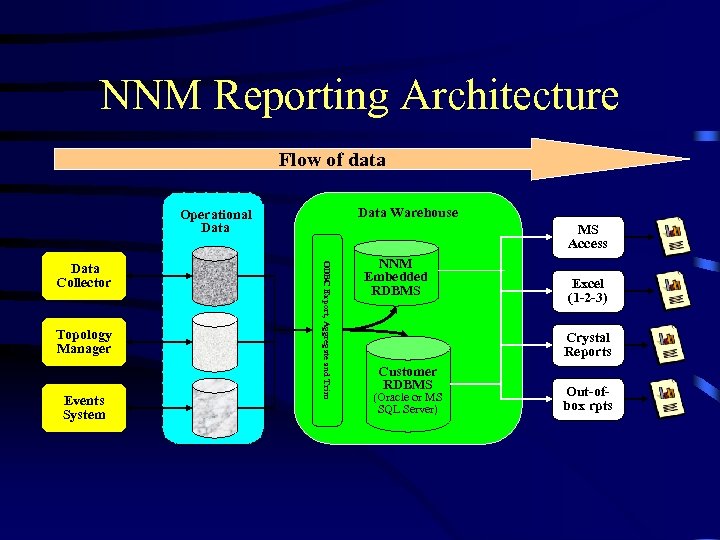

NNM Reporting Architecture Flow of data Data Warehouse Operational Data Topology Manager Events System ODBC Export, Aggregate and Trim Data Collector MS Access NNM Embedded RDBMS Excel (1 -2 -3) Crystal Reports Customer RDBMS (Oracle or MS SQL Server) Out-ofbox rpts

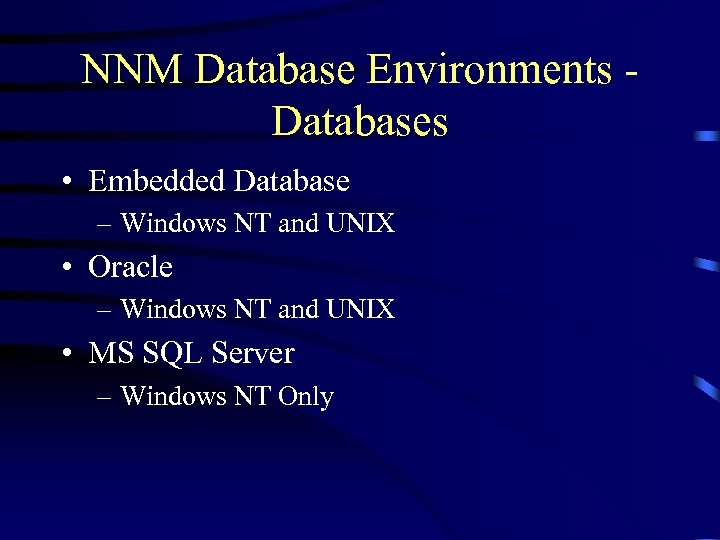

NNM Database Environments Databases • Embedded Database – Windows NT and UNIX • Oracle – Windows NT and UNIX • MS SQL Server – Windows NT Only

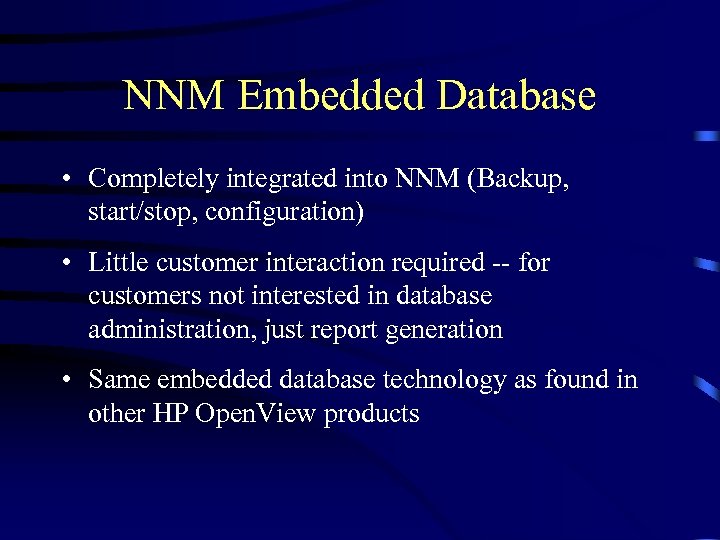

NNM Embedded Database • Completely integrated into NNM (Backup, start/stop, configuration) • Little customer interaction required -- for customers not interested in database administration, just report generation • Same embedded database technology as found in other HP Open. View products

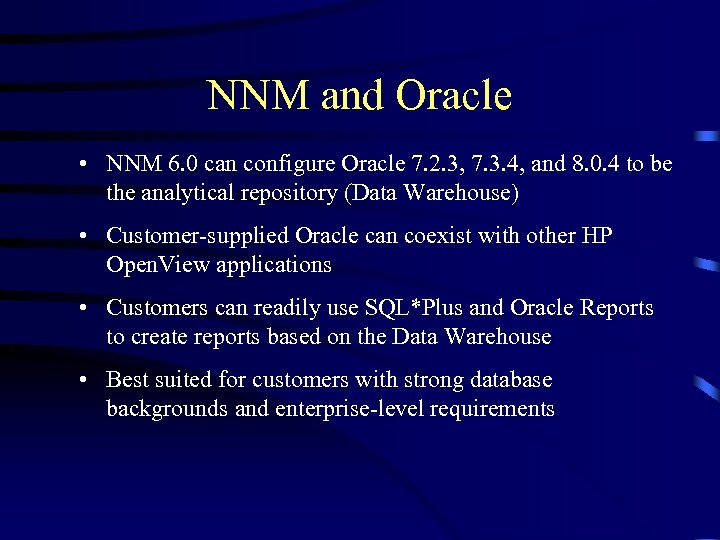

NNM and Oracle • NNM 6. 0 can configure Oracle 7. 2. 3, 7. 3. 4, and 8. 0. 4 to be the analytical repository (Data Warehouse) • Customer-supplied Oracle can coexist with other HP Open. View applications • Customers can readily use SQL*Plus and Oracle Reports to create reports based on the Data Warehouse • Best suited for customers with strong database backgrounds and enterprise-level requirements

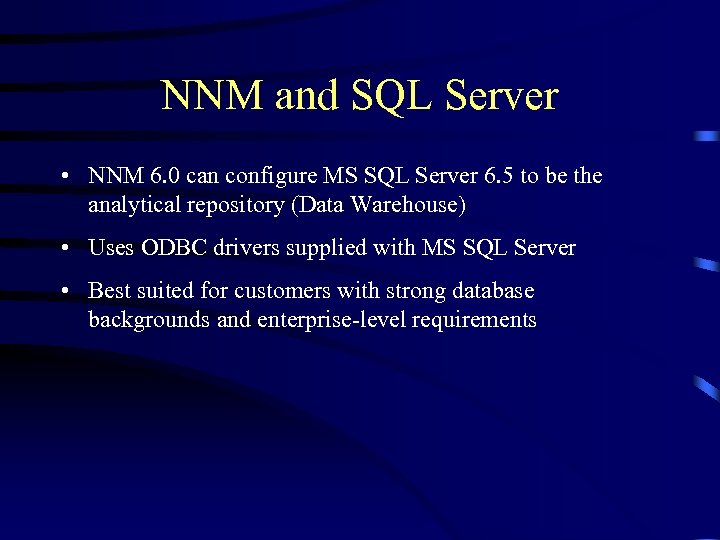

NNM and SQL Server • NNM 6. 0 can configure MS SQL Server 6. 5 to be the analytical repository (Data Warehouse) • Uses ODBC drivers supplied with MS SQL Server • Best suited for customers with strong database backgrounds and enterprise-level requirements

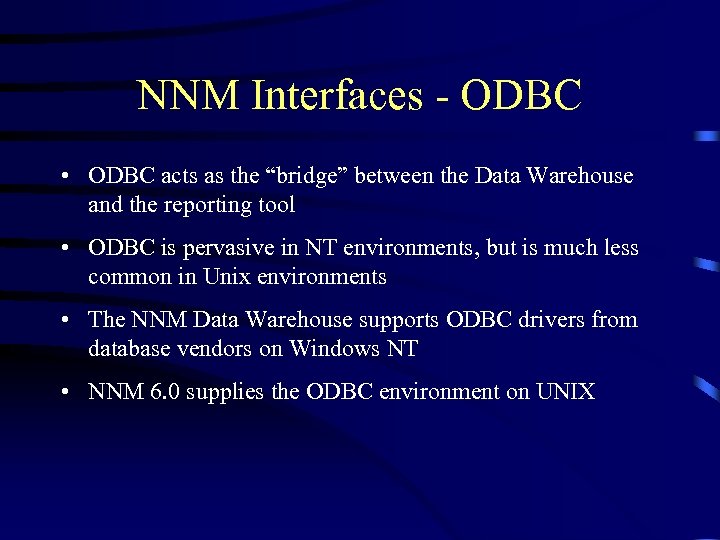

NNM Interfaces - ODBC • ODBC acts as the “bridge” between the Data Warehouse and the reporting tool • ODBC is pervasive in NT environments, but is much less common in Unix environments • The NNM Data Warehouse supports ODBC drivers from database vendors on Windows NT • NNM 6. 0 supplies the ODBC environment on UNIX

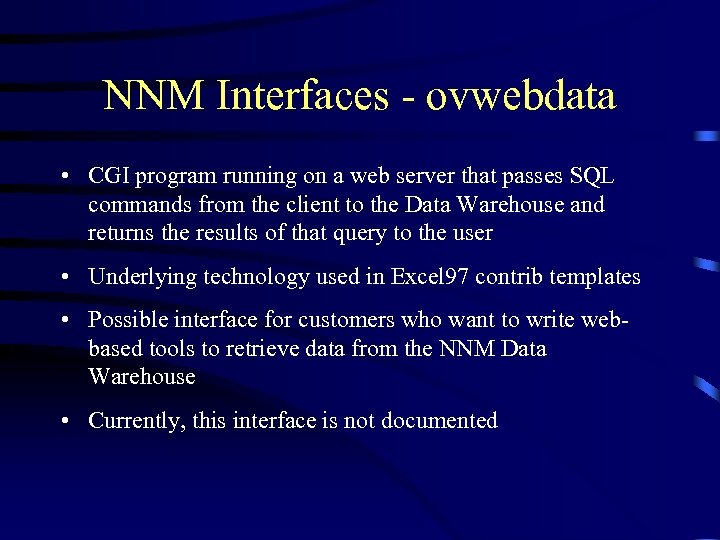

NNM Interfaces - ovwebdata • CGI program running on a web server that passes SQL commands from the client to the Data Warehouse and returns the results of that query to the user • Underlying technology used in Excel 97 contrib templates • Possible interface for customers who want to write webbased tools to retrieve data from the NNM Data Warehouse • Currently, this interface is not documented
Sample Reports - Excel 97 Network exceptions and events

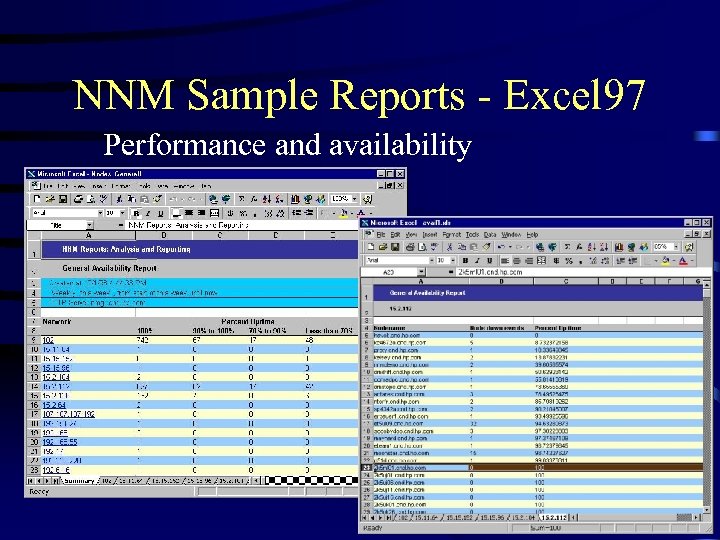

NNM Sample Reports - Excel 97 Performance and availability

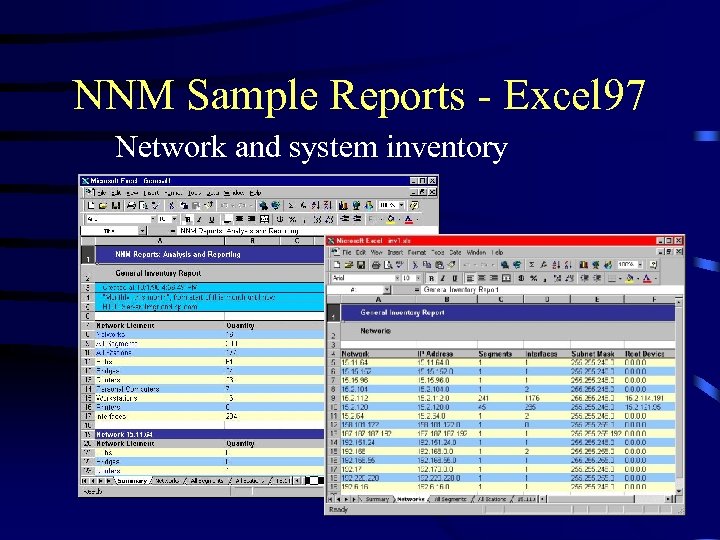

NNM Sample Reports - Excel 97 Network and system inventory

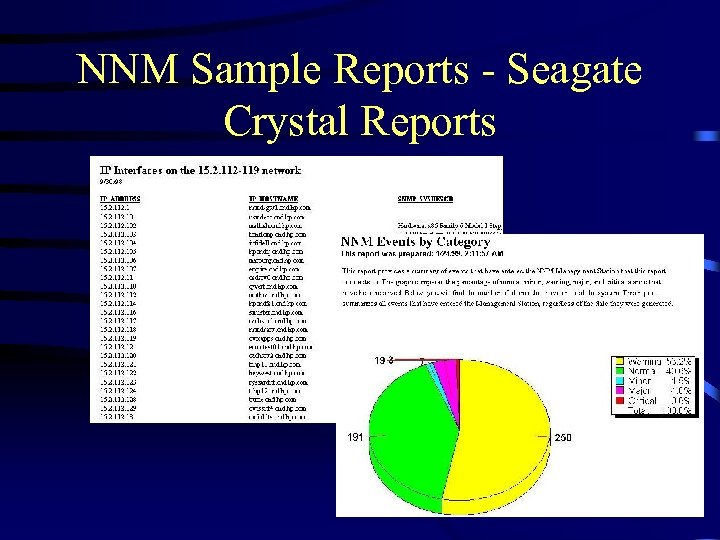

NNM Sample Reports - Seagate Crystal Reports

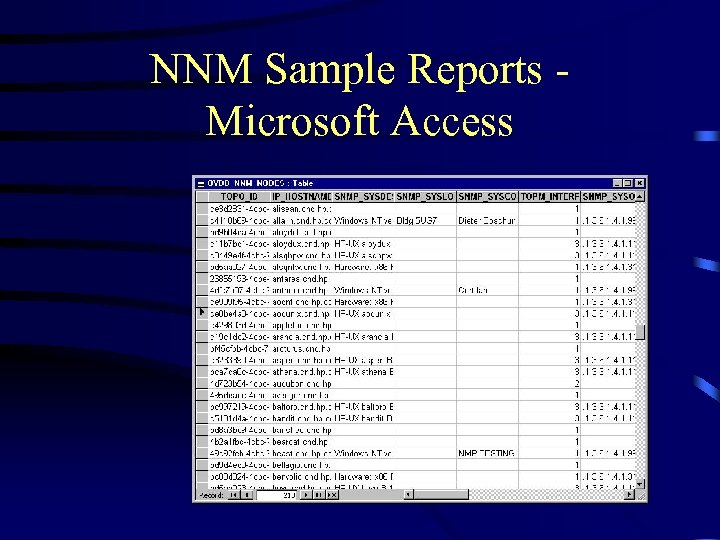

NNM Sample Reports Microsoft Access

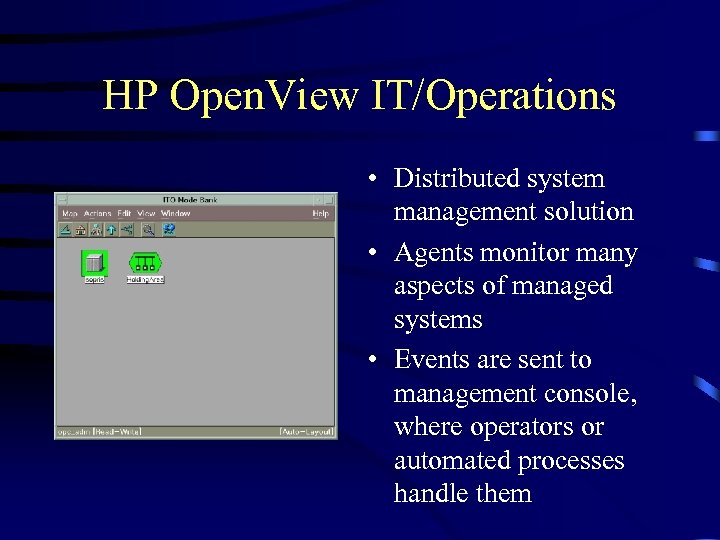

HP Open. View IT/Operations • Distributed system management solution • Agents monitor many aspects of managed systems • Events are sent to management console, where operators or automated processes handle them
Data Available in ITO • Many types of events, originating from many sources • Status of managed nodes • Information regarding ITO operators and administrators

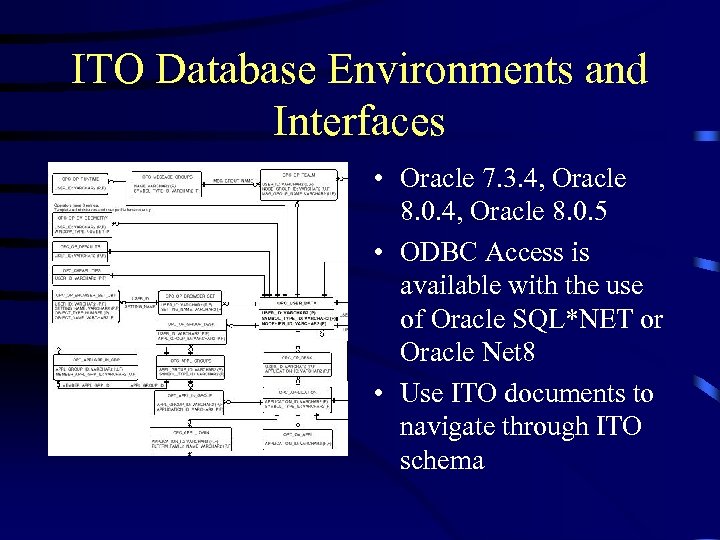

ITO Database Environments and Interfaces • Oracle 7. 3. 4, Oracle 8. 0. 5 • ODBC Access is available with the use of Oracle SQL*NET or Oracle Net 8 • Use ITO documents to navigate through ITO schema

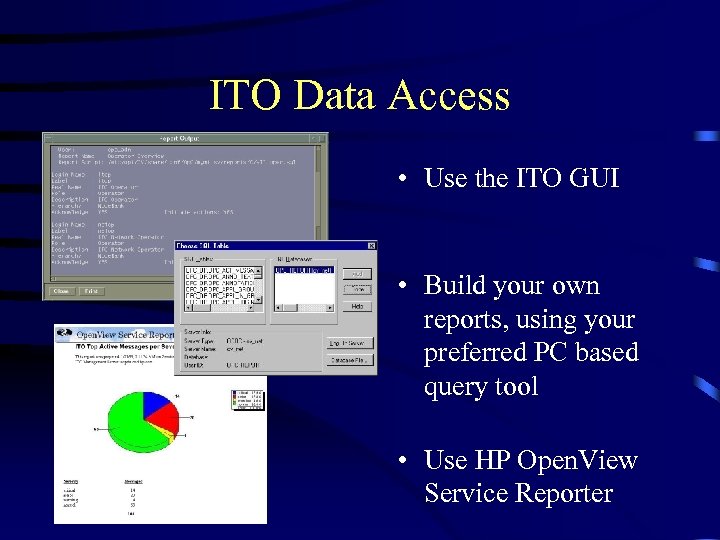

ITO Data Access • Use the ITO GUI • Build your own reports, using your preferred PC based query tool • Use HP Open. View Service Reporter

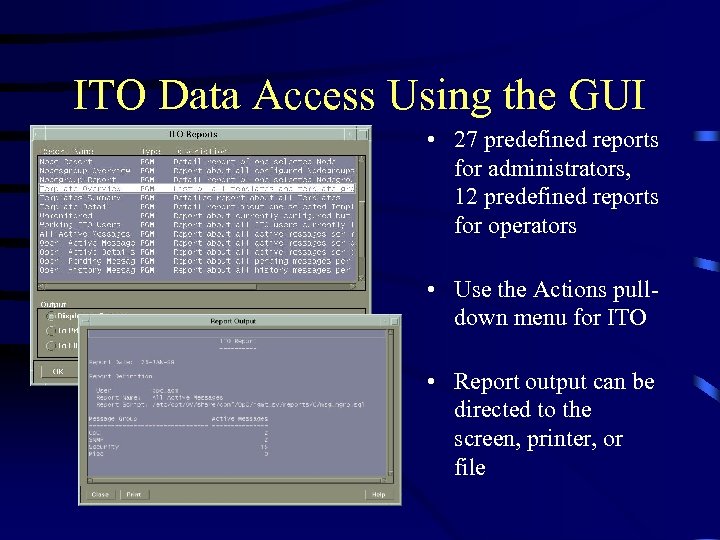

ITO Data Access Using the GUI • 27 predefined reports for administrators, 12 predefined reports for operators • Use the Actions pulldown menu for ITO • Report output can be directed to the screen, printer, or file

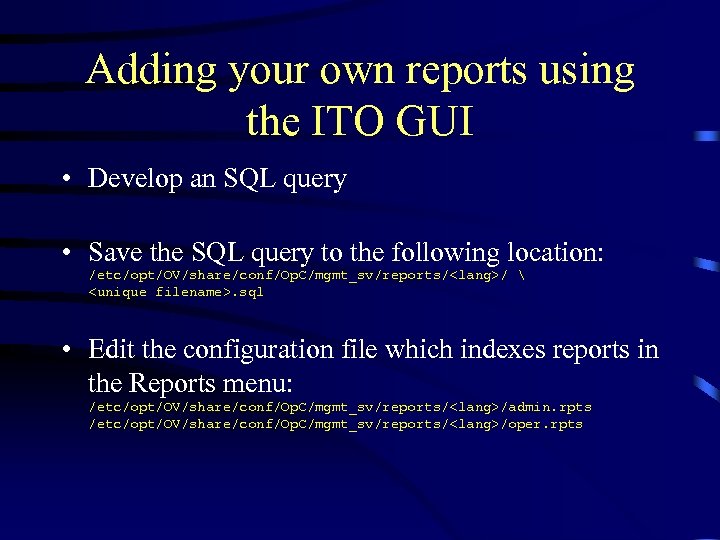

Adding your own reports using the ITO GUI • Develop an SQL query • Save the SQL query to the following location: /etc/opt/OV/share/conf/Op. C/mgmt_sv/reports/<lang>/ <unique filename>. sql • Edit the configuration file which indexes reports in the Reports menu: /etc/opt/OV/share/conf/Op. C/mgmt_sv/reports/<lang>/admin. rpts /etc/opt/OV/share/conf/Op. C/mgmt_sv/reports/<lang>/oper. rpts

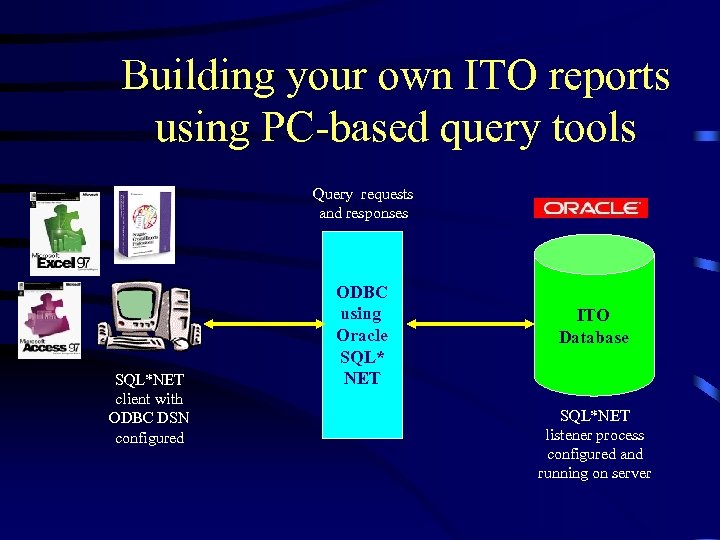

Building your own ITO reports using PC-based query tools Query requests and responses SQL*NET client with ODBC DSN configured ODBC using Oracle SQL* NET ITO Database SQL*NET listener process configured and running on server
Accessing the ITO Database using ODBC • Use preconfigured ODBC DSN “ov_net” • Default report (readonly) user is opc_report • Default password is Op. C_report

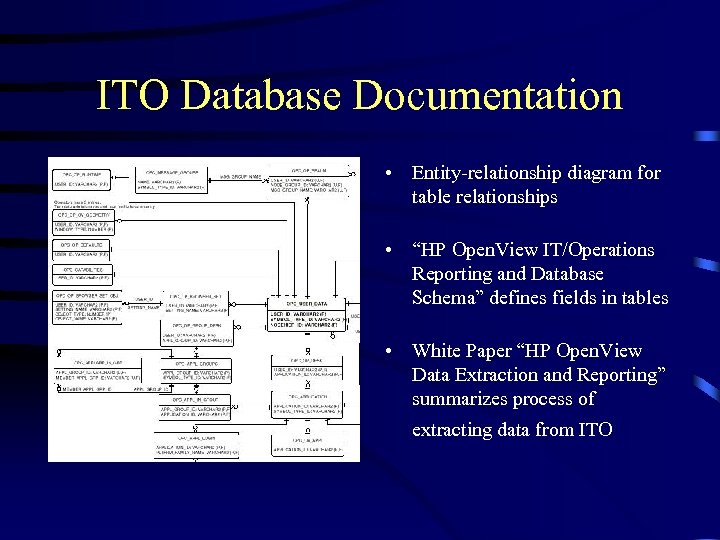

ITO Database Documentation • Entity-relationship diagram for table relationships • “HP Open. View IT/Operations Reporting and Database Schema” defines fields in tables • White Paper “HP Open. View Data Extraction and Reporting” summarizes process of extracting data from ITO
Service Reporter and ITO • Reports based on ITO Management Server data • 30 reports offered with Service Reporter • IT organizations can use Crystal Reports to create additional reports and present them in Service Reporter

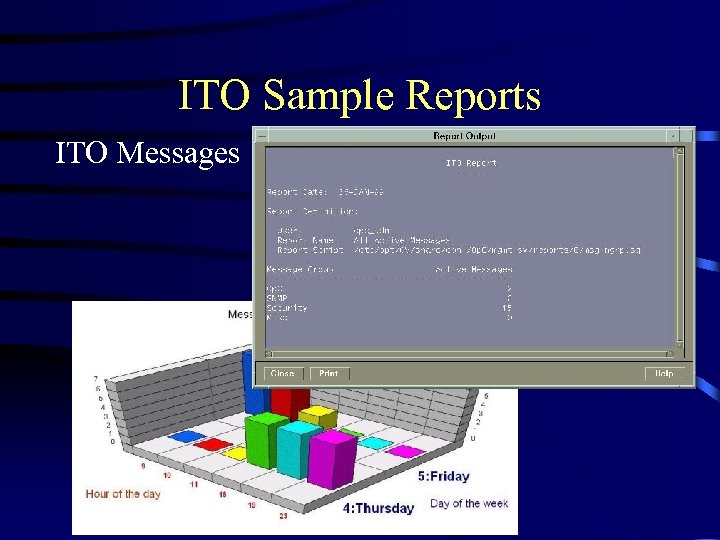

ITO Sample Reports ITO Messages

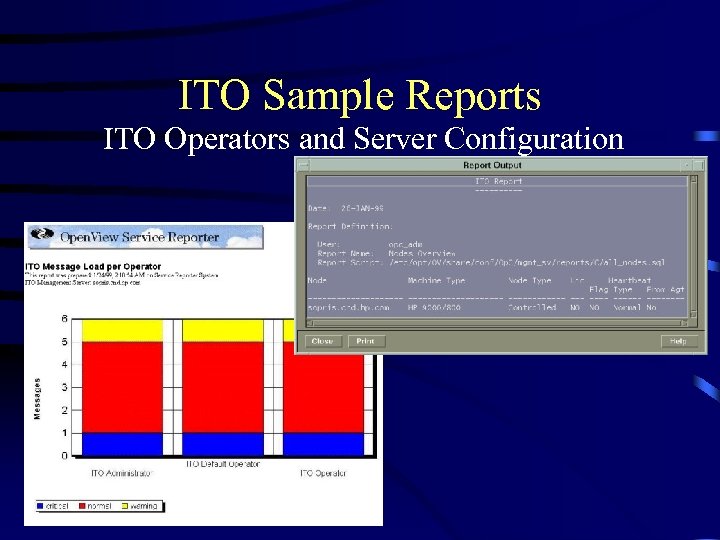

ITO Sample Reports ITO Operators and Server Configuration

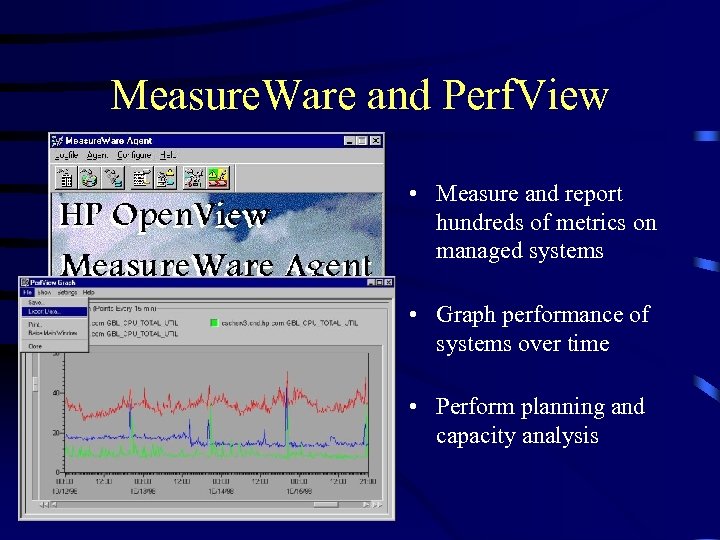

Measure. Ware and Perf. View • Measure and report hundreds of metrics on managed systems • Graph performance of systems over time • Perform planning and capacity analysis
Performance Data • Based on data collected by Measure. Ware agents, which reside on managed machines • Data includes CPU performance, memory utilization, network utilization, and many other areas • “Dictionary of Operating System Performance Metrics” has details regarding metrics that are available on each platform

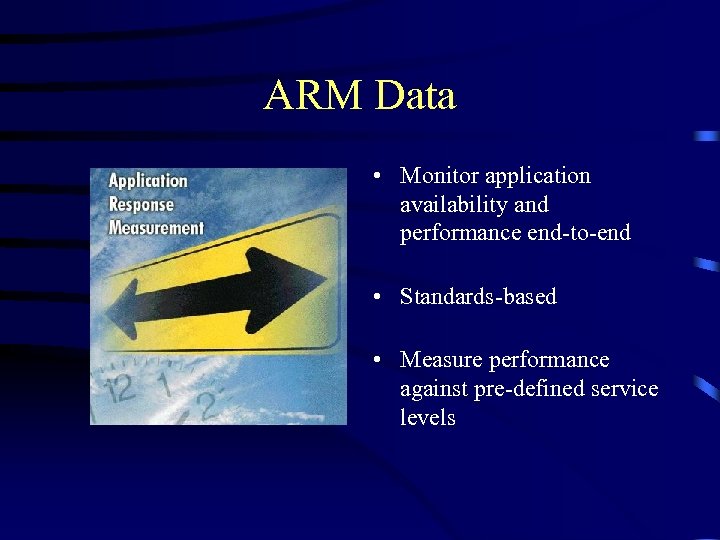

ARM Data • Monitor application availability and performance end-to-end • Standards-based • Measure performance against pre-defined service levels

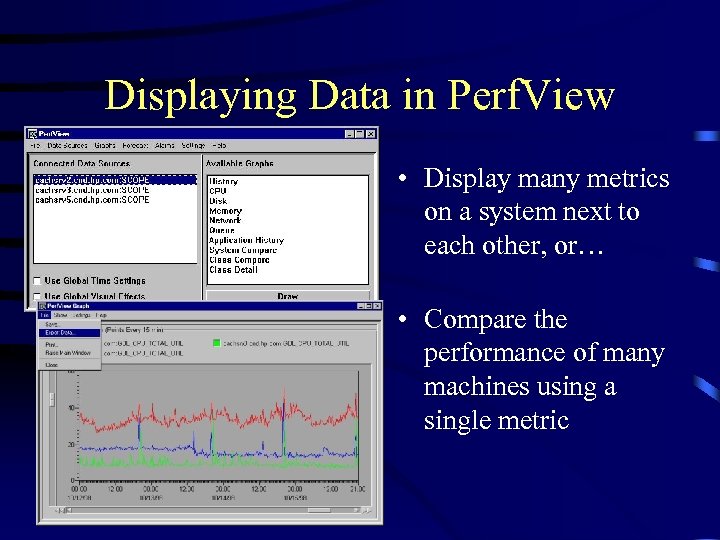

Displaying Data in Perf. View • Display many metrics on a system next to each other, or… • Compare the performance of many machines using a single metric
Exporting data from Measure. Ware (1 of 3) Select data source (log file) and template to export data from Identify date range for exporting metrics
Exporting Data from Measure. Ware (2 of 3) • Templates define which metrics will be exported, and the level of aggregation that will take place during the export • Templates also instruct Measure. Ware to export data in a specific data format

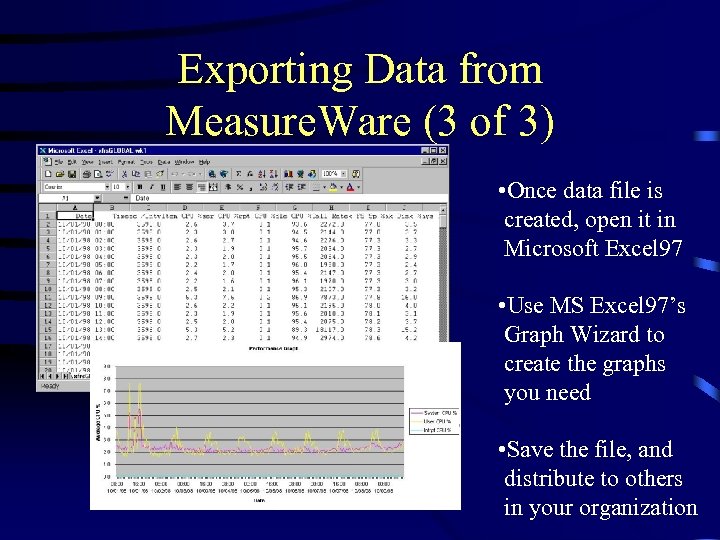

Exporting Data from Measure. Ware (3 of 3) • Once data file is created, open it in Microsoft Excel 97 • Use MS Excel 97’s Graph Wizard to create the graphs you need • Save the file, and distribute to others in your organization

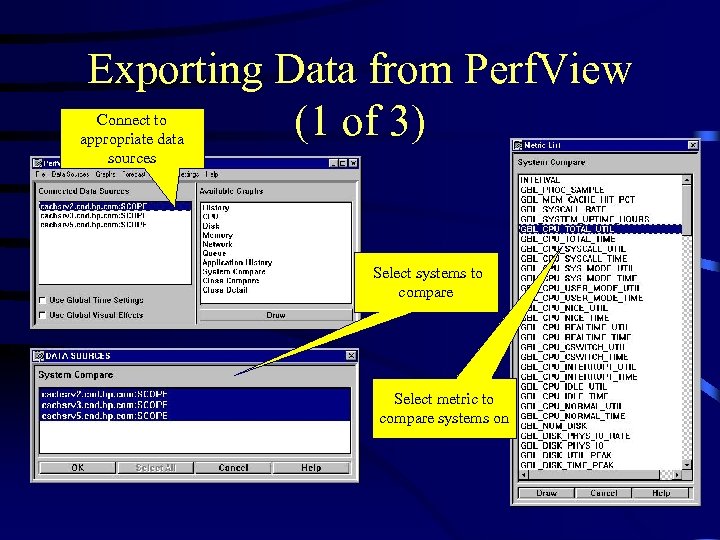

Exporting Data from Perf. View (1 of 3) Connect to appropriate data sources Select systems to compare Select metric to compare systems on

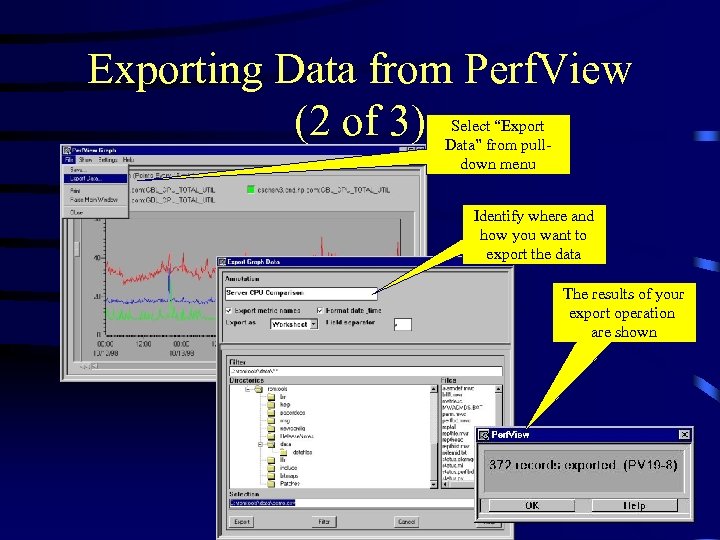

Exporting Data from Perf. View (2 of 3) Select “Export Data” from pulldown menu Identify where and how you want to export the data The results of your export operation are shown

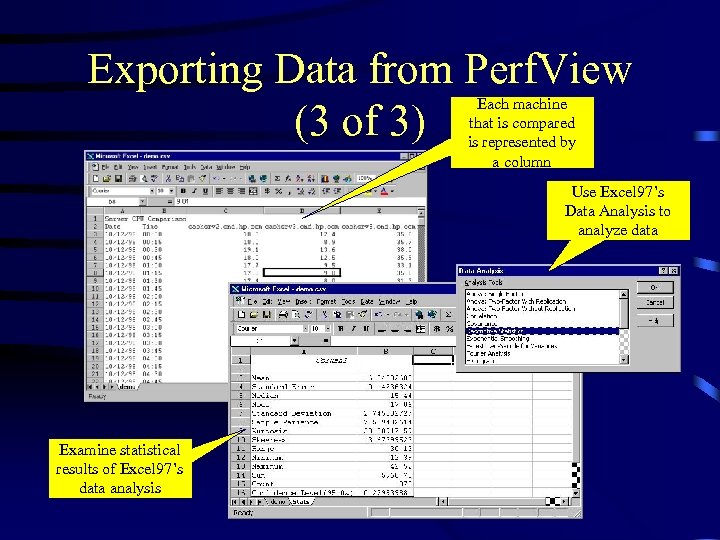

Exporting Data from Perf. View (3 of 3) Each machine that is compared is represented by a column Use Excel 97’s Data Analysis to analyze data Examine statistical results of Excel 97’s data analysis

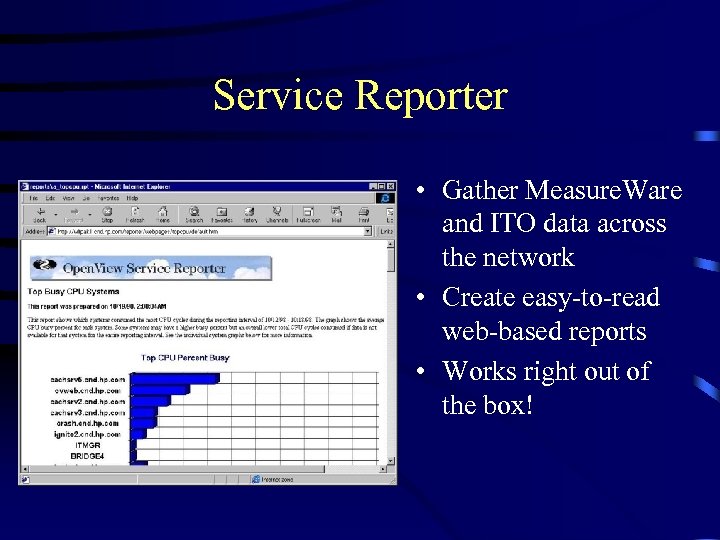

Service Reporter • Gather Measure. Ware and ITO data across the network • Create easy-to-read web-based reports • Works right out of the box!

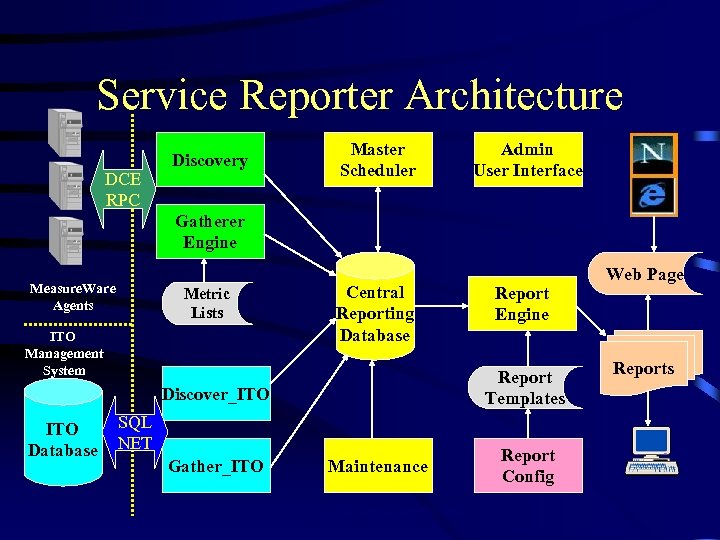

Service Reporter Architecture DCE RPC Discovery Master Scheduler Admin User Interface Gatherer Engine Measure. Ware Agents Metric Lists ITO Management System Central Reporting Database Report Templates Discover_ITO Database SQL NET Gather_ITO Report Engine Maintenance Central Reporting System Report Config Web Page Reports

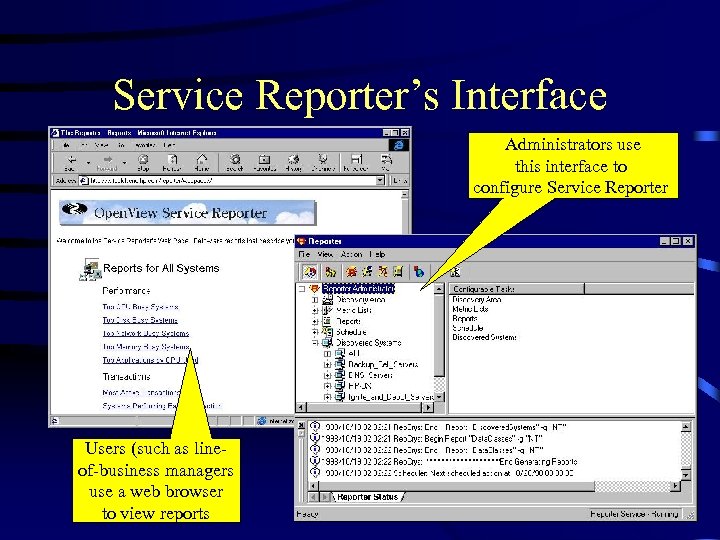

Service Reporter’s Interface Administrators use this interface to configure Service Reporter Users (such as lineof-business managers use a web browser to view reports

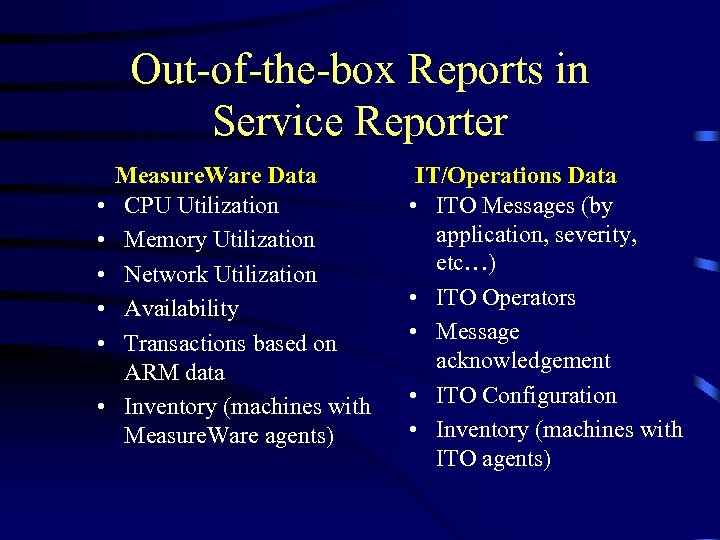

Out-of-the-box Reports in Service Reporter • • • Measure. Ware Data CPU Utilization Memory Utilization Network Utilization Availability Transactions based on ARM data Inventory (machines with Measure. Ware agents) IT/Operations Data • ITO Messages (by application, severity, etc…) • ITO Operators • Message acknowledgement • ITO Configuration • Inventory (machines with ITO agents)

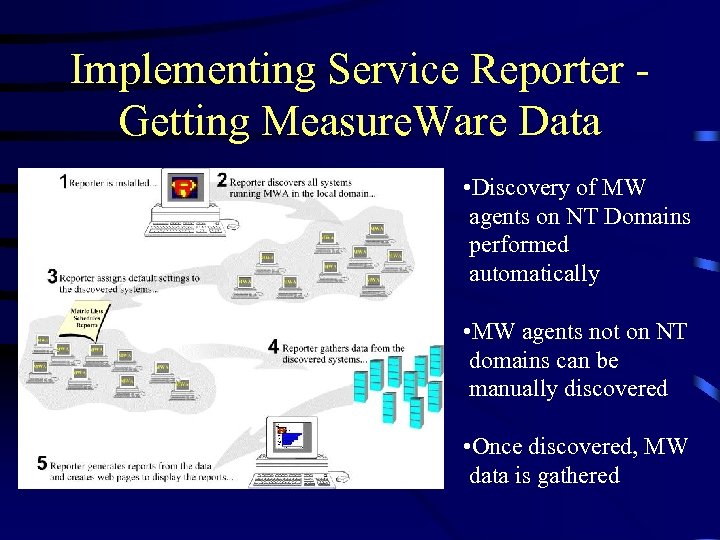

Implementing Service Reporter Getting Measure. Ware Data • Discovery of MW agents on NT Domains performed automatically • MW agents not on NT domains can be manually discovered • Once discovered, MW data is gathered

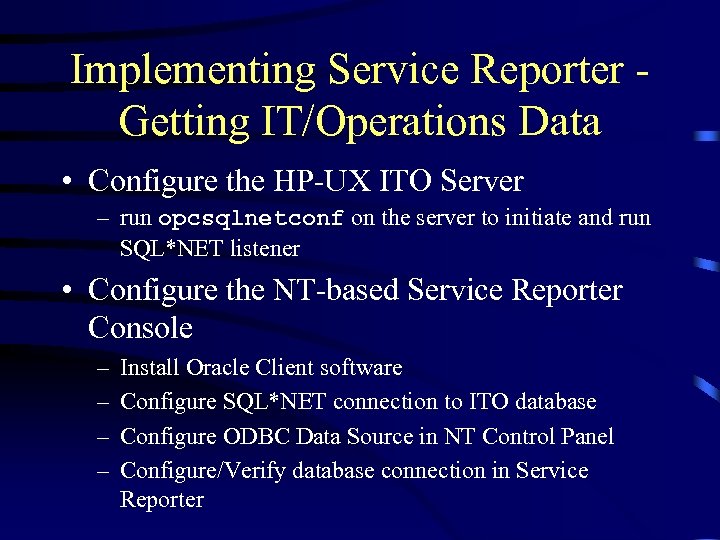

Implementing Service Reporter Getting IT/Operations Data • Configure the HP-UX ITO Server – run opcsqlnetconf on the server to initiate and run SQL*NET listener • Configure the NT-based Service Reporter Console – – Install Oracle Client software Configure SQL*NET connection to ITO database Configure ODBC Data Source in NT Control Panel Configure/Verify database connection in Service Reporter

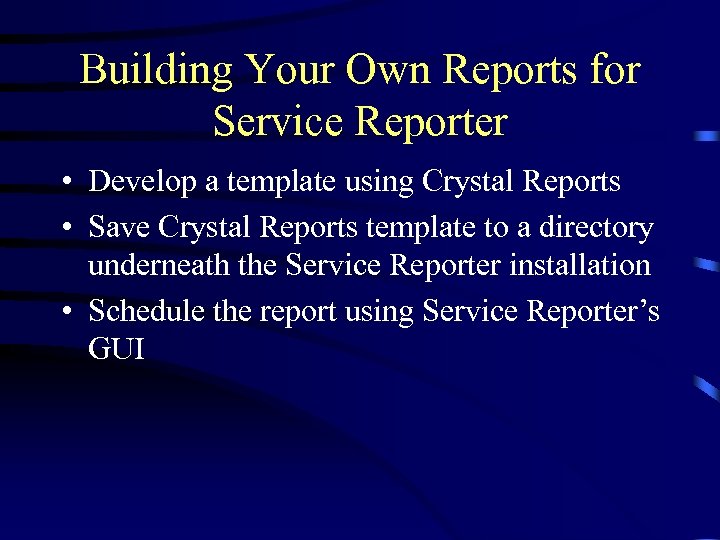

Building Your Own Reports for Service Reporter • Develop a template using Crystal Reports • Save Crystal Reports template to a directory underneath the Service Reporter installation • Schedule the report using Service Reporter’s GUI
Building templates using Measure. Ware Data • Data source will be the Microsoft Jet (Access) database, which is part of Service Reporter • ODBC Data Source Name will be “reporter” • Use the “Service Reporter Concepts Guide” to determine which tables you need to use to create your report

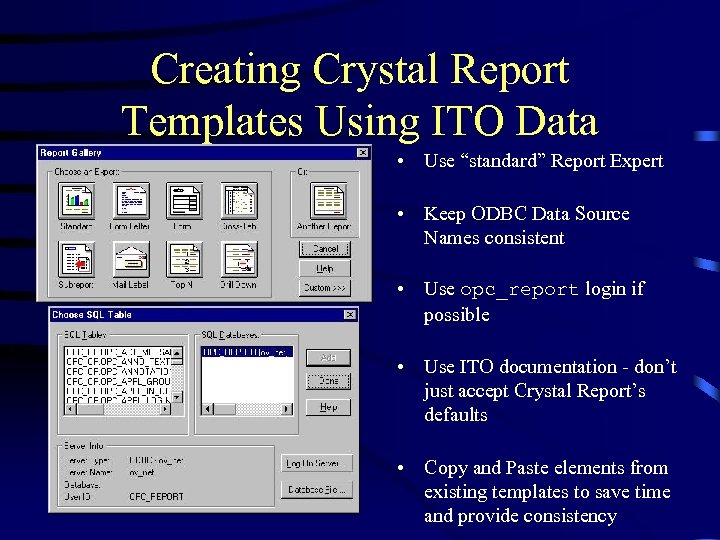

Creating Crystal Report Templates Using ITO Data • Use “standard” Report Expert • Keep ODBC Data Source Names consistent • Use opc_report login if possible • Use ITO documentation - don’t just accept Crystal Report’s defaults • Copy and Paste elements from existing templates to save time and provide consistency

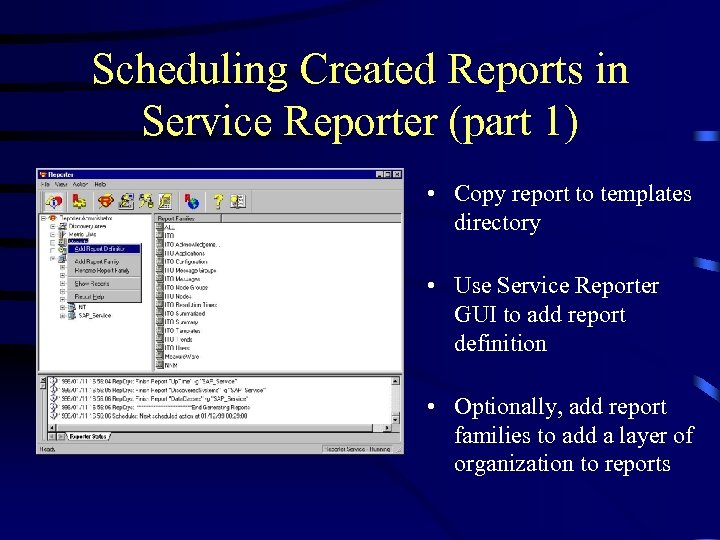

Scheduling Created Reports in Service Reporter (part 1) • Copy report to templates directory • Use Service Reporter GUI to add report definition • Optionally, add report families to add a layer of organization to reports

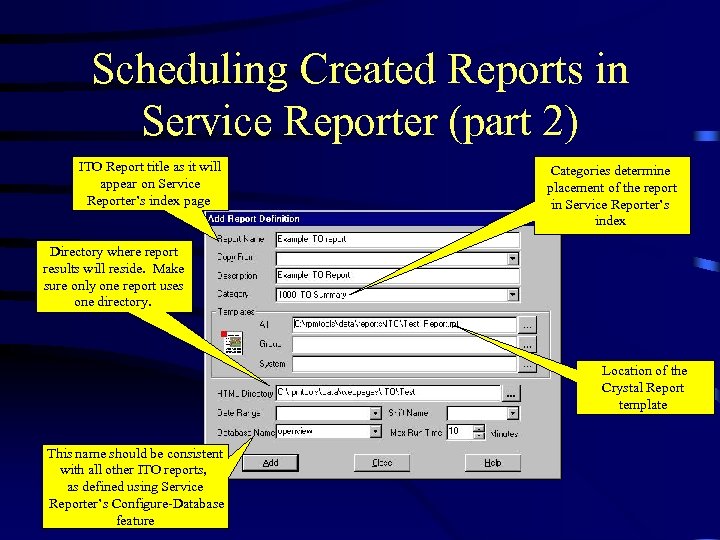

Scheduling Created Reports in Service Reporter (part 2) ITO Report title as it will appear on Service Reporter’s index page Categories determine placement of the report in Service Reporter’s index Directory where report results will reside. Make sure only one report uses one directory. Location of the Crystal Report template This name should be consistent with all other ITO reports, as defined using Service Reporter’s Configure-Database feature

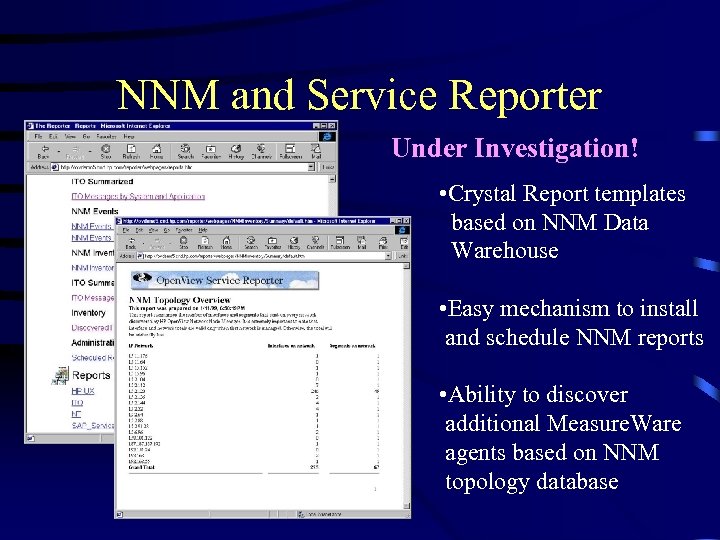

NNM and Service Reporter Under Investigation! • Crystal Report templates based on NNM Data Warehouse • Easy mechanism to install and schedule NNM reports • Ability to discover additional Measure. Ware agents based on NNM topology database
Sample Reports Performance and Availability

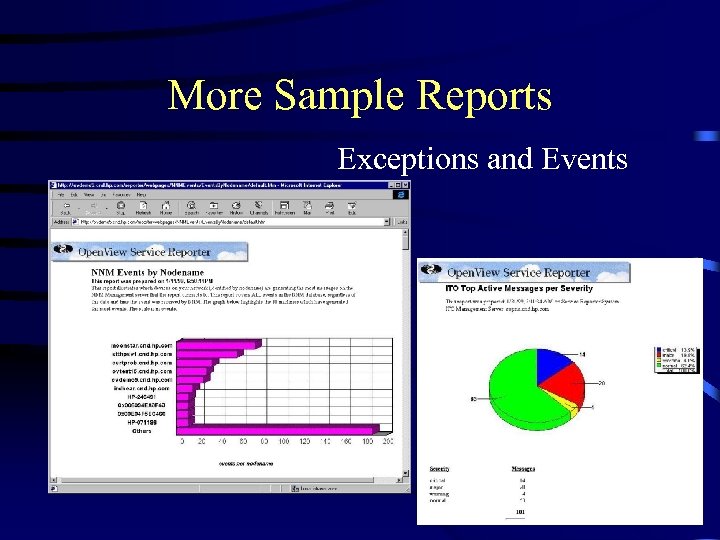

More Sample Reports Exceptions and Events
Strategic Data Extraction and Reporting • Multi-product reporting • Implementing reporting in your organization • Potential issues to be aware of

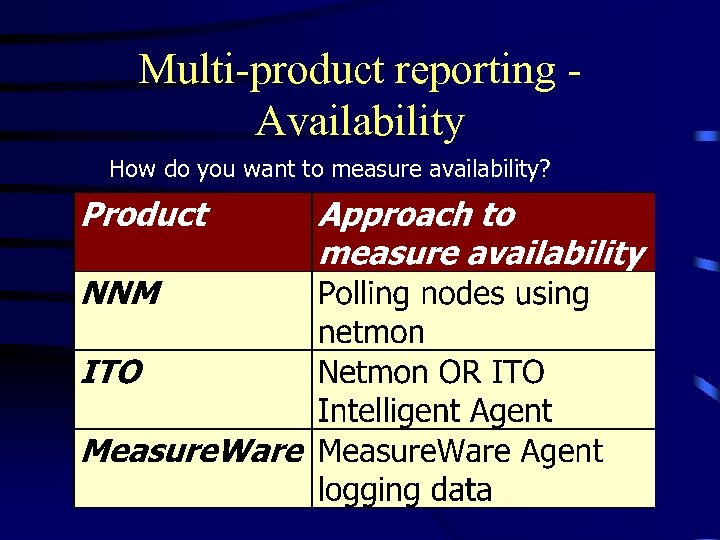

Multi-product reporting Availability How do you want to measure availability?

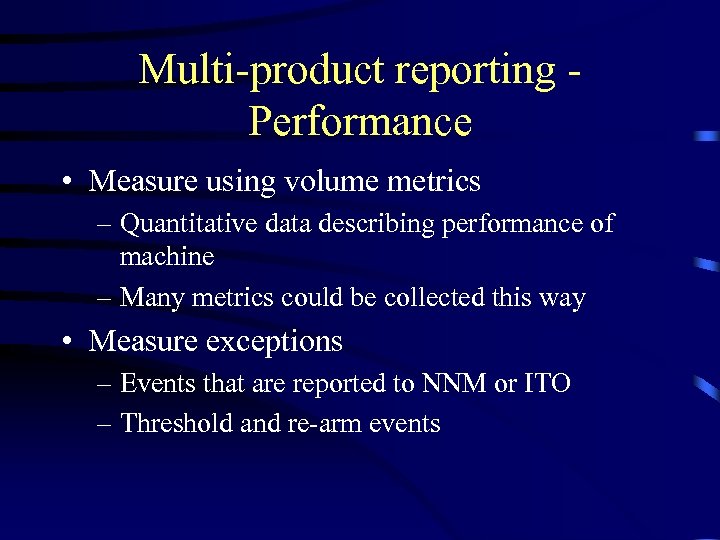

Multi-product reporting Performance • Measure using volume metrics – Quantitative data describing performance of machine – Many metrics could be collected this way • Measure exceptions – Events that are reported to NNM or ITO – Threshold and re-arm events

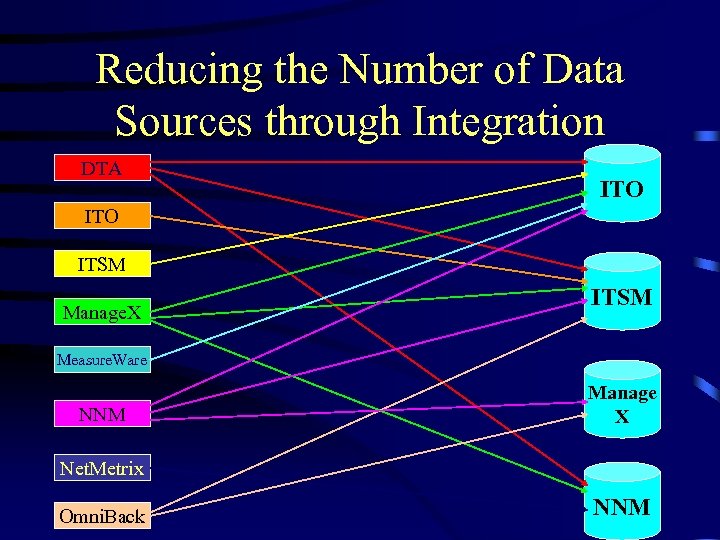

Reducing the Number of Data Sources through Integration DTA ITO ITSM Manage. X ITSM Measure. Ware NNM Manage X Net. Metrix Omni. Back NNM

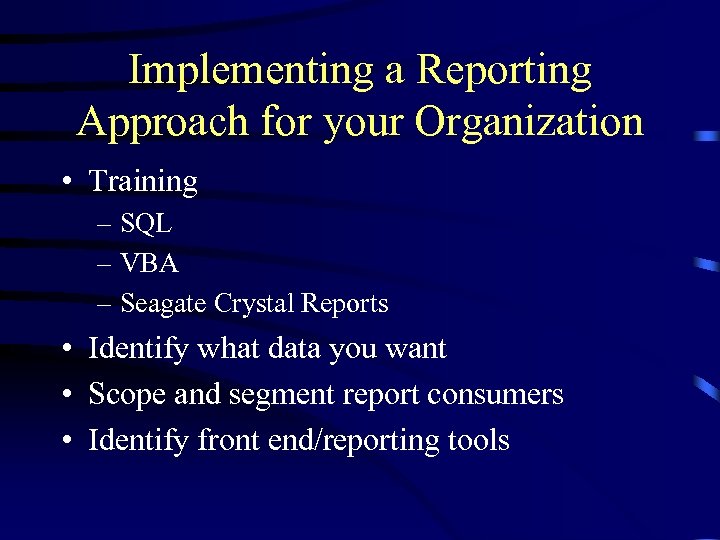

Implementing a Reporting Approach for your Organization • Training – SQL – VBA – Seagate Crystal Reports • Identify what data you want • Scope and segment report consumers • Identify front end/reporting tools

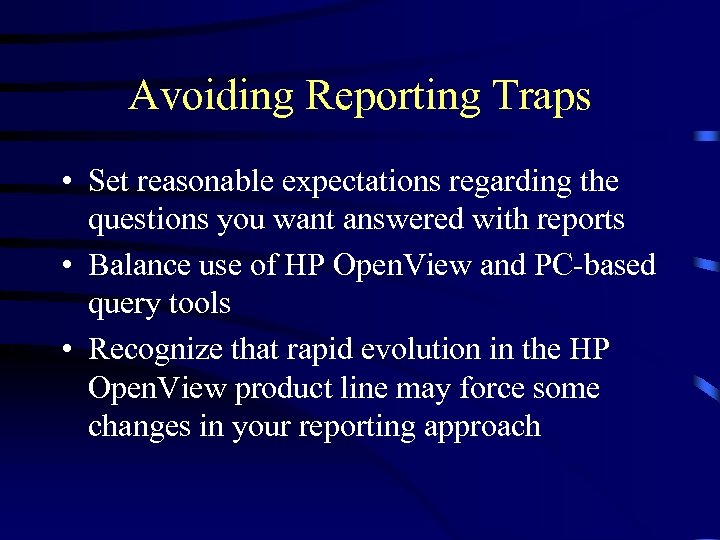

Avoiding Reporting Traps • Set reasonable expectations regarding the questions you want answered with reports • Balance use of HP Open. View and PC-based query tools • Recognize that rapid evolution in the HP Open. View product line may force some changes in your reporting approach

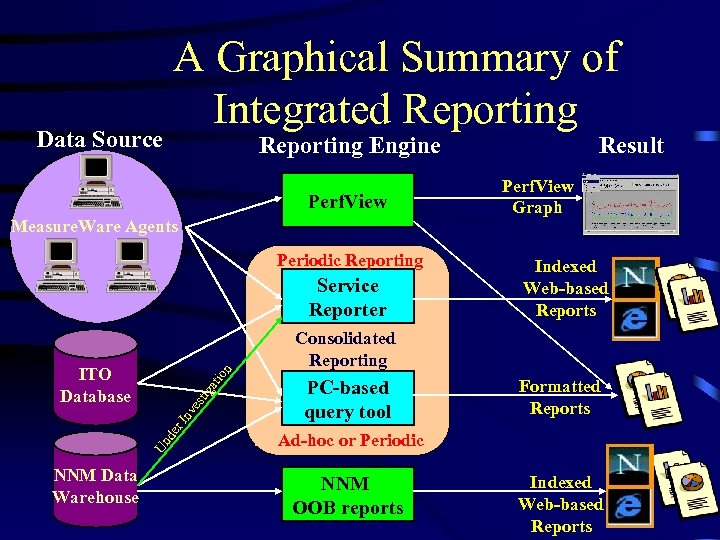

A Graphical Summary of Integrated Reporting Data Source Reporting Engine Perf. View Measure. Ware Agents Periodic Reporting Service Reporter Un de r. I nv es tig ati on ITO Database NNM Data Warehouse Result Perf. View Graph Indexed Web-based Reports Consolidated Reporting PC-based query tool Formatted Reports Ad-hoc or Periodic NNM OOB reports Indexed Web-based Reports

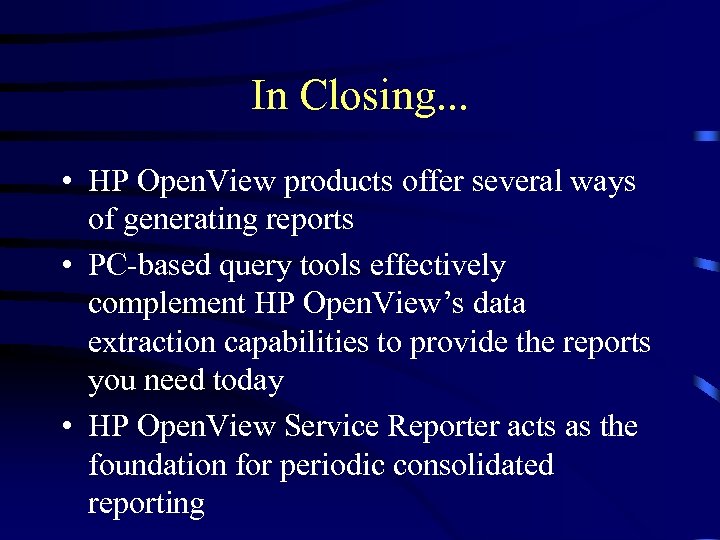

In Closing. . . • HP Open. View products offer several ways of generating reports • PC-based query tools effectively complement HP Open. View’s data extraction capabilities to provide the reports you need today • HP Open. View Service Reporter acts as the foundation for periodic consolidated reporting
