How Computer Architecture Trends May Affect Future Distributed Systems Mark D. Hill Computer Sciences Department University of Wisconsin--Madison http: //www. cs. wisc. edu/~markhill PODC ‘ 00 Invited Talk (C) 2000 Mark D. Hill University of Wisconsin-Madison

Three Questions • What is a System Area Network (SAN) and how will it affect clusters? – E. g. , Infini. Band • How fat will multiprocessor servers be and how to we build larger ones? – E. g. Wisconsin Multifacet’s Multicast & Timestamp Snooping • Future of multiprocessor servers & clusters? – A merging of both? (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

Outline • Motivation • System Area Networks • Designing Multiprocessor Servers • Server &

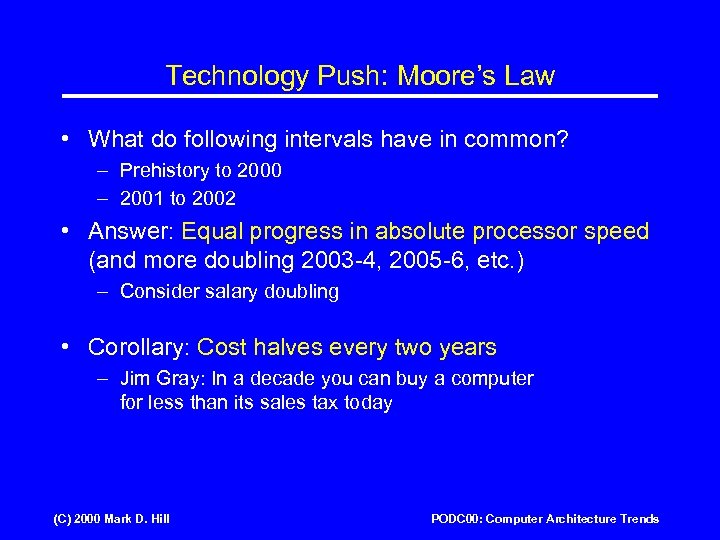

Technology Push: Moore’s Law • What do following intervals have in common? – Prehistory to 2000 – 2001 to 2002 • Answer: Equal progress in absolute processor speed (and more doubling 2003 -4, 2005 -6, etc. ) – Consider salary doubling • Corollary: Cost halves every two years – Jim Gray: In a decade you can buy a computer for less than its sales tax today (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

Application Pull • Should use computers in currently wasteful ways – Already computers in electric razors & greeting cards • New business models – B 2 C, B 2 B, C 2 C – Mass customization • More proactive (beyond interactive) [Tennenhouse] – – – Today: P 2 C where P==Person & C==Computer More C 2 P: mattress adjusts to save your back More C 2 C: Agents surf the web for optimal deal More sensors (physical/logic worlds coupled) More hidden computers (c. f. , electric motors) • Furthermore, I am wrong (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

The Internet Iceberg • Internet Components – – Clients -- mobile, wireless “On Ramp” -- LANs/DSL/Cable Modems WAN Backbone -- IPv 6, massive BW and. . . • SERVICES – – Scale Storage Scale Bandwidth Scale Computation High Availability (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

Outline • Motivation • System Area Networks – – What is a SAN? Infini. Band Virtualizing I/O with Queue Pairs Predictions • Designing Multiprocessor Servers • Server & Cluster Trends (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

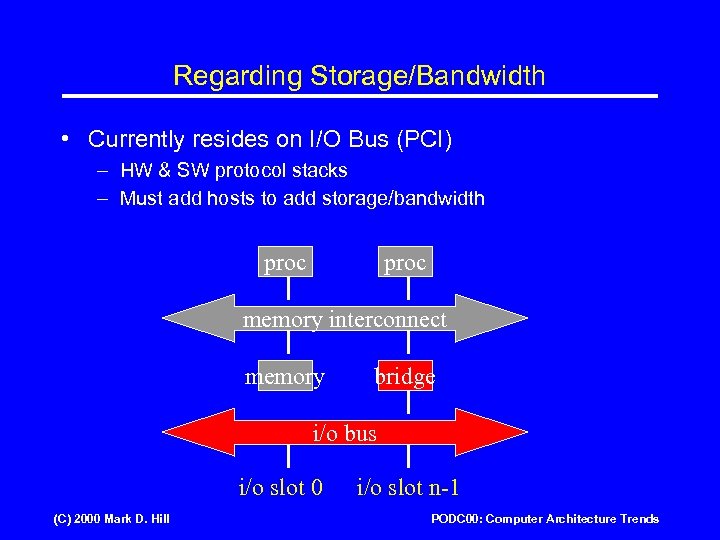

Regarding Storage/Bandwidth • Currently resides on I/O Bus (PCI) – HW & SW protocol stacks – Must add hosts to add storage/bandwidth proc memory interconnect memory bridge i/o bus i/o slot 0 (C) 2000 Mark D. Hill i/o slot n-1 PODC 00: Computer Architecture Trends

Want System Area Network (SAN) • SAN vs. Local Area Nework (LAN) – – – Higher bandwidth (10 Gbps) Lower latency (few microseconds or less) More limited size Other (e. g. , single administrative domain, short distance) Examples: Tandem Servernet & Myricom Myrinet • Emerging Standard: Infini. Band – www. inifiniband. TA. org w/ spec 1. 0 Summer 2000 – Compaq, Dell, HP, IBM, Intel, Microsoft, Sun, & others – 2. 5 Gbits/s times 1, 4, or 12 wires (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

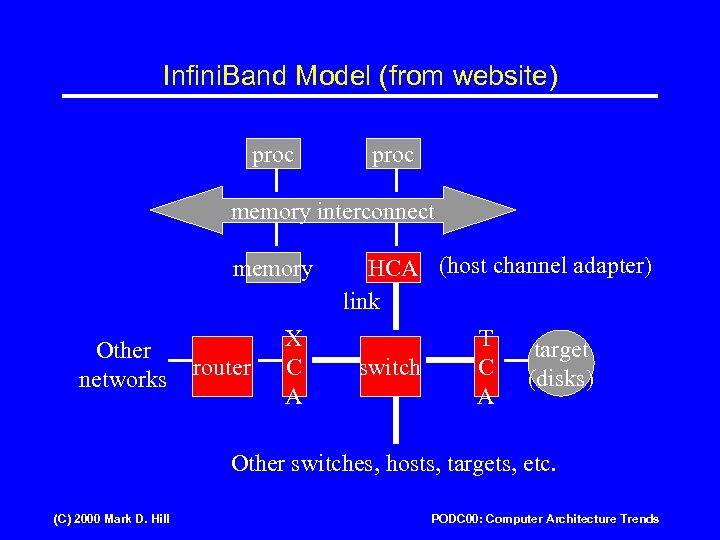

Infini. Band Model (from website) proc memory interconnect memory Other networks router X C A HCA (host channel adapter) link switch T C A target (disks) Other switches, hosts, targets, etc. (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

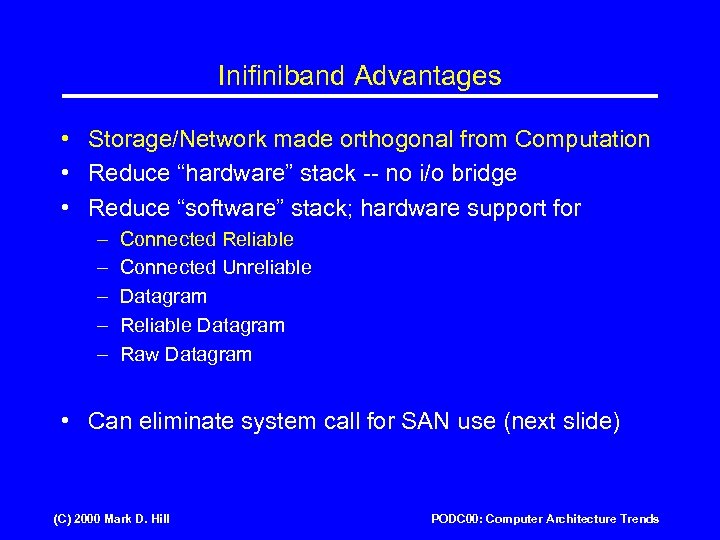

Inifiniband Advantages • Storage/Network made orthogonal from Computation • Reduce “hardware” stack -- no i/o bridge • Reduce “software” stack; hardware support for – – – Connected Reliable Connected Unreliable Datagram Raw Datagram • Can eliminate system call for SAN use (next slide) (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

Virtualizing Infini. Band • I/O traditionally virtualized with system call – System enforces isolation – System permits authorized sharing • Memory virtualized – System trap/call for setup – Virtual memory hardware for common-case translation • Infiniband exploits “queue pairs” (QPs) in memory – C. f. , Intel Virtual Interface Architecture (VIA) [IEEE Micro, Mar/Apr ‘ 98] – Users issue sends, receives, & remote DMA reads/writes (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

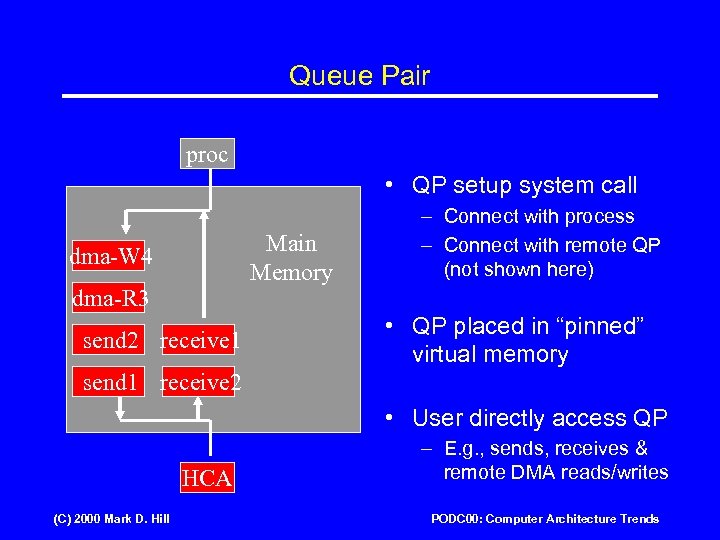

Queue Pair proc • QP setup system call Main Memory dma-W 4 dma-R 3 send 2 receive 1 – Connect with process – Connect with remote QP (not shown here) • QP placed in “pinned” virtual memory send 1 receive 2 • User directly access QP HCA (C) 2000 Mark D. Hill – E. g. , sends, receives & remote DMA reads/writes PODC 00: Computer Architecture Trends

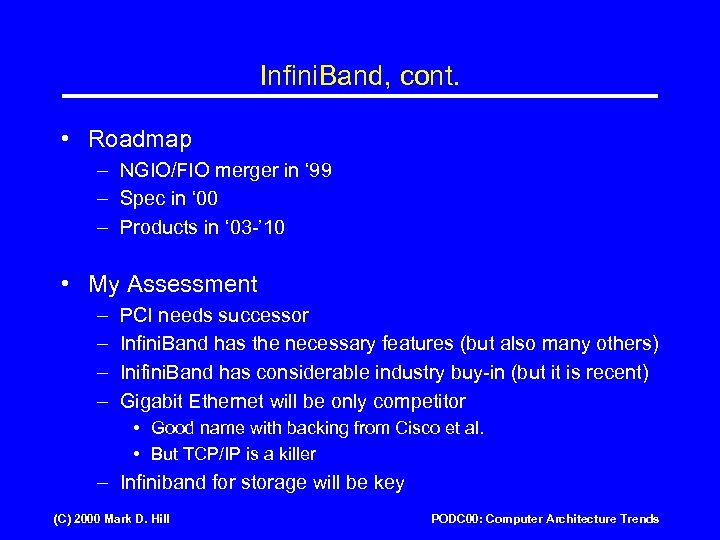

Infini. Band, cont. • Roadmap – NGIO/FIO merger in ‘ 99 – Spec in ‘ 00 – Products in ‘ 03 -’ 10 • My Assessment – – PCI needs successor Infini. Band has the necessary features (but also many others) Inifini. Band has considerable industry buy-in (but it is recent) Gigabit Ethernet will be only competitor • Good name with backing from Cisco et al. • But TCP/IP is a killer – Infiniband for storage will be key (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

Infini. Band Research Issues • Software Wide Open – Industry will do local optimization (e. g. , still have device driver virtualized with system calls) – But what is the “right” way to do software? – Is there a theoretical model for this software? • Other SAN Issues – – A theoretical model of a service-providers site? How to trade performance and availability? Utility of broadcast or multicast support? Obtaining quasi-real-time performance? (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

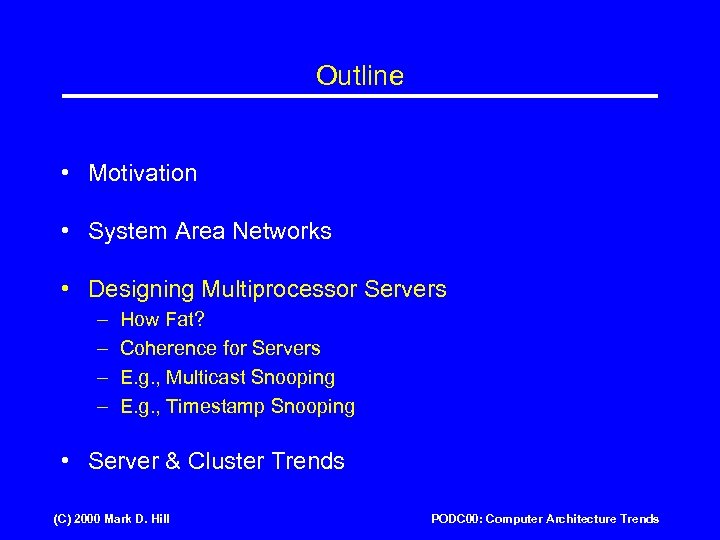

Outline • Motivation • System Area Networks • Designing Multiprocessor Servers – – How Fat? Coherence for Servers E. g. , Multicast Snooping E. g. , Timestamp Snooping • Server & Cluster Trends (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

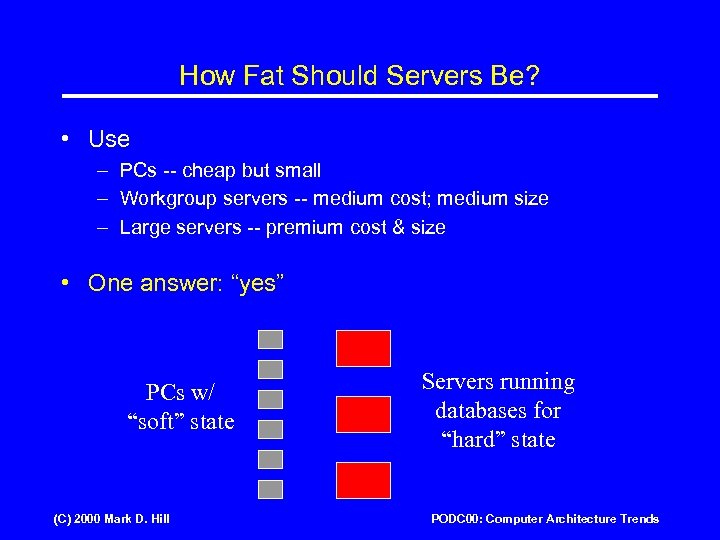

How Fat Should Servers Be? • Use – PCs -- cheap but small – Workgroup servers -- medium cost; medium size – Large servers -- premium cost & size • One answer: “yes” PCs w/ “soft” state (C) 2000 Mark D. Hill Servers running databases for “hard” state PODC 00: Computer Architecture Trends

How Do We Build the Big Servers? • (Industry knows how to build the small ones) • A key problem is the memory system – Memory Wall: E. g. , 100 ns memory access = 400 instruction opportunities for 4 -way 1 GHz processor • Use per-processor caches to reduce – Effective Latency – Effective Bandwidth Used • But cache coherence problem. . . (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

“ 4” r 0<-m[100] P 0 m[100]<-5 cache 100 : X 5 4 Coherence 101 “ 4” r 1<-m[100] P 1 “? ” Pn-1 “? ” r 2<-m[100] r 3<-m[100] cache 100 : 4 cache interconnection network memory (C) 2000 Mark D. Hill memory 100 4 PODC 00: Computer Architecture Trends

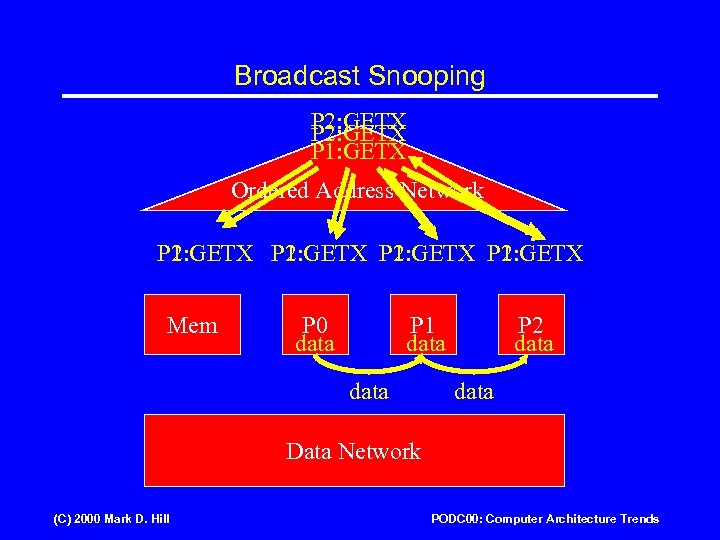

Broadcast Snooping P 2: GETX P 1: GETX Ordered Address Network P 1: GETX

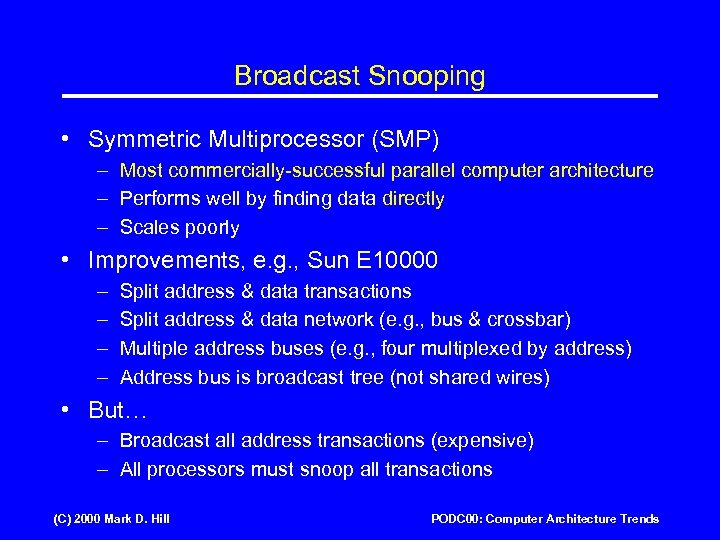

Broadcast Snooping • Symmetric Multiprocessor (SMP) – Most commercially-successful parallel computer architecture – Performs well by finding data directly – Scales poorly • Improvements, e. g. , Sun E 10000 – – Split address & data transactions Split address & data network (e. g. , bus & crossbar) Multiple address buses (e. g. , four multiplexed by address) Address bus is broadcast tree (not shared wires) • But… – Broadcast all address transactions (expensive) – All processors must snoop all transactions (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

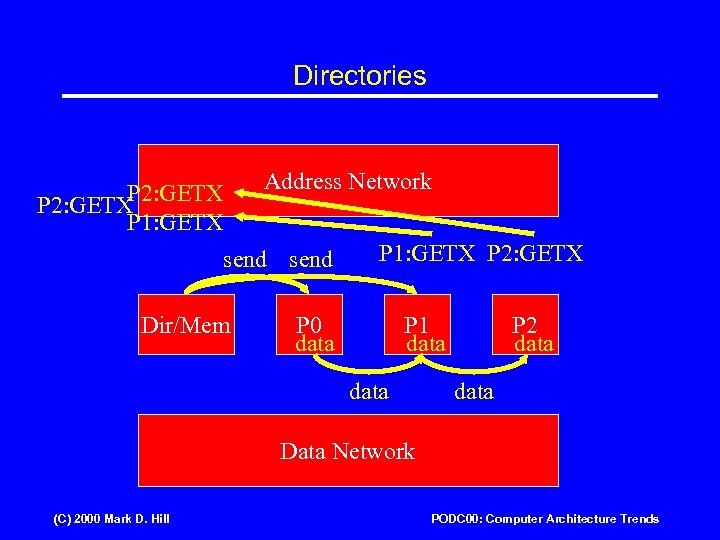

Directories Address Network P 2: GETX P 1: GETX send Dir/Mem P 1: GETX

Directories • Directory Based Cache Coherence – E. g. , SGI/Cray Origin 2000 – Allows arbitrary point-to-point interconnection network – Scales up well • But – Cache-to-cache transfers common in demanding apps (55 -62% sharing misses for OLTP [Barroso ISCA ‘ 98]) – Many applications can’t use 100 s of processors – Must also “scale down” well (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

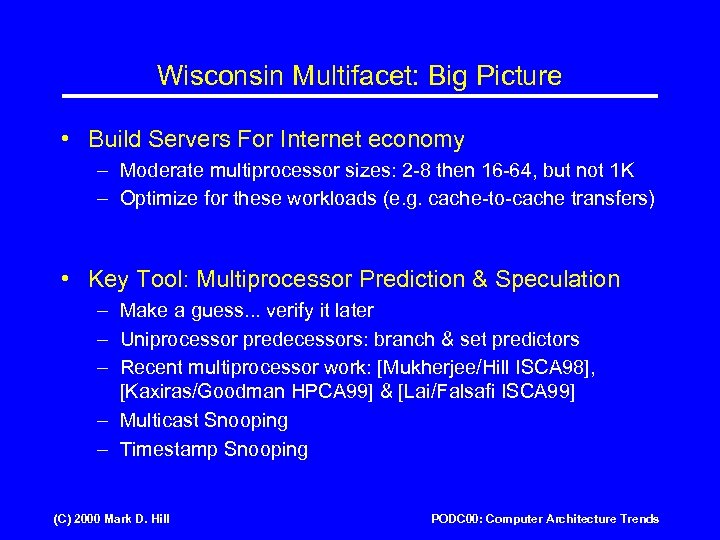

Wisconsin Multifacet: Big Picture • Build Servers For Internet economy – Moderate multiprocessor sizes: 2 -8 then 16 -64, but not 1 K – Optimize for these workloads (e. g. cache-to-cache transfers) • Key Tool: Multiprocessor Prediction & Speculation – Make a guess. . . verify it later – Uniprocessor predecessors: branch & set predictors – Recent multiprocessor work: [Mukherjee/Hill ISCA 98], [Kaxiras/Goodman HPCA 99] & [Lai/Falsafi ISCA 99] – Multicast Snooping – Timestamp Snooping (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

Comparison of Coherence Methods Use prediction to improve on both? (C) 2000 Mark D.

Multicast Snooping • On cache miss – Predict "multicast mask" (e. g. , bit vector of processors) – Issue transaction on multicast address network • Networks – Address network that totally-orders address multicasts – Separate point-to-point data network • Processors snoop all incoming transactions – If it's your own, it "occurs" now – If another's, then invalidate and/or respond • Simplified directory (at memory) – Purpose: Allows masks to be wrong (explained later) (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

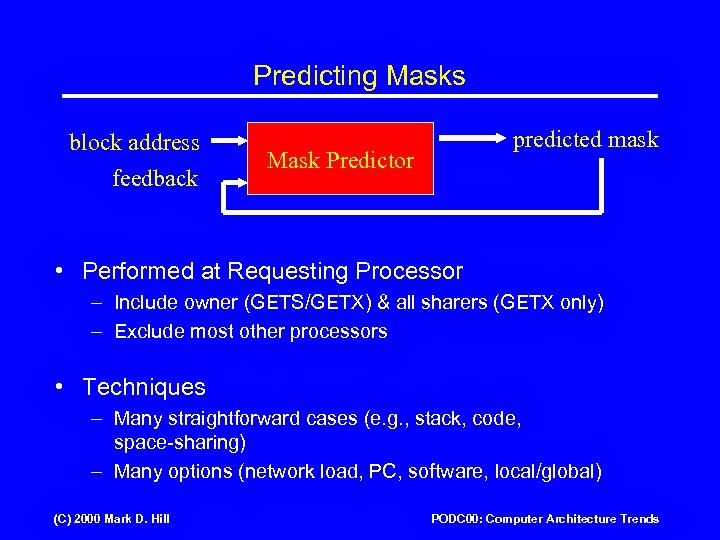

Predicting Masks block address feedback predicted mask Mask Predictor • Performed at Requesting Processor – Include owner (GETS/GETX) & all sharers (GETX only) – Exclude most other processors • Techniques – Many straightforward cases (e. g. , stack, code, space-sharing) – Many options (network load, PC, software, local/global) (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

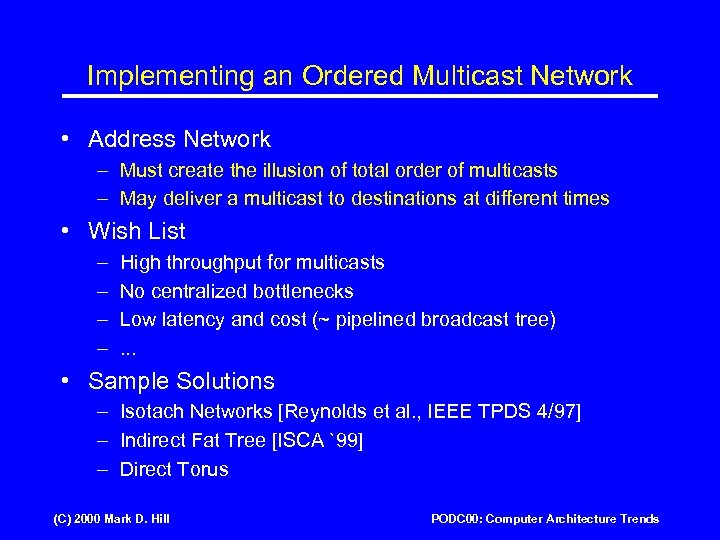

Implementing an Ordered Multicast Network • Address Network – Must create the illusion of total order of multicasts – May deliver a multicast to destinations at different times • Wish List – – High throughput for multicasts No centralized bottlenecks Low latency and cost (~ pipelined broadcast tree). . . • Sample Solutions – Isotach Networks [Reynolds et al. , IEEE TPDS 4/97] – Indirect Fat Tree [ISCA `99] – Direct Torus (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

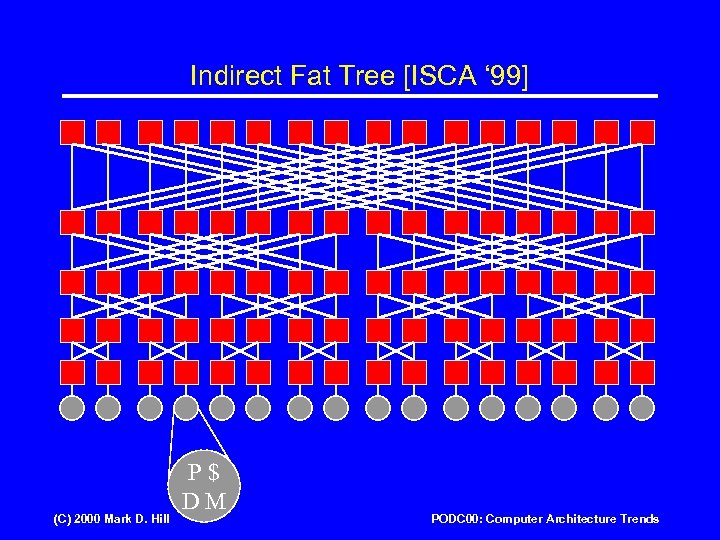

Indirect Fat Tree [ISCA ‘ 99] (C) 2000 Mark D. Hill P$ DM PODC

Indirect Fat Tree, cont. • Basic Idea – – Processors send transactions up to roots Roots send transactions down with logical timestamp Switches stall transactions to keep in order Null transaction sent to avoid deadlock • Assessment – Viable & high cross-section bandwidth – Many "backplane" ASICs means higher cost – Often stalls transactions • Want – Lower cost of direct connections – Always delivery transactions as soon as possible (ASAP) – Sacrifice some cross-section bandwidth (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

Direct 2 -D Torus (work in progress) • Features – Each processor is switch – Switches directly connected – E. g. , network of Compaq 21364 0 1 14 15 • Network order? – Broadcasts unordered – Snooping needs total order • Solution – Create order with logical timestamps instead of network delivery order – Called Timestamp Snooping [ASPLOS ‘ 00] (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

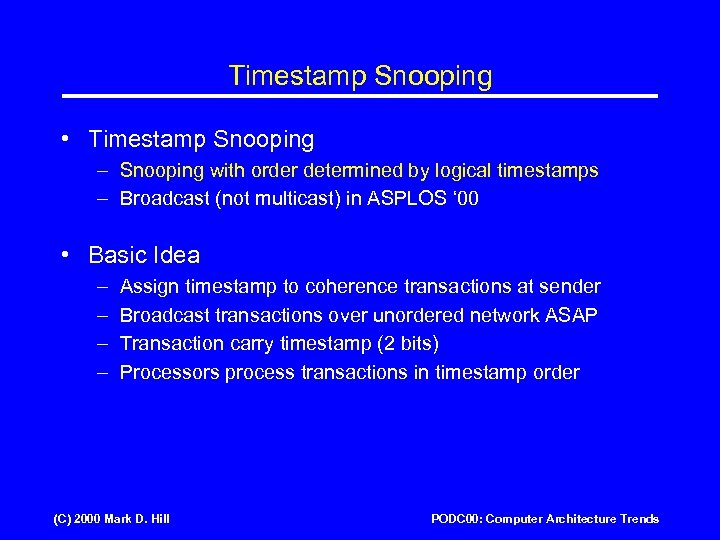

Timestamp Snooping • Timestamp Snooping – Snooping with order determined by logical timestamps – Broadcast (not multicast) in ASPLOS ‘ 00 • Basic Idea – – Assign timestamp to coherence transactions at sender Broadcast transactions over unordered network ASAP Transaction carry timestamp (2 bits) Processors process transactions in timestamp order (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

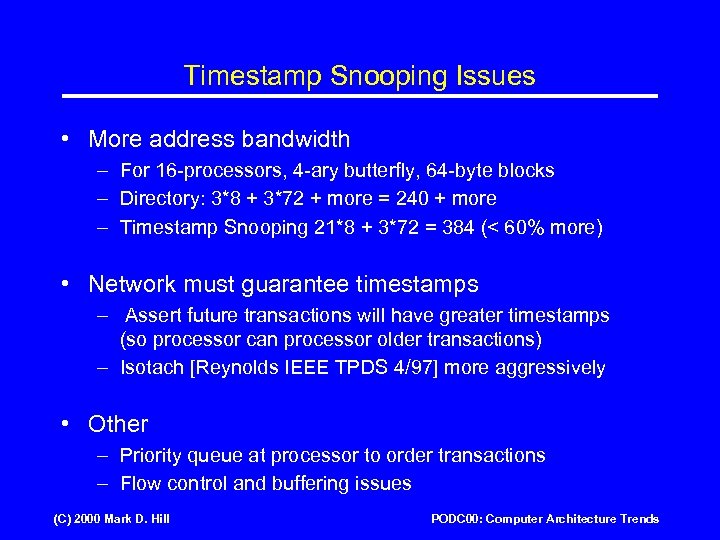

Timestamp Snooping Issues • More address bandwidth – For 16 -processors, 4 -ary butterfly, 64 -byte blocks – Directory: 3*8 + 3*72 + more = 240 + more – Timestamp Snooping 21*8 + 3*72 = 384 (< 60% more) • Network must guarantee timestamps – Assert future transactions will have greater timestamps (so processor can processor older transactions) – Isotach [Reynolds IEEE TPDS 4/97] more aggressively • Other – Priority queue at processor to order transactions – Flow control and buffering issues (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

Initial Multifacet Results • Multicast Snooping [ISCA ‘ 99] – – Ordered multicast of coherence transactions Find data directly from memory or caches Reduce bandwidth to permit some scaling 32 -processor results show 2 -6 destinations per multicast • Timestamp Snooping [ASPLOS ‘ 00] – Broadcast snooping with “order” determined by logical timestamps carried by coherence transactions – No bus: Allows arbitrary memory interconnects – No directory or directory indirection – 16 -processor results show 25% faster for 25% more traffic (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

Selected Issues • Multicast Snooping – What program property are mask predictors exploiting? – Why is there no good model of locality or the “ 90 -10” rule in general? – How does one build multicast networks? – What about fault tolerance? • Timestamp Snooping – What is an optimal network topology? – What about buffering, deadlock, etc. ? – Implementing switches and priority queues? (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

Outline • Motivation • System Area Networks • Designing Multiprocessor Servers • Server & Cluster Trends – Out-of-box and highly-available servers – High-performance communication for clusters (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

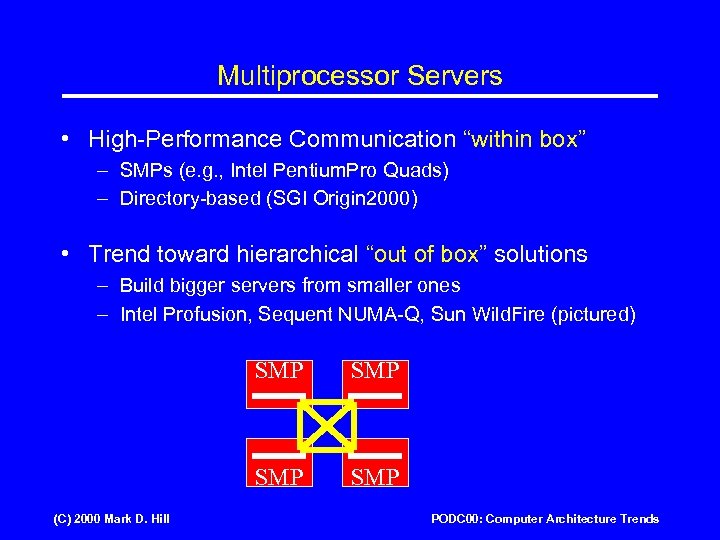

Multiprocessor Servers • High-Performance Communication “within box” – SMPs (e. g. , Intel Pentium. Pro Quads) – Directory-based (SGI Origin 2000) • Trend toward hierarchical “out of box” solutions – Build bigger servers from smaller ones – Intel Profusion, Sequent NUMA-Q, Sun Wild. Fire (pictured) SMP (C) 2000 Mark D. Hill SMP PODC 00: Computer Architecture Trends

Multiprocessor Servers, cont. • Traditionally had poor error isolation – Double-bit ECC error crashes everything – Kernel error crashes everything – Poor match for highly available Internet infrastructure • Improve error isolation – IBM 370 “virtual machines” – Stanford HIVE “cells” (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

Clusters • Traditionally – Good error isolation – Poor communication performance (especially latency) – LANs are not optimized for clusters • Enter Early SANs – Berkeley NOW w/ Myricom Myrinet – IBM SP w/ proprietary network • What now with Infini. Band SAN (or alternatives)? (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

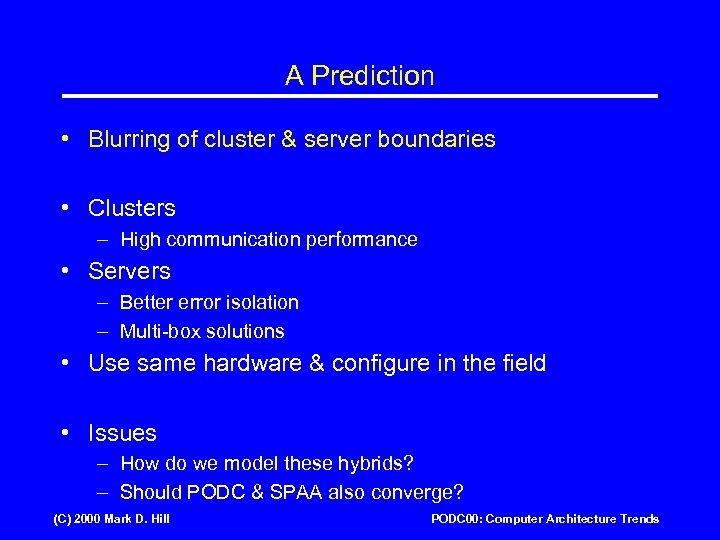

A Prediction • Blurring of cluster & server boundaries • Clusters – High communication performance • Servers – Better error isolation – Multi-box solutions • Use same hardware & configure in the field • Issues – How do we model these hybrids? – Should PODC & SPAA also converge? (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends

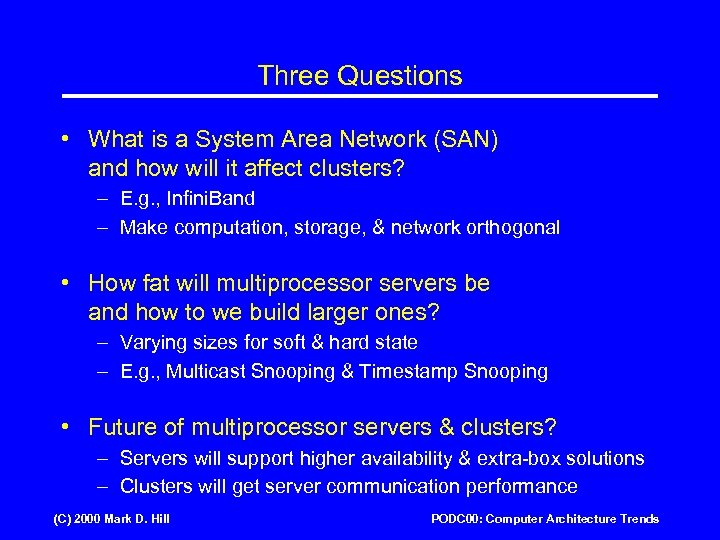

Three Questions • What is a System Area Network (SAN) and how will it affect clusters? – E. g. , Infini. Band – Make computation, storage, & network orthogonal • How fat will multiprocessor servers be and how to we build larger ones? – Varying sizes for soft & hard state – E. g. , Multicast Snooping & Timestamp Snooping • Future of multiprocessor servers & clusters? – Servers will support higher availability & extra-box solutions – Clusters will get server communication performance (C) 2000 Mark D. Hill PODC 00: Computer Architecture Trends
