HOUSE AND STUDIO Brenda Bradley & Mary Kelly Mc. Daniel CAD and Technology Professor Brody November 12, 2004

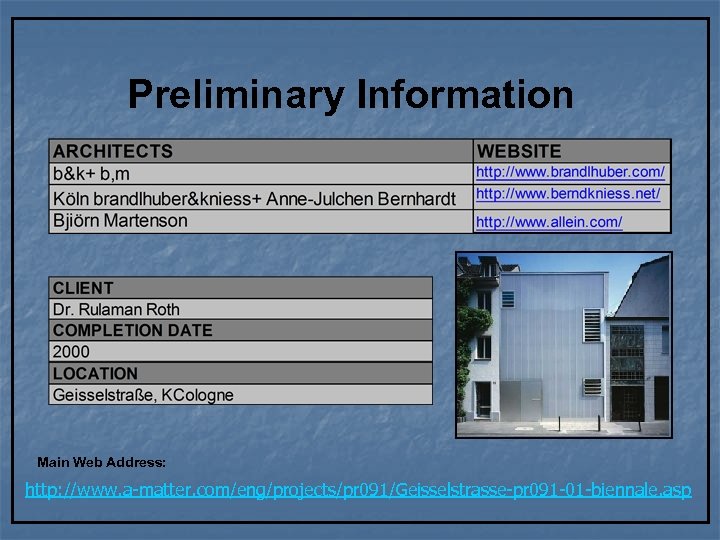

Preliminary Information Main Web Address: http: //www. a-matter. com/eng/projects/pr 091/Geisselstrasse-pr 091 -01 -biennale. asp

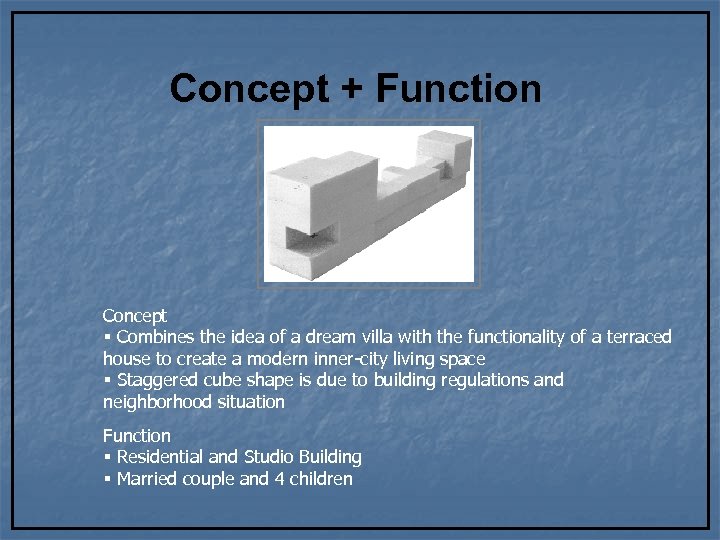

Concept + Function Concept § Combines the idea of a dream villa with the functionality of a terraced house to create a modern inner-city living space § Staggered cube shape is due to building regulations and neighborhood situation Function § Residential and Studio Building § Married couple and 4 children

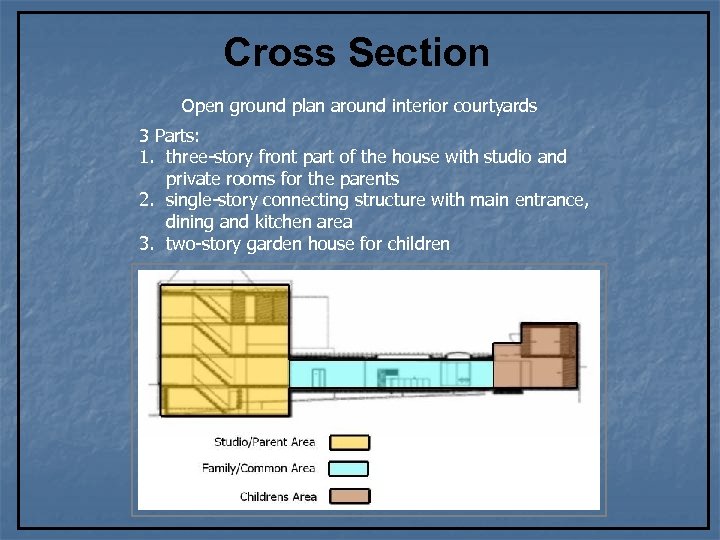

Cross Section Open ground plan around interior courtyards 3 Parts: 1. three-story front part of the house with studio and private rooms for the parents 2. single-story connecting structure with main entrance, dining and kitchen area 3. two-story garden house for children
Program

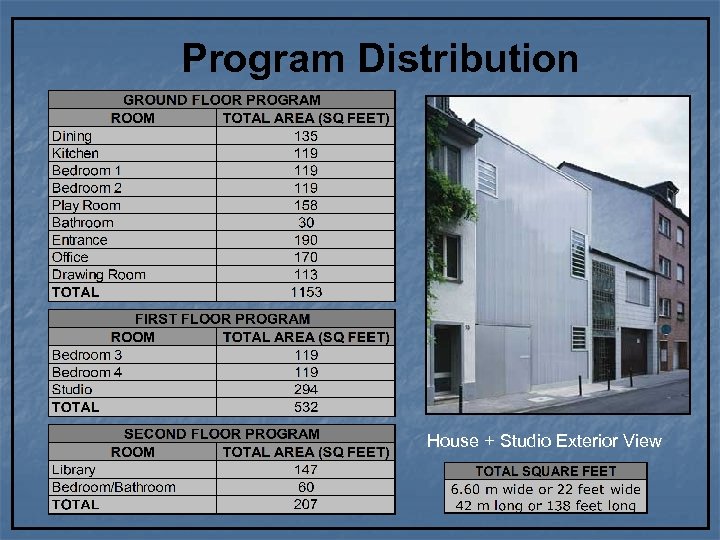

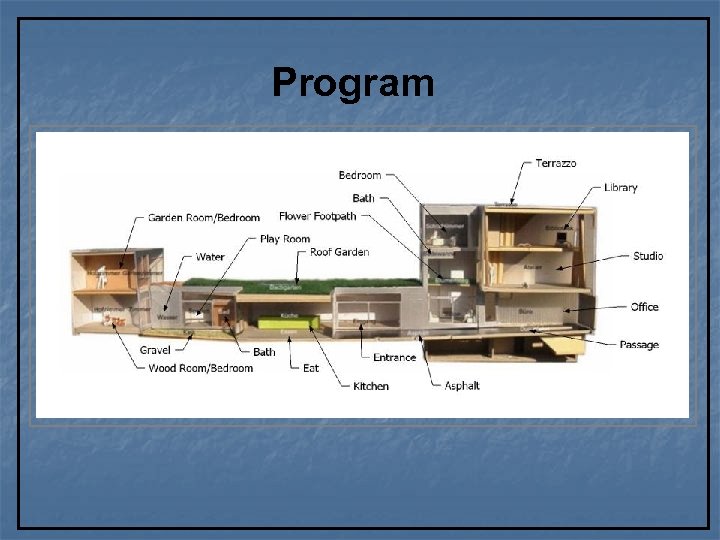

Program Distribution House + Studio Exterior View

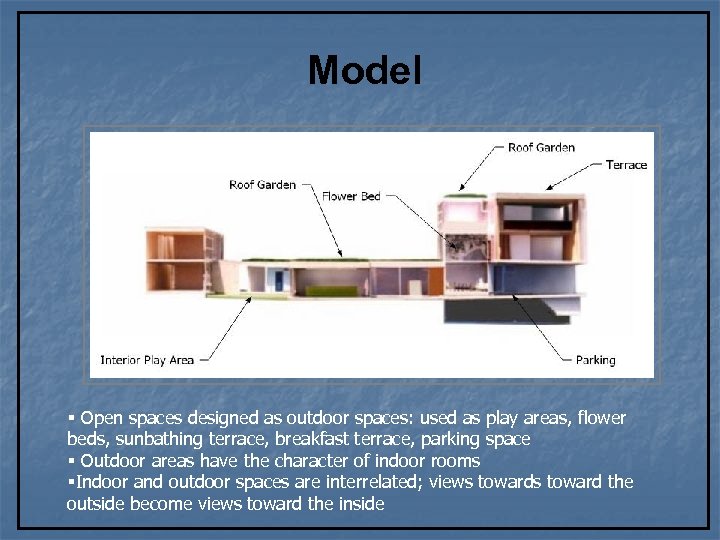

Model § Open spaces designed as outdoor spaces: used as play areas, flower beds, sunbathing terrace, breakfast terrace, parking space § Outdoor areas have the character of indoor rooms §Indoor and outdoor spaces are interrelated; views toward the outside become views toward the inside

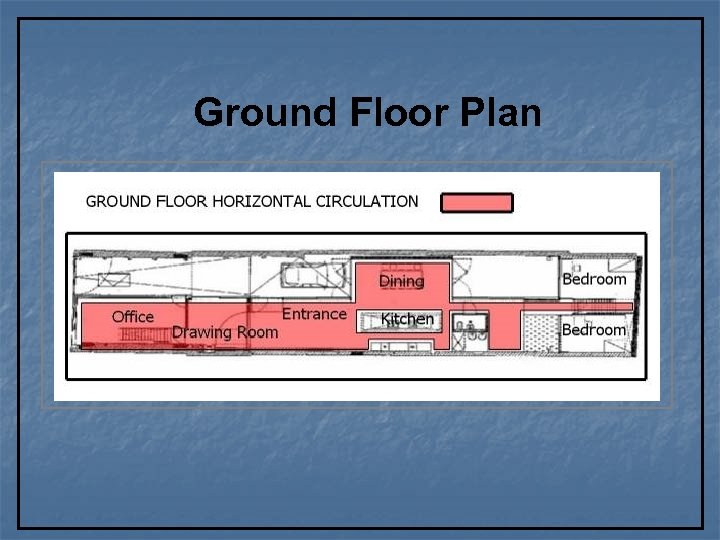

Ground Floor Plan

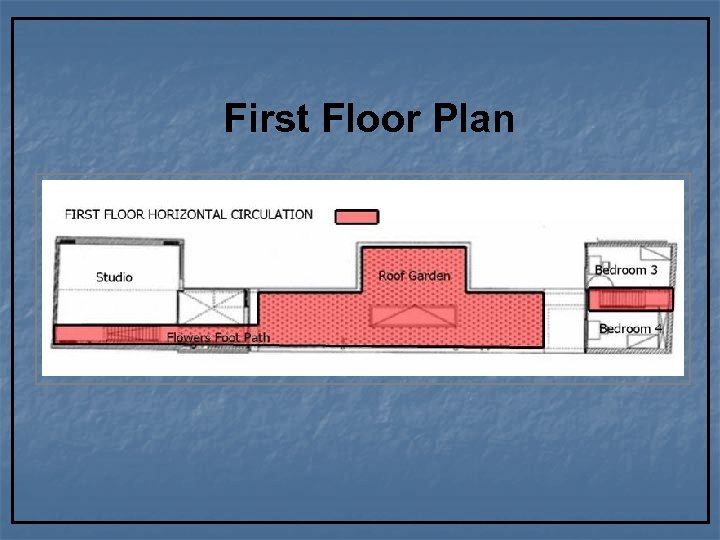

First Floor Plan

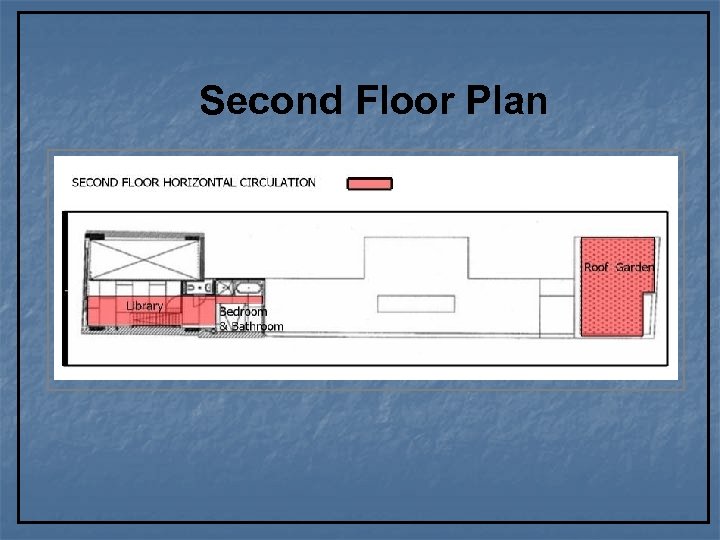

Second Floor Plan

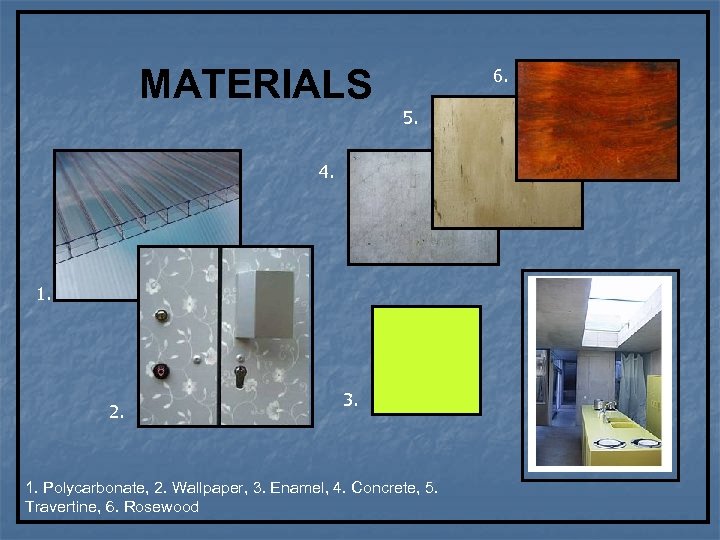

MATERIALS 6. 5. 4. 1. 2. 3. 1. Polycarbonate, 2. Wallpaper, 3. Enamel, 4. Concrete, 5. Travertine, 6. Rosewood

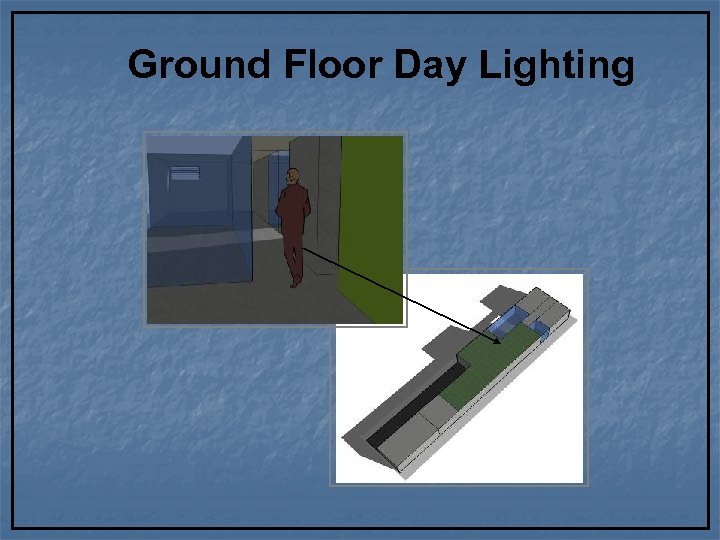

Ground Floor Day Lighting
First Floor Day Lighting

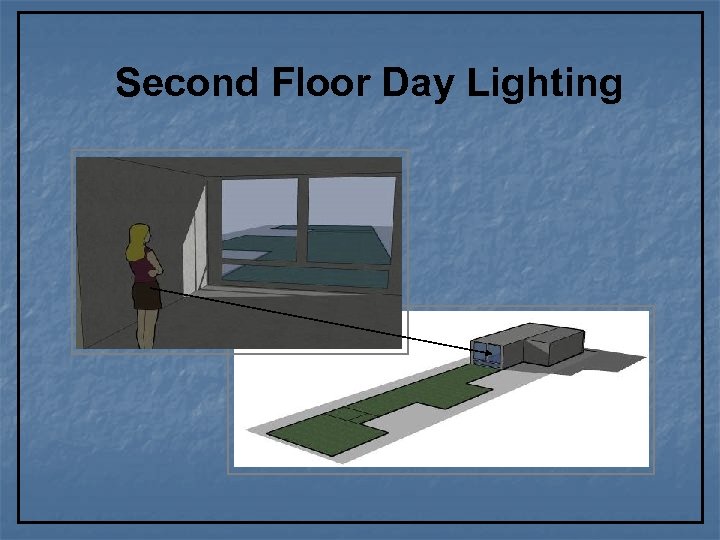

Second Floor Day Lighting
HOUSE + STUDIO “…a dream villa with the functionality of a terraced house to create a modern inner-city living space…”
Fondue Fantasy retro funky warm rich smooth seductive luscious

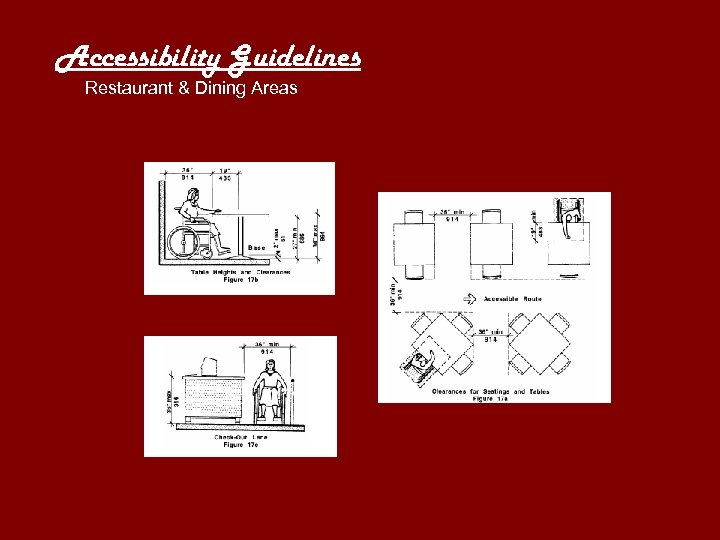

Accessibility Guidelines Restaurant & Dining Areas

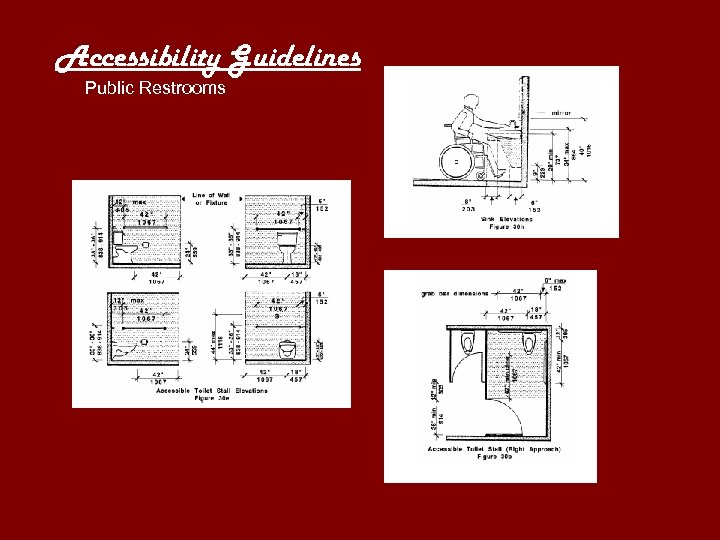

Accessibility Guidelines Public Restrooms

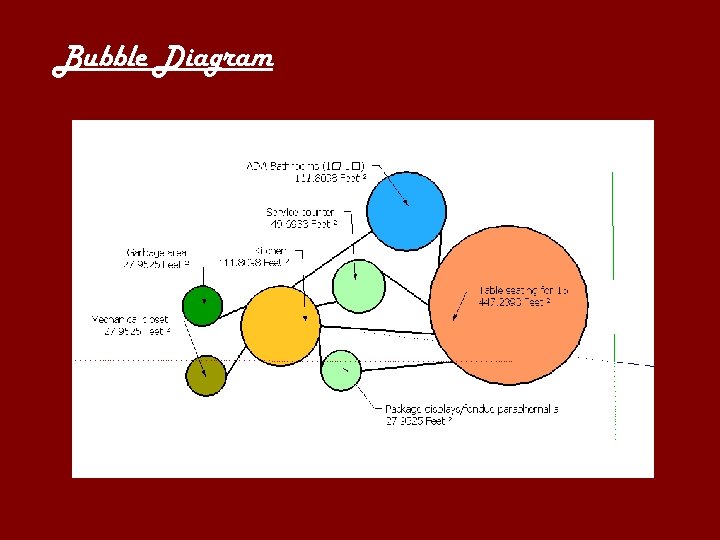

Bubble Diagram

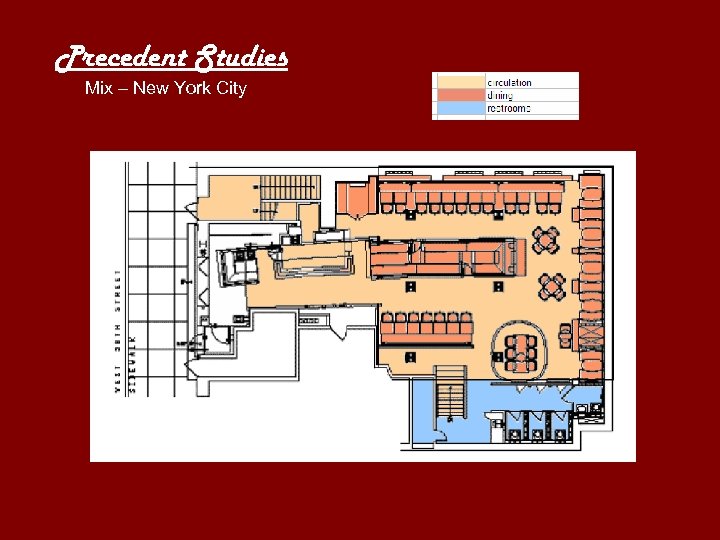

Precedent Studies Mix – New York City The concept for the Mix restaurant revolves around modernity and craft. This is reflected in the blend of new and old materials, such as the antique wood that was restored to be used for the tabletops in conjunction with a glass top bar and pendant lighting fixtures.
Precedent Studies Mix – New York City

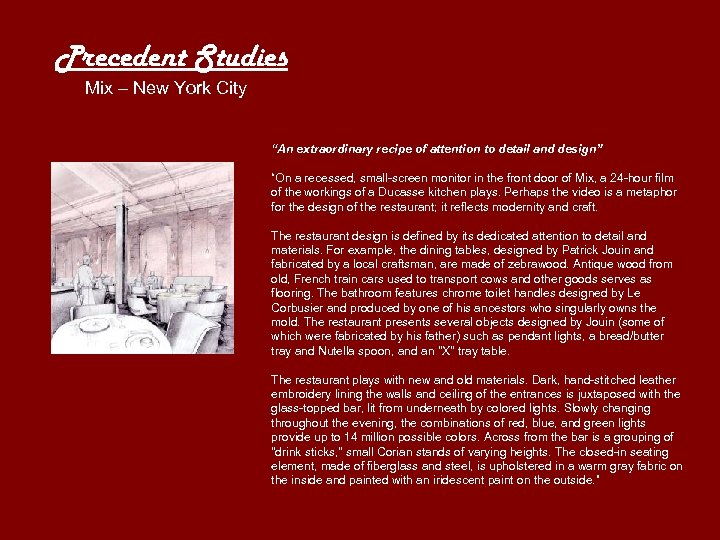

Precedent Studies Mix – New York City “An extraordinary recipe of attention to detail and design” “On a recessed, small-screen monitor in the front door of Mix, a 24 -hour film of the workings of a Ducasse kitchen plays. Perhaps the video is a metaphor for the design of the restaurant; it reflects modernity and craft. The restaurant design is defined by its dedicated attention to detail and materials. For example, the dining tables, designed by Patrick Jouin and fabricated by a local craftsman, are made of zebrawood. Antique wood from old, French train cars used to transport cows and other goods serves as flooring. The bathroom features chrome toilet handles designed by Le Corbusier and produced by one of his ancestors who singularly owns the mold. The restaurant presents several objects designed by Jouin (some of which were fabricated by his father) such as pendant lights, a bread/butter tray and Nutella spoon, and an "X" tray table. The restaurant plays with new and old materials. Dark, hand-stitched leather embroidery lining the walls and ceiling of the entrances is juxtaposed with the glass-topped bar, lit from underneath by colored lights. Slowly changing throughout the evening, the combinations of red, blue, and green lights provide up to 14 million possible colors. Across from the bar is a grouping of "drink sticks, " small Corian stands of varying heights. The closed-in seating element, made of fiberglass and steel, is upholstered in a warm gray fabric on the inside and painted with an iridescent paint on the outside. ”
CONSIDERATIONS Erin Kennedy Maria Mormile

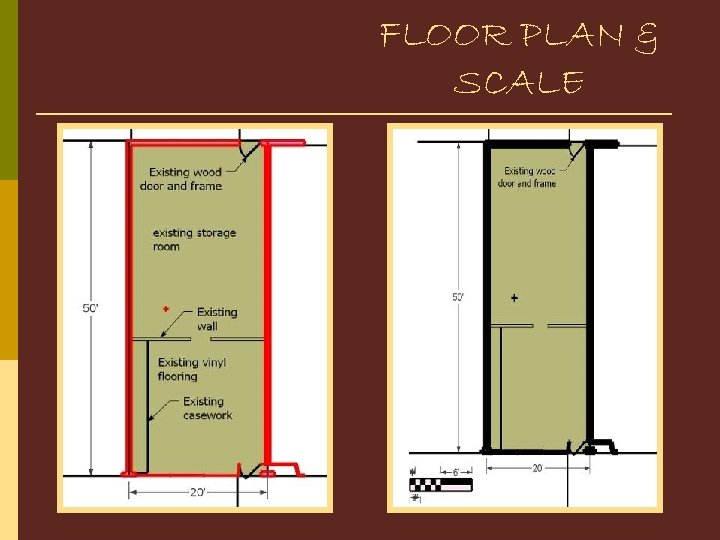

FLOOR PLAN & SCALE
SECTIONS & AXON
BUBBLE DIAGRAM / MATRIX

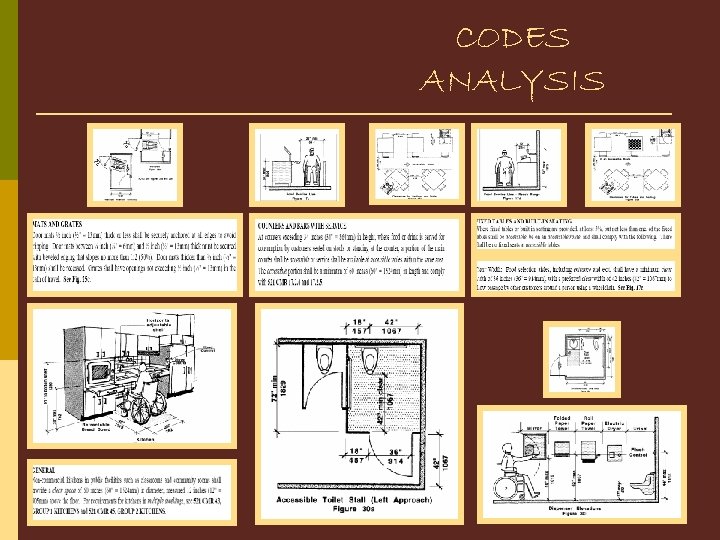

CODES ANALYSIS

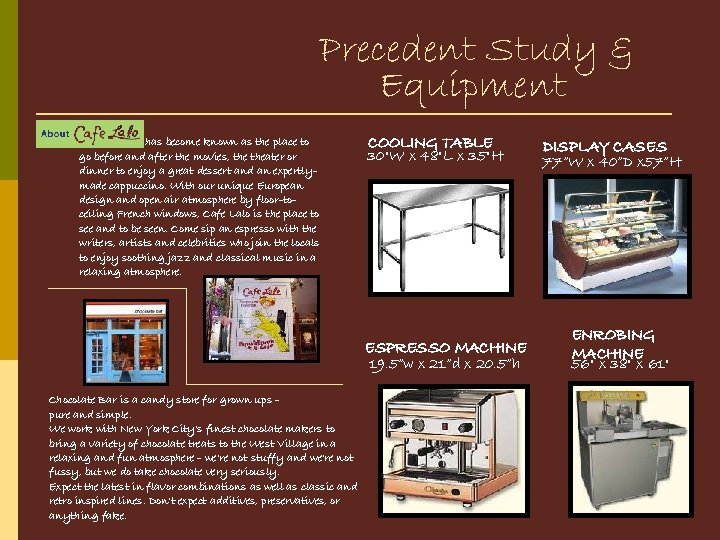

Precedent Study & Equipment has become known as the place to go before and after the movies, theater or dinner to enjoy a great dessert and an expertlymade cappuccino. With our unique European design and open air atmosphere by floor-toceiling French windows, Cafe Lalo is the place to see and to be seen. Come sip an espresso with the writers, artists and celebrities who join the locals to enjoy soothing jazz and classical music in a relaxing atmosphere. COOLING TABLE 30"W x 48"L x 35"H ESPRESSO MACHINE 19. 5”w x 21”d x 20. 5”h Chocolate Bar is a candy store for grown ups pure and simple. We work with New York City's finest chocolate makers to bring a variety of chocolate treats to the West Village in a relaxing and fun atmosphere - we're not stuffy and we're not fussy, but we do take chocolate very seriously. Expect the latest in flavor combinations as well as classic and retro inspired lines. Don't expect additives, preservatives, or anything fake. DISPLAY CASES 77”W x 40”D x 57”H ENROBING MACHINE 56" x 38" x 61"
