Hot Spot Wireless Subscriber Gateway WSG-404
Presentation Outline • Product Overview • Product Features • Product Application • Web UI • Product Comparison

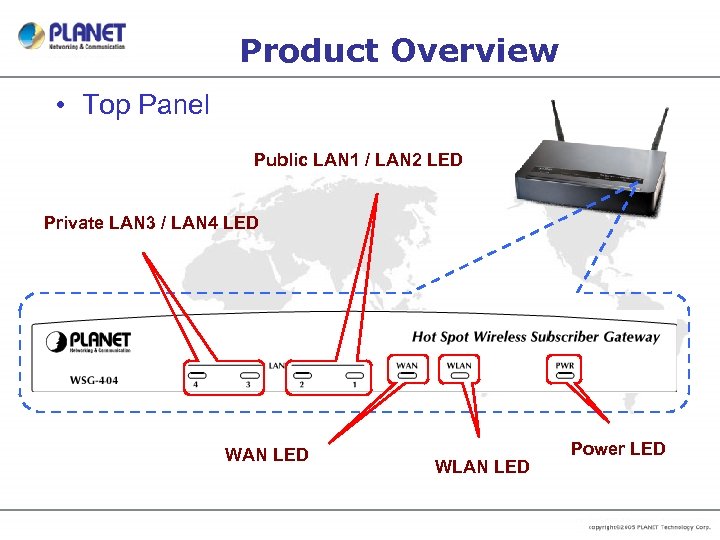

Product Overview • Top Panel Public LAN 1 / LAN 2 LED Private LAN 3 / LAN 4 LED WAN LED WLAN LED Power LED

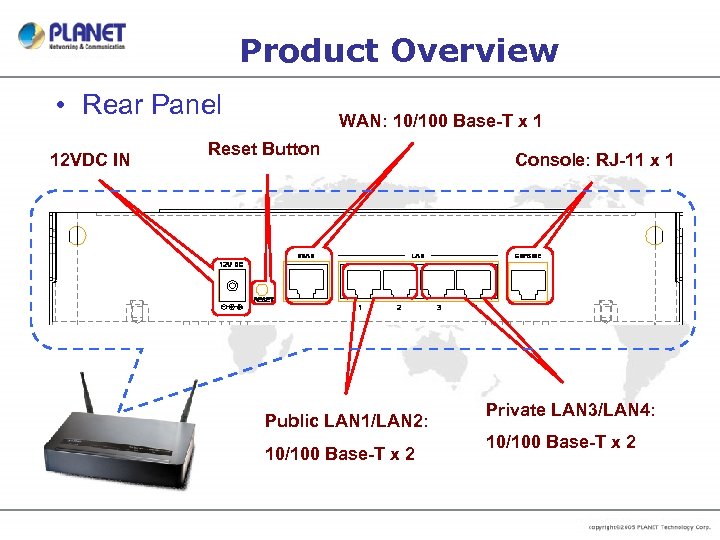

Product Overview • Rear Panel 12 VDC IN WAN: 10/100 Base-T x 1 Reset Button Public LAN 1/LAN 2: 10/100 Base-T x 2 Console: RJ-11 x 1 Private LAN 3/LAN 4: 10/100 Base-T x 2

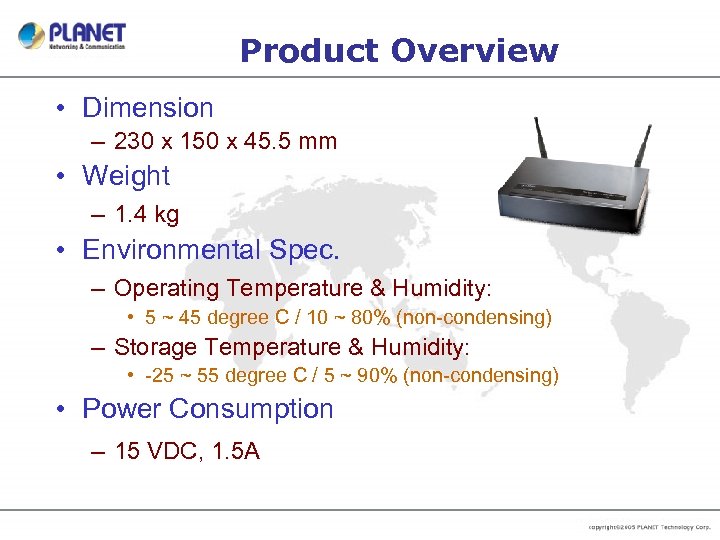

Product Overview • Dimension – 230 x 150 x 45. 5 mm • Weight – 1. 4 kg • Environmental Spec. – Operating Temperature & Humidity: • 5 ~ 45 degree C / 10 ~ 80% (non-condensing) – Storage Temperature & Humidity: • -25 ~ 55 degree C / 5 ~ 90% (non-condensing) • Power Consumption – 15 VDC, 1. 5 A

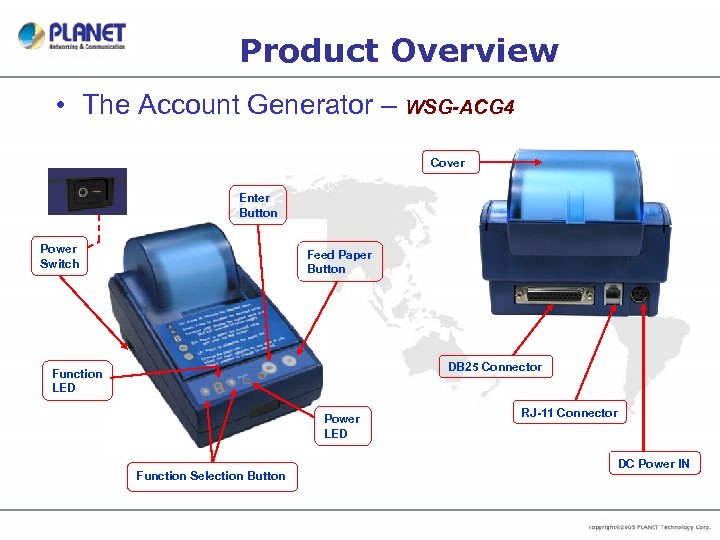

Product Overview • The Account Generator – WSG-ACG 4 Cover Enter Button Power Switch Feed Paper Button DB 25 Connector Function LED Power LED Function Selection Button RJ-11 Connector DC Power IN

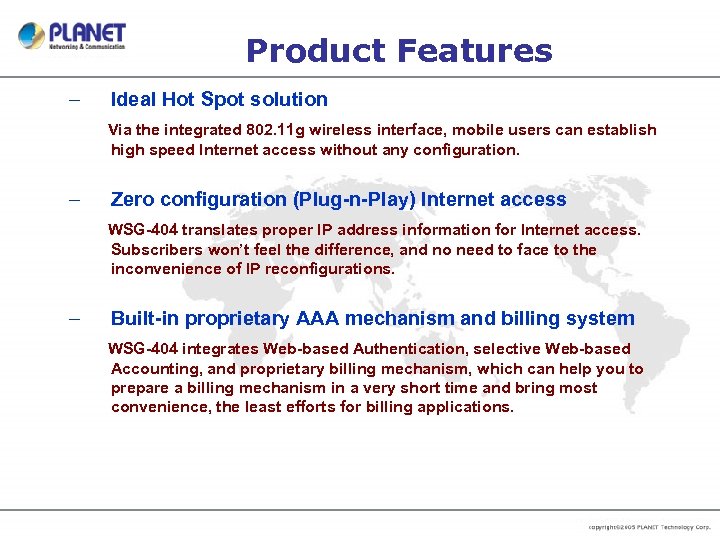

Product Features – Ideal Hot Spot solution Via the integrated 802. 11 g wireless interface, mobile users can establish high speed Internet access without any configuration. – Zero configuration (Plug-n-Play) Internet access WSG-404 translates proper IP address information for Internet access. Subscribers won’t feel the difference, and no need to face to the inconvenience of IP reconfigurations. – Built-in proprietary AAA mechanism and billing system WSG-404 integrates Web-based Authentication, selective Web-based Accounting, and proprietary billing mechanism, which can help you to prepare a billing mechanism in a very short time and bring most convenience, the least efforts for billing applications.

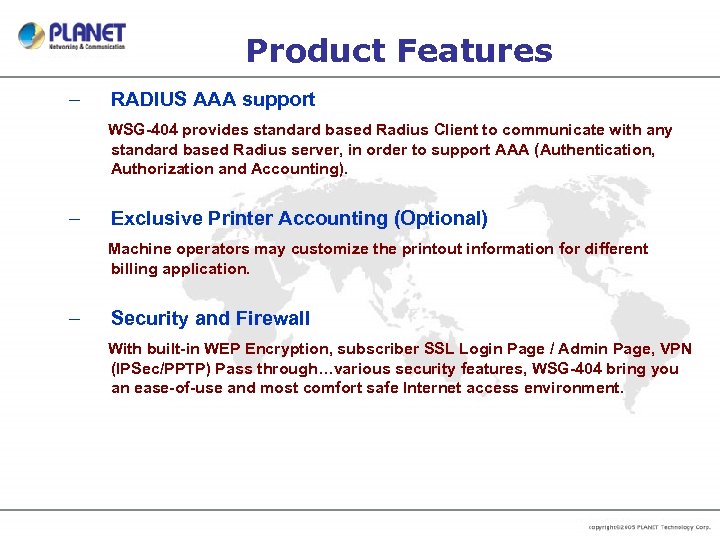

Product Features – RADIUS AAA support WSG-404 provides standard based Radius Client to communicate with any standard based Radius server, in order to support AAA (Authentication, Authorization and Accounting). – Exclusive Printer Accounting (Optional) Machine operators may customize the printout information for different billing application. – Security and Firewall With built-in WEP Encryption, subscriber SSL Login Page / Admin Page, VPN (IPSec/PPTP) Pass through…various security features, WSG-404 bring you an ease-of-use and most comfort safe Internet access environment.

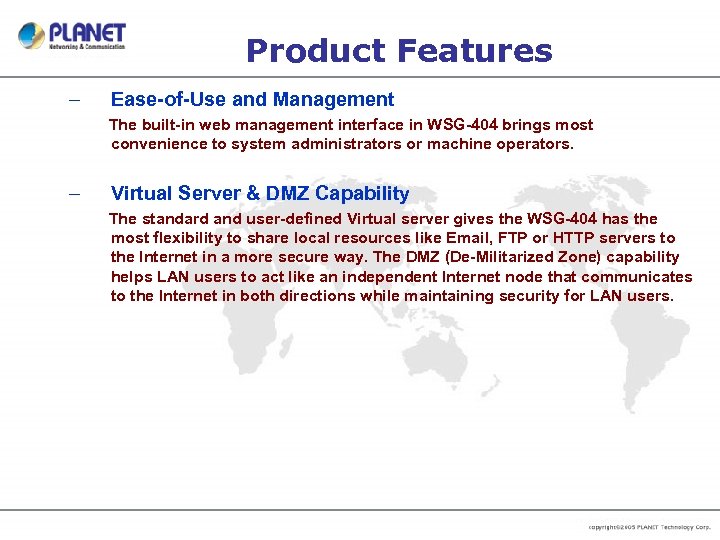

Product Features – Ease-of-Use and Management The built-in web management interface in WSG-404 brings most convenience to system administrators or machine operators. – Virtual Server & DMZ Capability The standard and user-defined Virtual server gives the WSG-404 has the most flexibility to share local resources like Email, FTP or HTTP servers to the Internet in a more secure way. The DMZ (De-Militarized Zone) capability helps LAN users to act like an independent Internet node that communicates to the Internet in both directions while maintaining security for LAN users.
Product Application Plug-and-Play Internet Access WSG-404’s unique IP Plug&Play (IP Pn. P) technology allows subscribers to connect with ease for broadband access without having to re-configure any of their device IP settings including DHCP, DNS, Proxy and dynamic and static IP address assignments. WSG-404 x. DSL/Cable Modem HTTP Proxy DHCP Client Fixed Private IP Fixed Global IP Dynamic IP

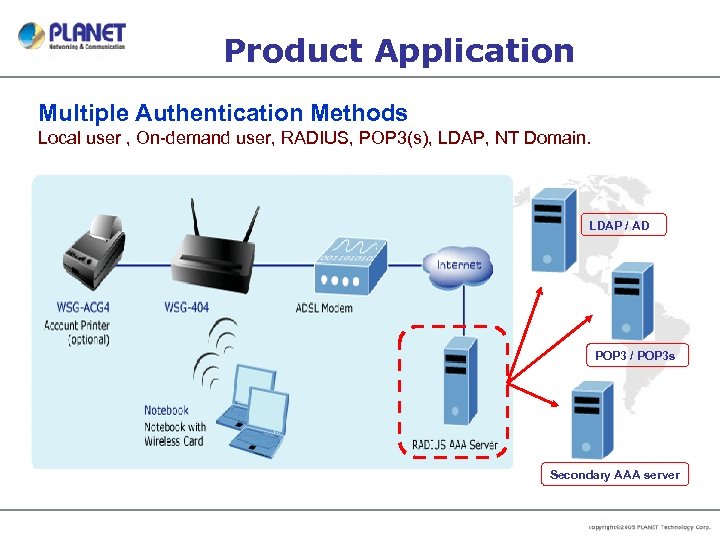

Product Application Multiple Authentication Methods Local user , On-demand user, RADIUS, POP 3(s), LDAP, NT Domain. LDAP / AD POP 3 / POP 3 s Secondary AAA server

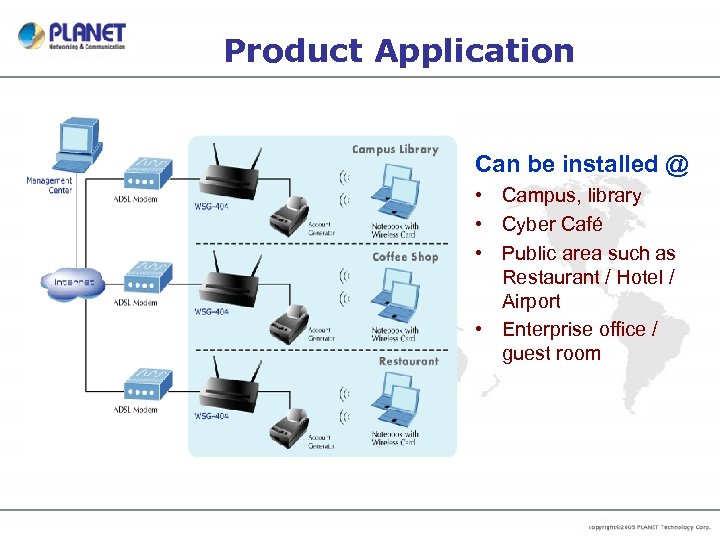

Product Application Can be installed @ • Campus, library • Cyber Café • Public area such as Restaurant / Hotel / Airport • Enterprise office / guest room

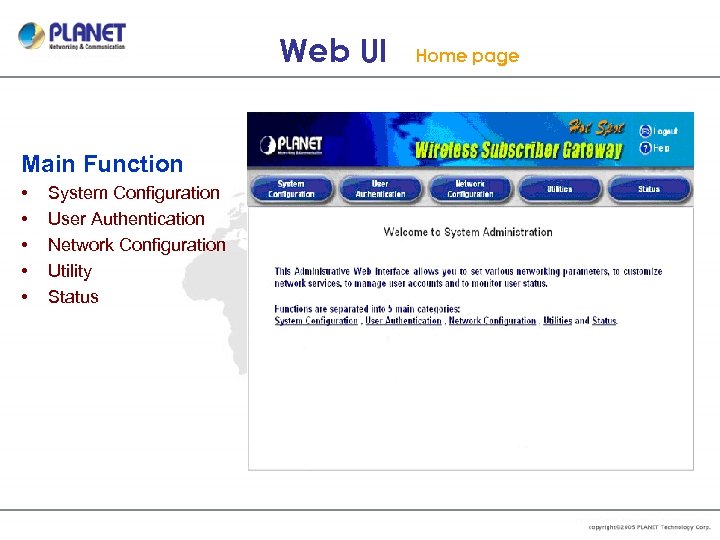

Web UI Main Function • • • System Configuration User Authentication Network Configuration Utility Status Home page

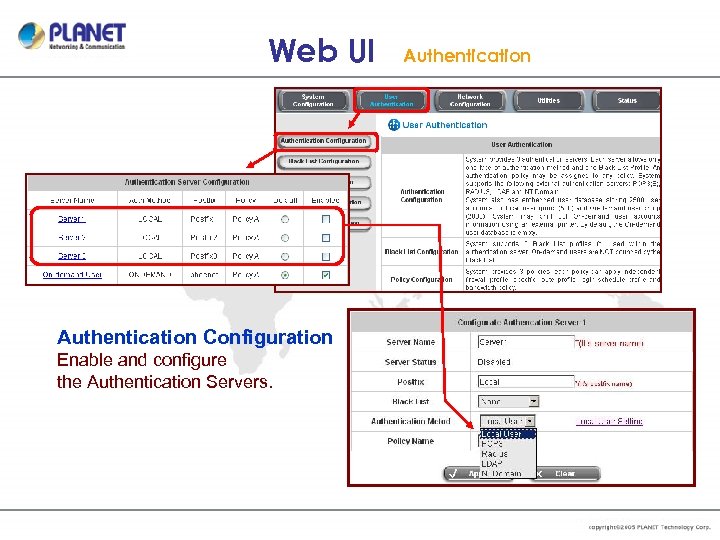

Web UI Authentication Configuration Enable and configure the Authentication Servers. Authentication

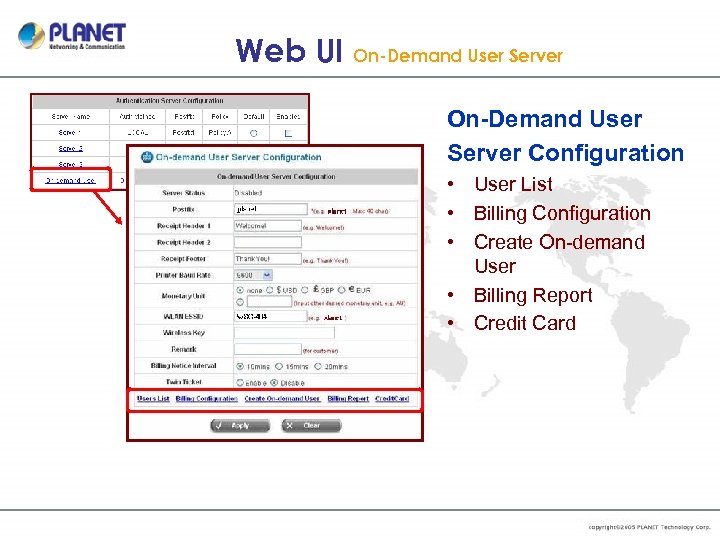

Web UI On-Demand User Server Configuration • User List • Billing Configuration • Create On-demand User • Billing Report • Credit Card

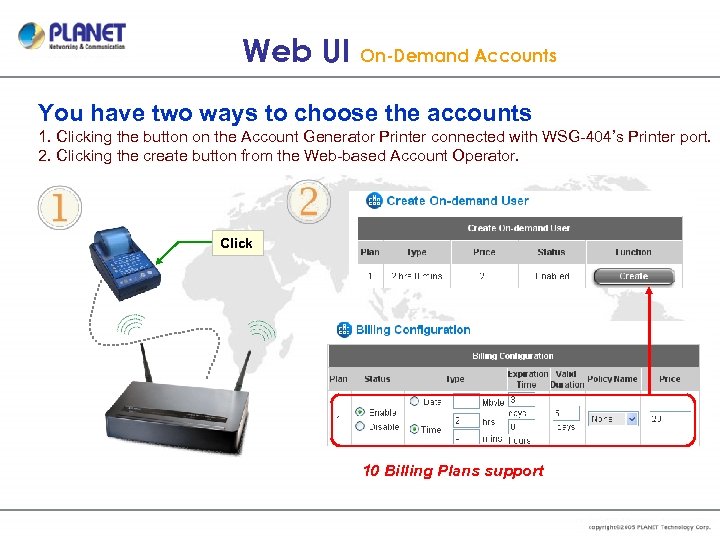

Web UI On-Demand Accounts You have two ways to choose the accounts 1. Clicking the button on the Account Generator Printer connected with WSG-404’s Printer port. 2. Clicking the create button from the Web-based Account Operator. Click 10 Billing Plans support

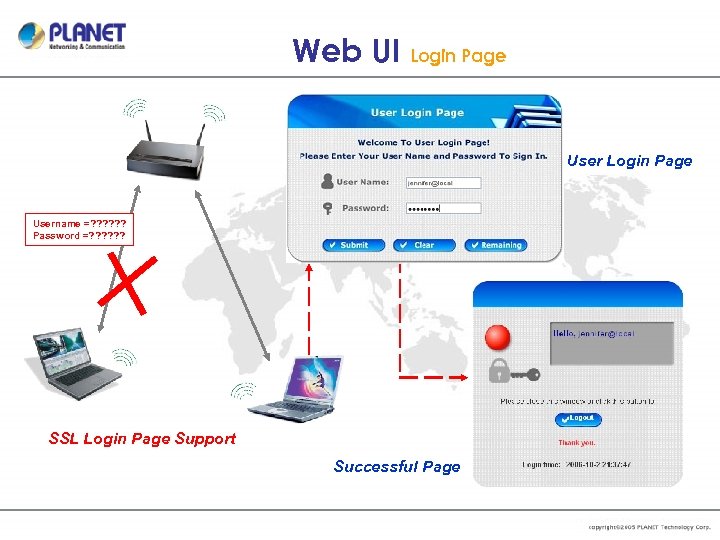

Web UI Login Page Username =? ? ? Password =? ? ? SSL Login Page Support Successful Page

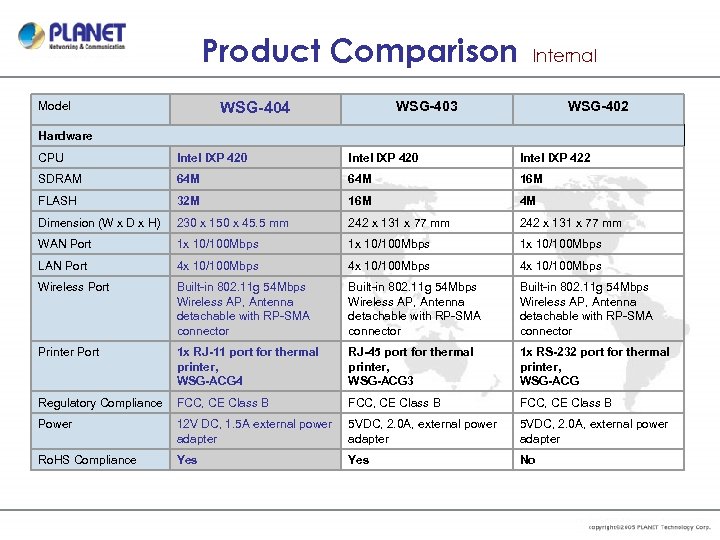

Product Comparison Model Internal WSG-403 WSG-404 WSG-402 Hardware CPU Intel IXP 420 Intel IXP 422 SDRAM 64 M 16 M FLASH 32 M 16 M 4 M Dimension (W x D x H) 230 x 150 x 45. 5 mm 242 x 131 x 77 mm WAN Port 1 x 10/100 Mbps LAN Port 4 x 10/100 Mbps Wireless Port Built-in 802. 11 g 54 Mbps Wireless AP, Antenna detachable with RP-SMA connector Printer Port 1 x RJ-11 port for thermal printer, WSG-ACG 4 RJ-45 port for thermal printer, WSG-ACG 3 1 x RS-232 port for thermal printer, WSG-ACG Regulatory Compliance FCC, CE Class B Power 12 V DC, 1. 5 A external power adapter 5 VDC, 2. 0 A, external power adapter Ro. HS Compliance Yes No

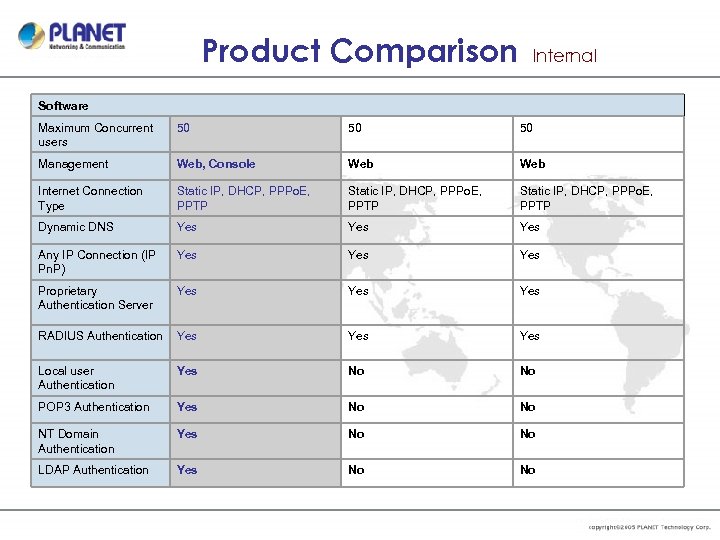

Product Comparison Internal Software Maximum Concurrent users 50 50 50 Management Web, Console Web Internet Connection Type Static IP, DHCP, PPPo. E, PPTP Dynamic DNS Yes Yes Any IP Connection (IP Pn. P) Yes Yes Proprietary Authentication Server Yes Yes RADIUS Authentication Yes Yes Local user Authentication Yes No No POP 3 Authentication Yes No No NT Domain Authentication Yes No No LDAP Authentication Yes No No

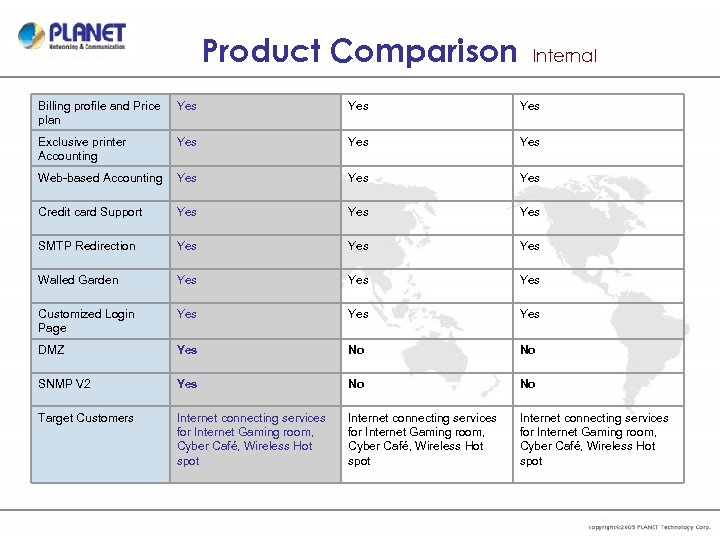

Product Comparison Internal Billing profile and Price plan Yes Yes Exclusive printer Accounting Yes Yes Web-based Accounting Yes Yes Credit card Support Yes Yes SMTP Redirection Yes Yes Walled Garden Yes Yes Customized Login Page Yes Yes DMZ Yes No No SNMP V 2 Yes No No Target Customers Internet connecting services for Internet Gaming room, Cyber Café, Wireless Hot spot

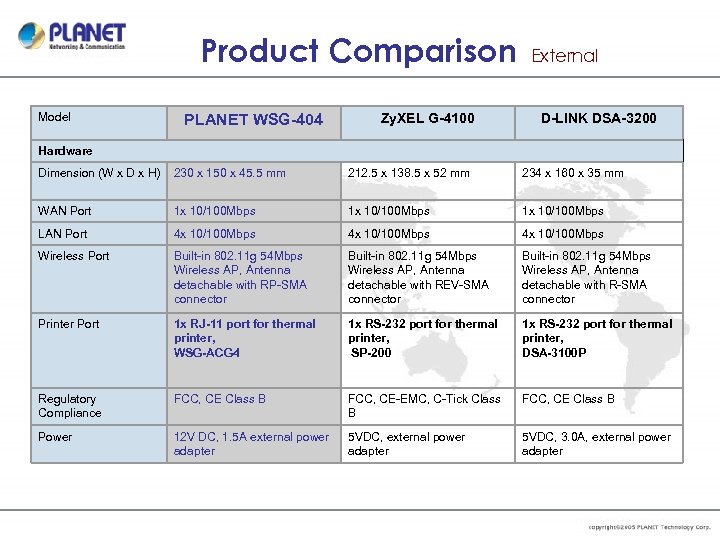

Product Comparison Model PLANET WSG-404 Zy. XEL G-4100 External D-LINK DSA-3200 Hardware Dimension (W x D x H) 230 x 150 x 45. 5 mm 212. 5 x 138. 5 x 52 mm 234 x 160 x 35 mm WAN Port 1 x 10/100 Mbps LAN Port 4 x 10/100 Mbps Wireless Port Built-in 802. 11 g 54 Mbps Wireless AP, Antenna detachable with RP-SMA connector Built-in 802. 11 g 54 Mbps Wireless AP, Antenna detachable with REV-SMA connector Built-in 802. 11 g 54 Mbps Wireless AP, Antenna detachable with R-SMA connector Printer Port 1 x RJ-11 port for thermal printer, WSG-ACG 4 1 x RS-232 port for thermal printer, SP-200 1 x RS-232 port for thermal printer, DSA-3100 P Regulatory Compliance FCC, CE Class B FCC, CE-EMC, C-Tick Class B FCC, CE Class B Power 12 V DC, 1. 5 A external power adapter 5 VDC, 3. 0 A, external power adapter
Product Comparison External Software Maximum Concurrent users 50 Unlimited, estimated 50 50 Management Web, Console Internet Connection Type Static IP, DHCP, PPPo. E, PPTP Dynamic DNS Yes Yes Any IP Connection (IP Pn. P) Yes Yes Proprietary Authentication Server Yes Yes RADIUS Authentication Yes Yes Local user Authentication Yes No Yes POP 3 Authentication Yes No No NT Domain Authentication Yes No No LDAP Authentication Yes No No
Product Comparison External Billing profile and Price plan Yes Yes Exclusive printer Accounting Yes Yes Web-based Accounting Yes Yes Credit card Support Yes Yes SMTP Redirection Yes Yes Walled Garden Yes Yes Customized Login Page Yes Yes DMZ Yes No Yes SNMP V 2 Yes No Yes Target Customers Internet connecting services for Internet Gaming room, Cyber Café, Wireless Hot spot
Pioneer of IP Innovation PLANET Technology Corp.
