HMI JSOC Overview JSOC Joint Science Operations

HMI JSOC Overview JSOC = Joint Science Operations Center Philip Scherrer pscherrer@solar. stanford. edu 650 -723 -1504 HMI Team Meeting – January 26 -27, 2005 Page 1

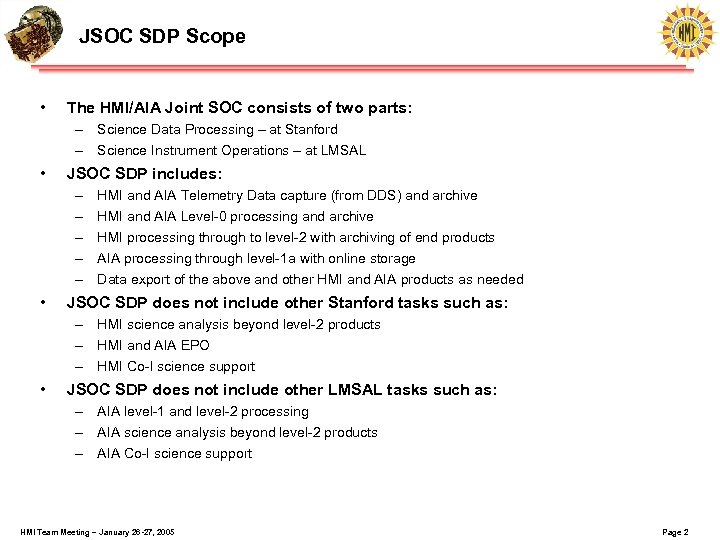

JSOC SDP Scope • The HMI/AIA Joint SOC consists of two parts: – Science Data Processing – at Stanford – Science Instrument Operations – at LMSAL • JSOC SDP includes: – – – • HMI and AIA Telemetry Data capture (from DDS) and archive HMI and AIA Level-0 processing and archive HMI processing through to level-2 with archiving of end products AIA processing through level-1 a with online storage Data export of the above and other HMI and AIA products as needed JSOC SDP does not include other Stanford tasks such as: – HMI science analysis beyond level-2 products – HMI and AIA EPO – HMI Co-I science support • JSOC SDP does not include other LMSAL tasks such as: – AIA level-1 and level-2 processing – AIA science analysis beyond level-2 products – AIA Co-I science support HMI Team Meeting – January 26 -27, 2005 Page 2

10/21/03 SDO Ground System Architecture S-Band: TRK, Cmd & HK Tlm SDO Ground Site #2 (White Sands) S-Band ground system S-Band: TRK, Cmd & HK Tlm (Includes 72 -hr storage) Ka-Band: 150 Mbps Science Data External Tracking Station Ka-Band ground system Acquisition Data Cmd Same Interfaces as Prime Ground Site (Includes 48 -hr storage) S-Band: TRK, Cmd & HK Tlm SDO Ground Site #1 (White Sands) S-Band ground system (Includes 72 -hr storage) Ka-Band ground system (Includes 48 -hr storage) Observatory Commands Station Control Observatory Housekeeping Telemetry Tracking Data Station Status Telemetry & Command (T&C) System ASIST / FEDS Telemetry Monitoring Command Management HK Data Archival (DHDS) HK Level-0 Processing Data Distribution System (Incl. 30 -Day Science Data Storage ) HMI Science Data AIA 55 Mbps Science Data 68 Mbps SDO Mission Operations Center Acquisition Data Ka Science Data HMI AIA JSOC (Stanford / ATC/ Palo Alto Ca. ) S-Band HK Tlm, TRK Data DDS Control Automated Operations Anomaly detection DDS Status Flight Dynamics System Orbit Determination Maneuver Planning Product Generation R/T Attitude Determination Sensor/Actuator Calibration Mission Planning & Scheduling plan daily/periodic events create engineering plan Generate Daily Loads Ground Station Control System DDS Control System EVE Science Data 7 Mbps Trending Alert Notification System (ANS) R/T Housekeeping Telemetry EVE SOC (LASP / Boulder Co. ) R/T Housekeeping Telemetry Memory dumps Simulated commands Flight software loads Simulated housekeeping telemetry Science Planning and FDS Products Instrument Commands / Loads HMI Team Meeting – January 26 -27, 2005 Flight Software Maintenance Lab (FLATSAT) Page 3

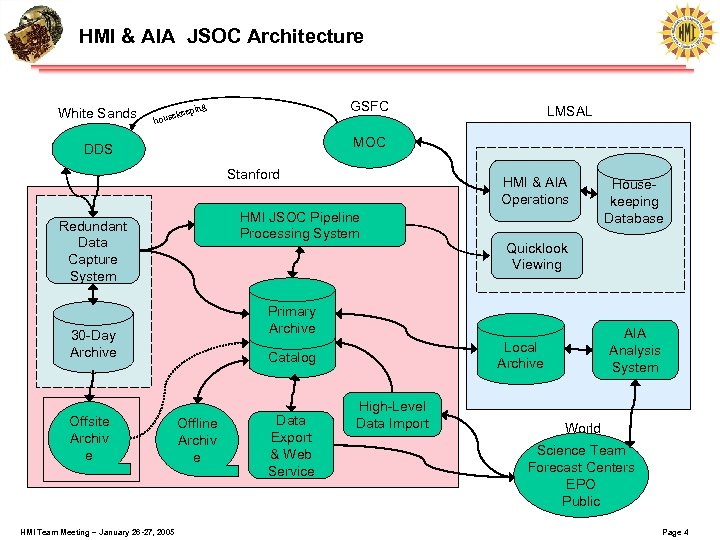

HMI & AIA JSOC Architecture White Sands keep e hous GSFC ing MOC DDS Stanford Offline Archiv e Data Export & Web Service AIA Analysis System Local Archive Catalog High-Level Data Import Housekeeping Database Quicklook Viewing Primary Archive 30 -Day Archive HMI Team Meeting – January 26 -27, 2005 HMI & AIA Operations HMI JSOC Pipeline Processing System Redundant Data Capture System Offsite Archiv e LMSAL World Science Team Forecast Centers EPO Public Page 4

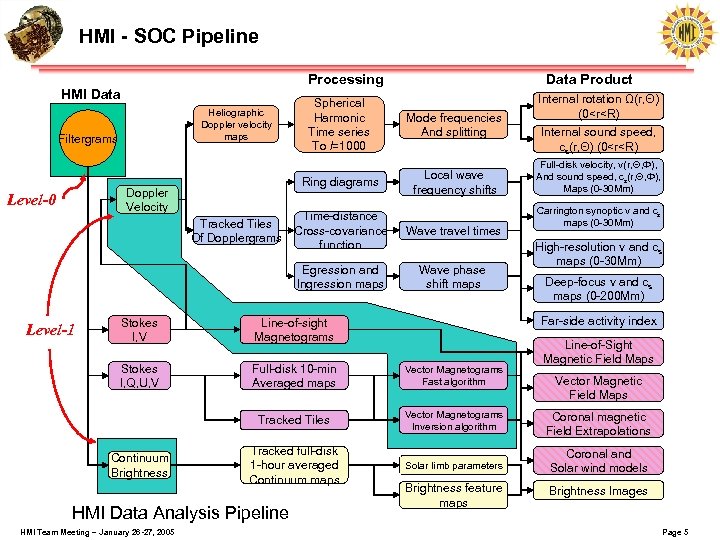

HMI - SOC Pipeline Processing HMI Data Doppler Velocity Level-0 Spherical Harmonic Time series To l=1000 Mode frequencies And splitting Ring diagrams Heliographic Doppler velocity maps Filtergrams Data Product Local wave frequency shifts Time-distance Tracked Tiles Cross-covariance Of Dopplergrams function Egression and Ingression maps Wave travel times Wave phase shift maps Internal rotation Ω(r, Θ) (0

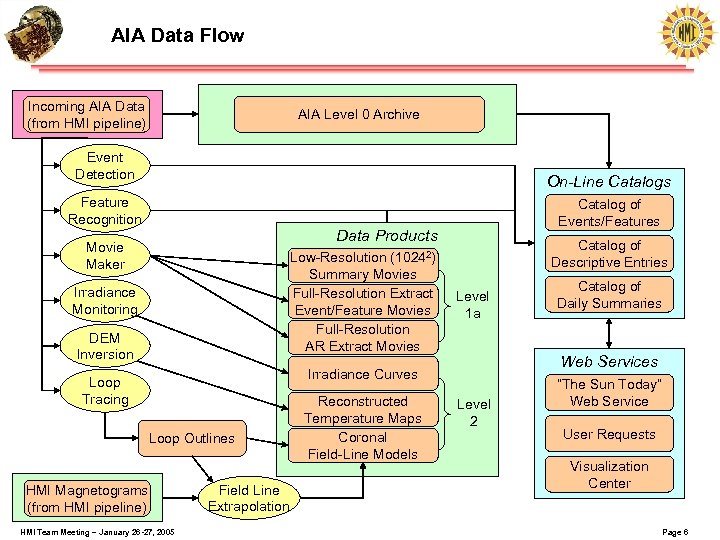

AIA Data Flow Incoming AIA Data (from HMI pipeline) AIA Level 0 Archive Event Detection On-Line Catalogs Feature Recognition Catalog of Events/Features Data Products Movie Maker Low-Resolution (10242) Summary Movies Full-Resolution Extract Event/Feature Movies Full-Resolution AR Extract Movies Irradiance Monitoring DEM Inversion Catalog of Descriptive Entries Level 1 a Web Services Irradiance Curves Loop Tracing Loop Outlines HMI Magnetograms (from HMI pipeline) HMI Team Meeting – January 26 -27, 2005 Field Line Extrapolation Reconstructed Temperature Maps Coronal Field-Line Models Catalog of Daily Summaries Level 2 “The Sun Today” Web Service User Requests Visualization Center Page 6

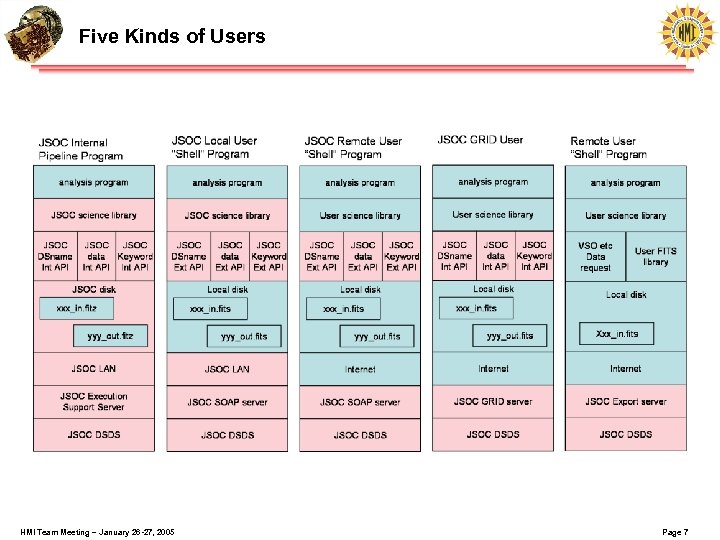

Five Kinds of Users HMI Team Meeting – January 26 -27, 2005 Page 7
