Histograms What are they? How do I use them? Rex Waygood Fordingbridge Camera Club 2005

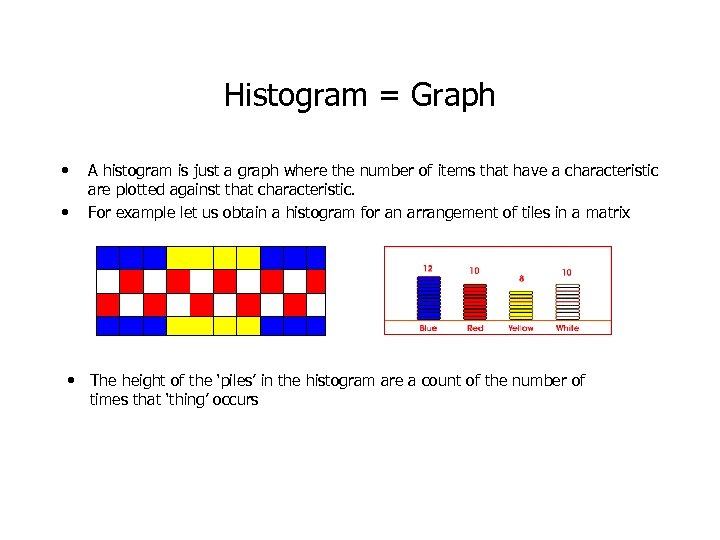

Histogram = Graph • • A histogram is just a graph where the number of items that have a characteristic are plotted against that characteristic. For example let us obtain a histogram for an arrangement of tiles in a matrix • The height of the ‘piles’ in the histogram are a count of the number of times that ‘thing’ occurs

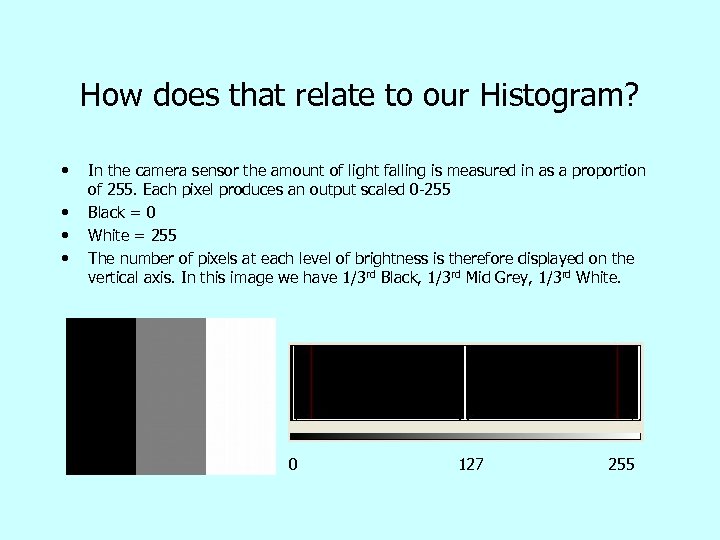

How does that relate to our Histogram? • • In the camera sensor the amount of light falling is measured in as a proportion of 255. Each pixel produces an output scaled 0 -255 Black = 0 White = 255 The number of pixels at each level of brightness is therefore displayed on the vertical axis. In this image we have 1/3 rd Black, 1/3 rd Mid Grey, 1/3 rd White. 0 127 255

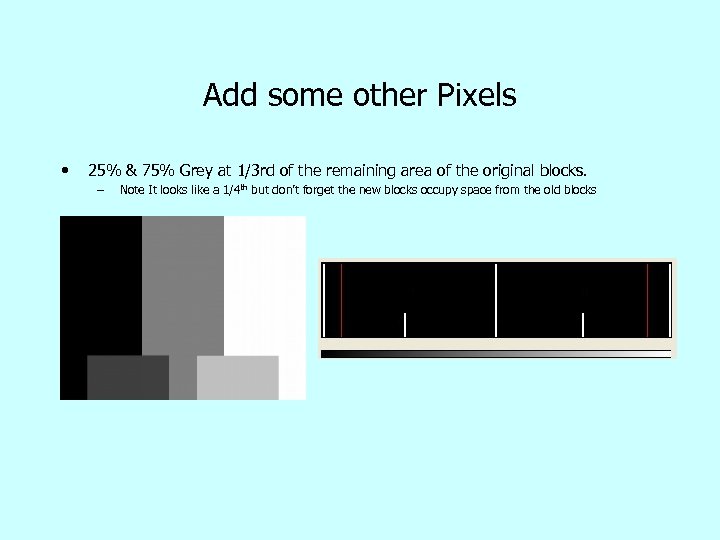

Add some other Pixels • 25% & 75% Grey at 1/3 rd of the remaining area of the original blocks. – Note It looks like a 1/4 th but don’t forget the new blocks occupy space from the old blocks

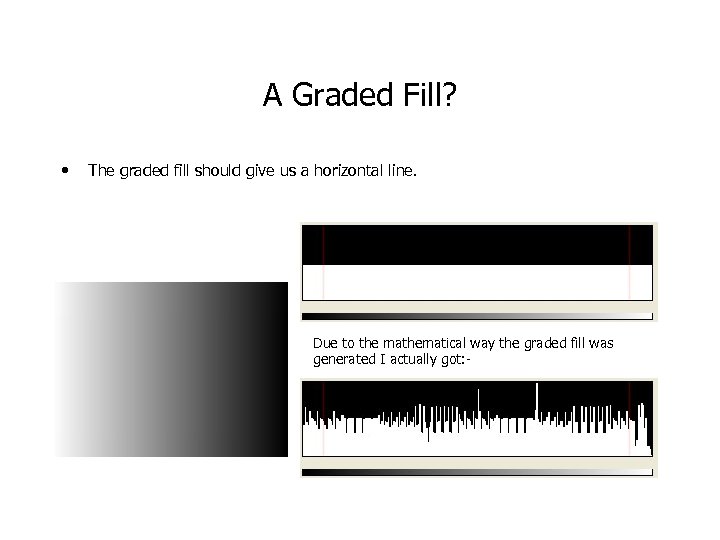

A Graded Fill? • The graded fill should give us a horizontal line. Due to the mathematical way the graded fill was generated I actually got: -

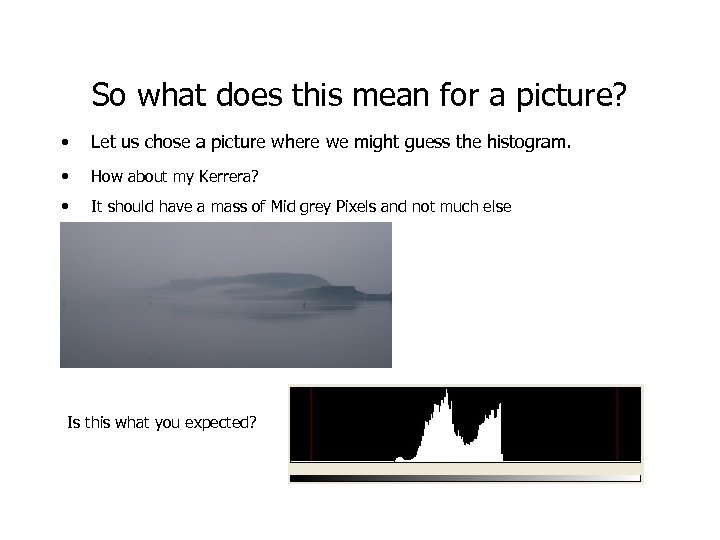

So what does this mean for a picture? • Let us chose a picture where we might guess the histogram. • How about my Kerrera? • It should have a mass of Mid grey Pixels and not much else Is this what you expected?

OK. Now Chimp! • • • Chimping is the name given to taking a picture and then looking at the Histogram! So you’ve just taken a picture and you get the following Histogram. Is it under or over exposed? So this histogram shows that the image is under exposed. Did you get it right?

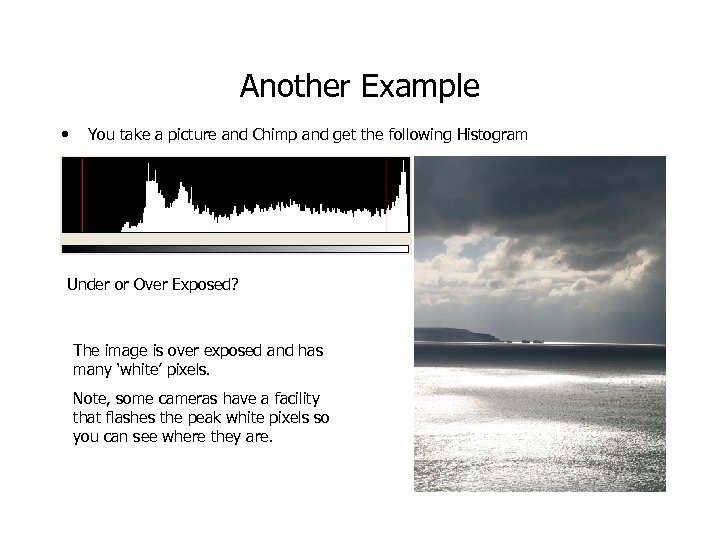

Another Example • You take a picture and Chimp and get the following Histogram Under or Over Exposed? The image is over exposed and has many ‘white’ pixels. Note, some cameras have a facility that flashes the peak white pixels so you can see where they are.

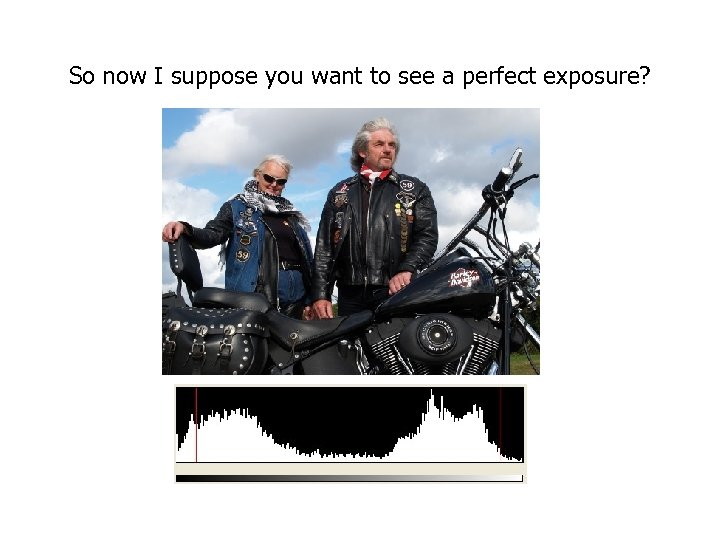

So now I suppose you want to see a perfect exposure?

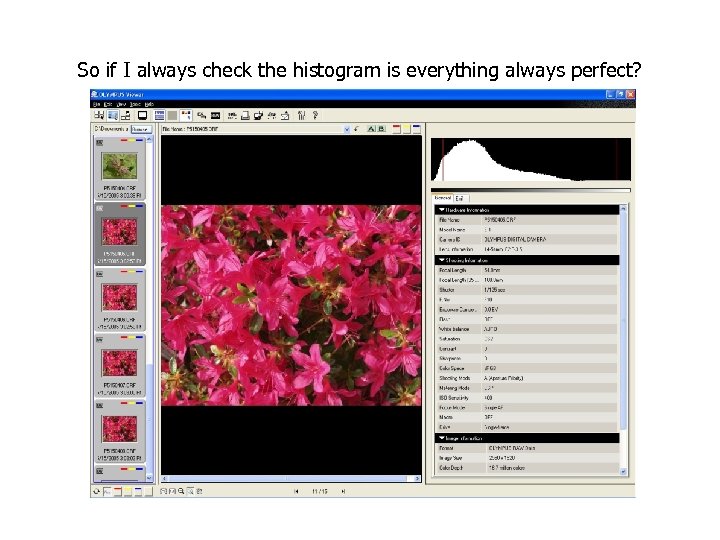

So if I always check the histogram is everything always perfect?

What do you see? • • • The Histogram show the image to be well exposed. There are no peak white pixels Everything in the ‘garden’ should be good. However I noticed a lack of detail in the bright reds. So is this perfectly exposed?

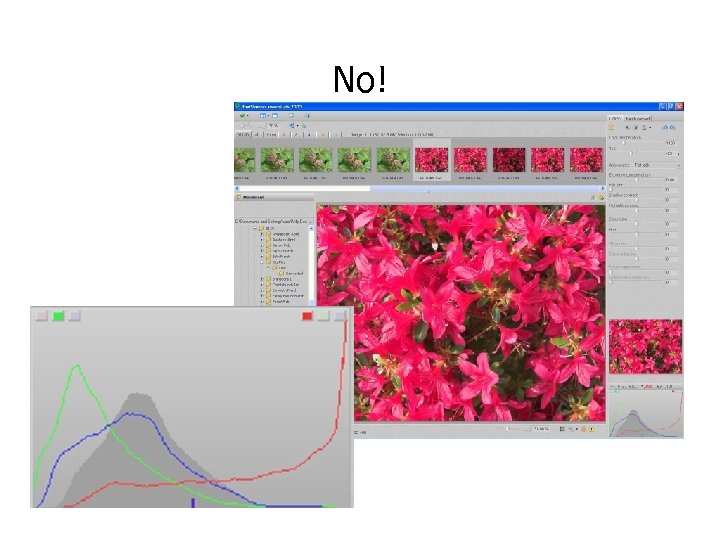

No!

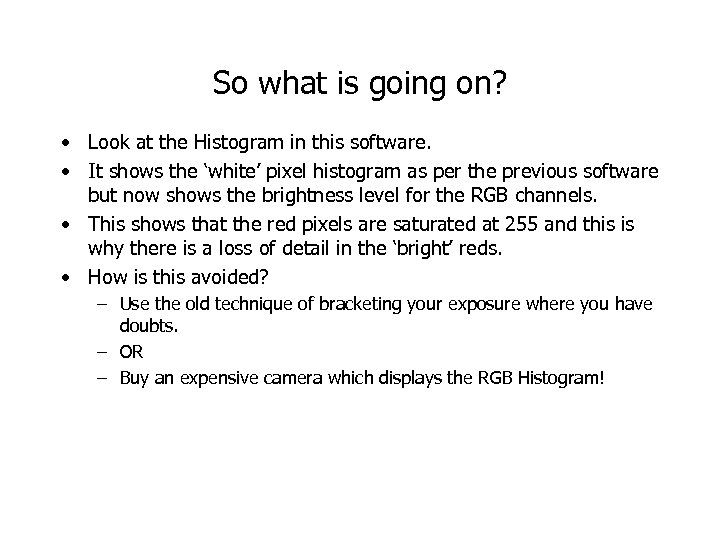

So what is going on? • Look at the Histogram in this software. • It shows the ‘white’ pixel histogram as per the previous software but now shows the brightness level for the RGB channels. • This shows that the red pixels are saturated at 255 and this is why there is a loss of detail in the ‘bright’ reds. • How is this avoided? – Use the old technique of bracketing your exposure where you have doubts. – OR – Buy an expensive camera which displays the RGB Histogram!

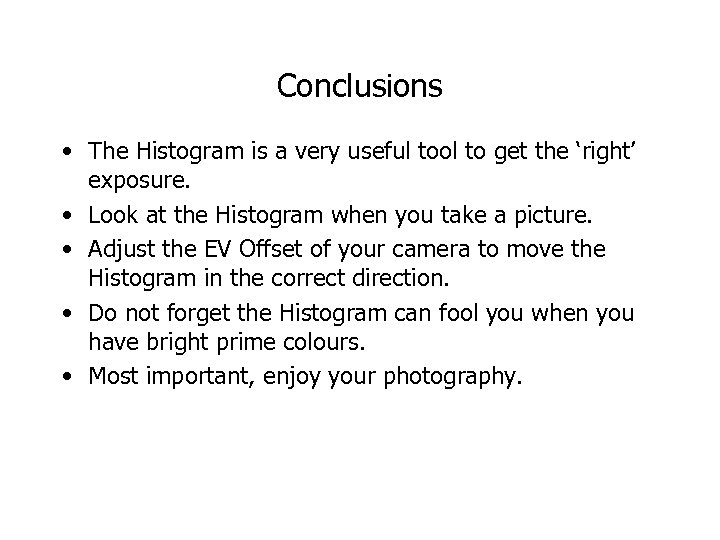

Conclusions • The Histogram is a very useful tool to get the ‘right’ exposure. • Look at the Histogram when you take a picture. • Adjust the EV Offset of your camera to move the Histogram in the correct direction. • Do not forget the Histogram can fool you when you have bright prime colours. • Most important, enjoy your photography.
