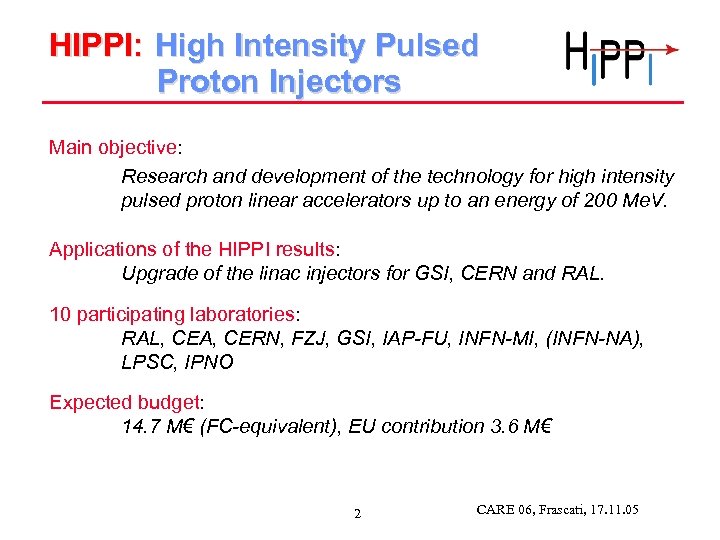

HIPPI: High Intensity Pulsed Proton Injectors Main objective: Research and development of the technology for high intensity pulsed proton linear accelerators up to an energy of 200 Me. V. Applications of the HIPPI results: Upgrade of the linac injectors for GSI, CERN and RAL. 10 participating laboratories: RAL, CEA, CERN, FZJ, GSI, IAP-FU, INFN-MI, (INFN-NA), LPSC, IPNO Expected budget: 14. 7 M€ (FC-equivalent), EU contribution 3. 6 M€ 2 CARE 06, Frascati, 17. 11. 05

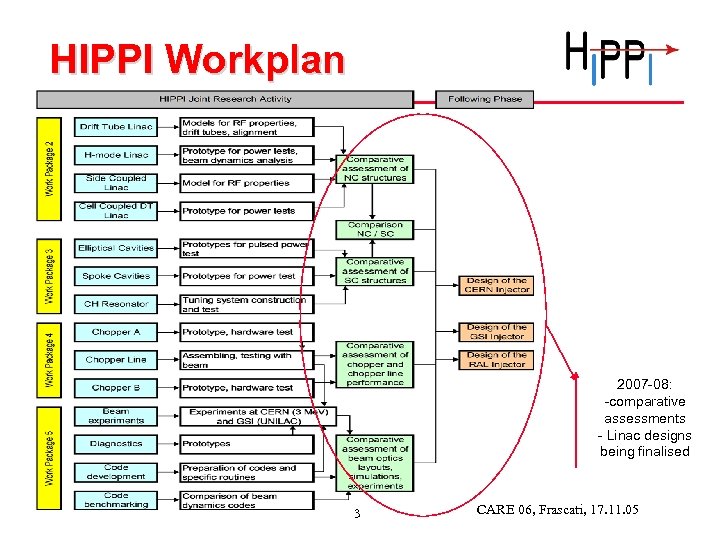

HIPPI Workplan 2007 -08: -comparative assessments - Linac designs being finalised 3 CARE 06, Frascati, 17. 11. 05

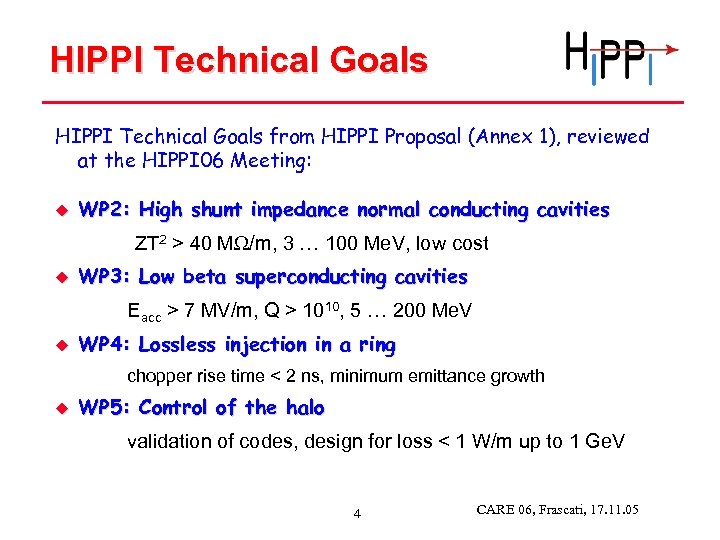

HIPPI Technical Goals from HIPPI Proposal (Annex 1), reviewed at the HIPPI 06 Meeting: u WP 2: High shunt impedance normal conducting cavities ZT 2 > 40 MW/m, 3 … 100 Me. V, low cost u WP 3: Low beta superconducting cavities Eacc > 7 MV/m, Q > 1010, 5 … 200 Me. V u WP 4: Lossless injection in a ring chopper rise time < 2 ns, minimum emittance growth u WP 5: Control of the halo validation of codes, design for loss < 1 W/m up to 1 Ge. V 4 CARE 06, Frascati, 17. 11. 05

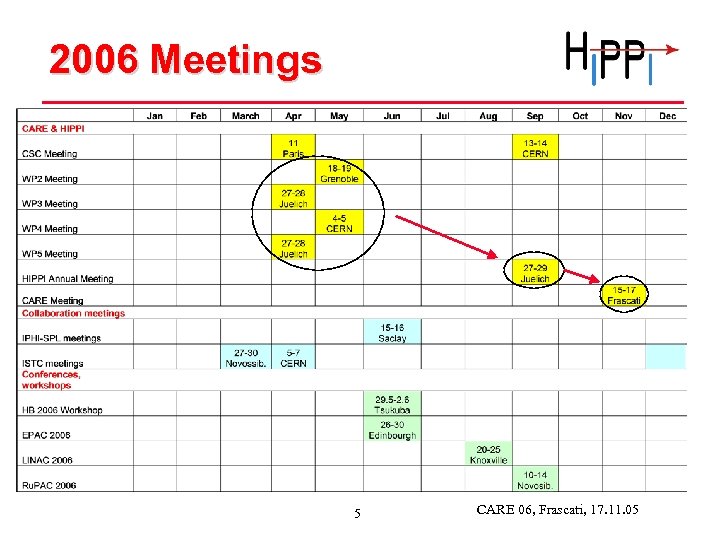

2006 Meetings 5 CARE 06, Frascati, 17. 11. 05

2006 Annual Meeting - - 6 25% of time devoted to questions and discussion. - Programme, copy of slides, list of participants: http: //www. fz-juelich. de/ikp/hippi/autumn 2006/ 28 technical presentations: 4 on general (inter-WP) topics, 24 on WP specialist topics + 4 presentations on organizational or administrative matters. - IKP, Forschungszentrum Jülich, Jülich (Germany) 37 participants from 14 Laboratories (10 HIPPI, 1 external, 3 members of External Scientific Advisory Committee - ESAC) The ESAC participated actively to the discussions (+ 5 hours for reviewing) CARE 06, Frascati, 17. 11. 05

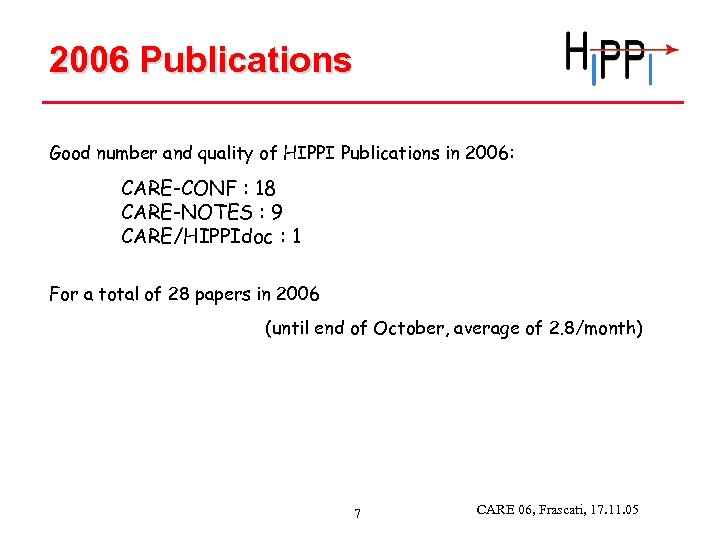

2006 Publications Good number and quality of HIPPI Publications in 2006: CARE-CONF : 18 CARE-NOTES : 9 CARE/HIPPIdoc : 1 For a total of 28 papers in 2006 (until end of October, average of 2. 8/month) 7 CARE 06, Frascati, 17. 11. 05

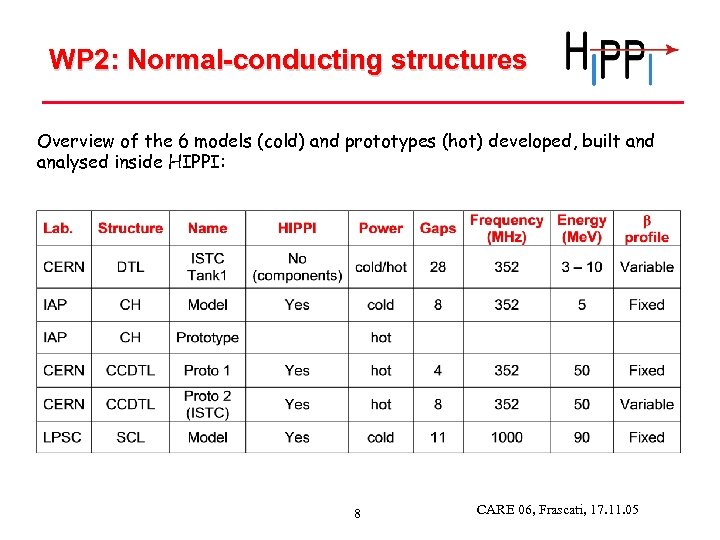

WP 2: Normal-conducting structures Overview of the 6 models (cold) and prototypes (hot) developed, built and analysed inside HIPPI: 8 CARE 06, Frascati, 17. 11. 05

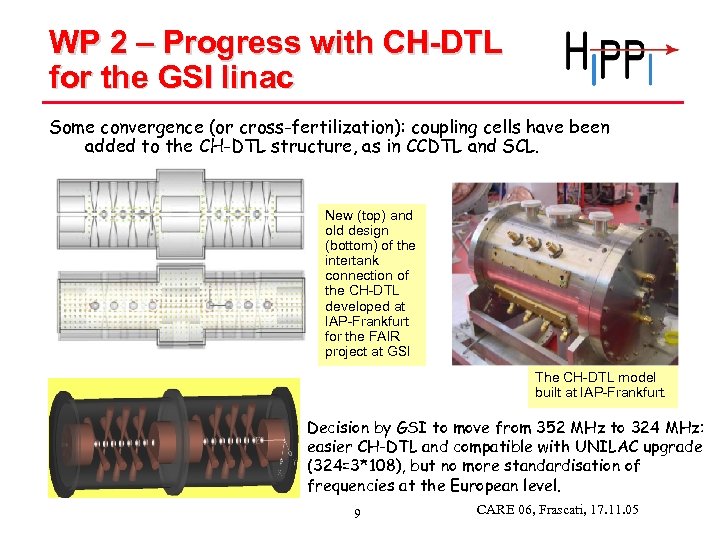

WP 2 – Progress with CH-DTL for the GSI linac Some convergence (or cross-fertilization): coupling cells have been added to the CH-DTL structure, as in CCDTL and SCL. New (top) and old design (bottom) of the intertank connection of the CH-DTL developed at IAP-Frankfurt for the FAIR project at GSI The CH-DTL model built at IAP-Frankfurt. Decision by GSI to move from 352 MHz to 324 MHz: easier CH-DTL and compatible with UNILAC upgrade (324=3*108), but no more standardisation of frequencies at the European level. 9 CARE 06, Frascati, 17. 11. 05

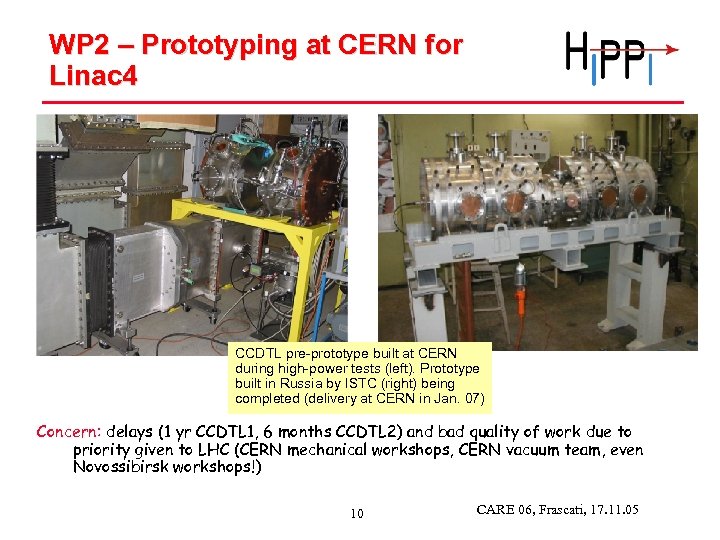

WP 2 – Prototyping at CERN for Linac 4 CCDTL pre-prototype built at CERN during high-power tests (left). Prototype built in Russia by ISTC (right) being completed (delivery at CERN in Jan. 07) Concern: delays (1 yr CCDTL 1, 6 months CCDTL 2) and bad quality of work due to priority given to LHC (CERN mechanical workshops, CERN vacuum team, even Novossibirsk workshops!) 10 CARE 06, Frascati, 17. 11. 05

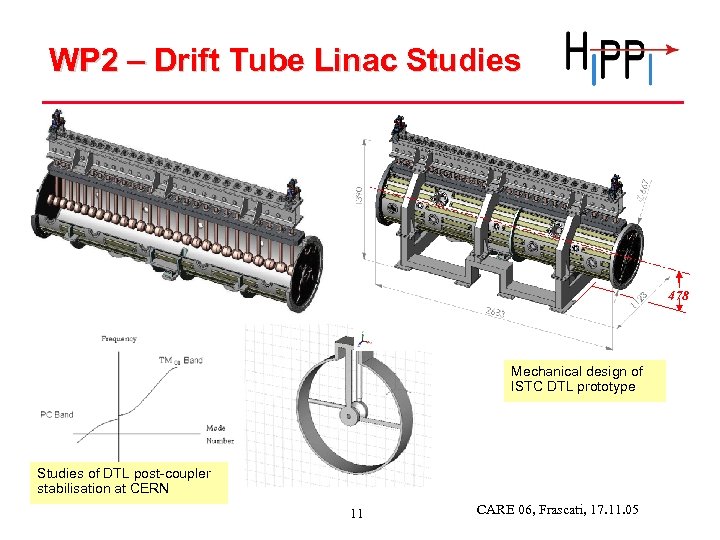

WP 2 – Drift Tube Linac Studies 478 Mechanical design of ISTC DTL prototype Studies of DTL post-coupler stabilisation at CERN 11 CARE 06, Frascati, 17. 11. 05

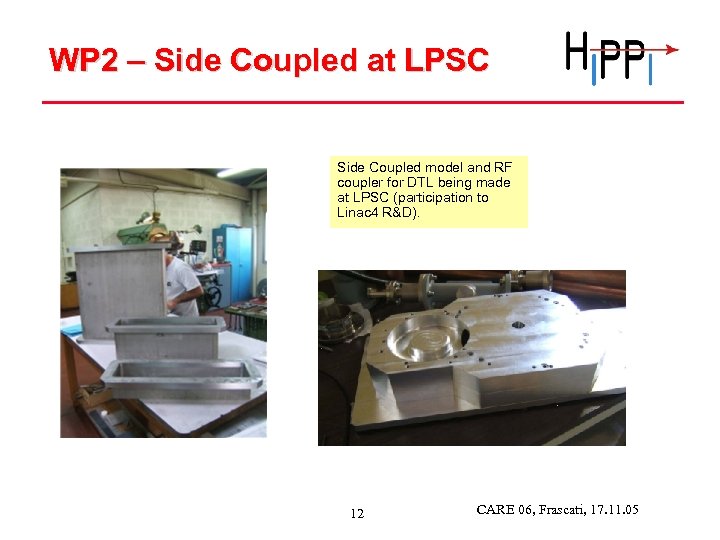

WP 2 – Side Coupled at LPSC Side Coupled model and RF coupler for DTL being made at LPSC (participation to Linac 4 R&D). 12 CARE 06, Frascati, 17. 11. 05

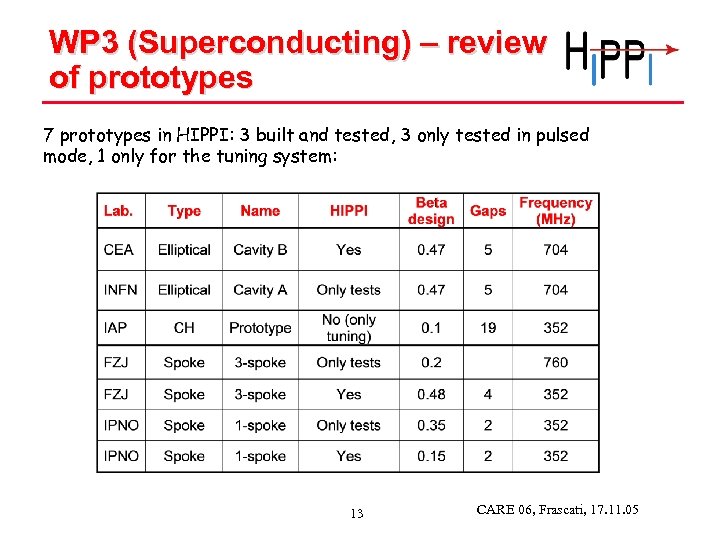

WP 3 (Superconducting) – review of prototypes 7 prototypes in HIPPI: 3 built and tested, 3 only tested in pulsed mode, 1 only for the tuning system: 13 CARE 06, Frascati, 17. 11. 05

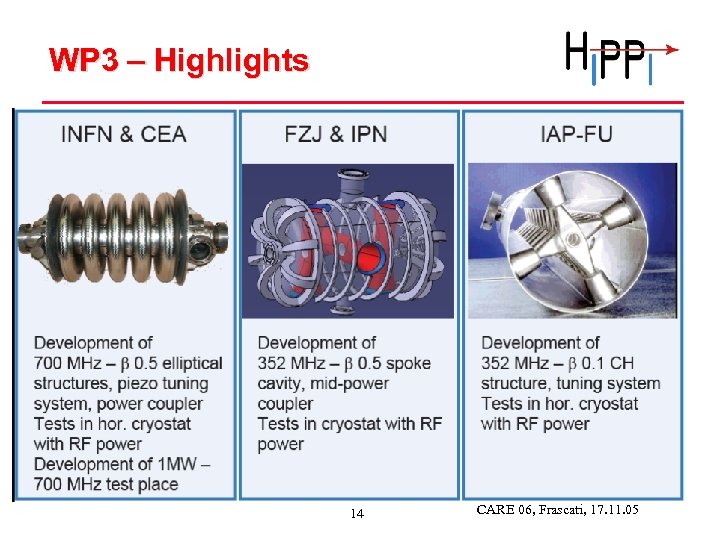

WP 3 – Highlights 14 CARE 06, Frascati, 17. 11. 05

WP 3 – HIPPI test area at CEA Saclay 15 CARE 06, Frascati, 17. 11. 05

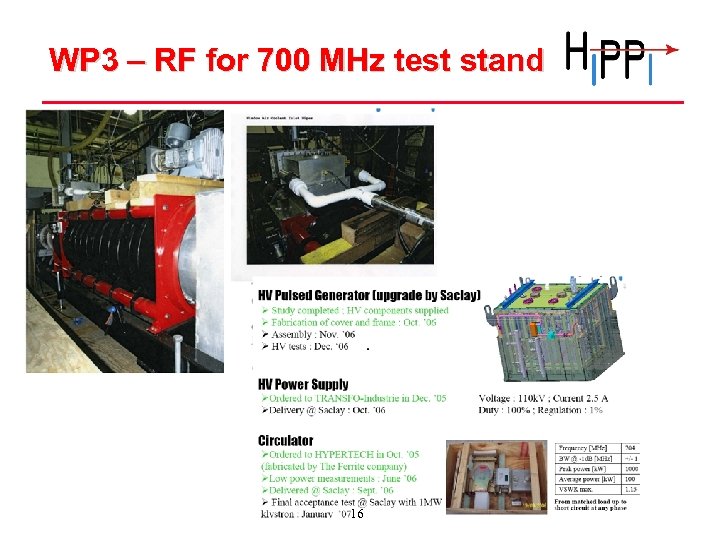

WP 3 – RF for 700 MHz test stand 16 CARE 06, Frascati, 17. 11. 05

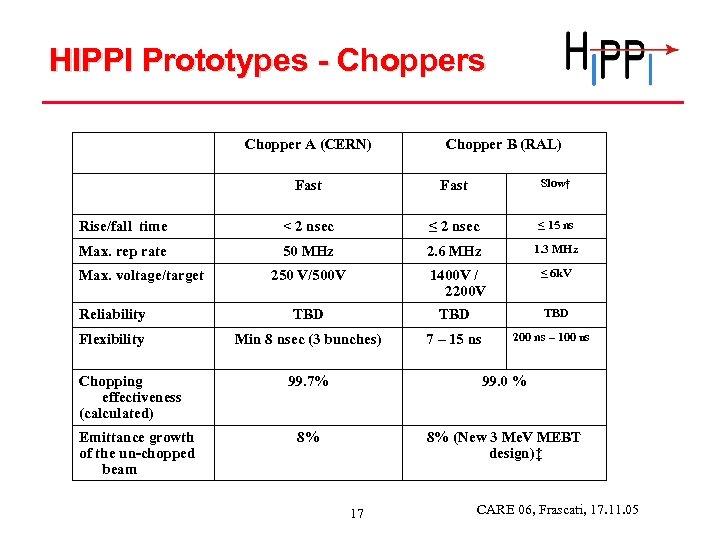

HIPPI Prototypes - Choppers Chopper A (CERN) Chopper B (RAL) Fast Slow† Rise/fall time < 2 nsec ≤ 15 ns Max. rep rate 50 MHz 2. 6 MHz 1. 3 MHz 250 V/500 V 1400 V / 2200 V Reliability TBD Flexibility Min 8 nsec (3 bunches) 7 – 15 ns Max. voltage/target Chopping effectiveness (calculated) Emittance growth of the un-chopped beam ≤ 6 k. V TBD 200 ns – 100 us 99. 7% 99. 0 % 8% 8% (New 3 Me. V MEBT design)‡ 17 CARE 06, Frascati, 17. 11. 05

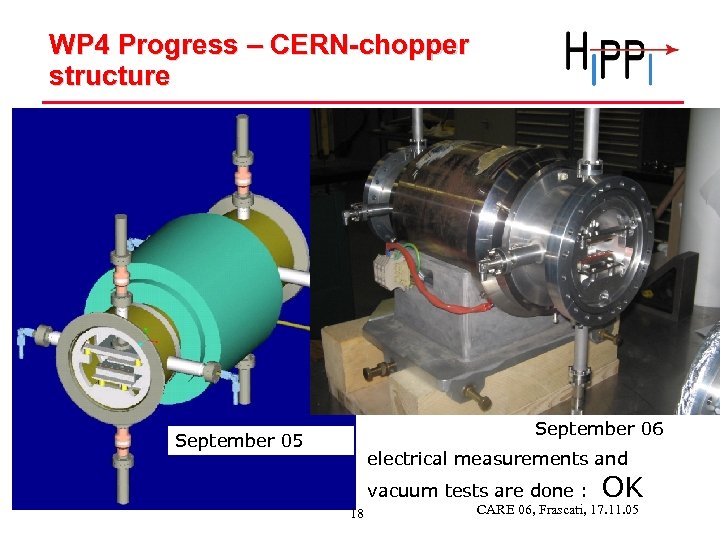

WP 4 Progress – CERN-chopper structure September 06 September 05 electrical measurements and vacuum tests are done : 18 OK CARE 06, Frascati, 17. 11. 05

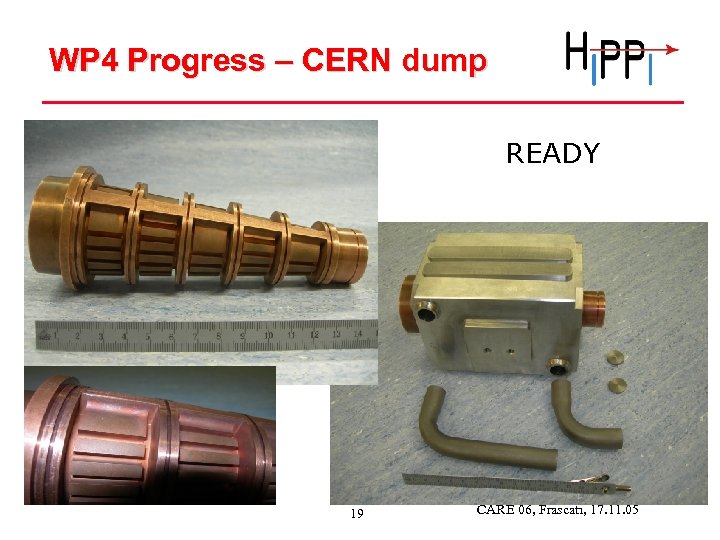

WP 4 Progress – CERN dump READY 19 CARE 06, Frascati, 17. 11. 05

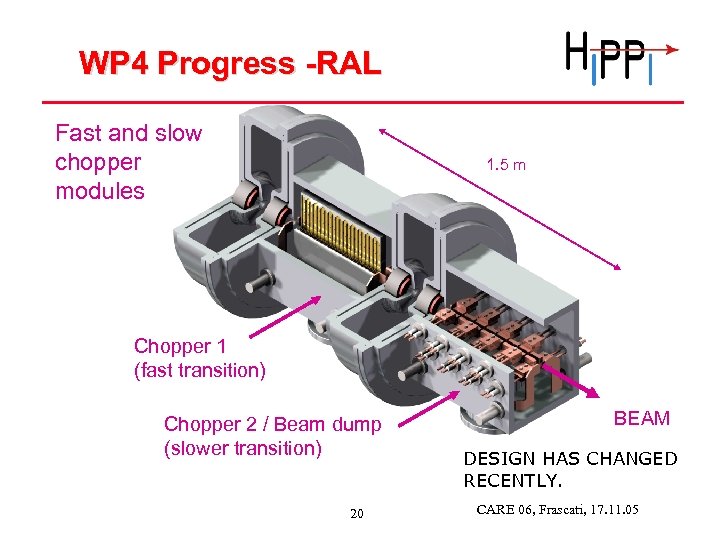

WP 4 Progress -RAL Fast and slow chopper modules 1. 5 m Chopper 1 (fast transition) Chopper 2 / Beam dump (slower transition) 20 BEAM DESIGN HAS CHANGED RECENTLY. CARE 06, Frascati, 17. 11. 05

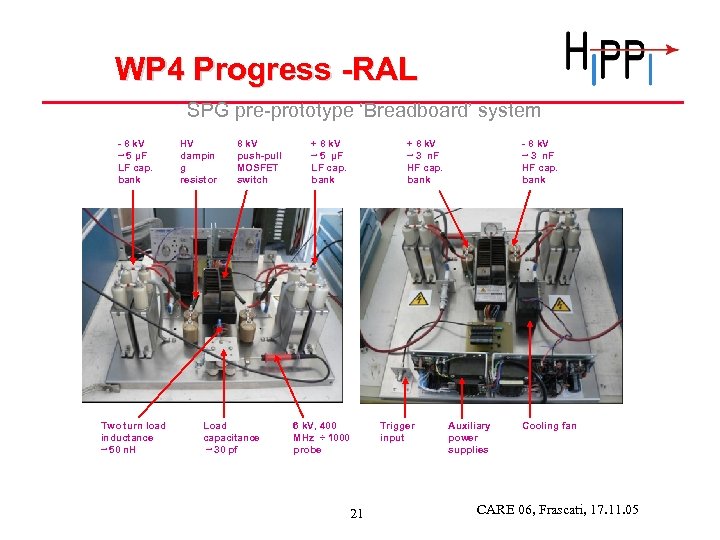

WP 4 Progress -RAL SPG pre-prototype ‘Breadboard’ system - 8 k. V ~ 5 μF LF cap. bank Two turn load inductance ~ 50 n. H HV dampin g resistor 8 k. V push-pull MOSFET switch Load capacitance ~ 30 pf + 8 k. V ~ 5 μF LF cap. bank + 8 k. V ~ 3 n. F HF cap. bank 6 k. V, 400 MHz ÷ 1000 probe 21 Trigger input - 8 k. V ~ 3 n. F HF cap. bank Auxiliary power supplies Cooling fan CARE 06, Frascati, 17. 11. 05

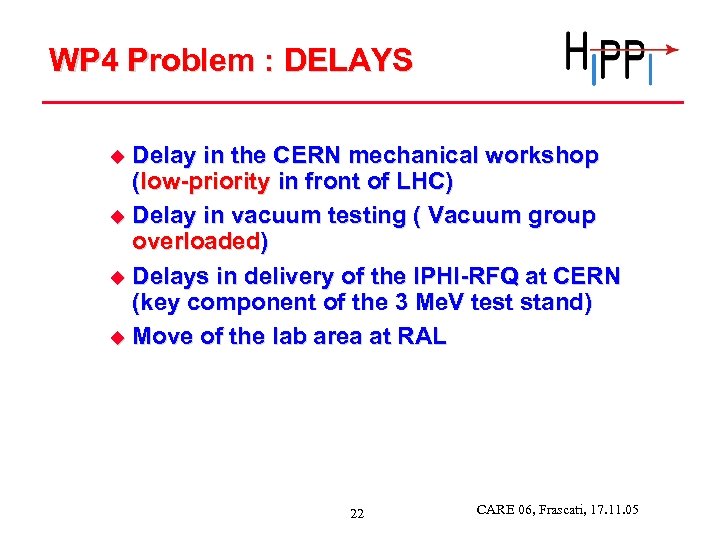

WP 4 Problem : DELAYS Delay in the CERN mechanical workshop (low-priority in front of LHC) u Delay in vacuum testing ( Vacuum group overloaded) u Delays in delivery of the IPHI-RFQ at CERN (key component of the 3 Me. V test stand) u Move of the lab area at RAL u 22 CARE 06, Frascati, 17. 11. 05

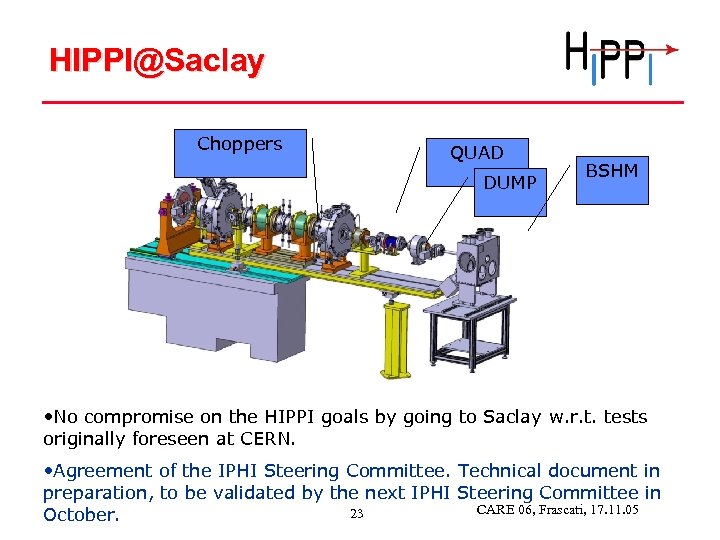

HIPPI@Saclay Choppers QUAD DUMP BSHM • No compromise on the HIPPI goals by going to Saclay w. r. t. tests originally foreseen at CERN. • Agreement of the IPHI Steering Committee. Technical document in preparation, to be validated by the next IPHI Steering Committee in CARE 06, Frascati, 17. 11. 05 23 October.

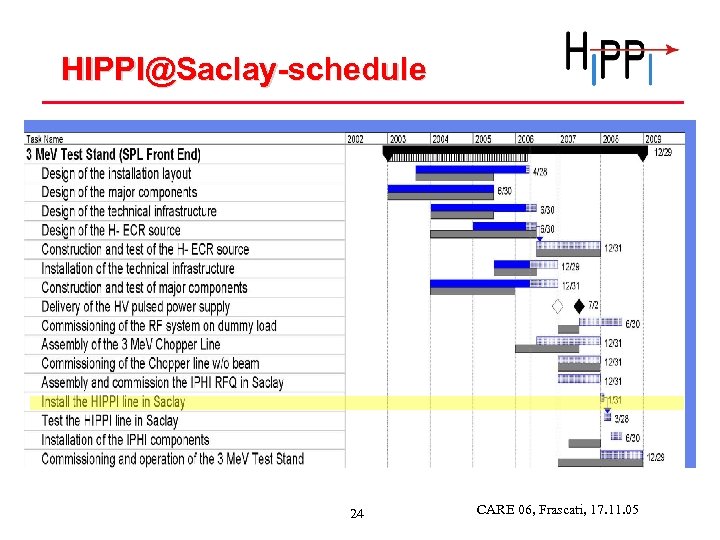

HIPPI@Saclay-schedule 24 CARE 06, Frascati, 17. 11. 05

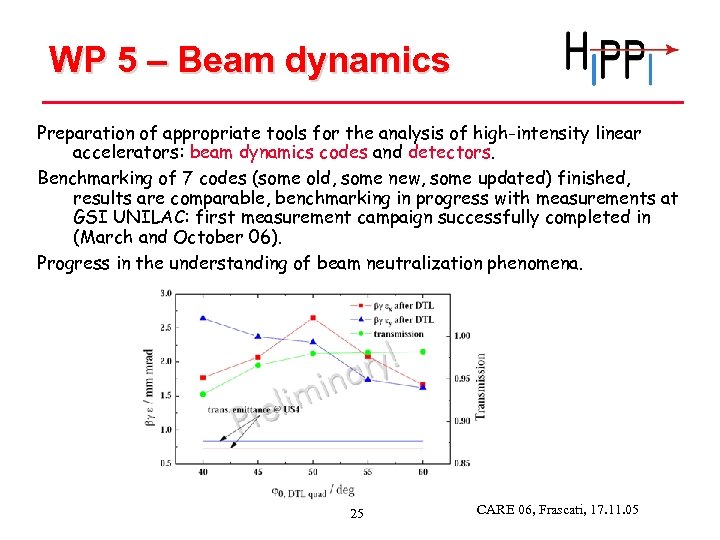

WP 5 – Beam dynamics Preparation of appropriate tools for the analysis of high-intensity linear accelerators: beam dynamics codes and detectors. Benchmarking of 7 codes (some old, some new, some updated) finished, results are comparable, benchmarking in progress with measurements at GSI UNILAC: first measurement campaign successfully completed in (March and October 06). Progress in the understanding of beam neutralization phenomena. 25 CARE 06, Frascati, 17. 11. 05

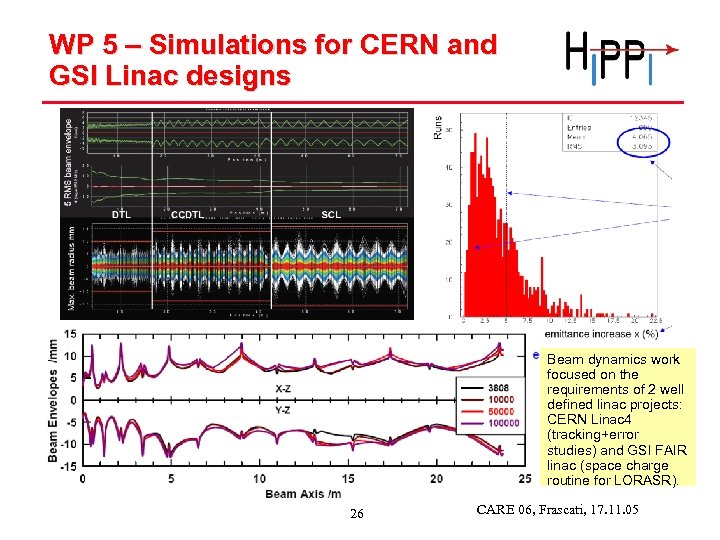

WP 5 – Simulations for CERN and GSI Linac designs Beam dynamics work focused on the requirements of 2 well defined linac projects: CERN Linac 4 (tracking+error studies) and GSI FAIR linac (space charge routine for LORASR). 26 CARE 06, Frascati, 17. 11. 05

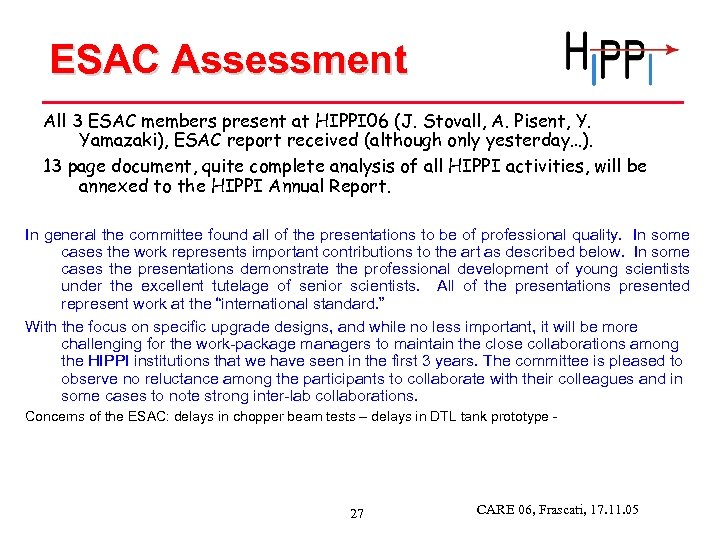

ESAC Assessment All 3 ESAC members present at HIPPI 06 (J. Stovall, A. Pisent, Y. Yamazaki), ESAC report received (although only yesterday…). 13 page document, quite complete analysis of all HIPPI activities, will be annexed to the HIPPI Annual Report. In general the committee found all of the presentations to be of professional quality. In some cases the work represents important contributions to the art as described below. In some cases the presentations demonstrate the professional development of young scientists under the excellent tutelage of senior scientists. All of the presentations presented represent work at the “international standard. ” With the focus on specific upgrade designs, and while no less important, it will be more challenging for the work-package managers to maintain the close collaborations among the HIPPI institutions that we have seen in the first 3 years. The committee is pleased to observe no reluctance among the participants to collaborate with their colleagues and in some cases to note strong inter-lab collaborations. Concerns of the ESAC: delays in chopper beam tests – delays in DTL tank prototype - 27 CARE 06, Frascati, 17. 11. 05

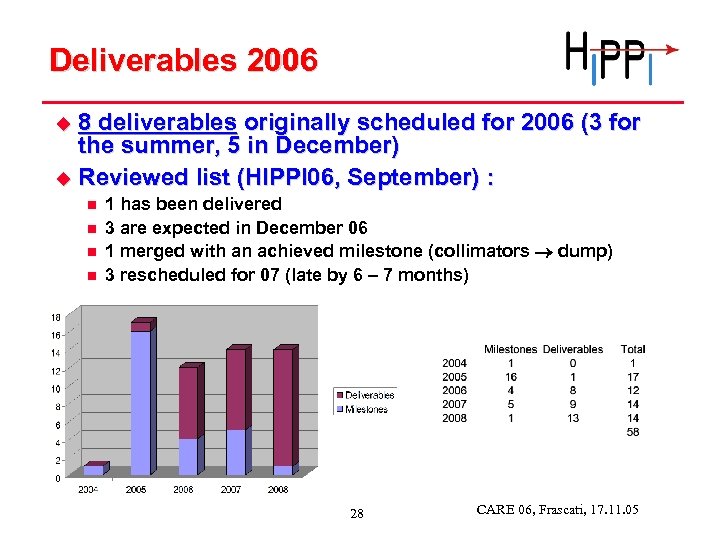

Deliverables 2006 8 deliverables originally scheduled for 2006 (3 for the summer, 5 in December) u Reviewed list (HIPPI 06, September) : u n n 1 has been delivered 3 are expected in December 06 1 merged with an achieved milestone (collimators dump) 3 rescheduled for 07 (late by 6 – 7 months) 28 CARE 06, Frascati, 17. 11. 05

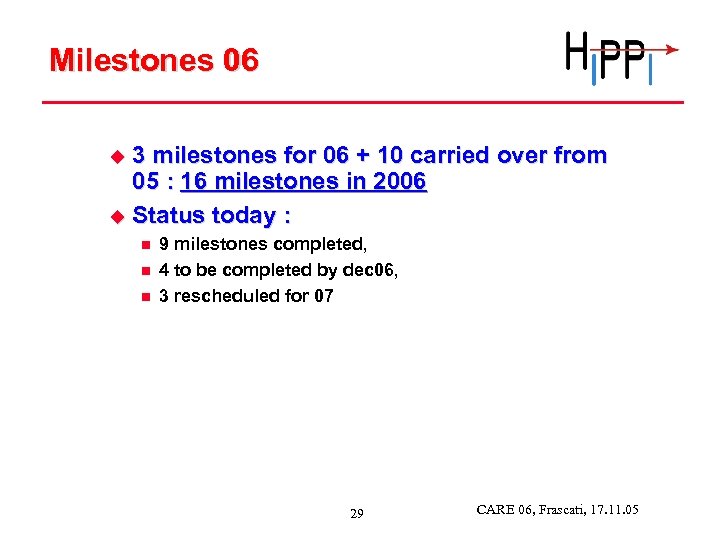

Milestones 06 3 milestones for 06 + 10 carried over from 05 : 16 milestones in 2006 u Status today : u n n n 9 milestones completed, 4 to be completed by dec 06, 3 rescheduled for 07 29 CARE 06, Frascati, 17. 11. 05
