Hilton Hotel LED Retrofits 希尔顿饭店照明改造方案 及能源分析报告 Feb 2013年 3月 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. 2012 -4/5月进行的 Survey Summary – 测量汇总 Recommendations 建议 Quotation 报价 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

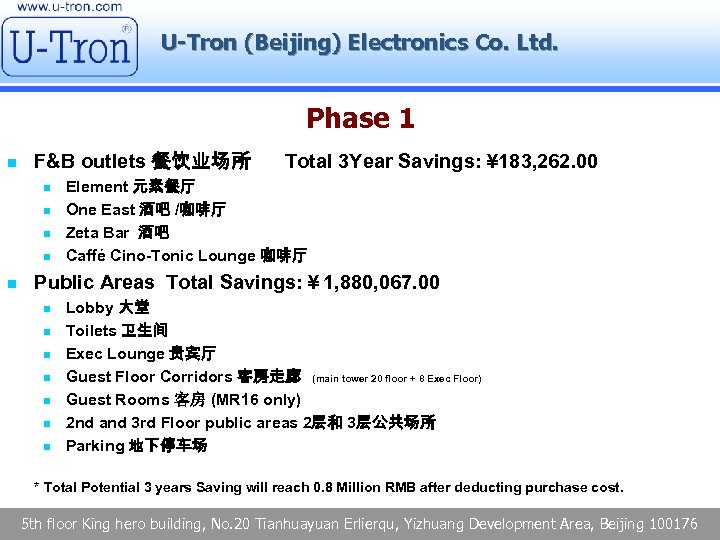

U-Tron (Beijing) Electronics Co. Ltd. Phase 1 n F&B outlets 餐饮业场所 n n n Total 3 Year Savings: ¥ 183, 262. 00 Element 元素餐厅 One East 酒吧 /咖啡厅 Zeta Bar 酒吧 Caffé Cino-Tonic Lounge 咖啡厅 Public Areas Total Savings: ¥ 1, 880, 067. 00 n n n n Lobby 大堂 Toilets 卫生间 Exec Lounge 贵宾厅 Guest Floor Corridors 客房走廊 (main tower 20 floor + 8 Exec Floor) Guest Rooms 客房 (MR 16 only) 2 nd and 3 rd Floor public areas 2层和 3层公共场所 Parking 地下停车场 * Total Potential 3 years Saving will reach 0. 8 Million RMB after deducting purchase cost. 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

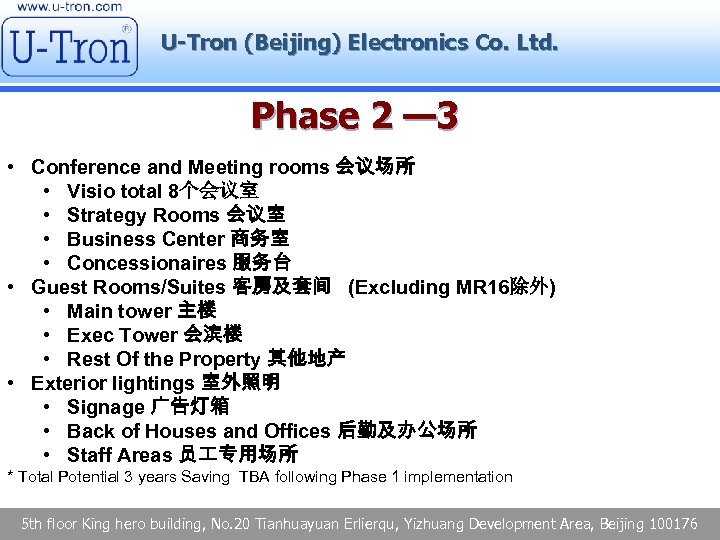

U-Tron (Beijing) Electronics Co. Ltd. Phase 2 — 3 • Conference and Meeting rooms 会议场所 • Visio total 8个会议室 • Strategy Rooms 会议室 • Business Center 商务室 • Concessionaires 服务台 • Guest Rooms/Suites 客房及套间 (Excluding MR 16除外) • Main tower 主楼 • Exec Tower 会滨楼 • Rest Of the Property 其他地产 • Exterior lightings 室外照明 • Signage 广告灯箱 • Back of Houses and Offices 后勤及办公场所 • Staff Areas 员 专用场所 * Total Potential 3 years Saving TBA following Phase 1 implementation 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

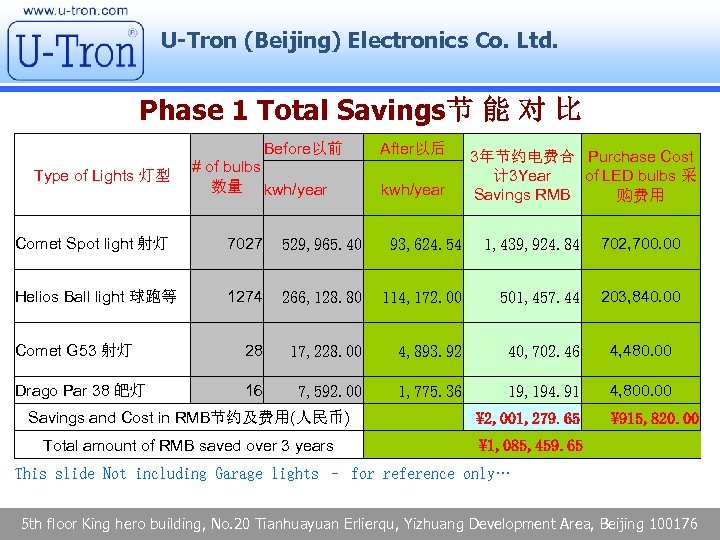

U-Tron (Beijing) Electronics Co. Ltd. Phase 1 Total Savings节 能 对 比 Before以前 Type of Lights 灯型 # of bulbs 数量 kwh/year After以后 kwh/year 3年节约电费合 Purchase Cost 计 3 Year of LED bulbs 采 Savings RMB 购费用 Comet Spot light 射灯 7027 529, 965. 40 93, 624. 54 1, 439, 924. 84 702, 700. 00 Helios Ball light 球跑等 1274 266, 128. 80 114, 172. 00 501, 457. 44 203, 840. 00 Comet G 53 射灯 28 17, 228. 00 4, 893. 92 40, 702. 46 4, 480. 00 Drago Par 38 皅灯 16 7, 592. 00 1, 775. 36 19, 194. 91 4, 800. 00 Savings and Cost in RMB节约及费用(人民币) Total amount of RMB saved over 3 years ¥ 2, 001, 279. 65 ¥ 915, 820. 00 ¥ 1, 085, 459. 65 This slide Not including Garage lights – for reference only… 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Why U-Tron 为什么 选 优创 n n n Lowest Price 厂家直销 – 价格低 No Middle Man – Customs Products无中介可以 开发客户专用产品 Localized After Sales Service 本地化服务 - 提供 安装和维修 Outstanding 3 Years Warranty 满意的 3 年 保修 Optional Extended Warranty 可延长保修期 2 年 Excellent Financing Terms 提供多种付款方式 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

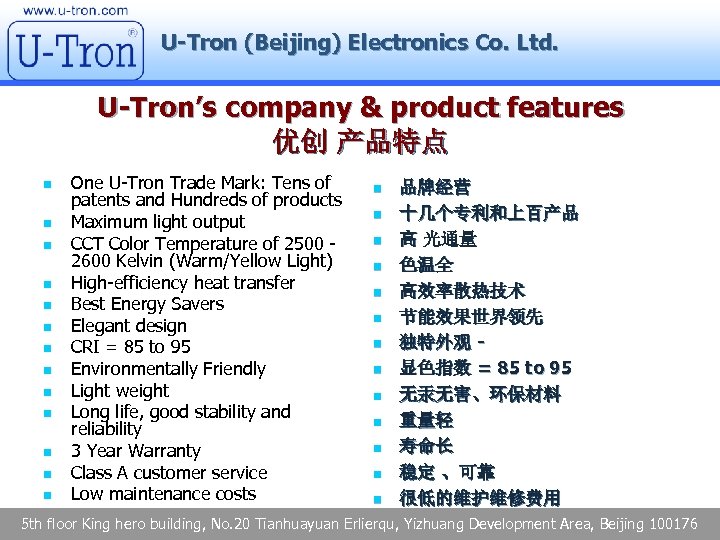

U-Tron (Beijing) Electronics Co. Ltd. U-Tron’s company & product features 优创 产品特点 n n n n One U-Tron Trade Mark: Tens of patents and Hundreds of products Maximum light output CCT Color Temperature of 2500 2600 Kelvin (Warm/Yellow Light) High-efficiency heat transfer Best Energy Savers Elegant design CRI = 85 to 95 Environmentally Friendly Light weight Long life, good stability and reliability 3 Year Warranty Class A customer service Low maintenance costs n n n n 品牌经营 十几个专利和上百产品 高 光通量 色温全 高效率散热技术 节能效果世界领先 独特外观 显色指数 = 85 to 95 无汞无害、环保材料 重量轻 寿命长 稳定 、可靠 很低的维护维修费用 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. U-Tron, a LED solutions company 优创 – 提供一条龙服务 成立 于 1992: Established 1997: First LED traffic signals 推广第一批交通灯 2006: R&D and manufacturing High Power LED Products 功研发生产大功率LED 产品 2008: Successful deployment of first LED Street Lighting Products 2012: Present: over 100 products manufactured & more then 10 patents 成功安装第一批路灯 10多个专利和100多个产品 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

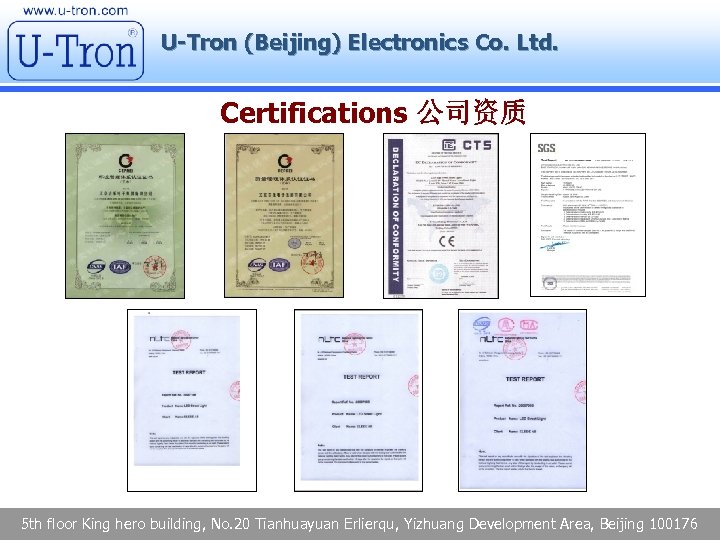

U-Tron (Beijing) Electronics Co. Ltd. Certifications 公司资质 Canada India Sri Lanka China Hong Kong 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

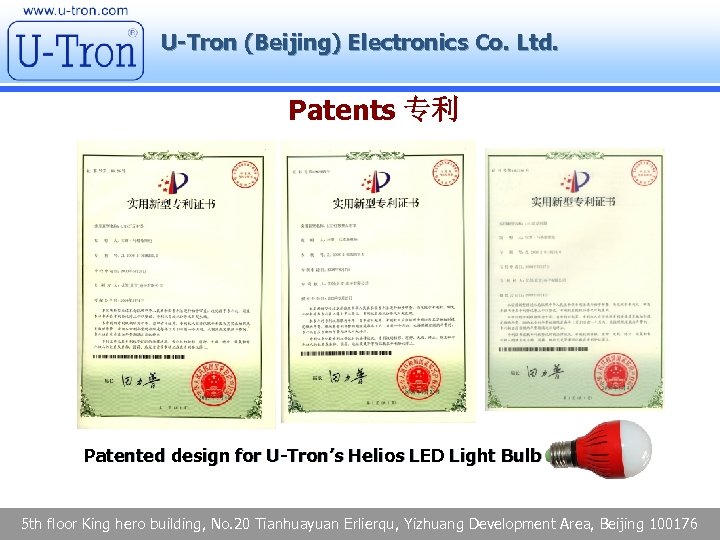

U-Tron (Beijing) Electronics Co. Ltd. Patents 专利 Canada China India Sri Lanka Hong Kong Australia Patented design for U-Tron’s Helios LED Light Bulb 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

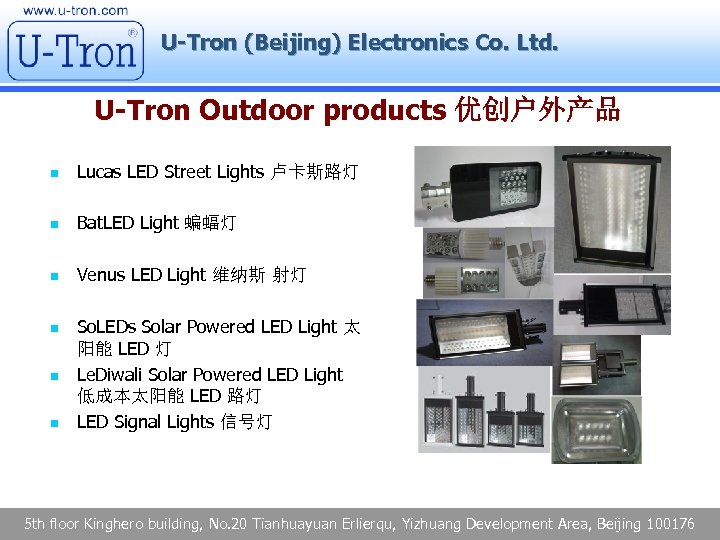

U-Tron (Beijing) Electronics Co. Ltd. U-Tron Outdoor products 优创户外产品 n Lucas LED Street Lights 卢卡斯路灯 n Bat. LED Light 蝙蝠灯 n Venus LED Light 维纳斯 射灯 n n n So. LEDs Solar Powered LED Light 太 阳能 LED 灯 Le. Diwali Solar Powered LED Light 低成本太阳能 LED 路灯 LED Signal Lights 信号灯 5 th floor Kinghero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

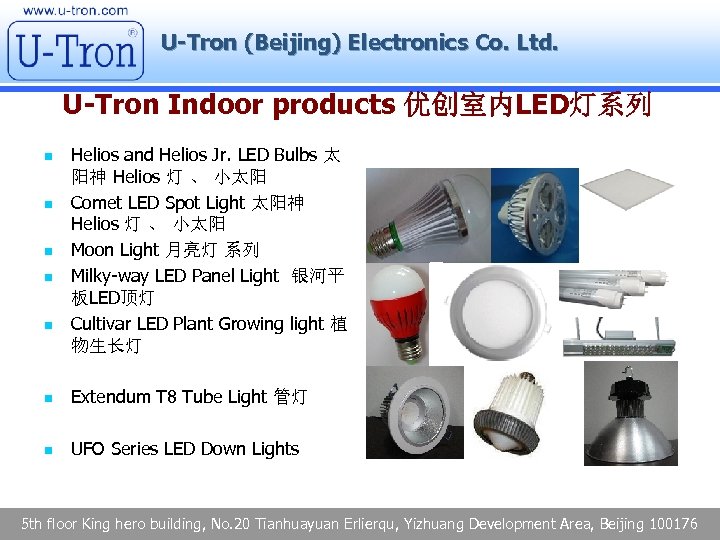

U-Tron (Beijing) Electronics Co. Ltd. U-Tron Indoor products 优创室内LED灯系列 n n n Helios and Helios Jr. LED Bulbs 太 阳神 Helios 灯 、 小太阳 Comet LED Spot Light 太阳神 Helios 灯 、 小太阳 Moon Light 月亮灯 系列 Milky-way LED Panel Light 银河平 板LED顶灯 Cultivar LED Plant Growing light 植 物生长灯 n Extendum T 8 Tube Light 管灯 n UFO Series LED Down Lights 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

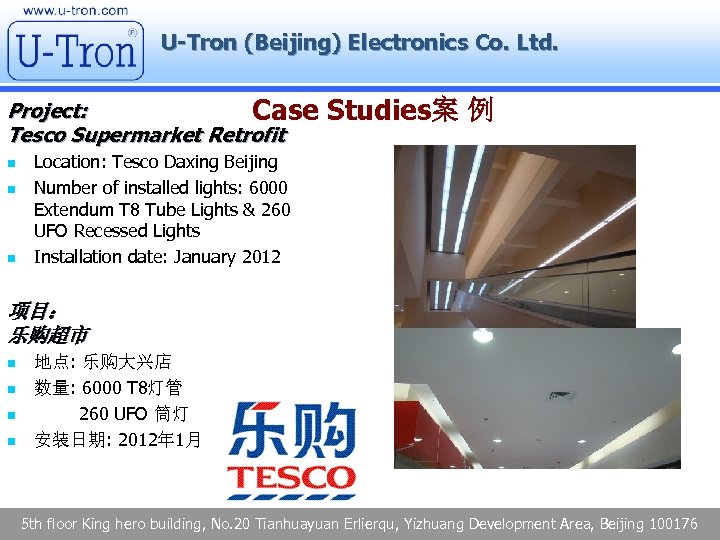

U-Tron (Beijing) Electronics Co. Ltd. Project: Case Tesco Supermarket Retrofit n n n Studies案 例 Location: Tesco Daxing Beijing Number of installed lights: 6000 Extendum T 8 Tube Lights & 260 UFO Recessed Lights Installation date: January 2012 项目： 乐购超市 n n 地点: 乐购大兴店 数量: 6000 T 8灯管 260 UFO 筒灯 安装日期: 2012年 1月 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

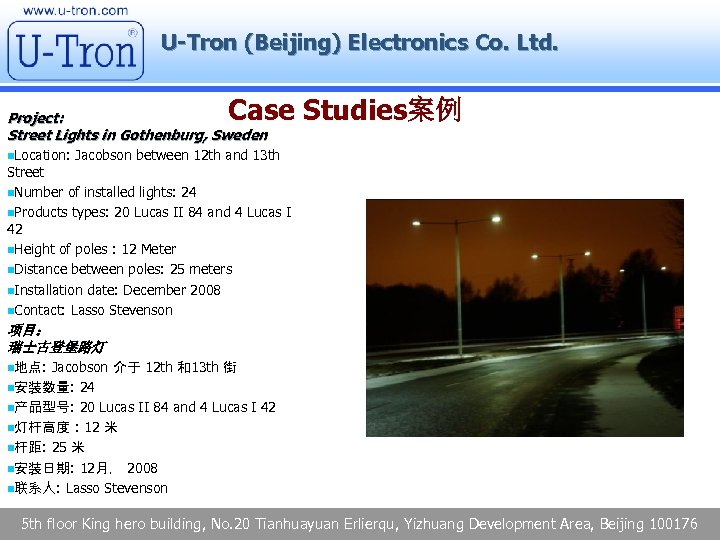

U-Tron (Beijing) Electronics Co. Ltd. Case Studies案例 Project: Street Lights in Gothenburg, Sweden n. Location: Jacobson between 12 th and 13 th Street n. Number of installed lights: 24 n. Products types: 20 Lucas II 84 and 4 Lucas I 42 n. Height of poles : 12 Meter n. Distance between poles: 25 meters n. Installation date: December 2008 n. Contact: Lasso Stevenson 项目： 瑞士古登堡路灯 Jacobson 介于 12 th 和13 th 街 n安装数量: 24 n产品型号: 20 Lucas II 84 and 4 Lucas I 42 n灯杆高度 : 12 米 n杆距: 25 米 n安装日期: 12月， 2008 n联系人: Lasso Stevenson n地点: 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

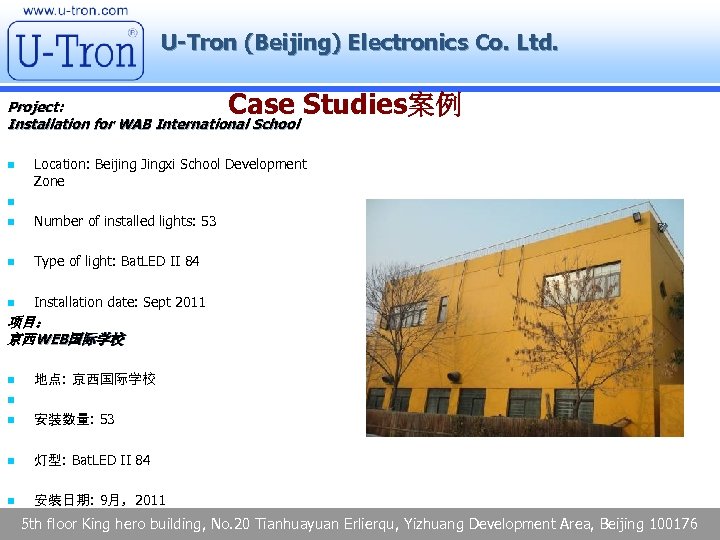

U-Tron (Beijing) Electronics Co. Ltd. Case Studies案例 Project: Installation for WAB International School n Location: Beijing Jingxi School Development Zone n n Number of installed lights: 53 n Type of light: Bat. LED II 84 n Installation date: Sept 2011 项目： 京西WEB国际学校 n 地点: 京西国际学校 n n 安装数量: 53 n 灯型: Bat. LED II 84 n 安装日期: 9月，2011 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

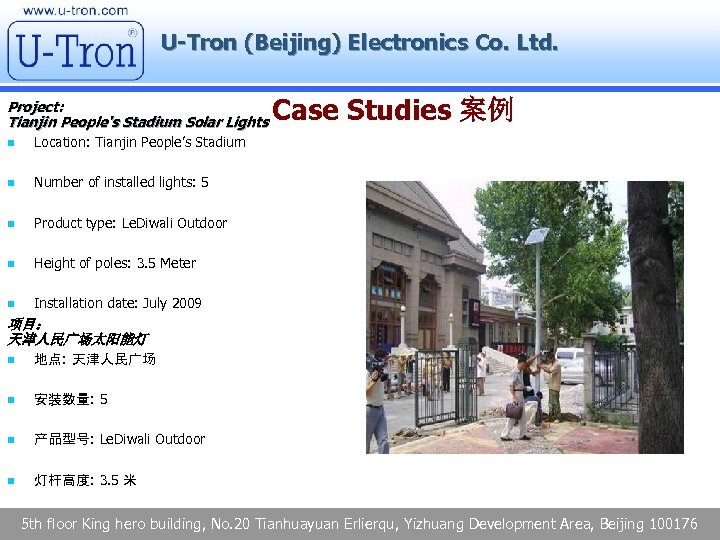

U-Tron (Beijing) Electronics Co. Ltd. Project: Tianjin People's Stadium Solar Lights n Location: Tianjin People’s Stadium n Number of installed lights: 5 n Product type: Le. Diwali Outdoor n Height of poles: 3. 5 Meter n Case Studies 案例 Installation date: July 2009 项目： 天津人民广场太阳能灯 n 地点: 天津人民广场 n 安装数量: 5 n 产品型号: Le. Diwali Outdoor n 灯杆高度: 3. 5 米 n 安装日期: 7月， 2009 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

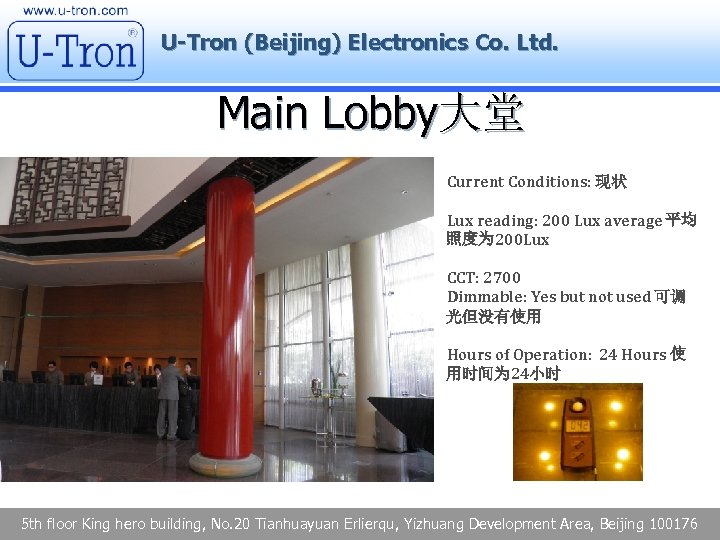

U-Tron (Beijing) Electronics Co. Ltd. Main Lobby大堂 Current Conditions: 现状 Lux reading: 200 Lux average 平均 照度为 200 Lux CCT: 2700 Dimmable: Yes but not used 可调 光但没有使用 Hours of Operation: 24 Hours 使 用时间为 24小时 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

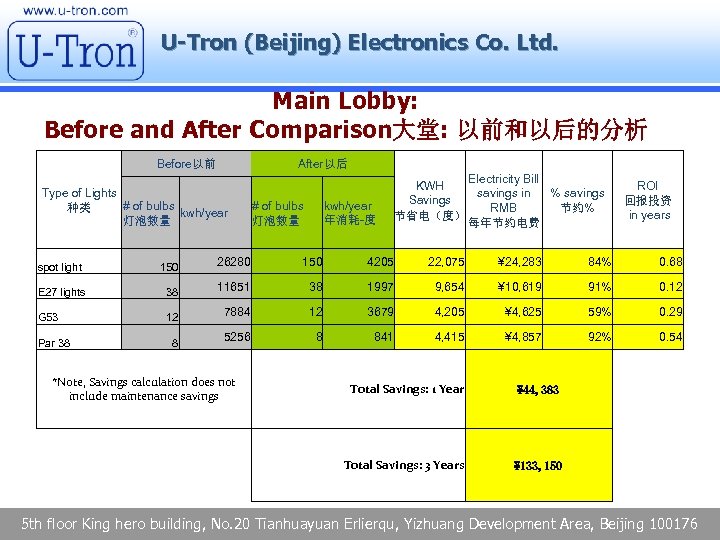

U-Tron (Beijing) Electronics Co. Ltd. Main Lobby: Before and After Comparison大堂: 以前和以后的分析 Before以前 After以后 Type of Lights # of bulbs 种类 kwh/year 灯泡数量 # of bulbs 灯泡数量 kwh/year 年消耗-度 Electricity Bill KWH savings in % savings Savings RMB 节约% 节省电（度） 每年节约电费 ROI 回报投资 in years spot light 150 26280 150 4205 22, 075 ¥ 24, 283 84% 0. 68 E 27 lights 38 11651 38 1997 9, 654 ¥ 10, 619 91% 0. 12 G 53 12 7884 12 3679 4, 205 ¥ 4, 625 59% 0. 29 8 5256 8 841 4, 415 ¥ 4, 857 92% 0. 54 Par 38 *Note, Savings calculation does not include maintenance savings Total Savings: 1 Year ¥ 44, 383 Total Savings: 3 Years ¥ 133, 150 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

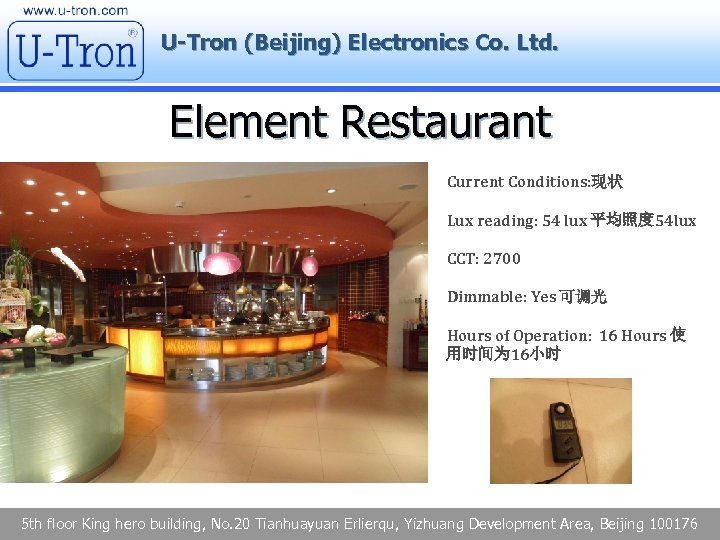

U-Tron (Beijing) Electronics Co. Ltd. Element Restaurant Current Conditions: 现状 Lux reading: 54 lux 平均照度 54 lux CCT: 2700 Dimmable: Yes 可调光 Hours of Operation: 16 Hours 使 用时间为 16小时 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

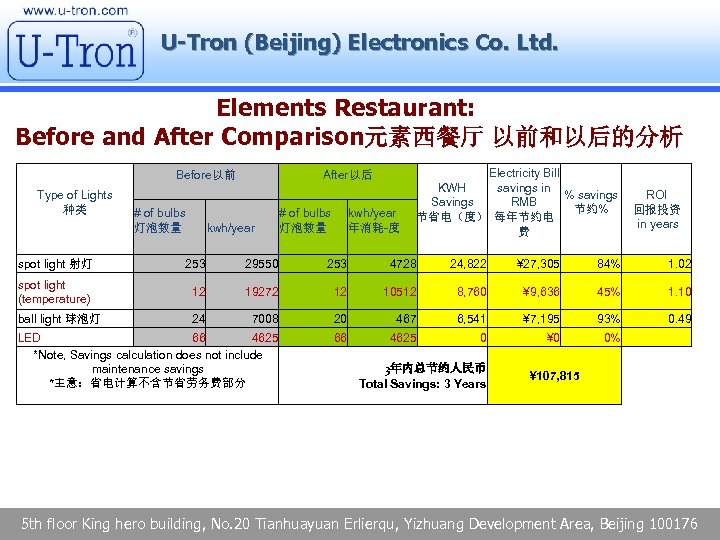

U-Tron (Beijing) Electronics Co. Ltd. Elements Restaurant: Before and After Comparison元素西餐厅 以前和以后的分析 Before以前 Type of Lights 种类 # of bulbs 灯泡数量 After以后 kwh/year # of bulbs 灯泡数量 kwh/year 年消耗-度 Electricity Bill savings in KWH % savings RMB Savings 节约% 节省电（度） 每年节约电 费 ROI 回报投资 in years spot light 射灯 253 29550 253 4728 24, 822 ¥ 27, 305 84% 1. 02 spot light (temperature) 12 19272 12 10512 8, 760 ¥ 9, 636 45% 1. 10 ball light 球泡灯 24 7008 20 467 6, 541 ¥ 7, 195 93% 0. 49 LED 66 4625 *Note, Savings calculation does not include maintenance savings *主意：省电计算不含节省劳务费部分 66 4625 0 ¥ 0 3年内总节约人民币 Total Savings: 3 Years 0% ¥ 107, 815 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

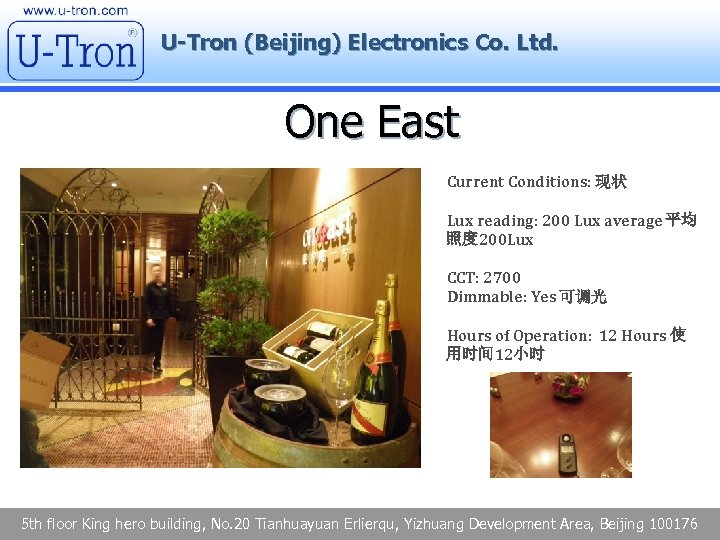

U-Tron (Beijing) Electronics Co. Ltd. One East Current Conditions: 现状 Lux reading: 200 Lux average 平均 照度 200 Lux CCT: 2700 Dimmable: Yes 可调光 Hours of Operation: 12 Hours 使 用时间 12小时 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. One East酒吧: Before and After Comparison 以前和以后的分析 Before 以前 Type of Lights 种类 spot light射 灯 E 27 # of bulbs 灯泡数量 After 以后 kwh/year 年消耗-度 79 7 # of bulbs 灯泡数量 kwh/year 年消耗-度 Electricity Bill KWH savings in Savings RMB 节省电（度） 每年节约电费 % savings 节约% ROI in years 回报投资 6920 79 1107 5, 813 ¥ 6, 394 84% 1. 36 1226 7 337 889 ¥ 978 73% 1. 26 *Note, Savings calculation does not include maintenance savings *主意：省电 计算不含节省劳务费部分 3年内总节约人民币 Total Savings: 3 Years ¥ 22, 118 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Lobby Bar/Zeta Bar Current Conditions: 现状 Lux reading: 200 Lux average平 均照度 200 Lux CCT: 2700 Dimmable: Yes but not used可调 光但没有使用 Hours of Operation: 12 Hours 使 用时间为 12小时 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

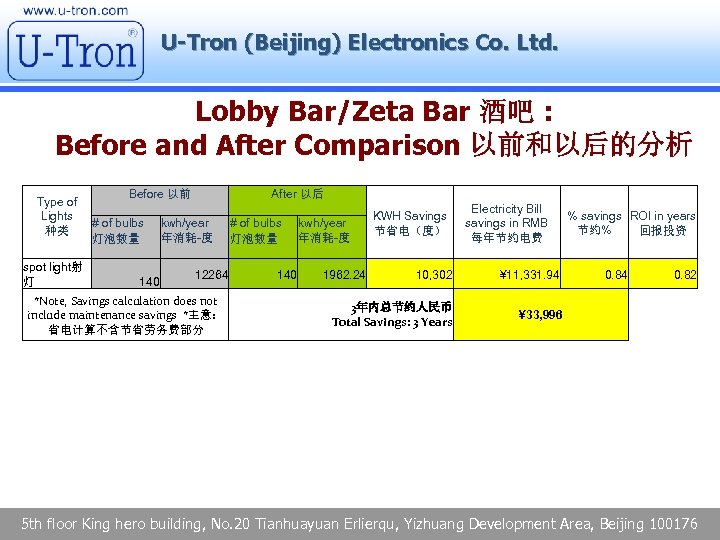

U-Tron (Beijing) Electronics Co. Ltd. Lobby Bar/Zeta Bar 酒吧 : Before and After Comparison 以前和以后的分析 Before 以前 Type of Lights # of bulbs kwh/year 种类 年消耗-度 灯泡数量 spot light射 灯 140 12264 *Note, Savings calculation does not include maintenance savings *主意： 省电计算不含节省劳务费部分 After 以后 # of bulbs 灯泡数量 140 kwh/year 年消耗-度 1962. 24 KWH Savings 节省电（度） Electricity Bill savings in RMB 每年节约电费 10, 302 ¥ 11, 331. 94 3年内总节约人民币 Total Savings: 3 Years % savings ROI in years 节约% 回报投资 0. 84 0. 82 ¥ 33, 996 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

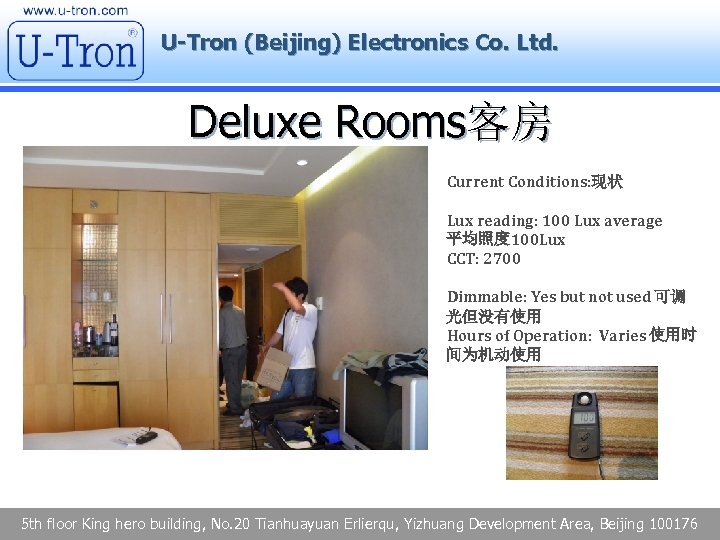

U-Tron (Beijing) Electronics Co. Ltd. Deluxe Rooms客房 Current Conditions: 现状 Lux reading: 100 Lux average 平均照度 100 Lux CCT: 2700 Dimmable: Yes but not used 可调 光但没有使用 Hours of Operation: Varies 使用时 间为机动使用 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

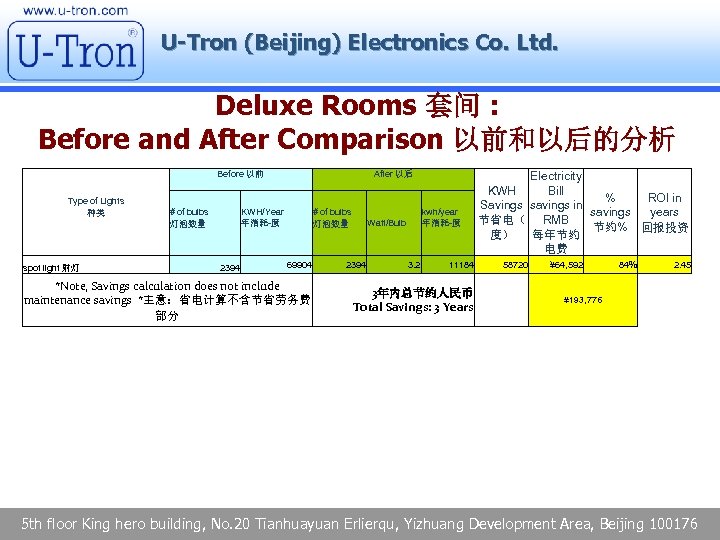

U-Tron (Beijing) Electronics Co. Ltd. Deluxe Rooms 套间 : Before and After Comparison 以前和以后的分析 Before 以前 Type of Lights 种类 spot light 射灯 # of bulbs 灯泡数量 After 以后 KWH/Year 年消耗-度 2394 # of bulbs 灯泡数量 69904 *Note, Savings calculation does not include maintenance savings *主意：省电计算不含节省劳务费 部分 kwh/year 年消耗-度 Watt/Bulb 2394 3. 2 11184 3年内总节约人民币 Total Savings: 3 Years Electricity KWH Bill % ROI in Savings savings in savings years 节省电（ RMB 节约% 回报投资 度） 每年节约 电费 58720 ¥ 64, 592 84% 2. 45 ¥ 193, 776 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

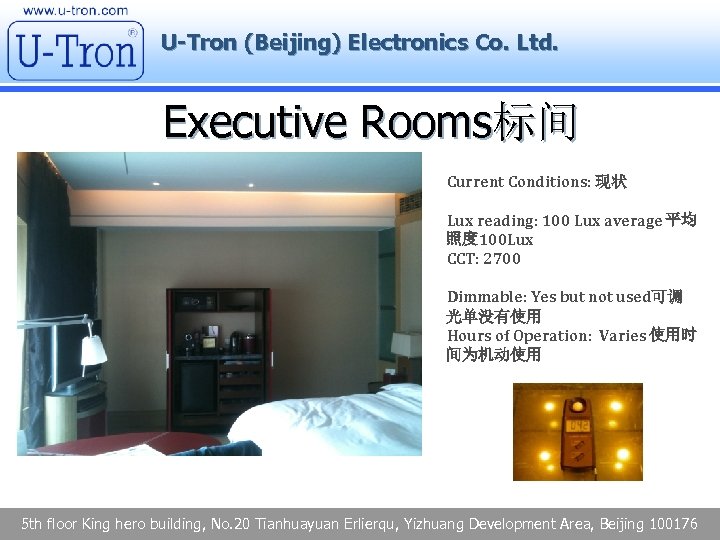

U-Tron (Beijing) Electronics Co. Ltd. Executive Rooms标间 Current Conditions: 现状 Lux reading: 100 Lux average 平均 照度 100 Lux CCT: 2700 Dimmable: Yes but not used可调 光单没有使用 Hours of Operation: Varies 使用时 间为机动使用 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Executive Rooms 豪华套间: Before and After Comparison 以前和以后的分析 Before Type of Lights # of bulbs After kwh/year Electricity Bill savings % savings in RMB KWH Savings # of bulbs ROI in years 341 9957. 2 341 8364. 05 ¥ 9, 200 84% 2. 45 tube light 62 1267. 28 62 271. 56 ¥ 299 21% 182. 65 tube light 62 1900. 92 62 1538. 84 ¥ 1, 693 81% 3. 22 155 11315 155 9052 ¥ 9, 957 80% 4. 38 spot light 35 W 93 4752. 3 93 2308. 26 ¥ 2, 539 49% 8. 06 electricity saving-lamp 62 1086. 24 62 0 ¥ 0 0% 0. 00 night lighting tube 93 1357. 8 93 678. 9 ¥ 747 50% 2. 74 31 271. 56 31 135. 78 ¥ 149 50% 27. 40 electricity saving-lamp 31 1810. 4 31 1267. 28 ¥ 1, 394 70% 4. 89 spot light 20 W cold cathode tube *Note, Savings calculation does not include maintenance savings Total Savings: 1 Year ¥ 25, 978 Total Savings: 3 Years ¥ 77, 935 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Infinity Ballrooms: Current Conditions: 现状 Lux reading: 200 Lux average平均 照度 200 Lux CCT: 2700 Dimmable: Yes 可调光 Hours of Operation: Varies使用时 间为机动使用 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

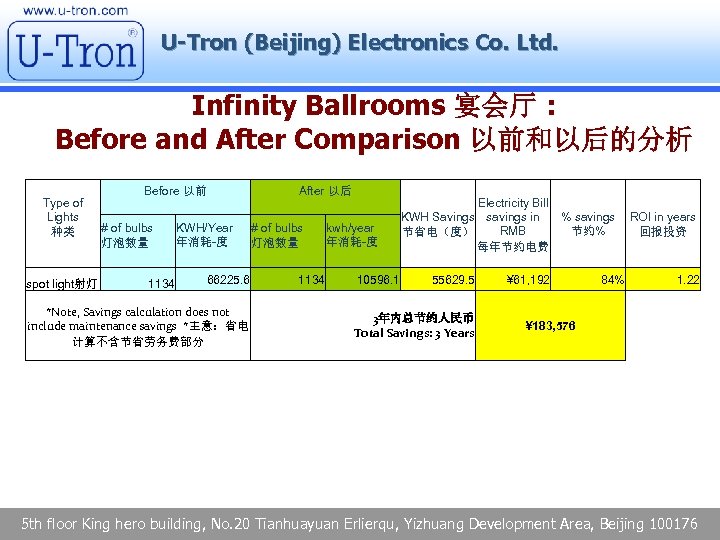

U-Tron (Beijing) Electronics Co. Ltd. Infinity Ballrooms 宴会厅 : Before and After Comparison 以前和以后的分析 Type of Lights 种类 spot light射灯 Before 以前 # of bulbs 灯泡数量 1134 KWH/Year 年消耗-度 66225. 6 *Note, Savings calculation does not include maintenance savings *主意：省电 计算不含节省劳务费部分 After 以后 # of bulbs 灯泡数量 1134 kwh/year 年消耗-度 10596. 1 Electricity Bill KWH Savings savings in % savings RMB 节约% 节省电（度） 每年节约电费 55629. 5 3年内总节约人民币 Total Savings: 3 Years ¥ 61, 192 84% ROI in years 回报投资 1. 22 ¥ 183, 576 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

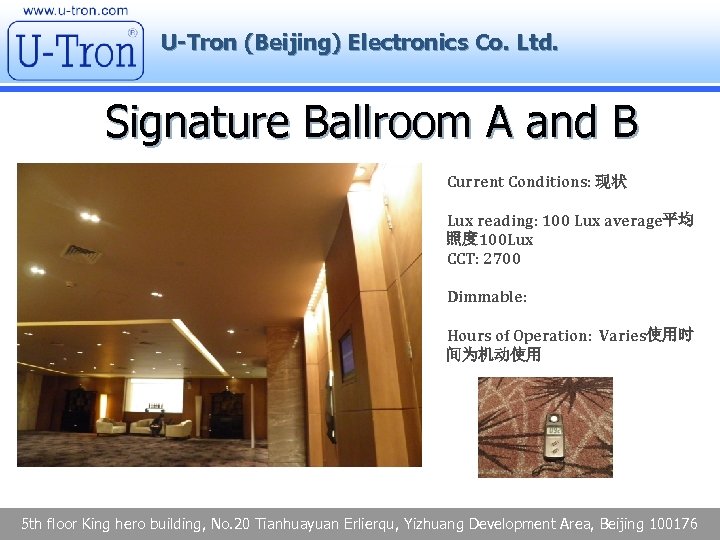

U-Tron (Beijing) Electronics Co. Ltd. Signature Ballroom A and B Current Conditions: 现状 Lux reading: 100 Lux average平均 照度 100 Lux CCT: 2700 Dimmable: Hours of Operation: Varies使用时 间为机动使用 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Signature Ballroom A 宴会厅 A : Before and After Comparison 以前和以后的分析 Type of Lights 种类 spot light 射 灯 light tube灯 管 Before 以前 # of bulbs 灯泡数量 After 以后 KWH/Year 年消耗-度 60 170 # of bulbs 灯泡数量 kwh/year 年消耗-度 Electricity Bill KWH Savings savings in RMB 节省电（度） 每年节约电费 % savings 节约% ROI in years 回报投资 7008 60 1121. 28 5886. 72 ¥ 6, 475 84% 0. 61 27798. 4 170 3971. 2 23827. 2 ¥ 26, 210 86% 0. 57 *Note, Savings calculation does not include maintenance savings *主意：省电计算不 含节省劳务费部分 3年内总节约人民币 Total Savings: 3 Years ¥ 19, 425 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Signature Ballroom B 宴会厅 B : Before and After Comparison 以前和以后的分析 Type of Lights 种类 spot light 射 灯 Before 以前 # of bulbs 灯泡数量 130 After 以后 KWH/Year 年消耗-度 15184 *Note, Savings calculation does not include maintenance savings *主意：省 电计算不含节省劳务费部分 # of bulbs 灯泡数量 130 kwh/year 年消耗-度 2429. 44 KWH Savings 节省电（度） 12754. 56 3年内总节约人民币 Total Savings: 3 Years Electricity Bill savings in % savings RMB 节约% 每年节约电费 ¥ 14, 030 84% ROI in years 回报投资 0. 61 ¥ 19, 425 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Guest Floor corridor lighting 客房走廊: Before and After Comparison 以前和以后的分析 Type of Lights Before # of bulbs kwh/year KWH Savings Electricity Bill savings in RMB % savings ROI in years 1232 CFL 4 Pin light tube 1125 56 56 56 215846. 4 1232 34535. 42 181311 ¥ 199, 442 84% 0. 68 216810 1125 108405 ¥ 119, 246 50% 1. 71 14716. 8 9811. 2 17660. 16 56 56 56 1962. 24 9811. 2 8830. 08 12754. 56 0 8830. 08 ¥ 14, 030 ¥ 9, 713 87% 0% 50% 0. 35 0. 00 1. 27 23546. 88 spot light flexible lighting product After 224 23546. 88 0 ¥ 0 0% 0. 00 224 *Note, Savings calculation does not include maintenance savings Total Savings: 3 Years ¥ 956, 063 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Garage and Parking ET 停车场 A 区 Before and After Comparison 以前和以后的分析 Type of Lights 种类 Light tube 灯 管 Before 以前 # of bulbs 灯泡数量 After 以后 KWH/Year 年消耗-度 60549. 12 # of bulbs 灯泡数量 kwh/year 年消耗-度 192 5382. 144 Electricity Bill KWH Savings savings in % savings ROI in years RMB 节约% 节省电（度） 回报投资 每年节约电费 55166. 976 ¥ 60, 684 91% 0. 42 192 *Note, Savings calculation does not include maintenance savings *主意：省电 计算不含节省劳务费部分 3年内总节约人民币 Total Savings: 3 Years ¥ 182, 051 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

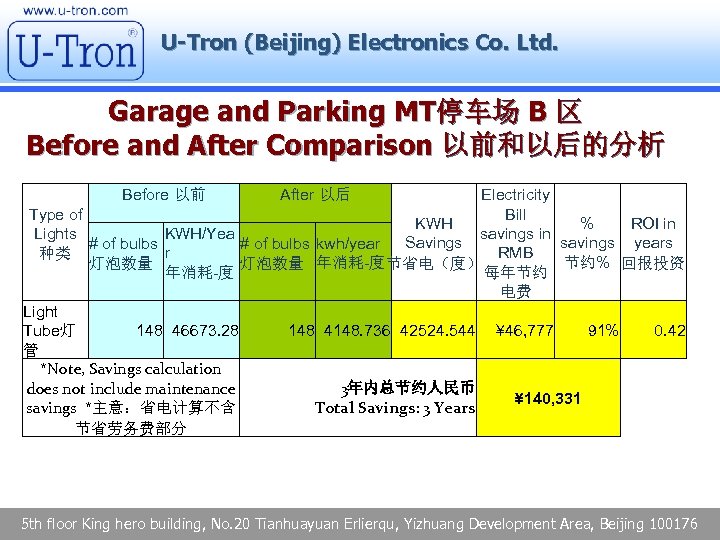

U-Tron (Beijing) Electronics Co. Ltd. Garage and Parking MT停车场 B 区 Before and After Comparison 以前和以后的分析 Before 以前 After 以后 Electricity Type of Bill % KWH ROI in Lights savings in KWH/Yea savings years Savings # of bulbs kwh/year RMB r 种类 节约% 回报投资 灯泡数量 年消耗-度 节省电（度） 年消耗-度 每年节约 电费 Light Tube灯 148 46673. 28 148 4148. 736 42524. 544 ¥ 46, 777 91% 0. 42 管 *Note, Savings calculation does not include maintenance 3年内总节约人民币 ¥ 140, 331 savings *主意：省电计算不含 Total Savings: 3 Years 节省劳务费部分 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Common Area 2 nd Floor Electricity KWH Bill Type of ROI in Savings savings in % savings KWH/Yea Lights # of bulbs years # of bulbs kwh/year 节约% RMB 节省电（ r 种类 灯泡数量 回报投资 灯泡数量 年消耗-度 度） 每年节约 年消耗-度 电费 Before 以前 After 以后 spot light 74 8643 74 1383 7, 260 ¥ 7, 986 84% 1. 02 G 53 16 9344 16 1215 8, 129 ¥ 8, 942 87% 0. 59 E 27 35 12264 35 818 11, 446 ¥ 12, 591 93% 0. 49 8 2336 8 934 1, 402 ¥ 1, 542 60% 1. 46 PAR 20 *Note, Savings calculation does not include maintenance savings Total Savings: 3 Years ¥ 93, 184 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

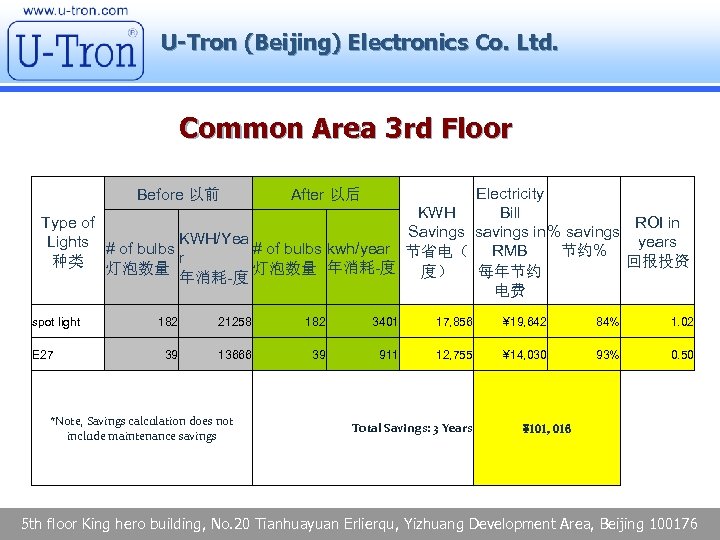

U-Tron (Beijing) Electronics Co. Ltd. Common Area 3 rd Floor Electricity Bill KWH Type of ROI in Savings savings in % savings Lights # of bulbs KWH/Yea # of bulbs kwh/years 节约% 节省电（ RMB 种类 灯泡数量 r 回报投资 灯泡数量 年消耗-度 度） 每年节约 年消耗-度 电费 Before 以前 spot light E 27 After 以后 182 21258 182 3401 17, 856 ¥ 19, 642 84% 1. 02 39 13666 39 911 12, 755 ¥ 14, 030 93% 0. 50 *Note, Savings calculation does not include maintenance savings Total Savings: 3 Years ¥ 101, 016 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Phase 1 Total Savings节 能 对 比 Before以前 Type of Lights 灯型 # of bulbs 数量 kwh/year After以后 kwh/year 3年节约电费合 Purchase Cost 计 3 Year of LED bulbs 采 Savings RMB 购费用 Comet Spot light 射灯 7027 529, 965. 40 93, 624. 54 1, 439, 924. 84 702, 700. 00 Helios Ball light 球跑等 1274 266, 128. 80 114, 172. 00 501, 457. 44 203, 840. 00 Comet G 53 射灯 28 17, 228. 00 4, 893. 92 40, 702. 46 4, 480. 00 Drago Par 38 皅灯 16 7, 592. 00 1, 775. 36 19, 194. 91 4, 800. 00 Savings and Cost in RMB节约及费用(人民币) ¥ 2, 001, 279. 65 Total amount of RMB saved over 3 years ¥ 1, 085, 459. 65 Total amount of RMB saved over 5 years ¥ 915, 820. 00 ￥ 2, 419, 646. 08 This slide Not including Garage lights – for reference only… 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

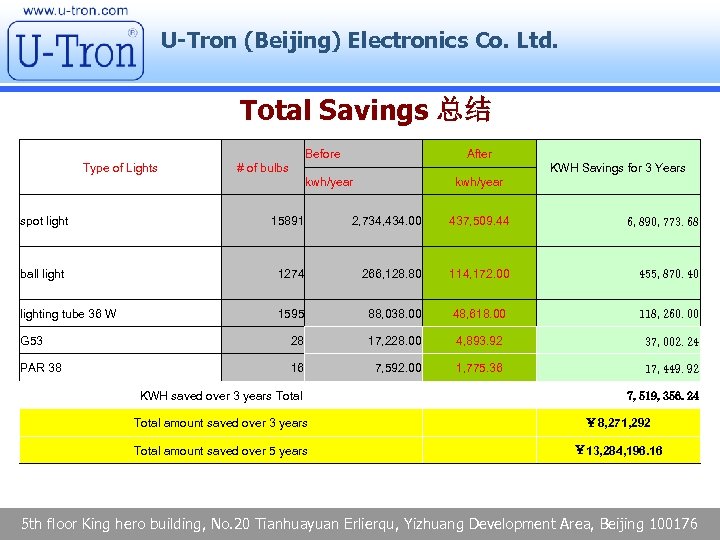

U-Tron (Beijing) Electronics Co. Ltd. Total Savings 总结 Before Type of Lights After # of bulbs KWH Savings for 3 Years kwh/year spot light 15891 2, 734, 434. 00 437, 509. 44 6, 890, 773. 68 ball light 1274 266, 128. 80 114, 172. 00 455, 870. 40 lighting tube 36 W 1595 88, 038. 00 48, 618. 00 118, 260. 00 G 53 28 17, 228. 00 4, 893. 92 37, 002. 24 PAR 38 16 7, 592. 00 1, 775. 36 17, 449. 92 KWH saved over 3 years Total 7, 519, 356. 24 Total amount saved over 3 years ￥ 8, 271, 292 Total amount saved over 5 years ￥ 13, 284, 196. 16 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

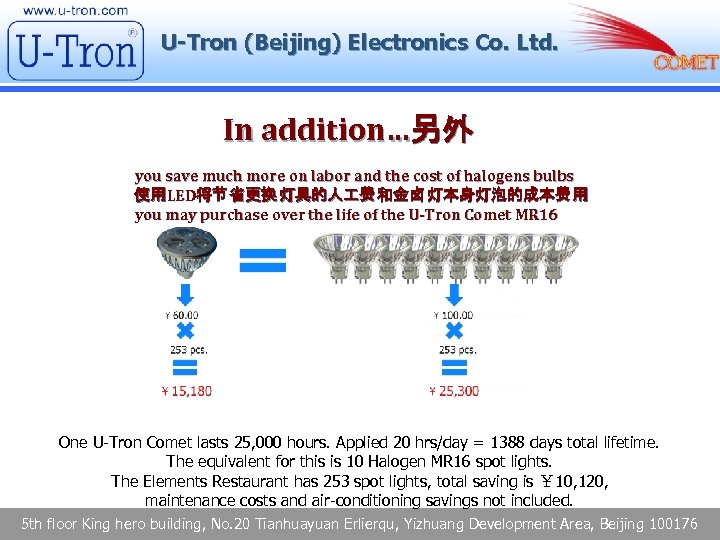

U-Tron (Beijing) Electronics Co. Ltd. In addition…另外 you save much more on labor and the cost of halogens bulbs 使用LED将节 省更换 灯具的人 费 和金卤 灯本身灯泡的成本费 用 you may purchase over the life of the U-Tron Comet MR 16 One U-Tron Comet lasts 25, 000 hours. Applied 20 hrs/day = 1388 days total lifetime. The equivalent for this is 10 Halogen MR 16 spot lights. The Elements Restaurant has 253 spot lights, total saving is ￥ 10, 120, maintenance costs and air-conditioning savings not included. 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

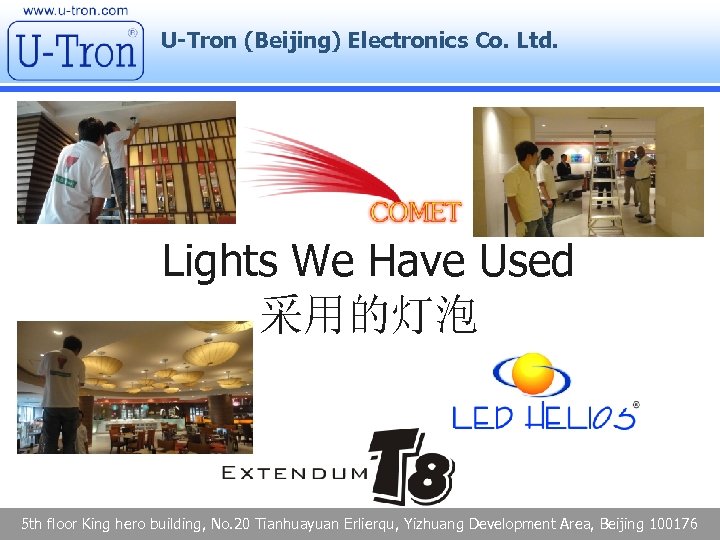

U-Tron (Beijing) Electronics Co. Ltd. Lights We Have Used 采用的灯泡 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Comet LED TM Spot Light MR 16 Technical Specifications: n n n n n Number of LEDs: 3 Power Consumption: 3. 2 Watt CCT = 2500 K CRI = 90 LED Type: Cree XP-G Power Rating: 12 V A/C or D/C Dimmable LED Initial Flux: 220 lm Light Dimension: 50 x Ø 50 mm 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

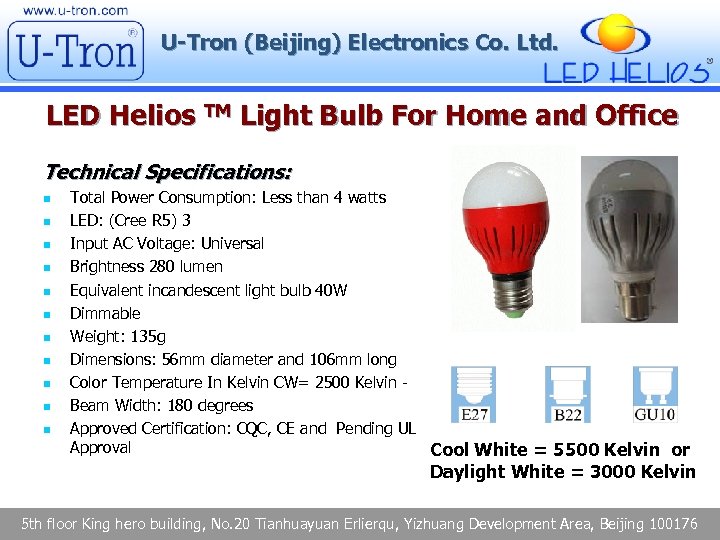

U-Tron (Beijing) Electronics Co. Ltd. LED Helios TM Light Bulb For Home and Office Technical Specifications: n n n Total Power Consumption: Less than 4 watts LED: (Cree R 5) 3 Input AC Voltage: Universal Brightness 280 lumen Equivalent incandescent light bulb 40 W Dimmable Weight: 135 g Dimensions: 56 mm diameter and 106 mm long Color Temperature In Kelvin CW= 2500 Kelvin Beam Width: 180 degrees Approved Certification: CQC, CE and Pending UL Approval Cool White = 5500 Kelvin or Daylight White = 3000 Kelvin 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. LED Helios Junior TM Light Bulb Technical Specifications: n n n n n Number of LEDs: 3 Power Consumption: 3. 2 Watt CCT = 2500 K LED Type: Cree XP-G Power Rating: Universal Dimmable LED Initial Flux: 120 lm IP Rating: IP 65 Light Dimensions: 59 x 122. 5 mm 5 th floor Kinghero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

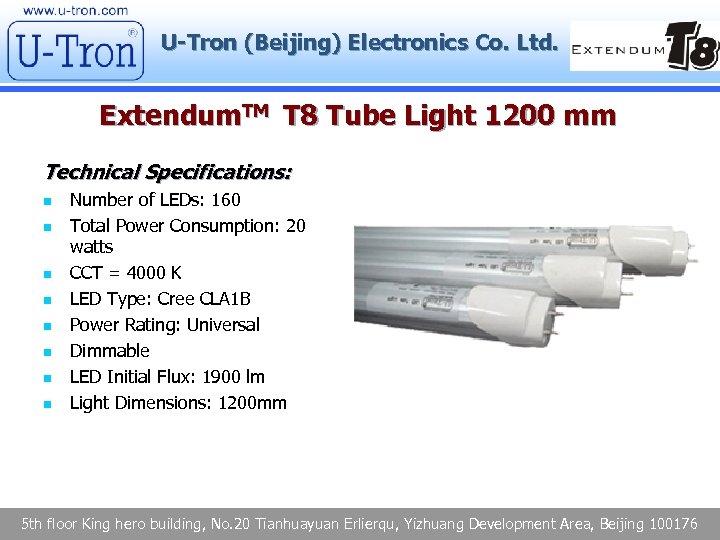

U-Tron (Beijing) Electronics Co. Ltd. Extendum. TM T 8 Tube Light 1200 mm Technical Specifications: n n n n Number of LEDs: 160 Total Power Consumption: 20 watts CCT = 4000 K LED Type: Cree CLA 1 B Power Rating: Universal Dimmable LED Initial Flux: 1900 lm Light Dimensions: 1200 mm 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. U-Tron China Offices n Head Office 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176 Canada n n 010 -6568 -2990 R&D Office Ground Floor Ji. Le Changban Building, 5 South Jiuxianqiao Road, Chaoyang District, Beijing 100016 n n 010 -6568 -2990 010 Beijing Mapo Factory India Sri Lanka China Hong Kong Jile Group Baimalu, Shunyi District, Beijing n n 010 -6568 -2990 Australia Guangzhou Factory Optical Science and Technology Park, no. 213 -217, Mid-Bridge Road, Liwan District, Guangzhou n 020 -8178 -1333 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. U-Tron Price Quotation 报价 Helios LED Light Bulb Series Helios & Helios Junior (3. 8 to 5. 5 Watt) Canada 球跑灯 Photo Model No. Product Name CCT Lumens Efficacy Watt Description List Price China 6853 -P 03 WQ 5 E 14 S Helios Junior E 14 Warm White 321 84. 47 India 3. 8 Sri Number of LED: 3 Cree Chip Hong Kong Input Voltage: Universal Power Consumption: 3. 8 W ¥ 50. 00 IP 54 Lanka 220 v/3. 8 w 可调光 6850 -P 04 WQ 5 E 27 S/R LED Helios 4 E 27 Warm White 428 77. 81 5. 5 Number of LED: 4 Cree Chips Australia Input Voltage: Universal Power Consumption: 5. 5 W Dimmable ¥ 55. 00 IP 54 220 v/5. 5 w 可调光 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Canada Photo Model No. Product Name U-Candle Light Series 蜡烛灯炮 CCT Lumens Efficacy 6855 -LQ 1 WW 3 WF U-Candle Warm White 255 lm 85. 00 Watt Number of LED: 3 Cree Chip Hong Kong Input Voltage: Universal India Frosted Cover 3 W Sri Lanka E 14 Base 6855 -LQ 1 WW 3 WC U-Candle Warm White 255 lm 85. 00 Description China 3 W 220 v 磨砂罩 可调光 Number of LED: 3 Cree Chip Input Voltage: Universal Clear Cover E 14 Base Australia Dimmable List Price ¥ 70. 00 ¥ 80. 00 220 v 透明罩 可调光 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

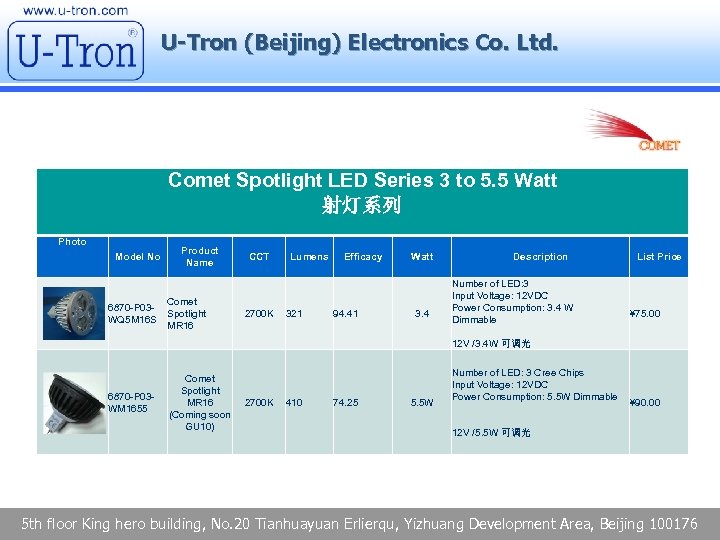

U-Tron (Beijing) Electronics Co. Ltd. Comet Spotlight LED Series 3 to 5. 5 Watt 射灯系列 Canada Photo Model No Product Name Comet 6870 -P 03 Spotlight WQ 5 M 16 S MR 16 CCT 2700 K Lumens 321 Efficacy 94. 41 Watt 3. 4 Description China Number of LED: 3 Hong Kong Input Voltage: 12 VDC India Power Consumption: 3. 4 W Sri Lanka Dimmable List Price ¥ 75. 00 12 V /3. 4 W 可调光 6870 -P 03 WM 1655 Comet Spotlight MR 16 (Coming soon GU 10) 2700 K 410 74. 25 5. 5 W Number of LED: 3 Cree Chips Input Voltage: 12 VDC Power Consumption: 5. 5 W Dimmable Australia ¥ 90. 00 12 V /5. 5 W 可调光 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176

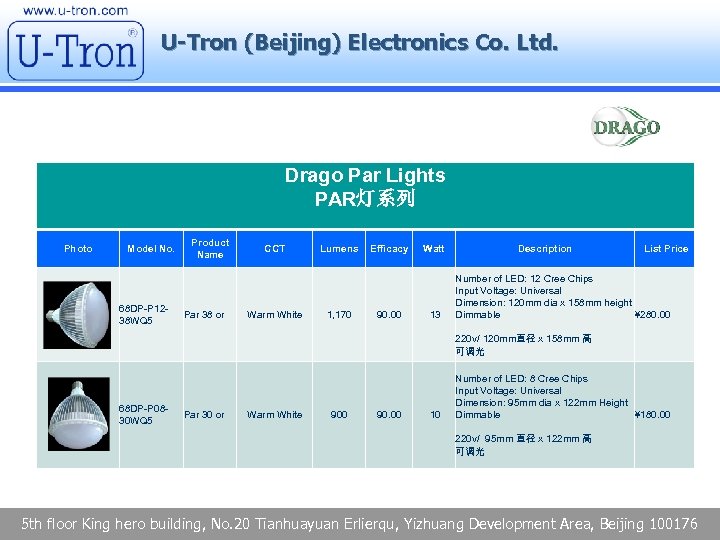

U-Tron (Beijing) Electronics Co. Ltd. Drago Par Lights PAR灯系列 Canada Photo Model No. Product Name CCT Lumens Efficacy 68 DP-P 1238 WQ 5 Par 38 or Warm White 1, 170 90. 00 Description China Watt Number of LED: 12 Cree Chips Hong Kong Input Voltage: Universal India Dimension: 120 mm dia x 158 mm height Sri Lanka 13 Dimmable List Price ¥ 280. 00 220 v/ 120 mm直径 x 158 mm 高 可调光 68 DP-P 0830 WQ 5 Par 30 or Warm White 900 90. 00 10 Number of LED: 8 Cree Chips Australia Input Voltage: Universal Dimension: 95 mm dia x 122 mm Height Dimmable ¥ 180. 00 220 v/ 95 mm 直径 x 122 mm 高 可调光 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Moon. Light Series; Ultra Thin Series Canada 超薄月亮灯 Photo Model No. Product Name CCT Lumens Efficacy Watt Description China List Price Hong Kong India Number of LED: Cree Chips Sri Lanka 68 ML-175 WSMD Moon. Light Warm White Slim 7" 975 125. 00 13 W Input Voltage: Universal Cut- ¥ 128. 00 220 v/开孔尺寸 Ф 175 mm out diameter Ф 175 mm or 7“ Australia 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Extendum T 8 Tube Light Series Canada T 8管灯系列 Photo Model No. Product Name CCT Lumens Efficacy Watt China Description List Price Hong Kong India Number of LED: 180 Cree CLA 1 B Sri Lanka Input Voltage: Universal A-68 T 8 -160 - Extendum 12 N 21 T 8 Tubelight Neutral White 1, 700 85 20 Net Weight: 0. 365 kg Length: 1200 mm ¥ 175. 00 220 v/ 1200 mm长 Australia 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Terms and Conditions 1. Prices not including China VAT. 报价不含增值税 Canada 2. All LED products comes with standard 3 years warranty, and 2 years extended warranty. 标准保修期 3年和延长 2年共 5 年 3. Delivery time is 2 weeks after receiving order. 交货期收到订单日起 2周 China 4. Full payment must be received at the time of delivery unless otherwise agreed. 收到全款提货或除有另行签协议 Hong Kong India 5. Delivery point FOB Beijing Ex-works. 交货地点：优创北京 厂 Sri Lanka 6. All products are made of Cree LED chips and guaranteed for 50, 000 hours or more. 所有芯片采用科瑞产品质保 5万以上小时 7. Installation can be provided for all products at 8% of cost of items at customer request. 可以提供安装，另行收费货款的8% Australia 8. Final quantities shall be determined by actual delivery and invoiced accordingly. 最终数量可以变动 9. Any returned for refund must have complete packaging and obtain a RMA number for proper credit. 完好无损产品可以退货 5 th floor King hero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
U-Tron (Beijing) Electronics Co. Ltd. Canada China Hong Kong Australia 5 th floor Kinghero building, No. 20 Tianhuayuan Erlierqu, Yizhuang Development Area, Beijing 100176
