Heliophysics Projects Division HMI-AIA JSOC Science Data Processing

Heliophysics Projects Division HMI-AIA JSOC Science Data Processing (SDP) Readiness Art Amezcua, JSOC Software Lead AGENDA Ø JSOC-SDP Overview Ø JSOC-SDP Status (H/W, S/W) ØPipeline processing ØDatabase ØLevel-0, Level-1 and higher levels Ø AIA Visualization Center ØJSOC-SDP Maintenance and CM ØDocumentation ØStaffing ØSummary SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -1

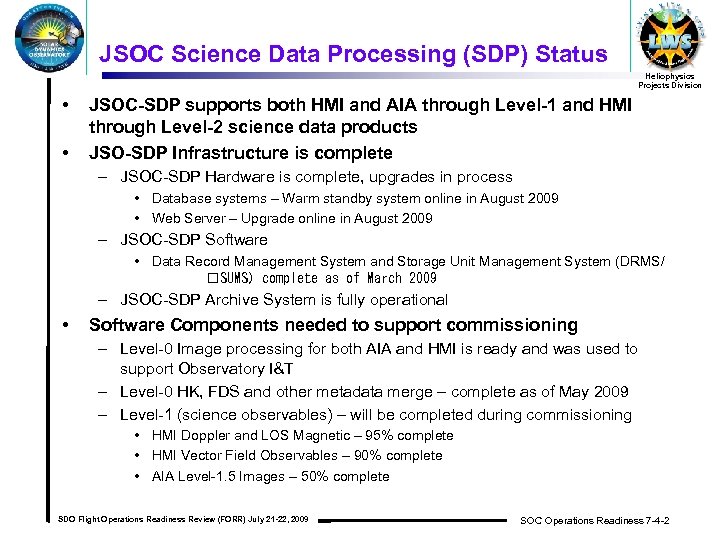

JSOC Science Data Processing (SDP) Status Heliophysics Projects Division • • JSOC-SDP supports both HMI and AIA through Level-1 and HMI through Level-2 science data products JSO-SDP Infrastructure is complete – JSOC-SDP Hardware is complete, upgrades in process • Database systems – Warm standby system online in August 2009 • Web Server – Upgrade online in August 2009 – JSOC-SDP Software • Data Record Management System and Storage Unit Management System (DRMS/ SUMS) complete as of March 2009 – JSOC-SDP Archive System is fully operational • Software Components needed to support commissioning – Level-0 Image processing for both AIA and HMI is ready and was used to support Observatory I&T – Level-0 HK, FDS and other metadata merge – complete as of May 2009 – Level-1 (science observables) – will be completed during commissioning • HMI Doppler and LOS Magnetic – 95% complete • HMI Vector Field Observables – 90% complete • AIA Level-1. 5 Images – 50% complete SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -2

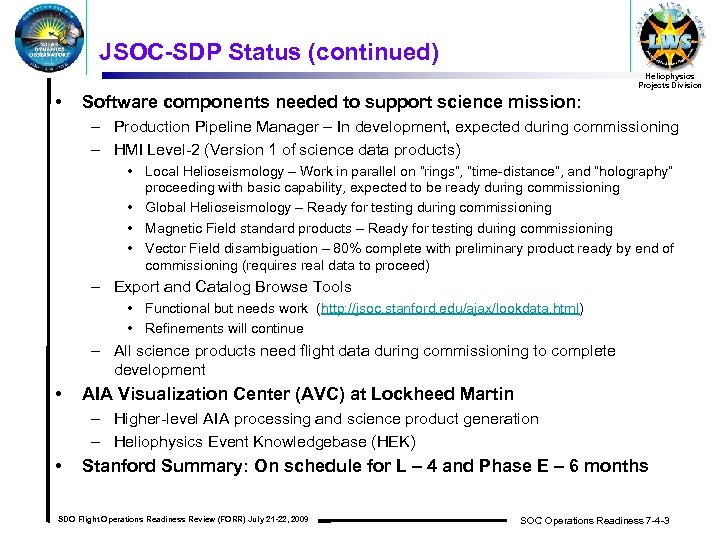

JSOC-SDP Status (continued) Heliophysics Projects Division • Software components needed to support science mission: – Production Pipeline Manager – In development, expected during commissioning – HMI Level-2 (Version 1 of science data products) • Local Helioseismology – Work in parallel on “rings”, “time-distance”, and “holography” proceeding with basic capability, expected to be ready during commissioning • Global Helioseismology – Ready for testing during commissioning • Magnetic Field standard products – Ready for testing during commissioning • Vector Field disambiguation – 80% complete with preliminary product ready by end of commissioning (requires real data to proceed) – Export and Catalog Browse Tools • Functional but needs work (http: //jsoc. stanford. edu/ajax/lookdata. html) • Refinements will continue – All science products need flight data during commissioning to complete development • AIA Visualization Center (AVC) at Lockheed Martin – Higher-level AIA processing and science product generation – Heliophysics Event Knowledgebase (HEK) • Stanford Summary: On schedule for L – 4 and Phase E – 6 months SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -3

HMI and AIA JSOC Overview White Sands GSFC ing p ekee hous LMSAL MOC DDS HMI & AIA Operations Stanford HMI JSOC Pipeline Processing System Redundant Data Capture System Housekeeping Database Quicklook Viewing JSOC-IOC Primary Archive 19 -Day Archive Offsite Archive LMSAL Heliophysics Projects Division Catalog Offline Archive Data Export & Web Service JSOC-SDP SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 AIA Analysis System Local Archive High-Level Data Import JSOC-AVC World Science Team Forecast Centers EPO Public SOC Operations Readiness 7 -4 -4

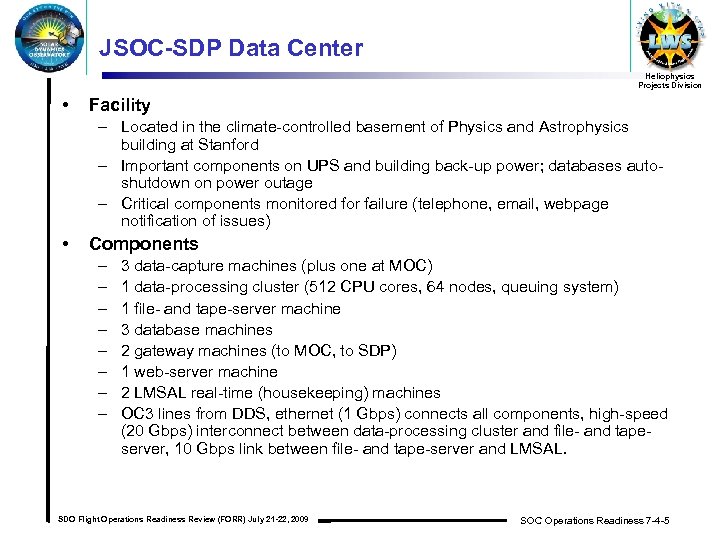

JSOC-SDP Data Center Heliophysics Projects Division • Facility – Located in the climate-controlled basement of Physics and Astrophysics building at Stanford – Important components on UPS and building back-up power; databases autoshutdown on power outage – Critical components monitored for failure (telephone, email, webpage notification of issues) • Components – – – – 3 data-capture machines (plus one at MOC) 1 data-processing cluster (512 CPU cores, 64 nodes, queuing system) 1 file- and tape-server machine 3 database machines 2 gateway machines (to MOC, to SDP) 1 web-server machine 2 LMSAL real-time (housekeeping) machines OC 3 lines from DDS, ethernet (1 Gbps) connects all components, high-speed (20 Gbps) interconnect between data-processing cluster and file- and tapeserver, 10 Gbps link between file- and tape-server and LMSAL. SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -5

JSOC-SDP Major Components Heliophysics Projects Division DDS GSFC Access (FDS, L 0 HK) OC 3 lines DRMS & SUMS Database Hosts 16 16 16 10 TB HMIDB 8 HMIDB 2 Web/Export Data Capture System 4 4 13 TB 50 Slots Spare 4 1 G 10 TB Link ethernet (1 G) 13 TB 50 Slots HMI Outside World 4 13 TB 50 Slots Web Server AIA Workstations 2 Quad Core X 86 -64 Processors 2 Quad Core Processors X 86 -64 2 Quad Core X 86 -64 2 Quad Core X 86 -64 Processors Processors 2 Quad Core X 86 -64 2 Quad Core X 86 -64 Processors Processors 2 Quad Core 2 Quad Core Processors X 86 -64 Processors X 86 -64 Firewall Local Science Pipeline Cluster 512 cores 8 Processors File/Tape Server RT Mon 10 G Link 2200 -Slot SPARC 400 TB Tape Library 0. 5 TB Plus HMISDP-mon 150 TB py 12 LTO-4 SPARC Drives 0. 5 TB 8 Processors LMSAL AIASDP-mon MOC link for real-time housekeeping X 86 -64 Processor Cores Disk 20 -G interconnect 10 -G ethernet LTO-4 Tape Library SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -6

Data Capture Heliophysics Projects Division • Telemetry files transmitted to data-capture (DCS) machines via two OC 3 lines – One line for AIA (data from four cameras over two virtual channels) – One line for HMI (data from two cameras over two virtual channels) • Three sets of telemetry: – DCS machines archive telemetry files to tape, driven to LMSAL twice a week and stored in cabinet – Production processes on dedicated cluster node ingest raw telemetry from DCS disk into hmi. tlm and aia. tlm – Dedicated cluster node creates Level 0 data from telemetry and stores in DRMS/SUMS as hmi. lev 0 and aia. lev 0 • DCS acks (once per day) DDS when offsite tape in place and verified and records in hmi. tlm created SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -7

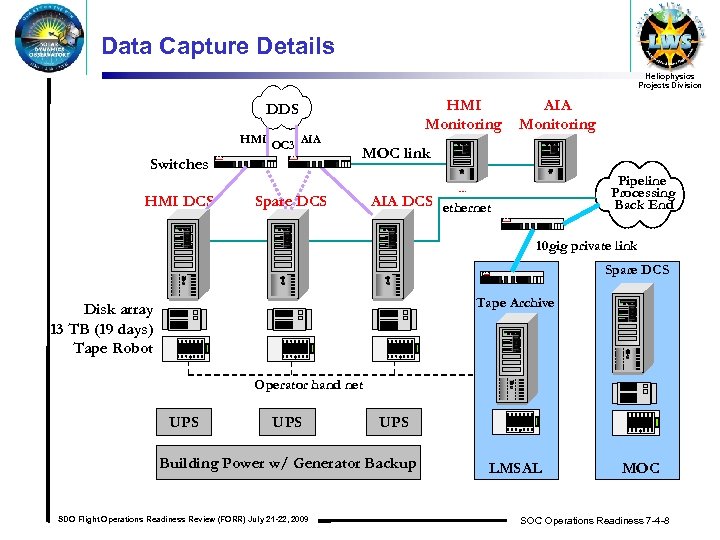

Data Capture Details Heliophysics Projects Division HMI Monitoring DDS HMI OC 3 AIA Switches HMI DCS SYSTEMS CISCO AIA Monitoring MOC link Spare DCS IS SY T Pipeline Processing Back End S AIA DCS ethernet SYSTEMS CISCO 10 gig private link Spare DCS SYSTEMS CISCO Tape Archive Disk array 13 TB (19 days) Tape Robot Operator hand net UPS UPS Building Power w/ Generator Backup SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 LMSAL MOC SOC Operations Readiness 7 -4 -8

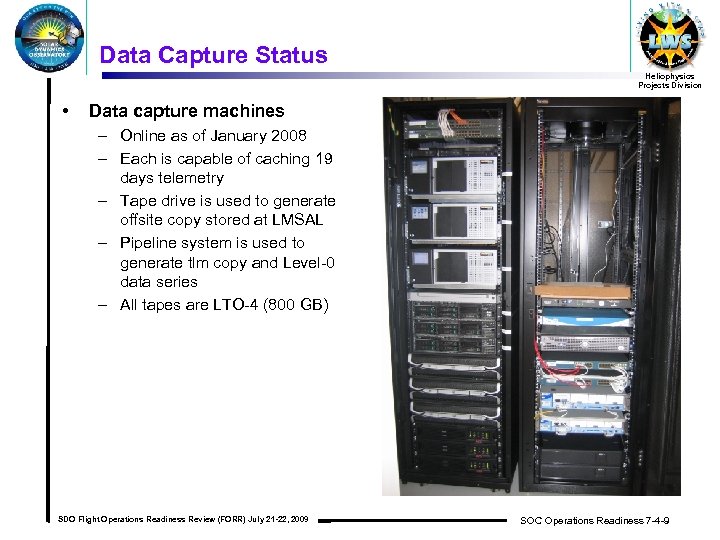

Data Capture Status Heliophysics Projects Division • Data capture machines – Online as of January 2008 – Each is capable of caching 19 days telemetry – Tape drive is used to generate offsite copy stored at LMSAL – Pipeline system is used to generate tlm copy and Level-0 data series – All tapes are LTO-4 (800 GB) SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -9

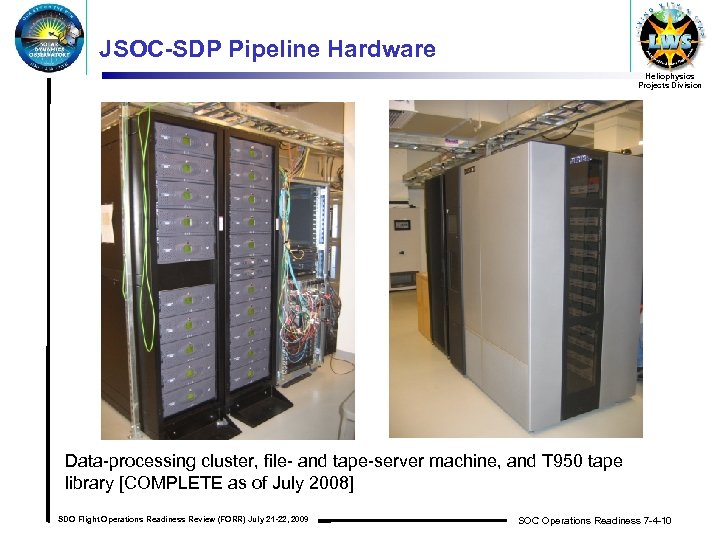

JSOC-SDP Pipeline Hardware Heliophysics Projects Division Data-processing cluster, file- and tape-server machine, and T 950 tape library [COMPLETE as of July 2008] SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -10

Data-Processing Pipeline Status Heliophysics Projects Division • • • All machines fully tested for integrity with simulated data at realistic data rate and volumes All machines/components under service warranties with vendors Database machines have been online for four years (during DRMS development) Data-processing cluster, file- and tape-server machine, T 950 tape robot, and tape systems went online in July 2008 Upgrades (new machines onsite) – – – MOC web-access machine solarport (gateway to SDP) ftp server web server two database machines in service in October 2009 SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -11

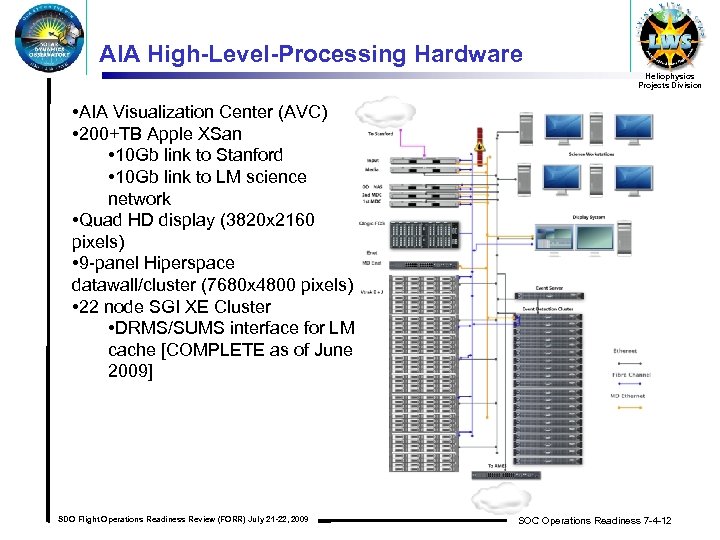

AIA High-Level-Processing Hardware Heliophysics Projects Division • AIA Visualization Center (AVC) • 200+TB Apple XSan • 10 Gb link to Stanford • 10 Gb link to LM science network • Quad HD display (3820 x 2160 pixels) • 9 -panel Hiperspace datawall/cluster (7680 x 4800 pixels) • 22 node SGI XE Cluster • DRMS/SUMS interface for LM cache [COMPLETE as of June 2009] SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -12

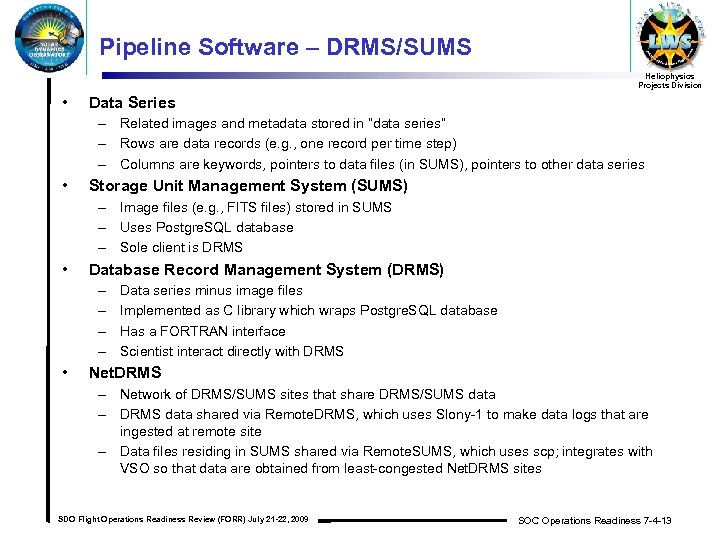

Pipeline Software – DRMS/SUMS Heliophysics Projects Division • Data Series – Related images and metadata stored in “data series” – Rows are data records (e. g. , one record per time step) – Columns are keywords, pointers to data files (in SUMS), pointers to other data series • Storage Unit Management System (SUMS) – Image files (e. g. , FITS files) stored in SUMS – Uses Postgre. SQL database – Sole client is DRMS • Database Record Management System (DRMS) – – • Data series minus image files Implemented as C library which wraps Postgre. SQL database Has a FORTRAN interface Scientist interact directly with DRMS Net. DRMS – Network of DRMS/SUMS sites that share DRMS/SUMS data – DRMS data shared via Remote. DRMS, which uses Slony-1 to make data logs that are ingested at remote site – Data files residing in SUMS shared via Remote. SUMS, which uses scp; integrates with VSO so that data are obtained from least-congested Net. DRMS sites SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -13

Database Configuration Heliophysics Projects Division SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -14

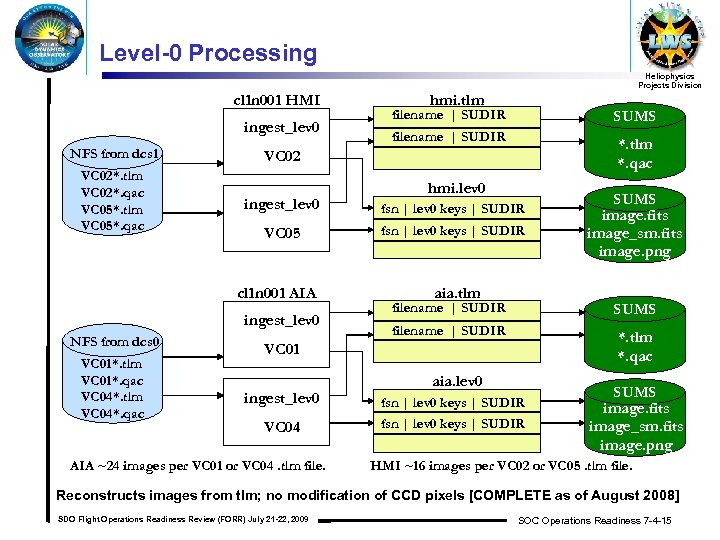

Level-0 Processing Heliophysics Projects Division cl 1 n 001 HMI ingest_lev 0 NFS from dcs 1 VC 02*. tlm VC 02*. qac VC 05*. tlm VC 05*. qac filename | SUDIR *. tlm *. qac hmi. lev 0 ingest_lev 0 fsn | lev 0 keys | SUDIR VC 05 fsn | lev 0 keys | SUDIR ingest_lev 0 VC 01*. tlm VC 01*. qac VC 04*. tlm VC 04*. qac SUMS VC 02 cl 1 n 001 AIA NFS from dcs 0 hmi. tlm filename | SUDIR aia. tlm filename | SUDIR SUMS filename | SUDIR *. tlm *. qac VC 01 aia. lev 0 ingest_lev 0 fsn | lev 0 keys | SUDIR VC 04 fsn | lev 0 keys | SUDIR AIA ~24 images per VC 01 or VC 04. tlm file. SUMS image. fits image_sm. fits image. png HMI ~16 images per VC 02 or VC 05. tlm file. Reconstructs images from tlm; no modification of CCD pixels [COMPLETE as of August 2008] SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -15

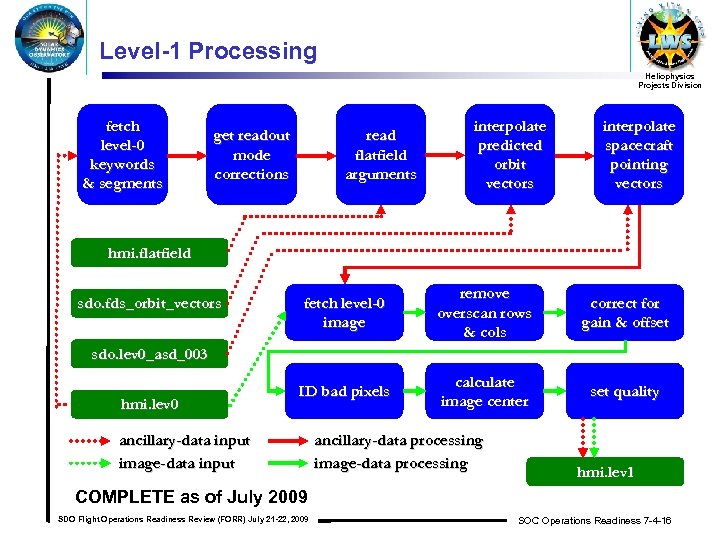

Level-1 Processing Heliophysics Projects Division fetch level-0 keywords & segments get readout mode corrections read flatfield arguments interpolate predicted orbit vectors interpolate spacecraft pointing vectors hmi. flatfield sdo. fds_orbit_vectors fetch level-0 image remove overscan rows & cols correct for gain & offset ID bad pixels calculate image center set quality sdo. lev 0_asd_003 hmi. lev 0 ancillary-data input image-data input ancillary-data processing image-data processing hmi. lev 1 COMPLETE as of July 2009 SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -16

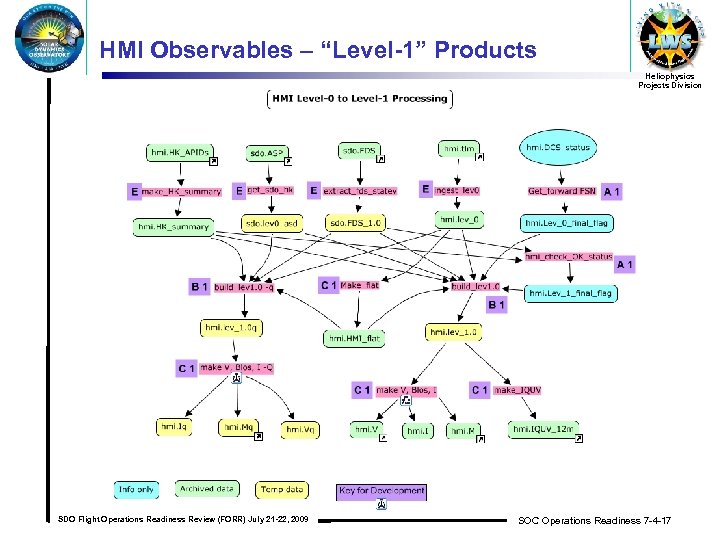

HMI Observables – “Level-1” Products Heliophysics Projects Division SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -17

HMI Higher-Level Processing Status Heliophysics Projects Division • Higher-Level Science Products – – – – Internal Rotation Ω(r, Θ) [estimated complete as of August 2009] Internal Sound Speed cs(r, Θ) [estimated complete as of August 2009] Full-Disk Velocity v(r, Θ, Φ) [estimated complete as of December 2009] Sound Speed cs(r, Θ, Φ) [estimated complete as of December 2009] Carrington Synoptic Velocity Maps [estimated complete as of December 2009] Carrington Synoptic Speed Maps [estimated complete as of December 2009] High-Resolution Velocity Maps [estimated complete as of December 2009] High-Resolution Speed Maps [estimated complete as of December 2009] Deep Focus Maps [estimated complete as of July 2010] Far-Side Activity Maps [estimated complete as of December 2009] Line-of-Sight Magnetic Field Maps [COMPLETE as of July 2009] Vector field inversion and direction disambiguation [estimated complete as of March 2010] Vector Magnetic Field Maps [estimated complete as of April 2010] Coronal Magnetic Field Extrapolations [COMPLETE as of July 2009] Coronal and Solar Wind Models [estimated complete as of April 2010] Brightness Images [estimated complete as of August 2009] SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -18

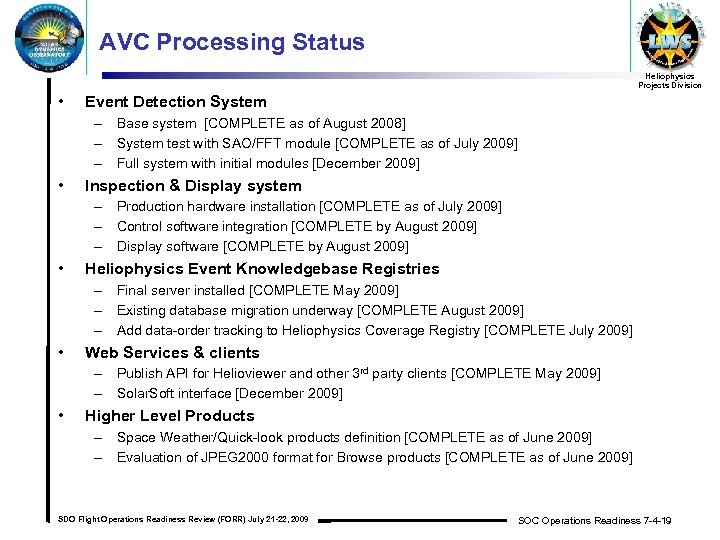

AVC Processing Status Heliophysics Projects Division • Event Detection System – Base system [COMPLETE as of August 2008] – System test with SAO/FFT module [COMPLETE as of July 2009] – Full system with initial modules [December 2009] • Inspection & Display system – Production hardware installation [COMPLETE as of July 2009] – Control software integration [COMPLETE by August 2009] – Display software [COMPLETE by August 2009] • Heliophysics Event Knowledgebase Registries – Final server installed [COMPLETE May 2009] – Existing database migration underway [COMPLETE August 2009] – Add data-order tracking to Heliophysics Coverage Registry [COMPLETE July 2009] • Web Services & clients – Publish API for Helioviewer and other 3 rd party clients [COMPLETE May 2009] – Solar. Soft interface [December 2009] • Higher Level Products – Space Weather/Quick-look products definition [COMPLETE as of June 2009] – Evaluation of JPEG 2000 format for Browse products [COMPLETE as of June 2009] SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -19

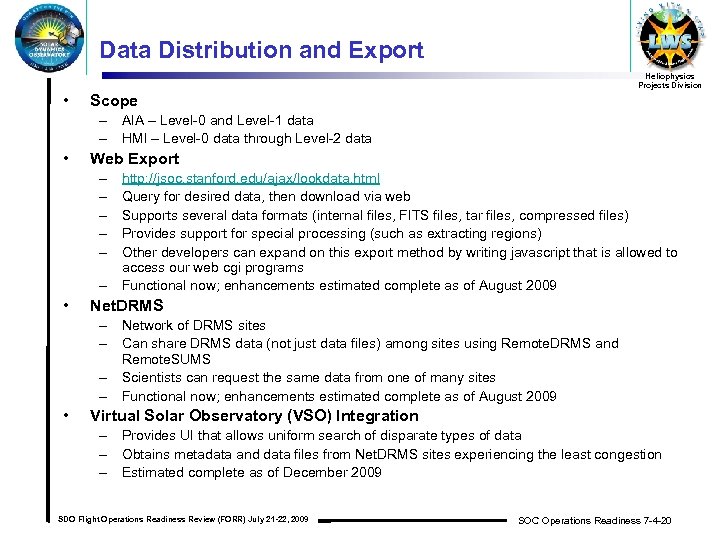

Data Distribution and Export Heliophysics Projects Division • Scope – AIA – Level-0 and Level-1 data – HMI – Level-0 data through Level-2 data • Web Export – – – • http: //jsoc. stanford. edu/ajax/lookdata. html Query for desired data, then download via web Supports several data formats (internal files, FITS files, tar files, compressed files) Provides support for special processing (such as extracting regions) Other developers can expand on this export method by writing javascript that is allowed to access our web cgi programs Functional now; enhancements estimated complete as of August 2009 Net. DRMS – Network of DRMS sites – Can share DRMS data (not just data files) among sites using Remote. DRMS and Remote. SUMS – Scientists can request the same data from one of many sites – Functional now; enhancements estimated complete as of August 2009 • Virtual Solar Observatory (VSO) Integration – Provides UI that allows uniform search of disparate types of data – Obtains metadata and data files from Net. DRMS sites experiencing the least congestion – Estimated complete as of December 2009 SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -20

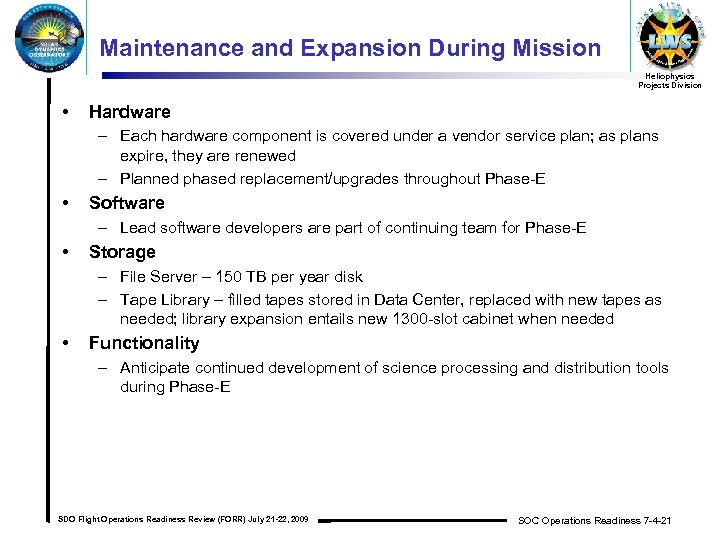

Maintenance and Expansion During Mission Heliophysics Projects Division • Hardware – Each hardware component is covered under a vendor service plan; as plans expire, they are renewed – Planned phased replacement/upgrades throughout Phase-E • Software – Lead software developers are part of continuing team for Phase-E • Storage – File Server – 150 TB per year disk – Tape Library – filled tapes stored in Data Center, replaced with new tapes as needed; library expansion entails new 1300 -slot cabinet when needed • Functionality – Anticipate continued development of science processing and distribution tools during Phase-E SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -21

Configuration Management Heliophysics Projects Division • Software Version Control System with CVS – All software controlled in CVS; development occurs in “sandboxes” • Daily Build – All binaries are compiled daily from CVS repository • JSOC Software Release – Every month stable binaries are compiled in /home/jsoc; production processes must use these binaries • Change Control Board (CCB) – – – – • Data Capture July 2009 DRMS/SUMS September 2009 Pipeline Dataflow Management System December 2009 Pipeline Control Tables December 2009 Level-0 Processing July 2009 Level-1 Processing September 2009 Science Analysis Pipeline Modules no CCB Code Freeze – Data Capture September 2009 SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -22

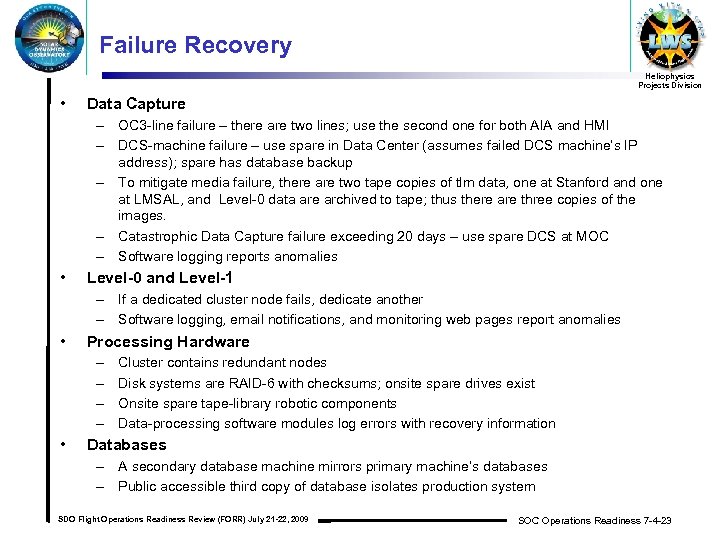

Failure Recovery Heliophysics Projects Division • Data Capture – OC 3 -line failure – there are two lines; use the second one for both AIA and HMI – DCS-machine failure – use spare in Data Center (assumes failed DCS machine’s IP address); spare has database backup – To mitigate media failure, there are two tape copies of tlm data, one at Stanford and one at LMSAL, and Level-0 data are archived to tape; thus there are three copies of the images. – Catastrophic Data Capture failure exceeding 20 days – use spare DCS at MOC – Software logging reports anomalies • Level-0 and Level-1 – If a dedicated cluster node fails, dedicate another – Software logging, email notifications, and monitoring web pages report anomalies • Processing Hardware – – • Cluster contains redundant nodes Disk systems are RAID-6 with checksums; onsite spare drives exist Onsite spare tape-library robotic components Data-processing software modules log errors with recovery information Databases – A secondary database machine mirrors primary machine’s databases – Public accessible third copy of database isolates production system SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -23

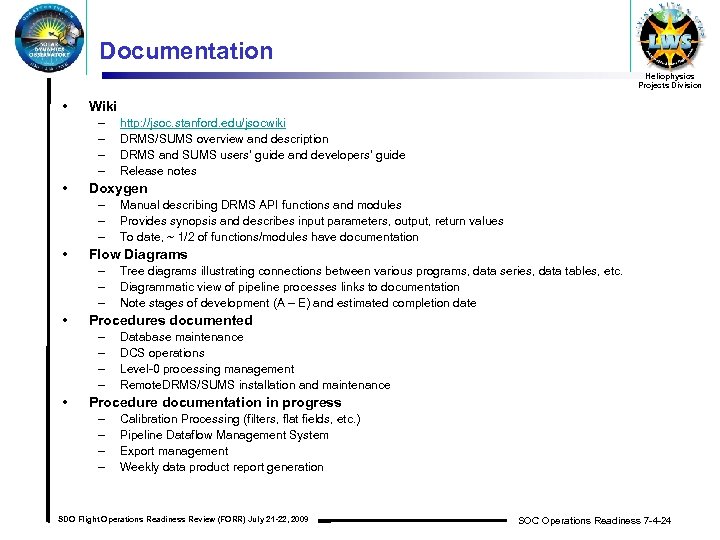

Documentation Heliophysics Projects Division • Wiki – – • Doxygen – – – • Tree diagrams illustrating connections between various programs, data series, data tables, etc. Diagrammatic view of pipeline processes links to documentation Note stages of development (A – E) and estimated completion date Procedures documented – – • Manual describing DRMS API functions and modules Provides synopsis and describes input parameters, output, return values To date, ~ 1/2 of functions/modules have documentation Flow Diagrams – – – • http: //jsoc. stanford. edu/jsocwiki DRMS/SUMS overview and description DRMS and SUMS users’ guide and developers’ guide Release notes Database maintenance DCS operations Level-0 processing management Remote. DRMS/SUMS installation and maintenance Procedure documentation in progress – – Calibration Processing (filters, flat fields, etc. ) Pipeline Dataflow Management System Export management Weekly data product report generation SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -24

Staffing Heliophysics Projects Division • • The JSOC-SDP is managed and executed solely at Stanford University Staff hours conform to a normal 5 -day schedule The work hours of staff whose duties includes dataflow management are staggered such that dataflow is monitored nearly 12 hours each day The AVC component of the JSOC-SDP is managed at LMSAL SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -25

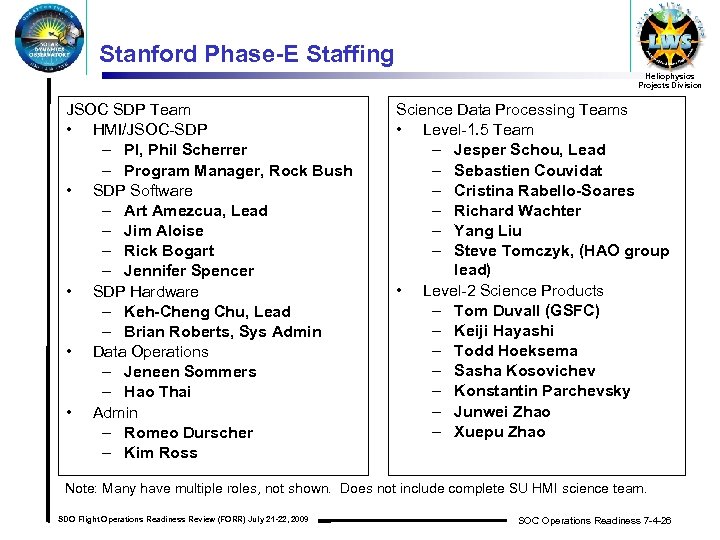

Stanford Phase-E Staffing Heliophysics Projects Division JSOC SDP Team • HMI/JSOC-SDP – PI, Phil Scherrer – Program Manager, Rock Bush • SDP Software – Art Amezcua, Lead – Jim Aloise – Rick Bogart – Jennifer Spencer • SDP Hardware – Keh-Cheng Chu, Lead – Brian Roberts, Sys Admin • Data Operations – Jeneen Sommers – Hao Thai • Admin – Romeo Durscher – Kim Ross Science Data Processing Teams • Level-1. 5 Team – Jesper Schou, Lead – Sebastien Couvidat – Cristina Rabello-Soares – Richard Wachter – Yang Liu – Steve Tomczyk, (HAO group lead) • Level-2 Science Products – Tom Duvall (GSFC) – Keiji Hayashi – Todd Hoeksema – Sasha Kosovichev – Konstantin Parchevsky – Junwei Zhao – Xuepu Zhao Note: Many have multiple roles, not shown. Does not include complete SU HMI science team. SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -26

LMSAL Phase-E Staffing Heliophysics Projects Division JSOC AVC Team • AIA/JSOC-AVC – Alan Title, PI – Karel Schijver, Science Lead – Neal Hurlburt, Data Lead • HEK/ AVC Software – Scott Green – Sam Freeland – David Schiff – Ralph Seguin – Ankur Somani – Ryan Timmons • AVC Hardware – Chris Heck, Sys Admin • Data Operations – John Serafin Science Data Processing Teams • Level-1. 5 Team – Paul Boerner – Rich Nightingale – Ted Tarbell – Jim Lemen – Paolo Grigis (SAO) – Jean-Pierre Wuelser • Level-2 Science Products – Marc De. Rosa, Lead – Mark Cheung – Mark Weber (SAO) – Todd Hoeksema (HMI) Note: Many have multiple roles, not shown. Does not include complete LM AIA science team. SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -27

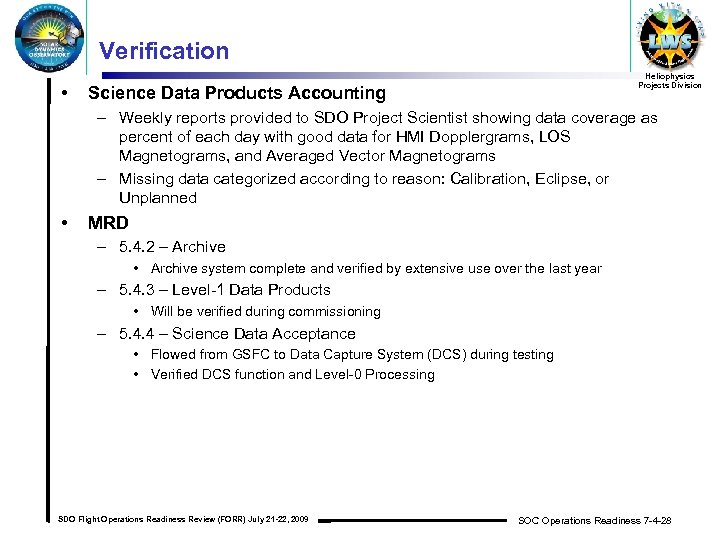

Verification • Heliophysics Projects Division Science Data Products Accounting – Weekly reports provided to SDO Project Scientist showing data coverage as percent of each day with good data for HMI Dopplergrams, LOS Magnetograms, and Averaged Vector Magnetograms – Missing data categorized according to reason: Calibration, Eclipse, or Unplanned • MRD – 5. 4. 2 – Archive • Archive system complete and verified by extensive use over the last year – 5. 4. 3 – Level-1 Data Products • Will be verified during commissioning – 5. 4. 4 – Science Data Acceptance • Flowed from GSFC to Data Capture System (DCS) during testing • Verified DCS function and Level-0 Processing SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -28

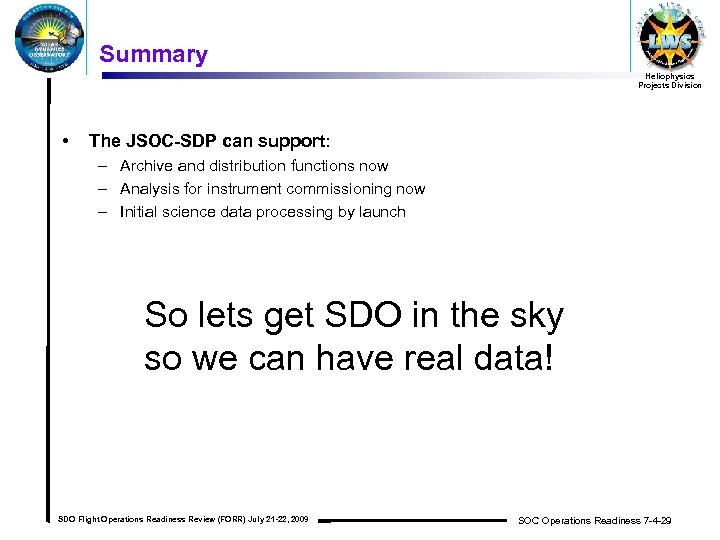

Summary Heliophysics Projects Division • The JSOC-SDP can support: – Archive and distribution functions now – Analysis for instrument commissioning now – Initial science data processing by launch So lets get SDO in the sky so we can have real data! SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -29

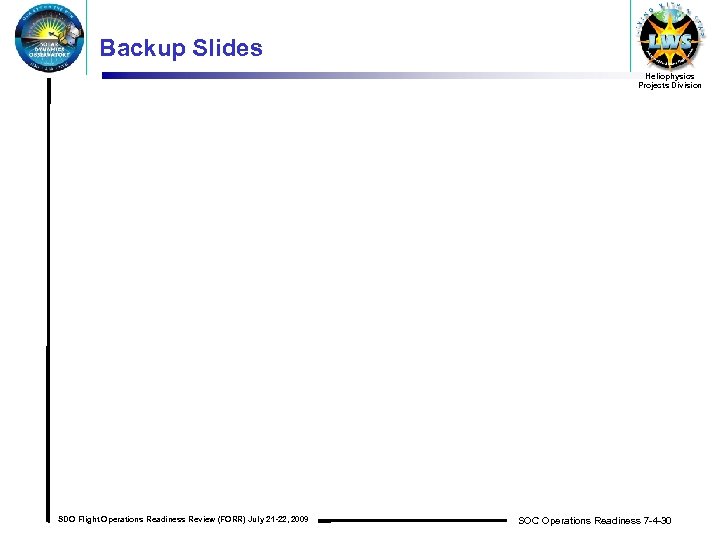

Backup Slides Heliophysics Projects Division SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -30

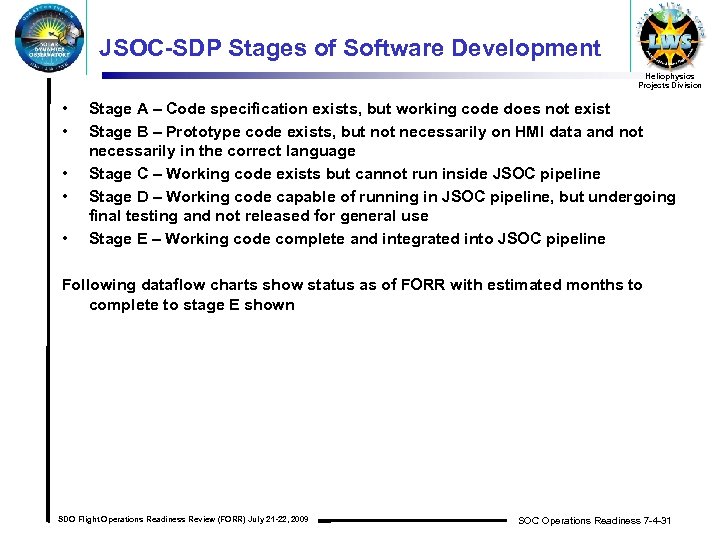

JSOC-SDP Stages of Software Development Heliophysics Projects Division • • • Stage A – Code specification exists, but working code does not exist Stage B – Prototype code exists, but not necessarily on HMI data and not necessarily in the correct language Stage C – Working code exists but cannot run inside JSOC pipeline Stage D – Working code capable of running in JSOC pipeline, but undergoing final testing and not released for general use Stage E – Working code complete and integrated into JSOC pipeline Following dataflow charts show status as of FORR with estimated months to complete to stage E shown SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -31

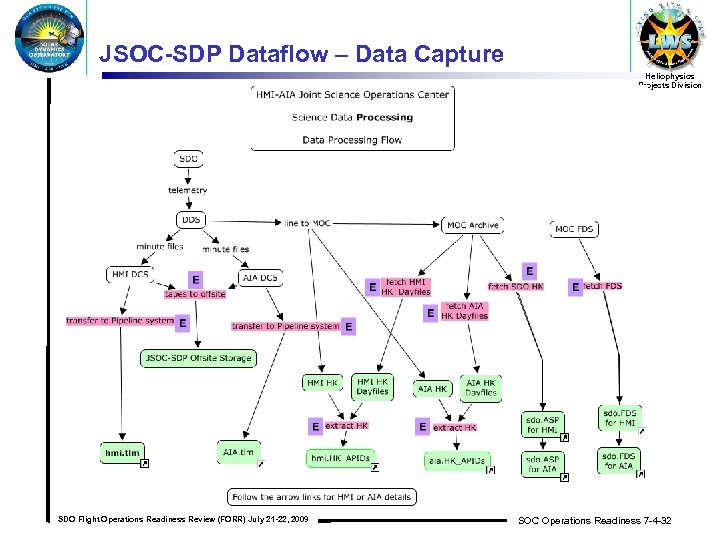

JSOC-SDP Dataflow – Data Capture Heliophysics Projects Division SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -32

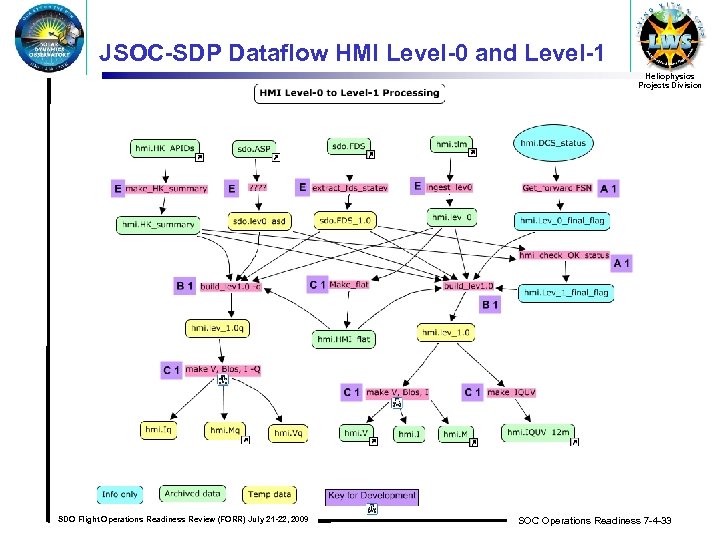

JSOC-SDP Dataflow HMI Level-0 and Level-1 Heliophysics Projects Division SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -33

JSOC-SDP Dataflow HMI Level-1 – Detail Heliophysics Projects Division SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -34

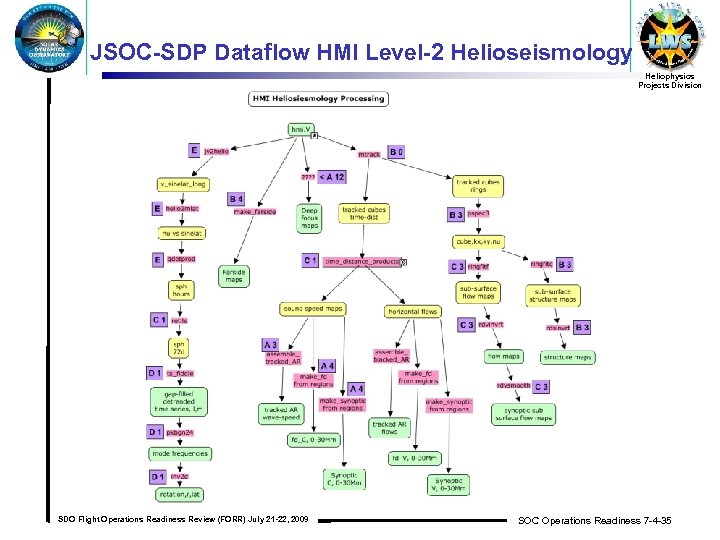

JSOC-SDP Dataflow HMI Level-2 Helioseismology Heliophysics Projects Division SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -35

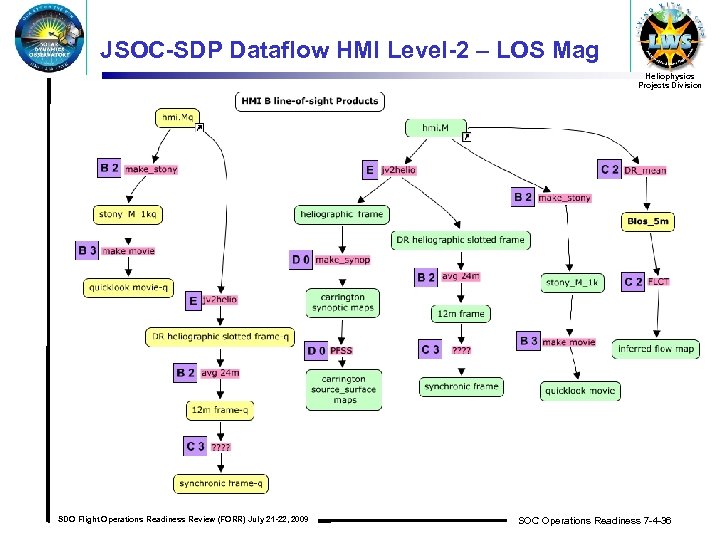

JSOC-SDP Dataflow HMI Level-2 – LOS Mag Heliophysics Projects Division SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -36

JSOC-SDP Dataflow HMI Level-2 – Vector Mag Heliophysics Projects Division SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -37

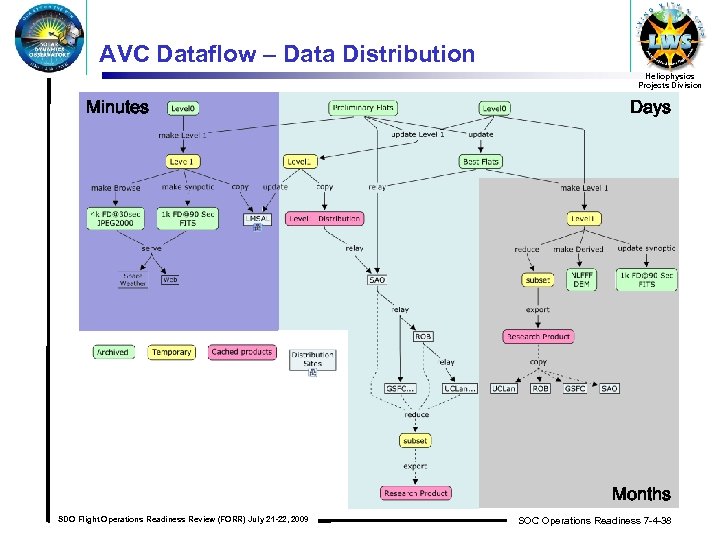

AVC Dataflow – Data Distribution Heliophysics Projects Division Minutes Days Months SDO Flight Operations Readiness Review (FORR) July 21 -22, 2009 SOC Operations Readiness 7 -4 -38
