HEAnet The Schools Network Presentation to HEAnet

HEAnet & The Schools Network Presentation to HEAnet National Networking Conference by Ronan Byrne & Tim Maher 10 th November 2005

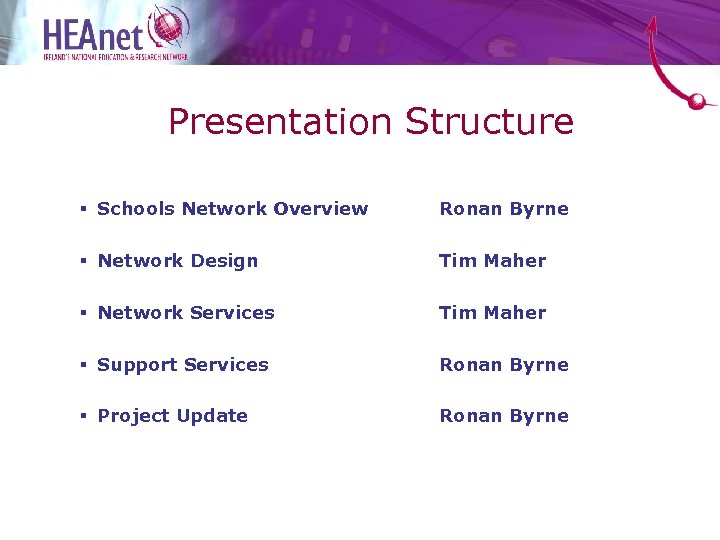

Presentation Structure § Schools Network Overview Ronan Byrne § Network Design Tim Maher § Network Services Tim Maher § Support Services Ronan Byrne § Project Update Ronan Byrne

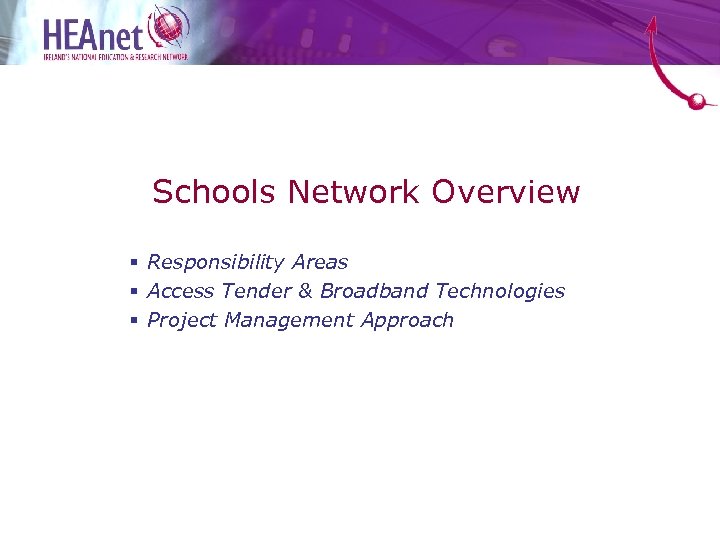

Schools Network Overview § Responsibility Areas § Access Tender & Broadband Technologies § Project Management Approach

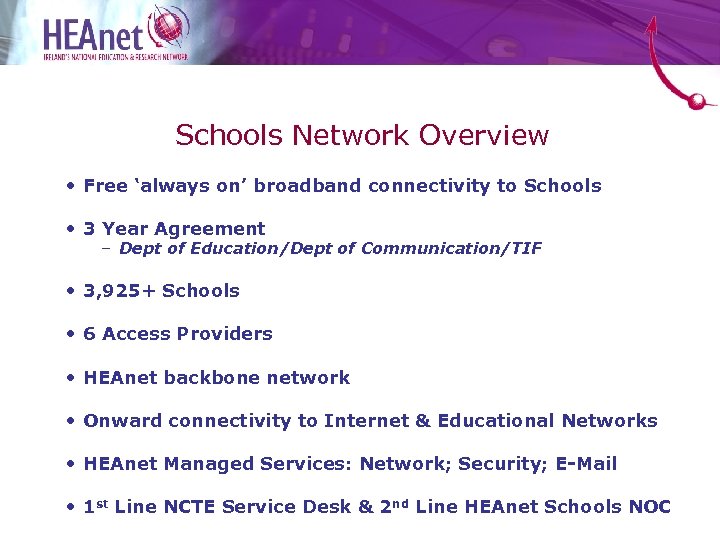

Schools Network Overview • Free ‘always on’ broadband connectivity to Schools • 3 Year Agreement – Dept of Education/Dept of Communication/TIF • 3, 925+ Schools • 6 Access Providers • HEAnet backbone network • Onward connectivity to Internet & Educational Networks • HEAnet Managed Services: Network; Security; E-Mail • 1 st Line NCTE Service Desk & 2 nd Line HEAnet Schools NOC

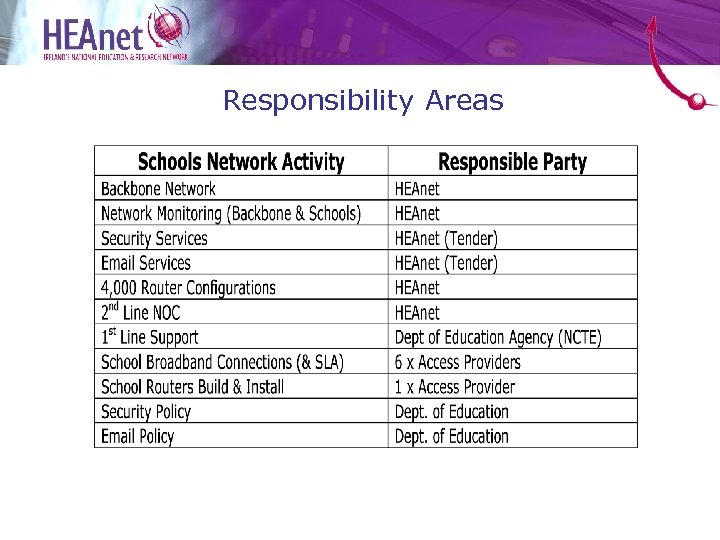

Responsibility Areas

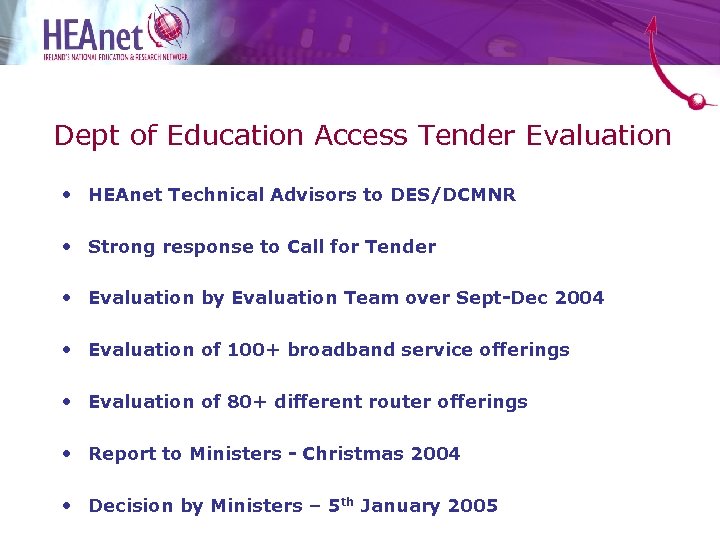

Dept of Education Access Tender Evaluation • HEAnet Technical Advisors to DES/DCMNR • Strong response to Call for Tender • Evaluation by Evaluation Team over Sept-Dec 2004 • Evaluation of 100+ broadband service offerings • Evaluation of 80+ different router offerings • Report to Ministers - Christmas 2004 • Decision by Ministers – 5 th January 2005

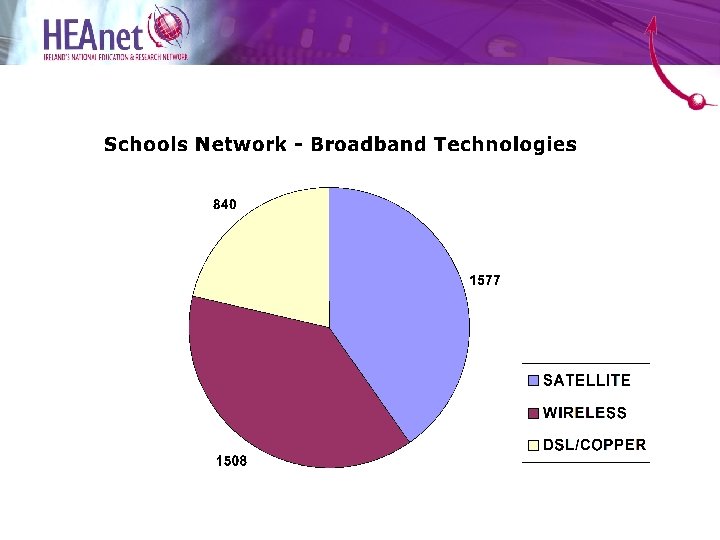

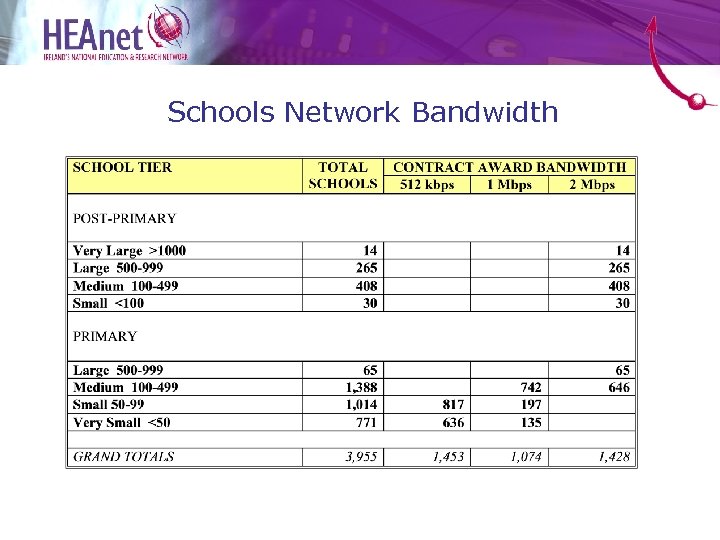

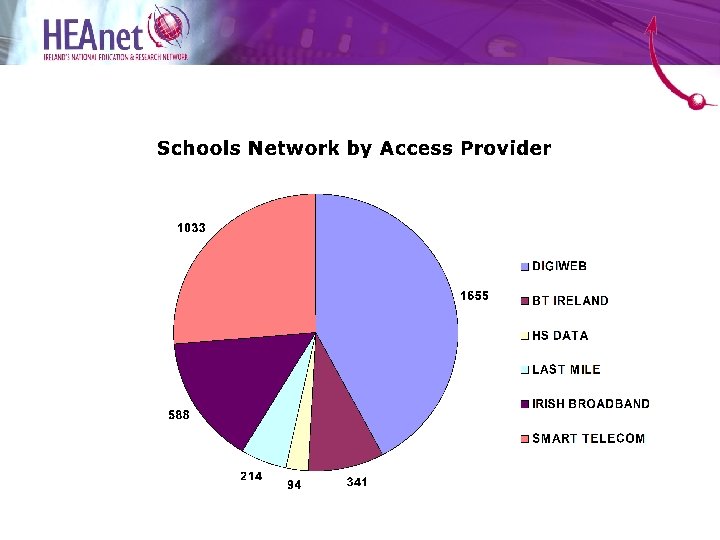

Schools Network Bandwidth

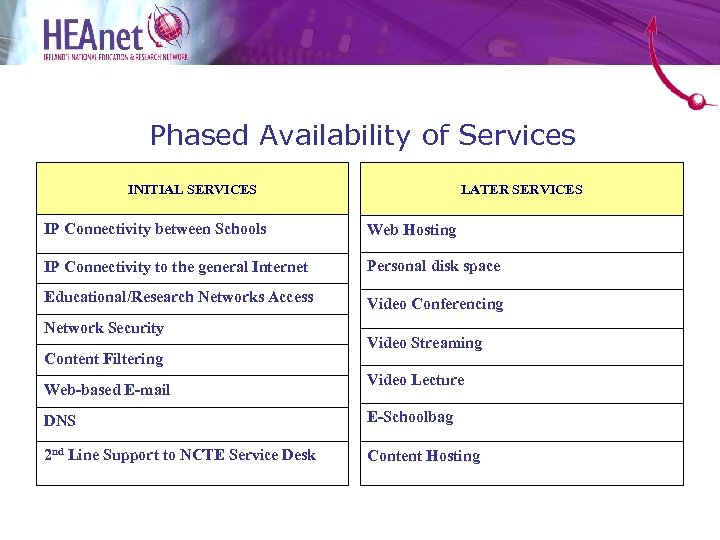

Phased Availability of Services INITIAL SERVICES LATER SERVICES IP Connectivity between Schools Web Hosting IP Connectivity to the general Internet Personal disk space Educational/Research Networks Access Video Conferencing Network Security Content Filtering Web-based E-mail Video Streaming Video Lecture DNS E-Schoolbag 2 nd Line Support to NCTE Service Desk Content Hosting

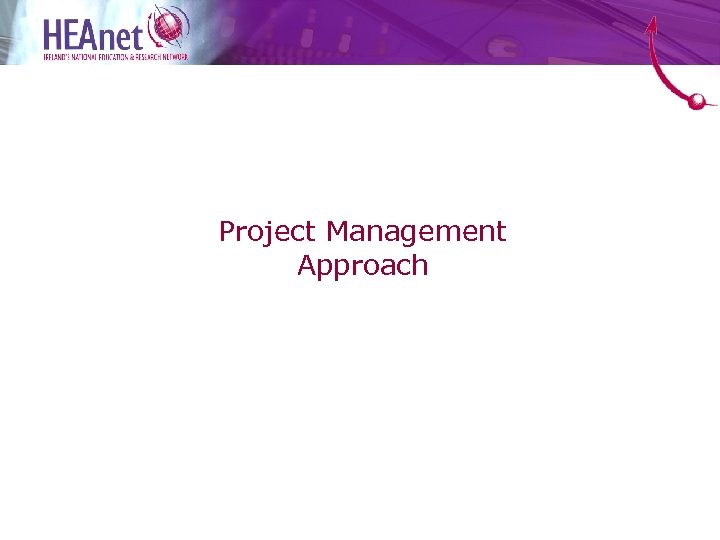

Project Management Approach

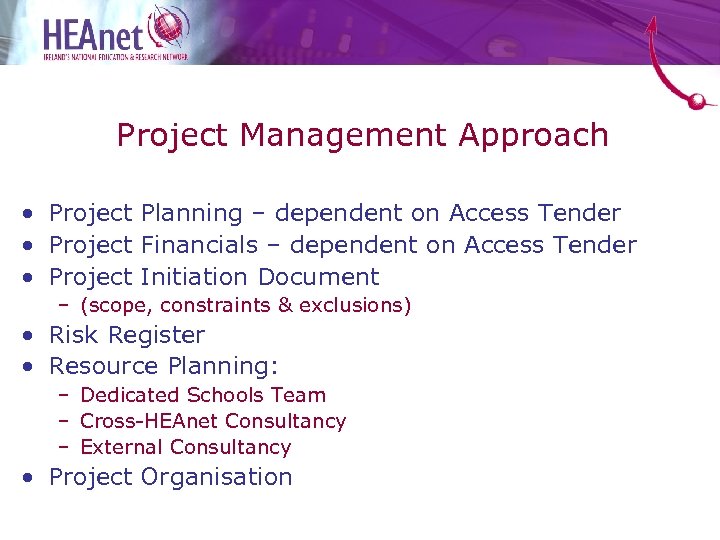

Project Management Approach • Project Planning – dependent on Access Tender • Project Financials – dependent on Access Tender • Project Initiation Document – (scope, constraints & exclusions) • Risk Register • Resource Planning: – Dedicated Schools Team – Cross-HEAnet Consultancy – External Consultancy • Project Organisation

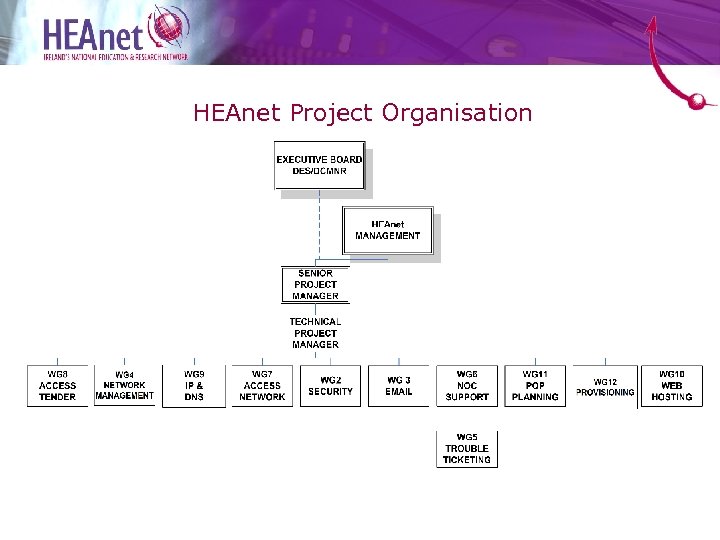

HEAnet Project Organisation

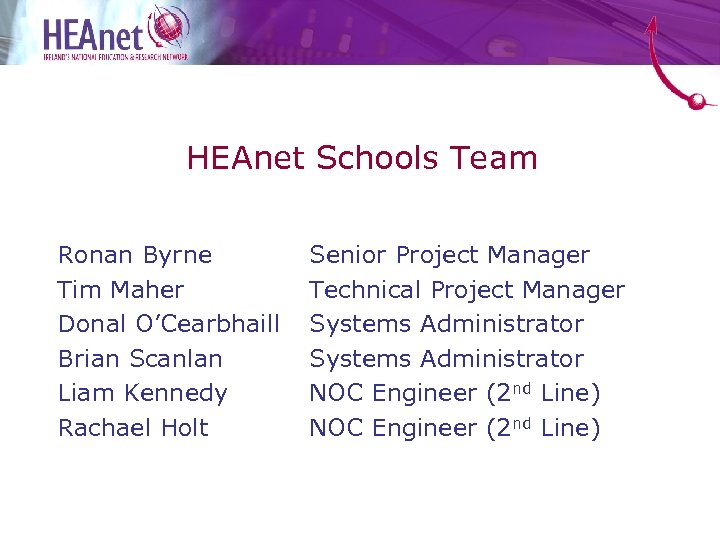

HEAnet Schools Team Ronan Byrne Tim Maher Donal O’Cearbhaill Brian Scanlan Liam Kennedy Rachael Holt Senior Project Manager Technical Project Manager Systems Administrator NOC Engineer (2 nd Line)

Network Design • Network Topology • Access Network • POP Layout • Layout and Routing • IP Scheme

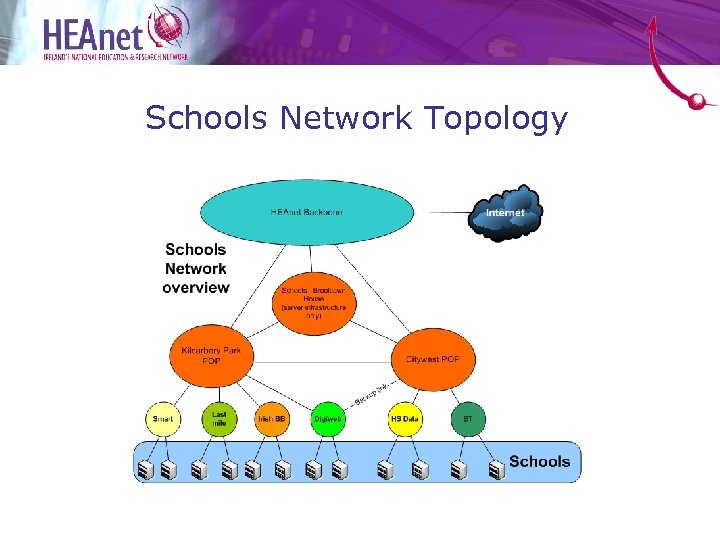

Schools Network Topology

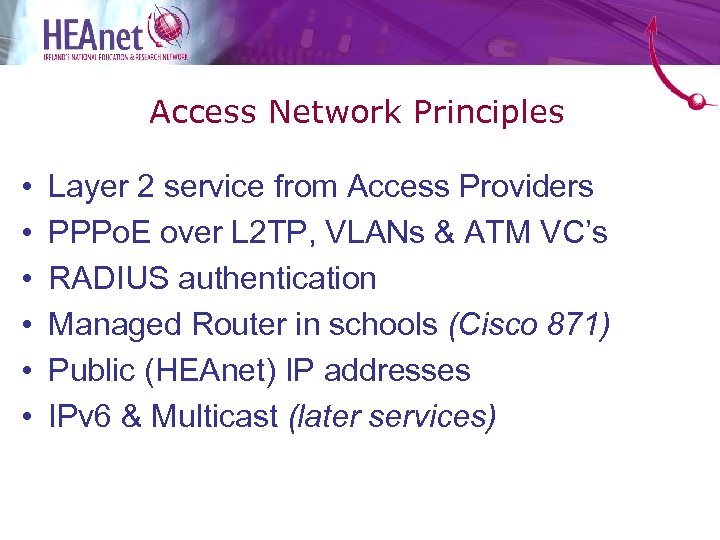

Access Network Principles • • • Layer 2 service from Access Providers PPPo. E over L 2 TP, VLANs & ATM VC’s RADIUS authentication Managed Router in schools (Cisco 871) Public (HEAnet) IP addresses IPv 6 & Multicast (later services)

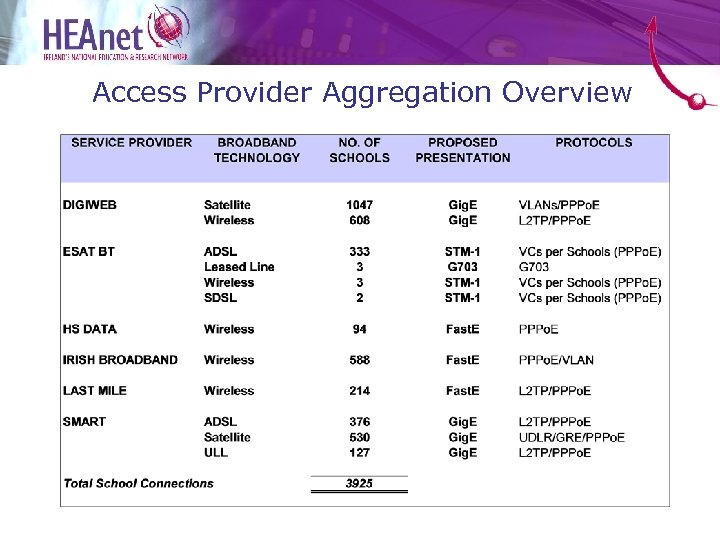

Access Provider Aggregation Overview

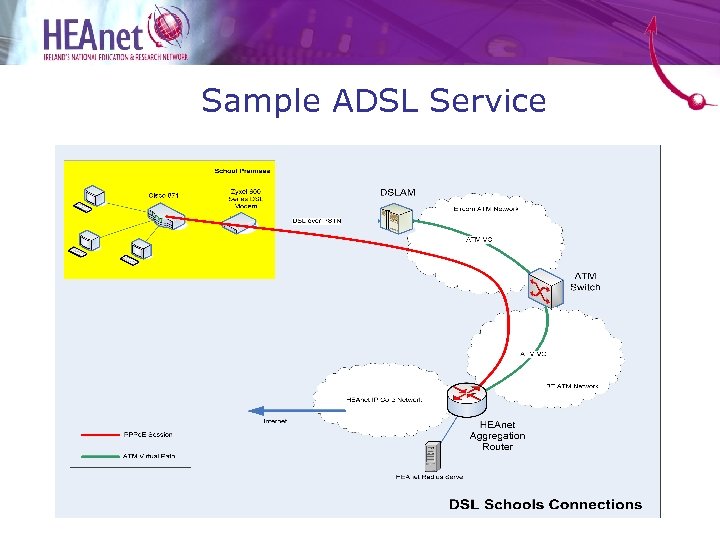

Sample ADSL Service

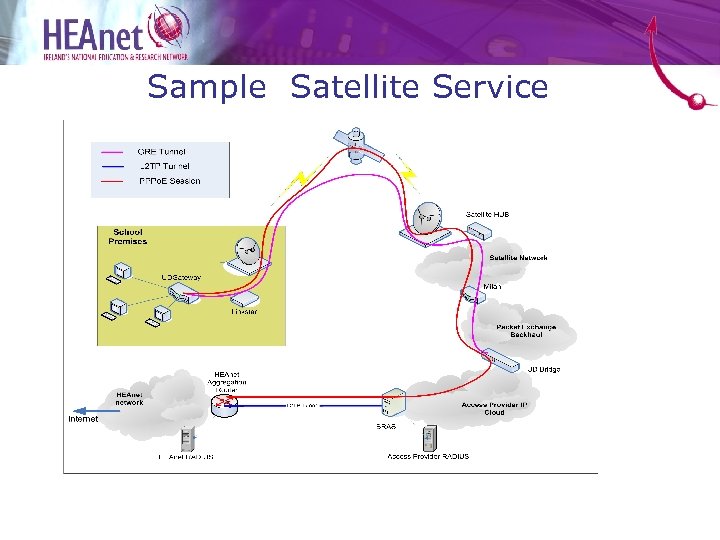

Sample Satellite Service

Schools’ Po. P Layout

Layout and Routing • Only links and loopbacks go into OSPF • Everything else is redistributed straight into BGP • Each Po. P provides the other with transit over the National Backbone Extension • Onward connectivity provided by BGP connection to HEAnet core

IP Addressing Very Large Post-Primary (>1000) /23 (510) Large Post-Primary (500 -999) /24 (254) Medium Post-Primary (100 -499) /25 (126) Small Post-Primary (<100) /26 (62) Large Primary (500 -999) /24 (254) Medium Primary (100 -499) /25 (126) Small Primary (50 -99) /27 (30) Very Small Primary (<50) /27 (30)

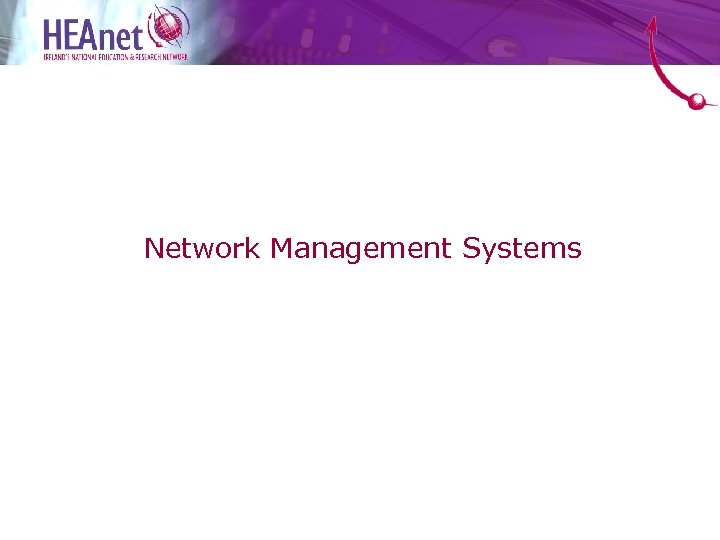

Network Management Systems

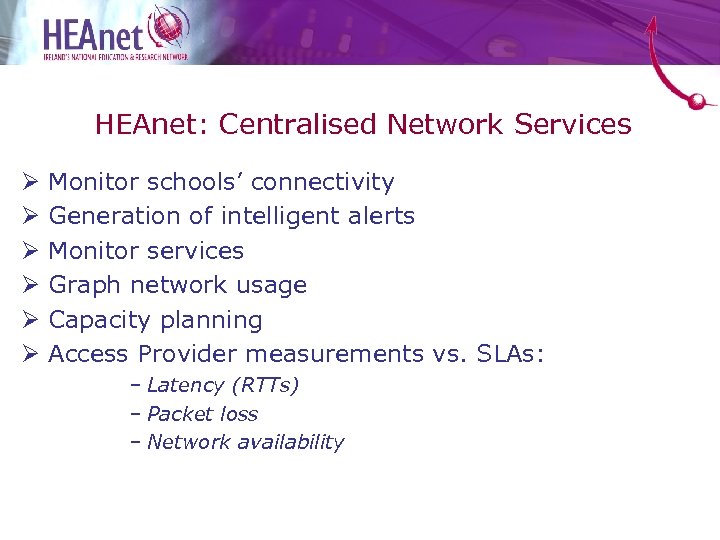

HEAnet: Centralised Network Services Ø Ø Ø Monitor schools’ connectivity Generation of intelligent alerts Monitor services Graph network usage Capacity planning Access Provider measurements vs. SLAs: – Latency (RTTs) – Packet loss – Network availability

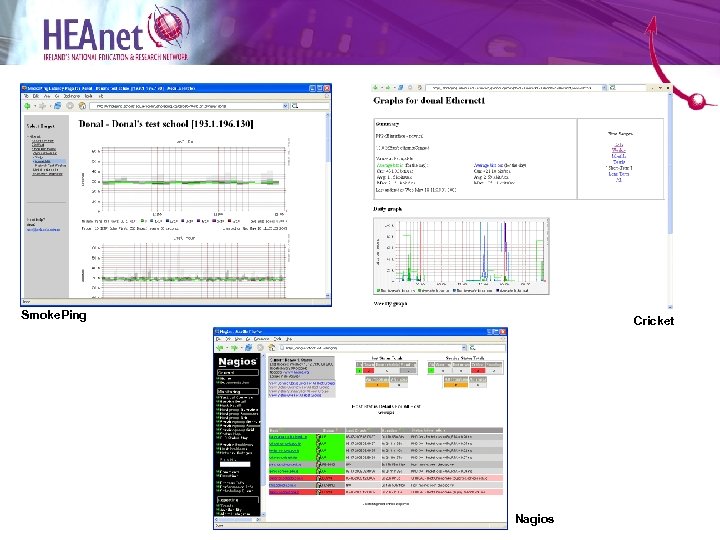

Smoke. Ping Cricket Nagios

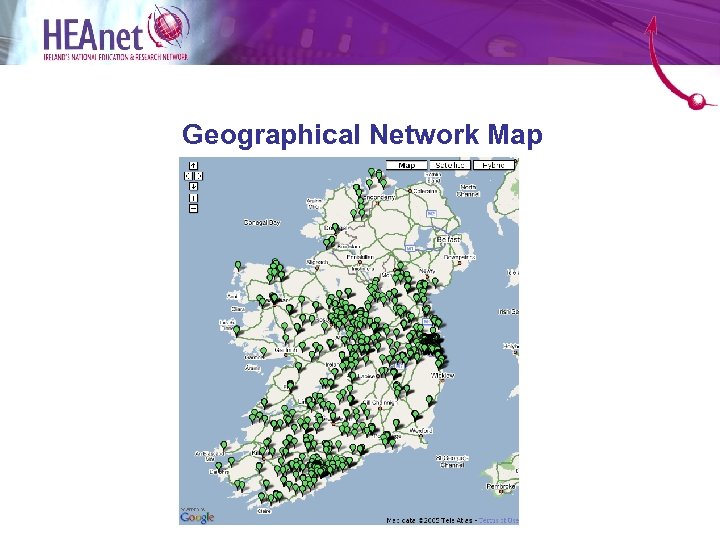

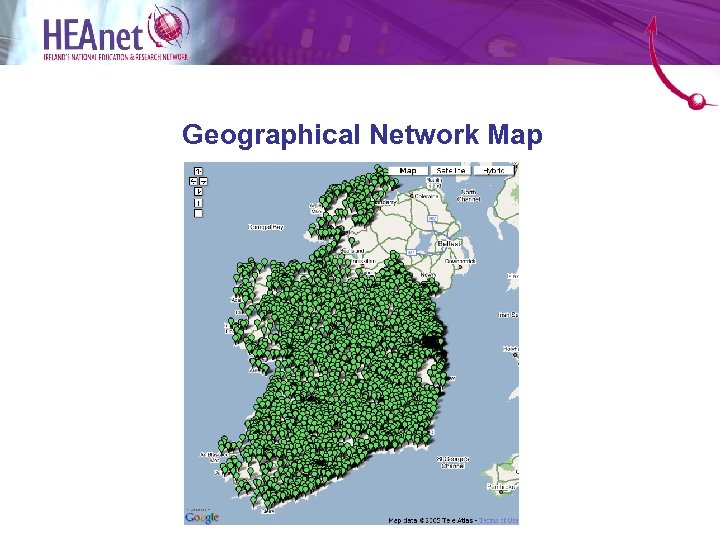

Geographical Network Map

Geographical Network Map

Provisioning Systems

Provisioning system - overview • Required to generate school specific configurations for CPE router, monitoring, etc. • Dynamically provision services • Database backend with schools’ information • Informational web front-end

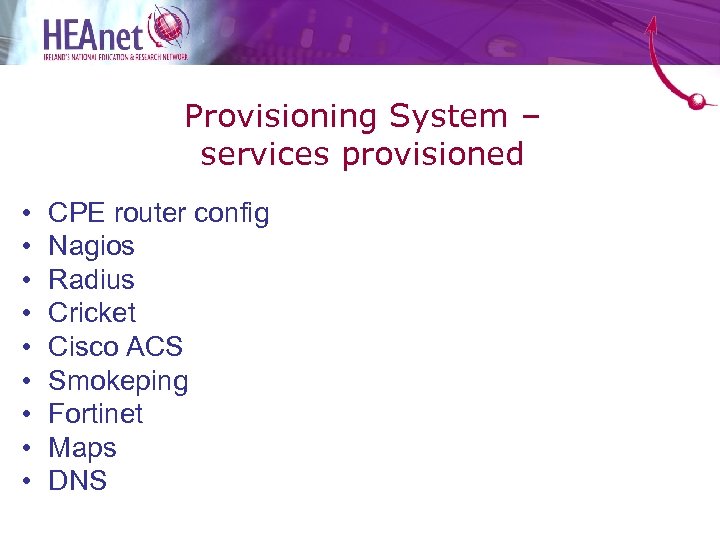

Provisioning System – services provisioned • • • CPE router config Nagios Radius Cricket Cisco ACS Smokeping Fortinet Maps DNS

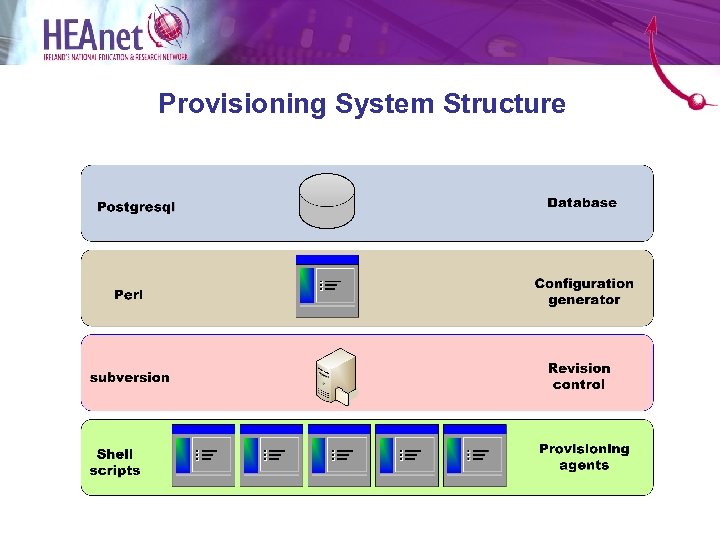

Provisioning System Structure

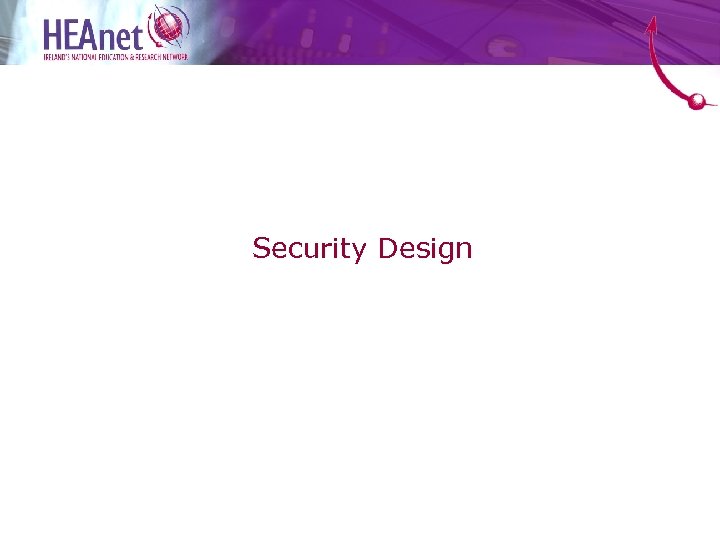

Security Design

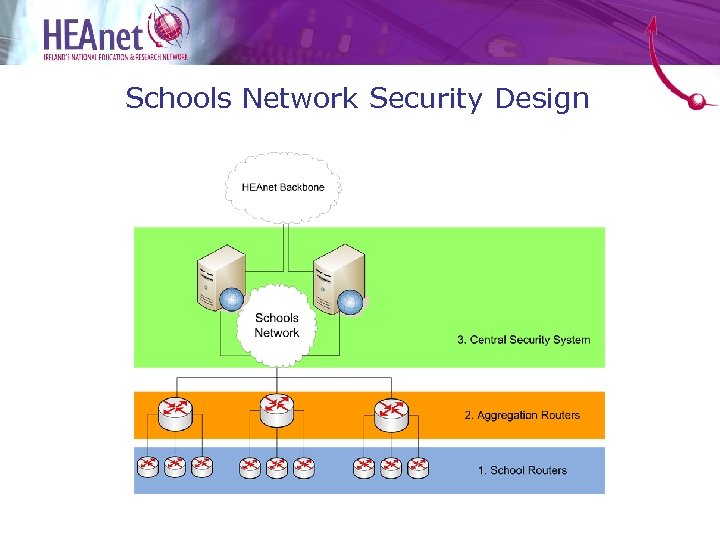

Schools Network Security Design

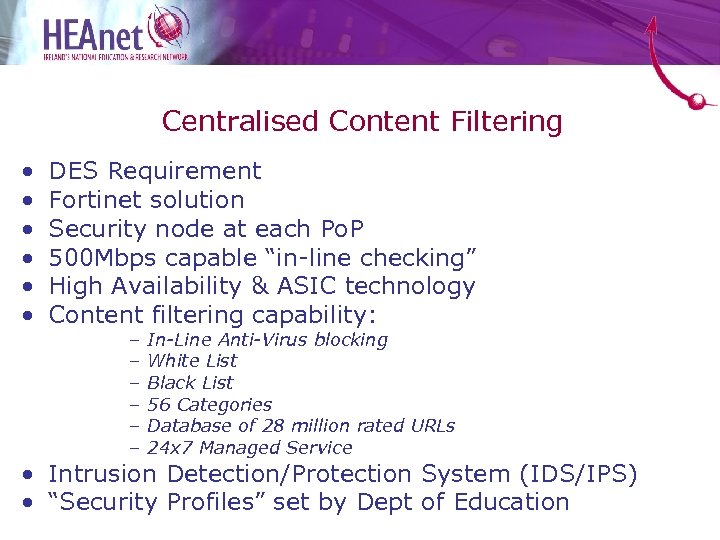

Centralised Content Filtering • • • DES Requirement Fortinet solution Security node at each Po. P 500 Mbps capable “in-line checking” High Availability & ASIC technology Content filtering capability: – – – In-Line Anti-Virus blocking White List Black List 56 Categories Database of 28 million rated URLs 24 x 7 Managed Service • Intrusion Detection/Protection System (IDS/IPS) • “Security Profiles” set by Dept of Education

Kilcarbery Centralised Security

E-Mail Services

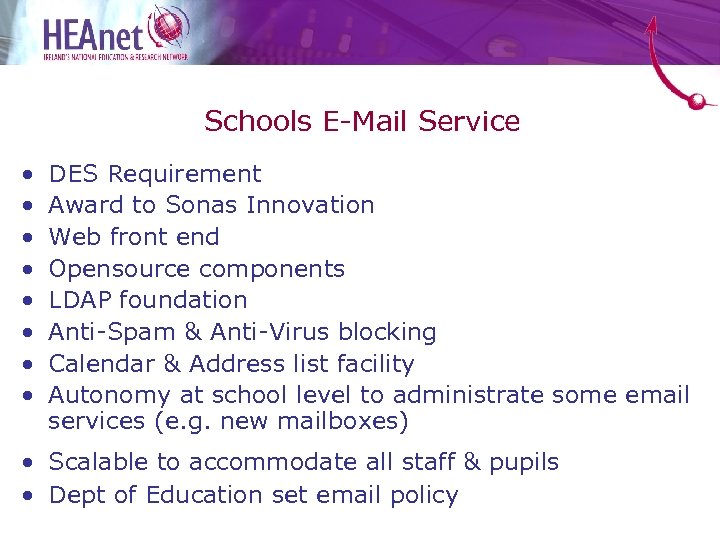

Schools E-Mail Service • • DES Requirement Award to Sonas Innovation Web front end Opensource components LDAP foundation Anti-Spam & Anti-Virus blocking Calendar & Address list facility Autonomy at school level to administrate some email services (e. g. new mailboxes) • Scalable to accommodate all staff & pupils • Dept of Education set email policy

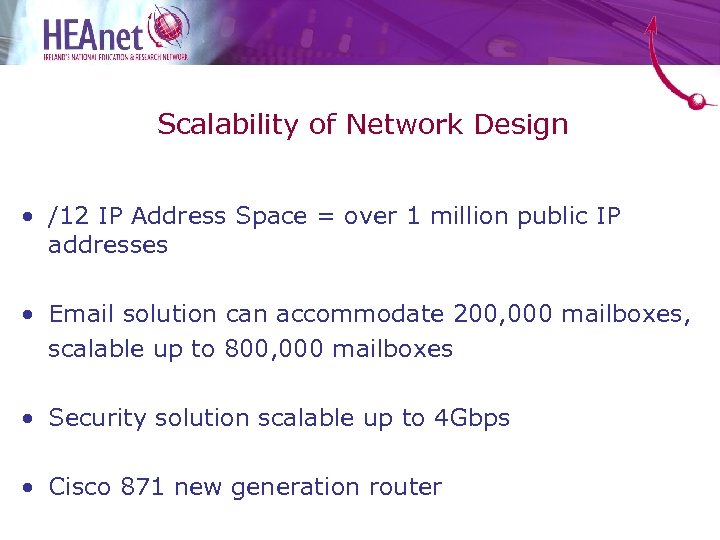

Scalability of Network Design • /12 IP Address Space = over 1 million public IP addresses • Email solution can accommodate 200, 000 mailboxes, scalable up to 800, 000 mailboxes • Security solution scalable up to 4 Gbps • Cisco 871 new generation router

School Support Services

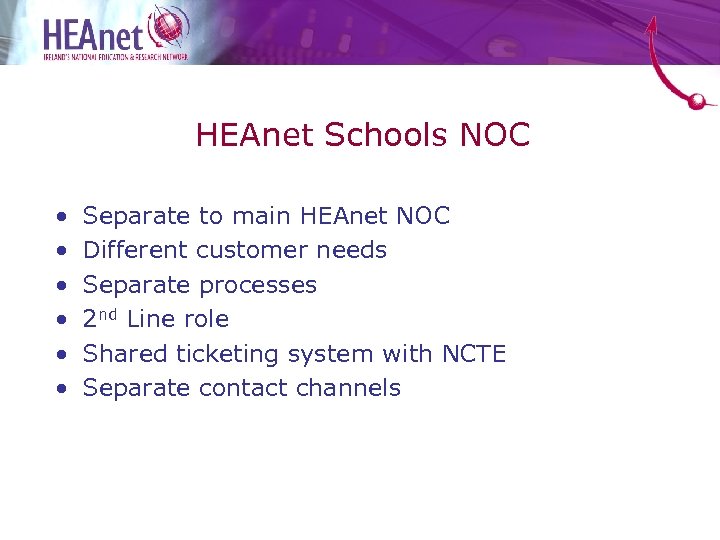

HEAnet Schools NOC • • • Separate to main HEAnet NOC Different customer needs Separate processes 2 nd Line role Shared ticketing system with NCTE Separate contact channels

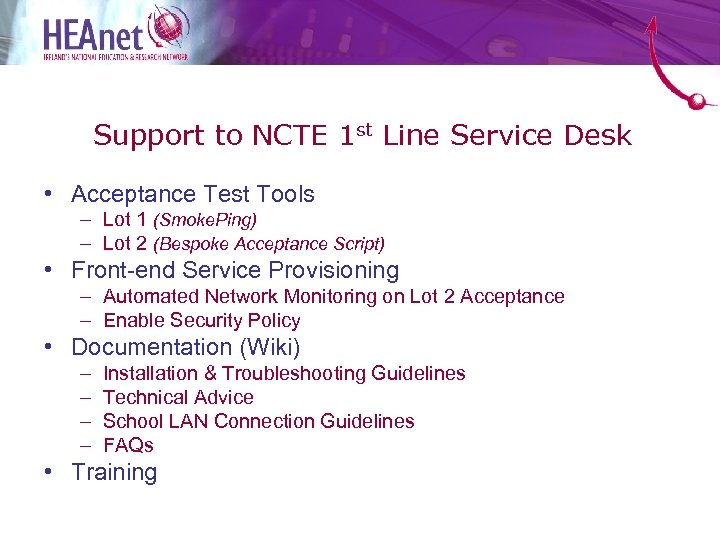

Support to NCTE 1 st Line Service Desk • Acceptance Test Tools – Lot 1 (Smoke. Ping) – Lot 2 (Bespoke Acceptance Script) • Front-end Service Provisioning – Automated Network Monitoring on Lot 2 Acceptance – Enable Security Policy • Documentation (Wiki) – – Installation & Troubleshooting Guidelines Technical Advice School LAN Connection Guidelines FAQs • Training

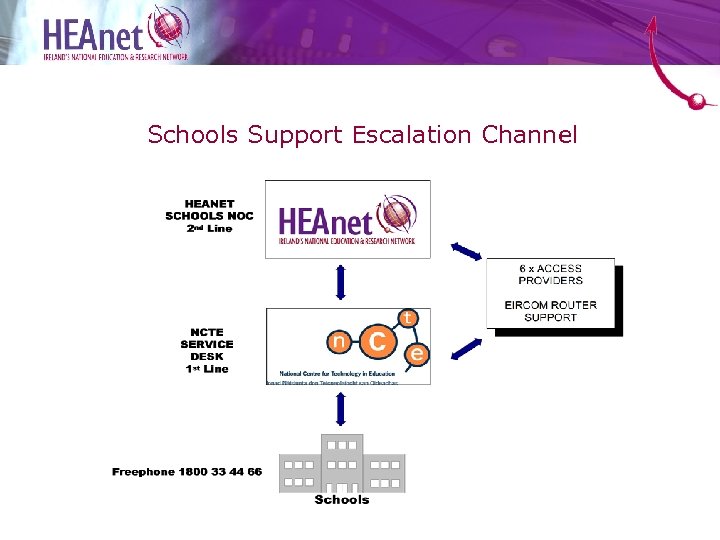

Schools Support Escalation Channel

Project Update

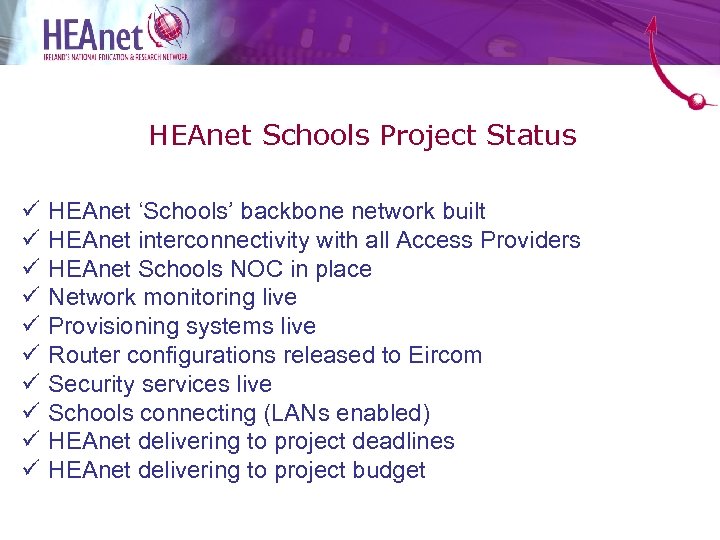

HEAnet Schools Project Status ü ü ü ü ü HEAnet ‘Schools’ backbone network built HEAnet interconnectivity with all Access Providers HEAnet Schools NOC in place Network monitoring live Provisioning systems live Router configurations released to Eircom Security services live Schools connecting (LANs enabled) HEAnet delivering to project deadlines HEAnet delivering to project budget

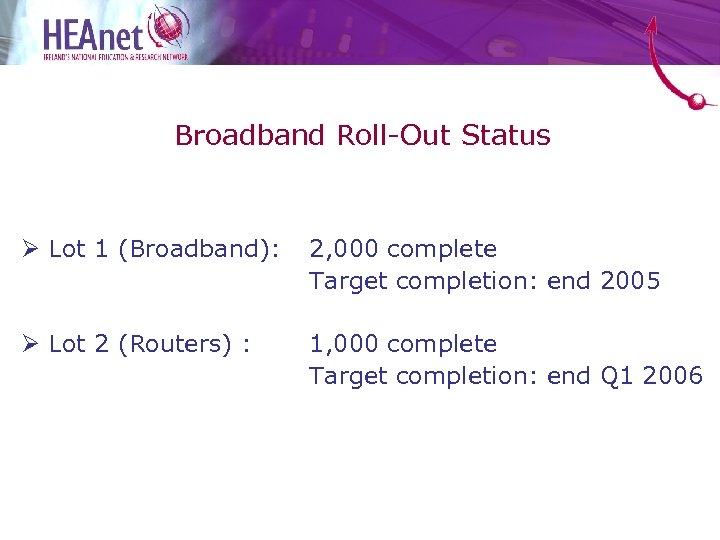

Broadband Roll-Out Status Ø Lot 1 (Broadband): 2, 000 complete Target completion: end 2005 Ø Lot 2 (Routers) : 1, 000 complete Target completion: end Q 1 2006

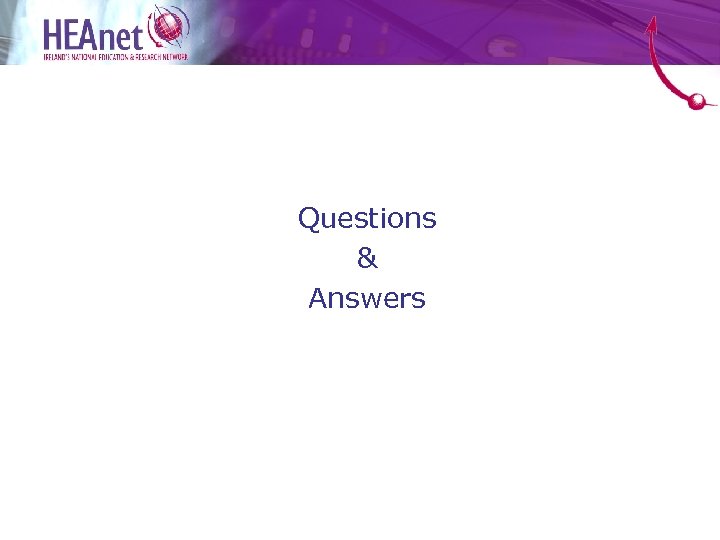

Questions & Answers
