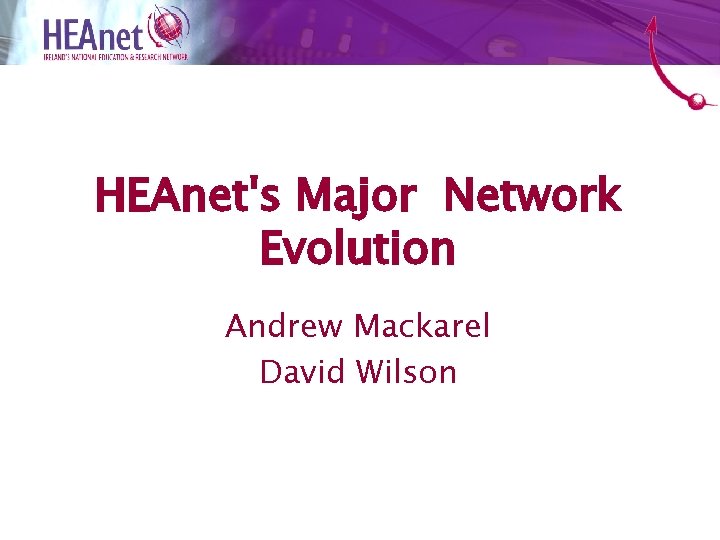

HEAnet's Major Network Evolution Andrew Mackarel David Wilson HEAnet's Major Network Evolution Andrew Mackarel David Wilson

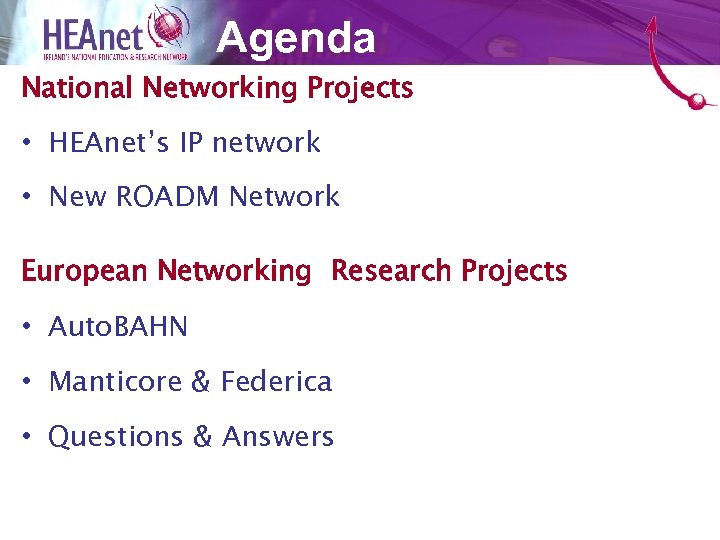

Agenda National Networking Projects • HEAnet’s IP network • New ROADM Network European Networking Agenda National Networking Projects • HEAnet’s IP network • New ROADM Network European Networking Research Projects • Auto. BAHN • Manticore & Federica • Questions & Answers

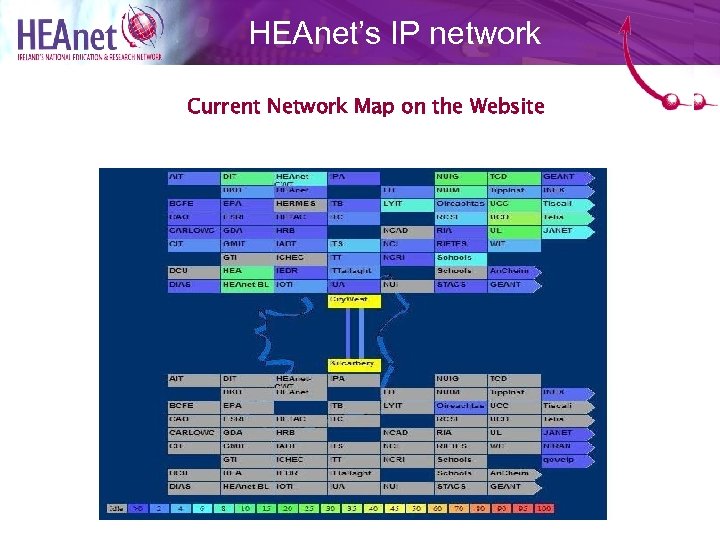

HEAnet’s IP network Current Network Map on the Website HEAnet’s IP network Current Network Map on the Website

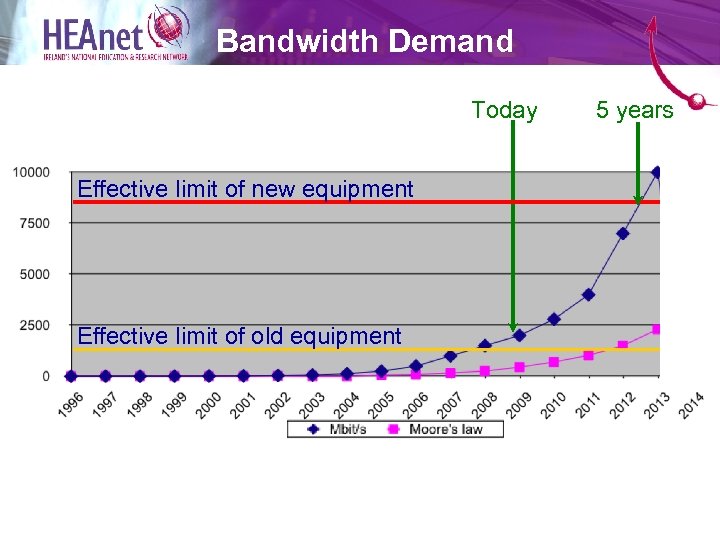

Bandwidth Demand Today Effective limit of new equipment Effective limit of old equipment 5 Bandwidth Demand Today Effective limit of new equipment Effective limit of old equipment 5 years

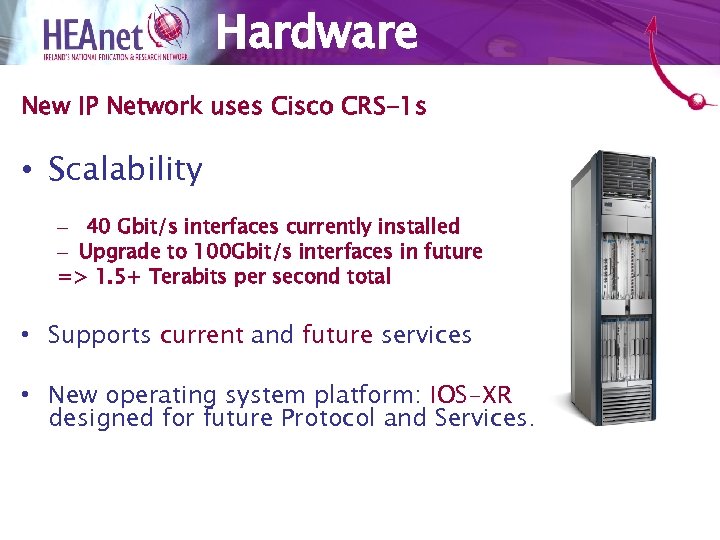

Hardware New IP Network uses Cisco CRS-1 s • Scalability – 40 Gbit/s interfaces Hardware New IP Network uses Cisco CRS-1 s • Scalability – 40 Gbit/s interfaces currently installed – Upgrade to 100 Gbit/s interfaces in future => 1. 5+ Terabits per second total • Supports current and future services • New operating system platform: IOS-XR designed for future Protocol and Services.

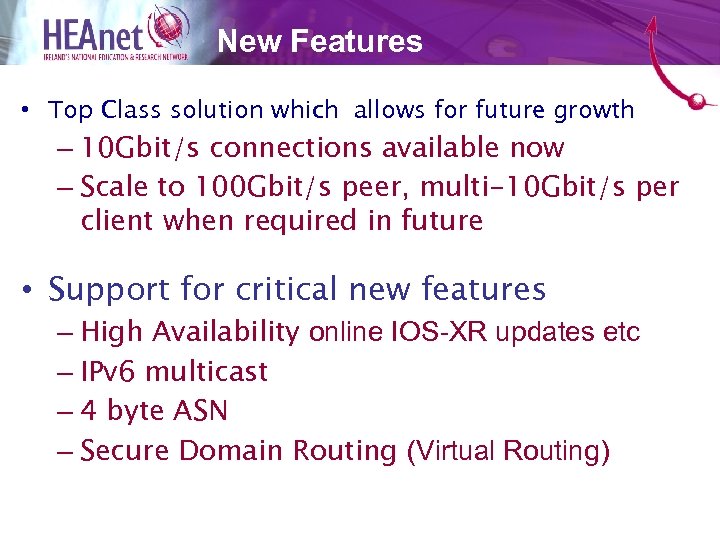

New Features • Top Class solution which allows for future growth – 10 Gbit/s New Features • Top Class solution which allows for future growth – 10 Gbit/s connections available now – Scale to 100 Gbit/s peer, multi-10 Gbit/s per client when required in future • Support for critical new features – High Availability online IOS-XR updates etc – IPv 6 multicast – 4 byte ASN – Secure Domain Routing (Virtual Routing)

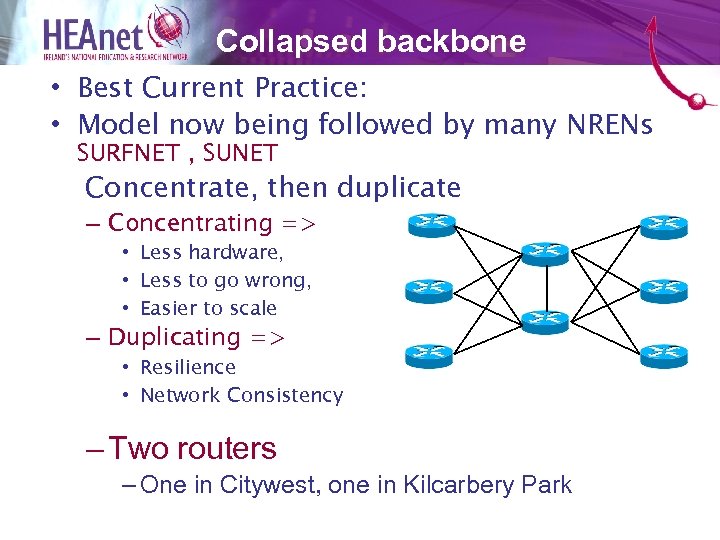

Collapsed backbone • Best Current Practice: • Model now being followed by many NRENs Collapsed backbone • Best Current Practice: • Model now being followed by many NRENs SURFNET , SUNET Concentrate, then duplicate – Concentrating => • Less hardware, • Less to go wrong, • Easier to scale – Duplicating => • Resilience • Network Consistency – Two routers – One in Citywest, one in Kilcarbery Park

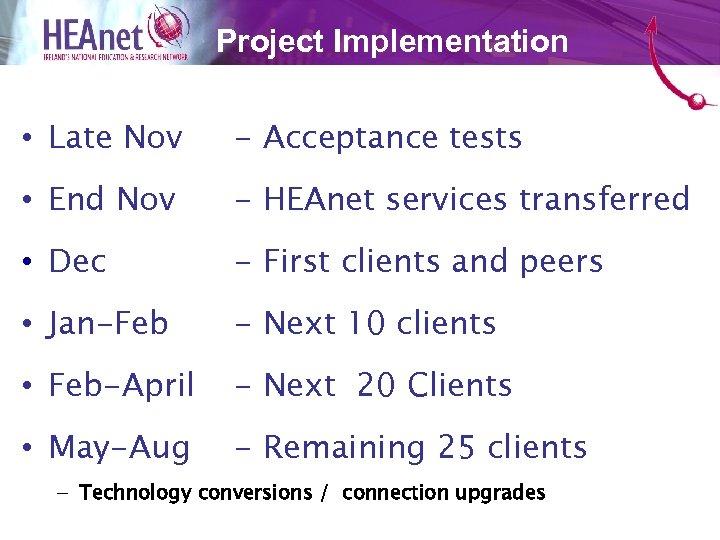

Project Implementation • Late Nov - Acceptance tests • End Nov - HEAnet services Project Implementation • Late Nov - Acceptance tests • End Nov - HEAnet services transferred • Dec - First clients and peers • Jan-Feb - Next 10 clients • Feb-April - Next 20 Clients • May-Aug - Remaining 25 clients – Technology conversions / connection upgrades

Current Client Status • All Clients transitioned onto New Network • Ethernet Connectivity – Current Client Status • All Clients transitioned onto New Network • Ethernet Connectivity – allows clients burst up to 10 Gbit/s per interface – Provision for Future 10 Gbit/s client connections • BGP Peerings – client gets connectivity via NBE to both routers • Primary/backup connections • Resilience now a function of the underlying NBE • BGP changes in previous years paid off – Thanks!!

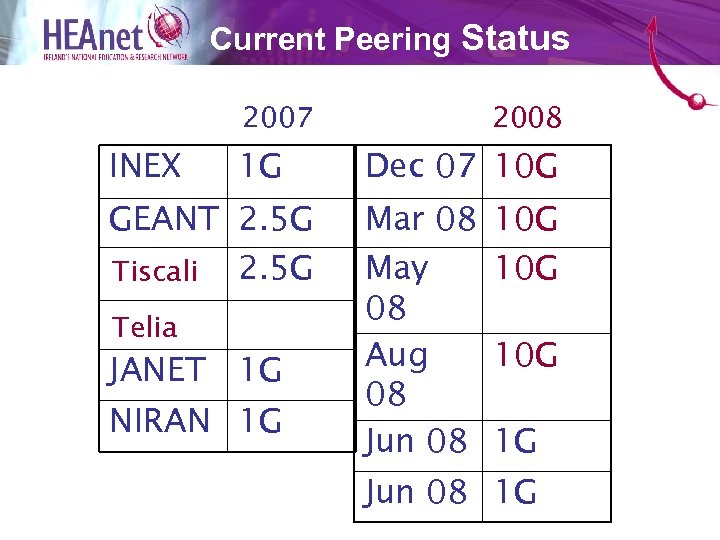

Current Peering Status 2007 INEX 1 G GEANT 2. 5 G GBLX 2. 5 Current Peering Status 2007 INEX 1 G GEANT 2. 5 G GBLX 2. 5 G Tiscali Telia JANET 1 G NIRAN 1 G 2008 Dec 07 10 G Mar 08 May 08 Aug 08 Jun 08 10 G 10 G 1 G Jun 08 1 G

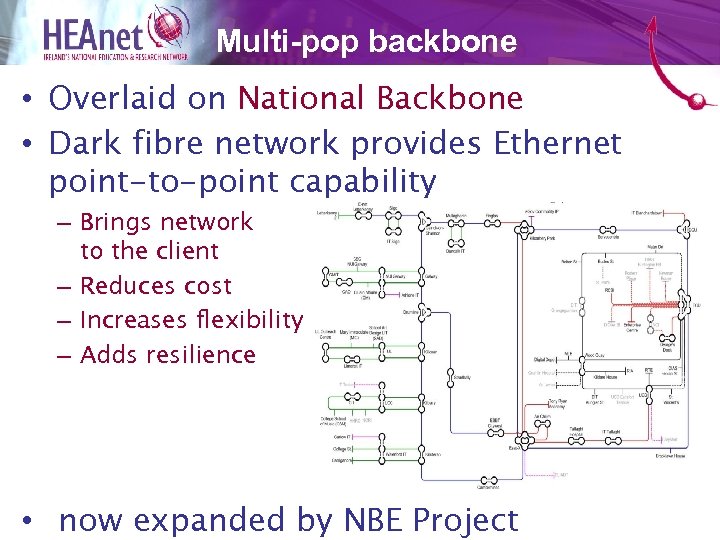

Multi-pop backbone • Overlaid on National Backbone • Dark fibre network provides Ethernet point-to-point Multi-pop backbone • Overlaid on National Backbone • Dark fibre network provides Ethernet point-to-point capability – Brings network to the client – Reduces cost – Increases flexibility – Adds resilience • now expanded by NBE Project

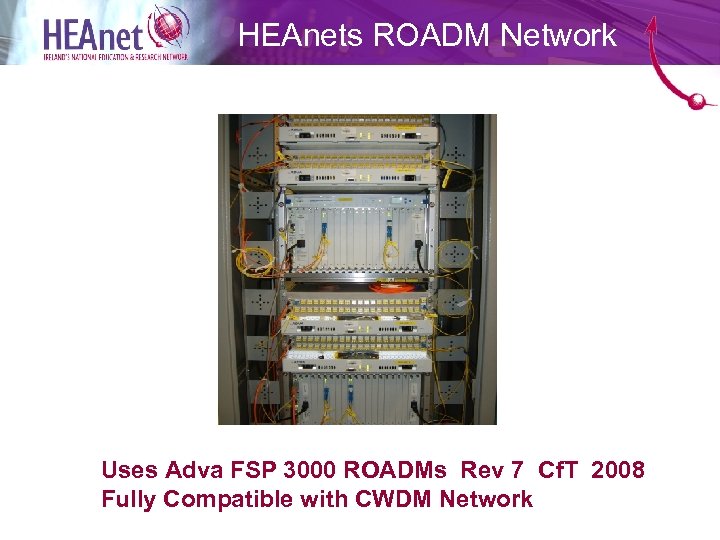

HEAnets ROADM Network Uses Adva FSP 3000 ROADMs Rev 7 Cf. T 2008 Fully HEAnets ROADM Network Uses Adva FSP 3000 ROADMs Rev 7 Cf. T 2008 Fully Compatible with CWDM Network

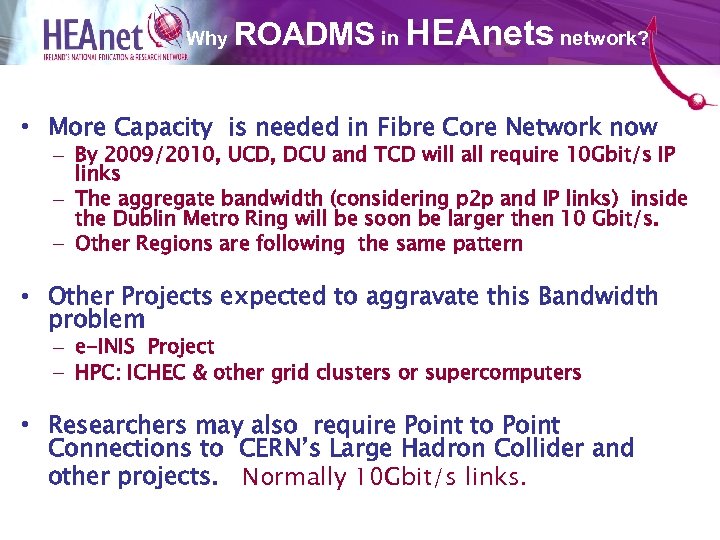

ROADMS HEAnets network? Why in Why are ROADMS needed ? • More Capacity is ROADMS HEAnets network? Why in Why are ROADMS needed ? • More Capacity is needed in Fibre Core Network now – By 2009/2010, UCD, DCU and TCD will all require 10 Gbit/s IP links – The aggregate bandwidth (considering p 2 p and IP links) inside the Dublin Metro Ring will be soon be larger then 10 Gbit/s. – Other Regions are following the same pattern • Other Projects expected to aggravate this Bandwidth problem – e-INIS Project – HPC: ICHEC & other grid clusters or supercomputers • Researchers may also require Point to Point Connections to CERN’s Large Hadron Collider and other projects. Normally 10 Gbit/s links.

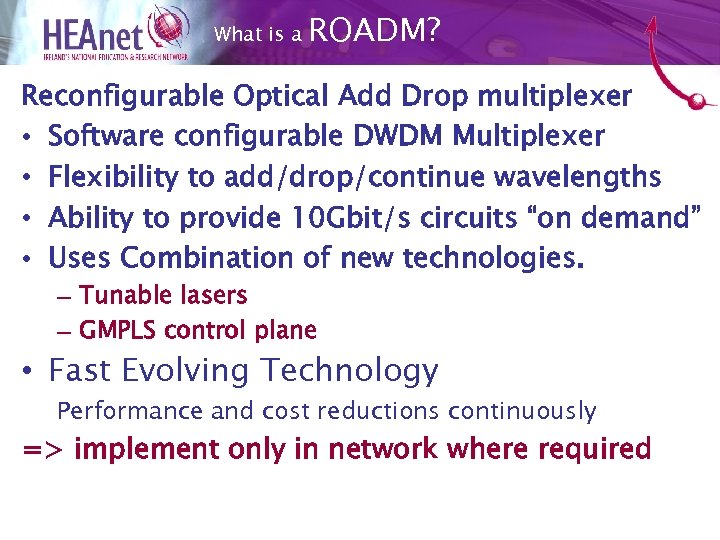

What is a ROADM? Reconfigurable Optical Add Drop multiplexer • Software configurable DWDM Multiplexer What is a ROADM? Reconfigurable Optical Add Drop multiplexer • Software configurable DWDM Multiplexer • Flexibility to add/drop/continue wavelengths • Ability to provide 10 Gbit/s circuits “on demand” • Uses Combination of new technologies. – Tunable lasers – GMPLS control plane • Fast Evolving Technology Performance and cost reductions continuously => implement only in network where required

ROADM advantages • Network Layout planning is flexible and can be modified quickly. • ROADM advantages • Network Layout planning is flexible and can be modified quickly. • Allows Backbone capacity expansion without need for additional Fibres • ROADM allows for remote configuration and reconfiguration. – ROADMs allow for automatic power balancing • In a DWDM network , making changes is more complex requires more pre design , provision and power balancing. DWDM Networks => Static Designs ROADMs give more flexibility

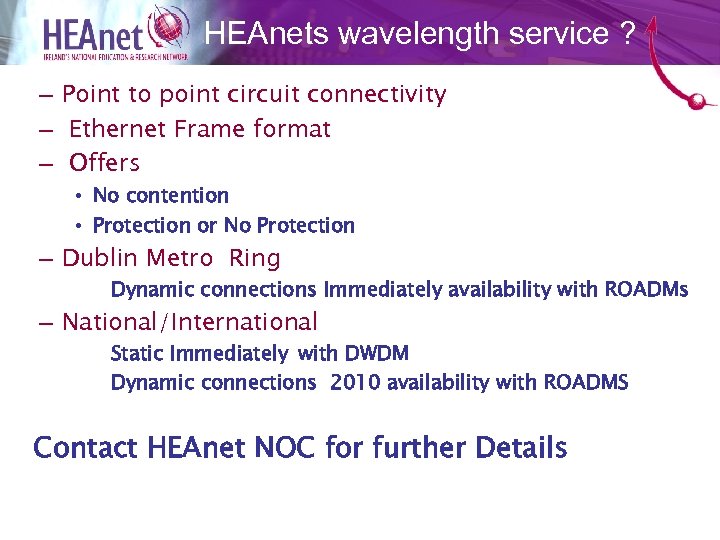

HEAnets wavelength service ? – Point to point circuit connectivity – Ethernet Frame format HEAnets wavelength service ? – Point to point circuit connectivity – Ethernet Frame format – Offers • No contention • Protection or No Protection – Dublin Metro Ring Dynamic connections Immediately availability with ROADMs – National/International Static Immediately with DWDM Dynamic connections 2010 availability with ROADMS Contact HEAnet NOC for further Details

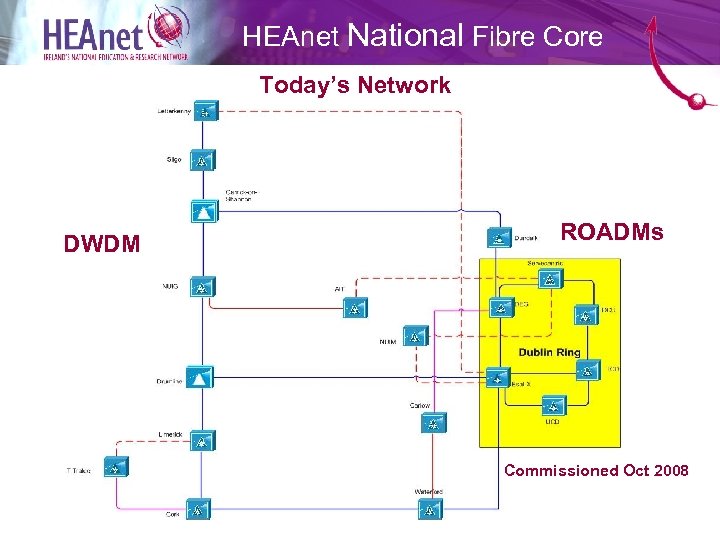

HEAnet National Fibre Core Today’s Network DWDM ROADMs Commissioned Oct 2008 HEAnet National Fibre Core Today’s Network DWDM ROADMs Commissioned Oct 2008

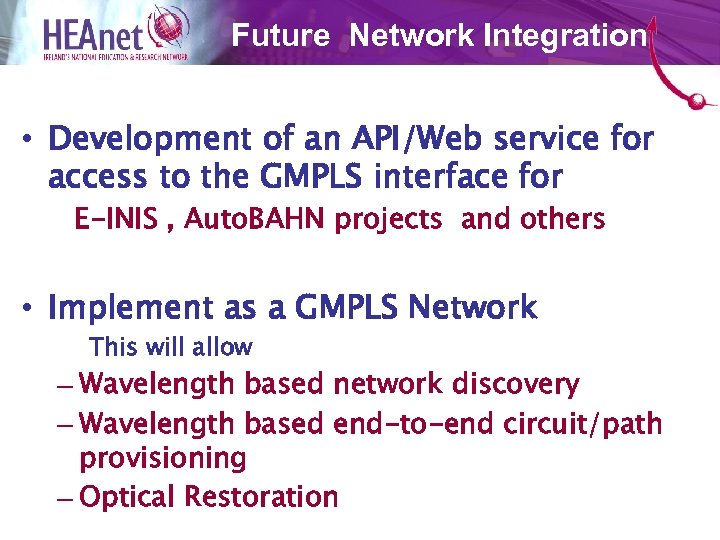

Future Network Integration • Development of an API/Web service for access to the GMPLS Future Network Integration • Development of an API/Web service for access to the GMPLS interface for E-INIS , Auto. BAHN projects and others • Implement as a GMPLS Network This will allow – Wavelength based network discovery – Wavelength based end-to-end circuit/path provisioning – Optical Restoration

Auto. BAHN Bandwidth on Demand Auto. BAHN Bandwidth on Demand

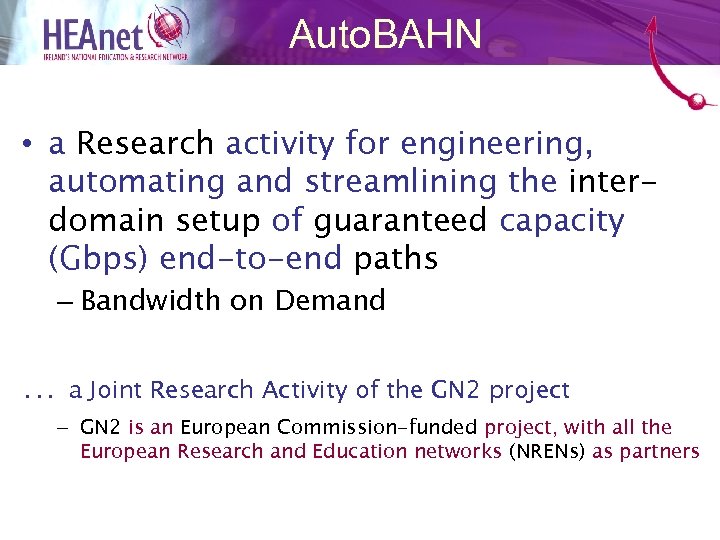

Auto. BAHN • a Research activity for engineering, automating and streamlining the interdomain setup Auto. BAHN • a Research activity for engineering, automating and streamlining the interdomain setup of guaranteed capacity (Gbps) end-to-end paths – Bandwidth on Demand … a Joint Research Activity of the GN 2 project – GN 2 is an European Commission-funded project, with all the European Research and Education networks (NRENs) as partners

SC 08 Demo 4 Sites simulating Radio Telescopes, 3 in Europe and 1 in SC 08 Demo 4 Sites simulating Radio Telescopes, 3 in Europe and 1 in the US Data transferred on 4 by 1 Gb Bo. D links to Software Correlator in Amsterdam

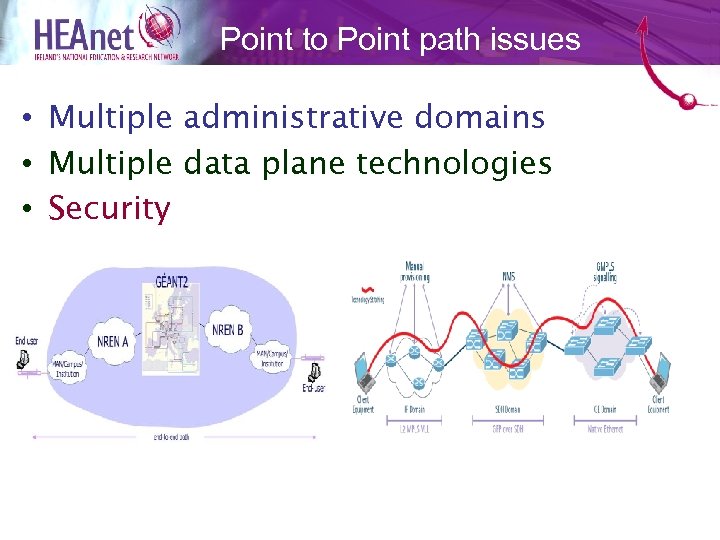

Point to Point path issues • Multiple administrative domains • Multiple data plane technologies Point to Point path issues • Multiple administrative domains • Multiple data plane technologies • Security

Auto. BAHN’s approach • NREN Distributed control and provisioning • Business-layer related interactions include Auto. BAHN’s approach • NREN Distributed control and provisioning • Business-layer related interactions include AA, policies, advance reservations etc. • Privacy and control of intra-domain resources must be safeguarded => Definition of a Full Architecture • Inter-Domain Manager (IDM) Provisioning • Domain Manager (DM) Technology Specific • Interfaces Local Provisioning

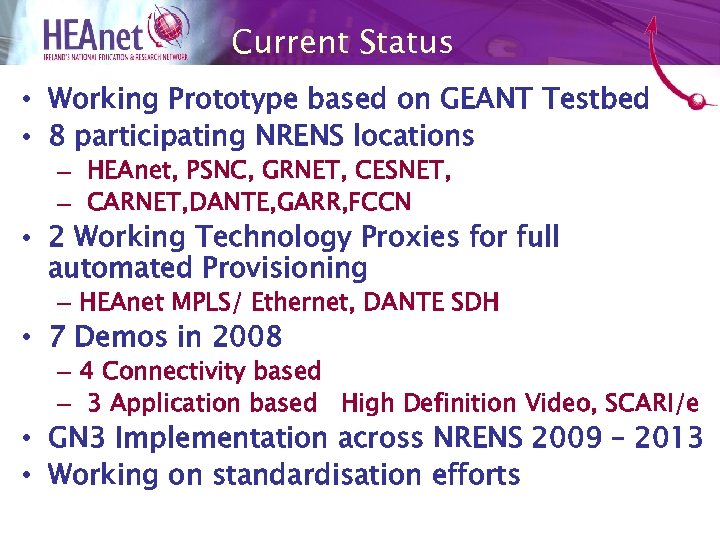

Current Status • Working Prototype based on GEANT Testbed • 8 participating NRENS locations Current Status • Working Prototype based on GEANT Testbed • 8 participating NRENS locations – HEAnet, PSNC, GRNET, CESNET, – CARNET, DANTE, GARR, FCCN • 2 Working Technology Proxies for full automated Provisioning – HEAnet MPLS/ Ethernet, DANTE SDH • 7 Demos in 2008 – 4 Connectivity based – 3 Application based High Definition Video, SCARI/e • GN 3 Implementation across NRENS 2009 – 2013 • Working on standardisation efforts

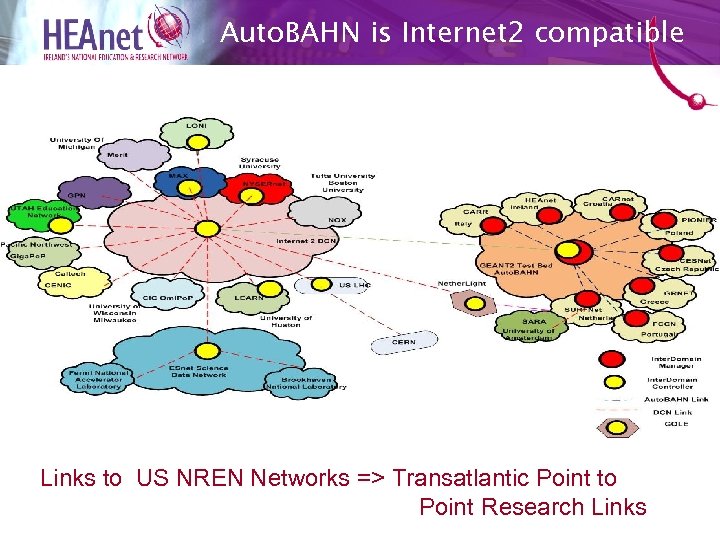

Auto. BAHN is Internet 2 compatible Links to US NREN Networks => Transatlantic Point Auto. BAHN is Internet 2 compatible Links to US NREN Networks => Transatlantic Point to Point Research Links

Manticore and Federica Manticore and Federica

 • The MANTICORE Project Vision • MANTICORE Implementation – The Iaa. S Framework • The MANTICORE Project Vision • MANTICORE Implementation – The Iaa. S Framework (UCLP Evolution) – User Roles – Software Architecture • How does it work: GUI preview • FEDERICA • Future work: MANTICORE II 2

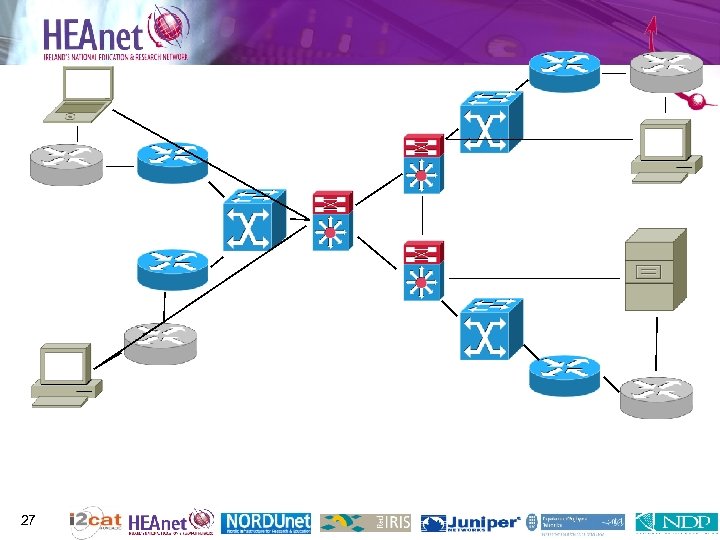

27 27

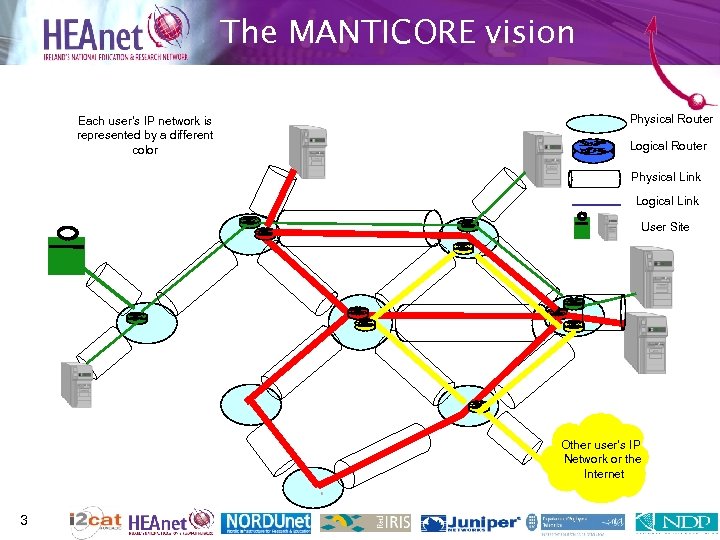

The MANTICORE vision Each user’s IP network is represented by a different color Physical The MANTICORE vision Each user’s IP network is represented by a different color Physical Router Logical Router Physical Link Logical Link User Site Other user’s IP Network or the Internet 3

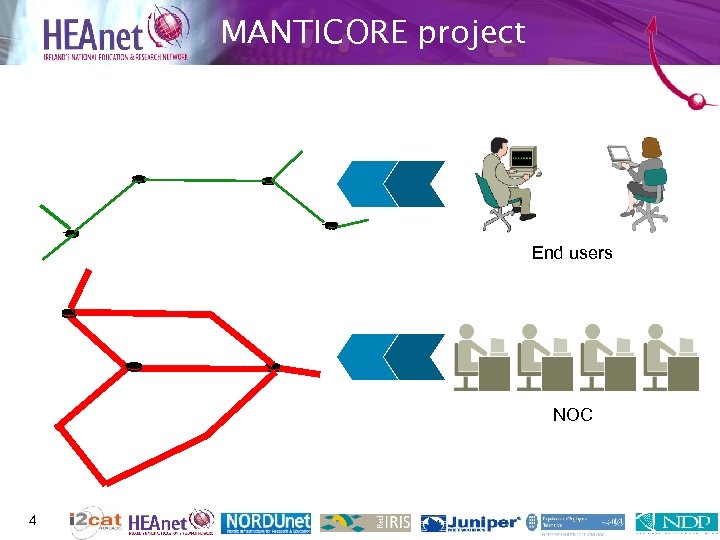

MANTICORE project End users NOC 4 MANTICORE project End users NOC 4

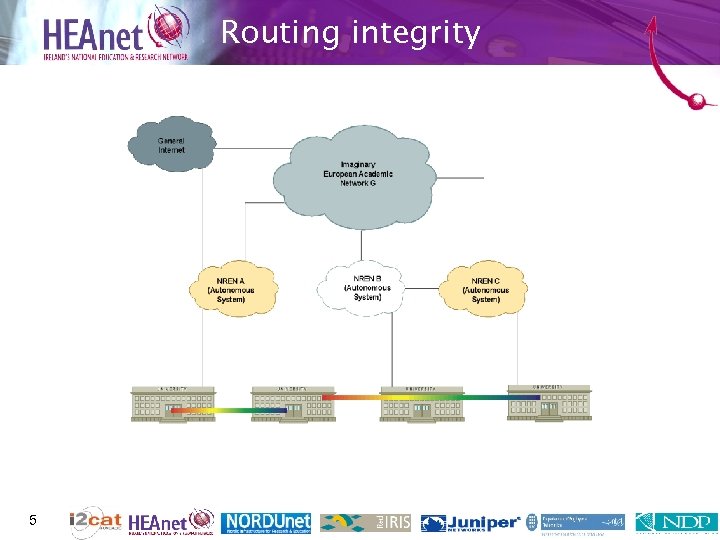

Routing integrity 5 Routing integrity 5

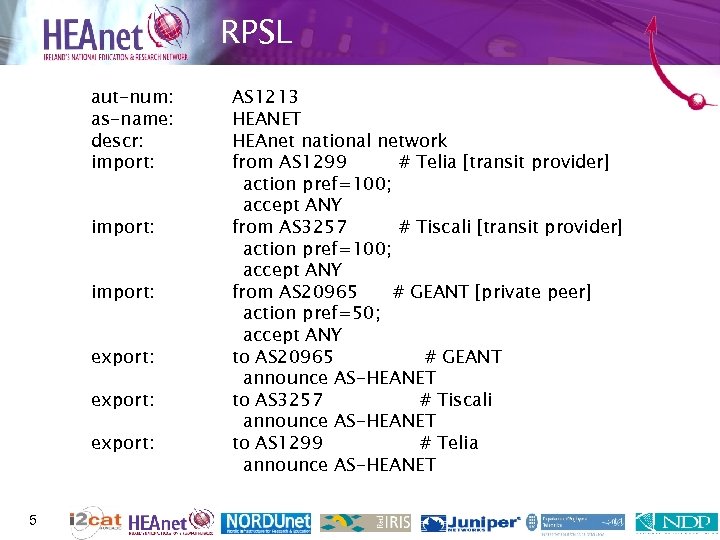

RPSL aut-num: as-name: descr: import: export: 5 AS 1213 HEANET HEAnet national network from RPSL aut-num: as-name: descr: import: export: 5 AS 1213 HEANET HEAnet national network from AS 1299 # Telia [transit provider] action pref=100; accept ANY from AS 3257 # Tiscali [transit provider] action pref=100; accept ANY from AS 20965 # GEANT [private peer] action pref=50; accept ANY to AS 20965 # GEANT announce AS-HEANET to AS 3257 # Tiscali announce AS-HEANET to AS 1299 # Telia announce AS-HEANET

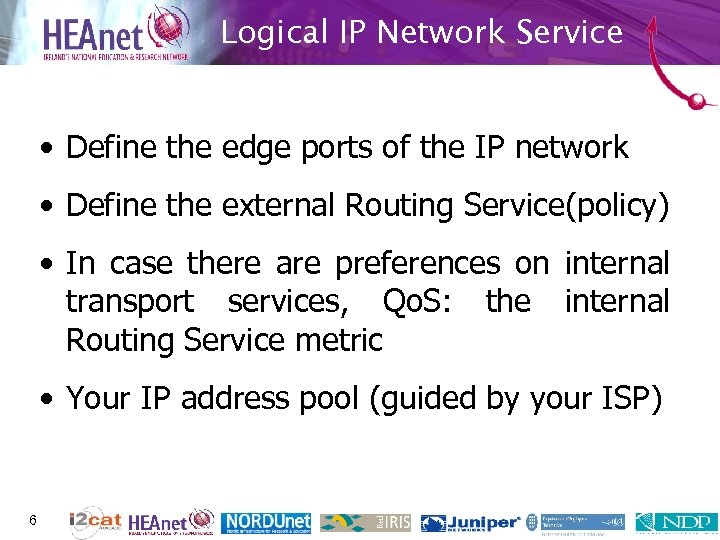

Logical IP Network Service • Define the edge ports of the IP network • Logical IP Network Service • Define the edge ports of the IP network • Define the external Routing Service(policy) • In case there are preferences on internal transport services, Qo. S: the internal Routing Service metric • Your IP address pool (guided by your ISP) 6

Benefits • On-demand network • Share virtual routers, not buying your own • No Benefits • On-demand network • Share virtual routers, not buying your own • No self-assembly required 6

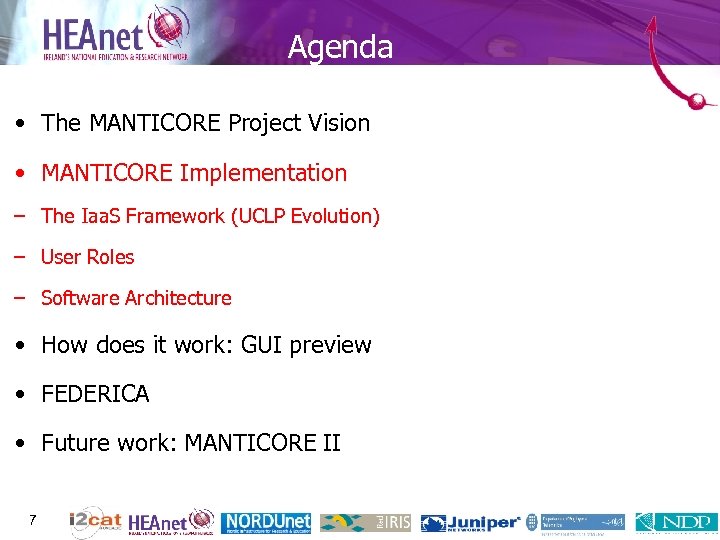

Agenda • The MANTICORE Project Vision • MANTICORE Implementation – The Iaa. S Framework Agenda • The MANTICORE Project Vision • MANTICORE Implementation – The Iaa. S Framework (UCLP Evolution) – User Roles – Software Architecture • How does it work: GUI preview • FEDERICA • Future work: MANTICORE II 7

Infrastructure as a Service Iaa. S and Virtualization • Infrastructure as a Service 8 Infrastructure as a Service Iaa. S and Virtualization • Infrastructure as a Service 8

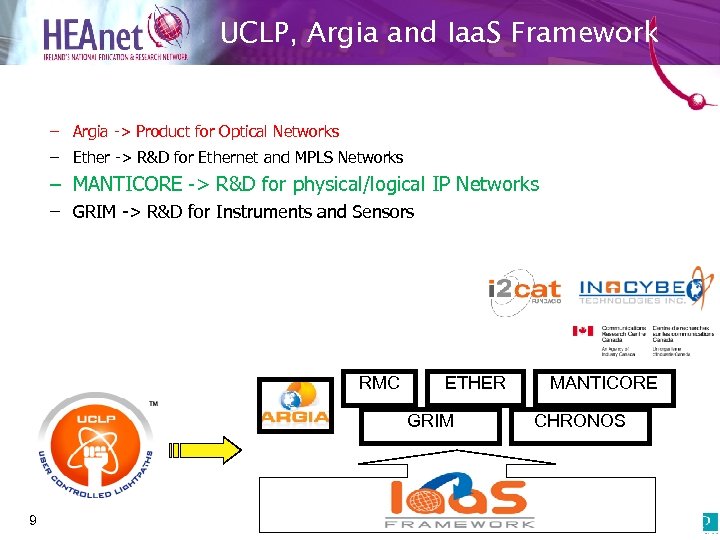

UCLP, Argia and Iaa. S Framework – Argia -> Product for Optical Networks – UCLP, Argia and Iaa. S Framework – Argia -> Product for Optical Networks – Ether -> R&D for Ethernet and MPLS Networks – MANTICORE -> R&D for physical/logical IP Networks – GRIM -> R&D for Instruments and Sensors RMC ETHER GRIM 9 MANTICORE CHRONOS

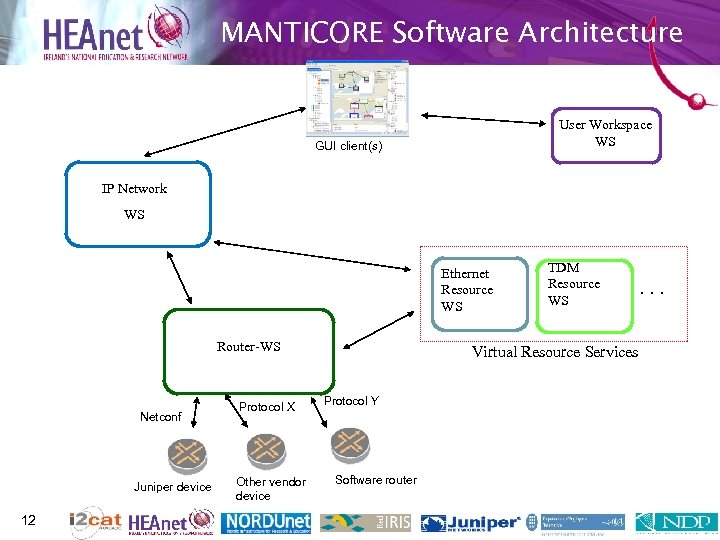

MANTICORE Software Architecture User Workspace WS GUI client(s) IP Network WS Ethernet Resource WS MANTICORE Software Architecture User Workspace WS GUI client(s) IP Network WS Ethernet Resource WS Router-WS Netconf Juniper device 12 Protocol X Other vendor device TDM Resource WS Virtual Resource Services Protocol Y Software router . . .

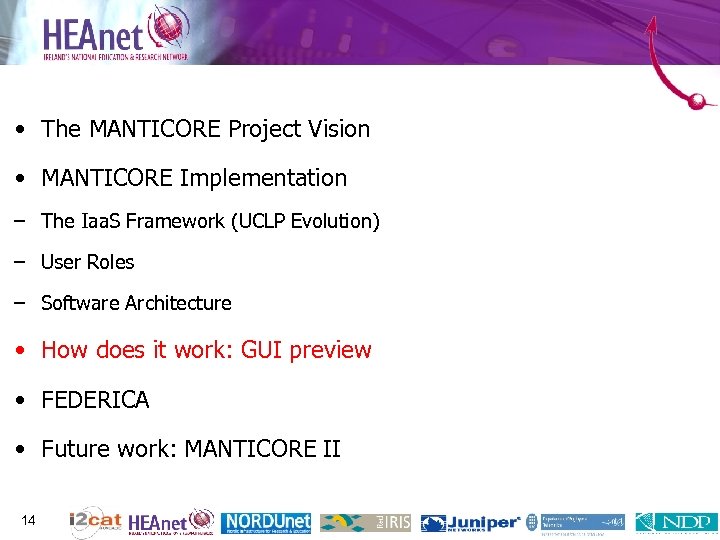

 • The MANTICORE Project Vision • MANTICORE Implementation – The Iaa. S Framework • The MANTICORE Project Vision • MANTICORE Implementation – The Iaa. S Framework (UCLP Evolution) – User Roles – Software Architecture • How does it work: GUI preview • FEDERICA • Future work: MANTICORE II 14

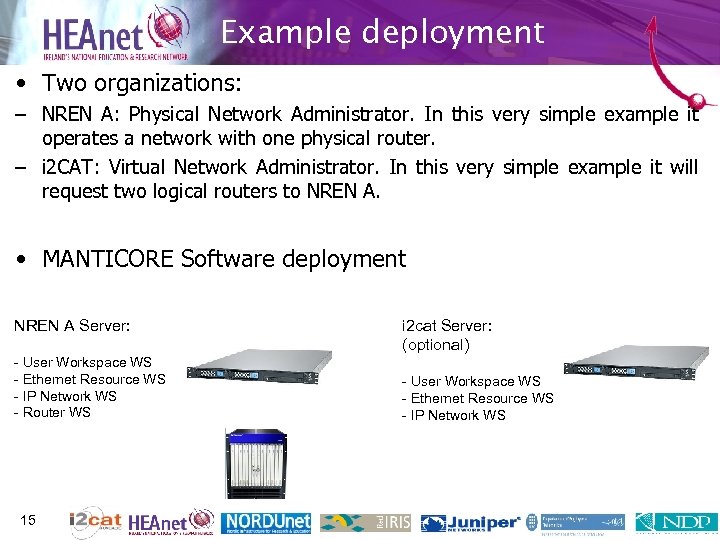

Example deployment • Two organizations: – NREN A: Physical Network Administrator. In this very Example deployment • Two organizations: – NREN A: Physical Network Administrator. In this very simple example it operates a network with one physical router. – i 2 CAT: Virtual Network Administrator. In this very simple example it will request two logical routers to NREN A. • MANTICORE Software deployment NREN A Server: - User Workspace WS - Ethernet Resource WS - IP Network WS - Router WS 15 i 2 cat Server: (optional) - User Workspace WS - Ethernet Resource WS - IP Network WS

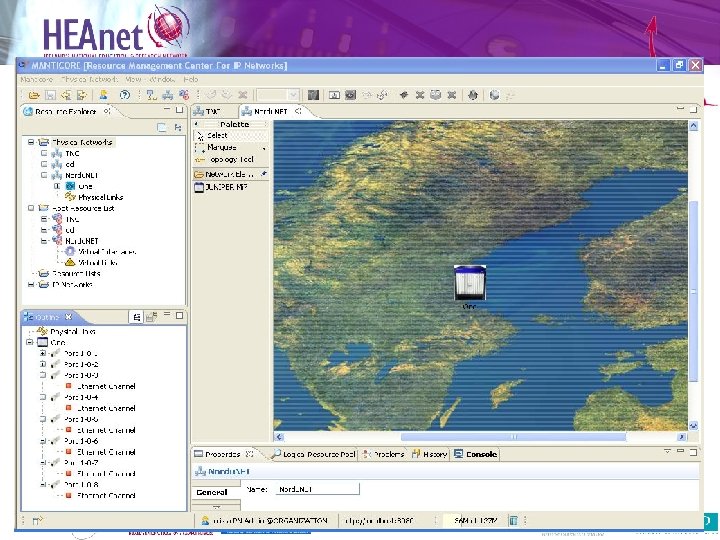

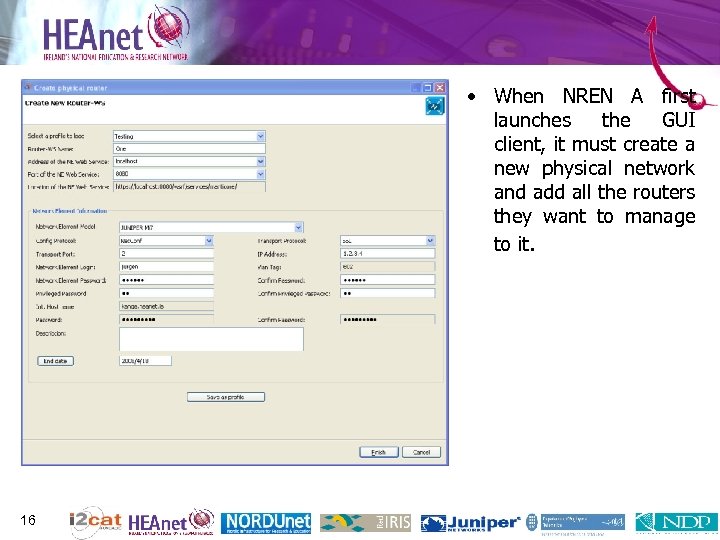

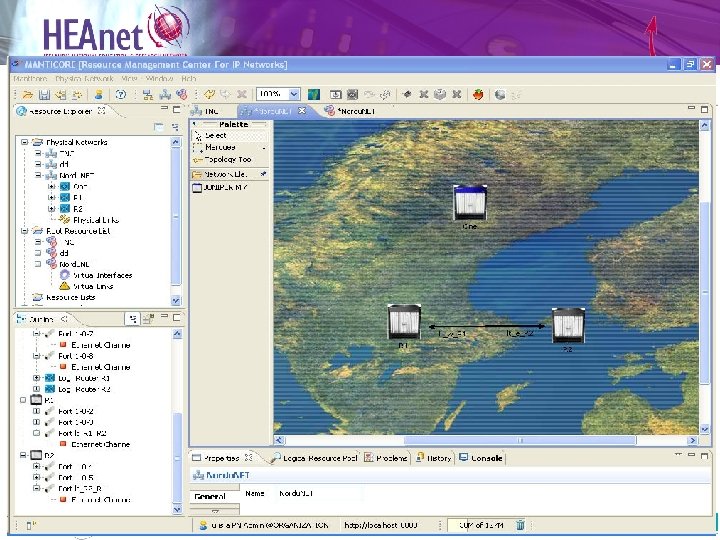

 • When NREN A first launches the GUI client, it must create a • When NREN A first launches the GUI client, it must create a new physical network and add all the routers they want to manage to it. 16

 • Create logical interfaces • Create logical routers • Assign i/fs to routers • Create logical interfaces • Create logical routers • Assign i/fs to routers • Create tunnel between the logical routers 18

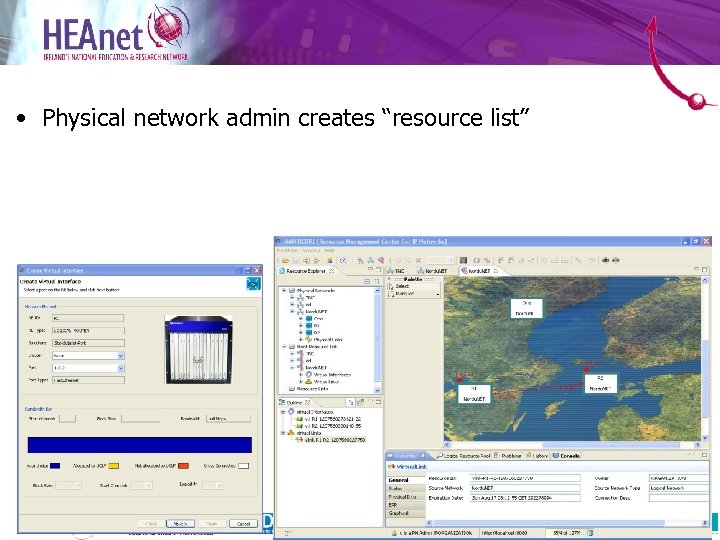

 • Physical network admin creates “resource list” 20 • Physical network admin creates “resource list” 20

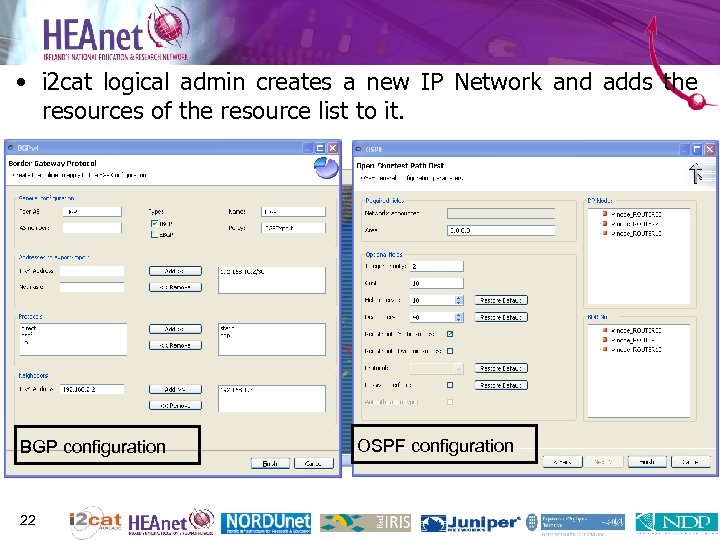

 • i 2 cat logical admin creates a new IP Network and adds • i 2 cat logical admin creates a new IP Network and adds the resources of the resource list to it. • Now he can configure the IP parameters of the interfaces, configure IGPs, configure the peering, . . . BGP configuration 22 OSPF configuration

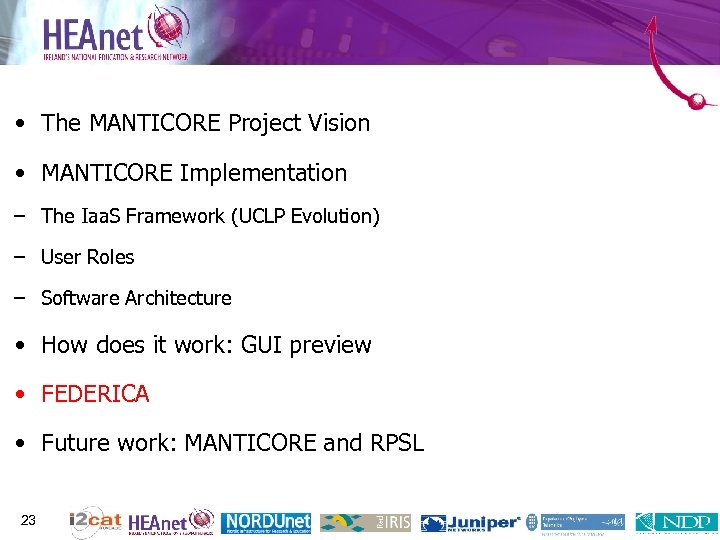

 • The MANTICORE Project Vision • MANTICORE Implementation – The Iaa. S Framework • The MANTICORE Project Vision • MANTICORE Implementation – The Iaa. S Framework (UCLP Evolution) – User Roles – Software Architecture • How does it work: GUI preview • FEDERICA • Future work: MANTICORE and RPSL 23

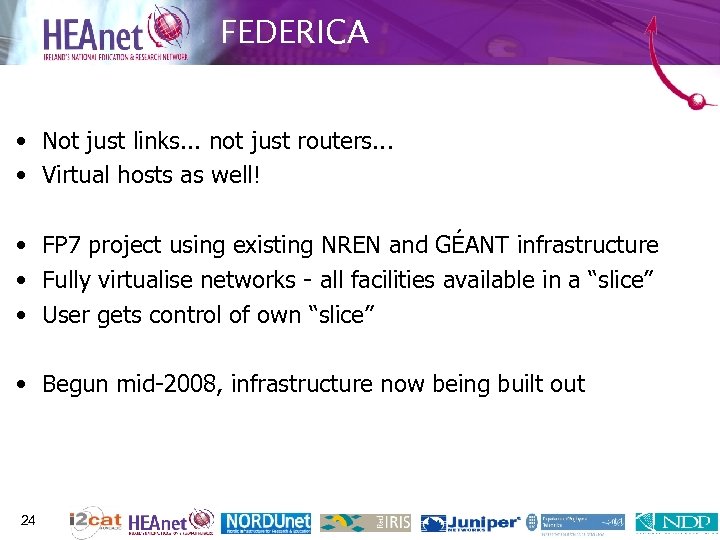

FEDERICA • Not just links. . . not just routers. . . • Virtual FEDERICA • Not just links. . . not just routers. . . • Virtual hosts as well! • FP 7 project using existing NREN and GÉANT infrastructure • Fully virtualise networks - all facilities available in a “slice” • User gets control of own “slice” • Begun mid-2008, infrastructure now being built out 24

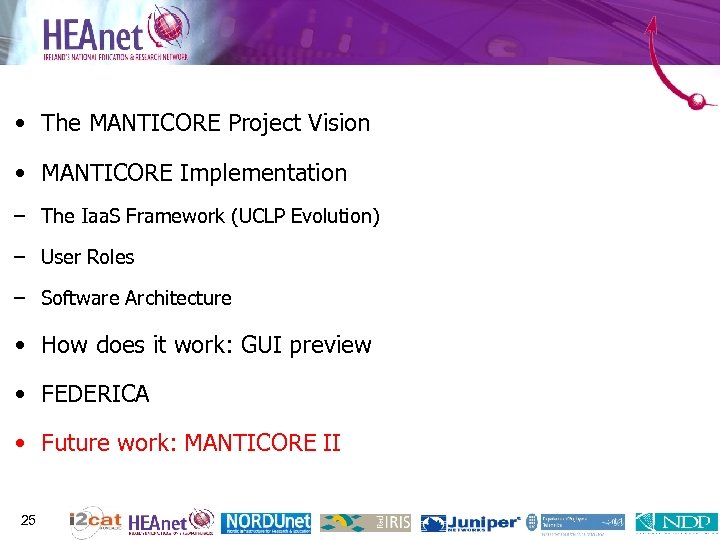

 • The MANTICORE Project Vision • MANTICORE Implementation – The Iaa. S Framework • The MANTICORE Project Vision • MANTICORE Implementation – The Iaa. S Framework (UCLP Evolution) – User Roles – Software Architecture • How does it work: GUI preview • FEDERICA • Future work: MANTICORE II 25

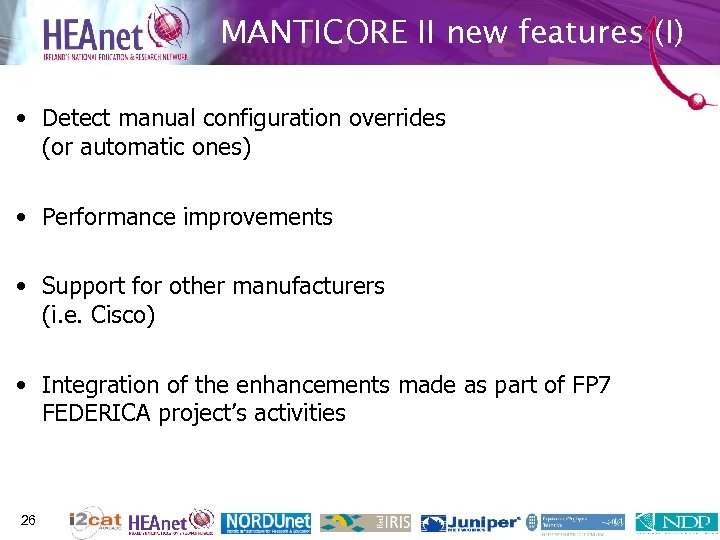

MANTICORE II new features (I) • Detect manual configuration overrides (or automatic ones) • MANTICORE II new features (I) • Detect manual configuration overrides (or automatic ones) • Performance improvements • Support for other manufacturers (i. e. Cisco) • Integration of the enhancements made as part of FP 7 FEDERICA project’s activities 26

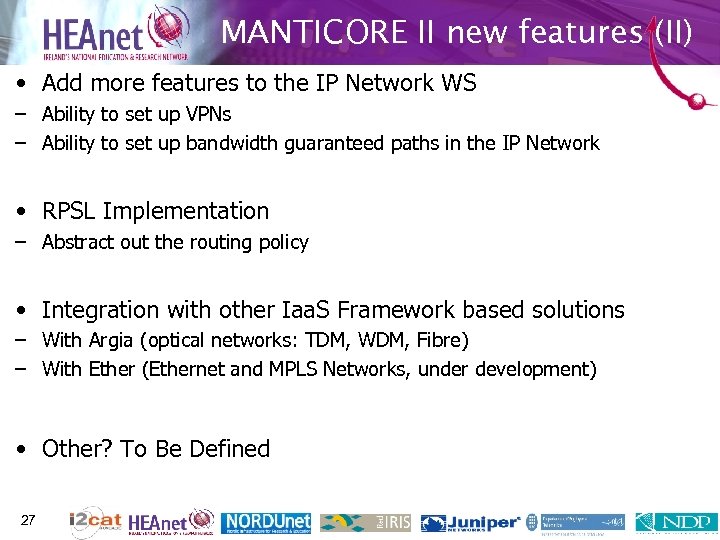

MANTICORE II new features (II) • Add more features to the IP Network WS MANTICORE II new features (II) • Add more features to the IP Network WS – Ability to set up VPNs – Ability to set up bandwidth guaranteed paths in the IP Network • RPSL Implementation – Abstract out the routing policy • Integration with other Iaa. S Framework based solutions – With Argia (optical networks: TDM, WDM, Fibre) – With Ether (Ethernet and MPLS Networks, under development) • Other? To Be Defined 27

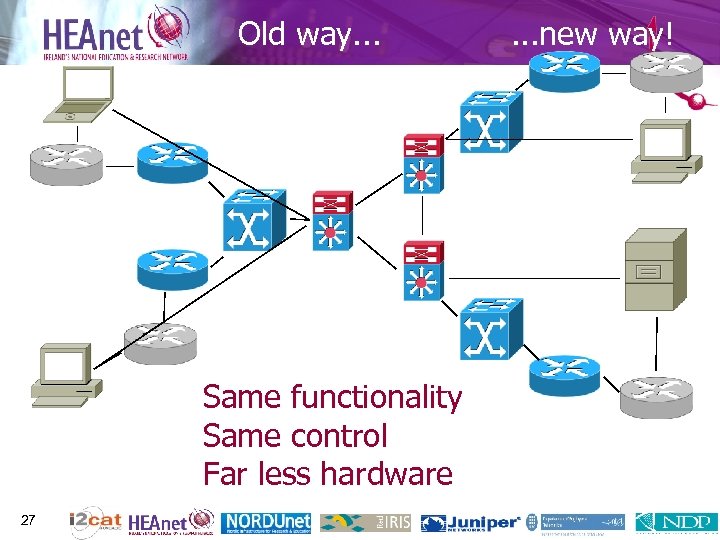

Old way. . . Same functionality Same control Far less hardware 27 . . Old way. . . Same functionality Same control Far less hardware 27 . . . new way!

Thank you! Questions? Thank you! Questions?
