HB Mc. Clure How to save $$ on your home energy bills… a common HB Mc. Clure How to save $$ on your home energy bills… a common sense approach

HB Mc. Clure Trust, Value, Comfort…since 1914 Recognized regional leader in providing comfortable and HB Mc. Clure Trust, Value, Comfort…since 1914 Recognized regional leader in providing comfortable and efficient HVAC systems Long time provider of home heating oil Fully staffed with service personnel for plumbing, heating, A/C, and electrical needs Home energy consultants

BEING GREEN CAN SAVE YOU SOME GREEN BEING GREEN CAN SAVE YOU SOME GREEN

Energy Use in the Home Energy Use in the Home

Lighting and Other Appliances 33% of a home’s energy use Lighting and Other Appliances 33% of a home’s energy use

Formula for Estimating Energy Consumption This formula can estimate an appliance's energy use: (Wattage Formula for Estimating Energy Consumption This formula can estimate an appliance's energy use: (Wattage × Hours Used Per Day ÷ 1000 = Daily Kilowatt-hour (k. Wh) consumption (1 kilowatt (k. W) = 1, 000 Watts)

Typical Wattages of Various Appliances Aquarium = 50– 1210 Watts Clock radio = 10 Typical Wattages of Various Appliances Aquarium = 50– 1210 Watts Clock radio = 10 Coffee maker = 900– 1200 Clothes washer = 350– 500 Clothes dryer = 1800– 5000 Dishwasher = 1200– 2400 Dehumidifier = 785 Fans Ceiling = 65– 175 Window = 55– 250 Furnace = 750 Whole house = 240– 750 Hair dryer = 1200– 1875

Continued… Clothes iron = 1000– 1800 Microwave oven = 750– 1100 Personal computer CPU Continued… Clothes iron = 1000– 1800 Microwave oven = 750– 1100 Personal computer CPU - awake / asleep = 120 / 30 or less Monitor - awake / asleep = 150 / 30 or less Laptop = 50 Refrigerator (frost-free, 16 cubic feet) = 725 Televisions (color) 19" = 65– 110 27" = 113 36" = 133 53"-61" Projection = 170 Flat screen = 120

Continued… Toaster = 800– 1400 Toaster oven = 1225 VCR/DVD = 17– 21 / Continued… Toaster = 800– 1400 Toaster oven = 1225 VCR/DVD = 17– 21 / 20– 25 Vacuum cleaner = 1000– 1440 Water heater (50 gallon) = 4500– 5500 Water bed (with heater, no cover) = 120– 380 Watts/hr meter. Phantom users- TVs, VCRs Cable boxes, PCs, Video games

Coffee pot example Consumes Run time Daily use Electric rate x 1200 watts 2 Coffee pot example Consumes Run time Daily use Electric rate x 1200 watts 2 hrs 2. 4 KWH x $0. 12/kwh $0. 288/day x 365 = $105. 12/year

Laundry Wash with cold water whenever possible. Wash and dry full loads to maximize Laundry Wash with cold water whenever possible. Wash and dry full loads to maximize efficiency. Don't overload dryers. Use suds savers and front-loading washers for maximum efficiency. Always adjust the water level to fit load size. Clean the lint filter after each dryer cycle. Regularly clean dryer vent.

Cooking Use your oven instead of your cook top to cut cooking costs. Don't Cooking Use your oven instead of your cook top to cut cooking costs. Don't peek. Cooking temperatures can drop 50º every time the oven door is opened. Use the oven's self-cleaning cycle only for big cleaning jobs. Use small appliances such as crock pots, electric frying pans, toaster ovens, and microwave ovens

Lighting Fluorescent bulbs use 1/4 the energy of traditional incandescent bulbs and last six Lighting Fluorescent bulbs use 1/4 the energy of traditional incandescent bulbs and last six times longer. Putting a lamp in the corner gives off more light than the center of a room.

Consumer Choices First Cost vs. Life Cycle Costs Incandescent Compact Fluorescent First Cost = Consumer Choices First Cost vs. Life Cycle Costs Incandescent Compact Fluorescent First Cost = $1 First Cost = $5 Energy Costs/yr = $20 Energy Costs/yr = $5 Life Cycle Cost (10 years) =$210 Life Cycle Cost (10 years) = $55

If every American home changed 5 lights… • Each home would save $60/year • If every American home changed 5 lights… • Each home would save $60/year • U. S. would save $6 billion/year • U. S. would save one trillion pounds of greenhouse gases • ≈ emissions of 8 million cars • ≈ output of 21 power plants

Refrigeration 9% of home energy use Test the tightness of the door seal on Refrigeration 9% of home energy use Test the tightness of the door seal on refrigerators and freezers. Replace old refrigerators. Set refrigerators at 40º F. and freezers at 0º F. Spare refrigerators or freezers cost $100 to $200/yr to operate Allow food to cool before refrigerating Vacuum coils twice per year

If you need a new appliance If you need a new appliance

Water Heating 14% of home energy use Insulate water pipes. can save you up Water Heating 14% of home energy use Insulate water pipes. can save you up to $25 annually. Set the water temperature no higher than 120° F. Repair dripping faucets promptly. (15 drops a minute can waste up to 48 gallons a month. ) Install water saving devices Install a water softener Water Heater Jackets can save you up to 4 -9%

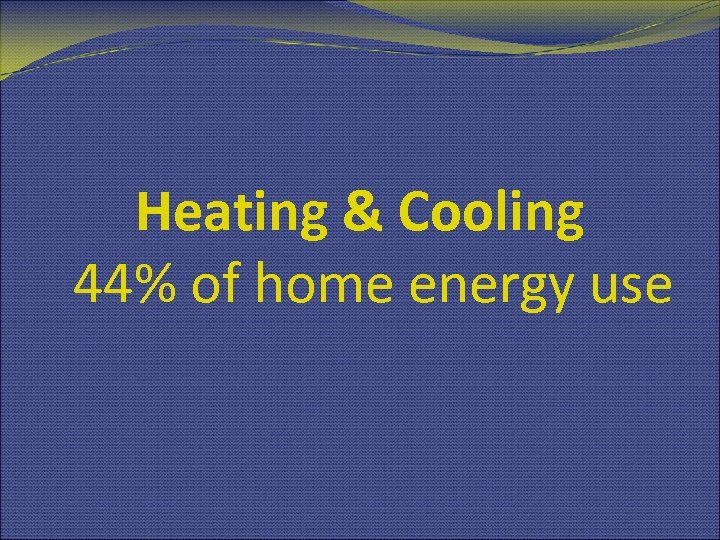

Heating & Cooling 44% of home energy use Heating & Cooling 44% of home energy use

Programmable Thermostats Set back 3 to 7 degrees and save up to 8% or Programmable Thermostats Set back 3 to 7 degrees and save up to 8% or more!

Clean/Replace Air Filter For healthy indoor air Keep dirt off blower, coils and heat Clean/Replace Air Filter For healthy indoor air Keep dirt off blower, coils and heat exchanger Increased performance Save up to 10%

Clear your outdoor unit Trim back foliage 1’ to 2’ Avoid blowing grass clippings Clear your outdoor unit Trim back foliage 1’ to 2’ Avoid blowing grass clippings in to unit Spray clean with hose Increase performance up to 8%

Ventilate your attic Un-vented attics can reach 140 degrees or more Increases cooling load Ventilate your attic Un-vented attics can reach 140 degrees or more Increases cooling load of home Causes your system to work harder

Boiler owners should consider outdoor reset controls On a zero degree day you may Boiler owners should consider outdoor reset controls On a zero degree day you may need 190 degree water Do you need 190 degree water on a 30 degree day? -NO! Feature is included in some new boilers

Tankless coils in boilers Up to 20% savings & increased capacity if … you Tankless coils in boilers Up to 20% savings & increased capacity if … you switch to an indirect water heater

Tighten your thermal envelope Air-sealing your home Ø Outlet gaskets Ø Weather stripping Ø Tighten your thermal envelope Air-sealing your home Ø Outlet gaskets Ø Weather stripping Ø Caulking

Add Insulation Add Insulation

Seal Ductwork Air leaks can waste 15% or more energy Seal Ductwork Air leaks can waste 15% or more energy

How do I Know Where To Start? How do I Know Where To Start?

Shop Your Electric Provider You have a wide range of choices for the “generation” Shop Your Electric Provider You have a wide range of choices for the “generation” portion of your bill. Your current monopoly provider still will handle the billing and servicing the lines that feed your home. We offer a choice on our website: www. hbmcclure. com

Common sense visual inspection Check for drafts and cold spots Window & door weather Common sense visual inspection Check for drafts and cold spots Window & door weather stripping Attic and crawlspace access points Fireplace flue dampers Pipe and wire entry points

Snow—the “poor man’s infrared” Snow—the “poor man’s infrared”

SEEK Professional Help SEEK Professional Help

Annual equipment tune-ups Reduce operating costs up to 20% Extend the life of system Annual equipment tune-ups Reduce operating costs up to 20% Extend the life of system Reduce likelihood of emergency calls Keep new systems operating at peak efficiency

Home Energy Audit The energy audit is a comprehensive evaluation of how your home Home Energy Audit The energy audit is a comprehensive evaluation of how your home utilizes energy. At H. B. Mc. Clure our auditor is BPI certified and RESNET Rater trained.

Home Performance with ENERGY STAR Whole house diagnostic energy audit Bigger jobs Greater savings Home Performance with ENERGY STAR Whole house diagnostic energy audit Bigger jobs Greater savings Health & safety Green options

Energy audit vs. home energy report Audits are a comprehensive evaluation that examines your Energy audit vs. home energy report Audits are a comprehensive evaluation that examines your energy bills and projects estimated cost savings from home improvements. They can project a payback analysis on upgrades. Include a re-test. Energy reports are a “reader’s digest” version of the full audit. Less expensive but do not provide payback report.

“House As a System” A building is a collection of systems that interact with “House As a System” A building is a collection of systems that interact with each other. Insulation Vapor barrier integrity Heating and cooling equipment Duct and piping systems

Air Infiltration and Ex-filtration Air Infiltration and Ex-filtration

Identifying Air Leaks. . . Identifying Air Leaks. . .

. . . And Insulation Problems . . . And Insulation Problems

Duct Sealing Duct Sealing

Mechanical System Upgrades Maximize Federal Tax Credits up to $5 oo combined total for Mechanical System Upgrades Maximize Federal Tax Credits up to $5 oo combined total for “qualified” HVAC systems set to expire 12/31/11 30% un-capped for total system costs for solar and geothermal until 12/31/16 State Solar Rebates- up to $2, 000 for most systems Utility Rebates (PPL & First Energy)- while funding lasts Up to $300 for Air Conditioning Up to $400 for air-source Heat Pumps $300 for Heat Pump Water Heaters $217/ton for Geothermal $50 for programmable thermostat

Apricus Solar Thermal System Lower water heating costs up to 60% Vacuum tubes passively Apricus Solar Thermal System Lower water heating costs up to 60% Vacuum tubes passively track the sun Qualifies for Federal Tax Credit and State Rebate

Solar PV systems Solar PV systems

Solar PV Systems 30% federal tax credit on installed cost PA Sunshine grants (while Solar PV Systems 30% federal tax credit on installed cost PA Sunshine grants (while funding lasts) Currently @ $0. 75/watt REC (renewable energy credits) annually Currently +/- $350/Kw

Geothermal Heat Pumps Geothermal Heat Pumps

 Efficient Heating & Cooling Extremely Quiet Helps w/ Domestic Water Heating Federal Tax Efficient Heating & Cooling Extremely Quiet Helps w/ Domestic Water Heating Federal Tax Credits and Utility Rebates Apply Experienced- We’ve installed thousands of earth-coupled systems since 1974

Conventional HVAC Systems Cooling SEER up to 20. 2 Heat Pump HSPF up to Conventional HVAC Systems Cooling SEER up to 20. 2 Heat Pump HSPF up to 9. 3 Gas Furnace AFUE up to 98% Dual Fuel Heat Pumps Multi-stage equipment Variable-speed ECM fans Zone controls Programmable Thermostats

Fossil Fuel Boilers Gas Boiler AFUE up to 95. 85% Oil Boiler AFUE up Fossil Fuel Boilers Gas Boiler AFUE up to 95. 85% Oil Boiler AFUE up to 87% Indirect Water Heating Outdoor Reset Controls

Conclusions Little things can add up Many improvements you can do yourself Incremental approach Conclusions Little things can add up Many improvements you can do yourself Incremental approach may be best Be aware of Federal, State and Utility Programs (and when they expire)

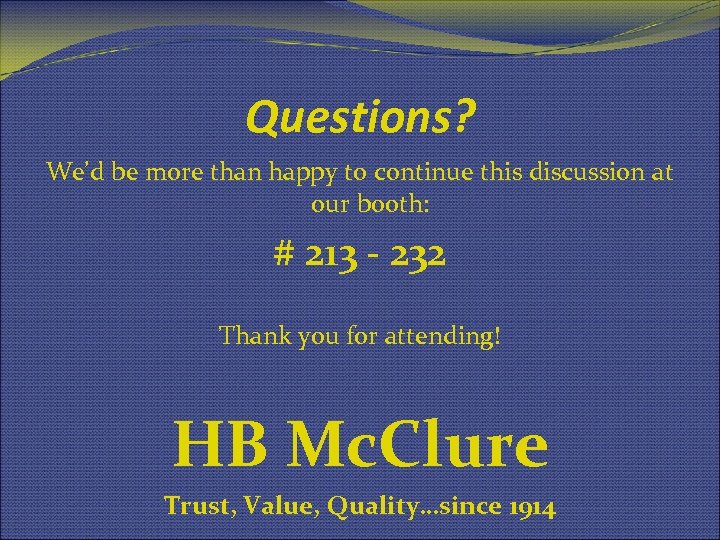

Questions? We’d be more than happy to continue this discussion at our booth: # Questions? We’d be more than happy to continue this discussion at our booth: # 213 - 232 Thank you for attending! HB Mc. Clure Trust, Value, Quality…since 1914
