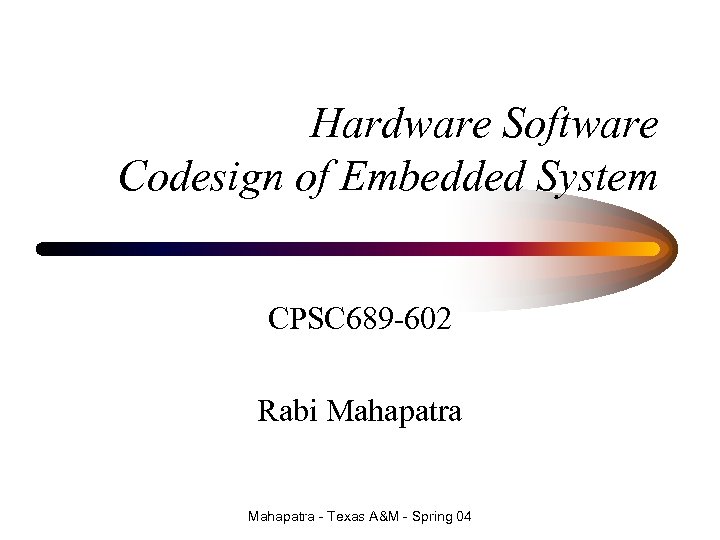

Hardware Software Codesign of Embedded System CPSC 689 -602 Rabi Mahapatra - Texas A&M - Spring 04

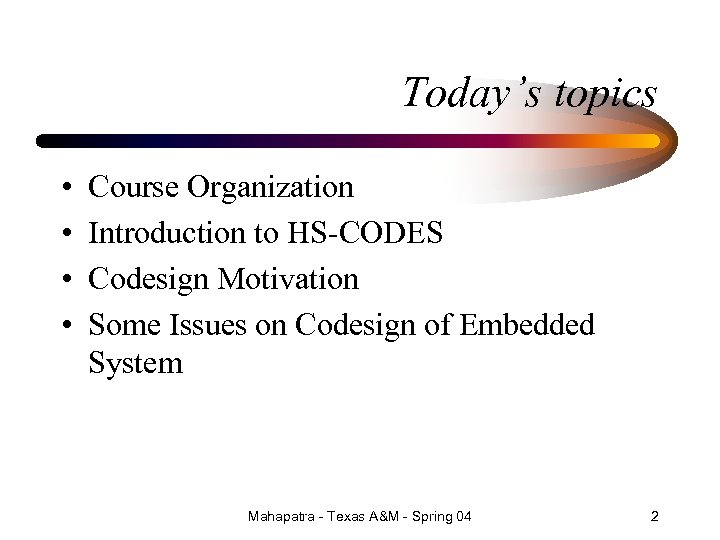

Today’s topics • • Course Organization Introduction to HS-CODES Codesign Motivation Some Issues on Codesign of Embedded System Mahapatra - Texas A&M - Spring 04 2

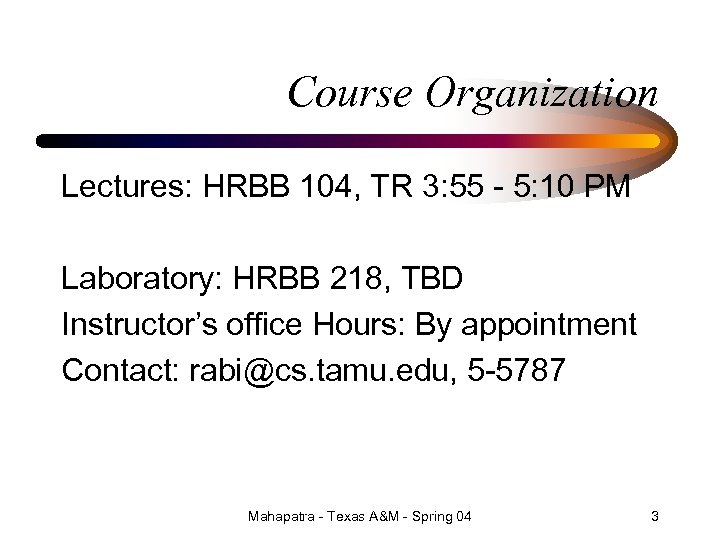

Course Organization Lectures: HRBB 104, TR 3: 55 - 5: 10 PM Laboratory: HRBB 218, TBD Instructor’s office Hours: By appointment Contact: rabi@cs. tamu. edu, 5 -5787 Mahapatra - Texas A&M - Spring 04 3

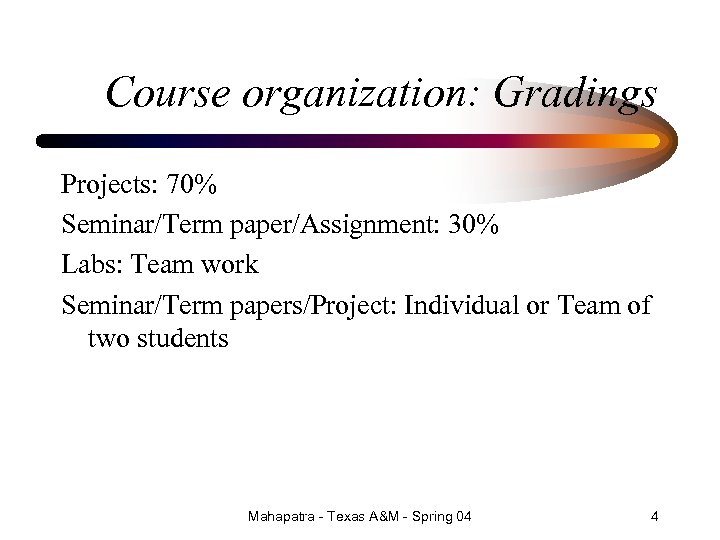

Course organization: Gradings Projects: 70% Seminar/Term paper/Assignment: 30% Labs: Team work Seminar/Term papers/Project: Individual or Team of two students Mahapatra - Texas A&M - Spring 04 4

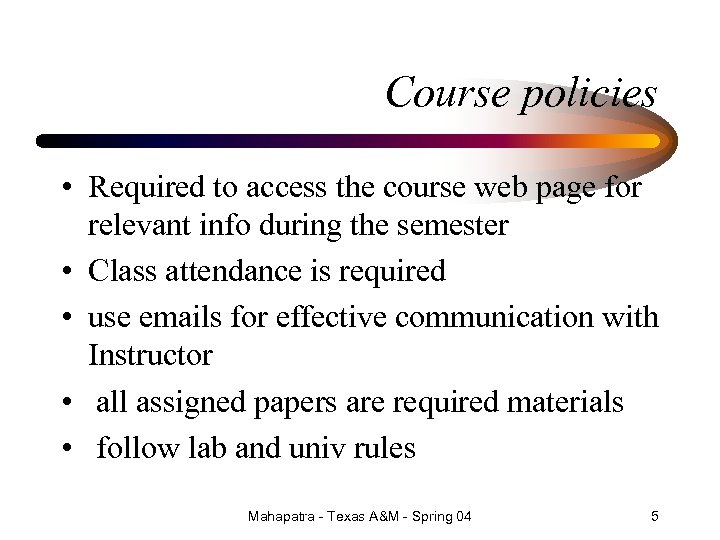

Course policies • Required to access the course web page for relevant info during the semester • Class attendance is required • use emails for effective communication with Instructor • all assigned papers are required materials • follow lab and univ rules Mahapatra - Texas A&M - Spring 04 5

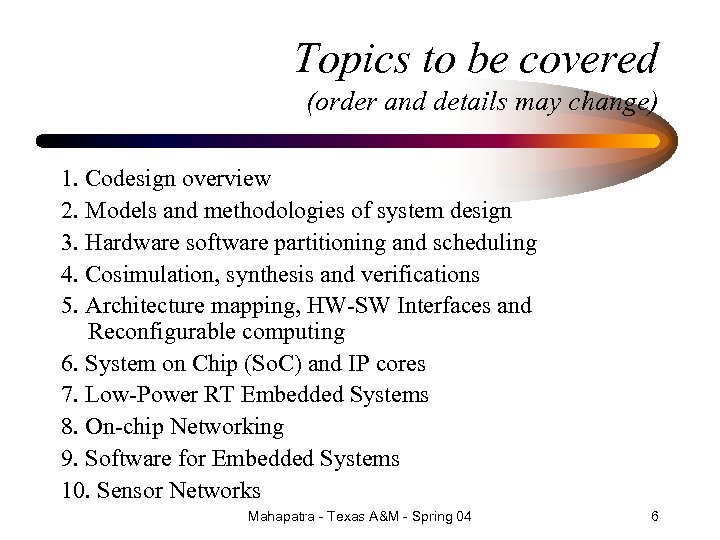

Topics to be covered (order and details may change) 1. Codesign overview 2. Models and methodologies of system design 3. Hardware software partitioning and scheduling 4. Cosimulation, synthesis and verifications 5. Architecture mapping, HW-SW Interfaces and Reconfigurable computing 6. System on Chip (So. C) and IP cores 7. Low-Power RT Embedded Systems 8. On-chip Networking 9. Software for Embedded Systems 10. Sensor Networks Mahapatra - Texas A&M - Spring 04 6
Laboratory Activites • Synopsys’s Design Environment – Cocentric Tools for the class – use of System. C • FPGA based design – use of Xilinx’s design environment and devices (VHDL / Verilog) • Can use Lab for project work • Embedded Systems: Power. PC, Strong. ARM and Motorola’s Cold. Fire • Low-Power measurement setup using Lab. View tools • Use of tools and language based on choice of projects Mahapatra - Texas A&M - Spring 04 7

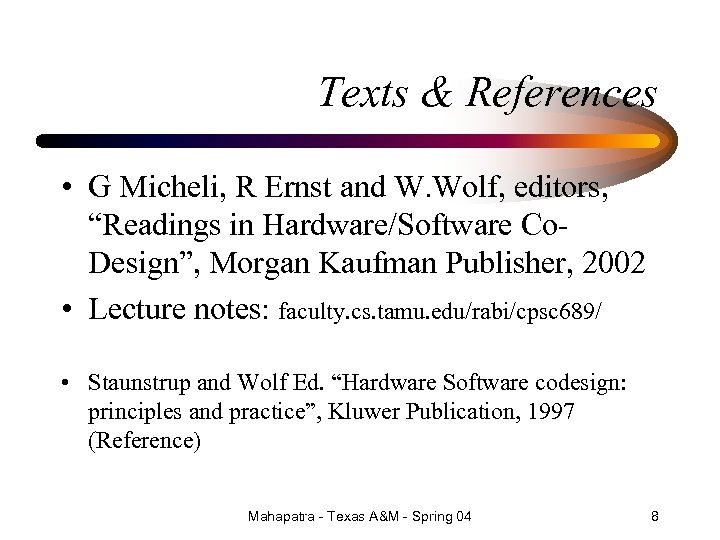

Texts & References • G Micheli, R Ernst and W. Wolf, editors, “Readings in Hardware/Software Co. Design”, Morgan Kaufman Publisher, 2002 • Lecture notes: faculty. cs. tamu. edu/rabi/cpsc 689/ • Staunstrup and Wolf Ed. “Hardware Software codesign: principles and practice”, Kluwer Publication, 1997 (Reference) Mahapatra - Texas A&M - Spring 04 8

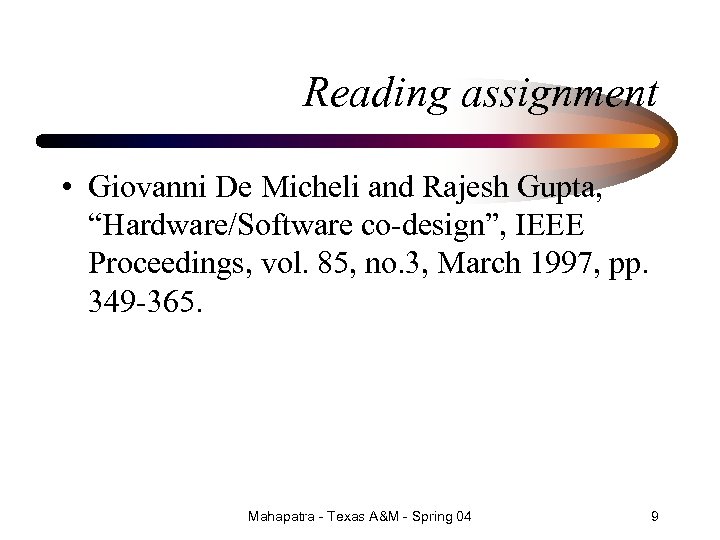

Reading assignment • Giovanni De Micheli and Rajesh Gupta, “Hardware/Software co-design”, IEEE Proceedings, vol. 85, no. 3, March 1997, pp. 349 -365. Mahapatra - Texas A&M - Spring 04 9

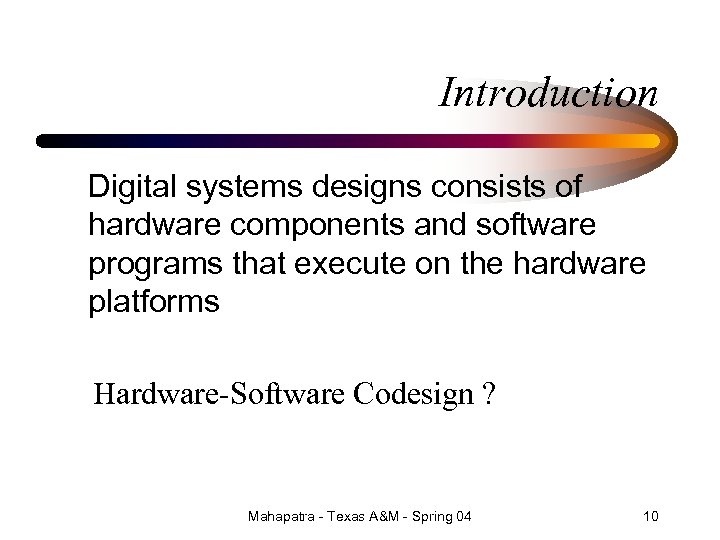

Introduction Digital systems designs consists of hardware components and software programs that execute on the hardware platforms Hardware-Software Codesign ? Mahapatra - Texas A&M - Spring 04 10

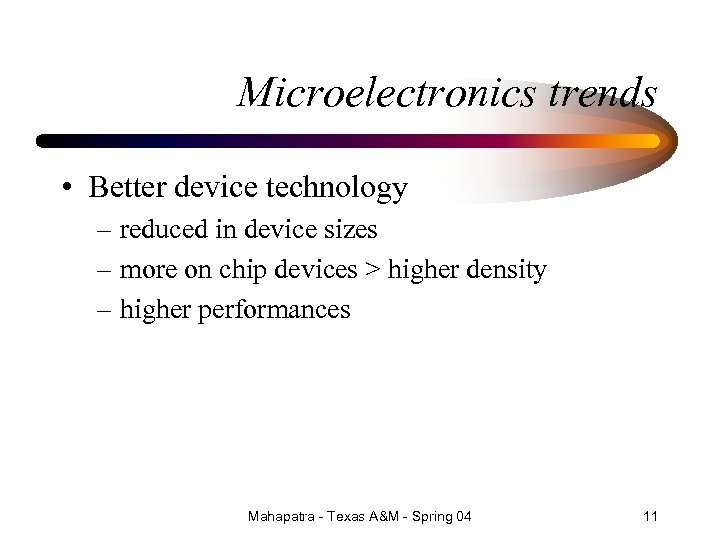

Microelectronics trends • Better device technology – reduced in device sizes – more on chip devices > higher density – higher performances Mahapatra - Texas A&M - Spring 04 11
Microelectronics trends • Higher degree of integration – increased device reliability – inclusion of complex designs Mahapatra - Texas A&M - Spring 04 12

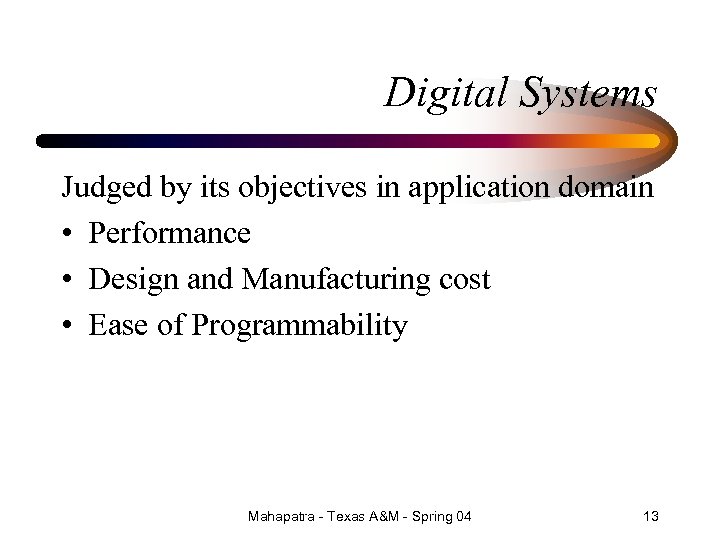

Digital Systems Judged by its objectives in application domain • Performance • Design and Manufacturing cost • Ease of Programmability Mahapatra - Texas A&M - Spring 04 13

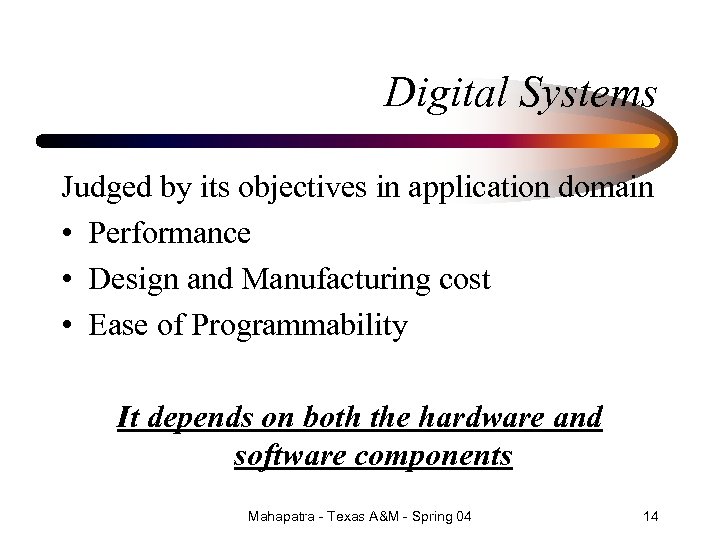

Digital Systems Judged by its objectives in application domain • Performance • Design and Manufacturing cost • Ease of Programmability It depends on both the hardware and software components Mahapatra - Texas A&M - Spring 04 14

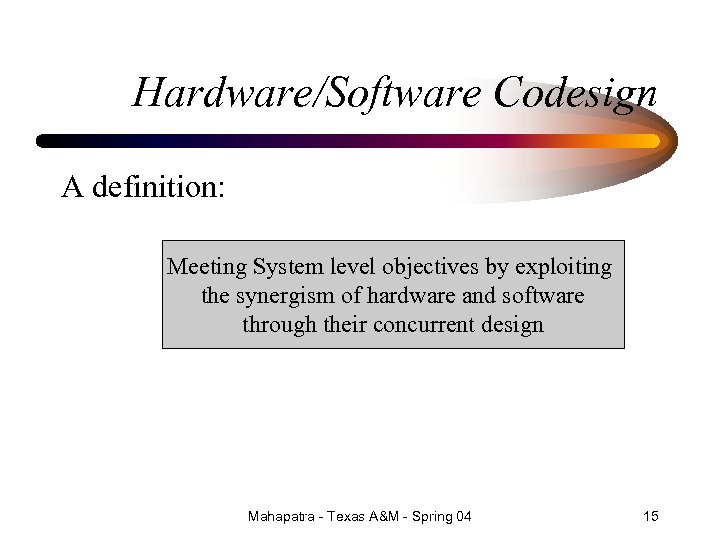

Hardware/Software Codesign A definition: Meeting System level objectives by exploiting the synergism of hardware and software through their concurrent design Mahapatra - Texas A&M - Spring 04 15
Concurrent design Traditional design flow start Concurrent (codesign) flow start HW SW HW Designed by independent groups of experts SW Designed by Same group of experts with cooperation Mahapatra - Texas A&M - Spring 04 16

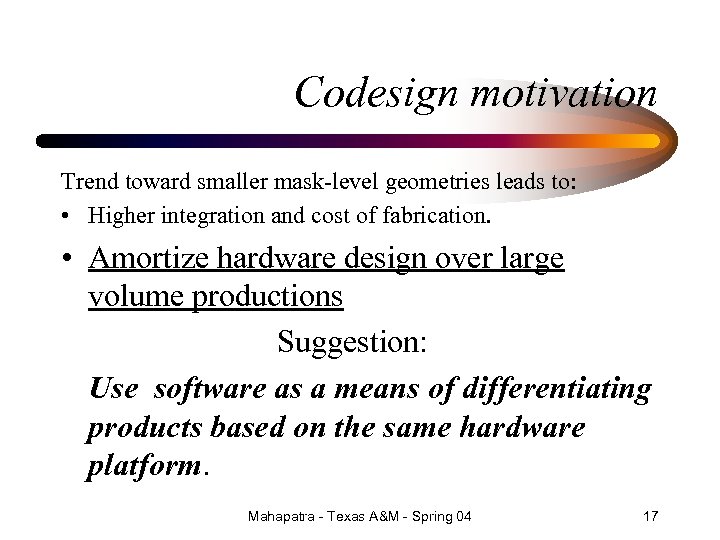

Codesign motivation Trend toward smaller mask-level geometries leads to: • Higher integration and cost of fabrication. • Amortize hardware design over large volume productions Suggestion: Use software as a means of differentiating products based on the same hardware platform. Mahapatra - Texas A&M - Spring 04 17

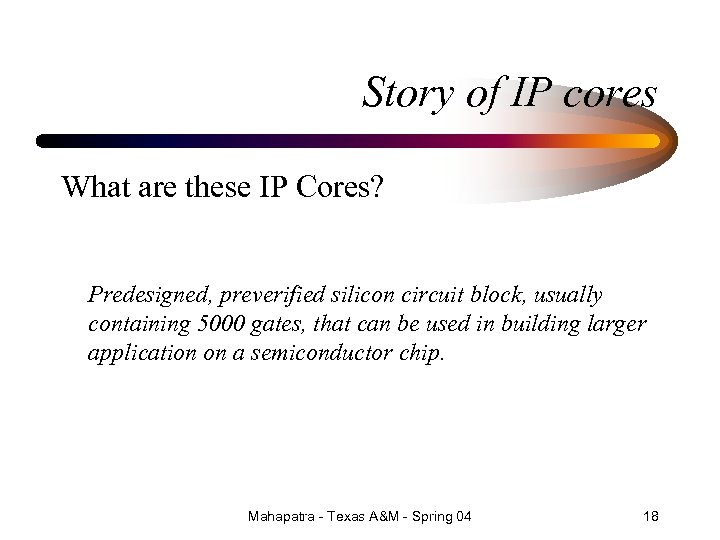

Story of IP cores What are these IP Cores? Predesigned, preverified silicon circuit block, usually containing 5000 gates, that can be used in building larger application on a semiconductor chip. Mahapatra - Texas A&M - Spring 04 18

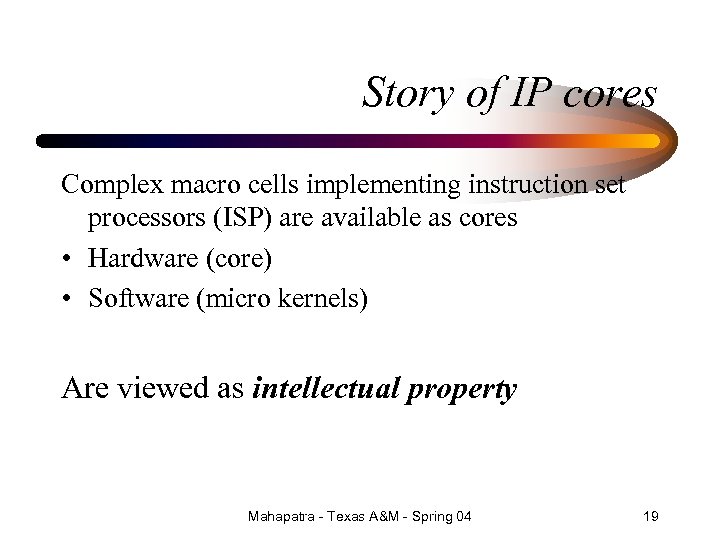

Story of IP cores Complex macro cells implementing instruction set processors (ISP) are available as cores • Hardware (core) • Software (micro kernels) Are viewed as intellectual property Mahapatra - Texas A&M - Spring 04 19
IP core reuse • Cores are standardized for reuse as system building blocks Rationale: leveraging the existing software layers including OS and applications in ES Results: 1. Customized VLSI chip with better area/ performance/ power trade-offs 2. Systems on Silicon Mahapatra - Texas A&M - Spring 04 20
Hardware Programmability Traditionally • Hardware used to be configured at the time of manufacturing • Software is variant at run time The Field Programmable Gate Arrays (FPGA) has blurred this distinction. Mahapatra - Texas A&M - Spring 04 21

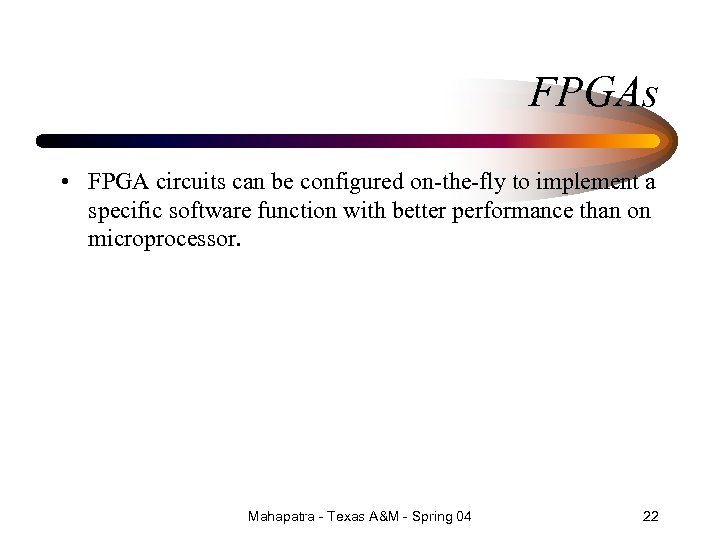

FPGAs • FPGA circuits can be configured on-the-fly to implement a specific software function with better performance than on microprocessor. Mahapatra - Texas A&M - Spring 04 22
FPGAs • FPGA circuits can be configured on-the-fly to implement a specific software function with better performance than on microprocessor. • FPGA can be reprogrammed to perform another specific function without changing the underlying hardware. Mahapatra - Texas A&M - Spring 04 23

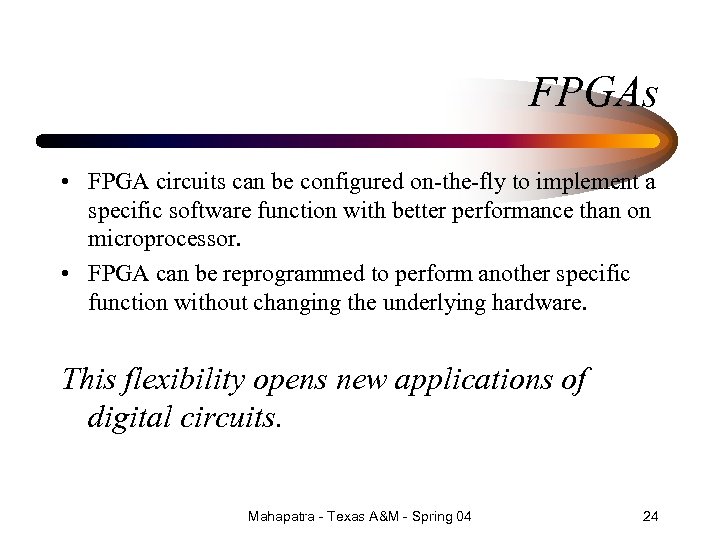

FPGAs • FPGA circuits can be configured on-the-fly to implement a specific software function with better performance than on microprocessor. • FPGA can be reprogrammed to perform another specific function without changing the underlying hardware. This flexibility opens new applications of digital circuits. Mahapatra - Texas A&M - Spring 04 24

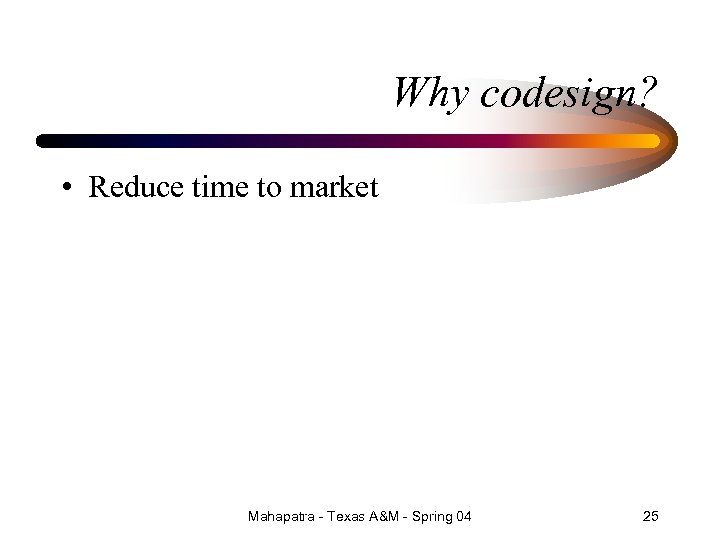

Why codesign? • Reduce time to market Mahapatra - Texas A&M - Spring 04 25

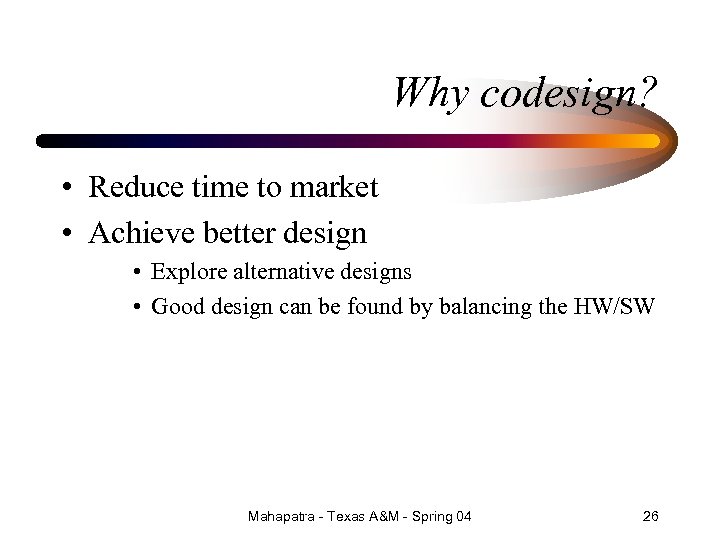

Why codesign? • Reduce time to market • Achieve better design • Explore alternative designs • Good design can be found by balancing the HW/SW Mahapatra - Texas A&M - Spring 04 26
Why codesign? • Reduce time to market • Achieve better design • Explore alternative designs • Good design can be found by balancing the HW/SW • To meet strict design constraint • power, size, timing, and performance trade-offs • safety and reliability • system on chip Mahapatra - Texas A&M - Spring 04 27
Distinguishing features of digital system • Interrelated criteria for a system design Hardware Technology Application Domain Level of Integration Degree of Programmability Mahapatra - Texas A&M - Spring 04 28

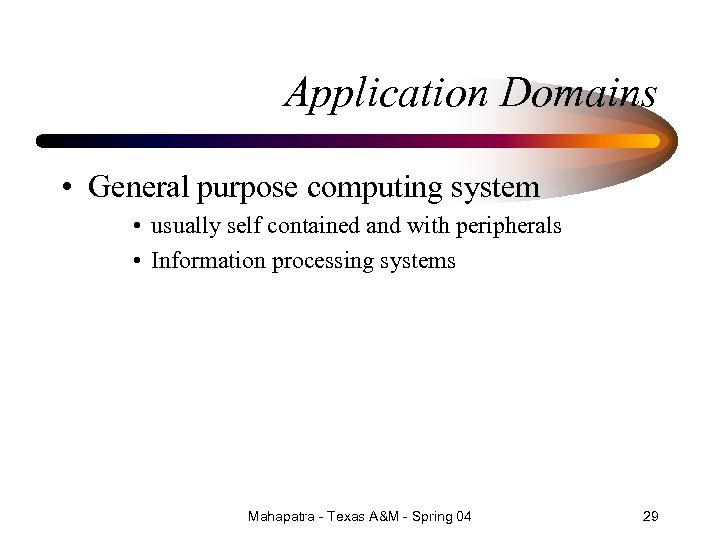

Application Domains • General purpose computing system • usually self contained and with peripherals • Information processing systems Mahapatra - Texas A&M - Spring 04 29

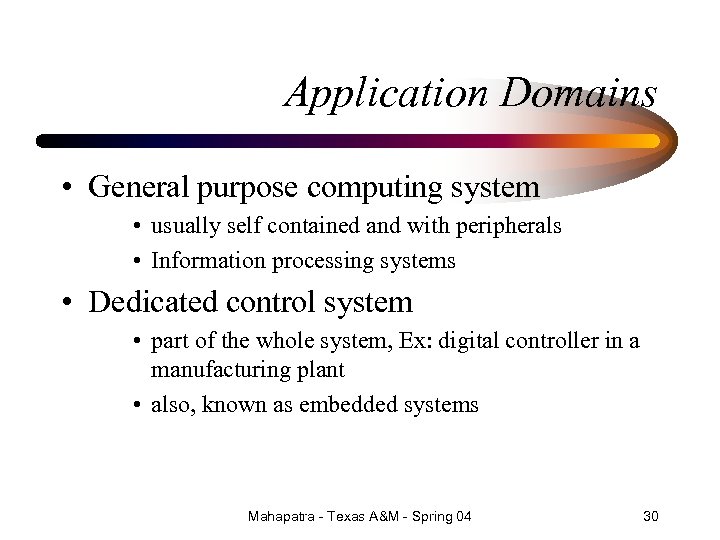

Application Domains • General purpose computing system • usually self contained and with peripherals • Information processing systems • Dedicated control system • part of the whole system, Ex: digital controller in a manufacturing plant • also, known as embedded systems Mahapatra - Texas A&M - Spring 04 30

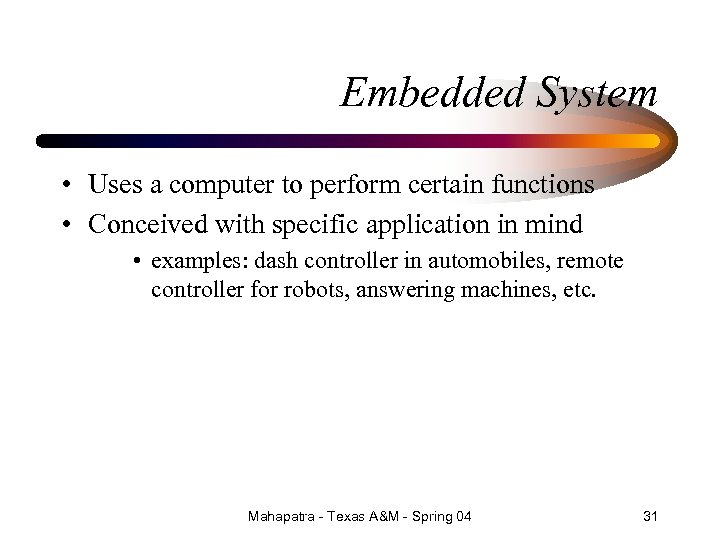

Embedded System • Uses a computer to perform certain functions • Conceived with specific application in mind • examples: dash controller in automobiles, remote controller for robots, answering machines, etc. Mahapatra - Texas A&M - Spring 04 31

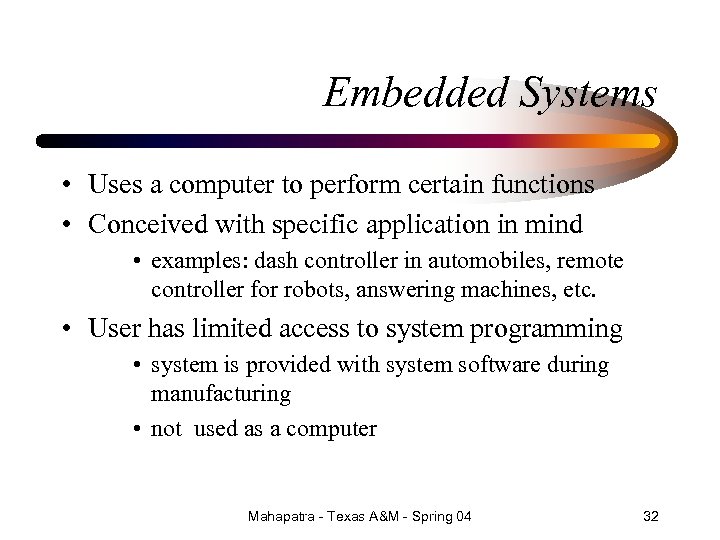

Embedded Systems • Uses a computer to perform certain functions • Conceived with specific application in mind • examples: dash controller in automobiles, remote controller for robots, answering machines, etc. • User has limited access to system programming • system is provided with system software during manufacturing • not used as a computer Mahapatra - Texas A&M - Spring 04 32

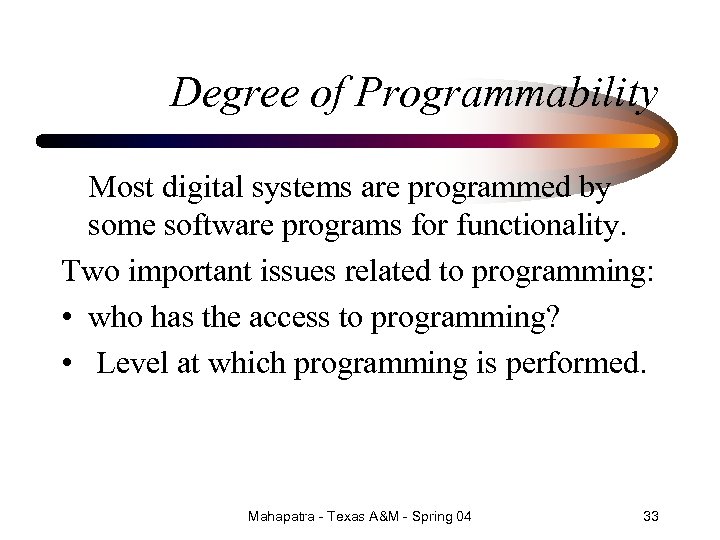

Degree of Programmability Most digital systems are programmed by some software programs for functionality. Two important issues related to programming: • who has the access to programming? • Level at which programming is performed. Mahapatra - Texas A&M - Spring 04 33

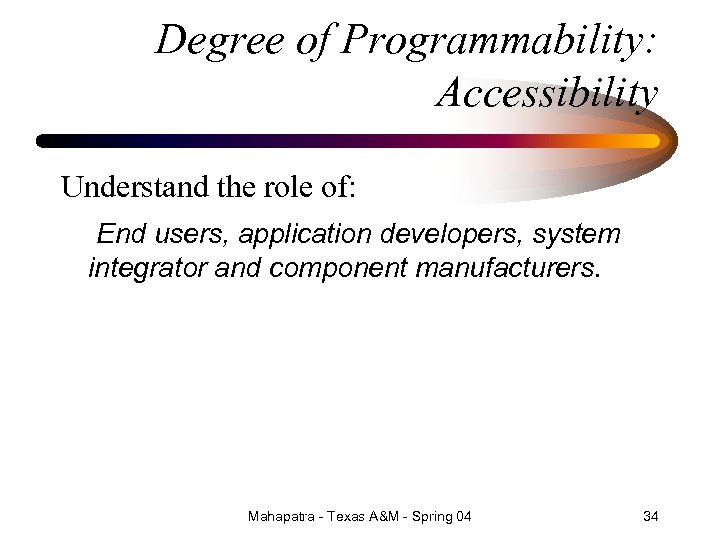

Degree of Programmability: Accessibility Understand the role of: End users, application developers, system integrator and component manufacturers. Mahapatra - Texas A&M - Spring 04 34

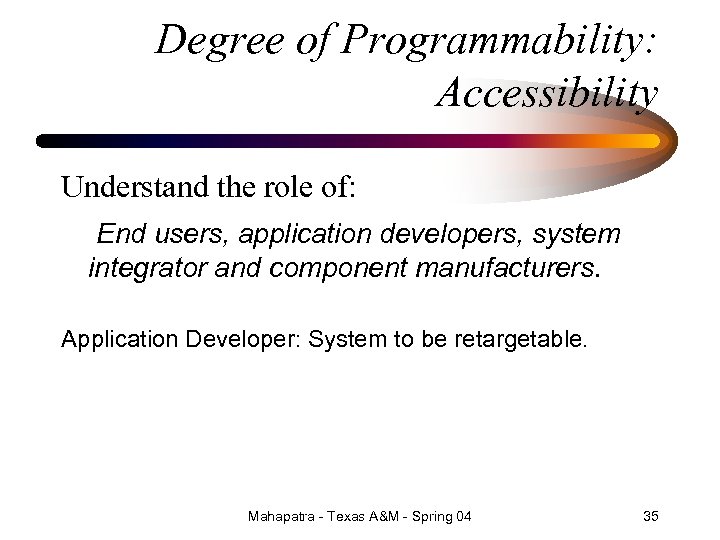

Degree of Programmability: Accessibility Understand the role of: End users, application developers, system integrator and component manufacturers. Application Developer: System to be retargetable. Mahapatra - Texas A&M - Spring 04 35

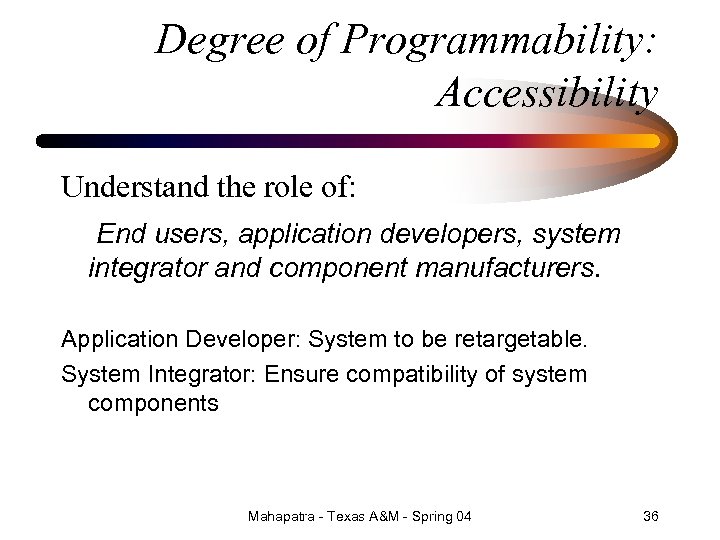

Degree of Programmability: Accessibility Understand the role of: End users, application developers, system integrator and component manufacturers. Application Developer: System to be retargetable. System Integrator: Ensure compatibility of system components Mahapatra - Texas A&M - Spring 04 36
Degree of Programmability: Accessibility Understand the role of: End users, application developers, system integrator and component manufacturers. Application Developer: System to be retargetable. System Integrator: Ensure compatibility of system components Component Manufactures: Concerned with maximizing product reuse Mahapatra - Texas A&M - Spring 04 37

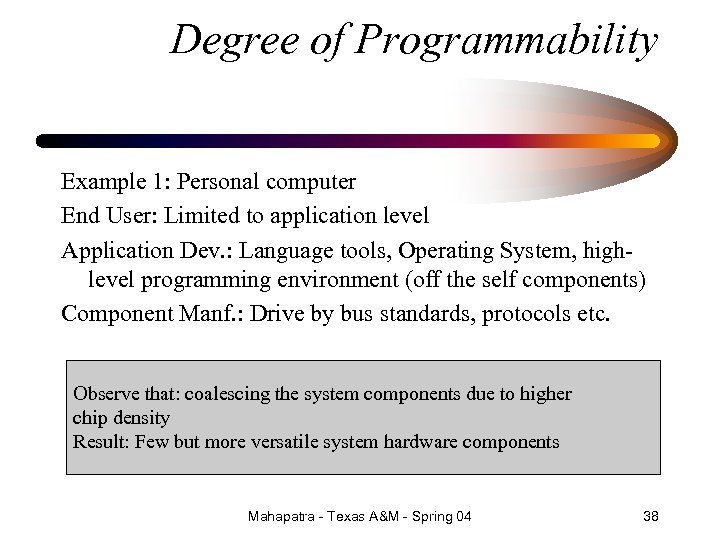

Degree of Programmability Example 1: Personal computer End User: Limited to application level Application Dev. : Language tools, Operating System, highlevel programming environment (off the self components) Component Manf. : Drive by bus standards, protocols etc. Observe that: coalescing the system components due to higher chip density Result: Few but more versatile system hardware components Mahapatra - Texas A&M - Spring 04 38

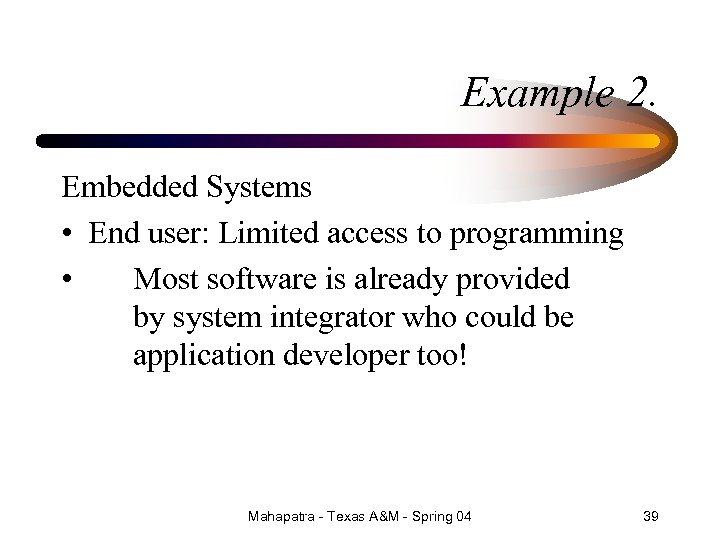

Example 2. Embedded Systems • End user: Limited access to programming • Most software is already provided by system integrator who could be application developer too! Mahapatra - Texas A&M - Spring 04 39

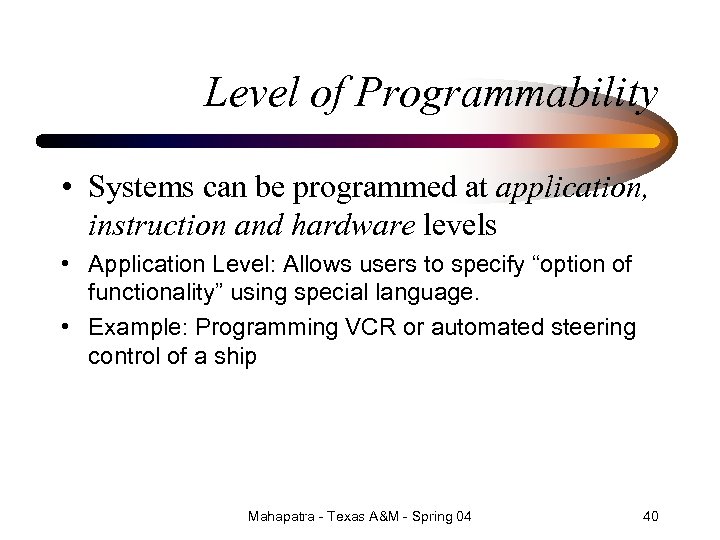

Level of Programmability • Systems can be programmed at application, instruction and hardware levels • Application Level: Allows users to specify “option of functionality” using special language. • Example: Programming VCR or automated steering control of a ship Mahapatra - Texas A&M - Spring 04 40

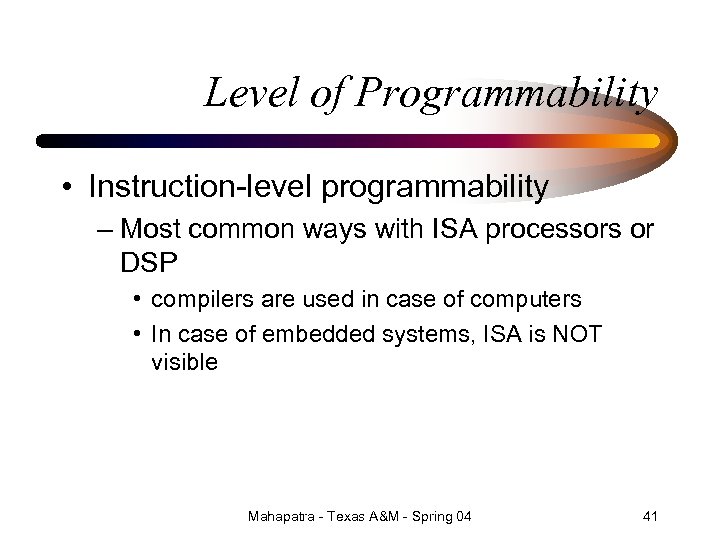

Level of Programmability • Instruction-level programmability – Most common ways with ISA processors or DSP • compilers are used in case of computers • In case of embedded systems, ISA is NOT visible Mahapatra - Texas A&M - Spring 04 41

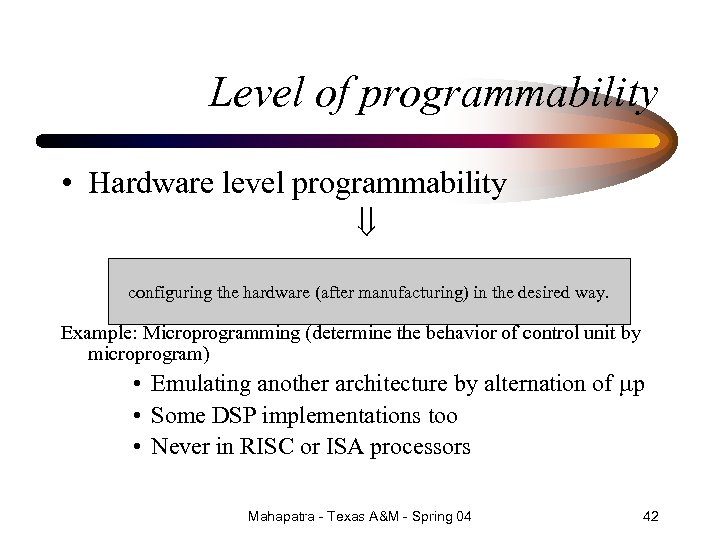

Level of programmability • Hardware level programmability configuring the hardware (after manufacturing) in the desired way. Example: Microprogramming (determine the behavior of control unit by microprogram) • Emulating another architecture by alternation of p • Some DSP implementations too • Never in RISC or ISA processors Mahapatra - Texas A&M - Spring 04 42

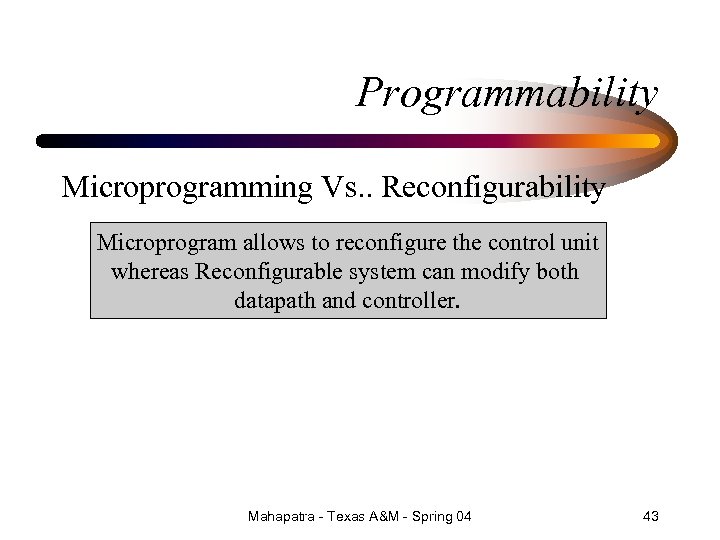

Programmability Microprogramming Vs. . Reconfigurability Microprogram allows to reconfigure the control unit whereas Reconfigurable system can modify both datapath and controller. Mahapatra - Texas A&M - Spring 04 43

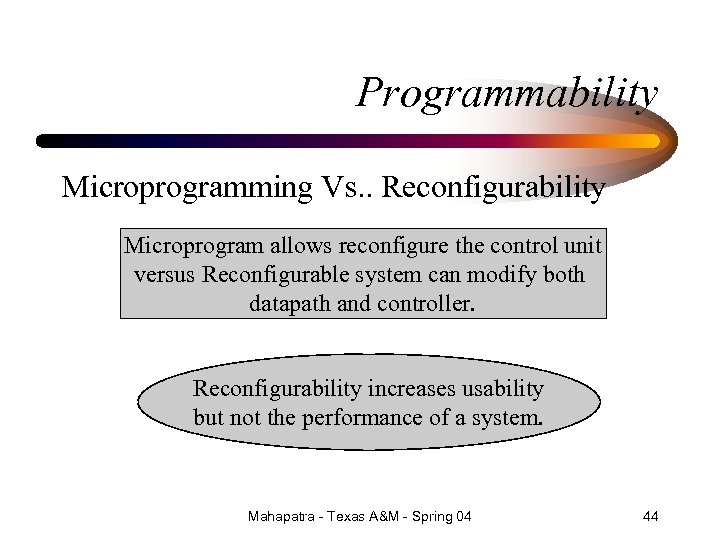

Programmability Microprogramming Vs. . Reconfigurability Microprogram allows reconfigure the control unit versus Reconfigurable system can modify both datapath and controller. Reconfigurability increases usability but not the performance of a system. Mahapatra - Texas A&M - Spring 04 44

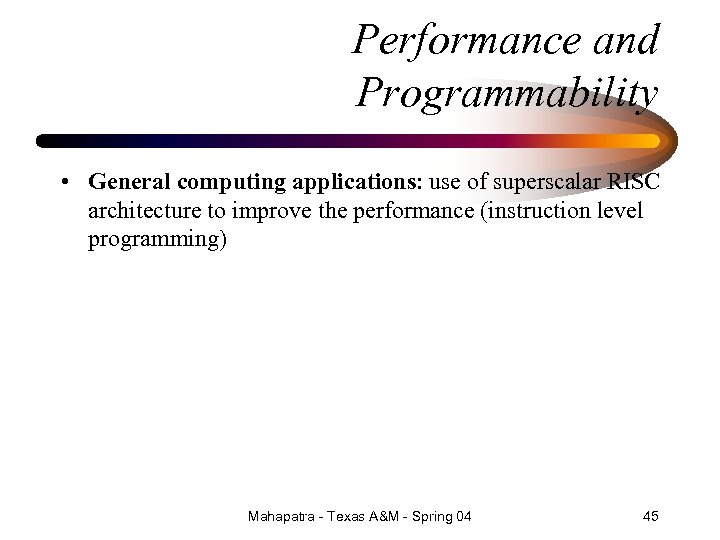

Performance and Programmability • General computing applications: use of superscalar RISC architecture to improve the performance (instruction level programming) Mahapatra - Texas A&M - Spring 04 45

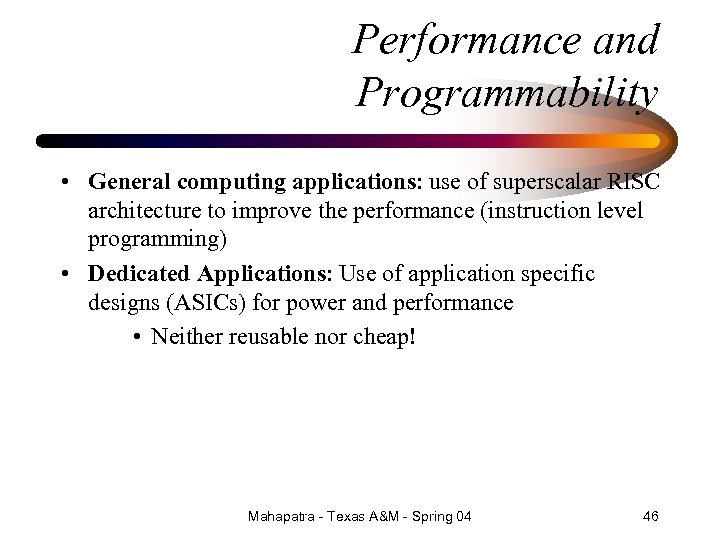

Performance and Programmability • General computing applications: use of superscalar RISC architecture to improve the performance (instruction level programming) • Dedicated Applications: Use of application specific designs (ASICs) for power and performance • Neither reusable nor cheap! Mahapatra - Texas A&M - Spring 04 46

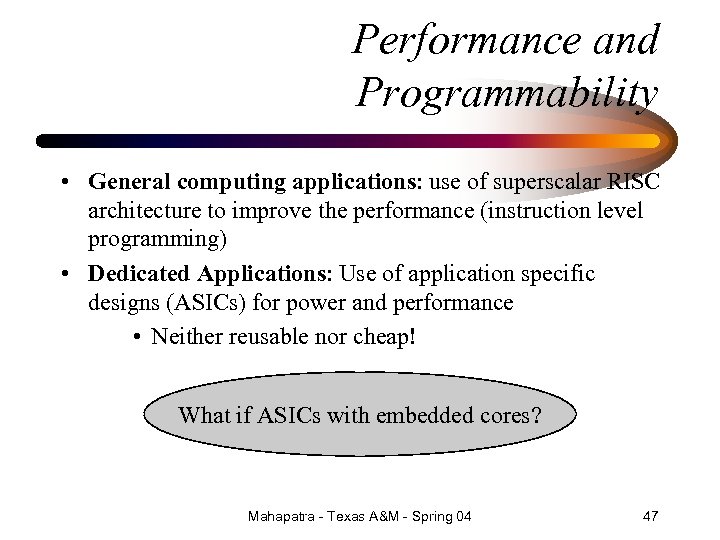

Performance and Programmability • General computing applications: use of superscalar RISC architecture to improve the performance (instruction level programming) • Dedicated Applications: Use of application specific designs (ASICs) for power and performance • Neither reusable nor cheap! What if ASICs with embedded cores? Mahapatra - Texas A&M - Spring 04 47

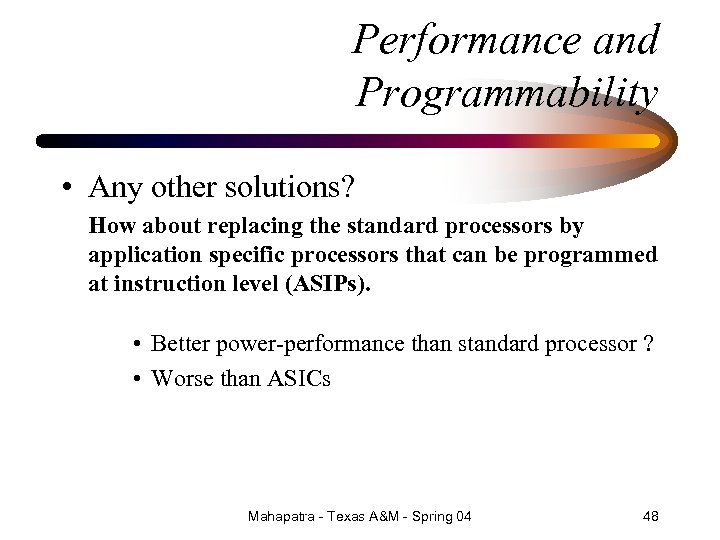

Performance and Programmability • Any other solutions? How about replacing the standard processors by application specific processors that can be programmed at instruction level (ASIPs). • Better power-performance than standard processor ? • Worse than ASICs Mahapatra - Texas A&M - Spring 04 48

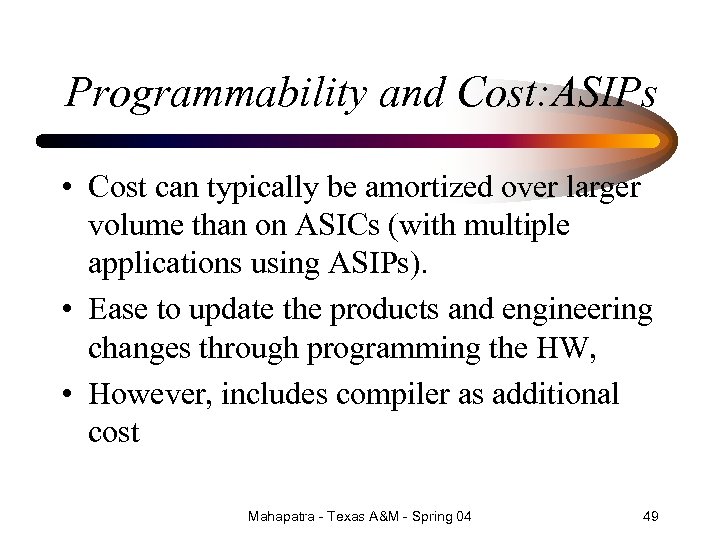

Programmability and Cost: ASIPs • Cost can typically be amortized over larger volume than on ASICs (with multiple applications using ASIPs). • Ease to update the products and engineering changes through programming the HW, • However, includes compiler as additional cost Mahapatra - Texas A&M - Spring 04 49

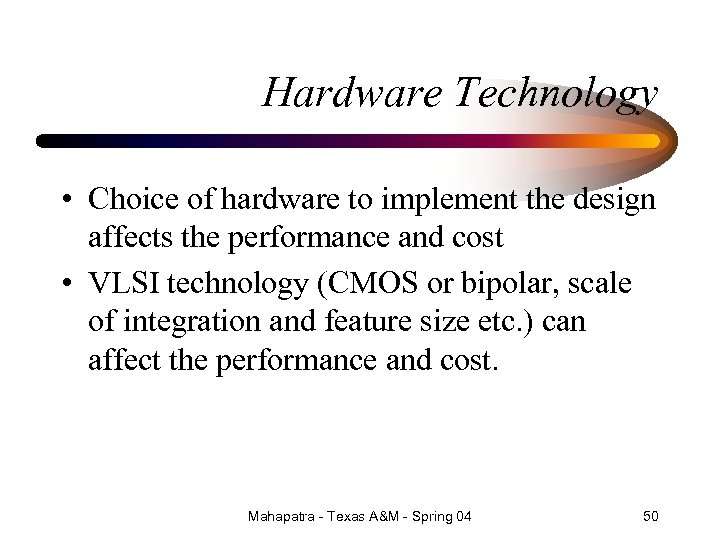

Hardware Technology • Choice of hardware to implement the design affects the performance and cost • VLSI technology (CMOS or bipolar, scale of integration and feature size etc. ) can affect the performance and cost. Mahapatra - Texas A&M - Spring 04 50

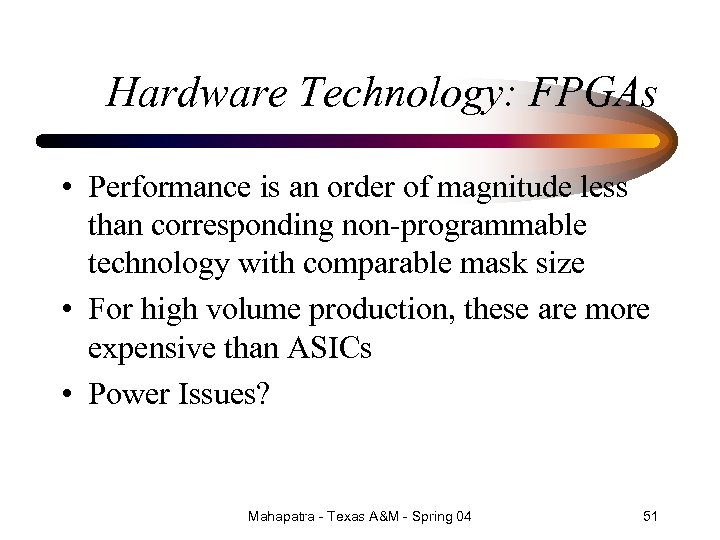

Hardware Technology: FPGAs • Performance is an order of magnitude less than corresponding non-programmable technology with comparable mask size • For high volume production, these are more expensive than ASICs • Power Issues? Mahapatra - Texas A&M - Spring 04 51

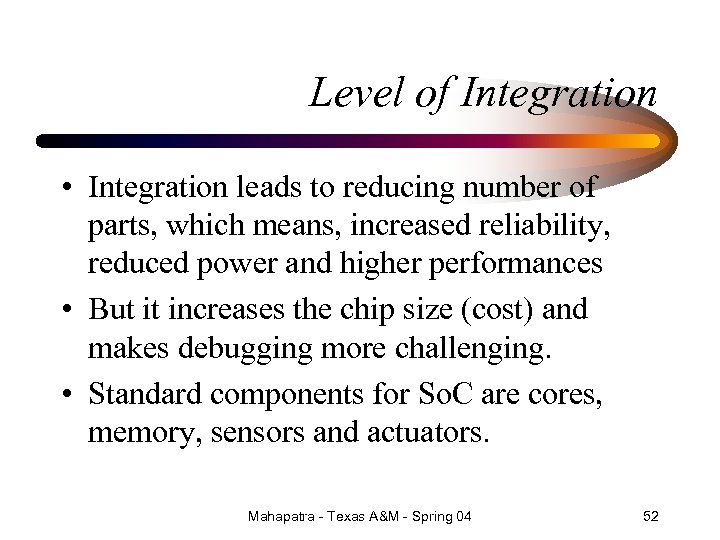

Level of Integration • Integration leads to reducing number of parts, which means, increased reliability, reduced power and higher performances • But it increases the chip size (cost) and makes debugging more challenging. • Standard components for So. C are cores, memory, sensors and actuators. Mahapatra - Texas A&M - Spring 04 52

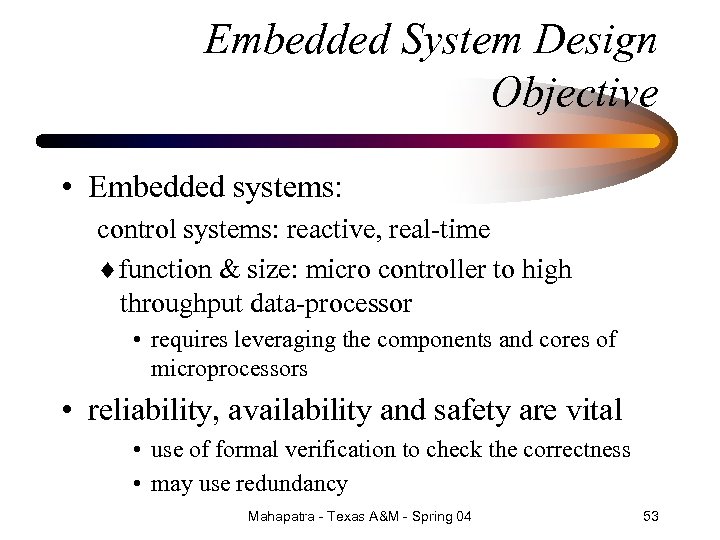

Embedded System Design Objective • Embedded systems: control systems: reactive, real-time function & size: micro controller to high throughput data-processor • requires leveraging the components and cores of microprocessors • reliability, availability and safety are vital • use of formal verification to check the correctness • may use redundancy Mahapatra - Texas A&M - Spring 04 53

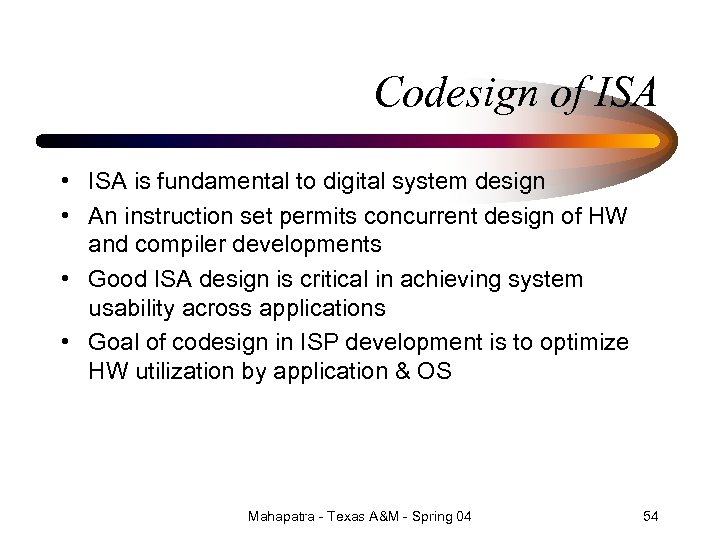

Codesign of ISA • ISA is fundamental to digital system design • An instruction set permits concurrent design of HW and compiler developments • Good ISA design is critical in achieving system usability across applications • Goal of codesign in ISP development is to optimize HW utilization by application & OS Mahapatra - Texas A&M - Spring 04 54

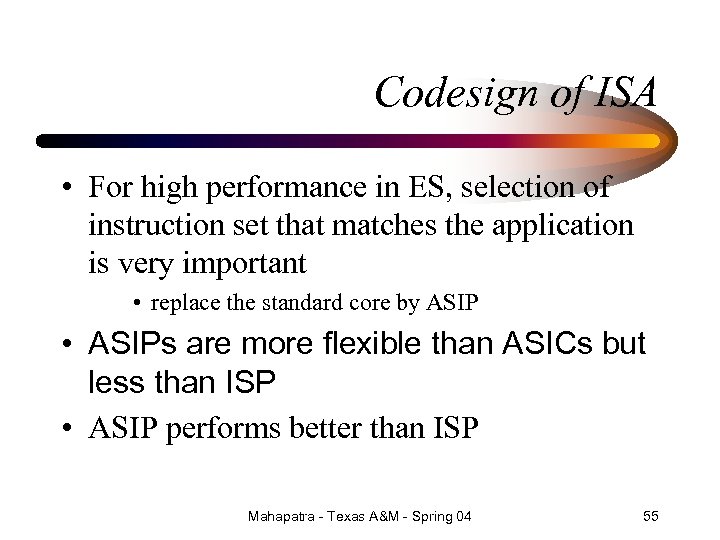

Codesign of ISA • For high performance in ES, selection of instruction set that matches the application is very important • replace the standard core by ASIP • ASIPs are more flexible than ASICs but less than ISP • ASIP performs better than ISP Mahapatra - Texas A&M - Spring 04 55

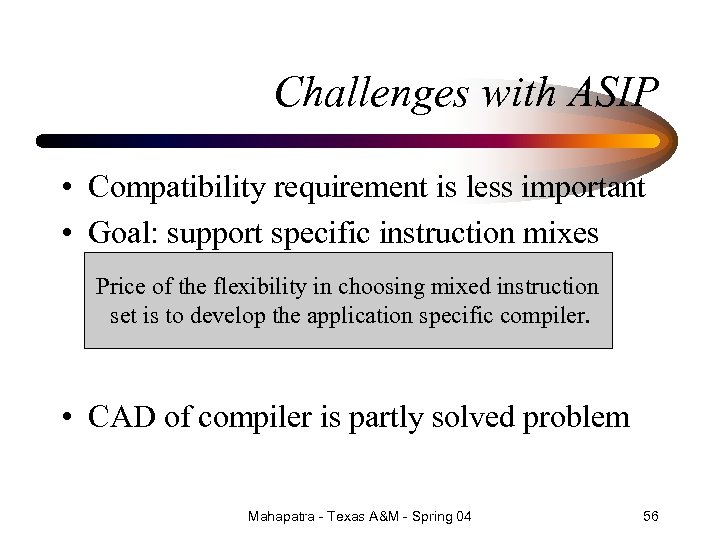

Challenges with ASIP • Compatibility requirement is less important • Goal: support specific instruction mixes Price of the flexibility in choosing mixed instruction set is to develop the application specific compiler. • CAD of compiler is partly solved problem Mahapatra - Texas A&M - Spring 04 56

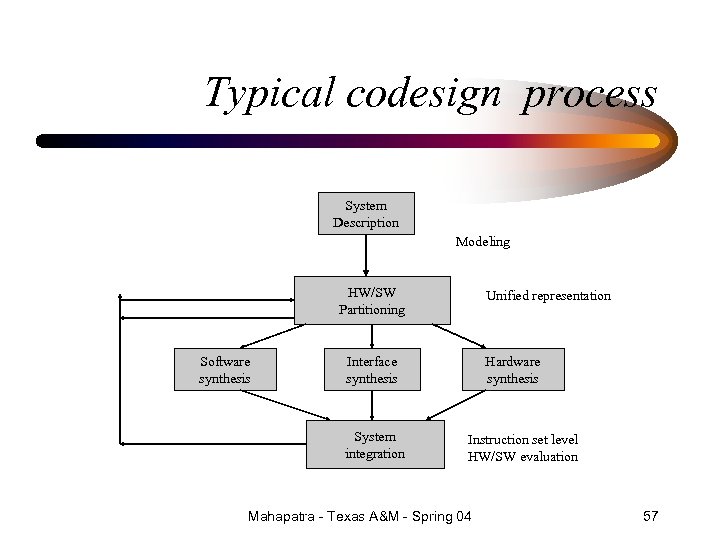

Typical codesign process System Description Modeling HW/SW Partitioning Software synthesis Unified representation Interface synthesis System integration Hardware synthesis Instruction set level HW/SW evaluation Mahapatra - Texas A&M - Spring 04 57

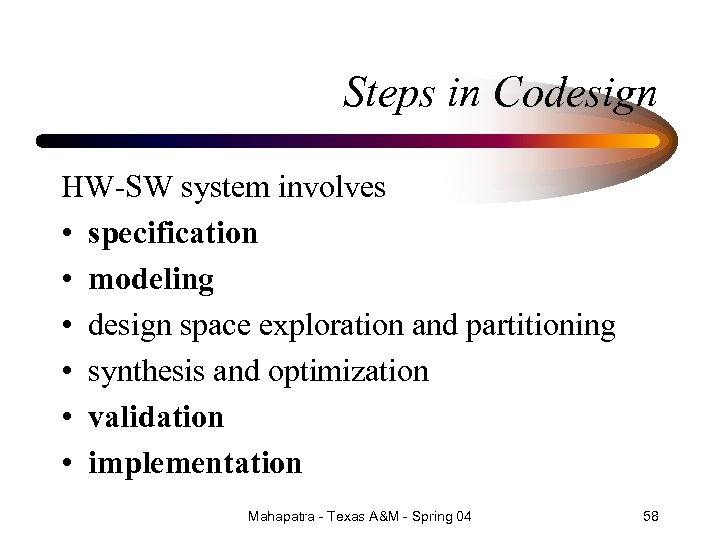

Steps in Codesign HW-SW system involves • specification • modeling • design space exploration and partitioning • synthesis and optimization • validation • implementation Mahapatra - Texas A&M - Spring 04 58
Steps in codesign Specification • List the functions of a system that describe the behavior of an abstraction clearly without ambiguity. Modeling: • Process of conceptualizing and refining the specifications, and producing a hardware and software model. Mahapatra - Texas A&M - Spring 04 59

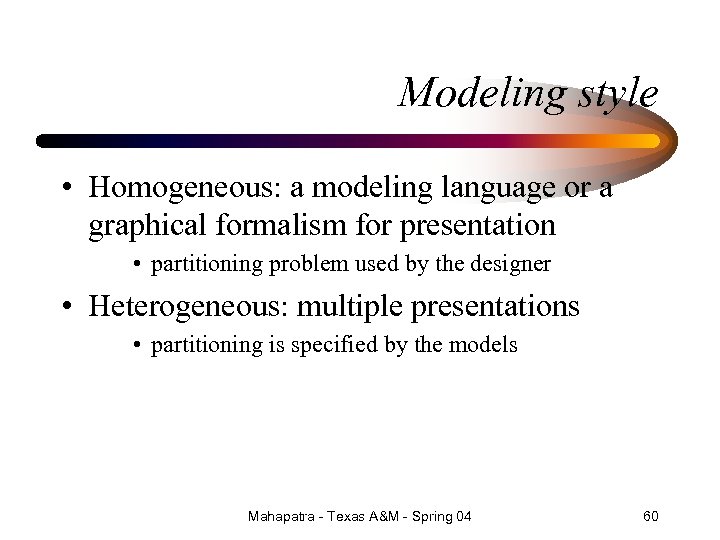

Modeling style • Homogeneous: a modeling language or a graphical formalism for presentation • partitioning problem used by the designer • Heterogeneous: multiple presentations • partitioning is specified by the models Mahapatra - Texas A&M - Spring 04 60

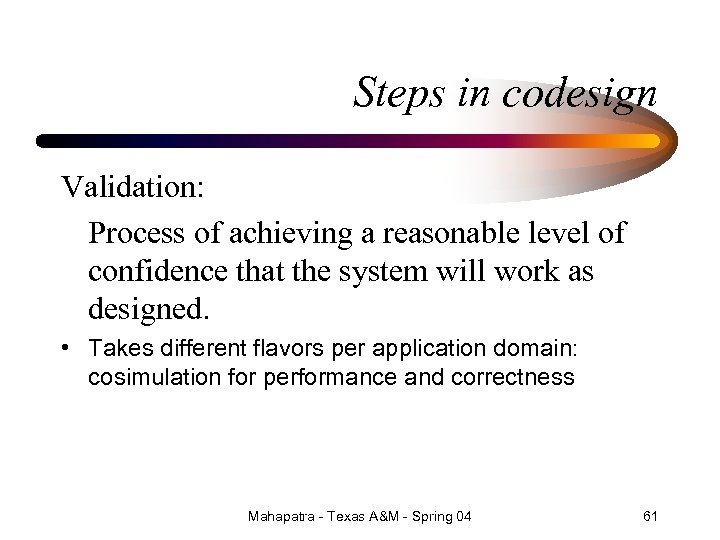

Steps in codesign Validation: Process of achieving a reasonable level of confidence that the system will work as designed. • Takes different flavors per application domain: cosimulation for performance and correctness Mahapatra - Texas A&M - Spring 04 61

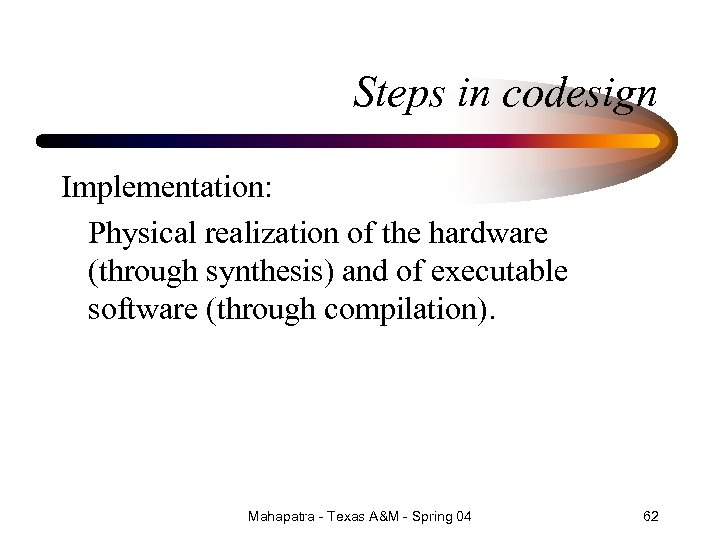

Steps in codesign Implementation: Physical realization of the hardware (through synthesis) and of executable software (through compilation). Mahapatra - Texas A&M - Spring 04 62

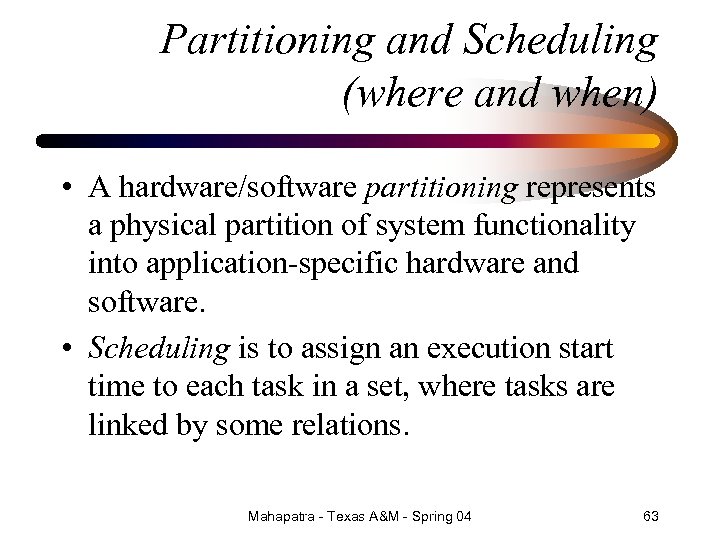

Partitioning and Scheduling (where and when) • A hardware/software partitioning represents a physical partition of system functionality into application-specific hardware and software. • Scheduling is to assign an execution start time to each task in a set, where tasks are linked by some relations. Mahapatra - Texas A&M - Spring 04 63

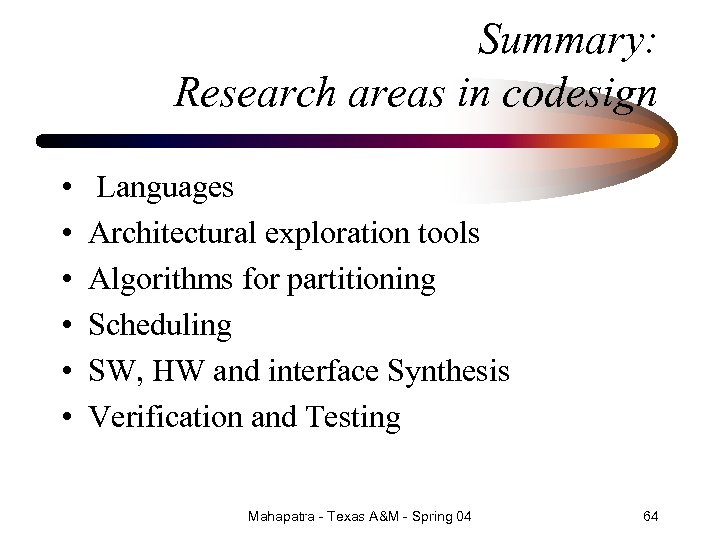

Summary: Research areas in codesign • • • Languages Architectural exploration tools Algorithms for partitioning Scheduling SW, HW and interface Synthesis Verification and Testing Mahapatra - Texas A&M - Spring 04 64
