HAPPY Industrial Corporation Introduction of History and

HAPPY Industrial Corporation

Introduction of History and Happy Group

History of 89 years History

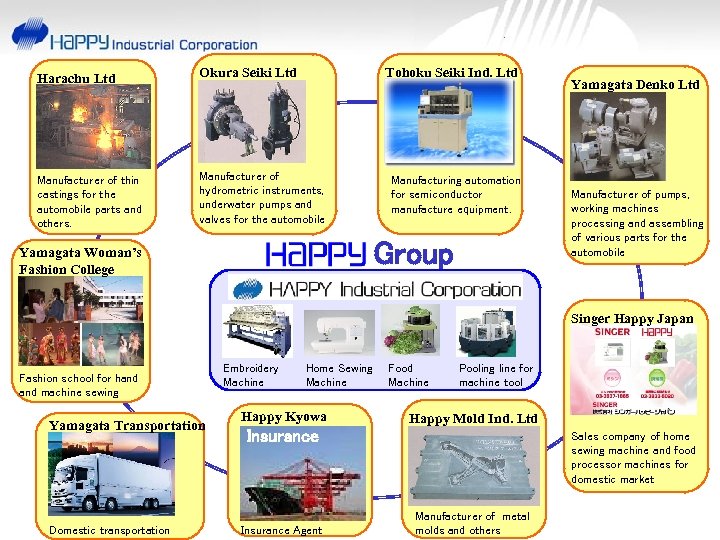

HAPPY Group Harachu Ltd Manufacturer of thin castings for the automobile parts and others. Okura Seiki Ltd Tohoku Seiki Ind. Ltd Manufacturer of hydrometric instruments, underwater pumps and valves for the automobile Manufacturing automation for semiconductor manufacture equipment. Group Yamagata Woman’s Fashion College Yamagata Denko Ltd Manufacturer of pumps, working machines processing and assembling of various parts for the automobile Singer Happy Japan Fashion school for hand machine sewing Yamagata Transportation Domestic transportation Embroidery Machine Home Sewing Machine Happy Kyowa Food Machine Pooling line for machine tool Happy Mold Ind. Ltd Insurance Agent Sales company of home sewing machine and food processor machines for domestic market Manufacturer of metal molds and others

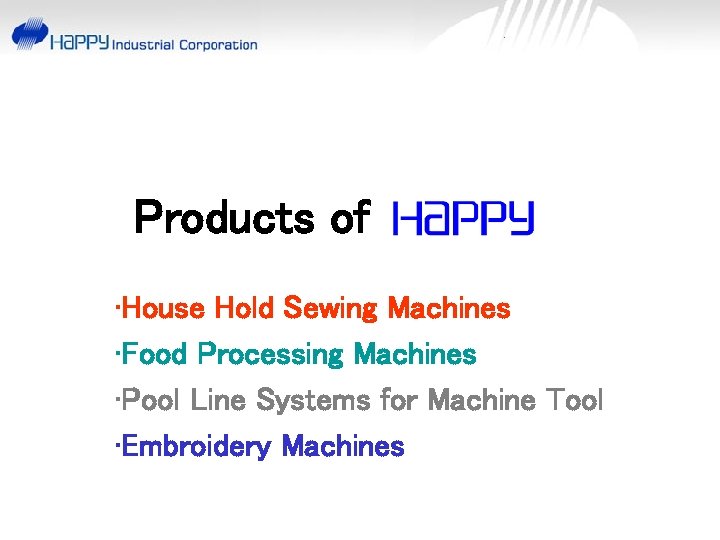

Products of • House Hold Sewing Machines • Food Processing Machines • Pool Line Systems for Machine Tool • Embroidery Machines

Embroidery Machines HCS series Compact Single Head Machine for Shops and Professional use HCD series Single Head Machine for Industrial use HCR series 2 - 8 Heads Machine for Industrial use

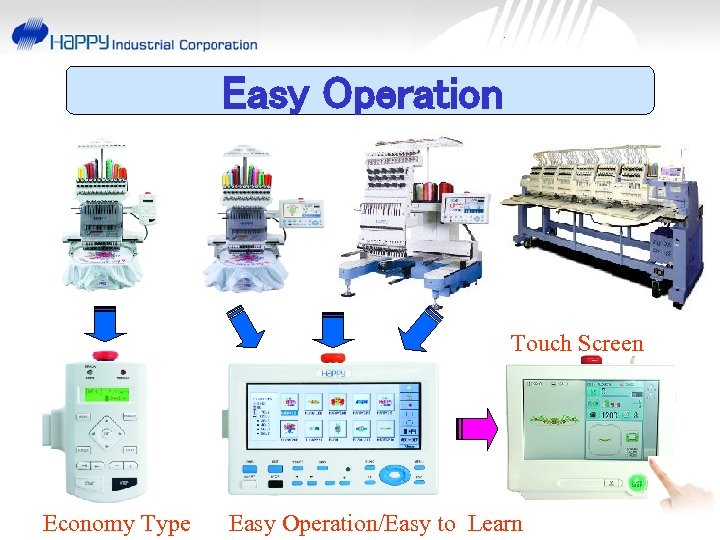

Easy Operation Touch Screen Economy Type Easy Operation/Easy to Learn

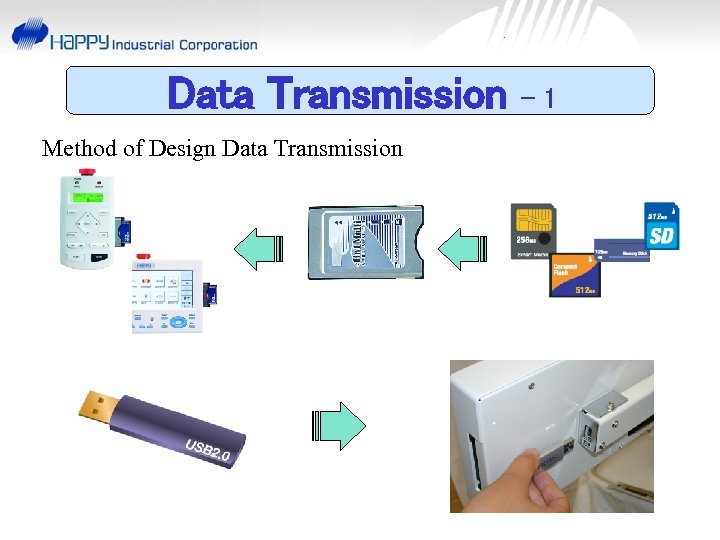

Data Transmission Method of Design Data Transmission -1

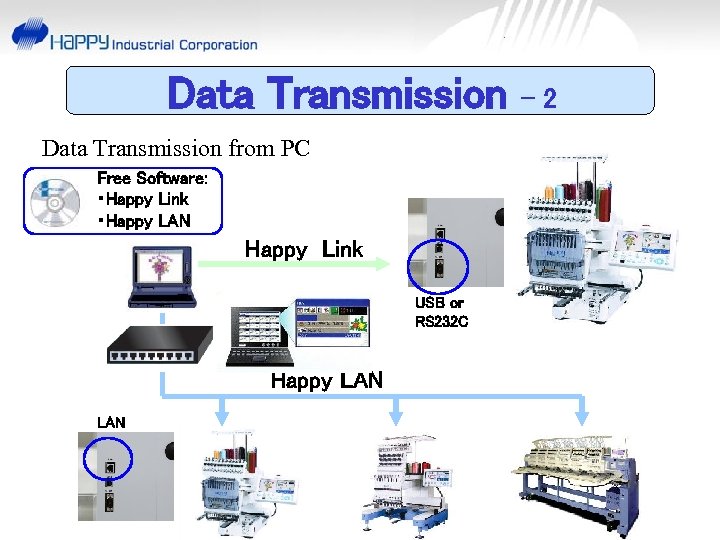

Data Transmission from PC Free Software: ・Happy Link ・Happy LAN Happy Link USB or RS 232 C Happy LAN -2

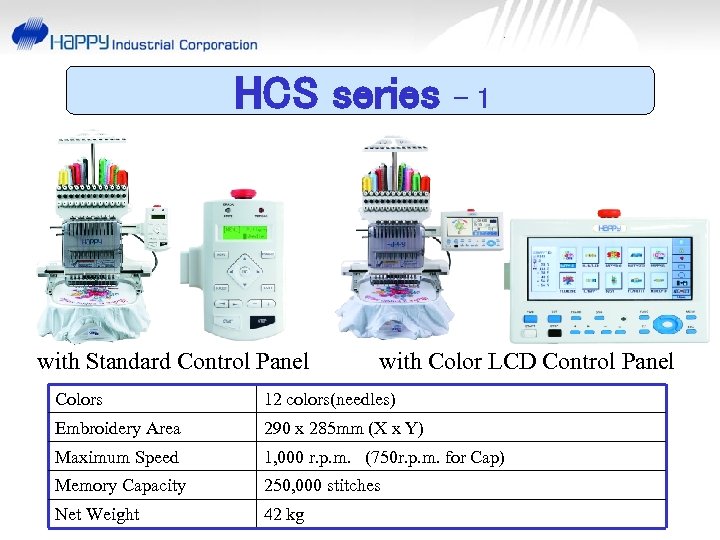

HCS series with Standard Control Panel -1 with Color LCD Control Panel Colors 12 colors(needles) Embroidery Area 290 x 285 mm (X x Y) Maximum Speed 1, 000 r. p. m. (750 r. p. m. for Cap) Memory Capacity 250, 000 stitches Net Weight 42 kg

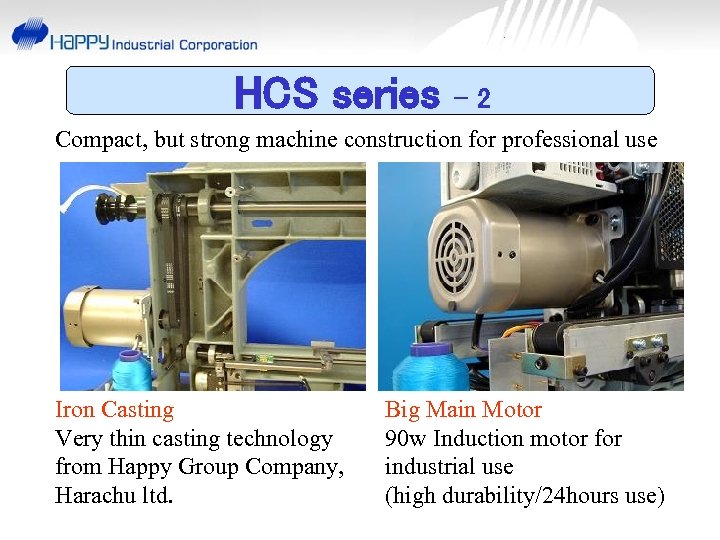

HCS series -2 Compact, but strong machine construction for professional use Iron Casting Very thin casting technology from Happy Group Company, Harachu ltd. Big Main Motor 90 w Induction motor for industrial use (high durability/24 hours use)

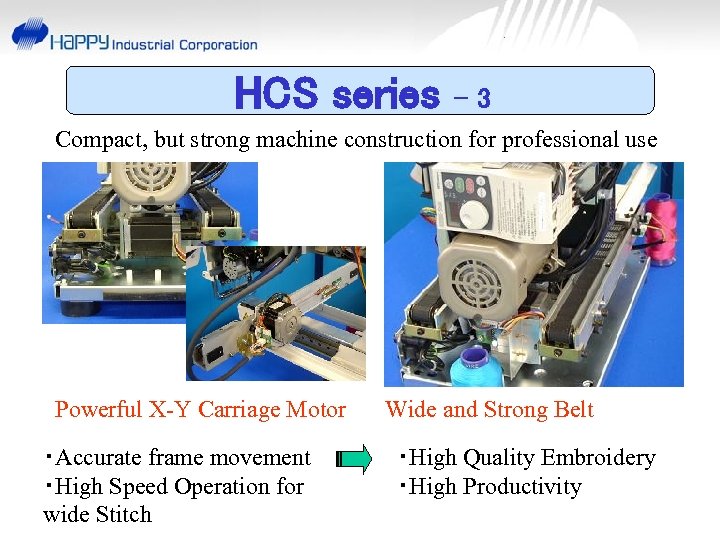

HCS series -3 Compact, but strong machine construction for professional use Powerful X-Y Carriage Motor ・Accurate frame movement ・High Speed Operation for 　 wide Stitch Wide and Strong Belt ・High Quality Embroidery ・High Productivity

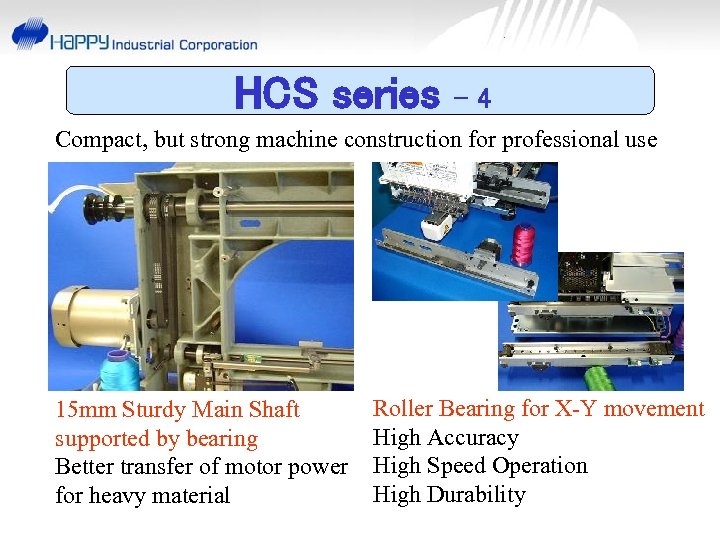

HCS series -4 Compact, but strong machine construction for professional use 15 mm Sturdy Main Shaft supported by bearing Better transfer of motor power for heavy material Roller Bearing for X-Y movement High Accuracy High Speed Operation High Durability

HCS series -5

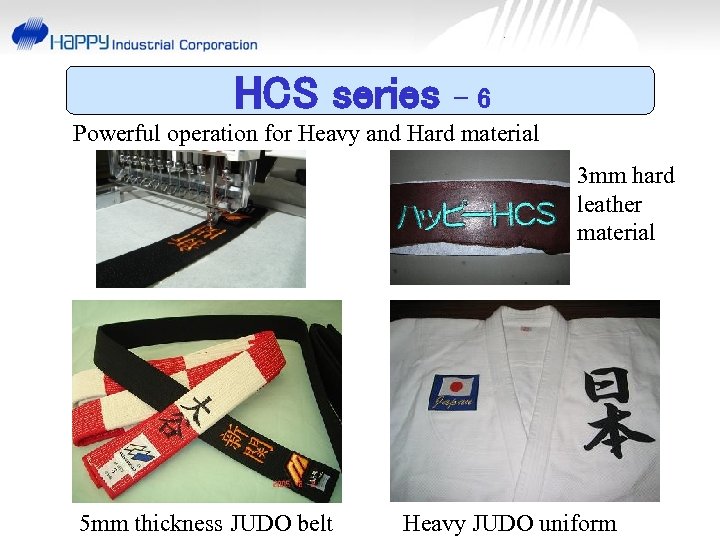

HCS series -6 Powerful operation for Heavy and Hard material 3 mm hard leather material 5 mm thickness JUDO belt Heavy JUDO uniform

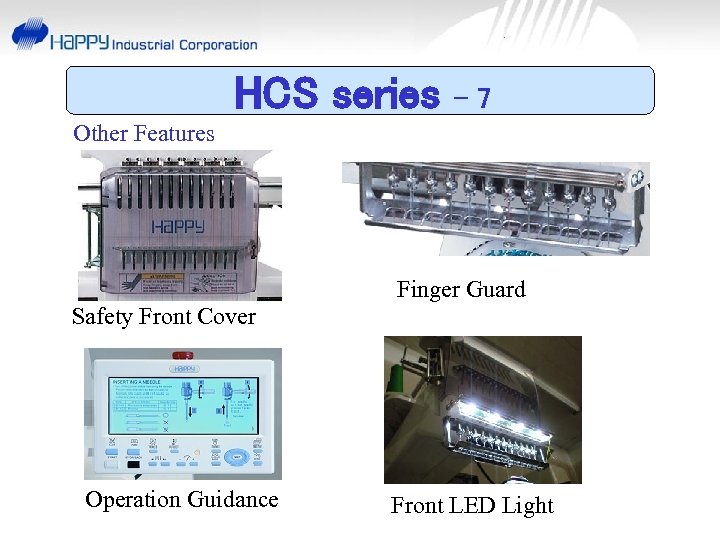

HCS series -7 Other Features Finger Guard Safety Front Cover Operation Guidance Front LED Light

HCS series -8 Other Features Automatic Thread Break Detection Automatic Cap Detection Narrow Cylinder Bed

HCD series HCD-1501 -40 -1 HCD-X 1501 -40 Colors 15 colors(needles) Embroidery Area (Xx. Y) 400 x 520 mm / 400 x 1, 200 mm Maximum Speed 1, 200 rpm /1, 000 rpm ( for Cap 1, 000 rpm / 850 rpm) Memory Capacity 1, 000 stitches (up to 2, 000 stitches) Net Weight 106 kg / 109 kg

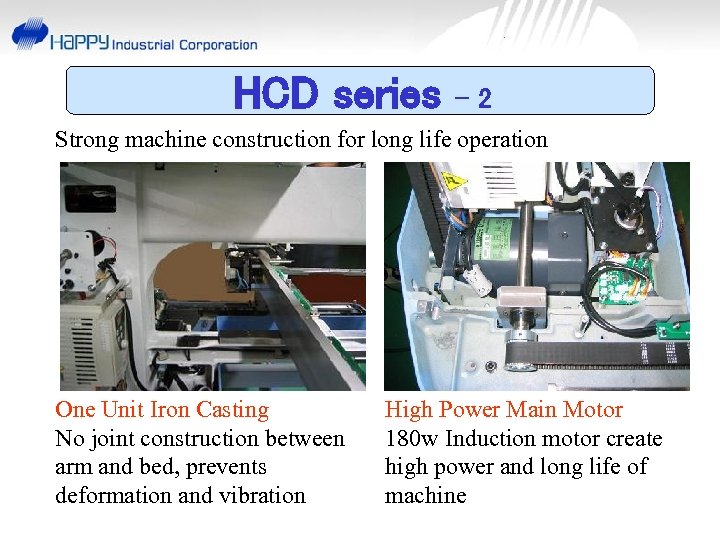

HCD series -2 Strong machine construction for long life operation One Unit Iron Casting No joint construction between arm and bed, prevents deformation and vibration High Power Main Motor 180 w Induction motor create high power and long life of machine

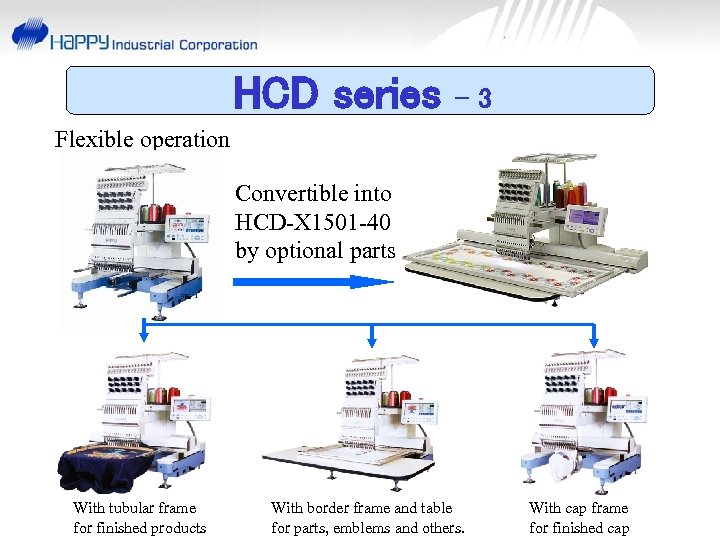

HCD series -3 Flexible operation Convertible into HCD-X 1501 -40 by optional parts With tubular frame for finished products With border frame and table for parts, emblems and others. With cap frame for finished cap

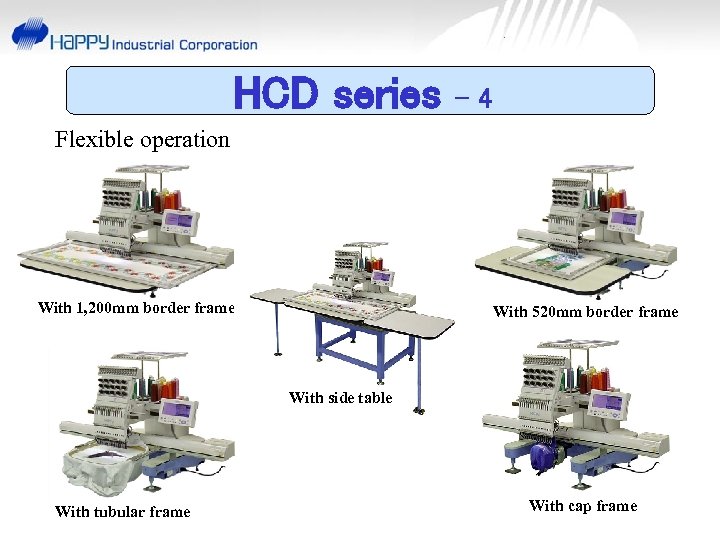

HCD series -4 Flexible operation With 1, 200 mm border frame With 520 mm border frame With side table With tubular frame With cap frame

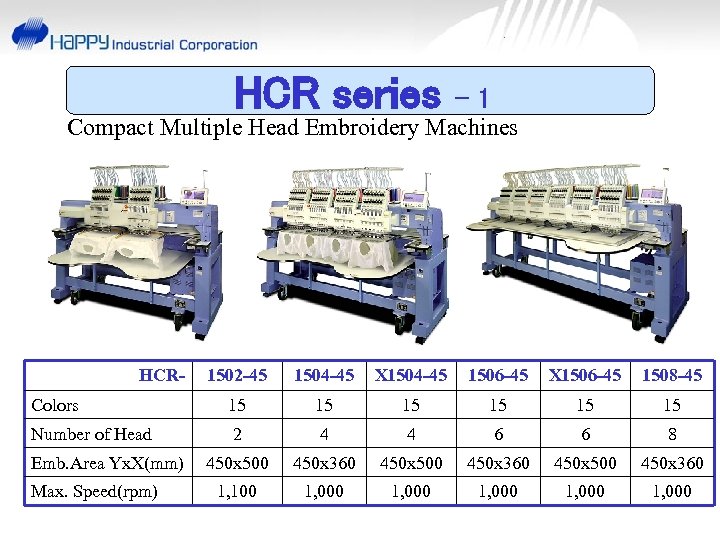

HCR series -1 Compact Multiple Head Embroidery Machines HCR- 1502 -45 1504 -45 X 1504 -45 1506 -45 X 1506 -45 1508 -45 Colors 15 15 15 Number of Head 2 4 4 6 6 8 450 x 500 450 x 360 1, 100 1, 000 1, 000 Emb. Area Yx. X(mm) Max. Speed(rpm)

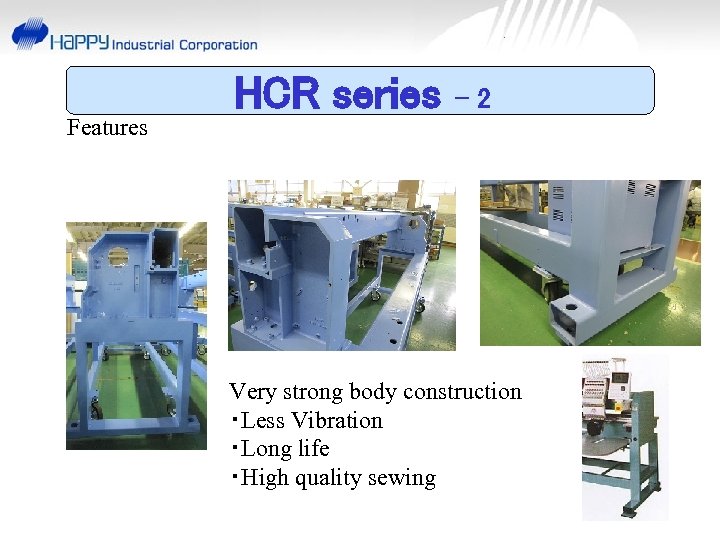

Features HCR series -2 Very strong body construction ・Less Vibration ・Long life ・High quality sewing

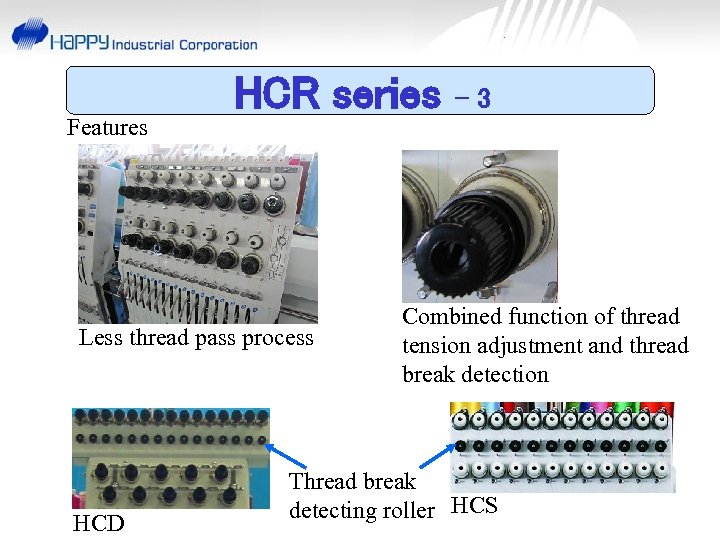

Features HCR series Less thread pass process HCD -3 Combined function of thread tension adjustment and thread break detection Thread break detecting roller HCS

Features HCR series Emergency stop switches and Machine operation buttons are located at several position -4 Operator can operate machine at any position

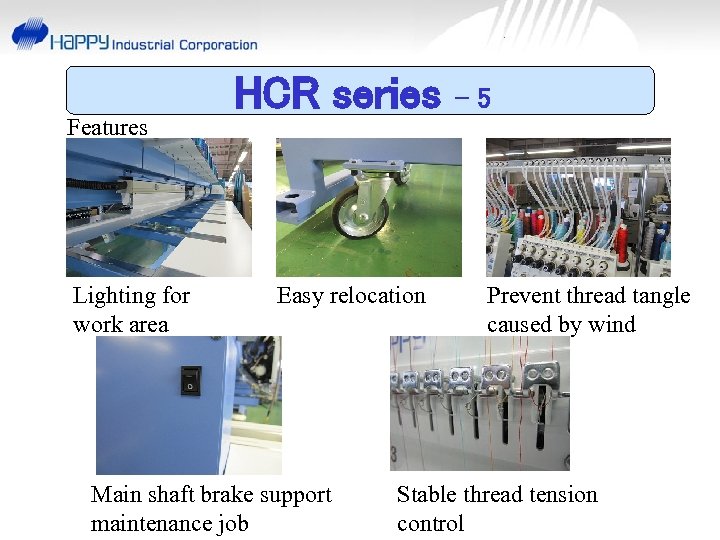

Features Lighting for work area HCR series Easy relocation Main shaft brake support maintenance job -5 Prevent thread tangle caused by wind Stable thread tension control

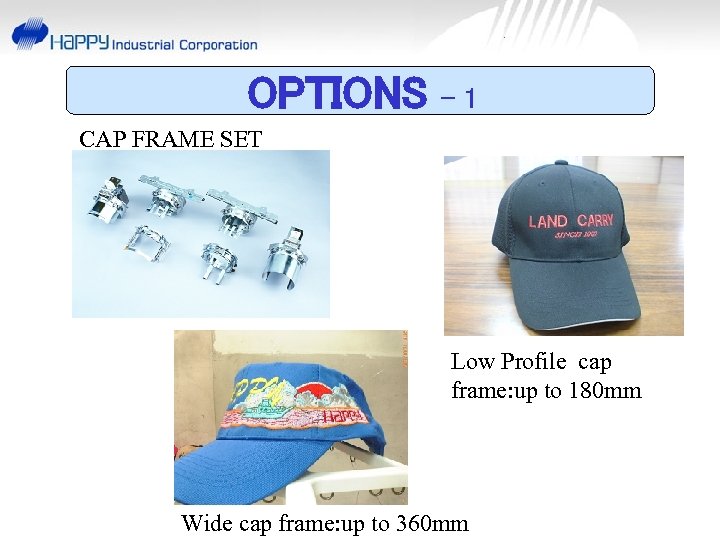

OPTIONS -1 CAP FRAME SET Low Profile cap frame: up to 180 mm Wide cap frame: up to 360 mm

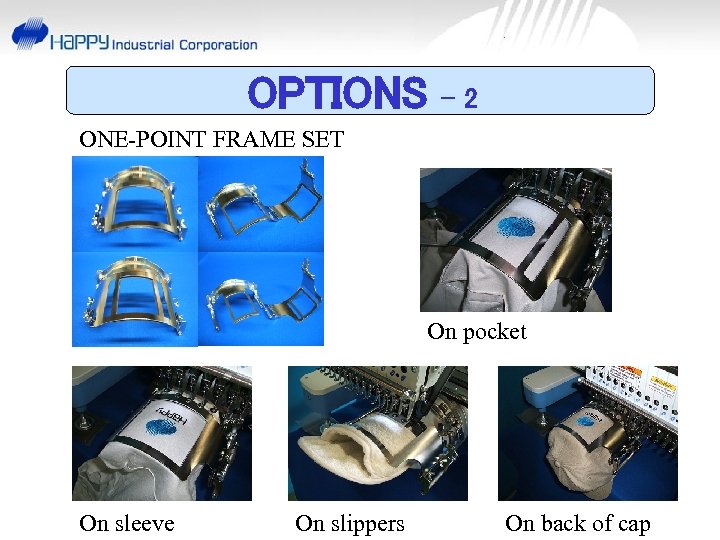

OPTIONS -2 ONE-POINT FRAME SET On pocket On sleeve On slippers On back of cap

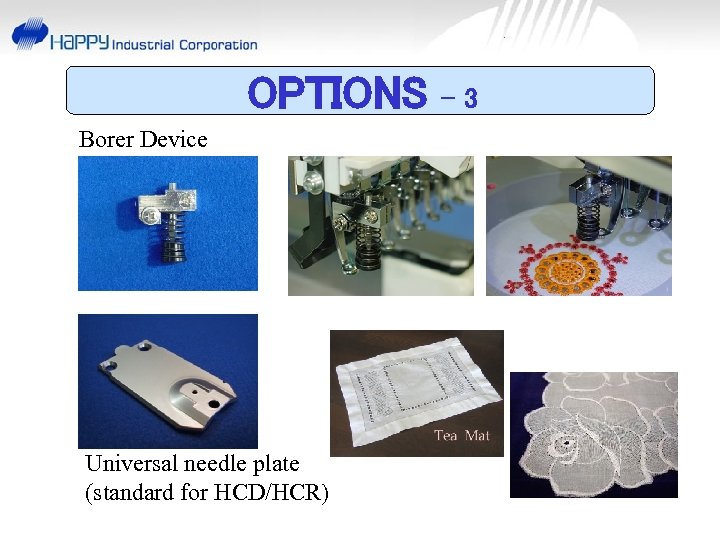

OPTIONS Borer Device Universal needle plate (standard for HCD/HCR) -3

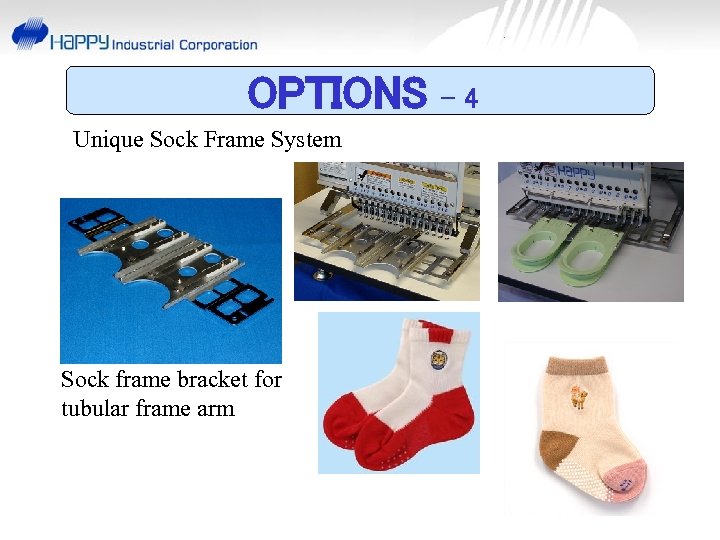

OPTIONS Unique Sock Frame System Sock frame bracket for tubular frame arm -4

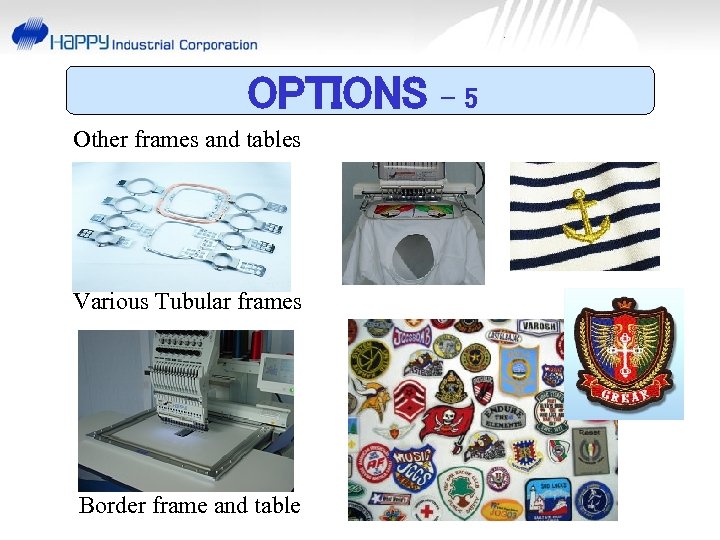

OPTIONS Other frames and tables Various Tubular frames Border frame and table -5

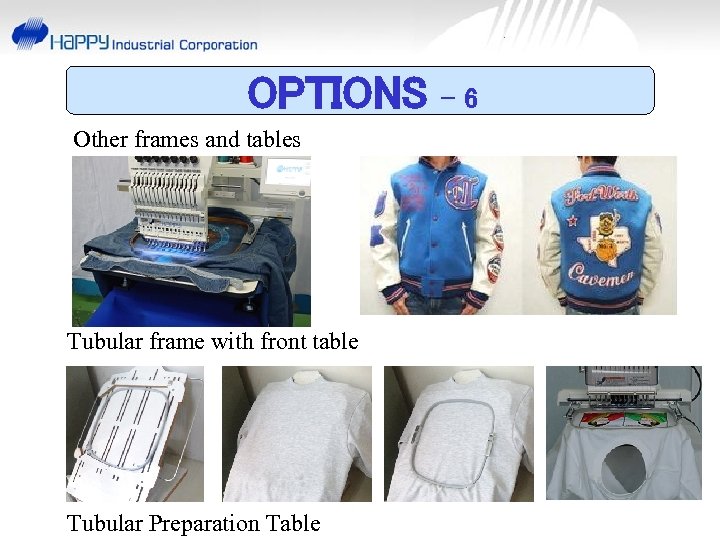

OPTIONS Other frames and tables Tubular frame with front table Tubular Preparation Table -6

Thank you very much !!
